Alcatel USA 9558H MPT-HL Packet Terminal User Manual pi01
Alcatel USA Marketing, Inc. MPT-HL Packet Terminal pi01
User Manual
9500 MPR
Product Information
PN 3EM23952AA 01
R02.00, Issue 01, September 2009
© Alcatel-Lucent 2009 - All Rights Reserved
Printed in U.S.A.
THIS PRODUCT COMPLIES WITH D.H.H.S. RADIATION PERFORMANCE STANDARDS 21
CFR, 1040.10, FOR A CLASS 1 LASER PRODUCT.
DANGER
Invisible laser radiation is present when the optic connector is open. AVOID DIRECT
EXPOSURE TO BEAM.
WARNING
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case users will be required to correct the
interference at their own expense.
NOTICE
This manual applies to 9500 MPR R02.00 software. Release notes describing revisions to this software may
impact operations described in this manual.
This transfer of commodities, technology, or software, if from the United States, is an export in accordance
with the U.S. Export Administration Regulations. Diversion contrary to U.S. law is prohibited. The export or
re-export (further transfer) of such commodities, technology, software or products made from such
technology is prohibited without proper authorization(s) from the U.S. Department of Commerce or other
appropriate U.S. government agency(s).
All rights reserved. No part of this manual may be reproduced, translated, stored in a retrieval system, or
transmitted or distributed by any means, electronic or mechanical, by photocopying, recording, or otherwise,
without the written permission of Alcatel-Lucent. Preparing derivative works or providing instruction based
on the material is prohibited unless agreed to in writing by Alcatel-Lucent.
The product specification and/or performance levels contained in this document are for information
purposes only and are subject to change without notice. They do not represent any obligation on the part of
Alcatel-Lucent. Such obligations will only be committed to in a written sales agreement signed by
Alcatel-Lucent.
DOCUMENTATION
Product documentation is available on Alcatel-Lucent’s OnLine Customer Support web site at
https://support.alcatel-lucent.com/portal/olcsHome.do.
To offer comments on this documentation, visit Alcatel-Lucent’s OnLine Customer Support web site at
https://support.alcatel-lucent.com/portal/olcsHome.do and select Contact us, Customer support, and then
OnLine Assistance or write to the following address.
Alcatel-Lucent
Attention: Doc Comment, M/S RND-1
3400 W. Plano Pkwy.
Plano, Texas 75075-0811 USA
3EM23952AA
Issue 01, September 2009
© Alcatel-Lucent 2009 - All Rights Reserved i
ALCATEL-LUCENT PRACTICE
Standard
9500 MPR Product Information
Table of Contents
FCC Part 15 Subpart B
1. 9500 MPR UNLICENSED RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
FCC Class B Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
FCC Class B Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
9500 MPR General System Description
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
FCC Part 15 Subpart B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2. FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
3. UNIT DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Unit Data Sheets (UDSs)
UDS-100 9500 MPR Unit Data Sheet Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
UDS-101 MSS-8 Microwave Service Switch Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
UDS-102 MPT-HL Microwave Packet Transport-Long Haul Shelf . . . . . . . . . . . . . . . . . . . . . . . 3-15
UDS-104 PDU Power Distribution Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
UDS-106 DS1 RJ-45 Patch Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
UDS-107 DS1 D-Connector Patch Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
UDS-109 CSM-E Enhanced Control and Switching Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
UDS-110 Fan Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
UDS-113 P32E1DS1 DS1 PDH Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
UDS-114 P2E3DS3 DS3 PDH Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
UDS-115 P8ETH Ethernet Access Switch Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
UDS-116 MPT Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
3EM23952AA
Issue 01, September 2009
List of Figures iii
9500 MPR Product Information
List of Figures
Figure 2-1. Frequency Plan: 5.725 to 5.850 GHz Unlicensed Band (FCC Part 15) . . . . . . . . . . . . 2-13

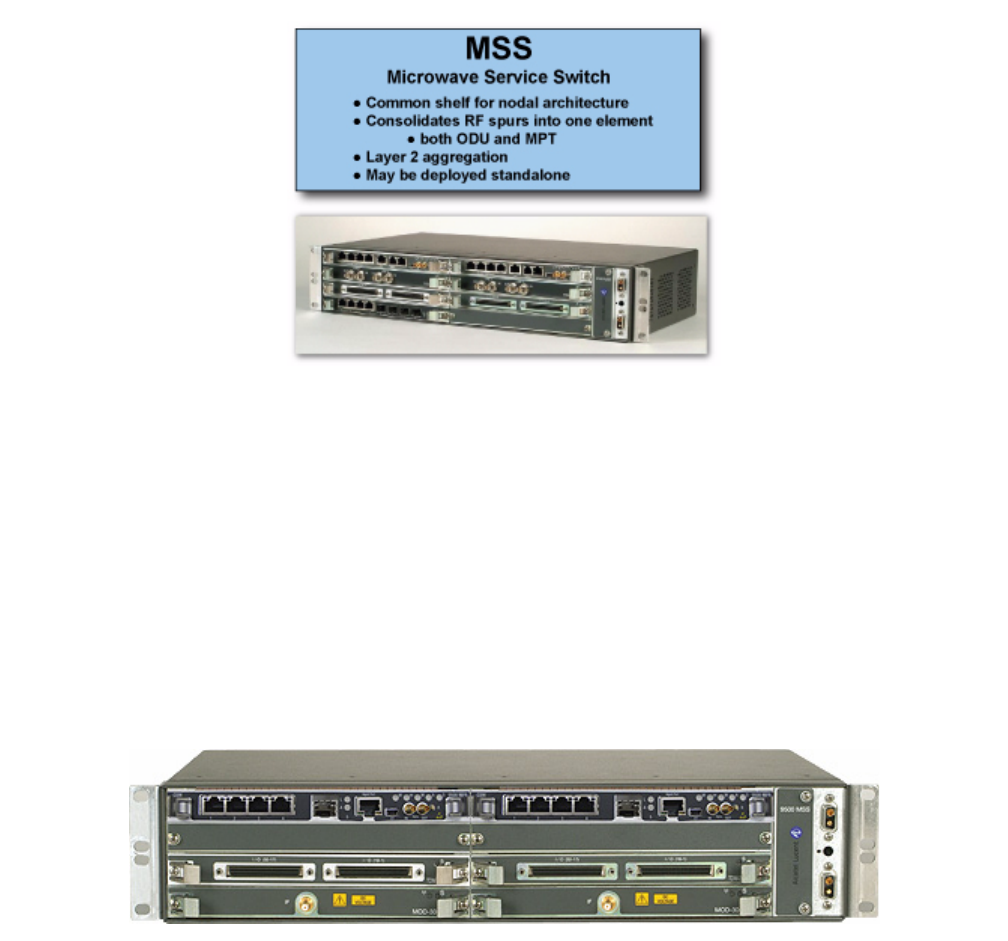

Figure 2-2. Stand-Alone Microwave Service Switch (MSS-8) shelf . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Figure 2-3. All Indoor Mount - 1+0 Terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

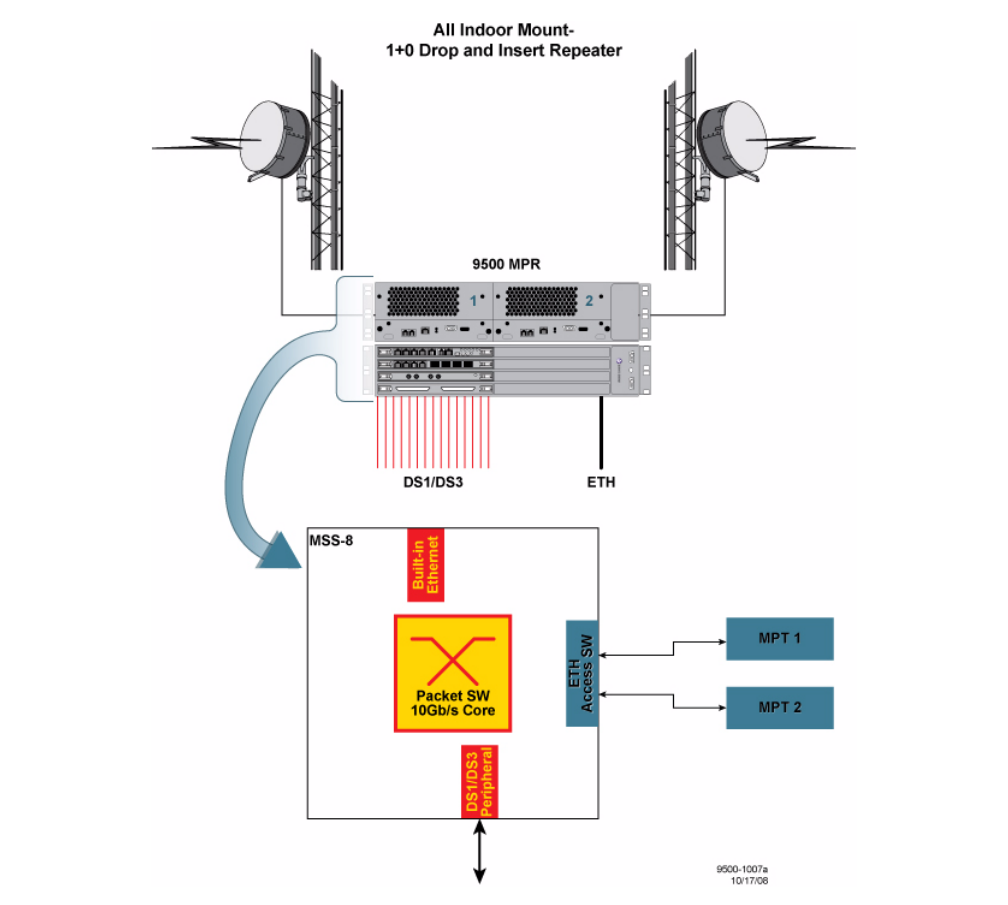

Figure 2-4. All Indoor Mount - 1+0 Drop and Insert Repeater . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

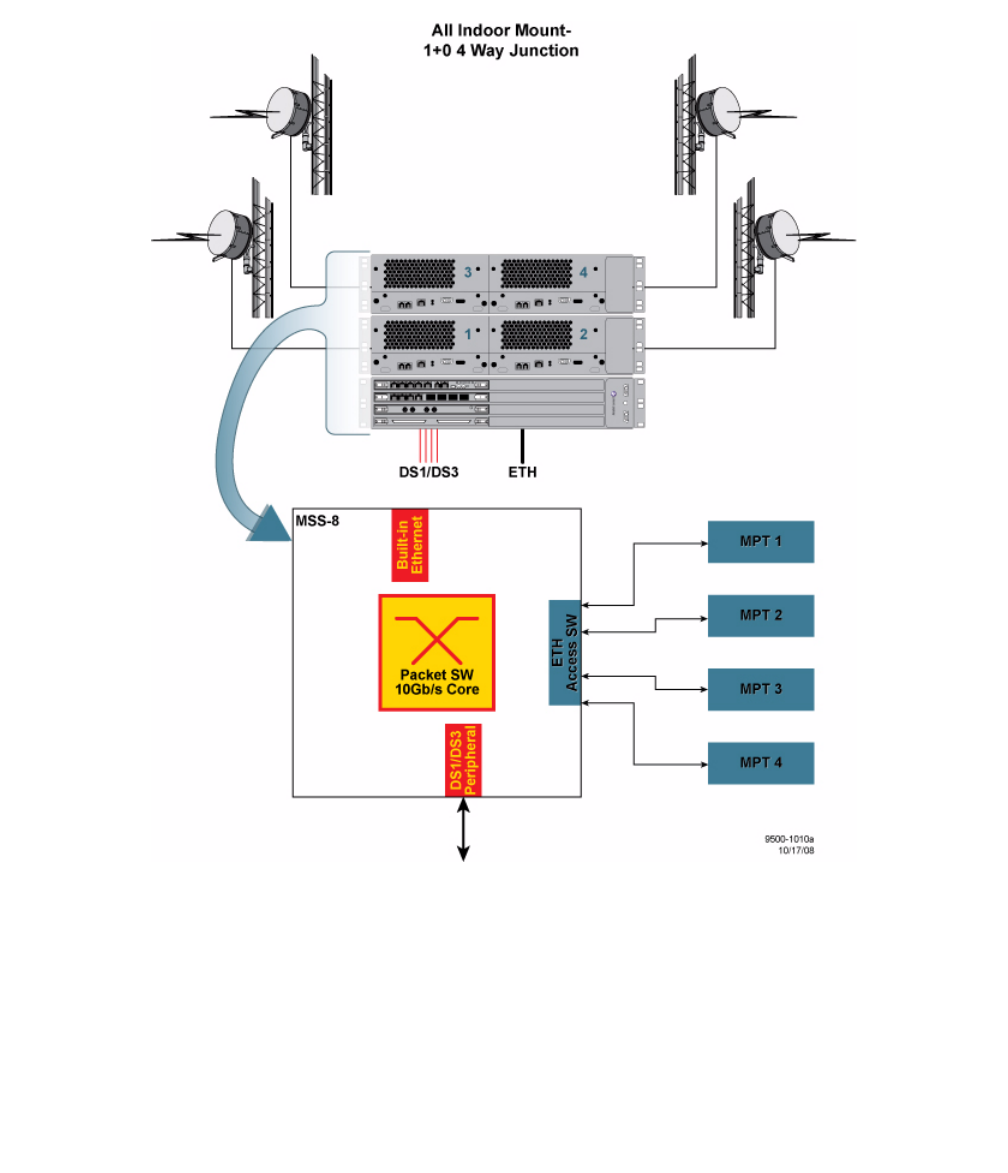

Figure 2-5. All Indoor Mount - 1+0 4-Way Junction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Figure 2-6. All Indoor Mount - 1+0 8-Way Nodal Junction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Figure 2-7. All Indoor Mount - 1+0 Terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

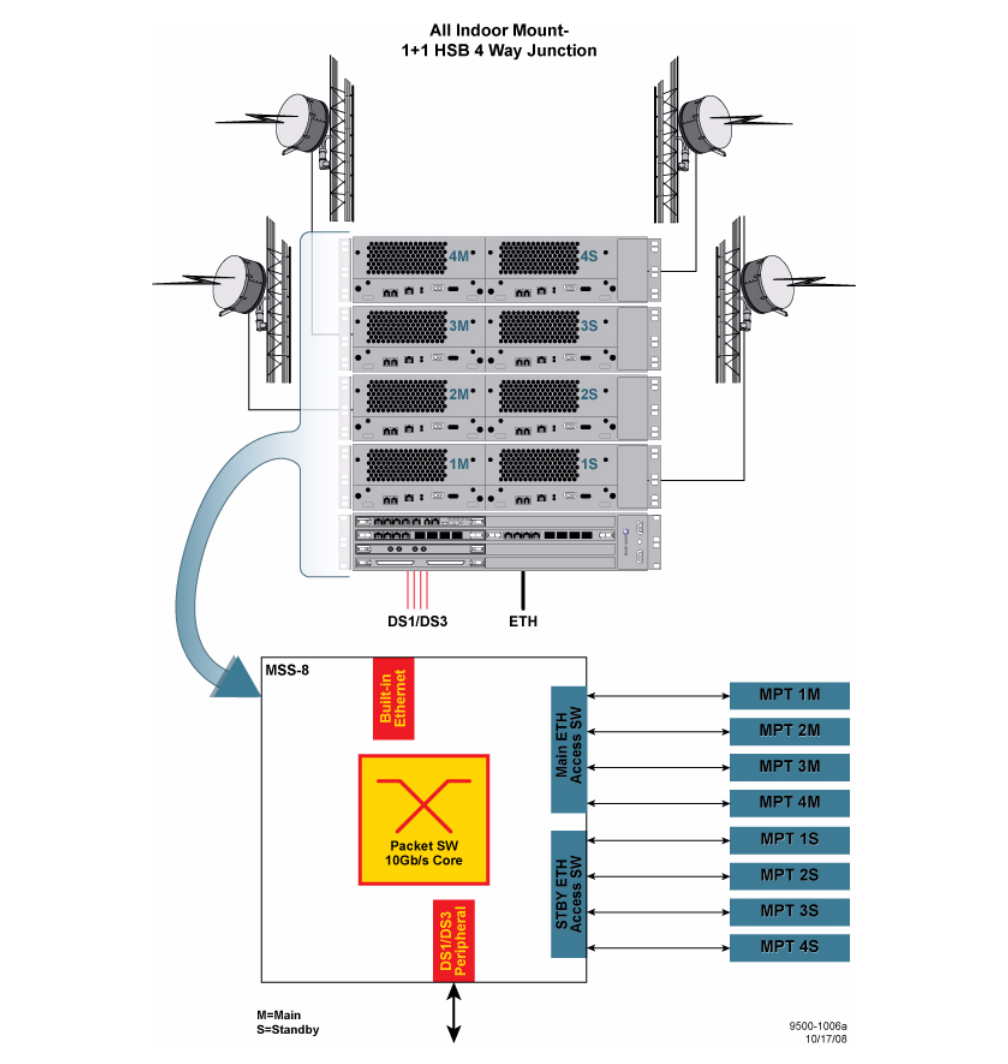

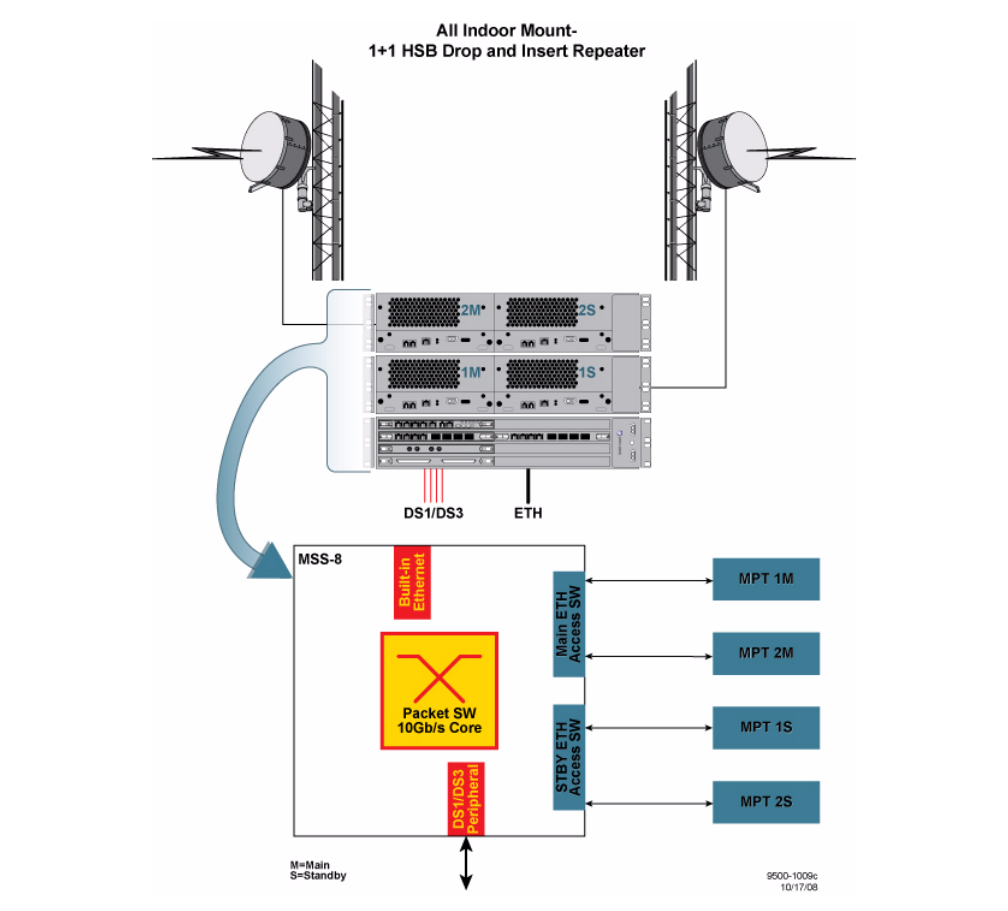

Figure 2-8. All Indoor Mount - 1+1 HSB Drop and Insert Repeater . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Figure 2-9. All Indoor Mount - 1+1 HSB 4-Way Junction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Figure 2-2. Macerate Service switch (MSS-8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Figure 2-3. MSS-8 Typical Configuration - Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Figure 2-4. MSS-8 Typical Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

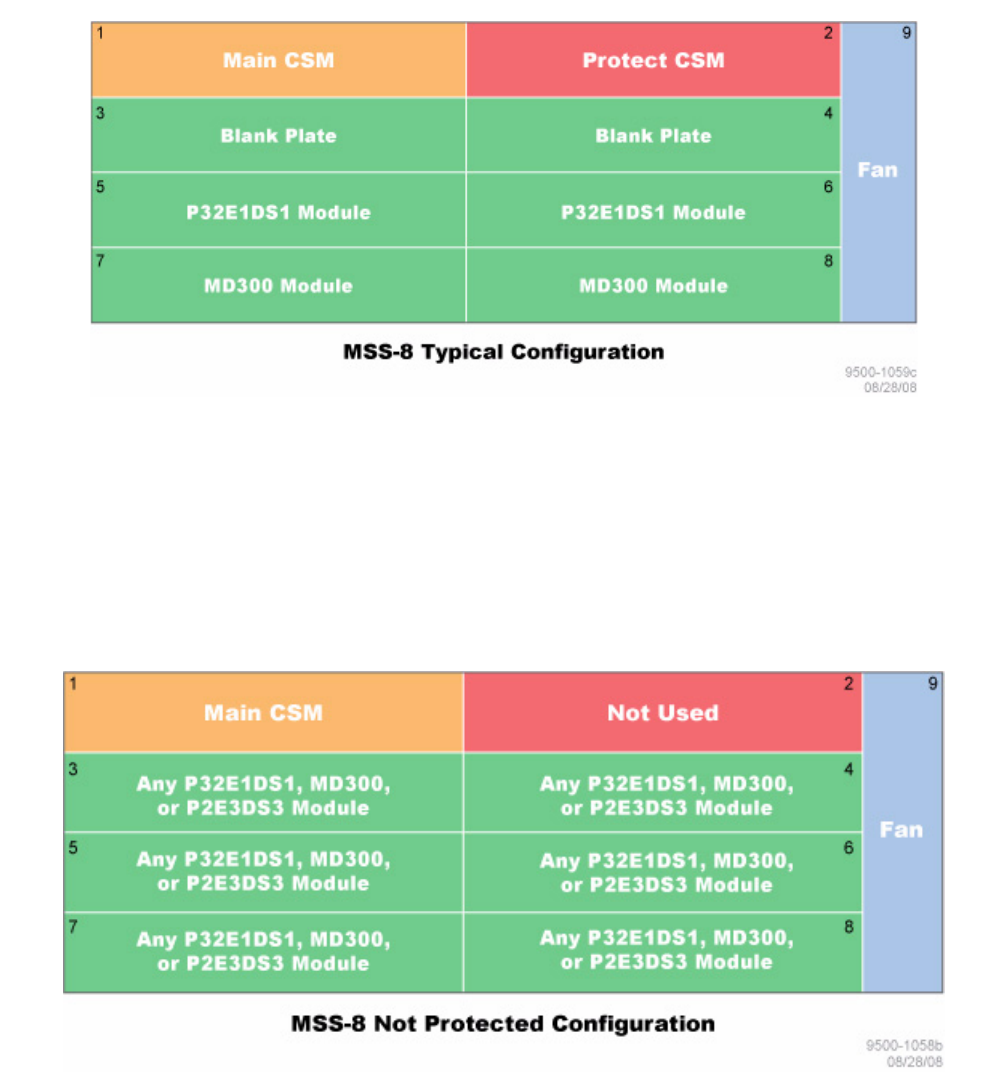

Figure 2-5. MSS-8 Not Protected Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

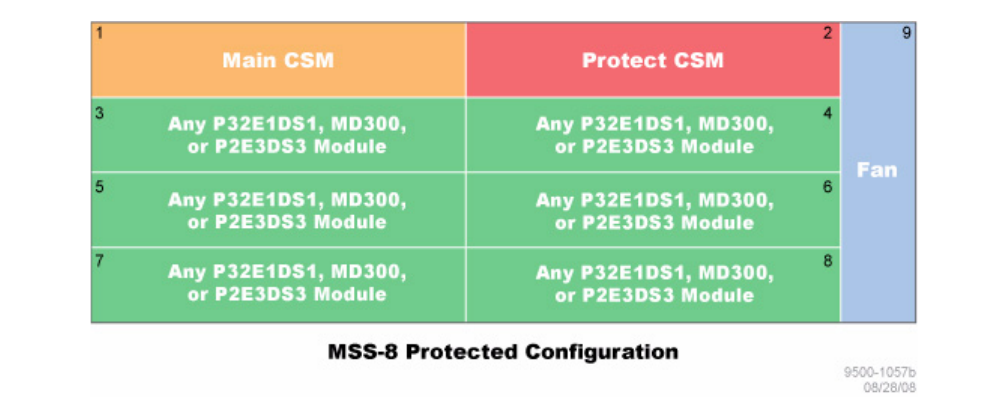

Figure 2-6. MSS-8 Protected Configuration - 9500_1057b.JPG . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

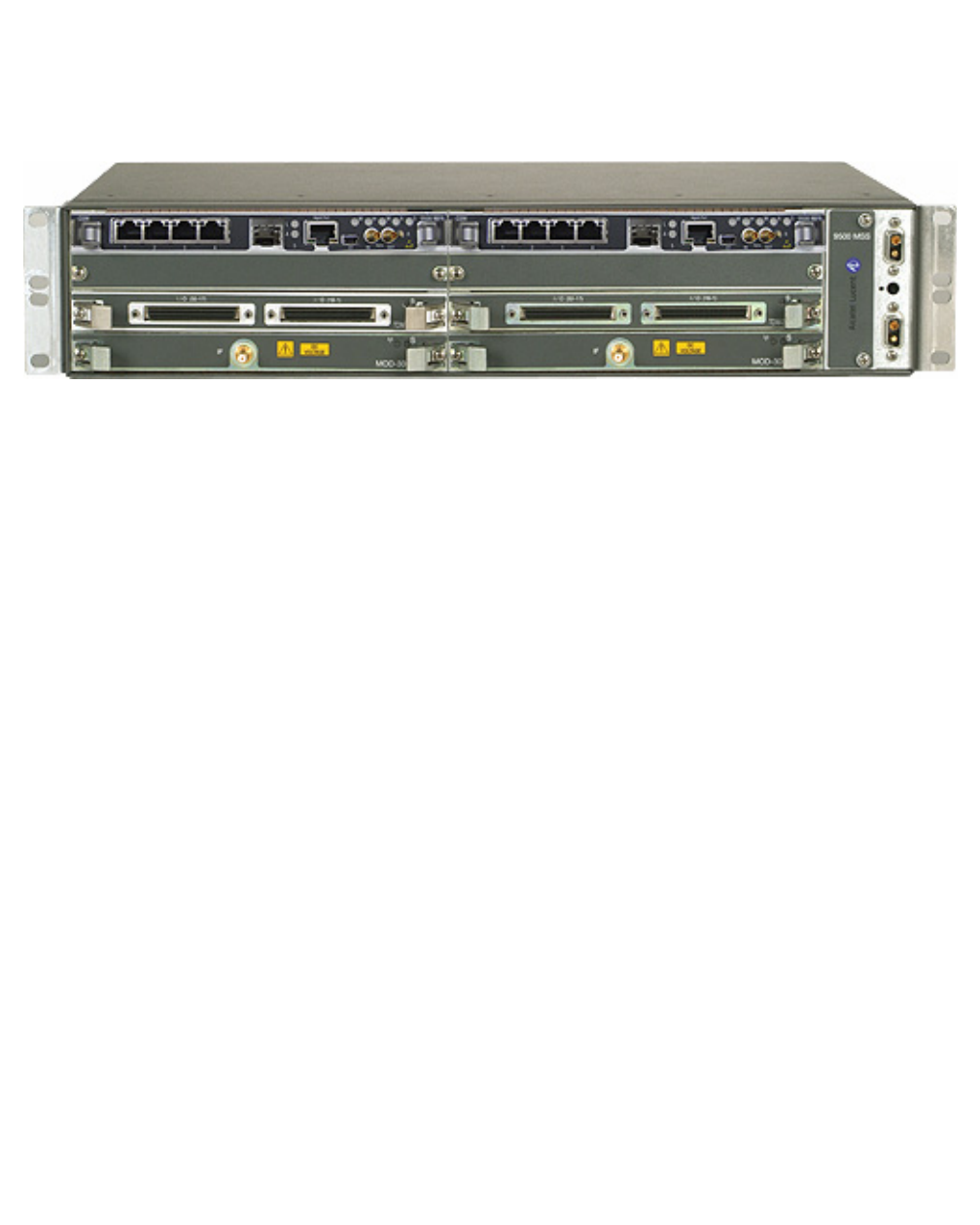

Figure 101-1. Microwave Service Switch (MSS-8) Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Figure 101-2. MSS-8 Shelf Slot Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Figure 101-3. MSS-8 Shelf, Unprotected CSM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Figure 101-4. MSS-8 Shelf, Protected CSM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Figure 101-5. MSS-8 Stand-Alone Shelf, Equipped with P32E1DS1. . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Figure 101-6. MSS-8 Stand-Alone Shelf, Equipped with P32E1DS1. . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Figure 101-7. MSS-8 Shelf, All Indoor Mount, 1+0 4-Way Junction Configuration. . . . . . . . . . . . . . . 3-10
Figure 101-8. MSS-8 Shelf, All Indoor Mount, 1+1 4-Way Junction Configuration. . . . . . . . . . . . . . . 3-11
3EM23952AA
Issue 01, September 2009
List of Figures
iv
Figure 101-9. MSS-8 Shelf Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Figure 113-1. P32E1DS1 DS1 Module (MSS/DS1) Front Panel View . . . . . . . . . . . . . . . . . . . . . . . . 3-28

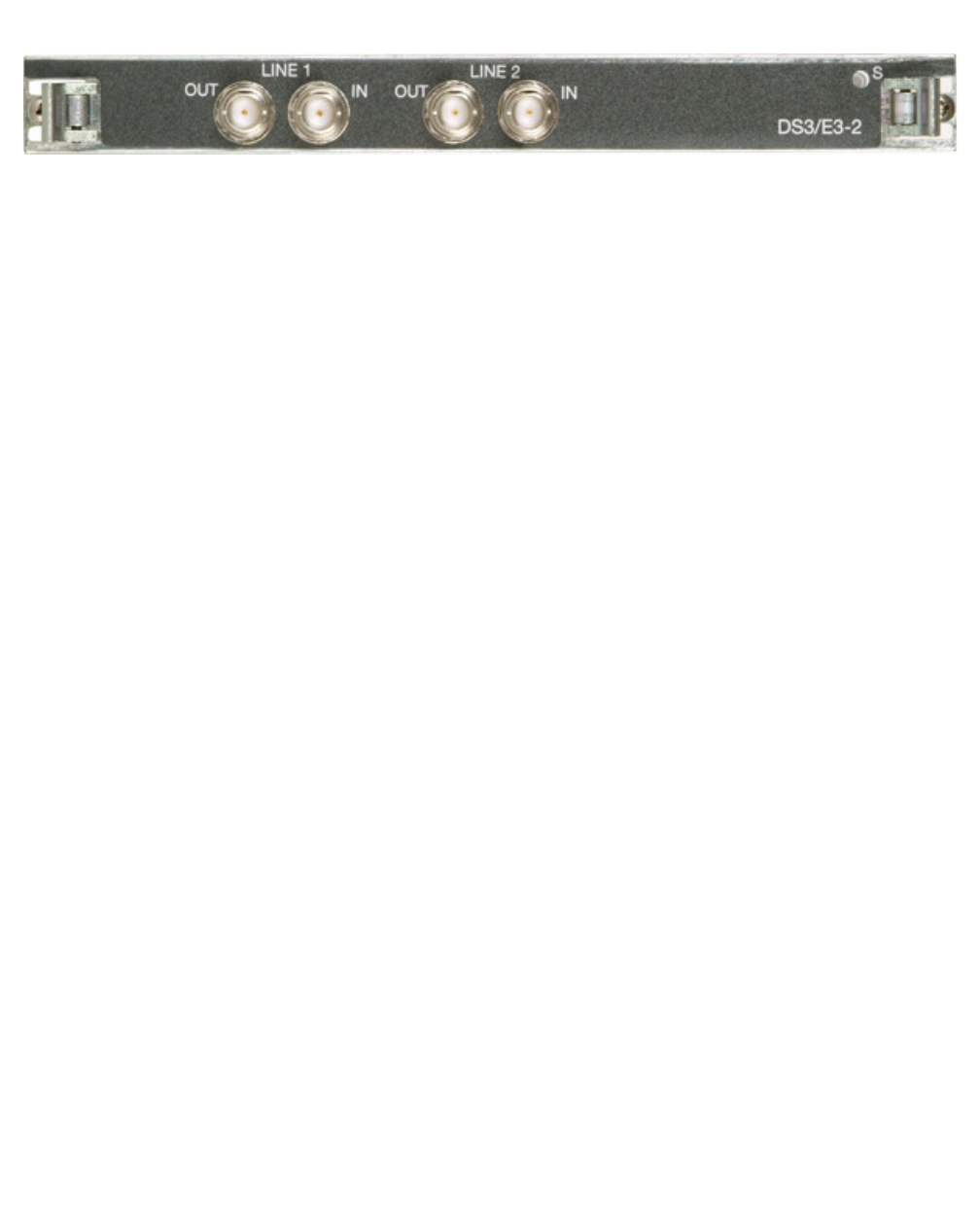

Figure 114-1. P2E3DS3 DS3 Module (MSS/DS3) Front Panel View . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Figure 115-1. P8ETH Module (MSS/P8ETH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32

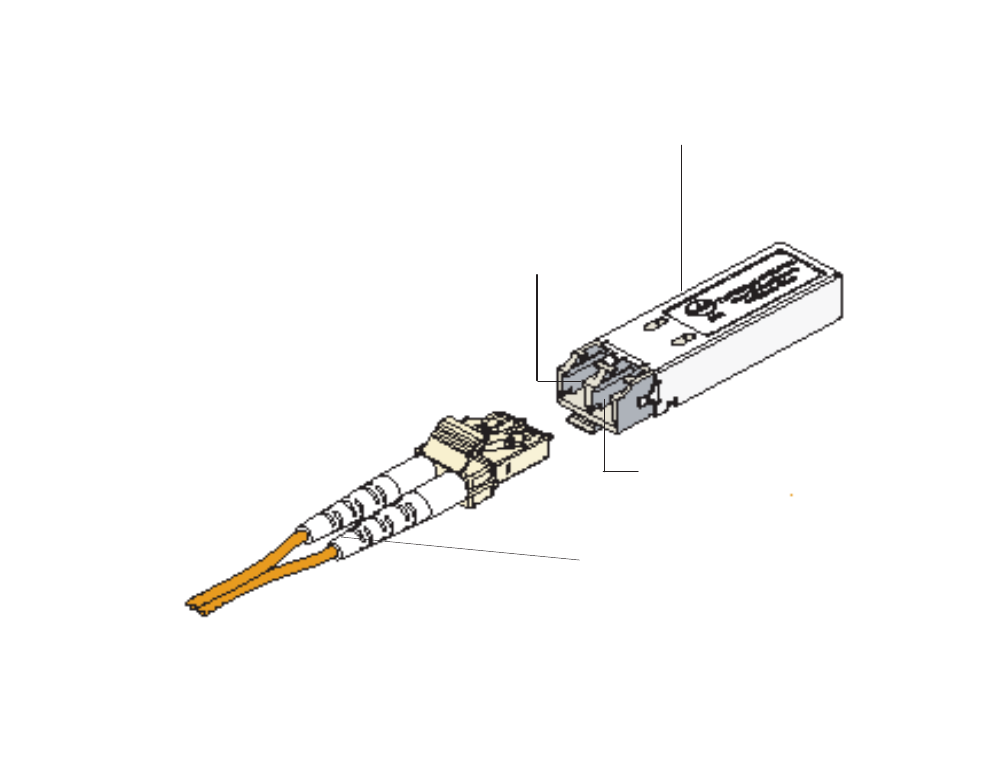

Figure 117-1. Optical SFP Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
Figure 117-2. Optical SFP Module Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
3EM23952AA
Issue 01, September 2009
List of Tables v
9500 MPR Product Information
List of Tables
Table 2-A. 5.8 GHz Unlicensed Antenna Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Table 2-G. Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Table 3-A. 9500 MPR Unit Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Table 101-A. MSS-8 Module Complement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3EM23952AA
Issue 01, September 2009
List of Tables
vi
3EM23952AA
Issue 01, September 2009
FCC Part 15 Subpart B 1-1
FCC Part 15 Subpart B
1. 9500 MPR UNLICENSED RADIO
1.1 The JF6-9558H (unlicensed) radio provides fast deployment of service
with microwave radio. No license and small antennas (no FCC requirements)
allow immediate turn-up. After the license is received, the unlicensed radio can
be easily converted to the lower 6 GHz licensed band.
1.2 The JF6-9558H unlicensed radio operates in the 5725-5850
Information, Scientific, and Medical (ISM) band in accordance with FCC Part
15.247. This unlicensed radio, although operating in the same band as a spread
spectrum radio, operates using narrower bandwidths than spread spectrum.
FCC Class B Compliance Statement
1.3 The JF6-9558H unlicensed radio has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own
expense.
FCC Class B Requirements
1.4 This device complies with part 15 of the FCC Rules and IC RSS-210.
Operation is subject to the following three conditions: (1) this device may not
cause harmful interference. (2) This device must accept any interference
received, including interference that may cause undesired operation. (3) This
device must be professionally installed.
CAUTION Possibility of service interruption. Changes or modifications not expressly
approved by Alcatel-Lucent could void the authority to operate the JF6-9558H
(unlicensed) radio.
3EM23952AA
Issue 01, September 2009
FCC Part 15 Subpart B
1-2
CAUTION Possibility of service interruption. Installation, Turn-Up, Maintenance, and
Operation Instruction supplied with the JF6-9558H (unlicensed) radio require strict
adherence for continued part 15 of the FCC Rules and IC RSS-210 compliance.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-1
9500 MPR General System Description
1. INTRODUCTION
1.1 This General System Description applies to 9500 MPR software
release R02.00 (hereafter called R02.00) and any subsequent or maintenance
release to this release. It describes system applications, floor space, and power
requirements. Signal input and output characteristics are also defined. This
manual can be used by system and operations staff who plan to operate, install,
commission, or maintain a 9500 MPR, and by any others who must be familiar
with the equipment.
1.2 Alcatel-Lucent 9500 Microwave Packet radio (MPR) is a solution for
smooth transformation of backhaul networks from TDM to IP.
1.3 The Alcatel-Lucent 9500 MPR efficiently transports multimedia
traffic since it handles packets natively, while still supporting legacy TDM DS1
traffic. It also provides the quality of service needed to satisfy end-users. This
solution improves packet aggregation, increases bandwidth and optimizes
Ethernet connectivity. With the Alcatel-Lucent 9500 MPR the network can
easily and efficiently absorb rapid growth in multimedia traffic, because it
handles packets natively by adapting the transmission of the packets to the air
conditions and the quality required by the different types of services.
1.4 9500 MPR9500 MPR covers the frequency range from 5 GHz to 6 GHz,
consisting of Microwave Service Switch (MSS-8) shelf providing the baseband
processing and tributaries interfaces as well as supervision, and Microwave
Packet Transport-Long Haul (MPT-HL) shelf providing the radio function.
1.5 9500 MPR replaces the traditional terminal or single-link based
approach to networking with a nodal solution.
1.6 9500 MPRThe 9500 MPR supports up to eight RF links for operation
on the same or different frequency bands. A Transceiver module in the
MPT-HL shelf for each link is connected to P8ETH Ethernet Access Switch
module inside the MSS-8 shelf.
1.7 Other plug-in modules provide line interface access and management.
9500 MPR supports a mix of non-protected and protected or diversity operation
for single link, repeater or star radio configurations.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-2
1.8 System control and synchronization is provided by the Enhanced
Control and Switching Module (CSM-E) module.
Documentation
1.9 For additional information, refer to the following related
documentation:
•Unit Data Sheets (UDSs) in this manual
•9500 MPR Installation Practices manual (PN 3EM23953AA)
•9500 MPR Operation and Administration manual (PN 3EM23954AA)
•9500 MPR Turn-Up manual (PN 3EM23955AA)
•9500 MPR Maintenance and Trouble Clearing manual
(PN 3EM23956AA)
•9500 MPR Engineering Support Documentation manual
(PN 3EM23957AA)
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-3
Standards
1.10 The following is a partial list of the standards that have influenced
certain behavioral aspects of the 9500 MPR:
•21 CFR PART 1040.10 and 1040.11
•Banned substances list
•CENELEC EN 61000-3-2
•CENELEC EN 61000-3-3
•CENELEC EN 61000-4-8
•CISPR/I/105/CDV-CISPR/I/29/CD-CISPR/I/106/CDV
•CISPR 16-1-1
•CISPR 16-1-2
•CISPR 16-1-4
•CISPR 16-2-1
•CISPR 16-2-3
•CISPR 16-2-4
•CISPR 16-4-2
•CSA-C22.2 No 60950
•EC RoHS Directive 2002/95/EU, compliance with
•EC WEEE Directive 2002/96/EU, compliance with
•EN 301 751
•EN 302 217
•EN 50 385
•EN 50 383
•ETSI and RTTE directive: health and safety
•ETSI and RTTE directive: electromagnetic compatibility
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-4
•ETSI and RTTE directive: ETSI standard
•ETSI and RTTE directive: EN 302 217
•ETSI standards: Transmitter requirements
•ETSI standards: Receiving requirements
•ETSI standards: Note
•ETSI EN 302 217-1 to 4
•ETSI EN 301 489
•ETSI EN 300 019
•ETS 300 753
•ETSI EN 300 132-2
•ETSI EN 300 132-3
•EU Directive EuP Directive 92/42/EEC, Compliance with proposal
•FCC OET 65
•FCC Title 247, Part 15
•GR-487-CORE
•GR-1089-CORE
•Human exposure
•IC RSS-210
•IEC 61000-4
•ICES 003
•ICNIRP
•IEC EN 60950-1
•IEC EN 50385
•IEC EN 60825-1/-2:2000
•IEC UL 60950-1
•IEC 60529
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-5
•IEEE Std 802.3
•IEEE Std 802.1D
•IEEE Std 802.1Q
•IETF RFC 2474
•IETF RFC 2475
•IETF RFC 3550
•IETF RFC 0793
•IETF RFC 0791
•IETF RFC 1157
•IETF RFC 768
•IETF RFC 2616
•ITU-T G.664
•ITU-T G.703
•ITU-T G.704
•ITU-T G.706
•ITU-T G.775
•ITU-T G.823
•ITU-T G.8261
•ITU-T G.826
•ITU-T G.921
•ITU-T Recommendation K20
•ITU-T Recommendation K21
•ITU-T Recommendation K45
•ITU-T Recommendation K44
•MEF 8
•Safety (Canada)
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-6
•TR NWT 000499
•TR TSY 000191
FCC Part 15 Subpart B
1.11 The JF6-9558H (unlicensed) radio provides fast deployment of service
with microwave radio. No license and small antennas (no FCC requirements)
allow immediate turn-up. After the license is received, the unlicensed radio can
be easily converted to the lower 6 GHz licensed band.
1.12 The JF6-9558H unlicensed radio operates in the 5725-5850
Information, Scientific, and Medical (ISM) band in accordance with FCC Part
15.247. This unlicensed radio, although operating in the same band as a spread
spectrum radio, operates using narrower bandwidths than spread spectrum.
FCC Class B Compliance Statement
1.13 The JF6-9558H unlicensed radio has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own
expense.
FCC Class B Requirements
1.14 This device complies with part 15 of the FCC Rules and IC RSS-210.
Operation is subject to the following three conditions: (1) this device may not
cause harmful interference. (2) This device must accept any interference
received, including interference that may cause undesired operation. (3) This
device must be professionally installed.
CAUTION Possibility of service interruption. Changes or modifications not expressly
approved by Alcatel-Lucent could void the authority to operate the JF6-9558H
(unlicensed) radio.
CAUTION Possibility of service interruption. Installation, Turn-Up, Maintenance, and
Operation Instruction supplied with the JF6-9558H (unlicensed) radio require strict
adherence for continued part 15 of the FCC Rules and IC RSS-210 compliance.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-7
2. FEATURES
2.1 This section describes 9500 MPR features of the 9500 MPR R02.00.
2.2 The following paragraphs describe the features of the system for
R02.00. To administer these new features by the Craft Terminal and WebEML
refer to the 9500 MPR Operation and Administration manual
(PN 3EM23954AA).
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-8
System Features
•All Indoor Mount mechanical arrangement
– Up to 8 radio directions per node
•Frequencies: 5.8 Unlicensed, 6L, and 6U GHz
•Static Modulation
•Bandwidths: 5, 10, and 30 MHz
•Modulations: 32 QAM, 128 QAM, and 256 QAM
•Ethernet Access Switch transponder card
– Four 10/100/1000BaseT Ethernet ports
– Four GigE SFP optical Ethernet ports
•DS1, DS3, and 10/100/1000 Ethernet interfaces
•CESoETH
•EF8
•300 Mbps full-duplex Ethernet transport capacity
•Flexible aggregate capacity sharing DS1/DS3 and Ethernet
•10Gb Packet Based Node
•Microwave uplink
•ODU V2
•Ethernet uplink with VLAN
•Point-to-point VLAN
•IEEE 802.1p and Diffserv QoS
•Queue Management & Flow control ability
•DS1/DS3 Protection
•1+1 EPS on All Cards
• SW License control
•SNMP v2
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-9
•TSM8000 Support
•1340 INC Support
•1350 OMS Support
System Architecture
•All Indoor Mount mechanical arrangement
– Up to 8 radio directions per node
•Frequencies: 5.8 Unlicensed, 6L, and 6U GHz
•Static Modulation
•Bandwidths: 2.5, 3.75, 5, 10, and 30 MHz
•Modulations: 32 QAM, 128 QAM, and 256 QAM
•Ethernet Access Switch transponder module
– Four 10/100/1000BaseT Ethernet ports
– Four GigE SFP optical Ethernet ports
System Configurations
•Stand-Alone MSS-8 Shelf
•Unprotected 1+0 radio nodes
– 1+0 Terminal
– 1+0 Drop and Insert Repeater
– 1+0 4-Way Junction
– 1+0 Nodal 8-Way Junction
•Protected 1+1 HSB, Space Diversity (SD), and Frequency Diversity
(FD) Radio Nodes
– 1+1 HSB, SD/FD Terminal
– 1+1 HSB, SD/FD Drop and Insert Repeater
– 1+1 HSB, SD/FD 4-Way Junction
•1+0 and 1+1 EPS P8ETH Ethernet Access Switch transponder module
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-10
System Architecture
All Indoor Mount mechanical arrangement
2.3 The system allows up to eight radio channels per node.
2.4 The radio channels can be either, all the same frequency, different
frequencies, or a combination of both.
2.5 LICENSED RADIO: The 6L and 6U GHz frequencies are supported in
the all indoor mount arrangement.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-11
UNLICENSED RADIO
2.6 The JF6-9558H unlicensed radio provides fast deployment of service
with microwave radio. No license and small antennas (no FCC requirements)
allow immediate Turn-Up. After the license is received, the unlicensed radio
can be easily converted to the lower 6 GHz licensed band.
2.7 Refer to 9500 MPR Engineering Support Documentation manual
(PN 3EM23957AA) and see drawing 3EM227840000BJZZA, Equipping
Options Drawing for unlicensed radio configurations and equipping options.
2.8 The JF6-9558H unlicensed radio operates in the 5725-5850
Information, Scientific, and Medical (ISM) band in accordance with FCC Part
15.247. This unlicensed radio, although operating in the same band as a spread
spectrum radio, operates using narrower bandwidths than spread spectrum.
Advantages, disadvantages, and antenna recommendations for the unlicensed
radio follow:
2.9 Advantages:
•Fast installation and Turn-Up
•18, 26, 37, 53, 114, 160, or 183 Mb/s data payload capacity consisting
of a combination of DS1, DS3, and/or Ethernet traffic
•Field convertible to lower 6 GHz licensed band
•Field expandable to higher capacities.
•Common network management with licensed radios.
•Common spares and training with licensed radios
2.10 Disadvantages:
•Interference from other 5725-5850 ISM band transmissions are
possible
•Operating restrictions
•5.725 to 5.850 GHz band
•Performance could deteriorate due to interference as the frequency
band becomes congested.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-12
2.11 Antenna Recommendations:
•Frequency – 5.8 GHz
•Size and Type – 2, 4, 6, 8, or 10 foot parabolic; 1 or 2 foot flat panel.
– Parabolic antennas, See Table 2-A.
– Flat antennas, See Table 2-A.
•Gain and Bemired (3 dB)
2.12 The antenna(s) used for this transmitter must be installed to provide
a separation distance of at least 12 meters from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
DANGER Possibility of personal injury. Danger of public exposure to long term RF
radiated energy. When using a 1 ft flat panel antenna with a 1 watt (+30 dBm)
output power, the antenna must be located in an area that does not allow the
general population access to within 12 meters (5.8 Ghz) of the antenna.
2.13 Frequency Plan: Refer to Figure 2-1 for the frequency plan for the
5.725 and 5.850 GHz unlicensed band.
Table 2-A. 5.8 GHz Unlicensed Antenna Recommendation
PARABOLIC FLAT
2 ft parabolic – 29 dB/6° 1 ft flat panel – 23 dB/9°
4 ft parabolic – 35 dB/3° 2 ft flat panel – 28 dB/3.5°
6 ft parabolic – 38 dB/2°
8 ft parabolic – 41 dB/1.5°
10 ft parabolic – 42.5 dB/1.2°
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-13

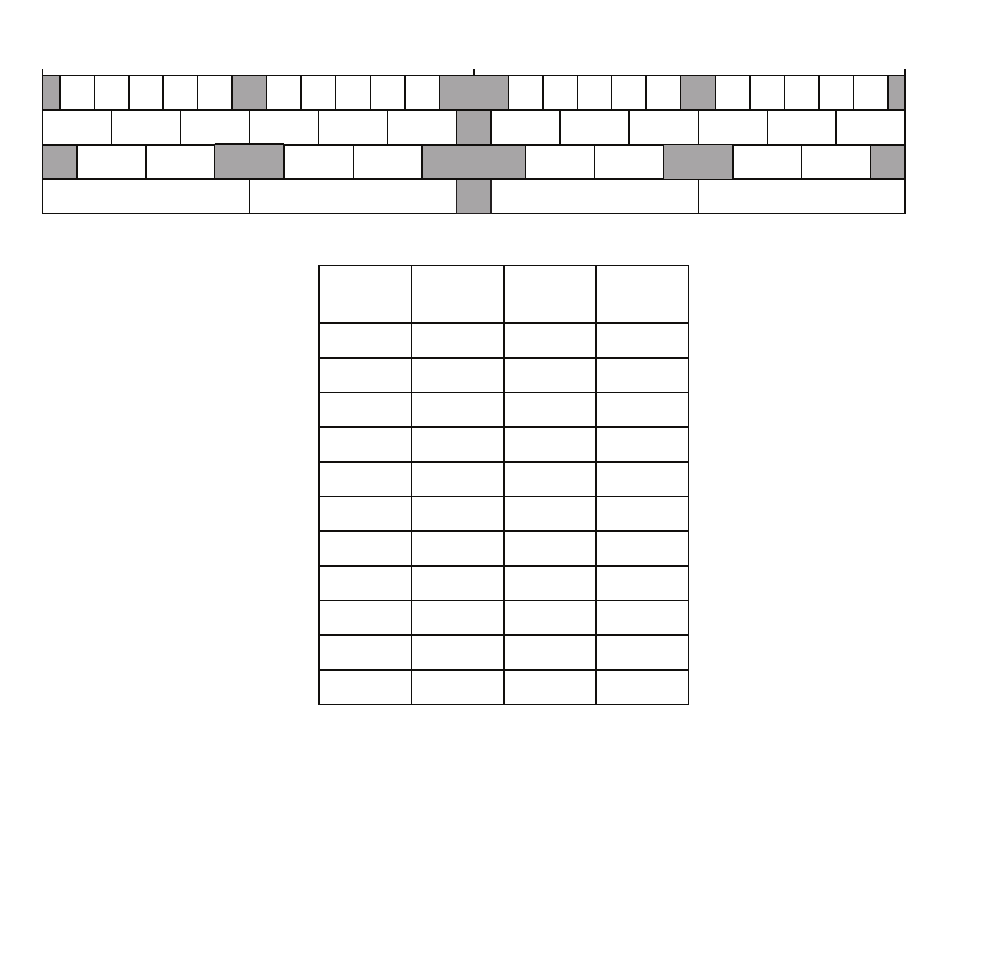

Figure 2-1. Frequency Plan: 5.725 to 5.850 GHz Unlicensed Band (FCC Part 15)
950-0020-1
081809
The drawing above shows the 5 MHz bandwidth channels used by the JF6-9558H
radio. Gray channels are designated "G". Blue channels are designated "B". Transmit
and receive channels have a 65 MHz frequency separation.
1.
2.
3.
Notes:
RF filters are centered on channels G3, B3, G3', and B3'.
The flexability of the JF6-9558H allows any radio to grow to 183 Mb/s without a
hardware upgrade.
G1 G2 G3 G4 G5 B1 B2 B3 B4 B5
G1 G3 G5 B1 B3 B5
G2 G4 B2 B4
G3 B3
G1' G2' G3' G4' G5' B1' B2' B3' B4' B5'
G1' G3' G5' B1' B3' B5'
G2' G4' B2' B4'
G3' B3'
5MHz
10 MHz
10 MHz
30 MHz
5725 5787.5 5850 MHz
Transmit
Channel
Frequency
MHz
Receive
Channel
Frequency
MHz
G1 5730 G1' 5795
G2 5735 G2' 5800
G3 5740 G3' 5805
G4 5745 G4' 5810
G5 5750 G5' 5815
B1 5760 B1' 5825
B2 5765 B2' 5830
B3 5770 B3' 5835
B4 5775 B4' 5840
B5 5780 B5' 5845
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-14
2.14 Static Modulation is supported in the all indoor mount arrangement.
2.15 Bandwidths: 5, 10, and 30 MHz are supported in the all indoor mount
arrangement
2.16 Modulations: 32 QAM, 128 QAM, and 256 QAM
2.17 Ethernet Access Switch transponder module
2.18 Four 10/100/1000BaseT Ethernet ports
2.19 Four GigE SFP optical Ethernet ports
System Architecture
Architecture
2.20 System architecture provides a multi-service aggregation layer which
aggregates and carries over a common packet layer TDM, 2G, 3G, and
IP/Ethernet traffic. Using Circuit emulation and pseudo-wire protocols allows
mapping over Ethernet these various traffic types into a single transmission
pipe.
2.21 The Service Awareness feature allows data flows to be prioritized by
their Quality of Service QoS requirements.
2.22 The single packet matrix allows a high switching capacity, greater
than 10 Gb/s, in a common aggregation layer.
2.23 Service Driven Packet Adaptive Modulation allows utilizing the
available bandwidth in its entirety by changing modulation schemes according
to the changing propagation conditions to the different transport capacity
service quality.
Microwave Service Switch (MSS-8) Shelf
2.24 A fully equipped Microwave Service Switch (MSS-8) shelf provides up
to 267 Mb/s full-duplex Ethernet transport capacity per radio carrier channel.
2.25 MSS-8 shelf provides up to 10 Gb/s packet switching which creates
flexible aggregate capacity sharing across DS1, DS3 and Ethernet traffic.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-15
Microwave Service Switch (MSS-8) Shelf
2.26 1+0 and 1+1 EPS on All DS1, DS3, and 10/100/1000 Ethernet
interfaces
2.27 CESoETH
2.28 MEF8
2.29 Microwave uplink
2.30 Ethernet uplink with VLAN
2.31 Point-to-point VLAN
2.32 IEEE 802.1p and Diffserv QoS
2.33 Queue Management & Flow control ability
2.34 Channel Spacing:
2.35 SW License control
2.36 SNMP v2
2.37 TSM8000 Support
2.38 1340 INC Support
2.39 1350 OMS Support
System Configurations
2.40 Stand-Alone Microwave Service Switch (MSS-8) shelf: See Figure 2-2.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-16
2.41 All Indoor Mount - 1+0 Terminal: See Figure 2-3.
2.42 All Indoor Mount - 1+0 Drop and Insert Repeater: See Figure 2-4.
Figure 2-2. Stand-Alone Microwave Service Switch (MSS-8) shelf
Figure 2-3. All Indoor Mount - 1+0 Terminal
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-18
2.44 All Indoor Mount - 1+0 8-Way Nodal Junction: See Figure 2-6.
2.45 All Indoor Mount - 1+1 Terminal: See Figure 2-7.
Figure 2-5. All Indoor Mount - 1+0 4-Way Junction
Figure 2-6. All Indoor Mount - 1+0 8-Way Nodal Junction
Figure 2-7. All Indoor Mount - 1+0 Terminal
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-21
MSS (Microwave Service Switch)
MSS-8 Configurations
2.48 A MSS-8 typical configuration consists of:
•MSS-8 Typical Configuration
•MSS-8 Not Protected
•MSS-8 Protected
Figure 2-2. Macerate Service switch (MSS-8)

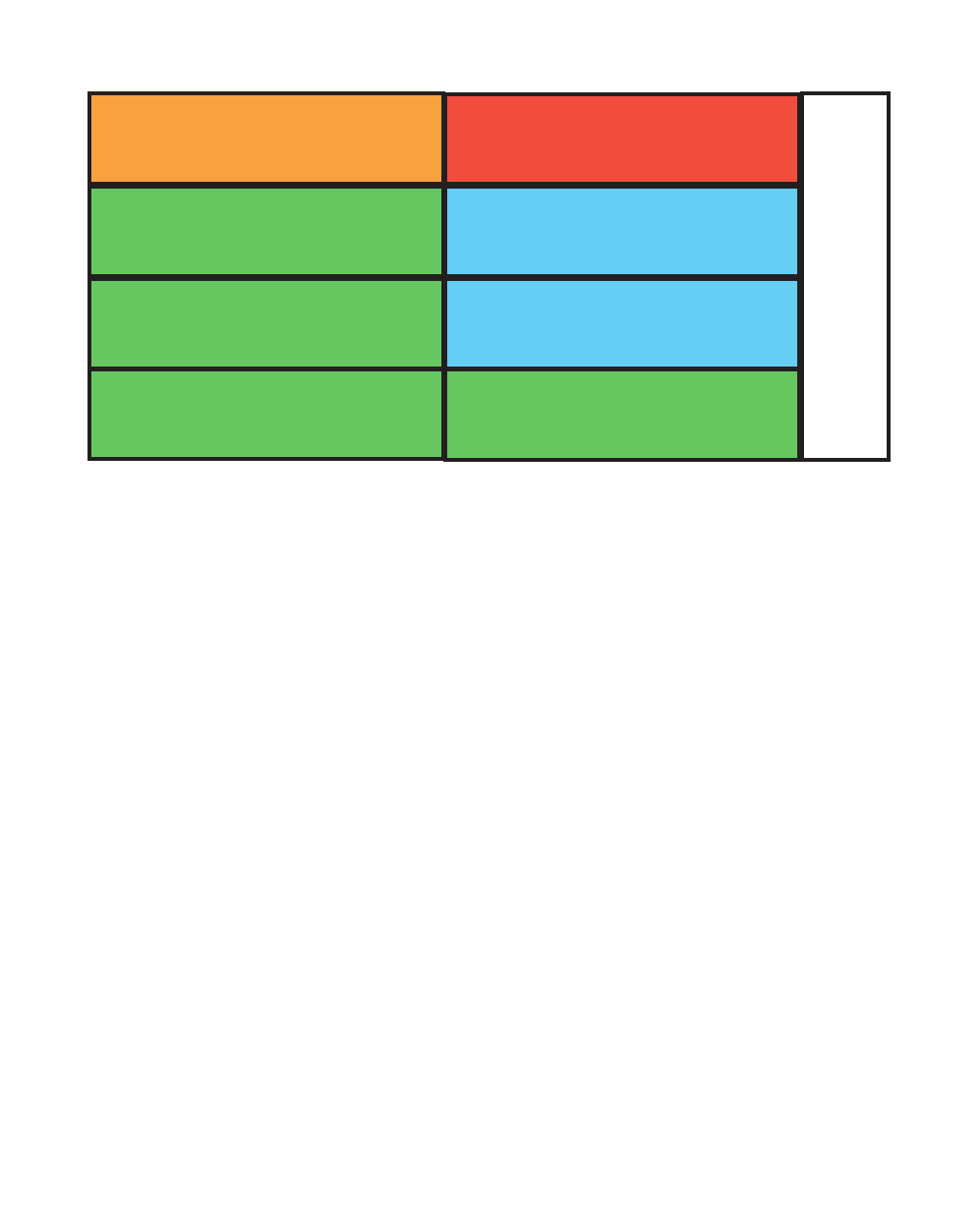

Figure 2-3. MSS-8 Typical Configuration - Front View
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-22
NOTE: Adjacent slot must be same P32E1DS1, MD300 or P2E3DS3
module for protection. Not all slots may require protection. Any
P32E1DS1, MD300 or P2E3DS3 module can be installed in any not
protected slot(s). The Main CSM (Control and Switching Module - Core)
must always be in slot 1 and the Protect CSM must be in slot 2.

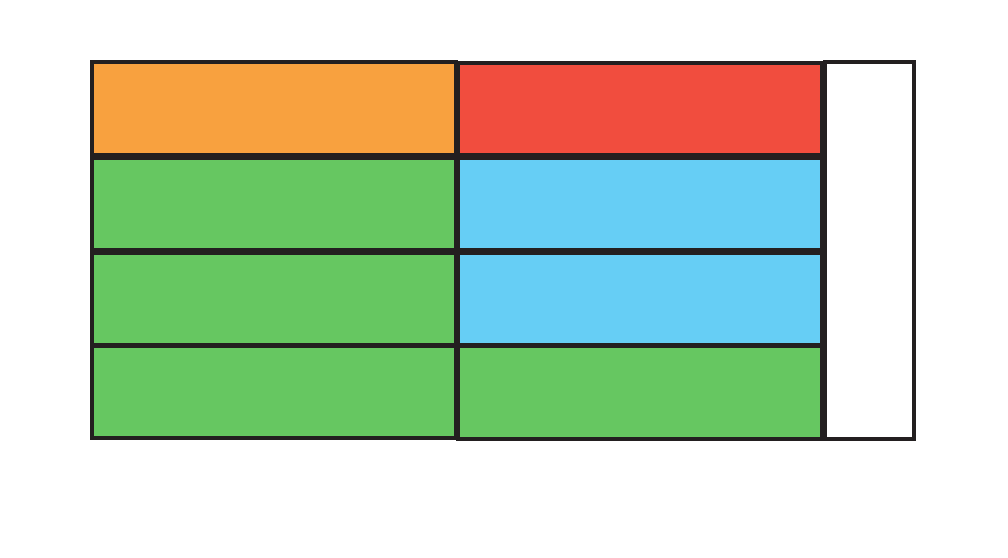

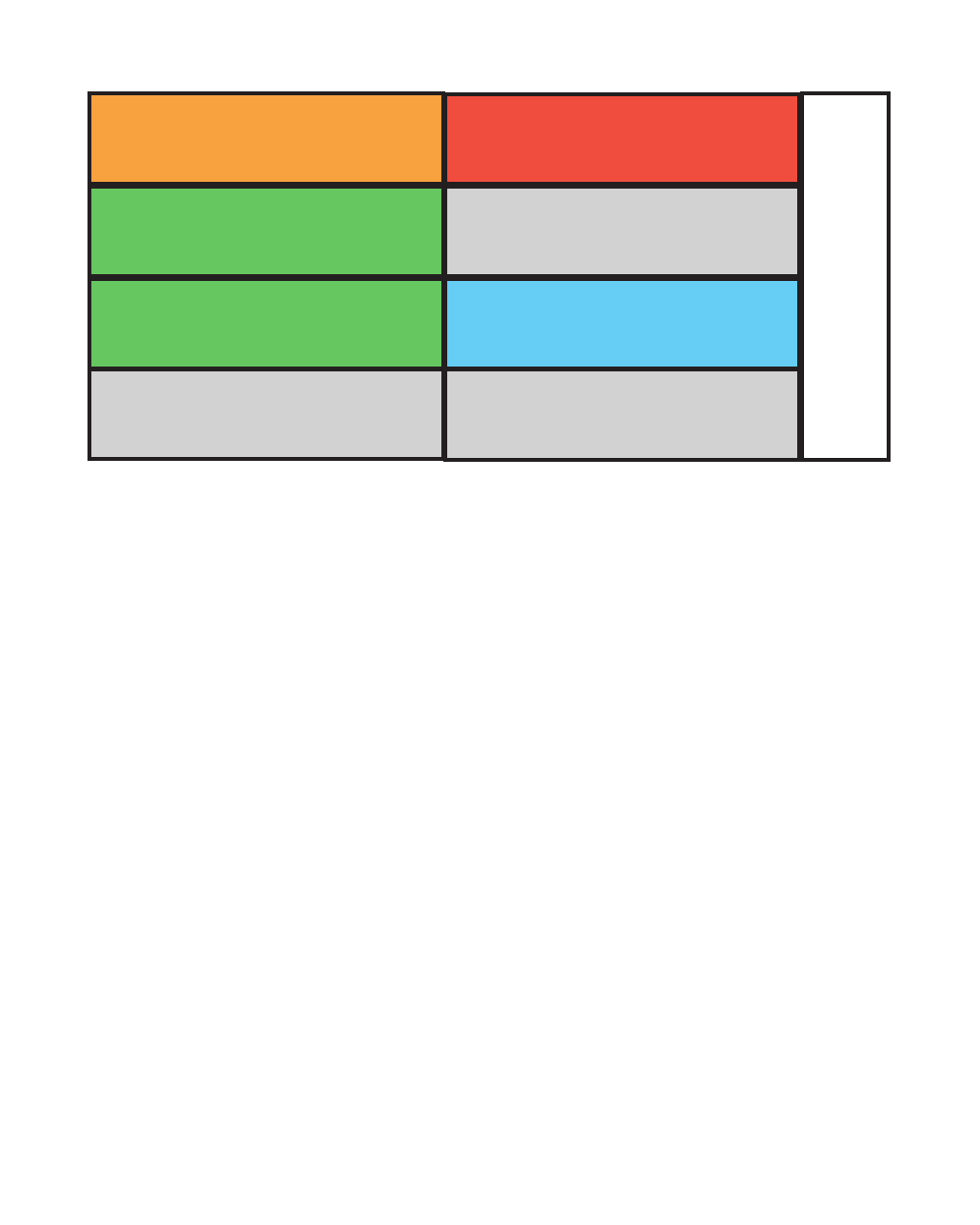

Figure 2-4. MSS-8 Typical Configuration

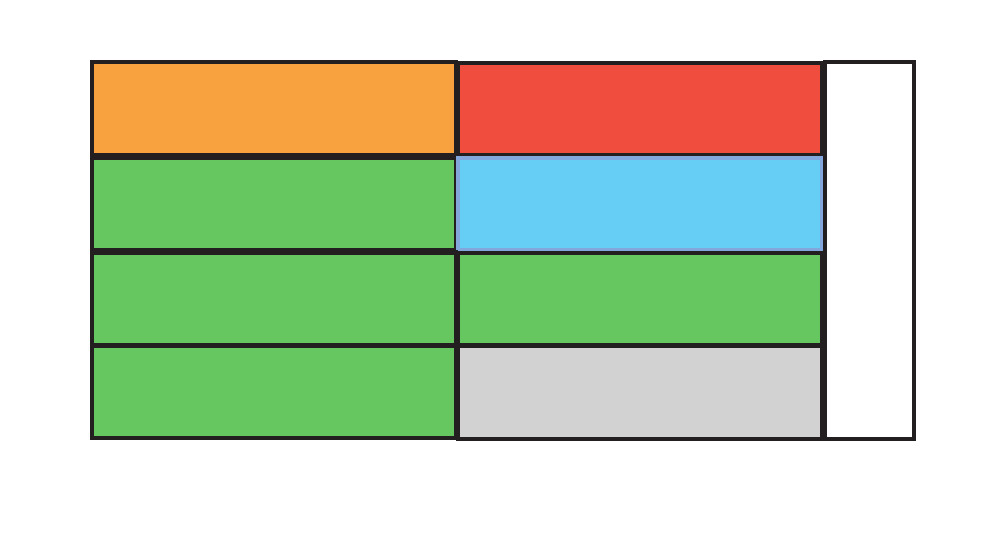

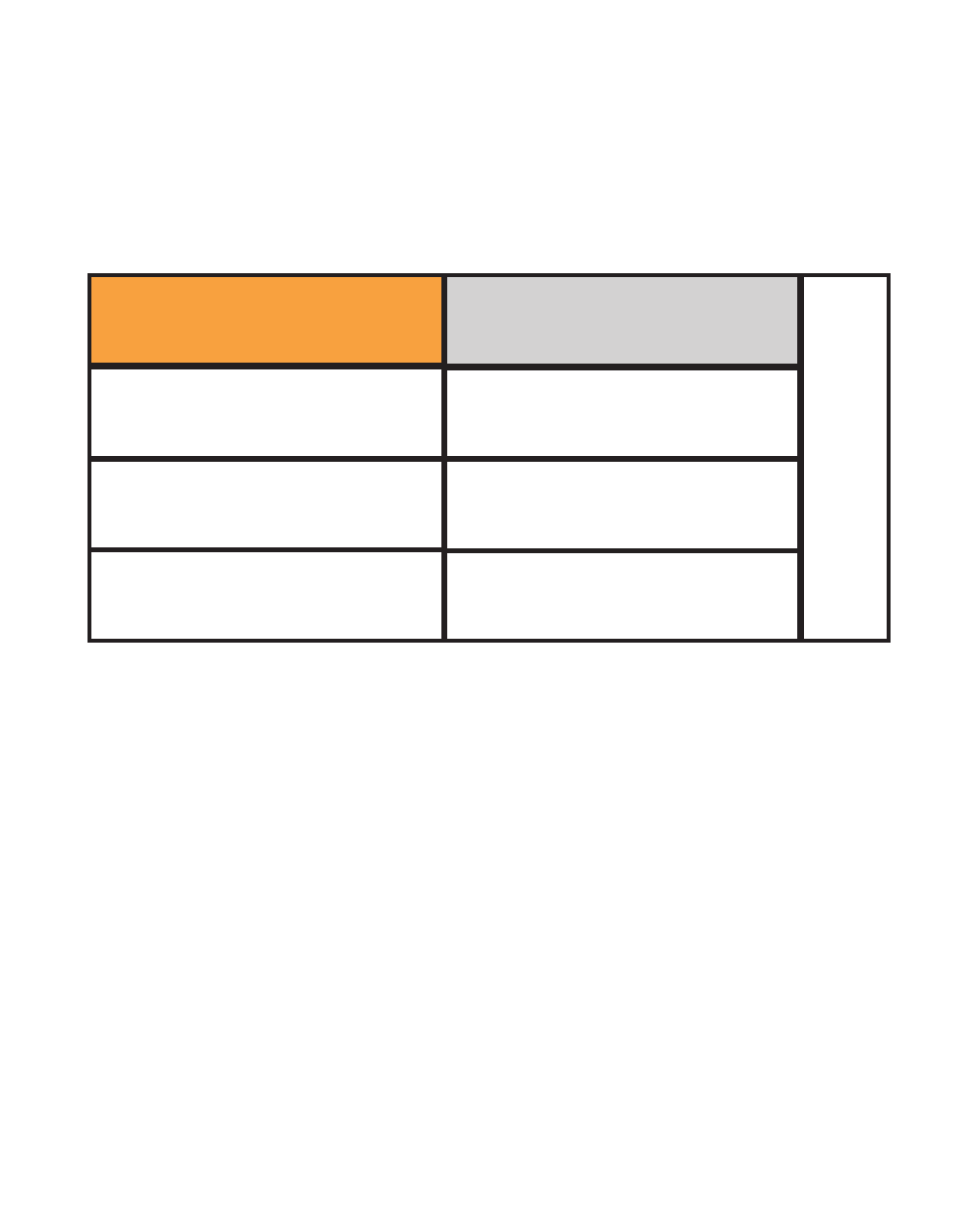

Figure 2-5. MSS-8 Not Protected Configuration
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-23
NOTE: Adjacent slot must be same P32E1DS1, MD300 or P2E3DS3
module for protection. Not all slots may require protection. Any
P32E1DS1, MD300 or P2E3DS3 module can be installed in any not
protected slot(s). The Main CSM (Control and Switching Module - Core)
must always be in slot 1.
NOTE: Adjacent slot must be same P32E1DS1, MD300 or P2E3DS3
module for protection. Not all slots may require protection. Any
P32E1DS1, MD300 or P2E3DS3 module can be installed in any not
protected slot(s). The Main CSM (Control and Switching Module - Core)
must always be in slot 1 and the Protect CSM must be in slot 2.
2.49 Refer to table 2-G for descriptions of the modular configurations the
system supports.

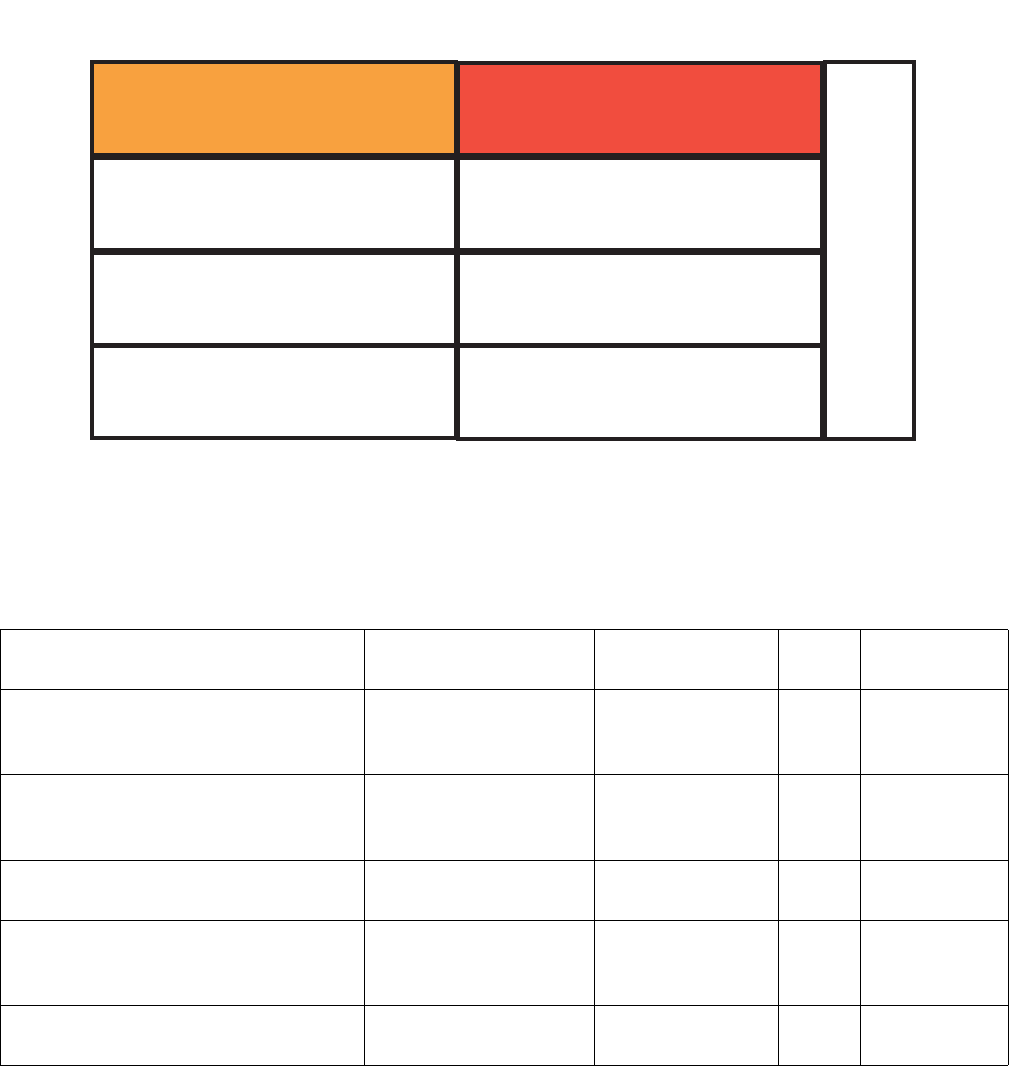

Figure 2-6. MSS-8 Protected Configuration
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-24
In-Service Upgrade
2.50 Systems software and hardware can be upgraded to a new release, as
specified in the upgrade procedure, while the system carries traffic.
Local Software Download
2.51 The active CSM can receive a software generic
Table 2-G. Configurations
ITEM DESCRIPTION
Microwave Switching Services (MSS-8)
Shelf
PN: 3DB18001AA
Qty: 1 per node
The MSS-8 houses equipment that supports 10 Gb/s packet
switching, synchronization, protection switching, provisioning,
and alarm management utilizing either one CSM module in
unprotected configuration or two CSM modules in protected
configuration.
Six transponder slots support any mixture of unprotected
and/or 1+1 EPS protected transponder modules. Supported
transponder types include: up to two P8ETH (Ethernet)
modules, up to six P32E1DS1 (DS1) modules, up to six
P2E3DS3 (DS3), and/or up to six MOD300 (radio) modules.
One fan module is required for system cooling.
Microwave Packet Transport-Long
Haul (MPT-HL) Shelf
PN: 3EM22618AA
Qty: Up to 4 per 9500 MPR node
The MPT-HL shelf supports Two MPT-HL transceiver radio
modules.
Transport modules 32-port 32PDS1T1 for DS1(T1) interface
Eight-port 8PETH for 10,100,1000 Ethernet Ports
I/O interface types DS1, Ethernet
Battery feeds Independent, redundant battery feeds
Independent, isolated battery returns
Power supply redundancy 1:1 protected
Bay power distribution PDU
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-25
Facility Alarms
2.52 Facility alarms indicate failures of a DS1 and/or Ethernet. Facility
alarms and parameters can be established individually. Notification codes
follow:
•Critical (CR)
•Major (MJ)
•Minor (MN)
•Cleared (CL)
Remote Inventory
2.53 Remote Inventory (RI) provides operators with the capability to
remotely determine what equipment is installed in the system. RI data
contains information programmed in the factory to indicate the configuration,
capability, and compatibility of the installed circuit packs.
•
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description 2-27
3. UNIT DESCRIPTIONS
3.1 Refer to table 3-A for brief descriptions of shelf assemblies, plug-in
modules, and miscellaneous components used in the 9500 MPR.
Table 3-A. 9500 MPR Unit Descriptions
UNIT DESCRIPTION
Microwave Switching Services (MSS-8)
Shelf
PN: 3DB18001AA
Qty: 1 per 9500 MPR node
The MSS-8 houses equipment that supports 10 Gb/s
packet switching, synchronization, protection switching,
provisioning, and alarm management. Up to 192 DS1 TDM
circuits, up to 12 DS3 TDM circuits, up to 12
10/100/1000BaseT Ethernet circuits, or 9 GigE SFP optical
Ethernet circuits for customer data flows. It is composed of
a power panel, and a card cage.
Two Control and Switching Module (CSM) slots support
either one CSM module in unprotected configuration or two
CSM modules in protected configuration.
Six transponder slots support any mixture of unprotected
and/or 1+1 EPS protected transponder modules.
Supported transponder types include: up to two P8ETH
(Ethernet) modules, up to six P32E1DS1 (DS1) modules,
up to six P2E3DS3 (DS3), and/or up to six MOD300 (radio)
modules.
One fan module is required for system cooling.
Microwave Packet Transport-Long Haul
(MPT-HL) Shelf
PN: 3EM22618AA
Qty: Up to 4 per 9500 MPR node
The MPT-HL shelf supports Two MPT-HL transceiver radio
modules.
Power Distribution Unit (PDU)
PN: 3EM13317AA
Qty: 1 per rack
The PDU provides power distribution and protection fuses
for equipment protection.
DS1 RJ-45 Patch Panel
PN: 1AF15245AB
Qty: Up to 6 per 9500 MPR node
DS1 RJ-45 Patch Panel supports up to 32 protected or
unprotected DS1 (Tx and Rx) interfaces. DS1 RJ-45 Patch
Panel provides 32 customer interconnects using RJ-45
connectors. Two SCSI to SCSI cables are required per
unprotected P32E1DS1 module and four SCSI to SCI
cables are required for protected pair of P32E1DS1
modules to transition the two module front panel SCSI
connectors to the DS1 RJ-45 Patch Panel.
3EM23952AA
Issue 01, September 2009
9500 MPR General System Description
2-28
DS1 D-Connector Patch Panel
PN: 3DB16102AA
Qty: Up to 6per 9500 MPR node
DS1 D-Connector Patch Panel supports up to 32 protected
or unprotected DS1 (Tx and Rx) interfaces. DS1 D-
Connector Patch Panel provides 32 customer
interconnects using 37-position D-Sub connectors for
terminating traditional ABAM cable. Two SCSI to SCSI
cables are required per P32E1DS1 module and four SCSI
to SCI cables are required for protected pair of P32E1DS1
modules to transition the two module front panel SCSI
connectors to the DS1 D-Connector Patch Panel.
Table 3-A. 9500 MPR Unit Descriptions (cont.)
UNIT DESCRIPTION
3EM23952AA
Issue 01, September 2009 UDS-100
9500 MPR Unit Data Sheet Cross-Reference 3-1
Unit Data Sheets (UDSs)
UDS-100
9500 MPR Unit Data Sheet Cross-Reference
Unit Data Sheet Cross-Reference by UDS Number
UDS
NUMBER DESCRIPTION CLEI STATUS PART NUMBER
UDS-100 9500 MPR Unit Data Sheet
Cross-Reference
NA NA NA
UDS-101 MSS-8 Microwave Service Switch Shelf 1Active 3DB18001AA
UDS-102 MPT-HL Microwave Packet transport-Long
Haul Shelf
1Active 3EM22618AA
UDS-104 PDU Power Distribution Unit 1Active 3EM13317AA
UDS-106 DS1 RJ-45 Patch Panel 1Active 1AF15245AB
UDS-107 DS1 D-Connector Patch Panel 1Active 3DB16102AA
UDS-109 CSM-E Enhanced Control and Switching
Module
4Active 3DB18326AB
UDS-110 Fan Card 1Active 3DB18134BA
UDS-113 P32E1DS1 DS1 PDH Module 1Active 3DB18126AD
UDS-114 P2E3DS3 DS3 PDH Module 1Active 3DB18194AB
UDS-115 P8ETH Ethernet Access Switch Module 1Active 3DB18206AC
UDS-116 MPT Transceiver L6, 5725-6425 MHz 1Active 3EM22617AA
MPT Transceiver U6, 6425-6930 MHz 4Active 3EM22617AB
UDS-117 GigE SFP 1000Base-SX, 850 nm DRR3AA3CAA Active 3EM20277AA
GigE SFP 1000Base-LX, 1310 nm DRR3AA4CAA Active 3EM20277AB
GigE SFP 1000Base-EX, 1310 nm DRR3AA5CAA Active 3EM20277AC
GigE SFP 1000Base-ZX, 1550 nm DRR3AA6CAA Active 3EM20277AD
UDS-100
9500 MPR Unit Data Sheet Cross-Reference
3-2
3EM23952AA
Issue 01, September 2009
Unit Data Sheet Cross-Reference by Part Number
PART NUMBER DESCRIPTION CLEI STATUS
UDS
NUMBER
1AF15245AB DS1 RJ-45 Patch Panel 1Active UDS-106
3DB16102AA DS1 D-Connector Patch Panel 1Active UDS-107
3DB18001AA MSS-8 Microwave Service Switch Shelf 1Active UDS-101
3DB18126AD P32E1DS1 DS1 PDH Module 1Active UDS-113
3DB18134BA Fan Card 1Active UDS-110
3DB18206AC P8ETH Ethernet Access Switch Module 1Active UDS-115
3DB18326AB CSM-E Enhanced Control and Switching
Module
4Active UDS-109
3EM13317AA PDU Power Distribution Unit 1Active UDS-104
3EM20277AA GigE SFP 1000Base-SX, 850 nm DRR3AA3CAA Active UDS-117
3EM20277AB GigE SFP 1000Base-LX, 1310 nm DRR3AA4CAA Active UDS-117
3EM20277AC GigE SFP 1000Base-EX, 1310 nm DRR3AA5CAA Active UDS-117
3EM20277AD GigE SFP 1000Base-ZX, 1550 nm DRR3AA6CAA Active UDS-117
3EM22617AA MPT Transceiver L6, 5725-6425 MHz 1Active UDS-116
3EM22617AB MPT Transceiver U6, 6425-6930 MHz 4Active UDS-116
3EM22618AA MPT-HL Microwave Packet transport-Long
Haul Shelf
1Active UDS-102
3EM23952AA
Issue 01, September 2009 UDS-101
MSS-8 Microwave Service Switch Shelf 3-3
UDS-101
MSS-8 Microwave Service Switch Shelf
FEATURES AND APPLICATION NOTES
•The Microwave Service Switch (MSS-8) shelf provides cross-
connection, port aggregation, switching, and equipment management.
•300 Mbps full-duplex Ethernet transport capacity
•Flexible aggregate capacity sharing DS1, DS3, and Ethernet traffic
•All indoor mount supports up to eight unprotected RF channels, four
1+1 HSB, Space Diversity (SD) or Frequency Diversity (FD) protected
RF channels in one MSS-8 shelf using P8ETH modules connected to
up to four Microwave Packet Transport-Long Haul (MPT-HL) shelves.
•Stand-alone shelf configuration
•All modules are accessed from the front side of the shelf
•Mounts in a 19-inch aluminum rack or 19-inch seismic rack. Adapter
flanges available to mount in a 23-inch aluminum rack
•Provides two mounting depth options: flush mount or 5 inch projection
•Provides nine module slots. Two are dedicated for Control and
Switching Modules (CSM). Six universal slots are available for
transport modules: P32E1DS1 (DS1), P2E3DS3 (DS3), and/or P8ETH
(Ethernet). One slot is dedicated for fan module.
DESCRIPTION
MSS-8 shelf provides nine slots. Two dedicated slots for CSM modules. Six slots
are available for transport module (P32E1DS1 (DS1), and two of the six slots
are available for P8ETH (Ethernet). And one slot is dedicated for a required fan
module. See figure 101-1 for an example of the MSS-8 shelf.
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3DB18001AA MSS-8 Microwave Service
Switch Shelf
1 2 3 Active
UDS-101
MSS-8 Microwave Service Switch Shelf
3-4
3EM23952AA
Issue 01, September 2009
The MSS-8 shelf is 19 inches wide (17.48 inches wide without mounting
flanges), 3.46 inches high (2 EIA increments), and 9.54 inches deep. Adapter
plates are available to mount the MSS-8 shelf in 23 inch aluminum racks.
EQUIPMENT COMPLEMENT
MSS-8 shelf slots 1 and 2 are dedicated to the CSM module. Slots 3 through 8
are available for transport modules P32E1DS1, P2E3DS3. Slots 3 and 4 are
available for P8ETH. Slot 9 is dedicated for required fan module. See
figure 101-2 for MSS-8 shelf slot definitions. Refer to Table 101-A for details of
module equipage options.
Figure 101-1. Microwave Service Switch (MSS-8) Shelf
3EM23952AA
Issue 01, September 2009 UDS-101
MSS-8 Microwave Service Switch Shelf 3-5
Figure 101-2. MSS-8 Shelf Slot Definitions
Table 101-A. MSS-8 Module Complement
CIRCUIT PACK/
UNIT DATA SHEET PART NO. CLEI QTY SLOT
CSM-E Enhanced Control and
Switching Module
UDS-109
3DB18326AB 41 1
CSM-E Enhanced Control and
Switching Module
UDS-109
3DB18326AB 4Up to 1 2
P32E1DS1 DS1 PDH Module
UDS-113
3DB18126AD 1Up to 6 3, 4, 5, 6, 7, 8
P8ETH Ethernet Access Switch
Module
UDS-115
3DB18206AC 1Up to 2 3, 4
Fan Card
UDS-110
3DB18134BA 11 9
950-0004-1
072209
CSM
(Protect)
Any Transponder
P32E1DS1
or P8ETH
Any Transponder
P32E1DS1
or P8ETH
P32E1DS1 P32E1DS1
P32E1DS1 P32E1DS1
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
UDS-101
MSS-8 Microwave Service Switch Shelf
3-6
3EM23952AA
Issue 01, September 2009
MSS-8 shelf slot 1 is dedicated to the main CSM module and is required in
every application. See figure 101-3 to see an example of the MSS-8 shelf
configured in the unprotected CSM configuration. Slot 2 is dedicated for an
optional spare CSM module for protected CSM configurations. See figure 101-4
to see an example of the MSS-8 shelf configured in the protected CSM
configuration.
Figure 101-3. MSS-8 Shelf, Unprotected CSM Configuration
950-0006-1
072209
Filler Panel
Any Transponder Any Transponder
Any Transponder Any Transponder
Any Transponder Any Transponder
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
3EM23952AA
Issue 01, September 2009 UDS-101
MSS-8 Microwave Service Switch Shelf 3-7
MSS-8 shelves supports up to six P32E1DS1 module in unprotected DS1
aggregation configurations. Supports up to three pairs of P32E1DS1 modules
in 1+1 EPS protected DS1 aggregation configurations. In 1+1 EPS protected
configuration, the main P32E1DS1 modules are equipped in slots 3, 5, and/or
7, and the spare (protection) P32E1DS1 modules are equipped in slots 4, 6,
and/or 8 respectively.
See figure 101-5 to see an example of a stand-alone MSS-8 shelf configured
with two pairs of P32E1DS1s in slots 3 through 6 in the protected 1+1 EPS
configuration and slots 7 and 8 configured in the unprotected configuration.
Figure 101-4. MSS-8 Shelf, Protected CSM Configuration
950-0005-1
072209
CSM
(Protect)
Any Transponder Any Transponder
Any Transponder Any Transponder
Any Transponder Any Transponder
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
UDS-101
MSS-8 Microwave Service Switch Shelf
3-8
3EM23952AA
Issue 01, September 2009
MSS-8 shelves supports up to six P2E3DS3 modules in unprotected
configurations. Supports up to three pairs of P2E3DS3 modules in 1+1 EPS
protected configurations. In 1+1 EPS protected configuration, the main
P2E3DS3 modules are equipped in slots 3, 5, and/or 7, and the spare
(protection) P2E3DS3 modules are equipped in slots 4, 6, and/or 8 respectively.
See figure 101-6 to see an example of a stand-alone MSS-8 shelf configured
with two pairs of P2E3DS3s in slots 3 through 6 in the protected 1+1 EPS
configuration and slots 7 and 8 configured in the unprotected configuration.
Figure 101-5. MSS-8 Stand-Alone Shelf, Equipped with P32E1DS1
950-0007-1
072209
CSM
(Protect)
P32E1DS1
(Main)
P32E1DS1
(Protect)
P32E1DS1
(Main)
P32E1DS1
(Protect)
P32E1DS1
(Unprotected)
P32E1DS1
(Unprotected)
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
3EM23952AA
Issue 01, September 2009 UDS-101
MSS-8 Microwave Service Switch Shelf 3-9
MSS-8 shelves equipped with P8ETH modules, the main P8ETH is required in
slot 3 for unprotected configurations. For protected P8ETH applications, the
main P8ETH module is required in slot 3 and the spare (protection) P8ETH is
required in slot 4.
See figure 101-7 to see an example of the MSS-8 shelf configured as an all
indoor mount, 1+0 4-way junction in slot 3, with a pair of P32E1DS1s in slots
5 and 6 in the protected 1+1 EPS configuration.
Figure 101-6. MSS-8 Stand-Alone Shelf, Equipped with P32E1DS1
950-0008-1
072209
CSM
(Protect)
P2E3DS3
(Main)
P2E3DS3
(Protect)
P2E3DS3
(Main)
P2E3DS3
(Protect)
P2E3DS3
(Unprotected)
P2E3DS3
(Unprotected)
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
UDS-101
MSS-8 Microwave Service Switch Shelf
3-10
3EM23952AA
Issue 01, September 2009
See figure 101-8 to see an example of the MSS-8 shelf configured as an all
indoor mount, 1+1 4-way junction in slots 3 and 4, with three P32E1DS1s in
slot 5 through 7 in the unprotected configuration.
Figure 101-7. MSS-8 Shelf, All Indoor Mount, 1+0 4-Way Junction Configuration
950-0011-1
072209
CSM
(Protect)
P8ETH
(Main) Filler Panel
P32E1DS1
(Main)
P32E1DS1
(Protect)
Filler Panel Filler Panel
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
3EM23952AA
Issue 01, September 2009 UDS-101
MSS-8 Microwave Service Switch Shelf 3-11
Figure 101-8. MSS-8 Shelf, All Indoor Mount, 1+1 4-Way Junction Configuration
950-0012-1
072209
CSM
(Protect)
P8ETH
(Main)
P8ETH
(Protect)
P32E1DS1
(Unprotected)
P32E1DS1
(Unprotected)
P32E1DS1
(Unprotected) Filler Panel
CSM
(Main)
Fan
92
4
6
8
1
3
5
7
UDS-101
MSS-8 Microwave Service Switch Shelf
3-12
3EM23952AA
Issue 01, September 2009
FUNCTIONAL OVERVIEW
MSS-8 implements functionality of grooming, routing, switching and
protection, exploiting a packet oriented technology in order to meet the overall
architecture.
The MSS-8 CSM platform, with multiplexing and symmetrical cross-connect
functions, can manage different radio directions (up to eight), with the
possibility to add-drop data flows of local DS1/Ethernet traffic. CSM platform
is based on packet technology (Ethernet Switch) with a generic serial GigE
interface between CSM and transponder modules. See figure 101-9 for a
functional block diagram of the MSS-8 shelf.

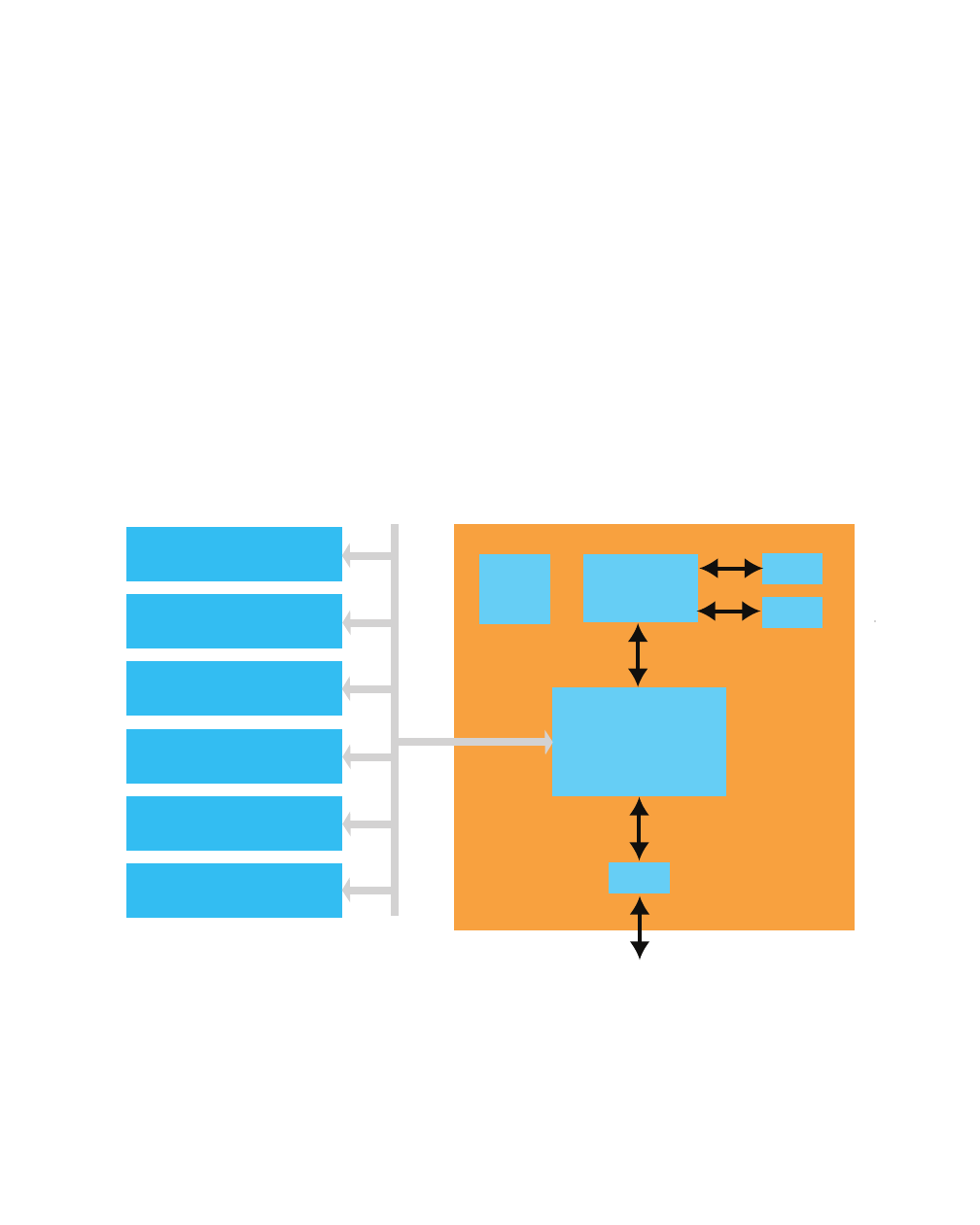

Figure 101-9. MSS-8 Shelf Block Diagram
950-0013-1
072209
Transponder Moudule
Transponder Moudule
Transponder Moudule
Transponder Moudule
Transponder Moudule
Transponder Moudule
Controller
PSU
Ethernet
Switch
RAM
Flash
LIU
Peripherals CSM Module
4 Ports
10/100/1000BaseT
Ethernet
3EM23952AA
Issue 01, September 2009 UDS-101
MSS-8 Microwave Service Switch Shelf 3-13
The MSS-8 shelf houses the following modules:
•CSM Control and Switching Module—houses one main and one
optional protect control and switching module(s). Provides four
10/100/1000 Base-T Ethernet ports.
•P32E1DS1 DS1 PDH module—houses up to six P32E1DS1 modules
for DS1 TDM traffic encapsulation/extraction into standard Ethernet
packets
•P8ETH Ethernet Access Switch—houses up to two P8ETH modules
for MSS-8-to-MPT-HL interface for all indoor configurations. The
P8ETH module functions as a layer 2 switch, cross-connecting VLAN
tagged Ethernet data to/from the addressed MPT-HL.
The P8ETH module provides traffic management for CSM(s) for up to
four directions using protected radios and up to eight directions using
unprotected radios.
A secondary purpose of the P8ETH module is to provide four
10/100/1000 Base-T Ethernet ports.
•The MSS-8 shelf houses one fan module resident in slot 9 on the
right-hand side of the shelf and provides forced-air cooling for the
shelf.
UDS-101
MSS-8 Microwave Service Switch Shelf
3-14
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-102
MPT-HL Microwave Packet Transport-Long Haul Shelf 3-15
UDS-102
MPT-HL Microwave Packet Transport-Long Haul Shelf
FEATURES AND APPLICATION NOTES
DESCRIPTION
EQUIPMENT COMPLEMENT
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3EM22618AA MPT-HL Microwave Packet
transport-Long Haul Shelf
1 2 3 Active
UDS-102
MPT-HL Microwave Packet Transport-Long Haul Shelf
3-16
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-104
PDU Power Distribution Unit 3-17
UDS-104
PDU Power Distribution Unit
FEATURES AND APPLICATION NOTES
DESCRIPTION
EQUIPMENT COMPLEMENT
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3EM13317AA PDU Power Distribution
Unit
1 2 3 Active
UDS-104
PDU Power Distribution Unit
3-18
3EM23952AA
Issue 01, September 2009
FUNCTIONAL OVERVIEW
3EM23952AA
Issue 01, September 2009 UDS-106
DS1 RJ-45 Patch Panel 3-19
UDS-106
DS1 RJ-45 Patch Panel
FEATURES AND APPLICATION NOTES
DESCRIPTION
CONNECTORS
FUNCTIONAL OVERVIEW
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
1AF15245AB DS1 RJ-45 Patch Panel 1 2 3 Active
UDS-106
DS1 RJ-45 Patch Panel
3-20
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-107
DS1 D-Connector Patch Panel 3-21
UDS-107
DS1 D-Connector Patch Panel
FEATURES AND APPLICATION NOTES
DESCRIPTION
CONNECTORS
FUNCTIONAL OVERVIEW
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3DB16102AA DS1 D-Connector Patch
Panel
1 2 3 Active
UDS-107
DS1 D-Connector Patch Panel
3-22
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-109
CSM-E Enhanced Control and Switching Module 3-23
UDS-109
CSM-E Enhanced Control and Switching Module
FEATURES AND APPLICATION NOTES
DESCRIPTION
INDICATORS, CONNECTORS, AND CONTROL
FUNCTIONAL OVERVIEW
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3DB18326AB CSM-E Enhanced Control
and Switching Module
4 5 6 Active
UDS-109
CSM-E Enhanced Control and Switching Module
3-24
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-110
Fan Card 3-25
UDS-110
Fan Card
FEATURES AND APPLICATION NOTES
DESCRIPTION
CONNECTORS
FUNCTIONAL OVERVIEW
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3DB18134BA Fan Card 1 2 3 Active
UDS-110
Fan Card
3-26
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-113
P32E1DS1 DS1 PDH Module 3-27
UDS-113
P32E1DS1 DS1 PDH Module
FEATURES AND APPLICATION NOTES
•Terminates up to 32 DS1 signals
•Framed DS1 Bi-Directional alarm management
•Bi-Directional performance monitoring on framed DS1 signals
•Encapsulation of DS1 data flows into standard Ethernet packets Inter
Working Function (IWF)
•Extraction of DS1 data flows from standard Ethernet packets IWF
•Supports both unprotected and 1+1 EPS protected configurations
DESCRIPTION
The P32E1DS1 module provides 32 DS1 interfaces. The MSS-8 shelf supports
up to six P32E1DS1 modules or 192 unprotected DS1 interfaces or 96 protected
DS1 interfaces.
The P32E1DS1 are supported in MSS-8 slots 3 through 8 for unprotected radio
configurations. In protected radio configurations, a pair of P32E1DS1s are
required. The main P32E1DS1s are equipped in slots 3, 5, or 7 and the protect
(spare) P32E1DS1s are equipped in the slots directly across from the main (slot
4, 6, or 8). The protect (spare) P32E1DS1 module protects the radio if the main
P32E1DS1 fails.
INDICATORS, CONNECTORS, AND CONTROL
The P32E1DS1 DS1 PDH module has the following indicator and connectors.
See figure 113-1 for P32E1DS1 DS1 PDH module front panel indicator and
connectors.
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3DB18126AD P32E1DS1 DS1 PDH
Module
1 2 3 Active
UDS-113
P32E1DS1 DS1 PDH Module
3-28
3EM23952AA
Issue 01, September 2009
FUNCTIONAL OVERVIEW
In the transmit direction, the P32E1DS1 receives DS1 signals from the
customer interfaces. Encapsulates the DS1 data flows into standard Ethernet
packets, (IWF). The Ethernet packets are sent to the cross-connections matrix
for connection to their provisioned destinations.
In the receive direction, the P32E1DS1 receives Ethernet packets from the
cross-connections matrix from their provisioned sources. Extracts the DS1 data
flows from standard Ethernet packets (IWF). The DS1 signals are sent to the
customer interfaces.
ITEM FUNCTION
STATUS (S) •Off - Card not equipped, not
provisioned, or not powered
•Green Blinking - Download,
Software Booting, or Flash Module
Realignment in Progress
•Green - In Service, Normal
Operation, and Properly
Provisioned
•Yellow - In Protect, Properly
Provisioned as EPS
•Red - Card Fail
•Red Blinking - Card Mismatch
I/O (16-1) 64 position SCSI connector:
•DS1, Tx and Rx (tip and ring),
interconnect
•DS1s number 1 through 16
I/O (32-17) 64 position SCSI connector:
•DS1, Tx and Rx (tip and ring),
interconnect
•DS1s number 17 through 32

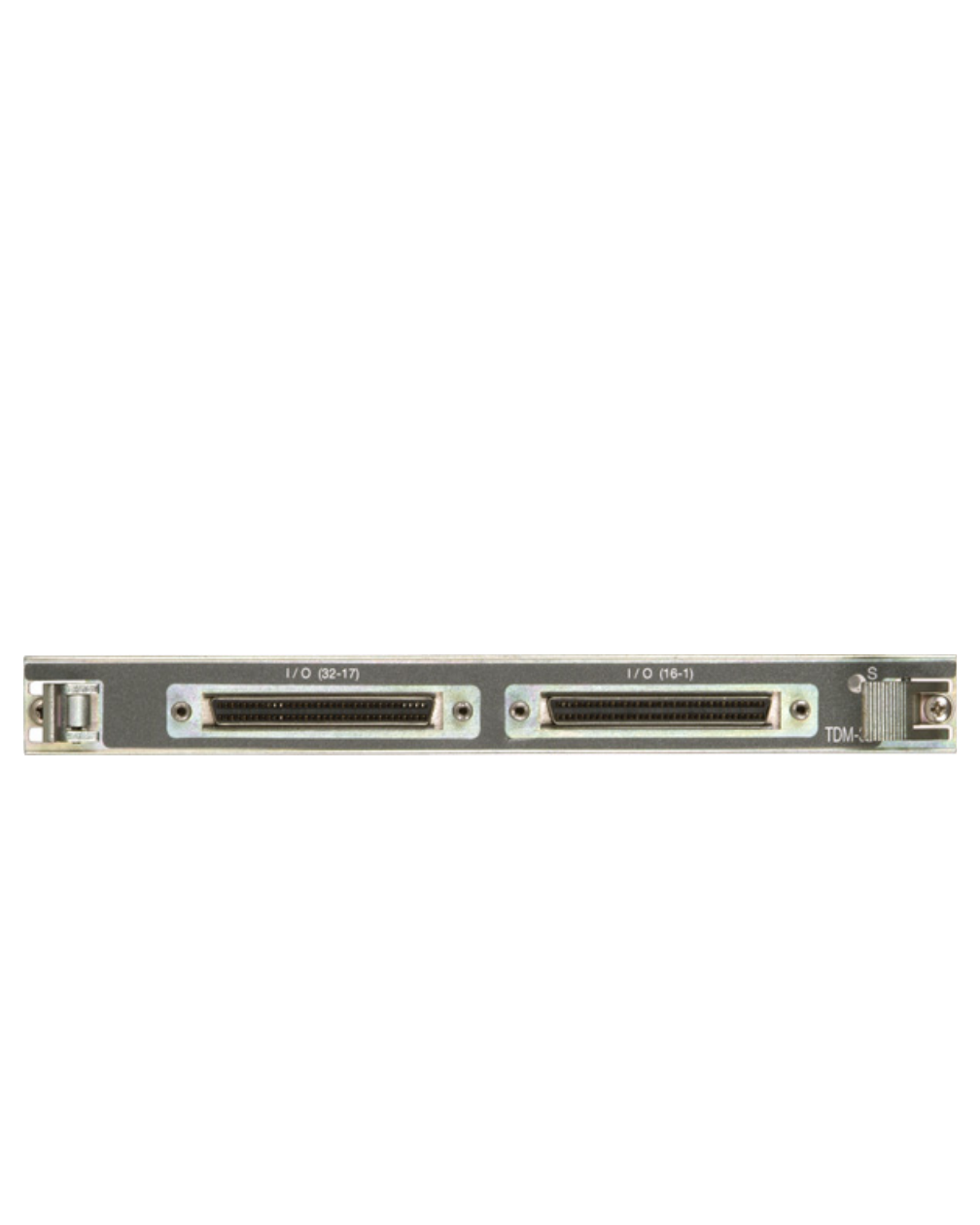

Figure 113-1. P32E1DS1 DS1 Module (MSS/DS1) Front Panel View
3EM23952AA
Issue 01, September 2009 UDS-114
P2E3DS3 DS3 PDH Module 3-29
UDS-114
P2E3DS3 DS3 PDH Module
FEATURES AND APPLICATION NOTES
•Terminates up to two DS3 signals.
•Framed DS3 Bi-Directional alarm management
•Bi-Directional performance monitoring on framed DS3 signals
•Encapsulation of DS3 data flows into standard Ethernet packets Inter
Working Function (IWF)
•Extraction of DS3 data flows from standard Ethernet packets IWF
•Supports both unprotected and 1+1 EPS protected configurations
DESCRIPTION
The P2E3DS3 module provides 2 DS3 interfaces. The MSS-8 shelf supports up
to six P2E3DS3 modules or 12 unprotected DS3 interfaces or 6 protected DS3
interfaces.
The P2E3DS3 are supported in MSS-8 slots 3 through 8 for unprotected radio
configurations. In protected radio configurations, a pair of P2E3DS3s are
required. The main P2E3DS3s are equipped in slots 3, 5, or 7 and the protect
(spare) P2E3DS3s are equipped in the slots directly across from the main (slots
4, 6, or 8). The protect (spare) P2E3DS3 module protects the radio if the main
P3E3DS3 fails.
INDICATORS, CONNECTORS, AND CONTROL
The P2E3DS3 DS3 PDH module has the following indicator and connectors.
See figure 114-1 for P2E3DS3 DS3 PDH module front panel indicator and
connectors.
UDS-114
P2E3DS3 DS3 PDH Module
3-30
3EM23952AA
Issue 01, September 2009
FUNCTIONAL OVERVIEW
In the transmit direction, the P2E3DS3 receives DS3 signals from the customer
interfaces. Encapsulates the DS3 data flows into standard Ethernet packets,
(IWF). The Ethernet packets are sent to the cross-connections matrix for
connection to their provisioned destinations.
In the receive direction, the P2E3DS3 receives Ethernet packets from the
cross-connections matrix from their provisioned sources. Extracts the DS3 data
flows from standard Ethernet packets (IWF). The DS3 signals are sent to the
customer interfaces.
Figure 114-1. P2E3DS3 DS3 Module (MSS/DS3) Front Panel View
3EM23952AA
Issue 01, September 2009 UDS-115
P8ETH Ethernet Access Switch Module 3-31
UDS-115
P8ETH Ethernet Access Switch Module
FEATURES AND APPLICATION NOTES
•Terminates up to four GigE optical Ethernet SFP interfaces
•Terminates up to four 10/100/1000 electrical Ethernet interfaces
•Framed DS3 Bi-Directional alarm management
•Bi-Directional performance monitoring on framed DS3 signals
•Encapsulation of DS3 data flows into standard Ethernet packets Inter
Working Function (IWF)
•Extraction of DS3 data flows from standard Ethernet packets IWF
•Supports both unprotected and 1+1 EPS protected configurations
DESCRIPTION
The P8ETH module provides four 10/100/1000 electrical Ethernet interfaces
and four GigE optical Ethernet SFP interfaces. The MSS-8 shelf supports one
protected pair of P8ETH modules or one unprotected P8ETH module.
The P8ETH is supported in MSS-8 slot 3 for unprotected radio configurations.
In protected radio configurations, a pair of P8ETHs are required. The main
P8ETH is equipped in slot 3 and the protect (spare) P8ETH is equipped in slot
4 directly across from the main. The protect (spare) P8ETH module protects the
radio if the main P8ETH fails.
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3DB18206AC P8ETH Ethernet Access
Switch Module
1 2 3 Active
UDS-115
P8ETH Ethernet Access Switch Module
3-32
3EM23952AA
Issue 01, September 2009
INDICATORS, CONNECTORS, AND CONTROL
The P2E3DS3 DS3 PDH module has the following indicator and connectors.
See figure 115-1 for P2E3DS3 DS3 PDH module front panel indicator and
connectors.
FUNCTIONAL OVERVIEW
In the transmit direction, the P2E3DS3 receives DS3 signals from the customer
interfaces. Encapsulates the DS3 data flows into standard Ethernet packets,
(IWF). The Ethernet packets are sent to the cross-connections matrix for
connection to their provisioned destinations.
In the receive direction, the P2E3DS3 receives Ethernet packets from the
cross-connections matrix from their provisioned sources. Extracts the DS3 data
flows from standard Ethernet packets (IWF). The DS3 signals are sent to the
customer interfaces.
ITEM FUNCTION
STATUS (S) •Off - Card not equipped, not
provisioned, or not powered
•Green Blinking - Download,
Software Booting, or Flash Module
Realignment in Progress
•Green - In Service, Normal
Operation, and Properly
Provisioned
•Yellow - In Protect, Properly
Provisioned as EPS
•Red - Card Fail
•Red Blinking - Card Mismatch
LINE 1 •IN - DS3 Rx interconnect
•OUT - DS3 Tx interconnect
LINE 2 •IN - DS3 Rx interconnect
•OUT - DS3 Tx interconnect
Figure 115-1. P8ETH Module (MSS/P8ETH)
3EM23952AA
Issue 01, September 2009 UDS-116
MPT Transceiver 3-33
UDS-116
MPT Transceiver
FEATURES AND APPLICATION NOTES
DESCRIPTION
INDICATORS, CONNECTORS, AND CONTROL
FUNCTIONAL OVERVIEW
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3EM22617AA MPT Transceiver L6,
5725-6425 MHz
1 2 3 Active
3EM22617AB MPT Transceiver U6,
6425-6930 MHz
4 5 6 Active
UDS-116
MPT Transceiver
3-34
3EM23952AA
Issue 01, September 2009
3EM23952AA
Issue 01, September 2009 UDS-117
GigE SFP 3-35
UDS-117
GigE SFP
FEATURES AND APPLICATION NOTES
•Is an in-service pluggable optical module
•Provides a 1.25 Gb/s Gigabit Ethernet (GigE) interface for Control and
Switching Module (CSM) or Ethernet Access Switch Card (P8ETH).
•Available in four optical reaches
– 1000Base-SX, 850 nm (up to 550 meter applications)
– 1000Base-LX, 1310 nm (up to 10 kilometer applications)
– 1000Base-EX, 1310 nm (up to 40 kilometer applications)
– 1000Base-ZX, 1550 nm (up to 80 kilometer applications)
•Provides a duplex LC connector
•Is compliant with Small Form Factor Plug-in (SFP) Multi-Service
Agreement (MSA)
DESCRIPTION
The GigE Small Form Factor Plug-in (SFP) is installed in one slot of a CSM or
EAS. Provides a 1.25 Gb/s; 1000Base-SX 850 nm, 1000Base-LX 1310 nm,
1000Base-EX 1310 nm, or 1000Base-ZX 1550 nm GigE interface and a duplex
LC connector. See figure 117-1 for an illustration of the GigE SFPs.
PART NUMBER/
MNEMONIC
NAME CLEI ECI/
BAR CODE
CPR STATUS
3EM20277AA GigE SFP 1000Base-SX,
850 nm
DRR3AA3CAA 147527 U73234 Active
3EM20277AB GigE SFP 1000Base-LX,
1310 nm
DRR3AA4CAA 147539 U73235 Active
3EM20277AC GigE SFP 1000Base-EX,
1310 nm
DRR3AA5CAA 147542 U73236 Active
3EM20277AD GigE SFP 1000Base-ZX,
1550 nm
DRR3AA6CAA 147544 U73237 Active
UDS-117
GigE SFP
3-36
3EM23952AA
Issue 01, September 2009
INDICATORS, CONNECTORS, AND CONTROL
The SFPs have the following indicators and connector.
FUNCTIONAL OVERVIEW
The GigE SFP interfaces with the CSM or EAS through a 2.5 Gb/s data signal
line. All timing, control, and power are provided by the CSM or EAS in which
it is housed (refer to UDS-109 or UDS-115, respectively, for information). See
figure 117-2 for a block diagram of the GigE SFPs.
ITEM FUNCTION
LINK Off indicates GigE link is down. Green
LED indicates GigE link is Up.
ACTIVITY Off indicates no activity on GigE link.
Blinking amber LED indicates activity on
GigE link.
DUPLEX LC OPTICAL CONNECTOR Tx and Rx GigE ports
3EM23952AA
Issue 01, September 2009 UDS-117
GigE SFP 3-37
On the transmitter side, the GigE SFPs has an automatic optical output power
control circuit, a laser driver and a laser diode module. The transmitter is
based on a non-cooled DFB laser. The laser safety class for the complete
integrated module is class 1 according to IEC 60825. It can manage commands
for TX disable and provides a TX fault alarm.
TX fault indicates a laser fault. The transmitter is not disabled when the TX
fault signal is active. TX disable is an input that is used to shut down the
transmitter optical output.
On the receiver side, the GigE SFPs have a PIN photo detector for light-to-
electrical current conversion and a limiting amplifier. The photo-detected
current is amplified by an electrical circuit that delivers two complementary
data signals.
Figure 117-1. Optical SFP Module
950-0001-1
072009
Optical cables
Transceiver CSM SFP module
Transceiver EAS SFP module
Input
Output
UDS-117
GigE SFP
3-38
3EM23952AA
Issue 01, September 2009
The module provides LOS alarm (loss of input power signal alarm). This output
signal indicates the received optical power is below the worst-case receiver
sensitivity (as defined by the standard in use).
The transceiver has an EEPROM to provide Remote Inventory RI information.
DDM supports analog parameter measurements such as temperature, laser
bias, and laser power.

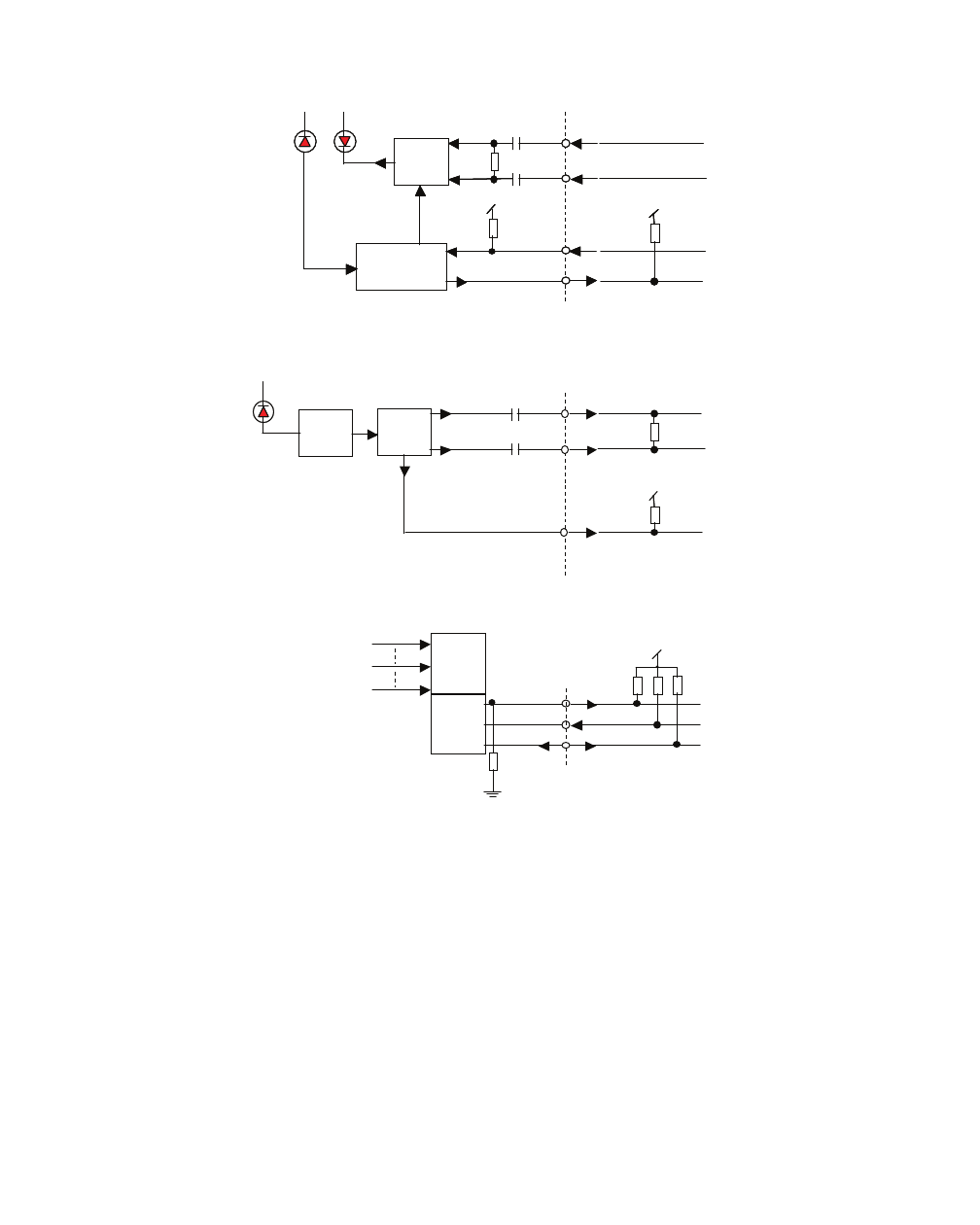

Figure 117-2. Optical SFP Module Block Diagram
950-0002-1
072009
MONITOR
PIN PD LD
LASER
DRIVER
AUTOMATIC
POWER CONTROL
CIRCUIT
100 7
100 7
100 7
4.7 k7 TO
10 k7
4.7 k7 TO
10 k7
4.7 k7 TO
10 k7
4.7 k7
SFP MODULE HOST MODULE
(A) TRANSMITTER
(B) RECEIVER
(C) EEPROM
EEPROM
DIAGNOSTIC
MONITOR
TEMPERATURE
SUPPLY VOLTAGE
TX BIAS CURRENT
TX OUTPUT POWER
RX RECEIVED POWER MOD-DEF (0)
MOD-DEF (1)
MOD-DEF (2)
PIN PD
TD+
TD-
VccT VccT
VccT
VccR
TX DISABLE
TX FAULT
RD-
RD+
POST-
AMP
PRE-
AMP
LOS
