Alcatel USA 9928RT LMDS Terminal Station Transceiver User Manual

Alcatel USA Marketing, Inc. LMDS Terminal Station Transceiver

UserManual.wiki >

Alcatel USA >

9928RT User Manual HTML Version

User Manual

document, use and communication of its contents

not permitted without written authorization from ALCATEL

1/683CC11095AAAATQBJA02 Issue02-January 04, 2000

Alcatel 9900

Multiservice broadband

wireless access solution

Terminal Station – release 2.0

USER MANUAL

document, use and communication of its contents

not permitted without written authorization from ALCATEL

2/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

3/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Table of contents

1 – Foreword 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 – Structure of the manual 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 – Using the manual 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 – Safety instructions 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.1 – General rules 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.2 – Symbols on products 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.3 – Symbols used in the document 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 – Equipment overview 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 – Overview of the A9900 system 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 – Composition of the A9900 system 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 – A9900 system specifications 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3.1 – Frequency bands used 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3.2 – Radio transmission specifications (typical values) 11. . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3.3 – Capacity 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 – Description of the Terminal Station (9900TS) 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5 – Examples of configuration of the Terminal Station (9900TS) 15. . . . . . . . . . . . . . . . . . . . . . . . . .

2.5.1 – Mono “NT” without repeater 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5.2 – Mono “NT” with repeater 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5.3 – Multi “NT” (max.4) with passive splitters and repeaters 16. . . . . . . . . . . . . . . . . . . . . .

2.6 – Technical specifications of the Terminal Station (9900TS) 17. . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6.1 – RT specifications 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6.2 – NT specifications 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 – Installation of the 9900TS Terminal Station 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 – Equipment delivery 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.1 – Unpacking 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.2 – Checking the configuration 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 – Labels on the equipment 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 – Installing the equipment 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3.1 – Information required for installation 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3.2 – Precautions concerning electromagnetic compatibility 22. . . . . . . . . . . . . . . . . . . . . . .

3.3.3 – Tools required 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4 – Installation of the Terminal Station RT unit 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.1 – Definition of assemblies with respect to chosen polarization 23. . . . . . . . . . . . . . . . . .

3.4.2 – Installation of the 9900RT on a wall or flat vertical surface 26. . . . . . . . . . . . . . . . . . .

3.4.3 – Installation of the RT unit on a tube 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.4 – Grounding the RT unit 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5 – Installation of the RT/NT link 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6 – Installation of the Terminal Station 9900NT Indoor Unit 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.1 – Installation of the 9900NT unit on a desktop 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.2 – Installation of the NT unit on a vertical wall support 35. . . . . . . . . . . . . . . . . . . . . . . . .

document, use and communication of its contents

not permitted without written authorization from ALCATEL

4/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.6.3 – Installation of the NT unit on a 19” rack 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.4 – Grounding the NT unit 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7 – Installation of one or more repeater modules 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8 – Installation of one or several repeaters with passive splitter(s) 39. . . . . . . . . . . . . . . . . . . . . . . .

4 – Commissioning the 9900TS Terminal Station 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1 – Purpose 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2 – Commissioning the RT unit 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2.1 – Equipment required 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2.2 – Site configuration and adjustment procedures 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3 – Commissioning the NT IDU 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4 – Client terminal connections 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.1 – Ethernet connector 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.2 – G703 connector 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.3 – X21 connector 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 – Operation and maintenance 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1 – Network supervision 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2 – Preventive maintenance 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3 – Corrective maintenance 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3.1 – Methodology 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3.2 – Use of 9900LT software programs for alarm localisation 55. . . . . . . . . . . . . . . . . . . . .

5.4 – Changing the NT unit 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.5 – Changing the RT unit 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 – Changes of configuration 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.1 – Use of NT unit supervision 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2 – Declaration, deletion, reset of an NT unit 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3 – Implementation of customer services 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.4 – Changing an RT unit 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.5 – Changing the BS on an NT 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix 1 – 9900 TS INSTALLATION SHEET 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix 2 – Using the DALLET[ system by SOFRER] for 1 m & 1.5 m high mast on rooftop 61

Appendix 3 – Mounting coaxial connectors 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix 4 – List of abbreviations/Liste des abréviations 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

document, use and communication of its contents

not permitted without written authorization from ALCATEL

5/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

1 – Foreword

1.1 –Structure of the manual

This manual is for users with a sound knowledge of how to operate and install point–multipoint microwave

systems and how to use a PC-based craft terminal running the Windowst operating system. With it, you

should quickly be able to operate the equipment. It is not intended to replace the training services that we can

provide for your particular needs.

The manual is divided into seven sections followed by appendixes:

– Foreword

– Description of the equipment

– Installation of the equipment

– Servicing

– Maintenance

– Upgrading configurations

– Appendixes

1.2 –Using the manual

With this manual, you should be able to commission and operate the described equipment to a basic level.

You should always read this manual in conjunction with the attached “Update” document (if provided) so that

you are aware of the latest equipment upgrades.

Manual updates

This edition of the manual describes hardware and software releases of the following revision indexes and

above:

Hardware revision: 01

In cases where an equipment upgrade affects the content of the manual, the relevant modification should be

inserted in the “Update” document, with the same reference number, but with code type VE (instead of TQ).

When the number or extent of the changes justifies it, they should be incorporated in the body of the manual

and the manual’s revision index should be incremented. Revision bars will show the differences from the

previous version.

Note: MS-DOS, MICROSOFT and WINDOWS are registered trademarks of Microsoft Corporation.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

6/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

1.3 –Safety instructions

1.3.1 – General rules

The following general safety precautions must be observed by the installer and the operator. ALCATEL

assumes no liability for the customer’s failure to comply with these requirements.

Ground the equipment:

For Safety Class 1 equipment, always connect the earth conductor of the power cable to an appropriate earthing

device.

DO NOT operate the product in an explosive atmosphere or in presence of flammable gases or fumes.

For protection against fire:

replace the line fuse(s) only with fuse(s) of the same voltage and current rating and type.

Dangerous voltages:

Users must not remove equipment covers or shields. The installation and maintenance procedures described

in this manual are for use by service–trained personnel only.

DO NOT operate equipment which may be damaged:

Whenever it is possible that the safety protection features built into this equipment have been impaired,

ISOLATE FROM THE POWER SUPPLY and do not use the equipment until safe operation can be verified by

service–trained personnel. If necessary, return the equipment to Alcatel After Sales for service and repair.

DO NOT substitute parts or modify equipment:

Return the product to Alcatel Customer Service for servicing and repair.

1.3.2 – Symbols on products

1.3.2.1 – Danger symbols

When subsystems and modules have warning labels, it is extremely important to follow their instructions.

These labels are designed to indicate dangerous situations; they may contain any standard symbol or any text

considered necessary to protect users and employees.

The most frequent danger situations and symbols are:

Danger or general warning

Prompts the user to refer to the manual.

Dangerous electrical voltages

Close to dangerous voltages (>42.4 V AC peak, 60 V DC; power level >240 VA) you will find

this warning label

Presence of heat-radiating mechanical parts

document, use and communication of its contents

not permitted without written authorization from ALCATEL

7/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

1.3.2.2 – Earth symbols

Terminal for connecting the protective earth conductor in power supply wiring

Other earth terminal

1.3.2.3 – Other symbols

Indicates compliance with European standards

1.3.3 – Symbols used in the document

These symbols alert the reader the possible risks. They indicate:

– the cause and type of danger,

– the possible consequences,

– the preventive action.

1.3.3.1 – Warning

–protection of personnel,

– warning of a possible dangerous situation,

– danger of fatal or serious injury.

1.3.3.2 – Precautions

–protection of equipment,

– warning of a procedure, practice or condition that could be dangerous to

equipment or its environment,

– danger of damage to the equipment or its environment; permanent loss of data

possible.

– This symbol, introducing the description of a procedure, indicates that it will

cause the link to be temporarily disconnected.

– This symbol, introducing the description of a procedure, indicates that it cannot

be continued without a full knowledge of the data contained in the procedure

sheet concerning the stations concerned.

STOP

document, use and communication of its contents

not permitted without written authorization from ALCATEL

8/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

9/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

2 – Equipment overview

2.1 –Overview of the A9900 system

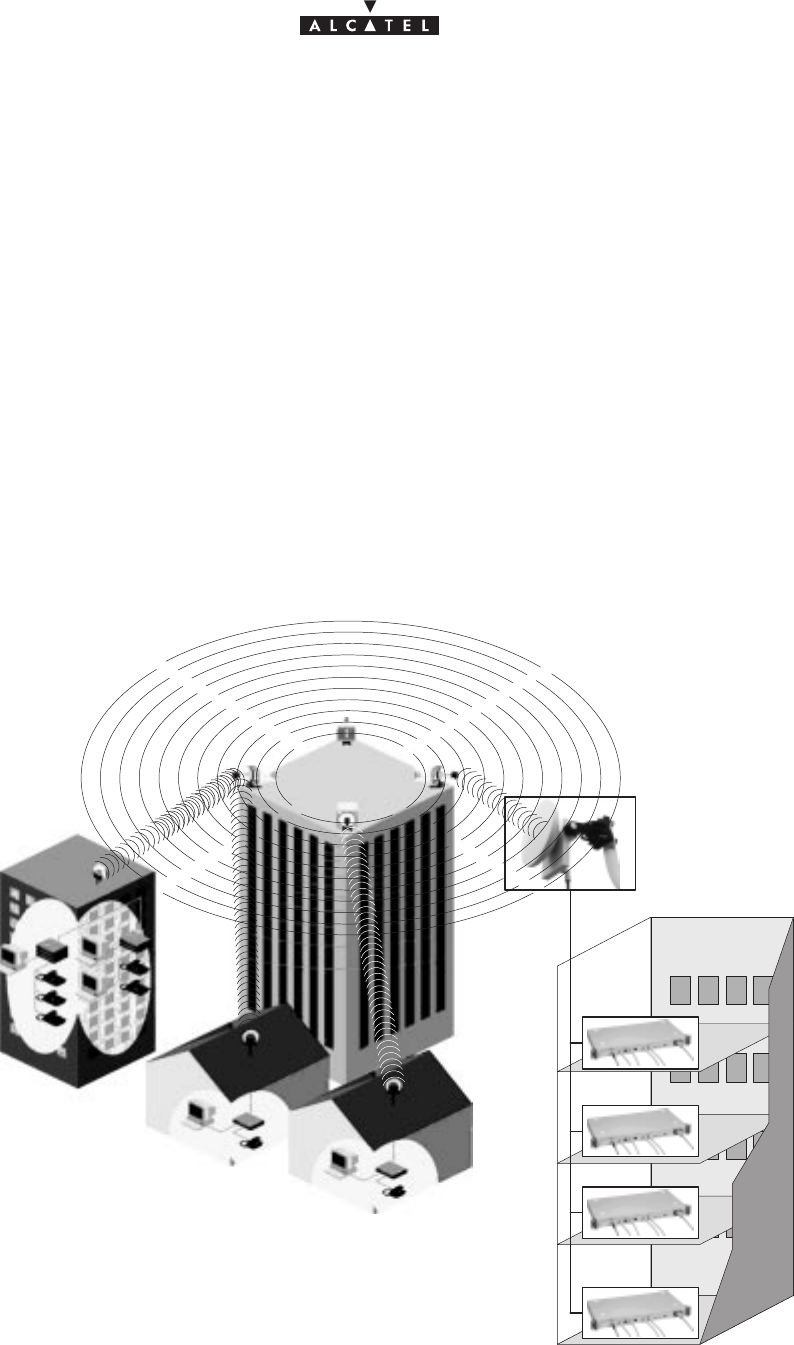

The Alcatel 9900 is a multi–service broadband wireless local loop system designed to provide telecom

services to small and medium–sized enterprises.

Broad band WLL (Wireless Local Loop) system, Alcatel 9900 allows operators to offer rapid provision – to a

large number of client sites – of a comprehensive range of telephone and data transmission services.

For cellular phone network operators, Alcatel 9900 offers the possibility of linking base stations to base

station controllers. This makes Alcatel 9900 an economical transmission solution, for the implementation or

extension of high traffic density areas coverage.

For mixed network operators (fixed and mobile), Alcatel 9900 enables to connect, with the same system, fixed

professional end user as well as base stations of cellular telephony.

Figure 1 – A9900 System – Local point–multipoint service distribution –

SME

Company D

Company C

Company A

Company B

Independant profession

document, use and communication of its contents

not permitted without written authorization from ALCATEL

10/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

2.2 –Composition of the A9900 system

An A9900 network cell consists of the following:

Sa common base station designated 9900BS;

Sand several terminal stations distributed across the user sites, and designated 9900TS.

Figure 2 – Base Station and Terminal Stations

“Digital Base Station”

DBS

“Terminal Stations”

“Radio Base Station”

RBS

9900BS

nx9900TS

document, use and communication of its contents

not permitted without written authorization from ALCATEL

11/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

2.3 –A9900 system specifications

2.3.1 – Frequency bands used

25 GHz frequency band:

– CEPT T/R 13–02E European recommendation 24.5 – 26.5 GHz

26 GHz frequency band:

– MPT (Japan) 25.25 – 27 GHz

28 GHz frequency band:

– 27 GHz (LMCS – Canada) 27.35 – 28.35

– 28 GHz (CEPT) 27.5 – 28.6, 29.1 – 29.5

– 29 GHz (LMD – USA) 27.5 – 28.35, 29.10 – 29.25

2.3.2 – Radio transmission specifications (typical values)

The following table gives the main characteristics of the A9900 wireless system.

A downstream (BS to TS)carrier is combined with up to four upstream (TS to BS) carriers.

Downstream

Channel bandwidth 14 MHz 28 MHz

Occupied bandwidth 13.63 MHz 27.25 MHz

Modulation QPSK QPSK

Cross bit rate 20.19 Mbit/s 40.37 Mbit/s

Code Convol. 7/8 (k=7) Convol. 7/8 (k=7)

Interlace depth 12 depth 12

Code Reed–Solomon

(204,188,8) Reed–Solomon

(204,188,8)

Bit rate before coding 16.19 Mbit/s 32.38 Mbit/s

Link budget 25 GHz 28 GHz 25 GHz 28 GHz

RBS output power 17 dBm 17 dBm 17 dBm 17 dBm

Transmit antenna gain 15 dB 15 dB 15 dB 15 dB

Receive antenna gain 35 dB 34.5 dB 35 dB 34.5 dB

Rx RF level for error ratio = 10–10 – 83.5 dBm – 83.5 dBm – 80.5 dBm – 80.5 dBm

System gain 150.5 dB 150 dB 147.5 dB 147 dB

document, use and communication of its contents

not permitted without written authorization from ALCATEL

12/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

Upstream

Channel bandwidth 3.5 MHz 7 MHz

Occupied bandwidth 3.36 MHz 6.72 MHz

Modulation D–QPSK D–QPSK

Cross bit rate 5.38 Mbit/s 10.75 Mbit/s

Code Convol. 7/8 (k=7) Convol. 7/8 (k=7)

Interface depth 12 depth 12

Code Reed–Solomon

(63,53,5) Reed–Solomon

(63,53,5)

Bit rate before coding 4.19 Mbit/s 8.38 Mbit/s

Link budget 25 GHz 28 GHz 25 GHz 28 GHz

RBS output power 12 dBm 12 dBm 12 dBm 12 dBm

Transmit antenna gain 35 dB 34.5 dB 35 dB 34.5 dB

Receive antenna gain 15 dB 15 dB 15 dB 15 dB

Rx RF level for error ratio = 10–10 – 87 dBm – 87 dBm – 84 dBm – 84 dBm

System gain 149 dB 148.5 dB 146 dB 145.5 dB

2.3.3 – Capacity

The network capacity depends on the traffic mix betwen the services and leased lines or telephony services.

It also depends on the channeling and the number of upstream channels.

The following tables give the characteristics of three combinations: minimum, medium and maximum circuit

throughput; however, any intermediate combination is possible.

28 / 7 MHz channeling:

Downlink: 28 MHz Trafic MIX: circuit capacity

Uplink: 1 x 7 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 60 121

ATM uplink capacity (cells/s) 18,980 9,569 0

ATM downlink capacity (cells/s)* 76,141 67,084 57,877

Downlink : 28 MHz Trafic MIX: circuit capacity

Uplink : 2 x 7 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 120 242

ATM uplink capacity (cells/s) 37,961 19,137 0

ATM downlink capacity (cells/s)* 76,141 58,028 39,613

document, use and communication of its contents

not permitted without written authorization from ALCATEL

13/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Downlink : 28 MHz Trafic MIX: circuit capacity

Uplink : 3 x 7 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 180 363

ATM uplink capacity (cells/s) 56,941 28,706 0

ATM downlink capacity (cells/s)* 76,141 48,971 21,349

Downlink : 28 MHz Trafic MIX: circuit capacity

Uplink : 4 x 7 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 240 484

ATM uplink capacity (cells/s) 75,922 38,275 0

ATM downlink capacity (cells/s)* 76,141 39,915 3,084

14/3.5 MHz channeling:

Downlink: 14 MHz Trafic MIX: circuit capacity

Uplink: 1 x 3.5 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 30 60

ATM uplink capacity (cells/s) 9,412 4,706 0

ATM downlink capacity (cells/s)* 38,047 33,519 28,990

Downlink : 14 MHz Trafic MIX: circuit capacity

Uplink : 2 x 3,5 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 60 120

ATM uplink capacity (cells/s) 18,824 9,412 0

ATM downlink capacity (cells/s)* 38,047 28,990 19,934

Downlink : 14 MHz Trafic MIX: circuit capacity

Uplink : 3 x 3,5 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 90 180

ATM uplink capacity (cells/s) 28,235 14,118 0

ATM downlink capacity (cells/s)* 38,047 24,462 10,877

Downlink : 14 MHz Trafic MIX: circuit capacity

Uplink : 4 x 3,5 MHz Minimum Medium Maximum

nb of circuits: 64 kbit/s 0 120 240

ATM uplink capacity (cells/s) 37,647 18,824 0

ATM downlink capacity (cells/s)* 38,047 19,934 1,821

document, use and communication of its contents

not permitted without written authorization from ALCATEL

14/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

* : part of the ATM downlink bit rate can be used for dynamic bandwidth allocation. This proportion varies within

the following limits:

– 2.5 % of the bit rate , if one upstream channel is used,

– 4 % of the bit rate , if two upstream channels are used,

– 5.5 % of the bit rate , if three upstream channels are used,

– 7 % of the bit rate , if four upstream channels are used.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

15/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

2.4 –Description of the Terminal Station (9900TS)

The A9900 system Terminal Station (9900TS) consists of the following main elements:

San external transceiver constituting the radio antenna part and designated “RT” (Radio

Termination);

Sa user connection unit constituting the “indoor” part and designated NT (Network Termination);

Sa cable linking the RT and NT and called the indoor–outdoor cable;

Sdepending on the configurations (see sections 2.5 3.7 3.8), one (or more) repeater module(s), or

(and) one (or more) splitter module(s).

2.5 –Examples of configuration of the Terminal Station (9900TS)

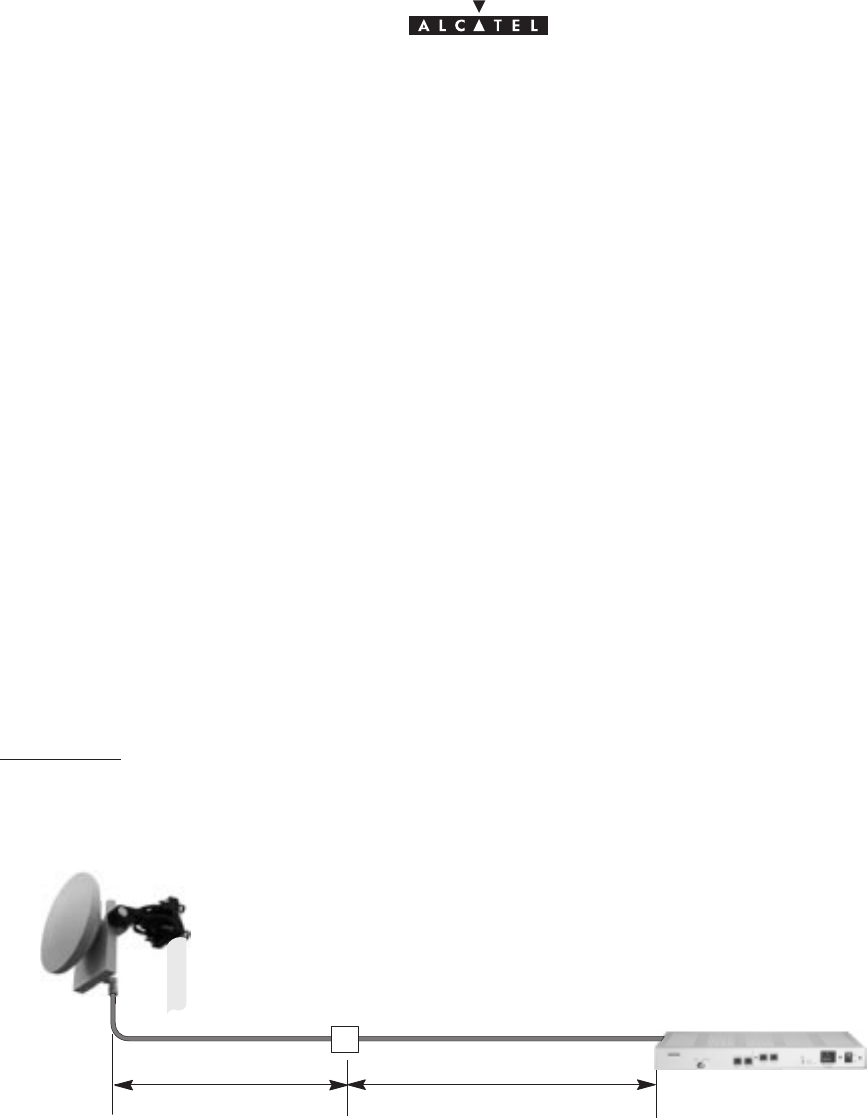

2.5.1 – Mono “NT” without repeater

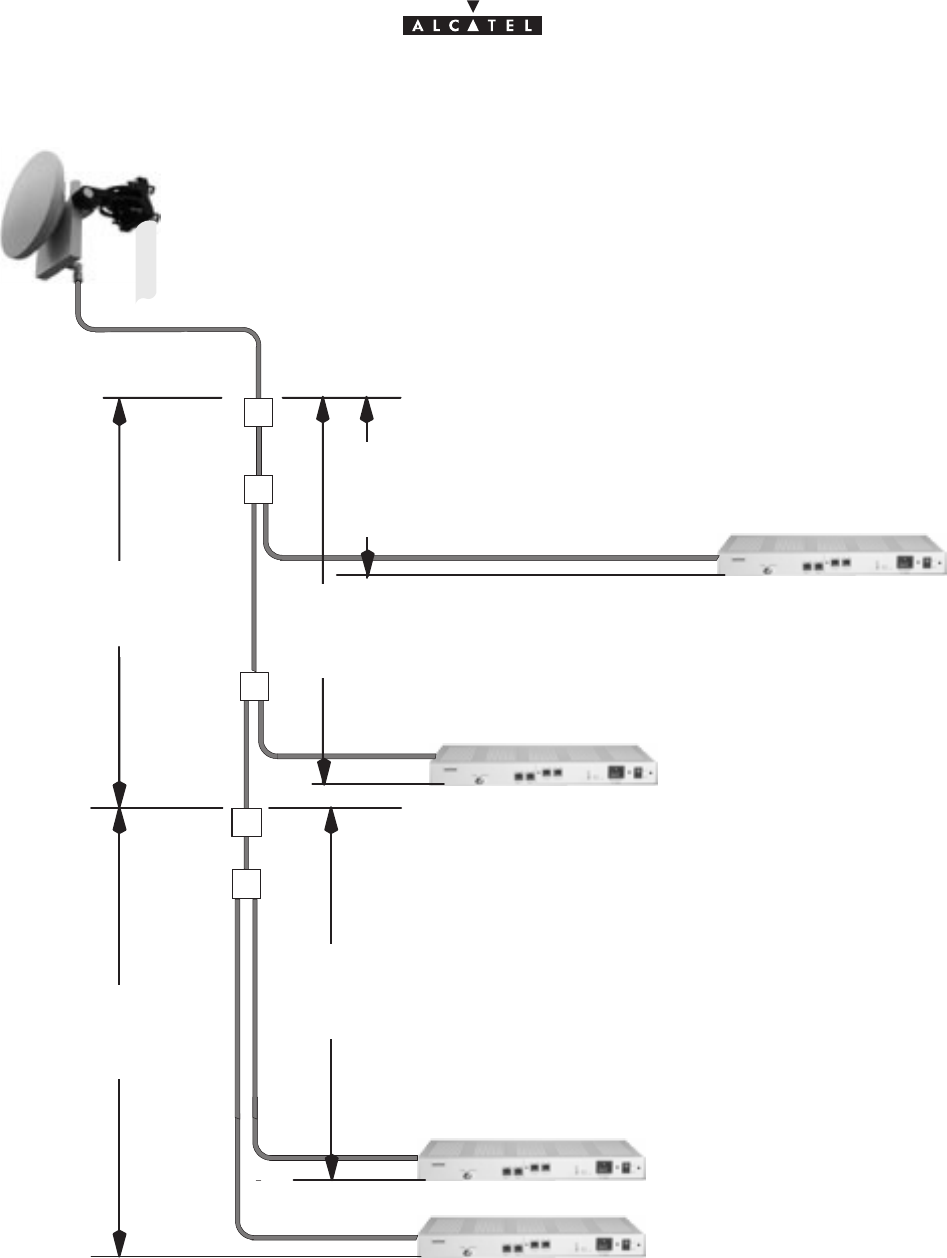

0 to 70 m

RT NT

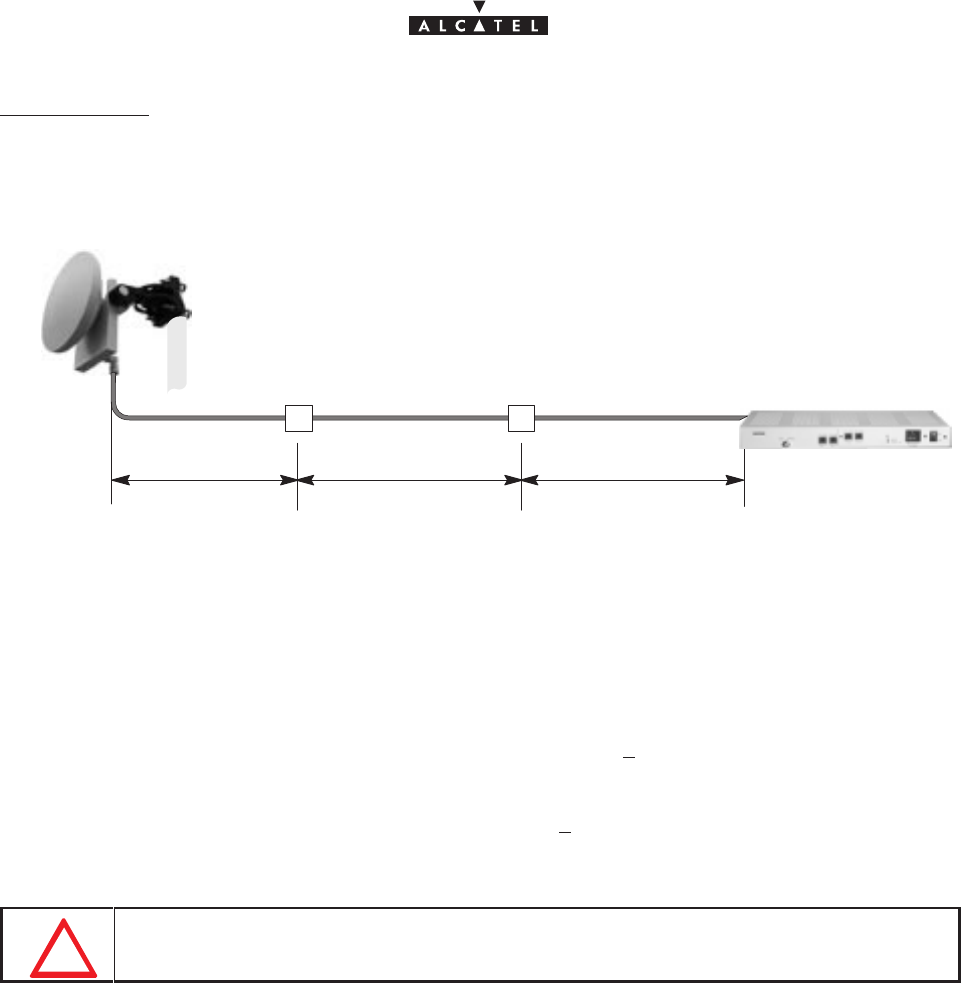

2.5.2 – Mono “NT” with repeater

repeater repeater

0 to 70 m

Fixed lenght:

70 m Fixed lenght:

70 m

A repeater compensates 70 meters of cable.

The system can support maximum three 70 m cable sections and two repeaters.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

16/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

2.5.3 – Multi “NT” (max.4) with passive splitters and repeaters

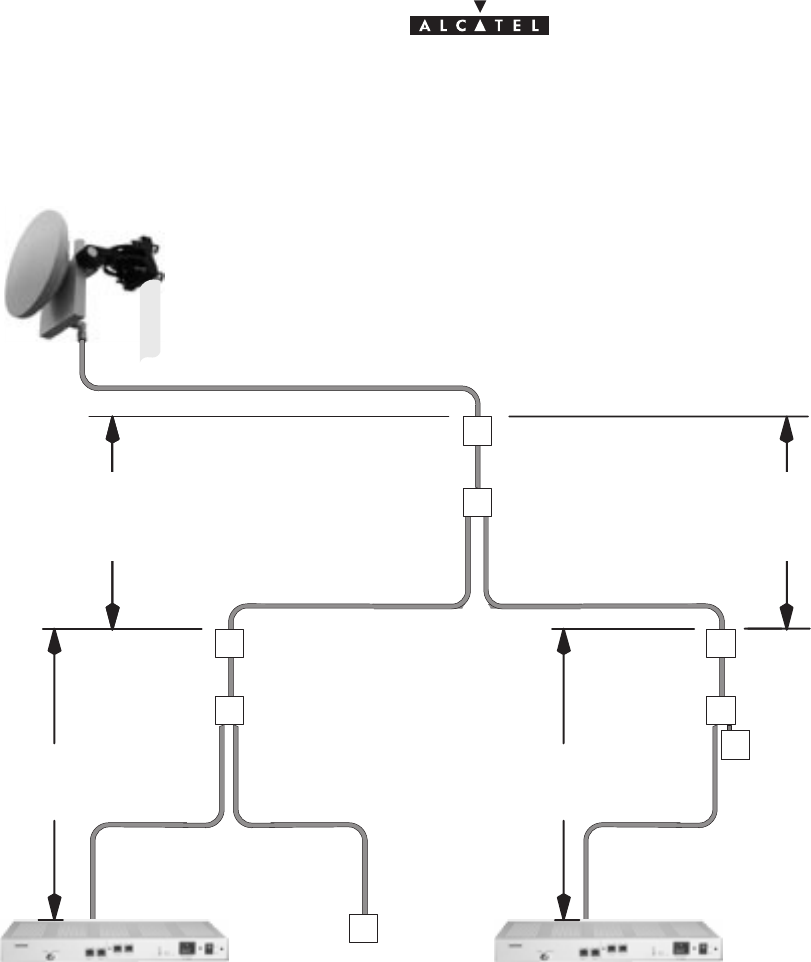

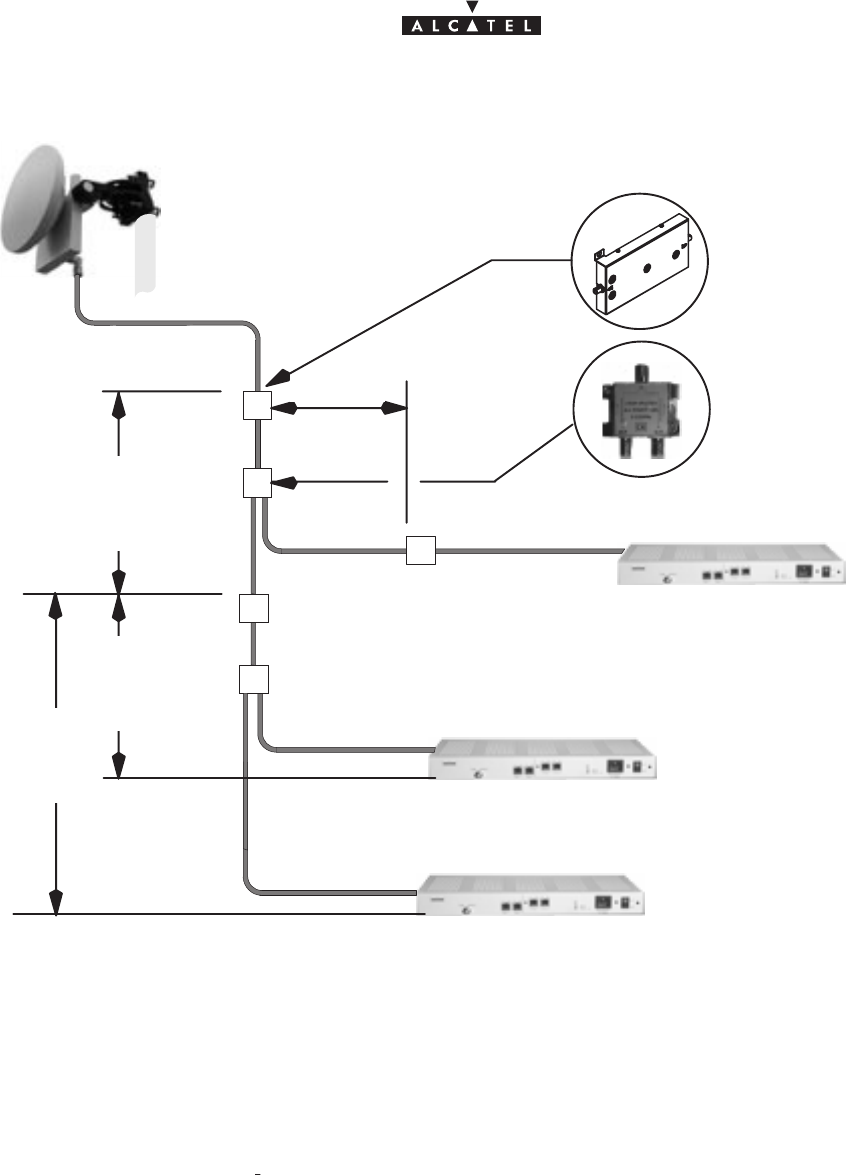

Figure 3 – Example of assembly with passive splitters and repeaters

repeater

NT1

0 to 70 meters

splitter

NT2

NT3

Fixed lenght

50 mèters

Fixed lenght

50 meters

repeater

splitter

repeater

Fixed lenght

50 meters

Fixed lenght

50 meters

Fixed lenght

70 meters

The system can support 2 repeaters and 3 passive splitters per route. Route means the path between a NT

unit and the RT unit.

The fixed distance between two repeaters or between a repeater and a NT unit is 50 meters if a passive splitter

is used.

The fixed distance between two repeaters or between a repeater and a NT unit is 30 meters if two passive

splitters are used.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

17/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

2.6 –Technical specifications of the Terminal Station (9900TS)

2.6.1 – RT specifications

Designation Description Observations

Dimensions HxLxD 200(mm)x200(mm)x50(mm)

antenna diameter: 26 cm

cf. diagram

in § 3 Installation

Weight 2 kg 

Operating temperature –33°C to + 55°C

2.6.2 – NT specifications

There are three types of NT unit:

9900 NCA 001 9900 NCA 002 9900 NCD 001

Telephony, leased lines 2 x E1 (G703+G703) 2 x E1 (G703 + X21) 

Data 2 x 10bT Eth 2 x 10bT Eth 2 x 10bT Eth

Designation Description Observations

Dimensions WxHxD 19”x1Ux240(mm) cf. diagram

in § 3 Installation

Weight 3 kg 

Supply voltage 85V–264V AC 

Data interface 10 Base T Ethernet 

E1 interface G703 and/or X21 

Operating temperature –5°C to + 45°C

document, use and communication of its contents

not permitted without written authorization from ALCATEL

18/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

19/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

3 – Installation of the 9900TS Terminal Station

3.1 –Equipment delivery

When you receive the equipment in its packaging:

– Check the condition of the packaging.

– If damaged, make your reservations known to the carrier without delay.

3.1.1 – Unpacking

Considerations

– Unpack the equipment according to the instructions on the packaging.

– Take an inventory and identify any missing items. If the delivery does not match the delivery advice note,

notify ALCATEL within 48 hours of receipt of the equipment.

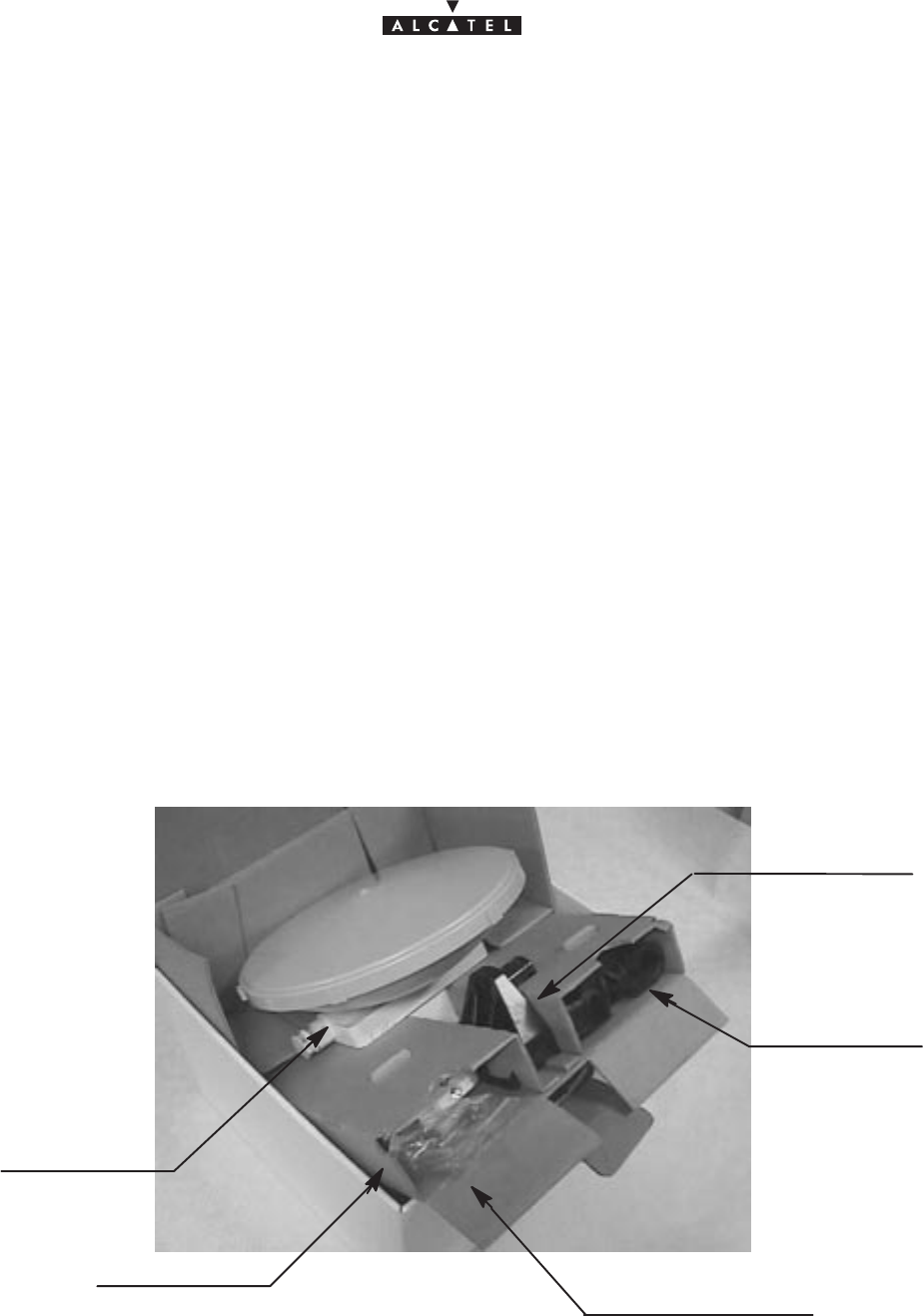

Stages (Figure 4)

1. Open the cover flap of the package lid.

2. Remove the cardboard packing wedge protecting the box’s contents.

3. Remove the RT unit, taking care not to damage the antenna.

4. Remove the slotted casing from the box.

5. Remove the packaged items fixed in the slots of the casing.

6. Detach the drilling template if wall–mounting is to take place.

mounting kit

Figure 4 – Unpaking the RT unit

radio unit

and antenna

wall mount

bearing mount

polarisation kit

User manual

“N” connector and

attachment hardware

document, use and communication of its contents

not permitted without written authorization from ALCATEL

20/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

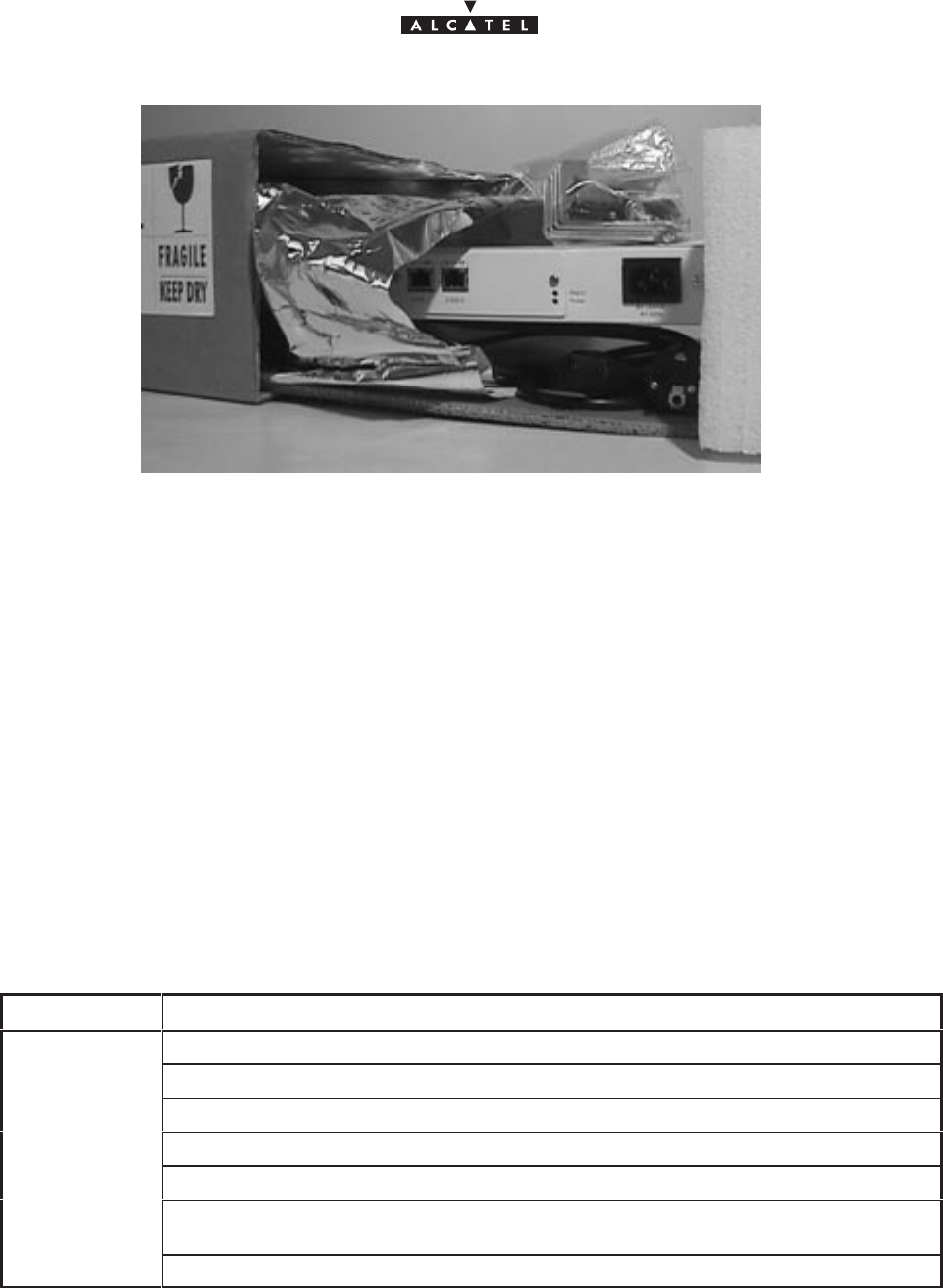

Figure 5 – Unpacking the NT unit

The NT unit equipment is protected by safety cover. Do not unpack the equipment in advance if it is not to be

installed immediately.

3.1.2 – Checking the configuration

The Terminal Station components are delivered in cardboard boxes:

– the RT unit (also called RT or RT radio) and its installation accessories are in one box,

– the NT unit (also called NT) and its installation accessories are in another box,

Depending on the site configurations, the delivery will include individual boxes containing:

– one or more splitter modules,

– one or more repeater modules.

3.1.2.1 – Content of boxes

EQUIPMENT CONTENTS

RT UNIT 1 RTwith antenna mounted assembly

1 wall mount

1 bearing mount

1 horizontal polarisation kit with screw accessories

2 U bolts

1 bag containing 1 type “N” 75 ohm connector four M6x50 screws with washers and

plugs; four M8 nuts with washers, 2 terminal lugs and one M6x20 screw with washers

1 installation manual

document, use and communication of its contents

not permitted without written authorization from ALCATEL

21/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

EQUIPMENT CONTENTS

NT UNIT 1 Indoor Unit

1 power supply cable

1 installation kit containing feet, bracket mouting, handles, attachment accessories and

installation

kit

containing

feet,

bracket

mouting,

handles,

attachment

accessories

and

1 “F” connector

EQUIPMENT CONTENTS

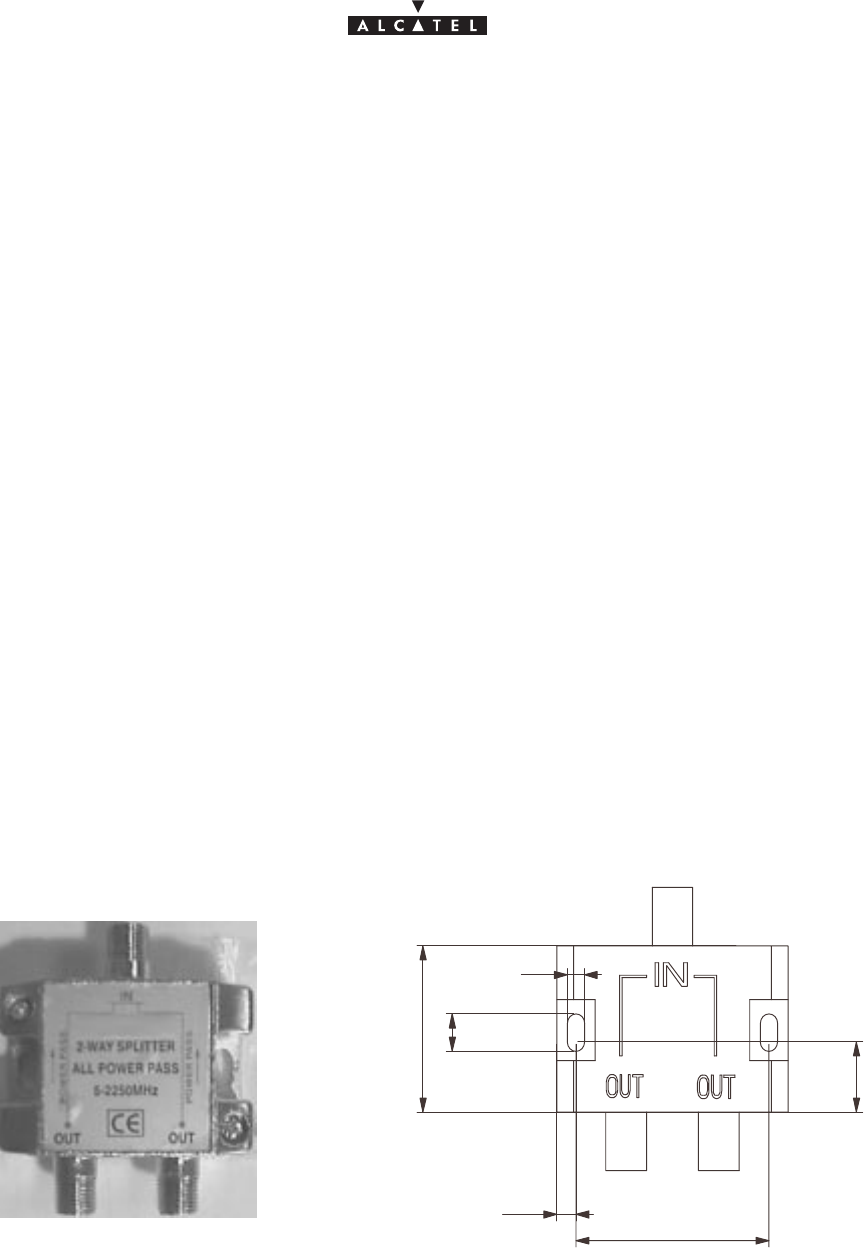

Splitter kit 1 splitter module

1 bag containing screw accessories

EQUIPEMENT CONTENTS

Repeater kit 1 repeater module

1 bag containing screw accessories

3.1.2.2 – Specific case of RT units delevered without integrated antenna

IMPORTANT NOTE: NEVER REMOVE THE ROUND YELLOW PADS USED TO SEAL

THE OUTDOOR SYSTEM.

3.1.2.3 – Storage

If installation is to be deferred, the type of packaging will define the equipment storage conditions:

– cardboard boxes should be warehoused indoors, in a well–ventilated and dry room ,

– wooden or plywood boxes may be stored outdoors, provided that they are protected from rain and direct

sunlight.

3.2 –Labels on the equipment

The labels below are affixed to the equipment and their cardboard boxes to indicate the contents.

Figure 6 – Packaging of the RT unit Figure 7 – Packaging of the NT unit

}

Issue date

Serial number

Commercial reference

RT unit model

bar code and plain text

Serial number

bar code and plain text

RT unit model / status index

document, use and communication of its contents

not permitted without written authorization from ALCATEL

22/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.3 –Installing the equipment

It is recommended that all peripheral equipment (e.g., repeaters, splitters) as well as the engineering

accessories should be installed before installation of the Terminal Station.

3.3.1 – Information required for installation

Appendix 1 contains a sheet for you to complete to collate all the general information needed for the installation

procedure.

3.3.2 – Precautions concerning electromagnetic compatibility

Installation is designed to meet all new requirements concerning electromagnetic compatibility and safety

The performance of the equipment depends on installation practices (cable installation, ground connections,

etc.) which should be based on best trade practices and which may be degraded if this pratices are not

respected.

3.3.3 – Tools required

The installation personnel must possess a standard installation toolkit (containing, in particular: drill, drill bits,

soldering iron, cable tie pliers, terminal pliers).

The list of tools required for the mechanical installation of the Terminal Station is given below.

Tool Use

5 mm Allen key (for M6 screw) For securing the pole mounting and wall mounting

13 wrench For tightening the U bolts on the 40 to 50 mm tube

Level gauge or inclinometer For verticaly of the bearing axis

A compass and a pair of binoculars (not supplied) are useful for rough prepointing of the antenna.

The use of a torque wrench is recommended.

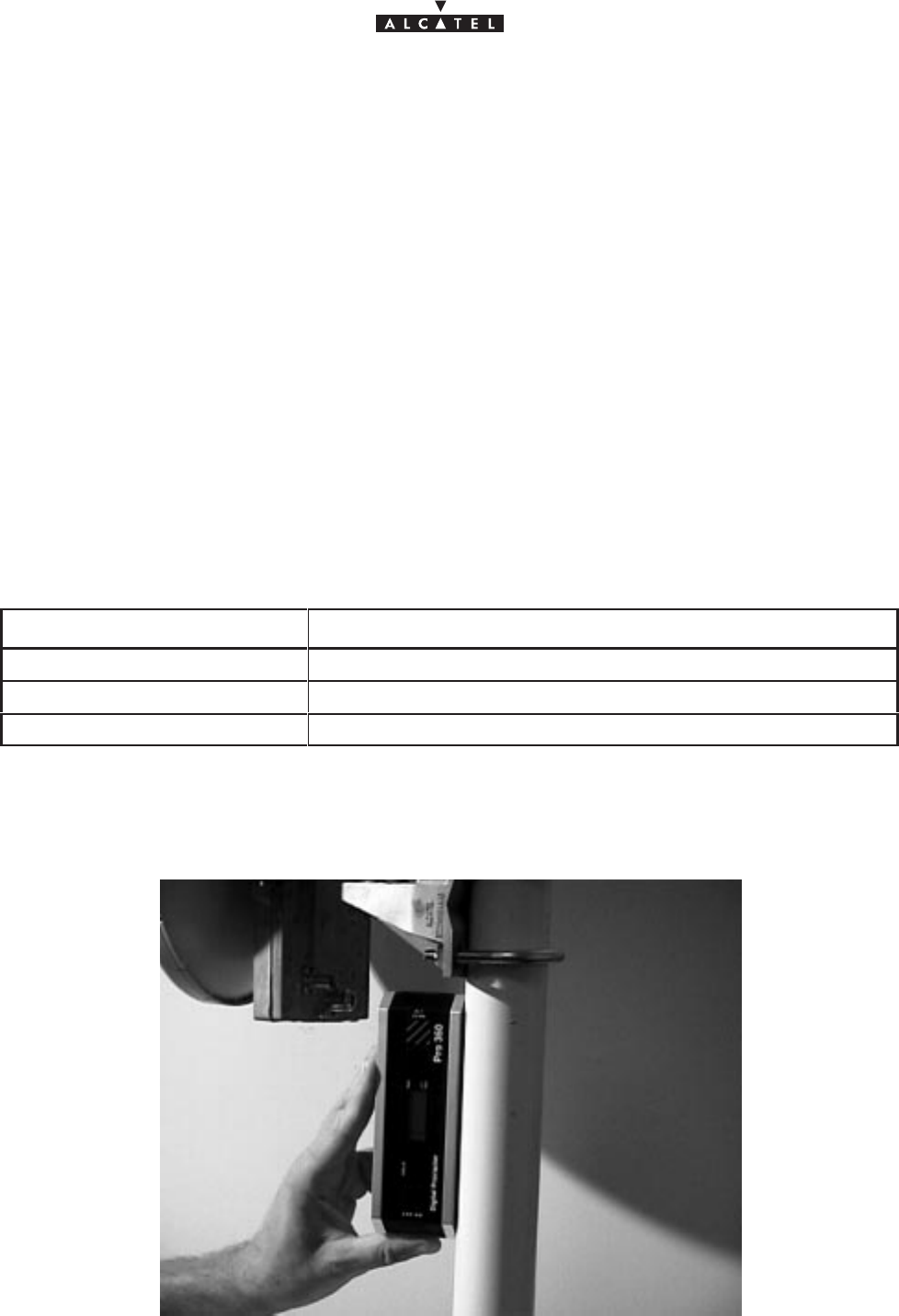

Figure 7 – Inclinometer

document, use and communication of its contents

not permitted without written authorization from ALCATEL

23/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

3.4 –Installation of the Terminal Station RT unit

IMPORTANT NOTE: NEVER HANDLE THE RT UNIT BY ITS ANTENNA BUT BY THE

BODY OF THE RADIO OR THE SUPPORT ARM.

Considerations:

The installation of the RT unit should satisfy the following criteria:

– unimpeded direct line of sight between RT unit and RBS (Base Station),

– perfect mechanical rigidity,

– enabling precise antenna alignment.

The 9900RT is designed for outdoor installation without any particular protection. However, the following

recommendations should be respected:

– avoid installation below bird nesting areas,

– avoid attaching to a surface prone to vibrations (machinery, lift housing, air conditioning, etc.).

– avoid attaching to chimneys which give off fat deposits, dust and other aerosols which are liable to come

to rest on the equipment,

– avoid proximity to sources of heat,

– avoid placing the equipment in proximity to corrosive gas outputs,

– avoid placing the equipment below roof run–offs not equipped with guttering (high risk of microwave

short–circuit).

– avoid installing at man–height to prevent human collisions against the antenna. This could cut the radio

link with the central station.

Two types of assembly are possible:

– on a flat, vertical surface (e.g., a wall),

– on a pole/tube (existing or to be installed), using threaded U–bolts and nuts (M8).

Note : The pole/tube selected should be sufficiently rigid to prevent antenna misalignment and resist

vibrations.

Use tube supports that comply with our recommendations. Support references are mentionned in the

next chapters.

3.4.1 – Definition of assemblies with respect to chosen polarization

The Terminal Station RT unit can be mounted with horizontal (H) or vertical (V) polarization.

Terminal Station and Base Station must use the same polarization.

To mount the radio/antenna assembly on the support arm, in the event of horizontal polarization, the horizontal

polarization kit must be used. This consists of an additional joint to compensate for the mechanical rotation of

the system.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

24/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

The pole–mounting mechanical assembly consists of (Figure 8):

– two components in the case of vertical polarization (V):

Swall mounting (ref.1)

Sbearing mounting (ref.2),

– three components in the case of horizontal polarization (H):

Swall mounting (ref.1)

Sbearing mounting (ref.2)

Spolarisation mounting (ref.3).

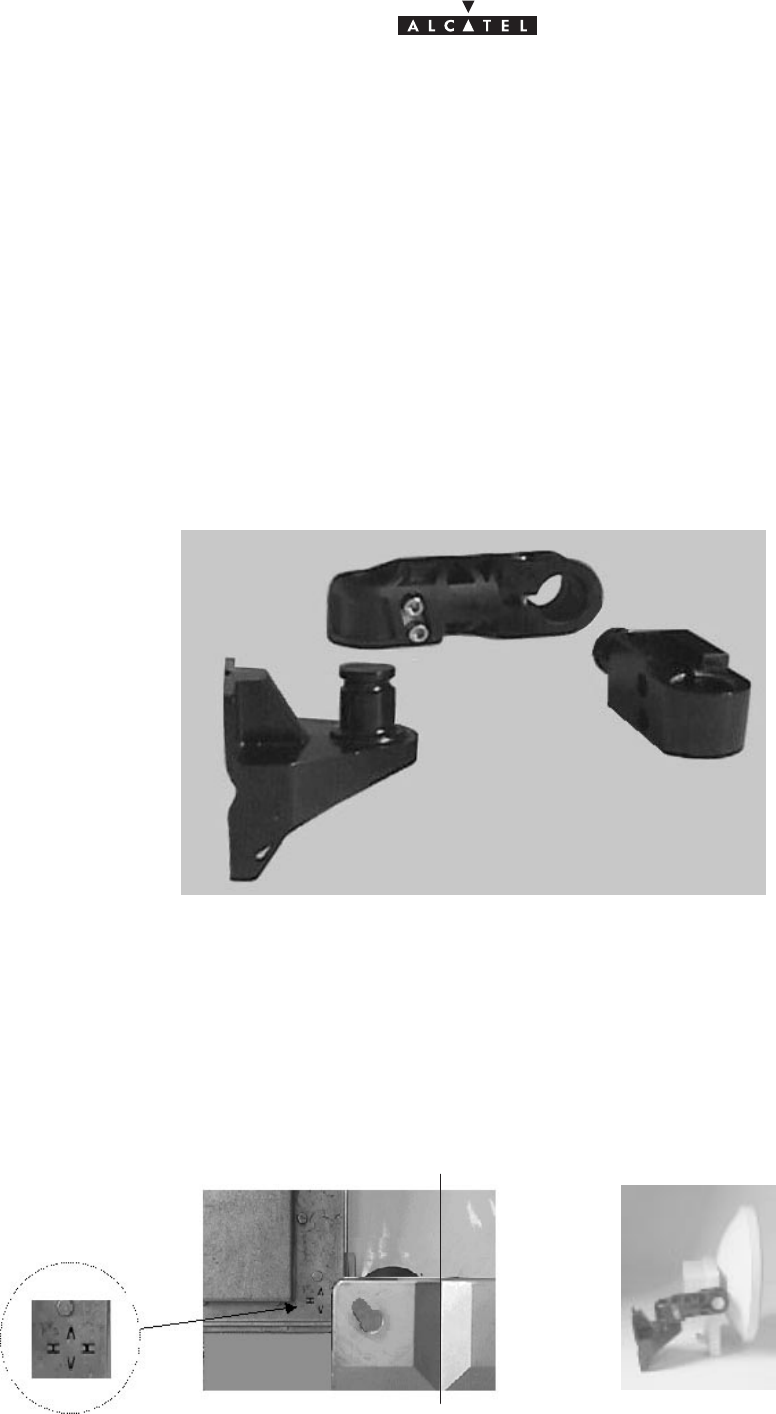

Figure 8 – Support arm components

wall mount

bearing mount

horizontal polarization mount

A polarization slot indicator at the rear of the RT unit can be checked to confirm that the assembly is correct

with respect to the chosen polarization:

– if the letter “H” can be read naturally, polarization is horizontal,

– if the letter “V” can be read naturally, polarization is vertical,

Figure 9 – Vertical Polarization

Vertical axis

document, use and communication of its contents

not permitted without written authorization from ALCATEL

25/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Figure 10 – Horizontal polarization

Vertical axis

document, use and communication of its contents

not permitted without written authorization from ALCATEL

26/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.4.2 – Installation of the 9900RT on a wall or flat vertical surface

Considerations:

– If attaching the RT unit using bolts and plugs, select the attachment components to suit the composition

of the attachment surface.

– The surface chosen should not be prone to vibrations (e.g., avoid machine housings).

– To mark the drill holes, use the drilling template printed on the inside panel of the RT unit packaging

box.

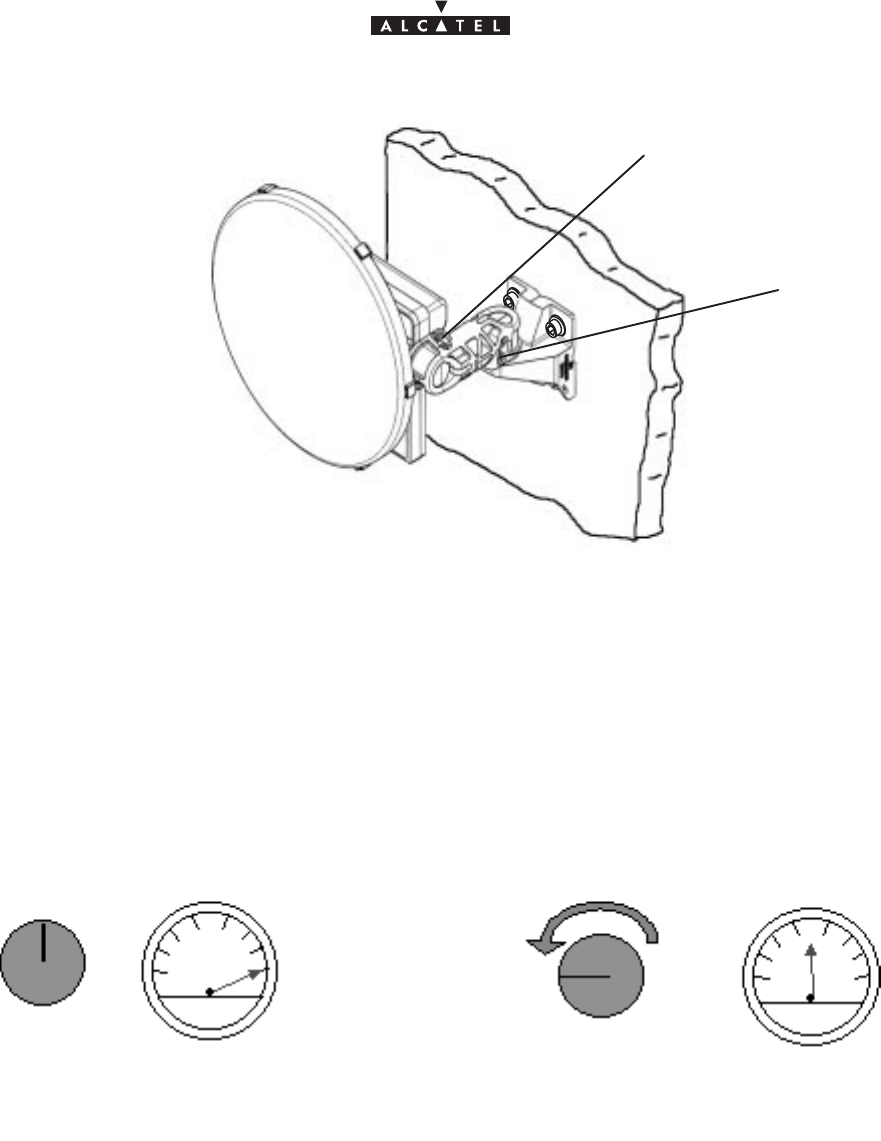

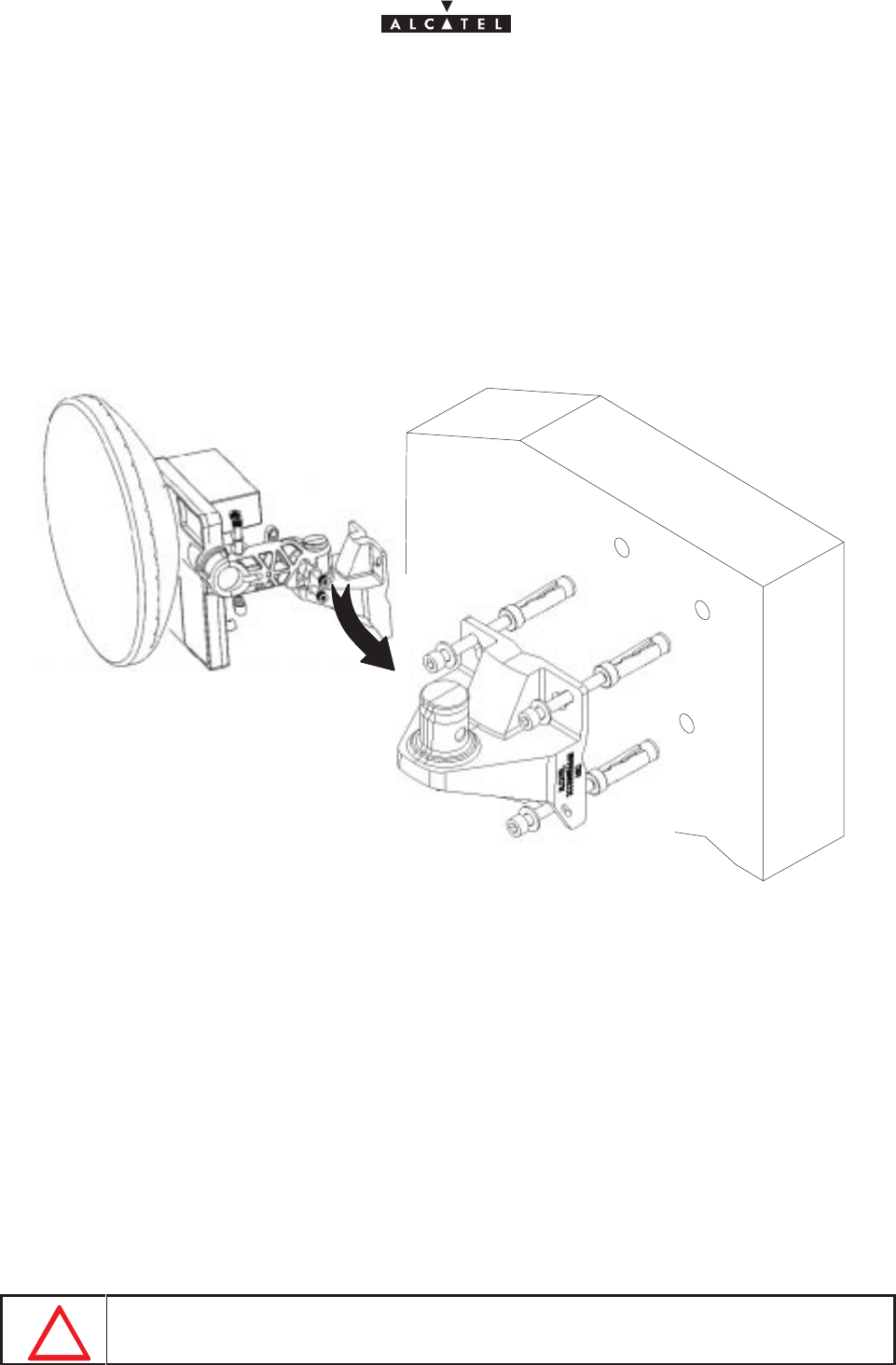

Figure 11 – Installation of the RT unit on a wall

Stages

1. Select the installation location and determine the polarization of the RT unit.

2. Place the drilling template against the wall (or surface) to be pierced.

Note : The vertical axis of the wall mounting assembly must be respected. Refer to Figure 12.

Used a bubble level or inclinometer.

3. Drill the 4 holes.

4. Insert the 4 plugs.

5. Install and secure the wall mounting (V et H polarization) using four M6x50 screws with washers.

Note : screw torque = 4,3 to 4,9m.N.

IMPORTANT : WALL MOUNT VERTICALITY OF +/– 1° REQUIRED FOR POLARIZATION

document, use and communication of its contents

not permitted without written authorization from ALCATEL

27/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

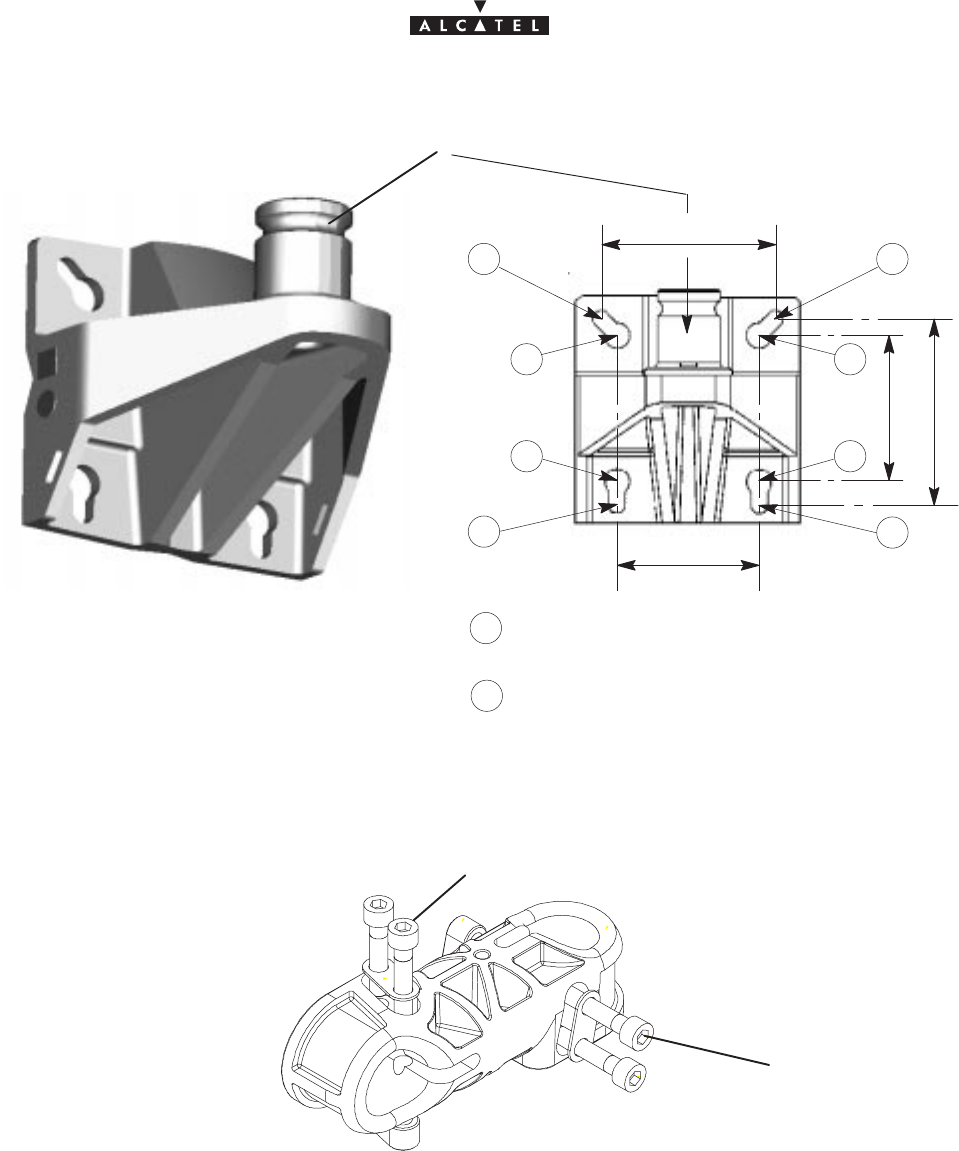

Figure 12 –Wall mounting

The vertical axis of the wall mounting assembly

must be respected.

69 mm

56 mm

71.5 mm

Use elongated holes dia. 6.5mm for wall mounting

(plugs and M6 screws with washers).

Use holes dia. 10mm for 50mm tube mounting (U–bolts and

M8 nuts)

6. Install and secure the bearing mounting on the wall mounting (V and H polarization).

Figure 13 – Screws mounting

this screw is installed on site

To continue the hardware installation, go to step 7 in the case of horizonal polarization or go directly to

step 8 for vertical polarization.

7. Install and secure the polarization mounting (H polarization only).

8. Install and secure the RT unit on the support arm. Check on polarization indicator that the polarization

assembly is correct.

9. Release the RT assembly locking screw and carry out antenna prepointing visually and/or using a compass

and a map. To do this, orientate the assembly so that the antenna is pointed towards the Base Station

antenna.

10. Remove the radio module from its axis for configuration (see Chapter 4 – Commissioning)

document, use and communication of its contents

not permitted without written authorization from ALCATEL

28/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.4.3 – Installation of the RT unit on a tube

Considerations

– Install on tube using two U–bolts.

– Installation may be carried out on a newly installed or existing tube, using the two U–bolts.

– The external diameter of the tube is 50 mm in standard configuration.

– The support tube, along with the U–bolts, must be clean and (apart from threads) grease–free.

– If specific site features make perfect alignment impossible (line of sight parallel to the wall, for example).

you are recommended to use a support that complies with our specifications (see references) in the

paragraphs which follow.

IMPORTANT : WALL MOUNT VERTICALITY OF +/– 1° REQUIRED FOR POLARIZATION

IMPORTANT NOTE: THE USE OF SUPPORTS WITH A SLENDERNESS RATIO

GREATER THAN OUR MODELS SHOULD BE EXCLUDED (TOO FLEXIBLE)

Note : the use of supports with slenderness ratios inferior to our own is authorized (more rigid).

Note : slenderness ratio = length / cross–section of sections used.

Steps

1. Select the installation location and determine the polarization of the RT.

2. Install and secure the wall mounting (V et H polarization) using the two U–bolts (and nuts and washers)

provided for this purpose or the attachment hardware delivered with the specific wall mount.

Note : screw torque = 10.5 to 12 m.N.

Note : The vertical axis of the wall mounting assembly must be respected.

3. Install and secure the bearing mounting on the wall mounting (V and H polarization), See Figure 8.

To continue the hardware installation, go to step 4 in the case of horizontal polarization or go directly to step

5 for vertical polarization.

4. Install and secure the polarization mounting (H polarization only).

5. Install and secure the RT radio unit with its antenna on the support arm. Check the polarization indicator

to check correct polarization.

6. Release the RT assembly locking screw and carry out antenna prepointing visually and/or using a compass

and a map. To do this, orientate the assembly so that the antenna is pointed towards the Base Station

antenna.

7. remove the radio module from its axis for configuration (See Chapter 4 – Commissioning)

document, use and communication of its contents

not permitted without written authorization from ALCATEL

29/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

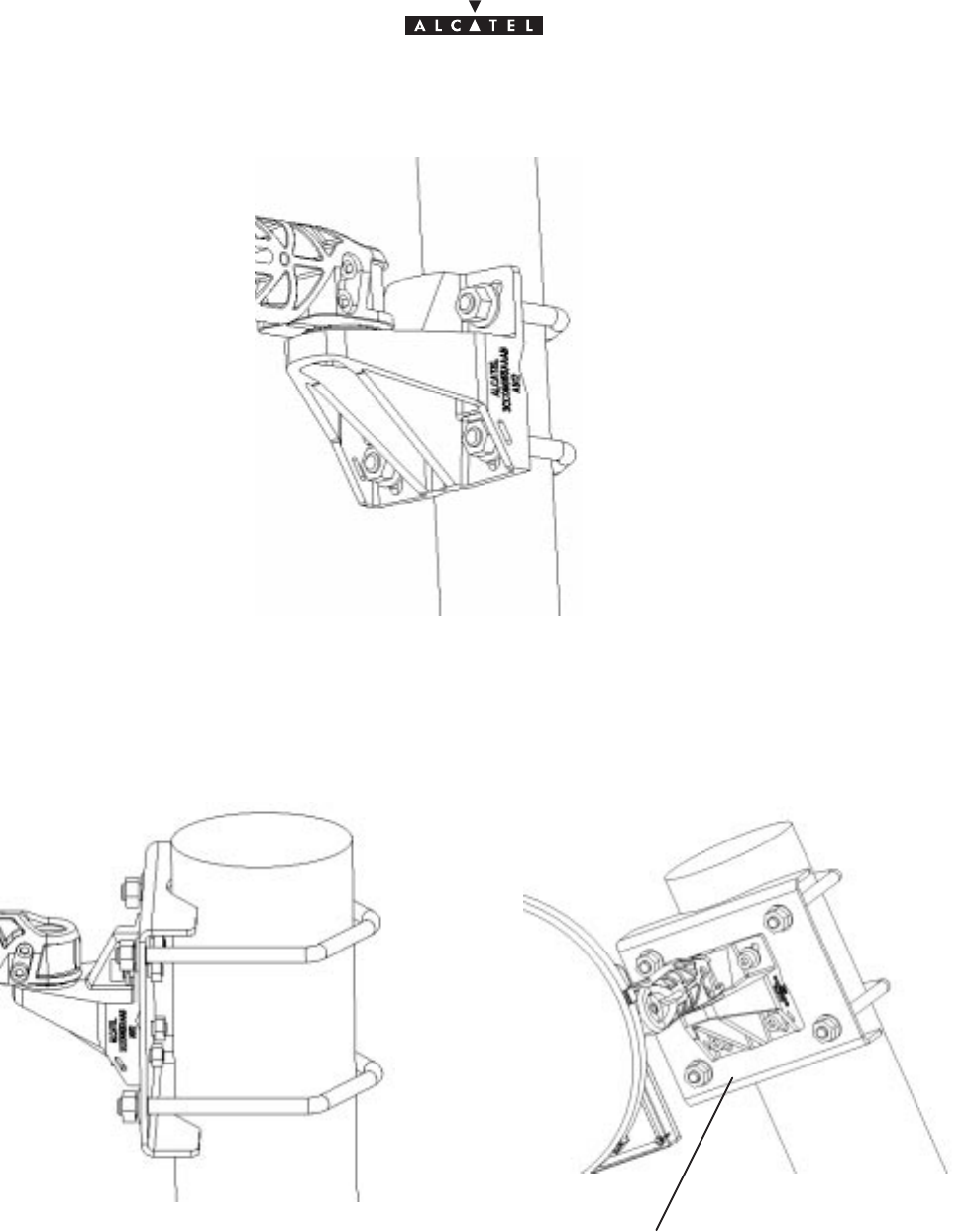

3.4.3.1 – Installing th RT unit on an existing tube, 40 or 50 mm in diameter

Figure 14 – Installing th RT unit on an existing tube, 40 or 50 mm in diameter

3.4.3.2 – Installing the RT unit on an existing tube, 50 to 115 mm in diameter

Use the 3CC10802 AAAA kit.

Figure 15 – Installing the RT on a tube, 50 to 115 mm in diameter

Kit 3CC10802AAAA

document, use and communication of its contents

not permitted without written authorization from ALCATEL

30/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

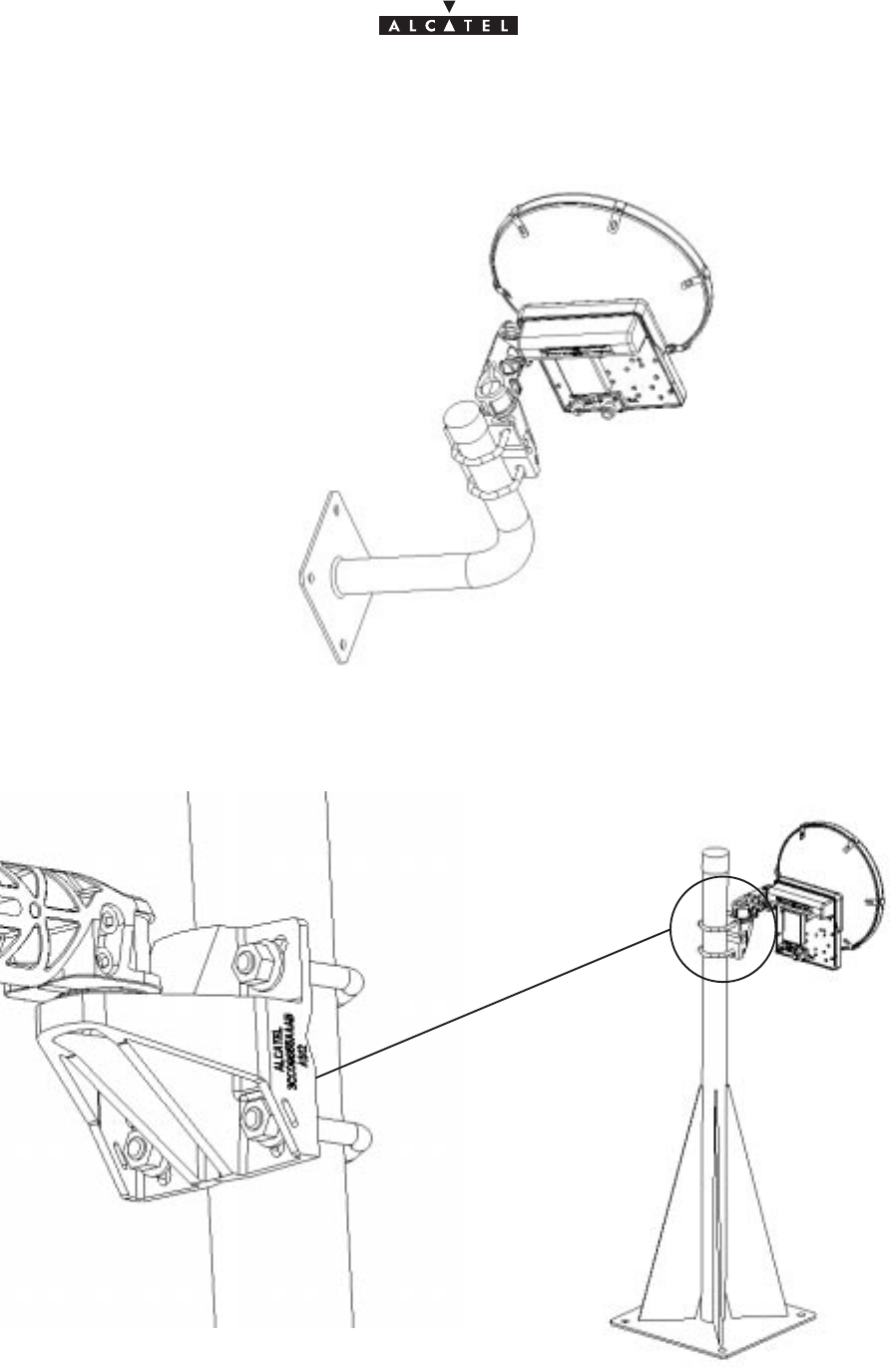

3.4.3.3 – Façade installation of the RT unit

Use a support in accordance with our 3CC11132AAAA model.

3.4.3.4 – Rooftop mounting of the RT unit (offset), 1 meter mast

Use a support in accordance with our 3CC11133AAAA model.

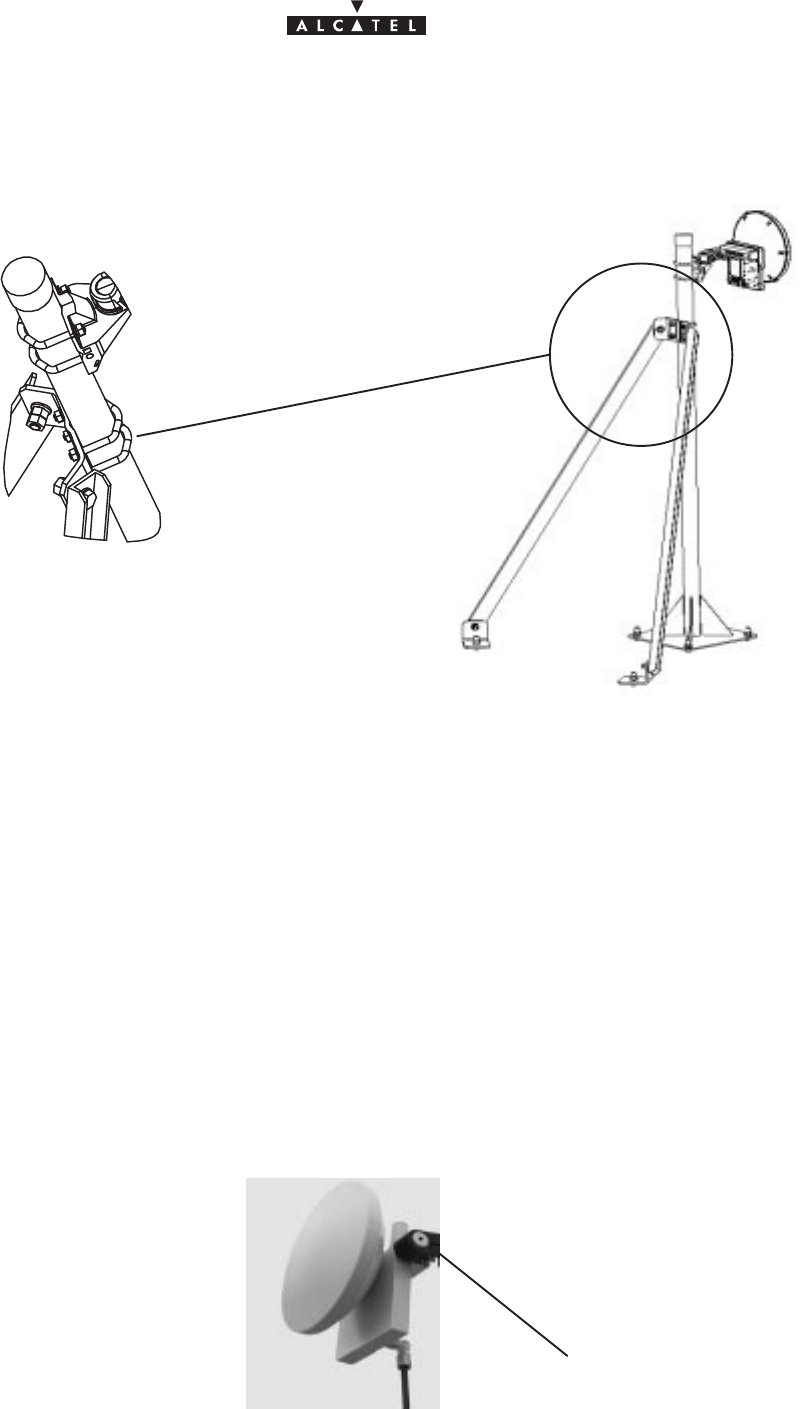

Figure 16 – Rooftop mounting of the RT unit (offset), 1 meter mast

fixation detail

document, use and communication of its contents

not permitted without written authorization from ALCATEL

31/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

3.4.3.5 – Rooftop mounting of the RT unit (raised), 1,5 meter mast

Use a support in accordance with our 3CC11134AAAA model.

Figure 17 – Rooftop mounting of the RT unit (raised), 1.5 meter mast

3.4.4 – Grounding the RT unit

Considerations

– On the RT unit, the ground terminal is in the form of a tapped hole (see figure 18) on the attachment

axis of the pole mounting.

– The RT unit can be grounded using the grounding lug and screw hardware supplied with the equipment.

The grounding uses a green and yellow cable with an insulating sheath, and with a minimum

cross–section of 16 mm2.

Steps

1. Crimp a lug (ref.: 16–6 CT) on to the grounding cable (16 mm2 cross–section).

2. Screw the cable lug into the tapped hole. Use an M6 screw.

Figure 18 – Grounding the RT unit

grounding screw

document, use and communication of its contents

not permitted without written authorization from ALCATEL

32/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.5 –Installation of the RT/NT link

Considerations

– The electrical connection between the RT unit and the NT unit of the Terminal Station is made using

a type ET 2PA 981 75 ohms coaxial cable equipped with “F” connectors (at the NT side end) and “N”

connectors (at the RT side end).

– If a single cable (70 meters without connectors) does not cover the distance between the RT unit and

the NT unit, two or more repeaters must be used. For the possible configurations and installation of

a repeater, see paragraph 3.7 of the present chapter.

– If the RT unit is connected to several NTs of the Terminal Station, use several splitters. For the possible

configurations, and installation of a splitter, see paragraph 3.8 of the present chapter.

– The length of the cable used must be noted. In order to facilitate this measurement, refer to the markings

printed on the cables: every meter, on the outer sheath, the number of meters is indicated

incrementally. To know the length of cable installed, subtract the number at one end from the number

at the other end of the cable used. Note the result at the NT.

– You are recommended to secure the coaxial cable every meter with a cable tie.

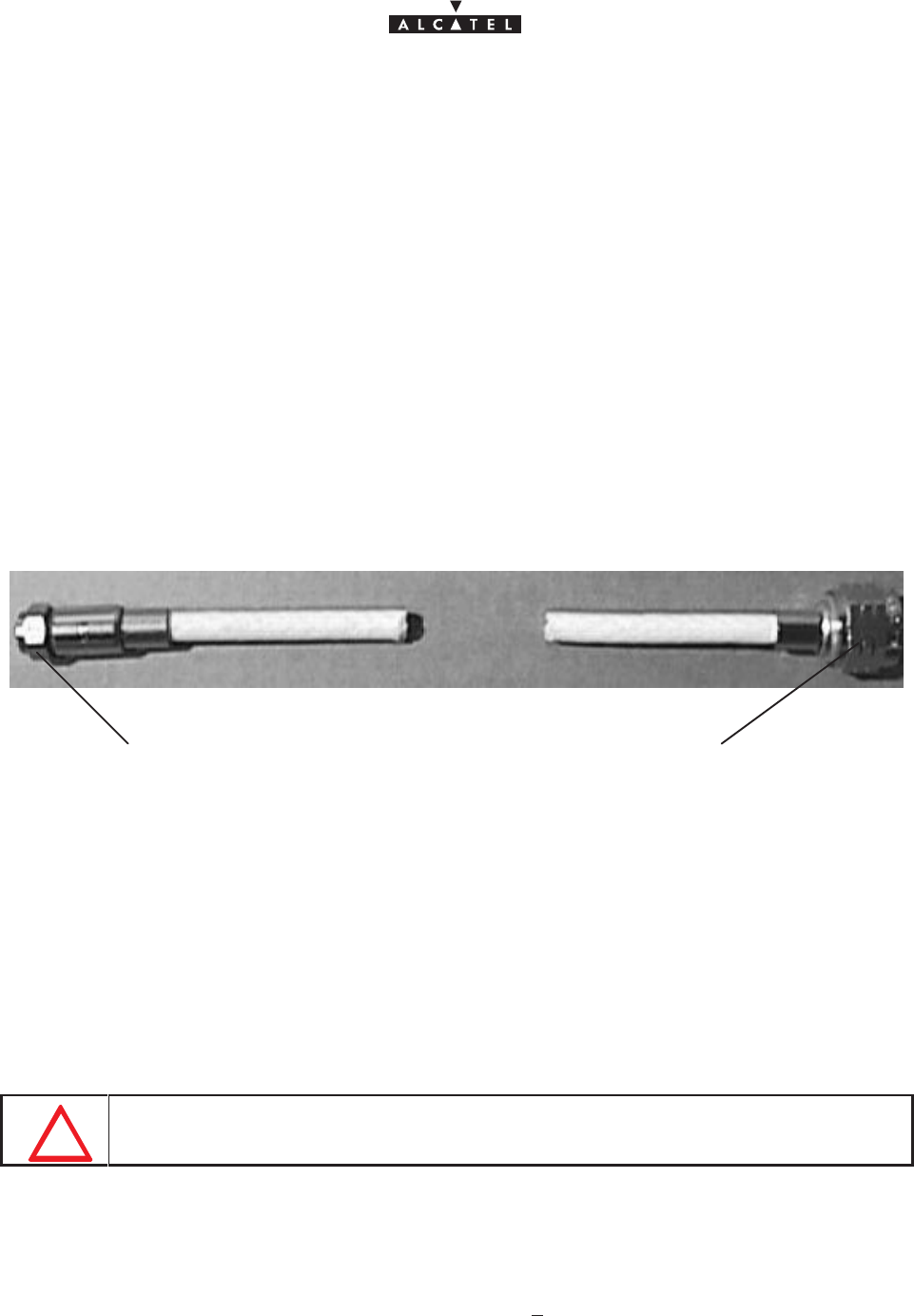

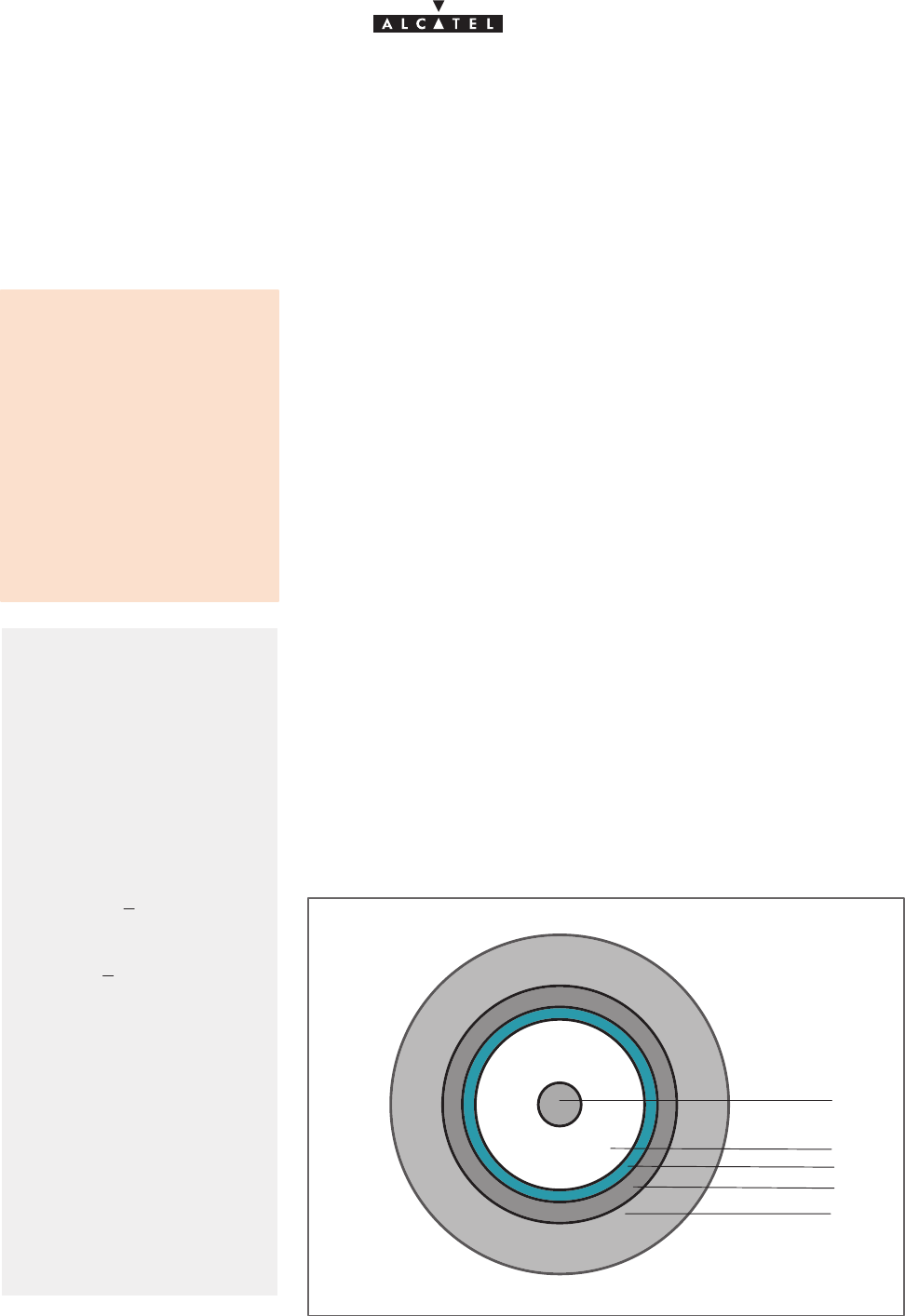

Figure 19 – Coaxial cable

“F” connnector

To NT unit “N” connnector

To RT unit

Steps

1. Carry out the wiring between the RT unit and the NT unit.

Note : In the event of the use of repeaters and/or splitters, use the number of cables required by the

configuration. Refer to paragraphs 3.7 and 3.8 of this chapter.

Note : Make a drip groove where the cable enters the building, respection the cable’s bending radius(100 mm

minimum), in order to prevent water infiltration.

AVOID A TOO LONG PARALLEL WALK BETWEEN THE RT/NT COAXIAL LINK AND

ELECTRICAL CABLES, OR GSM/DCS BASE STATION CABLES.

2. Note the length of the cable installed. This information will be entered into the database when the equipment

is commissioned using the configuration software.

Note : The accuracy required by the configuration software is + 1.5 m.

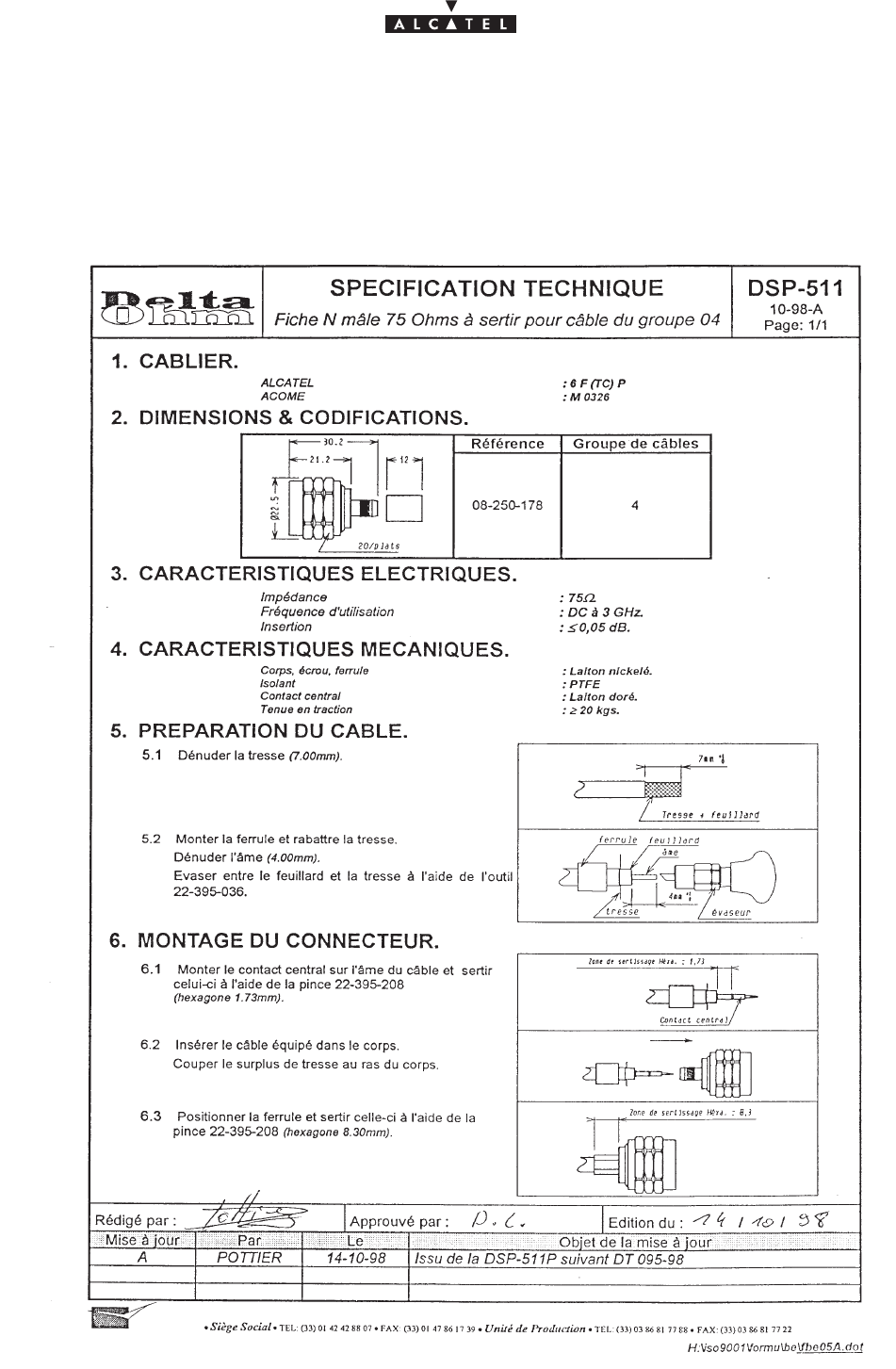

3. At the RT unit side end, equip the cable with a type “N” 75 ohm coaxial connector, supplied with the

equipment. For attaching the coaxial terminals, refer to the manufacturer’s Assembly manual and use the

document, use and communication of its contents

not permitted without written authorization from ALCATEL

33/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

specific tools as recommended. One of the main causes of installation problems is the faulty mounting of

connectors.

NEVER USE 50 OHM CONNECTORS, AT THE RISK OF DESTROYING THE RADIO

UNIT.

IMPORTANT NOTE: NEVER HANDLE THE RT UNIT BY ITS ANTENNA BUT BY THE

BODY OF THE RADIO OR THE SUPPORT ARM.

IMPERATIVE : PROTECT THE “N” CONNECTOR CONNECTION WITH A PRE–PASTED

THERMOSHRINKABLE SLEEVE.

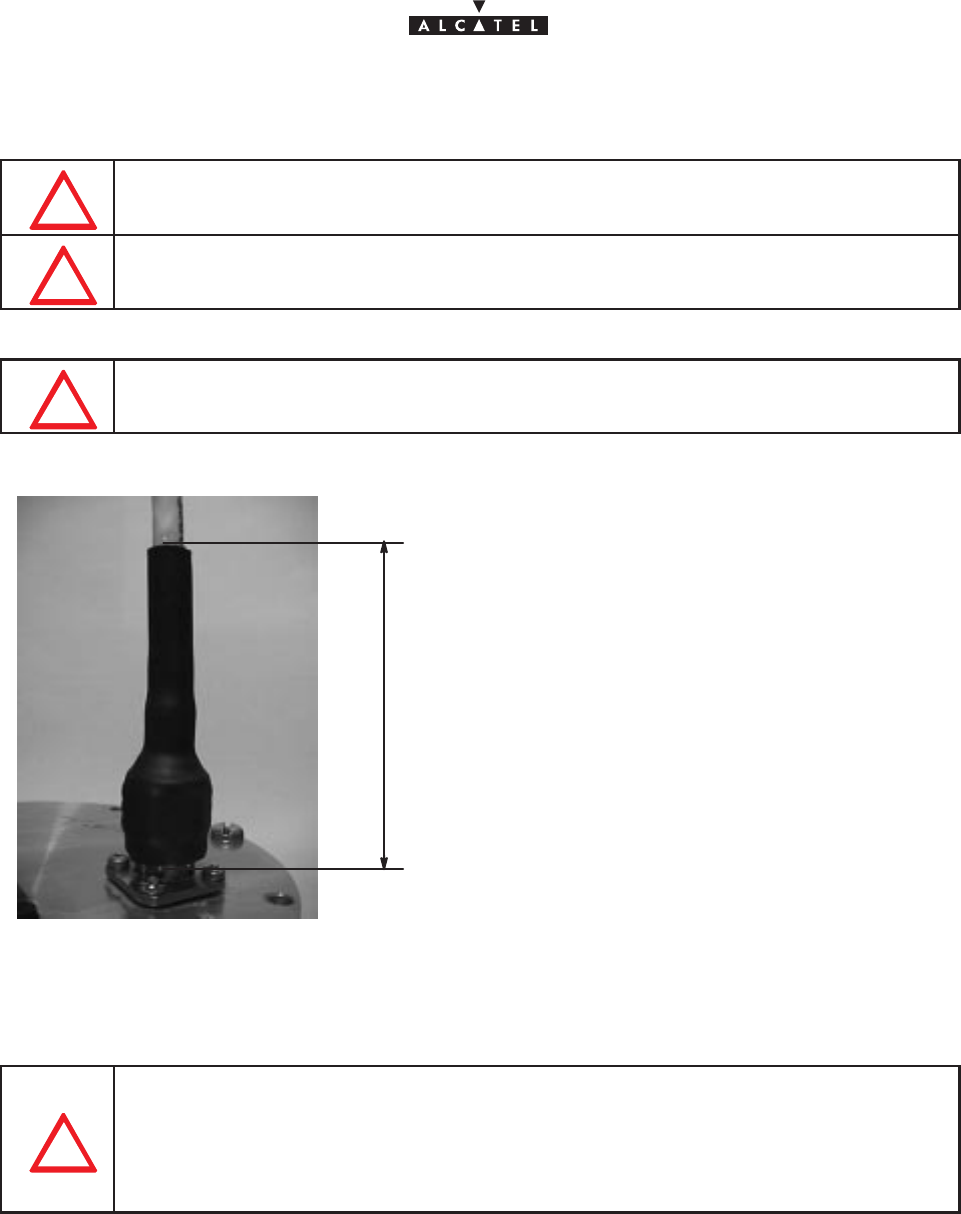

Figure 20 – Connecting the “N” connector with the thermoshrinkable sleeve

Thermoshrink a pre–pasted sleeve on the

connector/terminal/cable assembly 70 mm

along. (80 mm minimum long before ther-

moshrink)

The sleeve end should stop at the termi-

nal base.

4. Attach the cable to the RT unit using a cable tie.

THE COAXIAL CABLE SHOULD NEVER BE TOO TIGHT BETWEEN THE ODU AND ITS

MOUNTING. ADJUST THE POSITION OF THE MOUNTING AND THE LENGHT OF THE

CABLE TO SUIT, OTHERWISE THERE IS A MAJOR RISK OF ANTENNA MISALIGMENT

OR CABLE DAMAGE AT THE CONNECTOR. ON THE OTHER HAND, TOO SLACK A

CONNECTION CAN HAVE THE SAME CONSEQUENCES UNDER THE EFFECT TO THE

WIND.

Note : No overtighten the cable tie on the cable; this could cause deformation of the dielectric and subsequent

loss of performance.

5. Run the cable to the NT unit and equip it with a type “F” 75 ohm coaxial connector, supplied with the

equipment.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

34/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.6 –Installation of the Terminal Station 9900NT Indoor Unit

A SPACE OF 1U (in the event of rack mounting) OR APPROXIMATELY 50 mm MUST

BE LEFT FREE ABOVE THE TERMINAL STATION IDU.

NEVER STORE DOCUMENTATION OR ANY OTHER OBJECTS ABOVE THE NT UNIT

ON THE VENTILATION HOLES. THIS MAY CAUSE IT TO BE DAMAGED.

Considerations

– The NT units are intended for indoor installation only.

– The NT should be positioned in accordance with the needs of the user and the technical constraints

(e.g., minimum distances to be respected, topology of the connections, accessibility of the RT/NT link,

power supply).

– Always place the NT unit in a dry, dust–free environment, away from any major source of heat

(–5 < T< + 45°).

– Always place the NT unit near a rated power source: 85/264V – 47/63Hz with ground connection.

Note : Use grounded power connections only. Avoid the use of extension cables.

– The power supply is turned on after installation of the NT, when it is commissioned.

– Do not install the NT too close to the ground (keep at a distance from dust and floor cleaning products).

– do not install on premises containing corrosive materials.

3.6.1 – Installation of the 9900NT unit on a desktop

Steps

1. After unpacking the unit, fit it with its four feet, clipping them on to the bottom of the unit.

2. Connect the NT unit to the Terminal Station RT (”F” connector).

Figure 21 – Mounting the feet

document, use and communication of its contents

not permitted without written authorization from ALCATEL

35/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

3.6.2 – Installation of the NT unit on a vertical wall support

Figure 22 –Installation of the NT on a vertical wall support

484

203

Steps

1. Select a flat, vertical wall surface for installing the NT unit, at a height of over 1 meter from the ground.

2. Mount the four brackets on the unit.

3. Mark the position of the holes on the support with a sharp implement or marker.

4. Drill the holes and insert the plugs.

5. Mount and secure the screw fittings, starting from the top.

THE MAIN CONNECTOR MUST ALWAYS BE AT THE TOP OF THE UNIT

DO NOT STRAIN OR TWIST THE UNIT

6. Connect the NT to the RT (”F” connector).

document, use and communication of its contents

not permitted without written authorization from ALCATEL

36/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3.6.3 – Installation of the NT unit on a 19” rack

Steps

1. Fit the handles on the NT unit (see figure 23).

2. Install the unit in the 19” (or other type) rack (screw fittings reat included, this depend on the manufacturer).

3. Connect the NT to the RT (”F” connector).

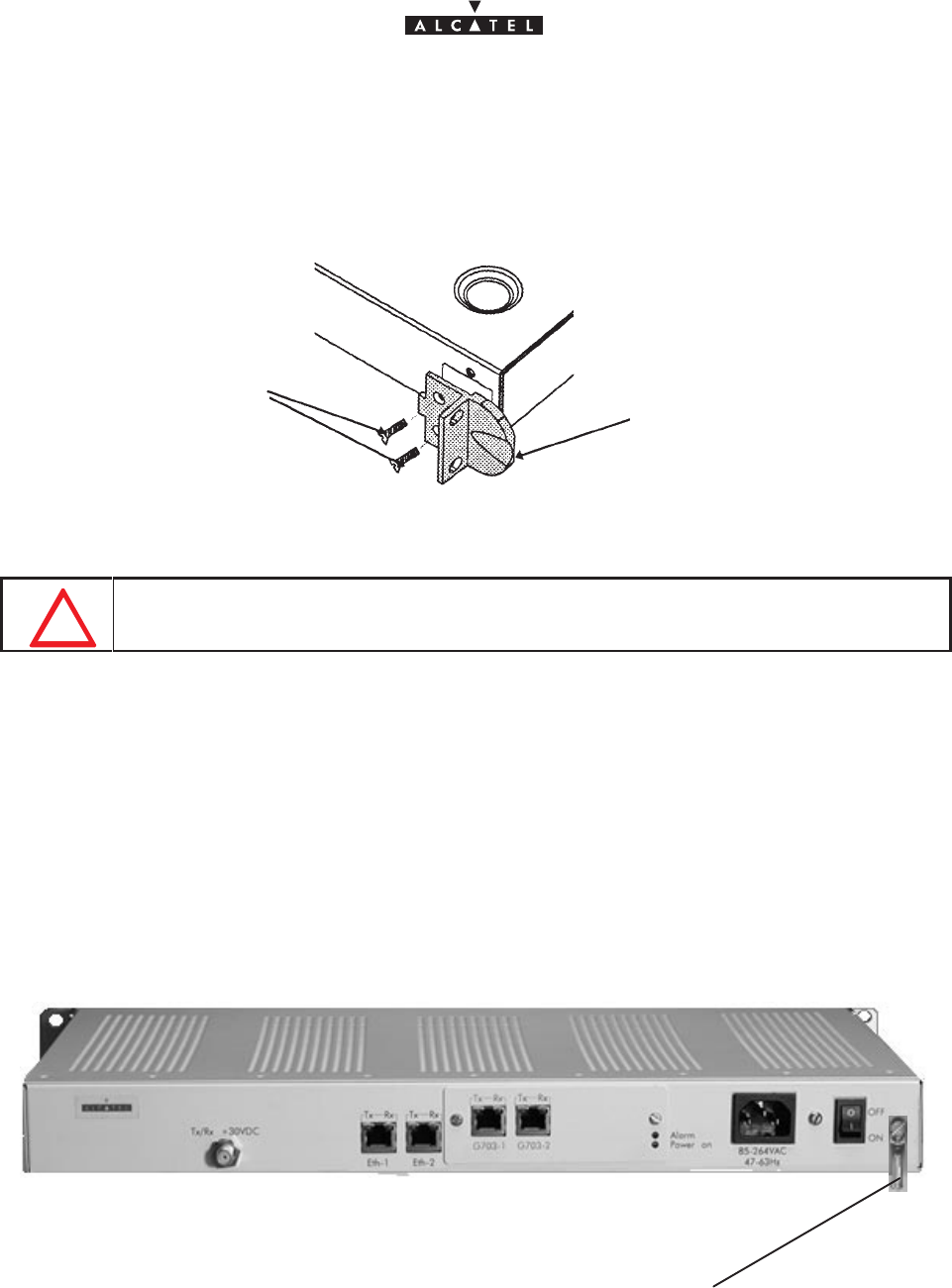

Figure 23 – Fitting the NT unit handles

M3x6 countersunk

fixing screws Handle

A SPACE OF AT LEAST 1U MUST BE LEFT FREE ABOVE THE ASSEMBLY.

3.6.4 – Grounding the NT unit

Considerations

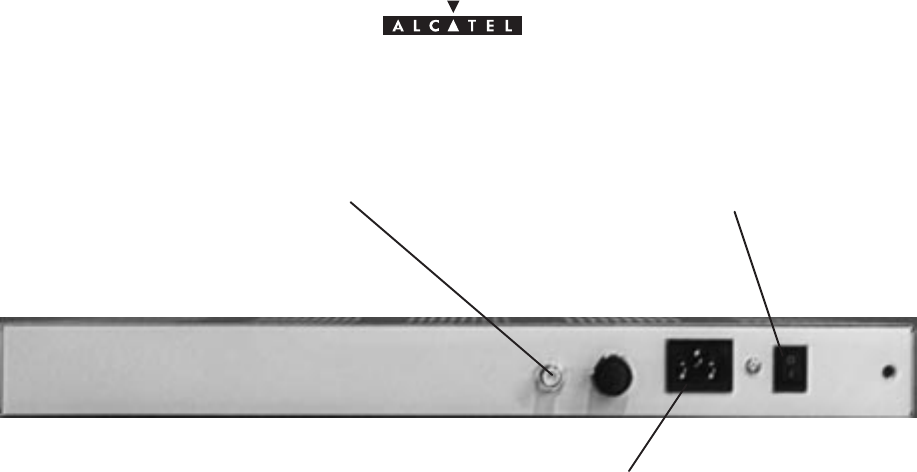

– The NT unit can be grounded to the general ground or using a grounding terminal and lug. The

grounding terminal is on the right of the NT unit (connections side) and is in the form of a tapped hole

(see Figure 24).

– The ground / earth connection should be made as directly as possible between the unit and the general

grounding system of the side (bar, rod, plate, etc.).

Steps

1. Crimp a lug (ref.: 16–6 CT) on to the grounding cable (16 mm2 cross–section).

2. Screw the cable lug into the terminal designed for this purpose. Use an M6 screw.

Figure 24 – Grounding/earthing the NT unit

General grounding/earthing lug

document, use and communication of its contents

not permitted without written authorization from ALCATEL

37/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

3.7 –Installation of one or more repeater modules

Considerations

– In the case of a coaxial cable to cover a distance greater than 70 meters between ODU (9900RT) and

IDU (9900NT), a repeater module is required to compensate losses.

– Repeaters are installed indoors only, sheltered from dust and heat.

– The repeater must be installed in series on the RT/NT connection (coaxial cable).

– Respect the installation orientation of the repeaters, paying attention to the reference marks on the

casing.

– The repeater needs no setting. It has no individual power supply: the repeater automatically takes its

power from the supply passing through the RT/NT connection.

– The repeater is a fixed gain bi–directional amplifier. This means that the installation methodology

described below MUST be respected.

Repeater installation methodology

1. Between repeater and RT unit, the length of the connection (coaxial cable) is always variable: from 0 to 70

meters.

2. Between repeater and NT unit, the length of the connection (coaxial cable) is always fixed: 70 meters.

First example

Length of coaxial cable less than 140 m (here, 110 m).

A single repeater is used.

Figure 25 –Installation with one repeater

Example: 40 meters Fixed: 70 meters

Repeater

The variable length, < 70 m, is always situated between repeater and RT unit.

The fixed length, 70 m, is always situated between repeater and NT unit.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

38/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

Second example

Length of coaxial cable less than 210 m but greater than140 m (here, 200 m).

Two repeaters are used.

Figure 26 –Installation with two repeaters

Example:

60 meters

Fixed:

70 meters

repeater

Fixed:

70 meters

repeater

Steps

1. Select the installation location with respect to the location of the NT unit.

2. Install and secure the repeater.

3. Wire the repeater to the NT unit and to the RT unit, respecting the instructions contained in the installation

methodology above.

4. Note the length of the cables installed. The length of each should be < 70 m. This information will be entered

in the database when the equipment is commissioned, using the configuration software.

Note : The accuracy required by the configuration software is + 1.5 m.

5. If the last 70 meter section must be coiled, respect a minimum bending radius of 200 mm.

IN ALL CASES, THE LENGTH OF THE CABLE SHOULD NOT EXCEED 210 meters FOR

A MAXIMUM OF 2 REPEATERS.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

39/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

3.8 –Installation of one or several repeaters with passive splitter(s)

Considerations

– Where there are several NT units for a single RT unit, one or several splitter(s) need(s) to be used.

– For a single RT unit it is possible to mount up to four NT units.

– The passive splitter is installed in series on the RT/NT connection (coaxial cable).

– The passive splitter has no individual power supply: it feeds the power through from the NT to the RT.

– Respect the installation orientation of the repeaters and splitters, paying attention to the reference

marks on the casing.

– The length of the cable used must be noted. In order to facilitate this measurement, refer to the markings

printed on the cables: every meter, on the outer sheath. To know the length of cable installed, subtract

the number at one end from the number at the other end of the cable used.

Methodology

– The system supports a maximum of 2 repeaters and 3 splitters per route. Route means the path

between an NT unit and the RT unit.

– The variable distance between an RT and a repeater is from 0 to 70 meters.

– The fixed distance between two repeaters is 70 meters.

– The fixed distance between a repeater and an NT is 70 meters.

– The fixed distance between two repeaters encompassing a passive splitter is 50 meters.

– The fixed distance between a repeater and an NT, and encompassing a splitter, is 50 meters

– The fixed distance between two repeaters encompassing two passive splitters is 30 meters.

– The fixed distance between a repeater and an NT, encompassing two splitters, is 30 meters

– If a fixed lenght section must be coiled, respect a minimum bending radius of 200 mm.

Figure 27 – Passive splitter

4,5

35,5

document, use and communication of its contents

not permitted without written authorization from ALCATEL

40/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

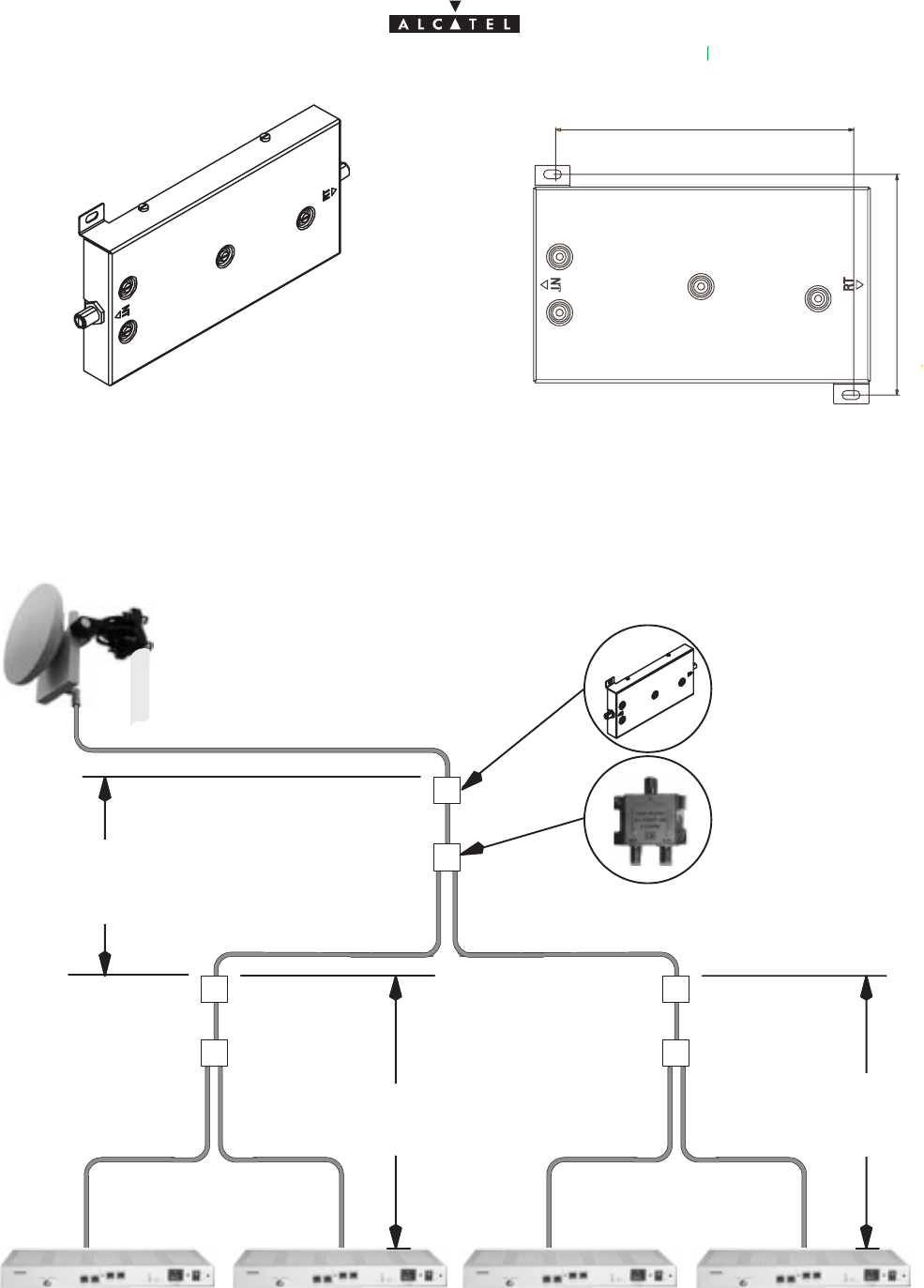

Figure 28 – Repeater

169

124

Example of “star” assembly

This scheme is to be preferred since only 2 splitters are used per route.

It is well suited to the distribution of NTs on the same floor of a building.

Figure 29 – Preferred “star” assembly

RT 0 to 70 meters

NT1 NT2 NT3 NT4

50 meters

repeater repeater

splitter splitter

repeater

document, use and communication of its contents

not permitted without written authorization from ALCATEL

41/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Example of the use of 75 ohm loads on cables or accesses waiting for one NT.

Figure 30 – assembly withs 75 ohms loads .

RT 0 à 70 meters

repeater

splitter

repeater

splitter

NT1 NT3

repeater

splitter

50 mètres

50 meters

50 mètres

50 meters

75 ohms load

on cable waiting for NT2

75 ohms load

on splitter acces waiting

for NT4

50 meters

document, use and communication of its contents

not permitted without written authorization from ALCATEL

42/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

Example of “stepped” assembly

Figure 31 –”Stepped” assembly

repeater

70 meters NT1

0 à 70 meters

splitter

repeater

NT2

repeater

splitter

NT3

50 meters50 meters

50 meters

document, use and communication of its contents

not permitted without written authorization from ALCATEL

43/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Example with two splitters placed between two repeaters

Figure 32 –Assembly with two splitters placed between two repeaters

repeater

NT1

NT4

0 à 70 meters

splitter

NT2

splitter

repeater

splitter

30 meters

NT3

50 meters

30 meters

document, use and communication of its contents

not permitted without written authorization from ALCATEL

44/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

45/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

4 – Commissioning the 9900TS Terminal Station

4.1 –Purpose

The purpose of this task is to carry out:

– site adjustment of the RT unit (also called RT or RT radio),

– initialization and configuration of the RT unit and NT unit parameters,

– checking and validation of the installed parameters before rendering the equipment operational.

4.2 –Commissioning the RT unit

4.2.1 – Equipment required

To configure the parameters and carry out site adjustment of the RT unit, the following equipment is required:

– the RT unit,

– the RIT tool (Radio Installation Tool),

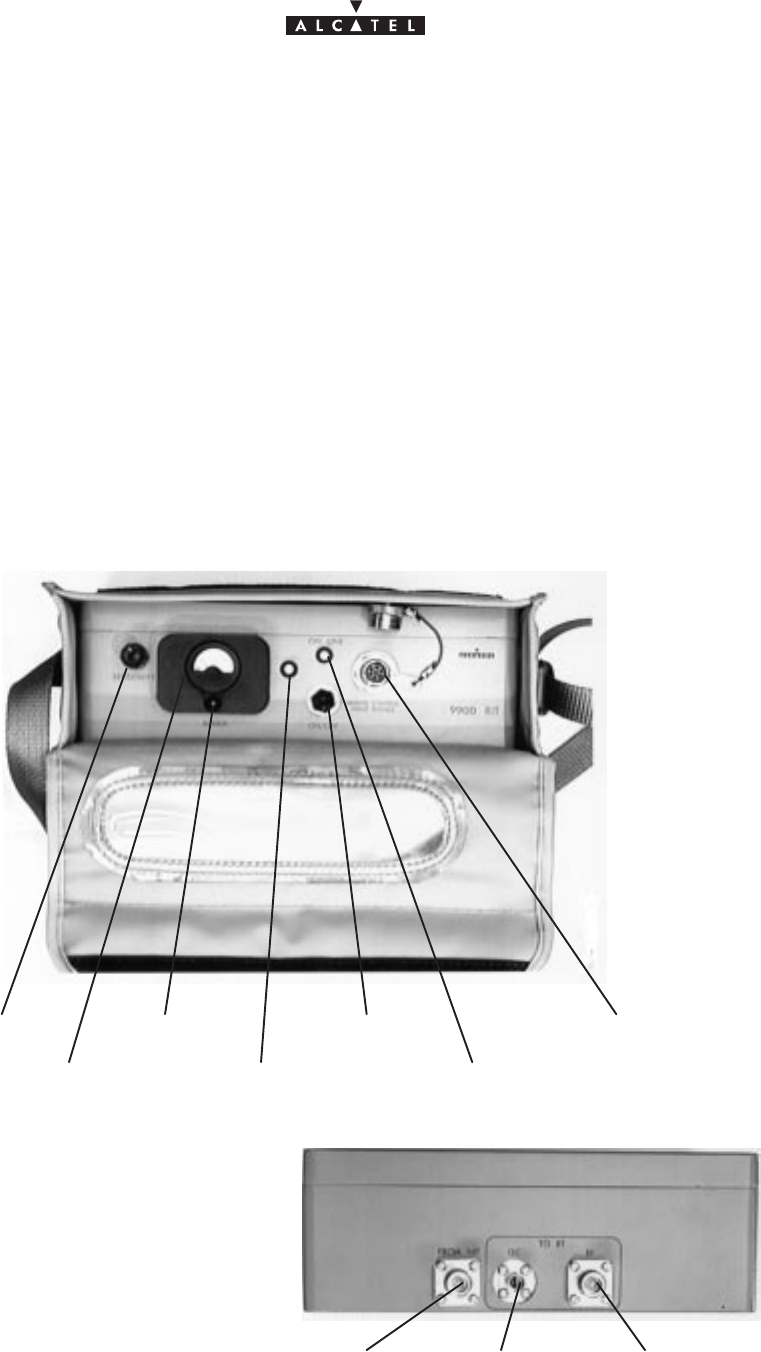

Figure 33 – RIT tool

Rear view

Front view of equipment in

transport pouch

Potentiometer

Field Gauge

Alarm indicator On/Off switch

On/Off indicator

PC and headset

cable connector

N connector to

NIT tool BNO connector

to RT unit N connector to

RT unit

Receiving indicator

document, use and communication of its contents

not permitted without written authorization from ALCATEL

46/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

–NIT tool (Network Installation Tool),

Figure 34 – NIT tool

Connector for RIT/NIT cable On/Off switch

Connector for mains cable

– one tool cable set (see Figure 35 and 36),

– one audio–head set (see Figure 36),

– one No.5 Allen key,

– the RT installation and programming software pre–installed on a portable PC,

– a diskette (or CD–ROM) containing the data pre–recorded by the network operator,

– a PC fitted with the RT unit initialization and programming software; the PC should have the following

minimum characteristics:

Smicroprocessor: 300 MHz Pentium II,

SRAM: 64 MB,

SHard disk: 2 GB,

SGraphics board: 2 MB,

S3”1/2 disk drive (internal or external),

S12x CD drive (internal or external),

SPorts: 1 available serial port (DB9) and 1 available parallel port (centronix),

S2–button mouse (PS2 series) or a pointing device,

Snetwork board: 10/100BT Ethernet (RJ45), 10B2 (BNC),

S12” screen (1024x768).

The RIT is used:

– as an interface between the PC and the RT unit: it receives the information necessary to the initialization

and programming of the RT from the PC and transmits it to the RT unit;

– to implement optimal alignment of the antenna vis–a–vis the Base Station. This function is provided

by the Received Signal Level control system (visual and/or audible) of the RIT.

The NIT is used:

– as a power source for the RT unit and the RIT tool during the RT adjustment and configuration

procedures.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

47/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

4.2.2 – Site configuration and adjustment procedures

4.2.2.1 – Configuration of the 9900RT ODU parameters

To carry out RT radio programming, implement the assembly shown in Figure 35.

Note : It is recommended that this task be carried out indoors. The use of the portable PC in inclement weather

conditions (rain, snow, etc.) is not advisable.

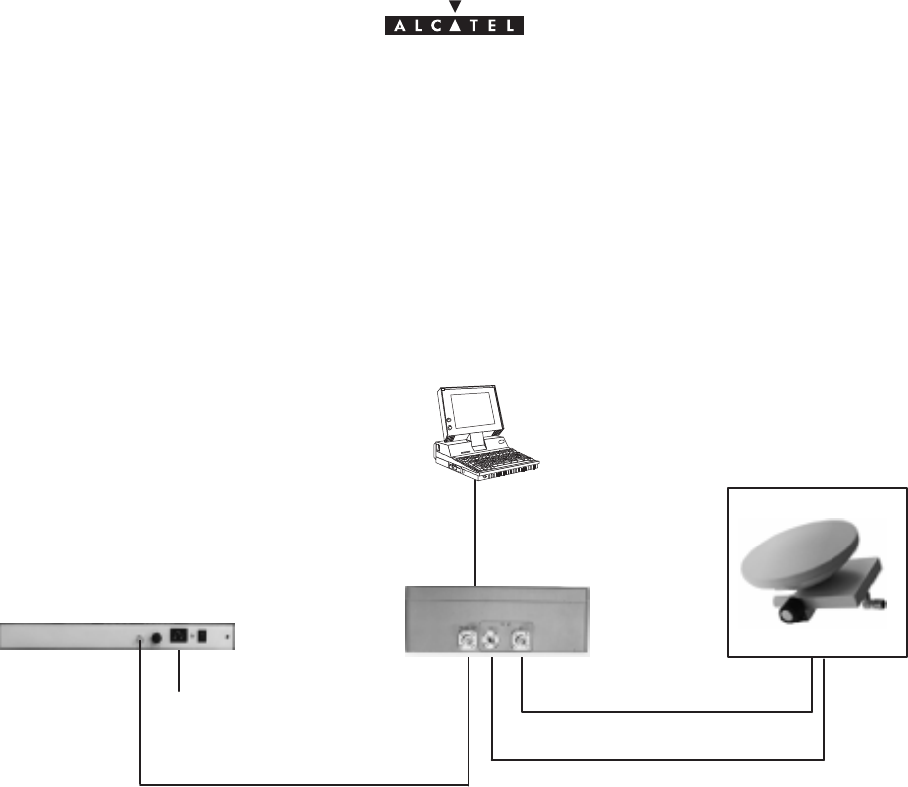

Figure 35 – RT configuration setup diagram

RT/RIT link (tool cable)

I2C bus (tool cable)

Coaxial cable (tool cable)

or “site” cable

mains 85 – 264 VAC

47 – 63 HZ

NIT tool RIT tool RT

Portable

computer

RIT/PC link (tool cable)

Stages

1. Connect the cables of the configuration tools (cables and tools delivered with the equipment):

– between the RT unit and the RIT tool: the RT/RIT link coaxial cable (“N” type connectors at both ends)

– between the RT unit and the RIT tool: the data transfer bus (“BNO” type connectors at both ends)

– between the portable PC and the RIT tool,

– between the RIT tool and the NIT tool: coaxial cable (“N” type connector at the RIT and “F” type

connector at the NIT)

– between the NIT tool and the mains power supply: mains connection cable.

2. Power–up the assembly:

– power–up the NIT tool,

– power–up the PC,

– power–up the RIT tool.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

48/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

3. Run the installation software from the PC.

Note : The installation software operator is expected to understand the operation of software in the Windows



95, 98 and NT environments.

4. Insert the diskette (or CD–ROM) containing the pre–recorded data and transfer it on to the PC hard disk.

5. If there is no diskette or data on diskette, enter on the PC screen displayed windows the the following data:

– the distance between the Terminal Station (9900TS) and the link Base Station (9900BS)

– distance (D) accuracy: 100m < D < 200m; 20m maximum error

– 200 < D < 200m; 40m maximum error

– 400 < D < 400m; 80m maximum error

– D < 800m; 100m maximum error

– the total length and/or type of RT/NT cable, required accuracy: ± 1,5 meter per cable section, ± 5 meters

per cable overall lenght

– the difference in altitude between the 9900BS antenna and the 9900TS antenna, required accuracy:

± 10%

– whether or not a repeater is used

– single or multi–NT configuration.

Note : Part of the data required for the correct operation of the system is supplied to the software by the network

operator in computerized form (diskette, CD–ROM, etc.).

6. Confirm the data entries for the data to be transfered to the RT.

4.2.2.2 – Aligning the RT unit antenna

Note : To carry out the following phases of the Terminal Station commissioning, the link Base Station must be

operational and its antenna correctly orientated.

IMPORTANT NOTE: NEVER HANDLE THE RT UNIT BY ITS ANTENNA BUT BY THE

BODY OF THE RT RADIO OR THE SUPPORT ARM.

The following equipment is required for carrying out RT antenna alignment:

– the RT unit,

– the RIT (Radio Installation Tool),

– the NIT (Network Installation Tool),

– an audio headset,

– a No. 5 Allen key.

To carry out RT unit antenna alignment, implement the assembly shown in Figure 36.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

49/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

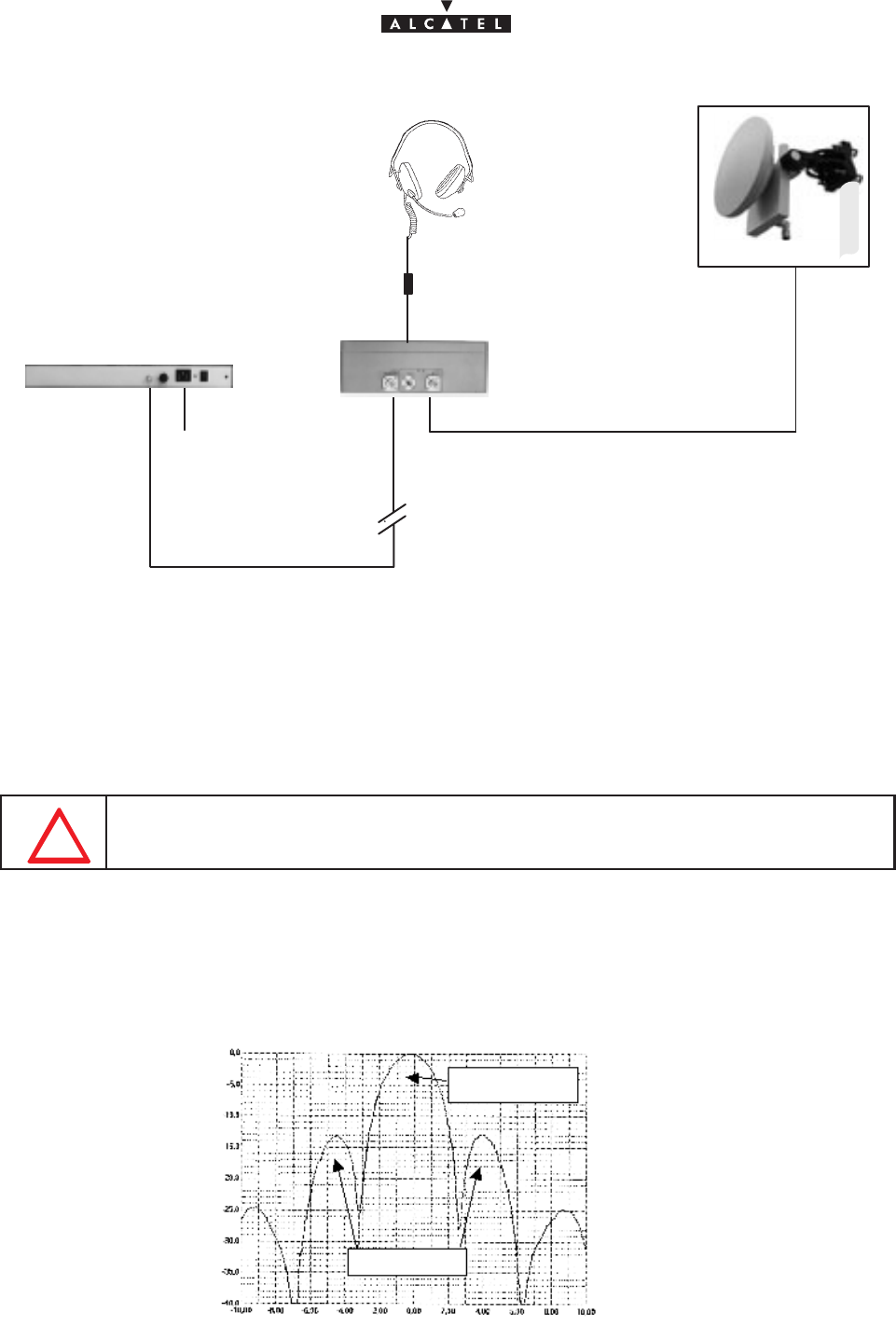

Figure 36 – RT antenna fine alignment assembly diagram

RT/RIT link cable (tool cable)

“Site” caxial cable (link RT/NT)

mains 85 – 264 VAC

47 – 63 HZ

NIT tool RIT tool

Headset

RIT/ Headset tool cable

Stages

IN VIEW OF THE FACT THAT THE SIDE LOBES ARE QUITE ADJACENT (4_ TO 5_)

AND AT QUITE A HIGH LEVEL (–15dB), BE SURE THAT ALIGNMENT IS CARRIED OUT

WITH RESPECT TO THE MAIN LOBE.

1. Using the Allen key, loosen the screws (ref. 1, Figure 38).

2. Adjust the RT unit by sweeping horizontally in either direction until the maximum receive level is found.

3. If no reception level is detected, lock the bearing alignment and repeat the elevation alignment procedure.

Check installation for ploarization, connection..., in failure case.

Figure 37 – Main lobe and side lobes

main lobe

side lobe

document, use and communication of its contents

not permitted without written authorization from ALCATEL

50/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

Figure 38 – Adjustment screws

4. Carry out alignment with respect to the strongest signal. To do this, either:

– observe the maximum field level on the RIT tool indicator (the field maximum corresponds to the

maximum deviation of the needle on the field gauge),

– or, evaluate the maximum field level using the audio headset connected to the service kit cable (field

minimum corresponds to a low frequency audio signal; field maximum corresponds to a high frequency

audio signal).

Figure 39 – Adjustment procedure using the RIT tool potentiometer

PotentiometerPotentiometer

When the needle reaches the end point, adjust the potentiometer to re–center it.

These adjustments are repeatable.

5. Using the Allen key, re–tighten the “bearing” screws (ref. 1, Figure 38).

6. Using the Allen key, loosen the “elevation” screws (ref. 2, Figure 38).

7. Adjust the RT unit by sweeping vertically in either direction until the maximum receive level is found. Use

the same methods presented in point 3 above.

8. Using the Allen key, re–tighten the “elevation” screws (ref. 2, Figure 38).

9. Tighten all the mechanical assembly screws, taking care not to mis–align the RT unit assembly.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

51/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

10. Remove the tools and cables used for RT configuration and adjustment.

11. Connect the RT/NT connection cable to the RT unit.

4.3 –Commissioning the NT IDU

Note : To carry out the following phases of the Terminal Station commissioning, the link Base Station must be

operational and its antenna correctly orientated.

Considerations

– Before commissioning the NT unit, complete the RT unit adjustment procedures.

– No adjustment is required for commissioning the NT.

– To check the voltage at the mains connector terminals, use a measuring instrument (voltmeter).

– For the mains connection, use only the connection cable supplied with the equipment.

– Never use an extension cable for connecting the NT unit to the power source.

Stages (Figure 40)

1. Connect the RT/NT connection cable. Use ref. 1 connector.

2. To ground the NT unit in this way, carry out the procedures described in Chapter 3.

Use the lug and screw hardware supplied with the equipment, ref. 7.

3. Check that the mains socket to which the NT is to be connected supplies voltage compliant with the

equipment characteristics and that it is fitted with an earth.

4. Connect the NT connection cable to the NT connector (ref. 5) and then to the mains.

5. Power–up the NT unit using the On/Off switch (ref. 6); the green “Power” LED (ref. 3) lights up. The red

“Alarm” LED (ref. 4) starts to flash at different rates according to the current phase.

6. Observe the (automatic) initialization time of the NT. As soon as the red LED (ref. 4) goes out, the system

is operational.

Note : The maximum initialization time is in the order of 5 minutes.

Client terminals are connected to the ref. 2 connectors.

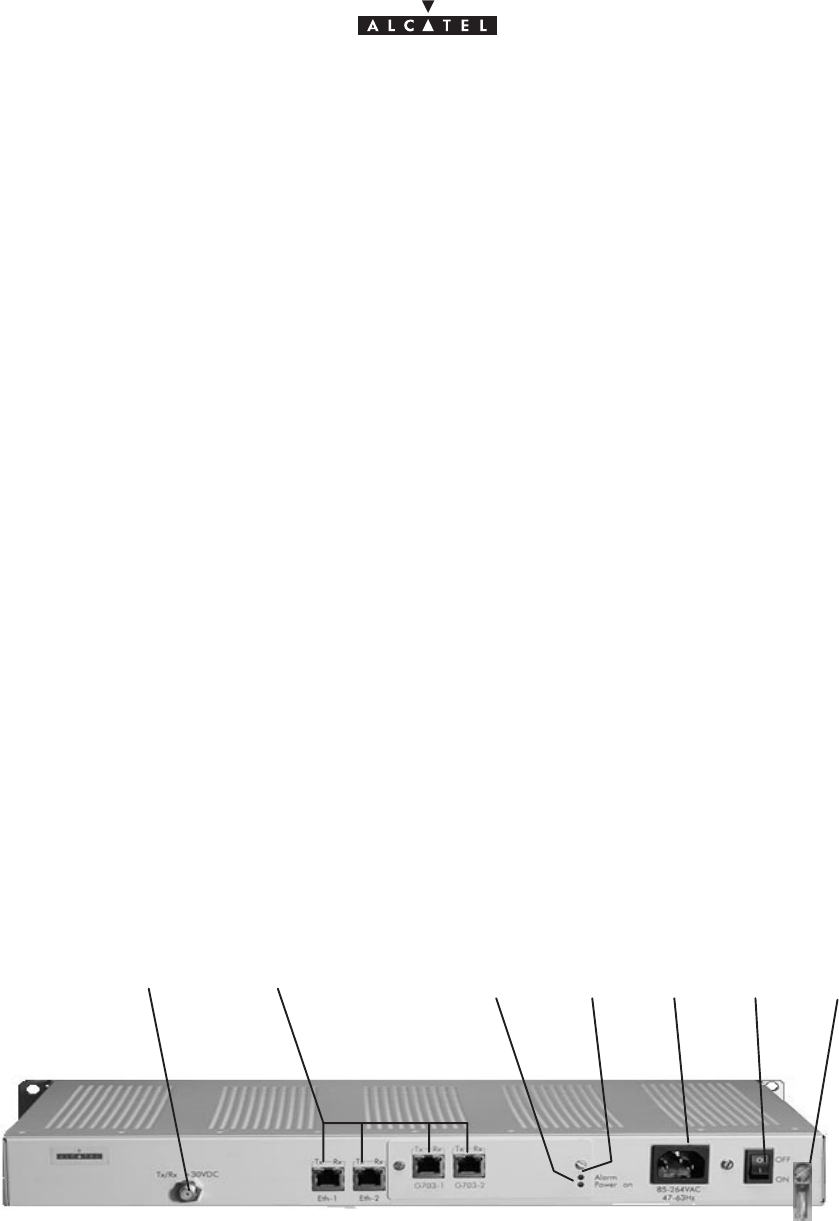

Figure 40 – The NT unit

12 57

document, use and communication of its contents

not permitted without written authorization from ALCATEL

52/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

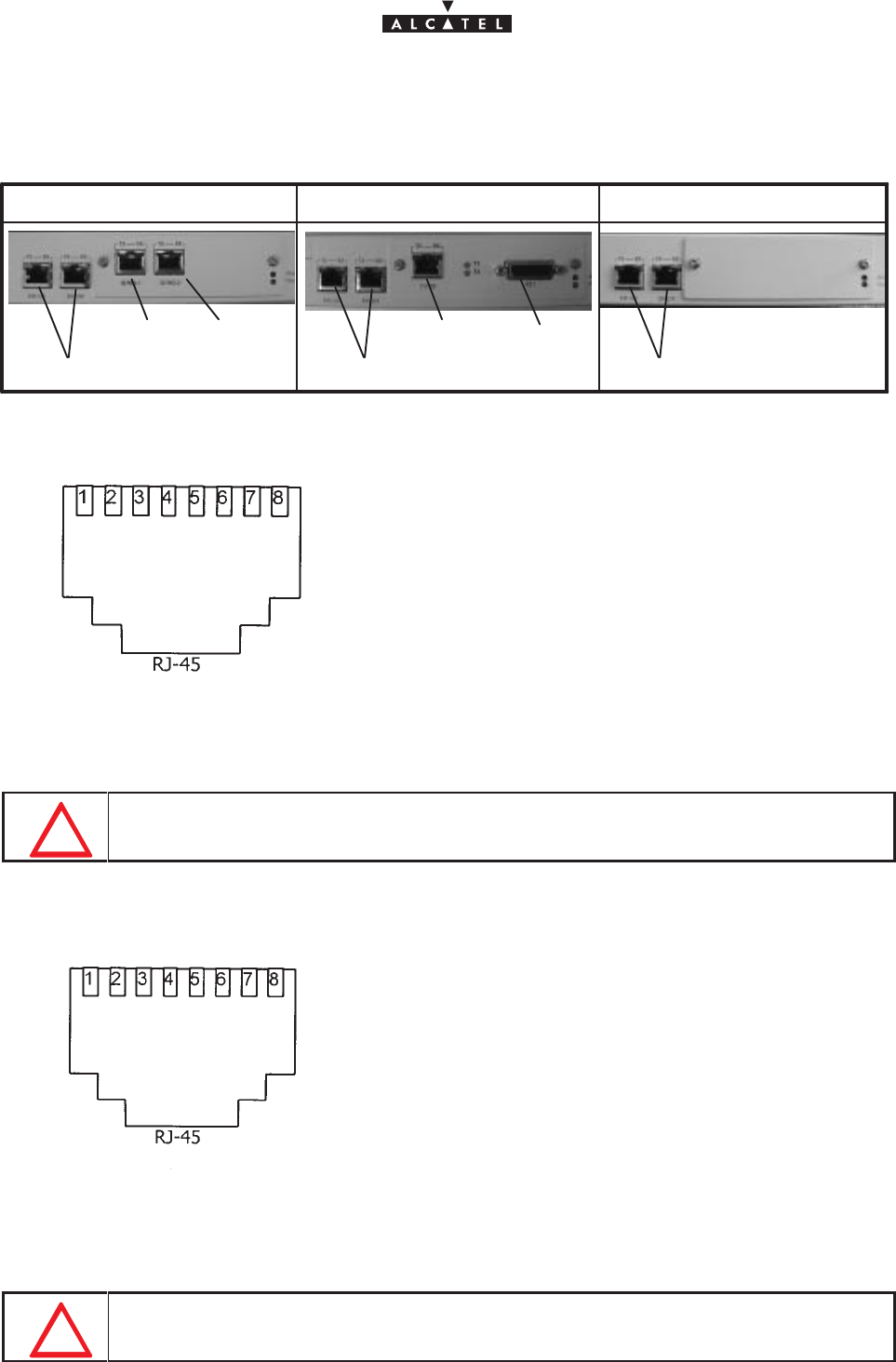

4.4 –Client terminal connections

There are three types of NT units:

9900 NCA 001 9900 NCD 001

2 x Eth 10bT 2 x Eth 10bT 2 x Eth 10bT

G703 G703 G703

9900 NCA 002

X21

4.4.1 – Ethernet connector

Figure 41 – Affectation of Ethernet access points

Pin 1 ––––>Tx_diff_plus

Pin 2 ––––>Tx_diff_Moins

Pin 3 ––––>Rx_diff_plus

Pin 4 ––––>Not connected

Pin 5 ––––>Not connected

Pin 6 ––––>Rx_diff_Moins

Pin 7 ––––>Not connected

Pin 8 ––––>Not connected

Unshielded cable

SHIELDED CABLES MANDATORY

4.4.2 – G703 connector

Figure 42 – Affectation of G703 access points

Pin 1 ––––>Rx_Ring

Pin 2 ––––>Rx_Tip

Pin 3 ––––>Not connected or equipment ground

Pin 5 ––––>Tx_Tip

Pin 7 ––––>Not connected

Pin 8 ––––>Not connected

Pin 4 ––––>Tx_Ring

Pin 6 ––––>Not connected or equipment ground

Shielded cable

SHIELDED CABLES MANDATORY

document, use and communication of its contents

not permitted without written authorization from ALCATEL

53/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

4.4.3 – X21 connector

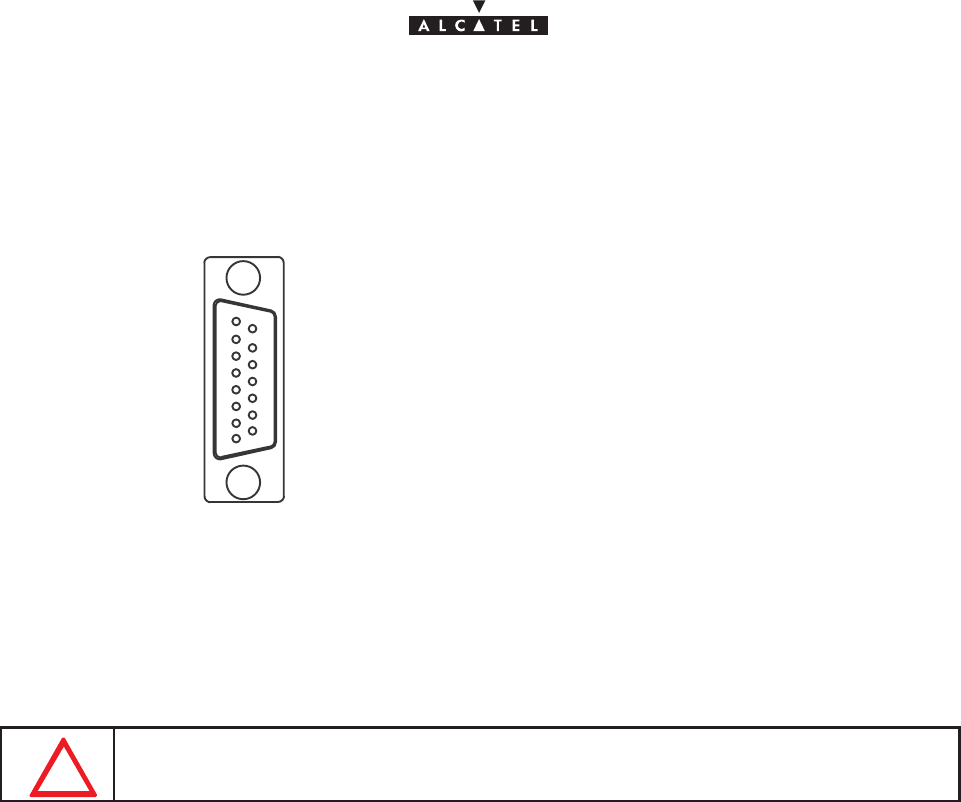

Figure 43 – Affectation of X21 connector access points

Pin 1 ––––>Screen

Pin 2 ––––>T_neg

Pin 3 ––––>C_neg

Pin 5 ––––>I_neg

Pin 7 ––––>B_neg

Pin 8 ––––>Ground

Pin 4 ––––>R_neg

Pin 6 ––––>S_neg

Pin 9 ––––>T_pos

Pin 10 ––––>C_pos

Pin 12 ––––>I_pos

Pin 14 ––––>B_pos

Pin 15 ––––>Not connected

Pin 11 ––––>R_pos

Pin 13 ––––>S_pos

Shielded cable

SHIELDED CABLES MANDATORY

document, use and communication of its contents

not permitted without written authorization from ALCATEL

54/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

55/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

5 – Operation and maintenance

5.1 –Network supervision

The network operator receives the alarms sent by the network equipment. With the aid of the the 9900LT

software applications, the operator can view and analyse the alarms and trigger the appropriate corrective

operations (see procedures below).

In the event of unsatisfactory results from the performance measurement programs, analyses may be made

to localise the implicated station and implement the necessary maintenance operations to restore original link

performance.

On detection of a fault, the operator should go to the faulty station. He should take a laptop PC enabling him

to configure, if required, certain system characteristics.

5.2 –Preventive maintenance

This maintenance is carried out, either during a corrective maintenance inspection, or during a periodic

inspection, on all station equipment. It consists in inspecting the units and their interconnections (connectors,

cables, sockets, etc.) and ensuring that the environment of the Indoor Units (NTs) complies with installation

requirements (see section 3 of this Manual). In case of doubt, the suspect parts should be checked, taking all

precautions to avoid interrupting link data transmission.

5.3 –Corrective maintenance

5.3.1 – Methodology

– Analysing the NT unit alarm LEDs,

– In the case of alarms, localising them with the aid of configuration and management programs installed

in a PEX, analysing them and carrying out the necessary corrections (changing the unit, module, cable,

etc.).

5.3.2 – Use of 9900LT software programs for alarm localisation

To activate and use the alarms refer to section 4.10 of the Base Station User Manual, ref.: 3CC10875AAAA TQ

BJB .

document, use and communication of its contents

not permitted without written authorization from ALCATEL

56/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

5.4 –Changing the NT unit

Stages

1. Turn off NT unit power. Disconnect from power source.

2. Disconnect all cables connected to the NT unit to be changed.

3. Change NT unit after checking that the characteristics coincide (number of inputs, impedance, etc.).

4. Reconnect NT unit cables.

5. Power up NT unit.

6. Wait for “Power” LED to light up.

7. Wait for flashing of “Alarm” LED. The NT unit is in operation once the LED is extinguished.

8. Check the absence of alarms in the 9900LT software application (see section 4.10 of the Base Station User

Manual ).

9. Update the station installation sheet .

5.5 –Changing the RT unit

Stages

1. Disconnect the RT/NT connection cable.

2. Change RT unit after checking the characteristics are identical.

3. Carry out antenna alignment. For this, refer to section 3 of the present Manual.

4. Reconnect the RT/NT connection cable. Wait two minutes. Reconfiguration is automatic.

5. Check the absence of alarms in the 9900LT software application.

6. Update the station installation sheet .

document, use and communication of its contents

not permitted without written authorization from ALCATEL

57/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

6 – Changes of configuration

The changes to the transmission network may require changes to the equipment configurations in order to meet

new requirements. The A9900 equipment is likely to satisfy these changes either by modifying just the

equipment software configuration or by physically modifying the equipment and its configuration.

These changes may involve either changes of configuration using the 9900LT software only, or changes of

configuration with physical intervention on the equipment.

The possible changes using the 9900LT software only are:

– use of NT unit supervision,

– declaration/removal/reset of an NT terminal,

– implementation of customer services.

The possible changes with physical intervention are:

– addition of an NT unit,

– changing an NT unit,

– changing an RT unit,

– changing the BS on an NT unit.

Before any configuration change, block all remote command signals

(Procedure to be detailed subsequently.)

6.1 –Use of NT unit supervision

For the use of this function, carry out the commands indicated in section 4.6 of Chapter 4 –

Presentation of

9900LT Software

of the Base Station User Manual, ref: 3CC10875ABAA TQ BJB .

6.2 –Declaration, deletion, reset of an NT unit

To add a new NT IDU:

– update the “Installation information” sheet required for station installation (refer to Annex 1 of the

present Manual),

– carry out installation (refer to Chapter 3 of the present Manual) and commissioning (refer to Chapter

4 of the present Manual) of the NT

– to declare the new NT terminal, execute the commands indicated in section 4.6.1 of Chapter 4 –

Presentation of 9900LT Software

of the Base Station User Manual.

To delete an NT unit from the network:

– update the “Installation information” sheet required for station installation (refer to Annex 1 of the

present Manual),

– execute the commands indicated in section 4.6.3 of Chapter 4 –

Presentation of 9900LT Software

the Base Station User Manual,

– turn off power to unit using ON/OFF switch.

To reset an NT unit:

– execute the commands indicated in section 4.6.4 of Chapter 4 –

Presentation of 9900LT Software

the Base Station User Manual,

– if necessary, update the “Installation information” sheet (refer to Annex 1 of the present Manual).

6.3 –Implementation of customer services

To implement customer services:

document, use and communication of its contents

not permitted without written authorization from ALCATEL

58/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

– execute the commands indicated in section 4.12 of Chapter 4 –

Presentation of 9900LT Software

the Base Station User Manual,

Note : The system benefits from E1 or IP links. For each case, use the specific procedure.

– if necessary, update the “Installation information” sheet (refer to Annex 1 of the present Manual).

6.4 –Changing an RT unit

When changing the RT unit, it is necessary to carry out antenna alignment (tracking) and reinitialisation of the

radio part configuration

To change the RT unit:

– turn off the mains supply to the NT,

– disconnect the RT/NT link cable,

– carry out installation of the RT unit and tracking of the Terminal Station antenna. For this, refer to Chapter 3

of the present Manual.

– restart the Terminal Station. For this, refer to Chapter 4 of the present Manual.

– reconfigure the system according to the procedures in Chapter 4 of the present Manual.

For system initialisation and retrofit, refer to section 4.6 of Chapter 4 –

Presentation of 9900LT Software

of the

Base Station User Manual.

6.5 –Changing the BS on an NT

To change the Base Station on a Terminal Station:

– turn off the mains supply to the NT,

– carry out tracking of the Terminal Station antenna. For this, refer to Chapter 3 of the present Manual.

– restart the Terminal Station. For this, refer to Chapter 4 of the present Manual.

– reconfigure the system according to the procedures in Chapter 4 of the present Manual.

For system initialisation and retrofit, refer to section 4.6 of Chapter 4 –

Presentation of 9900LT Software

of the

Base Station User Manual.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

59/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Appendix 1 – 9900 TS INSTALLATION SHEET

General information

Name

Address

.................................................................

No .....

Street..............................................

Bld ...... Stair .............

Floor...............

Town ...................Country......................

Operator

Site identification

Name of the corresponding

Base Station

Sector number (1, 2, 3, 4, etc.)

Distance between BS and TS

Altitude difference

Azimut (in degrees)

Obstacle (type,distance...)

Climatic zone (A,B, etc.)

Frequency band (GHz)

Duplex deviation (MHz)

Sub–band (A,.B, etc.)

Polarization (H or V)

9900 NT Intervening party : ............................Date : ...................Visa: .............

Designation NT1 NT2 NT3 NT4

Type

Reference (3CC...)

ICS (01,02,...)

Serial number

Downloaded

application

Version

Position, location

of the equipment

Installation type

(Rack,wall–moun-

ting,table)

9900 RT Intervening party :.............................. Date : .................Visa: ............

Designation

Version

Reference (3CC...)

ICS (01,02, etc.)

Serial number

Reception level (dBm)

Installation type (rooftop, tower, mast)

document, use and communication of its contents

not permitted without written authorization from ALCATEL

60/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

Mecanical support References

Radio installation height / ground

Azimut (in degrees)

RT NT cabling Intervening party :...................... Date : .......... Visa :........

Diagram marks

Type of cable

Length between RT

and the first element

Splitter references

Splitter serial num-

bers

Repeater references

Repeater ICS

Repeater serial

number

75 ohm load referen-

ces

Connecting diagram

document, use and communication of its contents

not permitted without written authorization from ALCATEL

61/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

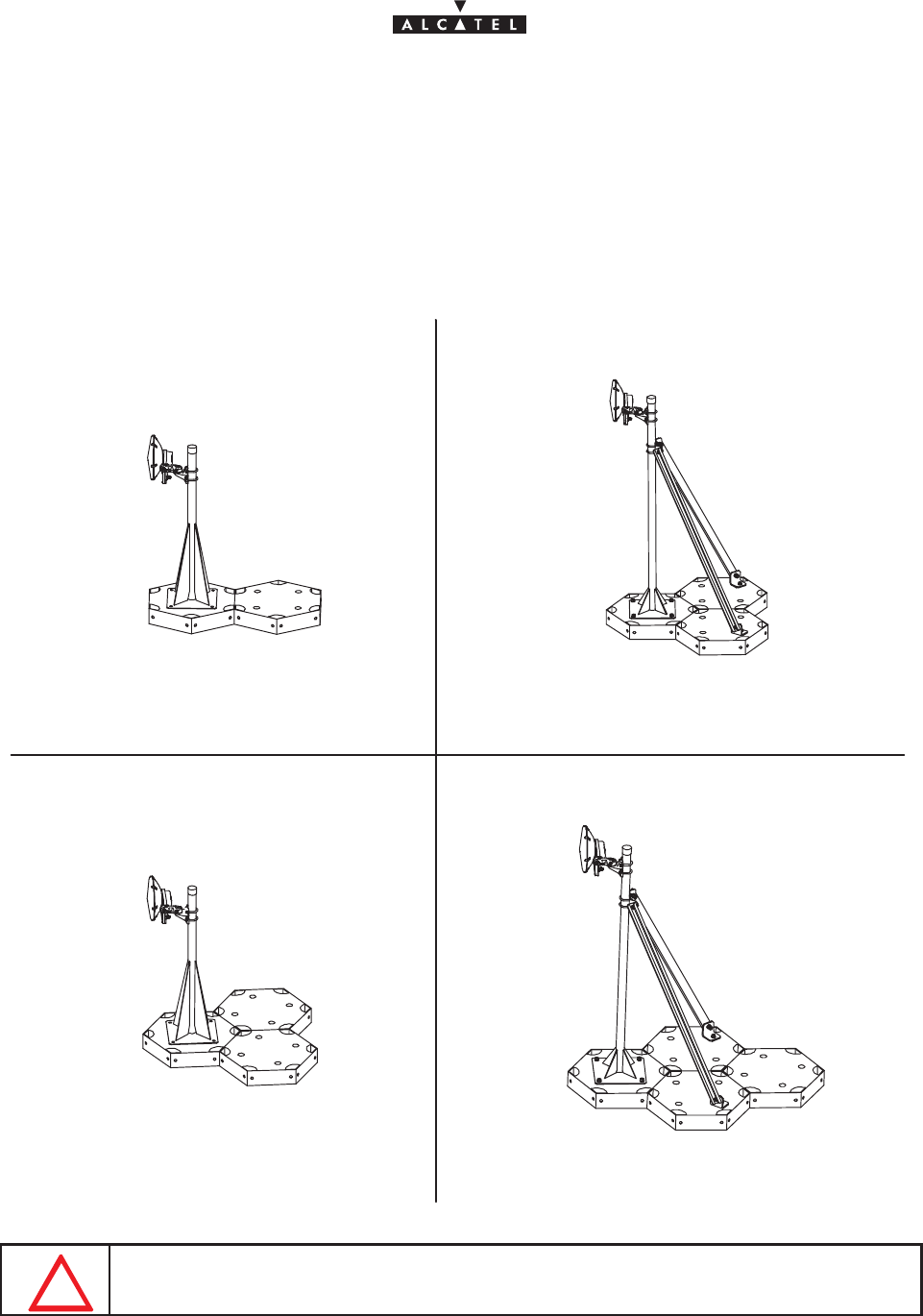

Appendix 2 – Using the DALLET system by

SOFRER for 1 m & 1.5 m high mast on rooftop

Recommendations according to Snow and Wind Rules NV 65 are only indications and should

be verified according to the sites

Feet weight : about 50 Kg

2 DALLET

Zone 1 and Zone 2 Zone 1 and Zone 2

Zone 3 Zone 3

3 DALLET

3 DALLET 4 DALLET

Before any use, verify the rules applicable locally and compute according to the

regulations.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

62/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

63/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

Appendix 3 – Mounting coaxial connectors

Sheet “N” 75Ω.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

64/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

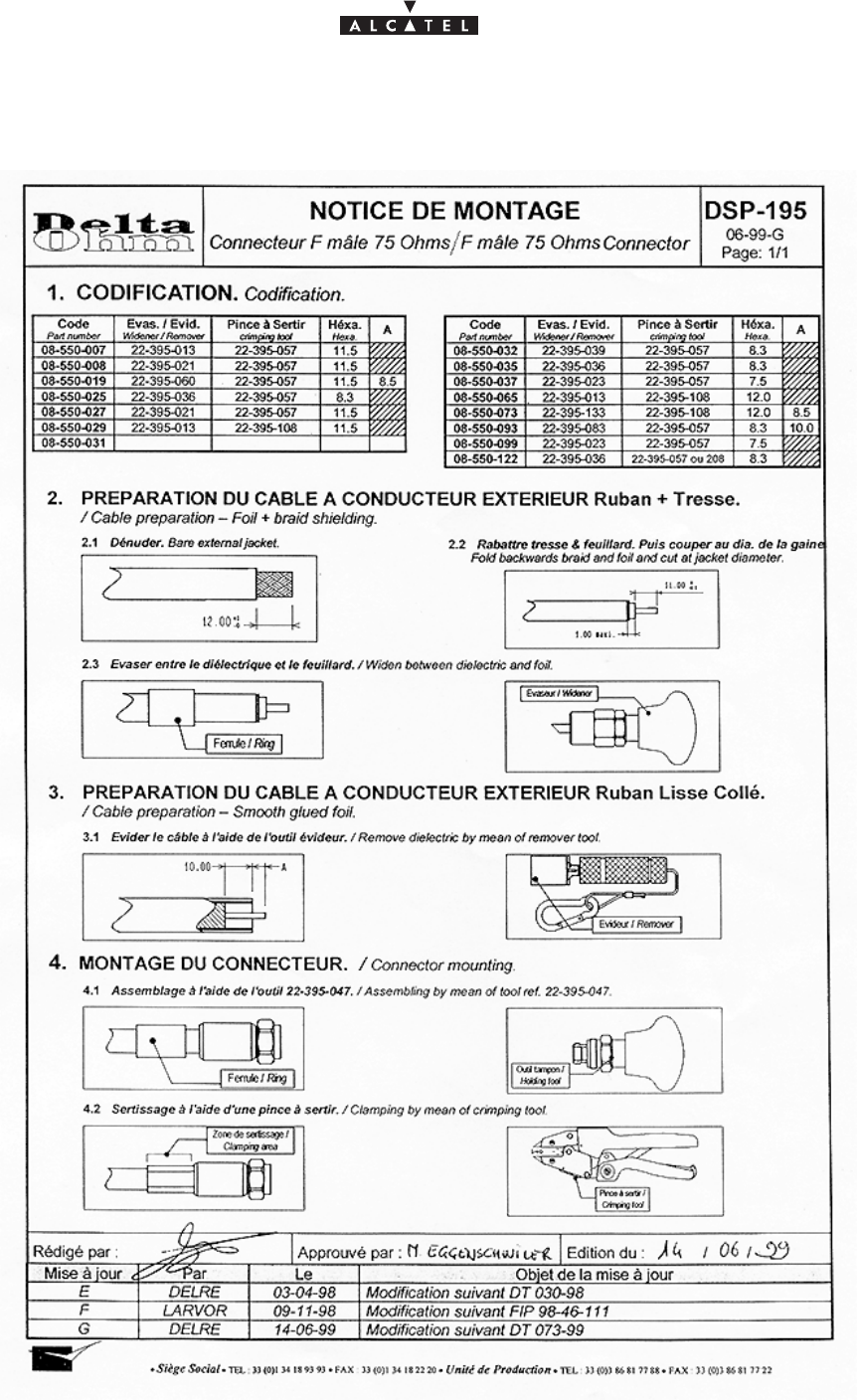

Fiche “F” 75Ω.

document, use and communication of its contents

not permitted without written authorization from ALCATEL

65/683CC11095AAAA TQ BJA 02 Issue 02 - January 04, 2000

PRODUCT REFERENCES

FILOTEX ref. :

Passing on or copying of the document, use or communicate of its content is not permitted without prior written authorization.

Filotex 





Information subject to change without notice.

Main applications

Electrical values

Physical characteristics

ET 2PA 981

Characteristic impedance : 75 Ω

Nominal capacitance : 55.5 pF/m

Relative velocity of propagation : 82 %

Dielectric strength : 1.5 Kv

Jacket strength : 3.0 Kv

Ω/km

Attenuation at 50 MHz : < 4.72 dB/100 m

300 MHz : <11.10 dB/100 m

450 MHz : <13.70 dB/100 m

600 MHz : <16 dB/100 m

860 MHz : <19.50 dB/100 m

1000 MHz : <21.10 dB/100 m

2000 MHz : <32.40 dB/100 m

Screening attenuation from 100 to 1000 MHz : 85 dB according to

IEC1196–1§12–4.

Structural return loss : 30 to 450 MHz : > 20 dB

450 to 600 MHz : > 18 dB

600 to 1000 MHz : > 15 dB

1000 to 2000 MHz : > 12 dB

Tolerance : 3 peaks at – 4 dB in each bandwith

CONSTITUTION

1.02 +/– 0.1 mm bare copper

inner conductor

Cellular polyolefin insulation

Ø = 4.60 +/– 0.1 mm

Aluminium/PET/Aluminium tape

Tinned copper braid

(filling factor > 60%).

LSZH ivory jacket

Ø = 7.15 + 0.15 mm

Weight : 58 Kg/Km

Drop coaxial cable for indoor/outdoor applications.

Coaxial cable 75Ω

Maximum pulling strength : 34 daN

Minimum bending radius for one single bend : 40 mm

for 10 bends : 80 mm

Weathering resistance according to NFC 20 540

Resistance to propagation according to IEC 332–3 but with a reduced

volume of flamable material (0.5l instead of 1.5l)

Smoke emission according to IEC 1034–2

Halogen content according to IEC 754–1

DC loop resistance ar 20 degres : 38.5

document, use and communication of its contents

not permitted without written authorization from ALCATEL

66/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

PAGE INTENTIONALLY LEFT BLANK

document, use and communication of its contents

not permitted without written authorization from ALCATEL

67/683CC11095AAAA TQ BJA 02 Issue 02 - January 03, 2000

Appendix 4 – List of abbreviations/Liste des

abréviations

MNEMONIC ENGLISH FRENCH

ADM Add and Drop Multiplexer (MIE) Multiplex insertion extraction

AGC Automatic Gain Control (CAG) Commande Automatique de Gain

AIS Alarm Indication Signal (SIA) Signal d’indication d’alarme

AMD AirModem

ANT ATM Network Termination

ATM Asynchronous Transfer Mode (?) Mode de transfert asynchrone

AS Automatic switching (CA) Commutation automatique

AT Attend alarm (on CT) (AT) Alarme en attente (sur PEX)

BER Bit Error Rate (TEB) Taux d’erreur binaire

BNC Bayonet–locking Connector (BNC) connecteur BNC

BS Base Station (BS) Station de base

CEPT Conference of European Post and Tele-

communications administrations (CEPT) Conférence Européenne des

Postes et Télécommunications

CCIR International radio consultative comitee (CCIR) Comité consultatif international des

radiocommunications

CPL coupling (in CPL board) (CPL) coupleur (carte CPL)

CT Craft Terminal (ECT, NCT or RCT) (PEX) Poste d’exploitation (PEE, PER ou

PED)

DBS Digital Base Station (DBS) Station de base numérique

EMC ElectroMagnetic Compatibility (CEM) Compatibilité ElectroMagnétique

EPROM Electronically Programmable Read–Only

Memory (EPROM) Mémoire fixe programmable de

façon électronique

ETSI European Telecommunications Standards

Institute (ETSI) Institut de standardisation des

télécommunications éuropéennes

FEC Forward error correction (CCE) Code correcteur d’erreurs

HDB3 High Density Binary 3 code (3rd order) Code Haute Densité Binaire d’ordre 3

I2C or IIC Inter Integrated Circuit (I2C or IIC) Inter Circuits Intégrés

IDU InDoor Unit (IDU) Coffret intérieur

IEC International Electrotechnical Commission (IEC) Commission internetionale

d’électrotechnique

IP Internet Protocol (IP) Protocole internet

ITU International Telecommunication Union Union Internationale des

Télécommunications

LED Light Emitting Diode Diode électroluminescente

LMCS Local Multipoint Communication Systems (LMCS) Système de communication

multipoint en mode local

document, use and communication of its contents

not permitted without written authorization from ALCATEL

68/68 3CC11095AAAA TQ BJA 02

Issue 02 - January 04, 2000

MNEMONIC FRENCHENGLISH

LMD(S) Local Multipoint Distribution (System) (LMD(S)) Distribution multipoint en mode

local

MAC Medium Access Control (MAC) sous couche MAC de l’OSI

MUX Multiplexer (MUX) Multiplexeur

ODU OutDoor Unit (ODU) Coffret extérieur

NE Network Element (NE) Elément de réseau

NRZ Non return to zero (NRZ) Non retour à zéro

NT Network Terminal (NT) Terminal de réseau

PC Personal Computer (PC) Odinateur individuel

QAM Quadrature amplitude Modulation (MAQ) Modulation d’amplitude en

quadrature

RBS Radio of Base Station (RBS) Radio de la station de base

RF Radio Frequency (FR) Fréquence radio

RT Radio Terminal (RT) Terminal radio

RX Receiver (Rx) Récepteur

STP Shielded Twisted Pair (STP) Câble 1 paire trssadée blindé

SMD Surface Mounted Device (SMD) Composant monté en surface

TNT Telefony Network Termination (TNT) Terminal réseau téléphonique

TS Terminal Station (TS) Station Terminale

TX Transmitter (Tx) Emetteur

END OF DOCUMENT

Alcatel USA 9928RT LMDS Terminal Station Transceiver User Manual

Alcatel USA Marketing, Inc. LMDS Terminal Station Transceiver

User Manual

Navigation menu

Namespaces

Views

Navigation
