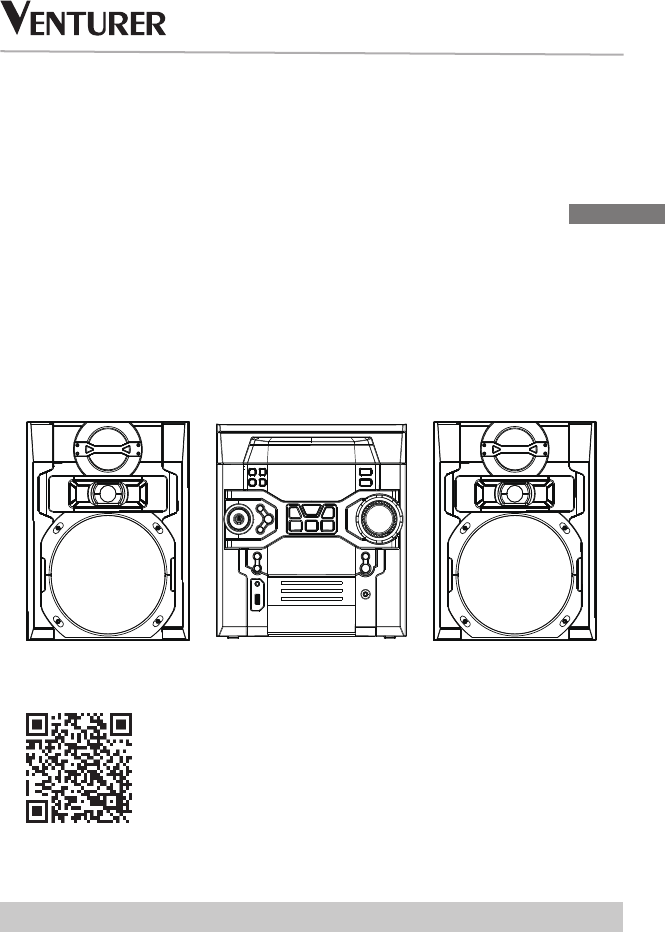

Alco Electronics RS2867B2 5 Disc Audio System User Manual CD2767B RCARS2867B indd
Alco Electronics Ltd 5 Disc Audio System CD2767B RCARS2867B indd
User Manual
CD2767BE2
Scan for more user manual details
User Manual
5 Disc Audio System
with
Bluetooth
®
wireless technology
English (EN)
It's important to read these instructions prior to using your new product for the fi rst time.
EN-2
EN
SAFETY PRECAUTIONS
CLASS 1 LASER PRODUCT
This product contains a low
power laser device.
THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU
OF "DANGEROUS VOLTAGE" INSIDE THE PRODUCT.
THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT
INSTRUCTIONS ACCOMPANYING THE PRODUCT.
Caution:
This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those
specified may result in hazardous radiation exposure. Do not open covers and do not repair yourself. Refer
servicing to qualified personnel.
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE.
WARNING: MAINS PLUG IS USED AS DISCONNECT DEVICE AND IT SHOULD REMAIN READILY
OPERABLE DURING INTENDED USE. IN ORDER TO DISCONNECT THE MAINS PLUG FROM MAINS
COMPLETELY, THE MAINS PLUG SHOULD BE DISCONNECTED FROM THE MAINS SOCKET OUTLET
COMPLETELY.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
EN-3
EN
Some of the following information may not apply to your particular product; however, as with any electronic
product, precautions should be observed during handling and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifi ers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fi t into your outlet, consult
an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
• Only use attachments / accessories specifi ed by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus
has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
ADDITIONAL SAFETY INFORMATION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
For Your Safety
The AC power plug is polarized (one blade is wider than the other) and only fits into AC power outlets one way. If
the plug won’t go into the outlet completely, turn the plug over and try to insert it the other way. If it still won’t fit,
contact a qualified electrician to change the outlet, or use a different one. Do not attempt to bypass this safety
feature.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Technical Information
Product: 5 Disc Audio System
Brand: VENTURER
Power Supply: 120V ~ 60Hz
Service Information
This product should be serviced only by those specially trained in appropriate servicing techniques. For instruc-
tions on how to obtain service, refer to the warranty included in this Guide.
SAFETY PRECAUTIONS
Portable Cart
Warning
EN-4
EN
Precautions
• This compact disc player uses a laser to read the music on the disc. The laser mechanism corresponds
to the cartridge and stylus of a record player. Although this product incorporates a laser pick-up lens, it is
completely safe when operated according to directions.
• Discs rotate at high speed inside the player. Do not use damaged, warped, or cracked discs.
• Do not touch the pick-up lens which is located inside the disc compartment. To keep dust from collecting
on the pick-up lens, do not leave the compartment door open for an extended period of time. If the lens
becomes dirty, clean it with a soft brush, or use an air blower brush designed for camera lenses.
Headset safety
• Make sure you turn down the volume on the unit before you put on headphones. Increase the volume
to the desired level only after headphone are in place.
• Do not play your headset at high volume. Hearing experts warn against extended high-volume play.
• If you experience ringing in your ears, reduce volume or discontinue use.
• You should use with extreme caution or temporarily discontinue use in potentially hazardous situations. Even if
your headset is an open-air designed to let you to hear outside sounds, do not turn up the volume so high that
you are unable to hear what is around you.
• Excessive sound pressure from earphones and headphone can cause hearing loss.
IMPORTANT INFORMATION
• Always leave suffi cient space around the product for ventilation. Do not place product in or on a bed, rug, in
a bookcase or cabinet that may prevent air fl ow through vent openings.
• Do not place lighted candles, cigarettes, cigars, etc. on the product.
• Connect power cord only to AC power source as marked on the product.
•
Care should be taken so that objects do not fall into the product.
• Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components.
• Main plug is used as disconnect device and it should remain readily operable during intended use. In order
to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the
mains socket outlet completely.
IF YOUR PRODUCT OPERATES ON BATTERIES, adhere to the following precautions:
A. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
B.
When the batteries become weak, the operating distance of the remote control is greatly reduced and you
will need to replace them.
C. Any battery may leak electrolyte or explode if disposed of in fi re or an attempt is made to charge a battery not
intended to be recharged.
D. Discard leaky batteries immediately. Leaking batteries can cause skin burns or other personal injury. When dis-
carding batteries, be sure to dispose of them in the proper manner, according to your state/provincial and local
regulations.
E. Batteries shall not be exposed to excessive heat such as sunshine, fi re or the like.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
EN-5
EN

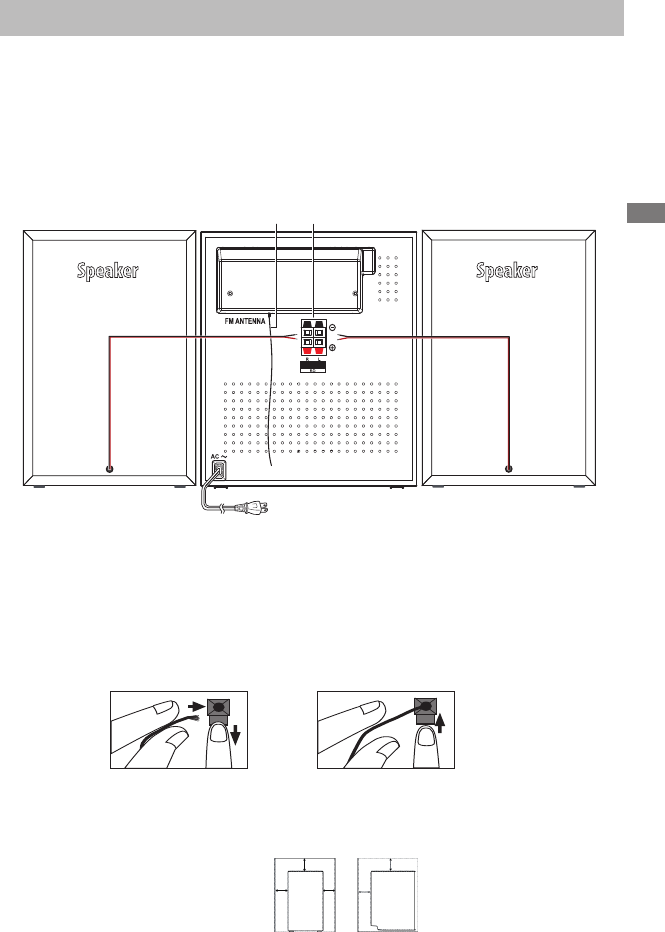

Connecting Speakers
Each speaker has a black/red wire. the red/black wires connect main speaker to main unit. Match the red wires to
the red jacks and the black wires to the black jacks on the main unit.
Release tab to lock
wire in the terminal.
21
Push Speaker terminal
tab down to insert wire.
Note: Make sure the insulation is completely removed from the ends of the speaker wires at all connection points.
Red & BlackRed & Black
GETTING STARTED
Unpacking the system
You should have the following:
• one main unit (with two speakers)
• one remote control
• user manual
Connections
Back view
1. FM pigtail antenna
2. Speaker jacks
Using FM antenna
Before you use your audio system, you’ll want to make sure both the FM antenna are positioned properly. Uncoil
the FM antenna at the back of the unit, making sure it is fully extended (you may even want to tape it to the wall
behind the unit if possible, the higher the better).
Installation
To ensure sufficient ventilation, keep the
spacing shown below free from other surfaces:
Front view Side view
4”
4”4”
4”
2”
2
SPEAKERS
1
To an AC outlet
EN-6
EN

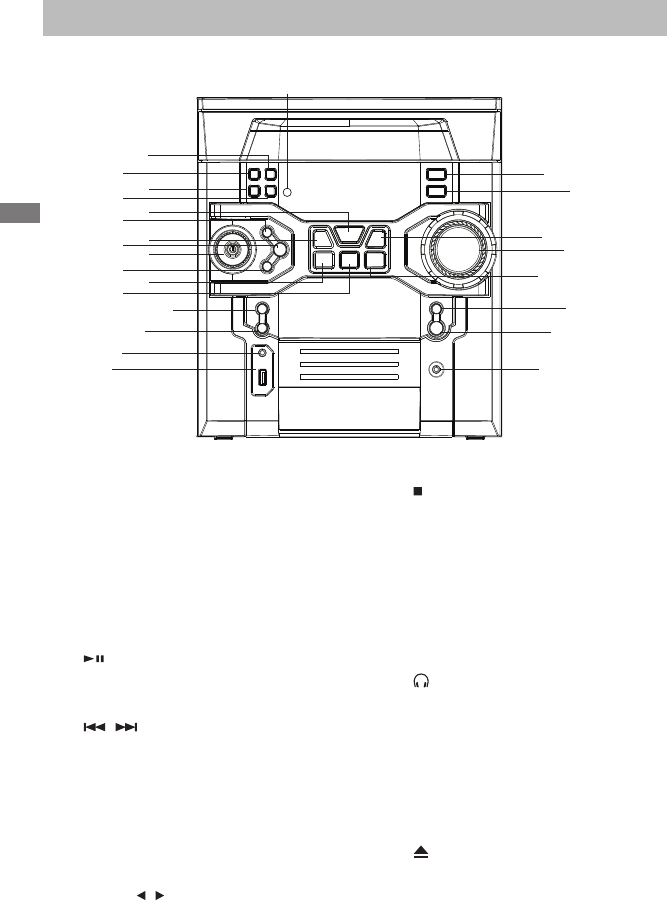

UNIT CONTROLS
Unit-Front View
1) TIMER
To turn the timer on/off; press and hold to enter
the timer setting mode.
2) CLOCK
To show time and enter clock setting mode.
3) DIMMER
To adjust display brightness.
4) SLEEP
To select the time interval in minutes before
the unit turns off.
5) • PAIR
To play or pause CD; to pair the bluetooth.
6) AUTO PROG
To enter auto preset program in FM mode.
7,22) /
To tune radio frequency; to skip CD track; to
fast search through the CD.
8) SOURCE
To select among CD, TUNER, BT and LINE IN
sources.
9) ON/STANDBY
To turn power on or off (STANDBY mode).
10) PROGRAM
To enter program mode for CD and tuner.
11,20) PRESET /
To select the previous or next preset stations in
tuner mode.
12)
To stop CD playback in CD mode.
13) PLAY MODE
To cycle between different play modes in CD
mode.
14) SHUFFLE
To turn on/off random playback in CD mode.
15) LINE IN
Ø3.5mm jack for external sound input.
16) USB
For charging only.
17)
Jack for connecting headphones.
18) BASS
To turn BASS on or off.
19) EQ
To select the equalizer presets.
21) VOLUME
To increase/decrease the volume.
23) DISC SKIP
To skip to the next CD in the tray in CD mode.
24)
To open or close the disc tray.
25) Remote sensor
To sense the remote control’s signals.
1
2
3
4
5
6
7
89
10 11
12
14
15
13
16 17
19
18
20
22
23
24
21
25
EN-7
EN

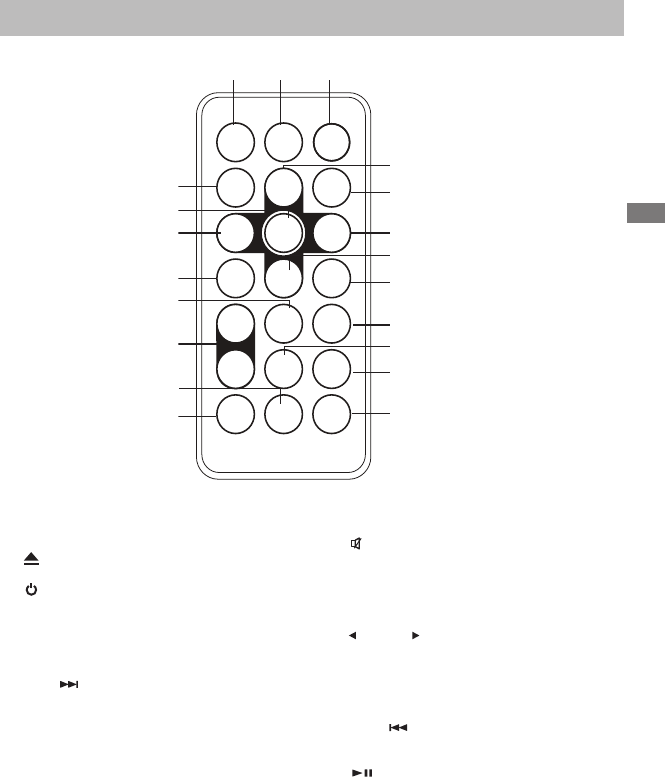

REMOTE CONTROL
Remote Control
1) SOURCE
To select among CD, TUNER, BT and LINE IN
sources.
2)
To open or close the disc tray.
3)
To turn power on or off (STANDBY mode).
4) VOL+
To increase the volume.
5) DISC SKIP
To skip to the next CD in the tray in CD mode.
6) NEXT/
To tune radio frequency; to skip CD track; to fast
search through the CD.
7) VOL–
To decrease the volume.
8) INFO
Press once to display the current time, and press
again to exit.
9) FM ST.
To switch between FM ST ON and ST OFF.
10) SHUFFLE
To turn on/off random playback in CD mode.
11) SLEEP
To select the time interval in minutes before the
unit turns off.
12) BASS
To turn BASS on or off.
13)
To mute and restore audio output.
14) INTRO/PAIRING
To turn INTRO mode on or off to play the fi rst 10
seconds of each track in CD mode, to pair the
bluetooth.
15) PRESET
To select previous/next tuner preset station.
16) DIMMER
To adjust display brightness.
17) STOP
To stop playing in CD mode.
18) PREV/
To tune radio frequency; to skip CD track; to fast
search through the CD.
19)
To play and pause the current CD.
20) PLAY MODE
To cycle between different play modes in CD
mode.
4
321
20
19
18
17
16
15
14
13 12
11
10
9
8
7
6
5
EN-8
EN
REMOTE CONTROL
Setting the Clock
1. Press and hold CLOCK until the hour fl ashes on the display.
2. Press / to set the hour and then press CLOCK to shift to minute digits.
3. Press / to set the minute.
4. Press CLOCK to save settings.
Note: When system is ON, you can press CLOCK to display the current time for about 2 seconds.
Setting the Timer
• For RADIO timer, tune in to a desired station.
• For CD timer, insert a CD into the unit.
1. Press and hold TIMER until ON (timer on time) appears with the hour fl ashing.
2. For setting time, press / to set the hour and then press TIMER to shift to the minute digits.
3. Press / to set the minute.
4. Press TIMER to change to OFF (timer off time) with hour fl ashing. Repeat steps 2 & 3 for timer off time setting.
5. Press TIMER to select the source. Press / to select among TUNER, CD, BT.
6. Press TIMER to set the volume. Adjust the timer volume by / to select the desired volume level.
Note: To avoid startling you or other individuals in your home, this product will not turn on at a volume higher than 15.
7. Press TIMER to save settings.
Activating the Timer
Press and release TIMER to turn on/off the timer.
Sleep Mode
You can select the time interval in minutes before the unit turns off automatically.
1. Press SLEEP to select among OFF, 120 MIN, 90 MIN, 60 MIN, 45 MIN, 30 MIN, 15 MIN, 10 MIN and 5 MIN.
2. When sleep is activated, press SLEEP once to view remaining sleep time. Press SLEEP again when the
remaining sleep time is displayed to change the sleep time.
Note: Sleep is automatically deactivated when the unit is turned off.
CLOCK AND TIMER
ATTENTION
• Remove the plastic sheet before
operating the remote control.

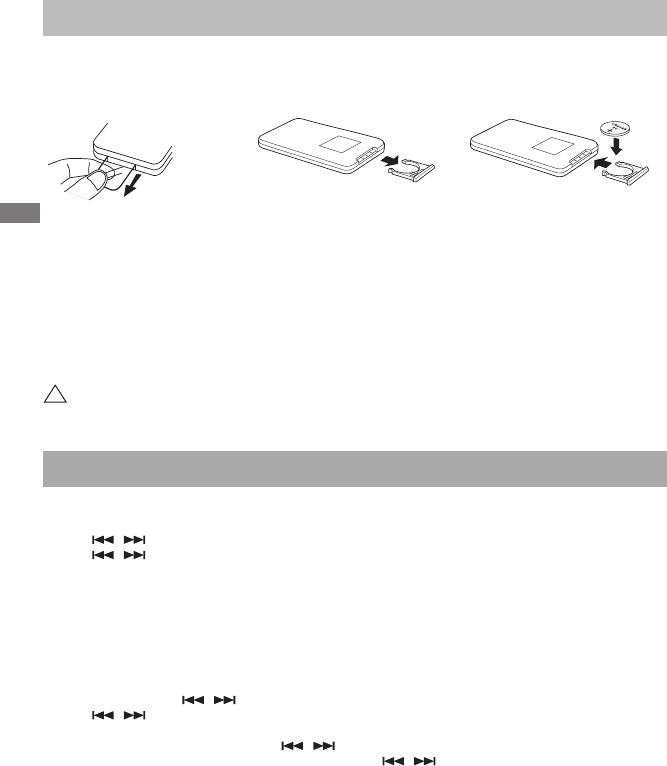

1. Open the battery door.
Using the Remote Control
• Point the remote control at the REMOTE SENSOR located on the unit.
• When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be
degraded, causing unreliable operation.
• The recommended effective distance for remote operation is about 13 feet (4 meters).
• [The remote control supplied with] This product contains a coin/button cell battery. If the coin/button cell battery
is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children. If the battery compartment does not close securely stop using
the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical
attention.
! WARNING
• DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.
2. Insert one CR2025 (3V) size battery.
ATTENTION To install batteries
EN-9
EN
Display Brightness
1. Press and hold DIMMER for more than 3 seconds.
2. While “DIM” is displayed, press DIMMER repeatedly to select the desired level (DIM 1–3).
DISPLAY
Bass Boost
Press BASS to turn on/off boosting the bass frequency.
Muting Audio
Press on the remote control to cut or restore the sound.
Using Preset Equalizer Curves
Press EQ on the unit to select among FLAT, ROCK, POP, JAZZ, CLASSICAL and CUSTOM. The display shows
your selection briefl y.
Creating a Custom Curve
1. Press EQ on the unit to select the CUSTOM mode.
2. While CUSTOM is displayed, press / to cycle among the displayed BASS and TREB range levels.
3. While BASS or TREB is displayed, adjust the volume to set the associated gain between -10 - +10.
4. Press EQ to exit.
SOUND FEATURES
BLUETOOTH PAIRING
Before Bluetooth pairing, you should turn on the Bluetooth function of your other device (such as, mobile phone
with Bluetooth function) and select CD2767BE2.
1. Press SOURCE repeatedly on the unit to select BT (Bluetooth) mode.
2. The "BT" blinks at slow speed and it auto searches for the last paired Bluetooth device in memory.
3. Once it enters the pairing status, the "BT" will blink at high speed.
4. Press PAIR on the player for 3 seconds to start pairing.
• If the Bluetooth pairing is successful, the "BT" will not blink.
• If the Bluetooth pairing is not fi xed, the "BT" will blink at slow speed. Please try pairing again.
Enjoy the music through Bluetooth
• Press to begin or pause playback.
• Press / to select a specifi c track.
• Press and hold / to start moving backward/forward at high speed.
Switch the unit to receive another Bluetooth
device
1. Disconnect your Bluetooth device (such as mobile phone) from the player.
2. Press and hold the PAIR button on the player until the "BT" blinks at high speed.
3. Turn on the Bluetooth function of your other device (such as, mobile phone with Bluetooth function) and select
CD2767BE2 for Bluetooth pairing.
Note: If your Bluetooth device (such as, mobile phone) needs the password while pairing, please enter 4-digit
number: 0000.
EN-10
EN
CD PLAYBACK
This unit is compatible with CD-RW/ CD-R discs for playback.
Notes on CD-R/RW Disc:
• Do not affi x any type of labels to either side (recordable or labeled side) of a CD-R/RW disc as this may result
in the unit malfunctioning.
• To avoid damages to the CD-R/RW disc, do not open the disc compartment door while the disc is being read.
• Do not load an unrecorded CD-R/RW disc into the unit. This may take a longer time to read the disc.
• Playback capability for CD-RW discs may vary due to variations in the quality of the CD-RW disc and the
recorder used to create the disc.
Please take care when loading or unloading discs in the disc drawer. Read below for details.
• Remove all discs from the disc drawer before moving or transporting the unit.
• Do not put discs in the trays of the disc drawer when they are still moving.
• Do not push or force the rotation of the disc trays. Always use the DISC SKIP button.
• Do not put discs in any unexposed disc trays.
• If an error occurs and the disc drawer does not close, empty all disc trays and try again.
Loading Discs
1. Press SOURCE repeatedly to select CD mode.
2. Press OPEN/CLOSE or to open the drawer.
3. Insert up to fi ve discs with label face up. (Press DISC SKIP to rotate the disc carrier.)
4. Press OPEN/CLOSE or to close the drawer. Loaded disc position icon lights.
Selecting Discs
Press DISC SKIP to skip discs.
Playing Discs
• Press to begin or pause playback, and to stop playback.
• Press / to select a specifi c track.
Searching through a CD
Press and hold / to search through a CD while it is playing.
Shuffl ing Play Order
Press SHUFFLE to turn on/off the playing of tracks in random order.
Sampling Tracks
Press INTRO to play the fi rst 10 seconds of each track on the current disc, all discs in the tray, or turn INTRO
mode off.
Play Mode
Press PLAY MODE to cycle between RPT 1, RPT 1D, RPT ALL DIC, ONE DIC, and ALL DIC.
CD-R / RW
EN-11
EN
CD PROGRAM
You can program the CD player to play up to any 20 tracks on the CDs in the tray.
1. While the CD player is stopped, press PROGRAM to enter program mode. The system displays the next
available program number: “3- - P 01”, prompts you for the fi rst track in the program list.
Note: “3- - P 01” - 3 indicates the No. of the current disc.
2. Press / to select a track.
3. Immediately press PROGRAM to assign the selected track to the program number. You are prompted for the
next track in the program list.
Playing a Program List
While in PROGRAM mode, press .
Displaying the Program List
1. While the CD player is stopped, press PROGRAM to enter PROGRAM mode.
2. Press PROGRAM repeatedly to list each track assignment in the program list.
RADIO
Press SOURCE to select TUNER.
Tuning to a Station
Press / to select frequencies. Press and hold / to start auto searching for the next available
station.
Preset and Tune Modes
The tuner can be in either TUNER or PRESET mode.
Presetting Stations
Manually setting presets
1. Press / to access the desired frequency.
2. Press PROGRAM button. The most recently accessed program location will be displayed.
3. If a different program location is preferred, press PRESET to select the desired preset number (1-32) .
4. Press PROGRAM to store the selected frequency at that preset.
Auto Preset Programming (FM only)
Press and hold AUTO PROG for 2 seconds to scan stations in the FM band. The stations will then be stored as
preset channels. A maximum of 32 stations can be stored.
Beware of your preset channels being erased accidentally because the scanning and storing process is automatic
upon pressing and holding the button. You can stop the automatic scan by pressing TUNE+/TUNE- button, but the
erased stations cannot be recovered.
Using Presets
Press PRESET to access the previous or next preset station. The display fi rst shows the preset program
number and after a few seconds, the frequency will be displayed. (e.g. P:01 is preset 1)
Suppressing Stereo Signal
Press FM ST. to select between ST ON and ST OFF for stereo FM stations.
EN-12
EN
Play External Sound through the Speaker System
Press SOURCE on the unit repeatedly to select LINE IN mode.
Note:
Suggest using Ø3.5mm LINE IN jack for MP3 player.
LINE IN
TROUBLESHOOTING TIPS
System will not turn on
• Check power cord for a secure connection.
• Unplug the unit for a moment, and then plug into
power source again.
• Check the outlet by plugging in another device.
No sound
• Increase the volume setting.
• Check connection to speakers.
•
Check that you have selected the appropriate func-
tion: CD, TUNER, BT and LINE IN.
• Make sure mute is off.
• Make sure headphones are not plugged in.
Poor radio reception
• Check antenna connection.
• Move antenna.
• Turn off nearby electrical appliances, such as hair
dryer, vacuum cleaner, microwave, fluorescent
lights.
CD does not play
• Check that CD is in the tray.
• Check that CD label is facing up.
• Check that PAUSE mode is not on.
• Check that CD function is selected.
• Use CD lens cleaner.
• Clean the disc.
• Try another CD.
CD sound skips
• Clean the disc.
• Check disc for warping, scratches, or other damage.
• Check if something is causing the system to vi-
brate. If so, move the system.
• Make sure the speakers are at least 3 feet away or
on a different surface from the main unit.
CD button will not respond, or does not change
discs when you press DISC SKIP
• Switch to another function (TUNER, BT and LINE
IN) and then back to CD.
Remote control does not work
• Check that the batteries are properly installed.
• Replace weak batteries.
• Check the system is plugged into power source.
• Point the remote directly at the system’s front panel.
• Move closer to the system.
• Remove any obstacles between the remote and
the system.
EN-13
EN
ADDITIONAL INFORMATION
Disconnect the audio system from the power source before performing any maintenance.
Cleaning
Clean the exterior of the system using a soft dust cloth.
CD Player
CAUTION! This system operates with a laser. It must be opened by only a qualified technician.
Handling CDs
• Do not touch the signal surfaces. Hold CDs by the edges, or by one edge and the hole. Do not affi x labels or
adhesive tapes to the label surfaces. Do not scratch or damage the label. CDs rotate at high speeds inside
the player. Do not use damaged (cracked or warped) CDs.
Cleaning CDs
• Dirty CDs can cause poor sound quality. Always keep CDs clean by wiping them gently with a soft cloth from
the inner edge toward the outer perimeter.
•
If a CD becomes dirty, wet a soft cloth in water, wring it out well, wipe the dirt away gently, and then remove
any water drops with a dry cloth.
• Do not use record cleaning sprays or antistatic agents on CDs. Also, never clean CDs with benzene, thinner,
or other volatile solvents which may cause damage to disc surface.
Technical specifi cations
Rating Plate: Look for it at the back of the set.
The descriptions and characteristics given in this document are given as a general indication and not as a guar-
antee. In order to provide the highest quality product possible, we reserve the right to make any improvement or
modification without prior notice. The English version serves as the final reference on all products and operational
details should any discrepancies arise in other languages.
