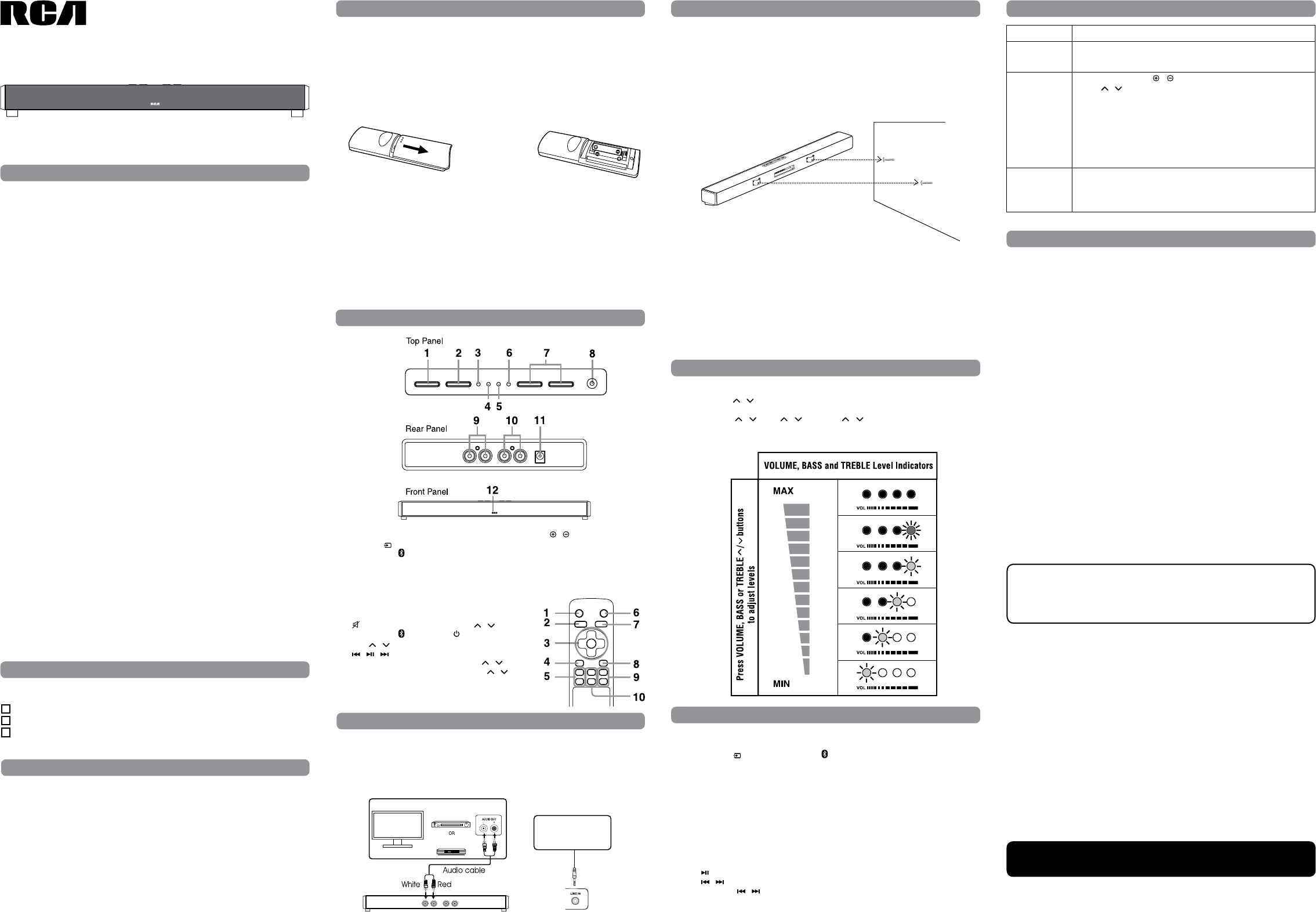

Alco Electronics RTS7220B Sound Bar with Bluetooth User Manual

Alco Electronics Ltd Sound Bar with Bluetooth

User Manual

Home Theater Sound Bar
RTS7220B
User Manual
Safety Precautions
It is important to read this user manual prior to using your new product for the first
time.
FCC INFORMATION
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
WARNING:Changesor modicationstothis unitnot expresslyapprovedby theparty
responsible for compliance could void the user’s authority to operate the equipment.
FOR CUSTOMERS IN CANADA
This apparatus complies with the Class B limits for radio noise emission set out in radio
interference regulations.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Warning:
• TheACadapterisusedasdisconnectdeviceanditshouldremainreadilyoperable
during intended used. In order to disconnect the unit from the mains completely, the
AC adapter should be disconnected from the mains socket outlet completely.
• TheACadapterofunitshouldnotbeobstructedORshouldbeeasilyaccessedduring
intended use.
• Minimum10cm(4inches)distancesaroundtheunitforsufcientventilations.
• The ventilation should not be impeded by covering the ventilation openings with
items such as newspaper, table-cloths, curtains, etc.
• Nonakedamesourcessuchaslightedcandlesshouldbeplacedontheunit.
ON SAFETY
• Shouldanyobjectsorliquidsfallintotheunit,disconnectthepowersupplyandhave
the unit checked by qualified personnel before any further operation.
• Theunitshallnotbeexposedtodrippingorsplashingandthatnoobjectslledwith
liquid, such as vases, shall be placed on the unit.
ON USE
Never use the unit where it would be subject to:
- Heat sources such as radiators or air ducts.
- Direct sunlight.
Remote Control
1. MUTE button
2. BLUETOOTH
button
3. VOL / button
/ / button
4. AUX1button
5. BASS
/ button
6. button
7. LINE IN button
8. AUX2button
9. TREBLE
/ button
10 SOURCE / button
Accessories
Remotecontrol(with2xAAAbatteries) ..........................................................................x1
AC power adapter .....................................................................................................................x1
Audio Cable ................................................................................................................................x1
Please locate the included accessories.
Toorderreplacementunits,visithttp://www.RCAav.com
REMOTE CONTROL
SOUND BAR
Location of Controls
1. STANDBY/ONbutton
2. SOURCE
button
3. BLUETOOTH
/LEVELindicator
4. AUX1/LEVELindicator
5. AUX2/LEVELindicator
6. LINEIN/LEVELindicator
7. VOLUME / button
8. LINE IN 3.5mm jack
9. AUX2L/Rjack
10. AUX1L/Rjack
11. DC IN jack
12. Remote Sensor
Placement
Connections
Basic Operation
Bluetooth Pairing
AVCMULTIMEDIA(“AVC”)makesthefollowinglimitedwarranty.Thislimitedwarrantyextendto
the original consumer purchaser and is limited to non-commercial use of the product.
One Year Parts & Labor Warranty
AVCproductspurchasedintheUnitedStatesarewarrantedtobefreefromdefectsinmaterials
or workmanship for a period of one year from the date of their original retail purchase. If the unit
fails to conform to this warranty, we will service the product using new or refurbished parts and
products,atAVC’ssolediscretion.
During a period of one year from the effective warranty date, AVC will provide, when needed,
service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty
serviceintheUnitedStates,youmustrstcallourCustomerSupportCenterat1-800-506-5746
or1-877-252-6873,duringthehourslistedintheboxbelow.Thedeterminationofservicewillbe
madebyAVCCustomerSupport.PLEASEDONOTRETURNYOURUNITTOAVCWITHOUTPRIOR
AUTHORIZATION. New or remanufactured replacements for defective parts or products will be
usedforrepairsbyAVCatitsdesignatedServiceCenterforoneyearfromtheeffectivewarranty
date. Such replacement parts or products are warranted for an additional one year from the date
of repair or replacement. The Customer will be required to ship the unit to the Service Center
indicated at the time Customer Support is contacted to make the necessary repairs. The customer
is responsible for all transportation charges to the service facility.
Packaging and Shipping Instruction
WhenyousendtheproducttotheAVCservicefacilityyoumustusetheoriginalcartonboxand
packingmaterialoranequivalentasdesignatedbyAVC.
LIMITED WARRANTY
Your Responsibility
(1) You must retain the original sale receipt to provide proof of purchase.
(2) These warranties are effective only if the product is purchased and operated in the U.S.A. or
Canada.
(3) Warranties extend only to defects in material or workmanship, and do not extend to any
product or parts which have been lost or discarded, or damage to product or parts caused by
misuse, accident, improper operation or maintenance, or use in violation of instructions provided
withtheproduct,ortoproductwhichhasbeenalteredormodiedwithoutauthorizationofAVC,
or to products or parts thereof which have had the serial number removed or changed.
Out of Warranty
Intheeventyourproductrequiresrepairafterthelimitedwarrantyperiodhasexpired,please
contact our Customer Support Center at 1-800-506-5746, 1-877-252-6873 or www.RCAav.
com
Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm, Saturday: 9am–NOON Eastern time.
Important: You are responsible for any transportation, shipping or insurance relative to the
return of product to our Product Returns Cente
All warranties implied by state law, including the implied warranties of merchantability and fitness
foraparticularpurpose,areexpresslylimitedtothedurationofthelimitedwarrantiessetforth
above.Withtheexceptionofanywarrantiesimpliedbystatelawasherebylimited,theforegoing
warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar
obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no
eventshallAVCbeliableforconsequentialorincidentaldamages.
Noperson,agent,distributor,dealerorcompanyisauthorizedtochange,modifyorextendthe
terms of these warranties in any manner whatsoever. The time within action must be commenced
toenforceanyobligationofAVCarisingunderthewarrantyorunderanystatute,orlawofthe
United States or any state thereof, is hereby limited to one year from the date of purchase. This
limitation does not apply to implied warranties arising under state law.
This warranty gives you specific legal rights and you may also have other rights, which may vary,
from state to state. Some states do not allow limitation on how long an implied warranty lasts,
when an action may be brought, or the exclusion or limitation of incidental or consequential
damages, so the above provisions may not apply to you.
For more information on other products and services, please visit our web site at www.RCAav.
com.
Important:Alsokeepyour“BillofSale”asproofofpurchase.
Serial no ................................................................... Invoice no ..................................................................................
Date purchased ..................................................... Dealer name .............................................................................
FORSERVICEANDREPAIR,PLEASEVISITwww.RCAav.com
AUX 1 OR AUX 2
UseanAudiocabletoconnectAUX1or
AUX 2 on the Sound Bar (rear panel) to
the AUDIO OUT of your TV, Set-Top Box
or Blu-ray/DVD Player. Be sure to match
connector colors.
LINE IN
Plug one end of a 3.5mm cable (included)
into the LINE IN jack (side panel) on the
Sound Bar into your iPad®, iPhone®,
iPod® or other audio devices.
1. PressSTANDBY/ONbuttontoturnontheunit.
2. Press SOURCE / toselectAUX1,AUX2,LINEINorBluetoothsource(input).The
LEDs located on top of Sound Bar will indicate the currently-selected source.
3. PressVOLUME / , BASS / or TREBLE / toadjustVolume,BassorTreble
levels.WhenadjustingVolume,BassorTreble,thefourLEDswilltemporarilydisplay
the current level setting (see illustration).
Before Bluetooth pairing, you should turn on the Bluetooth function of your other
device (such as, mobile phone with Bluetooth function) and select RCA RTS7220B.
1. Press SOURCE button on the unit or button on the remote control to select BT
(Bluetooth) mode.
2. The Bluetooth indicator blinks at slow speed and it auto searches for the last paired
Bluetooth device in memory.
3. Once it enters the pairing status, the Bluetooth indicator will blink at high speed.
• IftheBluetoothpairingissuccessful,theBluetoothindicatorwillilluminate.
• IftheBluetoothpairingisnotxed,theBluetoothindicatorwillblinkatslowspeed.
Please try again.
Note: If your Bluetooth device (such as, mobile phone) needs the password while
pairing,pleaseenter4-digitnumber:0000.
ENJOY THE MUSIC THROUGH BLUETOOTH
• Press to begin or pause playback
• Press / to select a specific track
• Pressandhold / tostartmovingbackward/forwardathighspeed.
Caution:
• We recommend thatWall-mounting be carried out by a professional. The stands’
“key-holes” areintendedfor usewith #8(Imperial) orM4 (Metric) withhead size:
Diameter7.5- 9.4mm. Additionaloralternativepartsmaybe neededforcertain
types of wall constructions.
• Make sure that the wall-mount is xed securely enough so that it meets safety
standards.
• Allowatleast2”(5cm)separationinalldirectionsbetweentheSoundBarandother
AVequipment(suchasyourTVorSet-TopBox).
• Itisrecommendedthatallcables(ACadapterandAudiocables)beconnectedto
the Sound Bar before placing it on the wall.
Specifications and external appearance are subject to change without notice.
Need more help?
Please visit online help at www.RCAav.com
Troubleshooting
Limited Warranty
SOLUTIONS
• Makesureitispluggedin.
• Pressthe
VOLUME / button
on the top of the Sound Bar or
VOL
/
button on the remote.
• Ensure the source you’ve selected is outputting audio.  If you’re
using“audioout”fromyourTV,pleaseensureyourTViscongured
tooutputaudio(seeTV’smenusettings).
• EnsureyourAVconnectionsareproperlymade(ensureyoudon’t
have any loose connections).
• Ensure you’ve selected the correct source (input) -  the LEDs
located on the top of the Sound Bar will indicate the currently-
selected source (input).
• Ifbatteryisweak,pleasereplacethebatteryandensurethenew
battery is installed correctly.
• Pleaseensurethereisnothingblockingtheremotesensoronthe
front of the Sound Bar.
PROBLEMS
The unit does
not switch on.
I have no sound.
The remote
control doesn’t
work
Power Supply
USING THE AC ADAPTER
Using an AC adapter other than the one supplied with the unit may damage the unit.
Caution:
• Beforeuse,ensuretheratedvoltageoftheadaptermatchesyourlocalvoltage.
• The included AC adapter is for use with this unit only. Do not use it with other
equipment.
• Ifyouarenotgoingtousetheunitforalongtime,disconnecttheACadapterfrom
the wall outlet.
• WhenevertheACadapterispluggedintoawalloutlet,theACadapterwilldraw
some power, even when the Sound Bar is turned off.
Printed in China
The Sound Bar can be placed freestanding on a table or mounted on a wall.
PLACING THE SOUNDBAR ON A WALL
The Soundbar requires additional mounting hardware that must be purchased
separately.
1. Place the wall mount template on the wall and then mark the locations of the screw
holes.
2. Drill the screws (not supplied) into the wall carefully.
3. Gently hand the Soundbar onto the screws in the all.
USING THE REMOTE CONTROL
• Point the remote control at the REMOTE SENSOR located on the unit (see Front
Panel illustration for precise location).
• When there is a strong ambient light source, the performance of the infrared
REMOTE SENSOR may be degraded, causing unreliable operation.
• The recommended effective distance for remote operation is about 16 feet (5
meters).
TO CHANGE REMOTE BATTERIES
1. Open the battery door. 2. Insert two AAA batteries.
BATTERY REPLACEMENT
When the batteries become weak, the operating distance of the remote control is
greatly reduced and you will need to replace them.
Notes:
• Iftheremotecontrolisnotgoingtobeusedforalongtime,removethebatteriesto
avoid corrosion damage caused by battery leakage.
• Donotmixoldandnewbatteries.DonotmixALKALINE,standard(CARBON-ZINC)
orrechargeable(NICKEL-CADMIUM)batteries.
• Alwaysremovebatteriesassoonastheybecomeweak.
• Weakbatteriescanleakandseverelydamagetheremotecontrol.
• WARNING:Donotdisposeofbatteriesinare.batteriesmayexplodeorleak.
CAUTION:Dangerofexplosionifbatteryisincorrectlyreplaced.Replaceonlywiththe
same or equivalent type.
Blu-ray/
DVD Player
Set-Top Box
iPod® or other
Audio Devices
TV

Navigation menu
