A5 Installation and Safety Guide Cover
AR700 Series Router
Installation and Safety Guide
AR750S
AR770S
AR700 Series Router
Installation and Safety Guide
AR750S
AR770S
AR700 Series Router
2
AR700 Series Router Installation and Safety Guide
Document Number 613-000051 Rev E.
© 2004-2011 Allied Telesis Inc. All rights reserved. No part of this publication
may be reproduced without prior written permission from Allied Telesis Inc.
Allied Telesis Inc. reserves the right to change specifications and other
information in this document without prior written notice. The information
provided herein is subject to change without notice. In no event shall Allied
Telesis Inc. be liable for any incidental, special, indirect, or consequential
damages whatsoever, including but not limited to lost profits, arising out of or
related to this manual or the information contained herein, even if Allied Telesis
Inc. has been advised of, known, or should have known, the possibility of such
damages.
All company names, logos, and product designs that are trademarks or
registered trademarks are the property of their respective owners.
Installation and Safety Guide
3
Table of Contents
Models Covered By This Guide .................................................................................... 4
Package Contents ............................................................................................................. 4
Installing the Router ......................................................................................................... 5
Installing the router in a rack ...................................................................................7
Installing the router on a wall ...................................................................................8
Installing SFPs ...............................................................................................................9
Applying power to the router ..................................................................................9
Configuring the Router ................................................................................................. 10
Configuring with the GUI ....................................................................................... 10
Configuring with the CLI ........................................................................................ 13
Default configuration ............................................................................................... 15
Connecting Data Cables to the Router .................................................................... 16
LEDs on the AR750S .................................................................................................... 17
LEDs on the AR770S ..................................................................................................... 18
Documentation and Tools CD-ROM ......................................................................... 19
Emission Compliance Statements ............................................................................... 20
Safety ................................................................................................................................. 21
Sicherheit .......................................................................................................................... 22
Sikkerhed .......................................................................................................................... 23
Veiligheid ........................................................................................................................... 24
Sécurité ............................................................................................................................. 25
Turvallisuus ....................................................................................................................... 27
Norme di Sicurezza ........................................................................................................ 28
Sikkerhet ........................................................................................................................... 29
Segurança .......................................................................................................................... 30
Seguridad .......................................................................................................................... 31
Säkerhet ............................................................................................................................ 33
Connection to mains voltage supply .......................................................................... 34
Telecommunications Interfaces ................................................................................... 34
Important Safety Instructions ................................................................................ 34
Connection to ISDN network .............................................................................. 35
US Federal Communications Commission (FCC) ............................................ 36
Canadian Department of Communications ............................................................. 37
AR700 Series Router
4
Models Covered By This Guide
This Installation and Safety Guide includes information on these models:
■AR750S
■AR770S
Documentation updates can be found at
www.alliedtelesis.com/support/documentation/
Package Contents
AR750S package contents
These items are included with the AR750S router:
■One AR750S router
■One AC power cord
■One power cord retaining clip
■One serial cable for connecting the router to a terminal or PC
■Two UTP network cables
■One 19 inch rack-mount kit
■One wall mount kit
■One AR700 Series Router Installation and Safety Guide
■One AR700 Series Router Documentation and Tools CD-ROM (includes the
complete AR700 Series Document Set and utilities)
■One warranty card
Contact your authorised distributor or reseller if any items are damaged or
missing.
Installation and Safety Guide
5
AR770S package contents
These items are included with the AR770S router:
■One AR770S router
■A set of AC power cords
One of these is suitable for your region. If desired, you can return the extra
cords to your authorised distributor or reseller.
■One power cord retaining clip
■One serial cable for connecting the router to a terminal or PC
■Two UTP network cables
■One 19 inch rack-mount kit
■One AR700 Series Router Installation and Safety Guide
■One AR700 Series Router Documentation and Tools CD-ROM (includes the
complete AR700 Series Document Set and utilities)
■One warranty card
Contact your authorised distributor or reseller if any items are damaged or
missing.
Installing the Router
Selecting a site
You can install the router on a level surface such as a desktop or bench, in a
standard 19-inch rack using the rack mount kit included with your router, or on
a firm wall using a wall mount kit (AR750S only).
When you install the router, choose a site that:
■allows adequate airflow around the router and its vents.
■is free of dust and moisture.
■will maintain an ambient temperature range of 0 ºC to 50 ºC
(32 ºF to 122 ºF) and a humidity range of 5% to 80% non-condensing.
■has a reliable and earthed (grounded) power supply, preferably dedicated and
filtered.
■does not expose cabling to sources of electrical noise such as radio
transmitters, broadband amplifiers, power lines, electric motors, and
fluorescent fixtures.
■allows easy access to the router’s power and cable connections.
AR700 Series Router
6
Before installing
■Read the safety information “Safety” on page 20.
■Gather the tools and equipment you will need.
To install an AR750S or AR770S in a rack (Installing the router in a rack)
you will need:
• the rack mount bracket kit included with your router
• a Phillips #1 screwdriver
• screws and cage nuts to attach the brackets to your rack.
To install an AR750S on a wall (Installing the router on a wall) you will need:
• the wall mount bracket kit supplied with the router.
• a Phillips #1 screwdriver and a Phillips #2 screwdriver.
• If you are fixing the router to a solid masonry or hollow wall, you need
equipment to drill a 6 mm hole.
You may also need:
• an optional Port Interface Card (PIC) and the PIC Installation and Safety
Guide.
• an optional SFP (Small Form-factor Pluggable module). See the AR700
Series Router Hardware Reference for a list of approved SFPs; order from
your authorised Allied Telesis distributor or reseller. (Installing SFPs)
■Unpack the router. Verify the package contents. If any items are damaged or
missing, contact your sales representative.
■Place the router in its operating location. See the previous section “Selecting
a site” on page 5 for guidelines on choosing a suitable location.
Installing PICs
If you purchased optional Port Interface Cards (PICs), install them by following
their Installation and Safety Guide. That guide can be found with the PIC, on the
Documentation and Tools CD-ROM, or can be downloaded from
www.alliedtelesis.com/support/documentation/
Installation and Safety Guide
7
Installing the router in a rack
1. Check the rack.
Ensure that the rack is safely secured and that it will not tip over. Devices in
a rack should be installed starting at the bottom, with the heavier devices
near the bottom of the rack.
Ensure the rack has sufficient space for the router and its associated cables.
The router is 1U high.
2. Unscrew the feet.
3. Connect the handles to the brackets (AR750S only).
Screw the handles to the wider side of each bracket, using the supplied
screws (see the figure below).
4. Connect the brackets to the router.
Screw the brackets to the sides of the router, using the supplied screws (see
figure below). The router can be front or rear mounted.

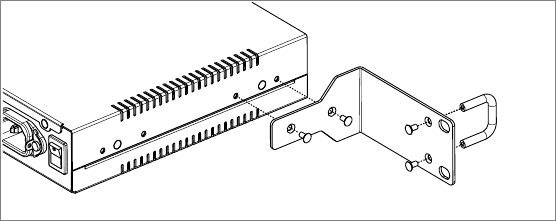

AR750S rack mount bracket
5. Mount the router in the rack.
Use appropriate rack mounting screws (not supplied).
AR700 Series Router
8

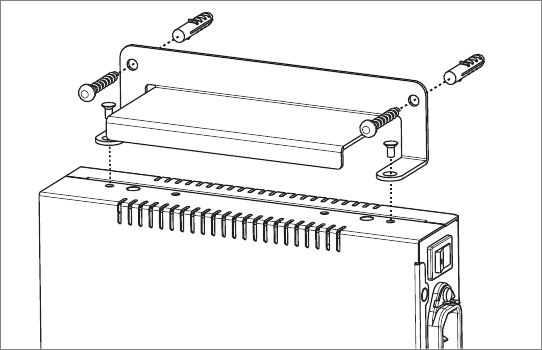

Installing the router on a wall
1. Screw the brackets to the AR750S router. Screw a wall mount bracket to the
outer screw holes on each side of the router using the shorter screws
supplied (see figure below).
2. Screw the wall brackets to the wall with the brackets at the top and bottom
of the router, the feet against the wall, and the power inlet near the top.
Installation and Safety Guide
9

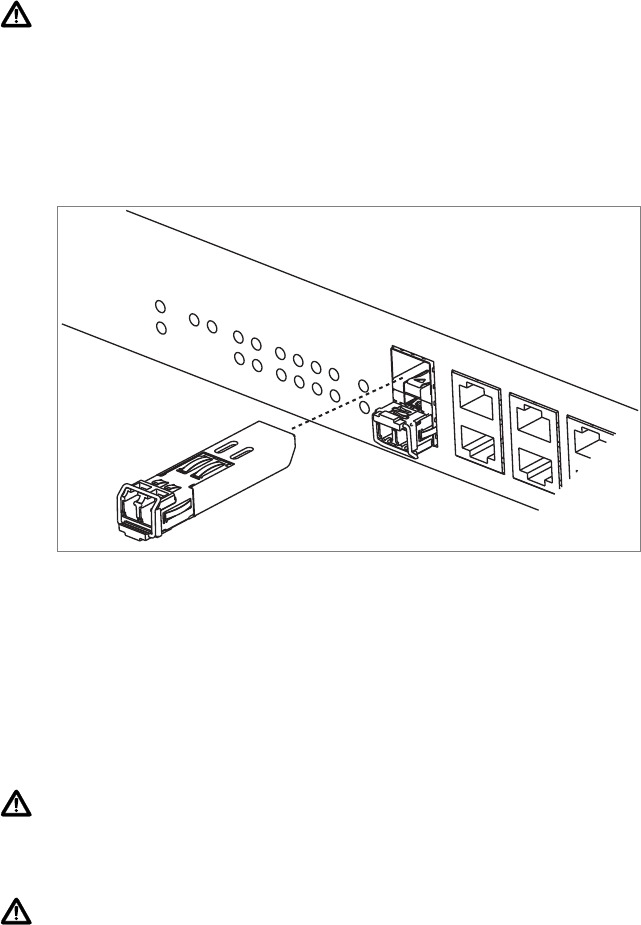

Installing SFPs
Warning Do not look into the optical ports of SFP cables or transceivers.
Invisible laser radiation may be emitted from disconnected fibres or connectors.
If you purchased optional SFPs for the AR770S, install them in the Ethernet SFP
slots (leftmost).
The SFP transceiver must be inserted the right way in the slot. To install an SFP
into the Ethernet SFP 0 slot (lower, leftmost), make sure the hinge on the front
handle is at the top. For Ethernet SFP 1 (upper, leftmost), the handle hinge must
be at the bottom. See the figure below.
Slide the transceiver into the SFP socket, and firmly press it until it engages. To
remove it, first release it by gently pulling the release lever, and then pull it out of
the socket. Never force a transceiver into or out of a socket.
Applying power to the router
Check that the supply voltage and the router’s rated voltage match. The router
is fitted with a universal power supply that will function over the range 100 VAC
to 240 VAC and 50 Hz to 60 Hz.
Warning The specific power supply requirements for a particular model are
clearly displayed on the rear or underside of the router. If the supply is outside
the accepted range for the router, the router may not operate or damage to the
router may result.
Warning This equipment must be earthed.
AR700 Series Router
10
Fit the power cord retaining clip to the AC power inlet on the router’s rear
panel.
Connect the provided power cord to the AC power inlet and clip it in place.
Switch the router’s power switch to the ON position. The Power LED lights
continuously and the System LED lights briefly. The Port LEDs also light briefly. If
the LEDs fail to light, check that the router is receiving power.
Configuring the Router
To configure the router you can either:
■“Configuring with the GUI” on page 10 (AR750S only)
■“Configuring with the CLI” on page 13
The AR750S and AR770S routers have a simple default configuration (“Default
configuration” on page 15).

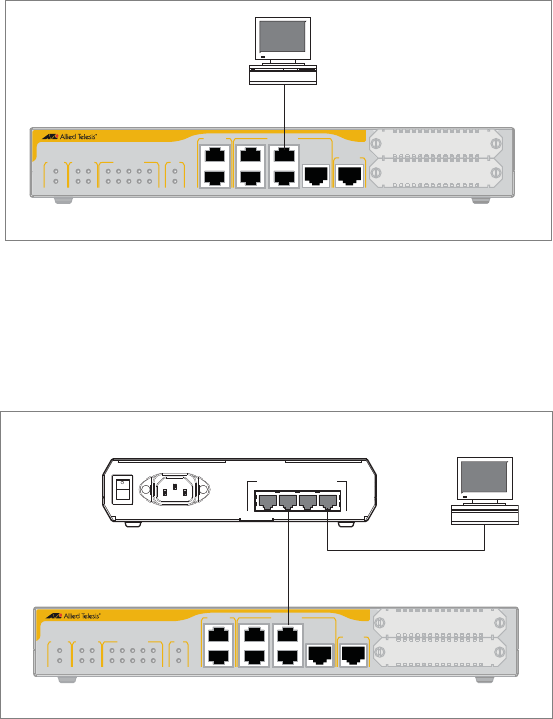

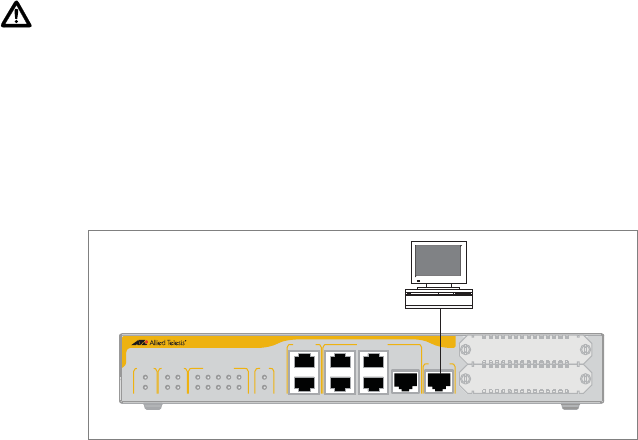

Configuring with the GUI
This section describes how to access the AR750S GUI via a switch port in
VLAN1, when the PC and the router are in the same subnet, in order to
configure the router. The router’s switch ports all belong to VLAN1 by default.
We recommend starting to configure the AR750S using the GUI. You can then
use the CLI if necessary to complete your configuration (“Configuring with the
CLI” on page 13).
The GUI requires a PC and web browser. Supported browsers are Internet
Explorer 5.0 or later and Netscape 6.2.2 or later, with JavaScript enabled. If you
are using a toolbar or plug-in on your browser to block pop-ups, disable it while
using the GUI. The GUI displays detailed configuration options and information
in pop-up windows.
Caution If another device on your network already uses the router’s default IP
address, 192.168.1.1, do not connect the router to the network until you have
changed the management port’s address by using the command line.
Installation and Safety Guide
11
1. Connect the PC to a router switch port.
The PC can be connected directly, or through your LAN.
To connect the PC directly to the router, use a straight-through Ethernet
cable to connect an Ethernet card on the PC to any one of the router’s
switch ports.
To connect via a LAN, use an Ethernet cable to connect the router’s switch
port(s) to the device(s) on the LAN. Select the LAN PC from which you
wish to configure the router. The PC should be in the same subnet as the
part of the LAN that contains the router (for example, the PC could be
connected to a hub or Layer 2 switch that is directly connected to one of
the router’s switch ports).
2. Assign the PC an IP address in the same subnet as the router.
The router’s default IP address is 192.168.1.1, and the default subnet mask is
255.255.255.0.
3421
10BASE-T/100BASE-TX SWITCH PORTS
POWER
ON
OFF
0
1
1
2
35
ASYN0 PIC BAYS
PIC0
PIC1
4
SYS
PWR
ETHERNETSTATUS
01
L/A
D/C
L/A
D/C
12345 0
1
SWITCH PORTS PIC
ETHERNET
CONSOLE
SWITCH PORTS
AR750S Secure VPN Router
PC
Switch Ports
AR750S Router
Hub or Layer 2 Switch
AR700 Series Router
12
3. Browse to the GUI.
If you access the Internet through a proxy server, set your browser to
bypass the proxy for 192.168.1.1. Point your web browser at 192.168.1.1.
4. Log in and set the password.
At the log in prompt, enter the log in name and password. Passwords are
case sensitive.
User Name: manager
Password: friend
The system status page appears and you can now use the GUI to configure
the router.
Important To ensure configuration settings are saved correctly, use the
GUI menus and buttons to navigate, not your browser’s buttons.
Caution As a security precaution, change the password as soon as possible.
Remember the new password, as there is no way to retrieve it if it is lost.
To change the password, select Management > Users from the sidebar
menu. Select the Manager account and click Modify.
5. Change the default IP address.
Change the default IP address to match the addressing system on your LAN.
Select Quick Start > LAN.
Caution Do not leave the management port IP address set to its default
because this may constitute a serious security risk.
6. To access context-sensitive help in the GUI.
Click on the Help Button [Help]. The Help button is located at the top of
the sidebar menu or on any popup page.
Installation and Safety Guide
13
Configuring with the CLI
Caution If another device on your network already uses the router’s default IP
address, 192.168.1.1, do not connect the router to the network until you have
changed the IP address of the router’s default VLAN by using the command line.
1. Initiate router start-up.
Using the terminal cable supplied, connect a VT100-compatible terminal, or
the COM port of a PC running a terminal emulation program such as
Windows Hyper Terminal, to the Console RS-232 (ASYN0) port on the
router’s front panel.
Set the communication parameters on your terminal or terminal emulation
program to:
• Baud rate: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: Hardware
See the AR700 Series Router Hardware Reference for more information on
configuring emulation software.
0
1
1
2
35
ASYN0 PIC BAYS
PIC0
PIC1
4
SYS
PWR
ETHERNETSTAT US
01
L/A
D/C
L/A
D/C
12345 0
1
SWITCH PORTS PIC
ETHERNET
CONSOLE
SWITCH PORTS
AR750S Secure VPN Router
Asyn0 Port
PC
AR700 Series Router
AR700 Series Router
14
2. Log in and set the password.
The login prompt appears on the terminal or PC. If the login prompt does
not appear, press [Enter] two or three times.
When the router boots for the first time it automatically creates an account
with manager privileges. The account has the login name “manager” and the
password is “friend”. Passwords are case sensitive.
At the log in prompt, enter the log in name and password.
Login: manager
Password: friend
The router’s command prompt appears and you can now configure the
router using the command line interface.
Caution Change the password as soon as possible. Leaving the manager
account with the default password is a serious security risk. Make sure you
remember the new password as there is no way to retrieve it if it is lost.
Passwords are case sensitive.
Use the following command to change the account password:
set password
3. Customise the router for your region.
Change the default ISDN territory to your region by using the command:
set system territory={australia|china|europe|japan
|korea|newzealand|usa}
We recommend you set the territory even if you are not installing an ISDN
PIC now.
In Australia only:
• To use the Micro service, set the territory to australia
• To use the OnRamp service, set the territory to europe.
4. Save the configuration.
Save your configuration to a new file by using the command:
create config=filename.cfg
Then set the router to load this file when it restarts by using the command:
set config=filename.cfg
We recommend leaving the boot.cfg file unchanged, in case you need to
revert to the original default configuration.
Installation and Safety Guide
15
5. Use the CLI to continue configuring the router.
See the AR700 Series Router Software Reference for details about commands
available for configuring the router (including a list of message definitions).
To display a list of help topics, enter:
help
To display help on a specific topic, enter:
help topic
Alternatively, type a question mark at the end of a partially completed
command to see a list of valid options.
Default configuration
The default configuration file boot.cfg loads automatically when the router starts
up. This file is stored in the router’s flash memory.
Figure 1: Default configuration file for the AR750S and AR770S routers
# IP Configuration
#
ena ip
add ip int=vlan1 ip=192.168.1.1
AR700 Series Router
16
Connecting Data Cables to the Router
Connecting the router to your network:
1. Connecting to the LAN.
If you have not already done so, use Ethernet patch cables to connect the
devices on your private network (LAN) to the router’s switch ports. By
default, all switch ports are members of VLAN1.
2. Connecting a DMZ
If you have a public server, use an Ethernet patch cable to connect it to
either:
• one of the router’s Ethernet 10/100/1000 RJ-45 ports
• one of the router’s Ethernet SFP ports (using fibre optic cable), or
• switch ports in a different VLAN than the rest of your LAN
On the AR770S, you can connect to either an Ethernet 10/100/1000 port
(right) or the corresponding SFP port (left), but not both.
Separating public servers from your LAN allows the firewall to provide
greater protection for your LAN. If you have multiple public servers, you can
connect them to a hub or Layer 2 switch and connect that device to the
router’s DMZ port. For information about configuring VLANs, see the
Switching chapter in the Software Reference.
3. Connecting to the WAN.
Caution If you intend to use a firewall, configure it before you activate the
WAN link.
Once initial configuration is complete, connect the router to the WAN.
Either:
• Connect a PIC port to a WAN connection (see the Port Interface Card
Installation and Safety Guide and Hardware Reference), or
• Use an Ethernet patch cable to connect one of the router’s Ethernet 10/
100/1000 ports to the Ethernet port of a WAN device (such as a
modem).
• Use a fibre-optic cable to connect one of the router’s Ethernet SFP ports
to a WAN device.
You can connect to either a 10/100/1000 Ethernet port or the
corresponding SFP port, but not both.
Installation and Safety Guide
17
LEDs on the AR750S
LED State Function
Status
PWR
Green The router is receiving power and the power
switch is ON.
Status
SYS
Off Normal operation.
Amber Lit briefly during router start up, or the router is
malfunctioning.
Flashing The router fan has failed.
PIC 0..1 Green A port interface card (PIC) is correctly installed
and has been detected by the router.
Ethernet
0..1
L/A
Green The Eth port has a 100 Mbps link.
Amber The Eth port has a 10 Mbps link.
Flashing Data is being transmitted or received on the Eth
port.
Ethernet
0..1
D/C
Green The Eth port is operating at full duplex.
Amber The Eth port is operating at half duplex.
Amber
flashing
There is a collision on the Eth port.
Switch Ports
1..5
L/A
Green The switch port has a 100 Mbps link.
Amber The switch port has a 10 Mbps link.
Flashing Data is being transmitted or received on the
switch port.
Switch Ports
1..5
D/C
Green The switch port is operating at full duplex.
Amber The switch port is operating at half duplex.
Amber
flashing
There is a collision on the switch port.
AR700 Series Router
18
LEDs on the AR770S
LED State Function
Status PWR Green The router is receiving power and is switched ON.
Status SYS Off Normal operation.
Amber Lit briefly during router start up, or when the router
system is malfunctioning.
Flashing The router fan has failed.
Ethernet
SFP 0..1
L/A
Green The SFP Eth port has a 1000 Mbps link.
Green flashing Data is being transmitted or received.
Amber There is an SFP installed, but there is no link.
Amber flashing There is a transmission fault at this SFP port.
Ethernet
10/100/1000
0..1
L/A
Green The Eth port has a 1000 Mbps link.
Amber The Eth port has a 10 or 100 Mbps link.
Flashing Data is being transmitted or received.
Ethernet
10/100/1000
0..1
D/C
Green The Eth port is operating at full duplex.
Amber The Eth port is operating at half duplex.
Amber flashing There is a collision on the Eth port.
Switch Ports
10/100/1000
1..4
L/A
Green The switch port has a 1000 Mbps link.
Amber The switch port has a 10 or 100 Mbps link.
Flashing Data is being transmitted or received
Switch Ports
10/100/1000
1..4
D/C
Green The switch port is operating at full duplex.
Amber The switch port is operating at half duplex.
Amber flashing There is a collision.
Installation and Safety Guide
19
Documentation and Tools CD-ROM
The Documentation and Tools CD-ROM bundled with each router contains the
complete Document Set for your router. The CD-ROM also includes tools for
managing your router.
The Document Set on the CD-ROM includes:
■This Installation and Safety Guide.
■The AR700 Series Router Hardware Reference, which provides detailed
information on the hardware features of AR700 Series routers.
■The AR700 Series Router Software Reference, which provides detailed
information on configuring the router and its software.
■The Port Interface Card Installation and Safety Guide, which provides
instructions for installing a Port Interface Card in your router.
■The Port Interface Card Hardware Reference, which provides detailed
information on the hardware features of Port Interface Cards.
■The Network Service Module Installation and Safety Guide, which provides
instructions for installing a Network Service Module in your router.
■The Network Service Module Hardware Reference, which provides detailed
information on the hardware features of Network Service Modules.
■The AR740 RPS Safety and Statutory Information
■The AR740 RPS Quick Install Guide
■AT-TFTP Server for Windows, for downloading software versions.
■Adobe Acrobat Reader, for viewing online documentation.
Updates of these documents can also be downloaded from the Support Site at
www.alliedtelesis.com/support/documentation/
PIC 0..1 Green A port interface card (PIC) is correctly installed and
has been detected by the router.
LED State Function
AR700 Series Router
20
Emission Compliance Statements
STANDARDS: The AR700 Series routers meet the following standards:
Safety
WARNING: In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Category Approval Agency and Requirement
Safety UL60950-1
CAN/CSA-C22.2 No. 60950-1-03
EN60950-1
EN60825-1 (for AR770S only)
AS/NZS 60950.1
Electromagnetic Compliance FCC CFR47 Part 15 Class A
EN55022 Class A
VCCI Class A
AS/NZS CISPR22 Class A
Immunity EN55024
Network Interface
(where applicable)
ISDN Limited Network Protocol Analysis
FCC Part 68, Subpart D
IC CS-03, Issue 8, Part I and IV
TBR3
TBR4
ACA TS031
U.S. Federal Communications Commission
RADIATED ENERGY
Note: This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with this instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved by the manufacturer or the FCC can void
your right to operate this equipment.
Canadian Department of Communications
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Installation and Safety Guide
21
WARNING: Class 1 Laser product.
WARNING: Do not stare into the laser beam.
CAUTION: Use of controls or adjustments of performance or procedures
other than those specified herein may result in hazardous radiation exposure.
ELECTRICAL NOTICES
WARNING: ELECTRIC SHOCK HAZARD
To prevent ELECTRIC shock, do not remove the cover. No user-serviceable
parts inside. This unit contains HAZARDOUS VOLTAGES and should only be
opened by a trained and qualified technician.
LIGHTNING DANGER
DANGER: DO NOT WORK on equipment or CABLES during periods of
LIGHTNING ACTIVITY.
CAUTION: POWER CORD IS USED AS A DISCONNECTION DEVICE. TO
DE-ENERGIZE EQUIPMENT, disconnect the power cord.
ELECTRICAL - TYPE CLASS 1 EQUIPMENT
THIS EQUIPMENT MUST BE EARTHED. Power plug must be connected to a
properly wired earth ground socket outlet. An improperly wired socket outlet
could place hazardous voltages on accessible metal parts.
PLUGGABLE EQUIPMENT, the socket outlet shall be installed near the
equipment and shall be easily accessible.
CAUTION: Air vents must not be blocked and must have free access to the
room ambient air for cooling.
OPERATING TEMPERATURE: AR750S and AR770S routers are designed
for a maximum ambient temperature of 50 degrees C.
ELECTRICAL - AC MAINS CIRCUIT OVERLOADING
When installing product, consideration must be given to the accumulative
nameplate ratings when connecting the equipment to the AC supply wiring.
CAUTION: MECHANICAL LOADING - Mounting of the equipment in the
rack should be such that a hazardous condition is not achieved due to uneven
loading.
Lithium Battery - Should only be changed by authorised service personnel.
CAUTION: Danger of explosion if battery incorrectly replaced. Replace only
with Lithium Battery, type CR2032, and dispose of in accordance with the
manufacturer’s recommendations and all local codes.
ALL COUNTRIES: Install product in accordance with local and National
Electrical Codes.
AR700 Series Router
22
Sicherheit
WARNUNG: Bei Verwendung zu Hause kann dieses Produkt Funkstörungen
hervorrufen. In diesem Fall müßte der Anwender angemessene
Gegenmaßnahmen ergreifen.
WARNUNG Laserprodukt der Klasse 1.
WARNUNG Nicht direkt in den Strahl blicken.
ACHTUNG: GEFÄHRLICHE SPANNUNG
Das Gehäuse nicht öffnen. Das Gerät enthält keine vom Benutzer wartbaren
Teile. Das Gerät steht unter Hochspannung und darf nur von qualifiziertem
technischem Personal geöffnet werden.
GEFAHR DURCH BLITZSCHLAG
GEFAHR: Keine Arbeiten am Gerät oder an den Kabeln während eines
Gewitters ausführen.
VORSICHT: DAS NETZKABEL DIENT ZUM TRENNEN DER
STROMVERSORGUNG. ZUR TRENNUNG VOM NETZ, KABEL AUS DER
STECKDOSE ZIEHEN.
GERÄTE DER KLASSE 1
DIESE GERÄTE MÜSSEN GEERDET SEIN. Der Netzstecker darf nur mit einer
vorschriftsmäßig geerdeten Steckdose verbunden werden. Ein
unvorschriftsmäßiger Anschluß kann die Metallteile des Gehauses unter
gefährliche elektrische Spannungen setzen.
STECKBARES GERÄT: Die Anschlußbuchse sollte in der Nähe der Einrichtung
angebracht werden und leicht zugänglich sein.
VORSICHT
Die Entlüftungsöffnungen dürfen nicht versperrt sein und müssen zum Kühlen
freien Zugang zur Raumluft haben.
BETRIEBSTEMPERATUR: AR750S, AR770S: Dieses Produkt wurde für den
Betrieb in einer Umgebungstemperatur von nicht mehr als 50° C entworfen.
NETZSICHERUNG
Bei der Installation muß der auf dem Typenschild angezeigte Nennwert des
Gerätes für den Anschluß an das Netz beachtet werden.
VORSICHT: RAHMENEINBAU
Die Geräte müssen so in den Rahmen montiert werden, daß keine Gefahren
durch unebenen inbau des Rahmens verursacht werden.
Installation and Safety Guide
23
Lithium-Batterie - Sollte nur von einem geschulten qualifizierten Techniker
ausgetauscht werden.
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie.
Nur mit einer gleichen Batterie oder einem gleichwertigen Batterietyp nach
Empfehlung des Herstellers ersetzen. Gebrauchte Batterien nach Anweisungen
des Herstellers beseitigen.
ALLE LÄNDER: Installation muß örtlichen und nationalen elektrischen
Vorschriften entsprechen.
Sikkerhed
ADVARSEL: I et hjemligt miljø kunne dette produkt forårsage radio
forstyrrelse. Bliver det tilfældet, påkræves brugeren muligvis at tage
tilstrækkelige foranstaltninger.
ADVARSEL Laserprodukt av klasse 1.
ADVARSEL Stirr ikke på strålen.
ELEKTRISKE FORHOLDSREGLER
ADVARSEL: RISIKO FOR ELEKTRISK STØD
For at forebygge ELEKTRISK stød, undlad at åbne apparatet. Der er ingen indre
dele, der kan repareres af brugeren. Denne enhed indeholder LIVSFARLIGE
STRØMSPÆNDINGER og bør kun åbnes af en uddannet og kvalificeret tekniker.
FARE UNDER UVEJR
FARE: UNDLAD at arbejde på udstyr eller KABLER i perioder med
LYNAKTIVITET.
ADVARSEL: DEN STRØMFØRENDE LEDNING BRUGES TIL AT AFBRYDE
STRØMMEN. SKAL STRØMMEN TIL APPARATET AFBRYDES, tages ledningen
ud af stikket.
ELEKTRISK - KLASSE 1-UDSTYR
DETTE UDSTYR KRÆVER JORDFORBINDELSE. Stikket skal være forbundet
med en korrekt installeret jordforbunden stikkontakt. En ukorrekt installeret
stikkontakt kan sætte livsfarlig spænding til tilgængelige metaldele.
UDSTYR TIL STIKKONTAKT, stikkontakten bør installeres nær ved udstyret og
skal være lettilgængelig.
ADVARSEL: Ventilationsåbninger må ikke blokeres og skal have fri adgang til
den omgivende luft i rummet for afkøling.
BETJENINGSTEMPERATUR: AR750S, AR770S: Dette apparat er
konstrueret til en omgivende temperatur på maksimum 50 grader C.
AR700 Series Router
24
ELEKTRISK-OVERBELASTNING AF SPÆNDINGSKREDSLØBET
Ved installation af produktet, bør der tages hensyn til den kumulative kapacitet
der angives på navneskiltet, når udstyret forbindes med vekselstrømsledningen.
ADVARSEL: MEKANISK OPSTILLING-Udstyret skal opstilles i stativet, på en
sådan måde, at der ikke opstår fare p.g.a. ujævn opstilling.
Lithium batteri - Bør kun udskiftes af uddannet og kvalificeret tekniker.
ADVARSEL : Eksplosionsfare, hvis batteriet udskiftes ukorrekt. Udskift kun
med samme eller en tilsvarende type der anbefales af producenten. Kassér
brugte batterier i overensstemmelse med producentens instruktioner.
ALLE LANDE: Installation af produktet skal ske i overensstemmelse med lokal
og national lovgivning for elektriske installationer.
Veiligheid
WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken,
in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te
nemen.
WAARSHUWING Klasse-1 laser produkt.
WAARCHUWING Neit in de straal staren.
WAARSCHUWINGEN MET BETREKKING TOT ELEKTRICITEIT
WAARSCHUWING: GEVAAR VOOR ELEKTRISCHE SCHOKKEN
Verwijder het deksel niet, teneinde ELEKTRISCHE schokken te voorkomen.
Binnenin bevinden zich geen onderdelen die door de gebruiker onderhouden
kunnen worden. Dit toestel staat onder GEVAARLIJKE SPANNING en mag
alleen worden geopend door een daartoe opgeleide en bevoegde technicus.
GEVAAR VOOR BLIKSEMINSLAG
GEVAAR: NIET aan toestellen of KABELS WERKEN bij BLIKSEM.
WAARSCHUWING: HET TOESTEL WORDT UITGESCHAKELD DOOR
DE STROOMKABEL TE ONTKOPPELEN.OM HET TOESTEL STROOMLOOS
TE MAKEN: de stroomkabel ontkoppelen.
ELEKTRISCHE TOESTELLEN VAN KLASSE 1
DIT TOESTEL MOET GEAARD WORDEN. De stekker moet aangesloten zijn
op een juist geaarde contactdoos. Een onjuist geaarde contactdoos kan de
metalen onderdelen waarmee de gebruiker eventueel in aanraking komt onder
gevaarlijke spanning stellen.
AAN TE SLUITEN APPARATUUR, de contactdoos wordt in de nabijheid van de
apparatuur geïnstalleerd en is gemakkelijk te bereiken.
Installation and Safety Guide
25
OPGELET: De ventilatiegaten mogen niet worden gesperd en moeten de
omgevingslucht ongehinderd toelaten voor afkoeling.
BEDRIJFSTEMPERATUUR: AR750S, AR770S: De omgevingstemperatuur
voor dit produkt mag niet meer bedragen dan 50 graden Celsius.
ELEKTRISCH: OVERBELASTING VAN WISSELSTROOM HOOFDCIRCUIT
Tijdens de installatie van het produkt dient men rekening te houden met de
gecombineerde waarden op de naamplaatjes bij het aansluiten van het toestel op
de wisselstroom-voedingsdraden.
LOPGELET: MECHANISCH LADEN - De montage van het toestel in het rek
dient zo uitgevoerd te worden dat geen gevaar ontstaat door een ongelijke
lading.
Lithium batterij. Mag alleen worden vervangen door een daartoe opgeleide en
bevoegde technicus.
OPGELET: Gevaar voor ontploffing indien de batterij verkeerd wordt
vergangen. Alleen vervangen door hetzelfde of een gelijkwaardig, door de
fabrikant aanbevolen type.
ALLE LANDEN: het toestel installeren overeenkomstig de lokale en nationale
elektrische voorschriften.
Sécurité
MISE EN GARDE : dans un environnement domestique, ce produit peut
provoquer des interférences radioélectriques. Auquel cas, l’utilisateur devra
prendre les mesures adéquates.
ATTENTION Producit laser di classe 1.
ATTENTION Ne pas fixer le faisceau des yeux.
INFORMATION SUR LES RISQUES ÉLECTRIQUES
AVERTISSEMENT: DANGER D’ÉLECTROCUTION
Pour éviter toute ÉLECTROCUTION, ne pas ôter le revêtement protecteur du
matériel. Ce matériel ne contient aucun élément réparable par l’utilisateur. Il
comprend des TENSIONS DANGEREUSES et ne doit être ouvert que par un
technicien dûment qualifié.
DANGER DE FOUDRE
DANGER: NE PAS MANIER le matériel ou les CÂBLES lors d’activité
orageuse.
ATTENTION: LE CORDON D’ALIMENTATION SERT DE MISE HORS
CIRCUIT. POUR COUPER L’ALIMENTATION DU MATÉRIEL, débrancher le
cordon.
AR700 Series Router
26
ÉQUIPEMENT DE CLASSE 1 ÉLECTRIQUE
CE MATÉRIEL DOIT ÊTRE MIS A LA TERRE. La prise de courant doit être
branchée dans une prise femelle correctement mise à la terre car des tensions
dangereuses risqueraient d’atteindre les pièces métalliques accessibles à
l’utilisateur.
EQUIPEMENT POUR BRANCHEMENT ELECTRIQUE, la prise de sortie doit
être placée près de l’équipement et facilement accessible”.
ATTENTION: Ne pas bloquer les fentes d’aération, ceci empêcherait l’air
ambiant de circuler librement pour le refroidissement.
TEMPÉRATURE DE FONCTIONNEMENT: AR750S, AR770S: Ce
matériel est capable de tolérer une température ambiante maximum de ou 50
degrés Celsius.
SURCHARGE DES CIRCUITS PRINCIPAUX DE COURANT ALTERNATIF
ÉLECTRIQUE
Lors de l'installation du matériel, il faut prendre en compte la somme des
puissances indiquées sur les étiquettes au moment de connecter le matériel à
une source de courant alternatif.
ATTENTION : RÉPARTITION DE LA CHARGE MÉCANIQUE - Le montage
du matériel dans le bâti doit être effectué de telle manière que la répartition de
la charge mécanique ne pose aucun danger.
Pile en Lithium-Doit uniquement être remplacée par un technicien dûment
qualifié
ATTENTION : Un danger d'explosion existe en cas de remplacement
incorrect de la pile. Remplacer uniquement avec une pile du même type ou d'un
type recommandé par le fabricant. Mettre au rebut lespiles usagées
conformément aux instructions du fabricant).
POUR TOUS PAYS: Installer le matériel conformément aux normes
électriques nationales et locales.
Installation and Safety Guide
27
Turvallisuus
VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä,
missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin
toimenpiteisiin.
VAROITUS Luokan 1 Lasertuote.
VAROITUS Älä katso säteeseen.
SÄHKÖÖN LIITTYVIÄ HUOMAUTUKSIA
VAROITUS: SÄHKÖISKUVAARA
Estääksesi SÄHKÖISKUN älä poista kantta. Sisällä ei ole käyttäjän huollettavissa
olevia osia. Tämä laite sisältää VAARALLISIA JÄNNITTEITÄ ja sen voi avata vain
koulutettu ja pätevä teknikko.
SALAMANISKUVAARA
HENGENVAARA: ÄLÄ TYÖSKENTELE laitteiden tai KAAPELEIDEN
KANSSA SALAMOINNIN AIKANA.
HUOMAUTUS: VIRTAJOHTOA KÄYTETÄÄN
VIRRANKATKAISULAITTEENA. VIRTA KATKAISTAAN irrottamalla virtajohto.
SÄHKÖ - TYYPPILUOKAN 1 LAITTEET
TÄMÄ LAITE TÄYTYY MAADOITTAA. Pistoke täytyy liittää kunnollisesti
maadoitettuun pistorasiaan. Virheellisesti johdotettu pistorasia voi altistaa
metalliosat vaarallisille jännitteille.
PISTORASIAAN KYTKETTÄVÄ LAITE; pistorasia on asennettava laitteen lähelle
ja siihen on oltava esteetön pääsy.
HUOMAUTUS: Ilmavaihtoreikiä ei pidä tukkia ja niillä täytyy olla vapaa yhteys
ympäröivään huoneilmaan, jotta ilmanvaihto tapahtuisi.
KÄYTTÖLÄMPÖTILA: AR750S, AR770S: Tämä tuote on suunniteltu
ympäröivän ilman maksimilämpötilalle 50°C.
SÄHKÖ-VAIHTORVIRTASÄHKÖPIIRIN YLIKUORMITUS
Tuotetta asennettaessa on otettava huomioon osien nimikilvissä osoitettu teho
silloin kun osat liitetetään vaihtovirtaverkkoon.
HUOMAUTUS: MEKAANINEN KUORMITUS--Osien asennuksen alustaan
tulee tapahtua siten, että epätasainen kuormitus ei aiheuta vaaraa.
Litiumparisto - Vaihdon voi suorittaa vain koulutettu ja pätevä teknikko.
Varoitus: Räjähdysvaara, jos paristo on vaihdettu väärin. Vaihda vain samaan tai
vastaavaan tyyppiin, jota valmistaja suosittelee. Hävitä käytetyt paristot
valmistajan ohjeiden mukaan.
KAIKKI MAAT: Asenna tuote paikallisten ja kansallisten
sähköturvallisuusmääräysten mukaisesti.
AR700 Series Router
28
Norme di Sicurezza
AVVERTENZA: in ambiente domestico questo prodotto potrebbe causare
radio interferenza. In questo caso potrebbe richiedersi all’utente di prendere gli
adeguati provvedimenti.
AVVERTENZA Prodotto laser di Classe 1.
AVERTENZA Non fissare il raggio con gli occhi.
AVVERTENZE ELETTRICHE
ATTENZIONE: PERICOLO DI SCOSSE ELETTRICHE
Per evitare SCOSSE ELETTRICHE non asportare il coperchio. Le componenti
interne non sono riparabili dall’utente. Questa unità ha TENSIONI
PERICOLOSE e va aperta solamente da un tecnico specializzato e qualificato.
PERICOLO DI FULMINI
PERICOLO: NON LAVORARE sul dispositivo o sui CAVI durante
PRECIPITAZIONI TEMPORALESCHE.
ATTENZIONE: IL CAVO DI ALIMENTAZIONE È USATO COME
DISPOSITIVO DI DISATTIVAZIONE. PER TOGLIERE LA CORRENTE AL
DISPOSITIVO staccare il cavo di alimentazione.
ELETTRICITÀ - DISPOSITIVI DI CLASSE 1
QUESTO DISPOSITIVO DEVE AVERE LA MESSA A TERRA. La spina deve
essere inserita in una presa di corrente specificamente dotata di messa a terra.
Una presa non cablata in maniera corretta rischia di scaricare una tensione
pericolosa su parti metalliche accessibili.
APPARECCHIATURA COLLEGABILE, la presa va installata vicino
all’apparecchio per risultare facilmente accessibile.
ATTENZIONE: le prese d’aria non vanno ostruite e devono consentire il
libero ricircolo dell’aria ambiente per il raffreddamento.
TEMPERATURA DI FUNZIONAMENTO: AR750S, AR770S: Questo
prodotto è concepito per una temperatura ambientale massima di 50 gradi
centigradi.
ELETTRICITÀ - SOVRACCARICO DEL CIRCUITO DI RETE A C.A.
Durante l'installazione ed il collegamento del dispositivo alla rete di
alimentazione a corrente alternata, è necessario tenere in considerazione le
capacità cumulative riportate sulla targhetta.
ATTENZIONE: CARICAMENTO MECCANICO - Il montaggio del dispositivo
sul supporto va effettuato in maniera tale da evitare qualsiasi potenziale
condizione di pericolo eventualmente dovuta al montaggio irregolare.
Installation and Safety Guide
29
Batteria al litio - Va sostituita solo da un tecnico specializzato e qualificato.
ATTENZIONE: l'errata sostituzione della batteria può causare pericolo di
esplosioni. Sostituire solamente con lo stesso tipo o con uno equivalente
raccomandato dal produttore. Eliminare le batterie usate secondo le istruzioni
del produttore.
TUTTI I PAESI: installare il prodotto in conformità delle vigenti normative
elettriche nazionali.
Sikkerhet
ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet
forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige
forholdsregler.
ADVARSEL Laserprodukt av klasse 1.
ADVARSAL Stirr ikke på strålen.
ELEKTRISITET
ADVARSEL: FARE FOR ELEKTRISK SJOKK
For å unngå ELEKTRISK sjokk, må dekslet ikke tas av. Det finnes ingen deler som
brukeren kan reparere på innsiden. Denne enheten inneholder FARLIGE
SPENNINGER, og må kun åpnes av en faglig kvalifisert tekniker.
FARE FOR LYNNEDSLAG
FARE: ARBEID IKKE på utstyr eller KABLER i TORDENVÆR.
FORSIKTIG: STRØMLEDNINGEN BRUKES TIL Å FRAKOBLE UTSTYRET.
FOR Å DEAKTIVISERE UTSTYRET, må strømforsyningen kobles fra.
ELEKTRISK - TYPE 1- KLASSE UTSTYR
DETTE UTSTYRET MÅ JORDES. Strømkontakten må være tilkoplet en korrekt
jordet kontakt. En kontakt som ikke er korrekt jordet kan føre til farlig
spenninger i lett t ilgjengelige metalldeler.
UTSTYR FOR STIKKONTAKT. Stikkontakten skal monteres i nærheten av
utstyret og skal være lett tilgjengelig.
FORSIKTIG: Lufteventilene må ikke blokkeres, og må ha fri tilgang til luft med
romtemperatur for avkjøling.
DRIFTSTEMPERATUR: AR750S, AR770S: Dette produktet er konstruert
for bruk i maksimum romtemperatur på 50 grader celsius.
ELETRISK OVERBELASTNING PÅ AC HOVEDKRETSLØP
Når produktet installeres, må de samlede navneplateverdiene kontrolleres nøye
når strøm påsettes.
AR700 Series Router
30
FORSIKTIG: MEKANISK LASTNING Installering av utstyret på hyllen må
utføres på en slik måte at ingen farlige situasjoner oppstår som en følge av ujevn
lastning.
Litiumbatteri — Må kun byttes ut av en faglig kvalifisert tekniker.
FORSIKTIG: Eksplosjonsfare hvis batteriet feilinnsettes.Batteriet må bare
erstattes med samme type eller en tilsvarende type som er anbefalt av
fabrikanten. Batteriene må kasseres i samsvar med fabrikantens instruksjoner.
ALLE LAND: Produktet må installeres i samsvar med de lokale og nasjonale
elektriske koder.
Segurança
AVISO: Num ambiente doméstico este produto pode causar interferência na
radiorrecepção e, neste caso, pode ser necessário que o utente tome as
medidas adequadas.
AVISO Produto laser de classe 1
AVISO Não olhe fixamente para o raio.
AVISOS SOBRE CARACTERÍSTICAS ELÉTRICAS
ATENÇÃO: PERIGO DE CHOQUE ELÉTRICO
Para evitar CHOQUE ELÉTRICO, não retire a tampa. Não contém peças que
possam ser consertadas pelo usuário. Este aparelho contém VOLTAGENS
PERIGOSAS e só deve ser aberto por um técnico qualificado e treinado.
PERIGO DE CHOQUE CAUSADO POR RAIO
PERIGO: NÃO TRABALHE no equipamento ou nos CABOS durante períodos
suscetíveis a QUEDAS DE RAIO.
CUIDADO: O CABO DE ALIMENTAÇÃO É UTILIZADO COMO UM
DISPOSITIVO DE DESCONEXÃO. PARA DESELETRIFICAR O
EQUIPAMENTO, desconecte o cabo de ALIMENTAÇÃO.
ELÉTRICO - EQUIPAMENTOS DO TIPO CLASSE 1
DEVE SER FEITA LIGAÇÃO DE FIO TERRA PARA ESTE EQUIPAMENTO. O
plugue de alimentação deve ser conectado a uma tomada com adequada ligação
de fio terra. Tomadas sem adequada ligação de fio terra podem transmitir
voltagens perigosas a peças metálicas expostas.
EQUIPAMENTO DE LIGAÇÃO, a tomada eléctrica deve estar instalada perto
do equipamento e ser de fácil acesso.”
CUIDADO: As aberturas de ventilação não devem ser bloqueadas e devem ter
acesso livre ao ar ambiente para arrefecimento adequado do aparelho.
Installation and Safety Guide
31
TEMPERATURA DE FUNCIONAMENTO: AR750S, AR770S: Este
produto foi projetado para uma temperatura ambiente máxima de 50 graus
centígrados.
ELÉTRICO - SOBRECARGA DA REDE DE CORRENTE ALTERNADA (AC)
Antes de instalar o produto, verifique o efeito cumulativo da conexão de
diversos aparelhos àrede de corrente alternada através das etiquetas que
indicam potência ou amperagem.
CUIDADO: CARREGAMENTO - O equipamento deverá ser montado no
suporte de montagem de forma tal que não cause perigo devido a carregamento
não uniforme.
Bateria de lítio - Só deve ser trocada por técnico qualificado e treinado.
CUIDADO: Se a bateria não for devidamente instalada há perigo de explosão.
Substitua somente pelo mesmo tipo ou equivalente, conforme recomendado
pelo fabricante. Descarte baterias usadas, de acordo com as instruções
fornecidas pelo fabricante.
TODOS OS PAÍSES: Instale o produto de acordo com as normas nacionais e
locais para instalações elétricas.
Seguridad
ADVERTENCIA: en un entorno doméstico, este producto puede causar
radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las
medidas que sean convenientes al respecto.
¡ADVERTENCIA! Producto láser Clase 1.
¡ADVERTENCIA! No mirat fijamente el haz.
AVISOS ELECTRICOS
ADVERTENCIA: PELIGRO DE ELECTROCHOQUE
Para evitar un ELECTROCHOQUE, no quite la tapa. No hay ningún
componente en el interior al cual puede prestar servicio el usuario. Esta unidad
contiene VOLTAJES PELIGROSOS y sólo deberá abrirla un técnico entrenado y
calificado.
PELIGRO DE RAYOS
PELIGRO: NO REALICE NINGUN TIPO DE TRABAJO O CONEXION en
los equipos o en LOS CABLES durante TORMENTAS ELECTRICAS.
ATENCION: EL CABLE DE ALIMENTACION SE USA COMO UN
DISPOSITIVO DE DESCONEXION. PARA DESACTIVAR EL EQUIPO,
desconecte el cable de alimentación.
AR700 Series Router
32
ELECTRICO - EQUIPO DEL TIPO CLASE 1
ESTE EQUIPO TIENE QUE TENER CONEXION A TIERRA. El cable tiene que
conectarse a un enchufe a tierra debidamente instalado. Un enchufe que no está
correctamente instalado podría ocasionar tensiones peligrosas en las partes
metálicas que están expuestas.
EQUIPO CONECTABLE, el tomacorriente se debe instalar cerca del equipo, en
un lugar con acceso fácil”.
ATENCION: Las aberturas para ventilación no deberán bloquearse y deberán
tener acceso libre al aire ambiental de la sala para su enfriamiento.
TEMPERATURA REQUERIDA PARA LA OPERACIÓN:
AR750S, AR770S: Este producto está diseñado para una temperatura ambiental
máxima de 50 grados C.
ELECTRICO - SOBRECARGA DEL CIRCUITO PRIMARIO DE CORRIENTE
ALTERNA
Al instalarse el producto deberán considerarse las potencias nominales
acumulativas, cuando se conecta el equipo al cable de alimentación de corriente
alterna.
ATENCION: CARGA MECANICA - El montaje del equipo en el bastidor debe
realizarse de manera tal que no cause una condición peligrosa debido a la
distribución desigual del peso.
Batería de litio - Sólo deberá ser cambiada por un técnico entrenado y calificado.
ATENCION: Peligro de explosión si la batería no se reemplaza en forma
correcta. Reemplace sólo con el mismo tipo o equivalente que recomienda el
fabricante. Deseche las baterías usadas según las instrucciones del fabricante.
PARA TODOS LOS PAÍSES: Monte el producto de acuerdo con los
Códigos Eléctricos locales y nacionales.
Installation and Safety Guide
33
Säkerhet
VARNING: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket
kan tvinga användaren till att vidtaga erforderliga åtgärder.
VARNING! Laserprodukt av klass 1.
VARNING! Laserstrålning när enheten är öppen.
TILLKÄNNAGIVANDEN BETRÄFFANDE ELEKTRICITETSRISK:
RISK FÖR ELEKTRISK STÖTFör att undvika ELEKTRISK stöt, ta ej av locket.
Det finns inga delar inuti som behöver underhållas. Denna apparat är under
HÖGSPÄNNING och får endast öppnas av en utbildad kvalificerad tekniker.
FARA FÖR BLIXTNEDSLAG
FARA: ARBETA EJ på utrustningen eller kablarna vid ÅSKVÄDER.
VARNING: NÄTKABELN ANVÄNDS SOM STRÖMBRYTARE FÖR ATT
KOPPLA FRÅN STRÖMMEN, dra ur nätkabeln.
ELEKTRISKT - TYP KLASS 1 UTRUSTNING
DENNA UTRUSTNING MÅSTE VARA JORDAD. Nätkabeln måste vara
ansluten till ett ordentligt jordat uttag. Ett felaktigt uttag kan göra att närliggande
metalldelar utsätts för högspänning. Apparaten skall anslutas till jordat uttag, när
den ansluts till ett nätverk.
UTRUSTNING MED PLUGG. Uttaget skall installeras i utrustningens närhet och
vara lättåtkomligt”.
VARNING: Luftventilerna får ej blockeras och måste ha fri tillgång till
omgivande rumsluft för avsvalning.
DRIFTSTEMPERATUR: AR750S, AR770S: Denna produkt är konstruerad
för rumstemperatur ej överstigande 50 grader Celsius.
ELEKTRISKT - ÖVERBELASTNING AV VÄXELSTRÖMSNÄTET: När
produkten installeras bör den sammanlagda effekten på namnplåten beaktas när
apparaten ansluts till växelströmsnätet.
VARNING: MEKANISK BELASTNING: Utrustningen ska installeras i chassit på
så sätt att fara inte uppstår p g a ojämn belastning.
Litium batteri - Får endast bytas av utbildade och kvalificerade tekniker.
VARNING: Risk för explosion om felaktigt batteri används. Byt endast mot
samma eller likvärdig typ batteri, rekommenderat av tillverkaren. Kassera
använda batterier i enlighet med tillverkarens instruktioner.
ALLA LÄNDER: Installera produkten i enlighet med lokala och statliga
bestämmelser för elektrisk utrustning.
AR700 Series Router
34
Connection to mains voltage supply
This product is supplied with a power cord that incorporates a moulded plug
and has been approved for use. It must only be used with the power cord
supplied.
For continued protection against the risk of fire and shock hazard, replace fuses
only with the same type and rating.
Telecommunications Interfaces
Warning To reduce risk of fire use only No.26 awg or larger
telecommunications line cord if the cord supplied is not used with the apparatus.
Important Safety Instructions
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to persons,
including the following:
1. Do not use this product near water, for example near a bathtub, washbowl,
kitchen sink, or laundry tub in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not
dispose of batteries in a fire. They may explode. Check with local codes for
possible special disposal instructions.
5. Remove the telephone cord from the unit prior to making changes to the
expansion port.
Save these instructions
Installation and Safety Guide
35
Connection to ISDN network
Ports for the connection of other apparatus
The following interfaces normally operate at SELV (Safe Extra Low Voltage)
levels:
■Asynchronous (console) ports
■Ethernet ports
■G703 ports
■Synchronous ports
Note SELV is a secondary circuit whose voltages do not exceed a safe value
under normal operating conditions and under single fault conditions. Under
normal operating conditions the voltages do not exceed 42.4 V peak AC or
60 V DC.
TNV1
The following interfaces are Telecommunications Network Voltage (TNV1)
circuits, which operate normally within the limits of SELV:
■BRI ports for connection to ISDN Basic Rate telecommunications networks
■PRI ports for connection to ISDN Primary Rate telecommunications
networks
■E1/T1 ports for connection to E1/T1 services
Note A TNV1 circuit is a circuit which under normal operating conditions does
not exceed the limits for SELV and on which overvoltages from
telecommunication networks are possible.
AR700 Series Router
36
US Federal Communications Commission (FCC)
This equipment complies with Part 68 of the Federal Communications
Commission (FCC) rules for the United States.
A label is located on the underside of the base unit containing the FCC
registration number. You must, upon request, provide the following information
to your local telephone company:
Should you experience trouble with this telephone equipment, please contact:
ALLIED TELESIS INTERNATIONAL
19800 NORTH CREEK PARKWAY #200
BOTHELL
WASHINGTON 98011
TEL: 425 487 8880
FAX: 425 489 9191
If trouble is experienced with this equipment (AR021U PIC), for repair or
warranty information, please contact the above. If the equipment is causing harm
to the telephone network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
This equipment cannot be used on public coin phone service provided by the
telephone company. Connection to party line service is subject to state tariffs.
Your telephone company may discontinue your service if your equipment causes
harm to the telephone network. They will notify you in advance of
disconnection, if possible. During notification, you will be informed of your right
to file a complaint to the FCC.
Occasionally, your telephone company may make changes in its facilities,
equipment, operation, or procedures that could affect the operation of your
equipment. If so, you will be given advance notice of the change to give you an
opportunity to maintain uninterrupted service.
For the AR021U PIC
Facility Interface Code 021S5
Service Order Code 6.0Y
The AR021U PIC has completed the ISDN
Ordering Codes Translation Review and is
registered for IOC S and EZ-ISDN 1.
USOC Jack Type RJ49C
Installation and Safety Guide
37
Canadian Department of Communications
The Industry Canada label identifies certified equipment. This certification
means that the equipment meets telecommunications network protective,
operational and safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The Department does not
guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection. The
customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative
designated by the supplier. Any repairs or alterations made by the user to this
equipment, or equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water pipe
system, if present, are connected together. This precaution may be particularly
important in rural areas.
Warning Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as
appropriate.
This digital apparatus does not exceed the limits for radio noise emissions from
digital apparatus as set out in the Radio Interface Regulations of the Canadian
Department of Communications.
Le present appareil numerique n’emet pas de bruits radioelectriques depassant
les limites applicables aux appareils numeriques prescrites dans le Reglement sur
le brouillage radioelectrique edicte par le ministere des Communications du
Canada.

Navigation menu
