Alpha Networks 2004030017-1 802.11g USB Adapter User Manual

Alpha Networks Inc. 802.11g USB Adapter Users Manual

Contents

Users Manual

1
802.11g USB Adapter
Manual
2
Contents
Contents.............................................................................................2
Package Contents..............................................................................3
Introduction ........................................................................................4
Product Features................................................................................5
LEDs ..................................................................................................6
Wireless Basics..................................................................................7
Getting Started .................................................................................10
First Time Setup...............................................................................18
Before You Begin .............................................................................18

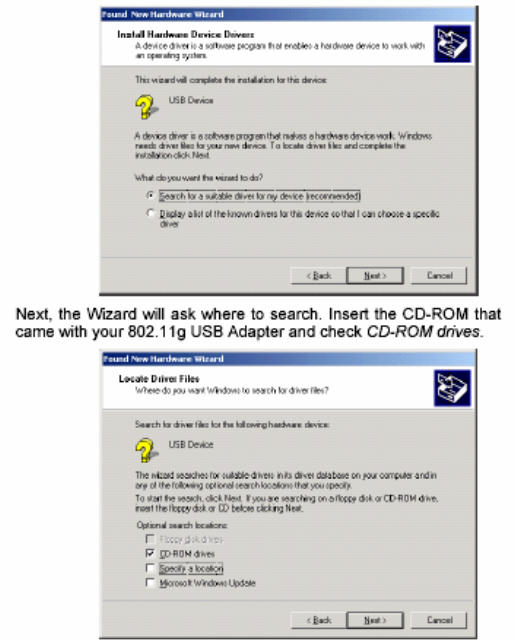

Software Installation .........................................................................19

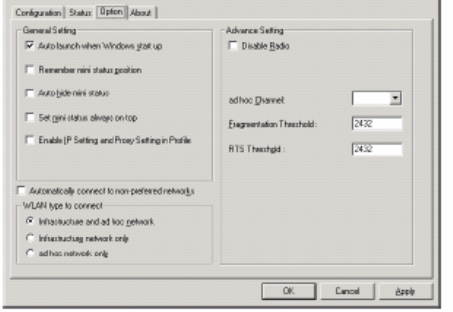

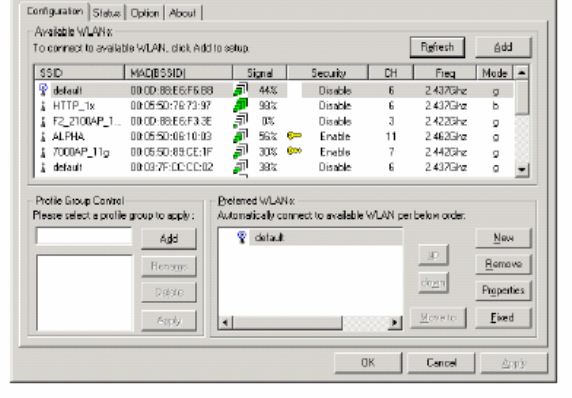

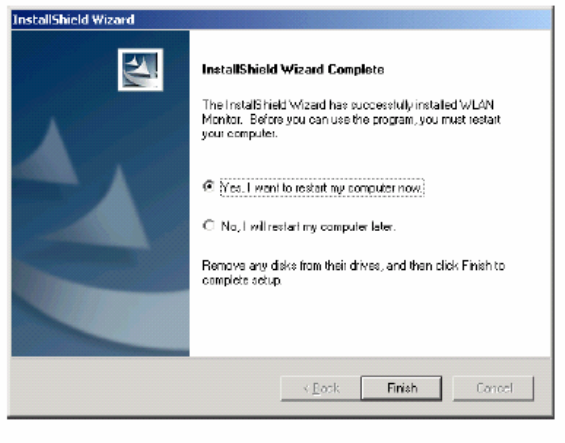

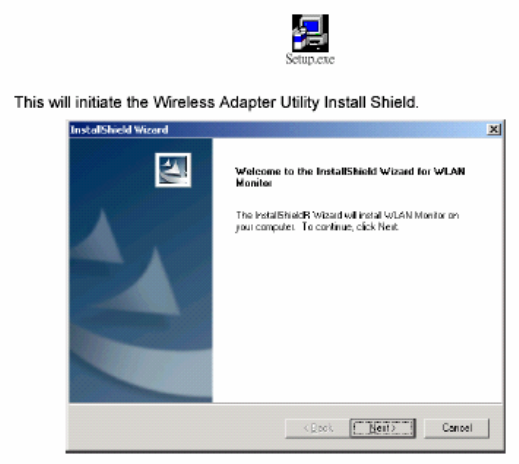

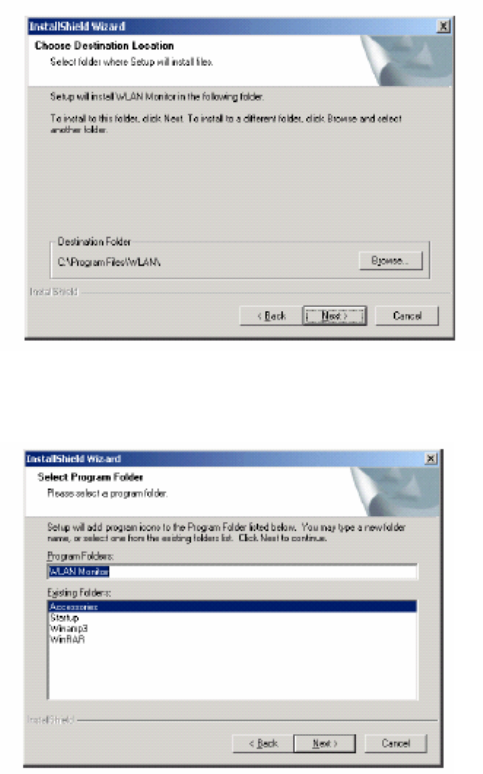

Installing the WLAN Adapter Utility...................................................23
Uninstalling.......................................................................................26

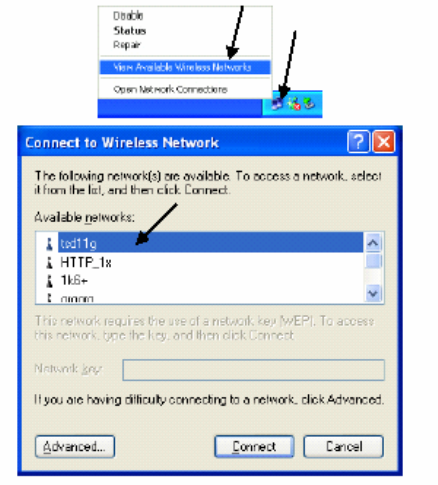

Connecting to a Network ..................................................................31

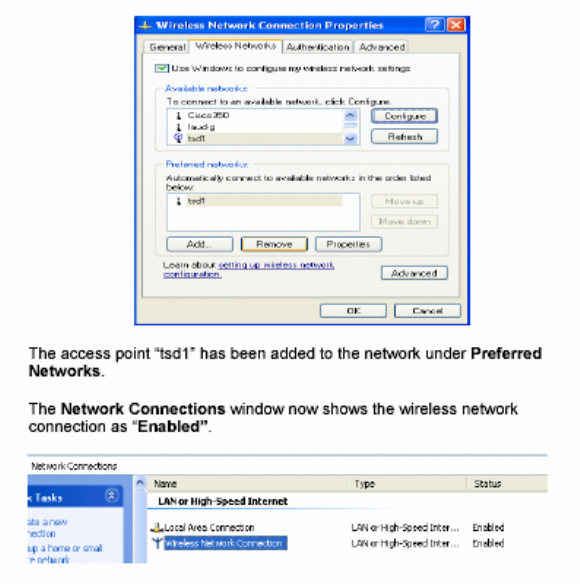

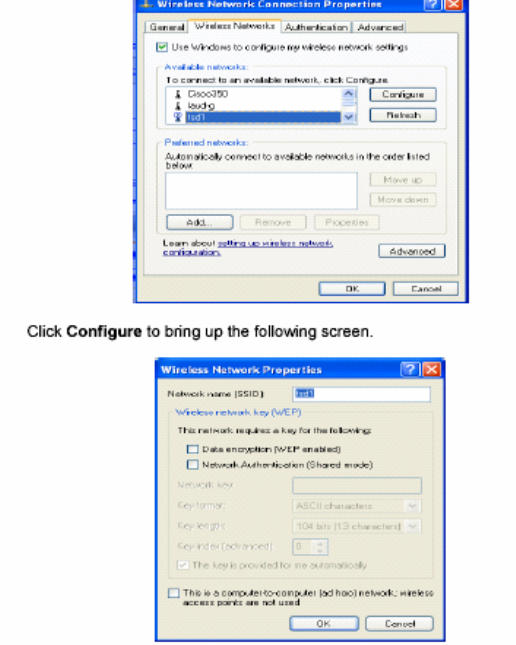

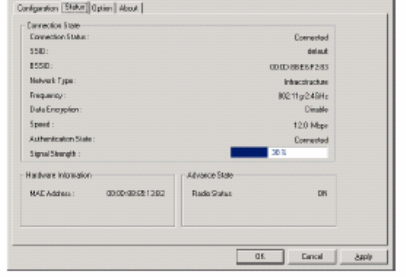

Using the Configuration Utility for Windows XP................................38

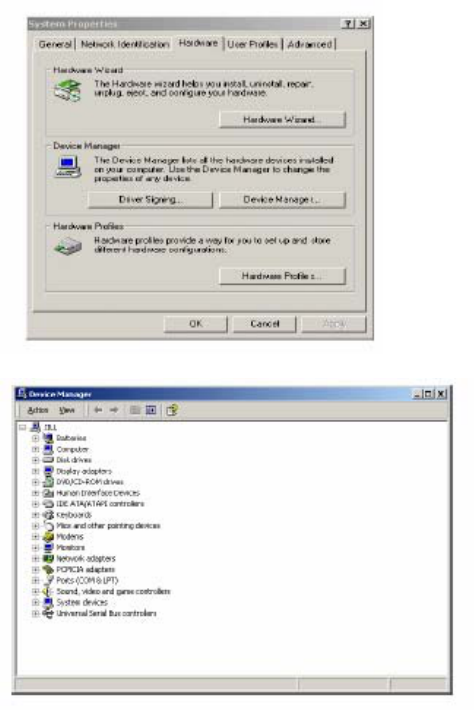

Troubleshooting................................................................................43
Technical Specifications...................................................................49
3
Package Contents
Contents of Package:
802.11g USB Adapter USB Wireless
USB Extension Cable
Manual and Drivers on CD
Hardware Installation Guide (printed)
If any of the above items is missing, please contact your reseller.
System Requirements:
A computer with an available USB slot
Windows XP, Windows 2000, Windows ME, or Windows 98 SE
At least 32 MB of memory and a 300 MHz processor or higher
An 802.11g Access Point for Infrastructure Mode or another
802.11g wireless adapter for Ad-Hoc mode.
4
Introduction
The Wireless USB Stick Adapter is an advanced IEEE 802.11g compatible,
high-performance wireless adapter that supports data transfer speeds of up
to 54 Mbps. Amazingly compact, the 802.11g USB Adapter is literally small
enough to fit in your pocket.
USB technology makes installation and configuration quick and easy. The
802.11g USB Adapter is an ideal way to connect your laptop computer to a
Wireless Local Area Network (WLAN.)
After completing the steps outlined in the Quick Installation Guide (included
in your package) you will have the ability to share information and resources,
such as files and printers, and take full advantage of a “connected”
environment for work or play. Please take a look at our Getting Started
section in this manual. You will see several options for setting up a network
using the 802.11g USB Adapter.
The 802.11g USB Adapter comes with software drivers for the most popular
Microsoft Windows operating systems and can be integrated into a larger
network, running Windows XP, Windows 2000, Windows ME, Windows
98SE, in either Ad Hoc mode (without an Access Point) or Infrastructure
mode (with an Access Point.)
This manual provides a quick introduction to wireless technology and its
application as it relates to networking. Take a moment to read through this
manual and see how wireless technology can help you do things better and
more easily.
5
Product Features
Adheres to 802.11g standard in providing high data wireless transfer
rates of up to 54 Mbps.
Operation in the 2.4GHz Unlicensed National Information
Infrastructure (U-NII) frequency band
Orthogonal Frequency Division Multiplexing (OFDM) – a new
technique for transmitting high speed data over a radio wave.
Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for
IEEE 802.11g
Maximum reliability, throughput and connectivity with automatic data
rate switching.
Supports Wired Equivalent Privacy (WEP) data encryption at
64/128/152-bit encryption with dynamic key exchange for security.
Supports infrastructure networks via Access Point and ad-hoc
networks via peer-to-peer communication.
Requires an available USB slot.
User-friendly configuration and diagnostic utilities.
6
LEDs
LED stands for light-emitting diode.
The 802.11g USB Adapter has two LEDs: Activity and Link
Network Mode LED Activity
LEDA on the left side
of PCB---LINK
Off: All other states
Blink - Radio On and
Scanning
LEDB on the right side
of PCB---ACTIVITY
Off: Radio Transmit
Disabled All other states
On(Flash): TX/RX Data
7
Wireless Basics
The 802.11g USB Adapter is based on industry standards to provide easyto-
use and compatible high-speed wireless connectivity within your home or
business. Strictly adhering to IEEE 802.11g, the 802.11g USB Adapter will
allow you to access the data you want, when and where you want it. No
longer will you be limited to one location or forced to run new wiring through
your home or office. You will be able to enjoy the freedom that wireless
networking delivers.
A wireless LAN (WLAN) is a cellular computer network that transmits and
receives data with radio signals instead of wires. Wireless LANs are used
increasingly in both home and office environments. Innovative ways to utilize
WLAN technology are helping people to work and communicate more
efficiently. Increased mobility and the absence of cabling and other fixed
infrastructure has proven to be beneficial for many users.
Wireless users can use the same network applications they use on an
Ethernet LAN. Wireless adapters used on laptop and desktop systems,
support the same protocols as Ethernet adapter cards. For most users, there
is no noticeable functional difference between a wired Ethernet desktop
computer and a computer equipped with a wireless adapter - other than the
added benefit of the ability to roam within the wireless cell. Under many
circumstances, it may be desirable for mobile network devices to link to a
conventional Ethernet LAN in order to use servers, printers or an Internet
connection supplied through the wired LAN. A Wireless Access Point (AP) is
a device used to provide this link.
People use wireless LAN technology for many different purposes.
Mobility - Productivity increases when people have access to data in any
location within the operating range of the WLAN. Ad-hoc management
decisions based on real-time information can significantly improve worker
efficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change
and relocate. Networks that frequently change, both physically and logically,
can benefit from WLANs’ ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical. Furthermore, IEEE
8
standardization mandates interoperability of all WLAN devices that conform
to the 802.11g set of standards.
Installation Speed and Simplicity - Installing a wireless LAN system can
be fast and easy and can eliminate the need to pull cable through walls and
ceilings.
Installation Flexibility - Wireless technology allows the network to go where
wires cannot go.
Reduced Cost-of-Ownership - While the initial investment required for
wireless LAN hardware might be higher than the cost of wired LAN hardware,
overall installation expenses and life-cycle costs will be significantly lower.
Long-term cost benefits are greatest in dynamic environments requiring
frequent moves, adds, and changes.
Scalability - Wireless LAN systems can be configured in a variety of
topologies to meet the needs of specific applications and installations.
Configurations are easily changed and range from peer-to-peer networks
suitable for a small number of users to full infrastructure networks of
thousands of users that allow roaming over a broad area.
Standards - Based Technology
The IEEE 802.11g standard designates that devices operate at an optimal
data rate of 54 Megabits per second. This means you will be able to transfer
large files quickly or even watch a movie in MPEG format over your network
without noticeable delays. This technology works by transmitting high-speed
digital data over a radio wave utilizing OFDM (Orthogonal Frequency
Division Multiplexing) technology. OFDM works by splitting the radio signal
into multiple smaller sub-signals that are then transmitted simultaneously at
different frequencies to the receiver. OFDM reduces the amount of crosstalk
(interference) in signal transmissions. The 802.11g USB Adapter will
automatically sense the best possible connection speed to ensure the
greatest speed and range possible with the technology.
Installation Considerations
Designed to go up to 900 feet (~300 meters), 802.11g USB Adapter lets you
access your network with your laptop computer from virtually anywhere you
9
want. Keep in mind, however, that the number and thickness of walls,
ceilings or other objects that the wireless signals must pass through may
limit range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to
maximizing range is to follow these basic principles:
1. Keep the number of walls and ceilings between the Access Point and
your receiving device to a minimum - each wall or ceiling can reduce
your 802.11g USB Adapter’s range from 3-90 feet (1-30 meters.) For
some businesses or for a large residential home deployment, it may be
beneficial to have more than one access point with overlapping coverage.
2. Be aware of the direct line between Access Points and computers with
wireless adapters - a wall that is 1.5 feet thick (.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it
looks over 42 feet (14 meters) thick! Try to make sure that the Access
Points and adapters are positioned so that the signal will travel straight
through a wall or ceiling for better reception.
3. Building materials make a difference - a solid metal door or aluminum
studs may have a negative effect on range. Try to position Access Points,
and computers with wireless adapters so that the signal passes through
drywall or open doorways and not other materials.
5. Keep the 802.11g USB Adapter away (at least 3-6 feet or 1-2 meters)
from electrical devices or appliances that generate extreme RF noise.
For the average residence, range should not be a problem. If you experience
low or no signal strength in areas of your home that you wish to access,
consider positioning the Access Point in a location directly between the
computers with wireless adapters that will be connected. Additional Access
Points can be connected to provide better coverage in rooms where the
signal does not register as strongly as desired.
10
Getting Started
To begin, select the type of wireless network you will be building.
We will discuss the following types of networks in this section:
1. A Home Internet Network with A Residential Gateway/Router
2. A Home Internet Network with Multiple IP Addresses
3. An Ad Hoc Network
4. An Ad Hoc Network with Internet Sharing
Please select, from the four types of networks described above, the type of
network that is appropriate for your needs. Please follow the instructions in
the corresponding section that follows.
11
1. A Home Internet Network with A Residential Gateway/Router
(Network administrators with Dynamic IPs can also follow these instructions.)
If you have two or more computers (laptops or desktops) and want to share
files, printers, and Internet access using a DHCP-capable Residential
Gateway/Router – or - if you want to connect to an Ethernet network that
uses Dynamic (DHCP) IP addresses, then follow the instructions on the next
page.
Requirements: A Residential Gateway/Router connected with an Ethernet
(CAT5) cable to an 802.11g Access Point.
This type of installation requires that you provide a dynamic IP address for
each computer on your network. You will need a DHCP-capable Residential
Gateway/Router for your network.
12
To complete the installation, please follow these steps:
1. Connect the Router/Gateway to a Broadband connection (e.g., a
Cable modem or a DSL modem.)
2. Connect the 802.11g Access Point to the router.
3. Install the 802.11g USB Adapter into a laptop or desktop computer
on your wireless network
4. Check the Device Manager to confirm that the wireless adapter is
installed correctly. Please refer to the Networking Basics section in
this manual entitled: Checking the Installation of the Drivers for the
Wireless Adapter.
5. By default, the wireless adapter is set to obtain a Dynamic IP
Address. If you are having difficulty connecting, check to make sure
that the IP Address of the wireless adapter is within the IP address
range of your network. Please refer to the Networking Basics
section in this manual entitled: Checking the IP Address.
13
2. A Home Internet Network with Multiple IP Addresses
(Network administrators with Static IPs can also follow these instructions.)
If you have two or more computers (laptops or desktops) and want to share
files, printers, and Internet access using multiple IP addresses that you have
purchased from your Internet Service Provider -or- you want to connect to
an Ethernet network that uses Static IP Addresses, then follow the
instructions on the next page. When you have completed your network, it
should look similar to this:
Please note that this type of installation requires that your ISP (Internet
Service Provider) provides you a static IP address for each computer and
the Access Point on your network. Please refer to the manual that came
with your Access Point to determine its configuration.
Please follow these steps to complete the installation:
14
1. Connect the Wireless Access Point to a Broadband connection (i.e.,
a Cable modem or a DSL modem.)
2. Install the 802.11g USB Adapter in the computer(s) on your wireless
network
3. Check the Device Manager to confirm that the wireless adapter is
installed correctly. Please refer to the Networking Basics section in
this manual entitled: Checking the Installation of the Drivers for the
Wireless Adapter.
4. Set the Static IP Address of the wireless adapters if Multiple Dynamic
IP are not used.
Note: The IP Address for all computers must be in the same IP Address
range, and the Subnet Mask must be the same for all the computers on the
network. For example: If the first computer is assigned an IP Address of
192.168.0.2 with a Subnet Mask of 255.255.255.0, then the second
computer can be assigned an IP Address of 192.168.0.3 with a Subnet Mask
of 255.255.255.0, etc.
If you are using a PPPoE client (Point to Point Protocol over Ethernet),
please contact your ISP (Internet Service Provider) for further instructions
regarding connecting to the Internet.
15
3. An Ad Hoc Network
If you have two or more computers (desktops or laptops) and want to share
files and printers, but no Internet connection, please complete the following
instructions. When your Ad Hoc network is complete it may look similar to
this:
(Requirements: Wireless network adapters for all computers in the ad-hoc network.)
To complete this installation, please follow these steps:
1. Install the 802.11g USB Adapter into your computers.
2. Set the Static IP Address of the wireless adapters.
Note: The IP Address for all computers must be in the same IP Address range, and
the Subnet Mask must be the same for all computers on your network. For example:
If the first computer is assigned an IP Address of 192.168.0.2 with a Subnet Mask of
255.255.255.0, then the second computer can be assigned an IP Address of
192.168.0.3 with a Subnet Mask of 255.255.255.0, etc.
3. Check the Device Manager to confirm that the wireless adapter is
installed correctly. Please refer to the Networking Basics section in
this manual entitled: Checking the Installation of the Drivers for the
Wireless Adapter.
4. Check the Wireless Configuration for each wireless adapter. Please
refer to the Networking Basics section in this manual entitled:
Checking the Wireless Configuration.
5. Learn to share printers and files. Please refer to the Networking
Basics section in this manual entitled: Adding and Sharing Printers in
Windows XP.
16
4. An Ad Hoc Network with Internet Sharing
If you have two or more computers (desktops or laptops) and want to share
files, printers, and Internet access using one computer or laptop as an
Internet Server, then follow the instructions below. When you have
completed your network, it should look similar to this:
To share an Internet connection with Internet Sharing software you will need
to purchase Internet Sharing software or use the Internet Connection
Sharing (ICS) utility provided with Windows XP, Windows 2000, Windows
ME or Windows 98SE.
Please follow your software documentation to properly configure the Internet
sharing software after you install your wireless networking adapters. To
install your wireless network adapter follow the instructions on the next page.
If the Internet Sharing Software will be installed on the same computer into
which you are installing the 802.11g USB Adapter, then follow these steps:
17
1. Install the 802.11g USB Adapter Wireless Stick Adapter.
2. Check the Device Manager to confirm that your adapter is installed
correctly.
3. Install your Internet Sharing Software.
4. If required by the software, set the static IP Address for the wireless
adapter.
Note: The IP Address for all the computers on the network must be in the same IP
Address range, and the Subnet Mask must be the same for all the computers on the
network. For example: If the first computer is assigned an IP Address of
192.168.0.2 with a Subnet Mask of 255.255.255.0, then the second computer can
be assigned an IP address of 192.168.0.3 with a Subnet Mask of 255.255.255.0, etc.
If the Internet Sharing Software will be installed on a computer other than the
one in which you are installing the 802.11g USB Adapter, then follow these
steps:
1. Install the 802.11g USB Adapter into the computer.
2. Check the IP Address for the wireless adapter. Please make certain
that all the computers on your network are in the same IP Address
range. .
Note: By default, the wireless adapter is set to obtain a Dynamic IP
Address, automatically.
18
First Time Setup
Before You Begin
1. You will need a computer with an available USB port for connection
to your 802.11g USB Adapter.
2. Your 802.11g USB Adapter supports the Wireless Encryption
Protocol (WEP). If the network you are going to connect to uses
WEP, you will need the WEP keys that are in use for your network.
3. Turn on your computer, insert one end of the USB extension cable
into your 802.11g USB Adapter, and insert the other end into your
computer.
19
Software Installation
Installing the software involves two steps. The first is to install the Driver.
The second is to install the Configuration Utility.

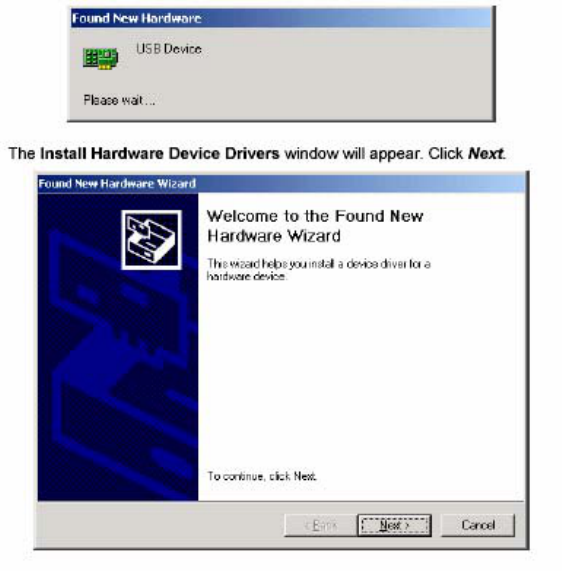

When the 802.11g USB Adapter has been inserted into a USB port, the
Found New Hardware Wizard screen appears.
20
Select Search for a suitable driver. . . .
Insert the Driver CD into the CD-ROM drive. The Install Hardware Device
Drivers window will appear. Click Next.
21
The New Hardware Wizard will then search your computer for a suitable
driver for your 802.11g USB Adapter, as shown in the following screen.
Please Click “ Next”.
22
The Wizard then announces the results of the search and prompts you to
install the driver.

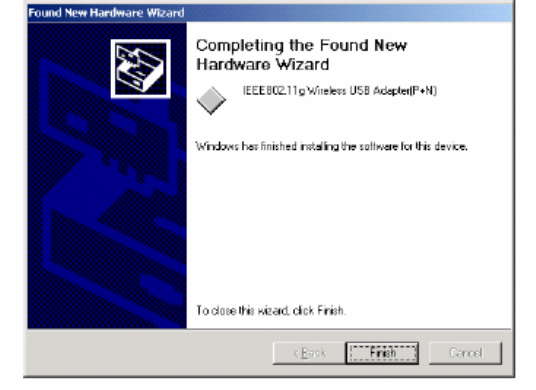

Then Wizard announces the completion of the driver installation. Finally
please Click “Finish”.
You must restart your computer to make the driver active.
Once the driver has been installed, proceed to the next step:
23
Installing the WLAN Adapter Utility
The procedure for installing the Wireless LAN Adapter Utility is the same for
Windows 98, Windows 98SE, Windows Me, and Windows 2000.
(Windows XP has built-in WLAN Adapter support and does not require the
Wireless Utility.)
Open the WLAN folder on the 802.11g USB Adapter Installation CD. Locate
the file named Setup.exe and double-click on this file.
Next, the Wizard will ask you to choose a destination folder for WLAN
Monitor. Browse to select a folder, or accept the default destination and
simply click Next.
Setup.exe
24
You will then be asked to select a program folder so that the Wizard can add
program icons. Again, you may choose another folder or accept the default
folder(s) shown on the screen. Click Next.
25
That’s it – you’ve finished installing the WLAN Monitor. Choose to restart
your computer now or wait until later. Click Finish.
26
Uninstalling
Uninstalling the software involves two steps. The first is to uninstall the
Configuration Utility. The second is to uninstall the drivers.

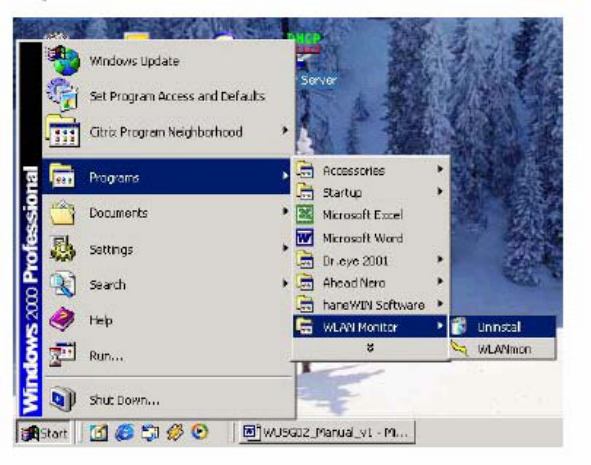

To uninstall the WLAN adapter utility simply click Uninstall under
Programs/WLAN Monitor/Uninstall.
27

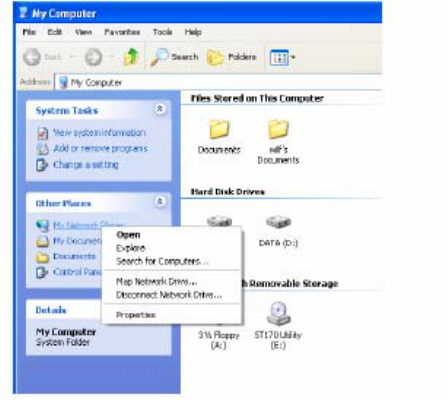

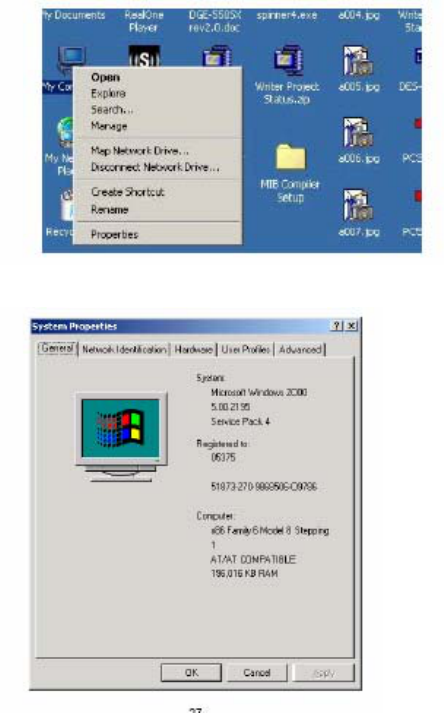

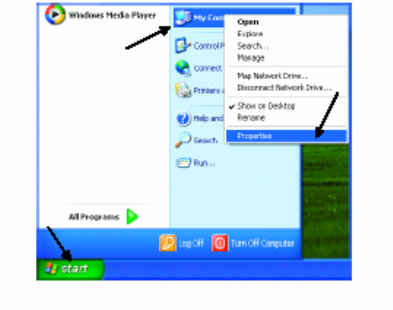

To uninstall the driver, right-click on My Computer.
Left-click on Properties to bring up the System Properties screen.
28

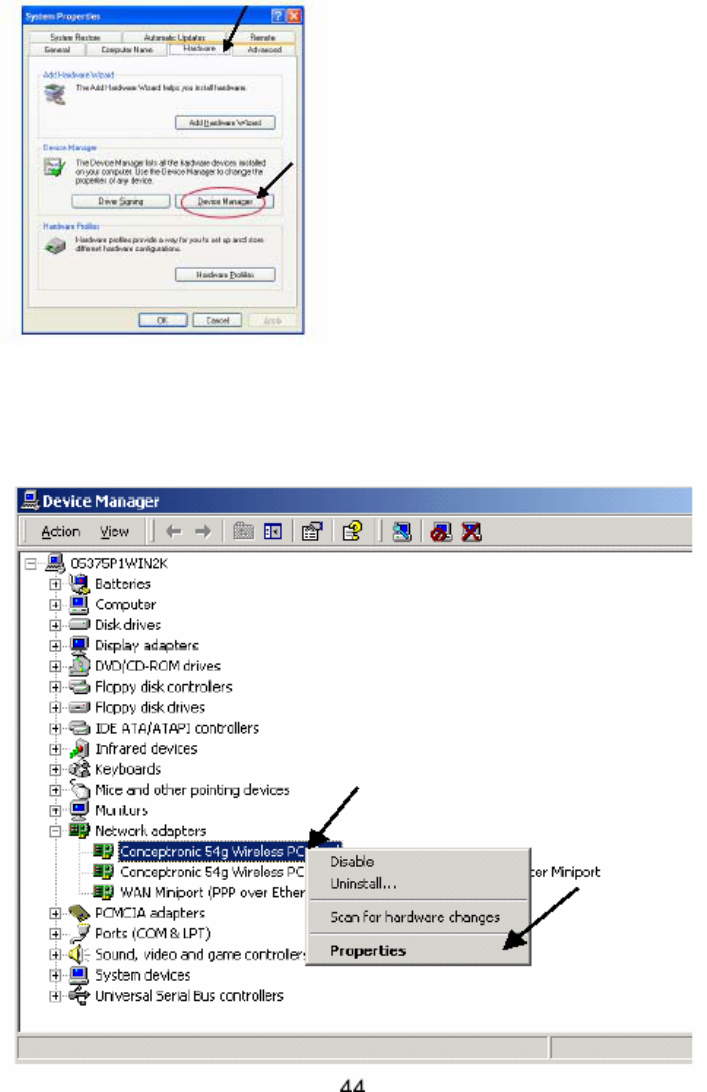

Click on the Hardware tab. Then, click on Device Manager
Click on Network adapters.
30

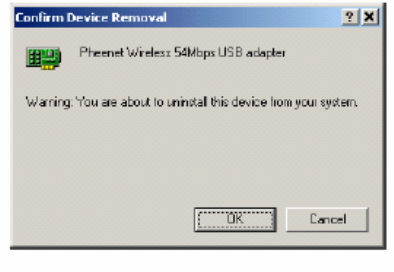

You will then see a Confirm Device Removal screen. Click OK to complete
uninstallation.
31
Connecting to a Network
If you are using Windows 2000, 98, ME, or NT, the Configuration Utility
program for the 802.11g USB Adapter is called WLAN Monitor. Once you
have installed WLAN Monitor (the configuration utility), you can read this
section of the manual to find out how to connect to a wireless network using
WLAN Monitor. Screenshots for this section have been taken in Windows
2000.

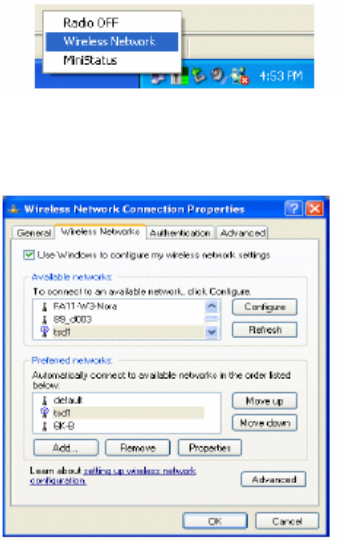

To access WLAN Monitor once it has been installed, just right-click on the
WLAN Monitor icon in the taskbar:
The pop-up window below will appear. Click on Wireless Network.

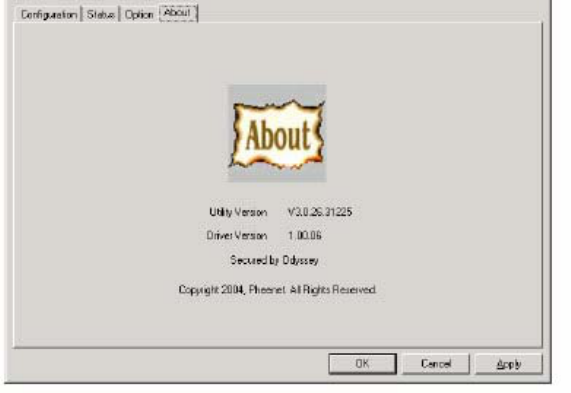

The Wireless Network Properties window will appear. There are four tabs:
Configuration, Status, Options, and About.
32
Configuration
The Configuration tab is the most important and useful of the four; it allows
you to choose, add, and delete networks. You may also modify properties of
your 802.11g USB Adapter to allow connection to encryption-protected
networks.
On the left-hand side of the screen is a list of available WLANs. To connect
to a WLAN, select it by clicking on it, then click Add.
The Wireless Network Properties screen will appear.
33
In the Wireless Network Properties screen you may change the name of
the WLAN. You may also enter wireless network encryption keys by
checking Network Authentication (Shared mode) or Data encryption
(WEP enabled). You may enter up to four keys of length 10 or 25
hexadecimal digits. You may also set one of the four keys as a default key.
Click on IP Config to set the IP address, Subnet mask, and Default gateway
manually instead of obtaining the IP address automatically through the
Dynamic Configuration Host Protocol (DCHP) server. You may also set the
DNS server address settings and WINS address settings.
34
If the network you are using is a computer-to-computer network or ad hoc
network, no access points are used. You may check the box “This is a
computer to computer (ad hoc) network; no access points are used” to
enable this option.
On the Configuration Tab, click on Refresh to call up all the available
WLANs. On the right side of the screen is a list of Preferred WLANs. These
are WLANs that have already been added to the wireless network. Click
New to rename the WLAN and reset its properties. You will see the
Wireless Network Properties screen as displayed previously when you
click New. This is also the same screen that will appear when you click
Properties on the right side of the Configuration Tab screen. Click
Remove to remove the connection.
On the right side of the screen you may click Move Up to move the selected
WLAN up in the order it is displayed on the Preferred WLANs screen. You
may click Move Down to move the selected WLAN down in the order in
which it is displayed.
When you are done entering the settings and options for the wireless
network click on OK, Cancel, or Apply. OK places the settings into effect
and closes the graphical user interface (GUI). Cancel makes invalid all
settings entered. Apply implements the setting entered, but does not close
the GUI.
35
Under the Status Tab you will find information on the connection state,
hardware information, and advanced state.
Status
Click on the Status tab to check on the performance of the network you have
selected to connect with.
Settings under Connected State are the Connection status (connected or
disconnected), SSID, Network type (infrastructure or Ad Hoc), WEP Status
(enabled or disabled), Speed (of the wireless connection), and Signal
Strength (a colored bar shows the intensity of the radio signals in the
network).
Under Hardware Information the Media Access Control (MAC) address of
the hardware (WLAN cardbus card) is given. The MAC address is a factory
given address that cannot be changed.
Advanced State shows the Radio Status (ON or OFF).
Click OK to accept the connection status and exit the GUI. Click Cancel to
not accept the status settings and exit the GUI.
36
Under the Option Tab general settings and advanced settings are shown.
Options
Under General Setting, check “Auto launch when Windows starts up” so
that WLAN automatically launches when Windows starts up. CheckEnable
IP Setting in Profile” to enable the IP settings made under IP Config in the
Wireless Network Properties screen of Configuration Tab. If checked, the
current IP settings will be saved. If unchecked (and previously checked),
previous IP settings will be restored. Check “Disable Radio” to disconnect
the network connection without removing the C54U Wireless USB Stick
Adapter.
Under Advance Setting, there are settings for Radio Frequency, Start
adhoc Channel, Power Save Mode, Transmit Power and Super G.
Please set Super G “Enable” to drive transmit rate upto 108Mbps.
The WLAN card to connect allows the user to set the WLAN type to
connect: infrastructure and ad-hoc network, infrastructure network only, or
ad-hoc network only. You may also automatically connect to non-preferred
networks by checking the option.
37
About
Click the About tab to determine the Utility and Driver version for your
802.11g USB Adapter.
38
Using the Configuration Utility for Windows XP
The WLAN Monitor Configuration Utility supports Windows XP; however,
Windows XP has its own utility for wireless devices. In order to use the
WLAN Monitor Configuration Utility as described in the last section you must
disable the utility built into Windows XP.
Right click on the wireless icon in the taskbar, select Wireless Network, then
uncheck the indicated box.
If you leave the “Use Windows to configure my wireless network settings”
box checked you will use the Windows XP utility for wireless devices.
The following demonstrates how to manage wireless network connections
with the Windows XP built-in utility.
39
Creating a connection
Right click on “My Network Places” to obtain a drop-down menu with
Properties listed.
Left-click on Properties to obtain the Network Connections screen.
Right-click on the “Wireless Network Connection” icon to produce another
drop-down menu with item Properties.
40
Select the Wireless Networks tab.
Under Available Networks, click on the Access Point with which you wish to
establish a connection. In the example above, a network called TSD1.
41
Enter the appropriate settings and
click OK to return to the Wireless
Connection screen.
42
43
Troubleshooting
This chapter provides solutions to problems that can occur during the
installation and operation of 802.11g USB Adapter. Read the following
descriptions if you are having problems.
1. Checking the Installation of the Drivers for the Wireless Adapter
Go to Start.
Right-click on My Computer.
Click Properties.
44
Select the Hardware Tab. Click Device Manager.
Click on Network adapters.
Right-click on Conceptronic 54g Wireless PC Card.
Select Properties to check that the drivers are installed properly.
45

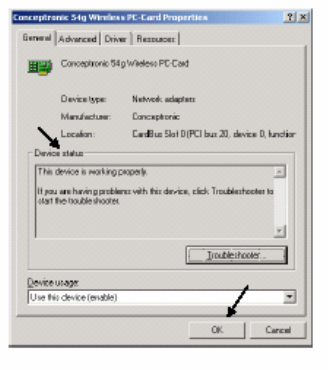

Look under Device Status to check that the device is working properly.
Click OK.
46
2. The computer does not recognize the 802.11g USB Adapter.
Make sure that 802.11g USB Adapter is properly seated in the
computer’s PCI slot.
If Windows does not detect the hardware upon insertion of the
Adapter make sure to completely remove drivers that were previously
installed. To remove the drivers, do the following:
A. Under Tools> select Folder Options…> select View >
under Hidden files and folders > select Show hidden
files and folders.
B. Uncheck Hide extension for known file types > click on
Apply.
C. Search for the files N3AB.sys and netN3AB.inf. Remove
these files from the INF and SYSTEM32 (DRIVERS) folders
in the Windows directory. Note: in Windows XP and
Windows 2000 will rename netN3AB.inf that have not
received certification into oem.inf files (e.g., oem1.inf.)
Therefore, please also remove all oem*.inf and oem*.PNF
files in inf folder of WINNT.
3. 802.11g USB Adapter does not work properly after the driver is
installed.
Restart the computer. (In some cases, it will be necessary to restart
the computer after installing the drivers.)
In Windows XP, go to Start>Control Panel>System>Hardware
Tab> click on the Device Manager Tab> click on Network Cards>
double click on 802.11g USB Adapter > make sure that “This
device is working properly” is displayed under Device Status
under the General Tab.
If the device is not working properly and a yellow exclamation mark is
displayed, then there is probably a resource conflict. In this case,
make sure the computer system has a free IRQ and if necessary,
uninstall the drivers, restart the system, and repeat the driver
installation procedure.
47
4. The wireless client cannot access the Internet in the Infrastructure
mode.
Make sure the wireless client is associated and joined with the
correct Access Point. To check this connection: Right-click on the
Networking Icon in the taskbar> select View Available Wireless
Networks. The Connect to Wireless Network screen will appear.
Please make sure you have selected the correct available network,
as shown in the illustrations below.
Check that the IP Address assigned to the wireless card is within the
same IP Address range as the access point and gateway. (For
example: if one computer has an IP Address of 192.168.0.2, the
48
other computers should have IP Addresses that are sequential, like
192.168.0.3 and 192.168.0.4. The subnet mask must be the same for
all the computers on the network.) To check the IP Address
assigned to the wireless card, double-click on the Network
Connection Icon in the taskbar > select the Support tab and the IP
Address will be displayed.
If you are entering a DNS Server Address, you must also enter the Default
Gateway Address. (Remember that if you have a DHCP-capable router,
you will not need to assign a Static IP Address.
49
Technical Specifications
Standards
IEEE 802.11b (up to 11 Mbps)
IEEE 802.11g (up to 54 Mbps)
Supported OS
Windows XP
Windows 2000
Windows ME
Windows 98SE
Frequency Range
2400-2483.5 MHz ISM band (IEEE 802.11b)
2400-2472MHz Ism band (IEEE 802.11g)
Data Rates
1, 2, 5.5, 11 Mbps (IEEE 802.11b)
6, 9, 12, 18, 24, 36, 48, 54Mbps (IEEE 802.11g)
Modulation Techniques
IEEE 802.11g
BPSK
QPSK
16 QAM
64 QAM
OFDM
IEEE 802.11b
DQPSK
DBPSK
DSSS
CCK
Data Security
64, 128, 152-bit WEP (Wired Equivalent Privacy) Encryption
50
Media Access Control
CSMA/CA with ACK
Current Consumption
Transmit mode - 2250mW
Receive mode – 2300mW
Operating Voltage
5V± -10%
Network Architecture
Infrastructure Mode (Communications to wired networks via
Access Points with Roaming)
MTBF (Mean Time Between Failure)
30,000 hours
Physical Dimensions
L ~ 8.5 cm
W ~2.8 cm
H ~ 1.2 cm
Temperature:
Operating: 0ºC to 55ºC (32ºF to 140ºF)
Storing: -20ºC to 75ºC (-4ºF to 167ºF)
Humidity:
10%-90%, non-condensing (operating)
5%-95%, non-condensing (non-operating)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.

Navigation menu
