Quick Installation Guide 0401

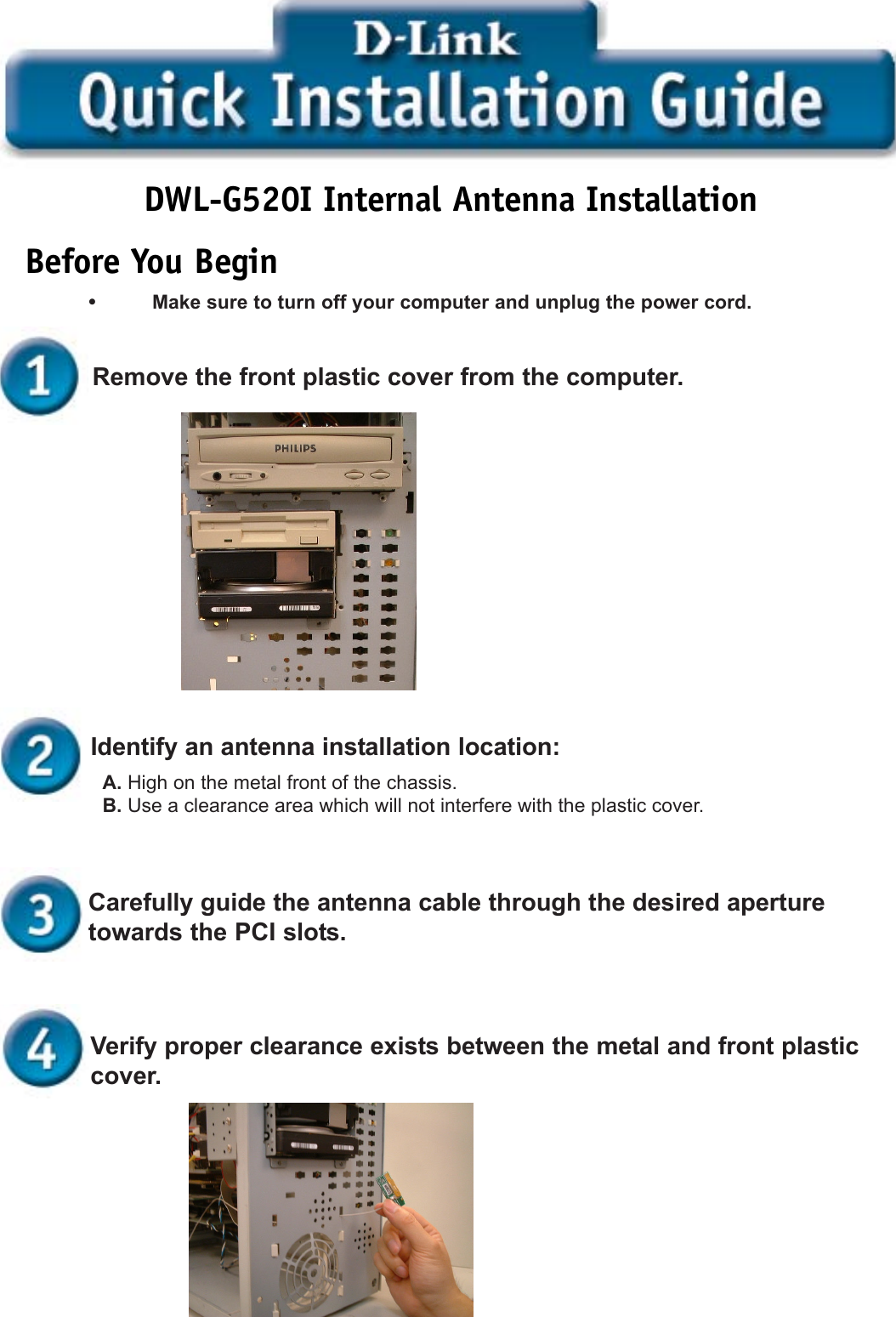

Before You BeginDWL-G520I Internal Antenna Installation•Make sure to turn off your computer and unplug the power cord.A. High on the metal front of the chassis.B. Use a clearance area which will not interfere with the plastic cover.Identify an antenna installation location:Remove the front plastic cover from the computer.Carefully guide the antenna cable through the desired aperturetowards the PCI slots.Verify proper clearance exists between the metal and front plasticcover.

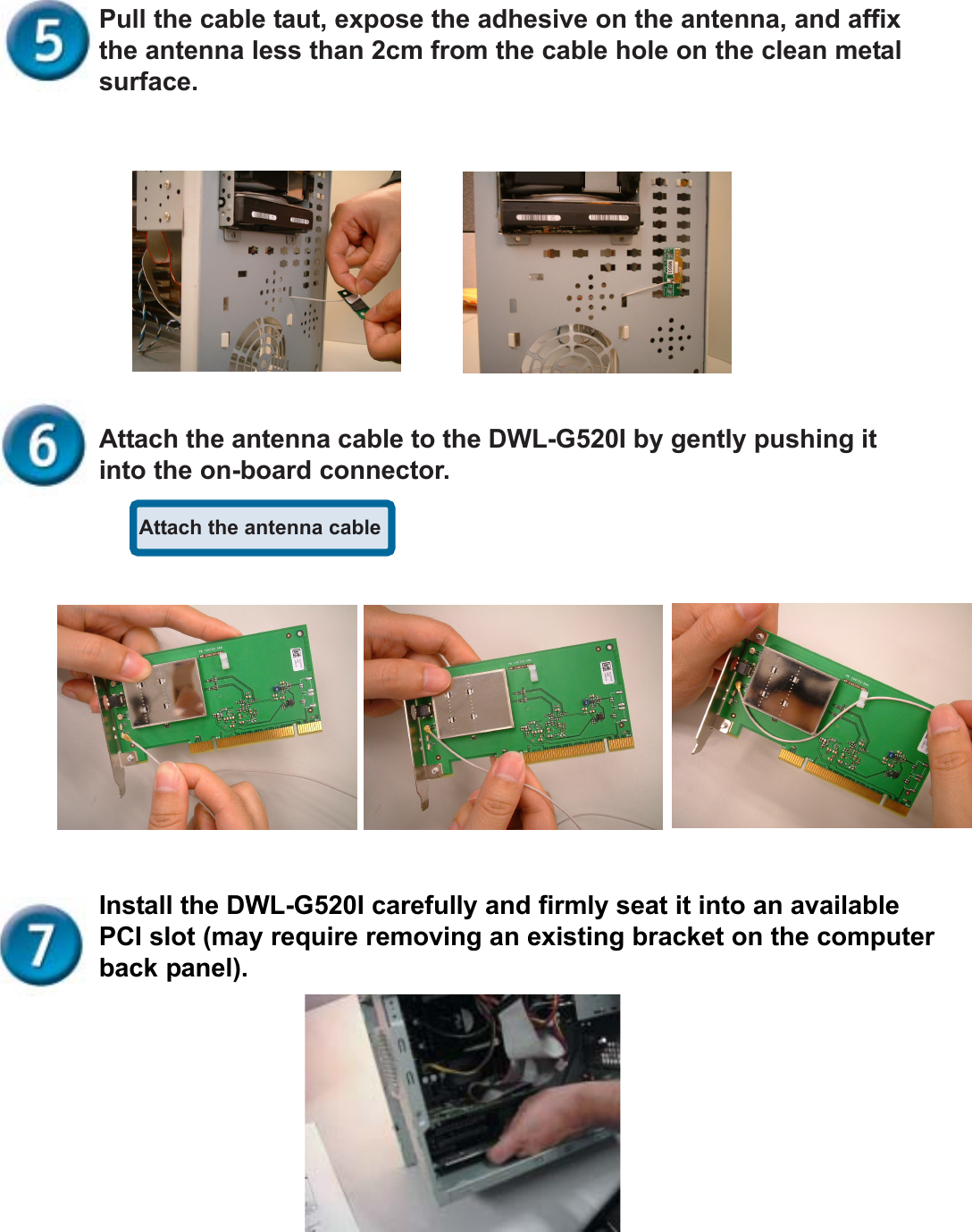

Attach the antenna cablePull the cable taut, expose the adhesive on the antenna, and affixthe antenna less than 2cm from the cable hole on the clean metalsurface.Attach the antenna cable to the DWL-G520I by gently pushing itinto the on-board connector.Install the DWL-G520I carefully and firmly seat it into an availablePCI slot (may require removing an existing bracket on the computerback panel).

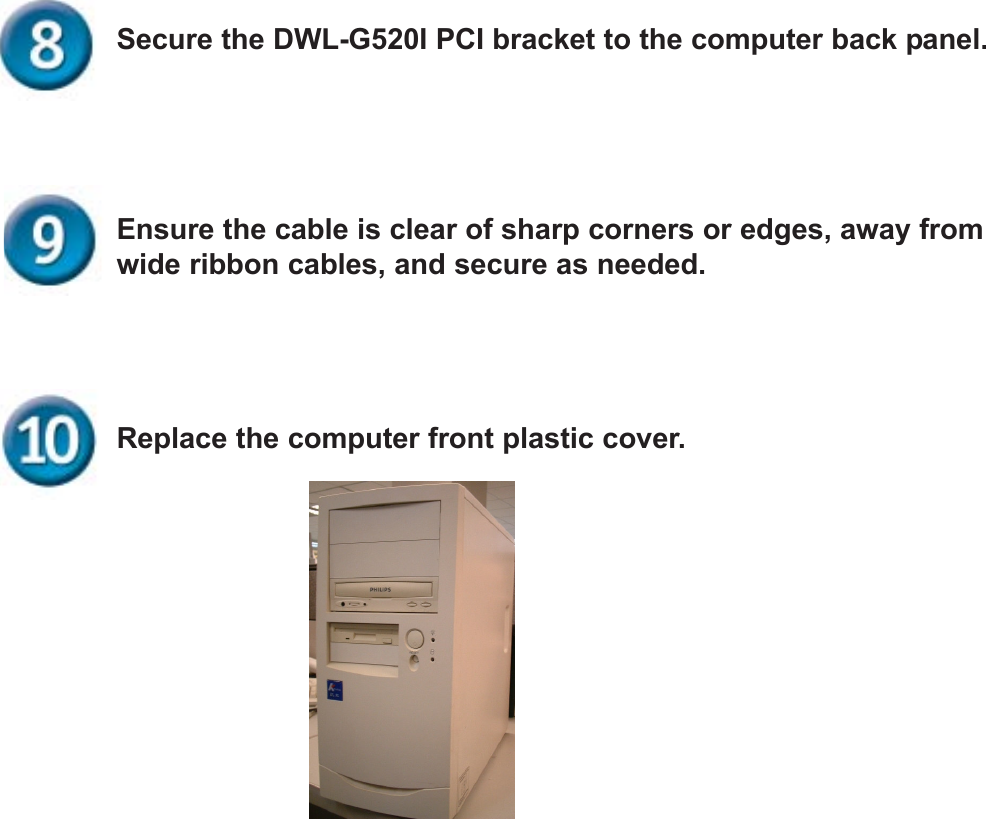

Replace the computer front plastic cover.Ensure the cable is clear of sharp corners or edges, away fromwide ribbon cables, and secure as needed.Secure the DWL-G520I PCI bracket to the computer back panel.
