R
R
Designed by ALPINE Japan
68-24567Z68-A
• OWNER’S MANUAL
Please read before using this equipment.
• MODE D’EMPLOI
Veuillez lire avant d’utiliser cet appareil.
•MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
EN
FR
ES
Thank you for purchasing this Alpine product. Please take a moment to protect your purchase by
registering your product now at the following address: www.alpine-usa.com/registration.
You will be informed of product and software updates (if applicable), special promotions, news
about Alpine, and entered for a chance to win prizes.
Merci d’avoir acheté ce produit Alpine. Nous vous invitons à consacrer un moment à la protection
de votre achat en enregistrant votre produit dès maintenant à l’adresse suivante :
www.alpine-usa.com/registration.
Vous serez tenu informé des mises à jour des produits et des logiciels (le cas échéant), des
promotions spéciales, de l’actualité d’Alpine, et vous aurez une chance de remporter des prix.
Gracias por adquirir este producto Alpine. Con solo unos pocos pasos podrá proteger su producto,
registrándolo a través de la siguiente dirección: www.alpine-usa.com/registration.
Recibirá información sobre nuevos productos y software, promociones especiales, novedades sobre
Alpine y participará en el sorteo de premios.
9-INCH ADVANCED NAVI STATION
X009
This HD Radio receiver enables:
ALPINE ELECTRONICS MARKETING, INC.
1-7, Yukigaya-Otsukamachi, Ota-ku,
Tokyo 145-0067, JAPAN
Phone: 03-5499-4531
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
Cedex, France
Phone 01-48638989
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam
Victoria 3803, Australia
Phone 03-8787-1200
ALPINE ELECTRONICS GmbH
Wilhelm-Wagenfeld-Str. 1-3, 80807 München, Germany
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Phone 0870-33 33 763
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone 945-283588
3-EN
ENGLISH
Contents
Operating
Instructions
PRECAUTIONS
IMPORTANT INFORMATION ....................... 8
WARNING
Points to Observe for Safe Usage ..................... 8
WARNING ................................................. 9
CAUTION .................................................. 9

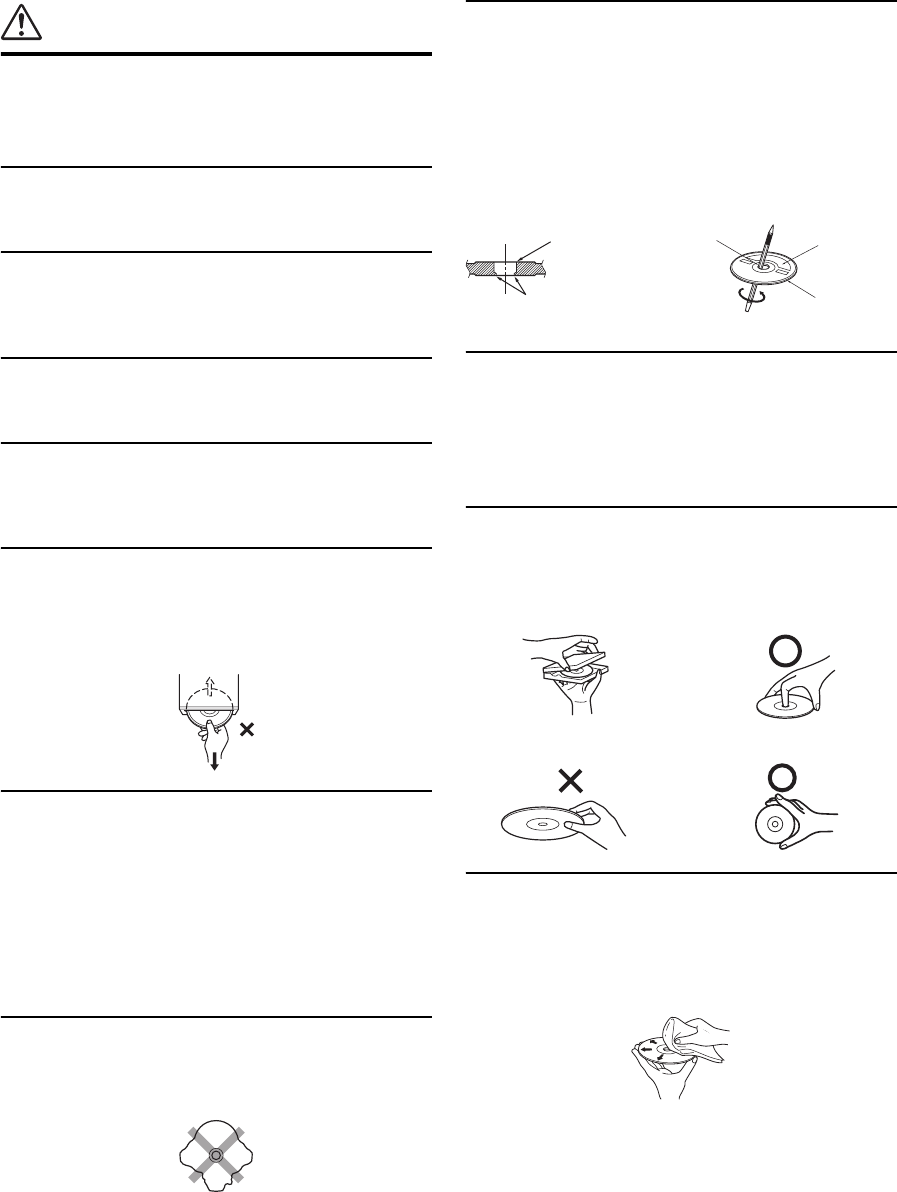

NOTICE ................................................... 10

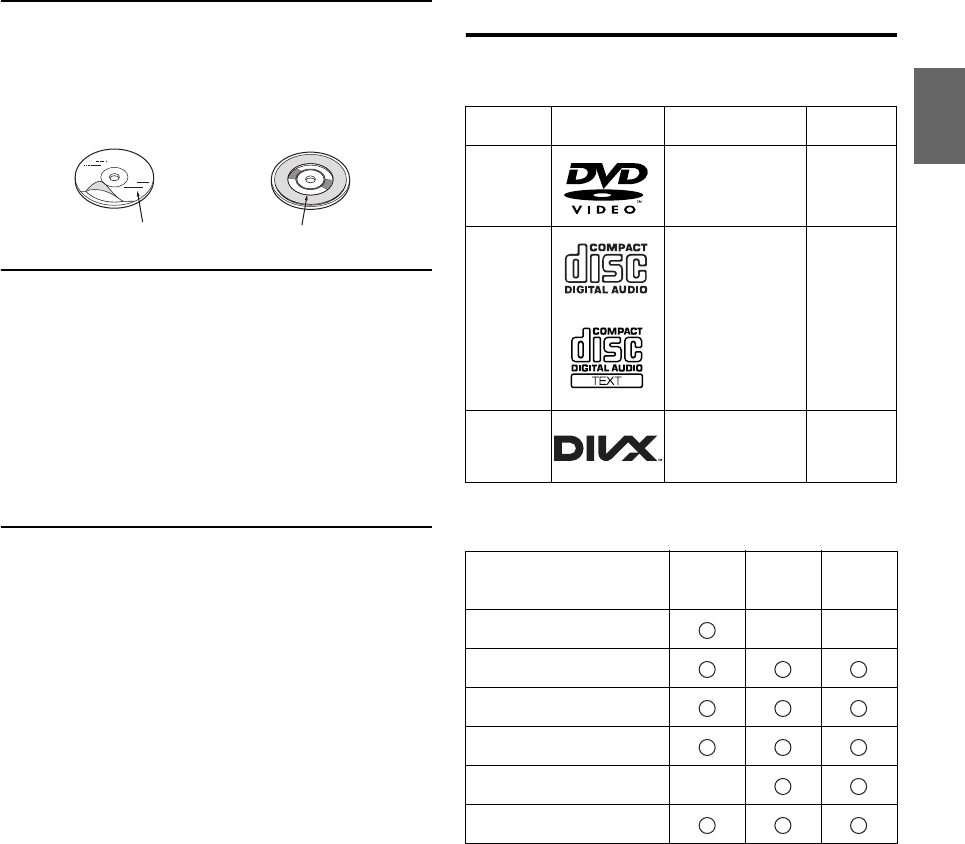

Discs Playable on This Unit ................. 11
Features
Auto user setting change ................................ 15
My Favorites ................................................... 15
Easy sound setting by car type
(i-Personalize) ............................................. 16

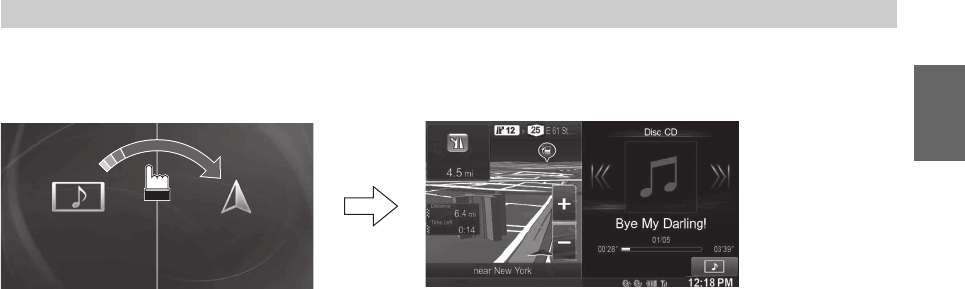

About Dual Screen ......................................... 16
Dual Screen Display Position ..................... 17
Getting Started
Accessory List ................................................ 18

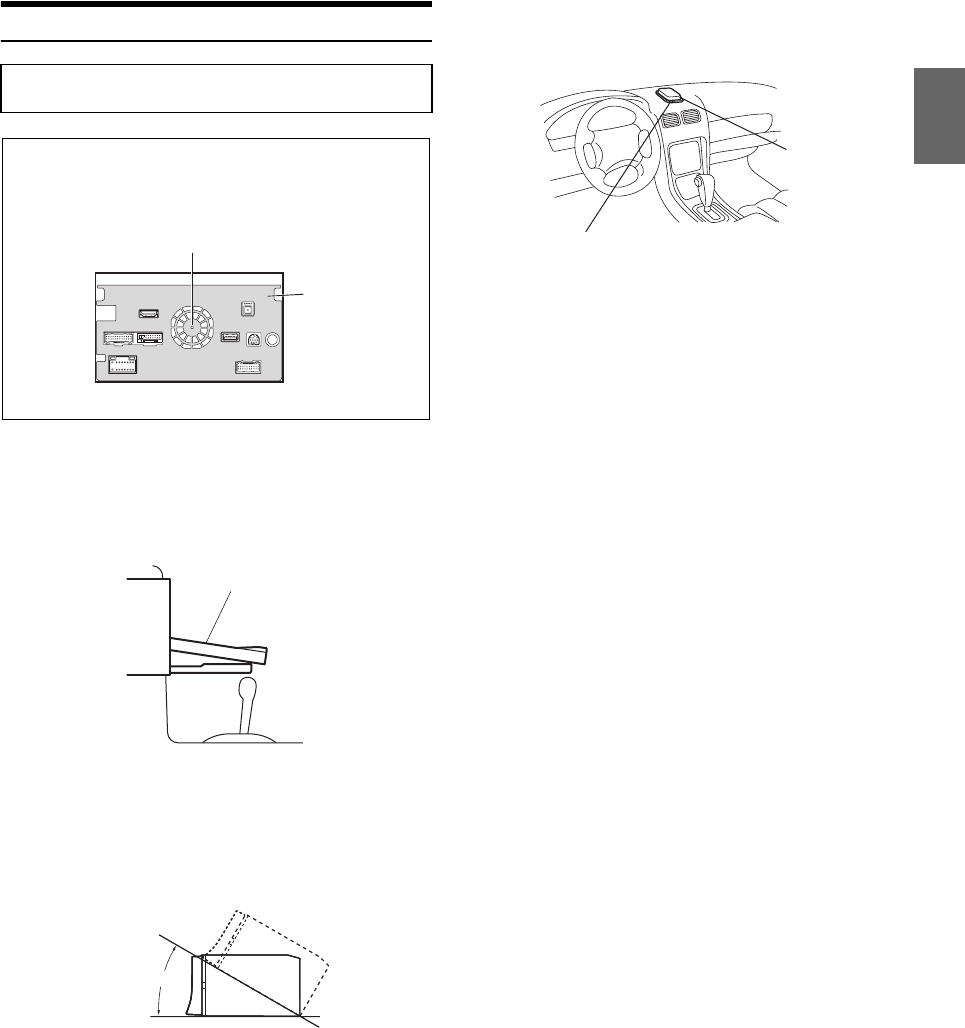

Location of Controls ...................................... 18
Turning Power On or Off ............................... 19
Turning the System On ................................... 19
Initial System Start-Up ................................... 19

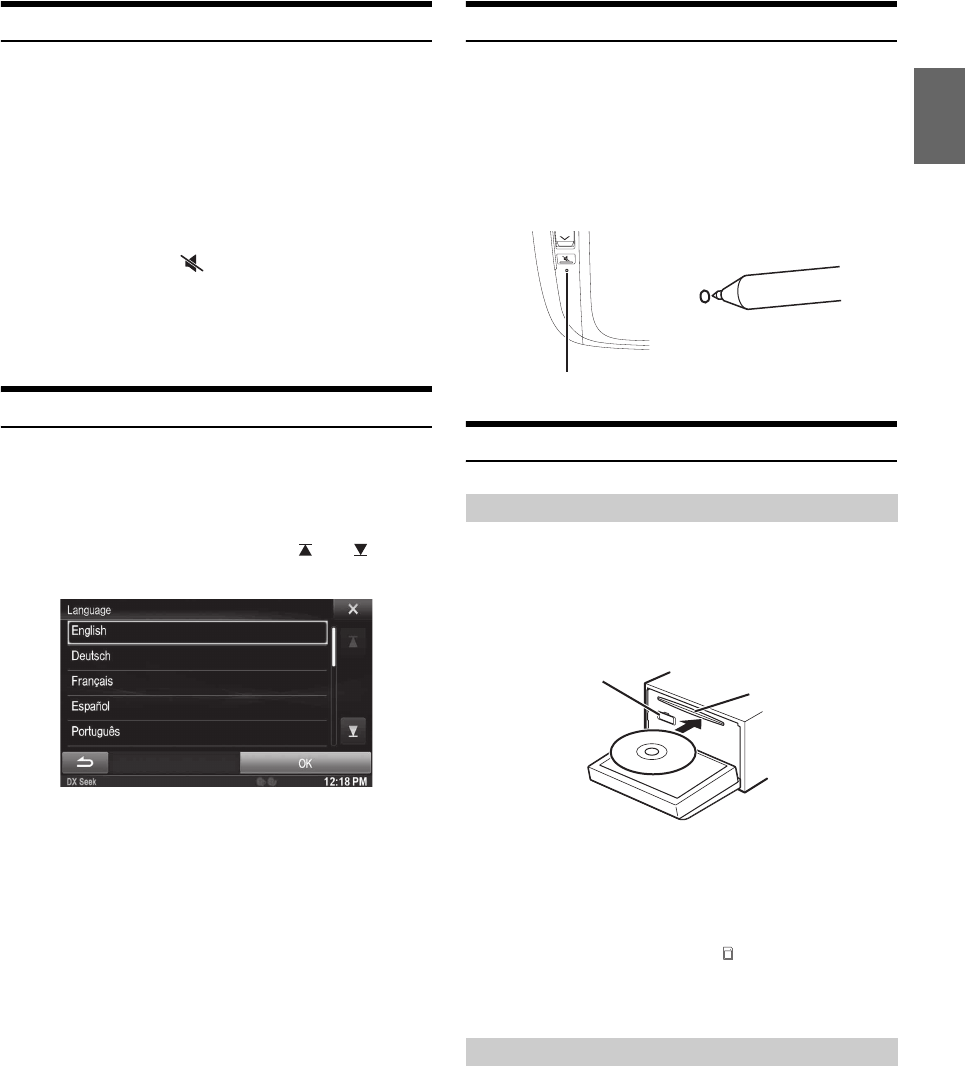

Inserting/Ejecting a Disc ................................ 19
Inserting the Disc ........................................ 19
Removing the Disc ...................................... 19
Adjusting the Screen Viewing Angle ............. 20
Adjusting the Volume ..................................... 20
Lowering Volume Quickly ............................. 20
Common Operations

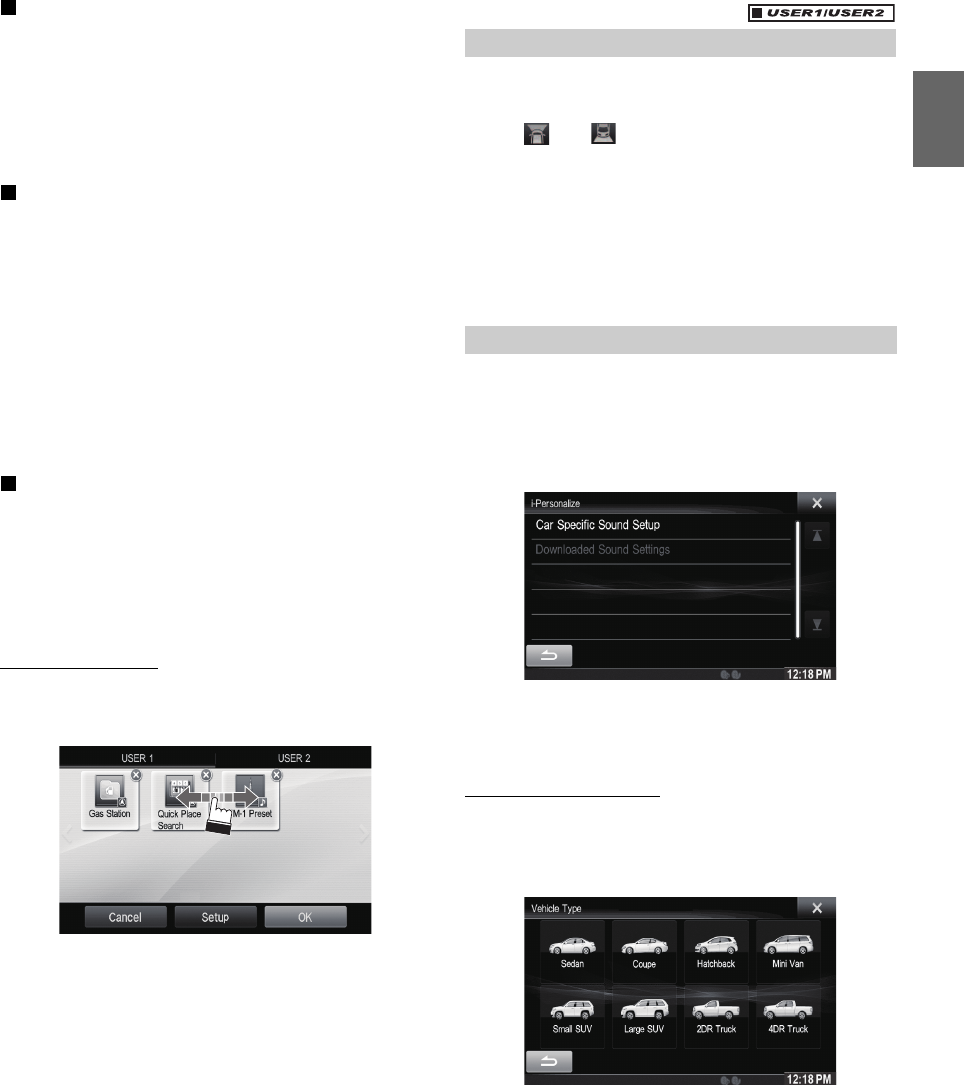

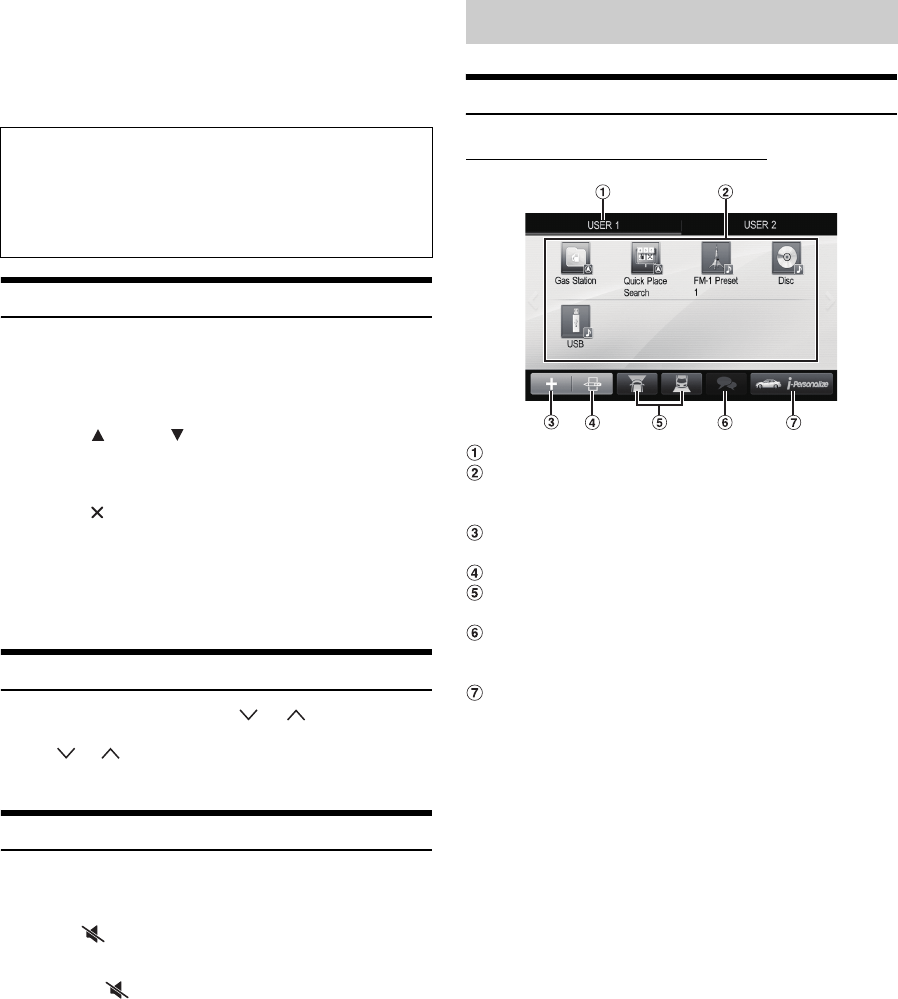

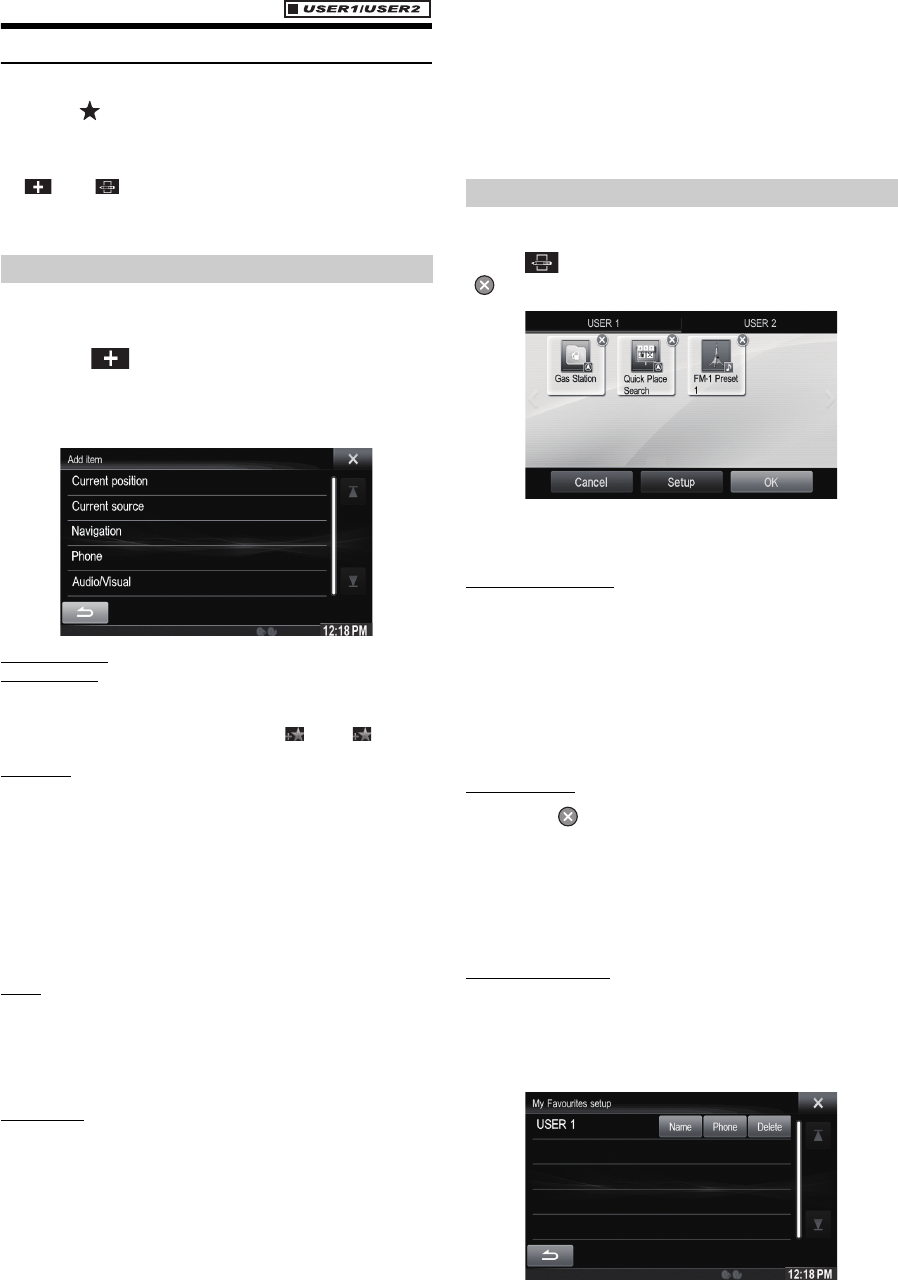

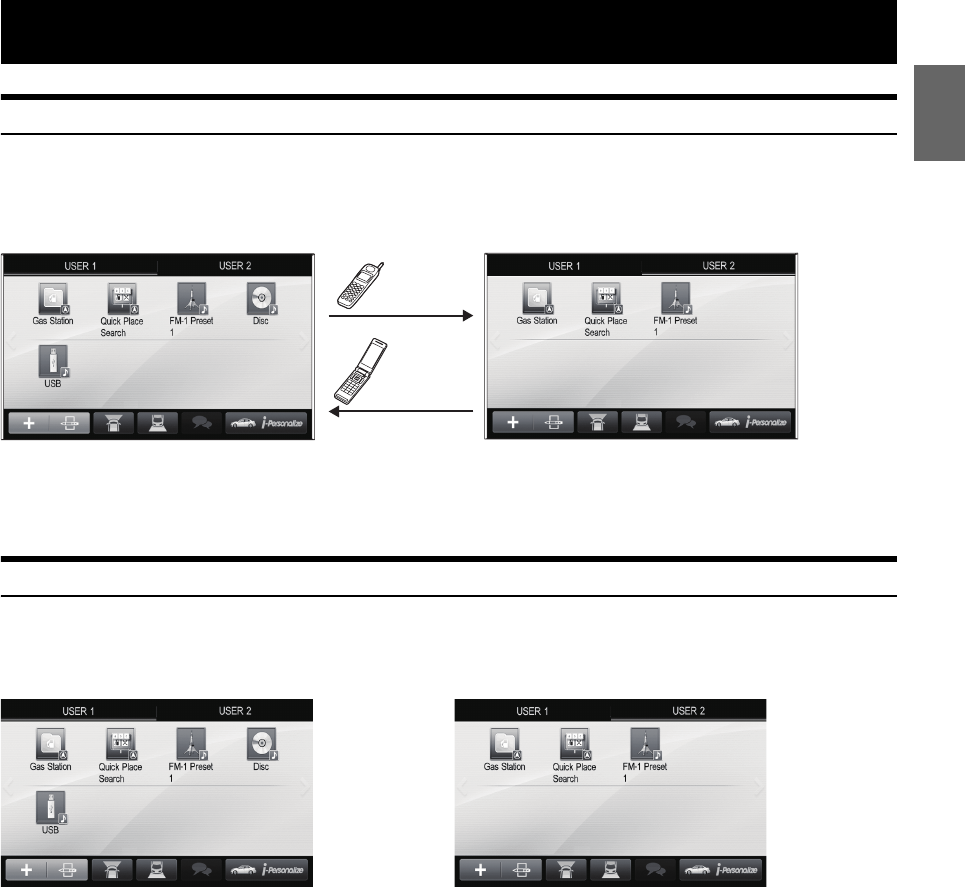

Using My Favorites .........................................20

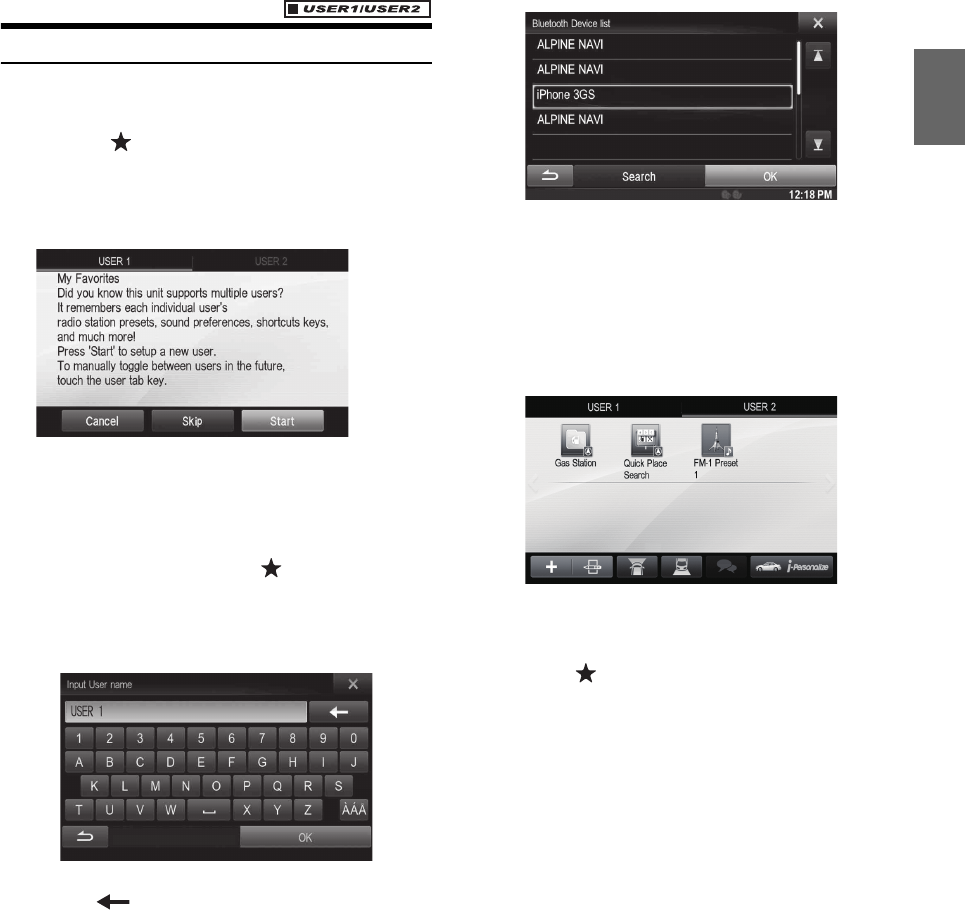

User Registration ............................................21
Setting My Favorites .......................................22
Adding My Favorites ...................................22
Editing My Favorites ...................................22

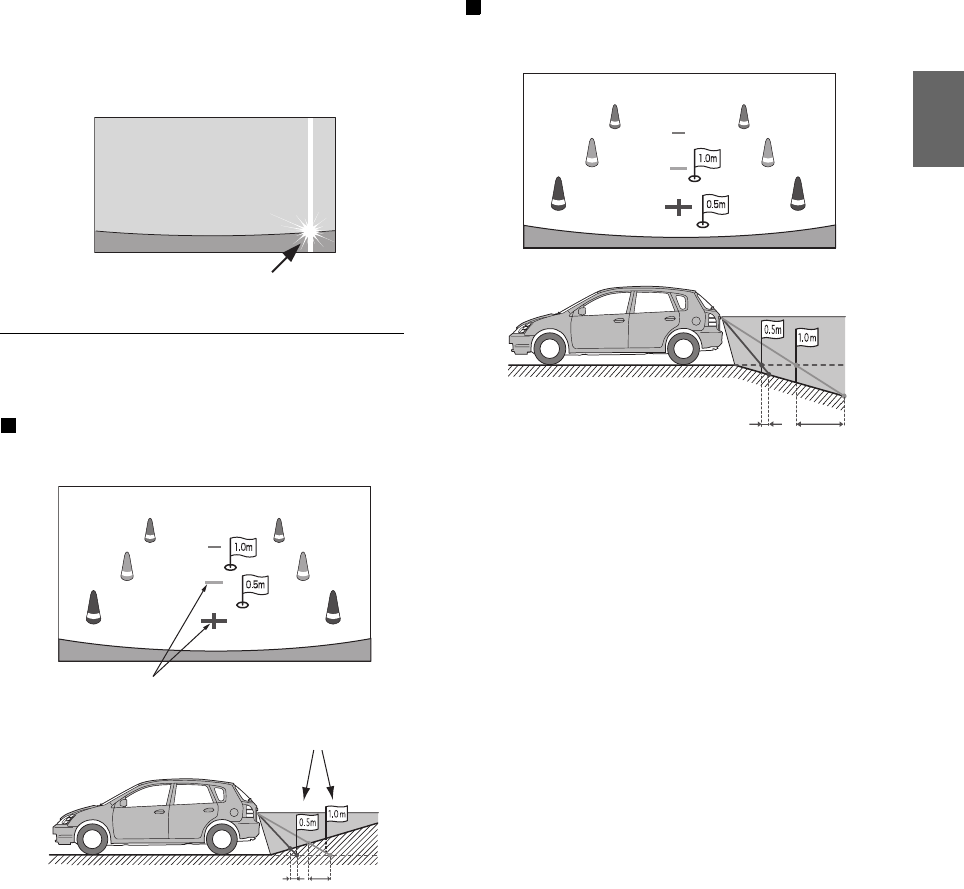

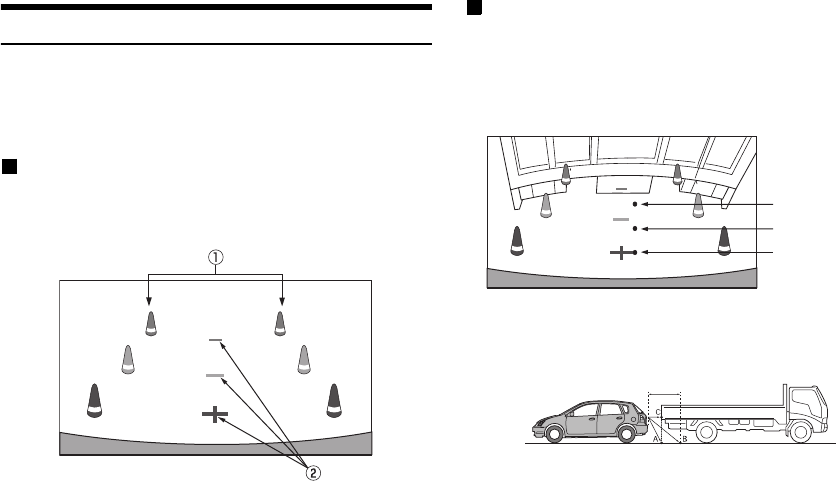

Displaying the Camera Image .....................23
i-Personalize Setup ......................................23

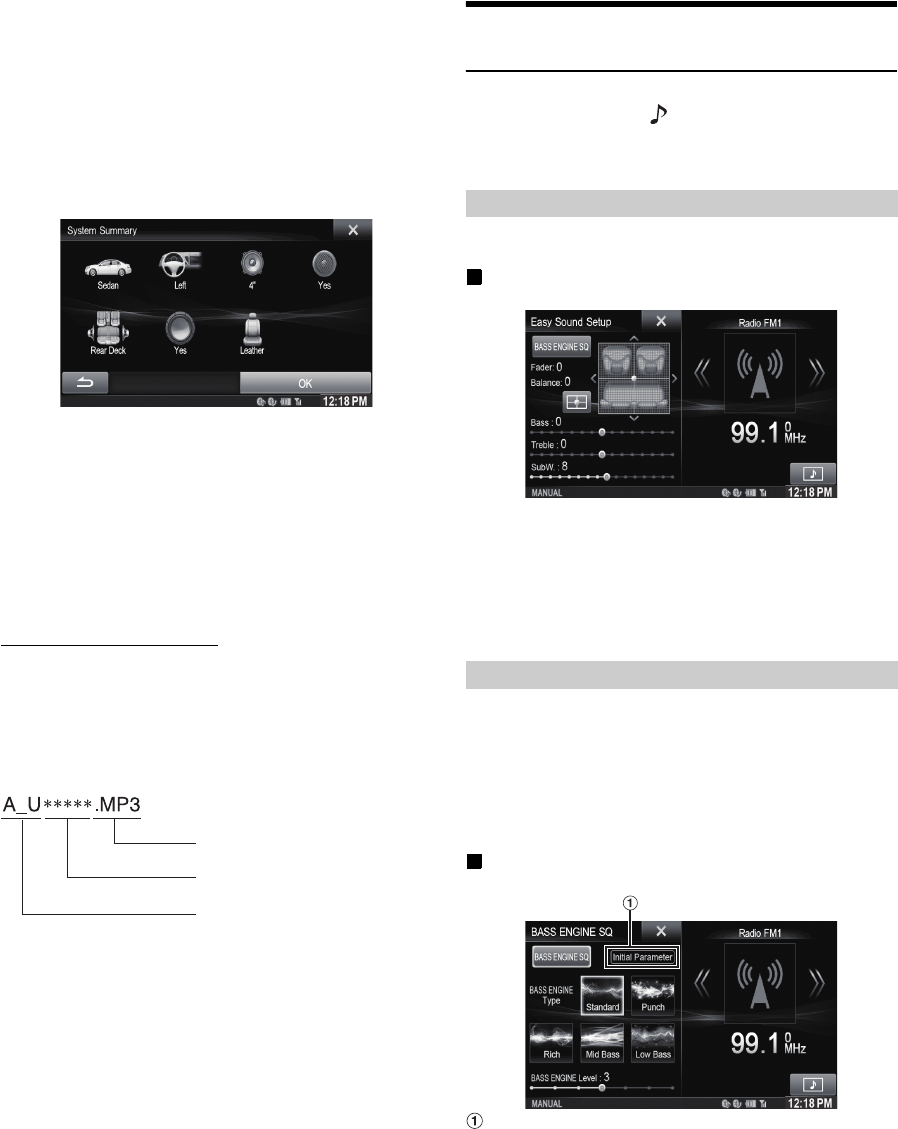

Easy Sound Setup mode/BASS ENGINE SQ
mode ............................................................24
Easy Sound Setup mode ..............................24
BASS ENGINE SQ mode ...........................24
Access to iDataLink Mode .............................25
Applying TuneIt ..............................................25
Adjusting the sound via the Smartphone .....25

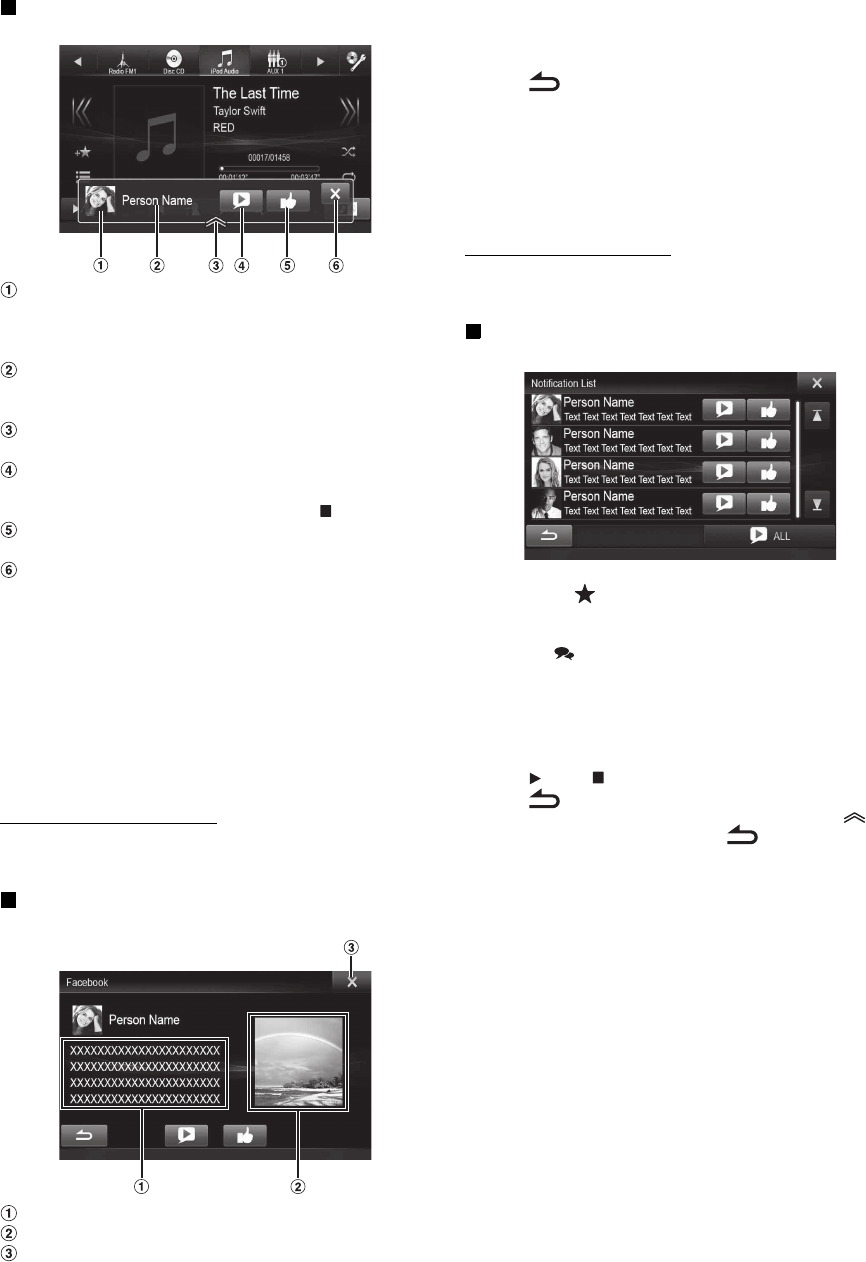

Facebook Notification Function ..................25
Settings When Switching Users ......................27
How to Input Characters and Numbers
(Keypad) ......................................................27
Top banner and Bottom banner Fade Out
Setting ..........................................................28
Switching Sources ...........................................28
Screen Off Function .....................................28
Rear Entertainment Function ..........................29

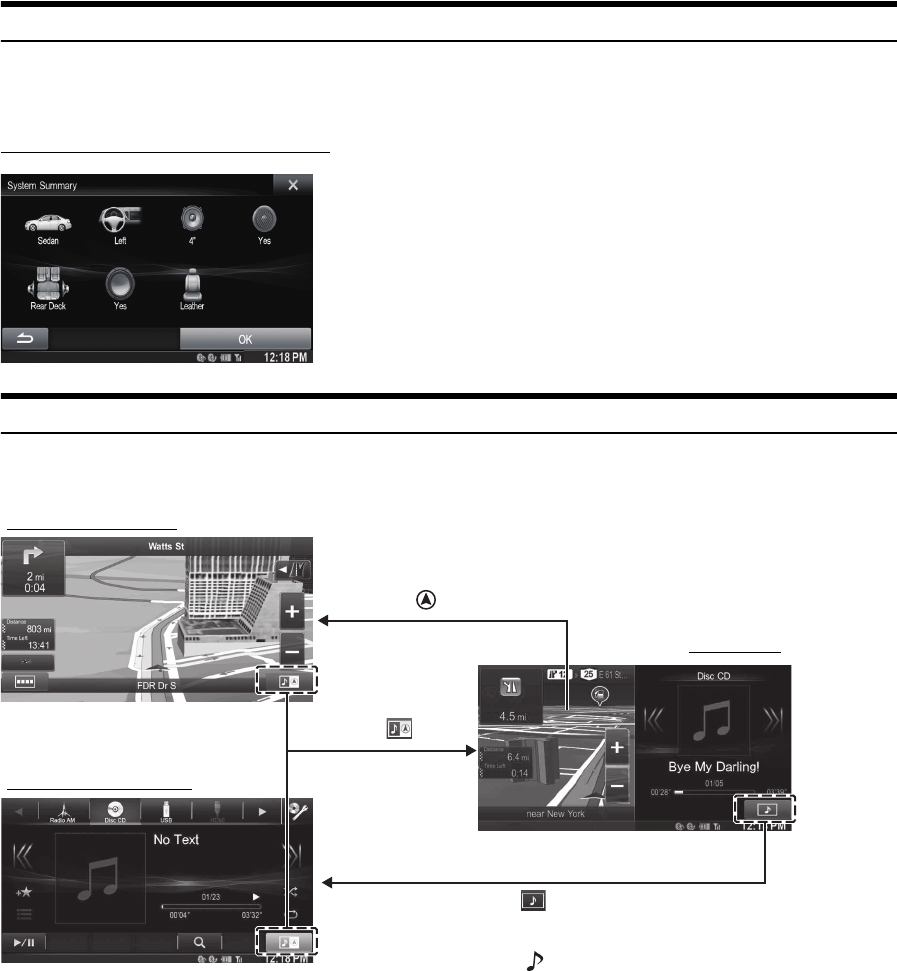

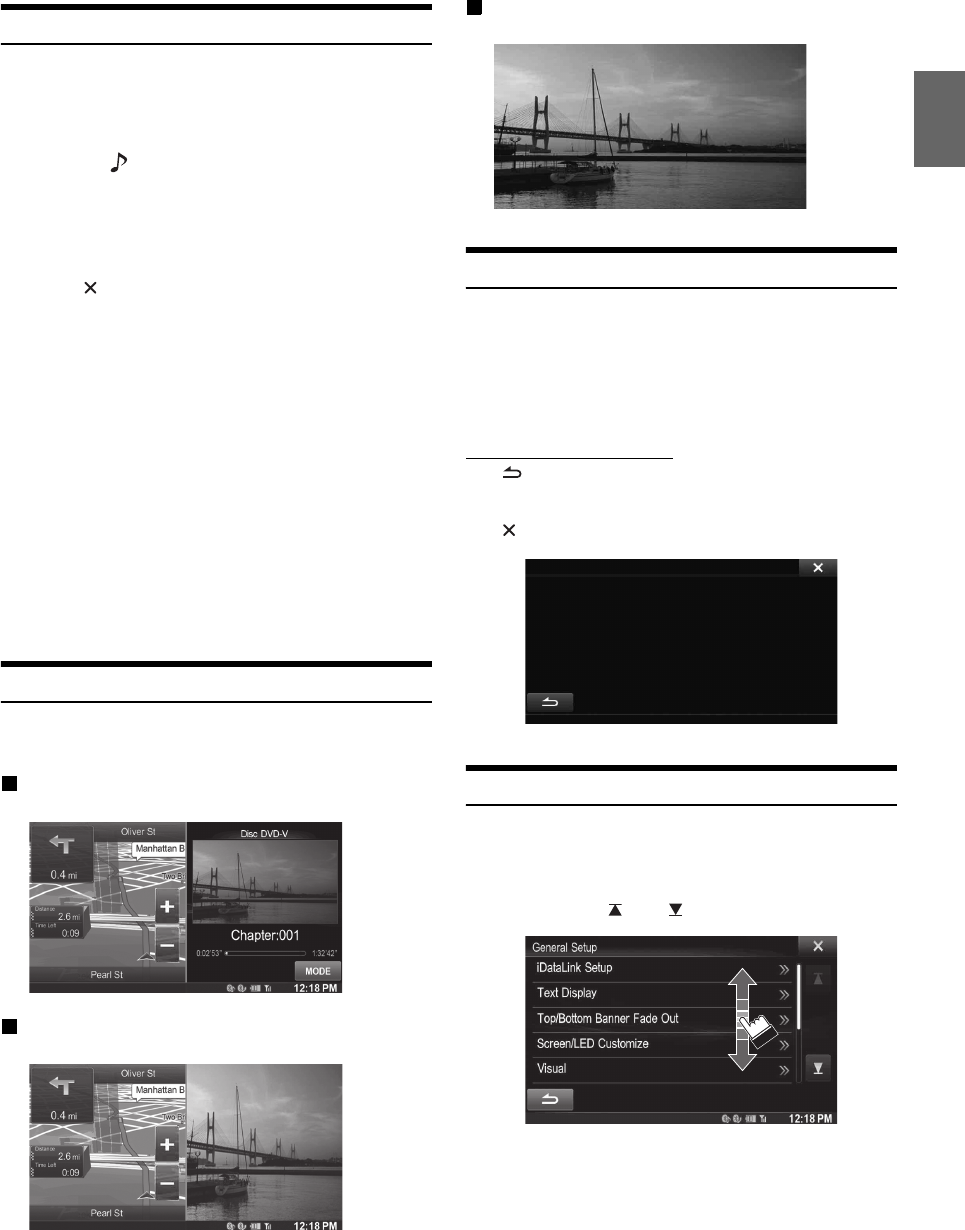

Switching the Dual Screen Display ................29
Touch operation ..............................................29
Selecting an Item in a List ..............................29

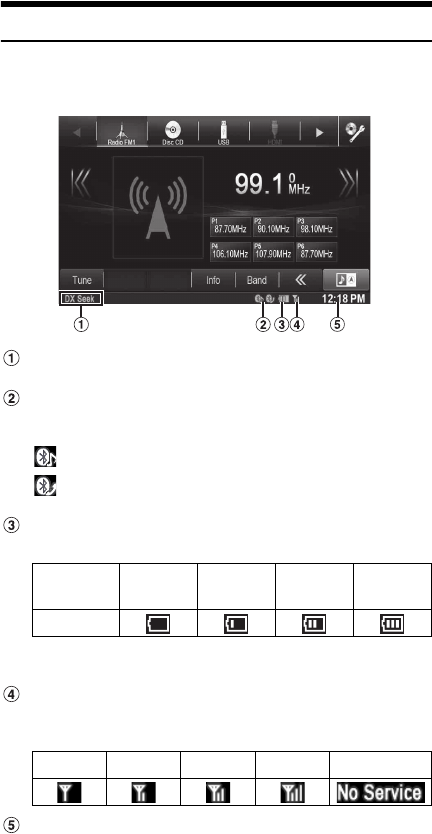

About the Indicator Display ............................30
Radio/HD RadioTM/ RBDS

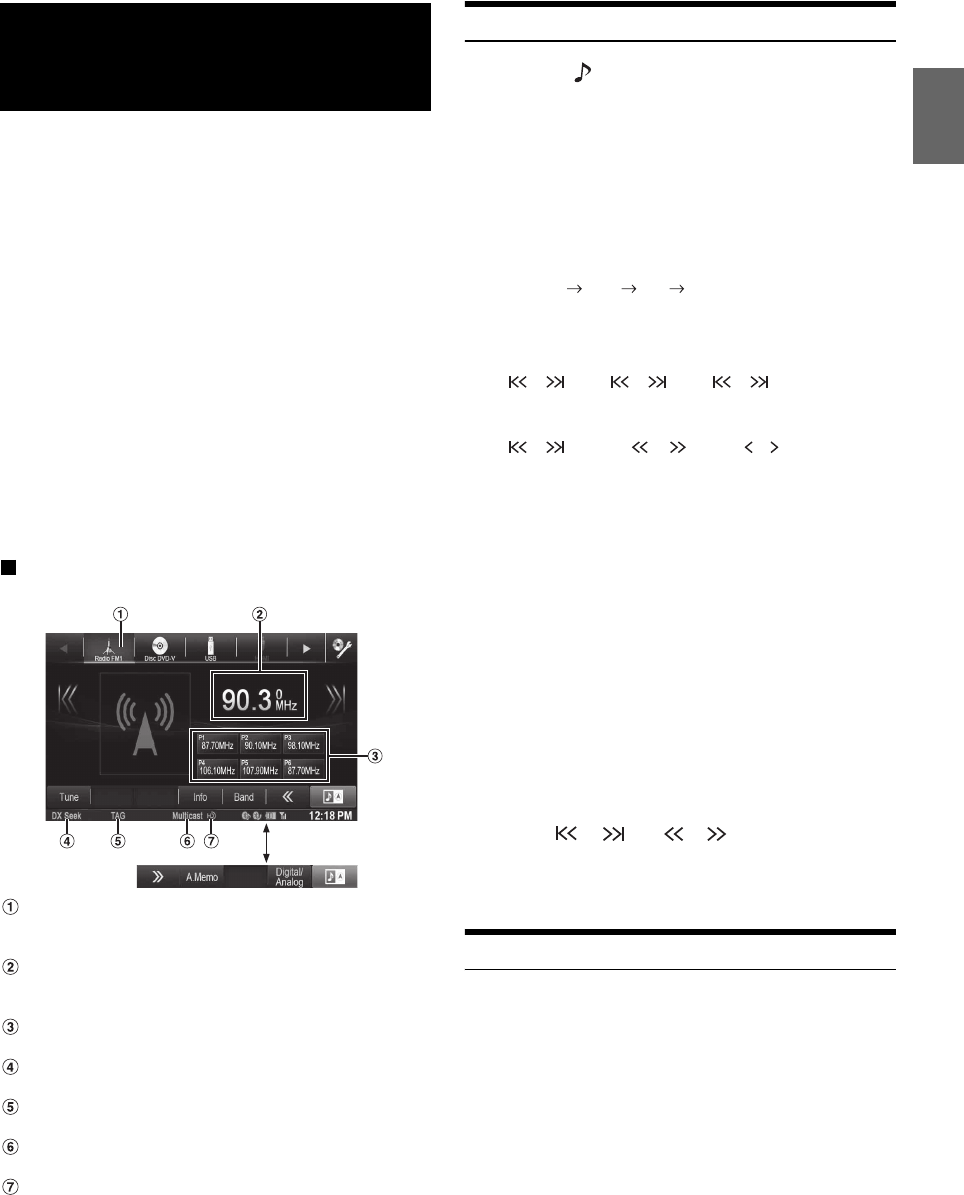

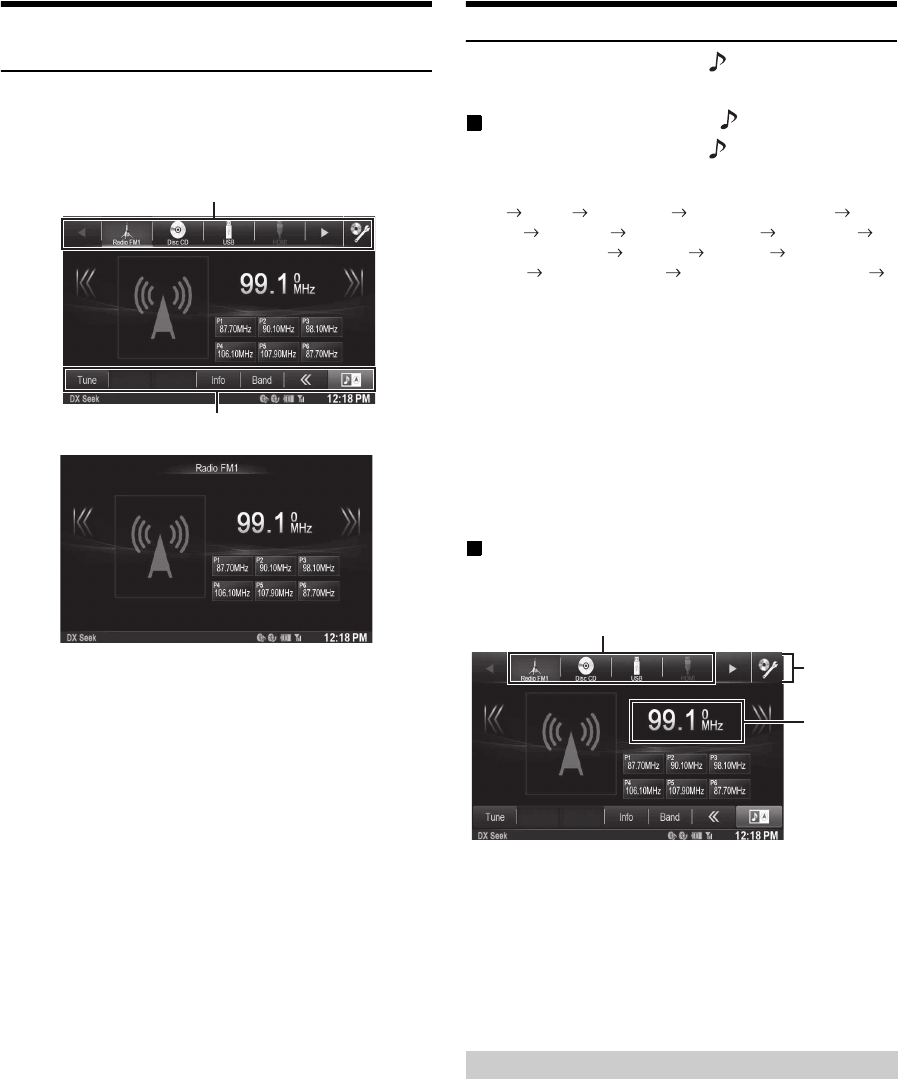

Listening to the Radio .....................................31
Presetting Stations Manually ..........................31
Presetting Stations Automatically ...................32
Tuning to Preset Stations ................................32
Forced Analog Mode ......................................32
Receiving a Multicast (HD Radio mode
only) .............................................................32
PTY (Program Type) Tuning (Analog
Broadcasts only) ..........................................32
Displaying Radio Text ....................................33
Storing the tag information (HD Radio mode
only) .............................................................33
About the Feature Logos .................................33
4-EN
CD/MP3/WMA/AAC

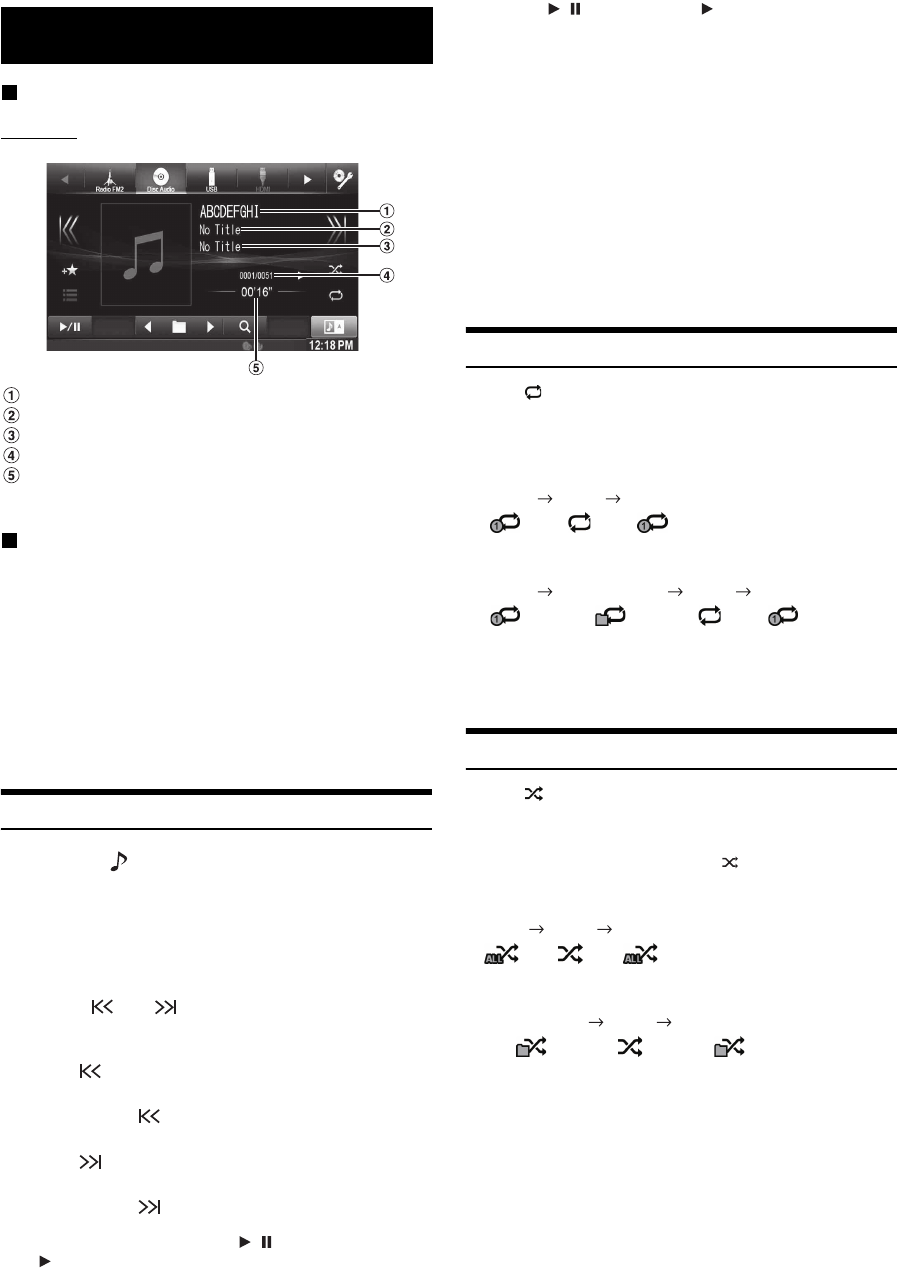

Playback .......................................................... 34

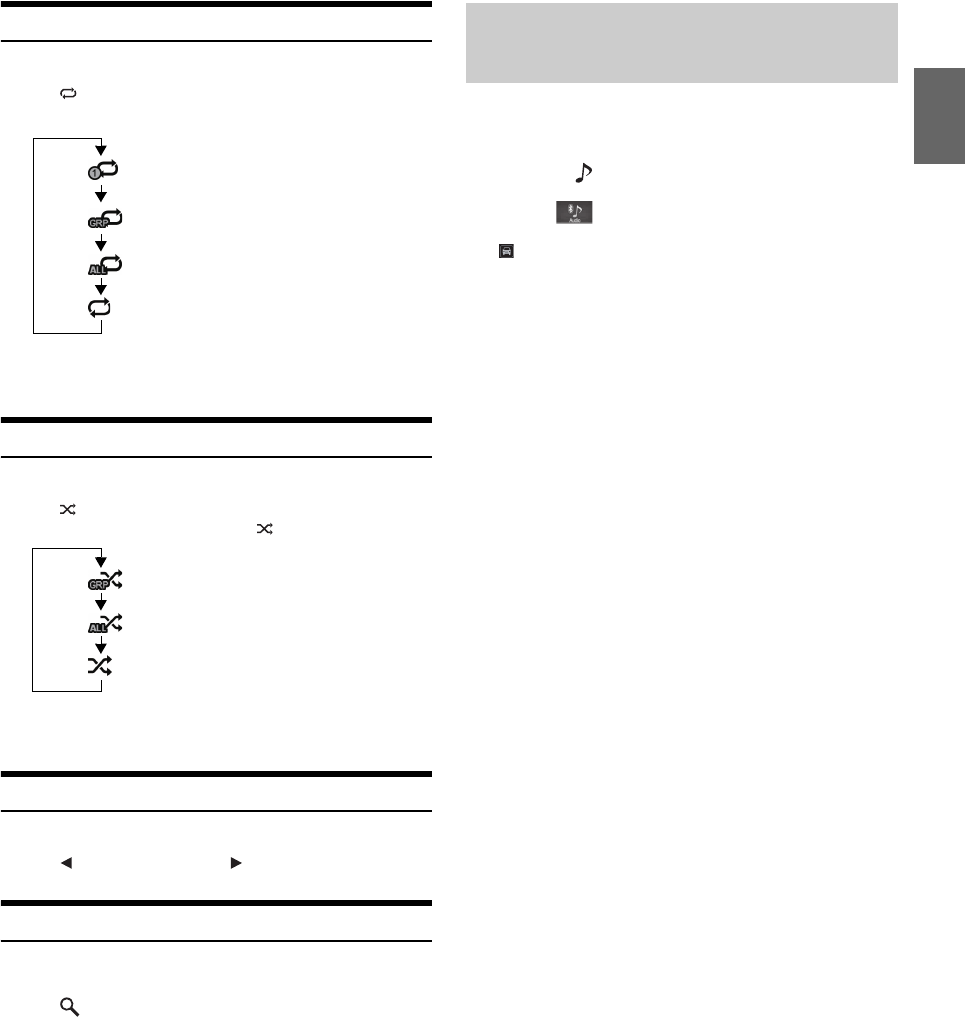

Repeat Play ..................................................... 34
M.I.X. (Random Play) .................................... 34
Selecting Folders (Concerning MP3/WMA/
AAC) ........................................................... 35
Searching from CD Text ................................. 35
File/Folder Name Search (Concerning MP3/
WMA/AAC) ................................................ 35

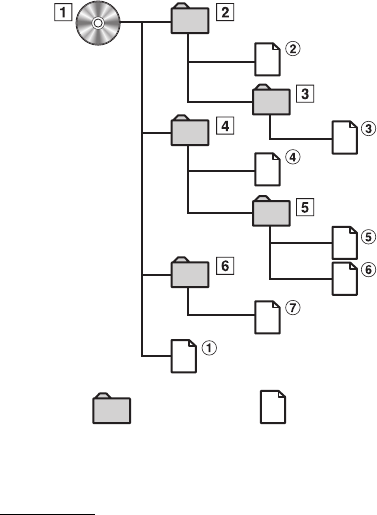

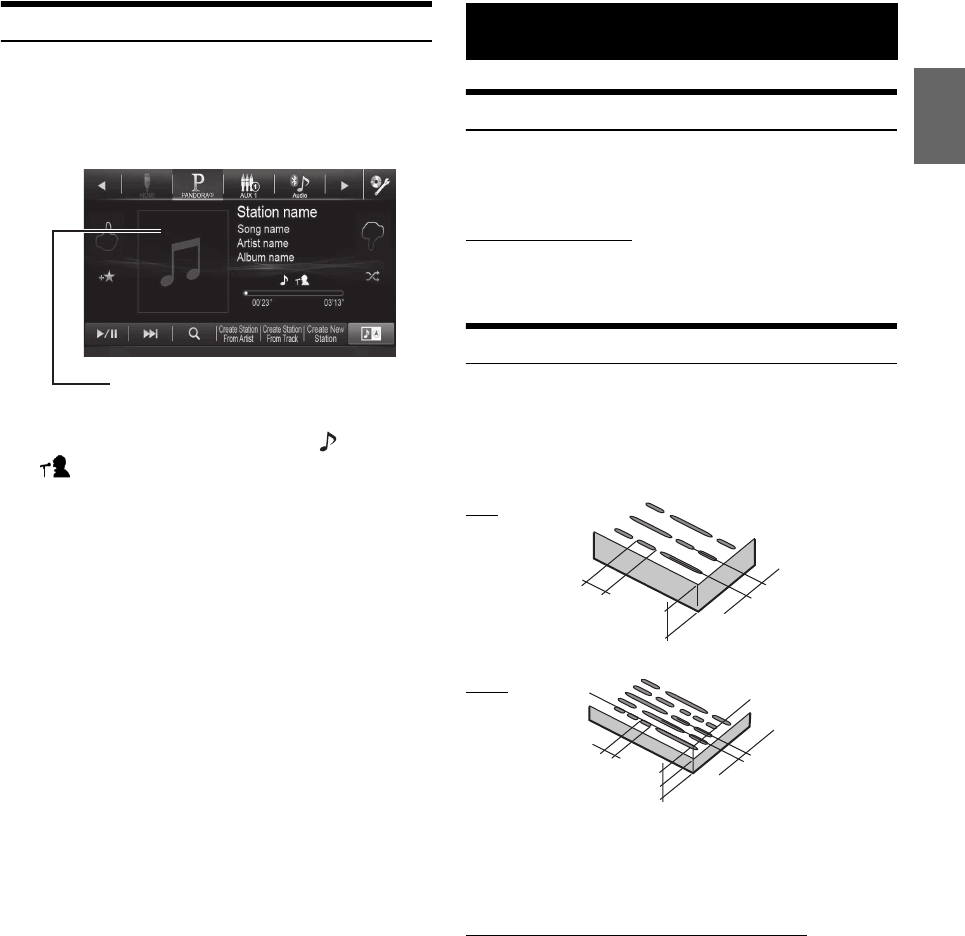

About MP3/WMA/AAC ................................. 35

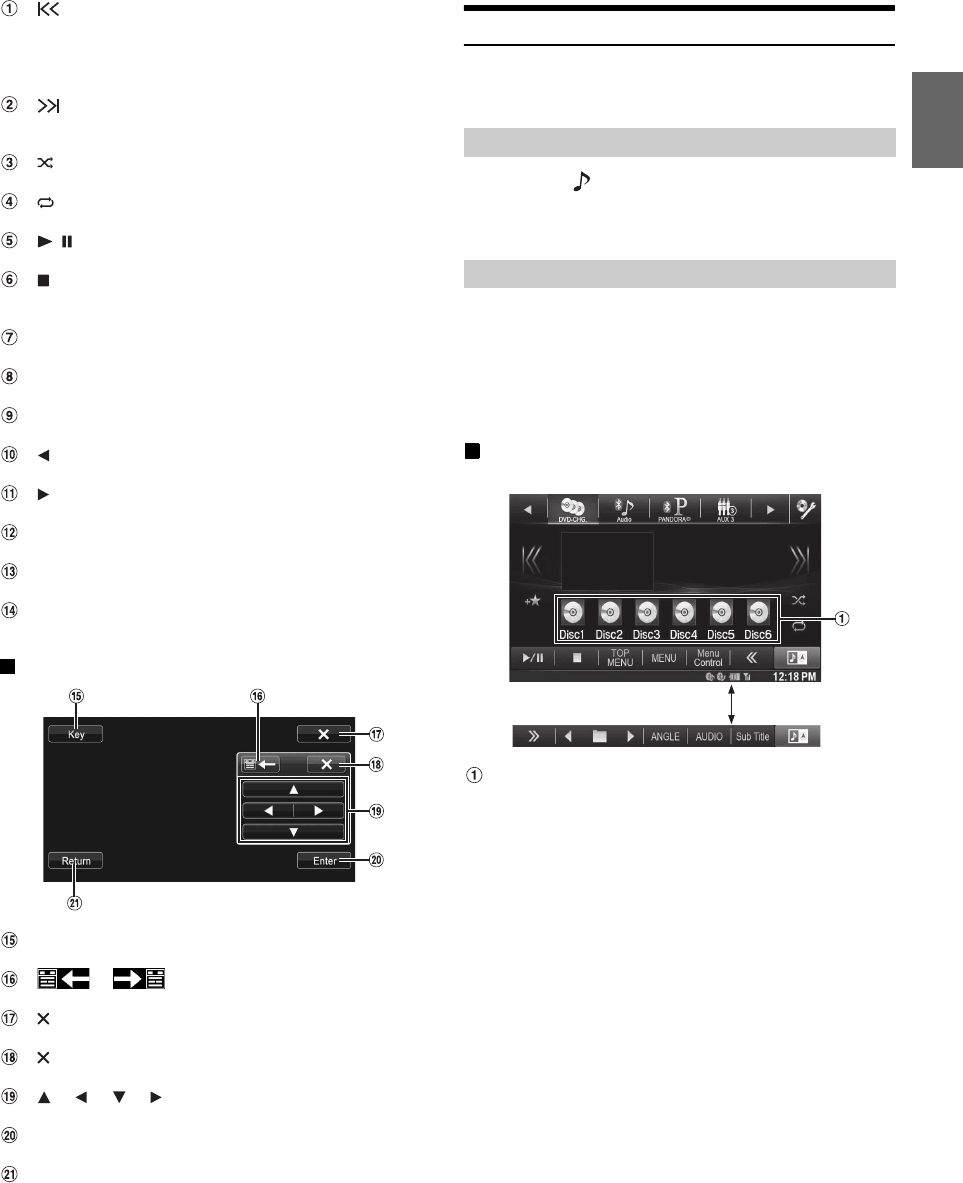

DVD

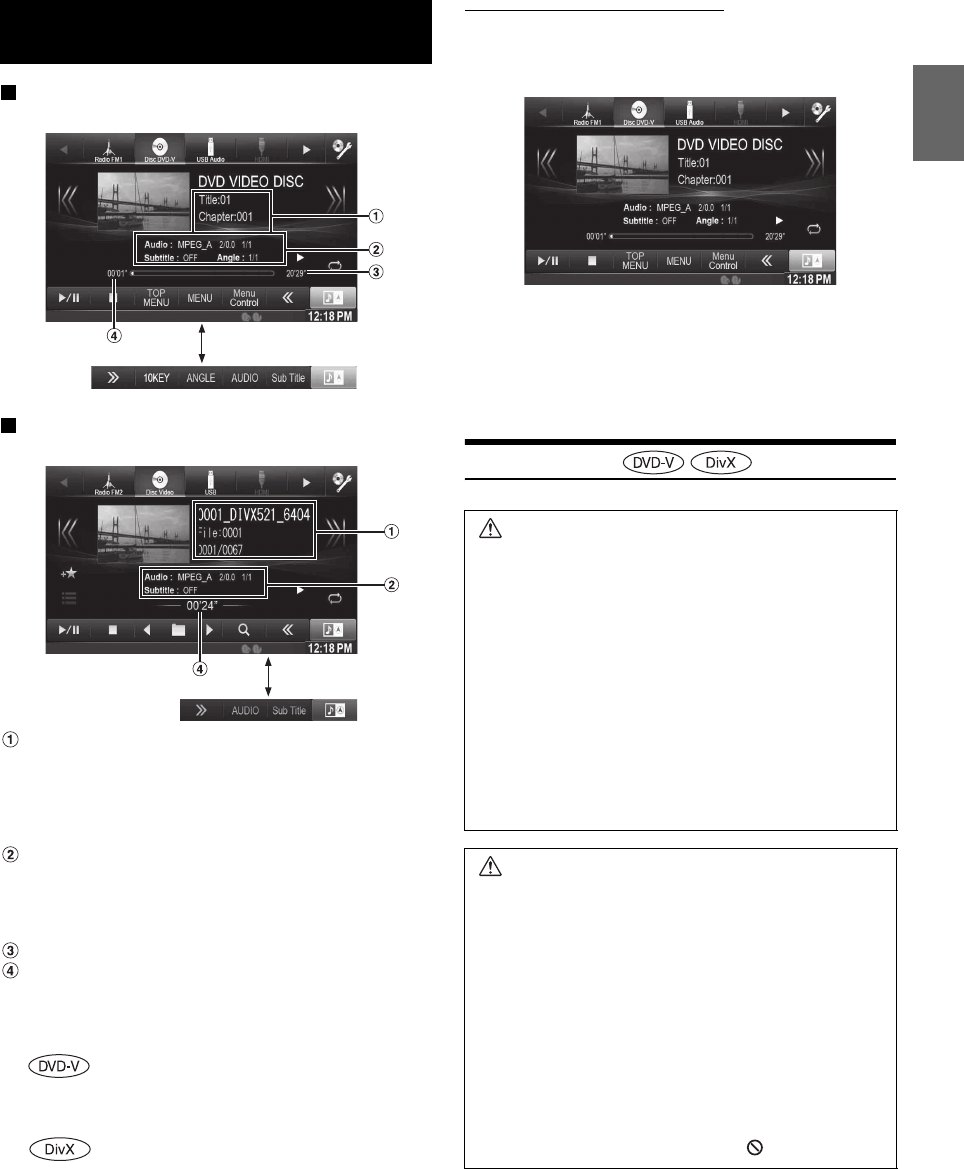

Playing a Disc ................................................ 37
If a Menu Screen Appears ........................... 38

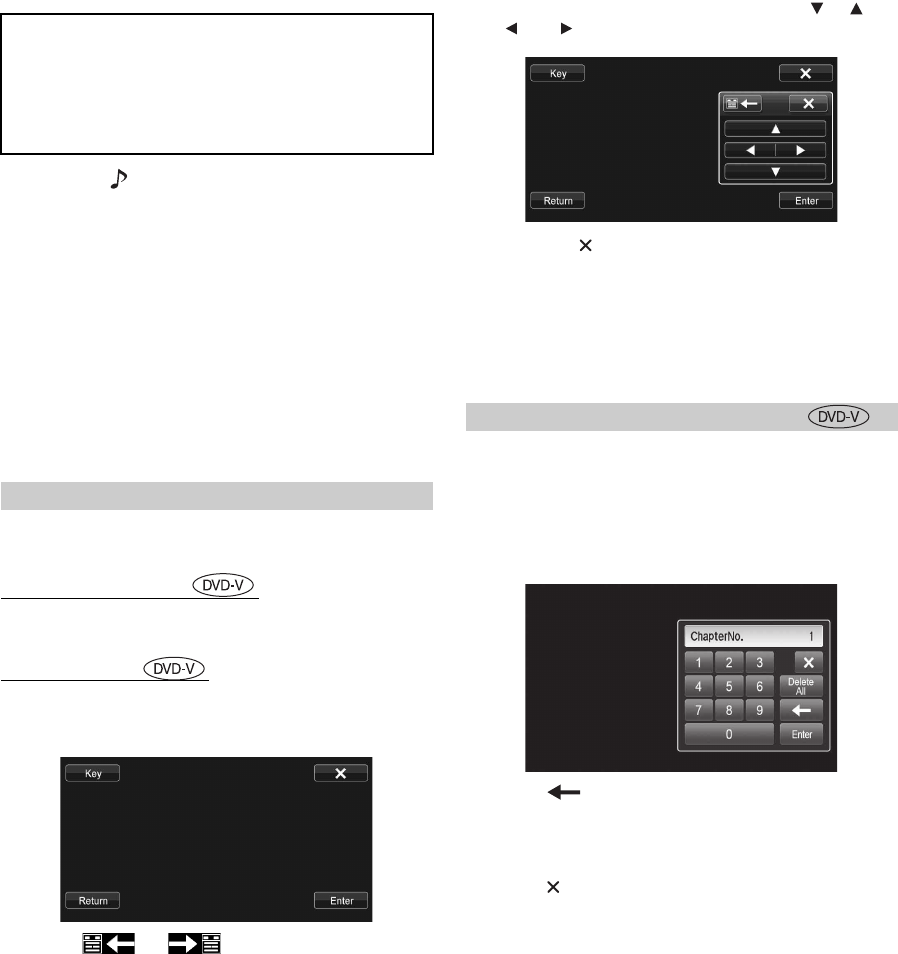

Numeric Keypad Input Operations ............. 38
Displaying the Top Menu Screen ............... 39
Displaying the Menu Screen ...................... 39
Stopping Playback (PRE STOP) ................... 39
Stopping Playback ......................................... 39
Fast-forwarding/Fast-reversing ...................... 39
Finding the Beginnings of Chapters/Tracks/
Files ............................................................ 39
Playing Still Frames (Pausing) ...................... 40
Forward frame-by-frame Playback ................ 40
Slow Motion Playback ................................... 40
Selecting Folders ........................................... 40
Repeat Playback ............................................ 40
Searching by Title Number ............................ 41
Searching Directly by Chapter Number ........ 41
Searching for a Desired Video File ................ 41
Switching the Angle ...................................... 41
Switching the Audio Tracks .......................... 42
Switching the Subtitles (Subtitle
Language) ................................................... 42
About DivX® .................................................. 42
Setup
Setup Operation
General Setup

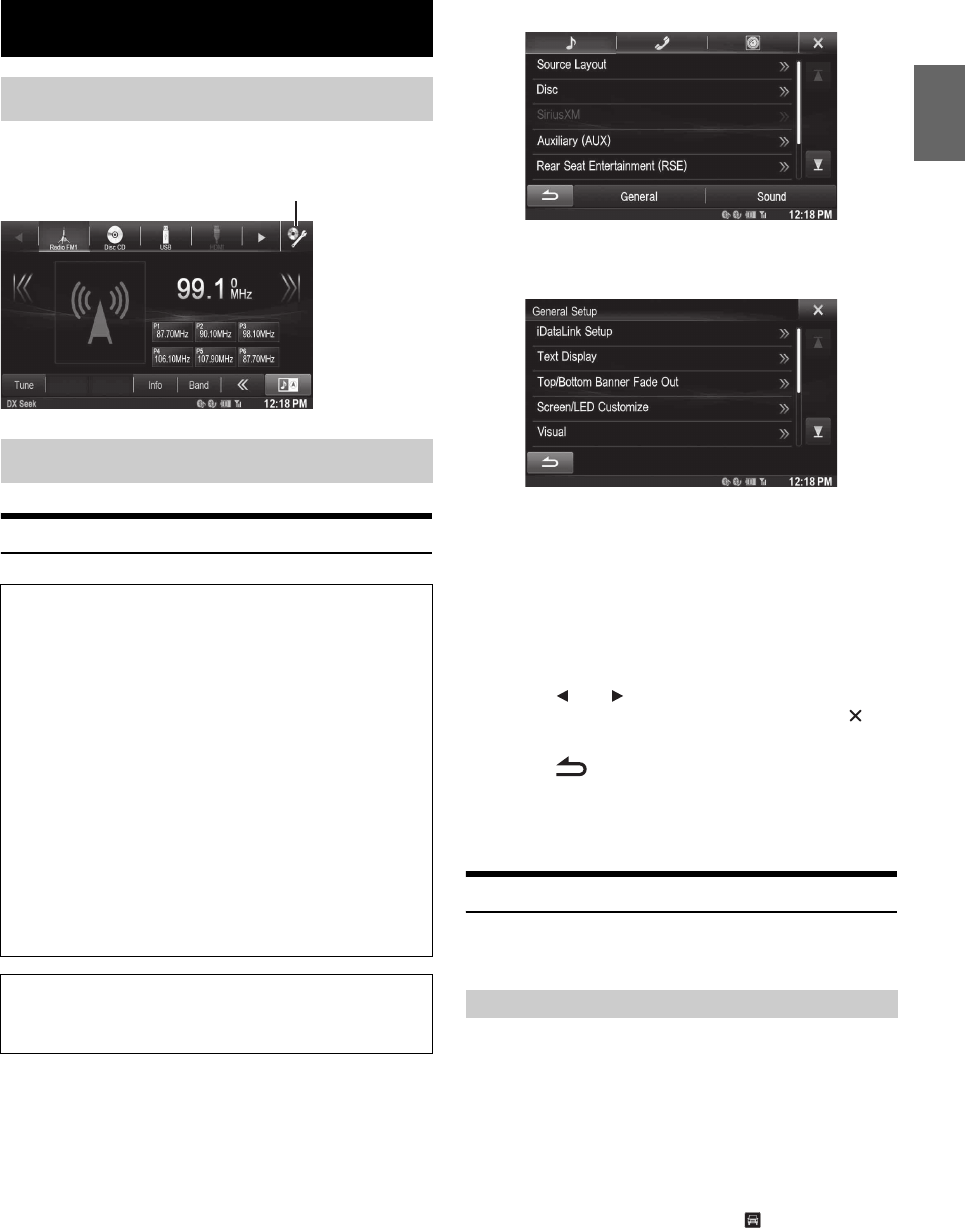

General Setup Operation ................................ 43
iDataLink Setup .............................................. 43
Setting the Source Category ........................ 43
Setting the Hands-free Connection ............. 44
Setting the Default Vehicle Screen .............. 44
Setting the Maestro Module ........................ 44
Text Display Setting ....................................... 44
Setting the Scroll ......................................... 44
Format settings ............................................ 44
Setting the Menu Language ........................ 44
Remote Sensor Setting .................................... 44
Setting Top banner and Bottom banner
Display ........................................................ 44
Screen/LED Customize .................................. 45
Setting the Brightness of the
Backlighting ............................................. 45
Adjusting the Minimum Level of
Backlight .................................................. 45
Adjusting the Dimmer of Button Lighting at
Night ........................................................ 45
Switching the Display Color ....................... 45
Adjusting the Touch Panel .......................... 45
Initializing the Touch Panel Corrected
Values ....................................................... 45
Visual Setting .................................................. 45

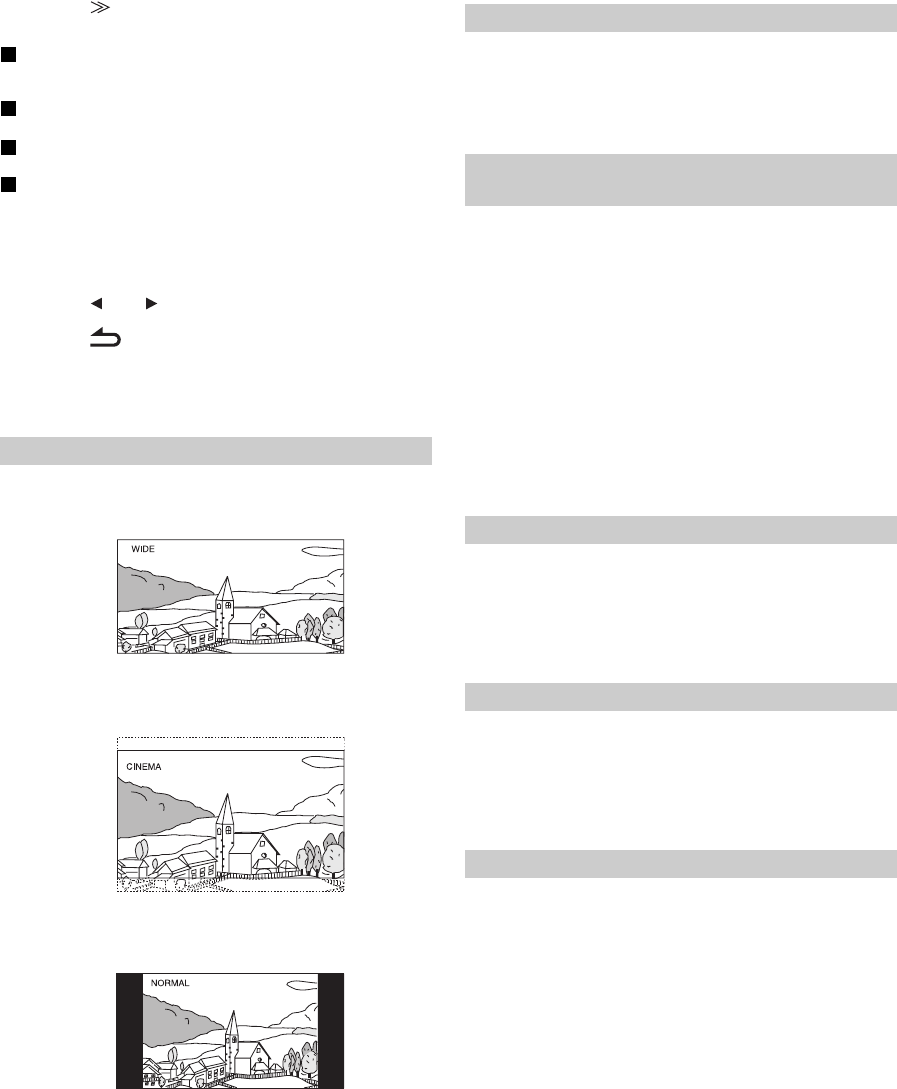

Switching Display Modes ........................... 46
Adjusting the Live Contrast ........................ 46
Selecting the Visual EQ Mode
(Factory’s setting) .................................... 46
Adjusting Brightness ................................... 46
Adjusting Color of Picture .......................... 46
Adjusting Tint of Picture ............................. 46
Adjusting Image Contrast ........................... 47
Adjusting Picture Quality ............................ 47
Saving and calling the adjusted picture
quality ...................................................... 47
About X009 .................................................... 47
Displaying the Product Information ............ 47
Checking the DivX® Registration ............... 47
Initializing the System ................................. 47
Installation Setup ............................................ 48
Setting the External Audio Processor
On/Off ......................................................... 48
Setting the Digital Output ............................... 48
5-EN
Sound Setup
Sound Setup Operation ................................... 48

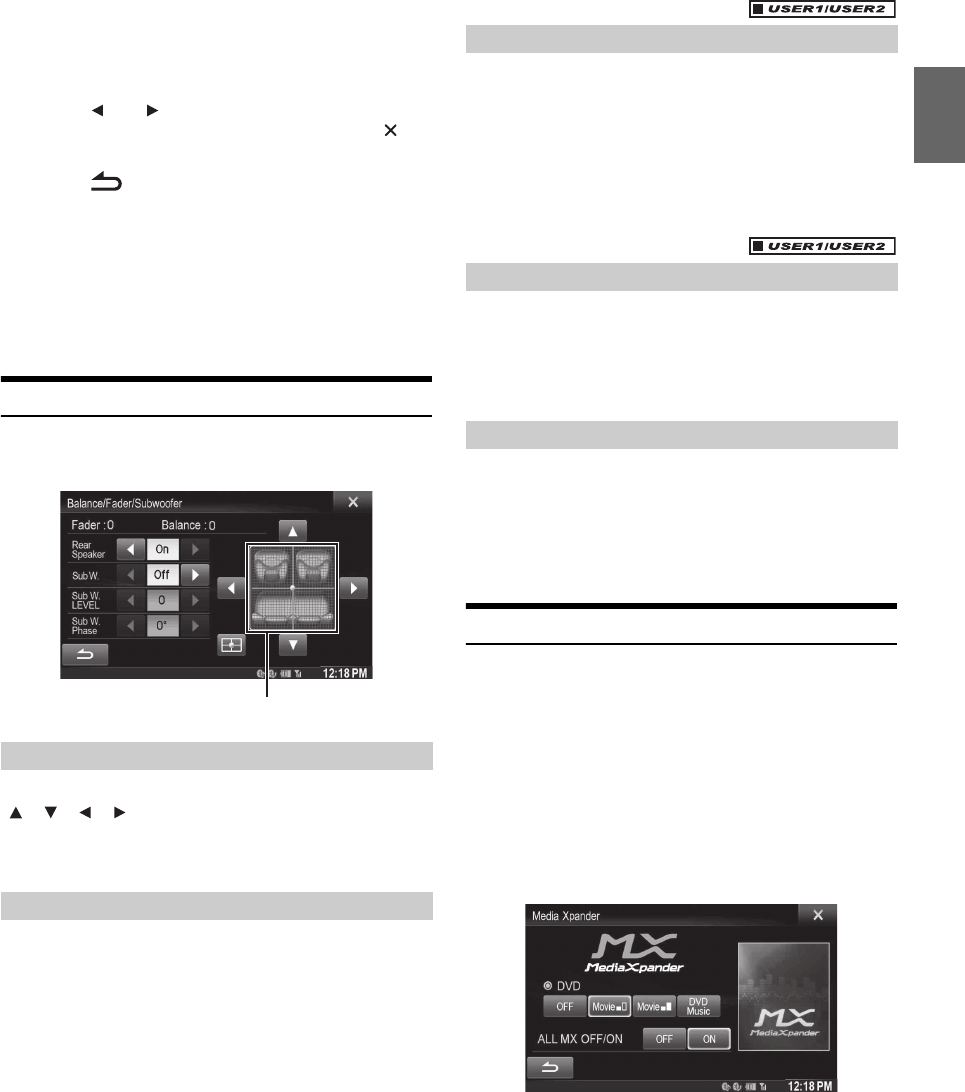

Setting the Balance/Fader/Subwoofer ............ 49
Setting the Balance/Fader ............................ 49
Rear Speaker Setting ................................... 49
Turning Subwoofer ON/OFF ...................... 49
Adjusting the Subwoofer Level ................... 49
Setting the Subwoofer Phase ....................... 49
Setting the MX (Media Xpander) ................... 49
Equalizer Presets ............................................. 50

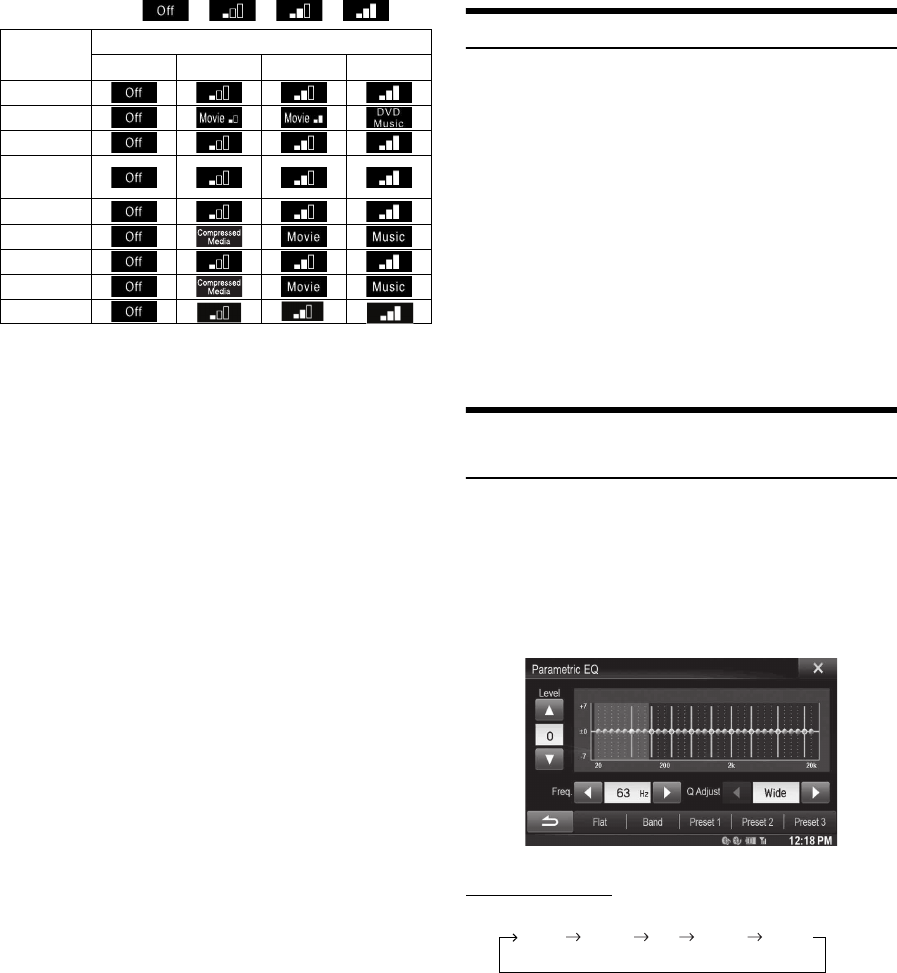

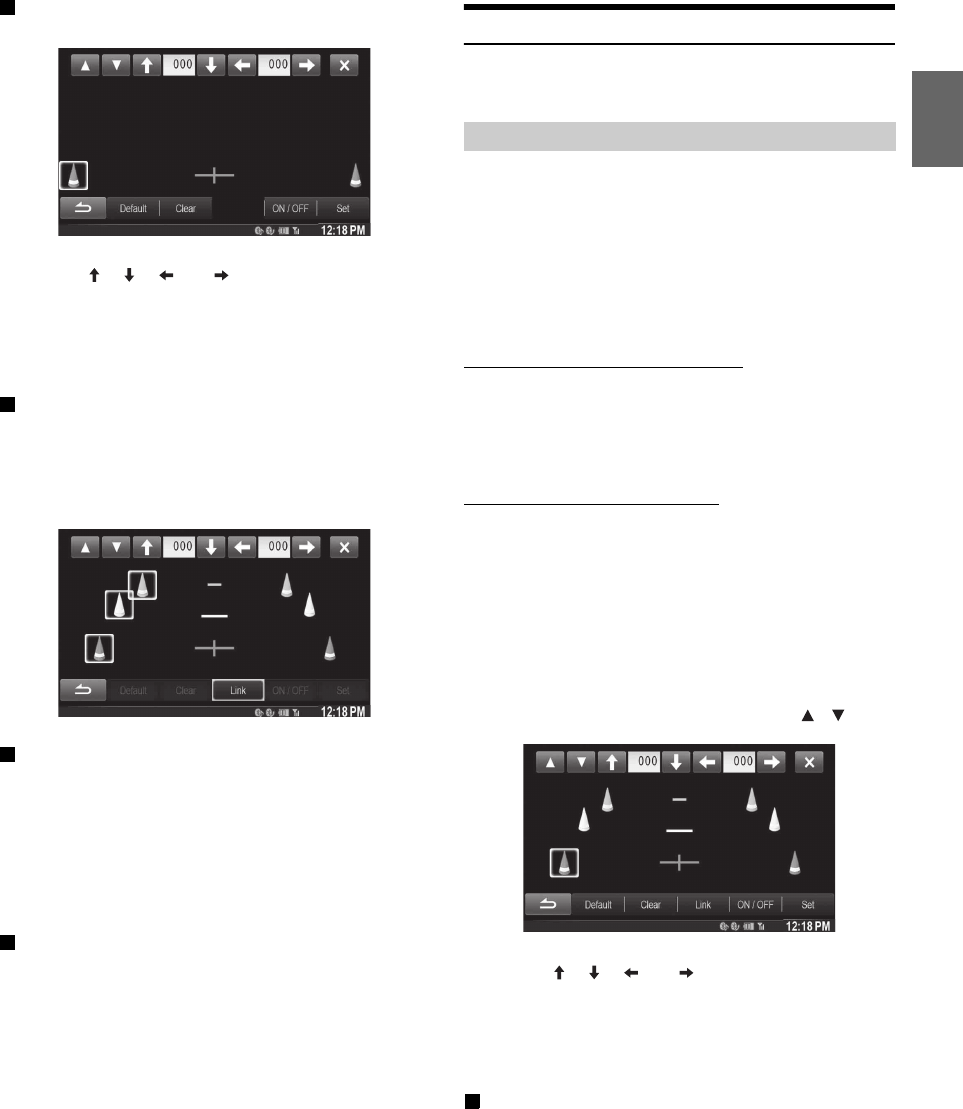

Adjusting the Parametric Equalizer Curve
(Parametric EQ) ........................................... 50

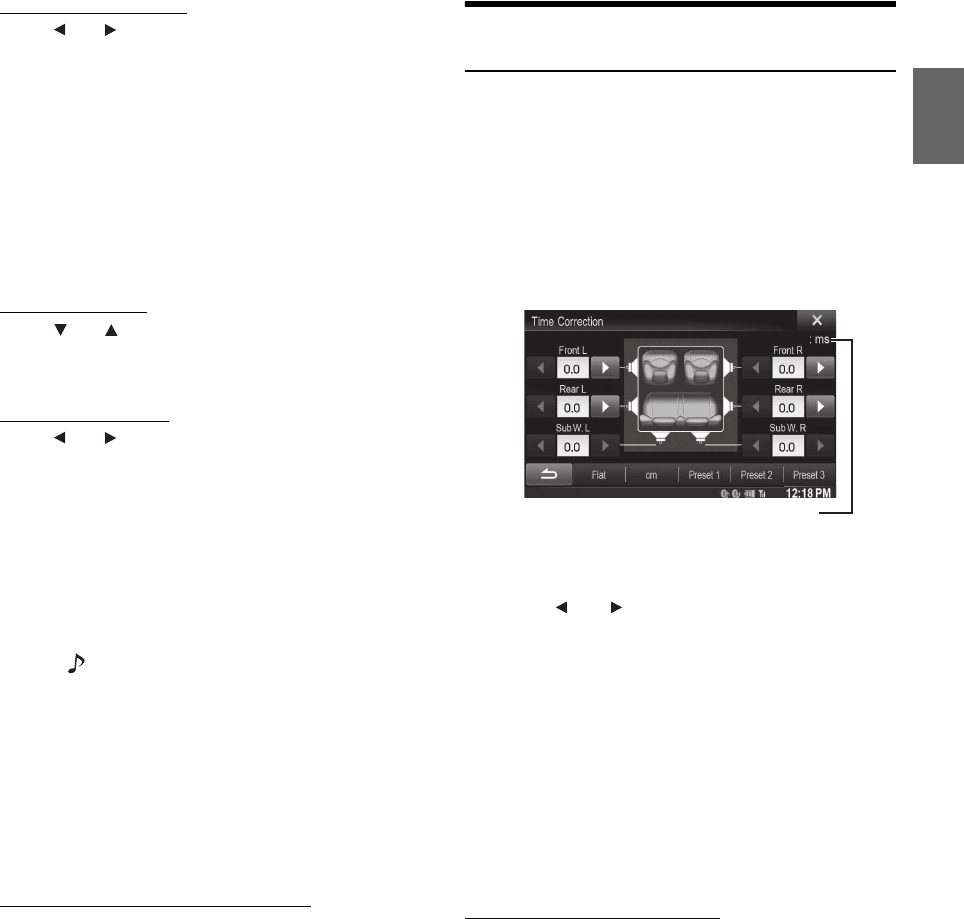

Adjusting the Time Correction (Time
Correction) .................................................. 51
Adjusting the Crossover Settings (X-Over) .... 52
Setting Defeat ................................................. 52
Volume Setting ................................................ 52
Setting the Volume for Each Source ............... 52

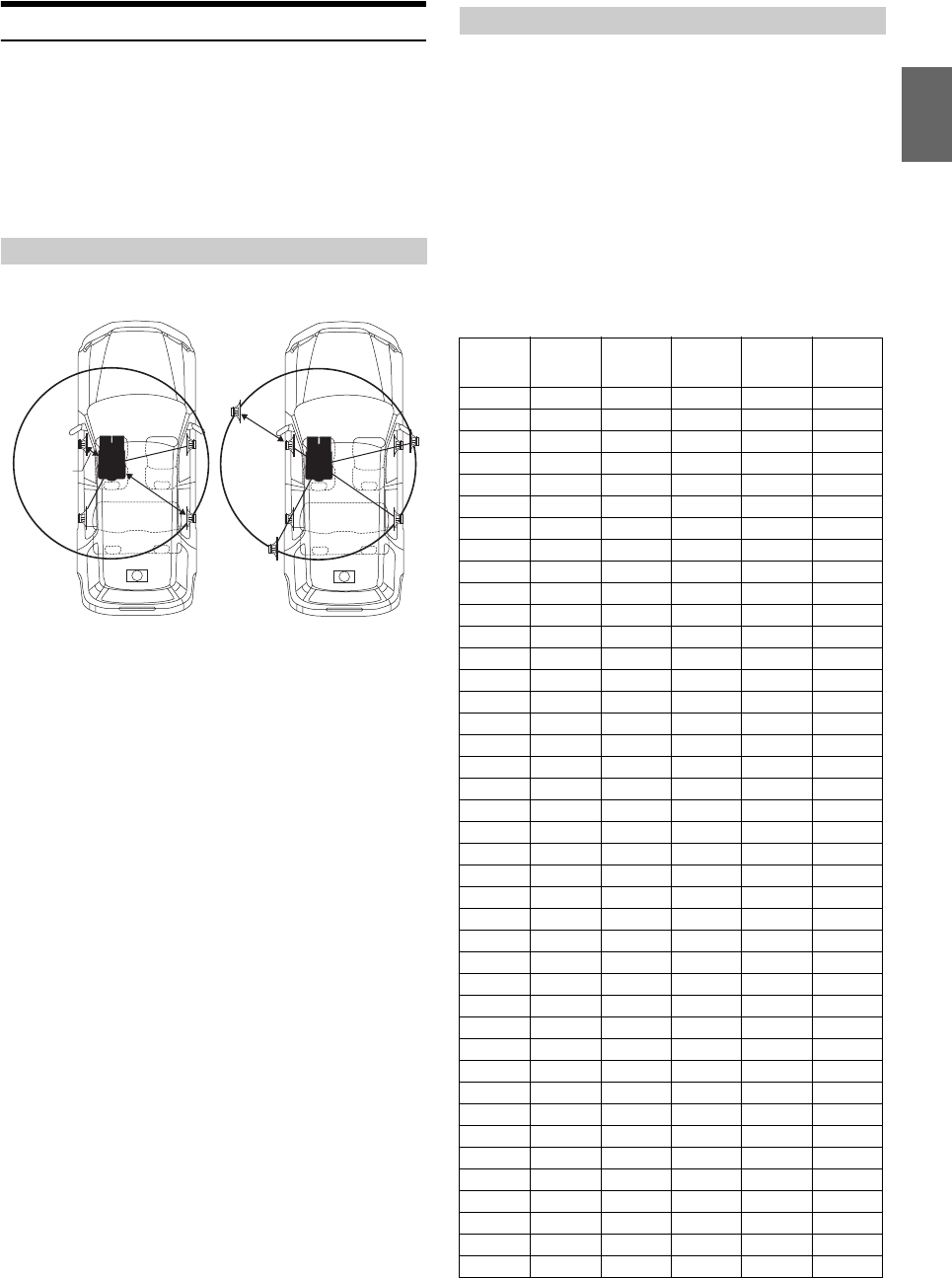

About Time Correction ................................... 53

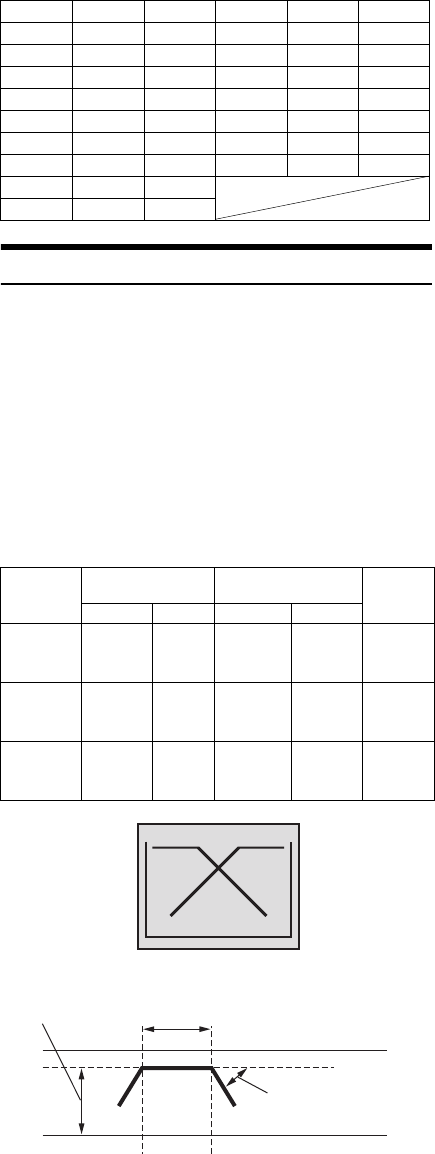

About the Crossover ....................................... 54
Source Setup
Source Setup Operation .................................. 55
Source Layout Setting .................................... 55
Setting the Slide Source Change ................. 55
Setting the Easy Sound Setup Position ....... 55

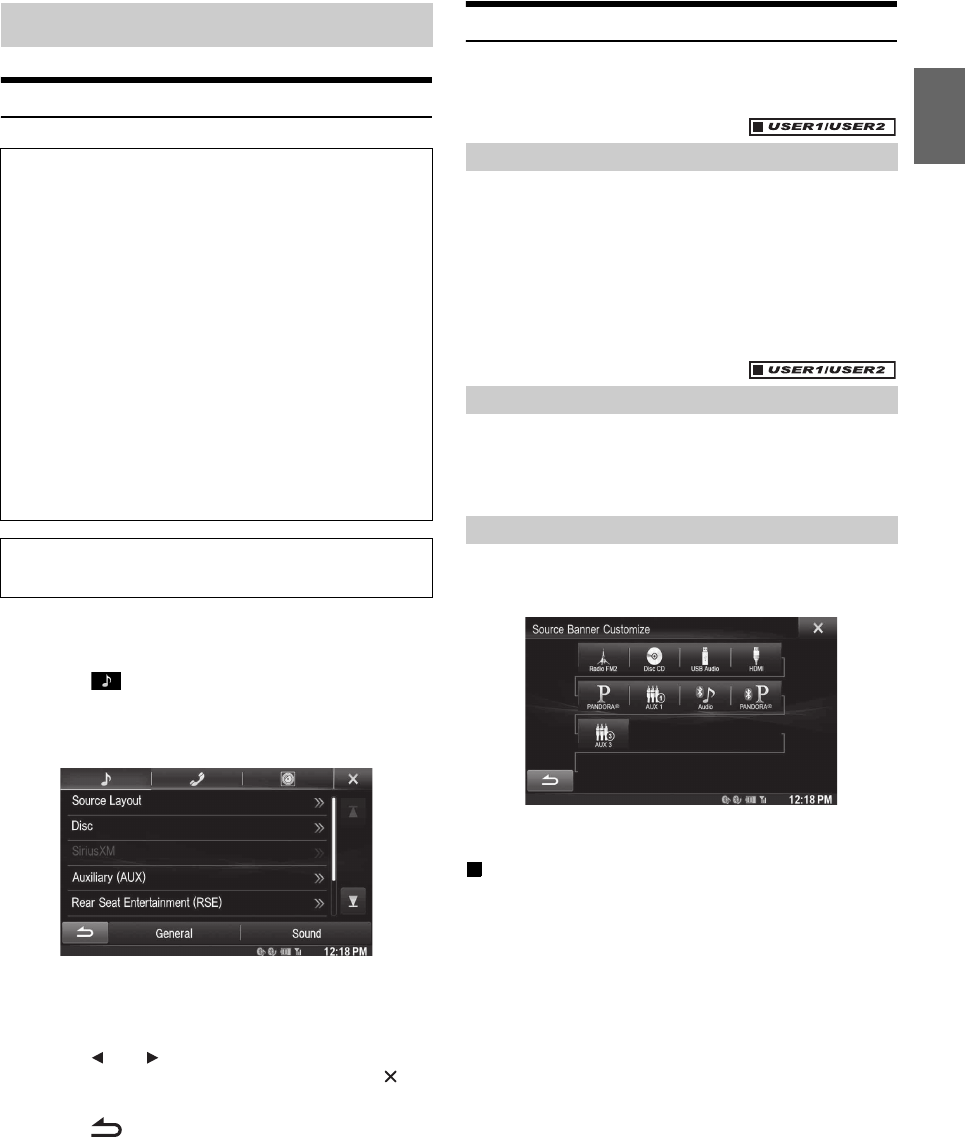

Customizing the Source Banner .................. 55
Disc Setting ..................................................... 56
Changing the language setting .................... 56
Setting of the Menu Language .................... 56
Setting of the Audio Language ................... 56
Setting of the Subtitle Language ................. 56
Changing the Country Code Setting ........... 56
Setting the Rating Level (Parental Lock) .... 56
Setting the TV Screen Mode ....................... 57

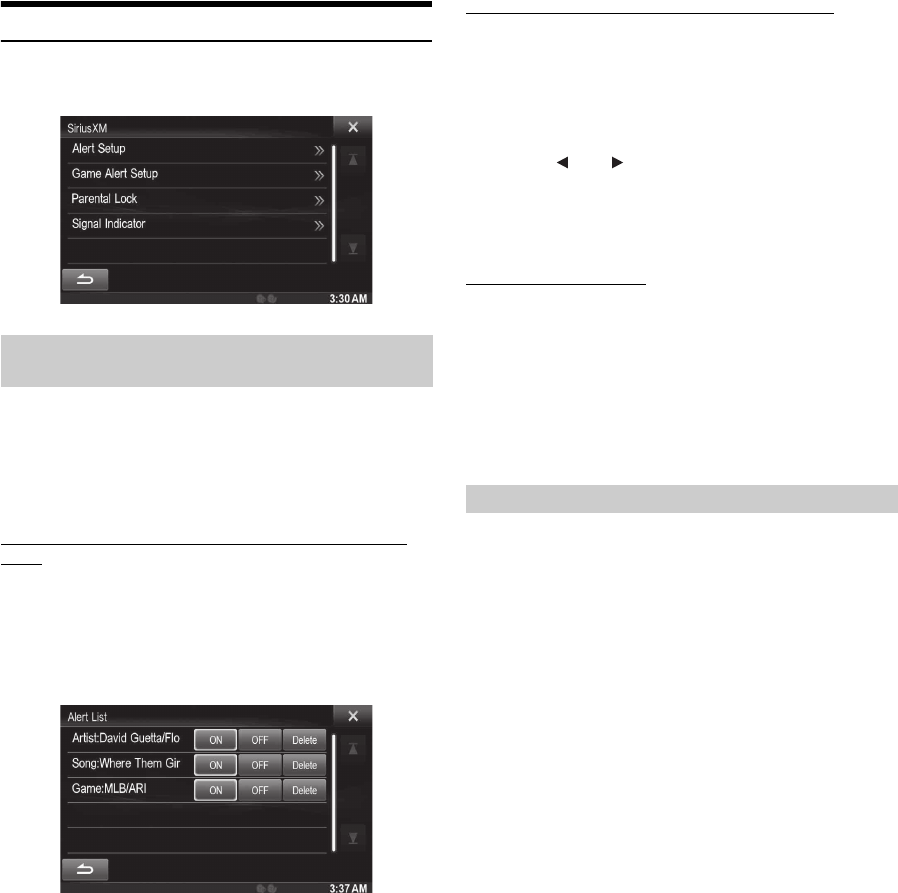

SiriusXM Setting ............................................ 58
Managing Artist, Song and Sports Team
Alerts ........................................................ 58
Setting the Favorite Sports Team Alerts ...... 58
Setting the Parental Lock ............................ 59
Signal Strength Information ........................ 59
Auxiliary (AUX) Setting ................................ 60
Setting the Auxiliary (AUX) Mode ............. 60
Setting the Primary Auxiliary (AUX) Name
(AUX 1 Setup) ......................................... 60
Setting the AUX3 ........................................ 60
Setting the AUX 3 Source Select (Switching
the Visual Input Signal System) ............... 60
Rear Seat Entertainment (RSE) Setting .......... 60
Setting the Rear Seat Entertainment
System ...................................................... 60
Setting the Bluetooth Pandora® ...................... 61
TuneIt Setting ................................................. 61
Setting the Communication Mode with a
Smartphone .............................................. 61
Bluetooth Setup

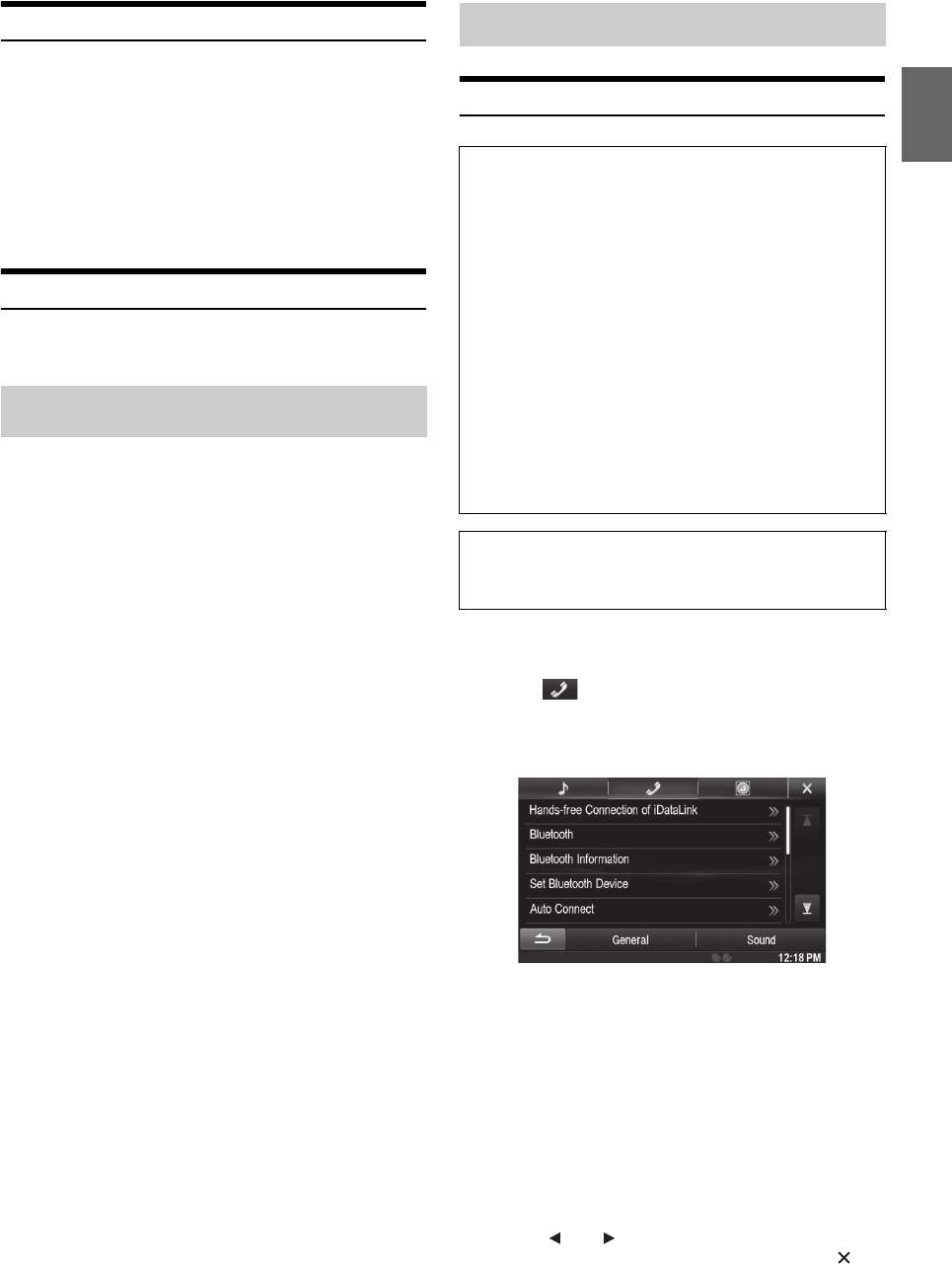

Bluetooth Setup Operation ............................. 61
Setting Hands-free Connection of
iDataLink ..................................................... 62
Bluetooth Setting ............................................ 62
Displaying Bluetooth Information .................. 62
Registering the Bluetooth Device ................... 62
Automatic Connection setting ........................ 63
Setting the Passcode ....................................... 63
Changing the Character Code of the Phone
Book ............................................................ 63
Selecting the Output Speaker ......................... 63
Adjusting the Caller Volume .......................... 63
Adjusting the Microphone Level .................... 63
Adjusting the Ring Tone Volume ................... 63
Deleting All the Histories ............................... 63
Camera Setup
Camera Setup Operation ................................. 64
Direct Camera Setting .................................... 64
Setting the Camera Input ............................. 64
AUX Camera Setting ...................................... 65
Setting the Camera Input ............................. 65
Camera Interrupt Setting (Power OFF
Mode) .......................................................... 66
Reverse Mute Setting ...................................... 66
Bluetooth Operation
Setup Before Using ......................................... 67
About Bluetooth .......................................... 67
About the Hands-Free Phone ...................... 67
Before Using Bluetooth ............................... 67
6-EN
Hands-Free Phone Control
Connecting a Bluetooth Device ...................... 67
Disconnecting the Bluetooth
Connection ............................................... 67
Changing the connecting Bluetooth
Device .......................................................... 68
Answering a Call ............................................ 68
Adjusting ringtone volume .......................... 68
Hanging up the Telephone .............................. 68
Calling ............................................................ 68
Using Short Cut Dialing to Make a Call ..... 68
Dialing a Number In Call History ............... 68
Dialing a Number In the Phone Book ......... 69
Entering a Phone Number to Make a Call ... 69
Redial Function ........................................... 69

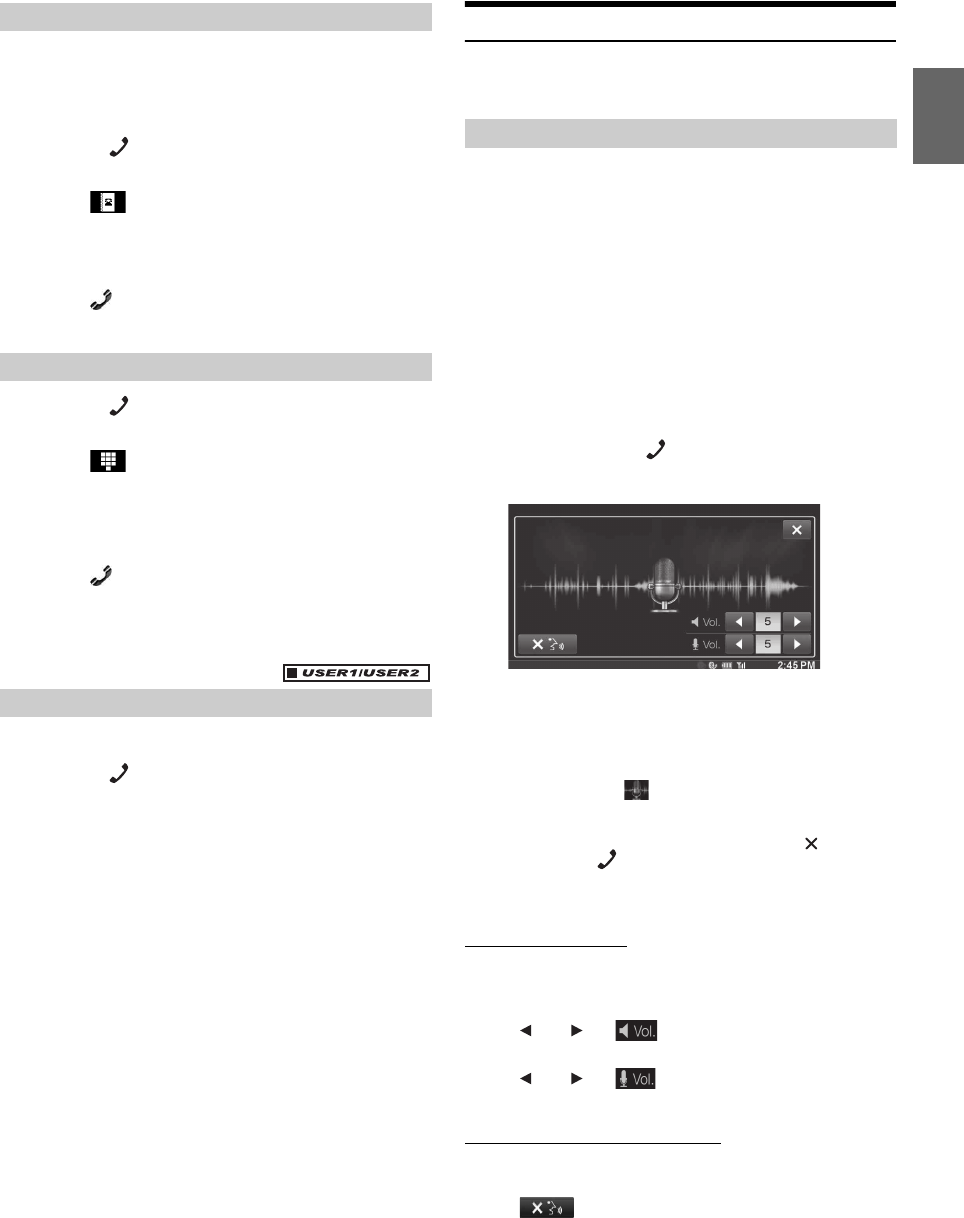

Using Voice Recognition function .................. 69
Using Siri .................................................... 69
Voice Dial Function ..................................... 70
Operations During a Conversation ................. 70
Adjusting the Speech Volume ..................... 70
Changing the Voice Output ......................... 70
DTMF (Touch-Tone) Function .................... 70

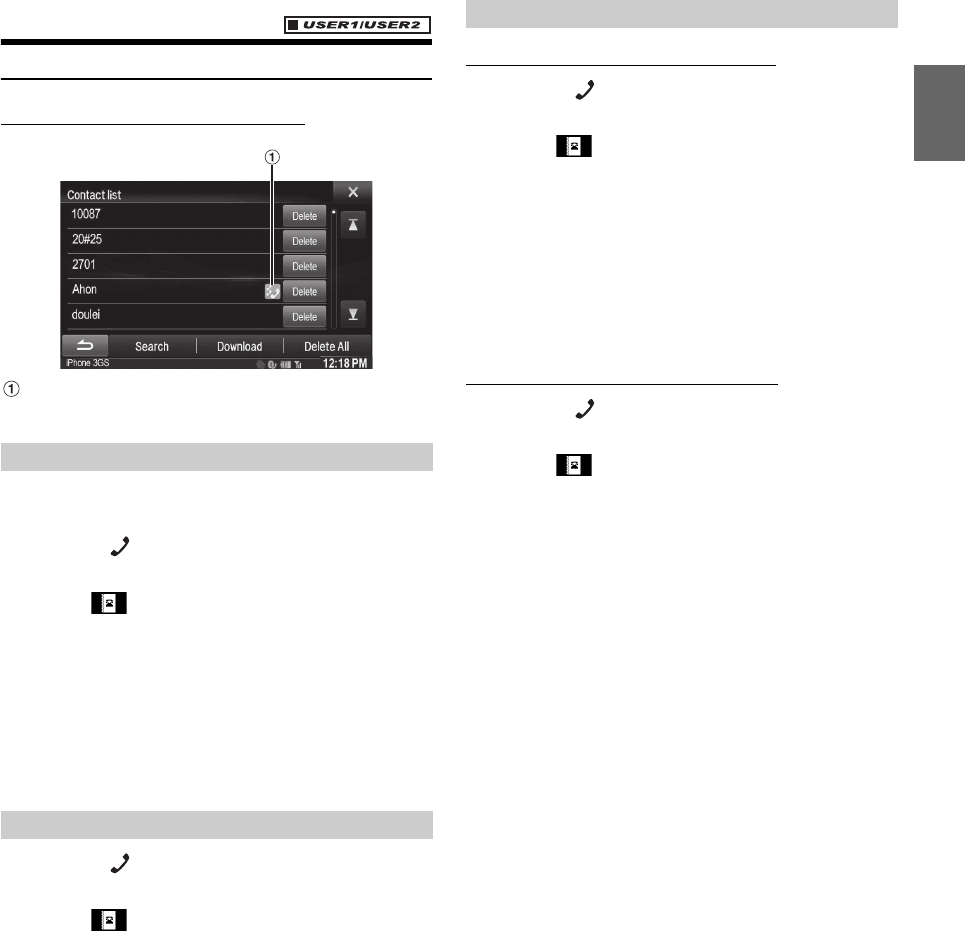

Phone Book Function ..................................... 71
Synchronizing the Phone Book ................... 71
Adding the Phone Book .............................. 71
Deleting the Phone Book Entries ................ 71
Assigning as a Short Cut Dialing Number ..... 72
Bluetooth Audio

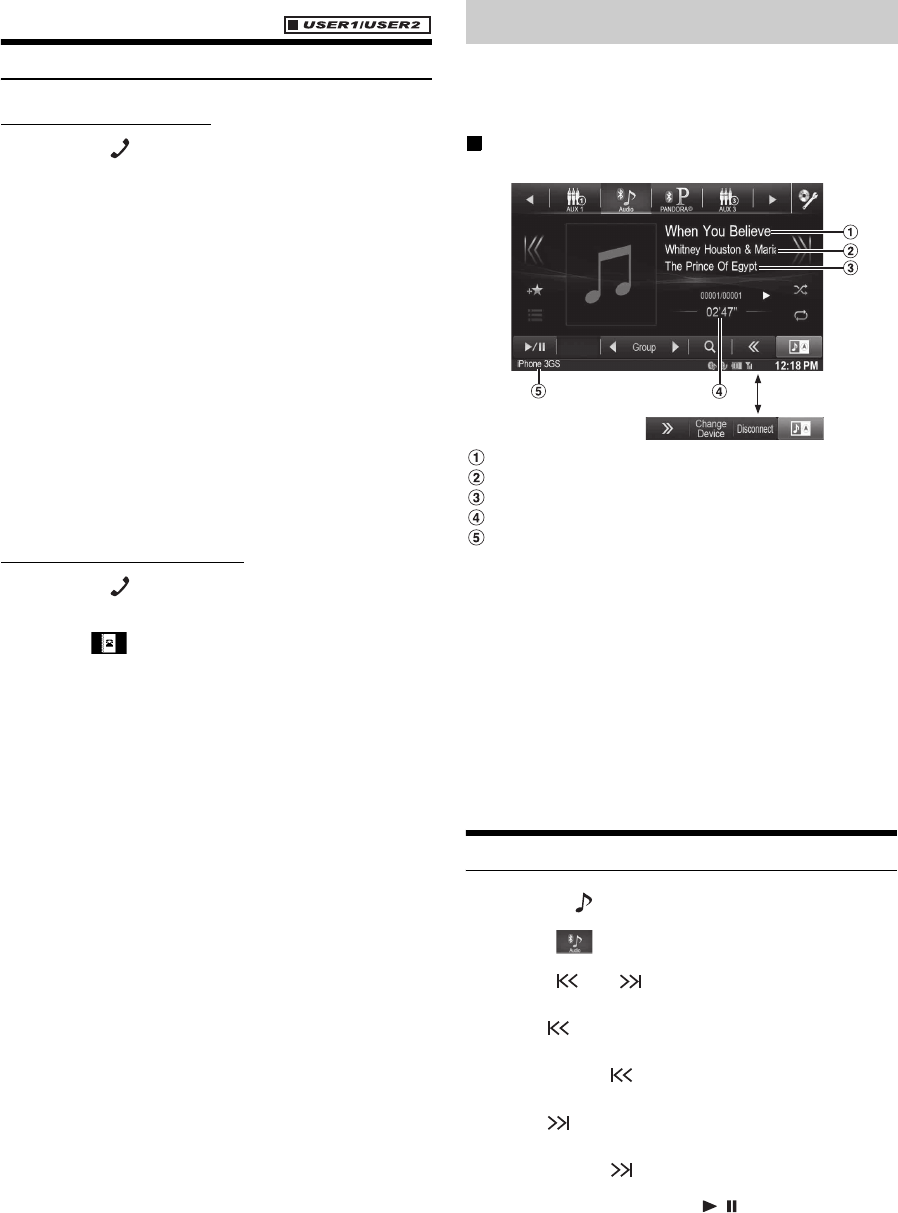

Playback .......................................................... 72
Repeat Play ..................................................... 73
M.I.X. (Random Play) .................................... 73
Selecting Groups ............................................. 73
Search Function .............................................. 73
Playing the iDataLink- Bluetooth Audio
Auxiliary Device (Optional)
Operating Auxiliary Devices (Optional) ........ 74
Operating an External DVD Player ................ 74
Change to the External DVD Mode ............ 74
About the DVD Operation Screen ............... 74
Operating an External DVD Changer ............. 75
Change to the External DVD Changer
Mode ........................................................ 75
About the DVD Changer Operation
Screen ....................................................... 75
Operating the Mobile Digital TV Receiver
(DVB-T) ...................................................... 76
Changing to the Mobile Digital TV Receiver
(DVB-T) Mode ........................................ 76
About the DVB-T operation screen ............. 76

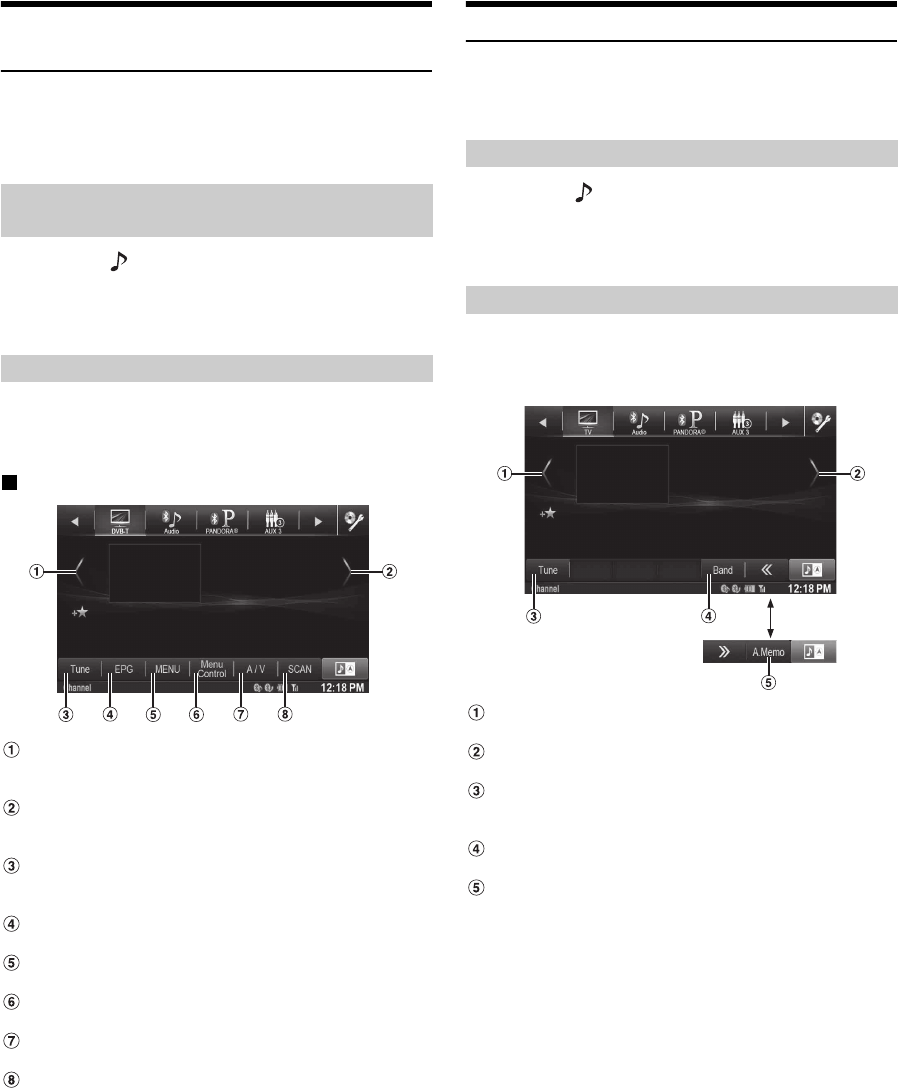

Operating a TV ............................................... 76
Change to the TV mode .............................. 76
About the TV operation screen ................... 76
Camera Operation (Optional)
Rear Camera Operation .................................. 77
Displaying the rear view video while the car
is in reverse .............................................. 77
Displaying the rear view video manually .... 77
Switching the Image Pattern for the Rear
Camera ..................................................... 77
Guide Display ON/OFF Setting .................. 77
Adjusting the Caution Display Location ..... 77

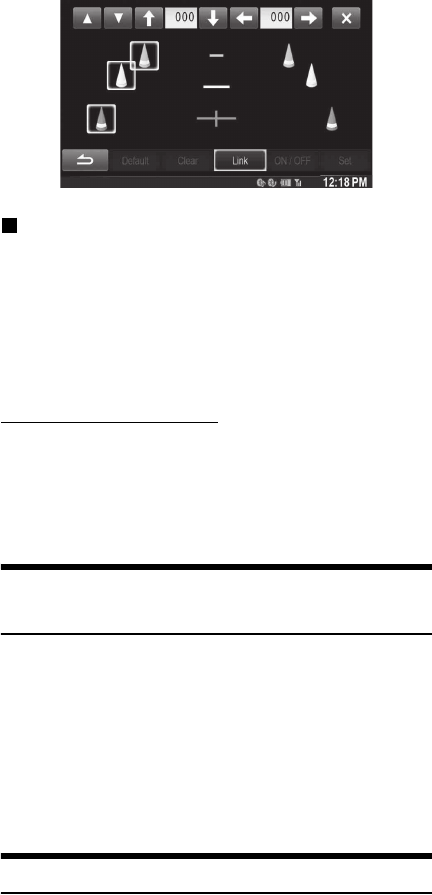

About the Rear Camera Guide ........................ 78
Front Camera Operation ................................. 80
Displaying the Front View Video
Manually .................................................. 80
Switching the Image Pattern for the Front
Camera ..................................................... 80
About the adjustment of guide display
ON/OFF setting and adjustment of Caution
display location ........................................ 80
Other Camera Operation ................................. 80
About the adjustment of the Caution display
location .................................................... 80
SiriusXM Satellite Radio Operation
(Optional)
Receiving Channels with the SiriusXM
Tuner ........................................................... 81
Tuning Channels by Category ........................ 81
Changing the Display ..................................... 81
Checking the SiriusXM Radio ID Number ....82
Storing Channel Presets .................................. 82
Tuning Channels using Presets ....................... 82
Tune Start Function ........................................ 82
Tune Scan Function ........................................ 82
Search Function .............................................. 83
Selecting the Channel directly ........................ 83
Storing the desired Song/Artist ....................... 83
Receiving and Tuning to an Alert ................... 84
Replay Function .............................................. 84
Parental Lock Function ................................... 84
Using Jump Memory and Jump Recall
function ....................................................... 84
7-EN
Storing the Tag information ............................ 85
Playing the iDataLink SiriusXM .................... 85
Flash Memory (Optional)
Playback .......................................................... 86
Repeat Play ..................................................... 87
Random Play (M.I.X.) .................................... 87
Random Play (M.I.X. ALL) ........................... 87
Searching for a Desired Song ......................... 87
File/Folder Name Search ............................. 87
Tag Search ................................................... 88
Direct Up/Down Function .............................. 88
Select the desired Folder (Folder up/down) .... 88
Playing the iDataLink USB/iPod .................... 88
iPod/iPhone (Optional)
Playback .......................................................... 90
Searching for a Music File .............................. 90
Searching for a Desired Video File ................. 91
Alphabet Skip Function .................................. 91
Direct Up/Down Function .............................. 91
Search Position Memory ................................ 91
Repeat Play ..................................................... 92
Random Play (Shuffle) ................................... 92
Random Play (Shuffle All) ............................. 92
HDMI Device (Optional)
Pandora® internet radio (optional)
Listening to Pandora® ..................................... 93
iPhone Pandora® ......................................... 93
Bluetooth Pandora® ..................................... 93
“Thumbs” Feedback ....................................... 94
Searching for a Desired Station ...................... 94
Creating a New Station ...................................94
QuickMix ........................................................ 94
Bookmarking a Desired Track or Artist ......... 95
Information
Product Software Update ................................ 95
About DVDs ................................................... 95
List of Language Codes .................................. 97
List of Country Codes ..................................... 98
In Case of Difficulty ..................................... 100
If this Message Appears ............................... 101
Specifications ................................................ 104
END USER LICENSE AGREEMENT
(Microsoft) ................................................ 105
END USER LICENSE AGREEMENT
(NAVTEQ) ................................................ 107
Installation and
Connections
Warning ................................................ 108
Caution ................................................. 108
Precautions .......................................... 108
Installation .................................................... 109

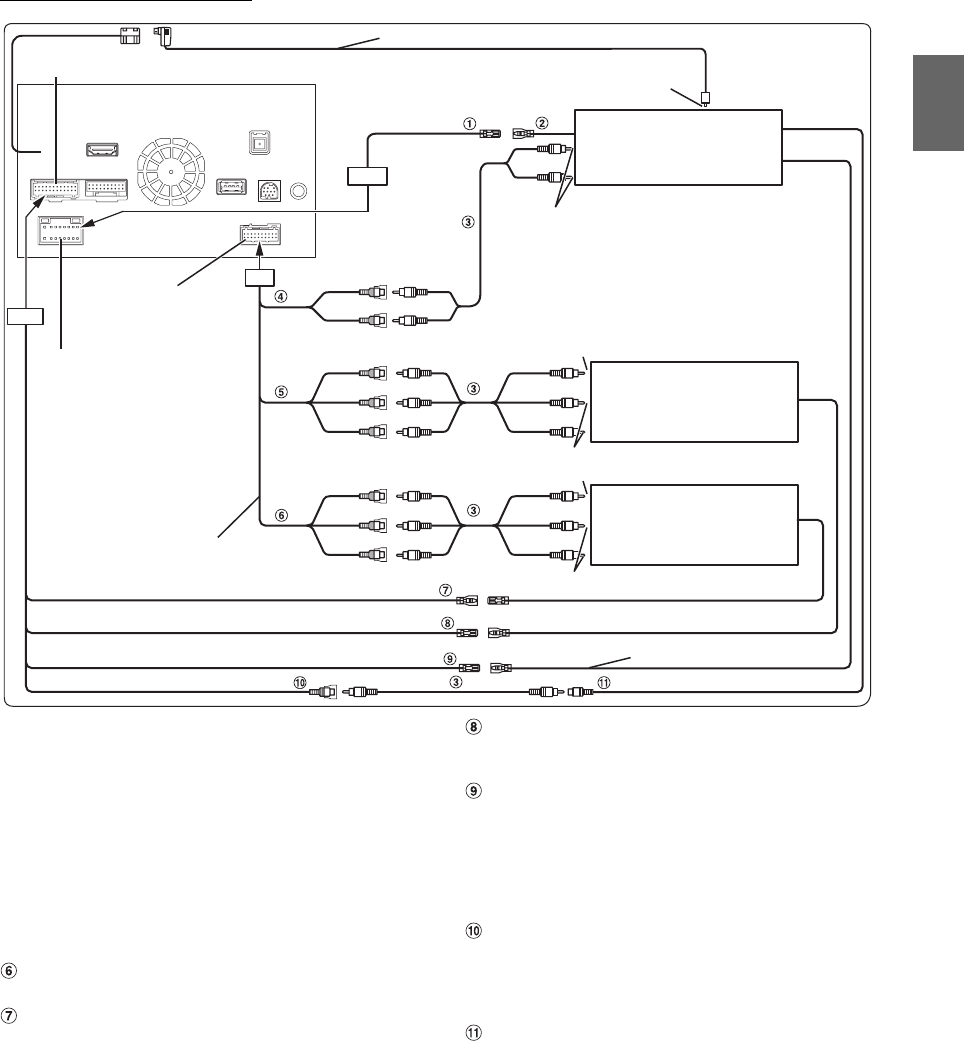

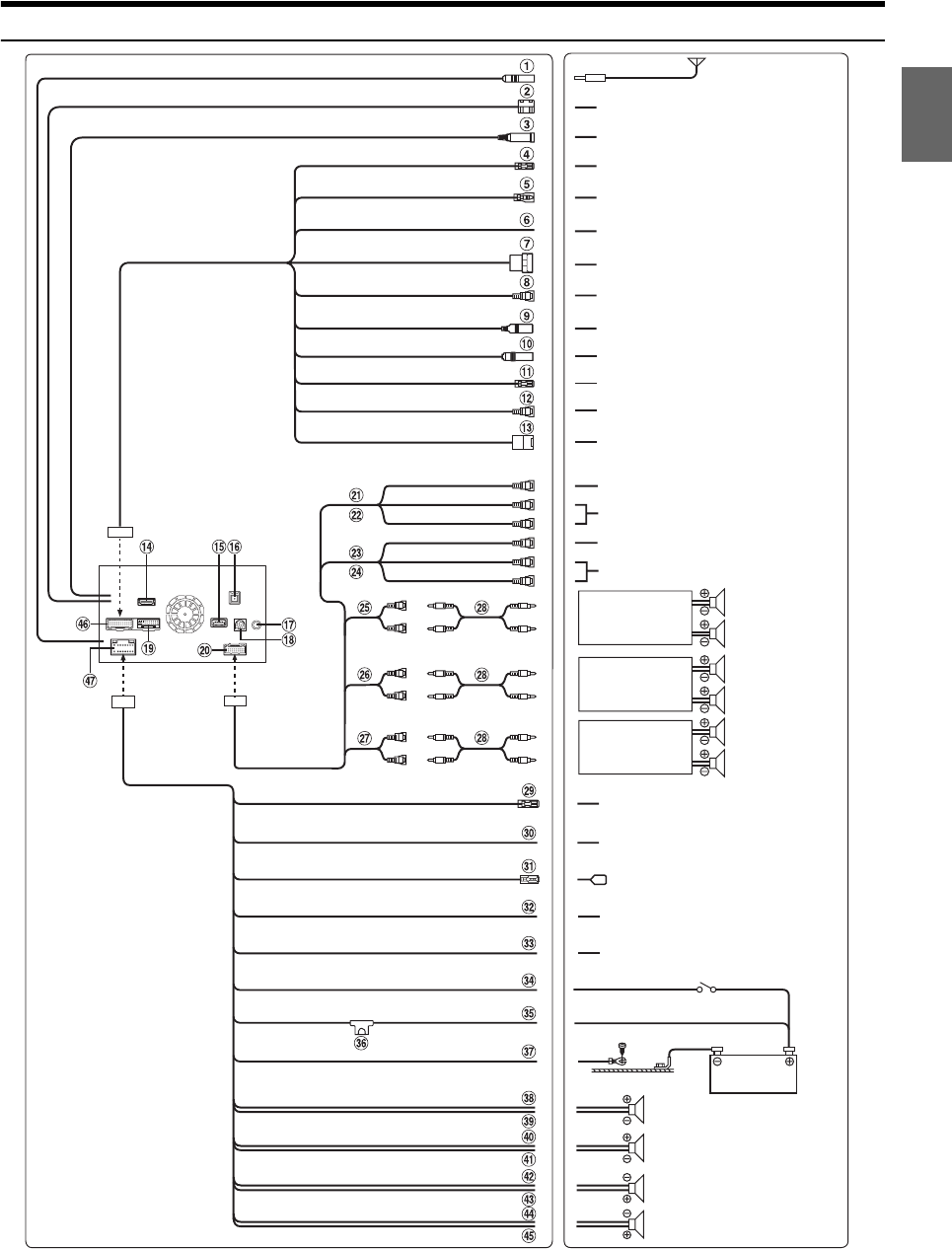

Connections .................................................. 111

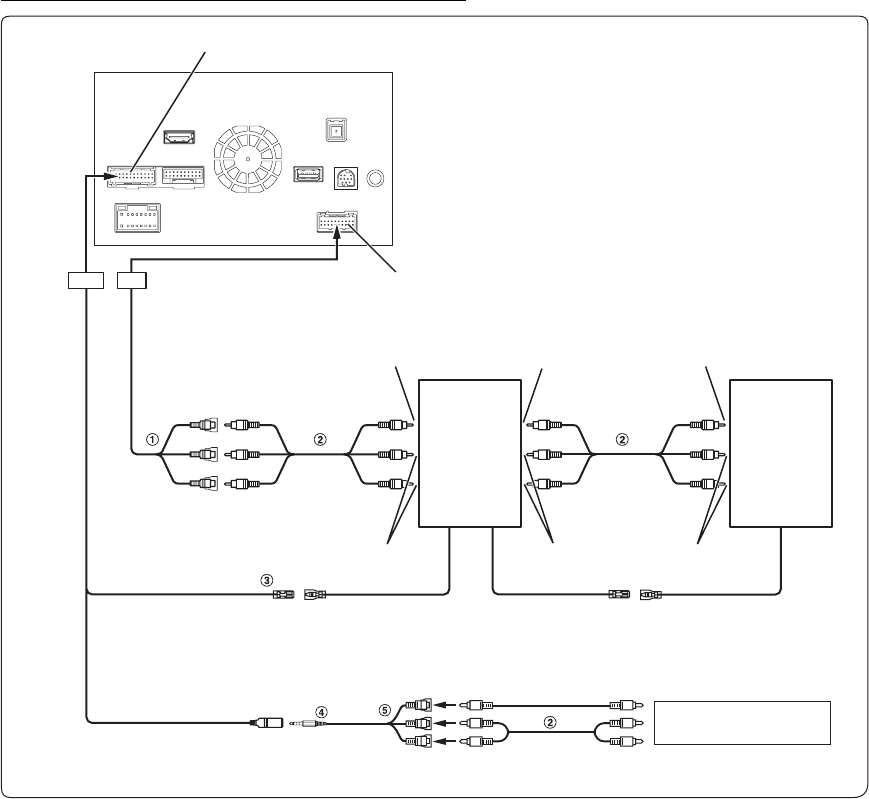

System Example ........................................... 114
LIMITED WARRANTY
8-EN
Operating Instructions
IMPORTANT INFORMATION
PLEASE READ CAREFULLY BEFORE USING THIS
PRODUCT
This product is intended to provide turn by turn instructions to
get you to a desired destination. Please make certain that all
persons using this navigation system carefully read these
precautions and the following instructions fully.
• This product is not a substitute for your personal judgment. Any
route suggestions made by this navigation system may never
supersede any local traffic regulations or your personal judgment
and/or knowledge of safe driving practices. Do not follow route
suggestions if the navigation system instructs you to perform an
unsafe or illegal maneuver, places you in an unsafe situation, or
routes you into an area which you consider unsafe.
• Glance at the screen only when necessary and safe to do so. If
prolonged viewing of the screen is necessary, pull over in a safe
and legal manner and location.
• Do not input destinations, change settings, or access any
functions requiring a prolonged view of the monitor and/or
remote control while you are driving. Pull over in a safe and
legal manner and location before attempting to access the
system.
• Do not use the navigation system to route you to emergency
services. Not all locations of emergency services such as police
and fire stations, hospitals and clinics are contained in the
database. Please use your own judgment and ask for directions in
these situations.
• The map database used in the navigation system is the most
recent map data available at the time of production. Because of
changes in streets and neighborhoods, there may be situations
where the navigation system is not able to route you to your
desired destination. In these cases, use your own judgment.
• The map database is designed to provide you with route
suggestions and does not take into account the relative safety of a
suggested route or of factors which may affect the time required
to reach your destination. The system does not reflect road
closures or construction, road characteristics (i.e. type of road
surface, slope or grade, weight or height restrictions, etc.), traffic
congestion, weather conditions, or any other factors which may
affect the safety or timing of your driving experience. Use your
own personal judgment if the navigation system is unable to
provide you with an alternate route.
• There may be situations where the navigation system displays
the vehicle’s location erroneously. Use your own driving
judgment in this situation, taking into account current driving
conditions. Please be aware that in this situation the navigation
system should correct the vehicle’s position automatically.
However, there may be times where you may have to correct the
position yourself. If this is the case, pull over in a safe and legal
manner and location before attempting operation.
• Make certain that the volume level of the navigation system is set
to a level which still allows you to hear outside traffic and
emergency vehicles.
If there is anything in the manual about the operation of
the navigation system which you are uncertain about,
please contact your local Alpine authorized navigation
dealer or Alpine at 1-888-NAV-HELP (1-888-628-4357)
before using the navigation system.
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide more reasonable
protection against harmful interference in a residential
installation, and are more stringent than “outdoor” requirements.
Operation is subjected to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, you are encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult an experienced radio/TV technician.
Points to Observe for Safe Usage
•Read this manual carefully before using this disc and the system
components. They contain instructions on how to use this
product in a safe and effective manner. Alpine cannot be
responsible for problems resulting from failure to observe the
instructions in this manual.
•This manual uses various pictorial displays to show you how to
use this product safely and to alert you to potential dangers
resulting from improper connections and operation. Following
are the meanings of these pictorial displays. It is important to
fully understand the meanings of these pictorial displays in order
to use this manual and the system properly.
PRECAUTIONS
WARNING
9-EN
INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER
CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS
STOPPED AND THE EMERGENCY BRAKE IS APPLIED.
It is dangerous (and illegal in many states) for the driver to watch
TV/Video while driving a vehicle. Installing this product
incorrectly enables the driver to watch TV/Video while driving.
This may cause a distraction, preventing the driver from looking
ahead, thus causing an accident. The driver or other people could be
severely injured.
DO NOT WATCH VIDEO WHILE DRIVING.
Watching the video may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should only be
performed after coming to a complete stop. Always stop the vehicle
in a safe location before performing these functions. Failure to do
so may result in an accident.
DO NOT FOLLOW ROUTE SUGGESTIONS IF THE
NAVIGATION SYSTEM INSTRUCTS YOU TO PERFORM AN
UNSAFE OR ILLEGAL MANEUVER, OR PLACES YOU IN AN
UNSAFE SITUATION OR AREA.
This product is not a substitute for your personal judgment. Any
route suggestions by this system should never supersede any local
traffic regulations or your personal judgment or knowledge of safe
driving practice.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISES WHILE DRIVING.
Excessive volume levels that obscure sounds such as emergency
vehicle sirens or road warning signals (train crossings, etc.) can be
dangerous and may result in an accident. LISTENING AT LOUD
VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING
DAMAGE.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire,
electric shock or other injury.
DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN
INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the product.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Center for repairing.
KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT
PANEL OR MOVING MONITOR IS IN MOTION.
Failure to do so may result in personal injury or damage to the
product.
WARNING
•Operation of the system while driving is dangerous. Users
should stop vehicle before operating the software.
•Road conditions and regulations take precedence over
information contained on the map display: observe actual
traffic restrictions and circumstances while driving.
•This software is designed for use exclusively in the X009. It
cannot and may not be used in conjunction with other
hardware.
WARNING
This symbol means important instructions.
Failure to heed them can result in serious injury
or death.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
10-EN
NOTICE
Product Cleaning
Use a soft dry cloth for periodic cleaning of the product. For more
severe stains, please dampen the cloth with water only. Anything
else has the chance of dissolving the paint or damaging the plastic.
Temperature
Be sure the temperature inside the vehicle is between +45°C
(+113°F) and 0°C (+32°F) before turning your unit on.
Moisture Condensation
You may notice the disc playback sound wavering due to
condensation. If this happens, remove the disc from the player and
wait about an hour for the moisture to evaporate.
Damaged Disc
Do not attempt to play cracked, warped, or damaged discs. Playing
a bad disc could severely damage the playback mechanism.
Maintenance
If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.
Never Attempt the Following
Do not grip or pull out the disc while it is being pulled back into the
player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power is
off.
Inserting Discs
Your player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc.
“Disc error” will be displayed on your player if you insert a disc
incorrectly. If “Disc error” continues to be displayed even though
the disc has been inserted correctly, push the RESET switch with a
pointed object such as a ballpoint pen.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.
Irregular Shaped Discs
Be sure to use round shaped discs only for this unit and never use
any special shaped discs.
Use of special shaped discs may cause damage to the mechanism.
New Discs
To prevent the disc from jamming, “Disc error” is displayed if discs
with irregular surfaces are inserted or if discs are inserted
incorrectly. When a new disc is ejected immediately after initial
loading, use your finger to feel around the inside of the center hole
and outside edge of the disc. If you feel any small bumps or
irregularities, this could inhibit proper loading of the disc. To
remove the bumps, rub the inside edge of the hole and outside edge
of the disc with a ballpoint pen or other such instrument, then insert
the disc again.
Installation Location
Make sure the X009 will not be installed in a location subjected to:
• Direct sun and heat
• High humidity and water
• Excessive dust
• Excessive vibrations
Correct Handling
Do not drop the disc while handling. Hold the disc so you will not
leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.
Disc Cleaning
Fingerprints, dust, or soil on the surface of the disc could cause the
DVD player to skip. For routine cleaning, wipe the playing surface
with a clean, soft cloth from the center of the disc to the outer edge.
If the surface is heavily soiled, dampen a clean, soft cloth in a
solution of mild neutral detergent before cleaning the disc.
Center Hole
Bumps
Center Hole
New Disc
Outside
(Bumps)
CORRECT
INCORRECT CORRECT
11-EN
Disc Accessories
There are various accessories available on the market for protecting
the disc surface and improving sound quality. However, most of
them will influence the thickness and/or diameter of the disc. Using
such accessories can cause operational problems. We recommend
not using these accessories on discs played in Alpine DVD players.
Operation of some of the functions of this unit is very complex.
Because of this, it was deemed necessary to place these functions
into a special screen. This will restrict operation of these functions
to times when the vehicle is parked. This ensures the focus of the
driver’s attention will be on the road and not on the X009. This has
been done for the safety of the driver and passengers.
Setup operations cannot be made if the car is moving. The car must
be parked and the parking brake must be engaged for the procedure
described in the Owner’s Manual to be valid. The warning “If you
are driving, Please pull over before using this function.” will be
displayed if any attempts are made to perform these operations
while driving.
•The X009 draws minimal current even when its power switch is
turned off. If the switched power (ignition) lead of the X009 is
connected directly to the positive (+) post of the vehicle’s battery, the
battery may be discharged.

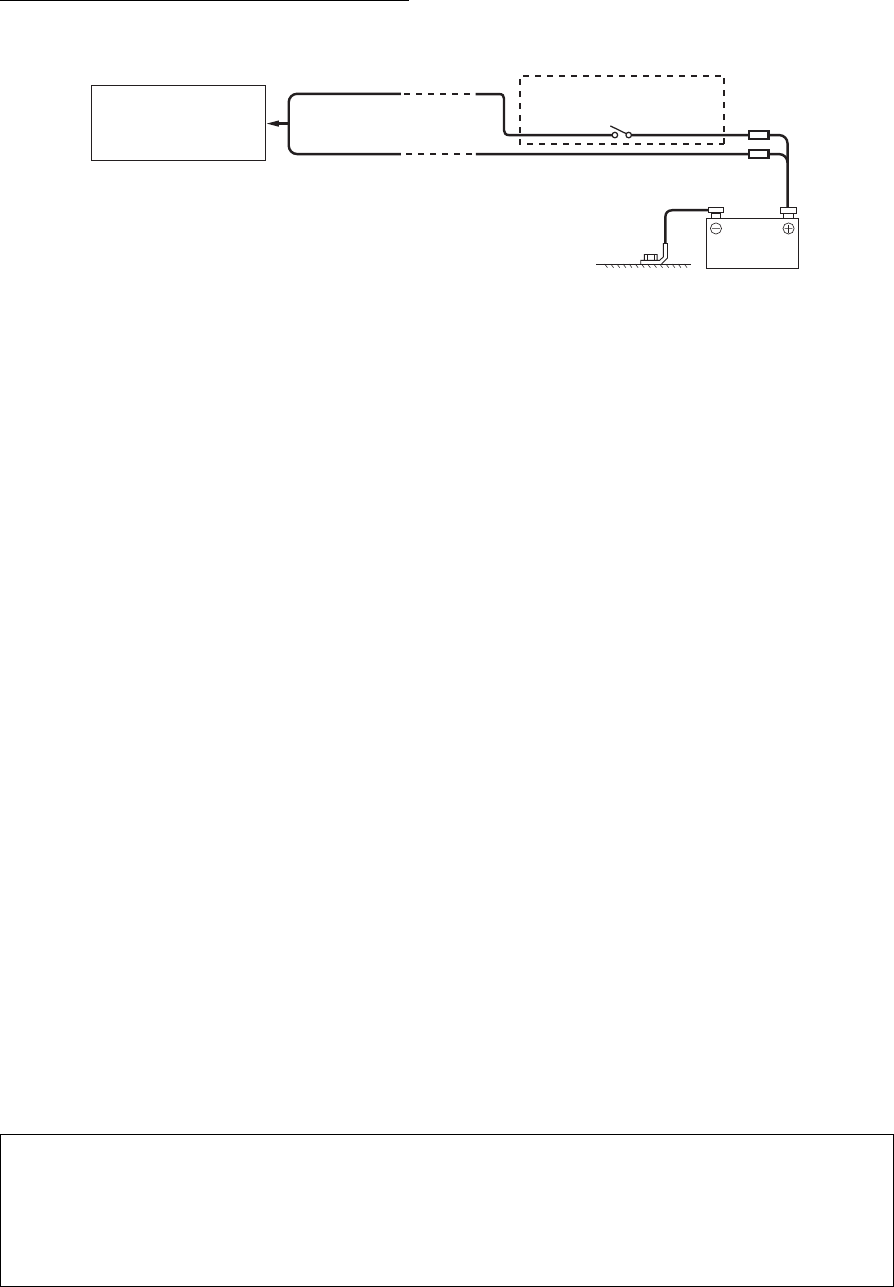

An SPST (Single-Pole, Single-Throw) switch (sold separately) can be
added to simplify this procedure. Then, you can simply place it in the
OFF position when you leave the vehicle. Turn the SPST switch back

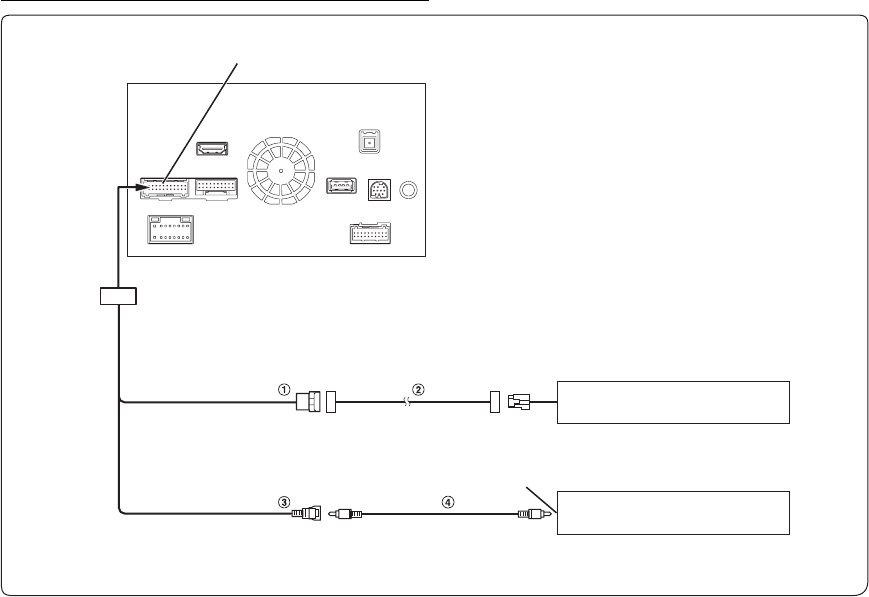

ON before using the X009. For connecting the SPST switch, refer to
the “Connection Diagram of SPST Switch (sold separately)”
(page 110). If the power (ignition) lead is unswitched, it must be
disconnected from the battery post should the vehicle be left unused
for an extended period of time.
Discs Playable on This Unit
Playable Discs
The discs listed below can be played on this unit.
* Two-layer DVD disc compatible
The formatted discs listed below can be played on this unit.
• Discs that are not finalized cannot be played back.
Transparent Sheet Disc Stabilizer
Mark (logo) Recorded Content Disc size
DVD Video Audio + Video 12 cm*
Music CD Audio 12 cm
DivX®Audio + Video 12 cm
CD-R/
CD-RW
DVD-R/
DVD-RW
DVD+R/
DVD+RW
CD Format
MP3 Format (“mp3”)
WMA Format (“wma”)
AAC Format (“aac”, “m4a”)
DVD Video Format
DivX Format (“avi”, “divx”)
12-EN
Discs that cannot be played
DVD-ROMs, DVD-RAMs, CD-ROMs (excluding MP3/WMA/
AAC files), photo CDs, etc.
DualDisc
This unit is not compatible with DualDisc.
Using a DualDisc may cause unit malfunction, and may cause disc
damage when the disc is inserted/ejected.
DVD region number (playable region number)
This DVD player will play back any disc whose region number is 1
(or All). DVDs with a region number other than those listed below,
cannot be played on this DVD player.
Using compact discs (CD/CD-R/CD-RW)
If you use unspecified compact discs, correct performance cannot
be guaranteed.
You can play CD-Rs (CD-Recordables)/CD-RWs (CD-
ReWritables) which have been recorded only on audio devices.
You can also play CD-Rs/CD-RWs containing MP3/WMA/AAC
formatted audio files.
• Some of the following discs may not play on this unit:
Flawed discs, discs with fingerprints, discs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), discs
recorded under unstable conditions, discs on which a recording
failed or a re-recording was attempted, copy-protected CDs
which do not conform to the audio CD industry standard.
• Use discs with MP3/WMA/AAC files written in a format
compliant with this unit. For details, see pages 35 and 36.
To customers using CD-R/CD-RW
• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalized).
• Finalize the CD-R/CD-RW if necessary, and attempt playback
again.
Tips for making your own discs
The X009 plays DVD Video, DivX®, Audio CD and has a built in
MP3/WMA/AAC decoder.
The following information is designed to help you create your own
music CDs (either Audio CD or MP3/WMA/AAC encoded CD-R/
RW files).
What is the difference between an Audio and MP3/WMA/AAC
CD?
An Audio CD is the same format as the commercial CDs you buy
in the store (also known as CD-DA). MP3 (MPEG Audio Layer 3)/
WMA (Windows Media Audio)/AAC (Advanced Audio Coding) is
a data file that uses a compression scheme to reduce the size of the
music file*.
* If the first session on a disc containing both CD-DA data and
MP3/WMA/AAC data is a CD-DA file, only CD-DA files will
be played.
Multisession CD-R/RW:
Once a recording has been stopped, this is considered one session.
If the disc is not closed (finalized), additional data may be added.
Once this additional data has been recorded, this becomes a
“multisession” CD.
Properly formatted MP3/WMA/AAC Discs:
Use ISO9660 formatting to insure proper playback. You may use
standard ISO naming Level 1 (8.3 DOS standard), Level 2
(32 characters) or Joliet (Windows or Macintosh long filenames)
file naming conventions*.
* Please consult the Owner’s manual for additional information.
ALL
1
On handling compact discs (CD/CD-R/CD-RW)
• Do not touch the surface.
• Do not expose the disc to direct sunlight.
• Do not affix stickers or labels.
• Clean the disc when it is dusty.
• Make sure that the disc is smooth and flat.
• Do not use commercially available disc accessories.
Do not leave the disc in the car or the unit for a long time.
Never expose the disc to direct sunlight.
Heat and humidity may damage the disc and you may not be
able to play it again.
13-EN
Using DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs
• This unit is compatible with discs recorded in the standard
DVD-Video format.
• Note that discs not finalized (processed to enable to play on
playback-only DVD players) cannot be played on this DVD
player.
• Some discs may not play back, depending on the recording
device and disc format.
• Discs or files utilizing copy protection, may not be playable.
Some recording systems may not properly format copied files to
enable proper playback.
• In the following cases, the disc may not play on this unit:
discs recorded by certain DVD recorders, certain irregular discs,
flawed discs, dirty discs, when the pickup lens of this DVD
player is dirty, or when moisture condensation has occurred
inside the unit.
• Be sure to follow all cautions included with your DVD-Rs/
DVD-RWs/DVD+Rs/DVD+RWs discs.
• Do not put stickers, seals, or tape on the label side of DVD-Rs/
DVD-RWs/DVD+Rs/DVD+RWs.
• Compared to the regular discs, DVD-Rs/DVD-RWs/DVD+Rs/
DVD+RWs are more affected by heat, moisture, and direct
sunlight. If left in a car, etc., damage may occur and it might not
play on this unit.
• The operable temperature range for disc playback is as follows:
DVD-R/DVD-RW: -25 ~ +70°C
DVD+R/DVD+RW: +5 ~ +55°C
Disc terminology
Title
If titles are programmed for the DVD, these are the largest units of
division of the information recorded on the disc.
Chapter
Each Title may also be divided into smaller divisions, called
chapters. These can be specific scenes or musical selections.
Protecting the USB connector
• Only an iPod/iPhone or Flash memory can be connected to the
USB connector on this unit. Correct performance using other
USB products cannot be guaranteed.
• If the USB connector is used, be sure to use only the supplied
connector cable with the unit. A USB hub is not supported.
• Depending on the connected Flash memory device, the unit may
not function or some functions may not be performed.
• The audio file format that can be played back on the unit is
MP3/WMA/AAC.
• The video file format that can be played back on the unit is
DivX®.
• Artist/song name, etc., can be displayed. Certain, special
characters may not be correctly displayed.
On Handling Flash memory
• This unit can control a memory storage device that supports the
USB Mass Storage Class (MSC) protocol. Playable audio file
formats are MP3, WMA and AAC.
• Flash memory function is not guaranteed. Use Flash memory
according to the terms of agreement. Read the Flash memory
Owner’s Manual thoroughly.
• Avoid usage or storage in the following locations:
Anywhere in the car exposed to direct sunlight or high
temperatures.
Anywhere the possibility of high humidity or corrosive
substances are present.
• Fix the Flash memory in a location where driver operation will
not be hindered.
• Flash memory may not function correctly at high or low
temperature.
• Use only certified Flash memory. Note that even certified Flash
memory, may not function correctly depending on its type or
state.
• Depending on the settings of the Flash memory type, memory
state or encoding software, the unit may not play back or display
properly.
• Files protected by DRM (Digital Rights Management), cannot be
played back on this unit. These include AAC formatted files
purchased from the iTunes Store and WMA or other files with
some form of copyright protection.
• Flash memory may take time to start playback. If there is a
particular file other than audio in the Flash memory, it may take
considerable time before the file is played back or searched.
• The unit can play back “mp3”, “wma” or “m4a” file extensions.
• Do not add the above extensions to a file other than audio data.
This non-audio data will not be recognized. The resulting
playback may contain noise that can damage speakers and/or
amplifiers.
• It is recommended to back up important data on a personal
computer.
• Do not remove the USB device while playback is in progress.
Change SOURCE to something other than USB, then remove the
USB device to prevent possible damage to its memory.
CAUTION
Alpine accepts no responsibility for lost data, etc., even if data, etc.,
is lost while using this product.
14-EN
•This item incorporates copy protection technology that is
protected by U.S. patents and other intellectual property rights
of Rovi Corporation. Reverse engineering and disassembly are
prohibited.
•Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby Laboratories.
•Windows Media, and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
•iPhone, iPod, iPod classic, iPod nano, iPod touch, and iTunes
are trademarks of Apple Inc., registered in the U.S. and other
countries.
•“Made for iPod,” and “Made for iPhone,” mean that an
electronic accessory has been designed to connect specifically to
iPod, or iPhone, respectively, and has been certified by the
developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of
this accessory with iPod, or iPhone may affect wireless
performance.
•Pandora, the Pandora logo, and the Pandora trade dress are
trademarks or registered trademarks of Pandora Media, Inc.,
used with permission. Pandora is currently available in the U.S.,
Australia and New Zealand.
•HD Radio Technology manufactured under license from iBiquity
Digital Corporation. U.S. and Foreign Patents. HD Radio™ and
the HD, HD Radio, and “Arc” logos are proprietary trademarks
of iBiquity Digital Corp.
•Sirius, XM and all related marks and logos are trademarks of
Sirius XM Radio Inc. All rights reserved.
•BlackBerry®, RIM®, Research In Motion® and related
trademarks, names and logos are the property of Research In
Motion Limited and are registered and/or used in the U.S. and
countries around the world. Used under license from Research
In Motion Limited.
•Android is a trademark of Google Inc.
•DivX®, DivX Certified® and associated logos are trademarks of
Rovi Corporation or its subsidiaries and are used under license.
•The Bluetooth® word mark and logos are registered trademarks
owned by the Bluetooth SIG, Inc. and any use of such marks by
Alpine Electronics, Inc. is under license.
•The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and
other countries.
•MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson. Supply of this product only
conveys a license for private,non-commercial use and does not
convey a license nor imply any right to use this product in any
commercial (i.e. revenue-generation) real time broadcasting
(terrestrial, satellite, cable and/or any other media),
broadcasting/streaming via internet, intranets and/or other
networks or in other electronic content distribution systems, such
as pay-audio or audio-on-demand applications. An independent
license for such use is required. For details, please visit
http://www.mp3licensing.com
©2014 NAVTEQ. All rights reserved.
Portions ©2014, Microsoft Corporation. All Rights Reserved.
15-EN
Auto user setting change
With the X009, you can register up to two users.
Each user can configure their own preferred settings.
By registering their respective Bluetooth devices to the unit, each user can be identified automatically.
•For details of how to register a Bluetooth device, refer to “User Registration” (page 21).
•If USER2 is recognized while USER1 is using the system, a confirmation message is displayed.
•If no Bluetooth device has been registered or if you want to switch users manually, touch the user tab key on the top of the screen.
•For details of which settings are affected by switching users, refer to “Settings When Switching Users” (page 27).
My Favorites
Up to 80 My Favorites can be registered as shortcut keys for each registered user.
Frequently used functions and handy functions can be customized for your convenience.
For details of how to register or add My Favorites, how to change the name, etc., refer to “Using My Favorites” (page 20).
Features
USER1
USER2
USER1 USER2
USER1 USER2
16-EN
Easy sound setting by car type (i-Personalize)
This function lets you set the best audio environment for your car.
On the unit, select and set the car category/steering wheel position/speaker type and size/seat material.
For details of how to configure the settings, refer to “Car Specific Sound Setup” (page 23).
Display example when setting is completed
About Dual Screen
If you want to display the music playback screen while route guidance is displayed, etc., you can display the Navigation and Audio/Visual screens
simultaneously.
*1During video playback, [Dual Wide], [Dual Full] and [Full Screen] appear on the screen for selecting the screen size. For details, refer to
“Switching the Dual Screen Display” (page 29).
Audio/Visual Full screen
Navigation Full screen
Dual Screen
Press the AUDIO button.
Touch *1
Touch
Press the (NAV) button.
Touch the Navigation screen portion.
or
or
17-EN
You can switch the Audio/Visual and Navigation screens using drag & drop.
To switch the screens, touch the middle of the Audio/Visual screen and drag it to the navigation screen. The screens will switch positions when you
remove your finger.
•Drag and drop the navigation screen will change to navigation full screen.
Dual Screen Display Position
18-EN
Accessory List
•X009.....................................................................................1
•GPS Antenna .......................................................................1
•Antenna mounting plate ......................................................1
•Cable clamp for antenna................................................1set
•AUX/PRE OUT cable ...........................................................1
•CAMERA/W.REMOTE cable ................................................1
•USB extension cable ...........................................................1
•SD memory card..................................................................1
•Cushion................................................................................1
•Screw (M5×8) ......................................................................8
•Owner’s Manual ..............................................................1set
Location of Controls
For GMC/Chevrolet
For Universal
•This is only an example illustration, about the name and layout of
buttons, please refer to your vehicle.
Microphone*
Used for Hands-Free or Voice Control modes.
(My Favorites/iDataLink mode) button
The My Favorites screen for registered User1 or User2 is
displayed.
Press and hold this button for at least 3 seconds to switch to

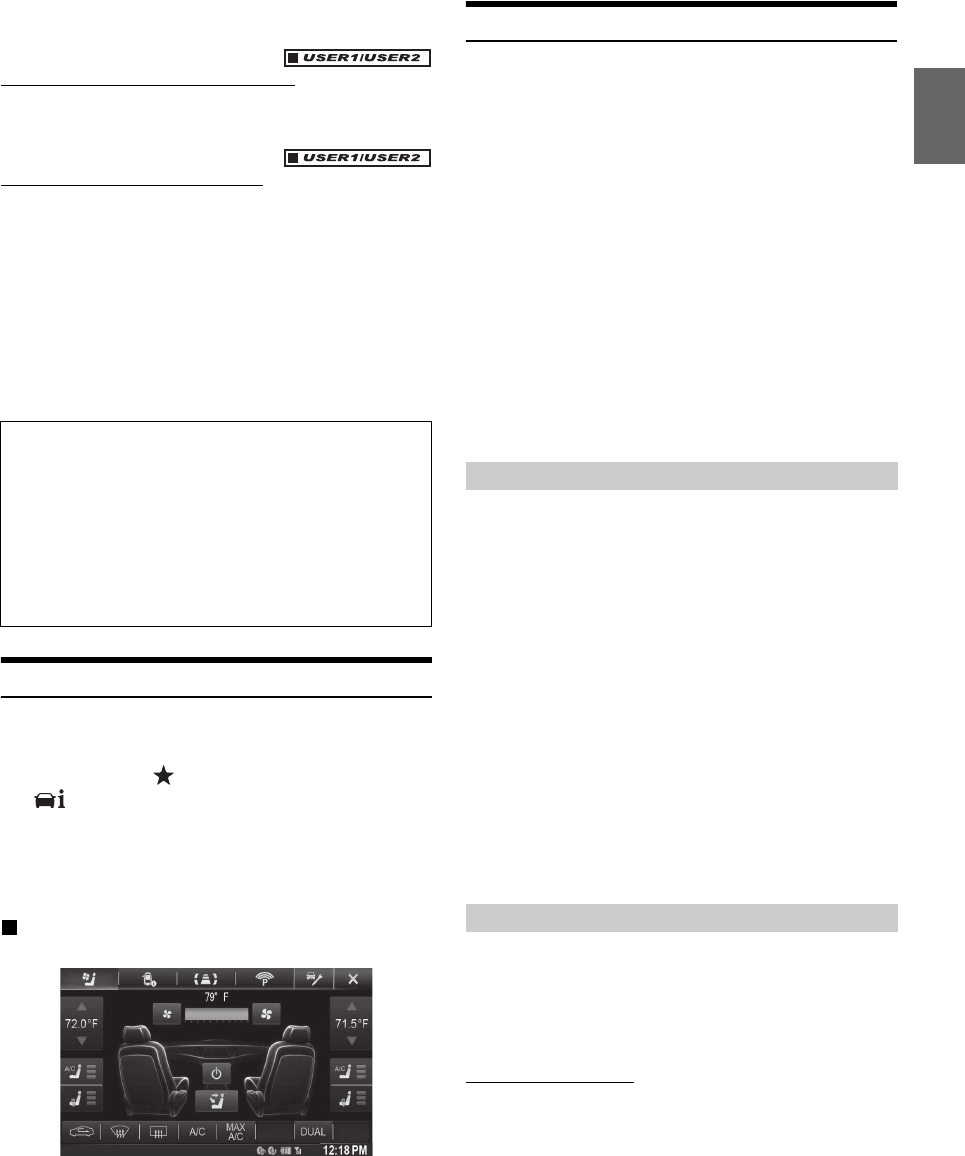

iDataLink mode. You can check the car’s status, set the air
condition, etc,. when this unit is connected to the car’s
iDataLink module box.
AUDIO button
Displays the Audio/Visual screen. If the Audio/Visual screen
is already displayed, changes the source.
Press and hold this button for at least 3 seconds to activate
the “Easy Sound Setup mode” (page 24). You can select
this menu to be displayed on the left or right of the screen.
For details, refer to “Setting the Easy Sound Setup Position”
(page 55).
/ (for GMC/Chevrolet) or -/+ (for Universal)
button
Press to adjust the volume.
(Mute) button
Press to activate/deactivate the mute mode.
Press and hold this button for at least 3 seconds to turn the
power off.
RESET switch*
The system of this unit is reset.
c (Eject) button
Dimmer Sensor/Remote Sensor
•Sense the brightness of the car interior.
•Point the remote control transmitter towards the remote
sensor within a range of 2 meters.
(iDataLink mode) button*
Press this button to switch to iDataLink mode.
(NAV) button
Recalls the navigation map screen.
Press again to switch to Navigation menu screen.
Press and hold this button for at least 3 seconds to change
to Go Home route screen. If the Home is not set yet, it will
change to Home setting screen.
For details of navigation operations, refer to “Navigation
System OM” in the CD-ROM.
(PHONE) button
Recalls the Telephone Menu screen.
When a hands-free phone with Voice Recognition is
connected, press and hold for at least 3 seconds to switch
to the Voice Recognition mode.
CAM (Camera) button*
Press to display rear camera image. Press again to return to
normal screen.
Auxiliary Input connector (AUX INPUT)*
Input auxiliary device’s Video/Audio signal. Correct wiring
should be done before use this connector. For details, refer
to “Connections” section.
*Only for GMC/Chevrolet or other model.
Getting Started
Optional Remote Control Interface Box
This unit is operable using the vehicle’s secondary radio controls.
An Alpine Remote Control Interface Box (optional) is required. For
details, contact your Alpine dealer.
Controllable with Remote Control
This unit can be controlled with an optional Alpine remote control.
For details, consult your Alpine dealer. Point the optional remote
control transmitter at the remote control sensor.
About the button descriptions used in this Owner’s
Manual
The buttons found on the face of the unit are expressed in
bold (e.g. (My Favorites)). The buttons found on the
touch-screen display are shown in bold within brackets, [ ]
(e.g. []).
19-EN
Turning Power On or Off
Some of this unit’s functions cannot be performed while the vehicle is in
motion. Be sure to stop your vehicle in a safe location and apply the
parking brake, before attempting these operations.
1
Turn the ignition key to the ACC or ON position.
The system turns on.
•When turned on, the system displays the last mode screen that
was displayed before the ignition key was turned off. For
example, if the unit is in radio mode when ignition is turned off,
it will remain in radio mode when ignition is turned back on.
2
Press and hold the button for at least 3 seconds
to turn the power off.
•The unit can be turned on by pressing any button.
•The X009 is a precision device. Careful handling of the unit should
provide you with years of trouble-free operation.
Turning the System On
With the Alpine system, when the ignition key is turned to ACC or ON,
the opening screen will be automatically displayed.
1
When the system is used for the first time, the
language selection menu is displayed. There are 24
languages to choose from. Touch [] or [] to
scroll the list, and then touch the desired language.
•You can also scroll through lists by touching the screen and
sliding your finger up and down.
2
Touch [OK].
The radio screen is displayed.
•Some of this unit’s functions cannot be performed while the vehicle is
in motion. Be sure to stop your vehicle in a safe location and apply
the parking brake before attempting these operations.
Initial System Start-Up*
*Only for GMC/Chevrolet or other model.
Be sure to press the RESET switch when using the unit for the first
time, after changing the car battery, etc.
1
Turn off the unit power.
2
Press RESET switch with a ballpoint pen or similar
pointed object.
Inserting/Ejecting a Disc
1
Press c (Eject).
The Open/Tilt screen is displayed.
2
Touch [c Disc].
3
Insert the disc with the label side facing up.
Insert the disc until it is automatically pulled into the unit.
The unit starts to play the disc.
*The SD memory card does not support Music/Video playback.
For details on how to use SD memory cards, refer to “Navigation
system OM” on the supplied CD-ROM.
•To remove the SD memory card, touch [ SD].
•Insert the SD memory card into the slot until it is locked.
If the SD memory card is not inserted properly, the monitor cannot be
closed.
1
Press c (Eject).
The Open/Tilt screen is displayed.
2
Touch [c Disc].
The monitor will open. Then the disc is ejected.
When the disc has been ejected part way, take it out.
•Even if no disc is inserted, the monitor will open after touching
[c Disc].
Inserting the Disc
Removing the Disc
RESET switch
SD memory
card slot*Disc Slot
20-EN
3
Touch [Close], or press any button.
•If the disc does not eject after touching [c Disc], press and hold
c(Eject) for at least 5 seconds.
•Do not apply shock to the monitor when it is open as it may result in
malfunction of the unit.
•The monitor will stop at the set tilt angle when closing.
Adjusting the Screen Viewing Angle
Adjust the screen’s angle for better visibility.
1
Press c (Eject).
The Open/Tilt screen is displayed.
2
Touch [Up] or [Down] of “Tilt” to adjust the
desired screen angle.
The screen angle can be adjusted in 5 stages.
3
Touch [] to return to the normal mode.
•The screen color will vary when viewed at certain angles. Adjust the
screen angle for the best viewing position.
•If the voltage of the vehicle’s battery power is low, the screen may
blink when the screen angle is changed. This is normal and not a
malfunction.
Adjusting the Volume
Adjust the volume by pressing or .
Volume decreases/increases continuously by pressing and
holding or .
Volume: 0 - 35
Lowering Volume Quickly
Activating the Audio Mute function will instantly lower the volume
level by 20 dB.
1
Press to activate the MUTE mode.
The audio level will decrease by about 20 dB.
2
Pressing again will bring the audio back to its
previous level.
Using My Favorites
Display example of My Favorites screen
User name: Displays the name of the user
My Favorites icon: Touching an icon on My Favorites
screen will switch to the screen for the selected
application
Add button: Use to add (register) My Favorites icons
(page 22)
Edit button: Use to edit My Favorites (page 22)
Camera button: Use to display the camera image
(page 23)
Notification List button: Use to display the Notification
List from Facebook in the connected Smartphone via
this unit (page 25)
i-Personalize button: Use to configure the i-Personalize
Setup (page 23)
CAUTION
Keep hands (or any other object) away from the monitor while it
is opening or closing to avoid damage or injury. The back of the
monitor tends to become very warm under normal operating
conditions. This is not a malfunction, but care should be taken to
avoid prolonged contact with it.
Common Operations
21-EN
User Registration
You can register up to two users. Configure the User1 and User2
settings for each user.
1
Press the (My Favorites) button.
The My Favorites screen is displayed.
•You cannot access My Favorites screen while driving.
2
Touch [Start].
The user name input screen for the first user is displayed.
•After registering the first user, touch [USER2] to access to
USER2’s registration screen.
•Touching [Skip] registers the user name as “USER1” or
“USER2” and no Bluetooth device is registered. In this case,
the users will not be switched automatically.
•Touching [Cancel] or pressing the (My Favorites) button
returns to the original screen without registering a user.
3

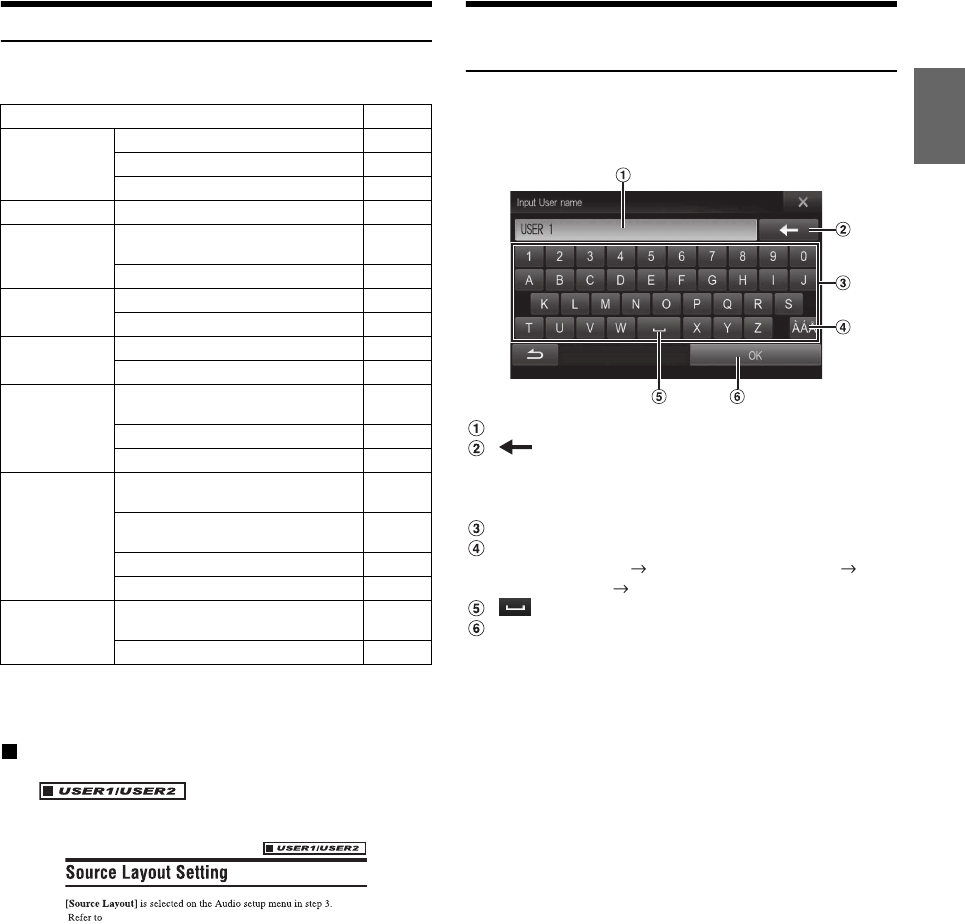

Input the user name from the keypad and touch
[OK].
The Bluetooth Device Setup screen is displayed.
•Touch [ ] to edit the name.
For details of how to input characters from the keypad, refer to
“How to Input Characters and Numbers (Keypad)” (page 27).
4
Touch [Link], then touch [OK].
The Bluetooth Device List is displayed.
•The Bluetooth devices registered here are used to automatically
identify the user.
Also, a cellular phone can be used as a hands-free phone.
For details, see “Bluetooth Setting” (page 62).
•Touching [Do not Link] exits user registration without
registering a Bluetooth device.
5
Touch [Search].
The system starts searching for Bluetooth devices.
When the search is completed, the Bluetooth Device List is
displayed.
•Set the Bluetooth setting on the preregistered Bluetooth device
side to [ON].
6
Touch a registered Bluetooth device and touch
[OK].
My Favorites screen for USER1 or USER2 is displayed.
•You can edit My Favorites icons.
For details of how to add, edit, delete or set My Favorites icons,
refer to “Adding My Favorites” (page 22).
7
Press the (My Favorites) button.
The My Favorites screen is exited and the display returns to
the original screen.
22-EN
Setting My Favorites
Configure the My Favorites settings.
Press the (My Favorites) button.
My Favorites screen for USER1 is displayed.
•You cannot access My Favorites screen while driving.
•[ ] and [ ] are not available while driving.
•To configure My Favorites settings for USER2, touch [USER2]. The
My Favorites screen is displayed.
You can register up to 80 My Favorites for each user.
You cannot, however, register the same items (categories).
1
Touch [].
The addition items (categories) are displayed.
2
Touch the desired addition item (category).
Current position : Registers your current position in My Favorites
Current source : Registers the audio source currently playing in My
Favorites
•During Radio, CD, etc., main screen, you can directly register the
playing source to My Favorites by touching [ ]. The [ ] will not
display when the current source is already registered.
Navigation : Registers the destination search category or nearby place
search category in My Favorites
[Specific Place] : You can display the places registered in
My Favorites and set your destination.
Search for a place registered in My Favorites by Address/
Find Place/Address Book/History, then touch Add.
[Quick Place search] : Displays the address search keypad
[Help Nearby] : Displays the nearby search screen
[POI category] : Displays the selected POI category list
•For details of navigation operations, refer to “Navigation System
OM” in the CD-ROM.
Phone : Lets you register phone numbers stored in the phonebook in
My Favorites for shortcut dialing.
Select a name or phone number from the Phonebook list and touch
[Add].
•Touch [
b
] or [
B
] to switch phone numbers.
•You can only select Phone when a mobile phone is connected.
Audio/Visual : Lets you switch directly to an audio source
[Radio] :
HD Radio/RBDS: You can register presets No. 1-6 in FM1/
FM2/AM.
Select presets No. 1-6 from FM1 preset/FM2 preset/AM
preset.
[SiriusXM] :
You can register presets No. 1-6 in SiriusXM1, SiriusXM2
and SiriusXM3.
Select presets No. 1-6 from SiriusXM1 preset/SiriusXM2
preset/SiriusXM3 preset.
[Disc]/[USB/iPod]/[iDataLink USB/iPod]/[HDMI]/[Pandora]/
[Bluetooth Pandora]/[iDataLink SiriusXM]/[AUX 1]/
[AUX 2]/[AUX 3]/[Bluetooth Audio]/[iDataLink Bluetooth
Audio] : You can switch directly to any of these audio
sources.
You can delete names in My Favorites or change the layout.
Touch [].
“ ” appears and the mode switches to the Edit mode.
•Touching [Cancel] returns to the previous screen without executing
any changes.
Changing the name
1
Touch the icon you want to change
The Edit Text screen (Keypad) is displayed.
2
Enter the name and touch [OK]
The mode returns to the Edit mode.
3
Touch [OK].
The name is changed.
Deleting Icons
1
Touch “ ” by the icon you want to delete
The confirmation message is displayed.
2
Touch [OK].
The mode returns to the Edit mode.
3
Touch [OK].
My Favorites setup
You can change or delete the current registered user name or change the
registered phone number.
Touch [Setup].
The My Favorites Setup screen is displayed.
Adding My Favorites
Editing My Favorites
23-EN
Changing the User Name
1
Touch the [Name] of the current user.
The Input User Name screen (Keypad) is displayed.
2
Input the name and touch [OK].
The user name is changed.
•For details of how to input characters using the keypad, refer to
“How to Input Characters and Numbers (Keypad)” (page 27).
Changing a Bluetooth device
You can change the Bluetooth devices associated with the user.
1
Touch the [Phone].
The Bluetooth Device Setup screen is displayed.
2
Touch [Link], then touch [OK].
The Bluetooth Device list is displayed.
•The Bluetooth device set by User Registration is highlighted.
For detailed settings, touch [Search].
3
Select the device you want to change and touch
[OK].
The device is changed.
Deleting current Registered User
1
Touch [Delete].
The confirmation message is displayed.
2
Touch [OK].
•When the registered user is deleted, all the items affected by
switching users are returned to the default settings.
Changing the Layout
You can change the layout of the shortcut keys.
1
Drag and drop the icon to the desired location.
2
Touch [OK].
When a separately purchased camera is connected to the system, you
can display the camera image.
Touch [] or [].
The camera image is displayed.
•For details of camera operations, refer to “Camera Operation
(Optional)” (page 77).
•When the front camera (direct camera) and rear camera or side
camera (AUX camera) are connected simultaneously, the screen for
selecting which camera image to display appears.
•Depending on the setting, the camera button may not be displayed.
For details, refer to “Setting the Camera Input” (page 64).
You can configure the audio settings by car type.
•You cannot access to i-Personalize screen while driving.
Touch [i-Personalize]*.
The i-Personalize Setup screen is displayed.
* This item cannot be adjusted when External Audio Processor is set to
On or BASS ENGINE SQ mode is selected, refer to “Setting the
External Audio Processor On/Off” (page 48) / “BASS ENGINE SQ”
mode (page 24).
Car Specific Sound Setup
You can set the best audio environment for your car.
1
Touch [Car Specific Sound Setup].
The vehicle type selection screen is displayed.
2
Touch the relevant Vehicle type.
•The selected Vehicle type is reflected in the “i-Personalize”
symbol on My Favorites screen.
3
Touch the position of the driver’s seat.
4
Touch the size of the front speaker.
5
Select whether or not there is a tweeter.
Displaying the Camera Image
i-Personalize Setup
24-EN
6
Select the installation position of the rear speaker.
If you select “No rear speaker”, you cannot adjust the rear
speaker in Time Correction/X-Over in sound setup.
7
Select whether or not there is a subwoofer.
If you select “No”, you cannot adjust the subwoofer level/
subwoofer phase in sound setup.
8
Select the material of the car seats.
The settings confirmation screen is displayed.
•If the car seats are made of both leather and fabric, select
[Half leather].
9
Check the settings and touch [OK].
•If Preset3 was already saved for Time Correction/X-Over/Parametric
EQ, the data will be overwritten.
•The Easy sound settings are reflected in the following Audio Setup
items.
Setting the MX (Media Xpander)
-Adjusting the Parametric Equalizer Curve (Parametric EQ)
Adjusting the Time Correction (Time Correction)
Adjusting the Crossover Settings (X-Over) (only when
Subwoofer is set to [On])
The Equalizer Presets settings are disabled.
Downloaded Sound Settings
Using a Flash memory device, the sound settings downloaded from the
ALPINE website can be used to configure Time Correction, X-Over and
Parametric EQ settings.
Setting item: Downloaded Sound Settings
The file name of download data shall be
“A_U*****.MP3”.
•Save the setting data in the root folder.
•For details about procedures of download, see ALPINE’s web site.
1
Touch [Downloaded Sound Settings].
Setting data files are displayed in a list with a maximum of 5
items.
2
Touch the desired file.
3
Touch [OK].
The downloaded setting values are set as the Time
Correction/X-Over/Parametric EQ settings, and at the same
time saved as Preset3, respectively.
•When no downloaded file is detected in the connected Flash memory,
the “Downloaded Sound Settings” function is not available.
•If Preset3 was already saved for Time Correction/X-Over/Parametric
EQ, the data will be overwritten.
Easy Sound Setup mode/BASS ENGINE
SQ mode
During normal source play mode, you can activate Easy Sound Setup
mode by pressing and holding /AUDIO for at least 3 seconds. Fader/
Balance/Bass level/Treble level/Subwoofer level and BASS ENGINE
SQ can be adjusted in this mode.
Adjust the Fader/Balance/Bass level/Treble level.
Display example for Easy Sound Setup screen
•You can choose to display this menu on the left or right of the screen.
For details, refer to “Setting the Easy Sound Setup Position” on
page 55.
•Subwoofer level is not adjustable when SubW. is Off. (Page 49)
•The Fader/Balance setting is reflected to “Setting the Balance/
Fader” (page 49).
•In BASS ENGINE SQ mode, touch [BASS ENGINE SQ] to switch to
Easy Sound Setup screen.
With the BASS ENGINE SQ function on this unit, several parameters
affecting Bass performance are adjusted simultaneously. The Bass Level
adjustment varies these parameters uniformly for optimum Bass effect
at different levels.
Touch [BASS ENGINE SQ] to switch to BASS ENGINE
SQ mode.
Display example for BASS ENGINE SQ screen
Display the current BASS ENGINE SQ parameter.
BASS ENGINE SQ:
Adjust the relevant Bass parameters uniformly and
automatically.
Easy Sound Setup:
Adjust each audio effect setting separately and manually.
Extender (fixed)
Identifier (alphabet or number
5 letters maximum)
Header (fixed)
Easy Sound Setup mode
BASS ENGINE SQ mode
25-EN
•You can set this item via TuneIt App on a Smartphone. Refer to
“Adjusting the sound via the Smartphone” on page 25.
Select the Desired BASS ENGINE Type
You can select your preferable BASS ENGINE type within Standard
(Initial setting)/Punch/Rich/Mid Bass/Low Bass.
Adjusting the BASS ENGINE Level
With BASS ENGINE SQ ON, adjusting the Bass Level uniformly
effects various sound parameters for optimum Bass effect.
•Adjustable only when Defeat is Off.
•The Bass parameters affected contain Bass Level, Treble Level, EQ
PRESETS, Parametric EQ, SUBWOOFER (when set this item via
TuneIt App), Subwoofer Level, Media Xpander, X-Over, Car Specific
Sound Setup and Download Sound Setting. These items are set
automatically in BASS ENGINE SQ mode and cannot be adjusted
separately.
•From Level 0 to Level 6, the effect of BASS ENGINE SQ increases
level by level.
Access to iDataLink Mode
When the unit is connected to the car’s equipped iDataLink module, you
can check the car’s status, set the air conditioning, etc.
1
Press and hold for at least 2 seconds (or press
)* to activate iDataLink mode.
*Only for GMC/Chevrolet or other model.
2
Touch the desired tag on the top of the screen.
3
Adjust or confirm the item/information accordingly.
Display example for the air conditioning screen
•Depending on the car type, some functions may not be available even
though the iDataLink module is connected.
•You can set the iDataLink mode’s initial screen. For details, refer to
“Setting the Default Vehicle Screen” (page 44).
Applying TuneIt
This unit’s sound tuning is programmable from a connected
Smartphone. It is also possible to download specific parameters for
certain vehicles from Alpine’s TuneIt database stored in the Cloud.
Using the TuneIt App, customized parameters can also be uploaded for
others to share and rate.
Through this unit, it is also possible to receive and respond to
information from Alpine’s Social Network Service (SNS) available
through the connected Smartphone.
The installed TuneIt App should be launched on the Smartphone before
connection to the head unit.
TuneIt, is downloadable from Apple’s App Store; the Android user can
download it from Google Play. For details, consult your Alpine dealer.
Before these operations, set TuneIt to USB (iPhone) or Bluetooth
(Android) depending on the connected Smartphone. For details, refer to
“Setting the Communication Mode with a Smartphone” on page 61.
•The application program and related specifications and data may be
deleted or terminated without notice.
•Some TuneIt functions may not be available if the Smartphone is not
in a service area or receives no signal.
After setting the above procedure, you can adjust the unit’s sound
function on the Smartphone.
1
Make sure the unit is powered on.
2
Launch the TuneIt App on the Smartphone. Adjust
the unit’s sound accordingly on the Smartphone.
•You cannot adjust the sound via a Smartphone when External Audio
Processor is set to On. Refer to “Setting the External Audio
Processor On/Off” (page 48).
•Volume level cannot be adjusted via the Smartphone.
•The setting cannot be done on both the Smartphone and this unit at
the same time. While the sound function of this unit is set via the
Smartphone, sound function settings on X009 will be displayed as
“Sound APP Connected”.
•In some situations, such as the unit is powered off or during a call,
etc., sound setting cannot be done via the Smartphone.
•This function may not be available depending on the paired
Smartphone.
•Please obey all local traffic laws while using this function.
Some functions may be available in a future version of TuneIt.
•Depending on the paired Smartphone, the following functions may
not be available even though the TuneIt version is updated.
•Text information and Facebook screen are not displayed while
driving.
Receiving Notification
When the Smartphone connected to this unit receives notification from
Facebook, the incoming message pops up (depending on the TuneIt
settings on the phone).

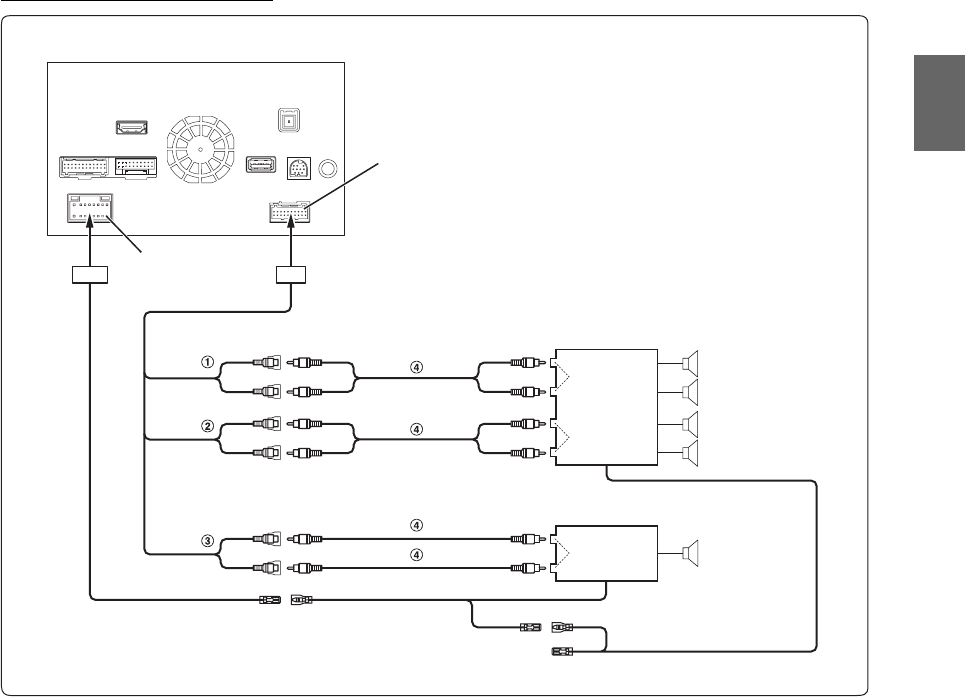

About Setup when the external power amplifier is connected.
In order to optimize the BASS ENGINE SQ, we recommend the
following power amplifier setup.
After setting up, you can adjust the BASS ENGINE SQ Level
according to the music.
1 Set gain of the power amplifier to “MIN”.
2 Set the Crossover Mode Sector switch to “OFF”.
3 Set the BASS ENGINE SQ of this unit to “ON”, and the
BASS ENGINE Level to “+3”.
4 Play a song of the genre you frequently listen to, and
adjust gain of the power amplifier.
Adjusting the sound via the Smartphone
Facebook Notification Function
26-EN
Display example for Notification incoming screen
Poster’s picture: Display poster’s picture. (Provided from
TuneIt App on Smartphone, displayed with a default
image when invalid.) Touch here to switch to Facebook
screen.
Poster’s name: Display poster’s name. (Provided from
TuneIt App on Smartphone, not displayed when invalid.)
Touching here can also switch to Facebook screen.
Notification List button: Touch to switch to Notification
List screen.
Text To Speech play/stop button: Touch to play received
notification (Depending on the status, operation may not
be available). During play mode, touch [] to stop play.
Like button: For “Like” operation. (Valid when Wall Posts
or Comments is received)
Close button: Close the notification screen.
Touch the desired button to operate.
•Touching Audio/Video screen will close the notification screen.
•While you play a Notification by TTS during iPod video mode, the
TTS volume is the same as iPod video source.
And adjust the TTS volume will reflect to iPod video source.
•While you play a Notification by TTS during iPod video mode, the
iPod VIDEO extension cable should be connected correctly.
Otherwise, you cannot hear the TTS. On how to connect an iPod/
iPhone, refer to “Connection of an iPod/iPhone” (page 114).
•The TTS volume is output via the car’s front right and left speakers.
Displaying Facebook Screen
During Notification incoming or Notification List screen, you can
switch to Facebook screen.
Display example for Facebook screen
A part content of message
Poster’s photo
Close button: Close the Facebook screen.
Touch Poster’s picture or Poster’s name to switch to
Facebook screen.
The details information of Notification is displayed.
•Touch [ ] to return to previous screen.
•Depending on the status, contents of message and photo may not be
displayed.
•A new received Notification prompt will last for 15 seconds. If there
is no operation within 15 seconds, the unit will return to normal
mode.
•In some situations, such as the unit is powered off or during a call,
etc., Notification of the Smartphone will not be prompted by this unit.
Displaying Notification List
You can view the received Notification from Facebook in the connected
Smartphone via this unit.
Display example for Notification List screen
1
Press the (My Favorites) button.
My Favorites screen for User1 or User2 is displayed.
2
Touch [ ] (Notification List icon).
The received Notification will be displayed according to
when it was posted.
3
Then operate it the same as “Receiving
Notification”.
•Touch [ ALL]/[ ALL] to play/stop all Notifications.
•Touch [ ] to return to My Favorites screen.
•You can also access to Notification List screen by touching [ ] on
Notification incoming screen. However, [ ] will not be displayed
in Notification List.
•Depending on the status, some functions may not be available.
•When there is no Notification, “No Notifications.” will be displayed.
•The displayable amount of the Notification list depends on the
connected Smartphone.
27-EN
Settings When Switching Users
The functions/settings that are affected when switching users are as
shown below.
*1Except POI category/i-Personalize Setup
*2The display pattern can be set when a camera equipped with a switch
function on the Camera screen is connected.
Items whose settings are affected when switching
registered users, are indicated by
“ ” in this manual.
Example:
How to Input Characters and Numbers
(Keypad)
Character input is required for user registration, place searches, etc.
The displayed screens and procedures may vary slightly depending on
the function used, but the basic input method is the same.
Input screen area.
(Delete)
Returns to the previous character and erases it.
Touching here for more than 2 seconds will erase all
input characters.
Character keypad
Special character selector switch
Character keypad Special character keypad
Symbol keypad Character keypad
(Space)
Input number is confirmed.
Item Ref. page
My Favorites
User Registration 21
Setting My Favorites*122
Displaying the Camera Image*223
HD Radio/RBDS Displaying Radio Text 33
General Setup
Setting Top banner and Bottom banner
Display
44
Switching the Display Color 45
Sound Setup Turning Subwoofer ON/OFF 49
Adjusting the Subwoofer Level 49
Source Setup Setting the Slide Source change 55
Setting the Easy Sound Setup Position 55
Hands-Free
Phone Control
Assigning as a Short Cut Dialing
Number
72
Redial Function 69
Phone Book Function 71
Camera
Operation
Switching the Image Pattern for the
Rear Camera*277
Switching the Image Pattern for the
Front Camera*280
Guide Display ON/OFF Setting 77, 80
Adjusting the Caution Display Location 77, 80
BASS ENGINE
SQ mode
Select the desired BASS ENGINE
Typ e
25
Adjusting the BASS ENGINE Level 25
“Source Setup Operation” (page 56).
28-EN
Top banner and Bottom banner Fade Out
Setting
When “Top/Bottom Banner Fade Out” is set to ON, the Top banner and
Bottom banner on the Audio/Visual Playback screen fade out after
5 seconds if no operation is performed. To display the keys again, touch
the middle of the screen.
•For details of how to set Top/Bottom Banner Fade Out, refer to
“Setting Top banner and Bottom banner Display” (page 44).
Switching Sources
During audio/visual playback, press the AUDIO button or touch a
source button in the top banner to switch to the desired source.
Switching Sources Using the AUDIO Button
During audio/visual playback, press the AUDIO button repeatedly
to switch to the desired source.
Radio Disc*1 USB/iPod*1 iDataLink USB/iPod*2
HDMI*1 Pandora*1 Bluetooth Pandora*3 SiriusXM*1
iDataLink SiriusXM*2 AUX 1*4 AUX 2*4
AUX 3*5 Bluetooth Audio*1 iDataLink Bluetooth Audio*2
Radio…
*1When no disc is inserted or no Flash memory/iPod/HDMI device/
Smartphone/SiriusXM Tuner/Bluetooth compatible device is
connected, this option is not available.
*2Displayed only when the unit is connected to the car’s iDataLink
module and the iDataLink related setting item is set to “OEM” or
“Both” on the unit. (Page 43)
*3When Bluetooth Pandora is set to “Off”, this option is not available.
(Page 61)
*4When AUX 1 In is set to “Off”, this option is not available. (Page 60)
*5When AUX 3 Source Select is set to “iPod Video”, this option is not
available. (Page 60)
Switching Sources Using the Top banner
Touch the source button for the Top banner at the top of the Audio/
Visual Playback screen and select the desired source.
If the source button is hidden, touch [b] [B].
•When “Slide Source Change” (page 55) is set to “On”, you can
switch sources by swiping from the middle of the marked area from
right to left or from left to right.
•For USB/iPod / SiriusXM / Bluetooth Audio, you can select the
source from this unit or from iDataLink module. Refer to “Setting the
Source Category” (page 43).
•The Source display order can be changed. For details, refer to
“Customizing the Source Banner” (page 55).
This mode is useful if you feel the unit’s display is too bright at night.
To cancel Screen OFF mode, touch the screen or press any button.
•Screen OFF mode is canceled when the power or ACC is turned off.
•When the gear lever is shifted to the reverse (R) position while the
rear camera is connected, the rear camera image is displayed.
•When a call is received while a Bluetooth device is connected, the
incoming call screen is displayed.
Top banner
Bottom banner
Screen Off Function
Source button
Top banner
Swipe here
to switch
source
29-EN
Rear Entertainment Function
The rear entertainment function independently routes different sources
to the front and the rear inside a car. For example, while listening to the
radio or other audio source in the front, DVD can be enjoyed in the rear
with the optional rear monitor and headphones.
1
Press the AUDIO button.
2
Touch [Rear]* of Top banner.
Rear source Select display appears.
* Displayed only when Rear Seat Entertainment (RSE) is On
(page 60).
•Touching [ ] on the Rear selection screen will change to the main
source screen.
3
Touch the desired visual source (such as auxiliary
input, built-in DVD) to select.
•Touch [OFF] to cancel the rear entertainment function.
•When the “Setting the AUX Mode” (page 60) is set to Off, the
auxiliary source is not displayed.
•Depending on the status, some Rear source items may not be
available in some case. (For example, when there is no DVD disc
inserted on this unit, you cannot set “Disc” as Rear source.)
•Touch [AUTO] to set the rear source the same as the X009’s playing
visual source.
•When iPhone Pandora® source is selected on X009, you cannot
select iPod Video or enjoy iPod Video on rear monitor.
•Select iPod audio on X009 may impact the iPod video playing on the
rear monitor.
•You cannot make the AUX 1 and AUX 2 to play on the main unit and
rear monitor at the same time.

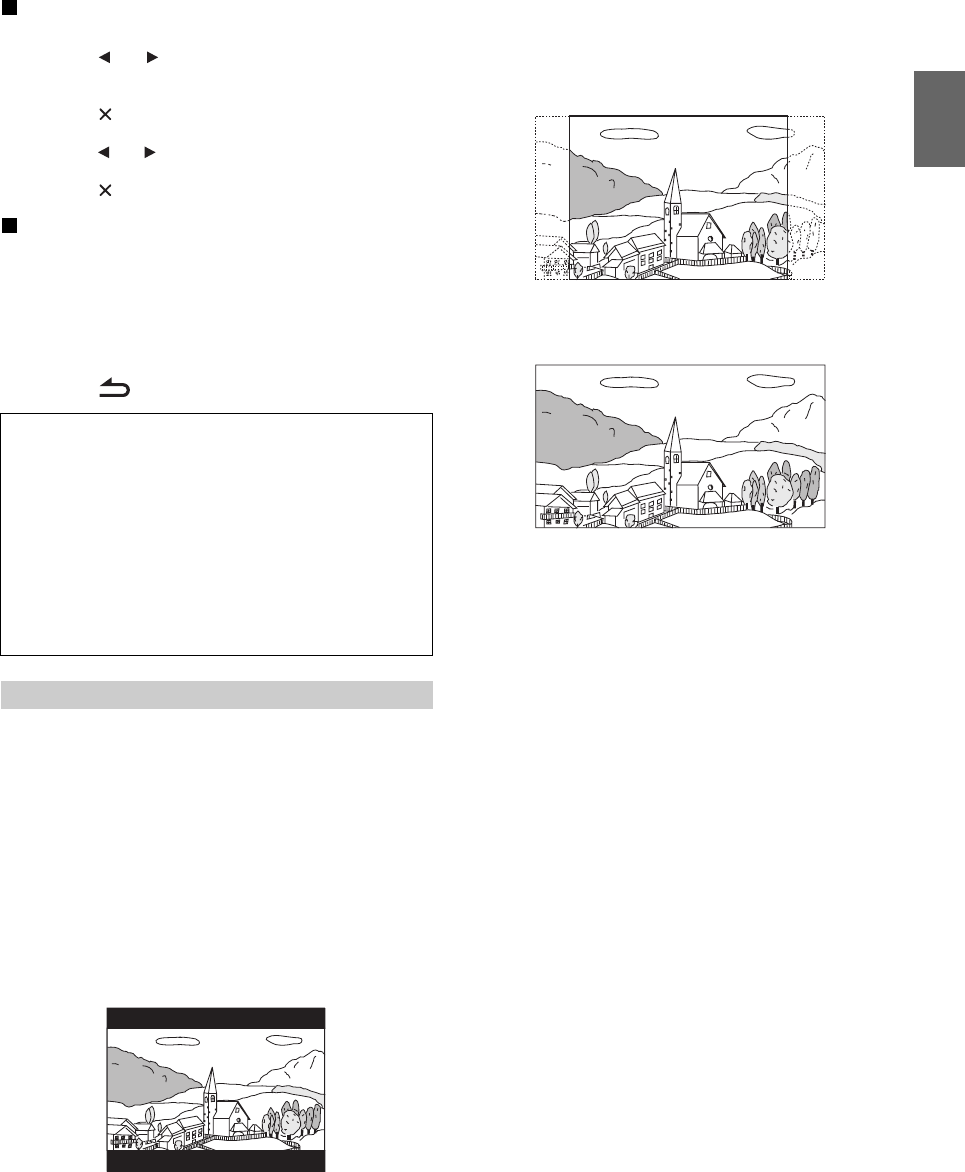

Switching the Dual Screen Display
When you touch [MODE] on the dual screen during video playback,
the screen size selection message is displayed.
Dual Wide (Initial setting)
Dual Full
Full Screen
Touch operation
You can operate the system by using the touch panel on the screen.
•Be sure to touch the onscreen button lightly with the pad of your
finger to protect the display.
•If you touch a button and there is no reaction, remove your finger
from the display once, and try again.
•Onscreen buttons that cannot be operated appear dull in color.
Common onscreen buttons
[]:Returns to the previous screen. Depending on the
function, this button may cancel the operations
performed on the screen.
[]:Closes the window.
Selecting an Item in a List
To scroll through a list, perform the following operations.
Touch the screen and slide your finger up and down.
The screen will scroll along with your finger movement.
Also, you can touch [] and [].
•After touching the screen, move your finger away from the screen
before dragging and that item will be selected.
30-EN
About the Indicator Display
The Indicator Bar at the bottom of the screen displays various types of
information, like the current time.
The display will differ depending on the source. For
details, refer to the display example of each source.
Lights up when connected to a Bluetooth compatible
device. (Does not display when connection is set to
OFF.)
: Bluetooth connection to audio device
: Bluetooth connection to Hands Free Phone
Blinks while reconnecting.
Indicates the battery level of the connected Bluetooth
device.
This may not be displayed depending on the connected
Bluetooth device.
Indicates the signal strength level of the connected
Bluetooth compatible device.
Displayed when Bluetooth setting is ON.
The clock display
You can switch between the 12 hour display and 24 hour
display options.
For details of the clock display settings, refer to “Navigation
System OM” in the CD-ROM.
Battery
Level No Battery Level 1 Level 2 Level 3
Icon
0123No Service
31-EN
X009 can receive HD Radio signals based on digital radio broadcast
standards in addition to analog radio broadcasts using RBDS.
HD Radio signals are broadcast in the service areas of the current AM/
FM broadcasters where they provide digital audio distribution and data
services. This unit receives the above digital broadcasts for your high-
quality sound enjoyment.
Depending on the signal strength in TUNER mode, X009 will
automatically switch between digital signals if they can be received, and
analog radio using RBDS if digital signals cannot be received. For
details, please refer to “Switching between Digital and Analog,”
“Forced Analog Mode.”
•RBDS mode is only available during FM broadcast reception.
This unit is able to receive signals based on the terrestrial digital radio
broadcasting standard.
When current AM/FM broadcasters are transmitting digital audio and
data services, HD Radio signals are on-the-air in their service area. You
can receive their digital broadcast and enjoy high quality sound.
If there is no HD Radio signal in the current area, after 10 seconds, this
unit will switch to receive the RBDS Radio signal automatically.
However, the display is still HD Radio mode screen.

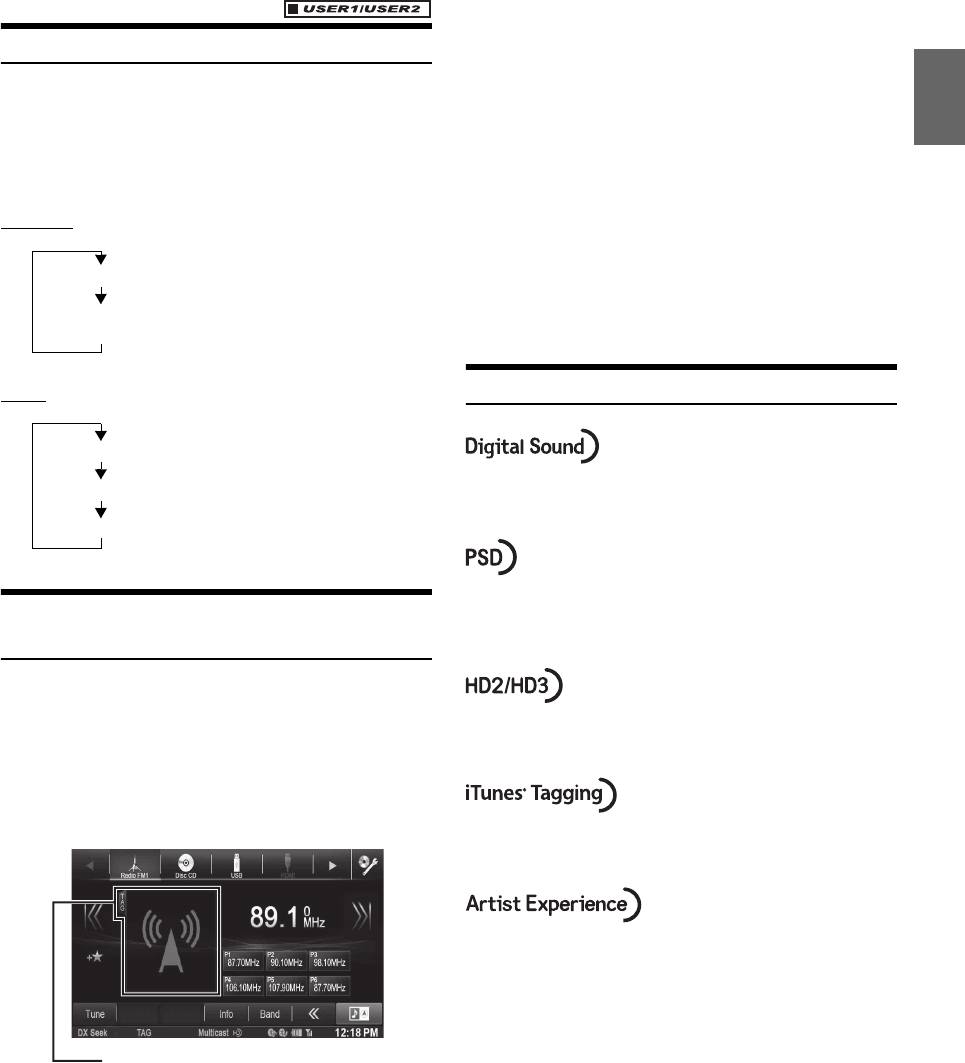

Display example for Radio main screen
Band display
Displays the band of the signal currently being
received.
Frequency display
Displays the frequency, song name and artist name of
the signal currently being received.
Preset button
Registers and recalls preset frequencies.
Seek mode
Displays the current Seek mode.
TAG Indicator
Blinks during tagging.
Multicast Indicator
Lights during multicast reception.
HD Radio Indicator
Displays during HD Radio reception.
Listening to the Radio
1
Press the AUDIO button.
2
Touch [Radio] of Top banner.
The radio mode is activated and the display changes to the
Radio mode screen.
•The display content varies depending on the last band selected.
([RadioFM1], etc.)
3
Touch [Band] of Bottom banner to select the
desired radio band.
Each touch changes the bands as follows:
4
Touch [Tune] to select the tuning mode.
*1Displays only when the PTY tuning mode is selected. For
details, refer to “PTY (Program Type) Tuning (Analog
Broadcasts only)” (page 32).
•There are two modes you can select for auto tuning, DX and
Local:
-DX (Distance) mode*2;
Both strong and weak stations will be tuned in.
-Local mode*2;
Only strong stations will be tuned in.
The initial setting is DX.
-D(Digital).DX Seek mode;
Automatically receives a receivable digital broadcast.
-D(Digital).Local Seek mode;
Automatically receives a strong digital broadcast only.
*2Depending on the signal status, a digital or analog broadcast is
received.
•During Forced Analog mode, digital broadcasts cannot be
received.
5
Touch [], [] or [], [] to change the radio
frequency up or down respectively.
In manual mode, touch and hold to change the frequency
continuously.
Presetting Stations Manually
1
Tune in a desired radio station you wish to store in
the preset memory by manual or automatic seek
tuning.
2
Touch and hold any one of the preset buttons for at
least 2 seconds.
The selected station is stored.
3
Repeat the procedure to store up to 5 other stations
onto the same band.
To use this procedure for other bands, simply select the
desired band and repeat the procedure.
A total of 18 stations can be stored in the preset memory
(6 stations for each band; FM1, FM2 or AM).
Radio/HD RadioTM/
RBDS
Touch [<<], [>>]
FM1 FM2 AM FM1
DX Seek Local Seek D.DX Seek
D.Local Seek MANUAL PTY*1
32-EN
•If a preset memory has already been set in the same preset number, it
will be cleared and the new station will be memorized.
Presetting Stations Automatically
The tuner can automatically seek and store 6 strong stations in the
selected band in order of signal strength.
After selecting the desired band, touch [A.Memo] of
Bottom banner.
The tuner automatically seeks and stores 6 strong stations into
the preset buttons in order of signal strength.
When automatic storing has completed, the station stored in the
preset 1 is selected.
If [A.Memo] is not displayed, touch [<<] or [>>] in the bottom
banner to display [A.Memo].
•If no stations are stored, the tuner will return to the original station
you were listening to before the automatic storing procedure began.
•You can cancel this process by touching [A.Memo] while the tuner is
automatically seeking stations. Cancelling will return the tuner
preset to the previous setting.
Tuning to Preset Stations
You can tune in the preset stations in memory on either band using its
preset number.
1
Touch [Band] of Bottom banner repeatedly until the
desired band is displayed.
2
Touch any one of the preset buttons that has a
station stored to it.
The preset station is received.
Forced Analog Mode
Touch the [Digital/Analog] button to receive analog broadcasts only.
Touch [Digital/Analog].
•If digital broadcast is received, this operation switches reception to
analog mode.
•During Forced Analog mode, only analog broadcasts will be received
even when digital broadcasts become available.
Receiving a Multicast (HD Radio mode
only)
Multicasting is the ability to broadcast multiple program streams over a
single FM frequency. This increases the amount and diversity of content
choices. A maximum of 8 multicast station channels can be selected on
this unit.
•Multicast indicator appears when signal reception is possible.
•The station number of the current broadcast station appears behind
the frequency (ex. 90.3 MHz-HDs means there are 5 stations on
90.3 MHz).
Touch [] or [].
The sub channel of the received radio station is changed.
•If reception is lost during SPS broadcasting due to weak or no signal,
the screen will display “HDx Signal loss.”
If SPS broadcast reception is lost for over 100 seconds, reception will
switch over to MPS broadcast (the reception mode will automatically
return to SPS when SPS broadcasts become available again).
PTY (Program Type) Tuning (Analog
Broadcasts only)
FM Radio mode
1
Touch [PTY Search] of Bottom banner.
The Select PTY list screen is displayed.
If [PTY Search] is not displayed, touch [<<] in the bottom
banner to display [PTY Search].
2
Touch the selected program type to start searching
for a station in the type.
If no PTY station is found, “No PTY.” will be displayed.
3
Touch [Tune] to choose the PTY tuning mode.
The PTY mode is activated.
4
To select the station in the PTY, touch [<] or [>].
33-EN
Displaying Radio Text
Text messages from a radio station can be displayed.
1
Tune in a radio station that transmits text messages.
2
Touch [Info] in the bottom banner in FM radio mode
repeatedly to switch to the desired display.
HD Radio
RBDS
Storing the tag information (HD Radio
mode only)
iTunes Tagging lets you tag songs heard on HD Radio stations. You can
preview, buy and download later, songs from your iTunes tagged
playlist the next time you sync your iPod/iPhone. If the unit is
connected to a Tagging compatible iPod/iPhone, you can use the iTunes
Tagging function. For details, refer to the Owner’s Manual of the
Tagging compatible iPod/iPhone.
When a desired song is heard on an HD Radio station, touch the TAG
icon area to save its tag information.
If no iPod/iPhone is connected, “Tag Count X” is displayed (X is
the total amount of the tag information stored in this unit).
•During tagging, the iPod/iPhone takes priority to save the tag
information. If no iPod/iPhone is connected, the tag information is
saved to this unit.
•When the memory of iPod/iPhone is full, “iPod memory full. Tag
count x.” is displayed. The tag information will be stored to the unit.
•If the tagging operation is interrupted by a hands-free phone call, the
tagging operation will be canceled and the unit will display “Cannot
Tag”.
•This unit can store up to 50 tagged songs. When the memory of the
unit is full, “Tuner memory full. Connect iPod” may be displayed.
•When the iPod/iPhone is disconnected from the unit during tagging,
its tag information will be stored in the unit.
•If there is stored tag information on the unit, when an iPod/iPhone
supporting the tag function is connected, the stored tag information
will be transferred to the iPod/iPhone automatically. When the iPod/
iPhone memory becomes full, “iPod memory full.” will be displayed,
and any remaining tag information on the unit will not be transferred
to the iPod/iPhone.
•If tag information already exists, “Already Tagged” will be displayed
when you try to tag information again.
About the Feature Logos
• Digital, CD-quality sound. HD Radio Technology enables local
radio stations to broadcast a clean digital signal. AM sounds like
today’s FM and FM sounds like a CD.
• Program Service Data: Contributes to the superior user
experience of HD Radio Technology. Presents song name, artist,
station IDs, HD2/HD3 Channel Guide, and other relevant data
streams.
• Adjacent to traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, original
music as well as deep cuts into traditional genre.
• iTunes® Tagging provides you the opportunity to discover a
wide range of content and the means to “tag” that content for
later review and purchase from the iTunes® Store.
• Visual information related to content being played on your HD
Radio receiver, such as Album Art, historical photographs, still
art from live broadcasts, among other related content.
Station Info Mode (Station Name/Frequency/Song Name)
Song Info Mode (Station Name/Song Name/Artist Name/
Album Name)
Station Info Mode (PS/PTY/ Frequency/Song Name)
Song Info Mode (PS/Song Name/Artist Name/Album Name)
Radio Text Mode (Radio Text)
TAG icon area (When tagging is
allowed, the TAG icon is displayed.)
34-EN
Display example for MP3/WMA/AAC main screen
Info mode
Song title
Artist title
Album title
Current song no./Total song no.
Elapsed time
•If there is no CD text, the message “No Text” appears.
About creating a tag information library
You can scan music files in a disc and create a library of tag information
in this unit. Library creation starts when the disc is inserted. The time it
takes to create the library depends on the number of songs/files recorded
in the disc, but it may take several minutes.
About operations during library creation
•Search function does not work properly while a library is being
created.
•The order in which songs are played during library creation may
differ from the order in the disc.
Playback
1
Press the AUDIO button.
2
Touch [Disc] of Top banner.
The display shows the Disc mode screen.
When a disc is inserted into the disc slot of this unit, with the
label side facing up, the unit starts playback of the disc.
3
Touch [] or [] to select the desired track (file).
Returning to the beginning of the current (or previous) track
(file):
Touch [].
Fast reverse :
Touch and hold [].
Advancing to the beginning of the next track (file) :
Touch [].
Fast forward :
Touch and hold [].
4
To pause playback, touch [ /].
[ ] is displayed in the middle of the screen.
Touch [ / ] again or touch [ ] in the middle of the
screen to start playback.
•The X009 can play back MP3/WMA/AAC files saved to CD or DVD.
Use a format compliant with this unit.
For further information about playing or storing MP3/WMA/AAC
files, refer to pages 35 and 36 before using the unit.
•Any file protected by DRM (Digital Rights Management) copy
protection, cannot be played back on this unit.
•If a disc contains both audio data and MP3/WMA/AAC data, this unit
plays back only the audio data.
•The track display for CD audio data playback shows the track
numbers recorded on the disc.
•If an MP3/WMA/AAC disc with many files and folders is played, it
may take longer than normal to start playback.
•The playback time may not be correctly displayed when a VBR
(Variable Bit Rate) recorded file is played back.

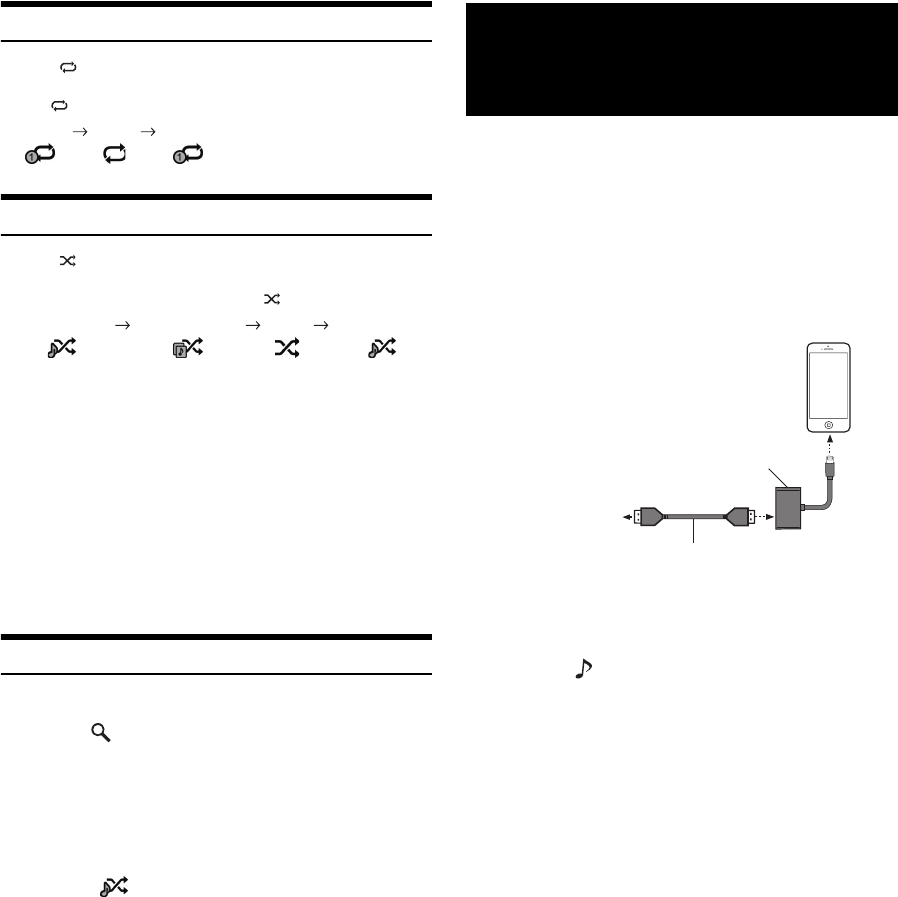

Repeat Play
Touch [] to repeatedly play back.
The tracks (files) will be played repeatedly.
The repeat mode switches every time the button is touched.
* Only files in a folder are repeatedly played back.
•If the Repeat Play mode is activated during M.I.X. playback, the
M.I.X. mode will be canceled.
M.I.X. (Random Play)
Touch [] during playback.
The tracks (files) on the disc will be played back in a random
sequence.
The M.I.X. mode switches every time [] is touched.
* Only files in a folder are played back in random sequence.
•If the M.I.X. mode is activated during Repeat playback, the Repeat
Play mode will be canceled.
•If you select a track by using the search mode, the M.I.X. play mode
will be canceled.
CD/MP3/WMA/AAC
CD:
Repeat (OFF) Repeat
MP3/WMA/AAC:
Repeat Repeat Folder*(OFF) Repeat
CD:
M.I.X. (OFF) M.I.X.
MP3/WMA/AAC:
M.I.X. Folder*(OFF) M.I.X. Folder*
35-EN
Selecting Folders (Concerning
MP3/WMA/AAC)
Touch [] or [] of Bottom banner to select the
folder.
Searching from CD Text
1
Touch [ (Search)] of Bottom banner during
playback.
The CD text search screen is displayed.
2
Touch the selected track name.
The selected track will be played back.
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
File/Folder Name Search (Concerning
MP3/WMA/AAC)
1
Touch [ (Search)] of Bottom banner during
playback.
The search mode is activated.
2
Touch [Music].
The folder name list screen is displayed.
Folder Name Search mode
3
Touch [] in the desired folder.
The first file in the selected folder is played back.
File Name Search mode
3
Touch the desired folder name.
The File name of the selected folder is displayed.
4
Touch the desired file name.
The selected file is played back.
•To return to the previous hierarchy, touch [].
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
•After selecting a folder via a Folder name search, touch [] on the
main screen to display the folder search screen.
•After selecting a file via a File name search, touch [] on the
main screen to display the file search screen.
About MP3/WMA/AAC
What is MP3?
MP3, whose official name is “MPEG Audio Layer 3”, is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint activity
institution of the IEC.
MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth their
original size. This is achieved while still maintaining near CD
quality. The MP3 format realizes such high compression ratios
by eliminating the sounds that are either inaudible to the human
ear or masked by other sounds.
What is WMA?
WMA, or “Windows Media™ Audio”, is compressed audio data.
WMA is similar to MP3 audio data.
What is AAC?
AAC is the abbreviation for “Advanced Audio Coding”, and is a
basic format of audio compression used by MPEG2 or MPEG4.
Method for creating MP3/WMA/AAC files
Audio data is compressed using software with MP3/WMA/AAC
codecs. For details on creating MP3/WMA/AAC files, refer to the
user’s manual for that software.
MP3/WMA/AAC files that are playable on this device have the
file extensions.
MP3: “mp3”
WMA: “wma” (ver. 7.x, 8.x, 9.x are supported)
AAC: “m4a”
WMA is not supported for the following files, Windows Media
Audio Professional, Windows Media Audio 9 Voice or Windows
Media Audio 9 Pro Lossless.
There are many different versions of the AAC format. Confirm
that the software being used conforms to the acceptable
formats listed above. It’s possible that the format may be
unplayable even though the extension is valid.
Playback of AAC files encoded by iTunes is supported.
CAUTION
Except for private use, duplicating audio data (including MP3/
WMA/AAC data) or distributing, transferring, or copying it,
whether for free or for a fee, without permission of the copyright
holder is strictly prohibited by the Copyright Act and by
international treaty.
36-EN
Supported playback sampling rates and bit rates
MP3
WMA
AAC
This device may not play back correctly depending on sampling
rates.
ID3 tags/WMA tags
This device supports ID3 tag v1.0, v1.1, v2.2, v2.3, v2.4, and
WMA tag Ver.1.x. If tag data is in an MP3/WMA/AAC file, this
device can display the title (track title), artist name, and album
name ID3 tag/WMA tag data (maximum 64 characters).
For non-supported characters, “?” is displayed.
The number of characters may be limited, or not correctly
displayed, depending on the tag information.
Playing back MP3/WMA/AAC
MP3/WMA/AAC files are prepared, then written to a CD-R, CD-
RW (DVD-R/DVD-RW/DVD+R/DVD+RW) using CD-R writing
software and Flash memory.
• Maximum numbers of playable files/folders
Disc: 1,000 files/folders (including Root Folder/DivX® file)
Flash memory: 10,000 files/folders (including Root Folder/
DivX® file)
• Largest playable file size: 512 MB
Playback may not be performed if a disc exceeds the limitations
described above.
If a file/folder name is long, the maximum possible number of
files may decrease.
• Both Audio and Video files are counted if their formats are
playable on this unit.
Media supported
The media that this device can play back are CD-ROMs, CD-Rs,
CD-RWs, DVD-Rs, DVD-RWs, DVD+Rs, DVD+RWs and Flash
memory.
Corresponding File Systems
This device supports discs formatted with ISO9660 Level 1 or
Level 2, UDF1.02 and UDF1.02(ISO Bridge).
This device can play back discs in Joliet, Romeo, etc., and other
standards that conform to ISO9660. However, sometimes the file
names, folder names, etc., are not displayed correctly.
Formats supported
This device supports CD-ROM Mode1, CD-ROM XA
Mode2(Form1&2), Mixed Mode CD and Multi-Session.
This device cannot correctly play back discs recorded with
Track At Once or packet writing.
Order of files
Files are played back in the order that the writing software writes
them to the disc. Therefore, the playback order may not be
what’s expected. Verity the writing order in the software’s
documentation. The playback order of the folders and files is as
follows. (The following numbers may differ from actually
displayed numbers.)
Terminology
Bit rate
This is the “sound” compression rate specified for encoding. The
higher the bit rate, the higher the sound quality, but also the larger
the files.
Sampling rate
This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1 kHz,
so the sound is sampled (recorded) 44,100 times per second. The
higher the sampling rate, the higher the sound quality, but also the
larger the volume of data.
Encoding
Converting music CDs, WAVE (AIFF) files, and other sound files into
the specified audio compression format.
Tag
Song information such as track titles, artist names, album names,
etc., written into MP3/WMA/AAC files.
Root folder
The root folder (or root directory) is found at the top of the file
system. The root folder contains all folders and files. It is created
automatically for all burned discs.
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,
16 kHz, 12 kHz, 11.025 kHz, 8 kHz
Bit rates: 8 - 320 kbps
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz, 16 kHz,
11.025 kHz, 8 kHz
Bit rates: 48 - 320 kbps
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,
16 kHz, 12 kHz, 11.025 kHz, 8 kHz
Bit rates: 16 - 320 kbps
Under the ISO9660 standard, there are some restrictions to
remember.
The maximum nested folder depth is 8 (including the root
directory). File names are limited to 256 characters (including
the extension).
Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and ‘_’ (underscore).
Root
Folder
Folder MP3/WMA/AAC File
37-EN
Display example for DVD Video main screen
Display example for DivX® main screen
Information display-1
DVD-Video:
Title name/Chapter No.
DivX®:
File name/File No./Current File No./Total File No. in Current
Folder
Information display-2
DVD-Video:
Audio signal output/Subtitle/Angle
DivX®:
Audio signal output/Subtitle
Total time for playing
Elapsed time
Disc types that can be used for each heading are
represented by the following marks.
The DVD operation screen display
Touch the screen while the DVD playback screen is
displayed.
The DVD operation screen is displayed.
•The operation screen changes to the visual screen in the DVD mode
for 5 seconds after an operation has been performed.
•If you try to activate the DVD while driving, the display will show the
warning-Picture off for your safety.
•Some operations cannot be carried out depending on the disc or
playback screen.
Playing a Disc
DVD
Touch [<<], [>>]
Touch [<<], [>>]
DVD Commercial Video discs (used for the
distribution of movies, etc.) or a DVD-R/DVD-
RW, DVD+R/DVD+RW recorded in a video
mode can be used.
CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/
DVD+RW discs that are recorded in the
DivX® mode can be used.
WARNING
It is dangerous for the driver to watch the DVD/TV/
Video while driving the vehicle. The driver may be
distracted from looking ahead and an accident could
occur.
Install the X009 correctly so that the driver cannot
watch DVD/TV/Video unless the vehicle is stopped
and the emergency brake is applied.
If the X009 is not installed correctly, the driver will be
able to watch the DVD/TV/Video while driving the
vehicle and may be distracted from looking ahead
causing an accident. The driver or other people could
be severely injured.
Caution
• Not all functions will operate for every DVD. See the
individual DVD’s instructions for details on the
features supported.
• Fingerprints on a disc may adversely affect
playback. If a problem occurs, remove the disc and
check for fingerprints on the playback side. Clean
the disc if necessary.
• If you switch the power or Ignition key OFF or
change sources during playback, playback will
continue where you left off when you resume
playback.
• If you try to perform an invalid operation (based on
the type of disc being played), the following mark is
displayed on the monitor screen:
38-EN
1
Press the AUDIO button.
2
Touch [Disc] of Top banner.
The display shows the Disc mode screen.
Or insert a disc with the label side facing up. The unit starts
to play the disc.
•The reverse side of a double-sided DVD will not be played
automatically.
Remove the disc, turn it over, and reinsert it.
•DO NOT insert discs containing maps for the navigation system.
Doing so could result in damage.
•Refer also to “Disc Setting” (page 56).
•While reading a DivX® file, the fast-forwarding/fast-reversing and
repeat functions, etc. cannot be used.
•A DivX® file that exceeds 4GB cannot be played back.
On DVD mode, menu screens may appear automatically. If this
happens, perform the operation described below to start playback.
Direct Menu Operations
Touch the DVD menu directly.
Menu Operations
1
Touch [Key].
The menu operation mode will be displayed.
Touch [] or [] to change the Key panel
location from right to left or vice-versa.
Touch [Return] to return to the previous display.
2
Select a desired menu item by touching [], [],
[] or [].
•Touching [] in the operation panel returns to the screen in
step 1.
•Touching [Key] displays the Numeric Keypad Input Mode
screen.
For details of the Numeric Keypad Input Mode screen, refer to
“Numeric Keypad Input Operations” (page 38).
3
Touch [Enter] to confirm the selected item.
1
Touch [10KEY] of Bottom banner.
The numeric keypad input mode screen appears
If [10KEY] is not displayed, touch [<<] in the bottom banner
to display [10KEY].
2
Touch a desired number.
Touch [] to delete an entered number.
Touch [Delete All] to delete all entered number.
3
Touch [Enter] on the numeric keypad mode screen
to confirm your selection.
Touch [] to hide the keypad display.
• Play Position Memory Function
Even if you turn power off or switch the Ignition key
to OFF during playback or change the source,
playback will continue from the point where
playback stopped when the power is turned ON
again.
If a Menu Screen Appears
•Some operations cannot be performed depending on the disc.
Numeric Keypad Input Operations
39-EN
When a DVD contains two or more titles, the top menu screen appears.
Touch [TOP MENU] of Bottom banner.
The top menu screen appears.
•To perform necessary operations, refer to “If a Menu Screen
Appears” (page 38).
With a DVD having two or more menus, a menu screen will appear for
the programs available, in addition to the main programs.
Touch [MENU] of Bottom banner.
The Root menu screen appears.
•To perform necessary operations, refer to “If a Menu Screen
Appears” (page 38).
Stopping Playback (PRE STOP)
Touch the stop button during playback to stop playback. That position is
stored in the memory.
1
Touch [] during playback.
“Pre ” indicator and [ ] in the middle of the screen are
displayed.
2
Touch [/] in the PRE STOP mode or touch [] in
the middle of the screen.
Playback starts from the position at which it was stopped.
•For some discs, the position at which playback was stopped may not
be accurate.
Stopping Playback
Touch and hold [] for at least 2 seconds during
playback.
“ ” indicator and [ ] in the middle of the screen are displayed.
•Playback starts from the beginning when [ /ll] or [ ] in the
middle of the screen is touched while playback is stopped.
Fast-forwarding/Fast-reversing
1
During playback, touch and hold [] (Fast-reverse)
or touch and hold [] (Fast-forward).
DVD-Video:
Touch and hold for more than 1 second to forward/reverse
at double speed.
Every time you touch [ ]/[ ] during fast- reverse/fast-
forward, the speed changes as follows: 2x 8x 32x
2x.
DivX®:
Touch and hold for more than 1 second to forward/reverse
at 8x speed.
Every time you touch [ ]/[ ] during fast- reverse/fast-
forward, the speed changes as follows: 8x 16x 32x
8x.
•For a Div X ® file that does not contain index information, the
fast forward and the reverse option is not available.
2
Touch [/] to return to normal playback.
•No sound is played back during fast-forwarding/fast-reversing.
•On DVD mode, the menu screen may reappear during fast-
forwarding/fast-reversing.
•This operation may not be possible on certain discs.
Finding the Beginnings of Chapters/
Tracks/Files
During playback, touch [] or [].
The chapter/track/file switches each time the button is touched,
and playback of the selected chapter/track/file starts.
•Some DVDs do not have chapters.
Displaying the Top Menu Screen
Displaying the Menu Screen
:Touch this to start playback from the beginning of the
following chapter, track or file.
:Touch this to start playback from the beginning of the
current chapter, track or file.
Supplementary explanations
“Chapters” are divisions of movies or musical selections on
DVDs.
40-EN

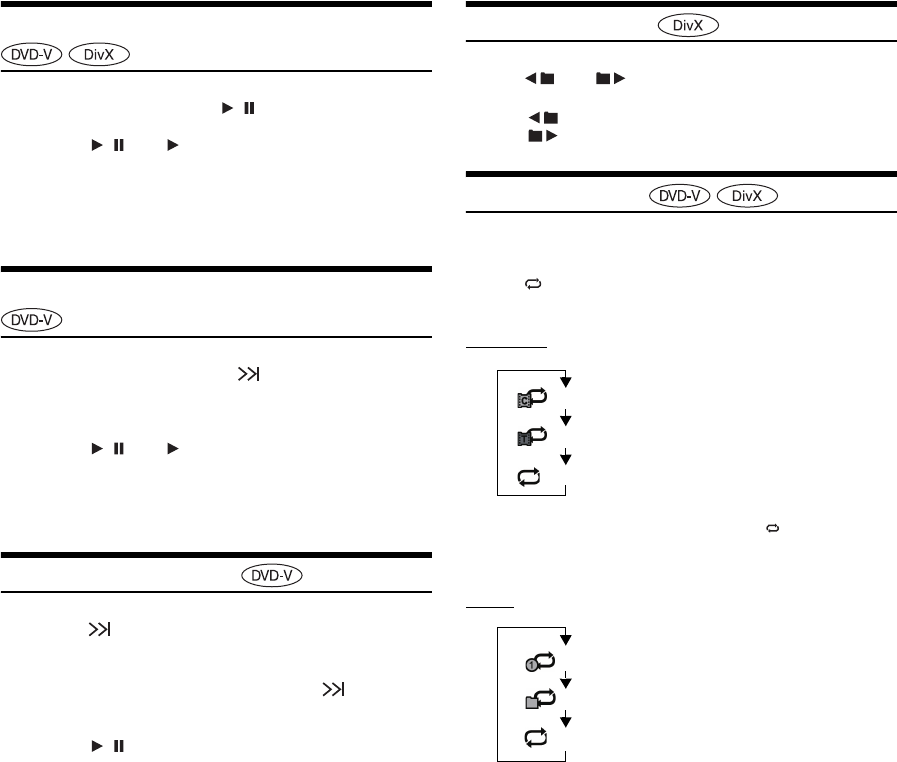

Playing Still Frames (Pausing)
1
During playback, touch [/] of Bottom banner.
2
Touch [/] or [] in the middle of the screen to
resume playback.
•No sound is played during the still frame mode.
•The image or sound may stop temporarily when playback starts from
the pause mode. This is not a malfunction.
Forward frame-by-frame Playback
1
In the pause mode, touch [].
The picture advances by one frame each time the button is
touched.
2
Touch [/] or [] in the middle of the screen to
return to normal mode.
•No sound is output during forward frame-by-frame playback.
•You cannot execute reverse frame-by-frame playback.
Slow Motion Playback
1
When [] is touched and held while in the pause
mode, the 1/8th speed slow motion playback mode is
set.
Furthermore, when touched and held [] again, the
slow motion speed switches to 1/2 the normal speed.
2
Touch [/] of Bottom banner to play back.
•No sound is played during slow motion playback.
•1/2, 1/8 are approximate speeds. The actual speed differs from disc to
disc.
•You cannot execute reverse slow motion playback.
Selecting Folders
Touch [] or [] of Bottom banner to select the
folder.
•Touch [] to play from the first file of the previous folder.
Touch [] to play from the first file of the next folder.
Repeat Playback
Use this function to play the disc’s titles, chapters or tracks, etc.,
repeatedly.
Touch [] of Bottom banner.
The repeat mode switches every time the button is touched.
DVD Video
•The REPEAT mode is always turned off when [] is touched and
held for at least 2 seconds.
•Only discs containing a Playlist can be displayed.
DivX
The chapter is played repeatedly.
The title is played repeatedly.
Playback returns to normal mode.
(Chapter)
(Title)
(OFF)
®
The file is played repeatedly.
The disc is played repeatedly.
(File)
(Folder) The folder is played repeatedly.
(Repeat All)
41-EN
Searching by Title Number
Use this function to easily find positions on the DVD using the DVD’s
titles. Perform operations while playback is stopped.
1
Touch [10KEY] of Bottom banner.
The numeric keypad input mode screen appears.
If [10KEY] is not displayed, touch [<<] in the bottom banner
to display [10KEY].
•For DVD Video, the numeric keypad can also be displayed by
touching [Menu Control] of Bottom banner and then touching
[Key] twice.
2
Enter a desired title by touching its number.
See page 38 for operation of the numeric keypad.
3
Touch [Enter].
Playback will start from the number selected.
4
Touch [].
•This function cannot be used on discs on which no title numbers are
recorded.
•Some disc may not accept any operation.
Searching Directly by Chapter Number
Use this function to easily move to the beginnings of the chapters on the
disc. Perform operations during playback, during PRE-STOP or while
playback is paused.
1
Touch [10KEY] of Bottom banner.
The numeric keypad input mode screen will appear.
If [10KEY] is not displayed, touch [<<] in the bottom banner
to display [10KEY].
2
Touch and enter the chapter number you want to
play.
See page 38 for operation of the numeric keypad.
3
Touch [Enter] to confirm your selection.
Playback will start from the selected chapter.
4
Touch [].
•This function is not available for a disc on which chapters are not
stored.
Searching for a Desired Video File
You can select a video file from the list screen.
1
Touch [ (Search)] of Bottom banner.
The search mode is activated.
2
Touch [Video].
The folder list screen appears.
Folder Name Search mode
3
Touch [] in the desired folder.
The first file in the selected folder is played back.
File Name Search mode
3
Touch the desired folder name.
The File name of the selected folder is displayed.
4
Touch the desired file name.
The selected file is played back.
•To return to the previous hierarchy, touch [].
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
•After selecting a folder via a Folder name search, touch [] on the
main screen to display the folder search screen.
•After selecting a file via a File name search, touch [] on the
main screen to display the file search screen.
Switching the Angle
On DVDs in which scenes have been filmed from multiple angles, the
angle can be switched during playback.
Touch [ANGLE] of Bottom banner.
The angle switches between the angles recorded on the disc
every time the button is touched.
If [ANGLE] is not displayed, touch [<<] in the bottom banner to
display [ANGLE].
•Some time may be required for the angle to change.
•Depending on the disc, the angle may switch in one of two ways.
-Seamless: The angle switches smoothly.
-Non-seamless: When the angle is switched, a still picture is
displayed first, after which the angle switches.
42-EN
Switching the Audio Tracks
DVDs with multiple audio tracks or languages allow switching the
sound during playback.
Touch [AUDIO] of Bottom banner.
The sound switches between the alternate audio tracks
recorded on the disc every time the button is touched.
If [AUDIO] is not displayed, touch [<<] in the bottom banner to
display [AUDIO].
•The alternate track selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that track, the disc’s default language is selected instead.
•Not all discs will allow changing the alternate audio tracks during
playback. In these cases, select audio tracks from the DVDs menu.
•There may be a delay before the selected alternate track begins to
play.
Switching the Subtitles (Subtitle
Language)
With DVDs on which multiple subtitle languages are recorded, the
subtitle language can be switched during playback; moreover, subtitles
can be hidden.
Touch [Sub Title] of Bottom banner.
Touching this button repeatedly selects sequentially the subtitle
languages recorded on the disc, and then turns the subtitles
OFF.
If [Sub Title] is not displayed, touch [<<] in the bottom banner to
display [Sub Title].
•There may be a delay before the selected subtitle appears.
•Not all discs will allow changing the subtitles during playback. In
these cases, select subtitles from the DVDs menu.
•The subtitle language selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that language, the disc’s default language is selected instead.
However, the subtitle language may differ depending on the disc.
•For some discs, the subtitles will be displayed even when this is set to
OFF. However, the subtitle language may differ depending on the
disc.
About DivX®
DivX® is a codec (software) to compress moving images while
maintaining image quality using a highly advanced compression ratio
and operating speed.
•Official DivX® Certified product
ABOUT DIVX VIDEO: DivX® is a digital video format created by
DivX, LLC, a subsidiary of Rovi Corporation. This is an official
DivX Certified® device that plays DivX video. Visit divx.com for
more information and software tools to convert your files into
DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device
must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your
registration.
Media supported
The unit can play back CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/
DVD+RW discs and Flash memory device that are recorded in
the DivX® mode.
Corresponding extension
“avi”, “divx”
Video Codec
DivX® versions 3, 4, 5, and 6 (versions 5 handle both interlaced
and progressive)
Audio Codec
MPEG1 Layer2 (MP2) 32 to 384 kbps
MPEG1 Layer3 (MP3) 32 to 320 kbps
MPEG2 Layer2 (MP2) 8 to 160 kbps
MPEG2 Layer3 (MP3) 8 to 160 kbps
Dolby Digital 32 to 448 kbps
43-EN
Touch the [SETUP] icon on the Audio/Visual Playback screen to
display the Setup main screen.
General Setup Operation
1
Touch [Setup] icon of Top banner.
The Setup main screen is displayed.
2
Touch [General].
The General Setup screen appears.
3
Select the desired item.
Setting items: iDataLink Setup / Text Display / Remote Sensor
*
1
/
Top/Bottom Banner Fade Out / Screen/
LED Customize / Visual / About / Installation /
External Audio Processor / Optical
*
2
*1Displayed only when Rear Seat Entertainment (RSE) is On
(page 60).
*2Available only when External Audio Processor is On.
•Depending on the item, repeat step 3.
4
Touch [] or [] etc., to change its setting.
•When the pop-up window for setup is displayed, touch [] to
close the window after setting.
5
Touch [] to return to the previous screen.
•Immediately after changing the settings of General Setup (While the
system is writing data automatically) do not turn the ignition key to
OFF. Otherwise, the settings may not be changed.
iDataLink Setup
[iDataLink Setup] is selected on the General setup menu in step 3. Refer
to “General Setup Operation” (page 43).
You can set whether the following source button in the top banner is
available.
Setting item: USB/iPod / SiriusXM / Bluetooth Audio
Setting contents: Both (Initial setting) / OEM / Aftermarket
Setup
Setup Operation
General Setup
To display the General Setup Menu screen:
Your vehicle must be parked with the ignition key in the ACC or
ON position. To do this, follow the procedures below.
1 Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2 Keep pushing the foot brake and release the parking
brake once then engage it again.
3 When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission lever
in the Park position.
Now, the locking system for the General mode operation has
been released. Engaging the parking brake can reactivate the
General Setup Menu, as long as the car’s ignition has not been
turned off. It is not necessary to repeat the above procedure
(1 through 3) of “To display the General mode screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the General mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of General Setup. Refer to each section for
details.
[SETUP] icon
Setting the Source Category
Both: Both the sources listed above from this unit
and iDataLink module are available.
OEM: Only the source listed above from iDataLink
module is available. The source from iDataLink
module is marked with .
Aftermarket: Only the source listed above from this unit is
available.
44-EN
•The iDataLink source icons not displayed on the top banner when no
iDataLink module is connected even though “Both” or “OEM” is
set.
Select to pair the Bluetooth compatible phone with this unit or the
connected iDataLink module.
Setting item: Hands-free Connection
Setting contents: OEM / Aftermarket (Initial setting)
•This setting is linked with “Setting Hands-free Connection of
iDataLink” (page 62).
You can select an item listed below as your preferable screen when you
access to iDataLink mode.
Setting item: Default Vehicle Screen
Setting contents: Climate / Vehicle Info. / Gauges / Parking Assist /
Last mode
•Depending on the car, some setting contents or this setting item may
not be displayed.
You can change the setting of the connected iDataLink module.
Setting item: Maestro Module
•Depending on the iDataLink module, the setting contents may differ.
Text Display Setting
Touch [Text Display] on the General setup menu in step 3. Refer to
“General Setup Operation” (page 43).
Scroll display is available if CD text, folder name, file name or tag
information is entered.
Setting item: Auto Scroll
Setting contents: Off (Initial setting) / On
The character code to be used for tag text information displayed on the
screen can be selected from 7 character codes.
Setting item: Format
Setting contents: Latin-1 / Latin-9 (Initial setting) / Russian /
Chinese / Thai / Arabic / Hebrew
The Setup menu, feedback information, etc. for this unit can be changed
to appear in the selected language.
Setting item: Language
Setting contents:
•Touch [OK] to confirm the language and display the screen in the
specified language.
Remote Sensor Setting
[Remote Sensor] is selected on the General setup menu in step 3. Refer
to “General Setup Operation” (page 43).
For remote control operation, the remote sensor of the external device
(monitor, etc.) can be switched, as you prefer.
Setting item: Remote Sensor
Setting contents: Front (Initial setting) / Rear
•If the Rear Seat Entertainment (RSE) (page 60) is “Off”, the setting
is not displayed.
Setting Top banner and Bottom banner
Display
[Top/Bottom Banner Fade Out] is selected on the General setup menu
in step 3. Refer to “General Setup Operation” (page 43).
You can configure the display setting for the Top banner and Bottom
banner for the audio/visual source.
Setting item: Top/Bottom Banner Fade Out
Setting contents: Off (Initial setting) / On
Setting the Hands-free Connection
OEM: Select to pair the Bluetooth compatible phone
with the connected iDataLink module.
Aftermarket: Select to pair the Bluetooth compatible phone
with this unit.
Setting the Default Vehicle Screen
Setting the Maestro Module
Setting the Scroll
Off: Turns off the scroll mode.
On: Turns on the Auto scroll mode. Scroll display is repeated
as long as the mode is turned on.
Format settings
Latin-1: ISO 8859-1
Latin-9: ISO 8859-15
Russian: ISO 8859-5
Chinese: GB18030
Thai: CP874
Arabic: CP1256
Hebrew: CP1255
Setting the Menu Language
Front: The remote sensor of this unit is effective.
Rear: The remote sensor of the external monitor
connected to AUX OUTPUT of this unit
becomes effective. The remote control
operates the source connected to the AUX
OUTPUT terminals.
Off: Always displayed.
On: Fade out after 5 seconds if no operations performed.
45-EN
Screen/LED Customize
Touch [Screen/LED Customize] on the General setup menu in step 3.
Refer to “General Setup Operation” (page 43).
Backlighting is provided by a fluorescent light built into the liquid
crystal panel. The illumination control adjusts the brightness of the
backlighting based on the car ambient lighting for easier viewing.
Setting item: Dimmer
Setting contents: Auto (Initial setting) / On / Off
•When “Auto” or “On” is set, the setting is also applied for the button
lighting in “Adjusting the Dimmer of Button Lighting at Night”
(page 45), and “Adjusting the Minimum Level of Backlight”
(page 45).
You can adjust the brightness of the backlight. This function could be
used, for instance, to change the screen brightness while traveling at
night.
Setting item: Screen Dimmer Level
Setting content: -15 to +15 (Initial setting: 0)
You can adjust the level between MIN (-15) and MAX (+15).
When it reaches the minimum or maximum point, the display
shows “MIN” or “MAX” respectively.
You can adjust the brightness of the button lighting at night with the
dimmer.
Setting item: Key Illumination Level
Setting level: -2 to +2 (Initial setting: 0)
You can choose from 5 different display colors.
Setting item: Screen Color
Setting contents: Blue / Red / GM GREEN (Initial setting) /
Amber / Black
Adjustment becomes necessary when the display position on the LCD
and the touch position on the touch panel do not match.
Setting item: Screen Alignment
1
Touch [Screen Alignment] in the Screen/LED
Customize screen.
The adjustment screen appears.
2
Accurately touch the mark provided in the
upper left corner of the screen.
3
Accurately touch the mark provided in the lower
right corner of the screen.
This completes adjustment, and returns to the previous
screen.
•If you touch [Cancel] on the adjustment screen, no adjustment is
done and returns to the previous screen.
Initialize the corrected values adjusted by Adjusting the Touch Panel.
1
Touch [Screen Alignment Reset] in the Screen/
LED Customize screen.
2
After the confirmation message appears, touch
[OK].
The corrected values are initialized.
Visual Setting
[Visual] is selected on the General setup menu in step 3. Refer to
“General Setup Operation” (page 43).
1
Touch the desired item.
•“Video” can be selected while a video is playing.
Setting the Brightness of the Backlighting
Auto: Adjust the brightness of the background illumination of
the monitor automatically to the brightness of the car
interior.
On: Keep the background illumination of the monitor dark.
Off: Deactivate Auto Dimmer mode to keep the background
illumination of the monitor bright.
Adjusting the Minimum Level of Backlight
Adjusting the Dimmer of Button Lighting at
Night
Switching the Display Color
Adjusting the Touch Panel
Initializing the Touch Panel Corrected
Values
46-EN
2
Touch [] of the desired item.
Settable items differ depending on the application.
[Video] (Video media):
Display Mode / Live Contrast / Visual EQ / Brightness / Color /
Tint / Contrast / Sharp
[Direct Camera]*:
Live Contrast / Brightness / Color / Contrast
[AUX Camera]*:
Live Contrast / Brightness / Color / Contrast
[Navigation]:
Brightness / Contrast
*The camera names set under the “Direct Camera/AUX Camera”
settings are displayed. The camera names are not displayed when
“Off” is set (pages 64, 65).
3
Touch [] or [] to change its setting.
4
Touch [] to return to the previous screen.
•Immediately after changing the settings of Display Setup (While the
system is writing data automatically) do not turn the ignition key to
OFF. Otherwise, the settings may not be changed.
Setting item: Display Mode
Setting contents: WIDE (Initial setting) / CINEMA / NORMAL
In WIDE mode, the monitor displays a normal picture wider to fit
in a wide-screen monitor by evenly stretching out the picture
horizontally.
In CINEMA mode, the monitor displays a normal picture by
stretching out the picture horizontally and vertically. This mode is
good for displaying a cinema type picture at the 16:9 ratio.
In NORMAL mode, the monitor displays a normal picture at the
center of the screen with a vertical black band at each side.
This function automatically adjusts the areas on the screen that are too
bright or too dark and corrects them to natural brightness.
Setting item: Live Contrast
Setting contents: OFF (Initial setting) / LOW / HIGH
You can select a mode suitable for the subject image.
Setting item: Visual EQ
Setting contents: OFF (Initial setting) / NIGHT M. / SOFT /
SHARP / CONTRAST
•To return to the default video settings, set this function to OFF. Any
Visual EQ selection or changes made are reset their initial settings.
Setting item: Brightness
Setting content: -15 to +15 (Initial setting: 0)
You can adjust the brightness between MIN (-15) and MAX
(+15). When it reaches the minimum or maximum point, the
display shows “MIN” or “MAX” respectively.
Setting item: Color
Setting content: -15 to +15 (Initial setting: 0)
You can adjust the Color between MIN (-15) and MAX (+15).
When it reaches the minimum or maximum point, the display
shows “MIN” or “MAX” respectively.
Setting item: Tint
Setting content: R15 to G15 (Initial setting: 0)
Adjust the Color from R15 to G15.
Switching Display Modes
Adjusting the Live Contrast
Selecting the Visual EQ Mode
(Factory’s setting)
OFF: Initial Setting
NIGHT M.: Suitable for movies in which dark scenes
frequently appear.
SOFT: Suitable for CGs and animated films.
SHARP: Suitable for old movies where images are not
clearly shown.
CONTRAST: Suitable for recent movies.
Adjusting Brightness
Adjusting Color of Picture
Adjusting Tint of Picture
47-EN
Setting item: Contrast
Setting content: -15 to +15 (Initial setting: 0)
You can adjust the contrast between LOW (-15) and HIGH (+15).
When it reaches the minimum or maximum point, the display
shows “LOW” or “HIGH” respectively.
Setting item: Sharp
Setting content: -5 to +5 (Initial setting: 0)
Picture quality adjustment range is -5 to +5. “SOFT” and “HARD”
appear as the minimum and maximum values specified.
When adjusting audio (video media), you can store the settings made
for “Adjusting Live Contrast, Brightness, Color, Tint, Contrast and
Sharp”.
Setting item: Preset1 / Preset2
1 After completing “Adjusting Live Contrast, Brightness,
Color, Tint, Contrast and Sharp” (page 46), touch and
hold [Preset1] or [Preset2] to save the settings.
2 Touch [Preset1] or [Preset2] to call the saved settings.
•Display Mode cannot be registered.
About X009
Touch [About] on the General setup menu in step 3. Refer to “General
Setup Operation” (page 43).
You can view the version information of this product. Make note of this
information and refer to it whenever you contact Alpine Tech Support or
an Alpine-authorized dealer.
Setting item: Version Information
Contents: Serial No. / Firmware Version
This unit will display the registration code required to play a DivX®
VOD (Video On Demand), or you can also display the deregistration
code.
Setting item: Warranty / Copyright Information
Displaying the Registration Code
1
Touch [Warranty/Copyright Information].
2
Touch [DivX(R) VOD].
3
Touch [Registration].
The registration code is displayed on the screen.
4
Touch [OK].
Displaying the Deregistration Code
1
Touch [Warranty/Copyright Information].
2
Touch [DivX(R) VOD].
3
Touch [Deregistration].
The confirmation dialog screen appears.
4
Touch [OK].
The deregistration code is displayed on the screen.
•When you have finished, touch [Cancel]. If you want to continue and
display a new registration code, touch [OK], check the registration
code, and then touch [OK] again.
You can initialize all data, to restore the factory settings. Remove the
CD/DVD disc, etc. from the system before operation
Setting item: Restore Factory Setting
1
Touch [Restore Factory Setting].
2
After the confirmation message appears, touch
[OK].
The confirmation screen appears again.
3
Touch [OK].
The system starts initialization.
•Do not turn on/off the power, change the ignition key position or
remove the screen panel until system restart is completed.
Adjusting Image Contrast
Adjusting Picture Quality
Saving and calling the adjusted picture
quality
Displaying the Product Information
Checking the DivX® Registration
Initializing the System
48-EN
Installation Setup
[Installation] is selected on the General setup menu in step 3. See
“General Setup Operation” (page 43).
Setting item: Installation
The Installation check screen is displayed.
Setting the External Audio Processor
On/Off
[External Audio Processor] is selected on the General setup menu in
step 3. Refer to
“General Setup Operation” (page 43).
When a compatible external audio processor is connected, please set
this item to “On”.
Setting item: External Audio Processor
Setting contents: Off (Initial setting) / On
•Some items of Sound Setup cannot be adjusted from this unit when
External Audio Processor is set to On.
•Press and hold AUDIO button is invalid when External Audio
Processor is set to On .
Setting the Digital Output
[Optical] is selected on the General setup menu in step 3. Refer to
“General Setup Operation” (page 43).
To connect an audio processor using optical digital output, set to “On”
by the following procedure.
Setting item: Optical
Setting contents: Off (Initial setting) / On
•This setting is available only when External Audio Processor is set to
On. Refer to “Setting the External Audio Processor On/Off”
(page 48).
•If Optical is set to On, the Optical ( ) indicator appears.
•, and buttons are invalid when Optical is set to On.
Sound Setup Operation
1
Touch [Setup] icon of Top banner.
The Setup main screen is displayed.
2
Touch [Sound].
The Sound Setup screen appears.
3
Select the desired item.
Setting items: Balance/Fader/Subwoofer*1 / Media Xpander*1 /
EQ Presets*1 / Parametric EQ*1 /
Time Correction*1 / X-Over*1 / Defeat*1 / Volume /
Source Volume Setup*2
Off: The connected audio processor is not
recognized by X009.
On: The connected audio processor is recognized
by X009.
Sound Setup
To display the Sound Setup Menu screen:
Your vehicle must be parked with the ignition key in the ACC or
ON position. To do this, follow the procedures below.
1 Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2 Keep pushing the foot brake and release the parking
brake once then engage it again.
3 When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission lever
in the Park position.
Now, the locking system for the Sound mode operation has been
released. Engaging the parking brake can reactivate the Sound
Setup Menu, as long as the car’s ignition has not been turned off.
It is not necessary to repeat the above procedure
(1 through 3) of “To display the Sound mode screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the Sound mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of Sound Setup. Refer to each section for details.
49-EN
*1 These items cannot be adjusted when External Audio Processor
is set to On, refer to “Setting the External Audio Processor On/
Off” (page 48).
*2 This item cannot be adjusted when Optical is set to On, refer to
“Setting the Digital Output” (page 48).
4
Touch [] or [] etc., to change its setting.
•When the pop-up window for setup is displayed, touch [] to
close the window after setting.
5
Touch [] to return to the previous screen.
•Immediately after changing the Sound Setup (while the system is
writing data automatically) do not turn the ignition key to OFF.
Otherwise, the settings may not be changed.
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
•When BASS ENGINE SQ mode is selected or TuneIt is launched,
some setting items are not adjustable. Refer to “BASS ENGINE SQ
mode” (page 24)/“Applying TuneIt” (page 25).
Setting the Balance/Fader/Subwoofer
[Balance/Fader/Subwoofer] is selected on the Audio setup menu in
step 3. Refer to “Sound Setup Operation” (page 48).
Touch the desired point within the image area. Or touch
[] [] [] [].
Balance: L15 to R15
Fader: F15 to R15
You can set the rear speaker output to “Off”.
Setting item: Rear Speaker
Setting contents: On (Initial setting) / Off
•Note that if you select “Off” when the Rear Speaker Position in Car
Specific Sound Setup is set to “Rear Deck” or “Rear Door/Panel”,
the setting in Car Specific Sound Setup will be canceled.
If an optional subwoofer is connected to the unit, make the following
setting.
Setting item: SubW.
Setting contents: On / Off (Initial setting)
•Note that if you select “Off” when Subwoofer Installed in Car
Specific Sound Setup is set to “Yes”, the setting in Car Specific
Sound Setup will be canceled.
You can set the Subwoofer level when a Subwoofer is connected.
Setting item: SubW. LEVEL
Setting contents: 0 to 15 (Initial setting: 0)
•If the Subwoofer setting is “Off”, the setting cannot be set.
The subwoofer output phase is toggled Subwoofer Normal (0°) or
Subwoofer Reverse (180°).
Setting item: SubW. Phase
Setting contents: 0° (Initial setting) / 180°
•If the Subwoofer setting is “Off”, the setting cannot be set.
Setting the MX (Media Xpander)
[Media Xpander] is selected on the Audio setup menu in step 3. Refer
to “Sound Setup Operation” (page 48). When the currently playing
source is AM radio band, this option is not available.
MX (Media Xpander) makes vocals or instruments sound distinct
regardless of the music source. The HD Radio, CD, Flash memory and
iPod/iPhone, will be able to reproduce the music clearly even in cars
with a lot of road noise.
Setting item: Media Xpander
1
Touch [ON] of “ALL MX OFF/ON” in the MX setup
screen.
Setting the Balance/Fader
Rear Speaker Setting
Image area
Turning Subwoofer ON/OFF
Adjusting the Subwoofer Level
Setting the Subwoofer Phase
50-EN
2
Touch any of [] [] [] [].
•The MX setting can be performed only when a source is currently
selected.
•MP3/WMA/AAC/iPod/USB/DivX®/Bluetooth Pandora/Bluetooth
Audio correspond to MX Compressed Media.
MX SiriusXM
The medium to high frequencies become more clear, and
produces well balanced sound in all the bands.
MX DVD
(Movie)
The dialog portion of the video is reproduced more clearly
(DVD Music)
This disc contains a large quantity of data such as music clip.
MX uses this data to reproduce the sound accurately.
MX CD
CD mode processes a large quantity of data. This data is used
to reproduce the sound cleanly by making use of the data
quantity.
MX Compressed Media
This corrects information that was omitted at the time of
compression. This reproduces a well-balanced sound close to
the original.
MX Pandora
This corrects information that was omitted at the time of
compression. This reproduces a well-balanced sound close to
the original.
MX AUX/AUX3
Choose the MX mode (Compressed Media, Movie, or Music)
that corresponds to the media connected.
MX HD Radio
The medium to high frequencies become more clear, and
produces well balanced sound in all the bands.
HDMI
Choose the MX mode (Compressed Media, Movie, or Music)
that corresponds to the media connected.
iDataLink
This corrects information that was omitted at the time of
compression. This reproduces a well-balanced sound close to
the original.
•To cancel MX mode for all music applications, set MX to “Off” in
step 1.
•Each music applications, such as HD Radio, CD, and
MP3/WMA/AAC can have its own MX setting.
•Setting to MX sets MX mode of each music applications to “Off”.
•There is no MX mode for AM radio.
•The function is inoperable when Defeat is set to “On”.
Equalizer Presets
[EQ Presets] is selected on the Sound setup menu in step 3. Refer to
“Sound Setup Operation” (page 48).
10 typical equalizer settings are preset at the factory for a variety of
musical source material.
Setting item: EQ Presets
Setting contents: FLAT (Initial setting) / POP / ROCK / NEWS /
JAZZ / ELECTRONIC / HIP HOP / EASY
LISTENING / COUNTRY / CLASSICAL
•Only one type can be set to ON.
•When Equalizer Presets setting is edited, a Download Sound setting
is disabled.
•When Equalizer Presets is set, the linked Parametric EQ settings are
also changed. We recommend storing Parametric EQ settings in a
Preset in advance.
•The Equalizer Presets setting can be configured when Defeat is
“Off”.
Adjusting the Parametric Equalizer
Curve (Parametric EQ)
[Parametric EQ] is selected on the Sound setup menu in step 3. Refer
to “Sound Setup Operation” (page 48).
You can modify the Equalizer settings to create a response curve more
appealing to your personal taste.
Setting item: Parametric EQ
1
Adjust the Parametric EQ to your preference.
Adjusting the Band
Touch [Band] to select the band to be adjusted.
•You can select a band directly by touching the screen.
Media Level
OFF 1 2 3
SiriusXM
DVD
CD
Compressed
Media
Pandora
AUX/AUX3
HD Radio
HDMI
iDataLink
Band1 Band2
···
Band8 Band9
51-EN
Adjusting the Frequency
Touch [] or [] of “Freq.” to adjust the frequency of the
selected band.
Adjustable frequency bands: 20 Hz to 20 kHz (in 1/3 octave steps)
Adjusting the Level
Touch [] or [] of “Level” to adjust the level of selected
band.
Setting contents: -7 to +7 (Initial setting: 0)
Setting the Bandwidth
Touch [] or [] of “Q Adjust” to select the bandwidth.
Setting contents: Wide (Initial setting) / Medium / Narrow
2
To adjust another band, repeat step 1, and adjust all
bands.
3
To store the adjusted setting value, touch and hold
[Preset1], [Preset2], or [Preset3] for at least 2
seconds.
•BAND2 and BAND8 are the same as the Bass and Treble controls.
Their Level adjustment can also be controlled by pressing and
holding / AUDIO and selecting Bass Level or Treble Level. Refer
to “Easy Sound Setup mode” on page 24.
•Settings exceeding the frequency of adjacent bands are not available.
•While adjusting the Parametric EQ, you should consider the
frequency response of the connected speakers.
•When the parametric EQ is adjusted, the Equalizer Presets are
overridden.
•When Equalizer Presets is set, the linked Parametric EQ settings are
also changed. We recommend storing Parametric EQ settings in a
Preset in advance.
•Touch [Flat] to initialize all values.
•The Parametric EQ setting can be configured when Defeat is “Off”.
Calling the Parametric EQ adjusted value
Calling the pre-set Parametric EQ adjusted value.
Touch [Preset1], [Preset2], or [Preset3] on the
Parametric EQ screen.
The setting stored in the Preset will be recalled.
Adjusting the Time Correction (Time
Correction)
[Time Correction] is selected on the Sound setup menu in step 3. Refer
to “Sound Setup Operation” (page 48).
Before performing the following procedures, refer to “About Time
Correction” (page 53).
Setting item: Time Correction
1
Touch [cm], [inch] or [ms] to select mode for
making adjustments.
Each time you touch, the onscreen button and correction
mode changes.
cm/inch: Adjust listening position and distance from each
speaker.
ms: Adjust time.
2
Touch [] or [] for each speaker to adjust the
time or distance.
0.0 msec to 9.9 msec (0.1 msec/step)
0.0 cm (0.0 inch) to 336.6 cm (132.7 inch) (3.4 cm/step)
All speaker setting values are adjustable in the range of 15 ms
or 510 cm.
3
To store the adjusted setting value, touch and hold
[Preset1], [Preset2], or [Preset3] for at least 2
seconds.
•Touch [Flat] to set all values to 0.0.
•If the Rear Speaker setting is “Off”, the Rear Speaker setting cannot
be edited (refer to page 49).
•If the Subwoofer setting is “Off”, the Subwoofer setting cannot be
edited (refer to page 49).
Calling the Time Correction Value
Calling the pre-set time correction value.
Touch [Preset1], [Preset2], or [Preset3] on the time
correction screen.
The setting stored in the Preset will be recalled.
Band1: 20 Hz~100 Hz (63 Hz)
Band2: 63 Hz~315 Hz (125 Hz)
Band3: 125 Hz~500 Hz (250 Hz)
Band4: 250 Hz~1 kHz (500 Hz)
Band5: 500 Hz~2 kHz (1 kHz)
Band6: 1 kHz~4 kHz (2 kHz)
Band7: 2 kHz~7.2 kHz (4 kHz)
Band8: 5.8 kHz~12 kHz (8 kHz)
Band9: 9 kHz~20 kHz (16 kHz)
Correction mode
52-EN
Adjusting the Crossover Settings
(X-Over)
[X-Over] is selected on the Sound setup menu in step 3. Refer to
“Sound Setup Operation” (page 48).
Before performing the following procedures, refer to “About the
Crossover” (page 54).
Setting item: X-Over
1
Touch [Channel] to select the channel.
Each time you touch, the channel switches.
•The channel being adjusted is displayed in red.
2
Adjust the crossover to your preference.
Selecting the Cut-Off Frequency
Touch [] or [] of “Freq.”, and then select the cut-off
frequency.
Setting contents: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial setting) /
100 / 125 / 160 / 200 Hz
Adjusting the Slope
Touch [] or [] of “Slope”, and then adjust the HPF or LPF
slope.
Setting contents: 0 (Initial setting) / 6 / 12 / 18 / 24 dB/oct.
Adjusting the Level
Touch [] or [] of “Level”, and then adjust the HPF or LPF
level.
Setting contents: -12 to 0 dB (Initial setting: 0)
3
Repeat steps 1 to 2 to make adjustment to the other
channels.
4
To store the adjusted setting value, touch and hold
[Preset1], [Preset2], or [Preset3] for at least 2
seconds.
•Touch [Flat] to initialize all values.
•If the Rear Speaker setting is “Off”, the Rear Speaker setting cannot
be edited (refer to page 49).
•If the Subwoofer setting is “Off”, the Subwoofer setting cannot be
edited (refer to page 49).
•While adjusting the X-Over you should consider the frequency
response of the connected speakers.
Calling the X-Over adjusted value
Calling the pre-set X-Over adjusted value.
Touch [Preset1], [Preset2], or [Preset3] on the
X-Over screen.
The setting stored in the Preset will be recalled.
Setting Defeat
[Defeat] is selected on the Sound setup menu in step 3. Refer to “Sound
Setup Operation” (page 48).
If Defeat is “On”, MX, Equalizer Presets, Car Specific Sound Setup and
Parametric EQ functions are turned OFF. This disables any settings
made for these functions.
Setting item: Defeat
Setting contents: Off (Initial setting) / On
Volume Setting
[Volume] is selected on the Sound setup menu in step 3. Refer to
“Sound Setup Operation” (page 48).
You can change the volume of the sound heard when a button is
touched.
Setting item: Key Sound Feedback
Setting contents: 0 to 7 (Initial setting: 4)
Setting the Volume for Each Source
[Source Volume Setup] is selected on the Sound setup menu in step 3.
Refer to “Sound Setup Operation” (page 48).
The volume level for each application can be adjusted.
Setting item: Radio / SiriusXM / DVD / CD / Compressed Media /
iPod Music / iPod Video / HDMI / Pandora / AUX /
AUX3 / Bluetooth Audio / iDataLink
Setting contents: -14 to +14 (Initial setting: 0)
•Settable source differ depending on the connected device and
settings.
Front HPF Rear HPF Subw. LPF
53-EN
About Time Correction
The distance between the listener and the speakers in a car vary widely
due to the complex speaker placement. This difference in the distances
from the speakers to the listener creates a shift in the sounds image and
frequency characteristics. This is caused by the time delay between the
sound reaching the listener’s right versus the left ear.
To correct this, this unit is able to delay the audio signal to the speakers
closest to the listener. This effectively creates a perception of increased
distance for those speakers. The listener can be placed at an equal
distance between the left and right speakers for optimum staging.
The adjustment will be made for each speaker in 3.4 cm steps.
Adjust the time correction level of the front left speaker to a high value
and the rear right to zero or a low value.
The sound is not balanced because the distance between the
listening position and the various speakers is different.
The difference in distance between the front left speaker and the rear
right speaker is 1.75 m (68-7/8").
Here we calculate the time correction value for the front left speaker
in the diagram on the above.
Conditions:
Farthest Speaker – listening position : 2.25 m (88-9/16")
Front left speaker – listening position : 0.5 m (19-11/16")
Calculation: L = 2.25 m – 0.5 m = 1.75 m (68-7/8")
Time correction = 1.75 ÷ 343* × 1,000 = 5.1 (ms)
* Speed of sound: 343 m/s (765 mph) at 20°C
In other words, giving the front left speaker a time correction value of
5.1 ms makes it seem as if its distance from the listener is the same
as the distance to the farthest speaker.
Time correction eliminates the differences in the time required for the
sound to reach the listening position.
The time of the front left speaker is corrected by 5.1 ms so that its
sound reaches the listening position at the same time as the sound of
other speakers.
Adjust the time correction level of each speaker to almost the same level.
1
Sit in the listening position (driver’s seat, etc.) and
measure the distance (in meters) between your head
and the various speakers.
2
Calculate the difference between the distance
correction value to the farthest speaker and the
other speakers.
L = (distance to farthest speaker) – (distance to other
speakers)
These values are the time correction values for the different
speakers. Setting these values to make each sound reach the
listening position at the same time as the sound of other speakers.
Time Correction Value List
Example 1. Listening Position: Front Left Seat
5.1ms
2.25m
0.5m
Example 2. Listening Position: All Seats
Time
Difference
(msec)
Distance
(cm)
Distance
(inch)
Time
Difference
(msec)
Distance
(cm)
Distance
(inch)
0.0 0.0 0.0 5.1 173.4 68.3
0.1 3.4 1.3 5.2 176.8 69.7
0.2 6.8 2.7 5.3 180.2 71.0
0.3 10.2 4.0 5.4 183.6 72.4
0.4 13.6 5.4 5.5 187.0 73.7
0.5 17.0 6.7 5.6 190.4 75.0
0.6 20.4 8.0 5.7 193.8 76.4
0.7 23.8 9.4 5.8 197.2 77.7
0.8 27.2 10.7 5.9 200.6 79.1
0.9 30.6 12.1 6.0 204.0 80.4
1.0 34.0 13.4 6.1 207.4 81.7
1.1 37.4 14.7 6.2 210.8 83.1
1.2 40.8 16.1 6.3 214.2 84.4
1.3 44.2 17.4 6.4 217.6 85.8
1.4 47.6 18.8 6.5 221.0 87.1
1.5 51.0 20.1 6.6 224.4 88.4
1.6 54.4 21.4 6.7 227.8 89.8
1.7 57.8 22.8 6.8 231.2 91.1
1.8 61.2 24.1 6.9 234.6 92.5
1.9 64.6 25.5 7.0 238.0 93.8
2.0 68.0 26.8 7.1 241.4 95.1
2.1 71.4 28.1 7.2 244.8 96.5
2.2 74.8 29.5 7.3 248.2 97.8
2.3 78.2 30.8 7.4 251.6 99.2
2.4 81.6 32.2 7.5 255.0 100.5
2.5 85.0 33.5 7.6 258.4 101.8
2.6 88.4 34.8 7.7 261.8 103.2
2.7 91.8 36.2 7.8 265.2 104.5
2.8 95.2 37.5 7.9 268.6 105.9
2.9 98.6 38.9 8.0 272.0 107.2
3.0 102.0 40.2 8.1 275.4 108.5
3.1 105.4 41.5 8.2 278.8 109.9
3.2 108.8 42.9 8.3 282.2 111.2
3.3 112.2 44.2 8.4 285.6 112.6
3.4 115.6 45.6 8.5 289.0 113.9
3.5 119.0 46.9 8.6 292.4 115.2
3.6 122.4 48.2 8.7 295.8 116.6
3.7 125.8 49.6 8.8 299.2 117.9
3.8 129.2 50.9 8.9 302.6 119.3
3.9 132.6 52.3 9.0 306.0 120.6
4.0 136.0 53.6 9.1 309.4 121.9
54-EN
About the Crossover
Crossover (X-Over):
This unit is equipped with an active crossover. The crossover limits the
frequencies delivered to the outputs. Each channel is controlled
independently. Thus, each speaker pair can be driven by the frequencies
for which they have been optimally designed.
The crossover adjusts the HPF (high pass filter) or LPF (low pass filter)
of each band, and also the slope (how fast the filter rolls off the highs or
lows).
Adjustments should be made according to the reproduction
characteristics of the speakers. Depending on the speakers, a passive
network may not be necessary. If you are unsure about this point, please
consult your authorized Alpine dealer.
•HPF (high pass filter): Cuts the lower frequencies and allows the
higher frequencies to pass.
•LPF (low pass filter): Cuts the higher frequencies and allows the
lower frequencies to pass.
•Slope: The level change (in dB) for a frequency change of one octave.
•The higher the slope value, the steeper the slope becomes.
•Adjust the slope to FLAT to bypass the HP or LP filters.
•Do not use a tweeter without the HPF on or set to a low frequency, as
it may cause damage to the speaker due to the low frequency content.
•You cannot adjust the crossover frequency higher than the HPF or
lower than the LPF.
•Adjustment should be made according to the recommended crossover
frequency of the connected speakers. Determine the recommended
crossover frequency of the speakers. Adjusting to a frequency range
outside that recommended may cause damage to the speakers.
For the recommended crossover frequencies of Alpine speakers, refer
to the respective Owner’s Manual.
We are not responsible for damage or malfunction of speakers caused
by using the crossover outside the recommended value.
4.1 139.4 54.9 9.2 312.8 123.3
4.2 142.8 56.3 9.3 316.2 124.6
4.3 146.2 57.6 9.4 319.6 126.0
4.4 149.6 59.0 9.5 323.0 127.3
4.5 153.0 60.3 9.6 326.4 128.6
4.6 156.4 61.6 9.7 329.8 130.0
4.7 159.8 63.0 9.8 333.2 131.3
4.8 163.2 64.3 9.9 336.6 132.7
4.9 166.6 65.7
5.0 170.0 67.0
Cut-off frequency
(1/3 octave steps) Slope Level
HPF LPF HPF LPF
Low range
speaker ---- 20 Hz -
200 Hz ----
FLAT,
–
6,
–
12,
–
18,
–
24 dB/oct.
0 to
–12 dB
Rear high
range
speaker
20 Hz -
200 Hz ----
FLAT, –6,
–12, –18,
–24 dB/oct.
---- 0 to
–12 dB
Front high
range
speaker
20 Hz -
200 Hz ----
FLAT, –6,
–12, –18,
–24 dB/oct.
---- 0 to
–12 dB
Low range High range
(Different from actual display)
Level adjusting
(0 to –12 dB) Output frequency range
Slope FLAT
Slope adjusting
20 Hz
HPF cut-off
frequency
LPF cut-off
frequency
(Different from actual display)
55-EN
Source Setup Operation
1
Touch [Setup] icon of Top banner.
The Setup main screen is displayed.
2
Touch [ (Source)].
The Source Setup screen appears.
3
Select the desired item.
Setting items: Source Layout / Disc / SiriusXM / Auxiliary (AUX) /
Rear Seat Entertainment (RSE) / Bluetooth
Pandora / TuneIt
4
Touch [] or [] etc., to change its setting.
•When the pop-up window for setup is displayed, touch [] to
close the window after setting.
5
Touch [] to return to the previous screen.
•Immediately after changing the Source Setup (while the system is
writing data automatically) do not turn the ignition key to OFF.
Otherwise, the settings may not be changed.
Source Layout Setting
[Source Layout] is selected on the Source setup menu in step 3.
Refer to “Source Setup Operation” (page 55).
You can set whether to switch sources by swiping from the designated
area of the Audio/Visual Playback screen from right to left or from left
to right. Refer to “Switching Sources” (page 28).
Setting item: Slide Source Change
Setting contents: On (Initial setting) / Off
You can select this menu displayed on left or right of screen.
Setting item: Sound Setup Position
Setting contents: Left (Initial setting) / Right
You can customize the Source Banner order as you prefer. The source
switching order is displayed according to your changes.
Setting item: Source Banner Customize
Take adjusting the order of Disc and AUX 1 as an
example:
1
Touch the desired source icon ([Disc] etc.).
The [Disc] source icon is displayed highlighted.
Touch this icon again to cancel.
2
Touch another source icon ([AUX 1] etc.).
The Source Banner positions for [Disc] and [AUX 1] are
swapped.
Source Setup
To display the Source Setup Menu screen:
Your vehicle must be parked with the ignition key in the ACC or
ON position. To do this, follow the procedures below.
1 Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2 Keep pushing the foot brake and release the parking
brake once then engage it again.
3 When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission lever
in the Park position.
Now, the locking system for the Source mode operation has been
released. Engaging the parking brake can reactivate the Source
Setup Menu, as long as the car’s ignition has not been turned off.
It is not necessary to repeat the above procedure
(1 through 3) of “To display the Source mode screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the Source mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of Source Setup. Refer to each section for details.
Setting the Slide Source Change
On: Source is changed by a swipe gesture.
Off: Source is not changed by a swipe gesture.
Setting the Easy Sound Setup Position
Customizing the Source Banner
56-EN
Disc Setting
Touch [Disc] on the Source setup menu in step 3. Refer to “Source
Setup Operation” (page 55).
•You can perform DVD setup in DVD video mode.
•Touch [Stop] before performing Disc setup.
The audio language, subtitle language and menu language can be set
according to your preferences.
Once set, this becomes the default language. This function is convenient
if you always want to listen in English, for example. (The language
setting is not effective on some discs. In this case, the default language
is set at the factory.)
•When the settings are changed, old settings are overwritten. Make a
note of the current settings before making changes.
•To temporarily change the language of the current disc, either do so
from the DVD menu or by using the operation described in the
section “Switching the Audio Tracks” (page 42).
•If the disc does not include the selected language, the disc’s default
language is set.
To play in a language other than those displayed
1 Touch [DVD Menu Language Code], [Audio Language
Code] or [Subtitle Language Code].
The numeric keypad screen is displayed.
2 Touch the 4-digit numeral of the language number.
To reference language numbers, refer to “List of
Language Codes” (page 97).
3 Touch [OK] to memorize the number.
•The setting content changes to “Other” if the desired language code
is input.
Set the language used for the menus (title menu, etc.).
Setting item: DVD Menu Language
Setting contents: Auto (Initial setting) / EN / JP / DE / ES / FR / IT /
SE / RU / CN
•When “Auto” is selected, the primary menu language among the
recorded ones is played.
•As for the language abbreviation, refer to “List of Language Codes”
(page 97).
Set the audio language produced from the speakers.
Setting item: Audio Language
Setting contents: Auto (Initial setting) / EN / JP / DE / ES / FR / IT /
SE / RU / CN
•When “Auto” is selected, the primary audio language among the
recorded ones is applied.
•As for the language abbreviation, refer to “List of Language Codes”
(page 97).
Set the language of the subtitles displayed on the screen.
Setting item: Subtitle Language
Setting contents: Auto (Initial setting) / EN / JP / DE / ES / FR / IT /
SE / RU / CN
•When “Auto” is selected, the primary subtitle language among the
recorded ones is applied.
•As for the language abbreviation, refer to “List of Language Codes”
(page 97).
Set the country code for the country which you want to set the rating
level (Parental lock).
Setting item: Country Code
Setting contents: Auto (Initial setting) / Other
•If settings are changed, the old settings are overwritten. Make a note
of the current settings before making changes. The settings will be
cleared if the vehicle’s battery is disconnected.
1 Touch [Country Code Input].
2 Touch [] or [Delete All].
Delete the displayed country number.
3 Touch the 4-digit country code.
As for the country number, refer to “List of Country
Codes” (page 98).
4 Touch [OK] to memorize the code.
This function can help limit the viewing of movies to children of
appropriate age levels only.
Setting item: Parental Controls
•If settings are changed, the old settings are overwritten. Make a note
of the current settings before making changes. The memory will be
cleared if the vehicle’s battery is disconnected.
•On unrated discs, playback will not be restricted even if the rating
level is set.
•If you want to play back a disc with parental lock, and its use is
currently restricted, change the rating level and the country number
in order to play back the disc.
•Once set, this rating level remains in memory until changed. To
enable playback of discs of higher rating levels, or to cancel the
parental lock, the setting must be changed.
•Not all discs provide a parental lock. If you are unsure about a disc,
play it first to confirm. Do not leave discs accessible to young
children for whom you deem them inappropriate.
1 Touch [Parental Controls].
The numeric keypad screen is displayed.
2 Touch the numeric keypad to input a 4-digit password.
The initial number is 1111. Input number are displayed
as “*”.
3 Touch [OK] to memorize the number.
The Parental Controls screen appears.
Changing the language setting
Setting of the Menu Language
Setting of the Audio Language
Setting of the Subtitle Language
Changing the Country Code Setting
Auto: The primary country code among those recorded is
played.
Other: The setting content changes to “Other” if the desired
country code is input.
Setting the Rating Level (Parental Lock)
57-EN
Set the rating level of Parental Controls
4 Touch [Parental].
5 Touch [ ] or [ ] to turn “On”.
Select “Off” to cancel parental lock or if you do not want
to set a rating level.
6 Touch [] to return to the previous screen.
7 Touch [Parental Level]
8 Touch [] or [] to select the rating level (1 to 8).
The smaller the number, the higher the restriction.
9 Touch [] to return to the previous screen.
Changing the password
1 Touch [Password Change].
The numeric keypad screen is displayed.
2 Touch the input screen to enter a new 4-digit password.
•Keep a note of the number somewhere safe in case you should
forget it.
3 Touch [OK] to memorize the number.
4 Touch [] to return to the previous screen.
Use the procedure described below to modify the output screen
according to the type of TV monitor (rear monitor) being used.
If the rear monitor is not connected, the screen setting is 16:9.
Setting item: TV Screen
Setting contents: 4:3LB / 4:3PS / 16:9 (Initial setting)
•For some discs, the picture may not be set to the selected screen size.
(For details, refer to the explanation on the disc’s jacket.)
4:3 LETTER BOX:
Select this when connected to a conventional 4:3 size (normal
TV aspect ratio) monitor. There may be black stripes visible at
the top and bottom of the screen (when playing a 16:9 size
movie). The width of these stripes will depend upon the original
aspect ratio of the theatrical release of the movie.
4:3 PAN-SCAN:
Select this when connected to a conventional 4:3 size monitor.
The picture will fill the entire TV screen. However, due to the
mismatch in aspect ratio, parts of the movie at the extreme left
and right sides will not be visible (when playing a 16:9 size
movie).
16:9 WIDE:
Select this when connected to a wide screen TV. This is the
factory setting.
Changing the rating level temporarily
Some discs may request that you change the rating level set in
the default settings during playback. In this case, the message
“Do you wish to change Parental level? [OK] [Cancel]”.
If this screen appears, change the level as follows:
•To change parental level and play, touch [OK].
When [OK] is touched, the numeric keypad input screen is
displayed. Input the 4-digit password you set in “Setting the
Rating Level (Parental Lock)”, then touch [OK].
•To play without changing the parental level, touch [Cancel].
(If [Cancel] is touched, playback will be at the parental level set
in “Setting the Rating Level (Parental Lock)”.)
Setting the TV Screen Mode
58-EN
SiriusXM Setting
[SiriusXM] is selected on the Source setup menu in step 3. Refer to
“Source Setup Operation” (page 55).
The following operations can be performed to manage the stored Songs,
Artists and Sports teams information. (To learn about how to store the
information, refer to “Storing the desired Song/Artist” on page 83 and
“Setting the Favorite Sports Team Alerts” on page 58.)
Setting item: Alert Setup
Setting the Alert individually for an Artist/Song/Sport
Team
This menu option allows you to enable the Artist/Song/Team alert for
individual Artists/Songs/Teams (On or Off) or to delete individual
stored Artist/Song/Team alerts (Delete).
1
Touch [Alert list].
The Alert List screen is displayed.
2
Touch [ON] or [OFF] of the desired song, artist or
team.
Set to ON to enable the alert for the Artist/Song or Team.
Set to OFF to disable the alert for the Artist/Song or Team.
•To delete the list, touch [Delete], and then touch [OK].
Setting ON/OFF of all Songs/Artists/Games Alert
This menu option allows you to temporarily disable the Artist/Song/
Game Alerts for all Artists/Songs/Games. When the Alerts are
re-enabled, individual Artist/Song/Game Alert disabled in the Alert List
menu setting remain disabled.
1
Touch [Alert].
2
Touch [] or [] of the Alert to select ON/OFF.
If On is set, the alert for all stored Artists/Songs/Games is
enabled.
If Off is set, the alerts for all stored Artists/Songs/Games are
disabled.
Deleting all stored Alert
This operation will delete all alerts (artists, songs and teams) stored in
memory.
1
Touch [Delete All].
A message is displayed.
2
Touch [OK] to clear the information of all stored
Artist, Song, and Game alert items.
Touch [Cancel] to cancel.
This menu option allows you to select your favorite teams, organized by
leagues, so that you will be alerted later when your favorite teams are
playing on other channels.
Setting item: Game Alert Setup
1
Touch [Game Alert Setup].
A sports league list is displayed.
2
Select the desired league.
The display changes to the team list of the selected league.
3
Touch the abbreviations for your favorite teams.
Once selected, you will be alerted when games that those
teams are playing in can be heard on a SiriusXM channel.
A “Team Saved X Used/Y Empty” pop up screen is
displayed.
X is the total number of Artist/Song/Game alert items stored
in memory, and Y is the total number of memory slots still
available for storage.
•Teams that you have selected will be indicated with an asterisk “*”.
•If the memory is full, you cannot select a new team.
To add another team alert, you need to delete a selected one first.
Touch the team (with “*” mark) you want to delete, a message will
display. Touch [OK] to delete it and touch [Cancel] to cancel. You
can also delete a team from the Alertlist, for details, refer to
“Managing Artist, Song and Sports Team Alerts” on page 58.
Managing Artist, Song and Sports Team
Alerts
Setting the Favorite Sports Team Alerts
59-EN
You can lock out channels with passcode protection. Channels that are
locked cannot be accessed without entering the passcode. You can
unlock a channel or change the passcode using this menu option.
Setting item: Parental Lock
1
Touch [Parental Lock].
A passcode input screen is displayed.
2
Touch the numeric keypad to input a 4-digit
passcode.
The initial default 4-digit passcode is set to 0000.
After entering the digit, it is displayed as “*” (asterisk).
3
Touch [OK].
Or touch [] to cancel entry of the passcode or touch
[Delete All] to erase the digits that you have entered so you
can start over or touch [] to erase the last digit that you
entered.
After the correct passcode is entered, the Parental Lock
options menu is display.
Clearing the Lock of ALL the locked Channels
4
Touch [Clear All Locked Channels].
5
Touch [OK] to clear the lock of all the locked
channels.
Touch [Cancel] to cancel.
Setting the Lock status of individual channels
4
Touch [Locked Channels].
The channels list screen is displayed.
5
Select the desired channel.
6
Touch [] or [] to select On/Off.
7
Touch [] to return to the previous screen.
Changing the Lock Passcode
4
Touch [Edit Code].
The numeric keypad screen is displayed.
5
Use the keypad to enter the current (old) 4-digit
passcode.
(The initial passcode is set to 0000).
Touch [Enter] to confirm the entry.
Touch [Delete All] to erase all of the digits that you entered.
Touch [] to erase the last digit you entered.
Touch [] to abort changing the passcode.
6
Now use the keypad to enter the new 4-digit
passcode.
7
Touch [OK].
8
Then use the keypad to enter the new 4-digit
passcode a second time to verify it.
•Remember to keep a note of the passcode in a safe place in case you
forget the code.
While listening to a SiriusXM Channel, the Signal strength of the
current channel will be displayed.
Setting item: Signal Indicator
This menu item displays the SiriusXM signal strength as Strong, Good,
Weak or No Signal.
•If the Signal Indicator reports Weak or No Signal and your vehicle is
parked outside with no obstructions to the southern sky, then your
SiriusXM antenna may not be properly installed or may have become
damaged.
Setting the Parental Lock
Signal Strength Information
60-EN

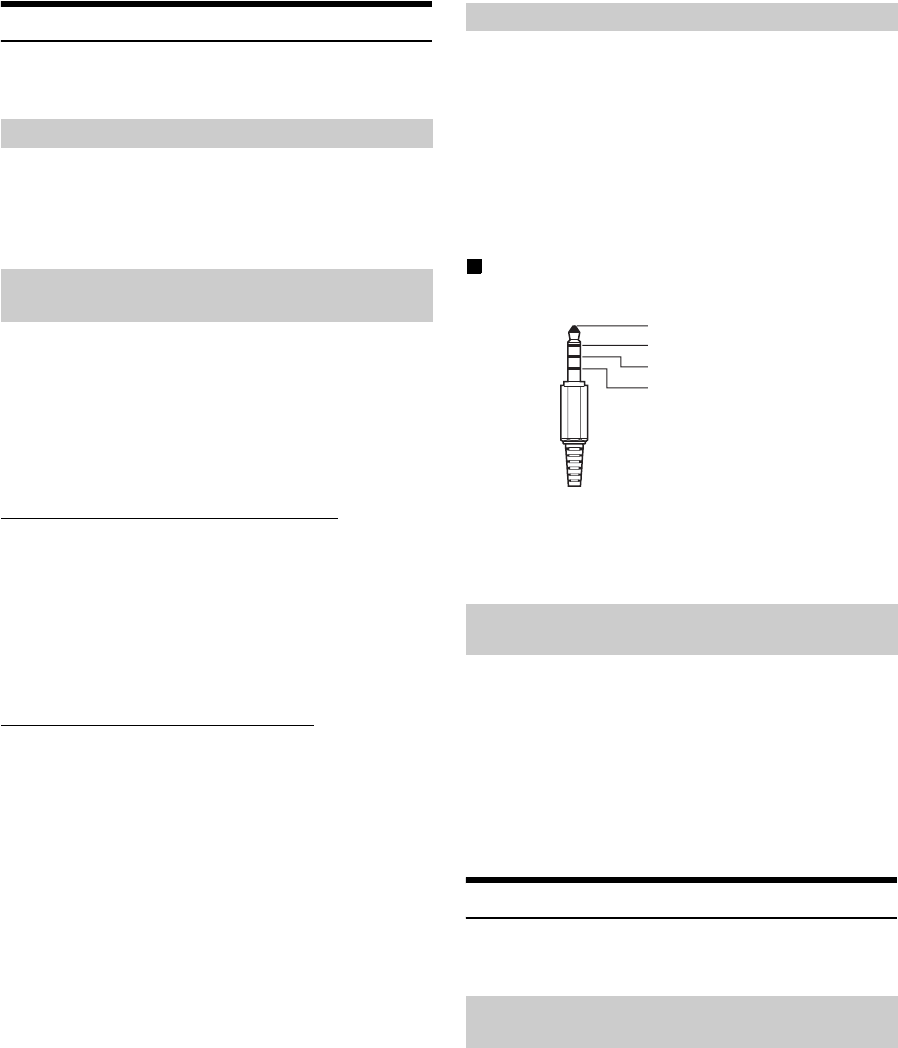

Auxiliary (AUX) Setting
[Auxiliary (AUX)] is selected on the Source setup menu in step 3. Refer
to “Source Setup Operation” (page 55).
Setting item: AUX 1 In
Setting contents: Off / On (Initial setting)
When AUX 1 In is set to “ON”, this setting is available.
Setting item: Primary Name
Setting contents: AUX 1 (Initial setting) / DVD / GAME / EXT.DVD /
DVD-CHG / DVB-T / TV
•When a DVB-T tuner is connected, you can use it to connect one
more External Input device. Setting the Secondary name can change
the mode name display of this device.
Setting the Secondary Auxiliary (AUX) Name
Secondary name can be set only when Primary name is set to “DVB-T”.
Setting item: Secondary Name
Setting contents: OFF (Initial setting) / AUX 2 / DVD / GAME /
EXT.DVD / DVD-CHG / DVB-T* / TV
•The selected source name is displayed instead of Auxiliary (AUX)
mode name.
* If the Primary Name is DVB-T, DVB-T is not displayed as a
Secondary Name option.
Switching the Visual Input Signal System
After setting to “On” in “Setting the Auxiliary (AUX) Mode”, this
setting can be carried out. The video input type can be changed.
Setting item: Signal
Setting contents: Auto (Initial setting) / NTSC/PAL
Connection with external input devices is available through the iPod
VIDEO connector. An optional adapter cable is required (standard RCA
to 3.5ø mini-phono plug or 3.5ø to 3.5ø mini phono plug).
You can also play back video connecting with an optional AV cable
(4-pole mini AV plug to 3-RCA).
Setting item: AUX 3 Source Select
Setting contents: iPod Video (Initial setting) / AUX 3
Usable 4-pole mini AV plug
The unit accepts the following 4-pole mini AV plug pin-out:
•Please check pin-out carefully before use of this product. Depending
on the cable, there may be no picture and/or sound.
•When an iPod video is selected or the current source is AUX3, this
setting cannot be adjusted.
After setting to “AUX 3” in “Setting the AUX 3 Source Select”, this
setting can be carried out. The video input type can be changed.
Setting item: AUX 3 Signal
Setting contents: Auto (Initial setting) / NTSC/PAL
•When the current source is AUX 3, this setting cannot be adjusted.
Rear Seat Entertainment (RSE) Setting
[Rear Seat Entertainment (RSE)] is selected on the Source setup
menu in step 3. Refer to “Source Setup Operation” (page 55).
Video and audio can be output to the rear monitor.
Setting item: Rear Seat Entertainment (RSE)
Setting contents: Off (Initial setting) / On
•If you selected the “On” setting, set the “Remote Sensor Setting”
(page 44).
Setting the Auxiliary (AUX) Mode
Off: AUX source is not displayed.
On: AUX source is displayed.
Setting the Primary Auxiliary (AUX) Name
(AUX 1 Setup)
Auto: The video input signal type (NTSC or PAL) will
be automatically selected.
NTSC/PAL: Choose the video input signal type manually.
Setting the AUX3
iPod Video: Set when connected to an iPod or iPhone.
AUX 3: Set when connected to an external input device.
Setting the AUX 3 Source Select (Switching
the Visual Input Signal System)
Auto: The video input signal type (NTSC or PAL) will
be automatically selected.
NTSC/PAL: Choose the video input signal type manually.
Setting the Rear Seat Entertainment
System
Audio L (White)
Audio R (Red)
Ground
Video (Yellow)
61-EN
Setting the Bluetooth Pandora®
[Bluetooth Pandora] is selected on the Source setup menu in step3.
Refer to “Source Setup Operation” (page 55).
To use Bluetooth Pandora, set the Bluetooth Pandora setting to “On.”
Setting item: Bluetooth Pandora
Setting contents: Off / On (Initial Setting)
•When “On” is set, the Bluetooth Pandora® source is displayed on the
Top banner on the Audio/Visual screen.
•When the current source is Bluetooth Pandora, this setting cannot be
adjusted.
TuneIt Setting
[TuneIt] is selected on the Source setup menu in step 3. Refer to
“Source Setup Operation” (page 55).
Set TuneIt to USB (iPhone) when an iPhone is connected, or set to
Bluetooth (Android) when an Android Smartphone is paired.
Setting item: TuneIt
Setting contents: Off / USB (iPhone) (Initial setting) /
Bluetooth (Android)*
* Not displayed when Bluetooth is set to Off. For details, refer to
“Bluetooth Setting” on page 62.
•For this function to work properly, specific applications must be
installed on your Smartphone before connection. Consult your
Alpine dealer or the Alpine website for details.
•Only the iPhone and certain Android Smartphones support this
function.
Bluetooth Setup Operation
1
Touch [Setup] icon of Top banner.
The Setup main screen is displayed.
2
Touch (Bluetooth).
The Bluetooth Setup screen appears.
3
Select the desired item.
Setting items:
Hands-free Connection of iDataLink / Bluetooth*1 /
Bluetooth Information*1 / Set Bluetooth Device*1 /
Auto Connect*1 / Passcode Change*1 / Default
Phonebook Encoding*2 / Phone Speaker*3 / Caller
Volume / Microphone Level*2 / Ring Tone Volume /
Delete Call History*2
*1Not available when both “Bluetooth Audio” and “Hands-free
Connection of iDataLink” are set to OEM.
*2Not available when Hands-free Connection of iDataLink is set to
OEM.
*3When External Audio Processor is set to On, phone speaker cannot
be adjusted. Refer to “Setting the External Audio Processor On/Off”
(page 48).
4
Touch [] or [] etc., to change its setting.
•When the pop-up window for setup is displayed, touch [] to
close the window after setting.
Setting the Communication Mode with a
Smartphone
Off: No Smartphone is connected.
USB (iPhone): When an iPhone is connected to the unit’s
USB port, you can program the unit’s sound
tuning parameters, or communicate with SNS.
Bluetooth
(Android):
Set this when an Android Smartphone is
paired with this unit via Bluetooth technology.
And after Bluetooth Audio is connected, you
can program the unit’s sound tuning
parameters, or communicate with SNS.
Bluetooth Setup
To display the Bluetooth Setup Menu screen:
Your vehicle must be parked with the ignition key in the ACC or
ON position. To do this, follow the procedures below.
1 Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2 Keep pushing the foot brake and release the parking
brake once then engage it again.
3 When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission lever
in the Park position.
Now, the locking system for the Bluetooth mode operation has
been released. Engaging the parking brake can reactivate the
Bluetooth Setup Menu, as long as the car’s ignition has not been
turned off. It is not necessary to repeat the above procedure
(1 through 3) of “To display the Bluetooth mode screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the Bluetooth mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of Bluetooth Setup. Refer to each section for
details.
62-EN
5
Touch [] to return to the previous screen.
•Immediately after changing the Bluetooth Setup (while the system is
writing data automatically) do not turn the ignition key to OFF.
Otherwise, the settings may not be changed.
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
Setting Hands-free Connection of
iDataLink
[Hands-free Connection of iDataLink] is selected on the Bluetooth
setup menu in step 3. Refer to “Bluetooth Setup Operation” (page 61)
Setting item: Hands-free Connection of iDataLink
Setting contents: OEM / Aftermarket (Initial setting)
•This setting is linked with “Setting the Hands-free Connection”
(page 44).
Bluetooth Setting
[Bluetooth] is selected on the Bluetooth setup menu in step 3. Refer to
“Bluetooth Setup Operation” (page 61).
Setting item: Bluetooth
Setting contents: Off / On (Initial setting)
•If the Bluetooth setting is “Off”, you cannot move to the Bluetooth
setting screen.
Displaying Bluetooth Information
[Bluetooth Information] is selected on the Bluetooth setup menu in
step 3. Refer to “Bluetooth Setup Operation” (page 61).
You can display the Bluetooth device name and device address of this
unit.
Setting item: Bluetooth Information
Registering the Bluetooth Device
[Set Bluetooth Device] is selected on the Bluetooth setup menu in step
3. Refer to “Bluetooth Setup Operation” (page 61).
The Bluetooth device is used when a connectable Bluetooth compatible
device is searched and connected from this unit, or a new Bluetooth
compatible device is registered.
1
Touch [Set Bluetooth Device].
2
Touch [Search] of “No Device”.
The Device list displays up to 10 items.
3
Touch [Audio], [Hands-free] or [Both] of the
device you want to connect from the list.
•You can connect (pair) up to 5 Bluetooth compatible mobile
phones.
4
When the device registration is complete, a message
appears and the device returns to normal mode.
•The Bluetooth registration process differs depending on the device
version and SSP (Simple Secure Pairing). If a 4 or 6 character
Passcode appears on this device, enter the Passcode using the
Bluetooth compatible device.
If a 6 character Passkey appears on this device, make sure the same
passkey is displayed on the Bluetooth compatible device and touch
“Yes”.
•If all 5 devices have been registered, you cannot register a 6th device.
To register another device, you need to delete one of the other
5 devices first.
Setting the Bluetooth Device
Select one of 5 paired Bluetooth compatible devices that you previously
registered.
1
Touch [Set Bluetooth Device].
2
Touch [Audio] or [Hands-free] of the device you
want to connect from the Paired Device list.
Deleting a Bluetooth Device from the list
You can delete the information of a previously connected Bluetooth
compatible device.
1
Touch [Set Bluetooth Device].
2
Touch [Delete] of the Bluetooth compatible device
to delete from the Paired Device list.
3
Touch [OK].
•Touching [Cancel] will cancel the setting.
OEM: When you pair your Bluetooth compatible
phone with the iDataLink module via this unit. If
this option is selected, you cannot pair the
Bluetooth compatible phone with this unit.
Aftermarket: When using the X009’s built-in Bluetooth
function.
Off: Bluetooth function is not used.
On: Select when you would like to pair your Bluetooth
compatible phone with this unit.
Audio: Sets for use as an Audio device.
Hands-free: Sets for use as a Hands Free Device.
Both: Sets for use as both an Audio device and Hands
Free Device.
63-EN
Automatic Connection setting
[Auto Connect] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
If the Automatic Connecting setting is “On”, automatic connection is
performed for the audio device registered in the Paired Device list.
Setting item: Auto Connect
Setting contents: Off / On (Initial setting)
Setting the Passcode
[Passcode Change] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
You can set the code for connecting with a Bluetooth compatible device.
Setting item: Passcode Change
1
Touch [Passcode Change].
A numeric keypad screen is displayed.
2
Enter a 4-digit passcode, and then touch [Enter].
•The initial number is 0000.
•For details on how to input the numeric keypad, refer to “Numeric
Keypad Input Operations” (page 38).
Changing the Character Code of the
Phone Book
[Default Phonebook Encoding] is selected on the Bluetooth setup
menu in step 3. Refer to “Bluetooth Setup Operation” (page 61).
You can select the character code that is used when transferring the
phone book or history from a mobile phone. If unreadable characters
appear in the transferred data, select the correct character code.
Setting item: Default Phonebook Encoding
Setting contents: Latin-1 / Latin-9 (Initial setting) / Russian /
Chinese / Thai / Arabic / Unicode UTF-8 /
Unicode UTF-16LE / Unicode UTF-16BE
1
Touch [Default Phonebook Encoding].
The Character code list screen is displayed.
2
Touch the desired character code.
3
Touch [OK].
Selecting the Output Speaker
[Phone Speaker] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
You can select which speaker in the car will output the audio from the
phone.
Setting item: Phone Speaker
Setting contents: All (Initial setting) / Front L / Front R / Front LR
•The setting cannot be adjusted during a phone call. Adjust the setting
before placing a call.
•This option is not available when External Audio Processor is set to
On.
Adjusting the Caller Volume
[Caller Volume] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
You can adjust the volume of the incoming call.
Setting item: Caller Volume
Setting contents: 1 to 11 (Initial setting: 5)
Adjusting the Microphone Level
[Microphone Level] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
You can adjust the transmit volume, during the call.
Setting item: Microphone Level
Setting contents: 1 to 11 (Initial setting: 5)
Adjusting the Ring Tone Volume
[Ring Tone Volume] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
You can adjust the receive volume, during the call.
Setting item: Ring Tone Volume
Setting contents: 1 to 11 (Initial setting: 5)
Deleting All the Histories
[Delete Call History] is selected on the Bluetooth setup menu in step 3.
Refer to “Bluetooth Setup Operation” (page 61).
Dialed/Received/Missed Incoming histories are all deleted.
Setting item: Delete Call History
1
Touch [Delete Call History]
The confirmation screen is displayed.
•When there is no history, this option is not available.
2
Touch [OK].
All the histories are deleted.
Latin-1: ISO 8859-1
Latin-9: ISO 8859-15
Russian: ISO 8859-5
Chinese: GB18030
Thai: CP874
Arabic: CP1256
Unicode UTF-8
Unicode UTF-16LE
Unicode UTF-16BE
All: The sound is output from all speakers in car.
Front L: The sound is only output from the front left speaker.
Front R: The sound is only output from the front right
speaker.
Front LR: The sound is output from the front left and front
right speakers.
64-EN

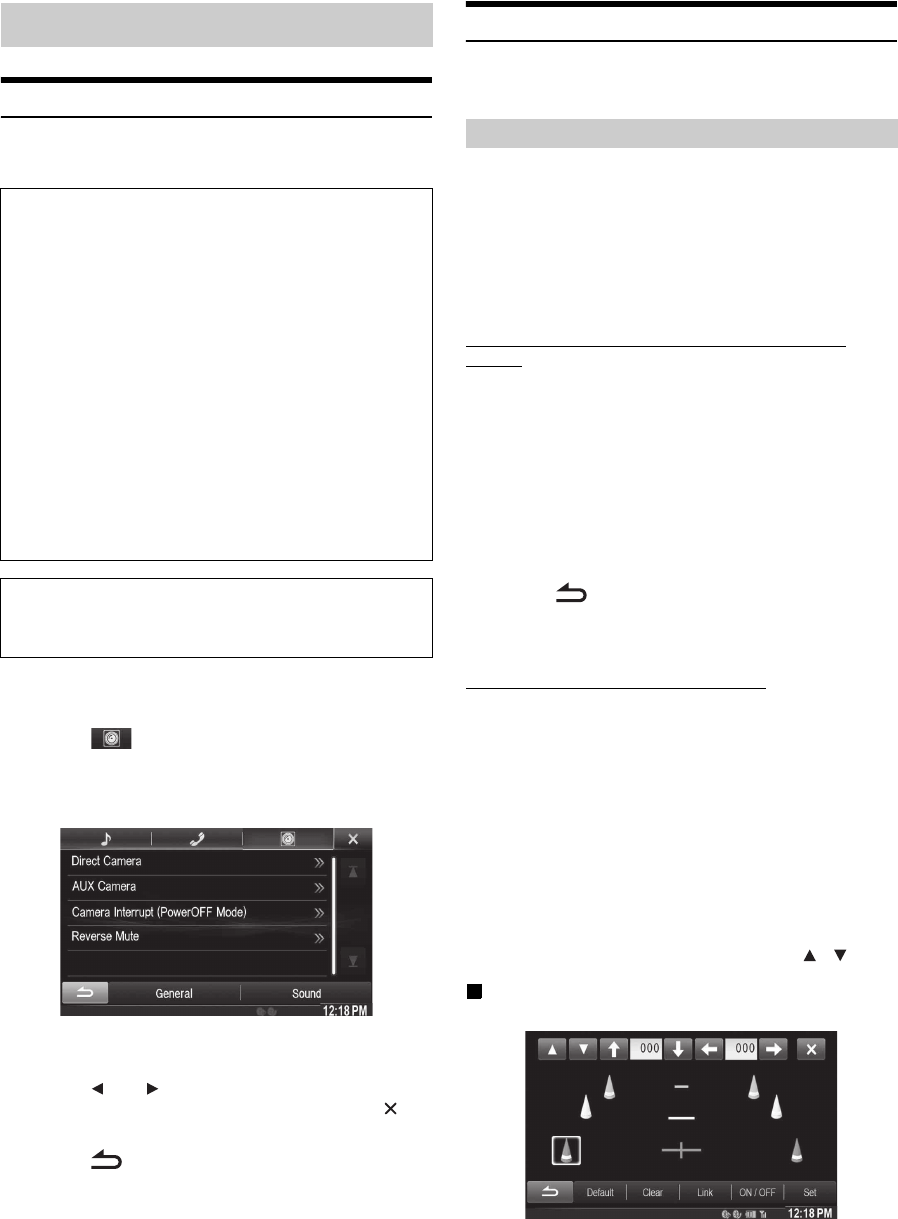

Camera Setup Operation
With an optional camera connected, its video is output to the monitor.
When the camera is connected, set this item.
1
Touch [Setup] icon of Top banner.
The Setup main screen is displayed.
2
Touch [ (CAMERA)].
The Camera Setup screen appears.
3
Select the desired item.
Setting items: Direct Camera / AUX Camera / Camera Interrupt
(Power OFF Mode) / Reverse Mute
4
Touch [] or [] etc., to change its setting.
•When the pop-up window for setup is displayed, touch [] to
close the window after setting.
5
Touch [] to return to the previous screen.
•Immediately after changing the Camera Setup (while the system is
writing data automatically) do not turn the ignition key to OFF.
Otherwise, the settings may not be changed.
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
Direct Camera Setting
[Direct Camera] is selected on the Camera setup menu in step 3.
Refer to “Camera Setup Operation” (page 64).
Setting item: Camera Select / Guide Adjustment*1
Setting contents: Off (Initial setting) / Front / Rear*2
*1If “Camera Select” is set to “Off”, this option is not available.
*2If “Camera Select” in AUX Camera Setting is set to “Rear”, “Rear”
cannot be set in Direct Camera Setting.
Switching video patterns for Rear camera & Front
camera
The video pattern can be changed when connected to HCE-C200R/
HCE-C200F/HCE-C210RD/HCE-C212F.
Setting item: Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
2
Touch [Back], [Panorama], [Corner], or [Top].
The view will change to the selected view.
•[Back] will not appear for the Front camera.
3
Touch [] to return to the previous screen.
•For an explanation of video patterns, see the camera Owner’s
Manual.
Adjusting the Rear/Front Camera Guide
If you select “Rear” or “Front”, you can adjust the camera guide
position.
Setting item: Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
•If the video pattern is set to “Corner”, the camera guide will
not be displayed.
2
Touch [Adjust].
•If [Adjust] does not appear, proceed to step 3.
3
Touch the guide you intend to adjust.
Guide line can also be selected by touching [] [].
Display example for rear camera mode
Camera Setup
To display the Camera Setup Menu screen:
Your vehicle must be parked with the ignition key in the ACC or
ON position. To do this, follow the procedures below.
1 Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2 Keep pushing the foot brake and release the parking
brake once then engage it again.
3 When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission lever
in the Park position.
Now, the locking system for the Camera mode operation has
been released. Engaging the parking brake can reactivate the
Camera Setup Menu, as long as the car’s ignition has not been
turned off. It is not necessary to repeat the above procedure
(1 through 3) of “To display the Camera mode screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the Camera mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of Camera Setup. Refer to each section for
details.
Setting the Camera Input
Front: Front camera
Rear: Rear camera
65-EN
Display example for front camera mode
4
Touch [], [], [] or [] to adjust the position of
the guide.
•Touching [Clear] clears adjustments and returns to the setting
before guide line alteration.
5
After the adjustment is completed, touch [Set].
Adjusting guides simultaneously (for Rear camera
only)
1
Touch [Link].
The 3 vertical guides of the currently-selected guide link
together, allowing them to be adjusted simultaneously.
Turning guide display ON/OFF
Turning the selected guide off.
1
Touch [ON/OFF].
The currently selected guide will turn off.
2
To turn the guide on, touch [ON/OFF] again.
•Guides that are turned off are still adjustable.
Returning guides to default
1
Touch [Default].
A message window will appear.
2
Touch [OK].
Adjusted values will return to default settings.
AUX Camera Setting
[AUX Camera] is selected on the Camera setup menu in step 3.
Refer to “Camera Setup Operation” (page 64).
Setting item: Camera Select / Camera Signal*1 / Guide
Adjustment*1
Setting contents: Off / Rear*2 (Initial setting) / Other
*1If “Camera Select” is set to “Off”, this option is not available.
*2If “Camera Select” in Direct Camera Setting is set to “Rear”,
“Rear” cannot be set in AUX Camera Setting.
Setting the AUX Camera Signal Input
When the AUX camera is connected, the video input signal type can be
chosen.
Further setting item: Camera Signal
Setting contents: NTSC (Initial setting) / PAL
Adjusting the Rear Camera Guide
If you select “Rear” you can adjust the camera guide position.
Setting item: Guide Adjustment
1
Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
2
Touch [Adjust].
•If [Adjust] does not appear, proceed to step 3.
3
Touch the guide you intend to adjust.
Guide line can also be selected by touching [] [].
4
Touch [], [], [] or [] to adjust the position of
the guide.
•Touching [Clear] clears adjustments and returns to the setting
before guide line alteration.
5
After the adjustment is completed, touch [Set].
Adjusting guides simultaneously (for Rear camera
only)
Touch [Link].
The 3 vertical guides of the currently-selected guide link
together, allowing them to be adjusted simultaneously.
Setting the Camera Input
Rear: Rear camera
Other: Side camera, Room camera, etc.
66-EN
Turning guide display ON/OFF
Turning the selected guide off.
1
Touch [ON/OFF].
The currently selected guide will turn off.
2
To turn the guide on, touch [ON/OFF] again.
•Guides that are turned off are still adjustable.
Returning guides to default.
1
Touch [Default].
A message window will appear.
2
Touch [OK].
Adjusted values will return to default settings.
Camera Interrupt Setting (Power OFF
Mode)
[Camera Interrupt] is selected on the Camera setup menu in step 3.
Refer to “Camera Setup Operation” (page 64).
You can set whether to display the rear camera image when the gear
lever is moved to the reverse (R) position while the unit is turned off.
Setting item: Camera Interrupt (Power OFF Mode)
Setting contents: On (Initial setting) /Off
Reverse Mute Setting
[Reverse Mute] is selected on the Camera setup menu in step 3. Refer to
“Camera Setup Operation” (page 64).
You can set whether to mute the playing music when the gear lever is
moved to the reverse (R) position.
Setting item: Reverse Mute
Setting contents: Off / On (Initial Setting)
On: The rear camera image is displayed
Off: The rear camera image is not displayed
On: The playing music is muted when the gear lever is moved
to the reverse (R) position.
Off: Continue playing music even though the gear lever is
moved to the reverse (R) position.
67-EN
Setup Before Using
Bluetooth is a wireless technology allowing communication between a
mobile device or personal computer over short distances. This enables a
hands-free call or data transmission between Bluetooth compatible
devices. Bluetooth transmission is available in the unlicensed 2.4 GHz
spectrum if the distance between devices is within 10 meters. For
details, refer to the Bluetooth website (http://www.Bluetooth.com/).
•Depending on the Bluetooth version, a Bluetooth compatible device
may not be able to communicate with this unit.
•Proper function of this unit with all Bluetooth compatible devices is
not guaranteed. For handling of the Bluetooth compatible device,
consult your ALPINE dealer or ALPINE website.
•Depending on the surroundings, Bluetooth wireless connection may
be unstable.
•When you place a call, or perform setup operations, be sure to stop
your car in a safe place.
•Depending on the connected Bluetooth compatible device(s), the
function may differ. Also refer to the Owner’s Manual of the
connected device(s).
Hands-free calls are possible when using a HFP (Hands-Free Profile)
compatible mobile phone with this unit.
•Avoid performing a hands-free call in heavy traffic or on narrow or
winding streets.
•Close the windows while calling to reduce background noise.
•If both calling parties are using hands-free devices, or the call is
made in a noisy location, difficulty hearing the other person’s voice
is normal.
•Depending on telephone line conditions or certain mobile devices
used, voices may sound unnatural.
•When using a microphone, speak as directly as you can into the
microphone to obtain the best sound quality.
•Certain mobile phone features are dependent on the capabilities and
settings of your service provider’s network. Additionally, certain
features may not be activated by your service provider, and/or the
provider’s network settings may limit the feature’s functionality.
Always contact your service provider about feature availability and
functionality.
All features, functionality, and other product specifications, as well
as the information contained in the Owner’s Manual are based upon
the latest available information and are believed to be accurate at
the time of printing.
Alpine reserves the right to change or modify any information or
specifications without notice or obligation.
Before using the hands-free phone/audio function, the following
settings need to be made.
1
Set “Bluetooth” to “On” (see page 62).
2
Register a Bluetooth device in this unit (see
page 62).
•Refer to “Bluetooth Setting” (page 62).
•You can search for this unit using a Bluetooth compatible device, and
then connect that Bluetooth compatible device to this unit. The device
name of this unit is “ALPINE NAVI” and the initial number of the
passcode is “0000”. Also refer to the Owner’s Manual of the
connected device(s).
•Before using the Hands-free function, make sure “Setting Hands-free
Connection of iDataLink” is set to “Aftermarket” (page 44).

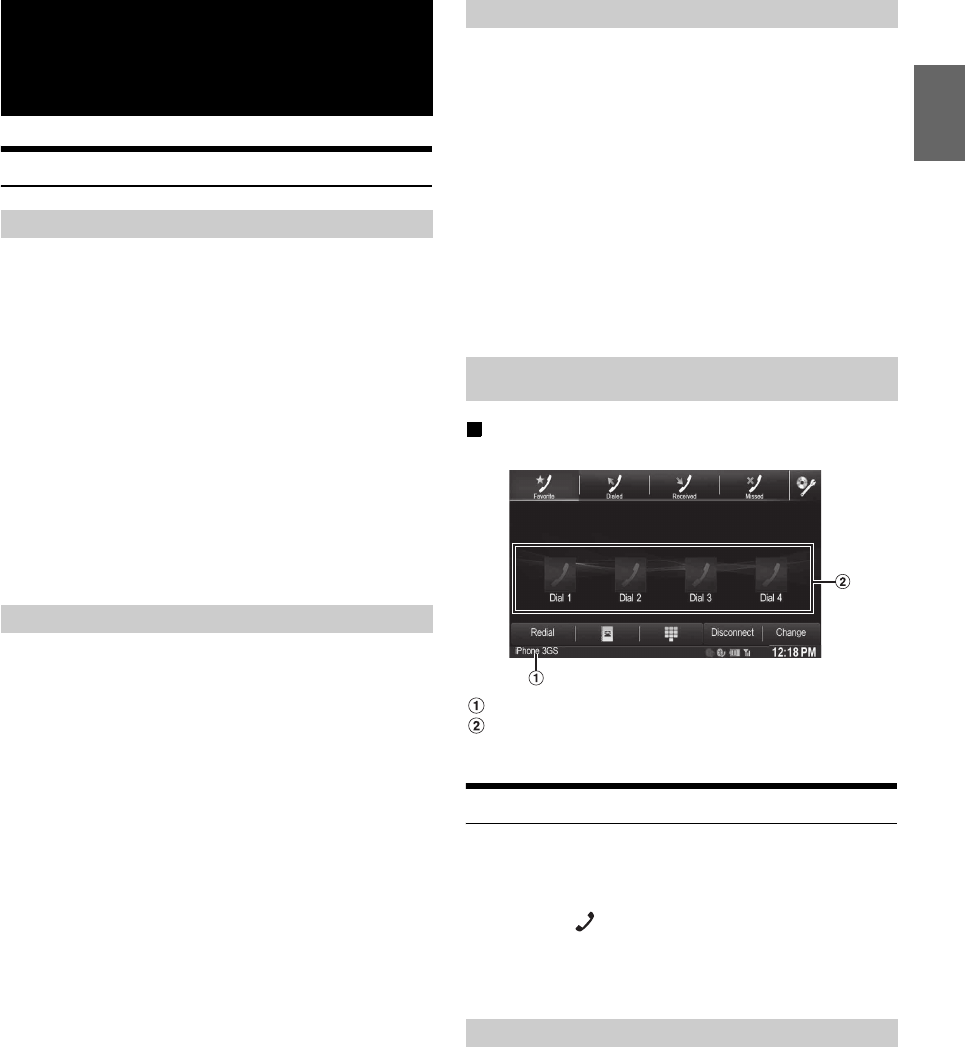

Display example for Phone menu screen
Bluetooth devices Name
Favorites Display: Short Cut icon
Dialed/Received/Missed Display: Each histories icon
Connecting a Bluetooth Device
Registering a Bluetooth device in X009 enables automatic connection.
If it does not connect automatically, run through the connection
procedure again.
1
Press the (PHONE) button.
The Phone menu screen is displayed.
2
Touch [Connect].
Bluetooth connection will start.
Touch [Disconnect].
The Bluetooth connection is disconnected.
Bluetooth
Operation
About Bluetooth
About the Hands-Free Phone
Before Using Bluetooth
Hands-Free Phone Control
Disconnecting the Bluetooth Connection
68-EN
Changing the connecting Bluetooth
Device
If multiple Bluetooth devices are registered in this device, you can
change the connection among the registered devices.
1
Press the (PHONE) button.
The Phone menu screen is displayed.
2
Touch [Change].
The Set Bluetooth Device screen is displayed.
3
Touch [Audio] or [Hands-free] of the selected
device.
The connection will transfer to the selected device.
•You can check registered shortcut dialing by touching the Bluetooth
Device List.
For how to assign one-touch dialing, refer to “Assigning as a Short
Cut Dialing Number” (page 72).
Answering a Call
Incoming calls are announced by the received call ring tone and a
displayed message (PHONE No., etc.).
1
An incoming call triggers the ringtone and an
incoming call display.
2
Touch [] or press (PHONE) button.
The call starts.
•During a call, the audio for the current mode on the unit is muted.
After calling, playback will resume.
•When the caller’s number is transmitted to the system, if the caller’s
name is stored in the phone book, the name is displayed. If the name
is not stored, the number is displayed. When neither the name or the
number is unavailable, “Unknown” is displayed.
The ringtone volume is adjustable on the incoming call message screen.
Touch [] or [] for “ Vol.”.
Hanging up the Telephone
Touch [].
The call finishes.
Calling
Use the Phone menu screen to make a phone call.
You can assign up to 4 phone numbers for one-touch dialing to make a
call easily. For how to assign one-touch dialing, refer to “Assigning as a
Short Cut Dialing Number” (page 72).
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [ Favorites].
3
Touch [Dial1], [Dial2], [Dial3] or [Dial4].
The phone call is sent to the stored number.
•Pressing and holding [Dial1], [Dial2], [Dial3] or [Dial4] displays
the Shortcut Dialing Edit screen. The only available editing
operation is deletion.
•If a name has been registered, the name is displayed on the shortcut
button.
You can use 3 types of history to make a phone call. Call History saves
up to 60 phone numbers. If the limit is exceeded, the oldest phone
number is deleted.
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [ Dialed], [ Received] or
[ Missed].
The last four histories are displayed.
3
Touch the name from the call history.
The details screen of the call history is displayed.
•To display all the histories, touch [All]. Touching [Delete]
deletes the selected histories.
4
Touch [].
The phone call is started.
Adjusting ringtone volume
Using Short Cut Dialing to Make a Call
Dialing a Number In Call History
69-EN
You can use the phone book of the mobile phone to make a phone call.
Before using, you need to transfer the phone book from the mobile
phone to the system. For details on how to transfer the phone book, refer
to “Synchronizing the Phone Book” (page 71).
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [].
3
Touch the person name or the telephone number
from the Phone Book list.
4
Touch [].
The phone call is started.
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [].
The number input screen appears.
3
Enter the phone number you wish to call.
•You can enter up to 31 digits.
4
Touch [].
5
Touch [Call].
The phone call is started.
You can redial the person you have previously called.
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [Redial].
The number is redialed.
3
Touch [Call].
The phone call is started.
Using Voice Recognition function
You can use Siri function of your iPhone or make a telephone call by
using voice operation of your smartphone.
You can use the Siri function of your iPhone. To use this function, set
the Siri setting of your iPhone to ON.
•Connect your iPhone to the unit via Bluetooth, then set to “Hands-
free” or “Both”. (Page 62)
•The available functions differ depending on the connected iPhone.
•Ask Siri to play a track from the music library applies only to USB
source.
•Siri and other streaming services are enabled by connecting to
compatible smartphones that are able to receive data. Please ensure
that cellular data and/or Wifi is turned on in the smartphone to enjoy
these features.
•Extensive use of Siri or other streaming services may increase your
phone’s data usage. Please check with your phone company to
ensure you have an appropriate Data plan.
1
Press and hold the (PHONE) button for at least
3 seconds.
The Voice Control mode screen is displayed.
2
Speak into the microphone.
•If no speech is detected, the unit may pause depending on
version of the connected iPhone. In that case, touch the
microphone icon [ ] in the center of the Voice Control mode
screen. You can continue to use the Voice Control mode.
3
To finish the Voice Control mode, touch [ ] or press
and hold the (PHONE) button for at least 3
seconds.
•Depending on the iPhone, the Siri function may finish automatically.
Adjusting the volume
Adjust the speaker/microphone volumes in Voice Control mode.
Perform the same procedure to adjust the speaker/microphone volumes
of Hands-Free Phone.
Touch [ ] or [ ] of .
Adjust the speaker volume.
Touch [ ] or [ ] of .
Adjust the microphone volume.
Stopping input to the microphone
If the surrounding sound (road noise, etc.) is loud, you may wish to cut
input to the microphone for 3 seconds.
Touch [ ].
Dialing a Number In the Phone Book
Entering a Phone Number to Make a Call
Redial Function
Using Siri
70-EN
You can make a telephone call by using voice operation.
•Connect your smartphone to the unit via Bluetooth, then set to
“Hands-free” or “Both”. (Page 62)
1
Press and hold the (PHONE) button for at least
3 seconds.
The Voice Dial mode screen is activated.
2
Say the telephone number* or name* you want to
call, into the microphone.
* The number and name depend on the voice dial information stored in
the smartphone.
3
To finish the Voice Dial mode, touch [ ] or press
and hold the (PHONE) button for at least 3
seconds.
•You can perform this operation only when a voice dial compatible
smartphone is connected.
•The Voice Dial function performance depends on the recognition
range of the smartphone.
•Voice dial operation depends on the function being available on the
smartphone. For details, refer to the owner’s manual of the
smartphone.
•Depending on the smartphone, the Voice Dial operation may finish
automatically.
Adjusting the volume
Adjust the speaker/microphone volume in Voice Dial mode. Perform the
same procedure to adjust the speaker/microphone volume of Hands-
Free Phone.
Touch [ ] or [ ] of .
Adjust the speaker volume.
Touch [ ] or [ ] of .
Adjust the microphone volume.
Stopping input to the microphone
If the surrounding sound (road noise, etc.) is loud, you may wish to cut
input to the microphone for 3 seconds.
Touch [ ].
Operations During a Conversation
Display example
Name and phone number
Conversation time
You can adjust the transmit volume and receive volume respectively.
Touch [] or [] for “Vol.”.
You can adjust the volume in 11 levels.
Touch [] to turn down the volume. Touch [] to turn up the
volume.
The voice output for calls is switchable between car speakers and the
mobile phone speaker.
Touch [].
•Depending on the mobile phone, this operation may not be possible.
Transmits a DTMF (Touch-Tone) during a call.
1
Touch [TONE].
The number input screen appears.
2
Input number.
•You can transmit a Touch-Tone signal during a call.
•Touching and holding “0” initiates “+” tone transmission.
Voice Dial Function
Adjusting the Speech Volume
:Outgoing volume
:Incoming volume
Changing the Voice Output
DTMF (Touch-Tone) Function
71-EN
Phone Book Function
Display example for Phone Book screen
An icon is displayed to indicate that multiple phone
numbers are registered under an entry.
You can synchronize the system’s phone book with the mobile phone’s
phone book.
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [].
3
Touch [Download].
4
Touch [SYNC].
Synchronization of the phone books starts.
•You can store up to 1,000 phone numbers in the phone book for
USER1 and USER2, respectively.
•You can store up to 5 phone numbers by one person’s name.
1
Press the (PHONE) button.
The phone menu screen is displayed.
2
Touch [].
3
Touch [Download].
4
Touch [Add].
Stays on standby for connection of the mobile phone.
•Touch [Cancel] to cancel the standby mode.
5
The mobile phone accesses this unit and then
transfers the phone book from the mobile phone to
this unit.
•Mobile phone connection is canceled while the phone book is being
transferred.
Deleting One Entry from the Phone Book
1
Press the (PHONE) button.
The Phone menu screen is displayed.
2
Touch [].
The Phone Book screen is displayed.
3
Touch [Delete] of the phone number you intend to
delete.
The confirmation screen is displayed.
If multiple phone numbers are registered, they are all
deleted.
4
Touch [OK].
The selected number is deleted.
Deleting All Entries from the Phone Book
1
Press the (PHONE) button.
The Phone menu screen is displayed.
2
Touch [].
The Phone Book screen is displayed.
3
Touch [Delete All].
The confirmation screen is displayed.
4
Touch [OK].
All entries of the phone book are deleted.
Synchronizing the Phone Book
Adding the Phone Book
Deleting the Phone Book Entries
72-EN
Assigning as a Short Cut Dialing Number
Assigning from Call History
1
Press the (PHONE) button.
The Phone menu screen is displayed.
2
Touch [Dialed], [Received] or [Missed].
The last four histories are displayed.
3
Touch the person name you intend to assign as the
Short Cut dialing number.
The details screen of the Phone book is displayed.
•To display all the histories, touch [All]. Touching [Delete]
deletes the selected histories.
4
Touch [Preset].
The details screen for the Short Cut is displayed.
5
Touch [Save].
The phone number is assigned to the selected Short Cut
dialing number.
•If Dial1, Dial2, Dial3 or Dial4 is already registered, it is overwritten.
•Touch [Delete] to delete an assigned short cut dialing number.
Assigning from the Phone Book
1
Press the (PHONE) button.
The Phone menu screen is displayed.
2
Touch [].
The Phone Book screen is displayed.
3
Touch the phone number you intend to assign as the
Short Cut dialing number.
The details screen of the Phone book is displayed.
4
Touch [Preset].
The details screen for the Short Cut is displayed.
5
Touch [Save].
The phone number is assigned to the selected Short Cut
dialing number.
•If Dial1, Dial2, Dial3 or Dial4 is already registered, it is overwritten.
•Touch [Delete] to delete an assigned short cut dialing number.
If a Bluetooth compatible mobile phone, portable player, etc. is
connected by wireless, you can play back a song (operation is
controllable from the unit).
Display example for Bluetooth Audio main screen
Song title
Artist title
Album title
Elapsed time
Bluetooth devices Name
•Before playing the Bluetooth Audio function, make sure “Bluetooth
Audio” is set to other than “OEM” (page 43).
•The displayed onscreen buttons may differ depending on the AVRCP
version.
•Status Indicator/Song title/Artist title/Album title/Elapsed time do not
display for AVRCP Ver. 1.0.
•To play back audio, a mobile phone or a portable player conforming
to A2DP (Advanced Audio Distribution Profile) or AVRCP (Audio/
Video Remote Control Profile) is required.
Not all functions work with all devices.
•During a call, sound on the Bluetooth audio source is paused.
Compatible AVRCP versions: 1.0, 1.3, 1.4
•Available functions may differ depending on the AVRCP version.
Playback
1
Press the AUDIO button.
2
Touch [] (Bluetooth Audio) of Top banner.
3
Touch [] or [] to select the desired track (file).
Returning to the beginning of the current file:
Touch [].
Fast backward the current file:
Touch and hold [].
Advance to the beginning of the next file:
Touch [].
Fast forward the current file:
Touch and hold [].
4
To pause playback, touch [ / ].
Bluetooth Audio
Touch [<<], [>>]
73-EN
Repeat Play
Available for AVRCP Ver. 1.3 and 1.4 only.
Touch [] during playback.
The repeat mode switches every time the button is touched.
•Operations may differ depending on the connected Bluetooth
compatible device.
M.I.X. (Random Play)
Available for AVRCP Ver. 1.3 and 1.4 only.
Touch [] during playback.
The M.I.X. mode switches every time [] is touched.
•Operations may differ depending on the connected Bluetooth
compatible device.
Selecting Groups
Available for AVRCP Ver. 1.3 and 1.4 only.
Touch [ Group] or [Group ] to select the group.
Search Function
Available for AVRCP Ver. 1.4 only.
The displayed list differs with the connected Bluetooth device.
Touch [ (Search)] of Bottom banner during
playback.
Select the track, etc., you want to listen to from the displayed list.
When the unit is connected to car’s iDataLink module, and “Bluetooth
Audio” is set to other than “Aftermarket” (page 43), Bluetooth Audio
source via iDataLink module may be available on this unit.
1
Press the AUDIO button.
2
Touch [] (Bluetooth Audio) of Top banner.
The iDataLink-Bluetooth Audio source icon is marked with
icon.
•For detailed operation, refer to Owner’s Manual of iDataLink
module.
•Depending on the connected iDataLink module, display screen and
function keys may differ.
(FILE)
(OFF)
(ALL)
(GROUP)
(GROUP)
(ALL)
(OFF)
Playing the iDataLink-
Bluetooth Audio
74-EN
Operating Auxiliary Devices (Optional)
To operate devices connected to the AUX terminals of X009, follow the
procedure described below.
•Set AUX 1 In to “On”. Refer to “Setting the Auxiliary (AUX) Mode”
(page 60).
•Depending on the connected unit, the onscreen buttons may not
work, or their operation may differ.
•If you try to activate the auxiliary device while driving, the display
will show the warning-Picture off for your safety.
1
Press the AUDIO button.
2
Touch [AUX 1]*1, [AUX 2]*1 or [AUX 3]*2 of Top
banner.
The Auxiliary (AUX) mode screen is displayed.
*1The name which is given as the mode name in “Setting the Primary
Auxiliary (AUX) Name (AUX 1 Setup)” (page 60) and “Setting the
Secondary Auxiliary (AUX) Name” (page 60) is displayed.
*2When “Setting the AUX3” (page 60), AUX3 appears when setting
”AUX3” only.
AUX Operation Screen Display During Video File
Playback
Touch the screen.
The Auxiliary (AUX) operation screen is displayed.
Example for AUX 1, AUX 2, AUX 3, DVD, Game mode
display
•The operation screen changes to the visual screen in the
Auxiliary (AUX) mode for 5 seconds after an operation has
been performed. To hide the Auxiliary (AUX) operation screen,
touch the video display area.
Touch the display panel to display the operation screen
again.
•Setting the Auxiliary (AUX) name for EXT.DVD, DVD-CHG, DVB-T,
and TV mode displays their individual operation switches and
enables operation. Refer to “Setting the Primary Auxiliary (AUX)
Name (AUX 1 Setup)” (page 60) and “Setting the Secondary
Auxiliary (AUX) Name” (page 60).
Operating an External DVD Player
To operate an External DVD player (Optional), set “Setting the Primary
Auxiliary (AUX) Name (AUX 1 Setup)” (page 60) or “Setting the
Secondary Auxiliary (AUX) Name” (page 60) to “EXT.DVD”.
1
Press the AUDIO button.
2
Touch [EXT.DVD] of Top banner.
The display shows the EXT. DVD mode screen.
When the external DVD player playback screen is displayed, you can
touch the screen to display the operation screen. For details on how to
operate, refer to the Owner’s Manual of the connected DVD player.
External DVD player display example
Auxiliary Device
(Optional)
WARNING
It is dangerous (and illegal in many states) for the
driver to watch TV/video while driving the vehicle. The
driver may be distracted from looking ahead and an
accident could occur.
Install the X009 correctly so that the driver cannot
watch TV/video unless the vehicle is stopped and the
emergency brake is applied.
If the X009 is not installed correctly, the driver will be
able to watch TV/video while driving the vehicle and
may be distracted from looking ahead and cause an
accident. The driver or other people could be severely
injured.
Change to the External DVD Mode
About the DVD Operation Screen
Touch [<<], [>>]
75-EN
[]
Touch the switch to go back to the beginning of the current
chapter/track/file. Touch the switch once more to find the
beginning of the previous chapter/track/file. Touch and hold
to fast reverse.
[]
Touch the switch to advance to the beginning of the next
chapter/track/file. Touch and hold to fast forward.
[]
Starts/Stop M.I.X. play.
[]
Starts/Stop repeat play.
[/]
Switches between play and pause.
[]
Touching during play initiates a pre stop. Touching again
stops play.
[Top Menu]
Calls up the Top Menu screen.
[Menu]
Calls up the Menu screen.
[Menu Control]
Calls up the menu operation mode.
[]
Switches the program/playlist/folder down.
[]
Switches the program/playlist/folder up.
[Angle]
Switches angle.
[Audio]
Switches audio.
[Sub Title]
Switches sub titles.
Menu operation mode screen display example
[Key]
The menu operation mode will be displayed.
[], []
Moves key panel location.
[]
Closes menu operation mode.
[]
Closes key panel.
[], [], [], []
Moves menu cursor.
[Enter]
Determines the selected item.
[Return]
Returns to the previous item/screen.
Operating an External DVD Changer
To operate an External DVD changer (Optional), set “Setting the
Primary Auxiliary (AUX) Name (AUX 1 Setup)” (page 60) or “Setting
the Secondary Auxiliary (AUX) Name” (page 60) to “DVD-CHG”.
1
Press the AUDIO button.
2
Touch [DVD-CHG] of Top banner.
The display shows the DVD-CHG mode screen.
When the External DVD changer playback screen is displayed, you can
touch the screen to display the operation screen. For details on how to
operate, refer to the Owner’s Manual of the connected DVD changer.
•The DVD-CHG operation mode screen and the Menu operation
mode screen are the same as the external DVD player operation
screen. Refer to ”Operating an External DVD Player”.
External DVD changer display example 3/3 (Info
mode)
[Disc1]-[Disc6]
Selects a Disc.
Change to the External DVD Changer Mode
About the DVD Changer Operation Screen
Touch [<<], [>>]
76-EN
Operating the Mobile Digital TV
Receiver (DVB-T)
To operate the Mobile Digital TV Receiver (DVB-T) (Optional), set
“Setting the Primary Auxiliary (AUX) Name (AUX 1 Setup)” (page 60)
or “Setting the Secondary Auxiliary (AUX) Name” (page 60) to “DVB-
T”.
1
Press the AUDIO button.
2
Touch [DVB-T] of Top banner.
The display shows the DVB-T mode screen.
When you touch the screen in the DVB-T mode, the operation screen is
displayed. For details on how to operate, refer to the Owner’s Manual of
the connected Digital TV Receiver (DVB-T).
Menu operation mode screen display example
[<]
Switches the Channel number / Favorite channel number
down.
[>]
Switches the Channel number / Favorite channel number
up.
[Tune] (Channel or FAV)
Switches between the Channel mode and the Favorite
channel mode.
[EPG]
Call up the Electronic Program Guide (EPG).
[MENU]
Call up the menu screen.
[Menu Control]
Call up the menu operation mode.
[A/V]
Switches the source.
[Scan]
Touch the switch to start the scan procedure.
Operating a TV
To operate a TV Receiver (TV) (Optional), set “Setting the Primary
Auxiliary (AUX) Name (AUX 1 Setup)” (page 60) or “Setting the
Secondary Auxiliary (AUX) Name” (page 60) to “TV”.
1
Press the AUDIO button.
2
Touch [TV] of Top banner.
The display shows the TV mode screen.
When the TV playback screen is displayed, you can touch the screen to
display the operation screen. For details on how to operate, refer to the
Owner’s Manual of the connected TV.
[<], [<<]
Switches the Channel number / Preset channel down.
[>], [>>]
Switches the Channel number / Preset channel up.
[Tune] (Channel or PRESET or MANUAL)
Switches amongst Channel mode, Preset mode, and
Manual mode.
[Band]
Switches the band.
[A.Memo]
The tuner automatically seeks and stores stations.
Changing to the Mobile Digital TV Receiver
(DVB-T) Mode
About the DVB-T operation screen
Change to the TV mode
About the TV operation screen
Touch [<<], [>>]
77-EN
When an optional camera is connected, the view video of camera can be
output to the monitor.
Front camera or Rear camera can be connected to this unit.
Depending on your camera, please choose the connection method
(Direct or AUX) and camera type (Front, Rear or Other) first. For
details, refer to “Camera Setup” (page 64).
Front camera:
When the HCE-C212F/HCE-C200F is connected, conditions in
front of the vehicle, such as objects, people and other hazards,
can be seen.
Rear camera:
If an HCE-C210RD/HCE-C200R/HCE-C117D/HCE-C107D/
HCE-C115/HCE-C105 camera is connected, when the vehicle is
reversed, the rear camera view (guide marks for vehicle width
and available distance) is displayed automatically on the screen
of this unit.
Other camera:
Set when connecting to a camera other than the Front camera or
Rear camera, such as a room camera and side camera.
Rear Camera Operation
Set “Rear” for “Direct Camera Setting” (page 64) or “AUX Camera
Setting” (page 65).
1
Shift the gear lever to the reverse (R) position.
The rear view image is displayed while the car remains in
reverse.
2
If you shift the gear lever to a position other than
reverse (R), the monitor returns to the previous
screen.
•Never depend solely on the camera when backing up. Always turn
and look and only use the camera for additional assistance.
•This function is effective when the reverse wire is properly connected.
*Only for GMC/Chevrolet or other model.
1
Press CAM.
The Camera mode is activated and the rear view video is
displayed.
2
Press CAM again to return to normal screen.
If the camera has a view switch function, the Direct Change switch is
displayed.
1
Touch the screen when the image from the rear
camera is displayed.
The operation screen is displayed on the screen.
•After a 5-second time-out, the operation screen returns to the
camera display screen.
2
Touch [Back], [Panorama], [Corner] or [Top].
The image pattern changes.
[Back]: Rear View
[Panorama]: Panorama View
[Corner]: Corner View
[Top]: Ground View
•For detailed information about image patterns, see the camera
Owner’s Manual.
1
Touch the screen when the image from the camera is
displayed.
The operation screen is displayed on the screen.
•After a 5-second time-out, the operation screen returns to the
camera display screen.
2
Touch [Guide OFF] on the Rear camera display
screen.
The guide disappears, and then the [Guide OFF] switch
changes to [Guide ON].
3
Touch [Guide ON] to turn on the guide.
1
Touch the screen when the image from the camera is
displayed.
The operation screen is displayed on the screen.
•After a 5-second time-out, the operation screen returns to the
camera display screen.
2
Touch [Caution ].
•For each touch, the caution location moves to the top or bottom of the
screen.
Camera Operation
(Optional)
You can adjust the quality of the camera image.
Setting items: Live Contrast / Brightness / Color / Contrast
Refer to “Visual Setting” (page 45).
Displaying the rear view video while the
car is in reverse
Displaying the rear view video manually*
Switching the Image Pattern for the Rear
Camera
Guide Display ON/OFF Setting
Adjusting the Caution Display Location
78-EN
About the Rear Camera Guide
To display the guide, set “Guide Display ON/OFF Setting” (page 77) to
On. Also, to adjust the guide, refer to “Adjusting the Rear/Front Camera
Guide” (page 64). You can also turn off the guide in the Rear camera
display screen.
Indication mark meaning
When the car is put into reverse gear, the monitor switches to the rear
view camera image. Guides appear to help visualize the car’s width and
distance from the rear bumper.
1Car width extension marks (red, yellow and green in
order of distance)
If properly calibrated, the marks indicate the car’s width.
This helps guide the car’s path when backing up in a
straight line.
The marks represent the distance from the rear of the car
(from the rear end of the bumper).
•The marks do not move in synchronization with the
steering wheel.
2Distance guidance marks
The marks represent the distance from the rear of the car
(from the rear end of the bumper).
•The marks do not move in synchronization with the
steering wheel.
•Each center position of the mark represents about 0.5 m
(red), about 1 m (yellow) and about 2 m (green) behind.
•Depending on the condition of the car or road surface, the range of
vision may vary.
•The camera has a limited range of vision. Objects at extreme angles
to the camera (e.g. under the bumper or at opposite ends of the
bumper) may not be in the its field-of-vision.
•The rear camera image may have a tint which is different from the
actual surroundings.
•Depending on the car, the guidance may deviate to the right or left.
This is not a malfunction.
Distance guidance mark
The distance guides represent the ground level distance from the rear
bumper. It is difficult to accurately estimate the distance to objects
above ground level.
<Screen>
<Positions of A, B and C>
In the screen, according to the distance guidance marks,
the truck seems to be parked about 1 m away (at the
position B). In actual fact, however, if you reversed to
position A, you would collide with the truck.
In the screen, positions A, B and C seem to be located in
order of proximity. However, in actual fact, the position A
and C are the same distance, and B is farther away than
positions A and C.
•The car width extension mark represents the distance to the road
surface. The distance to an object on the road is not accurately
represented by the guides.
•In the following conditions, screen visibility may be impaired. This is
not a malfunction.
-When it is dark (during the night, etc.).
-Under very high or very low temperature conditions.
-When water drops adhere to the camera, or when the humidity
is high (such as rainy weather, etc.).
-When foreign bodies (such as mud, etc.) adhere to the camera
or its peripheral area.
-When sunlight or headlights directly strike the camera lens.
-When a CCD camera is connected, smearing* may occur. This
phenomenon is peculiar to CCD cameras.
C
B
A (about 0.5 m)
about 1 m
79-EN
* Smear phenomenon:
A phenomenon which occurs when a high-intensity spot (such
as a reflection of the sunlight on a car body) is shot by the
camera. The picture below is an example of ’vertical smear’
common to CCD cameras.
Error between the screen and the actual road surface
In the following conditions, errors are produced between the screen
guidance and the actual road surface. (The illustrations represent a case
when the camera is installed in the standard position.)
When there is a steep upward slope behind the car
(example)
<Screen>
<Situation of the car>
The distance guidance mark represents the distance to a
flat road surface. Therefore in the case of an upward
slope behind the car, the distance guides are displayed
closer to the rear bumper than the actual distance. For
example, if there is an obstacle on the upward slope, it
may appear farther away than its actual position.
Also, an error may occur between the guidance and the
actual path of the car on the road surface.
When there is a steep downward slope behind the
car (example)
<Screen>
<Situation of the car>
In the case of a downward slope behind the car, the
distance guides are displayed farther from the rear
bumper than the actual distance.
If there is an obstacle on the downward slope, it seems
closer than its actual position.
Also, an error may occur between the guidance and the
actual path of the car on the road surface.
A high-intensity spot
Distance guidance marks
Actual distances
Error Error
Error Error
80-EN
Front Camera Operation
Set “Front” for “Direct Camera Setting” (page 64).
1
Press the (My Favorites) button.
The Favorites screen is displayed.
2
Touch [].
The Camera mode is activated and the front view video is
displayed.
When the front camera (direct camera) and rear camera or
side camera (AUX camera) are connected simultaneously,
the screen for selecting which camera image to display
appears.
1
Touch the screen when the image from the front
camera is displayed.
The operation screen is displayed on the screen.
•After a 5-second time-out, the operation screen returns to the
camera display screen.
2
Touch [Panorama], [Corner] or [Top].
The image pattern changes.
[Panorama]: Panorama View
[Corner]: Corner View
[Top]: Ground View
•For detailed information about image patterns, see the camera
Owner’s Manual.
As with the rear camera, the front camera guide display ON/OFF setting
and Caution display location can be adjusted. Refer to “Guide Display
ON/OFF Setting” (page 77) and “Adjusting the Caution Display
Location” (page 77) for the operations.
Other Camera Operation
Set “Other” for “AUX Camera Setting” (page 65).
1
Press the (My Favorites) button.
The Favorites screen is displayed.
2
Touch [] or [].
When the front camera (direct camera) and rear camera or
side camera (AUX camera) are connected simultaneously,
the screen for selecting which camera image to display
appears.
As with the rear camera, the Caution display location for other cameras
can be adjusted. Refer to “Adjusting the Caution Display Location”
(page 77) for the operations.
Displaying the Front View Video Manually
Switching the Image Pattern for the Front
Camera
About the adjustment of guide display ON/
OFF setting and adjustment of Caution
display location
About the adjustment of the Caution
display location
81-EN
SiriusXM Tuner operation:
When an optional SiriusXM Tuner is connected to this unit,
the following operations may be performed.
Display example for SiriusXM main screen
Band display
Displays the band of the signal currently being received.
Channel No.
Channel name
Artist name
Song Title
Preset button
Displays the preset channel name or channel number.
TAG Indicator
Blinks during tagging.
Receiving Channels with the SiriusXM
Tuner
About SiriusXM Satellite Radio
Everything worth listening to is on SiriusXM, getting over 130
channels, including the most commercial-free music, plus the best
sports, news, talk and entertainment. A SiriusXM Tuner and
Subscription are required. For more information, visit
www.siriusxm.com/activatenow, or call 1-866-635-2349.
To activate SiriusXM Canada service, go www.xmradio.ca and click on
“ACTIVATE RADIO” in the top right corner, or call 1-877-438-9677.
•The SiriusXM Satellite Radio controls on this unit are available only
when a SiriusXM Tuner is connected.
1
Press the AUDIO button.
The Home screen is displayed.
2
Touch the [SiriusXM] of Top banner.
The SiriusXM main screen display appears.
•The SiriusXM source selection icon will not be listed if the
SiriusXM Tuner is not connected properly. Check the tuner
connections if the icon is not shown.
3
Touch [ < ] or [ > ] to select the desired channel.
Touching and holding either button will rapidly
browse through the channels.
•Refer to the SiriusXM Tuner User Guide for details on how to install
the SiriusXM Tuner.
•Before using the SiriusXM, make sure “SiriusXM” is set to other
than “OEM” (page 43).
Tuning Channels by Category
Channels are grouped into categories based on the type of content heard
on the channels.
1
Touch [Category] on the SiriusXM main screen to
activate the category browsing mode.
The channels within the category of the current channel are
listed.
Display example of category browsing mode screen
Touching the [Info] button changes the display of
information for the channels in the category with the
following three options.
Channel NO./Channel Name Channel NO./Artist
Name Channel NO./Song Title Channel NO./
Content Info Channel NO./ Channel Name
2
Touch Category [] or [] on the category
browsing mode screen to select a desired category.
The Category Name is shown at the top of the display.
3
Select the desired channel number.
•If no operation is performed for 10 seconds, the category browsing
mode is canceled.
Changing the Display
Text information, such as the channel name, artist name/feature, and
song/program title, is available with SiriusXM or channel. The unit can
display this text information as explained below.
Touch [Info] in SiriusXM mode.
Each time you touch this button, the display changes as shown
below.
SiriusXM Satellite
Radio Operation
(Optional)
Touch [<<], [>>]
82-EN
Checking the SiriusXM Radio ID Number
To subscribe to the SiriusXM Satellite Radio service, it is necessary to
locate and identify the Radio ID of your SiriusXM Tuner. The Radio ID
contains 8 characters and can be found on the bottom of your SiriusXM
Tuner or can be displayed on when selecting Channel 0 by following the
steps below:
1
While receiving SiriusXM Radio, touch [ < ] or [ > ]
to select channel “0”.
The unit displays the ID number.
2
To cancel the ID number display, change the channel
other than “0”.
•The SiriusXM Radio ID does not contain the letters I, O, S, or F.
Storing Channel Presets
You can store 18 of your favorite SiriusXM channels for easy recall
with Preset buttons.
1
Touch [Band] to select the desired band you want to
store the preset in.
There are 3 Satellite Radio Preset bands. Each touch of
[Band] changes the band:
SiriusXM-1 SiriusXM-2 SiriusXM-3 SiriusXM-1
2
Touch and hold any one of the preset buttons for at
least 2 seconds.
The selected channel is stored.
3
Repeat the procedure to store up to 5 other channels
onto the same band.
To use this procedure for other bands, simply select the
desired band and repeat the procedure.
A total of 18 channels can be stored in the preset memory
(6 channels for each band; SiriusXM-1, SiriusXM-2 and
SiriusXM-3.)
•If you store a new channel into a preset which already has a channel
assigned, the current channel will be cleared and replaced with the
new one.
Tuning Channels using Presets
1
Touch [Band] of Bottom banner repeatedly until the
desired band is displayed.
2
Touch any one of the preset buttons that has a
station stored to it.
The preset station is received.
Tune Start Function
Use Tune Start to play music content from its beginning on programmed
preset stations. The user can, therefore, enjoy the full track (i.e. song)
rather than hearing what’s left from its current live playback position.
Touch and hold [Tune Start] for at least 2 seconds to
activate or deactivate the Tune Start function.
•During Tune Start play mode, touching [Tune Start] will return to
live satellite radio.
•This function is available only when SiriusXM Tuner-SXV200 is
connected.
•Preset stations that play other than music-type content will start
playing the channel from the current live play point when selected.
Tune Scan Function
While listening to SiriusXM Satellite Radio, you can scan through all
the songs you missed from your current band of preset channels.
Touch [Tune Scan].
The [Tune Scan] highlighted during TUNE SCAN mode.
Touch [Tune Scan] during scan playback, tune scan mode
will be canceled and the selected track will be played back
normally.
Touch and hold [Tune Scan] for at least 2 seconds during
scan playback to cancel Tune Scan mode. The tuner returns
to the channel before Tune Scan was initiated.
Notes
•This function is available when SiriusXM Tuner-SXV200 is
connected.
•If no operation is performed during the scanning process, when
scanning finishes, the next mode depends on the SiriusXM Tuner.
•During Tune Scan mode, the artist and song name will be displayed.
•The SiriusXM Tune scans through the songs from the preset music
channels on the current band only, scanning from oldest to newest.
Channel No.
Channel Name
Artist Name
Song Title
Content Info
Category Name
83-EN
Search Function
1
Touch [ (Search)] of Bottom banner.
Search list screen is displayed.
2
Touch the desired category.
The channel name search screen of the selected category
is displayed.
3
Touch the selected channel.
•You can change the category directly by touching Category [ ] or
[] on the channel name search screen.
Searching by Channel
1 Touch [All Channels] after step 1.
All Channels will be displayed in a list.
2 Touch the selected channel.
•Touch [Info] on the channel name search screen, the information of
the broadcasting channels will be displayed. You can choose the
desired channel from the artist name list or song name list.
Each time you touch the [Info] button, the display changes
as below.
Channel name Artist name Song Title Content
Info Channel name
Searching by My Music
1 Touch [My Music]*.
The artist names and song titles that you have stored and
are currently playing will be displayed in a list.
* Displayed only when the stored song or artist is
broadcasting.
2 Touch the desired artist/song.
The channel of the selected artist/song being broadcast
is received.
•Touch [Info] on the channel name search screen, the information of
the broadcasting channels will be displayed. You can choose the
desired channel from the artist name list or song name list.
Each time you touch the [Info] button, the display changes
as below.
Channel name Artist name Song Title Channel
name
Searching by My Games
1 Touch [My Games]*.
The sport teams that you have stored and the game is
currently broadcasting will be displayed in a list.
* Displayed only when the game of stored team is
broadcasting.
2 Touch the desired team.
The channel of the selected game being broadcast is
received.
•Touch [Info] on the channel name search screen, the information of
the broadcasting channels will be displayed. You can choose the
desired channel from the league name list or team name list.
Each time you touch the [Info] button, the display changes
as below.
Channel name League name Team name
Channel name
Searching by Featured Favorites
1 Touch [Featured]*.
The Category that SXM recommends will be displayed in
a list.
* Displayed only when the SiriusXM Tuner-SXV200 is
connected.
2 Touch the desired category.
3 Touch the desired channel within the selected category.
•Touch [Info] on the channel name search screen, the information of
the broadcasting channels will be displayed. You can choose the
desired channel from the Artist name list or Song name list.
Each time you touch the [Info] button, the display changes
as below.
Channel name Artist name Song Title Content
Info Channel name
Selecting the Channel directly
You can directly select the channel number on the display of the
numeric keypad.
1
Touch [Direct Channel].
The numeric keypad input screen is displayed.
2
Touch to input the channel number.
3
Touch [Enter].
The selected channel is received.
•When a triple-digit channel number is input, it is unnecessary to
touch [Enter]; the channel will be received automatically.
Storing the desired Song/Artist
While listening to SiriusXM Satellite Radio, you can be alerted when
your favorite songs or artists are playing on other channels. An
interruption ALERT will be displayed when a matching artist or song is
found on another channel. For receiving interruption ALERT
information, refer to “Receiving and Tuning to an Alert”.
1
Touch [Memo] for at least 2 seconds on the
SiriusXM mode screen.
The Memory type selection screen is displayed.
2
Touch the Save Song or Save Artist to select the
store type.
A “Song (Artist) Saved X Used/Y Empty” pop up screen is
displayed.
X is the total number of song titles, artist names or sports
team stored in memory, and Y is the total number of memory
song titles, artist names or sports team still available for
storage.
•“Artist /Song Unavailable” appears on the display if both the artist
and song is not available to be stored.
“Artist (Song) Unavailable” is displayed if the artist (song) is not
available to be stored.
“Artist (Song) Saved” is displayed if this Artist (Song) was
previously stored.
•If there is no memory space, “Memory Full” is displayed and then
you are asked if you want to replace a stored item. If you select
“OK,” then the list to stored alert items are displayed. Touch the item
that you want to replace.
•For details on how to set up the Games Alert, refer to “Setting the
Favorite Sports Team Alerts” (page 58).
84-EN
Receiving and Tuning to an Alert
Whenever a stored sports team, artist, or song is playing on another
channel, an interruption ALERT appears on the unit display. To tune to
the game, artist or song identified by the alert, follow the steps below:
1
When stored information is broadcast, after
displaying “Song Alert”, “Artist Alert” or “Game
Alert”, the screen changes to My Music list*1 or My
Games list*2 display.
2
Touch the channel on the list you want to receive.
The display changes to the selected channel and the
channel is received.
*1Only for Song Alert and Artist Alert.
*2Only for Game Alert.
•Touch [Info] on the My Music list/My Games list screen, the
information of the broadcasting channels will be changed.
Each time you touch the [Info] button, the display changes as
below.
My Music list (Artist Alert):
Artist name Song Title Channel name Artist name
My Music List (Song Alert):
Song Title Channel Name Artist Name Song Title
My Games list:
Team name& League name Channel name Team name&
League name
•If [] is touched, return to the previous screen.
•If no operation is performed for 10 seconds, or [] is touched, the
screen returns to the normal mode screen.
Replay Function
In SiriusXM mode, you can pause, rewind and replay up to 30 minutes
of live Satellite Radio.
1
Touch [/] to Pause playing of the channel
content.
The “ (Pause)” icon and replay progress bar is displayed.
2
Touch [/] again or touch [] in the middle of
the screen to resume playing the content.
The “ (Play)” icon lights up and offset playback
commences.
•The time difference between the real broadcasting time and the
offset playback time is displayed.
3
Touch [] to exit Instant Replay and listen to live
content.
•To fast reverse, touch and hold [] and to fast forward, touch and
hold [].
•Touching [] or [] will move a track up/down.
•If you change channels while in Replay mode, the contents of the
replay buffer are emptied.
•Contents older than 30 minutes are automatically emptied from the
replay buffer.
Parental Lock Function
This function can help restrict the listening of channels to children of
appropriate age levels only. For information on setting the Parental
Control passcode, refer to “Setting the Parental Lock” (page 59).
When a locked channel is selected, “Channel <xxx> Locked” is
displayed and then the numeric keypad appears for you to enter the
passcode.
Input the 4-digit passcode you set in “Setting the
Parental Lock” on page 59.
The initial number is 0000.
•If you input a wrong passcode, “Incorrect Pass Code entered” is
displayed.
•After entering the correct passcode, you can access all locked
channels without entering the passcode again until the unit is
powered off and then back on.
Using Jump Memory and Jump Recall
function
The Jump Channel is a special channel that you can jump to with the
press of a dedicated button and then jump back to the previous channel.
This channel is often used to select your favorite SiriusXM traffic and
weather report channel.
1
To store the Jump channel in memory, touch and
hold [JUMP] for at least 2 seconds.
2
Touch [JUMP] to recall and tune to the saved Jump
channel.
•You can also access to Jump channel by pressing and holding
optional Remote Control’s Band for at least 2 seconds.
•Press optional Remote Control’s Band again to quit Jump channel.
•Only one channel can be stored as the jump source channel. When
you want to store a new channel, the old channel will be cleared and
the new one will be memorized.
85-EN
Storing the Tag information
iTunes Tagging lets you tag songs heard on SiriusXM channels. Using
this unit in conjunction with an optional SiriusXM Tuner and a Tagging
compatible iPod/iPhone, you can tag the music that you listen to, then
transfer the tag information to your iPod/iPhone, and later, when your
iPod/iPhone is connected to iTunes, you can preview, buy and download
your tagged songs. For details, refer to the Owner’s Manual of the
Tagging compatible iPod/iPhone.
The TAG icon will appear when a song playing on a SiriusXM channel
has tag information available.
When a desired song is heard on an SiriusXM channel, touch the [TAG]
icon to save its tag information
During tagging, the TAG indicator blinks.
If no iPod/iPhone is connected, “Tag count X” is displayed (X is
the total amount of the tag information stored in this unit).
•During tagging, the iPod/iPhone takes priority to save the tag
information. If no iPod/iPhone is connected, the tag information is
saved to this unit.
•When the memory of iPod/iPhone is full, “iPod memory full” and
“Tag count X” are displayed in succession. The tag information will
be stored to the unit.
•If the tagging operation is interrupted by a hands-free phone call, the
tagging operation will be canceled and the unit will display “Cannot
Tag”.
•This unit can store up to 50 pieces of tag information. When the
memory of the unit is full, “Tuner memory full. Connect iPod.” may
be displayed.
•When the iPod/iPhone is disconnected from the unit during tagging,
its tag information will be stored in the unit.
•If there is stored tag information on the unit, when an iPod/iPhone
supporting the tag function is connected, the stored tag information
will be transferred to the iPod/iPhone automatically. When the iPod/
iPhone memory becomes full, “iPod memory full <xx> remaining.”
may be displayed, and any remaining tag information on the unit will
not be transferred to the iPod/iPhone.
•If tag information already exists, “Already Tagged” will be displayed
when you try to tag information again.
Playing the iDataLink SiriusXM
When the unit is connected to car’s iDataLink module, and “SiriusXM”
is set to other than “Aftermarket” (page 43). SiriusXM source via
iDataLink module may be available on this unit.
The iDataLink SiriusXM source icon is marked with icon.
•For detailed operation, refer to Owner’s Manual of iDataLink
module.
•Depending on the connected iDataLink module, display screen and
function keys may differ.
When tagging is allowed,
the TAG icon is displayed.
86-EN
You can play back music files (MP3/WMA/AAC) and video files
(DivX® ) stored in a Flash Memory device on the internal player of this
system.
This section explains music operations only. Refer to the DivX®
operation section in “DVD” (page 37) for information on video.
•If the first file played is a music file, the mode will be the music play
mode. If the first file played is a video file, the mode will be the video
play mode. Also, the mode changes by selecting “AUDIO” or
“VIDEO” in step 2 in Search Function. Refer to “Searching for a
Desired Song” (page 87) and “Searching for a Desired Video File”
(page 41).
•Before playing Flash memory audio, make sure “USB/iPod” is set to
other than “OEM” (page 43).
Display example for the USB main screen (Info mode)
Audio mode
Video mode
•Refer to “Display example for MP3/WMA/AAC main screen”
(page 34) and “Display example for DivX® main screen” (page 37)
for screen element explanations.
•You can display artwork during USB playback.
About creating a tag information library
You can scan music files in a Flash Memory device and create a library
of tag information in this unit. Library creation starts when the Flash
Memory device is connected. The time it takes to create the library
depends on the number of files in the Flash Memory device, but it may
take several minutes.
About operations during library creation
•“Tag Search” (page 88) does not work properly while a library is
being created.
•The order in which songs are played during library creation may
differ from the order in the Flash Memory device.
Playback
1
Press the AUDIO button.
2
Touch [USB] of Top banner.
The USB mode is activated and the display changes to the
USB screen.
3
Touch [] or [] or to select the desired track
(file).
Returning to the beginning of the current (or previous) track
(file):
Touch [].
Fast reverse :
Touch and hold [].
Advancing to the beginning of the next track (file) :
Touch [].
Fast forward :
Touch and hold [].
4
To pause playback, touch [/].
[ ] is displayed in the middle of the screen.
Touch [ /] again or touch [ ] in the middle of the
screen to start playback.
•Any file protected by DRM (Digital Rights Management) copy
protection, cannot be played back on this unit.
•The playback time may not be correctly displayed when a VBR
(Variable Bit Rate) recorded file is played back.
•If there is tag information, artist name/album name/track name is
displayed.
•ID3 tag/WMA tag
If an MP3/WMA/AAC file contains ID3 tag/WMA tag information,
the ID3 tag/WMA tag information is displayed (e.g., song name,
artist name, and album name).
•If the combined number of files/folders in the Flash Memory devices
reaches 5,000, the message “The system has reached its limit of
recognizable files/folders from the USB device.” will be displayed. To
delete the message, remove the Flash Memory devices.
Flash Memory
(Optional)
Touch [<<], [>>]
87-EN
Repeat Play
Operation differs depending on whether the most recent song search
was a Tag Search or a Folder/File Search.
Touch [] during playback.
The repeat mode switches every time the button is touched.
Folder/File Search mode:
Tag Search mode:
*Only files in a folder are repeatedly played back.
•If the Repeat Play mode is activated during M.I.X. playback, the
M.I.X. mode will be canceled.
Random Play (M.I.X.)
Operation differs depending on whether the most recent song search
was a Tag Search or a Folder Search.
Touch [] during playback.
The tracks (files) on the disc will be played back in a random sequence.
To cancel M.I.X. play, touch [].
Folder Search mode:
Tag Search mode:
*1 Only files in a folder are played back in random sequence.
*2M.I.X. Songs randomly plays back songs within a selected category
(playlist, album, etc.). The songs within the category are played just
once until all songs have been played.
•If the M.I.X. mode is activated during Repeat playback, the Repeat
Play mode will be canceled.
•If you select a track by using the search mode, the M.I.X. play mode
will be canceled.
Random Play (M.I.X. ALL)
1
Touch [ (Search)] of Bottom banner during
playback.
The search mode is activated.
2
Touch [Music].
The folder name list screen is displayed.
3
Touch [Shuffle All] during playback.
The tracks (files) on the disc will be played back in a
random sequence.
To cancel M.I.X. play, touch [].
•All songs in the Flash Memory are played back in random sequence.
Any one song does not play back again until all songs have been
played back.
Searching for a Desired Song
X009 can carry out 2 kinds of searches.
1
Touch [ (Search)] of Bottom banner during
playback.
2
Touch [Music].
The search mode is activated.
3
Touch [Folder].
The folder name list screen is displayed.
Folder Name Search Mode
4
Touch [] of the desired folder.
The first file in the selected folder is played back.
File Name Search Mode
4
Touch the desired folder name.
The file name of the selected folder is displayed.
5
Touch the desired file name.
The selected file is played back.
•To return to the previous hierarchy, touch [].
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
•After selecting a folder via a Folder name search, touch [] on the
main screen to display the folder search screen.
•After selecting a file via a File name search, touch [] on the
main screen to display the file search screen.
Repeat Repeat Folder*(OFF) Repeat
Repeat (OFF) Repeat
M.I.X. Folder*1(OFF) M.I.X. Folder*1
M.I.X. Songs*2(OFF) M.I.X. Songs*2
File/Folder Name Search
88-EN
By using file tag information and keeping these songs organized in
playlists, this unit’s search functions will ease song searches in large
libraries.
Each music category has its own individual hierarchy. Use the Playlists/
Artists/Albums/Songs/Genres/Composers search mode to narrow
searches based on the table below.
For example: Searching by Artist name
The following example explains how an ARTISTS search is performed.
Another search mode can be used for the same operation, although the
hierarchy differs.
Searching by artist name
1
Touch [ (Search)] of Bottom banner during
playback.
2
Touch [Music].
The search mode screen appears.
3
Touch [Artists].
The Artists search screen is displayed.
4
Select the desired artist.
To play back the Artist directly
1 Touch [] of the artist’s name.
All songs of the selected artist are played back.
To search for the Album of the Artist
1 Touch the selected artist name.
The Albums search screen of the selected artist is
displayed.
2 Touch [] of the desired album’s name.
All songs of the selected album are played back.
To search for a Song in the Album of the Artist
1 Touch the desired artist’s name.
All albums of the selected artist are displayed.
5
Touch the desired album’s name.
All songs of the selected album are displayed.
6
Touch the desired song’s name.
The selected song is played back.
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
•After selecting a file via a Tag search, touch [] on the main
screen to display the search screen. The hierarchy level you selected
last in the search mode is displayed.
Direct Up/Down Function
This operation is available only if the most recent song search was a Tag
Search.
Playlist/Artist/Album/Genre/Composer can be easily changed.
For example, if you listen to a song from a selected album, the album
can be changed.
Touch [] or [] to select the desired Playlist/Artist/
Album/Genre/Composer.
•If an album is selected from an artist search, the album can be
searched.
•For details on icon display, refer to “Direct Up/Down switch icon:”
(page 91).
•If search selection mode is not activated, Direct Up/Down Function
is not possible.
•During M.I.X. playback, this operation is not possible.
Select the desired Folder
(Folder up/down)
This operation is available only if the most recent song search was a
Folder/File Search.
If you listen to a file from a selected folder, the folder can be changed.
Touch [] or [] to select the folder.
•During M.I.X. ALL playback, this operation is not possible.
Playing the iDataLink USB/iPod
When the unit is connected to car’s iDataLink module, and “USB/iPod”
is set to other than “Aftermarket” (page 43). USB or iPod audio source
via iDataLink module may be available on this unit.
The iDataLink Flash memory or iPod source icon is marked with
icon.
•For detailed operation, refer to Owner’s Manual of iDataLink
module.
•Depending on the connected iDataLink module, display screen and
function keys may differ.
Tag Search
Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4
Playlists Songs — —
Artists Albums Songs —
Albums Songs — —
Songs — — —
Genres Artists Albums Songs
Composers Albums Songs —
89-EN
An iPod/iPhone can be connected to this unit by using the cable
KCU-461iV (sold separately). You can connect a video-capable iPod to
enjoy video as well as music.
When the X009 is connected by the above cable, the controls on the
iPod are disabled.
•This unit does not support video playback from iPhone 5, etc., which
with Lightning Connector.
•Internet or telephone functions, etc., of the iPhone or iPod touch are
not controllable from the unit, but these functions can be controlled
using the iPhone or iPod touch itself.
•To watch the video screen of the file in the iPod/iPhone, the parking
brake must be engaged.
•For automatic transmission vehicles, place the transmission lever in
the Park position.
•Before playing iPod, make sure “USB/iPod” is set to other than
“OEM” (page 43).
•You can also play iDataLink iPod audio, refer to “Playing the
iDataLink USB/iPod” (page 88).
About iPod/iPhone models usable with this unit
•The following devices have been tested and shown to work
with this unit. Correct function of earlier versions cannot be
guaranteed.
iPod nano 7th generation 16GB: Ver.1.0.2
iPod touch 5th generation 32GB/64GB: Ver.7.0.4
iPod nano 6th generation 8GB/16GB: Ver.1.2
iPod touch 4th generation 8GB/32GB/64GB: Ver.6.1.5
iPod touch 3rd generation 32GB/64GB: Ver.5.1.5
iPod nano 5th generation(video camera) 8GB/16GB: Ver.1.0.2
iPod classic(Late2009) 160GB: Ver.2.0.4
iPod touch 2nd generation 8GB/16GB/32GB: Ver.4.2.1
iPod nano 4th generation(video) 8GB/16GB: Ver.1.0.4
iPod classic 120GB: Ver.2.0.1
iPod touch 1st generation 8GB/16GB/32GB: Ver.3.1.3
iPod nano 3rd generation(video) 4GB/8GB: Ver.1.1.3
iPod classic 80GB/160GB: Ver.1.1.2
•The following devices have been tested and shown to work
with this unit. Correct function of earlier versions cannot be
guaranteed.
iPhone 5S 16GB/32GB/64GB: Ver.7.0.4
iPhone 5C 16GB/32GB/64GB: Ver.7.0.4
iPhone 5 16GB/32GB/64GB: Ver.7.0.4
iPhone 4S 16GB/32GB/64GB: Ver.7.0.4
iPhone 4 16GB/32GB: Ver.7.0.4
iPhone 3GS 8GB/16GB/32GB: Ver.6.1.3
iPhone 3G 8GB/16GB: Ver.4.2.1
•For clarity in identifying your model of iPod, please see
Apple’s own document “Identifying iPod models” at
http://support.apple.com/kb/HT1353.
Display example for iPod/iPhone main screen (Info
mode)
Audio mode
Video mode
Song title/Episode title*
Artist title/Release Date*
Album title/Podcast title*
Current song no./Total song no.
Remaining time for playing
Artwork display
Elapsed time
:During audio-only playback of a video file in a
Playlist, the Video icon is displayed.
:During audio-only playback of a music file in a video
Playlist, the Music icon is displayed.
Total time for playing
* Podcast mode
iPod/iPhone
(Optional)
WARNING
It is dangerous for the driver to watch video while
driving the vehicle. The driver may be distracted from
looking ahead and an accident could occur.
Install the X009 correctly so that the driver cannot
watch Video unless the vehicle is stopped and the
emergency brake is applied.
If the X009 is not installed correctly, the driver will be
able to watch the Video while driving the vehicle and
may be distracted from looking ahead causing an
accident. The driver or other people could be severely
injured.
90-EN
The iPod/iPhone operation screen display during video
file playback
Touch the screen while the iPod/iPhone playback screen
is displayed.
The iPod/iPhone operation screen is displayed.
•The operation screen changes to the visual screen in the iPod mode
for 5 seconds after an operation has been performed.
Playback
1
Press the AUDIO button.
2
Touch [iPod (Audio or Video)] of Top banner.
The display shows the iPod mode screen.
3
Touch [] or [] or to select the desired track
(file).
Returning to the beginning of the current (or previous) track
(file):
Touch [].
Fast reverse the current track :
Touch and hold [].
Advancing to the beginning of the next track (file) :
Touch [].
Fast forward the current track :
Touch and hold [].
4
To pause playback, touch [/].
•If a song is playing on the iPod/iPhone when it is connected to the
X009, it will continue playing after the connection.
•An episode may have several chapters. The chapter can be changed
by touching [] or [].
•If the artist, album or song name, created in iTunes, has too many
characters, songs may not be played back when connected to the
X009. Therefore, a maximum of 64 characters is recommended. The
maximum number of characters for the unit is 64.
•Some characters may not be correctly displayed.
Searching for a Music File
An iPod/iPhone can contain thousands of songs. For this reason, this
unit can make various searches using the search function as shown
below.
Using the Playlist/Artist/Album/Podcast/Audiobook/Genre/Composer/
Song search mode’s individual hierarchy, you can narrow down your
search as shown in the table below.
<MUSIC Search Menu>
For example: Searching by Artist name
The following example explains how an ARTISTS search is performed.
Another search mode can be used for the same operation, although the
hierarchy differs.
Searching by artist name
1
Touch [ (Search)] of Bottom banner during
playback.
2
Touch [Music].
The search mode screen appears.
3
Touch [Artists].
The Artists search screen is displayed.
4
Select the desired artist.
To play back the Artist directly
1 Touch [] of the artist’s name.
All songs of the selected artist are played back.
To search for the Album of the Artist
1 Touch the selected artist name.
The Albums search screen of the selected artist is
displayed.
2 Touch [] of the desired album’s name.
All songs of the selected album are played back.
To search for a Song in the Album of the Artist
1 Touch the desired artist’s name.
All albums of the selected artist are displayed.
5
Touch the desired album’s name.
All songs of the selected album are displayed.
6
Touch the desired song’s name.
The selected song is played back.
•Touching [] of “ALL” will play back all songs in the list.
•Touching “ALL” will display the search list in the next hierarchy.
•An alphabet skip function is available. Refer to “Alphabet Skip
Function” (page 91).
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4
Playlists Songs — —
Artists Albums Songs —
Albums Songs — —
Songs — — —
Podcasts Episodes — —
Genres Artists Albums Songs
Composers Albums Songs —
Audiobooks — — —
91-EN
Searching for a Desired Video File
You can select a movie, music video, etc., from the list screen.
•Video search mode depends on the iPod/iPhone. If the specification
of the iPod/iPhone is changed, the search mode on this unit will also
be changed.
Examples for the video search mode
•Video Playlists
•Movies
•Music Videos, etc.
For example: Searching by Movie
The following example explains how a Movie search is performed.
Another search mode can be used for the same operation, although the
hierarchy differs.
1
Touch [ (Search)] of Bottom banner during
playback.
2
Touch [Video].
The Video search mode screen appears.
3
Touch [Movies].
The Movies search screen is displayed.
4
Touch the desired movie.
The selected movie is played back.
•For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 29).
Alphabet Skip Function
The unit is provided with a alphabet skip function for effective
searching. When you use this function in the search mode, you can
quickly search an artist or a song, etc.
Alphabet skip function:
The alphabet skip function is skipped to the next alphabet
such as from A to B, B to C by touching [(ALPHABET) ].
You can also skip in reverse order such as from B to A by
touching [ (ALPHABET)].
Direct Up/Down Function
If you touch [] of the album name in the search mode, this album will
be played back repeatedly. To go to the previous or next Album, use the
Direct Up/Down Function.
Touch [] or [] to select the desired Playlist/Artist/
Album/Genre/Podcast/Composer.
Direct Up/Down switch icon:
•You can use the Direct Up/Down Function during video file
playback. The Direct Up/Down Function switches in the video mode
are [ ] [].
•If you are searching for a song, this operation cannot be performed.
•If an album is selected from an artist search, the album can be
searched.
•During shuffle playback, this operation is not possible.
Search Position Memory
During iPod/iPhone playback, you can quickly move back up the
selected hierarchy, a level at time.
Touch []. (ex. [ Playlists])
The hierarchy level you selected last in the search mode is
displayed.
Playlist
Artist
Album
Podcast
Genre
Composer
Direct Up/Down switch icon
92-EN
Repeat Play
Touch [] to repeatedly play back the currently track.
The tracks (files) will be played repeatedly.
Touch [] again to deactivate Repeat play.
Random Play (Shuffle)
Touch [] during playback.
The files will be played back in a random sequence.
The Shuffle mode switches every time [] is touched.
Shuffle Albums: The songs on each album are played back
in proper order. Upon completing of all the
songs on the album, the next album is
selected randomly. This continues until all
albums have been played.
Shuffle Songs: Song shuffle randomly plays back songs
within a selected category (playlist, album,
etc.). The songs within the category are
played just once until all songs have been
played.
•For details on the search mode, refer to “Searching for a Music File”
(page 90).
Random Play (Shuffle All)
All files in the iPod are played back in random sequence.
1
Touch [ (Search)] of Bottom banner during
playback.
2
Touch [Music].
The search mode screen appears.
3
Touch [Shuffle All] of Bottom banner during
playback.
The indicator “ ” lights, and the songs will be played back in
random sequence.
•To cancel, set the Shuffle mode to Off. Refer to “Random Play
(Shuffle)” (page 92).
The device can connect with electronic device supporting HDMI output
by HDMI interface and fulfill the play of audio and video with HD
signal. But, the unit only displays the electronic device interface by
mirror image, you cannot operate the electronic device by this unit.
•The electronic device must possess HDMI output interface.
•Only purchase Alpine Special HDMI connection cable.
•If connecting an iPhone 5, etc., which with Lighting Connector you
need to prepare the optional Digital AV Adapter.
•Hereby take the connection method of iPhone 5 for example.
•Not all devices with HDMI output interface can be recognized by this
unit.
1
Press the AUDIO button.
2
Touch [HDMI] of top banner.
•When disconnecting with HDMI device, the source icon of
HDMI is gray.
3
In HDMI player mode, the screen of the device
displays the content of electronic equipment by
mirror image.
Repeat (OFF) Repeat
Shuffle Songs Shuffle Albums (OFF) Shuffle Songs
HDMI Device
(Optional)
Lightning Digital AV
Adapter (Type: A1438)
Alpine special HDMI connection
cable (sold separately)
iPhone 5
HDMI connector in
X009
93-EN
Pandora® internet radio is your own FREE personalized radio now
available to stream music on your iPhone and smartphone (which runs
Android OS or BlackBerry OS).
Just start with the name of one of your favorite artists, songs or classical
composers and Pandora® will create a “station” that plays their music
and more music like it.
The X009 enables you to interact with your Pandora® account by
connecting an iPhone and smartphone that has the latest version of the
Pandora® application installed.
Display example for iPhone Pandora Radio screen
Display example for Bluetooth Pandora Radio screen
Station name
Song Name
Artist Name
Album Name
Track/Artist bookmark icon
Elapsed time
Remaining time for playing
Artwork display
Listening to Pandora®
Connect the iPhone to this unit’s USB terminal before using iPhone
Pandora®.
1
Press the AUDIO button.
2
Touch [PANDORA®] of Top banner.
Follow the confirmation message appears on the iPhone to
launch the Pandora Application.
The display changes to PANDORA mode screen.
3
To skip to the next song, touch [].
•The operation to replay a previous song is not available.
•Pandora limits the number of skips allowed on their service. If you
attempt to skip songs beyond the limit, “No skips remaining” is
displayed.
•X009 remembers the source just before turning off the power.
Even if you reconnect an iPhone without launching Pandora
Application while the power is off, Pandora mode (not iPod mode) is
displayed when power is turned back on.
•Depending on the signal status, song may be stopped during
playback.
When the advertisement is received, the playback time will be frozen
and key operation is invalid.
•The playback time may not be correctly displayed.
When using Bluetooth Pandora®, it is necessary to register the
connected Bluetooth compatible smartphone (which runs Android OS
or BlackBerry OS) as Bluetooth Audio. For details, refer to
“Registering the Bluetooth Device” (page 62).
Also, make sure the Bluetooth Pandora® setting is set to “On”
(page 61).
1
Pair the smartphone with this unit.
2
Press the AUDIO button.
3
Touch [(Bluetooth) PANDORA®] of Top banner.
Follow the confirmation message appears on the
Smartphone to launch the Pandora Application.
The display changes to Bluetooth Pandora mode screen.
The playback screen appears.
4
To skip to the next song, touch [].
•If pairing is not registered for the Bluetooth audio device, the
message “No Bluetooth device connected. Please check Bluetooth
settings.” appears on the screen. Change the audio device settings as
per “Registering the Bluetooth Device” (page 62).
•The operation to replay a previous song is not available.
•Pandora® limits the number of skips allowed on their service. If you
attempt to skip songs beyond the limit, “No skips remaining.” is
displayed.
•X009 remembers the source just before turning off the power. If
Pandora® is the last SOURCE to be played, it will appear as the
SOURCE the next time the unit is power up even if the app is not
launched on your smartphone.
•The display content varies when ads are received.
•The playback time may not be correctly displayed.
Pandora® internet
radio (optional)
Touch [<<], [>>]
iPhone Pandora®
Bluetooth Pandora®
94-EN
“Thumbs” Feedback
You can personalize your stations with “Thumbs Up” or “Thumbs
Down” feedback, which the system takes into account for future music
selections.
During playback, touch [ ] for thumbs up, or touch [ ]
for thumbs down.
: The “ ” indicator appears in the display. Pandora® will add
similar music to your station.
: The “ ” indicator is displayed. Pandora® will ban that song
from your station, and the current song is skipped. If the number
of skips allowed has reached its limit, the current song continues
to play back.
•In some situations, “Thumbs” feedback may not be available.
“Unable to save your thumb rating.” will be displayed.
Searching for a Desired Station
You can display your station list and select stations directly from the
X009.
Alphabet Search
1
Touch [ (Search)] of Bottom banner to activate
the Search mode.
2
Touch [By A-Z].
The “By A-Z” search mode is activated and the station
names are listed alphabetically.
3
Touch the desired station.
Pandora will play that station.
Search by Date Added
1
Touch [ (Search)] of Bottom banner to activate
the Search mode.
2
Touch [By Date].
The “By Date” search mode is activated and the station
names are listed by the date they were added to the
account.
3
Touch the desired station.
Pandora will play that station.
•Currently playing station will be highlighted in Alphabet search list.
•The shared station is marked with “ ” in search list.
Creating a New Station
Basing on the currently playing song or artist, a personalized Pandora
station can be created. The new station will play more music like it.
Freeword
1
During playback, touch [Create New Station].
The Key Pad screen is displayed. You can enter a keyword
and search for Artist/Song.
2
Enter a keyword and touch the [OK] button.
Artist/Track
During playback, touch [Create Station From (Artist/
Track)] of Bottom banner.
•The created station is saved to your station list.
•You can also create stations using the Pandora Application on your
iPhone or on the web at www.pandora.com.
•In some situations, creating a new station may not be available.
“Unable to create station.” will be displayed.
•[Create New Station] is not available while driving.
QuickMix
Use QuickMix to create a playlist based on two or more of your Pandora
stations. Edit your QuickMix station selections on the Pandora
Compatible Application for iPhone when it is not connected to the
X009.
1
Touch [ (Search)] of Bottom banner to activate
the Search mode.
2
Touch [By A-Z] or [By Date].
The “By A-Z” or “By Date” search mode is activated and the
station name is displayed.
3
Touch [QuickMix].
•The indicator lights, and the songs from the created stations are
played back in random sequence.
•Select another station during search mode to cancel QuickMix.
•During search list mode, the icon will be displayed when the
current station belongs to QuickMix.
95-EN
Bookmarking a Desired Track or Artist
The currently playing song or artist can be bookmarked and saved to
your Pandora account.
1
During playback, touch [Artwork display].
The type selection telop is displayed.
2
Touch [Track] or [Artist].
The current track or artist is bookmarked. “ ” icon or
“ ” icon is displayed.
•Your bookmarks can be viewed on your “Profile” page at
www.pandora.com.
•In some situations, bookmarks may not be available. “Unable to save
your bookmark.” will be displayed.
Product Software Update
This product use software that can be updated through a Flash Memory
device. Download the software from the Alpine website and update the
product using the Flash Memory device.
Updating this product
Check the Alpine website for details on updating.
http://www.alpine-usa.com
About DVDs
Music CDs and DVDs have grooves (tracks) in which the digital data is
recorded. The data is represented as microscopic pits recorded into the
track – these pits are read by a laser beam to play the disc. On DVDs,
the density of the tracks and pits is twice that of CDs, so DVDs can
contain more data in less space.
A 12 cm disc can contain one movie or about four hours of music. In
addition, DVDs provide sharp picture quality with vivid colors thanks to
a horizontal resolution of over 500 lines (compared to less than 300 for
VHS tape).
In addition, DVDs offer a variety of functions.
Multiple audio* (page 42)
Movies can be recorded in up to eight languages. The desired
language can be selected from the unit.
Subtitles function* (page 42)
Movies can include subtitles in up to 32 languages. The desired
subtitle language can be selected from the unit.
Multi angle function* (page 41)
When the DVD contains a movie shot from multiple angles, the
desired angle can be selected from the unit.
Artwork display
Information
CDs
Minimum pit
length -
0.9 µm 1.2 mm Track pitch -
1.6 µm
DVDs
Minimum pit
length -
0.9 µm
0.6 mm Track pitch -
0.74 µm
0.6 mm
96-EN
Multi story function*
With this function, a single movie includes various story lines.
You can select different story lines to view various versions of the
same movie.
Operation differs from disc to disc. Story line selection screens
including instructions appear during the movie. Just follow the
instructions.
* These functions differ from disc to disc. For details, refer to the disc’s
instructions.
97-EN
List of Language Codes
(For details, see page 56.)
Langua g e
Kirundi
Romanian
Russian
Kin y arwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slo v ak
Slo v enian
Samoan
Shona
Somali
Albanian
Serbian
Sis w ati
Sesotho
Sundanese
Sw edish
Swahili
T amil
T elugu
T ajik
Thai
Tig riny a
T ur kmen
T agalog
Sets w ana
T onga
T ur kish
Tsonga
T atar
T wi
Ukrainian
Urdu
Uzbek
Vietnamese
V olapuk
W olof
Xhosa
Y or uba
Chinese
Zulu
Abbre viation
AA
AB
AF
AM
AR
AS
AY
AZ
BA
BE
BG
BH
BI
BN
BO
BR
CA
CO
CS
CY
DA
DE
DZ
EL
EN
EO
ES
ET
EU
FA
FI
FJ
FO
FR
FY
GA
GD
GL
GN
GU
HA
HI
HR
HU
HY
IA
Language
Af ar
Abkhazian
Afr ikaans
Amhar ic
Arabic
Assamese
A ymara
Az erbaijani
Bashkir
By elorussian
Bulgar ian
Bihari
Bislama
Bengali, Bangla
Tibetan
Breton
Catalan
Corsican
Czech
W elsh
Danish
Ger man
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
P ersian
Finnish
Fiji
F
aroese
F rench
F r isian
Ir ish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Ar menian
Inter lingua
Code
6565
6566
6570
6577
6582
6583
6589
6590
6665
6669
6671
6672
6673
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
7289
7365
Abbre viation
IE
IK
IN
IS
IT
IW
JP
JI
JW
KA
KK
KL
KM
KN
KO
KS
KU
KY
LA
LN
LO
LT
LV
MG
MI
MK
ML
MN
MO
MR
MS
MT
MY
NA
NE
NL
NO
OC
OM
OR
PA
PL
PS
PT
QU
RM
Code
7369
7375
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7967
7977
7982
8065
8076
8083
8084
8185
8277
Language
Inter lingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
J apanese
Yiddish
J a v anese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
K orean
Kashmir i
K urdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maor i
Macedonian
Mala y alam
Mongolian
Moldavian
Marathi
Mala y
Maltese
Bur mese
Nauru
Nepali
Dutch
Norw egian
Occitan
(Af an) Oromo
Or iy a
Punjabi
P olish
P ashto , Pushto
P or tuguese
Quechua
Rhaeto-Romance
Abbreviation
RN
RO
RU
RW
SA
SD
SG
SH
SI
SK
SL
SM
SN
SO
SQ
SR
SS
ST
SU
SV
SW
TA
TE
TG
TH
TI
TK
TL
TN
TO
TR
TS
TT
TW
UK
UR
UZ
VI
VO
WO
XH
YO
ZH
ZU
Code
8278
8279
8285
8287
8365
8368
8371
8372
8373
8375
8376
8377
8378
8379
8381
8382
8383
8384
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8478
8479
8482
8483
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
98-EN
List of Country Codes
(For details, see page 56.)
7573
7577
7578
7580
7582
7587
7589
7590
7665
7666
7667
7673
7675
7682
7683
7684
7685
7686
7689
7765
7767
7768
7771
7772
7775
7776
7777
7778
7779
7780
7781
7782
7783
7784
7785
7786
7787
7788
7789
7790
7865
7867
7869
7870
7871
7873
7876
7879
7880
7882
7885
7890
7977
8065
Abbreviation
AD
AE
AF
AG
AI
AL
AM
AN
AO
AQ
AR
AS
AT
AU
AW
AZ
BA
BB
BD
BE
BF
BG
BH
BI
BJ
BM
BN
BO
BR
BS
BT
BV
BW
BY
BZ
CA
CC
CD
CF
CG
CH
CI
CK
CL
CM
CN
CO
CR
CU
CV
CX
CY
CZ
DE
DJ
DK
Country
Andorra
United Arab Emirates
Afghanistan
Antigua and Barbuda
Anguilla
Albania
Armenia
Netherlands Antilles
Angola
Antarctica
Argentina
American Samoa
Austria
Australia
Aruba
Azerbaijan
Bosnia and Herzegovina
Barbados
Bangladesh
Belgium
Burkina Faso
Bulgaria
Bahrain
Burundi
Benin
Bermuda
Brunei Darussalam
Bolivia
Brazil
Bahamas
Bhutan
Bouvet Island
Botswana
Belarus
Belize
Canada
Cocos (Keeling) Islands
Congo, the Democratic
Republic of the
Central African Republic
Congo
Switzerland
Cote d’lvoire
Cook Islands
Chile
Cameroon
China
Colombia
Costa Rica
Cuba
Cape Verde
Christmas Island
Cyprus
Czech Republic
Germany
Djibouti
Denmark
Code
6568
6569
6570
6571
6573
6576
6577
6578
6579
6581
6582
6583
6584
6585
6587
6590
6665
6666
6668
6669
6670
6671
6672
6673
6674
6677
6678
6679
6682
6683
6684
6686
6687
6689
6690
6765
6767
6768
6770
6771
6772
6773
6775
6776
6777
6778
6779
6782
6785
6786
6788
6789
6790
6869
6874
6875
DM
DO
DZ
EC
EE
EG
EH
ER
ES
ET
FI
FJ
FK
FM
FO
FR
GA
GB
GD
GE
GF
GH
GI
GL
GM
GN
GP
GQ
GR
GS
GT
GU
GW
GY
HK
HM
HN
HR
HT
HU
ID
IE
IL
IN
IO
IQ
IR
IS
IT
JM
JO
JP
KE
KG
KH
6877
6879
6890
6967
6969
6971
6972
6982
6983
6984
7073
7074
7075
7077
7079
7082
7165
7166
7168
7169
7170
7172
7173
7176
7177
7178
7180
7181
7182
7183
7184
7185
7187
7189
7275
7277
7278
7282
7284
7285
7368
7369
7376
7378
7379
7381
7382
7383
7384
7477
7479
7480
7569
7571
7572
Dominica
Dominican Republic
Algeria
Ecuador
Estonia
Egypt
Western Sahara
Eritrea
Spain
Ethiopia
Finland
Fiji
Falkland Islands
Micronesia, Federated States of
Faroe Islands
France
Gabon
United Kingdom
Grenada
Georgia
French Guiana
Ghana
Gibraltar
Greenland
Gambia
Guinea
Guadeloupe
Equatorial Guinea
Greece
South Georgia and the
South Sandwich Islands
Guatemala
Guam
Guinea-Bissau
Guyana
Hong Kong
Heard Island and
McDonald Islands
Honduras
Croatia
Haiti
Hungary
Indonesia
Ireland
Israel
India
British Indian Ocean Territory
Iraq
Iran, Islamic Republic of
Iceland
Italy
Jamaica
Jordan
Japan
Kenya
Kyrgyzstan
Cambodia
KI
KM
KN
KP
KR
KW
KY
KZ
LA
LB
LC
LI
LK
LR
LS
LT
LU
LV
LY
MA
MC
MD
MG
MH
MK
ML
MM
MN
MO
MP
MQ
MR
MS
MT
MU
MV
MW
MX
MY
MZ
NA
NC
NE
NF
NG
NI
NL
NO
NP
NR
NU
NZ
OM
PA
Kiribati
Comoros
Saint Kitts and Nevis
Korea, Democratic
People’s Republic of
Korea, Republic of
Kuwait
Cayman Islands
Kazakstan
Lao People’s
Democratic Republic
Lebanon
Saint Lucia
Liechtenstein
Sri Lanka
Liberia
Lesotho
Lithuania
Luxembourg
Latvia
Libyan Arab Jamahiriya
Morocco
Monaco
Moldova, Republic of
Madagascar
Marshall Islands
Macedonia, The former
Yugoslav Republic of
Mali
Myanmar
Mongolia
Macau
Northern Mariana Islands
Martinique
Mauritania
Montserrat
Malta
Mauritius
Maldives
Malawi
Mexico
Malaysia
Mozambique
Namibia
New Caledonia
Niger
Norfolk Island
Nigeria
Nicaragua
Netherlands
Norway
Nepal
Nauru
Niue
New Zealand
Oman
Panama
Country CountryCode CodeAbbreviation Abbreviation
99-EN
Peru
French Polynesia
Papua New Guinea
Philippines
Pakistan
Poland
Saint Pierre and Miquelon
Pitcairn
Puerto Rico
Portugal
Palau
Paraguay
Qatar
Reunion
Romania
Russian Federation
Rwanda
Saudi Arabia
Solomon Islands
Seychelles
Sudan
Sweden
Singapore
Saint Helena
Slovenia
Svalbard and Jan Mayen
Slovakia
Sierra Leone
San Marino
Senegal
Somalia
Suriname
Sao Tome and Principe
El Salvador
Syrian Arab Republic
Swaziland
Turks and Caicos Islands
Chad
French Southern Territories
Tog o
Thailand
Tajikistan
Tokelau
Turkmenistan
Tunisia
Tonga
East Timor
Tur k e y
Trinidad and Tobago
Tuva l u
8069
8070
8071
8072
8075
8076
8077
8078
8082
8084
8087
8089
8165
8269
8279
8285
8287
8365
8366
8367
8368
8369
8371
8372
8373
8374
8375
8376
8377
8378
8379
8382
8384
8386
8389
8390
8467
8468
8470
8471
8472
8474
8475
8477
8478
8479
8480
8482
8484
8486
8487
8490
8565
8571
8577
8583
8589
8590
8665
8667
8669
8671
8673
8678
8685
8770
8783
8969
8984
8985
9065
9077
9087
PE
PF
PG
PH
PK
PL
PM
PN
PR
PT
PW
PY
QA
RE
RO
RU
RW
SA
SB
SC
SD
SE
SG
SH
SI
SJ
SK
SL
SM
SN
SO
SR
ST
SV
SY
SZ
TC
TD
TF
TG
TH
TJ
TK
TM
TN
TO
TP
TR
TT
TV
TW
TZ
UA
UG
UM
US
UY
UZ
VA
VC
VE
VG
VI
VN
VU
WF
WS
YE
YT
YU
ZA
ZM
ZW
Taiwan, Province of China
Tanzania, United Republic of
Ukraine
Uganda
United States Minor
Outlying Islands
United States
Uruguay
Uzbekistan
Holy See (Vatican City State)
Saint Vincent and the
Grenadines
Venezuela
Virgin Island, British
Virgin Islands, U.S
Viet Nam
Vanuatu
Wallis and Futuna
Samoa
Yemen
Mayotte
Yugoslavia
South Africa
Zambia
Zimbabwe
Country CountryCode Code
Abbreviation Abbreviation CountryCode
Abbreviation
100-EN
In Case of Difficulty
Basic
No function or display.
• Vehicle’s ignition is off.
- If connected according to the instructions, the unit will not
operate with the vehicle’s ignition off.
• Improper power lead connections.
- Check power lead connections.
•Blown fuse.
- Check the fuse on the battery lead of the unit; replace with the
proper value if necessary.
• Internal micro-computer malfunctioned due to interference
noise, etc.
- Press the RESET switch with a ballpoint pen or other pointed
article. (Only for GMC/Chevrolet or other model.)
No sound or unnatural sound.
• Incorrect setting of volume/balance/fader controls.
- Readjust the controls.
• Connections are not properly or securely made.
- Check the connections and firmly connect.
Screen not displayed.
• Brightness/Contrast control is set at the minimum position.
- Adjust the Brightness/Contrast control.
• Temperature in the vehicle is too low.
- Increase the vehicle’s interior temperature to operation
temperature range.
• Connections to the DVD are not securely made.
- Check the connections and firmly connect.
• The Parking Brake Lead is not connected.
• The Parking Brake is not engaged.
- Connect the Parking Brake Lead, then engage the Parking
Brake. (See page 111)
Movement of displayed picture is abnormal.
• Temperature in the vehicle is too high.
- Allow the vehicle’s interior temperature to cool.
The optional remote control is inoperative.
• The remote control sensor setting of “Remote Sensor Setting”
(page 44) is not set to this unit (“Front”).
- Set for “Front”.
Radio
Unable to receive stations.
• No antenna, or open connection in the antenna cable.
- Make sure the antenna is properly connected; replace the
antenna or cable if necessary.
Unable to tune stations in the seek mode.
• You are in a weak signal area.
- Make sure the tuner is in DX mode.
• If the area you are in is a primary signal area, the antenna may
not be grounded and connected properly.
- Check your antenna connections; make sure the antenna is
properly grounded at its mounting location.
• The antenna may not be the proper length.
- Make sure the antenna is fully extended; if broken, replace the
antenna with a new one.
Broadcast is noisy.
• The antenna is not the proper length.
- Extend the antenna fully; replace it if it is broken.
• The antenna is poorly grounded.
-
Make sure the antenna is grounded properly at its mounting location.
• The station signal is weak and noisy.
- If above solution does not work, tune in another station.
Disc
Disc playback sound is wavering.
• Moisture condensation in the disc Module.
- Allow enough time for the condensation to evaporate (about 1
hour).
Disc insertion not possible.
• A disc is already in this unit.
- Eject the disc and remove it.
• The disc is being improperly inserted.
- Insert the disc correctly. (See page 19)
Unable to fast forward or backward the disc.
• The disc has been damaged.
- Eject the disc and discard it; using a damaged disc in your unit
can cause damage to the mechanism.
Disc playback sound skips due to vibration.
• Improper mounting of the unit.
- Securely re-mount the unit.
• Disc is very dirty.
- Clean the disc.
• Disc has scratches.
- Change the disc.
• The pick-up lens is dirty.
- Do not use a commercially available lens cleaner disc. Consult
your nearest Alpine dealer.
If you encounter a problem, please turn the power off, then on again.
If the unit is still not functioning normally, please review the items in
the following checklist. This guide will help you isolate the problem
if the unit is at fault. Otherwise, make sure the rest of your system is
properly connected, or then consult your authorized Alpine dealer.
101-EN
Disc playback sound skips without vibration.
• Dirty or scratched disc.
- Clean the disc; a damaged disc should be replaced.
CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW playback
not possible.
• Close session (finalisation) has not been performed.
- Perform finalisation and attempt playback again.
Error displays.
• Mechanical error.
- Touch [c Disc] on the Open/Tilt screen. After the error
indication disappears, insert the disc again. If the above-
mentioned solution does not solve the problem, consult your
nearest Alpine dealer.
MP3/WMA/AAC is not played back.
• Writing error occurred. The CD format is not compatible.
- Make sure the CD has been written in a supported format.
Refer to “About MP3/WMA/AAC” (pages 35 to 36), then
rewrite in the format supported by this device.
Unit does not operate.
• Condensation.
- Wait a while (about 1 hour) for the condensation to dry.
Playback does not start.
• Disc is loaded upside-down.
- Check the disc and load it with the labeled side facing upward.
•Disc is dirty.
- Clean the disc.
• A disc not able to play back with this unit is loaded.
- Check if the disc is able to be played back.
• Parental lock is set.
- Cancel the parental lock or change the rating level.
Picture is unclear or noisy.
• Disc is being fast-forwarded or fast-reversed.
- The picture may be slightly disturbed, but this is normal.
• Vehicle’s battery power is weak.
- Check the battery power and wiring.
(The unit may malfunction if the battery power is under 11
volts with a load applied.)
Image stops sometimes.
• Disc is scratched.
- Replaced with a non-scratched disc.
Navigation
The Navigation cannot work properly.
• Reset Navigation system.
- Reinsert the SD card and turn the ignition key off, and then set
to ON again.
If this Message Appears
Various messages are displayed on the screen during operation. In
addition to the messages telling you the current status or providing
guidance for the next operation, there are also the following error
messages. If one of these error messages is displayed, carefully follow
the instructions in the solution column.
System
If you are driving, please pull over before using this
function.
• A setup operation, etc., was carried out while the vehicle was
running.
- Move the vehicle to a safe location, stop, and engage the
parking brake, then carry out this operation.
USB current error.
• Abnormal current is run to the USB connector device.
- Turn the ignition key off, and then set to ON again.
- Attempt to connect another iPod/iPhone/Flash Memory device.
Unable to access the DVD drive.
The system will reset.
• An access error to DVD drive occurred for some reasons.
- The unit is rebooted automatically.
Unable to access the DVD drive.
Please inquire details from the service center.
• An access error to DVD drive occurred for some reasons.
- Please ask Service Center for help.
Please insert the SD Memory Card
and press the Eject button to close.
• The SD memory card is in a half insert state and it blocks the
sliding screen.
- Insert the SD memory card into the slot until it is locked or
take it out.
102-EN
Audio/Visual
Read error.
Please check the Disc.
• Scratched disc, contaminated disc/poor recording/disc
incompatible with this unit.
- Touch [ Disc] on the Open/Tilt screen.
- Change the disc.
Connected USB Device is not supported.
• An iPod/iPhone that is not supported by the unit is connected.
- Connect an iPod/iPhone that is supported by the unit.
- Reset the iPod.
• A USB device that is not supported by the unit is connected.
- Attempt to connect another Flash Memory device.
• Communication error.
- Turn the ignition key off, and then set to ON again.
- Check the display by reconnecting between the iPod/iPhone
and the unit, using the iPod/iPhone cable.
- Check the display by reconnecting between the Flash Memory
device and the unit.
• Caused by the iPod/iPhone Software Version not being
compatible with this unit.
- Update the iPod/iPhone Software Version to be compatible
with this unit.
• The iPod/iPhone is not verified.
- Change another iPod/iPhone.
Region Code Violation.
• Disc does not match regional code number.
- Load a disc that matches the regional code number.
No data.
• There are no data in the iPod/iPhone.
- Download data to the iPod/iPhone and connect to the
X009.
• There are no data in the Flash Memory.
- Download data to the Flash Memory and connect to this unit.
Un-readable song was skipped.
• A copy-protected WMA file has been detected.
- You can only play back non-copy-protected files.
• A sampling rate/bit rate not supported by the unit is used.
- Use a sampling rate/bit rate supported by the unit.
Bluetooth
Please check Bluetooth audio device.
• The Bluetooth audio device was not connected correctly.
- Check the settings for X009 and the Bluetooth audio device
and reconnect.
Please check mobile device.
• The mobile phone was not connected correctly.
- Check the settings for X009 and the mobile phone and
reconnect.
Unable to download phonebook.
• Phonebook failed to read due to mobile phone disconnection,
etc.
- Check the mobile phone connection, and then conduct
synchronizing and adding again. (See page 71)
• The connected mobile phone does not support synchronizing of
its phone book.
- Connect the mobile phone that supports synchronizing the
phone book, then synchronize again. (See page 71)
Navigation
The vehicle’s position is erroneous.
• The GPS reception is poor.
- Drive the vehicle in an area of good GPS reception to allow the
unit to recalibrate itself. Move to a location where strong GPS
reception is possible.
No operation
• Moisture condensation
- Allow enough time for the condensation to evaporate (about 1
hour).
• Ambient Temperature
- Make sure the temperature inside the vehicle is between 0°C
and 45°C (32°F and 113°F).
Playing back a DRM protected DivX File
Some operations cannot be performed while displaying the following
message.
Authorization Error.
This player is not authorized to play this video.
• The version of the DRM protected DivX® File is not supported
by this unit.
- Play the supported DivX® File.
103-EN
Rental Expired.
• The file being attempted to play has a limited number of
viewings. The viewing limit has been reached and can no longer
be played on this device. After the message has been displayed,
the beginning of the next file will automatically be played back.
This DivX rental has used XX out of YY views.
Continue?
• If the total number of viewings for this file has not been
exceeded, the views remaining is displayed.
- To play back, select [OK]. If the next file is to be played back,
select [Cancel].
Do you wish to stop playing rental file?
• While playing back a rental file, “Do you wish to stop playing
rental file?” is displayed when the following operations are
performed. Selecting [OK], reduces the number of views by 1.
• Folder Up/Down
•STOP
• Search operation
• Move to the first/last DivX® file by Chapter Up/Down
- To interrupt the playback, touch [OK], or touch [Cancel] to
not interrupt.
Audio format not supported.
• The file being played is a DivX® file with an unsupported audio
format, so only the video data is played.
-Play a DivX
® file with a supported audio format.
Video frame rate not supported.
• The file being played is a DivX® file with an unsupported frame
rate.
-Play a DivX
® file with a supported frame rate.
Video resolution not supported.
• The file being played is a DivX® file with an unsupported
resolution.
-Play a DivX
® file with a supported resolution.
SiriusXM
Check Tuner
• The SiriusXM Tuner is disconnected or the unit is having trouble
communicating with the Tuner.
- Connect the Tuner or check the Tuner connection to the back
of the unit.
Check Antenna
• The SiriusXM Satellite Radio antenna or cable is either damaged
or not connected correctly to the SiriusXM Tuner.
- Check that the SiriusXM antenna cable is connected to the
SiriusXM Tuner and check that the antenna cable is not kinked
or otherwise damaged. Replace the antenna if necessary.
No Signal
• The SiriusXM satellite signal is too weak at the current location.
- Move the vehicle to a location with a clear view of the southern
sky.
- Make sure the Satellite Radio antenna is properly mounted and
not obstructed by metal objects.
Channel <xxx> Not Subscribed
Call SiriusXM to Subscribe
• The active channel has become unsubscribed or the requested
channel is not available in your subscription package.
- Visit www.siriusxm.com for information on subscribing to this
channel.
•The unit will revert to the previous selected channel or to channel 1
automatically.
Channel <xxx> Not Available
• The active channel is no longer in the SiriusXM channel lineup
or the user has entered an invalid channel number.
- Visit www.siriusxm.com for information on the current
channel lineup.
•The unit will revert to the previous channel or to channel 1
automatically.
Subscription Updated
Press OK to Continue
• Your subscription has been updated.
- Touch [OK] to clear this message.
Channel <xxx> Locked
• A locked channel is selected.
- Input the passcode on the number keypad screen, refer to
“Parental Lock Function” (page 84). If wrong passcode is
input, “Incorrect Pass Code entered” will be displayed and the
unit will revert to the previous channel.
Updating · · ·
• The Featured Favorites channels are during updating.
Updating Teams, please wait
• While the Game table is during updating, the [Game Alert
Setup] button in SiriusXM setup mode is touched.
Replay Memory Full
• Buffer for Replay is full.
Replay Memory Near Full
• Buffer for Replay will full within 11 seconds.
104-EN
Specifications
MONITOR SECTION
FM TUNER SECTION
AW TUNER SECTION
USB SECTION
CD/DVD SECTION
PICKUP
GPS SECTION
Bluetooth SECTION
GENERAL
*Primary amplifier ratings per CEA-2006 Standard
• Power output: measured at 4 Ohms and ≤ 1% THD+N
• S/N: 80 dBA (reference: 1 W into 4 Ohms)
CHASSIS SIZE
NOSE SIZE
•Due to continuous product improvement, specifications and design
are subject to change without notice.
•The LCD panel is manufactured using an extremely high precision
manufacturing technology. Its effective pixel ratio is over 99.99%.
This means that there is a possibility that 0.01% of the pixels could
be either always ON or OFF.
Screen Size 9.0"
LCD Type Transparent type TN LCD
Operation System TFT active matrix
Number of Picture Elements 1,152,000 pcs. (800 × 480 × 3
(RGB))
Effective Number of Picture Elements
99% or more
Illumination System LED
Tuning Range 87.7 – 107.9 MHz
Mono Usable Sensitivity 9.3 dBf (0.8 µV/75 ohms)
50 dB Quieting Sensitivity 13.5 dBf (1.3 µV/75 ohms)
Alternate Channel Selectivity 80 dB
Signal-to-Noise Ratio 65 dB
Stereo Separation 35 dB
Capture Ratio 2.0 dB
Tuning Range 530 – 1,710 kHz
Sensitivity (IEC Standard) 22.5 µV/27.0 dBf
USB requirements USB 1.1/2.0
Max. Power Consumption 1,000 mA
USB Class USB (Play From Device)/
USB (Mass Storage Class)
File System FAT12/16/32
MP3 Decoding MPEG-1/2 AUDIO Layer-3
WMA Decoding Windows Media™ Audio
AAC Decoding AAC-LC format “.m4a” file
Number of Channels 2-Channels (Stereo)
Frequency Response* 5 – 20,000 Hz (±1 dB)
Total Harmonic Distortion 0.008% (at 1 kHz)
Dynamic Range 95 dB (at 1 kHz)
Signal-to-Noise Ratio 100 dB
Channel Separation 85 dB (at 1 kHz)
* Frequency response may differ depending on the encoder
software/bit rate.
Frequency Response 5 – 20,000 Hz (±1 dB)
Wow & Flutter (% WRMS) Below measurable limits
Total Harmonic Distortion 0.008% (at 1 kHz)
Dynamic Range 95 dB (at 1 kHz)
Channel Separation 85 dB (at 1 kHz)
Horizontal resolution 500 lines or greater
Video output level 1Vp-p (75 ohms)
Video S/N ratio DVD: 60 dB
Audio S/N ratio 100 dB
Wave length DVD: 666 nm
CD: 785 nm
Laser power CLASS II
GPS Reception frequency 1,575.42 ±1 MHz
GPS Reception sensitivity -130 dB max.
Bluetooth Specification Bluetooth V2.1+EDR
Output Power +4 dBm Max. (Power class 2)
Profile HFP (Hands-Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio/Video Remote
Control Profile)
Power Requirement 14.4 V DC
(11–16 V allowable)
Operating temperature -4°F to +140°F
(-20°C to + 60°C)
Power Output 18 W RMS × 4*
Weight 2.97 kg
Audio output level
Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4V/10k ohms (max.)
AUX OUT: 1.2V/10k ohms (max.)
Width 178 mm
Height 100 mm
Depth 153 mm
Width 214 mm
Height 132 mm
Depth 23 mm
105-EN
CAUTION END USER LICENSE AGREEMENT
(Microsoft)
You have acquired a device (“DEVICE”) that includes software
licensed by Alpine Electronics, Inc. (collectively “ALPINE”) from
an affiliate of Microsoft Corporation (collectively “MS”). Those
installed software products of MS origin, as well as associated
media, printed materials, and “online” or electronic
documentation (“SOFTWARE”) are protected by international
intellectual property laws and treaties. The SOFTWARE is
licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE
AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE INSTEAD, PROMPTLY CONTACT ALPINE FOR
INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR
A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT
NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE
YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY
PREVIOUS CONSENT).
GRANT OF SOFTWARE LICENSE,
This EULA grants you the following license: You may use the
SOFTWARE only on the DEVICE.
NOT FAULT TOLERANT.
THE SOFTWARE IS NOT FAULT TOLERANT. ALPINE HAS
INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE
IN THE DEVICE, AND MS HAS RELIED UPON ALPINE TO
CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE
SOFTWARE IS SUITABLE FOR SUCH USE.
NO WARRANTIES FOR THE SOFTWARE,
THE SOFTWARE is provided “AS IS“ and with all faults. THE
ENTIRE RISK AS TO SATISFACTORY QUALITY,
PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING
LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO
WARRANTY AGAINST INTERFERENCE WITH YOUR
ENJOYMENT OF THE SOFTWARE OR AGAINST
INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES
REGARDING THE DEVICE OR SOFTWARE THOSE
WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT
BINDING ON, MS.
CAUTION-Laser radiation when open, DO NOT STARE INTO BEAM
(Bottom side of player)
106-EN
NO LIABILITY FOR CERTAIN DAMAGES.
EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL
OR THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF
ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO
EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS
OF U.S. TWO HUNDRED FIFTY DOLLARS (U.S. $250.00).
LIMITATIONS ON REVERSE ENGINEERING,
DECOMPILATION, AND DISASSEMBLY
You may not reverse engineer, decompile, or disassemble the
SOFTWARE, except and only to the extent that such activity is
expressly permitted by applicable law notwithstanding this
limitation.
ADDITIONAL SOFTWARE/SERVICES.
The SOFTWARE may permit ALPINE, MS, Microsoft Corporation
or their affiliates to provide or make available to you SOFTWARE
updates, supplements, add-on components, or Internet – base
service components of the SOFTWARE after the date you obtain
your initial copy of the SOFTWARE (“Supplemental
Components”).
•If ALPINE provides or makes available to you
Supplemental Components and no other EULA terms are
provided along with the Supplemental Components, then
the terms of this EULA shall apply.
•If MS, Microsoft Corporation or their affiliates make
available Supplemental Components, and no other EULA
terms are provided, then the terms of this EULA shall
apply, except that MS, Microsoft Corporation or affiliate
entity providing the Supplemental Component(s) shall be
licensor of the Supplemental Component(s).
•ALPINE, MS, Microsoft Corporation and their affiliates
reserve the right to discontinue any Internet-based
services provided to you or made available to you through
the use of the SOFTWARE.
RECOVERY MEDIA.
If SOFTWARE is provided by ALPINE on separate media and
labeled “Recovery Media” you may use the Recovery Media
solely to restore or reinstall the SOFTWARE originally installed on
the DEVICE.
UPGRADES.
If the SOFTWARE is provided by ALPINE separate from the
DEVICE on separate media or via web download or other
means, and is labeled “For Upgrade Purposes Only” you may
install one (1) copy of such SOFTWARE onto the DEVICE as a
replacement copy for the existing SOFTWARE, and use it in
accordance with this EULA, including any additional EULA terms
accompanying the upgrade SOFTWARE.
TERMINATION.
Without prejudice to any other rights, ALPINE or MS may
terminate this EULA if you fail to comply with the terms and
conditions of this EULA. In such event, you must destroy all
copies of the SOFTWARE and all of its component parts.
INTELLECTUAL PROPERTY RIGHTS.
All title and intellectual property rights in and to the SOFTWARE
(including but not limited to any images, photographs,
animations, video, audio, music, text and “applets”,
incorporated into the SOFTWARE), the accompanying printed
materials, and any copies of the SOFTWARE, are owned by MS,
Microsoft Corporation, their affiliates or suppliers. The
SOFTWARE is licensed, not sold.
You may not copy the printed materials accompanying the
SOFTWARE. All title and intellectual property rights in and to the
content which may be accessed through use of the SOFTWARE
is the property of the respective content owner and may be
protected by applicable copyright or other intellectual property
laws and treaties. This EULA grants you no rights to use such
content. All rights not specifically granted under this EULA are
reserved by MS, Microsoft Corporation, their affiliates and
suppliers. Use of any on-line services which may be accessed
through the SOFTWARE may be governed by the respective
terms of use relating to such services. If this SOFTWARE
contains documentation that is provided only in electronic form,
you may print one copy of such electronic documentation.
TRADEMARKS.
This EULA does not grant you any rights in connection with any
trademarks or service marks of ALPINE, MS, Microsoft
Corporation, their affiliates or suppliers.
PRODUCT SUPPORT.
Product support for the SOFTWARE is not provided by MS, its
parent corporation Microsoft Corporation, or their affiliates or
subsidiaries. For product support, please refer to ALPINE
support number provided in the documentation for the DEVICE.
Should you have any questions concerning this EULA, or if you
desire to contact ALPINE for any other reason, please refer to
the address provided in the documentation for the DEVICE.
SOFTWARE TRANSFER ALLOWED BUT WITH
RESTRICTIONS.
You may permanently transfer rights under this EULA only as
part of a permanent sale or transfer of the Device, and only if the
recipient agrees to this EULA. If the SOFTWARE is an upgrade,
any transfer must also include all prior versions of the
SOFTWARE.
EXPORT RESTRICTION.
You acknowledge that SOFTWARE is of US-origin. You agree to
comply with all applicable international and national laws that
apply to the SOFTWARE, including the U.S. Export
Administration Regulations, as well as end-user, end-use and
country destination restrictions issued by U.S. and other
governments. For additional information on exporting the
SOFTWARE, see http://www.microsoft.com/exporting/
107-EN
END USER LICENSE AGREEMENT
(NAVTEQ)
In using this Navigation System (hereinafter referred to as
“System”), which includes Alpine Electronics, Inc. (“Alpine”)
Specifications, Space Machine, Inc. (“Space Machine”)
Software and NAVTEQ North America, LLC. (“NAVTEQ”)
Database, you are bound by the terms and conditions set forth
below. By breaking the seal on the System and using your copy
of the System, you have demonstrated your agreement to the
terms and conditions of this Agreement. You should, therefore,
make sure that you read and understand the following
provisions.
The System may not be copied, duplicated or otherwise
modified, in whole or in part, without the express written
permission of Alpine, Space Machine and NAVTEQ.
The System may not be transferred or sublicensed to any third
party for profit, rent or loan or licensed for reuse in any manner.
The System may not be decompiled, reverse engineered or
otherwise disassembled, in whole or in part.
The System may not be used in a network or by any other
manner of simultaneous use in multiple systems.
The System is intended solely for personal use (or internal use
where the end-user is a business) by the consumer.
The System is not to be used for commercial purposes.
Neither Alpine, Space Machine nor NAVTEQ guarantees to the
customer that the System meet the specific objectives of the
user.
Neither Alpine, Space Machine nor NAVTEQ shall be
responsible for any damages caused by the use of the System to
the actual user and to any third party.
The warranty on the System shall not extend to an exchange or
refund due to misspelling, omission of letters, or any other
cosmetic discrepancy in layout found in the System.
The right to use the System shall expire either when the user
destroys this software, or when any of the terms for use is
violated and Alpine, Space Machine and/or NAVTEQ exercise
the option to revoke the license to use this software.
The terms and conditions hereof apply to all subsequent users
and owner’s as well as to the original purchaser.
The NAVTEQ Database may include or reflect data of licensors,
including Her Majesty The Queen in right of CANADA. Such data
is licensed on an “AS IS” basis. The licensors, including Her
Majesty The Queen, make no guarantees, representations or
warranties respecting such data, either express or implied,
arising by law or otherwise, accuracy or fitness for a particular
purpose.
The licensors, including Her Majesty The Queen, shall not be
liable in respect of any claim, demand or action, irrespective of
the nature of the cause of the claim, demand or action alleging
any loss, injury or damages, direct or indirect, which may result
from the use or possession of the data or the NAVTEQ database.
The licensors, including Her Majesty The Queen, shall not be
liable in any way for loss of revenues or contracts, or any other
consequential loss of any kind resulting from any defect in the
data or the NAVTEQ database.
End User shall indemnify and save harmless the licensors,
including Her Majesty The Queen and the minister, and their
officers, employees and agents from and against any claim,
demand or action, irrespective of the nature of the cause of the
claim, demand or action, alleging loss, costs, expenses,
damages or injuries (including injuries resulting in death) arising
out of the use or possession of the data or the NAVTEQ
database.
108-EN
Installation and Connections
Before installing or connecting the unit, please read the
following and pages 8 to 13 of this manual thoroughly for
proper use.
Warning
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire or product
damage.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual to
prevent obstructions when driving. Cables or wiring that obstruct or
hang up on places such as the steering wheel, gear lever, brake
pedals, etc. can be extremely hazardous.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.
When drilling holes in the chassis for installation, take precautions
so as not to contact, damage or obstruct pipes, fuel lines, tanks or
electrical wiring. Failure to take such precautions may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING
SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for
installations or ground connections. Using such parts could disable
control of the vehicle and cause fire etc.
KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR
GEARSHIFT.
Doing so may obstruct forward vision or hamper movement etc.
and results in serious accident.
Caution
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.
The wiring and installation of this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of other than
designated parts may damage this unit internally or may not
securely install the unit in place. This may cause parts to become
loose resulting in hazards or product failure.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like the seat
rails) or sharp or pointed edges. This will prevent crimping and
damage to the wiring. If wiring passes through a hole in metal, use
a rubber grommet to prevent the wire’s insulation from being cut by
the metal edge of the hole.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR
DUST.
Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this unit may
result in product failure.
Precautions
• Be sure to disconnect the cable from the (–) battery post before
installing your X009. This will reduce any chance of damage to
the unit in case of a short-circuit.
• Be sure to connect the color coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle’s electrical system.
• When making connections to the vehicle’s electrical system, be
aware of the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for this
unit. When connecting the X009 to the fuse box, make sure the
fuse for the intended circuit of the X009 has the appropriate
amperage. Failure to do so may result in damage to the unit and/
or the vehicle. When in doubt, consult your Alpine dealer.
• The X009 uses female RCA-type jacks for connection to other
units (e.g. amplifier) having RCA connectors. You may need an
adaptor to connect other units. If so, please contact your
authorized Alpine dealer for assistance.
• Be sure to connect the speaker (–) leads to the speaker (–)
terminal. Never connect left and right channel speaker cables to
each other or to the vehicle body.
• The Display must be completely retracted in the casing when
installing. If it is not, problems may occur.
• When installing in automobiles, make sure the Display can open/
close without coming in contact with the gear shift.
IMPORTANT
Please record the serial number of your unit in the space provided
below and keep it as a permanent record. The serial number plate is
located on the bottom of the unit.
SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:
109-EN
Installation
Caution concerning the installation location
1
Before installing, make sure that the opening and
closing of the display will not interfere with
operation of the gear shift.
2
Angle of installation
Install at an angle between horizontal and 30°. Note
that installing at an angle outside of this range will
result in a loss of performance and possibly
damage.
3
Mounting the GPS Antenna inside the vehicle.
1 Clean the mounting location.
2 Put on the GPS Antenna mounting plate.
3 Mount the GPS Antenna.
•Mount the GPS Antenna on a flat plane of the dash board or
rear tray.
•Some thermal reflection type or thermal absorption type glass
may interrupt high frequency waves. If reception is poor with
the antenna installed inside the car, try to mount the antenna
outside the car.
•Make sure the GPS Antenna is not covered (obstructed) by any
metallic surface or object.
To install the X009, refer to the manual in the separately
purchased installation kit.
Caution
Do not block the unit’s fan or heat sink, thus preventing
air circulation. If blocked, heat will accumulate inside
the unit and may cause a fire.
Air ventilation hole
Rear of the Unit
Heat sink
<example>
Movable Display
0 - 30°
Antenna mounting plate
GPS Antenna
110-EN
Connection Diagram of SPST Switch (sold separately)
(If the ACC power supply is not available)
•If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold separately).
•The diagram and the fuse amperage shown above are in the case when X009 is used individually.
•If the switched power (ignition) lead of the X009 is connected directly to the positive (+) post of the vehicle’s battery, the
X009 draws some current (several hundred milliamperes) even when its switch is placed in the OFF position, and the battery may be discharged.
X009
(Red)
(Yellow)
SPST SW (Optional) FUSE (5A)
(Optional)
FUSE (20A)
(Optional)
Battery
ACC
BATTERY
To prevent external noise from entering the audio system.
•Locate the unit and route the leads at least 10 cm away from the car harness.
•Keep the battery power leads as far away from other leads as possible.
•Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.
•If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various
noise suppressors, contact them for further information.
•Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
111-EN
Connections
To SiriusXM Tuner
To remote input lead
(Brown)
(Blue/White)
(Blue)
(Yellow/Blue)
(Yellow)
(Black)
To amplifier or equalizer
Rear Left
REMOTE OUT
REMOTE IN
SPEED SENSOR
REMOTE TURN-ON
POWER ANT
PARKING BRAKE
BATTERY
GND
FOOT BRAKE
(Yellow/Black)
To external Audio Processor
(PXA-H800, etc.)
To power antenna
To the foot brake cord or
brake lamp cord
Battery
(Green/Black)
Ignition key
(Yellow)
(Red)
(White)
(Yellow)
(Red)
(White)
Amplifier
Amplifier
Amplifier
Rear Left
Rear Right
Front Left
Front Right
Subwoofers
To remote output lead
To Audio Input terminals
(R, L)
To Audio output terminals
(R, L)
To Video Input terminal
To Video output terminal
CAMERA1
CAMERA2
To the vehicle speed pulse line
To Front/Rear camera
(Green)
Front Left
Front Right
Rear Right
(White/Black)
(White)
(Gray)
(Gray/Black)
(Violet)
(Violet/Black)
Speakers
Antenna
To plus side of the back
lamp signal lead of the car
(Orange/White)
REVERSE
To Rear/Other camera
MIX CONT
BEEP/NAVIRG
(Green/White)
To iPod/iPhone or AUX output
device
To steering remote control interface
box
IPOD VIDEO
STEERING REMOTE
(Brown)
(Green/White)
(Red)
To the parking brake
signal lead
To guide control input terminal
To Guide Input terminal
To iDataLink module data I/O
IGNITION
112-EN
Radio Antenna Receptacle
Digital Output Terminal (Optical)
Use when combining fiber optic digital input compatible
products. Be sure to use the Optical Digital Cable
(KWE-610A) (sold separately) only.
SiriusXM Tuner Input Connector
To SiriusXM Tuner.
Remote Control Output Lead (Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
Remote Control Input Lead (Brown)
Connect the external Alpine product to the remote control
output lead.
Speed Sensor Lead (Green/White)
Improper connection of the speed pulse line may cause
important safety features of the vehicle to fail (such as the
brakes or air bags). Such failures may result in an accident
and loss of life. We strongly recommend that the installation
be performed by a trained, authorized Alpine dealer.
Direct CAMERA Input Connector
Use when the optional direct camera is connected.
CAMERA Input RCA Connector (Yellow)
Use when connecting a camera with RCA Output
Connector.
iPod VIDEO Input Connector (IPOD VIDEO)
Input the iPod/ iPhone video signal or AUX video/audio
signal.
•Set “AUX 3 Source Select” (page 60) to “iPod Video”
when an iPod/iPhone is connected.
•Set “AUX 3 Source Select” (page 60) to “AUX3” when
AUX video/audio is input.
Steering Remote Control Interface Connector
To steering remote control interface box.
For details about connections, consult your nearest Alpine
dealer.
MIX Control Lead (Green/White)
Use when an optional External Audio Processor with guide
control input terminal is connected.
•When this lead is connected to PXA-H800, make sure to
turn the ignition key off (ACC OFF) and on (ACC ON)
again or turn the unit power off and on again, after setting
“Navi Mix” from OFF to ON on PXA-H800.
Beep/NAVI Guide Connector
Output the audio signal of navigation interruption.
When connecting an Audio processor, connect this lead to
the Guide Input terminal with an optional RCA Extension
cable.
iDataLink data I/O Connector
To the data I/O Connector of iDataLink module.
HDMI input Connector
Input HDMI signal, you should prepare an optional Alpine
special HDMI cable.
USB Connector
To Flash Memory or iPod/iPhone.
GPS antenna Receptacle
Connect to GPS antenna (included).
iDataLink Audio input connector
To the audio output connector of iDataLink module.
Not used
EXT. KEY Connector
To external Key Panel.
AUX/PRE OUT Connector
Video Input Connector (AUX INPUT) (Yellow)
Input the video.
•For GMC/Chevrolet, connect this to external Key Panel’s
video input terminal.
•For other model, connect this to external video output
terminal.
Audio Input Connectors (AUX INPUT)
RED is right and WHITE is left input the audio.
•For GMC/Chevrolet, connect these to external Key
Panel’s audio input terminals.
•For other model, connect these to external audio output
terminals.
Video Output Connector (AUX OUTPUT) (Yellow)
Output the video.
Audio Output Connectors (AUX OUTPUT)
RED is right and WHITE is left output the audio.
Front Output RCA Connectors
It can be used as Front Output RCA Connectors. RED is
right and WHITE is left.
Rear Output RCA Connectors
It can be used as Rear Output RCA Connectors. RED is
right and WHITE is left.
Subwoofer RCA Connectors
RED is right and WHITE is left.
RCA Extension Cable (sold separately)
Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor.
Reverse Lead (Orange/White)
Connect to the plus side of the car’s reverse lamp. This
lamp illuminates when the transmission is shifted into
reverse (R).
With this lead properly wired, the video picture
automatically switches to the rear camera whenever the car
is put into reverse (R).
Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your power antenna,
if applicable.
•This lead should be used only for controlling the vehicle’s power
antenna. Do not use this lead to turn on an amplifier or a signal
processor, etc.
Parking Brake Lead (Yellow/Blue)
Connect this lead to the power supply side of the parking
brake switch to transmit the parking brake status signals to
the X009.
Foot Brake Lead (Yellow/Black)
Connect to the vehicle’s foot brake lead or brake lamp lead.
Switched Power Lead (Ignition) (Red)
Connect this lead to an open terminal on the vehicle’s fuse
box or another unused power source which provides (+)
12V only when the ignition is turned on or in the accessory
position.
Battery Lead (Yellow)
Connect this lead to the positive (+) post of the vehicle’s
battery.
113-EN
Fuse Holder (15A)
Ground Lead (Black)
Connect this lead to a good chassis ground on the vehicle.
Make sure the connection is made to bare metal and is
securely fastened using the sheet metal screw provided.
Left Rear (+) Speaker Output Lead (Green)
Left Rear (–) Speaker Output Lead (Green/Black)
Left Front (+) Speaker Output Lead (White)
Left Front (–) Speaker Output Lead (White/Black)
Right Front (–) Speaker Output Lead (Gray/Black)
Right Front (+) Speaker Output Lead (Gray)
Right Rear (–) Speaker Output Lead (Violet/Black)
Right Rear (+) Speaker Output Lead (Violet)
CAMERA/W.REMOTE Connector
Power Supply Connector
114-EN
System Example
Connection of a Flash Memory
•Do not leave Flash memory, in a vehicle for a long time. Heat and humidity may damage the Flash memory.
Connection of an iPod/iPhone
* If iPod VIDEO is supported, use the iPod VIDEO extension cable.
•To connect an iPod/iPhone, an optional connection kit KCU-461iV is required.
•Do not leave a iPod/iPhone in a vehicle for a long time. Heat and humidity may damage the iPod/iPhone and you may not be able to play it again.
Flash Memory (sold separately)
USB extension cable
(Included)
USB connector
GPS Antenna (Included)
USB connector
USB extension cable (Included)
iPod VIDEO AV extension cable*
(sold separately) (KCU-461iV)
Connection kit KCU-461iV
(sold separately)
iPod/iPhone
(Sold separately)
iPod VIDEO input connector
CAMERA/W.REMOTE Connector
115-EN
Connection of an External device
1Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor.
2Remote on Lead
3RCA Extension Cable (sold separately)
4Front Output RCA Connectors
RED is right and WHITE is left.
5Video/Audio Input Connectors (AUX INPUT)
For GMC/Chevrolet, these connectors tie the head unit’s
AUX Input to the external Key Panel’s AUX Input. Refer to
“Location of Controls” (page 18).
Video/Audio Output Connectors (AUX OUTPUT)
Used when connecting an optional monitor, etc.
Remote Control Input Lead (Brown)
Connect this lead to the remote control output lead. This
lead inputs the controlling signals from the remote control.
Remote Control Output Lead (Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
MIX Control Lead (Green/White)
Use when an optional External Audio Processor with guide
control input terminal is connected.
•When this lead is connected to PXA-H800, make sure to
turn the ignition key off (ACC OFF) and on (ACC ON)
again or turn the unit power off and on again, after setting
“Navi Mix” from OFF to ON on PXA-H800.
Beep/NAVI Guide Connector
Output the audio signal of navigation interruption.
When connecting an Audio processor, connect this lead to
the Guide Input terminal with an optional RCA Extension
cable.
Navigation audio input connector (RCA input) (NAVI)
Used to input the audio output signals of a navigation
system.
*1When a fiber optic compatible external audio processor (PXA-H800, etc.) is connected, the External Audio Processor and Optical should be set to
On. Refer to “Setting the External Audio Processor On/Off” (page 48) and “Setting the Digital Output” (page 48).
*2When a fiber optic compatible external audio processor (PXA-H800, etc.) is connected, the power supply of the built-in amplifier is stopped and an
external amplifier should be used to drive speakers. For details, refer to the owner’s manual of the compatible external audio processor.
•You can change the name of an external device. Refer to “Setting the Auxiliary (AUX) Mode” (page 60).
CAMERA/W.REMOTE Connector
Audio Processor (Fiber optic
digital compatible) (PXA-H800,
etc.) (sold separately)*1/*2
AUX/PRE OUT Connector
(Red)
(White)
(White)
(Yellow)
(Red)
(White)
To Video Output terminal
To Audio Output terminal
DVD Changer (sold separately)
To Video Input terminal
To Audio Input terminal
Rear monitor (sold separately)
REMOTE OUT
(Brown)
REMOTE IN
(White/Brown)
REMOTE IN
(Brown)
REMOTE OUT
(White/Brown)
Optical Digital Cable (KWE-610A) (Sold separately)
To Fiber optic digital Input
terminal (for head unit)
To Audio Input terminal
(Yellow)
(Red)
Guide Control
BEEP/NAVIRG
MIX CONT
Power Supply Connector
AUX/PRE OUT cable
116-EN
Connection of a Mobile Digital TV Receiver and DVD Changer
1Video/Audio Input Connectors (AUX INPUT)
For GMC/Chevrolet, if the external Key Panel has an AUX
Input, these connectors can provide an input from the
vehicle’s dash. Refer to “Location of Controls” (page 18).
2RCA Extension Cable (sold separately)
3Remote Control Output Lead (Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
4AV/RCA interface cable (4-pole mini AV plug to
3-RCA) (sold separately)
5Video/Audio Input Connectors
YELLOW is for input video, RED is right and WHITE is left
input the audio.
•You can connect one more external input device only when the “Primary Name” is set to “DVB-T”. Refer to “Setting the Primary Auxiliary (AUX)
Name (AUX 1 Setup)” (page 60).
•When connecting an external input device to the iPod VIDEO connector, set “AUX 3 Source Select” to “AUX3”. Refer to “Setting the AUX3”
(page 60).
CAMERA/W.REMOTE Connector
AUX/PRE OUT Connector
(Yellow)
(Red)
(White)
To Audio Input
Terminal
Mobile Digital
TV Receiver
(sold
separately)
iPod video connector
REMOTE OUT
(Brown)
REMOTE IN
(White/Brown)
REMOTE OUT
(White/Brown)
REMOTE IN
(White/Brown)
To Video Output terminal
To Audio Output Terminal
To Video Output terminal
To Audio Output
Term inal
DVD Changer
(sold
separately)
To Video Output terminal
DVD Player
(sold separately)
To Audio Output terminal
To Video Input Terminal
DVE-5207, etc.
117-EN
Connection of an External Amplifier
1Front Output RCA Connectors
RED is right and WHITE is left.
2Rear Output RCA Connectors
RED is right and WHITE is left.
3Subwoofer RCA Connector
4RCA Extension Cable (sold separately)
AUX/PRE OUT Connector
Power Supply Connector
(Red)
(White)
Amplifier 4 ch (sold separately)
Input
Input
Front speaker
Rear speaker
REMOTE TURN-ON
(Blue/White)
Amplifier for subwoofer (sold separately)
Input Subwoofer
(Red)
(White)
REMOTE ON
(Blue/White)
REMOTE ON
(Blue/White)
(Red)
(White)
118-EN
Connection of cameras (Direct camera and AUX camera)
1Direct CAMERA Input Connector
2Camera extension cable (Included with direct
rearview camera)
3CAMERA Input RCA Connector
•It’s better to connect the AUX Camera’s power cable to ACC.
Otherwise the (AUX) camera’s image will not be displayed by
touching (AUX) camera button on My Favorite screen. (Page 20)
4RCA Extension Cable (sold separately)
CAMERA/W.REMOTE Connector
CAMERA 1
CAMERA 2
Direct rearview camera (sold
separately)
Camera with RCA video output (sold
separately)
To Video Output terminal
HCE-C117D, etc.
119-EN
Connection of cameras (HCE-C212F + HCE-C210RD or HCE-C200F + HCE-C200R)
1CAMERA Input RCA Connector
2RCA Extension Cable (sold separately)
•When the screen switches from the front view camera image to the Navigation screen, the location of your vehicle may not be displayed correctly.
•It’s better to connect the AUX Camera’s power cable to ACC. Otherwise the (AUX) camera’s image will not be displayed by touching (AUX)
camera button on My Favorite screen. (Page 20)
CAMERA/W.REMOTE Connector
REVERSE
To plus side of the back lamp
signal lead of the car.
Control Unit
To Video Output Terminal
(Orange/White)
Camera Control Lead
(Orange/Black)
CAMERA 2
LIMITED WARRANTY
ALPINE ELECTRONICS OF AMERICA, INC. (“Alpine”), is dedicated to quality craftsmanship and is pleased to offer this Warranty. We suggest that you
read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.
PRODUCTS COVERED:
This Warranty covers Car Audio Products and Related Accessories (“the
product”). Products purchased in the Canada are covered only in the
Canada. Products purchased in the U.S.A. are covered only in the U.S.A.
LENGTH OF WARRANTY:
This Warranty is in effect for one year from the date of the first
consumer purchase.
WHO IS COVERED:
This Warranty only covers the original purchaser of the product, who
must reside in the United States, Puerto Rico or Canada.
WHAT IS COVERED:
This Warranty covers defects in materials or workmanship (parts and
labor) in the product.
WHAT IS NOT COVERED:
This Warranty does not cover the following:
Damage occurring during shipment of the product to Alpine for
repair (claims must be presented to the carrier).
Damage caused by accident or abuse, including burned voice coils
caused by over-driving the speaker (amplifier level is turned up
and driven into distortion or clipping). Speaker mechanical failure
(e.g. punctures, tears or rips). Cracked or damaged LCD panels.
Dropped or damaged hard drives.
Damage caused by negligence, misuse, improper operation or
failure to follow instructions contained in the Owner’s manual.
Damage caused by act of God, including without limitation,
earthquake, fire, flood, storms or other acts of nature.
Any cost or expense related to the removal or reinstallation of the
product.
Service performed by an unauthorized person, company or
association.
Any product which has the serial number defaced, altered or
removed.
Any product which has been adjusted, altered or modified without
Alpine’s consent.
Any product not distributed by Alpine within the United States,
Puerto Rico or Canada.
Any product not purchased from an Authorized Alpine Dealer.
HOW TO OBTAIN WARRANTY SERVICE:
You are responsible for delivery of the product to an Authorized
Alpine Service Center or Alpine for repair and for payment of any
initial shipping charges. Alpine will, at its option, repair or replace
the product with a new or reconditioned product without charge.
If the repairs are covered by the warranty, and if the product was
shipped to an Authorized Alpine Service Center or Alpine, Alpine
will pay the return shipping charges.
You should provide a detailed description of the problem(s) for
which service is required.
You must supply proof of your purchase of the product.
You must package the product securely to avoid damage during
shipment. To prevent lost packages it is recommended to use a
carrier that provides a tracking service.
HOW WE LIMIT IMPLIED WARRANTIES:
ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND
MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE
EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS
AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE OF THE PRODUCT.
HOW WE EXCLUDE CERTAIN DAMAGES:
ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND
CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM
“INCIDENTAL DAMAGES” REFERS TO EXPENSES OF TRANSPORTING
THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE
ORIGINAL PURCHASER’S TIME, LOSS OF THE USE OF THE PRODUCT,
BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE
AND CUSTODY OF THE PRODUCT. THE TERM “CONSEQUENTIAL
DAMAGES” REFERS TO THE COST OF REPAIRING OR REPLACING OTHER
PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT
WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY
ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.
HOW STATE/PROVINCIAL LAW RELATES TO THE
WARRANTY:
This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state and province to province. In
addition, some states/provinces do not allow limitations on how long
an implied warranty lasts, and some do not allow the exclusion or
limitation of incidental or consequential damages. Accordingly,
limitations as to these matters contained herein may not apply to you.
IN CANADA ONLY:
This Warranty is not valid unless your Alpine car audio product has
been installed in your vehicle by an Authorized Installation Center, and
this warranty stamped upon installation by the installation center.
HOW TO CONTACT CUSTOMER SERVICE:
Should the product require service, please call the following number
for your nearest Authorized Alpine Service Center.
Or visit our website at; http://www.alpine-usa.com
CAR AUDIO 1-800-ALPINE-1 (1-800-257-4631)
NAVIGATION 1-888-NAV-HELP (1-888-628-4357)
ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, California 90501, U.S.A.
Do not send products to this address.
Call the toll free telephone number or visit the website to locate a service center.
