Altacogni IOT-U10 IOT Dongle User Manual Manual Rev 2
Yanzi Networks AB IOT Dongle Manual Rev 2
Manual_Rev 2
Confidential 1

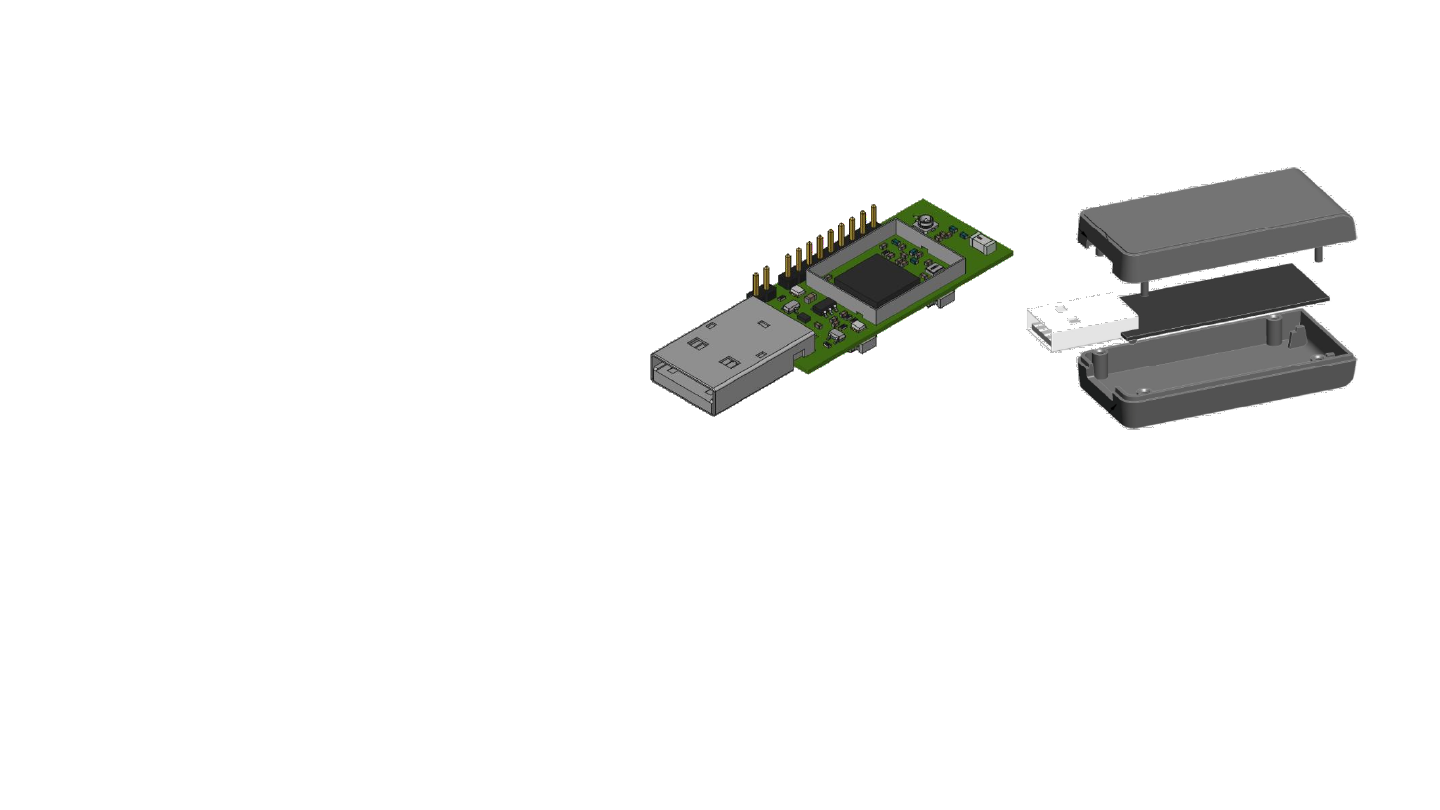

IoT Access Point Dongle
Gingy
Access point as USB dongle for Internet-of-Things applications.
Yanzi Part number: IOT-U10
Physical:
Dimensions: 58 x 20 x 11 mm
Interface:
USB 2.0 client
Operational Specification:
USB powered, 3.5V – 10V
Wireless Performance:
IEEE 802.15.4 2.4GHz IPv6 Enabled Wireless Technology
Wireless Output Power 3dBm - 7dBm
Wireless Range 10 - 30m indoor, 50 - 100m Line of Sight
(Indicative)
Chip antenna, Omnidirectional, Gain -0.5dBi
Environmental Requirements
Operating Requirements 0-50 °C, 20-80% RH(non-condensing).
Indoor.
Storage Requirements 0-50°C, 20-80% RH(non-condensing)
Enclosure, ABS plastic, from New Age Enclosures, P/N P1A-
180804U
External Buttons and Connectors
Two push buttons
Two bi-color LEDs
Regulatory testing
Europe (CE. Which parts?)
North America (UL + FCC?)
Asia (CCC?)
2015-06-02, v02
Caution:
This device complies with Part 15 of the FCC Rules / Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
