Yanzi Motion Product Brief Doc No: 890-07054 Ver: 02 Date: 2015-09-02

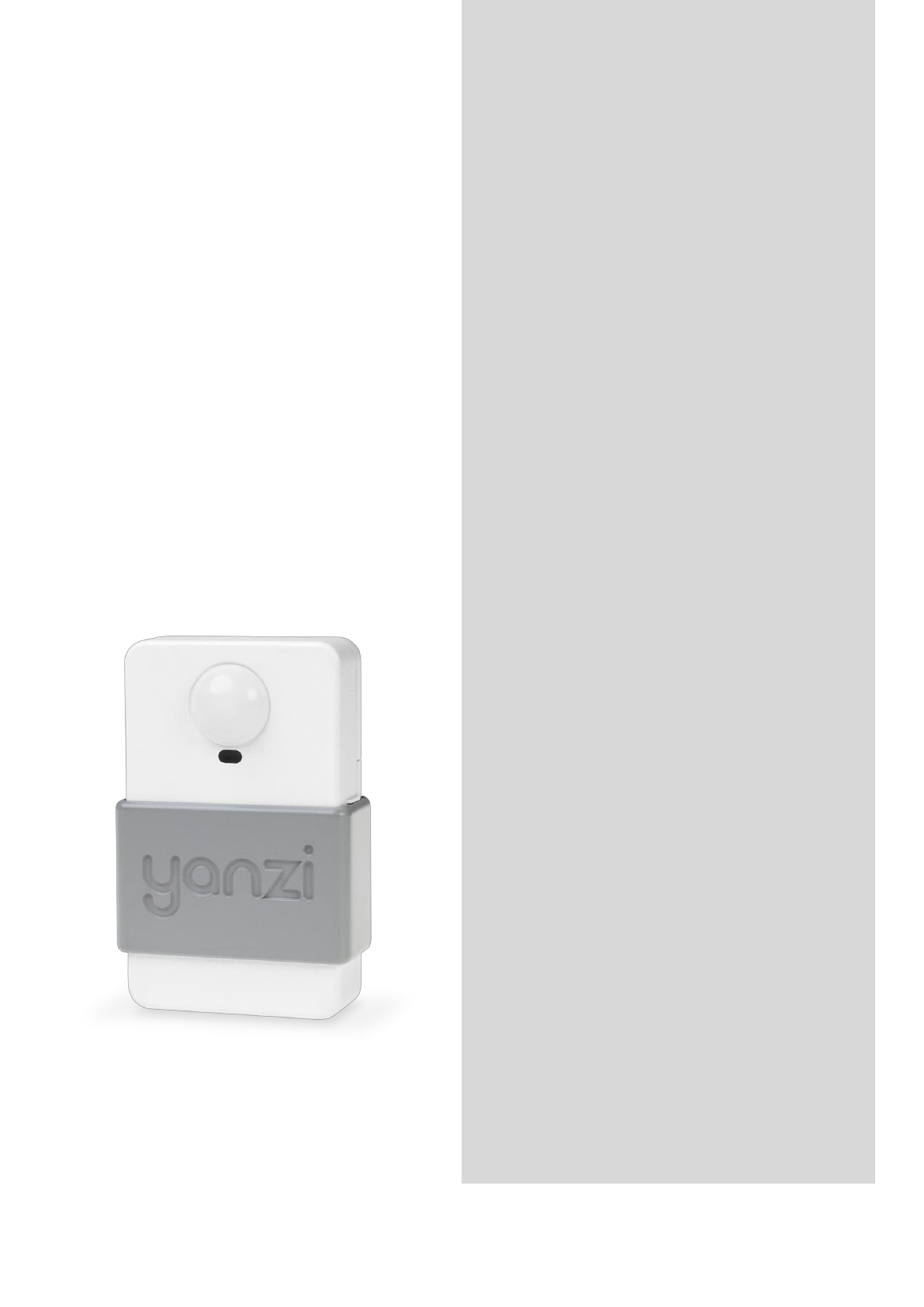

Yanzi Motion
Yanzi Motion detects motion and monitors the temperature
at your Location. Receive notifications over Cirrus API,
SMS, or push notice if there is motion at your Location or if
the temperature alarm limit is breached.
Use for space utilization monitoring in work desks or
conference rooms, as energy saver for lamps and
appliances connected to Yanzi Plugs, in lite surveillance
applications for storage rooms or server rooms, or as a
cabinet surveillance solution to know when and if a cabinet
has been opened.
Yanzi Motion connects wirelessly to Yanzi Gateway or
Yanzi IoT Access Point in a secure way through Yanzi's
“Zero-Touch configuration” and it can be immediately
accessed through the Cirrus API or the Yanzi App.
Product Brief Yanzi Smart Building Solution
Yanzi Networks reserve the right to change this specification at any time without notice. Disclaimer: Yanzi Networks can not guarantee that this specification is 100% correct.
Yanzi Motion Product Brief Doc No: 890-07054 Ver: 02 Date: 2015-09-02
Highlights
● Simple to install - single tap encryption
setup
● Provides motion detection and
temperature
● Easily mounted on walls using the
included wall mount arm or standing
on a shelf
For instructions and information about safety, warranty, and recycling, please visit
www.yanzinetworks.com
Getting started
Two steps to get started
1. Plug in batteries
2. Accept over Cirrus or in Yanzi App
You are now ready to interact with your
Yanzi Motion
Specifications
PIR Based Motion Detection
● Up to 10m motion detection distance
● 90° Vertical field of detection
● 100° Horizontal field of detection
Temperature Measurement
● Range -20°C to +50°C
● Tolerance ±1°C
Power
● 4 pcs of 1.5V AA Lithium Li-Fe or
4 pcs of 1.5V AA Alkaline batteries
● Battery lifetime expectancy up to 10 years*
Wireless Performance:
● IEEE 802.15.4 2.4GHz IPv6 Sensor
Network supporting Mesh Technology
● Wireless Output Power
3dBm - 8dBm (~2 - 6.3mW)
● Wireless Range 5-25m indoor,
50 - 100m Line of Sight (Indicative)
● Omnidirectional internal antenna,
0.5dBi peak gain
● ECC/AES encryption. High security with
unique encryption keys for each Yanzi
Motion - automatically installed at setup
Environmental Requirements
● Operating Requirements -30°C to +60°C,
0 - 100% RH(non-condensing)
Indoor and protected outdoor
● Storage Requirements 0°C to +50°C,
20 - 80% RH(non-condensing)
● IP54 protection
Designed for vertical mounting
when outdoors
External Buttons
● Status (press to show status on LED)
● Reset (press and hold for >20 s)
Dimensions
● 96 x 58 x 29 mm (excluding sleeve)
● 96 x 62 x 56 mm (including sleeve)
* To ensure long battery life, Lithium batteries are required,
especially in conditions with temperatures below 0°C. Amount
of activity may affect battery lifetime.
Ordering Information
MDW1-0201 Yanzi Motion
Doc No: 864-02049, Rev 1
