Altec Lansing MN5000 Wireless 2T2R Module User Manual
Altec Lansing, LLC Wireless 2T2R Module
User Manual
EDIMAX TECHNOLOGY INC.
NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C.
TEL: 886-2-7739-6888 FAX: 886-2-7739-6887
Product Specification
Model Name: EW-7722MUN
Product: 300N Wireless LAN USB Module
Date of Release : 2011/9/5
Version : V1.0A
EDIMAX TECHNOLOGY INC.
NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C.
TEL: 886-2-7739-6888 FAX: 886-2-7739-6887
1
1. Introduction
z Scope
This document describes the EW-7722MUN V1.0A 802.11 b/g/n
2T2R 300N Wireless LAN module with USB interface hardware
and software specifications.
z Product Features
• Comply with IEEE 802.11 b/g/n standards.
• High transfer data rate – up to 300Mbps.
• Farther coverage, less dead spaces and higher throughput with
MIMO technology.
• Enable xDSL router, Cable Modem, Set Top Box, or Multi-Media
devices, etc. to have 11n Wi-Fi capability.
• Supports QoS – WMM, WMM Power saving.
• Supports USB 2.0/1.1 interface.
• 4-PIN Pin-header form factor design for USB interface.
EDIMAX TECHNOLOGY INC.
NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C.
TEL: 886-2-7739-6888 FAX: 886-2-7739-6887
2
2. Product Specification
Product 2T2R 300N Wireless LAN USB Module
Model Name: EW-7722MUN V1.0A
Main Chipset Ralink RT3072 Single Chip
Standard IEEE 802.11 b/g/n
Interface Type USB2.0/4 PIN-header design with USB interface
Frequency Band 2.4000~2.4835GHz (subject to local regulations)
Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM (11n)
OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)
BPSK, QPSK, CCK (11b)
Data Rate 11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps auto fallback.
Antenna I-PEX Connector x 2 (2T2R MIMO Technology)
Power
Consumption
Voltage: 5V
Idle: 110mA
11b/g: Max. 1.6W
11n: Max. 1.3W
Transmit Power 11b:18±1.5dBm
11g:23±1.5dBm
11n(20MHz):24±1.5dBm
11n(40MHz):24±1.5dBm
Receive
Sensitivity
11b@11Mbps: -86±2dBm
11g@54Mbps:-70±2dBm
11n(20MHz, MCS7):-66±2dBm
11n(40MHz, MCS7):-64±2dBm
Dimension 46.5(W) x 15(D) x 1.0(H)mm (4 Layers PCB)
Temperature Operating: -4~131°F (-20~55°C)
Storage: -13~140°F (-25~60°C)
Humidity Operating: 10~90% (NonCondensing)
Storage: Max.95% (NonCondensing)
EDIMAX TECHNOLOGY INC.
NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C.
TEL: 886-2-7739-6888 FAX: 886-2-7739-6887
4
z Mechanical Diagram
EDIMAX TECHNOLOGY INC.
NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C.
TEL: 886-2-7739-6888 FAX: 886-2-7739-6887
5

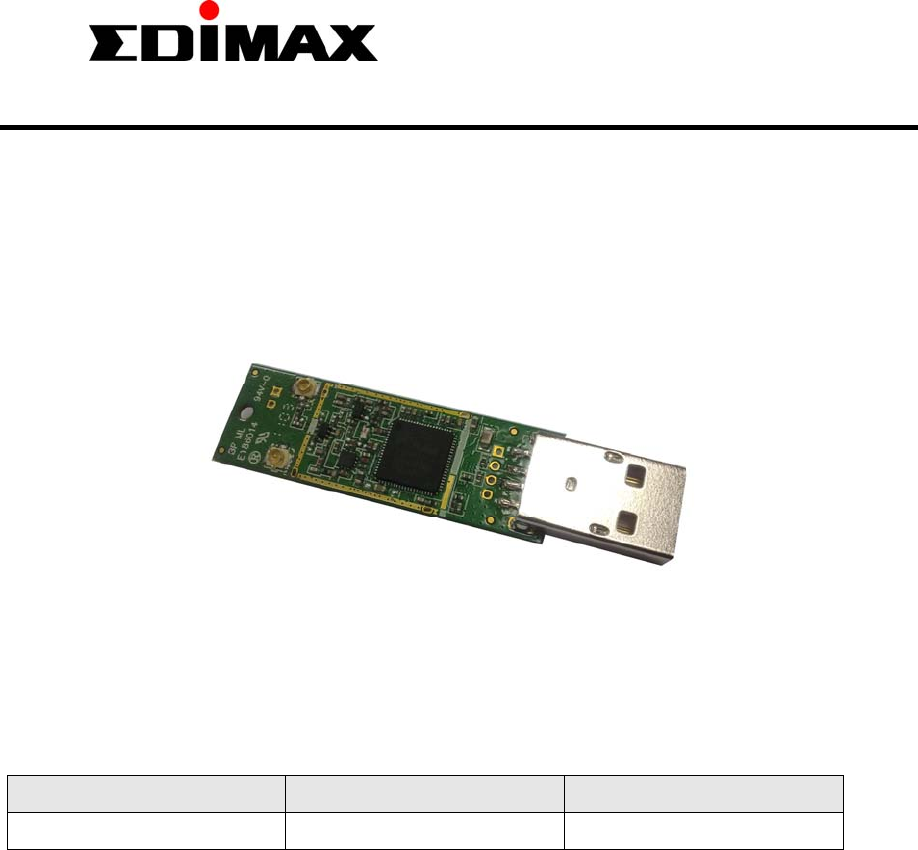

z Module photography
z Main Chipset Information
Item Model Number Vendor
MAC/BBP/RF RT3072 Ralink
z Main Chipset Specification
MAC/Baseband/RF Processor
The RT3072 is a highly integrated MAC/BBP and 2.4GHz RF
single chip with 300Mbps PHY rate supporting. It fully
complies with IEEE802.11n and IEEE 802.11b/g standards,
delivers reliable, cost-effective, feature rich wireless
connectivity at high throughput from an extended distance.
Optimized RF architecture and baseband algorithms provide
superb performance and low power consumption. Intelligent
MAC design deploys a high efficient USB engine and hardware
data processing accelerators without overloading the host
processor. The RT3072 is designed to support standard based
features in the areas of security, quality of service and
EDIMAX TECHNOLOGY INC.
NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C.
TEL: 886-2-7739-6888 FAX: 886-2-7739-6887
6
international regulation, giving end users the greatest
performance anytime in any circumstance.
RT3072 MAC/BBP/RF Features
• 802.11n MAC/BBP/RF Interface
¾ 2T2R 802.11n MAC/BBP/RF integrated.
¾ 300Mbps PHY data rate for both transmit and receiving.
¾ 20MHz/40MHz channel bandwidth.
¾ Reverse direction data flow and frame aggregation.
¾ WEP 64/128, WPA, WPA2
¾ Bluetooth Co-existence
¾ Multiple BSSID Support
¾ QOS - WMM, WMM Power Saving
¾ Cisco CCX Support up to v5.0
¾ Low power with advanced power management
¾ Operating systems – Windows XP, 2000, Vista, Linux,
MAC
• Packaging
¾ 9mm x 9mm QFN-76LD Package
¾ I/O : 5V(USB)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: VJS-MN5000 ". If the size
of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label:
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received, including interference that may
cause undesired operation.
