Altigen Communications, Inc. iFusion AP300 SmartStation
User Manual
SmartStation
User Manual
For iFusion documentation in other languages and general support information, visit
http://www.thefusionphone.com
Copyright © 2011
All rights reserved. No part of this User’s Manual may be reproduced or copied by any
means without the consent of the manufacturer. The information and specification in this
document may change without prior notice.
Bluetooth trademarks are owned by Bluetooth SIG, Inc. and used under license.
FaceTime is a trademark of Apple, Inc.
i
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Bluetooth connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Preparing the iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Preparing the iFusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Pairing the devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Making and answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching a call to the iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching a call to the iFusion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Playing music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Synchronizing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using iFusion with FaceTime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ii
iFusion User Manual 1
Introduction
Congratulations on your purchase of iFusion.
This manual shows you how to pair your iPhone with the iFusion, make and receive calls,
listen to music, charge your iPhone, and synchronize iPhone data with your computer.

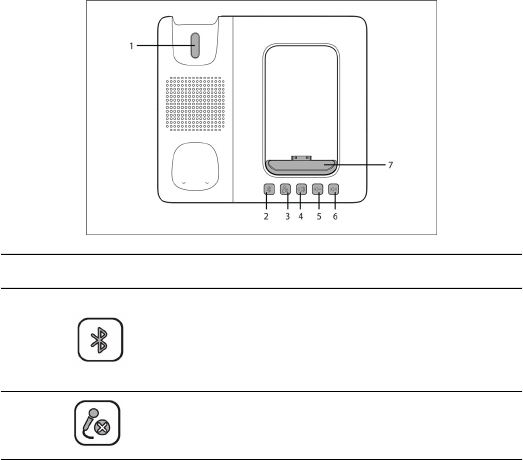

Front view
1 Hook switch Handset on-hook, off-hook switch.
2
Bluetooth button – Touch and hold (for 5 seconds) to
enter pairing mode.
Rapid blinking light: Pairing
Slow blinking light: Reconnecting
Steady light: Connected
3
Mute button – Touch to mute the handset or speaker.
To unmute the call, touch it again.
Red light: Muted
2 iFusion User Manual

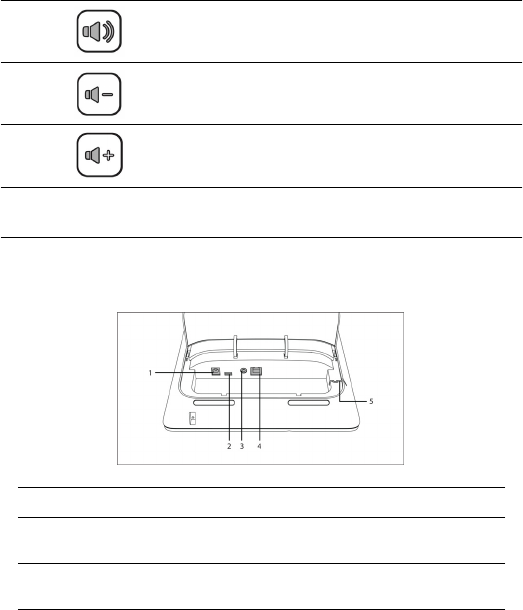

Back view
4
Speaker button – Touch to make a call using the
speaker.
Green light: Hands-free mode (speaker on)
5Volume Down button – Touch to lower the volume.
Rapid blinking: Minimum reached
6Volume Up button – Touch to raise the volume.
Rapid blinking: Maximum reached
7Docking
cradle
Where you connect the iPhone to the iFusion. While
docked, the iPhone charges.
1 Power port Connects the power cord.
2 Mini USB port Connects the iFusion to a computer. Use a mini
USB male to standard USB male cable.
3Stereo 3.5mm
audio jack Connects external speakers (for music).
iFusion User Manual 3
Bluetooth connection
You will need to pair your iPhone with the iFusion. iFusion is compatible with Bluetooth
2.1+EDR. The iFusion provides Bluetooth support for iPhones up to approximately 10
meters (33 feet) away. Direct line-of-sight provides a longer range.
Here is some general information about this Bluetooth connection:
• After the devices have been paired, the iFusion saves the connection details in
memory. Multiple iPhones can be paired with the iFusion, but only one iPhone can
be actively connected at a time.
• The connection is severed once you take the iPhone out of range of the iFusion.
When you bring the iPhone back within range, the devices automatically reconnect.
For optimal Bluetooth performance with the iFusion:
• Keep the iPhone docked in the iFusion.
• Position the iFusion away from radio frequency (RF) emission sources such as lap-
tops or other electronic equipment, because such devices can interfere with Blue-
tooth communications.
Note: If more than one Bluetooth device is connected to the iPhone, it may take several
seconds for the iPhone to connect the voice path to the iFusion for incoming calls.
For this reason, we recommend that you disconnect all other bluetooth devices
from the iPhone.
4 Handset port Connects the handset cord to the iFusion.
5 Cable guide Holds the handset cord in place, so that the
iFusion does not wobble on the desk.
4 iFusion User Manual

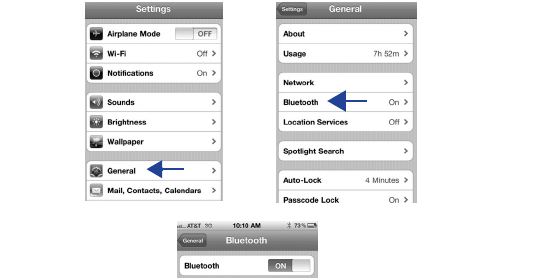

1. Preparing the iPhone
On the iPhone, go to Settings > General > Bluetooth. Turn on Bluetooth. The iPhone is
now discoverable, and it searches for other Bluetooth devices nearby.
2. Preparing the iFusion
Touch and hold the Bluetooth button on the iFusion for three to five seconds, until the but-
ton blinks rapidly. The iFusion is now in pairing mode.
Note: If the pairing process is not completed within 60 seconds, the Bluetooth button
blinks slowly again, indicating that the process was cancelled. Repeat step 2.

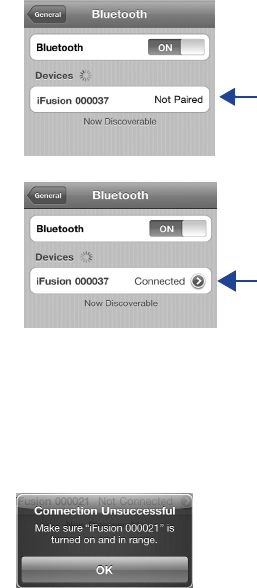

3. Pairing the devices
Once the iFusion is listed on the iPhone screen, tap iFusion xxxxxx to pair the two
devices. On the iPhone, the status changes from Not Paired to Connected when the
Bluetooth connection has been made.
iFusion User Manual 5
After the connection has been established, the Bluetooth button on the iFusion glows with
a steady blue light.
If the connection is lost, the button blinks slowly. When you bring the iPhone back into
range, the light glows a steady blue again after it reconnects.
If you try to connect an iPhone to the iFusion while another iPhone is already connected,
the connection request is refused and you see an error message.
6 iFusion User Manual
Making and answering calls
To use the iFusion, the iPhone does not have to be docked; it must be connected by Blue-
tooth and be within range of the iFusion.
When a call comes in, both the iPhone and the iFusion ring. To answer the call, either
pick up the handset or touch the Speaker button on the iFusion.
If the iPhone is docked when you make a call, the iFusion speaker automatically comes
on unless you pick up the handset. You can call a number from your iPhone’s Contacts
list, Call log, dial pad, or Favorites list.
To end a call, either touch the Speaker button on the iFusion (if you were on speaker) or
return the handset to its cradle.

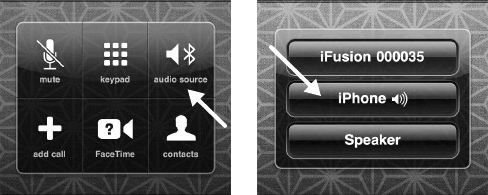

Switching a call to the iPhone
1. If the iPhone is docked, remove it from the cradle.
2. Tap the iPhone audio source button.
3. Select iPhone.
iFusion User Manual 7
Switching a call to the iFusion
If you begin a call out of range of the iFusion, you can switch the call to the iFusion once
the Bluetooth connection is reinstated:
1 Tap the iPhone audio source button.
2 Select iFusion xxxxxx.
Muting a call
While talking on the handset or through the speaker, you can mute the call. Touch the
Mute button once to mute the call; the button glows red. To unmute the call, tap the Mute
button again.
Adjusting the volume
The Volume buttons adjust the current sound level. There are four separate volume set-
tings:
Ringer – If a call is coming in (or if the iFusion is idle), the Volume buttons adjust the
sound level of the iFusion ringer.
Speaker – If you are on a call through the speaker, the Volume buttons adjust the sound
level of the speaker.
Handset – If you are on a call on the handset, the Volume buttons adjust the sound level
of the handset.
Music – If you are playing music, the Volume buttons adjust the sound level of the music.
The Volume buttons will blink rapidly when the volume reaches the minimum or maximum
level.
If power to the iFusion is interrupted, all volume levels will return to their default settings.
To mute the ringer on the iFusion, touch the Volume Down button until its light blinks rap-
idly. (This will not mute the iPhone ringer.)
Pressing an iPhone Volume button will mute both the iPhone ringer and the iFusion ringer
for the current call.
8 iFusion User Manual
Playing music
You can play music (or other stored audio) through the iFusion or through external speak-
ers, if you have speakers connected. For best sound quality, we recommend that you use
amplified stereo speakers.

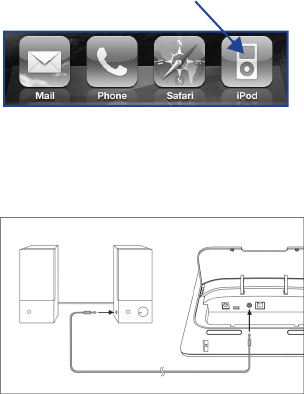

Just tap the iPod icon on your iPhone to play music or other stored audio through the
iFusion speaker.
To play music or other stored audio through a set of external speakers, connect the
speaker cable to the audio jack in the back of the iFusion (external speakers are not used
for voice calls)
If a call comes in while you are playing music, the music automatically stops playing and
the iFusion rings. Once the call ends, the music resumes.
iFusion User Manual 9
Note: While you are playing music or other audio, pressing the Speaker button has no
effect (although the button itself will glow).
Synchronizing data
You can synchronize data such as e-mail, calendar, contacts, music, photo, and other
media files between your iPhone and the computer, through iFusion.

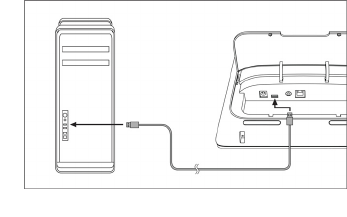

1 Install the iPhone application software and driver on the computer.
2 Use a mini-USB to USB standard cable (not provided) to connect the computer and
the iFusion.
3 Plug your iPhone to the docking cradle. The computer acknowledges the iPhone.
4 To synchronize data between your iPhone and the computer, follow the instructions
provided with the iPhone application software.
Note: It will take slightly longer to charge the iPhone when the iFusion is connected to a
computer.
10 iFusion User Manual
Using iFusion with FaceTime
Placing your iPhone in the cradle of the iFusion puts it at a great angle for FaceTime
video chats. Here are some tips for using iFusion with FaceTime:
• FaceTime is supported only on iPhone 4
• To use the iFusion handset on a video chat, you must upgrade the iPhone IOS to
version 4.2 or later
• In your iPhone, go to Settings > Phone and make sure FaceTime is set to On
• Make sure Wi-Fi is used on both ends
iFusion User Manual 11
Troubleshooting
Here are solutions to some common problems that you may encounter when using the
iFusion. Also refer to the FAQ (Frequently Asked Questions) document on the Support
tab at www.thefusionphone.com.
Problem
I cannot hear the music.
Possible Cause Remedy
The volume is set too low. While the music is playing, touch the Volume
Up button to increase the sound level.
Check the external sound device volume set-
ting; it can override the iFusion setting. Be sure
the device has power.
Check the iPhone volume setting. It may be
overriding the iFusion setting.
The speaker is not connected. Verify that the speaker cable is properly con-
nected to the 3.5mm stereo audio jack in the
back of the iFusion. You can disconnect the
cable to hear music through the iFusion
speaker.
12 iFusion User Manual
Problem
The iPhone call is not going through the iFusion.
Possible Cause Remedy
The iFusion may not be con-
nected to your iPhone.
Check whether the Bluetooth button is blink-
ing. A slow blinking light means the iPhone is
not connected to the iFusion. Try to re-pair
the devices.
Check that the audio source on the iPhone is
set to iFusion.
On the iPhone, check that iFusion shows as a
device under Settings > Bluetooth.
Problem
The computer does not recognize my iPhone when the iFusion is connected via a USB
cable.
Note: Before troubleshooting the iFusion USB connection, ensure that your iPhone works
correctly while it is directly connected to the computer.
Possible Cause Remedy
The iPhone driver is not
installed on the computer.
Install the iPhone driver by following the
instructions in the iPhone User Manual.
The USB cable is not properly
connected.
The mini end of the USB cable plugs into the
back of the iFusion. The USB standard A end
plugs into the USB connector on the computer.
Try a different USB port on the computer;
sometimes front ports are not active.
iFusion User Manual 13
Problem
The iPhone does not charge.
Possible Cause Remedy
The iPhone is not properly
connected.
If your iPhone does not have a case, it may not
attach properly to the connector in the cradle of
the iFusion.
Insert the cushion (provided) in the bottom of
the cradle so that the iPhone sits correctly.
If you need to remove the cushion when you
put your iPhone in a case, pull the cushion up
by the notch on its right side.
Problem
The iPhone cannot locate my iFusion.
Possible Cause Remedy
The iPhone was set to forget
the iFusion.
Choosing Forget this device on the iPhone Blue-
tooth tab removes the paired Bluetooth device
from memory.
Repeat the pairing process.
The iPhone is not properly con-
nected to the cradle.
If your iPhone does not have a case, it may not
attach properly to the connector in the cradle
of the iFusion.
Insert the cushion (provided) in the bottom of
the cradle so that the iPhone sits correctly.
If you need to remove the cushion when you
put your iPhone in a case, pull the cushion up
by the notch on its right side.
14 iFusion User Manual
Problem
When I try to connect the iPhone to iFusion, a message indicates that the phone is not in
range.
Possible Cause Remedy
Another iPhone may already
be paired with the iFusion.
If the iFusion Bluetooth button has a solid blue
light, another iPhone is paired with the device.
Only one iPhone at a time can be paired with
iFusion.
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful inter-
ference, and (2) this device must accept any interference received, includ-
ing interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses and can radiated radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and the receiver.
• Connect the device into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
iFusion User Manual 15
Users are not permitted to make changes or modify the device in any way. Changes or
modifications not expressly approved by the AltiGen will void the user's authority to oper-
ate the device.
Industry Canada
Operation is subject to the following two conditions: (1) This device may not cause inter-
ference, and (2) This device must accept any interference, including interference that
may cause undesired operation of the device. The term “IC:” before the certification/reg-
istration number only signifies that registration was performed based upon a Declaration
of Conformity indicating that Industry Canada technical specifications were met. It does
not imply that Industry Canada approved the device.
CE
This device is CE marked according to the provisions of the R & TTE Directive (99/5/EC).
Hereby, AltiGen Corporation declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Please note that this device uses radio frequency bands not harmonised within EU.
Within the EU this device is intended to be used in Austria, Belgium, Denmark, Finland,
France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain,
Sweden, United Kingdom and within EFTA in Iceland, Norway, and Switzerland.
Bluetooth
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and use of
such marks by AltiGen are under license. Other trademarks and trade names are those of
their respective owners.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
16 iFusion User Manual
WEEE Notice
The WEEE logo on the product or on its box indicates that this product
must not be disposed of or dumped with your other household waste. You
are liable to dispose of all your electronic or electrical waste equipment by
relocating over to the specified collection point for recycling of such
hazardous waste. Isolated collection and proper recovery of your
electronic and electrical waste equipment at the time of disposal will allow
us to help conserve natural resources. Moreover, proper recycling of the electronic and
electrical waste equipment will ensure safety of human health and environment. For more
information about electronic and electrical waste equipment disposal, recovery, and col-
lection points, please contact your local city center, household waste disposal service,
shop from where you purchased the equipment, or manufacturer of the equipment.
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the European Parliament and
of the Council of 27 January 2003, on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (RoHS) and its amendments.
4290-0025 Rev A
