RE211 Mighty Mouse™ Honeywell® -Compatible
Micro Door Sensor
Features
• Smallest Door/Window Sensor & Magnet in the Industry.
• Full-sized transmit range, AND…
• 4-6 year battery life on CR1632 battery.
• Invisible external antenna – gives great range and long life
• Low Battery indication.

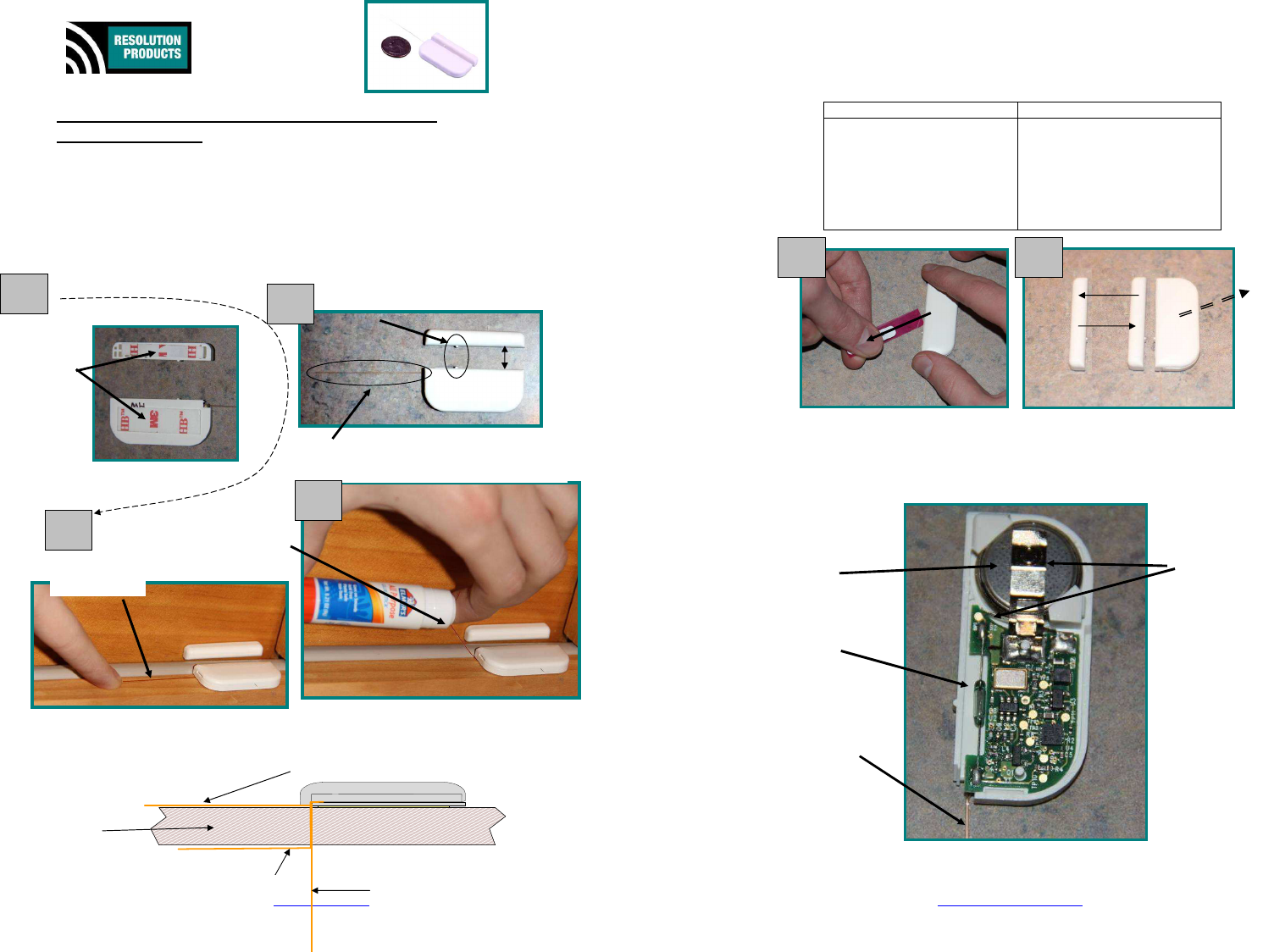

Mounting
Antenna Routing Options
Wireless
Security
Solutions
Run
a
light coat of
permanent paste
glue on the
underside of the
antenna
wipe it down
with finger
Remove
High Bond
tape liners
Align
centering marks
Position
Antenna free and clear of sensor;
not inside cover or under sensor.
DON’T MOUNT
ON METAL,
It will severely
reduce transmit
range and
magnetic gap
A.
Fasten with paste glue, as above.
B. Or let it lay on surface, nearly invisibly.
D.
Drill hole and
thread antenna down
C.
Route into trim gaps or
along side of trim
1.
2
.
½ inch or less
magnet gap
3.
4
.
RE211_Honeywell-Compat_Micro-DWS_Instructions.doc Page 2 of 4
9-Apr-12
www.ResolutionProducts.com
Enrolling in Panel
.
1. Pull out the red tab to trip the sensor. This powers the sensor.
2. Put Honeywell or 2GIG panel in enrollment mode.
Honeywell Panels 2GIG Panels
1. Put panel in RF Zone
Programming mode.
2. Move magnet to and away
(open/close, fault/restore)
from sensor.
3. Will enroll as Loop 2.
1. Equip Type - Contact
2. Equip Code - 000 (other), or
(0862) Thin door/window
3. Enter RF Serial # -
Press Shift, Press Learn,
4. Trip Zone
5. (verify ID with ID on battery tab)
6. Equip Age - 0 (New)
7. Loop - 2 (Flood)
Internal Picture
Open/Close
until
Sensor enrolls in panel
Sensor
sends
enrollment
signal
Battery
Minus side up
Reed Switch
Antenna
Battery
contacts
1. 2.
RE211_Honeywell-Compat_Micro-DWS_Instructions.doc Page 3 of 4
9-Apr-12
www.ResolutionProducts.com

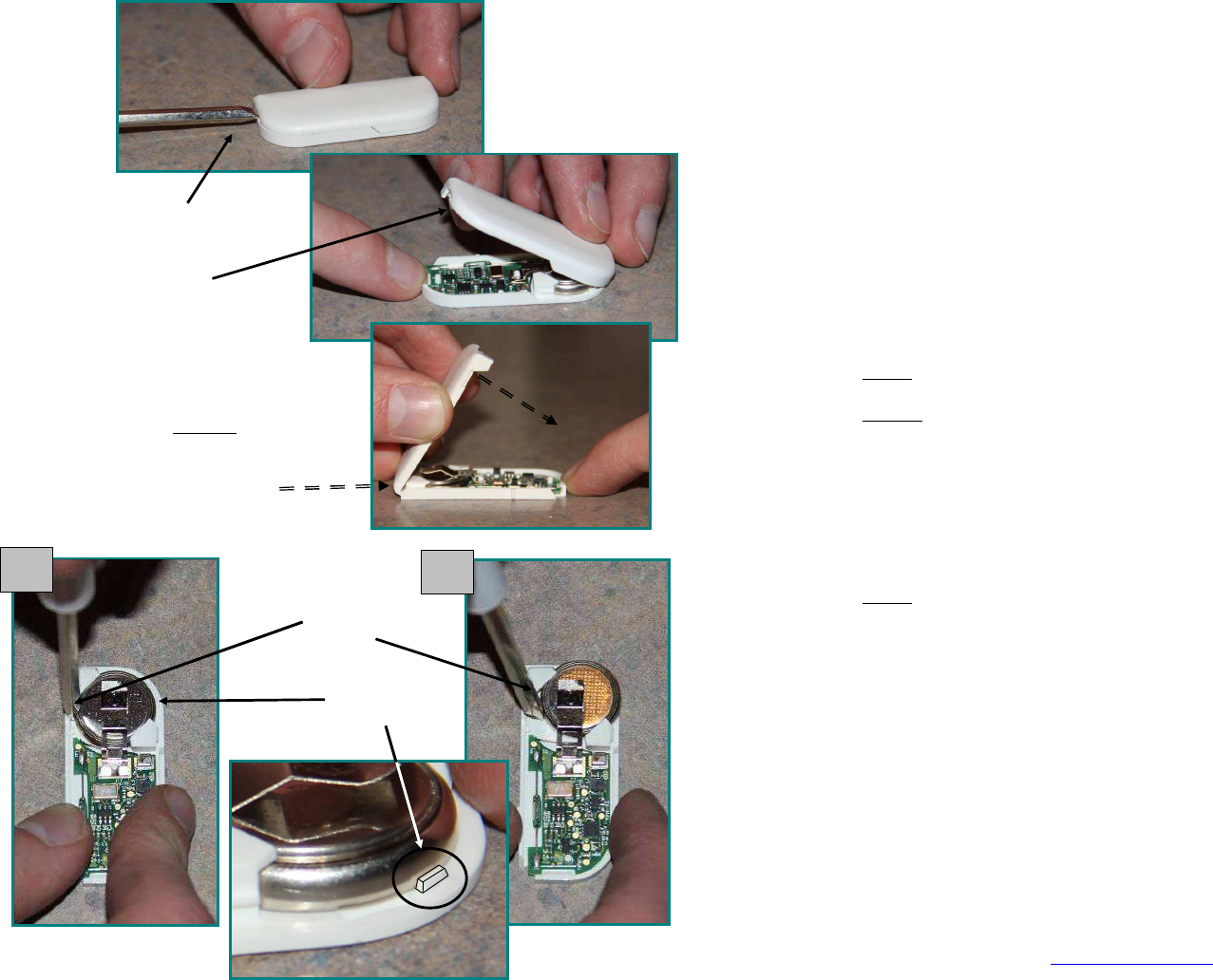

Opening Cover
Replacing Battery
TO CLOSE
slide cover jaw into hinge.
Tilt closed.
Insert
Screwdriver
in slot
Tilt cover open.
Hinge is in back away
from antenna
Insert Screwdriver
in slot.
Twist.
Note small
retention post
1.
2.
RE211_Honeywell-Compat_Micro-DWS_Instructions.doc Page 4 of 4
9-Apr-12
www.ResolutionProducts.com
Specifications
Magnet trip distance: 1 inch nominal
Supervisories: Hourly
Battery Life: 4+ years
Mounting fastener: 3M VHB (Very High Bond) Tape
Replacement Battery: CR1632
Temperature Range: 0F to 120F
Housing dimensions: 1.75 x 0.75 x 0.2 inches
Antenna dimension: 2 inches
Specifications subject to change without notice.
Notices
“GE”, “Honeywell”, “DSC” and “Napco” are trademarks owned by General Electric Company,
Honeywell International Inc., Tyco Safety Products Canada LTD, and NAPCO Security Systems,
Inc., respectively.
Resolution Products, Inc. products will function with one of either GE, Honeywell, DSC or Napco
systems. However, no Resolution product is produced by, endorsed by, nor is officially associated
with GE, Honeywell, DSC or Napco. Resolution recommends verifying proper enrollment and
operation, per control panel installation instructions, at installation.
Warranty
Resolution Products, Inc. will replace products that are defective in their first year.
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the Resolution Products, Inc. could
void the user's authority to operate this equipment.
FCC ID: U5X-RE211
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil est conforme avec d’Industrie Canada RSS standard exempts de licence. Son
fonctionnement est soumis aux deux conditions suivantes:
1. Ce dispositif ne peut causer des interférences, et
2. Ce dispositif doit accepter toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement du dispositif.
IC: 8310A-RE211
