RE304 DSC
®
-Compatible Driveway Sensor
Features
• For sensing Vehicles passing by.
• Sensor continuously monitors earth’s magnetic field. When the large
metal mass of a vehicle drives by, the earth’s magnetic field is twisted.
The sensor then transmits a signal wirelessly to the control panel.
• Immune to pets, wildlife, leaves, dust, sunlight.
• NO DIGGING!
• Weatherproof design handles all environments.
• Strong, reliable RF signal.
• 3-5 year battery life on C battery.
• Low Battery indication.
Key Instructions
• Battery “+” face away from springs. Secure batteries with binder.
• Use as a chime function. Do not use as an alarm zone.
• Use 90-degree post mount bracket, or ground stake.
• Mount sensor within 12 feet of target vehicle. Mount more than 24 feet
from street.
• Do not plug drain & air holes. Do not overtighten top.
• Bumping the sensor will cause it to false (it thinks the world moved).
• Performance Effects:
Increased Response Decreased Response
Close to vehicle Far from vehicle
Higher (door handle level) Ground level
Slow vehicle Fast vehicle
Large metal vehicle Small vehicle with lots of plastic
Jumper on Hi Sensitivity Jumper on Lo Sensitivity
Generally, it shouldn’t matter which direction the sensor
head is rotated. But turning it 90 degrees may cause some
performance change +/-.
• Enrolling:
Put panel in Wireless Enrollment Mode.
Disconnect and then connect sensor battery. Special transmission
occurs on power-up, so that sensor enrolls.
Confirm ESN, Enter Zone # and Zone Type on DSC Panel
May also be enrolled via entering ESN.
Use in “Chime” Group, not an Alarm Group.
Supervision by panel is optional.
Page 2 of 3 www.ResolutionProducts.com 7/28/2011
RE304_DSC-Compat_Driveway_Instructions.doc
Specifications
Vehicle sense distance: 0 – 15 feet
Mounting hardware: post flange or ground stake
Replacement Battery: C-Cell
Temperature Range: 0F to 120F
[Note: high temperatures and high humidity can have a
significant effect on alkaline battery performance.]
Housing dimensions: 5.1 x 3.8 inches
Specifications subject to change without notice.

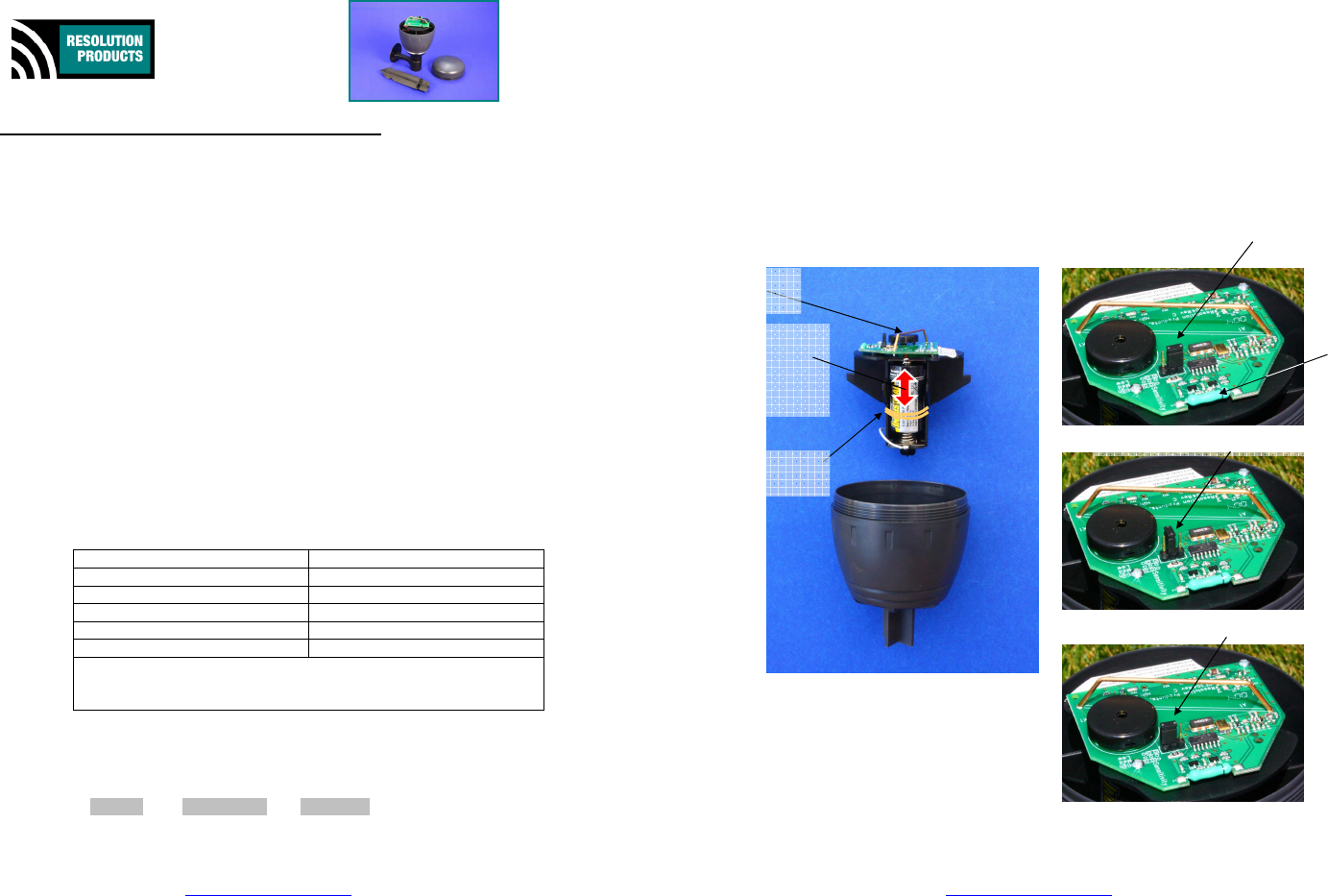

Exploded Picture
Batteries secured
by binder
Magnetic
sensor
Push battery down
towards spring,
and release to
cause enrollment
transmission
Do not pull
antenna
Jumper on Low Sensitivity
Jumper on Medium Sensitivity
Jumper on High Sensitivity
