RE313 DSC-Compatible Carbon Monoxide Alarm
Features
• Senses and alarms to Carbon Monoxide per UL2034
• Sleek design
• Cover tamper.
• Strong, reliable RF signal.
• 3-5 year battery life on 3 Panasonic LR6-AA batteries.
• Low Battery indication.
Key Instructions
1. Attach the mounting plate
Locate on ceiling, or wall in or near sleeping areas.
Some local codes have specifications on CO detectors.
Mounting plate removes counter-clockwise
2. Insert batteries making sure of polarity. Close battery door.
3. Enroll sensor in panel:
a) Place panel in Wireless Enrollment Mode
b) Press & release the black tamper switch
Sounder will continue beeping 1 time every minute, until sensor is
mounted.
c) Recommended GE Group # (81)
4. Testing:
a) Place panel in Sensor Test mode.
b) Press & hold TEST button until you the sounder beep.
c) Panel will indicate the sensor is open, and alarm will sound.
NOTE: Using CO-in-a-Can will cause an actual CO alarm.
Operation
Situation
Sounder
LED
Wireless Signal
to Panel
Recovery
Actual CO
Temp
oral 3
(Loud) every 8
seconds
RED
(pulsing)
Wireless CO
Alarm Signal
sent to panel
When CO is no longer
present.
TEST button will silence
sensor for 4 minutes.
Press & hold Test
Button
2 Temporal 4
Beeps
(Loud)
RED, Green, &
Yellow
(pulsing)
Sensor Alarm
signal to panel
Sensor:
Release button.
Panel: Clear alarm
condition.
Removing Sensor from
Mount
1 chirp
once every
minute
Yellow
(steady)
Tamper/Trouble
signal to be sent
to panel.
Restore by remounting.
Low Battery
1 beep (loud)
every 60
seconds
Yellow
(pulsing)
Low battery
Hourly Check
Supervisories,
every hour
Maintenance
Needed
1 Chirp every
minute
Yellow flash
every minute
Supervisories
Not Sent
Replace Unit
Low Sensitivity
1 Chirp every
minute
Yellow flash
twice a
minute
Supervisories
Not Sent
Replace Unit
End Of Life
1 Chirp every
minute
Yellow flashes
4 times a
minute
Supervisories
Not Sent
Replace Unit
Wireless
Security
Solutions
Available for…
GE
Honeywell
DSC
2GIG
RE313_DSC-Compat_CO_Instructions Page 2 of 4 16-May-14
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Specifications
CO Sensitivity: (UL2034)
70ppm 60-120 minutes
150ppm 10-50 minutes
400ppm 4-15 minutes
(EN50291)
50ppm 60-90 minutes
100ppm 10-40 minutes
150ppm 3 minutes or less
CO Sensing Technology: Electrochemical
Heat Alarm Point: 135 – 149 F (UL 521)
Alarm Sound: Temporal Three
Replacement Battery: 3 Panasonic LR6-AA
Temperature Range: 40 to 100 F (Long Term)
Humidity: 0 – 95% Relative Humidity
Housing dimensions: 4.9 inch diameter, 1.4 inch high
Specifications subject to change without notice.

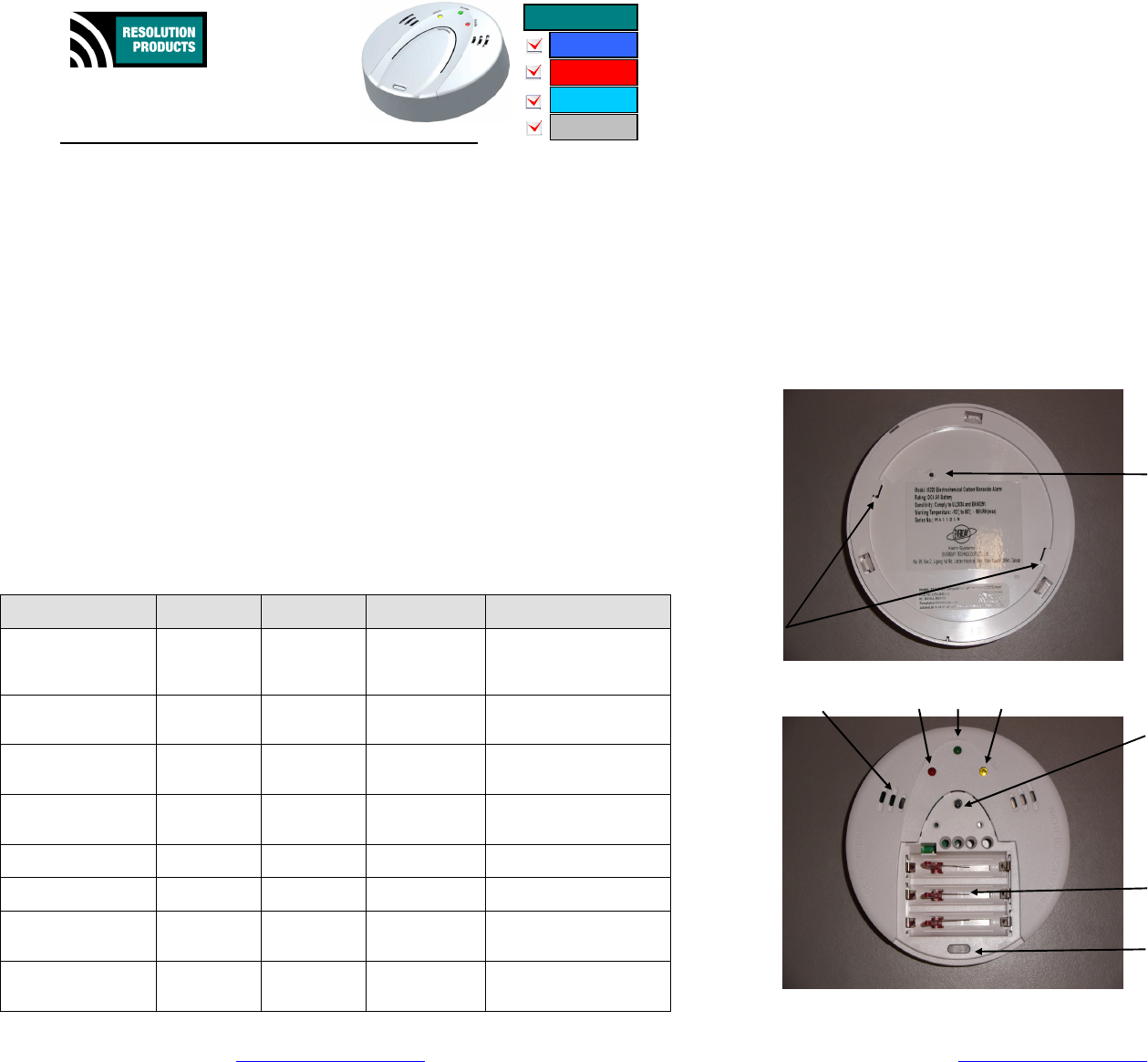

Pictures
TEST Button
Battery
Bucket
CO Sensing
Element
Tamper
Mounting
Tabs
LED's
RED GREEN YELLOW
Battery
Door
Release
Button
RE313_DSC-Compat_CO_Instructions Page 3 of 4 16-May-14
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com

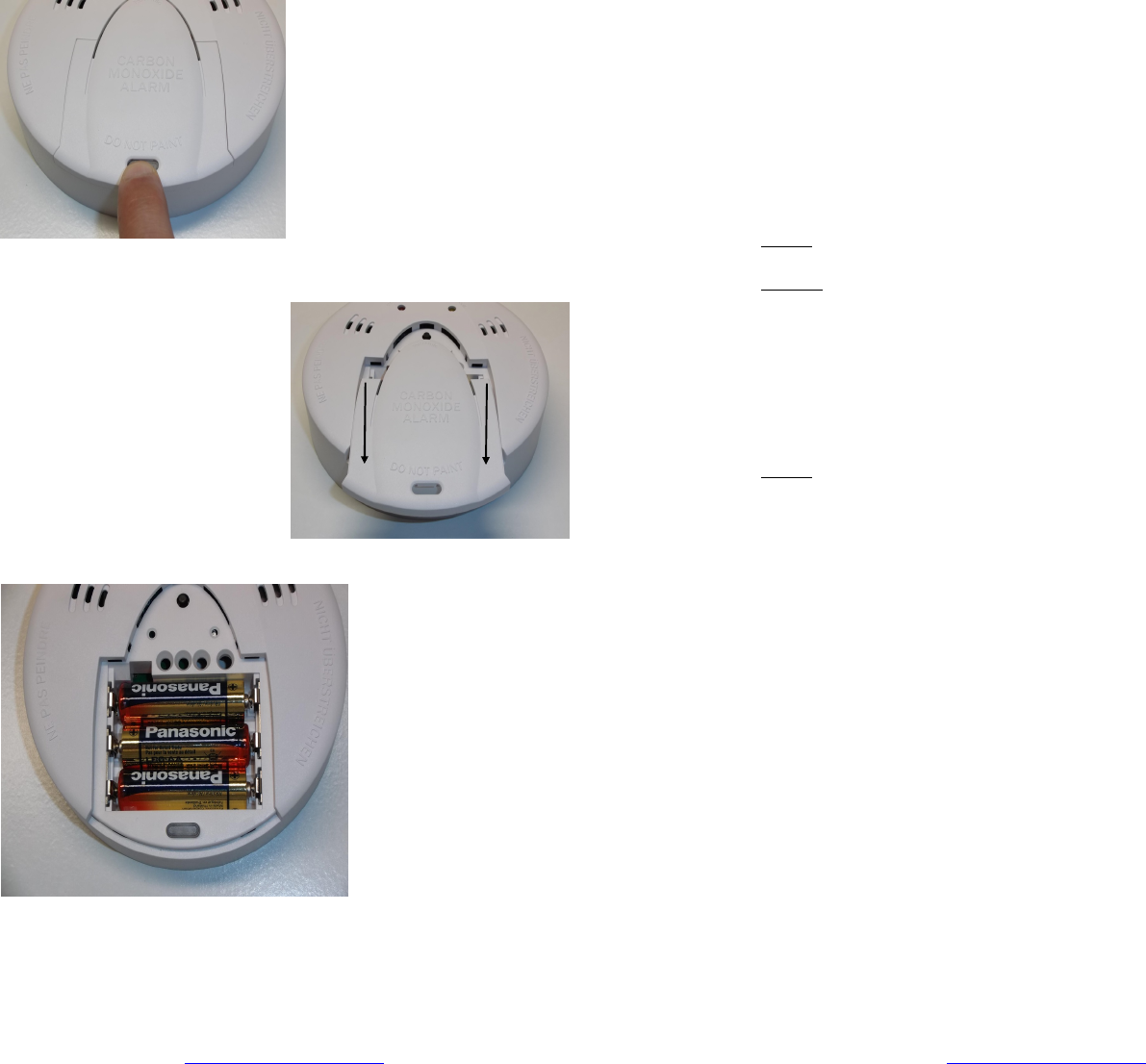

Opening Cover
1. Press Down
On
Release
Button
2. Slide
Battery
Door
Down
3. Notice
Battery
Polarity
RE313_DSC-Compat_CO_Instructions Page 4 of 4 16-May-14
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Notices
Verify proper enrollment and operation, per control panel installation instructions, at installation.
CARBON MONOXIDE ALARM M330 USER’S MANUAL, which is included in device box, is an integral part
of the operating information of the RE313 device.
Approved as a self-contained carbon monoxide alarm per UL2034. This represents the ability of each
individual sensor to sound locally upon sensed carbon monoxide conditions.
“GE”, “Interlogix”, “Honeywell”, “2GIG”, “DSC”, “Napco” are trademarks owned by General Electric
Company, UTC Fire & Security Americas Corporation, Inc., Honeywell International Inc., 2GIG
Technologies Inc., Tyco Safety Products Canada LTD, Napco Security Systems respectively.
Resolution Products, Inc. products will function with one of either GE/Interlogix, Honeywell and
2GIG, DSC or Napco. However, no Resolution product is produced by, endorsed by, nor is officially
associated with any of these other manufacturers. Resolution recommends verifying proper
enrollment and operation, per control panel installation instructions, at installation.
