User Manual
RE353_DSC-Compat_Outdoor_PIR_Instructions.doc Page 1 of 3
29-May-13
www.ResolutionProducts.com
Wireless
Security
Solutions
RE353 DSC-Compatible PIR Motion, Outdoor
Features
• DFIR™ Dual Frequency IR Detection.
o Wind-blown object and air current rejection
o White light and lightning rejection
o Split View™ look-down element
• 44 foot range and 90 degree field of view (45 degrees to each side)
• Mountable on Flat-wall, 45 degree corner, or swivel/gimbal (sold separately).
• Cover tamper.
• Strong, reliable RF signal.
• 6-8 year battery life on CR123A battery.
• Low Battery indication.
Key Instructions
• Mount at 7.5 foot height.
• Motion Sensitivity:
Jumper on BOTH PINS for Normal sensitivity
Jumper on ONLY 1 PIN for High sensitivity.
• External contact activation (enabling):
Insert battery while holding Tamper switch.
DL ID# for Ext Contact is Motion DL ID# + 1.
• LED Walk Test: Press Tamper for 3 minute test:
LED lights when motion sensed
Wireless transmissions sent for each detection, so walk test can
be used for panel operation test as well
Motion stops (locks out) sensing for 20 seconds after LED blinks
• Enrolling:
Enter Wireless Enrollment Mode in DSC Panel.
PIR: Open tamper switch. ESN = 3xx xx0
External Contact: Trip contact ESN = 2xx xx1 (x’s same as PIR’s)
Confirm ESN, Enter Zone # and Zone Type on DSC panel.
• If wire is routed through housing for external contact, make sure hole is
sealed.
Operation
• Motion sends wireless transmission after 2 or 3 (select via jumper) pulses.
• Motion stops (locks out) transmitting wireless sensor alarms for 3 minutes
after sending an alarm transmission. This is to conserve battery life.
• Tamper, when cover is opened (only Motion reports tamper, not Ext Contact).
• Supervisories, every hour (including Ext Contact, if activated).
RE353_DSC-Compat_Outdoor_PIR_Instructions.doc Page 2 of 3
29-May-13
www.ResolutionProducts.com
Specifications
Mounting hardware: # 4 or #6 screws
Mounting height: 7.5 ft with normal lens
Replacement Battery: CR123A 1550mAH
Temperature Range: -20F to 120F
White Light Immunity 25,000 lux
Housing dimensions: 6.7x3.0x2.4 inches
Specifications subject to change without notice.

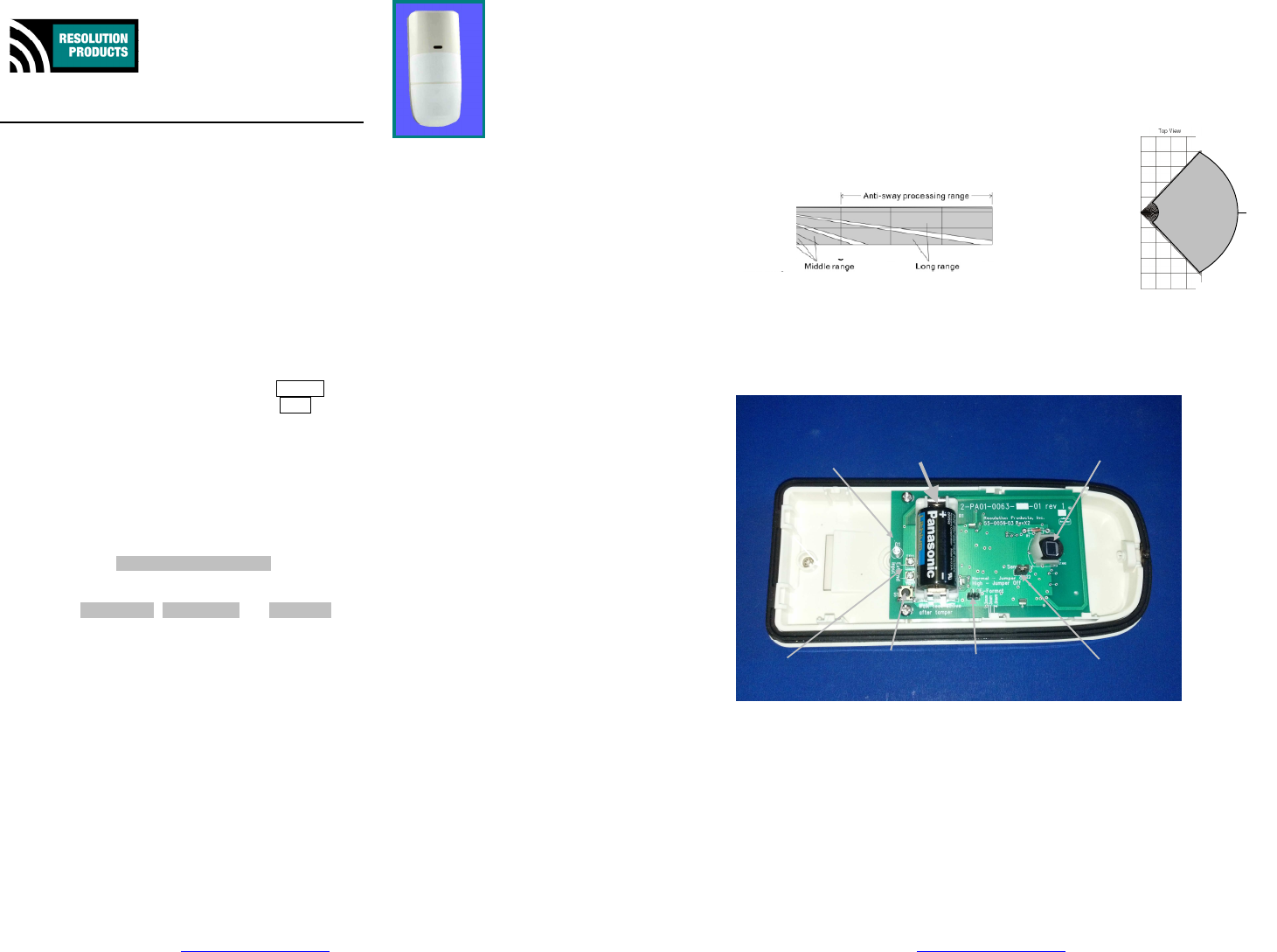

Internal Picture
Walk Test
LED
Sensitivit
y
Jumper
7.5 ft
18
ft
27
ft
36
ft
4
5
ft
Battery
+
Motion Sensor
Tamper
&
Walk Test
Switch
unused jumper pins
DO NOT connect
0
45 ft
45 ft
45 ft
External
Contacts
RE353_DSC-Compat_Outdoor_PIR_Instructions.doc Page 3 of 3
29-May-13
www.ResolutionProducts.com
Notices
“GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell
International Inc., and Tyco Safety Products Canada LTD, respectively.
Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell systems.
However, no Resolution product is produced by, endorsed by, nor is officially associated with GE,
Honeywell or DSC. Resolution recommends verifying proper enrollment and operation, per control
panel installation instructions, at installation.
Warranty
Resolution Products, Inc. will replace products that are defective in their first year.
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the Resolution Products, Inc. could void
the user's authority to operate this equipment.
FCC ID: U5X-RE353
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme avec d’Industrie Canada RSS standard exempts de licence. Son
fonctionnement est soumis aux deux conditions suivantes:
1. Ce dispositif ne peut causer des interférences, et
2. Ce dispositif doit accepter toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement du dispositif.
IC: 8310A-RE353
