BreezeNET®PRO.11
The standard in enterprise
wireless networks.
All of a sudden, wireless networking enters a new
sphere. Standards based. Powerful. Easy to
install. Now you can quickly connect anywhere as
your network requirements change, as you open
new locations, when you need temporary network
access, and as your mobile users increase.
Since the BreezeNET PRO.11 family adheres to
the IEEE 802.11 standard, it works seamlessly
with other 802.11 wireless LAN products and its
open architecture supports any standard
computer platform from PCs to Macs to Unix
workstations and pen tablets — or any other
device with an Ethernet connection. With
BreezeNET PRO.11 you finally realize all of the
benefits of flexible, plug-and-play network
connections that maintain mobility and
accommodate temporary, ad-hoc, building-to-
building, in-building and Internet connections.
Applications unlimited
Who needs BreezeNET PRO.11? Typical
users include offices, manufacturing
and warehouse facilities, hospitals,
schools, construction sites, temporary
venues, malls, airports, and remote
offices. In fact, BreezeNET PRO.11 is so
versatile, you can let your imagination
fly because the old limits of wired
networking just don’t apply.
Installing BreezeNET PRO.11 is smooth sailing.
Network managers can quickly and easily add it
to existing networks. It provides a familiar
software environment, just like your wired LAN.
You’ll be up and running in a fraction of the time
it takes to cable and install traditional wired
Ethernet networks.
Performance and
reliability to the max
BreezeNET PRO.11 products are designed from
the start for maximum performance and
reliability. Operating in the 2.4 GHz unlicensed
ISM band, BreezeNET PRO.11 client adapters
and access points are up to three times faster
than other wireless network devices. They offer a
data rate of up to 3 megabits per second, a range
of up to eight miles outdoors, 600-ft. indoors and
roaming speeds up to 60 mph.
All BreezeNET PRO.11 products are built around
BreezeCOM’s advanced component technology,
including modems implemented using Digital
Signal Processing technology. Two distinct
product categories are available: Models with
built-in diversity antennas for in-building use and
models with external antenna connectors for
building-to-building installations. All are software
upgradeable to the latest standards, so your
BreezeNET wireless network can grow and
change as your needs grow and change.
BreezeCOM BreezeNET PRO.11
Wireless networking with a breeze at your back.
Introducing BreezeNET PRO.11
IEEE 802.11 wireless
networking is a breeze!
It’s here.
BreezeNET PRO.11.
Manufacturing/
Warehouse
Portable computing
in the office
Retail Point of Sale
Health Care/Patient Care
Meeting standards,
setting standards
All BreezeNET PRO.11 are:
●IEEE 802.11-compatible.
Interoperable with other
IEEE 802.11-compliant spread
spectrum, frequency hopping
WLAN products
●IEEE 802.3-compatible
●PC Cards are
PCMCIA-compatible
●Works with standard platform
PCs, Macintosh, RISC-based
systems, 68000-based controllers
and workstations, as well as
peripherals such as printers
and scanners
●Works with Ethernet
point-of-sale terminals, thin
clients, and palmtops
●Works seamlessly with a wired
network, looking like another
network device to the network
manager. No special expertise
required for set-up.

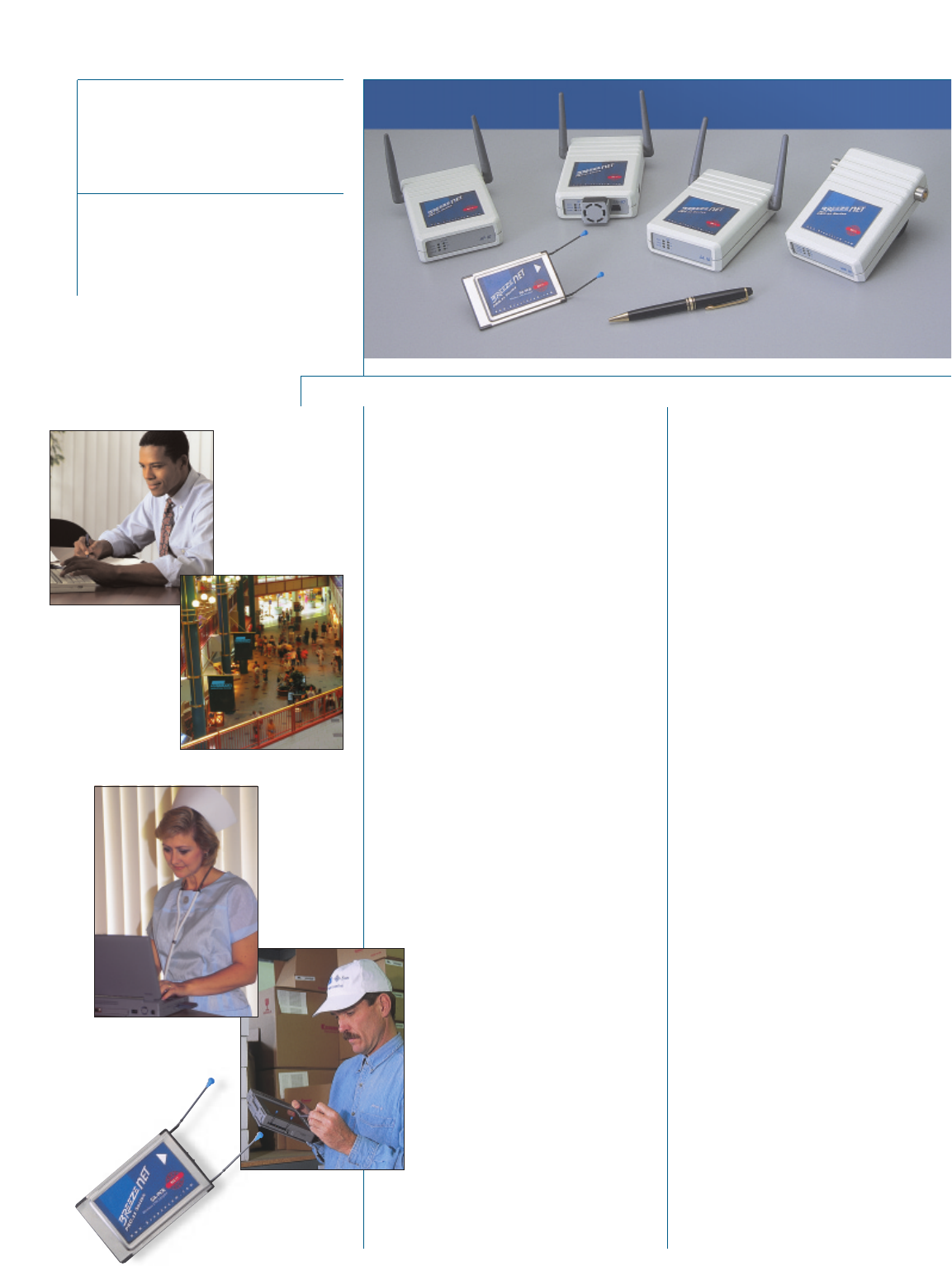

BreezeNET PRO.11
In-Building Products
Clients can be using:
SC-PCR PRO.11 PC Card
SA-10 PRO.11 single-port station adapter
SA-40 PRO.11 four-port station adapter
In-building BreezeNET PRO.11 products have a built-in diversity antenna
system that assures maximum wireless coverage throughout a building or
other facility — large or small. BreezeNET is ideal for traditional mobile
networks, such as hospital patient care systems, warehouse/inventory
tracking systems, point-of-sale networks, and client conference rooms used
by legal and financial planning professionals.

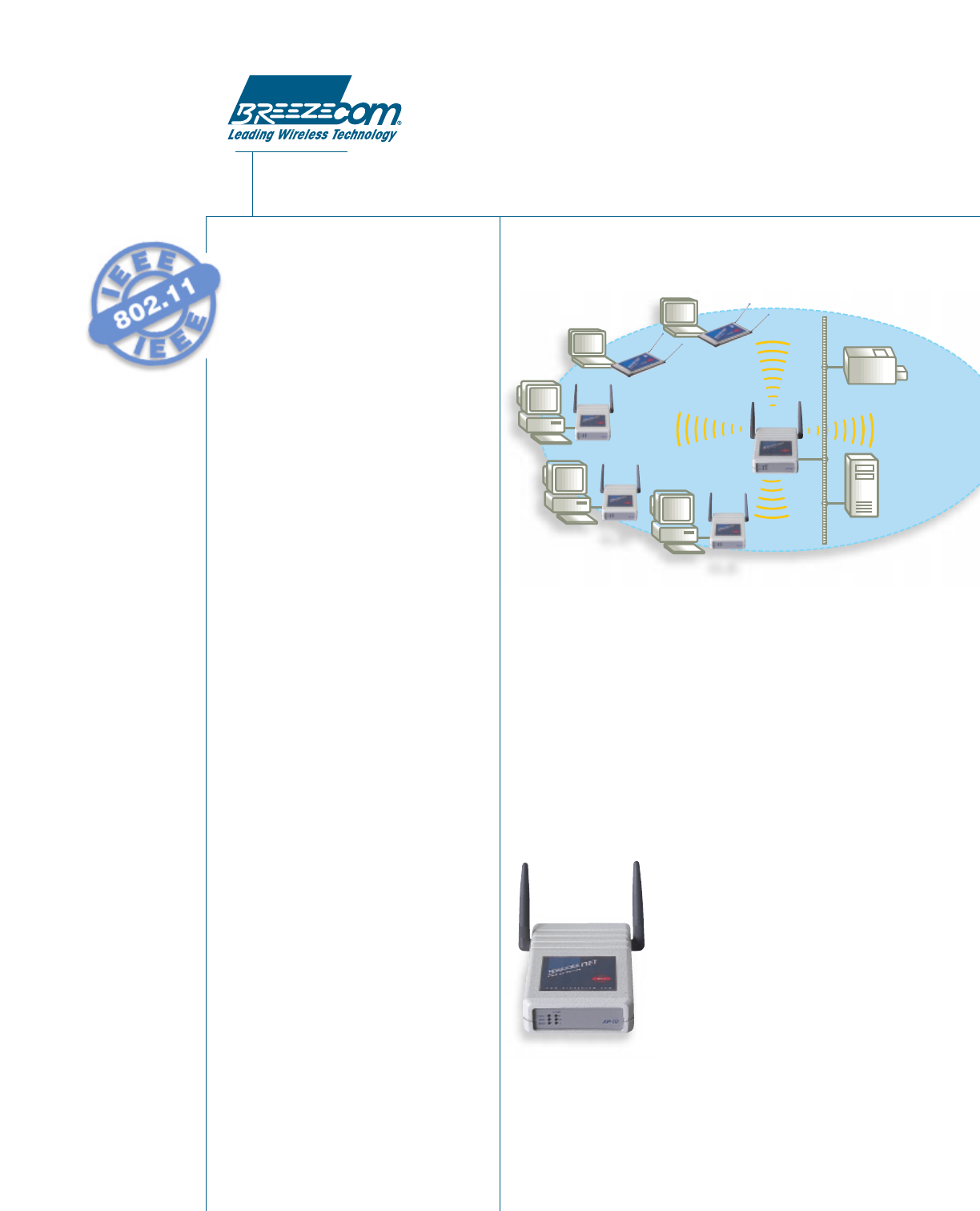

AP-10 PRO.11 Access Point
Used to extend your wired enterprise network,
or alone as a totally wireless network. The
AP-10 PRO.11 connects directly to your
10Base-T Ethernet backbone via an RJ-45
connector, transmitting network information
from your wired LAN and server resources to
BreezeNET wireless clients who can be
stationary or mobile.
Server
Printer
AP-10
SA-10
SA-10
SA-10
SA-PCR
SA-PCR
The AP-10 Access
Point is the “hub” of
the wireless system.
The AP-10 PRO.11 is designed as a true low-profile network infrastructure
product, much like a wired hub or switch. In contrast, competitive products
take an ISA or PCMCIA adapter and insert it into a bridge chassis. This
creates a wireless backbone “kludge” that can impact network
performance and reliability.
The AP-10’s top-down design results in an access point that’s easy to install,
configure and manage, and delivers maximum throughput. With a data rate
of up to 3 Mbps and a transmission range up to 3,000 ft. in open space, or
600 ft. in an office, it can provide an aggregate backbone data rate up to 15
Mbps using a multicell configuration.
WIX™
A proprietary algorithm, WIX manages the AP-10 PRO.11 in “multicell”
environments. WIX lets you increase aggregate backbone by overlapping up
to 15 access point coverage areas or “cells.” This capability is especially
valuable in high traffic in-building applications where multiple client
devices are transmitting and receiving in a common area. WIX manages the
multi-cell environment by balancing the load between access points,
off-loading traffic to each of these as necessary. Additionally, overlapping
coverage using multiple access points increases aggregate throughput.
SA-PCR PRO.11 PC Card
It’s nothing less than the first truly innovative
wireless PC Card. At a data rate up to 3 megabits per
second and an indoor range up to 600 ft., it’s also the best
performing IEEE 802.11-compliant card available anywhere. With its
retractable, extremely flexible, titanium wire antennas, the SA-PCR PRO.11
is the low profile PC Card mobile client
device users are waiting for. The SA-PCR
supports all popular operating systems,
including Microsoft Windows®95,
Windows NT™, Windows 3.11, Windows
CE, DOS, and Novell NetWare.
SA-10 PRO.11 Single-Port Station Adapter
Single-port, universal client adapter with built-in
diversity antenna system, connects to any RJ-45
10BASE-T Ethernet port, providing a true plug-
and-play wireless solution for PCs, Macs, Unix
workstations, hand-held data input units, printers
and most other computing and peripheral devices
without the need to install additional drivers or
configure hardware interrupts.
SA-40 PRO.11 4-Port
Station Adapter
A cost-effective, convenient 4-port wireless “mini-hub”
version of the SA-10 PRO.11 connects up to four
Ethernet clients to your wireless network.
WB-10 PRO.11 Workgroup Bridge
Connects a remote Ethernet network, wired or
wireless, to an AP-10 PRO.11 Access Point. It can
handle up to 256 hardware addresses and
includes cache RAM to handle high volume
network traffic. Diversity antenna system is built-in.
For bridges with detached antenna systems, see the
BreezeNET PRO.11 building-to-building product line.
Switching Hub
Server
AP-10
BreezeNET PRO.11
products are
designed for
enterprise
networking
including dynamic
environments with a
large number of
clients.
Overlapping coverage using multiple
access points increases aggregate throughput.
Temporary or
Remote Site
Ethernet Hub
WB-10D
PC
PC
AP-10D Internet
Router
ISP POP T1 Lease Lines
WB-10D
Main Site Remote SiteRemote Site
SA-40D
AP-10D
Printer
Server

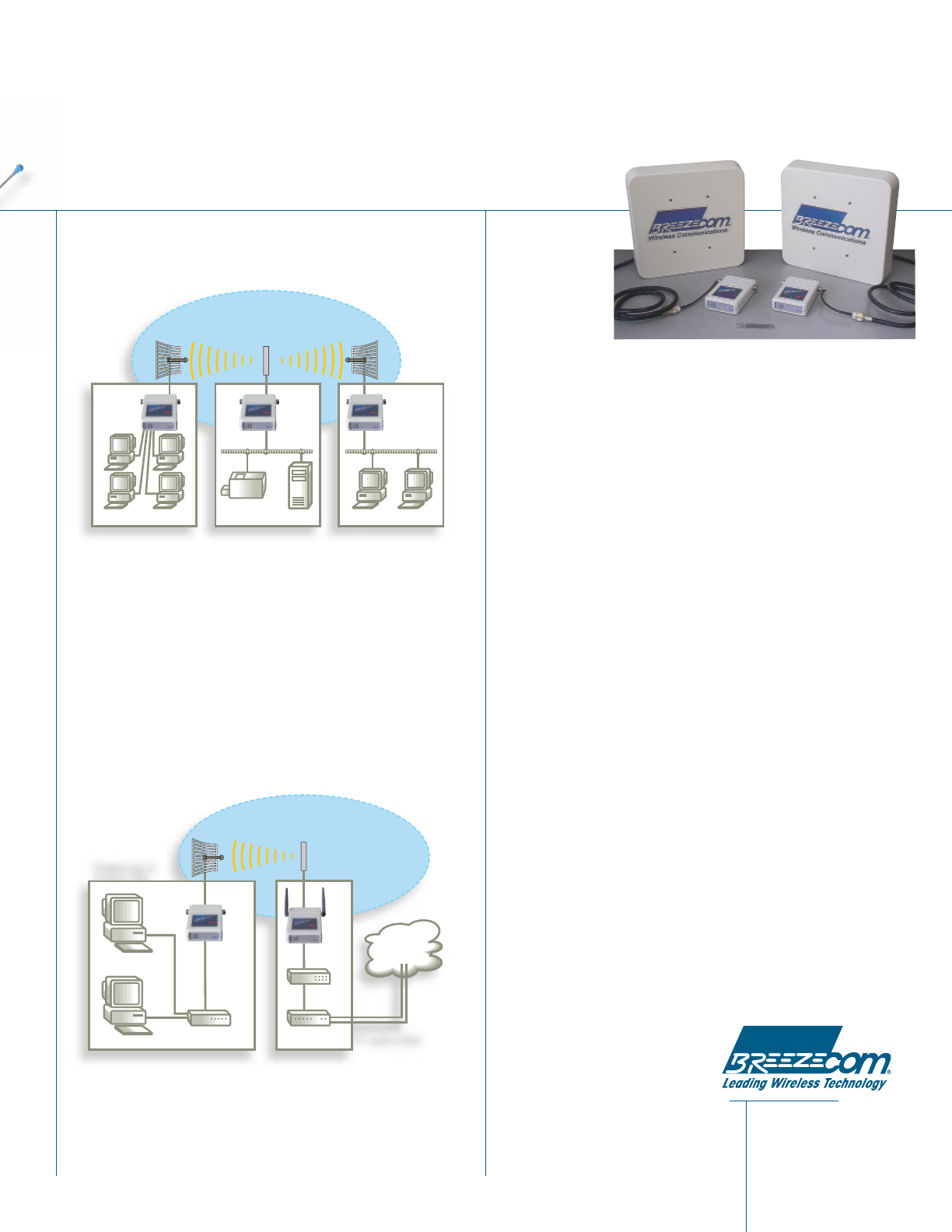

BreezeNET PRO.11
Building-to-Building Products
The BreezeNET PRO.11 “D” Model Bridge with detachable diversity antenna
system provides wireless links between networks or devices up to eight
miles apart. Coupled with a complete family of omni- and uni-directional
high-gain antennas, network managers can set up connections between
remote network sites outdoors and indoors in large open areas, including
headquarters, remote buildings, convention halls, hangars, and warehouses.
With a data rate up to 3 megabits per second, the D Model provides a
reliable frequency hopping, spread spectrum connection that does not
sacrifice performance. It is also extremely cost-effective, especially
compared with cost of leased lines and underground cabling.
Typical D Model applications include ISP Internet connections to
customer sites, network connections between schools and remote
classrooms, and quick deployment of networks for special events.
All D Models come with mounting bracket and power supply.
AP-10D PRO.11
Base Station
Bridge
Based on the AP-10
PRO.11 in-building
Access Point, the AP-10D PRO.11 is the central unit for creating a point-to-
point, or multi-point link using D Model bridges.
SA-PCD PRO.11 PC Card
with Detached Antenna System
The SA-PCD PRO.11 allows laptops and other specialized computing devices
to be connected to the network using high gain, detachable antennas. Typical
applications include vehicular networks such as fleets and automated cranes,
robot control systems with built in PCMCIA slots, and outdoor networks
which use laptops and may require longer transmission ranges.
SA-10D PRO.11 Single Station Bridge
Connects a single Ethernet device back to the AP-10D PRO.11 Base Station
Bridge. It handles a single hardware address and can connect a single Unix
workstation, PC, Mac, or peripheral.
SA-40D PRO.11 Four Station Bridge
Connects four Ethernet devices back to the AP-10D PRO.11 Base Station
Bridge. It handles up to four hardware addresses and can connect up to
four workstations or peripherals.
WB-10D PRO.11 Workgroup Bridge
Connects a remote Ethernet network to an AP-10D multipoint base station
site or to another point-to-point remote site. It handles up to 256 hardware
addresses and includes cache RAM to handle high volume network traffic.
For more information about
BreezeCOM’s full line of
BreezeNET PRO.11 detachable,
high gain antennas, see the
BreezeNET PRO Antenna Catalog.
Visit us on the web:
www.breezecom.com
Or call BreezeCOM®
Phone: (760) 431-9880
Fax: (760) 431-2595
Email: sales@breezecom.com
BreezeCOM, Inc.
2195 Faraday Avenue, Suite A
Carlsbad, CA 92008-7207
BreezeCOM Corporate Offices
BreezeCOM, Ltd.
Atidim Technological Park, Building 1
Tel Aviv 61131, Israel
Phone: 972-3-645-6262
Fax: 972-3-645-6222
BreezeCOM Latin America
Br. España, 2705 / 405
Montevideo, Uruguay, 11300
Phone/Fax:598-2-707-9687
Email: pablob@breezecom.com
BreezeCOM France
Batiment GAIA, 9 Parc Ariane
78284 Guyancourt Cedex, Paris
Phone: 33-1-3048-8320
Fax: 33-1-3048-8340
Email: alons@breezecom.com
BreezeCOM U.K.
6 Westmarch, River Way
Andover, Hampshire, England
Phone: 44-1264-334-153
Fax: 44-1264-334-147
BreezeCOM China
Rm. 1005, 10/F, East Ocean Centre
A24 Jian Guo Men Wai Avenue
Chao Yang Dist., Beijing 100022 China
Phone: 86-10-651-55833/34
Fax: 86-10-651-55835
© 1998 BreezeCOM, Inc
BreezeCOM and BreezeNET are registered trademarks of BreezeCOM, Inc. and
trademarks of BreezeCOM, Ltd. All other brand and product names are registered
trademarks or trademarks of their respective companies.
BreezeCOM does not take responsibility for any damages incurred due to technical
inaccuracies in this document. Contents are subject to change without notification.
No part of this publication may be reproduced in any material form without written
permission from BreezeCOM, Inc. or BreezeCOM, Ltd.
AP-10, SA-10, SA-40, WB-10, & D Model Bridges SA-PCR / SA-PCD
PRODUCT FEATURES
Data rate Up to 3 Mbps Up to 3 Mbps
Net throughput Up to 1.8 Mbps Up to 1.6 Mbps
Aggregate Over 15 Mbps (overlapped cells)
Range
Integrated antennas 3,000 ft. (1,000 meters) 3,000 ft. (1000 meters)
External antennas 6 miles US/FCC 6 miles US/FCC
Office environment 500 ft. (150 m) 500 ft. (150 m)
High speed roaming Up to 60 mph (90 km/h) Up to 60 mph (90 km/h)
No. of APs per wired LAN Unlimited
Max. no. of Co-located
cells (access points) 15
Load sharing support Yes Yes
WIRED LAN INTERFACE
Compliant with Ethernet/IEEE 802.3 CSMA/CD
Physical interface 10BaseT Type II PC Card slot
Connector type RJ-45 Type II PC Card slot
Network Operating Systems ALL Windows 95, 98, NT & CE, NetWare, DOS
Network Drivers NDIS 2, NDIS 3, NDIS 4, ODI
Wireless LAN Interface Compliant with IEEE 802.11 Compliant with IEEE 802.11
RADIO SPECIFICATIONS
Type Frequency Hopping Spread Spectrum Frequency Hopping Spread Spectrum
Frequency Range 2.4 GHz - 2.4835 GHz Industrial, 2.4 GHz - 2.4835 GHz Industrial,
Scientific, Medical band Scientific, Medical band
Antenna System Dual diversity Dual diversity
Transmitted Power
Integrated antennas 10 mW or 100 mW (20 dBm) EIRP 100 mW (20 dBm) EIRP
External antennas 50 mW (17 dBm) at the connector
Up to 36 dBm EIRP for 24 dBi antenna
Sensitivity @1 Mbps -83 dBm -83 dBm
@ 2 Mbps -75 dBm -75 dBm
@ 3 Mbps -67 dBm -67 dBm
Modulation 2, 4, 8 Multilevel GFSK 2, 4, 8 Multilevel GFSK
Demodulation DSP based w/adaptive equalization DSP based w/adaptive equalization
Approvals of Compliance FCC part 15, ETS 300-328, FCC part 15, ETS 300-328,
UL, UL/C,TUV/GS, CE UL, UL/C,TUV/GS, CE
CONFIGURATION & MANAGEMENT
Configuration and Setup Via local monitor port (serial RS-232) and SNMP Via PC-based software
Site Survey Via local monitor port (serial RS-232) Via PC-based software
LED indicators Power on, Wired LAN activity, Link status, data traffic
Wireless LAN synchronization,
Wireless LAN signal Quality/load
SNMP management Yes
S/W upgrade Yes, using TFTP download Yes, using PC
ELECTRICAL
External power supply 100 V - 250 V, 50 - 60 Hz 0.5 A From PC Card slot
Input Voltage 5 VDC 5 VDC
Power Consumption 1.5 A (peak) TX: 360 mA/RX: 285 mA
Power Save Mode Avg. TX & RX less than 30 mA
SIZE & WEIGHT
Dimensions (w/o antennas) 5.1" x 3.4" x 1.35" (13cm x 8.6cm x 3.4cm) Standard Type II PC Card
Weight 0.9 lb (0.4 kg) 1.1 Oz (32g)
ENVIRONMENTAL
Operating temperature 32° F - 105° F (0° C - 40° C) 32° F - 105° F (0° C - 40° C)
Operating humidity 5% - 95% non condensing 5% - 95% non condensing
Leading wireless technology
BreezeCOM is a leader in the development and production of wireless communications products for
telecommunications, data communications and wireless LAN applications. Our high performance
products use frequency-hopping, spread-spectrum radio technology and operate in the license-free
2.4 GHz ISM (industrial, scientific and medical) band. BreezeNET products are extremely reliable,
easy to install and offer an exceptionally cost-effective way to add connectivity in your organization.
