Alvarion Ltd. Roof Mounted Spread Spectrum Transmission System Antenna Catalog

Contents

Antenna Information

Catalog
BreezeNET®
Model D
Antenna
Kits
Model Ant. Gain†Kit Gain‡Dispersion Mounting Dimensions Cable Kit Ideal
Order No. (Oriented vertically Wall Mast H xW xDLength Contains: for:
as pictured)
OMNI-6 6 dBi 5 dBi 360° H/26° V S 0 13" x 0.75" 4-ft OMNI-6 Antenna Extending indoor range
872108 Tubular Mounting Hardware of access points and
4-ft Cable Assembly station adapters
OMNI-7.2 7.2 dBi 6 dBi 360° H/22° V S S 16" x 0.75" 20-ft OMNI-7.2 Antenna Establishing 360°
872914 Tubular Mounting Hardware coverage for outdoor
20-ft Cable Assembly multipoint links
UNI-8.5 8.5 dBi 6 dBi 75° H/60° V S N/A 4" x 3.7" x 1.2" 8-ft UNI-8.5 Antenna Extending indoor
872109 Mounting Hardware range of access points
8-ft Cable and/or station adapters
UNI-8.5Ext 8.5 dBi 6.5 dBi 75° H/60° V S O 4" x 3.7" x 1.2" 8-ft UNI-8.5 Antenna Short range outdoor
872909 Mounting Hardware multipoint links
8-ft Cable Assembly
UNI-11P-75 11 dBi 9 dBi 75° H/28° V O S 11" x 7.5" x 3.5" 30-ft UNI-11P-75 Antenna ISPs, school districts, and
872917 Mounting Hardware campus area networks requir-
30-ft Cable Assembly ing wide dispersion patterns
UNI-13P 13 dBi 11 dBi 46° H/28° V O S 11" x 7.5" x 3.5" 20-ft UNI-13P Antenna Medium range outdoor
872913 Mounting Hardware multipoint links
20-ft Cable Assembly
UNI-16P 16 dBi 14 dBi 28° H/28° V O S 11" x 11" x 3.5" 30-ft UNI-16P Antenna Medium to long range out-
872916 Mounting Hardware door multipoint links requir-
30-ft Cable Assembly ing compact form factors
UNI-18 18 dBi 15 dBi 12° H/14° V O S 16" x 20" X 15" 30-ft UNI-18 Antenna Long range outdoor
872918 Mounting Hardware point-to-point and
30-ft Cable Assembly multipoint links
UNI-24 24 dBi 19 dBi 6° H/10° V O S 24" x 36" x 15" 50-ft UNI-24 Antenna Long range outdoor
872924 Mounting Hardware point-to-point links
50-ft Cable Assembly
† Antenna Gain is the gain of the antenna without the cable.
‡ Kit Gain is the actual gain of the antenna kit as it is shipped from BreezeCOM.
O = Optional
S = Standard
Omni-2
Uni-11P-75 & Uni-13P
Omni-6
Uni-16P
Omni-7.2
Uni-18
Uni-8.5 & Uni-8.5Ext
Uni-24
Products
Accessories
BreezeCOM’s BreezeNET®Model D Antenna
Kits offer unparalleled flexibility and the
widest range of configurations available
today for building-to-building and in-
building wireless networking applications.
This comprehensive line of omni- and uni-
directional antennas can be mixed and
matched to create point-to-point and
multipoint LAN-to-LAN connections up to
eight miles apart. By choosing the optimum
gain and dispersion patterns from
BreezeNET’s extensive line of detachable
antennas, you can set up high performance
network links for almost any application
including ISP connections, and industrial,
educational, health care, and retail
networks, to name just a few.
Like all BreezeNET products, antenna
installation is a breeze, thanks to small
form factors, light weight, and low wind
resistance. Easy to use mounting hardware
fits a wide variety of masts and may also be
attached to walls and ceilings, simplifying
installation, while saving both time and
money for value added resellers, systems
integrators, and end users.

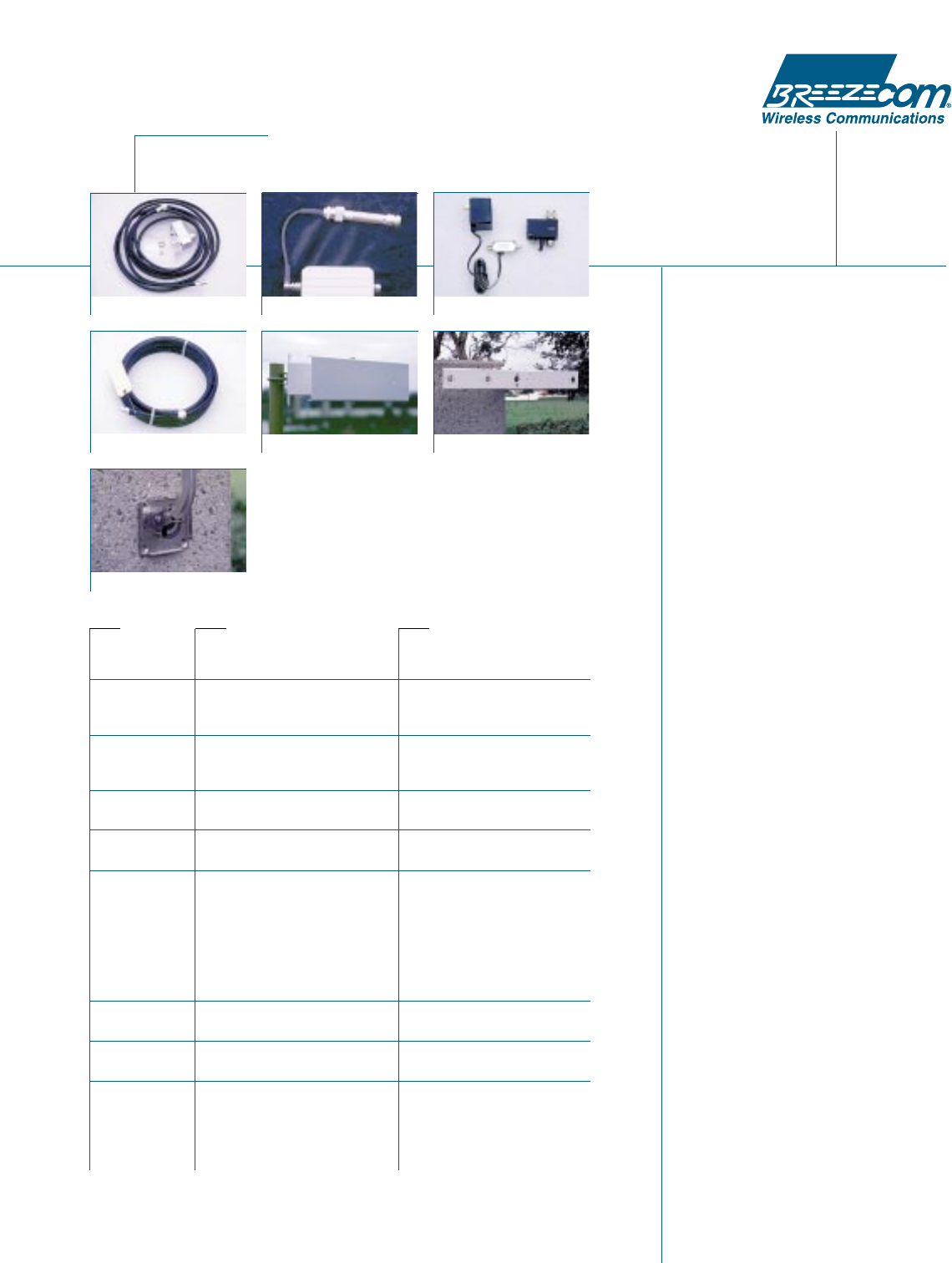

A wide range of accessories, including
extension cables, lightning arrestors, and
amplifiers are available to accommodate
any type of outdoor or indoor environment.
Model Description Application
Order No.
AL-1 In-line lightning arrestor with 5-ft Recommended for ALL outdoor
872905 extension cable, wall mount bracket antennas, helps prevent damage
(requires ground strap) due to nearby lightning strikes
SPF-1 In-line band pass filter Recommended for higher gain
872911 antennas, reduces out-of-band
interference and emissions
LNA-10 Low Noise Receive Pre-Amplifier Use with receive antennas of any
872219 gain, provides a 5 dB boost
LNA-10 Same as above, except 240 VAC Use with receive antennas of any
872249 gain, provides a 5 dB boost
EXT-10 872910 10-ft LMR600 Extension Cable Use instead of, or in addition to
EXT-20 872920 20-ft LMR600 Extension Cable cable provided with antennas
EXT-30 872930 30-ft LMR 600 Extension Cable
EXT-50 872950 50-ft LMR 600 Extension Cable
EXT-70 872970 70-ft LMR 600 Extension Cable
EXT-100 8729100 100-ft LMR 600 Extension Cable
EXT-150 8729150 150-ft LMR 600 Extension Cable
EXT-200 8729200 200-ft LMR 600 Extension Cable
BR-WM6 Wall or mast mount bracket for one Enables multiple antennas to be
872241 or two OMNI-6, OMNI-7.2, UNI-8.5 mounted side-by-side
BR-WM12 Wall or mast mount bracket for one Enables multiple antennas to be
872156 or two UNI-18, UNI-24 mounted side-by-side
BR-WMAST Wall mount for 12" mast for use with Enables a single mast mount
872901 any mast-mount antenna antenna to be mounted on a
parapet, wall or under eaves
AL-1
EXT-10 thru EXT-200
SPF-1
BR-WM6
LNA-10
BR-WM12
BR-WMAST
BreezeCOM is a leader in the development
and production of wireless communica-
tions products for telecommunications,
data communications and wireless LAN
applications. Our high performance
products use frequency-hopping, spread-
spectrum radio technology and operate in
the license-free 2.4 GHz ISM (industrial,
scientific and medical) band. Already
proven in building-to-building, in-building
and mobile applications, BreezeCOM’s
BreezeNET product line is up to three
times faster than the competition, and
offers superior range—up to 8 miles
outdoors, 600-ft indoors and at roaming
speeds of up to 50 mph. Software upgrade-
able to the new 802.11 standard and
compatible with 802.3 Ethernet,
BreezeNET products are extremely
reliable, easy to install and offer an
exceptionally cost-effective way to add
connectivity in your organization.
Visit us on the web:
http://www.breezecom.com
Or call BreezeCOM®
Phone: (760) 431-9880
Fax: (760) 431-2595
BreezeCOM, Inc.
2195 Faraday Avenue, Suite A
Carlsbad, CA 92008
© 1998 BreezeCOM, Inc
BreezeCOM and BreezeNET are registered trademarks of BreezeCom, Inc. and
trademarks of BreezeCom, Ltd. All other brand and product names are registered
trademarks or trademarks of their respective companies.
BreezeCom does not take responsibility for any damages incurred due to technical
inaccuracies in this document. Contents are subject to change without notification.
No part of this publication may be reproduced in any material form without written
permission from BreezeCom, Inc. or BreezeCom, Ltd.
BreezeNET PRO Series
Range matrix for maximum distance (1Mbps)
USA-FCC
Ant. type Omni-2 Omni-6 Omni-7 Uni-8.5 Uni-11 Uni-13 Uni-16 Uni-18 Uni-24
Asmbly gain 2 dBi 5 dBi 6 dBi 6.5 dBi 9 dBi 11 dBi 14 dBi 15 dBi 19 dBi
Omni-2 2 dBi 2500 ft 3800 ft 3900 ft 4000 ft 1.0 mi 1.2 mi 1.4 mi 1.5 mi 1.9 mi
Omni-6 5 dBi 3800 ft 4300 ft 4600 ft 4800 ft 1.2 mi 1.5 mi 1.7 mi 1.8 mi 2.2 mi
Omni-7 6 dBi 3900 ft 4600 ft 4800 ft 1.0 mi 1.3 mi 1.6 mi 1.8 mi 1.9 mi 2.3 mi
Uni-8.5 6.5 dBi 4000 ft 4800 ft 1.0 mi 1.1 mi 1.4 mi 1.7 mi 1.9 mi 2.0 mi 2.4 mi
Uni-11 9 dBi 1.0 mi 1.2 mi 1.3 mi 1.4 mi 1.7 mi 2.0 mi 2.3 mi 2.5 mi 2.9 mi
Uni-13 11 dBi 1.2 mi 1.5 mi 1.6 mi 1.7 mi 2.0 mi 2.2 mi 2.6 mi 2.8 mi 3.2 mi
Uni-16 14 dBi 1.4 mi 1.7 mi 1.8 mi 1.9 mi 2.3 mi 2.6 mi 3.1 mi 3.4 mi 3.7 mi
Uni-18 15 dBi 1.5 mi 1.8 mi 1.9 mi 2.0 mi 2.5 mi 2.8 mi 3.4 mi 3.5 mi 4.0 mi
Uni-24 19 dBi 1.9 mi 2.2 mi 2.3 mi 2.4 mi 2.9 mi 3.2 mi 3.7 mi 4.0 mi 6.0 mi
BreezeNET PRO Series
Range matrix for median throughput (2 Mbps)
Ant. type Omni-2 Omni-6 Omni-7 Uni-8.5 Uni-11 Uni-13 Uni-16 Uni-18 Uni-24
Asmbly gain 2 dBi 5 dBi 6 dBi 6.5 dBi 9 dBi 11 dBi 14 dBi 15 dBi 19 dBi
Omni-2 2 dBi 1500 ft 2000 ft 2300 ft 2500 ft 0.6 mi 0.7 mi 0.8 mi 0.9 mi 1.1 mi
Omni-6 5 dBi 2000 ft 2400 ft 2600 ft 2800 ft 0.7 mi 0.9 mi 1.0 mi 1.1 mi 1.3 mi
Omni-7 6 dBi 2300 ft 2600 ft 2900 ft 3000 ft 0.8 mi 1.0 mi 1.2 mi 1.3 mi 1.4 mi
Uni-8.5 6.5 dBi 2500 ft 2800 ft 3000 ft 0.6 mi 0.8 mi 1.0 mi 1.3 mi 1.3 mi 1.5 mi
Uni-11 9 dBi 0.6 mi 0.7 mi 0.8 mi 0.8 mi 0.9 mi 1.1 mi 1.4 mi 1.5 mi 1.7 mi
Uni-13 11 dBi 0.7 mi 0.9 mi 1.0 mi 1.0 mi 1.1 mi 1.2 mi 1.5 mi 1.7 mi 2.0 mi
Uni-16 14 dBi 0.8 mi 1.0 mi 1.2 mi 1.3 mi 1.4 mi 1.5 mi 1.8 mi 2.0 mi 2.6 mi
Uni-18 15 dBi 0.9 mi 1.1 mi 1.3 mi 1.3 mi 1.5 mi 1.7 mi 2.0 mi 2.2 mi 2.8 mi
Uni-24 19 dBi 1.1 mi 1.3 mi 1.4 mi 1.5 mi 1.7 mi 2.0 mi 2.6 mi 2.8 mi 3.5 mi
BreezeNET PRO Series
Range matrix for maximum throughput (3Mbps)
USA - FCC
Ant. type Omni-2 Omni-6 Omni-7 Uni-8.5 Uni-11 Uni-13 Uni-16 Uni-18 Uni-24
Asmbly gain 2 dBi 5 dBi 6 dBi 6.5 dBi 9 dBi 11 dBi 14 dBi 15 dBi 19 dBi
Omni-2 2 dBi 500 ft 750 ft 800 ft 850 ft 1200 ft 1600 ft 0.4 mi 0.5 mi 0.6 mi
Omni-6 5 dBi 750 ft 900 ft 1000 ft 1100 ft 1600 ft 2000 ft 0.5 mi 0.6 mi 0.7 mi
Omni-7 6 dBi 800 ft 1000 ft 1000 ft 1200 ft 1700 ft 2100 ft 0.6 mi 0.7 mi 0.8 mi
Uni-8.5 6.5 dBi 850 ft 1100 ft 1200 ft 1400 ft 2200 ft 0.5 mi 0.7 mi 0.7 mi 0.9 mi
Uni-11 9 dBi 1200 ft 1600 ft 1700 ft 2200 ft 0.5 mi 0.6 mi 0.8 mi 0.9 mi 1.0 mi
Uni-13 11 dBi 1600 ft 2000 ft 2100 ft 0.5 mi 0.6 mi 0.7 mi 0.9 mi 1.0 mi 1.2 mi
Uni-16 14 dBi 0.4 mi 0.5 mi 0.6 mi 0.7 mi 0.8 mi 0.9 mi 1 mi 1.1 mi 1.4 mi
Uni-18 15 dBi 0.5 mi 0.6 mi 0.7 mi 0.7 mi 0.9 mi 1.0 mi 1.1 mi 1.2 mi 1.5 mi
Uni-24 19 dBi 0.6 mi 0.7 mi 0.8 mi 0.9 mi 1.0 mi 1.2 mi 1.4 mi 1.5 mi 2 mi
The range figures assume line-of-sight with enough clearance between the antennas.
Those figures may vary according to specific multipath and interference situations.
* The maximum range can be increased by up to 40% by using two antennas per unit and a low noise receiving amplifier
(LNA-10).
