Alvarion Technologies IF-MMDS1 Outdoor MDS transceiver User Manual 1
Alvarion Ltd. Outdoor MDS transceiver 1
Contents
User manual 1
BreezeACCESS MMDS
Subscriber Units
SU-A-D-MMDS Series
SU-E-D-MMDS Series
Installation
Manual
July, 2000
Cat. No. 213100
Front Matter
SU A/E Subscriber Units Installation Manual ii BreezeACCESS MMDS Series
© 2000 by BreezeCOM Ltd. All rights reserved.
No part of this publication may be reproduced in any material form without the written permission of
the copyright owner.
Trade Names
BreezeACCESS, BreezeNET, BreezeLINK, BreezeVIEW, BreezeMANAGE and WIX are trade
names of BreezeCOM Ltd. Other brand and product names are registered trademarks or trademarks of
their respective companies.
Statement of Conditions
The information contained in this manual is subject to change without notice. BreezeCOM shall not be
liable for errors contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this manual or equipment supplied with it.
Warranty
In the following warranty text, “the Company” shall mean:
• BreezeCOM Ltd., for products located outside the USA.
• BreezeCOM Inc., for products located in the USA.
This BreezeACCESS product is warranted against defects in material and workmanship for a period
of one year from date of purchase. During this warranty period the Company will, at its option, either
repair or replace products that prove to be defective.
For warranty service or repair, the product must be returned to a service facility designated by the
Company. Authorization to return products must be obtained prior to shipment. The buyer shall pay
all shipping charges to the Company and the Company shall pay shipping charges to return the
product to the buyer.
The Company warrants that the firmware designed by it for use with the unit will execute its
programming instructions when properly installed on the unit. The Company does not warrant that the
operation of the unit or firmware will be uninterrupted or error-free.
Limitations of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance
by the buyer, buyer supplied interfacing, unauthorized modification or misuse, operation outside of
the environmental specifications for the product, or improper site preparation or maintenance. No
other warranty is expressed or implied. The Company specifically disclaims the implied warranties of
merchantability and fitness for any particular purpose.
BreezeCOM shall not be liable to any person for any special or indirect damages, including, but not
Front Matter
BreezeACCESS MMDS Series iii SU A/E Subscriber Units Installation Manual
limited to, loss of profits or revenues, loss of use or damage to any associated equipment, cost of
capital, cost of substitute products, facilities or services, downtime costs or claims resulting from any
cause whatsoever arising from or in any way connected with the manufacture, sale, handling, service,
repair, maintenance or use of the products. In no event shall the company’s liability exceed the
purchase price denoted on the invoice.
Information to User
Any changes or modifications of equipment not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
Safety Considerations
For the following safety considerations, “Instrument” means the BreezeACCESS Subscriber Unit
components and its cables.
Caution
To avoid shock, do not perform any servicing unless you are qualified to do so.
Line Voltage
Before connecting this instrument to the power line, make sure that the voltage of the power source
matches the requirements of the instrument: 100-240VAC, 50-60Hz.
Radio
The instrument transmits radio energy during normal operation. To avoid possible harmful exposure
to this energy, do not stand or work for extended periods of time in front of its antenna. The long-term
characteristics or the possible physiological effects of Radio Frequency Electromagnetic fields have
not been yet fully investigated.
Antenna Installation and Grounding
Be sure that the Outdoor unit, the antenna and the supporting structure are properly installed to
eliminate any physical hazard to either people or property. Verify that the antenna mast is grounded so
as to provide protection against voltage surges and static charges. Make sure that the installation of the
antenna and cable is performed in accordance with all relevant national and local building and safety
codes.
BreezeACCESS MMDS Series v SU A/E Subscriber Units Installation Manual
Table of Contents
1. INTRODUCTION ..................................................................................................................... 1
2. BASIC INSTALLATION .........................................................................................................2
2.1 Packing List...........................................................................................................................2
2.2 Other Items Required for Installation....................................................................................2
2.3 General Installation Scheme.................................................................................................. 3
2.4 Guidelines for Selection of Equipment Locations ................................................................5
2.5 Installing the Outdoor Unit ...................................................................................................7
2.5.1 Pole Mounting the Outdoor Unit ................................................................................... 7
2.5.2 Connecting the Antenna Cable (SU-RE) .....................................................................10
2.5.3 Connecting the Ground and IF Cables.........................................................................10
2.6 Installing the SU-NI Indoor Unit ........................................................................................10
3. CONFIGURING SYSTEM PARAMETERS........................................................................ 12
3.1 Getting Started with the Local Terminal............................................................................. 12
3.2 Configuration Parameters....................................................................................................14
3.3 Reset Unit............................................................................................................................16
4. ALIGNING THE ANTENNA ................................................................................................17
5. VERIFYING CORRECT OPERATION OF THE OUTDOOR UNIT..............................19
6. RSSI MEASUREMENT AND MAXIMUM DATA RATE CONFIGURATION .............20
6.1 Performing the RSSI Measurement..................................................................................... 20
6.2 Configuring The Maximum Data Rate................................................................................ 21
7. VERIFYING CORRECT OPERATION ..............................................................................22
7.1 General................................................................................................................................ 22
Table of Contents
SU A/E Subscriber Units Installation Manual vi BreezeACCESS MMDS Series
7.2 Verifying Data Connectivity...............................................................................................22
8. SPECIFICATIONS.................................................................................................................23
8.1 Radio...................................................................................................................................23
8.2 Data Communication ..........................................................................................................24
8.3 Outdoor Unit to Indoor Unit Communication.....................................................................24
8.4 Configuration and Management.......................................................................................... 24
8.5 Interfaces............................................................................................................................. 25
8.6 Electrical, Mechanical and Environmental ......................................................................... 25
8.7 Standards Compliance, General.......................................................................................... 25
Appendix A. Using Telnet
Table of Contents
BreezeACCESS MMDS Series vii SU A/E Subscriber Units Installation Manual
Table of Figures
Figure 2-1. SU-A General Installation Scheme.........................................................................3
Figure 2-2. SU-E General Installation Scheme......................................................................... 4
Figure 2-3. Holes/Grooves/Screw holes....................................................................................8

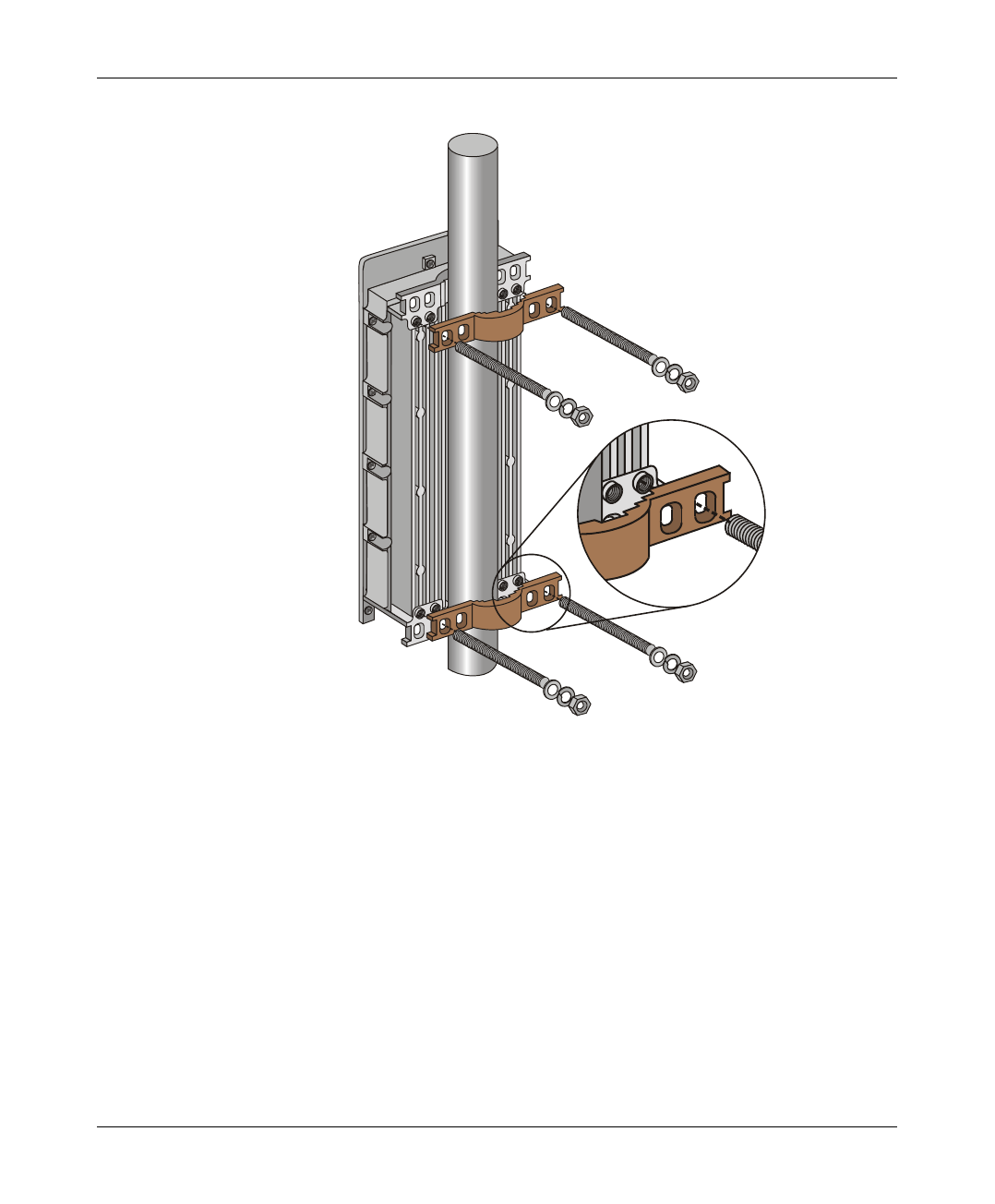

Figure 2-4. SU-RA 2" Pole Mounting Installation Using the Supplied Brackets .....................8
Figure 2-5. SU-RE 3" Pole Mounting Installation Using the Supplied Brackets...................... 9

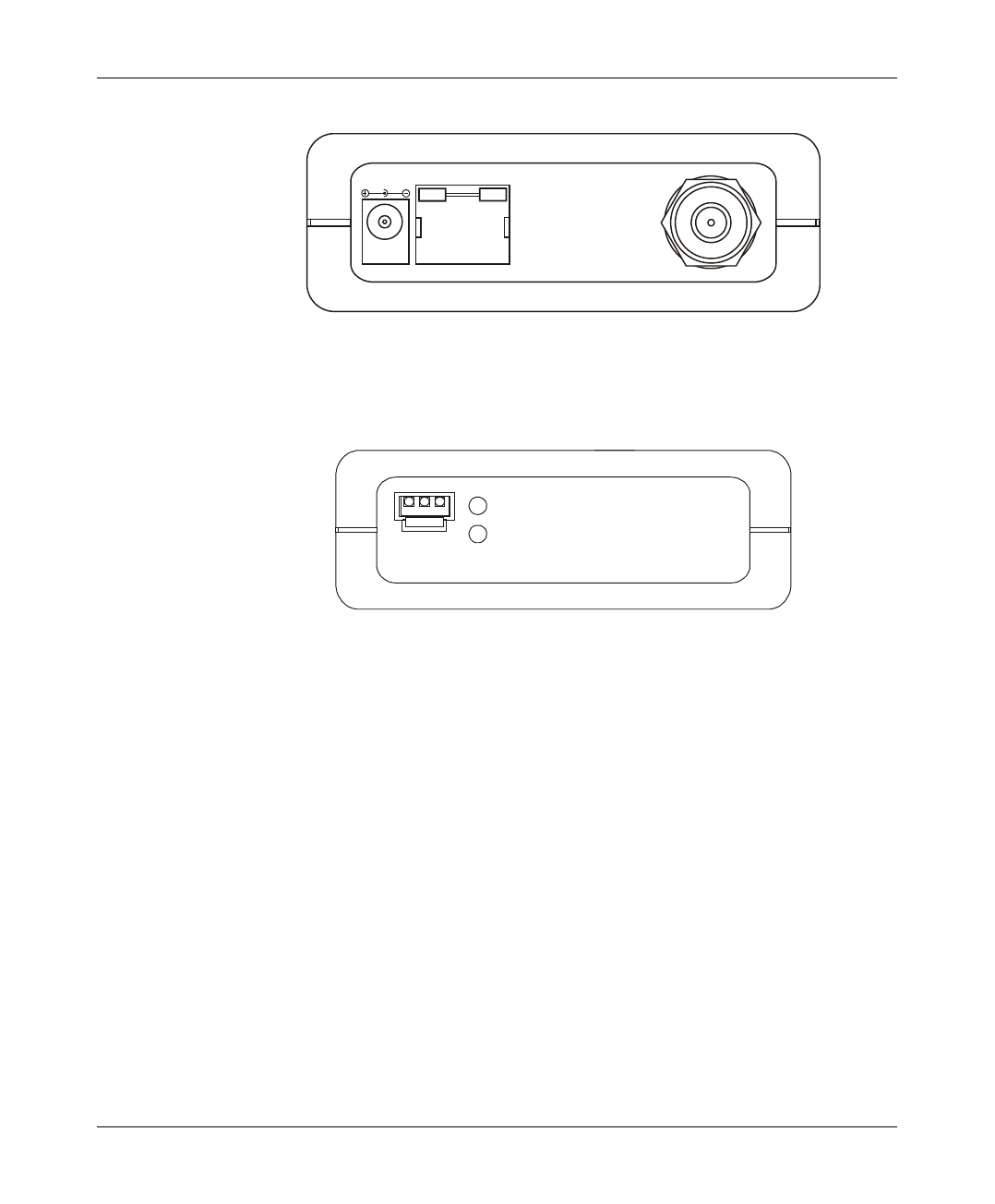

Figure 2-6. SU-NI Rear Panel................................................................................................. 11
Figure 2-7. SU-NI Front Panel................................................................................................11
Figure 3-1. Main Menu ...........................................................................................................13
Figure 3-2. Basic Configuration Menu ...................................................................................15

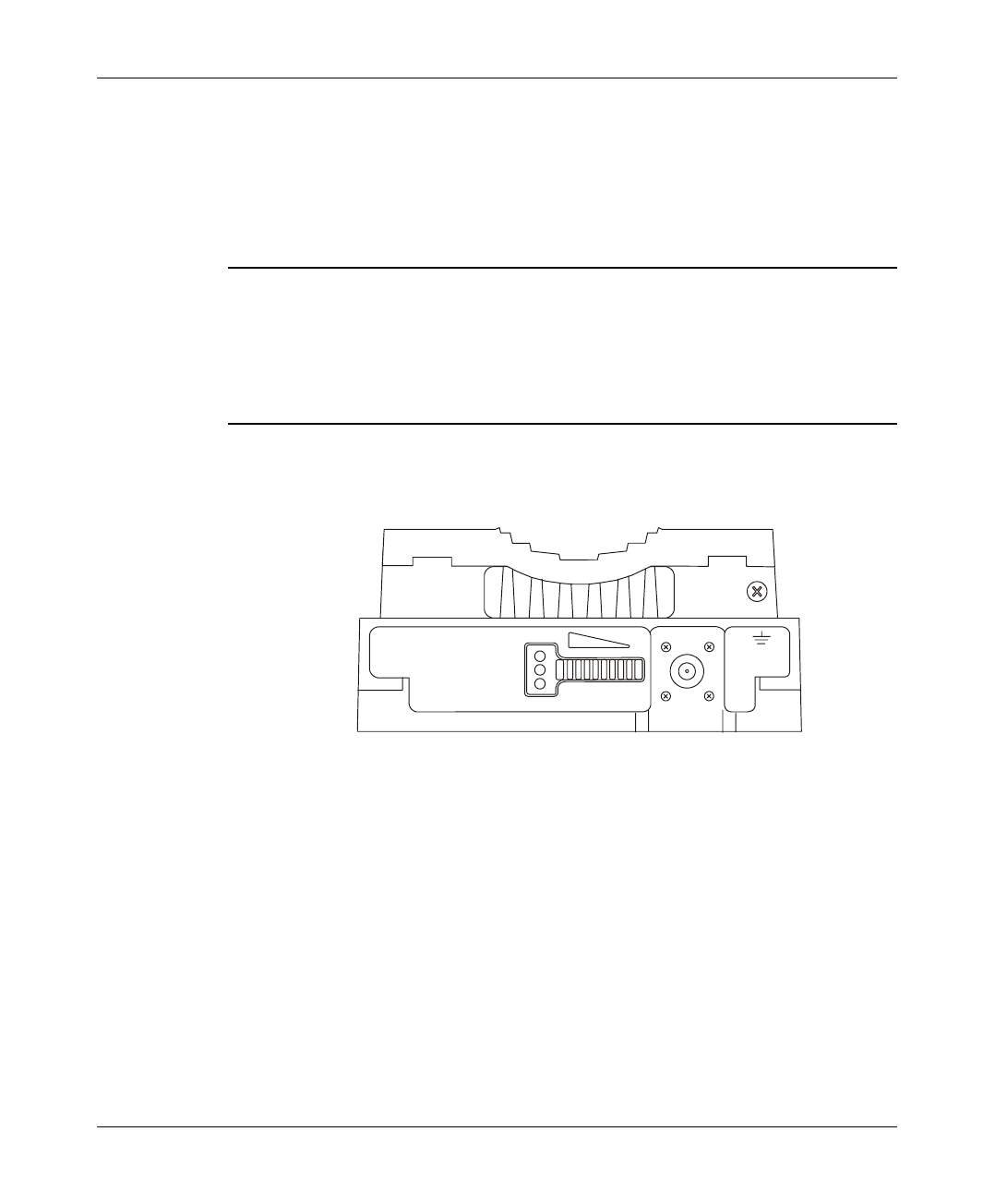

Figure 4-1. SU-RA/RE Outdoor Unit Bottom Panel............................................................... 17
Table of Tables
Table 1: IF Cables ...................................................................................................................... 5
Table 2: SU-RA/RE Outdoor Unit LEDs................................................................................19
Table 3: RSSI vs. Maximum Data Rate ...................................................................................21
Table 4: SU-NI LEDs............................................................................................................... 22
Introduction
BreezeACCESS MMDS Series 1 SU A/E Subscriber Units Installation Manual
1. INTRODUCTION
This manual describes installation guidelines for BreezeACCESS MMDS SU-A
and SU-E series of Subscriber Units.
The BreezeACCESS IP Broadband Wireless Local Loop (WLL) system allows
access service providers to provide high-speed IP connectivity services to their
subscribers. To effectively support IP-based services BreezeACCESS systems
employ wireless packet data switching technology.
The BreezeACCESS MMDS line of products uses Frequency Hopping Spread
Spectrum radios that operate in Time Duplex Division (TDD) mode in the
2.500GHz – 2.686GHz frequency range.
SU-A and SU-E series Subscriber Units are comprised of an indoor unit (SU-NI)
and an outdoor unit. In the SU-A product line, the outdoor unit (SU-RA) contains
the radio module and an integral flat antenna. In the SU-E series, the outdoor unit
(SU-RE) contains the radio module and an interface to an external antenna (not
included). The indoor unit provides the interface to the user’s equipment and is
powered from the mains via its SU-PS power supply unit. The SU-NI also
contains an IF (Intermediate Frequency) module and is connected to the outdoor
unit via a 50-ohm coaxial IF cable. The IF cable serves for transmission of the
440MHz IF signal between the indoor and the outdoor units. It also serves for
transferring power (12VDC), management and control signals from the indoor
unit to the outdoor unit.
The SU-A/E-D-MMDS series include the following products:
• SU-A/E-1D-MMDS: supports a single Ethernet device
• SU-A/E-8D-MMDS: supports up to 8 Ethernet workstations/PCs
• SU-A/E-BD-MMDS: supports a LAN (a bridge functionality)
Note: The information contained in this manual is applicable to BreezeACCESS
MMDS units with software release 2.3.
BASIC Installation
SU A/E Subscriber Units Installation Manual 2 BreezeACCESS MMDS Series
2. BASIC INSTALLATION
2.1 Packing List
• SU-NI Indoor unit
• Outdoor unit
⇒ SU-RA with integral antenna
or
⇒ SU-RE with a connector to an external antenna (not included)
• SU-PS power supply with a mains power cord
• Pole mounting kit for the Outdoor unit (with two brackets, four sets of
screws, nuts and washers)
• Wall mounting kit for the SU-NI unit
2.2 Other Items Required for Installation
• IF cable* (available from BreezeCOM in different lengths)
• Grounding cable with an appropriate termination
• Antenna* and RF cable* (SU-E only)
• Ethernet cable (straight)
• A portable PC with terminal emulation software
• Monitor cable* (supplied with the base station equipment)
• Installation tools and materials.
Items marked with an asterisk (*) are available as options from BreezeCOM.
BASIC Installation
BreezeACCESS MMDS Series 3 SU A/E Subscriber Units Installation Manual
2.3 General Installation Scheme
Figure 2-1 depicts the general installation scheme for BreezeACCESS SU-A
MMDS Subscriber Units; Figure 2-2 depicts the general installation scheme for
BreezeACCESS SU-E MMDS Subscriber Units.
INDOOR
UNIT
IF CABLE TO
OUTDOOR UNIT
TO MAINS
GROUNDING
CABLE
OUTDOOR
UNIT
TO DATA
EQUIPMENT
TO TELEPHONE EQUIPMENT
(SU-DV SERIES ONLY)
POWER
SUPPLY

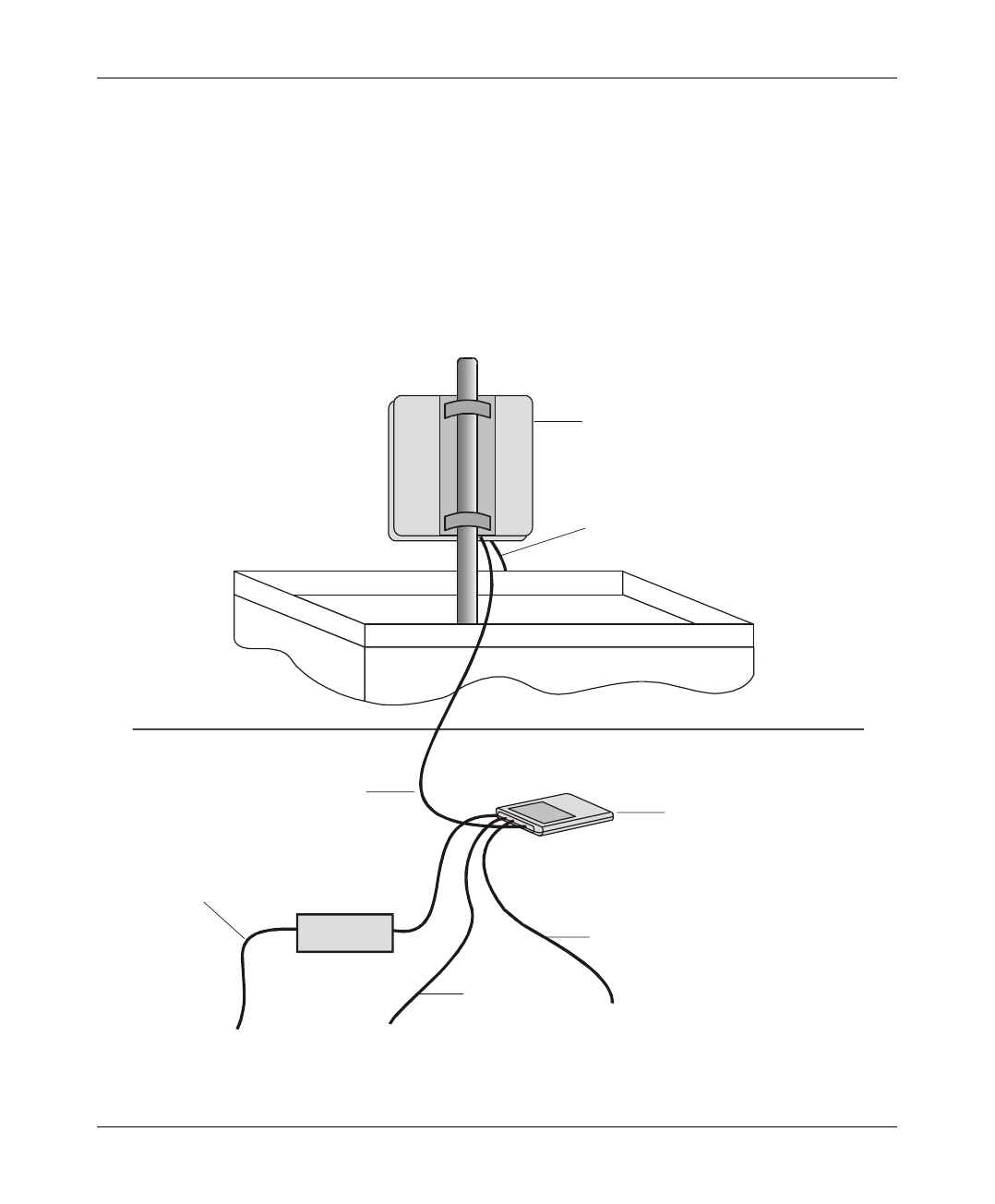

Figure 2-1. SU-A General Installation Scheme
BASIC Installation
SU A/E Subscriber Units Installation Manual 4 BreezeACCESS MMDS Series
INDOOR
UNIT
IF CABLE TO
OUTDOOR UNIT
TO MAINS
TO DATA
EQUIPMENT
TO TELEPHONE EQUIPMENT
(SU-DV SERIES ONLY)
GROUNDING
CABLE
OUTDOOR
UNIT
POWER
SUPPLY
TO ANTENNA

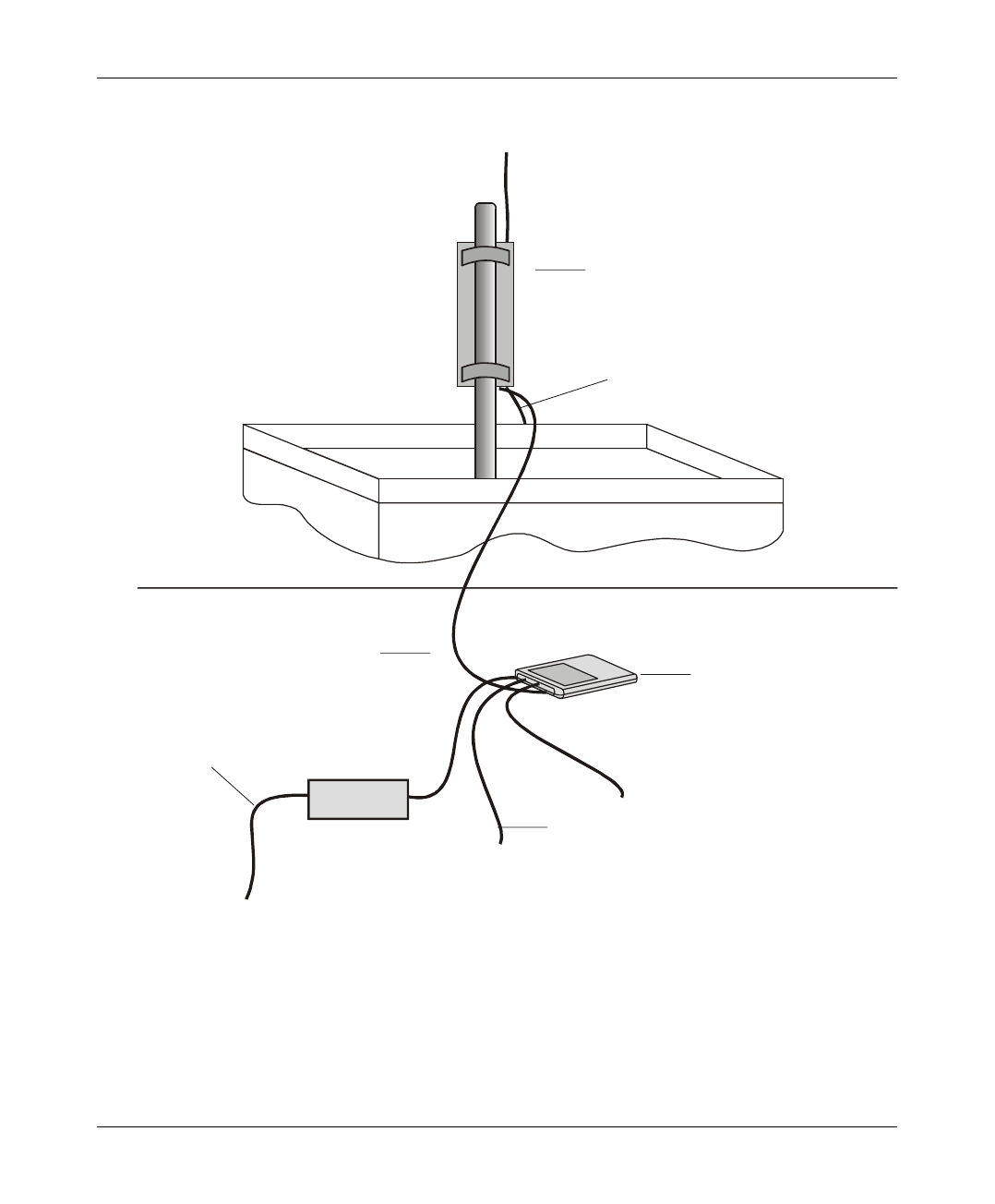

Figure 2-2. SU-E General Installation Scheme
BASIC Installation
BreezeACCESS MMDS Series 5 SU A/E Subscriber Units Installation Manual
2.4 Guidelines for Selection of Equipment Locations
Select appropriate locations for the Outdoor unit and for the Indoor unit using the
following guidelines.
SU-RA
• The SU-RA Outdoor unit should be mounted on a pole and should be
installed on a rooftop or a side-wall where a direct line of sight with the Base
Station antenna can be established. The higher the unit, the better the
achievable link quality.
• The antenna (integrated on the front side of the SU-RA Outdoor unit) should
be directed towards the Base Station. The unit should be installed in a way
that allows optimal alignment towards the Base Station. The location should
also be selected to allow easy access to the unit for installation and testing.
SU-RE
• The SU-RE outdoor unit should be installed as near as possible to its
antenna.
SU-RA/RE
• The SU-RA/RE is connected to the SU-NI by means of an IF cable carrying
signaling, control signals and power. The IF frequency is 440 MHz. The
maximum allowed attenuation of the IF cable connecting the Outdoor unit to
the Indoor unit is 15dB and the maximum allowed DC resistance (the sum of
the DC resistance of the inner and outer conductors) is 1.5 ohm. This allows
for cable length of up to 30m when using the standard RG 58 cable.
If longer cables are required, a cable with lower attenuation and/or DC
resistance should be used. Table 1 provides details regarding some popular
cables such as the RG 58 and RG 213. If the spectral environment is polluted
with noise in the 440 MHz band, it is recommended to use a higher quality
double-shielded cable such as the LMR 240 or LMR 400 (manufactured by
Times Communications).
Table 1: IF Cables
Cable Type RG 58 RG 213 LMR 240 LMR 400
BASIC Installation
SU A/E Subscriber Units Installation Manual 6 BreezeACCESS MMDS Series
Maximum cable
Length (m) 30 100 65 150
• The Indoor unit should be installed in as close as possible to the building’s
entry point of the IF cable. The location of the Indoor unit should also take
into account the need to connect it to a power mains outlet and to the CPE.
Note: Outdoor units and antennas should be installed ONLY by experienced
installation professionals who are familiar with local building and safety
codes and, wherever applicable, are licensed by the appropriate
government regulatory authorities.
The system complies with the ETS 300 385 standard and is protected
against secondary lightning strikes when its outdoor unit is properly
grounded according to the applicable country-specific industry standards
for protection of structures against lightning.
Failure to do so may void the BreezeACCESS product warranty and may
expose the end user or the service provider to legal and financial liabilities.
BreezeCOM and its resellers or distributors are not liable for injury,
damage or violation of regulations associated with the installation of
outdoor units or antennas.
BASIC Installation
BreezeACCESS MMDS Series 7 SU A/E Subscriber Units Installation Manual
2.5 Installing the Outdoor Unit
2.5.1 Pole Mounting the Outdoor Unit
The Outdoor unit can be secured to the pole using one of the following options:
• Special brackets (supplied with each unit). There are two pairs of screw
holes, allowing use of the special brackets with various pole widths.
• U-bolts – size A (inner installation holes, up to 2” pole).
• U-bolt – size B (outside installation holes, up to 3” pole).
• Metal bands (9/16” wide, minimum 12” long).
Figure 2-3 shows the locations of the holes, grooves and screw holes on the rear
side of the Outdoor unit.
Figure 2-4 illustrates the method of installing an SU-RA Outdoor unit on a pole,
using the brackets.
Figure 2-5 illustrates the method of installing an SU-RE Outdoor unit on a pole,
using the brackets.
Note: Make sure to install the unit with the bottom panel (the panel with the IF
connector) facing downward.
BASIC Installation
SU A/E Subscriber Units Installation Manual 8 BreezeACCESS MMDS Series
Bracket Screws
Grooves for Insertion of 9/16” Metal Band
U-Bolts (3” Pole)
U-Bolts (2” Pole)
Figure 2-3. Holes/Grooves/Screw holes
Figure 2-4. SU-RA 2" Pole Mounting Installation Using the Supplied
Brackets
BASIC Installation
BreezeACCESS MMDS Series 9 SU A/E Subscriber Units Installation Manual
Figure 2-5. SU-RE 3" Pole Mounting Installation Using the Supplied
Brackets
BASIC Installation
SU A/E Subscriber Units Installation Manual 10 BreezeACCESS MMDS Series
2.5.2 Connecting the Antenna Cable (SU-RE)
Connect an RF cable between the ANT connector (located on the top panel of the
SU-RE unit) and the antenna.
2.5.3 Connecting the Ground and IF Cables
The Ground terminal (marked ) and the IF cable connector (marked IF) are
located on the bottom panel of the SU-RA Outdoor unit, shown in Figure 4-1.
1. Connect one end of the ground cable to the Ground terminal and connect the
other end to a good ground connection.
2. Connect the coaxial cable to the IF connector. Verify that the length of the IF
cable is sufficient and that it can easily reach the Indoor unit.
Note: Make sure to switch OFF the power of the SU-NI unit prior to
connecting/disconnecting the IF cable.
2.6 Installing the SU-NI Indoor Unit
1. Place the SU-NI unit in an appropriate location on a shelf or a table. The unit
can be wall mounted using the installation materials provided with the unit.
Use a 6mm (1/4”) drill and the supplied template plate for easy and accurate
marking of the holes.
2. Connect the SU-PS power cord to the DC In jack (marked DC-12V) located
on the rear panel of the Indoor unit (shown in Figure 2-6).
3. Connect the IF cable to the IF connector (marked IF) on the rear panel of the
Indoor unit. The other side of the IF cable should already be connected to the
Outdoor unit.
4. Connect the other end of the mains power cord to the SU-PS. Connect the
mains power plug to a mains power outlet.
BASIC Installation
BreezeACCESS MMDS Series 11 SU A/E Subscriber Units Installation Manual
DC - 12V ETH IF
Figure 2-6. SU-NI Rear Panel
5. Verify that the Power LED (marked PWR) located on the front panel of the
Indoor Unit is turned ON.
PWR
WLNK
MON
Figure 2-7. SU-NI Front Panel
6. Use a straight Ethernet 10baseT cable to connect a PC (SU-A/E -1D), or a
hub (SU-A/E-8D or SU-A/E-BD) to the Ethernet port (marked ETH) located
on the rear panel of the SU-NI unit.
Configuring System Parameters
SU A/E Subscriber Units Installation Manual 12 BreezeACCESS MMDS Series
3. CONFIGURING SYSTEM PARAMETERS
After completing the installation process, as described in the preceding section,
proceed with the configuration of the basic system parameters.
This section covers the configuration of basic installation parameters. Refer to the
Administration Manual for information related to other parameters.
Note: Optionally, the product can be configured using Telnet over the Ethernet
port, after setting IP address. For further information, see Appendix A.
3.1 Getting Started with the Local Terminal
1. Connect one end of the Monitor cable to the MON jack on the front panel of
the SU-NI Indoor unit. Connect the second end of the cable to the COM port
of the terminal. The COM port connector on the Monitor cable is a 9 pin
D-type plug.
2. Run a terminal emulation program (e.g., ProComm or Windows
HyperTerminal) using the following setup.
Baud rate 9600
Data bits 8
Stop bits 1
Parity None
Flow Control Xon/Xoff
Connector Available Com Port
3. Press
Enter. The Select Access Level menu appears. Select the access level
according to your authorized access level. You will be requested to enter
your password. After entering the correct password press enter. The main
menu appears (refer to Figure 3-1).
Configuring System Parameters
BreezeACCESS MMDS Series 13 SU A/E Subscriber Units Installation Manual
Software
Version No.
BreezeACCESS (SU-1D)
Official Release Version – 2.1.1
Release Date: Tue Mar 07 11:21:22 2000
Main Menu
=====================
1 – Info Screens
2 – Unit Control
3 – Basic Configuration
4 – Site Survey
5 – Advanced Configuration
BreezeACCESS >>>
Figure 3-1. Main Menu
The appearance of the displayed Main Menu varies in accordance with the
access level.
• For users with read only access rights, only the Info Screens option is
displayed. Users with this access level cannot access the Unit Control,
Basic Configuration, Site Survey and Advanced Configuration menus.
• For users with Installer access rights, the first four menu items (Info
Screens, Unit Control, Basic Configuration and Site Survey) are
displayed. Users with this access level cannot access the Advanced
Configuration menu.
• For users with Administrator access rights, the full Main Menu will be
displayed. These users can access all the menu items.
4. Operate the monitor program as follows:
Unit Type
Unit Name
Configuring System Parameters
SU A/E Subscriber Units Installation Manual 14 BreezeACCESS MMDS Series
• Type an option number to open/activate the option. You may need
to press the Enter key in some cases.
• Press the Esc key to exit a menu or an option.
• You can log-out and exit the monitor program at any time by
simultaneously pressing the Ctrl and X keys.
• Reset the unit after making configuration changes for the new values
to take effect.
• You can view the current parameters’ configuration by selecting 1 in
the Main Menu to Access the Info Screens menu, and than selecting
2 in the Info Screens menu to view the Basic Configuration
parameters.
3.2 Configuration Parameters
The following system parameters must be configured for each specific installation:
• ESSID
• IP Address
• Subnet Mask
• Default Gateway Address
• Hopping Band
• Frequency Offset
• Maximum Data Rate (Depending on results of RSSI measurement)
Note: You must select Reset Unit in the Unit Control menu for the changes to take
effect.
Configuring System Parameters
BreezeACCESS MMDS Series 15 SU A/E Subscriber Units Installation Manual
1. From the main menu, type 3 to access the Basic Configuration menu.
BreezeACCESS (SU-1D)
Official Release Version – 2.1.1
Release Date: Tue Mar 07 11:21:22 2000
Basic Configuration
====================
1 – IP Address
2 – Subnet Mask
3 – Default Gateway Address
4 – ESSID
5 – Maximum Data Rate
6 – Frequency Offset
7 – Hopping Band
X - Transmit Power Control
Y - Receive Attenuation Control
S - Show Basic Configuration
BreezeACCESS >>>
Figure 3-2. Basic Configuration Menu
2. From the Basic Configuration menu, type 1 to access the IP Address
selection screen. Enter the required IP address.
3. Type 2 to access the Subnet Mask selection screen. Enter the required subnet
mask.
4. Type 3 to access the Default Gateway Address selection screen. Enter the
required default gateway address.
5. Type 4 to access the ESSID selection screen. Enter the required ESSID.
6. Type 6 to access the Frequency Offset selection screen. Enter the required
offset.
7. Type H to access the Hopping Band selection screen. Enter the required
bandwidth.
Configuring System Parameters
SU A/E Subscriber Units Installation Manual 16 BreezeACCESS MMDS Series
3.3 Reset Unit
1. From the main menu, type 2 to access the Unit Control menu.
2. Type 1 to access the Reset Unit menu. Type 1 to reset the unit so that new
configuration settings are applied.
Note: Should you make any mistakes during configuration or encounter any
problems associated with system configuration parameters, you may
configure the unit back to the factory defaults, as follows:
Type 2 in the Unit Control menu to access the Set Factory Defaults menu.
Type in 2 (Set Factory defaults-Full) to load the default values. Reset the
unit for the factory defaults values to take effect.
Aligning the Antenna
BreezeACCESS MMDS Series 17 SU A/E Subscriber Units Installation Manual
4. ALIGNING THE ANTENNA
Note: Antenna alignment using the RSSI bar display is possible only after the
Access Unit you wish to associate with is operational and the ESSID,
Hopping Band and Frequency Offset parameters were properly configured.
Otherwise the unit will not be able to synchronize and associate with the
Access Unit. As the RSSI measurement is performed on received frames, its
results are meaningless as long as the unit is not associated with an AU.
1. Verify that the Power indication (the Yellow LED of the BSSI bar display) is
ON.
ETH
ALARM RSSI
IF
WLNK
Figure 4-1. SU-RA/RE Outdoor Unit Bottom Panel
2. Align the antenna (integrated into the front side of the SU-RA Outdoor unit,
or separate if the unit is an SU-RE) to point towards the general direction of
the base station.
3. The RSSI bar display is located on the bottom panel of the Outdoor unit
(refer to Figure 4-1). The 8 green RSSI LEDs are used for reading the
Received Signal Strength Indication. The higher the number of green LEDs
that are ON, the higher the level of the received signal. Rotate the antenna
left and/or right until you reach the point of maximum RSSI reading. Make
sure that at all times, the front of the antenna faces the general direction of
the base station.
Aligning the Antenna
SU A/E Subscriber Units Installation Manual 18 BreezeACCESS MMDS Series
4. For proper operation, at least one green LED should be ON. If you cannot
reach a point where at least one green LED is ON, try to improve the
reception quality by placing the antenna at a higher point or in a d9ifferent
location.
Note: In some cases (e.g., when the Subscriber Unit is very close to the Base
Station), the antenna might have to be installed at an appropriate angle, in
order to ensure that it is directed towards the Base Station antenna).
5. Tighten the bracket screws (or the U-bolts/metal band), firmly securing the
unit to the pole.
Verifying Correct Operation of the Outdoor Unit
BreezeACCESS MMDS Series 19 SU A/E Subscriber Units Installation Manual
5. VERIFYING CORRECT OPERATION OF THE
OUTDOOR UNIT
To verify correct operation, view the LED indicators located on the bottom panel
of the Outdoor unit as shown in Figure 4-1 on page 17.
The following table lists the various LED states.
Table 2: SU-RA/RE Outdoor Unit LEDs
Name Description Functionality
ALARM Alarm
Indication On – A problem with the power amplifier or in
the locking process of any of the synthesizers
Off –Normal operation
WLNK Wireless link
activity Blinking –Receiving packet from the wireless
link
Off – No reception of packets from the wireless
link
ETH Ethernet
activity Blinking – Data received from or transmitted to
Ethernet LAN
Off – No activity on the Ethernet LAN
RSSI Bar display Displays the Received Signal Strength Indication.
The higher the number of green LEDs that are
ON, the higher the level of the received signal.
Yellow LED On - Power On
Off – Power is not received from the Indoor
unit
8 Green LEDs RSSI in 4 dB resolution starting at –91dBm
Red LED Received signal strength is –40dBm or higher
Note: Verifying proper operation of the Outdoor unit using the LEDs as described
above is possible only after completion of the configuration and alignment
processes.
RSSI Measurement and Maximum Data Rate Configuration
SU A/E Subscriber Units Installation Manual 20 BreezeACCESS MMDS Series
6. RSSI MEASUREMENT AND MAXIMUM DATA
RATE CONFIGURATION
6.1 Performing the RSSI Measurement
The Average RSSI Continuous Display test allows a continuously updated
display of the average Received Signal Strength Indication. As the test measures
only the desired signal of properly received frames, it is a good indication to the
quality of the received signal.
Note: As the RSSI bar indicator is not accurate, it is recommended always to
perform the Average RSSI Continuous Display test after the antenna was
optimally aligned.
1. Start the Monitor program as described in Section 3.1.
2. From the Main Menu Type 4 to access the Site Survey menu.
3. Type 4 to activate the Average RSSI Continuos Display selection screen.
4. On the screen you will get a continuously updated display of RSSI
measurements. To stop the test, press the Esc key.
RSSI Measurement and Maximum Data Rate Configuration
BreezeACCESS MMDS Series 21 SU A/E Subscriber Units Installation Manual
6.2 Configuring The Maximum Data Rate
5. Use the following table to determine the recommended Maximum Data Rate.
Table 3: RSSI vs. Maximum Data Rate
RSSI Maximum Data Rate
Higher than 97 3 Mbps
From 86 to 97 2Mbps
Lower than 86* 1 Mbps
* If the RSSI is lower than 80 units the link quality is too
low and should be improved through installing the antenna
in a different and/or a higher location.
2. If the measured average RSSI is less than 97 units, the default Maximum
Data Rate of 3 Mbps is to high and should be decreased.
3. From the Basic Configuration menu select 5 to access the Maximum Data
Rate selection menu.
4. Configure the Maximum Data Rate according to Table 3 above.
5. Reset the unit for the new configuration to become effective.
Verifying Correct Operation
SU A/E Subscriber Units Installation Manual 22 BreezeACCESS MMDS Series
7. VERIFYING CORRECT OPERATION
7.1 General
After completing the installation as described above, the system starts operation.
To verify correct operation, view the LED indicators located on the front panel of
the SU-NI Indoor unit as shown in Figure 2-7 on page 11.
Table 4 lists the various LED states.
Table 4: SU-NI LEDs
Name Description Functionality
PWR Power supply On – After successful power up
Off – Power off
WLNK Wireless link
activity Blinking –Receiving packet from the wireless link
Off – No reception of packets from the wireless
link
ETH
connector
embedded
yellow
LED
Ethernet
activity
On- Receive/Transmit on Ethernet port
Off- No Receive/Transmit on Ethernet port
ETH
connector
embedded
green LED
ETH Link
Integrity
On- Unit is connected to Ethernet segment
Off- Unit is not connected to Ethernet segment
7.2 Verifying Data Connectivity
From the user’s PC or from a portable PC connected to the unit, Ping the unit or
try to connect it to the Internet.
Specifications
BreezeACCESS MMDS Series 23 SU A/E Subscriber Units Installation Manual
8. SPECIFICATIONS
8.1 Radio
Frequency 2.500GHz – 2.686GHz
Radio Access Method FH-CDMA or TDMA
Operation Mode Time Duplex Division
Sub-Channel Bandwidth 1 MHz
Frequency Setting Resolution 1 MHz
Antenna Gain (SU-RA) 17dBi, 20o
Output Power (at antenna port) 27 dBm typical. Power Control range: 20 dB
Sensitivity
(dBm at antenna port, BER 1E10-6)
1Mbps
2Mbps
3Mbps
-87
-80
-71
Data Rate 3Mbps max
Modulation Multilevel GFSK
Specifications
SU A/E Subscriber Units Installation Manual 24 BreezeACCESS MMDS Series
8.2 Data Communication
Standard Compliance IEEE 802.3 CSMA/CD
8.3 Outdoor Unit to Indoor Unit Communication
IF Frequency 440 MHz
IF cable Impedance 50 ohm
Maximum IF cable Attenuation 15dB
Maximum IF cable DC Resistance 1.5 ohm
8.4 Configuration and Management
Local Management Via MON port, Monitor program using terminal emulation
Remote Management SNMP, Telnet, TFTP
Remote Management Access From Wired LAN, Wireless Link
SNMP Agents MIB II, Bridge MIB, Private MIBs
Accounting RADIUS compatible client
Security Authentication and filtering
Software upgrade TFTP download
Specifications
BreezeACCESS MMDS Series 25 SU A/E Subscriber Units Installation Manual
8.5 Interfaces
Interface Outdoor unit SU-NI indoor unit
IF TNC jack, lightning protected TNC jack, lightning protected
RF (SU-E) N-Type jack
Ethernet 10Base-T (RJ-45) with 2 embedded LEDs
Monitor 3-pin low profile
Power 12 VDC via the IF cable DC Plug for the SU-PS power supply
8.6 Electrical, Mechanical and Environmental
Outdoor Unit SU-NI Indoor Unit
Power 12 VDC from SU-NI via the IF cable SU-NI: 12VDC/MMDSA from SU-PS
SU-PS: 100 – 240 VAC, 47-63 Hz
Mechanical SU-RA: 30cm x 30cm x 7.2 cm, 3 kg
SU-RE: 30cm x 12cm x 5 cm, 2.2 kg.
SU-NI: 13cm x 8.6cm x 3cm, 0.5 kg.
SU-PS: 10cm x 6.5cm x 3.5cm, 0.4 kg.
Operating
Temperature -400C to 600C0
0
C to 400C
Operating
Humidity 5%-95% non condensing,
Weather protected 5%-95% non condensing
8.7 Standards Compliance, General
EMC EN300 385:1998 (including EN55022:1994 and EN50082-1:1992)
Safety EN 60950
Environmental ETS 300 019
Appendix A
SU A/E Subscriber Units Installation Manual 26 BreezeACCESS MMDS Series
Appendix A. Using Telnet
BreezeACCESS MMDS Series 27 SU A/E Subscriber Units Installation Manual
APPENDIX A. USING TELNET
Use the following procedure to connect to BreezeACCESS MMDS units via a
Telnet session.
1. Connect the PC to the Ethernet port of the unit (or the hub to which the unit
is connected) using a straight Ethernet cable. If you connect the PC directly
to a unit that is normally connected to a hub, use a crossed Ethernet cable.
You may also connect the PC to any Ethernet port on the network and
communicate with the unit to be managed via the wired or wireless media.
2. Make sure that the IP parameters of the PC are configured to enable
connectivity with the unit.
3. Run a Telnet application and use the IP address of the unit to be managed as
the Host Name.
4. Set Port to Telnet (this is the default).
5. Set Terminal Type to VT100 (this is the default).
6. Enter the Service Provider password.
7. When the password is recognized, the following message is displayed:
You have entered.
8. Press Enter, the Breeze ACCESS Monitor is displayed on the screen.
To exit the Telnet session, choose Disconnect from the Connect menu.
(The session is terminated automatically, after a specific time of inactivity
determined by the Log-out Timer).
