MANUAL
Certificated Of Conformity
1.Company :AMAC TEK CO., LTD
3rd Floor, Seyo Bldg, 161-8,
Samsung -Dong, Kangnam-Gu,
Seoul. Korea. 135-881
2.Product Name : Hansori (MP3 digital audio player)
3.Model No : HAN-230UEF
4.FCC Compliance Statement:
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution : Any changes or modifications in construction of this device which are not device expressly pproved
by the party responsible for compliance could void the user’s authority to operate the equipment.
-EN55022 + A1 : 2000 --- Information Technology Equipment - Radio disturbance
-EN55024 : 1998 --- Information Technology Equipment - Immunity
-EN55013 + A14 : 1999 --- Sound and television broadcast receivers and equipment - Radio disturbance
FCC Information
This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiates radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio Communications, However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause unacceptable interference to radio or television
reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the
interference by one or more of the following measures.
1.Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4.Consult the dealer or an experienced Radio/TV technician for help
Canadian Radio Interference Regulations
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Copyright Notices
Information in this document is subject to change without notice and represent a commitment on the part of AMAC TEK CO.,
LTD. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical,
including photocopying and recording, for any purpose without the written permission of AMAC TEK CO., LTD. The software
described in this document is furnished under a license agreement and may be used or copied only in accordance with the
terms of the license agreement. It is agreement the law to copy the software on any other medium except as specifically
allowed in the license agreement. The licensee may make one copy of the software for backup purpose.
Copyright ©2003 by AMAC TEK CO., LTD
All rights reserved.
HAN-230UEF
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 1 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Introduction of HAN-230UEF ........... 1
Configuration .................................... 2
Putting a battery in ........................... 3
Enclosures ....................................... 4
Listening to sample songs ............... 5
LCD display ...................................... 7
Contents
Installation of download program ..... 8
Connecting PC to MP3 Player ....... 10
Installation of Download Program
Operation of download program
Prerequisite before usages
Executing Download Program ........11
Formatting memories ..................... 12
Searching for stored MP3 files ....... 13
Downloading / Uploading
MP3 files ........................................ 14
Changing a sequence and deleting
stored files ...................................... 15
Changing a file name (Rename) .... 16
TTS(Text To Speech) function ........ 16
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 2 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Addition of SMC ............................. 34
Supplements and solutions against
problems ........................................ 35
Installation of USB driver by hand .. 36
Cautions ......................................... 39
Specifications of product ................ 40
Compensation for customerís loss. 41
Product warranty cerification .......... 42
MP3 MODE
JOG Key function ........................... 19
Playing speed control ..................... 19
Sound control (EQ) ........................ 20
Repeat ........................................... 21
Selected section repeat (A-B) ........ 22
RESUME/HOLD function ............... 22
VOICE MODE
Voice recording .............................. 24
Listening to recorded voice ............ 24
LINE(Encoding) MODE
Rocording from other audio devices .. 25
Setting MODE
Others and Cautions
Deleting stored files ..................... 30
Setting for MPEG mode ............... 32
FM MODE (Listening to FM Radio)
Automatically storing frequencies .. 27
Storing frequencies manual ........... 28
Automatically storing frequencies .. 28
Recording FM broadcasting ........... 29
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 3 Adobe PageMaker 6.5K/PPC
HAN-230UEF
HAN-230UEF allows you to download and save MP3
files through Internet and other audio devices
You can listen to the music with CD quality anytime
anywhere, without cassette tape or CD.
Introduction of HAN-230UEF
01
CD quality, no variation, best
sound!
Voice recordable anytime
anywhere.. lectures or meetings
in school, company, classroom,
etc. Jump up study efficiency!
MP3 songs and FM radio as
well... Best feeling!
Voice Recording Digital Sound FM RADIO
Perfect Digital Sound!
Let's enjoy the Dynamic digital MP3 sound!
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 4 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Configuration
02
Front view Rear view Side view
elia
BATTYERY COVER
SMC SLOT =pj`=bgb`q
i`a
ob`
jlab
mltbo
Lpqlm
gld=hbv jf`
cc
=mi^v
Lm^rpb
obt =rp_=mloq
b^omelkb=g^`h
=ifkb=fk=g^`h
RING FOR
NECK STRAP
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 5 Adobe PageMaker 6.5K/PPC
HAN-230UEF
3. Close the battery cover af-
ter setting into hole.

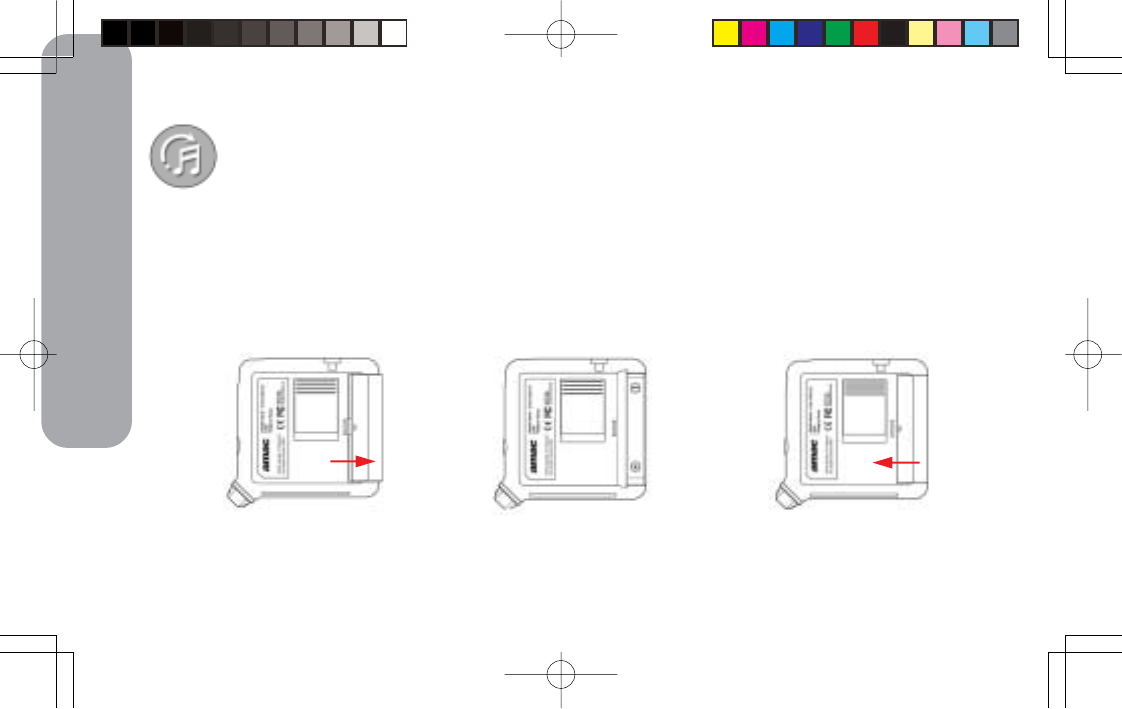

Putting a battery in
03
1. Open the battery cover
toward the arrow.
2.Secure that the battery is cor-
rectly connected to “+” and “-”.
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 6 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Enclosures
Batteries(AAA Type) Earphone USB Cable
NECK STRAP Manual Install CD
04
HAN-230UEF
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 7 Adobe PageMaker 6.5K/PPC
HAN-230UEF
MP3 Player has MP3 sample files stored in the factory.
Listening to sample songs
SERCH FUNCTION
Press FF or REW button enough when a file is
playing. Then, the previous or the next part in a
single file will be played.
1.Power On
Press STOP button () for some seconds. Then,
power is switched on and ‘POWER ON’ is indi-
cated on the LCD.
05
-Press ( ) button for the next file, or press ( ) button for
the previous file.
2.Listening to sample music
Press PLAY ( ) button, and you can listen to the stored
sample files.
-Press PAUSE button ( ) when a file is
playing, and the file pauses.
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 8 Adobe PageMaker 6.5K/PPC
HAN-230UEF
3.Volume control
Move down JOG Key for volume down, or
move up the key to volume up.

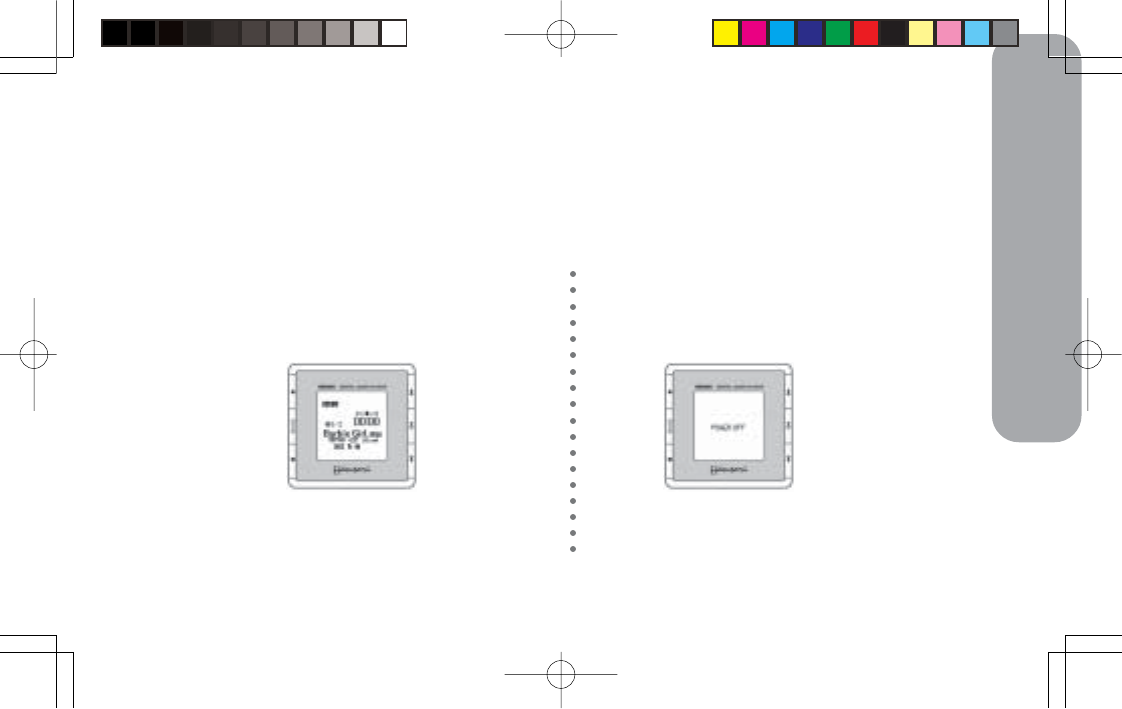

4.Stop / Power-off
Press STOP button (), and your player
stops playing. Press STOP button () for two
or more seconds while the player does not
play. Then, the power is switched off.
-You can control volume in the rage
of 00~30.
-If you do not press any buttons for one or more min-
utes while the player does not play, the power is auto-
matically switched off..
06
Han-230UEF-GB.p65 2003.4.15, 1:59 PMPage 9 Adobe PageMaker 6.5K/PPC
HAN-230UEF
LCD display
07
ENNF
=EOF
=EQF
=ENF
=EPF
=EVF
=E NMF
=ERF
=EUF
=ESF
=ETF
1 Indicates the currently active mode. (MP3, Voice, FM Radio)
2 Indicates the memory of the currently played file. (internal or SMC)
3 Indicates the playing time of file.
4 Indicates the set EQ mode.
NormalClassicJazzRockM-Bass
5 Indicates the battery life.
6 Indicates that SMC is built in MP3 Player.
7 Indicates that HOLD mode is active.
8 Indicates the set REPEAT mode.
Normal1AllRandomIntro
9 Indicates the title of the currently selected file.
10 Indicates the volume level. (0030)
11 Indicates playing speed
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 10 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Windows98/Me/2000/XP == USB Port-supportable PC
CD-ROM drive == 500MB or more available space of hard disk

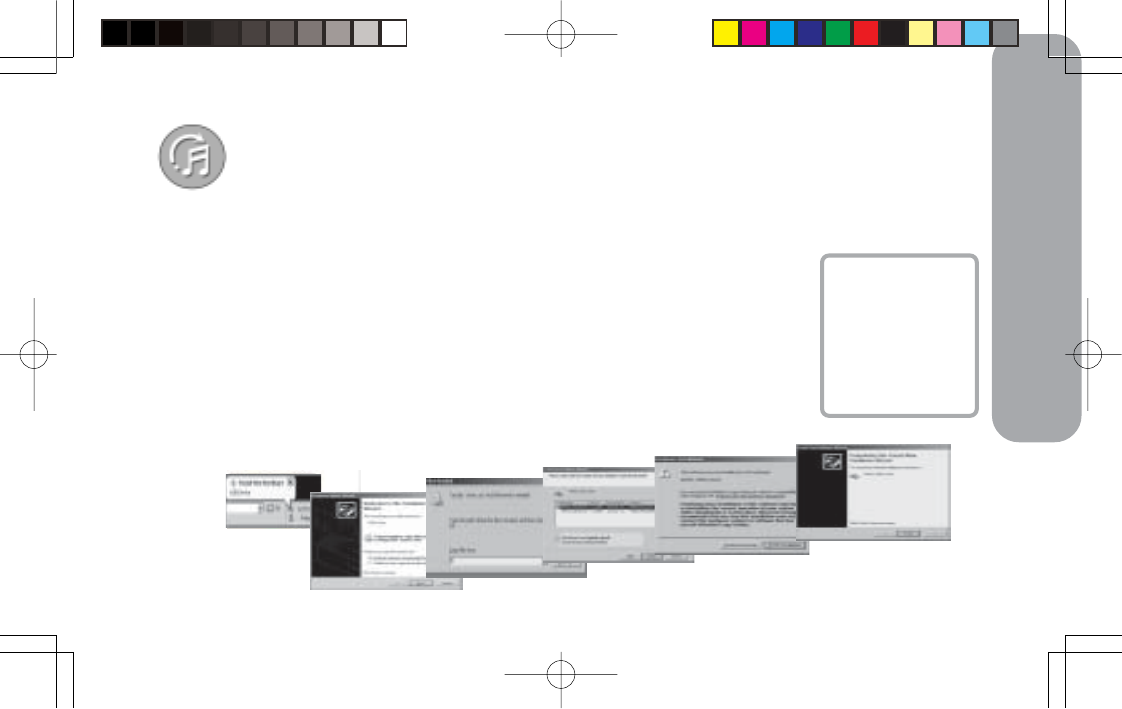

Installation of download program
* For program installation, the PC requirements are as follows:
Installation of PROGRAM
08
You have to install of download program to your PC to download MP3 files from PC to your MP3 player.

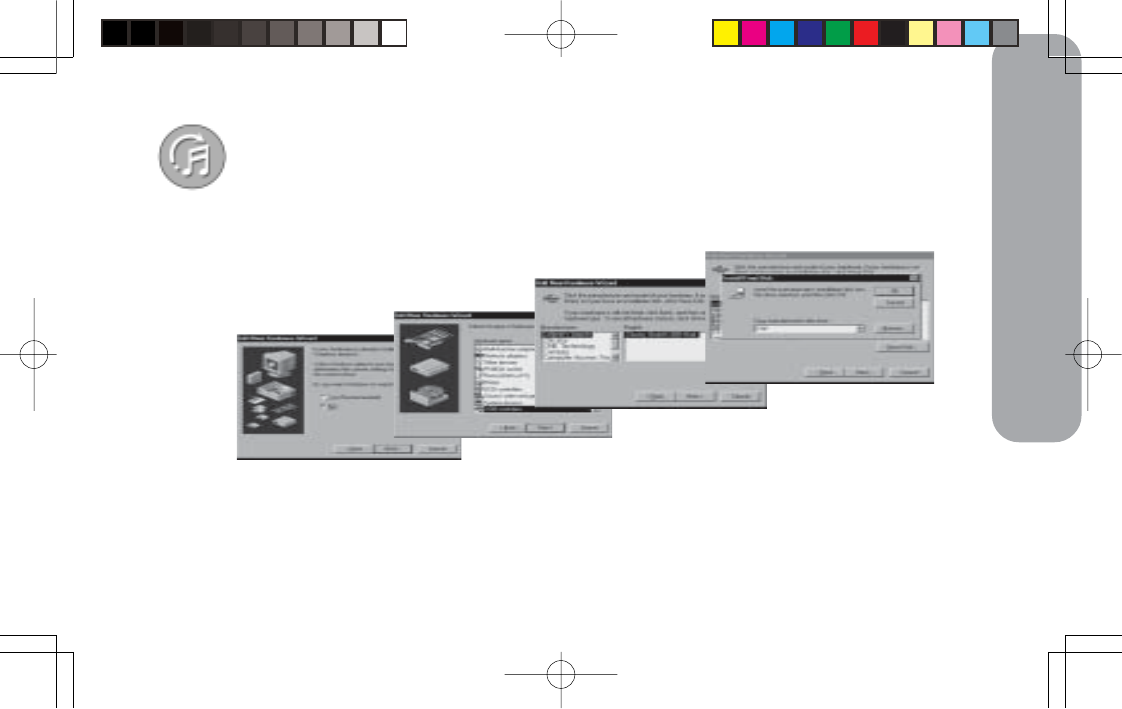

1) Select a language on the first screen, and click on the xNEXTz button.
2) On the last screen, key in the TTS Program Key (20 digits) attached on the Install CD. Then, click on the [OK] button.
Please be careful not to lose Program Key since it is not duplicable. It may take more than 1 minute for installing TTS program
simultaneously.
You could not use this TTS function if you input the TTS CD-KEY incorrectly. (refer to next page)
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 11 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Rebooting
09
Icon
3) After typing in the Program Key, reboot your PC. Then, the program is successfully installed.
The installation makes the following icon. Check whether or not the
HAN-230UEF Download Program icon exists on the windows back-
ground screen.
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 12 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Connecting PC to MP3 Player
=To download MP3 files from PC to HAN-230UEF, connect the provided USB cable between PC and MP3 Player.
10
[Connection between PC and MP3 Player]
[‘USB CONNECT’ indication of LCD]
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 13 Adobe PageMaker 6.5K/PPC
HAN-230UEF
q Program menu
w Explorer menu
e Explorer information
r Player/program status information
t Memory menu
y Downloading & Uploading, Changing
file sequence, Deletion of files
u Memory information
Executing Download Program
Double-click on the MP3 Player Download Program icon on Windows background screen, and the following
window appears on the screen.
11
Executing Program
[Initial screen of Download program]
[The right below window on the above picture (displayed face on the
dotted line) will be displayed when SMC CARD is inserted. The basic
window doesn't display. The SMC CARD is sold separately]
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 14 Adobe PageMaker 6.5K/PPC
HAN-230UEF
=To store MP3 files~
- You had better format the memories when you could not store the files or download slowly.
Formatting memories
12
qClick on the Format icon at the upper right corner, and the
following window appears on the screen.
wSelect internal (Built-In) or external (SMC) memory that you
want to format, and the format starts running.
eAfter formatting, press the CLOSE button.
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 15 Adobe PageMaker 6.5K/PPC
HAN-230UEF
[MP3 File Search inside PC]
Searching for stored MP3 files
[Click on MP3 Search Icon]
13
This function is searching for stored MP3 MP3 files in PC
*If the searching does not detect any MP3
files, it means there is no MP3 file in the
given driver of PC. Select another driver,
and search for those again.
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 16 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Downloading / Uploading MP3 files
xDownload /uploadz
14
Downloading
Uploading
On the contrary, you can upload MP3 files from
MP3 PLAYER to PC.
Select one or more files in the right side of window,
and press button.
You can download MP3 files from your PC to this
MP3 player.
You can download MP3 files from PC to MP3 PLAYER.
Select one or more files in the left side of window, and
press Button.
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 17 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Changing a sequence and deleting stored files
=`çååÉÅí=rp_=Å~ÄäÉ=ÄÉíïÉÉå=m`=~åÇ=jmP=éä~óÉêI=~åÇ=ÉñÉÅìíÉ=íÜÉ=Ççïåäç~Ç=éêçÖê~ãK
15
After selecting a file, you can change a sequence of files by pressing buttons.
To delete a file, select the file and click on the button.
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 18 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Changing a file name (Rename)
If you want to change the file name, the mouse should point to the file which will be changed on the
memory window in the download program and click the [Name Change] by press the right button of
mouse. And then you type the changed name and hit [ENTER] Key.
16
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 19 Adobe PageMaker 6.5K/PPC
HAN-230UEF
TTS(Text To Speech) function
What is TTS (Text to Speech)?
You can convert a text file from an internet site or
general text into a MP3 file and can store the file to
the player for language study purpose.
16
Converting Text to a MP3 file
=If you want to change to ‘EXPLORER’ mode, press ‘EXPLORER’ button.
=TTS function can be supported in English currently.
17
mêÉëë= =Äìííçå=áå=éêçÖê~ã=~ÅíáîÉ=ãçÇÉI=íÜÉå=íÜÉ=ãçÇÉ=ÅÜ~åÖÉë=áåíç=qqp=ãçÇÉ=~åÇ=Çáëéä~ó=íÜÉ=íÉñí=ÉÇáí
ïáåÇçïK=`çéó=~å=båÖäáëÜ=íÉñí=~åÇ=é~ëíÉ=áí=çå=íÜÉ=qbuq=ïáåÇçïI=~åÇ=ÅäáÅâ=çå= =ÄìííçåK=qÜÉå=jmP=éä~óÉê
êÉ~Çë=~åÇ=ëéÉ~âë=íÜÉ=íÉñíK=fÑ=éêÉëë=Ççïåäç~Ç=Äìííçå= I=íÜÉ=ÑáäÉ=ïáää=ÄÉ=ÅÜ~åÖÉÇ=áåíç=íÜÉ=Ñçêã=çÑ=jmP=ÑáäÉ
~åÇ=ÖÉí=Ççïåäç~ÇÉÇ=íç=íÜÉ=jmP=éä~óÉêK
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 20 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Setting MODE
There are four executable modes of MP3 mode, VOICE mode, LINE mode and FM mode . The
files of internal/external memory can be deleted, and MPEG is changeable by the player function.
In MP3 MODE, you can control the sound(EQ) for your preference, and can use functions of REPEAT, SEC-
TION REPEAT AND PLAYING SPEED CONTROL for language study etc.
(For general operations, refer to Listen to sample songs on the page No. 5).
[Mode button front side of LCD]
17
MP3 MODE
18
qWhen power is turned on, the MP3 Player is in the MP3 mode.
mode.
wPress the mode button for mode change.
(Mode shall be proceed [MP3
==
==
=
==
==
=
VOICE
==
==
=
==
==
=
LINE
==
==
=
==
==
=
FM
==
==
=
==
==
=
MP3]
in sequence).
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 21 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Press JOG Key in MP3 Mode once, and the playing speed control bar starts blinking. At this time, move the JOG Key
downward and upward. Then, the playing speed changes -20 % to +20% with 9 steps.
MP3 Player has a function of JOG Key for user convenience.
In MP3 play mode, the JOG Key proceeds to [Volume
==
==
=PLAYING SPEED
==
==
=EQ
==
==
= REPEAT
==
==
=Volume] in
sequence by pressing it. Then, you can easily control these functions specifically by moving JOG Key up and down.
=JOG Key is available in Voice Mode and Line Mode as well
18
Playing speed control
JOG Key function
19
=xNMMBz===== ==xVRBz
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 22 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Press JOG Key twice in the MP3 Mode , and the EQ MODE on LCD starts blinking. At this time, move
the JOG Key downward and upward. Then, the EQ will be changed.
Sound control(EQ)
19
20
kçêã~äkçêã~ä
kçêã~äkçêã~ä
kçêã~ä
`ä~ëëáÅ`ä~ëëáÅ
`ä~ëëáÅ`ä~ëëáÅ
`ä~ëëáÅ
g~òòg~òò
g~òòg~òò
g~òò
oçÅâoçÅâ
oçÅâoçÅâ
oçÅâ
jJ_~ëëjJ_~ëë
jJ_~ëëjJ_~ëë
jJ_~ëë
kçêã~äkçêã~ä
kçêã~äkçêã~ä
kçêã~ä
=======xkçêã~äz================== =======================x`ä~ëëáÅz
Han-230UEF-GB.p65 2003.4.15, 2:0 PMPage 23 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Press JOG Key 3 times in the MP3 Mode , then the REPEAT starts blinking. At this time, move the JOG Key
downward and upward. Then, the state changes into Normal 1 (One song) All (All songs) Random (No
sequence) Intro (Prelude: playing songs prelude for all songs every 15 seconds) in sequence.
=
Random: playing the MP3 files in irregular sequence. You may listen to the same files repeatedly.
Repeat
20
21
==xobmb^q=^ääz================== ============xobmb^q=Nz
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 24 Adobe PageMaker 6.5K/PPC
HAN-230UEF
This function is available for listening between start point and end point that you want to repeat.
Press REC button () at the points of start and end that you want to repeat. Then, the selected section is
repeated to play. To release the selected section, press the REC button () again.
Selected section repeat (A~B)
21
xpí~êí=éçáåí=^z===== ====xbåÇ=éçáåí=_z
22
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 25 Adobe PageMaker 6.5K/PPC
HAN-230UEF
- With this function, you can prevent HAN-230UEF against malfunction in the disordered place.
- While this button is placed in the ON position, you can not control any buttons.
Hold function
Resume function
This function remember the last played position when the Power down or stop the playing, and play from
the remembered position when play again.
Setting/Cancel the Resume function
Press the STOP(■) button to set the Resume function when changing mode or power down in while
playing the file. Press the STOP(■) button again to cancel the Resume function.
Resume function
22
23
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 26 Adobe PageMaker 6.5K/PPC
HAN-230UEF
[Voice mode selection
by pressing the
MODE button]
-You can listen to voice by uploading the file to your PC as
well.
VOICE MODE
Press the MODE button once, and then the MP3
MODE will be changed to VOICE MODE.
- Press REC button () to start recording.
- Press STOP button () to stop recording.
* This function can record to lecture, conference and any voices to your MP3 Player.
== =
[Start recording] [End recording]
Voice recording
24
23
[Press PLAY( ) button
and listen]
Listening to recorded voice
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 27 Adobe PageMaker 6.5K/PPC
HAN-230UEF
LINE(ENCODING) MODE
You can record to MP3 files from other audio devices such as CDP, cassette deck without PC.
1. Connect to attached audio cable to LINE-IN.
2. Connect to LINE-OUT of other audio devices (EX: CDP). Please connect to earphone terminal if there is
no LINE-OUT terminal.
24
25
Recording from other audio devices
CD Player
Cassette deck
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 28 Adobe PageMaker 6.5K/PPC
HAN-230UEF
3. Turn on the MP3 player, and press the MODE button three times to LINE mode.
4. Press the REC button to start recording after playing the source music from other audio devices.
5. Press the stop button to STOP(■) the recording.
6. You can listen to the recorded file in the LINE mode.
25
26
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 29 Adobe PageMaker 6.5K/PPC
HAN-230UEF
- Pressing JOG Key for two or more seconds, HAN-230UEF automatically searches for and detects FM
frequencies audible in the range of 87Mhz108Mhz;=~nd stores them up to 15 channels.
(PRESET1PRESET15)
- Pressing JOG Key one by one, you can select the next frequency among the automatically memorized
frequencies.
[Memorizing frequency automatically] [Changing the memorized frequencies]
FM MODE (Listening to FM Radio)
G=Press the MODE button twice, and then the MP3 MODE will be changed to FM MODE.
G=Setting/Cancel MUTE function: Press the PLAYEffF button to set/cancel the MUTE function.
27
Automatically storing frequencies (PRESET)
26
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 30 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Press the FF or REW button for a while, FM mode automatically searches for next/previous memorized
frequencies.
-In the places that frequencies are not automatically stored, 87.0MHz is designated to all the 15 channels of PRESET.
Pressing jog key one by one, you can set another frequency to your preset memory.
28
Storing frequencies by manual
====
====
== ==
==
=
==
==
=^rql=p`^k^rql=p`^k
^rql=p`^k^rql=p`^k
^rql=p`^k
Automatically storing frequencies
27
In some places, the JOG Key does not detect the automatically memorized frequencies.
In this case, use FF( ) or REW( )button to designate audible frequencies, and press the PLAY( ) button
enough. Then, you can change the preset frequency of the currently selected channel only.
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 31 Adobe PageMaker 6.5K/PPC
HAN-230UEF
HAN-230UEF has a function of recording the FM broadcasting to which you are listening, so you can
record and play back the radio broadcasting to/from a file.
29
Recording FM broadcasting
28
[Press REC() button while listening to
the radio, and HAN-230UEF starts
recording.]
[Press STOP() button while recording
the radio broadcasting, and HAN-
230UEF stops recording.]
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 32 Adobe PageMaker 6.5K/PPC
HAN-230UEF
GG
GG
G= Press MODE button for two or more seconds, and HAN-230UEF changes into INFO MODE applied only to MP3 mode or voice mode.
When memory space is not enough to store files, delete the files stored in the memory. You can get more
space for storing. (You can delete both MP3 and TTS files)
-You can not recover the deleted files.
30
Deleting stored memory
2.When the file name appears on the screen, move
Volume key up and down to select the file that you
want to delete. Then, press JOG Key.
1.In INFO Mode, move volume key up and down
to select memory and file type. Then,press JOG Key.
29
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 33 Adobe PageMaker 6.5K/PPC
HAN-230UEF
3.Press JOG Key, and ‘DELETED’ appears on the screen. Then, the file is deleted.
To delete another file additionally, select the file that you want to delete
by using JOG Key. Then, delete the file.
Be careful. You cannot recover the deleted file.
To turn back to the previous stage, press MODE button one by one.
31
30
- If you release INFO MODE by pressing MODE button, HAN-230UEF changes into MP3 MODE.
- If you release the mode abnormally in the INFO MODE, the stored files could be damaged.
- Only in MP3 mode, release the mode.
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 34 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Press mode button for two or more seconds.
Select to MPEG mode with JOG Key, and press JOG Key to display MPEG mode setting. You can set to
both MPEG and Bitrate in this mode.
[MPEG mode] [MPEG1 mode] [MPEG2 mode]
Select to Bitrate with JOG Key in the MPEG mode, you can control any mode with JOG Key.
Setting the MPEG mode
31
32
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 35 Adobe PageMaker 6.5K/PPC
HAN-230UEF
====
====
==
==
==
=
==
==
=
==
==
=
EmobpbqEmobpbq
EmobpbqEmobpbq
Emobpbq
FF
FF
F
MPEG
Press JOG Key to select the MPEG mode. You can control the JOG Key up and down to select MPEG1,
MPEG2 mode.
(Bitrate will be changed together with MPEG mode.)
Bitrate
Press JOG Key to select bitrate(128Kbps), and set the Bitrate mode with JOG Key.
This MP3 player is set the MPEG1, Bitrate 128Kbps in the factory.
Bitrate is higher hold memory space bigger.
VOICE mode is set the MPEG2 and Bitrate 32kbps.
MPEG1 mode support to 14 steps Bitrate among the 32kbps~320kbps. When encoding by MPEG2
mode, 14 steps Bitrate among the 8kbps to 160kbps.
32
33
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 36 Adobe PageMaker 6.5K/PPC
HAN-230UEF
[Insert SMC into MP3 player and power on.
SMC appears on the LCD screen.]
You can have more memory space by adding a SMC
(Smart Media Card).
Power off MP3 Player before using a SMC.
[Mount on the SMC that you have additionally
purchased, in the same direction as illustrated in
the figure.]
34
Addition of SMC
33
==
==
=Cautions for SMC use==
==
=
1. Format the external memory before using the SMC.
(Refer to the page No. 12.)
2. Donít pull out the SMC during play. Otherwise, data
can be damaged and the player may have
malfunctions.
3. The metal surface of the front side of SMC is
contacted to the internal circuit of MP3 player. Be
careful that the surface is not damaged.
Others and Cautions
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 37 Adobe PageMaker 6.5K/PPC
HAN-230UEF
Q1. Questions for USB driver
Download program does not link to the MP3 player, and it generates a message of “Cannot open the driver.
Did you install the USB driver?”
Supplements and solutions against problems
35
34
3. Leave alone the USB cable connected to the USB
port of PC, and pull out the USB cable from the MP3
Player. Then, reboot the PC.
4. Connect the cable to the MP3 player after rebooting,
and the USB driver is automatically detected (Win98/
ME). As for WIn2000 or XP, you have to install the
USB driver by hand - refer to “Installations by hand”
on the page No. 36~38.
1. While this product is properly connected with PC, Click on
xSTARTz of Windows and select CONTROL PANEL
SYS-
TEM ==
==
=
==
==
=DEVICE MANAGEMENT in sequence. Then,
double-click on xUniversal USB Controllerz and check of
whether or not the AMAC USB Driver exists.
2. Select and Delete AMAC USB driver or the USB driver of
other devices if they have a question mark or an exclamation
mark or “Unknown Device” exists.
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 38 Adobe PageMaker 6.5K/PPC
HAN-230UEF
36
35
Installation of USB driver by hand (Win98/ME)
1.
Put the Program Installation CD into the CD-ROM drive.
2.
Click on [ADD NEW HARDWARE] in the CONTROL PANEL.
3.
Click on [NO (N), Select in the hardware list.]
4.
Click on [USB Controller] among hardware types.
5.
Click on [Disk].
6.
Select the drive that the Installation CD is currently placed, and then click on[SEARCH].
Han-230UEF-GB.p65 2003.4.15, 2:1 PMPage 39 Adobe PageMaker 6.5K/PPC
HAN-230UEF
37
36
7.
Select drive and path that the CD is currently placed.
=
- amac install CD
amac.inf
then, click on xlhz button.
8.
Select AMAC USB Driver and click on [Next].
9.
Click on [Next].
10.
Click on [Exit] to complete the installation.
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 40 Adobe PageMaker 6.5K/PPC
HAN-230UEF
As for Win2000, most of the
restarting explained on the
page 35 generates the 3rd.
figure from the left.
Designate the path of Install
CD-Rom and click on [Next].
Then, the installation of USB
driver start running.
38
37
Installation of USB driver by hand(Win2000/XP)
1.When you have successfully installed the Download Program and connected the cable, the following figure appears on the
Windows Menu Bar.
2.Click on the ‘X’ of the message xNew hardware foundz, and the following figure appears on the
screen.
3.Click on [Next].
4.Select “Include the following location in search” and click on [Find]. Designate the folder that “AMAC
Install CD” or “amac.inf” file exists, and then click on [Open] and [Next] in sequence.
5.Select amac.inf in the list and click on [Next].
6.An error message can occur and you can click on [Continue] button during installation, but it does
not influence the OS.
7.When the program has completely installed, a message appears as shown in the following figure.
Then, click on [Exit] to complete the installation.
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 41 Adobe PageMaker 6.5K/PPC
HAN-230UEF
39
1. Putting a battery correctly after check up the positive and negative. (It may causes out of order.)
2. Do not impact the product, such as drop. Otherwise, the product may be damaged.
3. Be careful that water shall not flow into the product.
If the product is wet, dry it with a un-wet cloth. Then, contact AMAC Co., Ltd.
(3rd Floor, Seyo Bldg., 161-8, Samsung-Dong, Kangnam-Gu, Seoul, Korea.
822-574-8012, Working hours 09:0018:00)
4. Do not expose in many hours on a direct ray of lights or closed place or heat appliance.
(A caution of transformation and a change of color by high temperature and a caution of keeping in a
car on outdoors parking lot)
5. Avoid keeping MP3 Player in place with high moisture, strong magnetic properties, and strong heating.
6. Do not disassemble a product unnecessarily except a AMAC Information Network serviceman.
7. It should be polished with a soft piece of cloth. Do not polish with a chemical material(Benzene, Thinner,
organic solvent,).
8. When you do not use the product for a long time, remove the battery.
It will cause a product damage with a battery leakage.
9. Avoid keeping MP3 player in place with direct ray of light, airtight space, besides heater etc.
38
Cautions
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 42 Adobe PageMaker 6.5K/PPC
HAN-230UEF
40
39
Specifications of product
Model No.
Memory
Batteries
Playing Time
Size / Weight
Interface
Downloading Speed
Voice recording Time
HAN-230UEF
Internal Memory: 64/128/256/512MB
External Memory: 16/32/64/128MB
1.5V X AAA type 1EA
12 Hours
60 X 60 X 15mm / 43g(Battery excluded)
USB Port
10Mbps
8 Hours (128MB/32Kbps)
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 43 Adobe PageMaker 6.5K/PPC
HAN-230UEF
41
* The refund will be available only a purchased place.
Compensation for customeris loss
Type and compensation for customeris loss
Type of customeris loss
When performance and function require important repair due to prob-
lems occurred during normal use within 10 days from the purchase
When performance and function require important repair due to problems
occurred during normal use within one month from the purchase
Impossible to repair
Breakdown due to
customerís mistake
Same abnormality up to three times
Same abnormality up to four times
Impossible to repair even though there are re-
pairing components
Impossible to repair without repairing components
Impossible to repair
Possible to repair
Within compensation period
Compensations
Exchange or refund
None
=
Repair with charge
Exchange or refund
Exchange after depreciation of the
fixed sum for repayment
Exchange product
Repair with charge
After expiration of compensation period
Applied to AMACís regulations
Exchange of product after ac-
cepting the amount correspond-
ing to the repair with charge
Possible to repair
Repair with charge
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 44 Adobe PageMaker 6.5K/PPC
HAN-230UEF
42
41
1. This product is produced with strict quality control and inspections of AMAC.
2. AMAC performs warranty for the following products according to the regulations of compensation for
customerís loss.
3. Contact the product purchase agencies for abnormalities of product.
(When you cannot contact any agent, contact AMAC is A/S center (822-574-8012)
4. AMAC answers as to whether or not to compensate the product and notices within 7 days as of the
date reported, and performs compensation for loss with 14 days as of the date reported.
5. Products of Hansori are guaranteed during one year.
Product name Model ID.
Purchased date Manufactured date
Agent Amount sold
- All kinds of service apply to the registered data, associated with A/S and MP3.
- Charge-free service applies only to abnormalities within one year (warranty period) as of the product-purchased date.
Visit AMACís home page (www.amac21.com) and register yourself as customer.
Product warranty certification
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 45 Adobe PageMaker 6.5K/PPC
HAN-230UEF

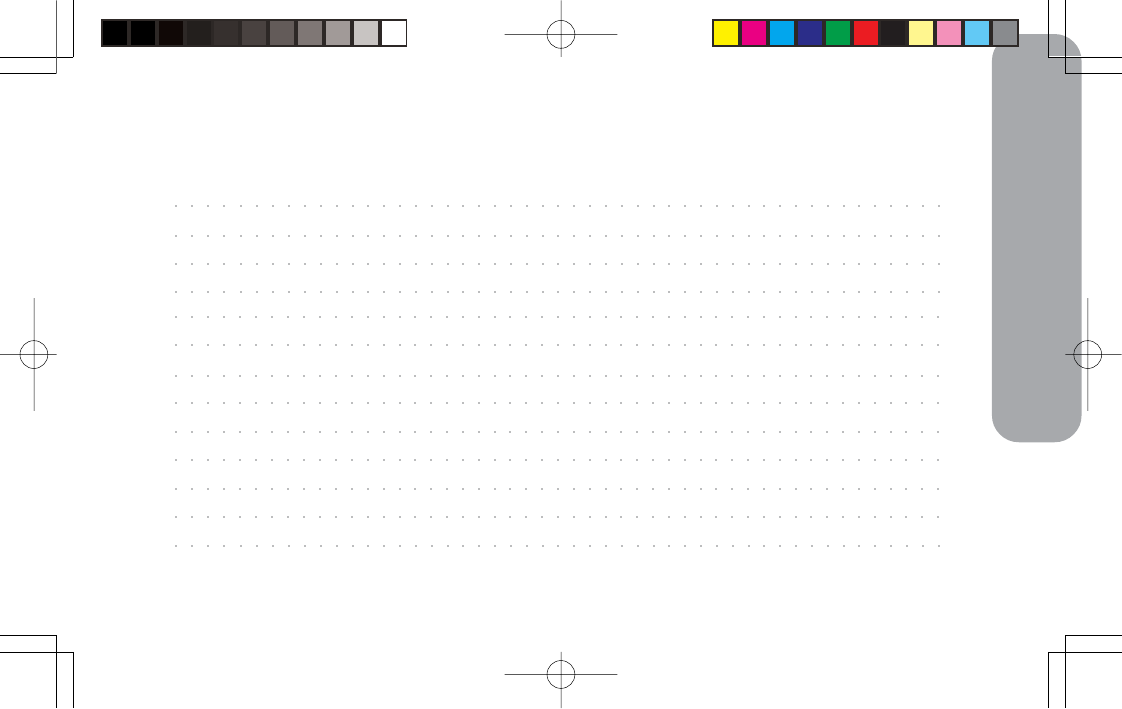

MEMO
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 46 Adobe PageMaker 6.5K/PPC

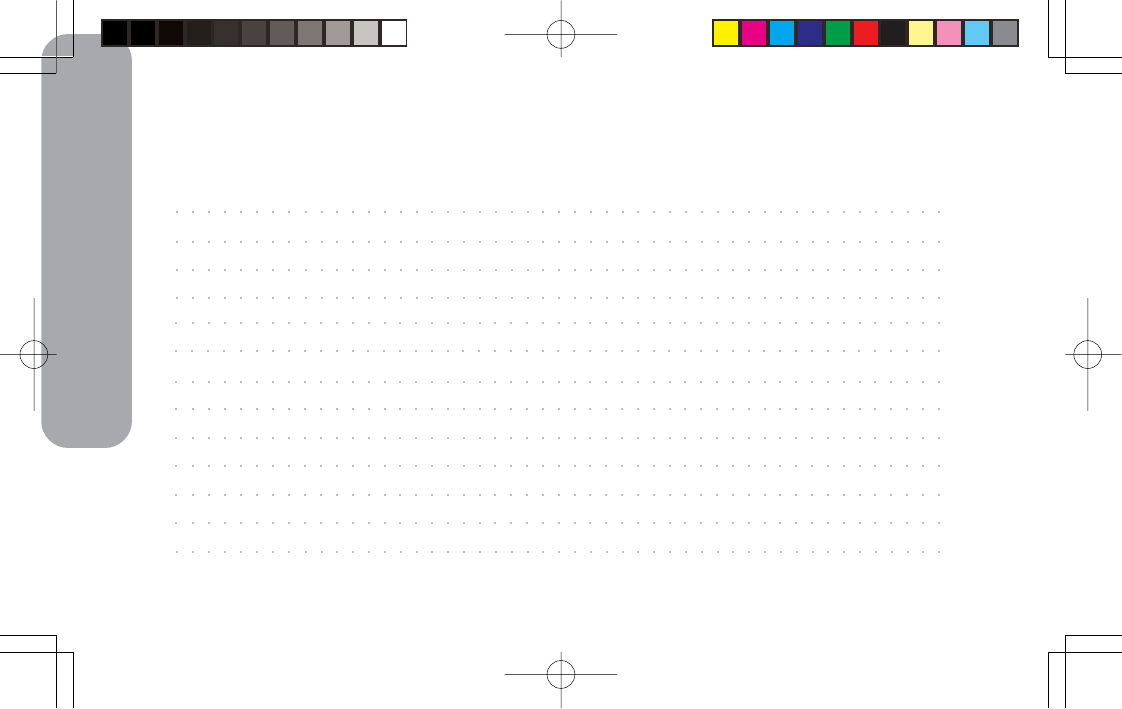

HAN-230UEF
MEMO
Han-230UEF-GB.p65 2003.4.15, 2:2 PMPage 47 Adobe PageMaker 6.5K/PPC
