Features & Others
■Features
* SD CARD BACK-UP Function
- The player supports SD Card slot so that it can be used for data back up storage.
- Therefore, users can transfer Pictures and JPEG data from SD Card used by Digital Camera or other devices to the
player.
* ENCODING Function
- User can record not only voice but also FM Radio at the real time, and the desired MP3 files can be made to
directly connect to other audio devices such as CD Player, Cassette Tape Recorder and so on.
* FM Radio Function
- Users can listen to FM Radio to use preset frequency function by Auto Scan, and the preset frequencies are saved
automatically.
* Firmware Upgrading
The HAN-320 is easily upgraded using the firmware upgrading service through www.amac21.com
AMAC TEK CO., LTD. will give notice of the new functions and firmware for upgrading.
* Removable Disk Function
- Additional Hard Disk Drive is
appeared on your PC.
- It consists of Directory structure, and users can
create the folders to save, copy, playback, and delete
the desired music.

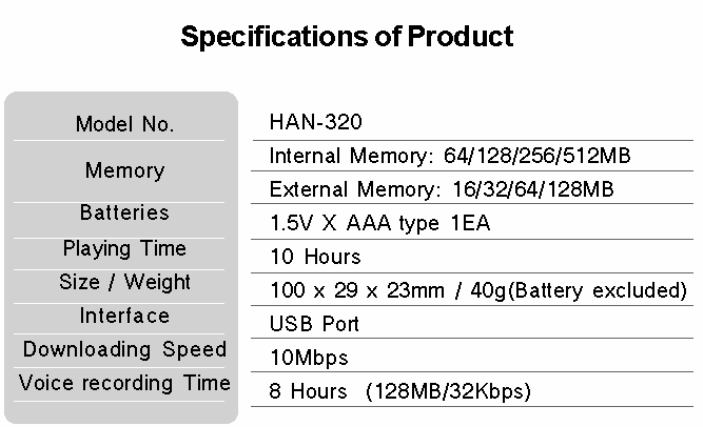

■Enclosures

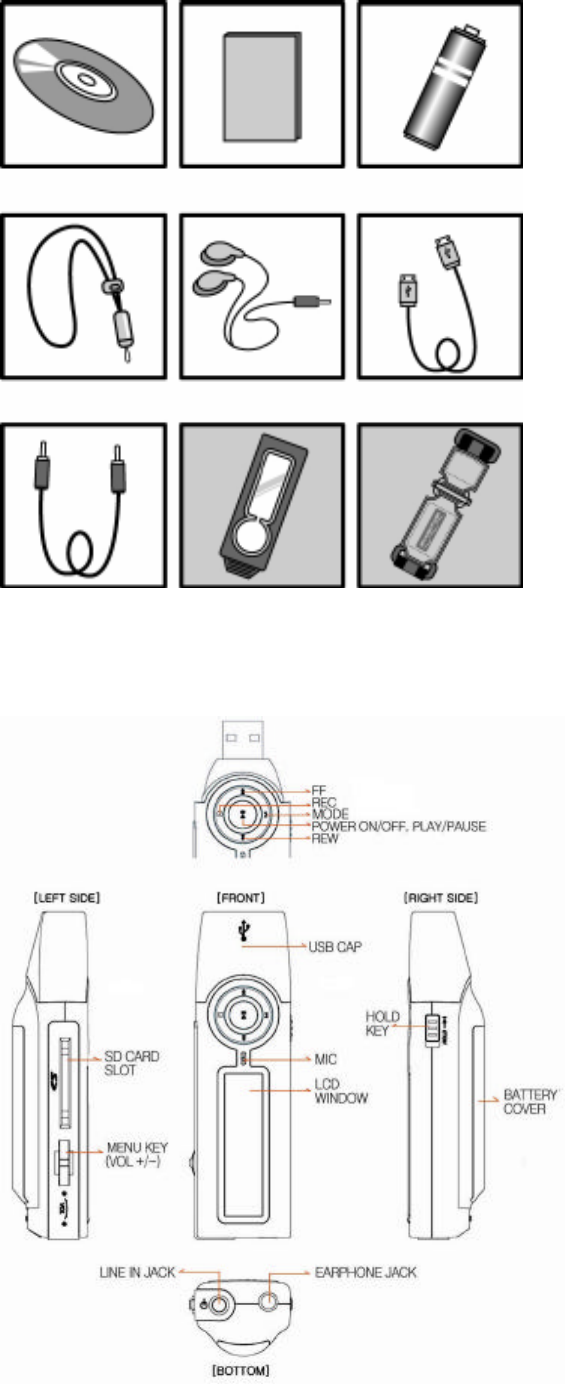

■Player Overview
■LCD Display

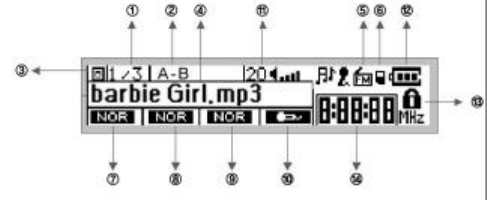

① Indicates the present played folder and the track
number
② Indicates the Selected Area Repeat(A-B)
③ Indicates the memory of the present played file
(Internal memory or External SD Card memory)
④ Indicates the title of the present played file
⑤ Indicates the MODE (MP3, FM, REC)

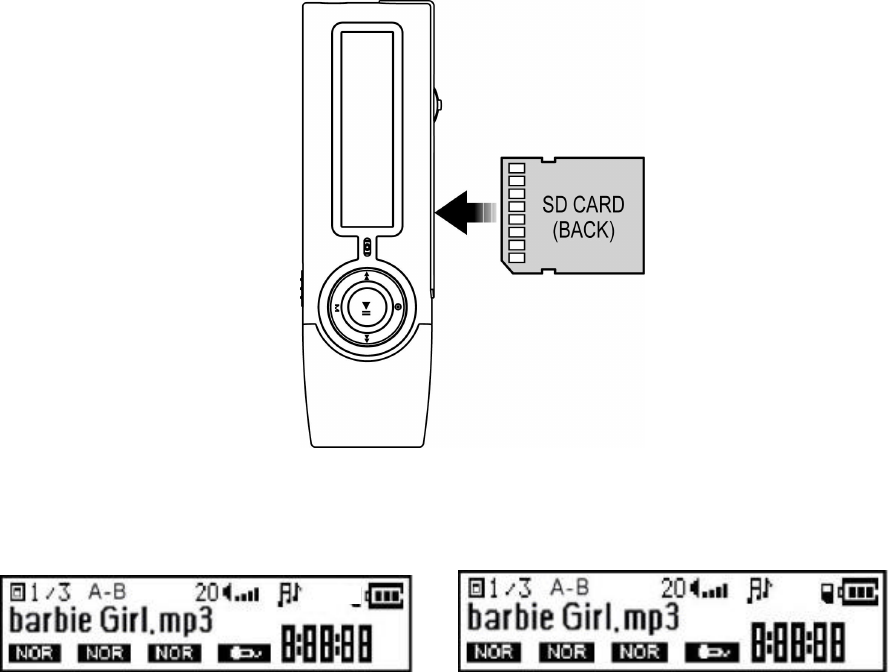

⑥ Indicates SD Card(When the SD Card is inserted.)
⑦Indicates EQ Mode (Normal, Classic, Jazz, Rock,
M-Bass, USER)
⑧ Indicates REPEAT Mode(Normal->S1->All->RANDOM)
⑨ Indicates Playback Speed(-4, -3, -2, -1, NORMAL, +1)
⑩ Indicates the Record (Voice/Line)
⑪ Indicates the volume level(00 ~30)
⑫ Indicates the battery life
⑬ Indicates HOLD Mode
⑭ Indicates Playback Time
Required Software by OS
■Required Software by OS(Operating System)
■ Software installation guide for additional functions
Please install an additional utility program which is used to upgrade firmware or to convert from TVF into WAV.
▶PC System Requirements
▶ How to install Software Program

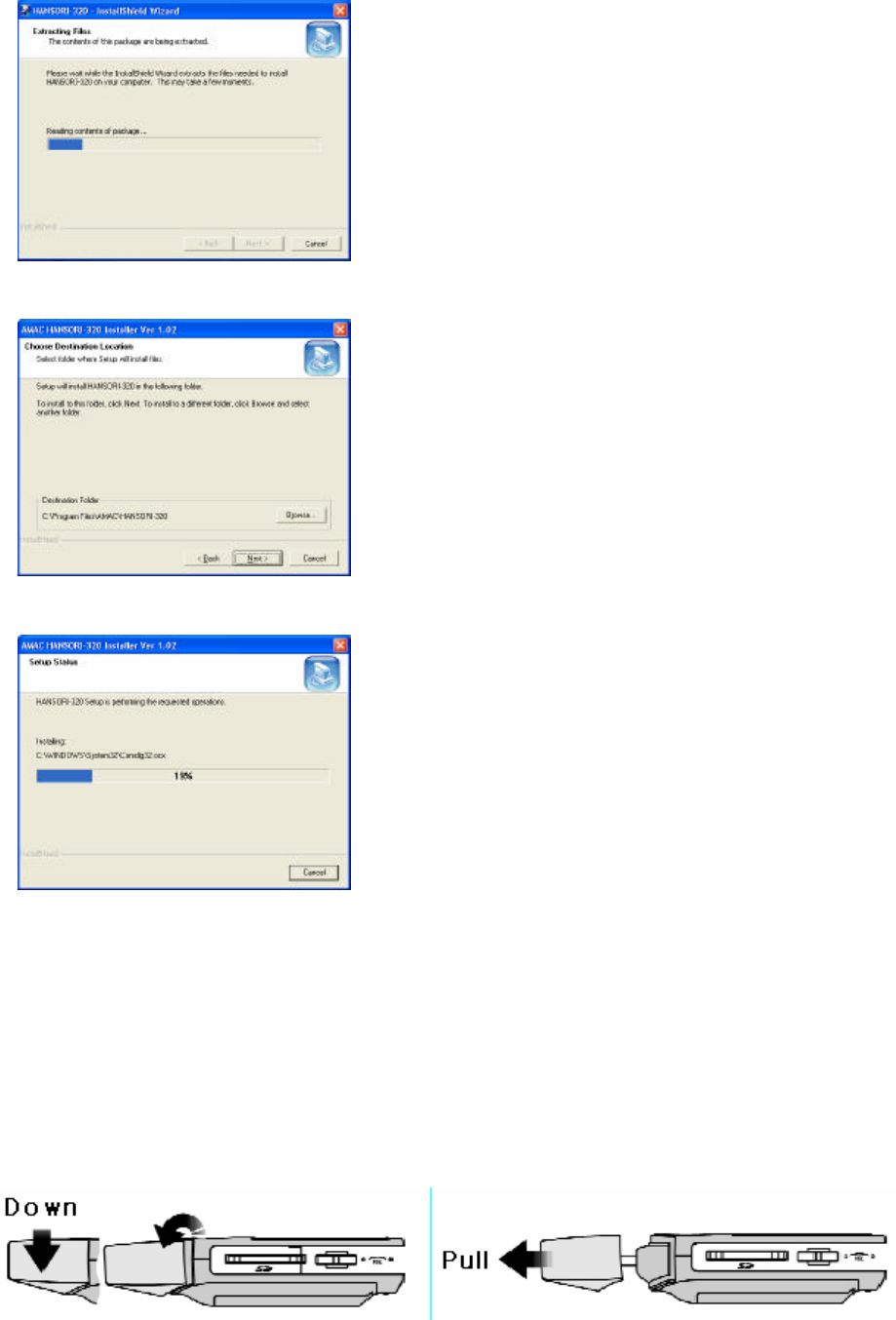

1. Insert the installation CD and the following pictures are appeared. (If it is not run automatically, please click on
INSTALL.EXE file in CD-ROM for the manual installation.)
2. Please follow the installation guide, which will be shown automatically, to finish the installation.
S/W prog
ram installation is not mandatory for all OS users except for WINDOWS 98 users. Therefore, WINDOWS
98 users must install the driver and additional program, and any other users (WINDOWS 2000/ME/XP) install only
additional program.
To install software programs by each OS
① Windows 98/SE User
Installation CD provided should be installed firstly (the driver and additional programs), and then users should
connect the player to PC. When the driver and additional programs are not installed firstly before connecting the
player to PC, PC recognizes the player as [Unknown Device] so that the player can not be used properly.
② Windows 2000 User
Users who upgraded up to MS Windows 2000 service pack 3 do not have to install S/W program, but except for
those users have to upgrade service pack 3 so that the player can recognize SD Card. Please download it from
CD provided or visit the website
(http://www.microsoft.com/korea/Windows2000/downloads/servicepacks/sp4/download.asp)
③ Windows ME/XP User
No S/W program is required.
Windows 98/ME/2000/XP 20MB Hard Disk Space or higher
CD-ROM Drive PC for USB Port supported
To Upload/Download
* Caution
To open the USB Cap, lean downward direction and pull as below pictures.
■To connect to PC
① Direct Connection
Open the cap of the player and connect USB port to your PC.
② Connection through the USB Cable
Use the USB cable provided if the USB port is positioned at the uncomfortable place.
■To Upload/Download the files

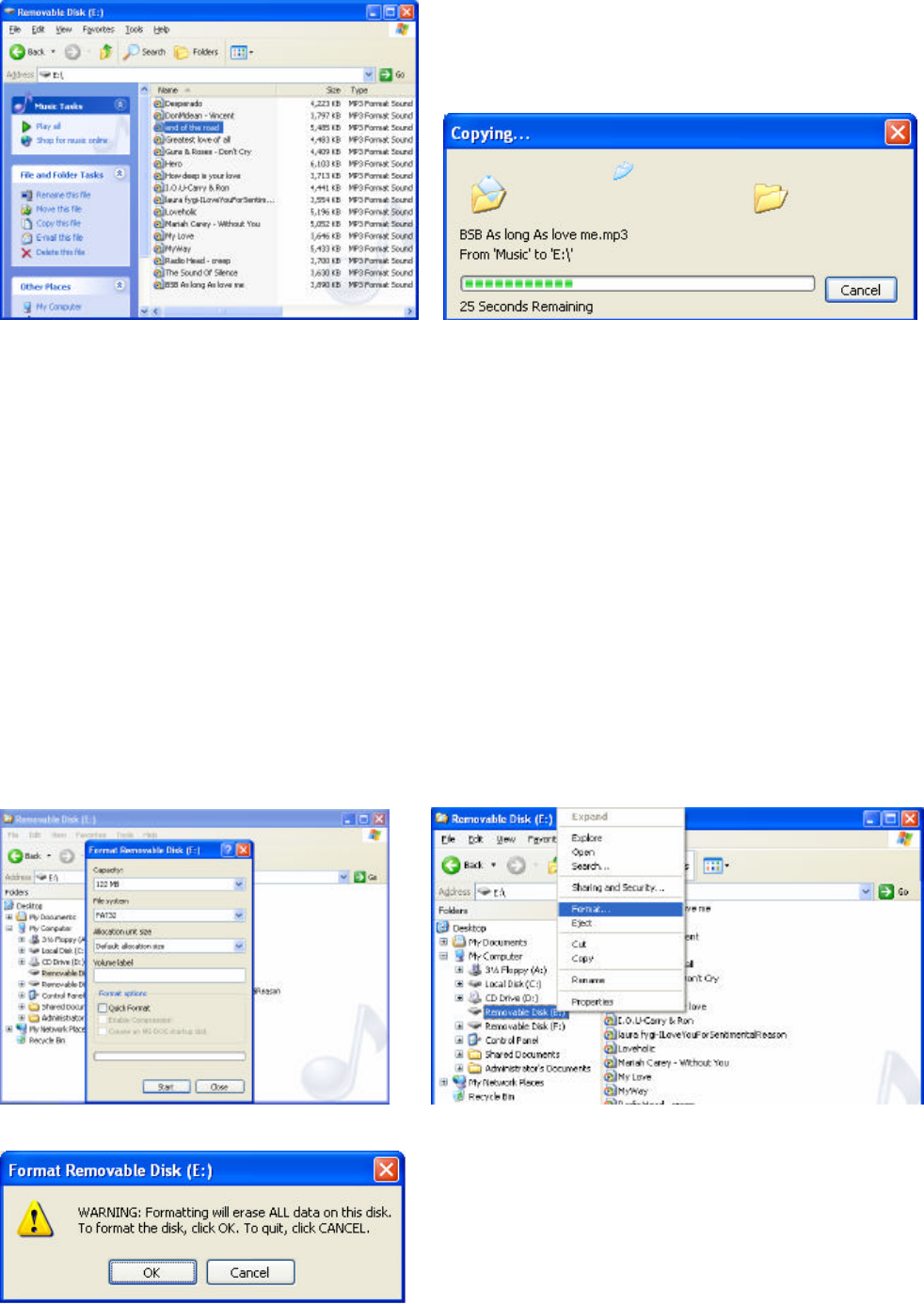

① When the player is connected to PC, two removable disk drives are appeared in [My Computer]. The first
removable disk drive is for the internal Flash Memory in the player, and the second one is for SD Card (The external
Memory) and can be used only when SD Card is inserted. If SD Card is inserted into the player, [USB Connect] is
displayed on the LCD.
② Users can copy the files saved in PC to the folder created in removable disk drive.
(* NOTICE: User can create the desired folders at users convenience. For instance; Music, Voice, Pictures,
Business, and so on)
③ Uploading is on the contrary of downloading.
④ It will cause the serious problem on the files and internal Flash Memory if you plug-out the player from PC
improperly. Please disconnect the player after downloading completely.
(Please refer to page #10 [To disconnect from PC])
⑤ If the player malfunctioned because of improper disconnection, please format the memory to return to normal
condition. (Please refer to page #9 [To format])
■To Format
Please format after select the Removable Disk Drive and click on FORMAT in FILE Menu as below procedures.
(* Caution: If formatted, all data stored in the Memory is deleted, so please back-up before the format)
It is strongly recommended to use [Format Memory] function of the player because users can save the waiting
time(the booting time) when the player is turned on. If users format the player from PC, the booting time may last
longer.(Please refer to page #21 [Format Memory])
■To disconnect from PC
Disconnection from PC should be done as following procedures to prevent from file damage.

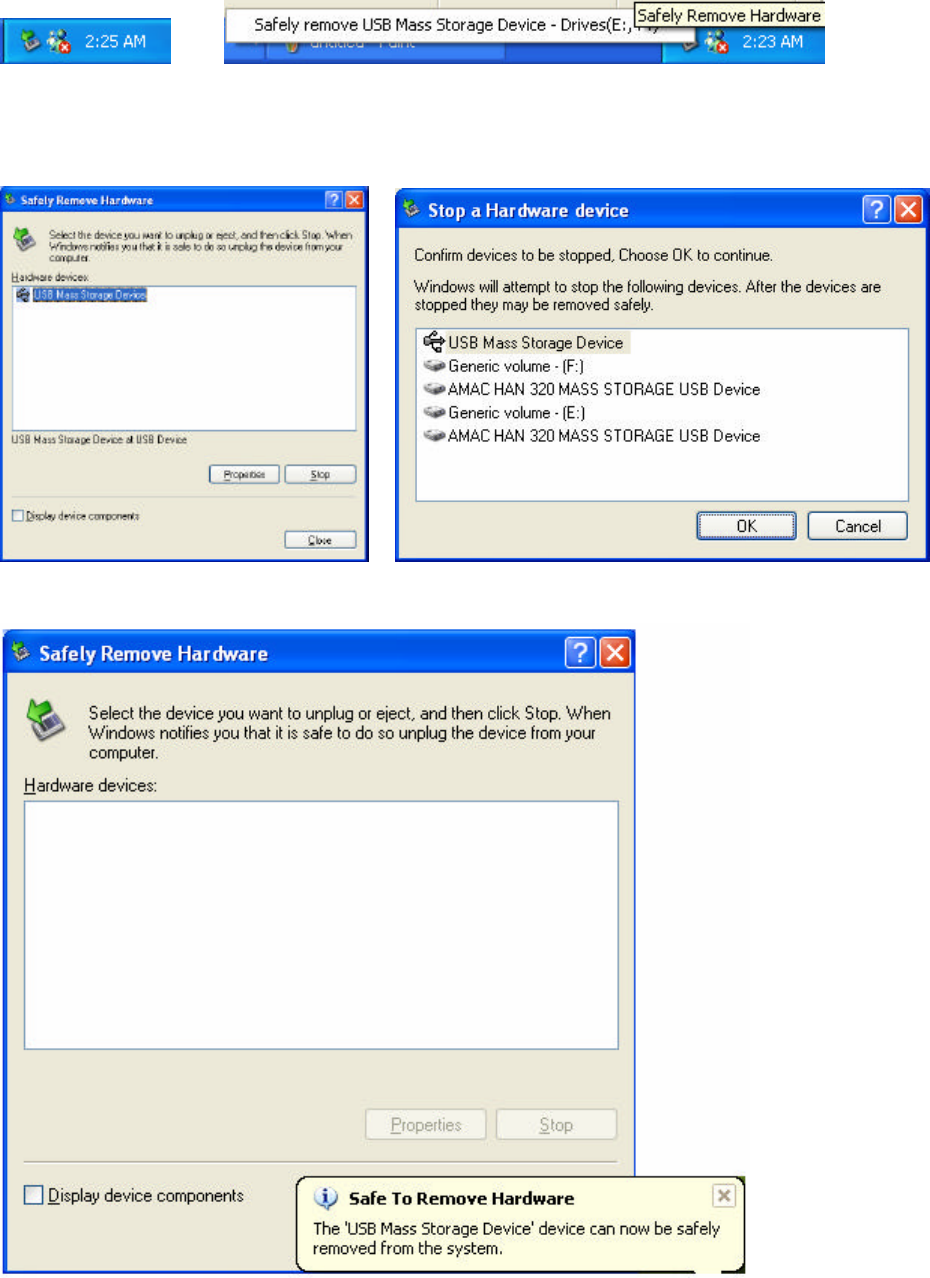

① Please double click the icon at the bottom of right side as below pictures.
② Select USB device, and click on [STOP].
③ Disconnect the player after click on [Yes]
To listen to MP3 / WMA Music Files
■To listen to music
▶ To turn the power On/Off, Play/Stop

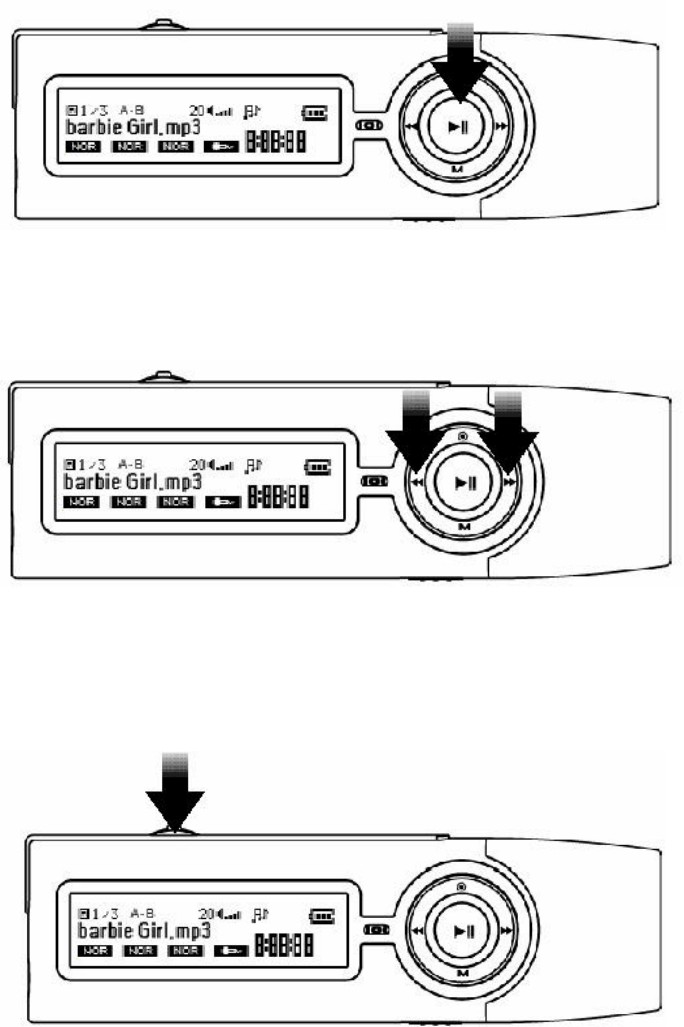

The power will be turned on when PLAYBACK(▶Ⅱ) button is pressed over two or more seconds and then press
PLAYBACK(▶Ⅱ) button once again to play the music. Press PLAYBACK(▶Ⅱ) button during playback to pause or
stop and press again to turn off the power for more than 3 seconds.
(* Notice : The booting time may be different according to the number of the folders and files saved in the player.)
▶To select the next file or previous file

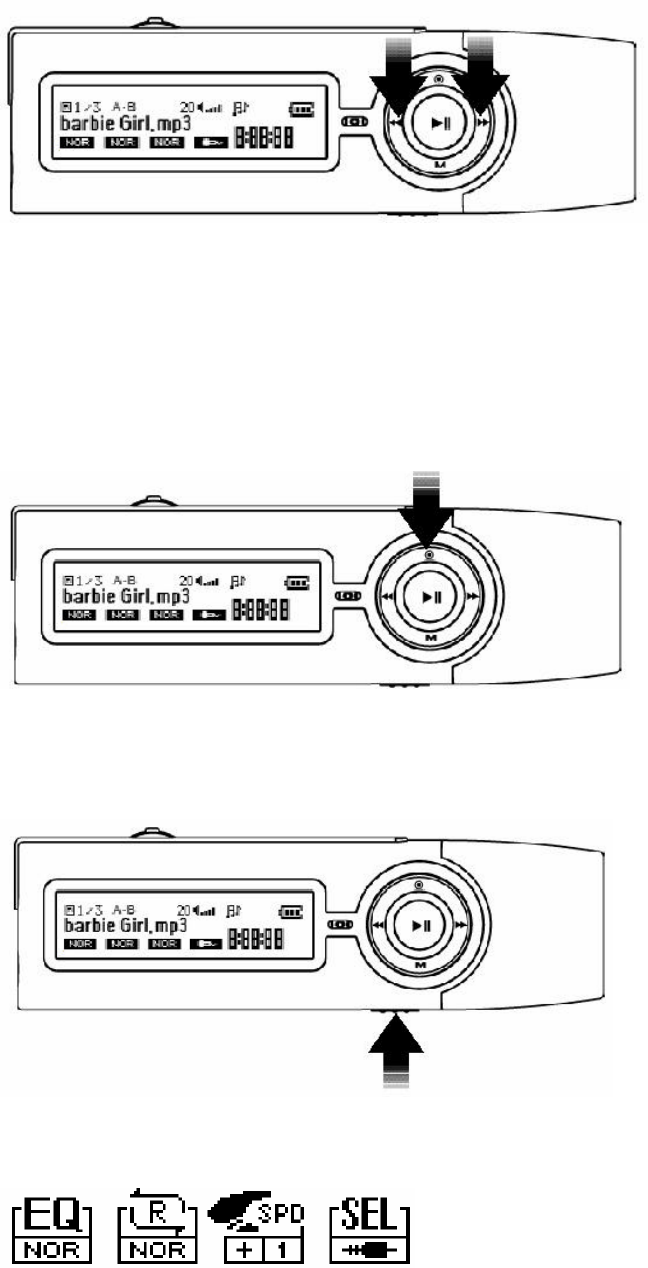

Press the FF(▶▶) for the next file, and REW button(◀◀) for the previous file.
▶ To control Volume
Move the Mode Key to VOL+ for volume up and move the Mode Key to VOL- for volume down. The Volume can be
controlled in the range of 00~30.
▶ Fast Search Function
Press FF(▶▶) / REW(◀◀) button two or more seconds when a file is being played. Then, the previous or the next part
in the file will be played.
(Fast Search function when MP3 file is being played.)
▶Repeat function for the selected Area (A-B)
The desired area can be played repeatedly in the playback file. Please press REC(◉) button at the point of the
start(A) and press again at the point of the end(B). Then, the selected section is repeated. Press the REC button to
release this setting up.
(* Notice: Repeat function can be applied for not only a file but also several files, too.)
▶ HOLD
When HOLD button is placed in the ON Position (HOLD ->Ⅰ), all buttons on the player are not working.
■MENU Function

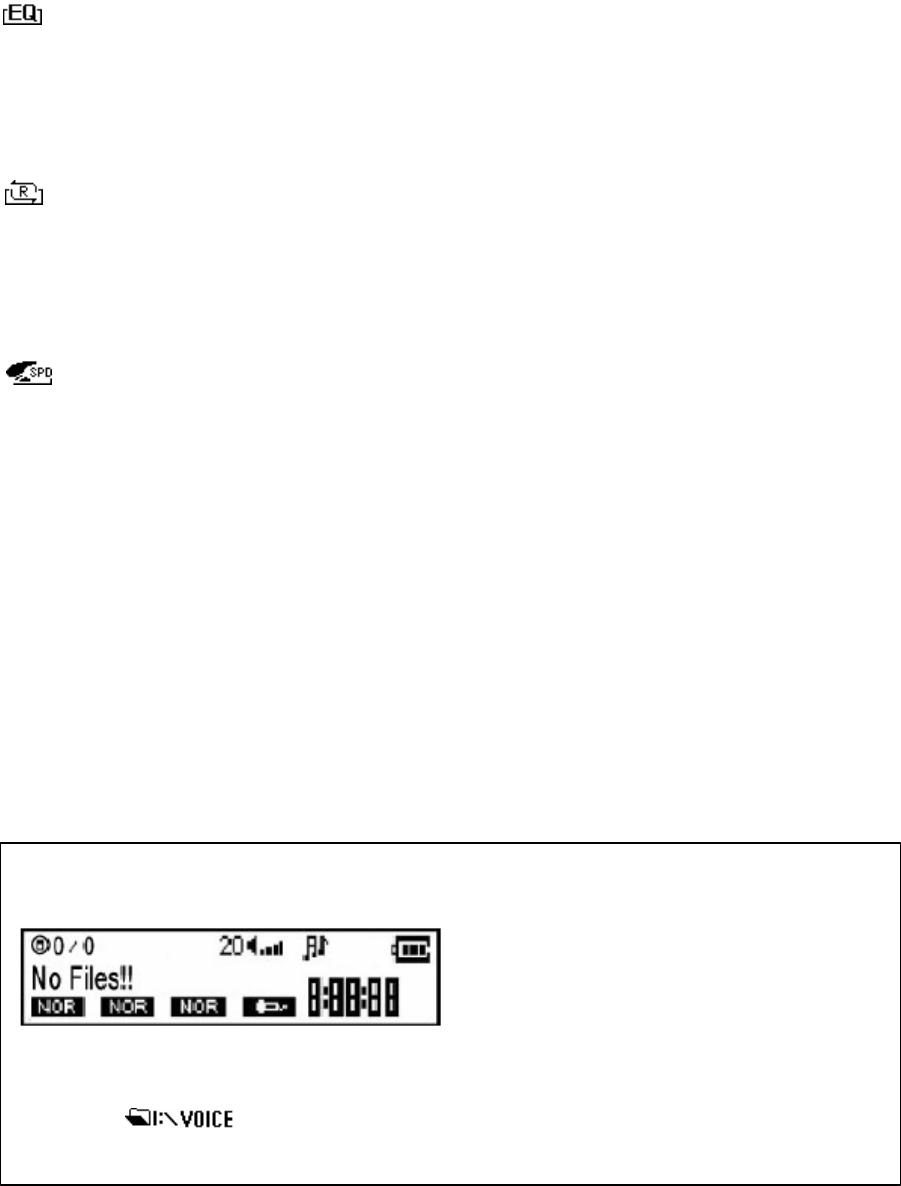

Press MENU Key(Jog Key), and icons for Setting Up functions will be displayed on LCD screen ( EQ -> REPEAT ->
PLAYBACK SPEED CONTROL-> RECORD SELECTION(Voice/Line)). Each time users press MENU Key(Jog Key), it
moves EQ -> REPEAT -> PLAYBACK SPEED CONTROL -> RECORD SELECTION in regular sequence. If no
movement occurred more than 5 seconds, it automatically returns to the previous status. To set the each function,
move the MENU Key(Jog Key) to right or left.
▶ Equalizer (EQ) Setting Up
Select ( )Icon, and move the MENU Key(Jog Key) to right or left. Then the 5EQ modes will be shown as below.
Normal -> Classic -> Jazz -> Rock -> M -Bass -> USER
*Please refer to page #21 [USER EQ].
▶ REPEAT Setting Up
Select ( )Icon and move the MENU Key(Jog Key) to right or left. Then the Repeat Setting up will be shown as
below.
NOR(Normal) -> S1(Select One) -> All(ALL) -> RAN(Random)
▶ PLAYBACK SPEED CONTROL
Select ( )Icon, and move the MENU Key(Jog Key) to right or left. Th en the PLAYBACK SPEED CONTROL
Setting up will be controlled up to 6steps.
Fast -> Normal -> Slow 1 -> Slow 2 -> Slow 3 -> Slow 4
▶ Power Saving Function
The power will be turned off if no movement occurred for 3minutes.
■To search Directory
The folders consist of each basic folder, and MP3 files are saved in each folder.
If the desired file that user wants to listen to is in the other folder, user has to move to that pertinent directory.
※Reference : The Device HAN-320 will display on LCD as below.
1. After formatting
There is no change on LCD after the format even though users press FF and REW button.
2. After Voice Recording
The folder will be created automatically, and the current status
will be in Voice folder. All of encoded files will be saved in Voice folder.
▶To move from file to file
Press FF(▶▶) /REW(◀◀) to move to the next or previous file. If the current status is root folder, the VOICE, and
BACK _UP folders will be shown with files. If the current status is subfolder, will be shown with files
of the folder.
▶ To move to the VOICE, BACK_UP folder, or Subfolder
Press the PLAYBACK(▶Ⅱ) button to move the desired folder at the status of root folder.
▶ To move to the Upfolder
Press the PLAYBACK(▶Ⅱ) button at the status of , which is shown after the last file.
▶ To move to the SD Card
It is possible to move to the SD Card only in root folder. When SD Card is inserted, the files in SD Card are displayed
on LCD automatically and the location is in root folder whenever SD Card is inserted.
The movement order of files are as follows. Files in Internal Flash Memory
-> VOICE folder -> BACK_UP folder ->Files in SD Card.
3. After using File Copy function in Mode
The folder will be created automatically, and all of copied files will be saved in this
folder.
The root folder consists of VOICE, BACK-UP, and Additional Folders created by users.
* <<Config.sys>> file will be created and shown automatically in PC when users set up anything
through MODE key. The value of user setting is saved as <<Config.sys>> file, and it does not affect
PC system. Please do not remove <<Config.sys>> file or all of setting value by users will be returned
to default value.
To record / encode
Please set up MIC. and LINE input as users’ convenience using the function of MENU when encoding.
After select( ) with MENU key, users can change into the desired recording. When the voice recording is
desired, please move the volume button to right and left and select ( ) icon, and when the direct encoding is
desired, please select ( ) icon. The recorded voice will be saved in VOICE Folder( )
automatically.
■To record with MIC
After setting up ( ) icon, press REC(◎) Button to start the recording and press REC( ◎ ) Button again to stop the
recording.
Please set up MIC. and LINE input as users convenience using the function of MENU when encoding.

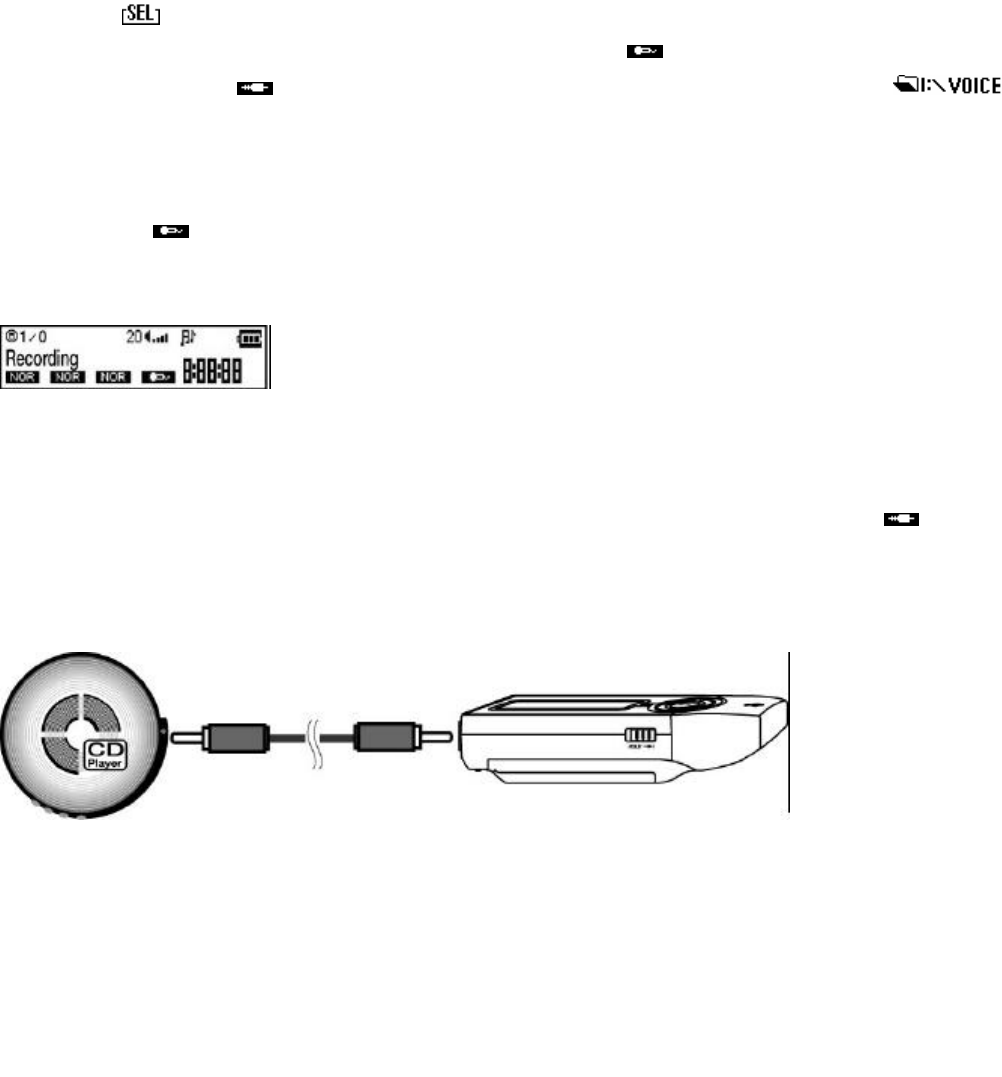

■To encode from other audio devices (Direct Encoding)
It is the function to record directly from other audio devices such as CD Player or Cassette Player.
Connect Line-In terminal of the player to Line-Out terminal of audio devices with an audio cable provided after setting up (( ) icon.
Play the CD Player or Cassette Player, and press the REC( ◎ ) Button on the player to start the recording.
Press the REC( ◎ ) button again to stop the recording.
■To listen to the recorded file
The playback of the all recordings is the same as listening to the music.
To listen to FM Radio & record at the real time
Earphone provided should be inserted into the player to receive FM frequency since the earphone works as an
antenna.
Earphone provided should be inserted into the player to receive FM frequency since the earphone works as an
antenna.

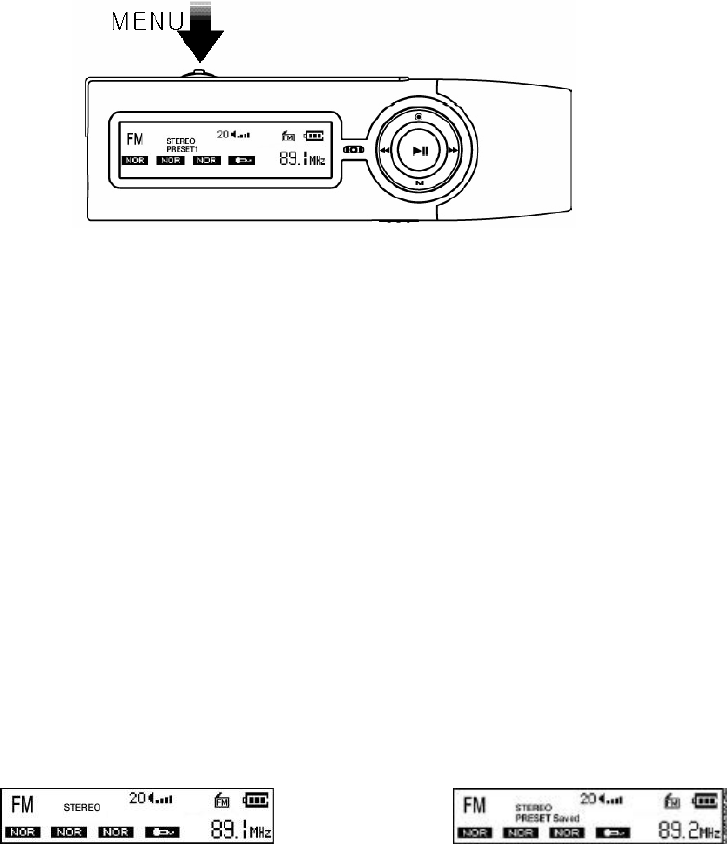

■To preset frequency by Auto Scan
Press PLAYBACK(▶Ⅱ) button shortly to stop or pause the playback and press MODE button to enter FM Radio.
Then, press MENU Key(Jog Key) over two or more seconds to search and saves up to 15channels
automatically.(PRESET01~PRESET15)
■How to use PRESET MODE
Press MENU key for PRESET Mode, then press FF and REW and the saved frequencies move from PRESET 01 ~ to
PRESET 15. If there are no saved frequencies, please press MENU key more than 2 seconds to preset frequencies
by auto scan and then use FF(▶▶) to go to the next preset channel and REW(◀◀) to go to the previous preset
channel.
■To save frequency by Manual
In some cases (Place & movement speed), it may happen that the saved frequencies are not very well set. In such a
case, the desired frequencies can be found and saved by manual as follows;
Press MENU Key(Jog Key) once, and the saved frequencies are released. Press FF(▶▶) / REW(◀◀) to move the
desired frequency.
Press PLAYButton(▶Ⅱ), then [PRESET SAVED] is displayed on LCD which means the desired frequency is saved.
[TO RELEASE PRESET] [TO SAVE BY MANUAL]
■To record FM Radio
Users can record the desired FM Radio while listening as follows;
Press REC(◎) button while listening to start the recording.
Press REC(◎) button again, to stop the recording.
(* Notice: FM Radio recording files are saved as RADIO 001 ~ 999 in the VOICE folder.)

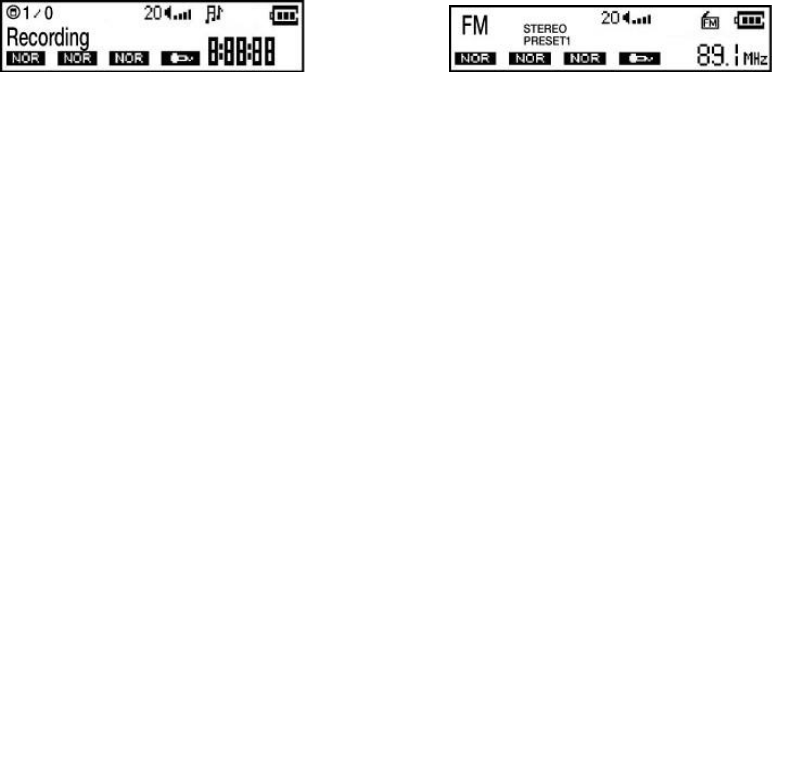

[To Start Recording] [ To Stop Recording]
To set up FM BAND
It is function of worldwide FM frequency setting up. Please refer to page # 21 [FM BAND Select].
(* Notice : US Band is default mode at first)
To set the mode
The player is made for users to set up the basic mode as users convenience. Turn on the power and press M
(MODE) button more than 2 seconds to enter MODE Setting Up. To return, press M (MODE) button again.
■Major Mode Setting Up
■How to enter the detailed MODE Setting up
1) Press the FF button (▶▶) / REW button (◀◀) to select the desired MODE.
2) Move the MENU key (Jog Key) to select the detailed specifications displayed on the LCD
3) Press the PLAYBACK(▶Ⅱ) button to select the desired specification and press MODE button(M) to return from
the mode setting up.

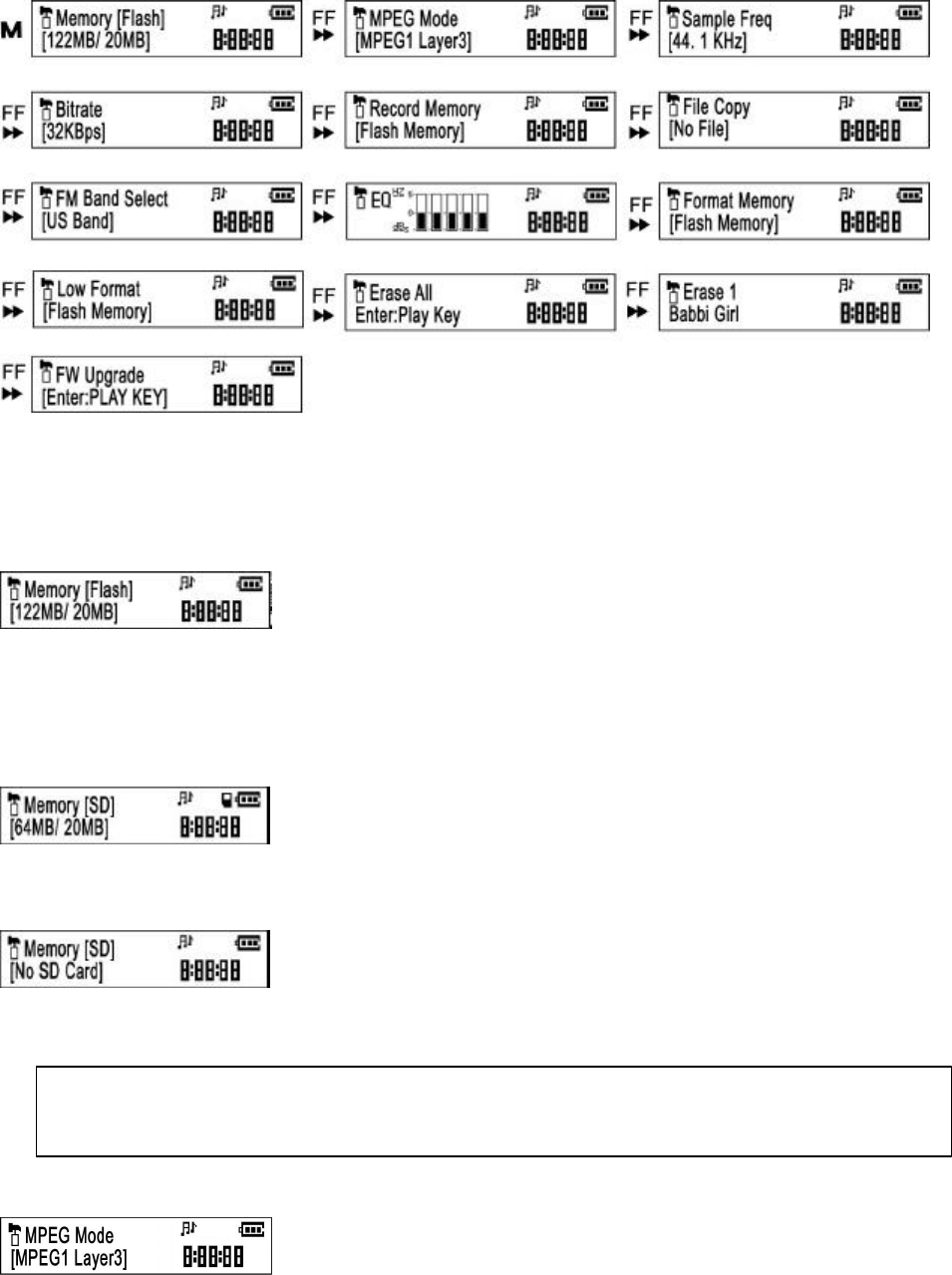

[Pictures for All MODE Functions]
1. MEMORY
-Total Flash Memory Capacity / Free space
-SD Card Memory Capacity / Free space
(When SD Card is inserted)
-No SD Card
2. MPEG MODE
MPEG MODE setting up consists of 6 as follows;
MPEG1 layer3->MPEG2 layer3->MPEG2.5->MPEG1 layer2->ADPCM ->TVF
An actual usable memory in the player is shorter than an original memory because 8~9MB is used by
the system of the player.

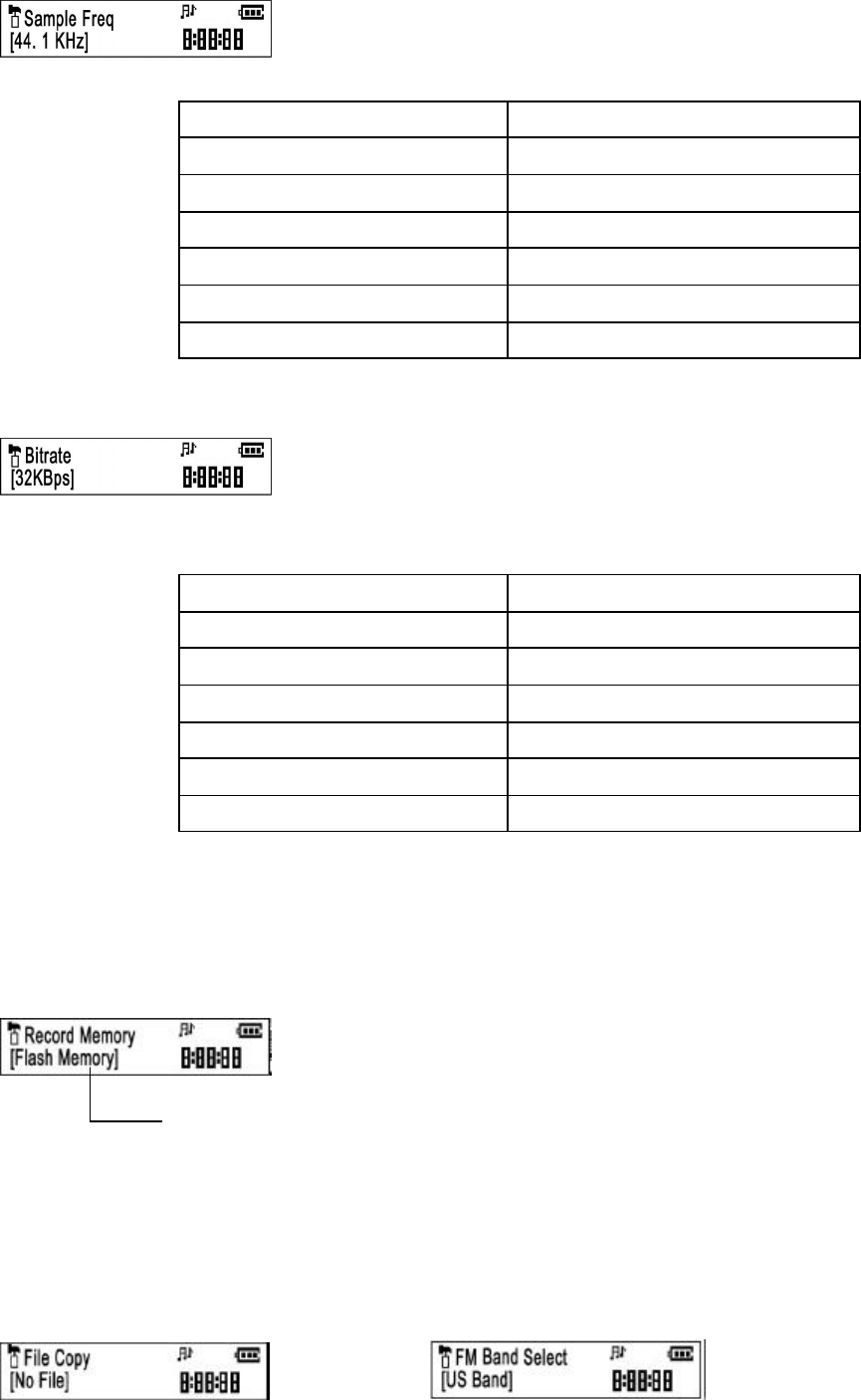

3. SAMPLE FREQ Setting Up
MPEG MODE SAMPLE FREQUNCE(KHz)
MPEG1 layer3 32 → 44.1 → 48
MPEG2 layer3 16 → 22.05 → 24
MPEG2.5 8
MPEG1 layer2 32 → 44.1 → 48
ADPCM 8
TVF 8
4. BITRATE Setting
MPEG MODE BITRATE(Kbps)
MPEG1 layer3 11 Steps in range of 32 ~160
MPEG2 layer3 11 Steps in range of 08 ~112
MPEG2.5 8
MPEG1 layer2 64 → 128 → 192
ADPCM 32
TVF 4.7 → 5.9
5. Record Memory
Users can select the desired place between the internal Flash Memory in the player and SD Card when recording and
saving as follows;
6. File Copy
Users can transfer Pictures and JPEG data from SD Card used by Digital Camera or other devices to the player.
- Press MODE button more than 2 seconds to enter MODE Setting Up and go to the FILE. COPY after SD Card is
inserted. Then, users can see the file in SD Card as follows;
or [SD Memory]
[IN SD CARD]
- Use MENU Key (Jog Key) to select the desired file for copying.
- Press PLAYBACK(▶Ⅱ) button to copy and the progressing % is appeared on LCD.
- When the file copy is completed, [File Copy OK] is appeared on LCD.
- Please repeat again for the additional file copy as above.
- After file copy, Backup Folder is created automatically in the player.
- To check the saved file of Backup Folder in the player, use MENU Key
(Jog Key) to move the Backup Folder in the player.
- The player can not support the data back-up from an internal Flash memory
to SD Card.
(* Caution: While file copy is progressed, do not remove the battery. It may cause that the file is deleted.)

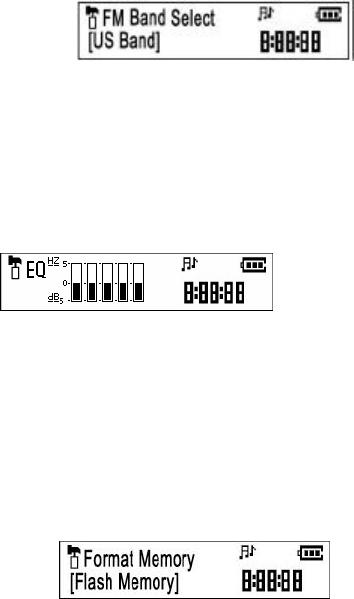

7. FM BAND Select
It is function of worldwide FM frequency setting up. Please use MENU Key (Jog Key) to select the desired FM
BAND among US BAND->JAPAN BAND
->EUROPE BAND.
8. USER EQ
Each song can be set through the User EQ function which has 5channels in the ranges of 300Hz~6KHz. Please use
MODE button to set the USER EQ as below picture and set the USER EQ by moving MENU Key(Jog Key). It can be
adjustable in the ranges of -5dB ~ 5dB.
9. Format Memory
It is function of initializing the memory.
Use MENU Key (Jog Key) to select the internal Flash Memory in the player or SD Card.
Press PLAYBACK(▶Ⅱ) button and [YES] or [NO] is appeared.
Press PLAYBACK(▶Ⅱ) button again to format and [Formatting] is appeared.
(* Notice: When users do not want to format, then press FF or REW button to move to the next function.)

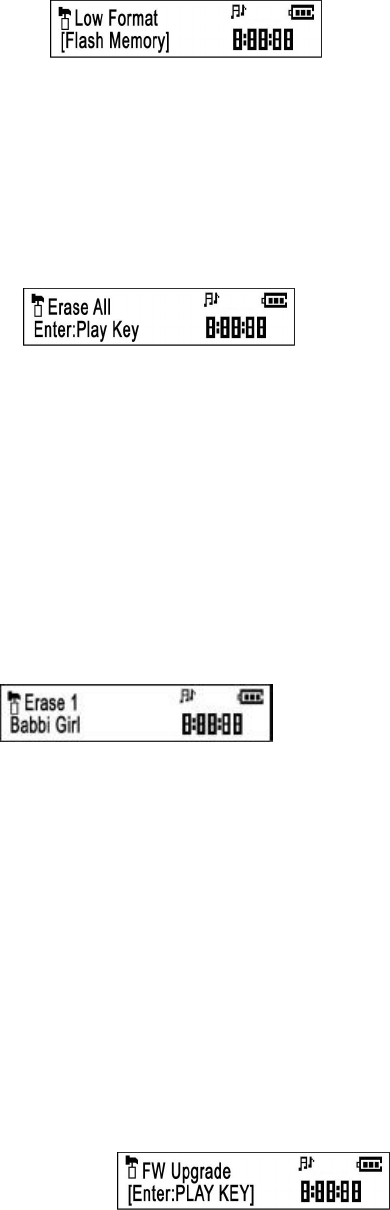

10. LOW FORMAT
It is function of initializing the memory by deleting all data completely and constituting the track and sector. Thus, LOW
FORMAT is substantial initializing Flash Memory in the player. The process is the same as the above #9 [FORMAT
Memory]
11. ERASE ALL
It is the function to erase all files.
- Select the folder in the internal Flash Memory in the player or SD Card.
- Press MODE button more than 2 seconds to enter MODE Setting Up.
- Press FF or REW button to move to ERASE ALL.
- Press PLAYBACK(▶Ⅱ) button and all saved files are deleted while
[ALL Erasing!!] is appeared on LCD display.
12. ERASE 1
It is the function to erase one file.
- Select the folder in the internal Flash Memory in the player or SD Card.
- Press MODE button more than 2 seconds to enter MODE Setting Up.
- Press FF or REW button to move to ERASE 1.
- Use MENU Key (Jog Key) to select the file in the internal Flash Memory in
the player or SD Card
- Press PLAYBACK(▶Ⅱ) button to delete the desired file while [Erasing!!]
is appeared on LCD display.
13.FIRMWARE UPGRADE
It is the function to upgrade the firmware. Please refer to page #27 [Firmware Upgrading].
Additional Functions
■How to use the UTILITY program
▶ TVF file in the player and WAV file in PC
Picture(1-1) Picture(1-2)
If users want to record voice with the player as TVF file (low capacity), only the player, not PC, can play TVF file. So,
TVF file should be converted to WAV file in PC while connecting the player to PC, and then users can listen to WAV file
(converted from TVF) in PC.
▶ How to convert from TVF File to WAV file
To click on the icon or select the menu

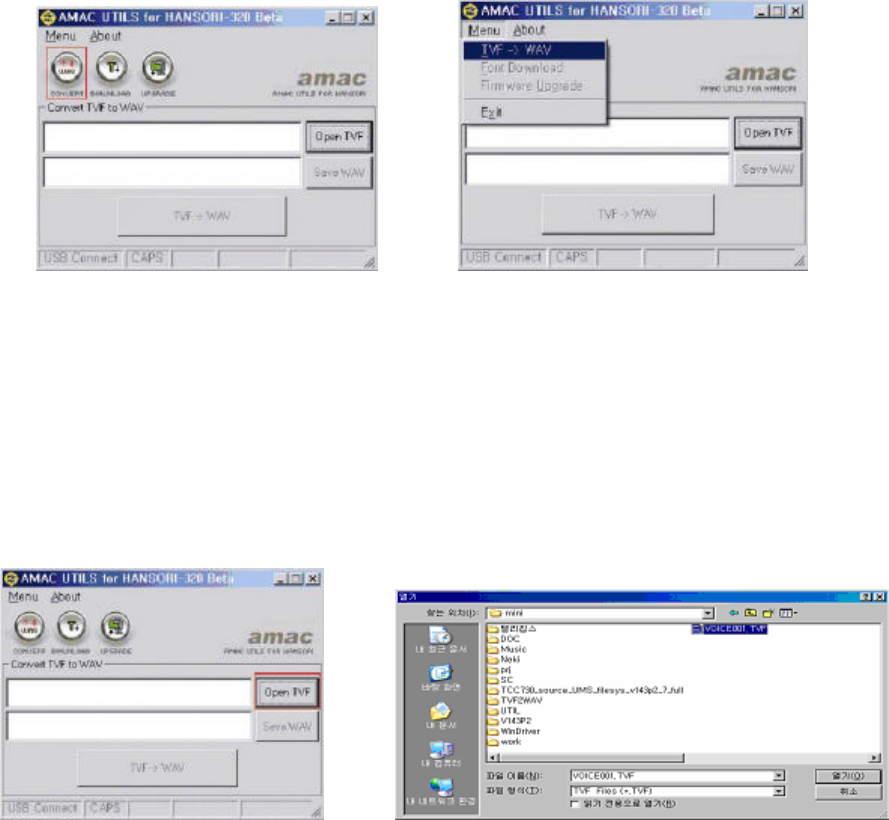

- Click on the icon as below [Picture 1-1] or select TVF File -> WAV(C)
in the MENU as below [Picture 1-2].
▶ To select WAV file name to save
Picture(1-5) Picture(1-6)

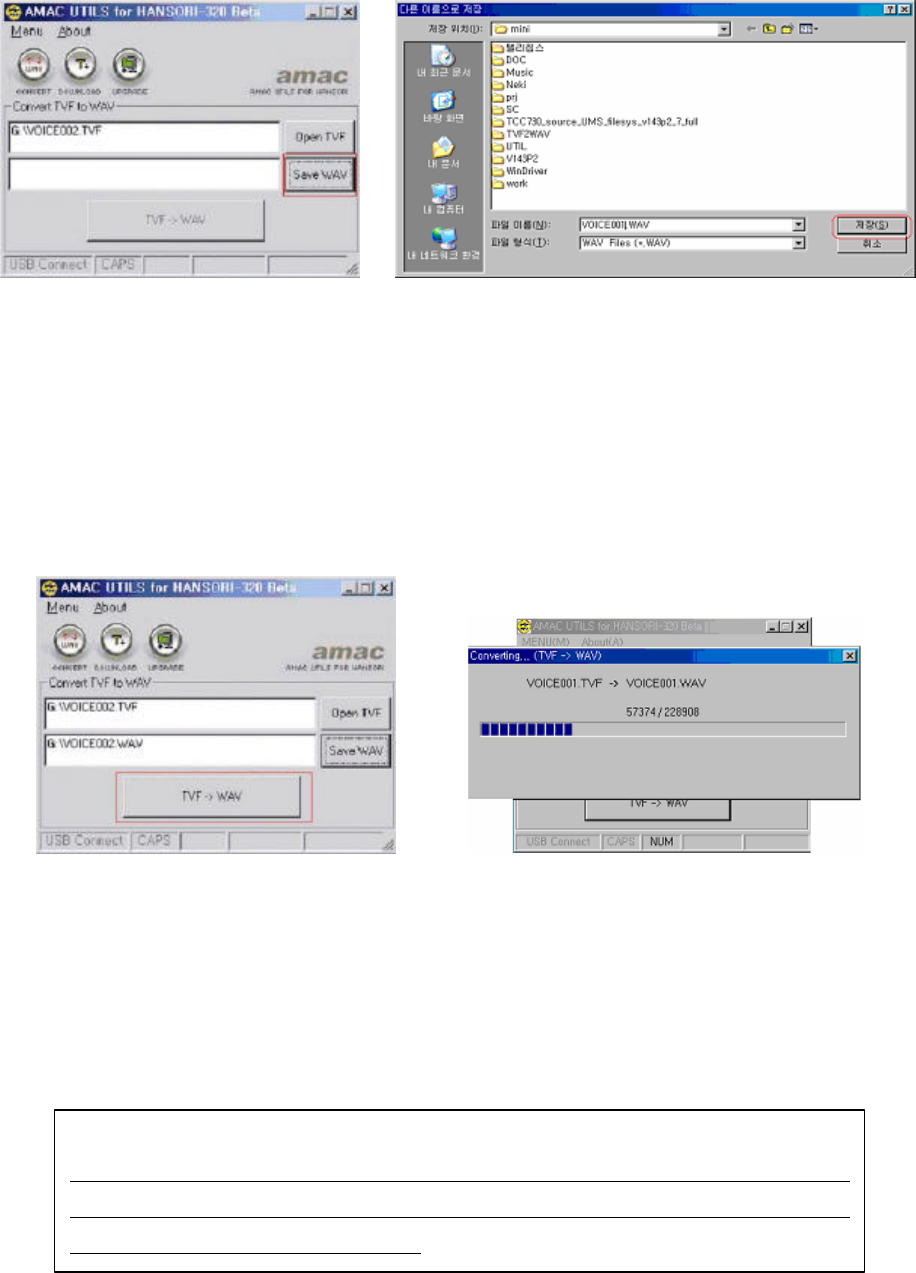

- Click on [Save WAV] to appoint the place for saving as below
[picture 1-5]. Then [Picture 1-6] is appeared.
- Select file name and the place to save, then click on [SAVE].
▶ Conversion
Picture(1-7) Picture(1-8)
Press the [TVF ->WAV] to convert[Picture 1-7]. Then, [Picture 1-8] is appeared and disappeared when it뭩 done.
■Font Download
* When do users download fonts?
The music title is displayed on LCD using the external font provided by the player. When
the music title is not properly displayed or the font is obsolete, users can download the
fonts from the website www.amac21.com.
※How to Download the Fonts
1. To download, press MODE button more than 2 seconds in the
player.
2. Find [Firmware Upgrade] and press PLAYBACK button.
Then, [FW UPGRADE] is appeared on LCD.
3. Connect the player to PC and refer to the followings;
▶Pictures when the player is connected to PC
Connected Properly Connected Improperly
Picture(2-1) Picture(2-2)
4. [USB Connect] is activated shown on the bottom left corner as above Picture 2-1 and not activated on the bottom
left corner as above Picture 2-2.
5. And also, [MENU(M)] related to USB Connection are not activated when the player is not connected to PC
properly as shown on the top left corner.

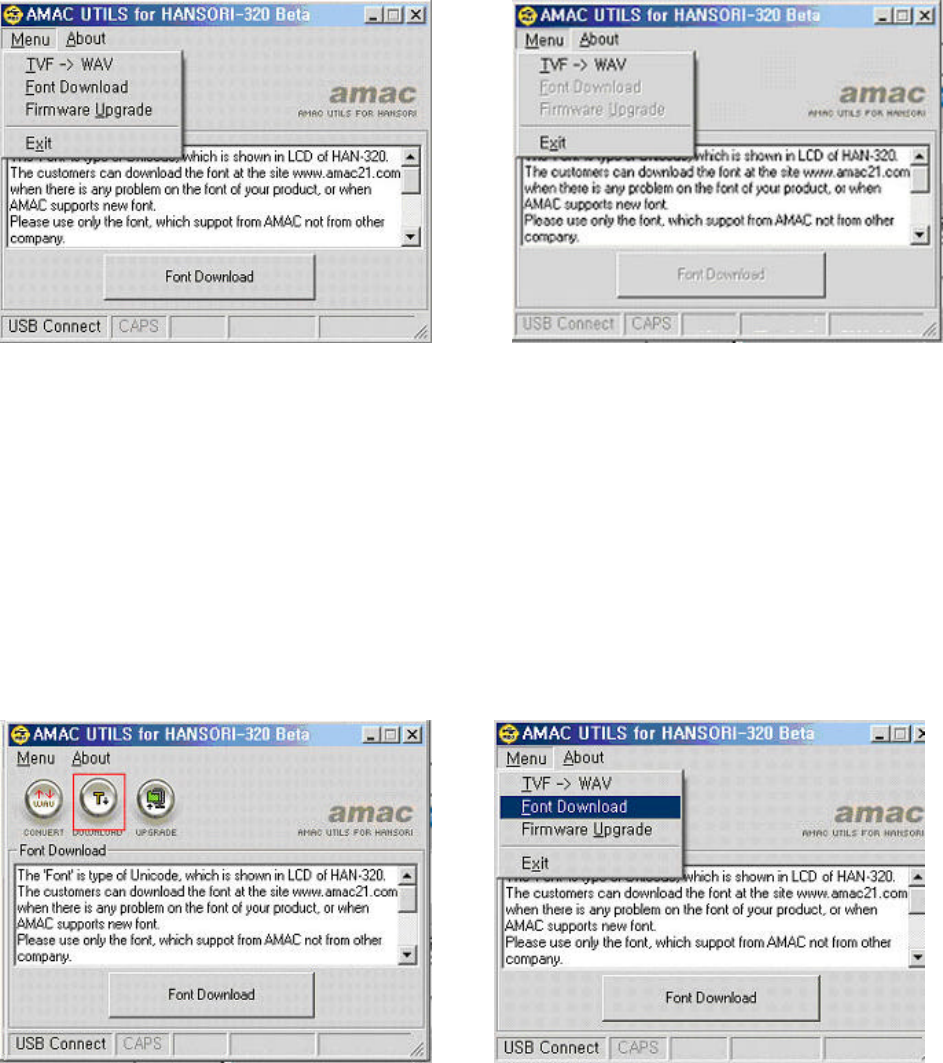

▶How to select the fonts downloading
Picture(2-3) Picture(2-4)
6. Click on the icon to download fonts as shown on Picture 2-3.
7. Click on the [MENU(M)] to download fonts as shown on Picture 2-4.
8. Users can choose either way.
Picture(2-5)
Picture(2-6)
Picture(2-7)

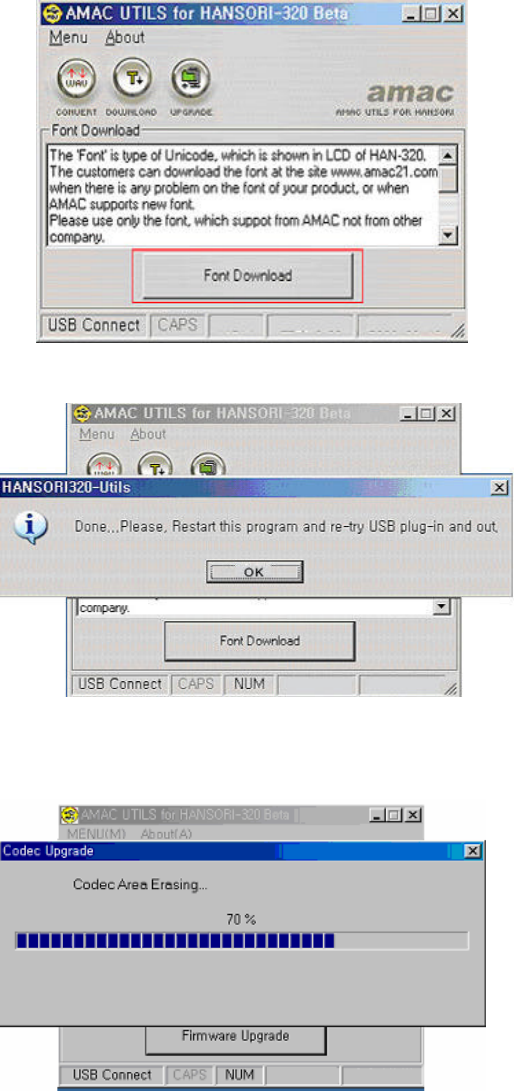

9. Click on [Font Download] button to start the downloading as shown
on Picture 2-5.
10. Press [Confirm] button after finished Font Download as Picture 2-7.
The program has to be restarted after the Font Downloading,
and Re-Try the HAN-320 Plug-In and Out.
11. Picture 2-6 shows that the downloading is progressing and click
on[Yes] to complete.
12. Turn the player power off and turn it on again.
■Firmware Upgrading

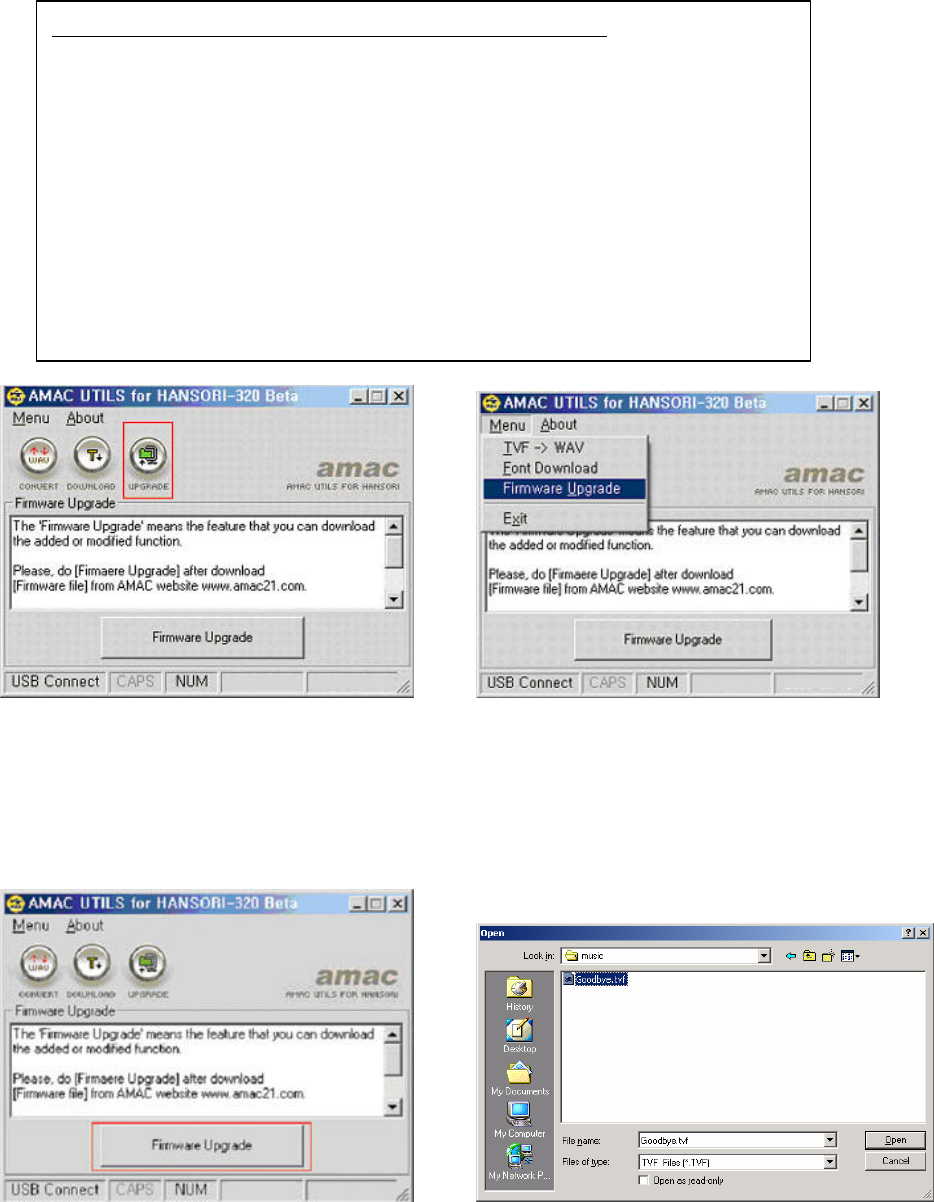

Picture(3-1) To select by ICON Picture(3-2) To select by MENU(M)
- Click on the icon to upgrade firmware as shown on Picture 3-1.
- Click on the MENU(M) to upgrade firmware as shown on Picture 3-2.
- Users can choose either way.
Picture(3-3) Picture(3-4)
- The newest firmware is uploaded on website www.amac21.com
- Install the newest utility program on PC
- Turn the player on and use MODE button to enter [FW UPGRADE], then
press PLAYBACK button.
- Connect the player to PC, then [FW UPGRADE Connected] is appeared
on LCD.
- Click on the program related to the newest firmware on your PC screen.
- Make sure that the player is connected to PC, then [USB Connect] is
activated as shown on the bottom corner of Picture 3-1.
Click on [Firmware Upgrade] as shown on Picture 3-3 and select
firmware file as shown on Picture 3-4.

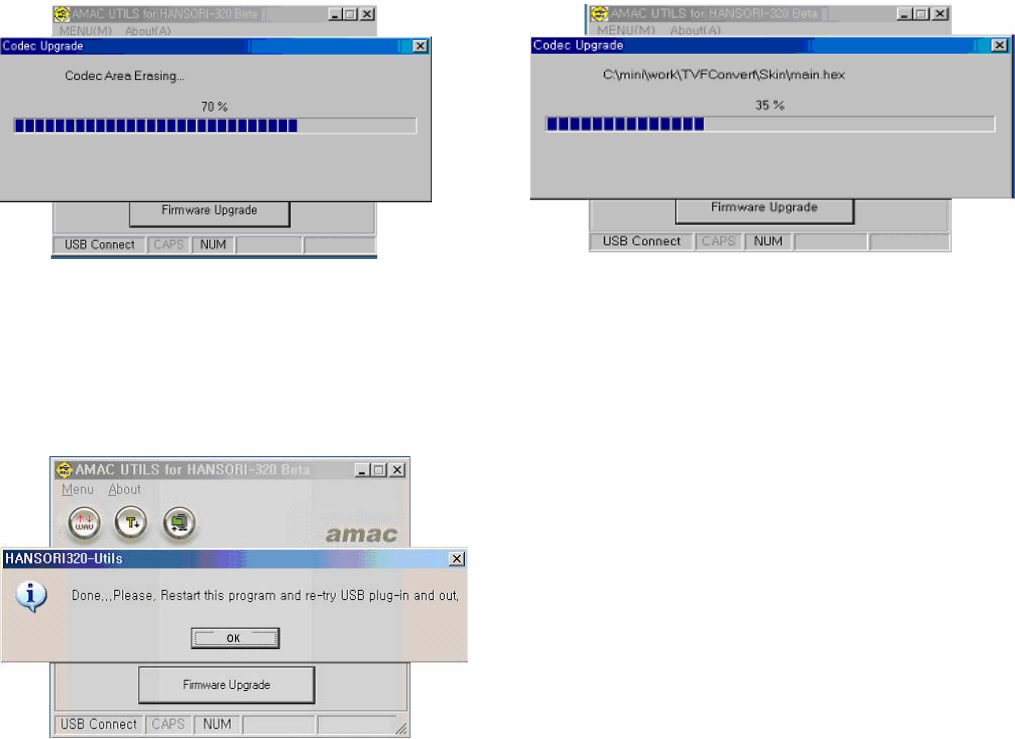

Picture(3-5) Removing Old Firmware Picture(3-6) Downloading New Firmware
The old firmware is being removed as shown on Picture 3-5.
- The new firmware is being downloaded as shown on Picture 3-6
- Click on [Yes] to complete.
- Turn the player power off and turn it on again.
※If you plug-out the player during Font Downloading and Firmware
Upgrading, please try to following procedures.
- Move the Hold Key to “HOLD ON”
- Fix the MENU Key(Jog Key) to “VOL -” by finger.
- Connect the player with the status “HOLD ON” and “VOL -”
- Double click the “Manager Program” and upgrade the firmware
■ To insert SD(Secure Digital) CARD
Users can add SD Card to expand the memory capacity and back up data.
① Please insert SD Card into the player as below the picture.
② Turn the player power on, then the SD Card icon is appeared on the top right corner of LCD after SD Card is
inserted.
Others and Trouble Diagnosis
1) Precautions
The followings are precautions that you should keep in mind. Any violation of the following precautions may cause
damage of product.
1. If the player will not be operated for a prolonged period, remove the
batteries to avoid possible damage caused by electrical leakage.
2. To avoid static electricity, please If possible, avoid operating the player in
extremely dry environment.
3. Battery life may vary with different using condition, manufacturer and
manufacture date. Please change the battery when the battery indicator
on LCD is low.
4. Do not drop the player, which probably cause battery fall off or damage
its surface.
[LCD before SD
Card is inserted]
[LCD after SD
Card is inserted
5. The player should be kept in areas free from extreme temperature
changes, moisture and dust.(Do not leave the player over 35℃ and below 5℃)
6. If the player stops running under proper operation, please reset it by
taking out battery.
7. Do not polish with a chemical material (Benzene, Thinner, Organic solvent)
8. Do not expose in many hours on a direct ray of light or closed place from heat appliance
9. Do not disassemble a product unnecessarily except the AMAC maintenance man.
2) How to troubleshoot
When USB driver is not properly installed after the player is connected to PC, please follow as below.
◈ Information related to USB Driver installation (For only Window 98 users)
When the message on PC shows that the Driver can not be opened after the player is connected to PC. Please
follow as below.
1. If the player is properly connected to PC, click on [START] of Windows and select [CONTROL PANEL] ->
[SYSTEM]-> [DEVICE MANAGEMENT] in sequence.
2. Double click on [Universal USB Controller] and check whether or not the
AMAC USB Driver exists.
3. Select and delete AMAC USB Driver or the USB Driver of other devices if
they are marked with a question mark (?), an exclamation mark (!) or
[Unknown Device].
4. Pull out only the USB cable from the player, but leave alone the USB
cable connected to the USB port on PC. Then, reboot the PC
5. Connect the USB cable to the player after rebooting and the USB driver is
automatically detected.
