NIAY-FAG MAYFAG

® per,forma TM

Bottom Freezer

Form No= All 2/03

Jnstaltatie n ..................................... 3-0

Temperature Controls .............. 10-11

Fresh Food Features ................ 12o15

Freezer Features ....................... 16-17

Part NO= 12828102 www.maytag.com

What Nee to K ow Abo t

Safety stt ctio s

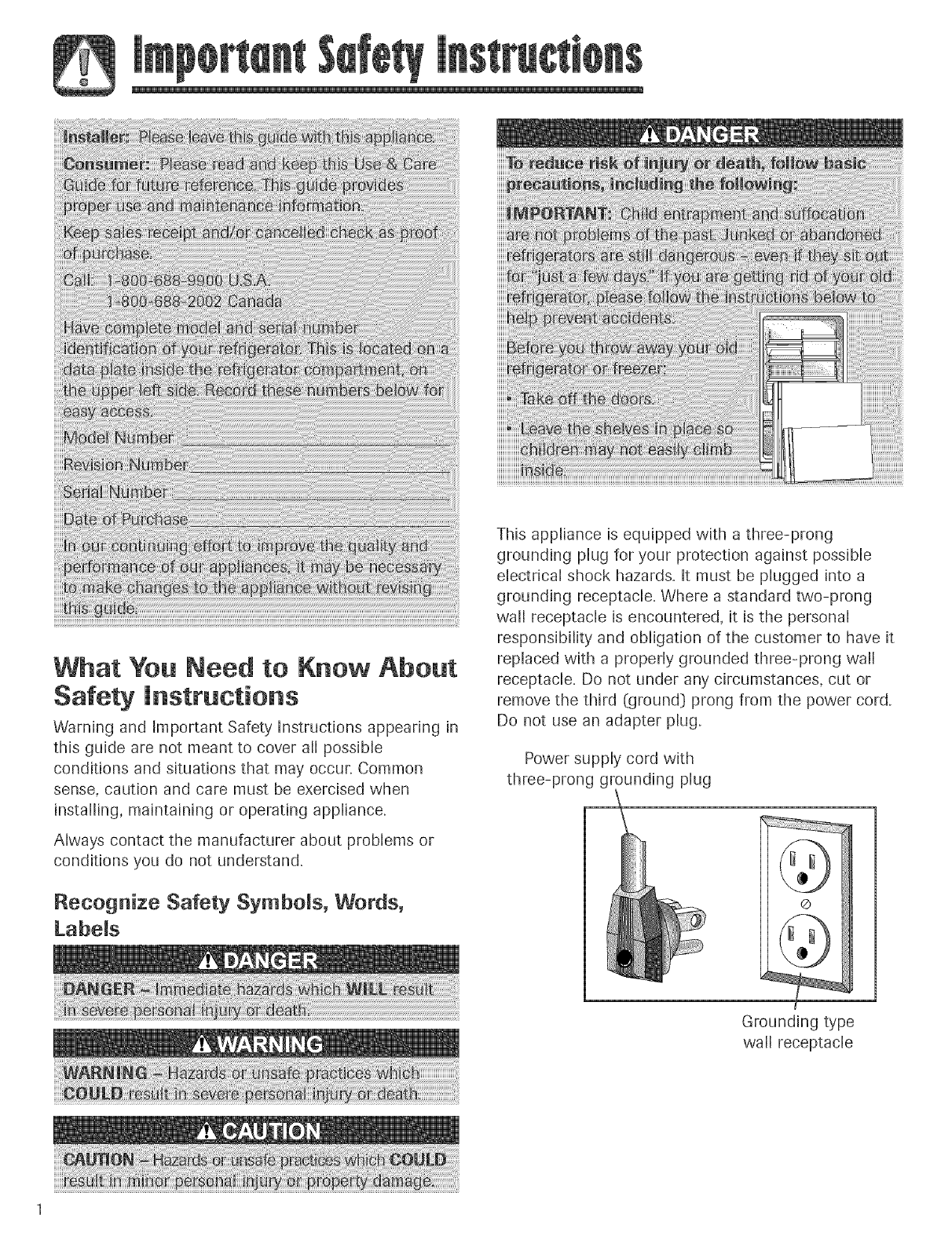

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground} prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

Grounding type

wall receptacle

SAVE TH ESE l NSTRUCTIONS

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the sedal plate.

, Do not install refrigerator near oven, radiator or other

heat source. Wfnot possible, shield refrigerator with

cabinet material.

Do not install where temperature falls below 55° F

(13° C} or rises above 110° F (43° C]. Malfunction

may occur at this temperature.

Refrigerator is designed for indoor househomd

appmication onmy.

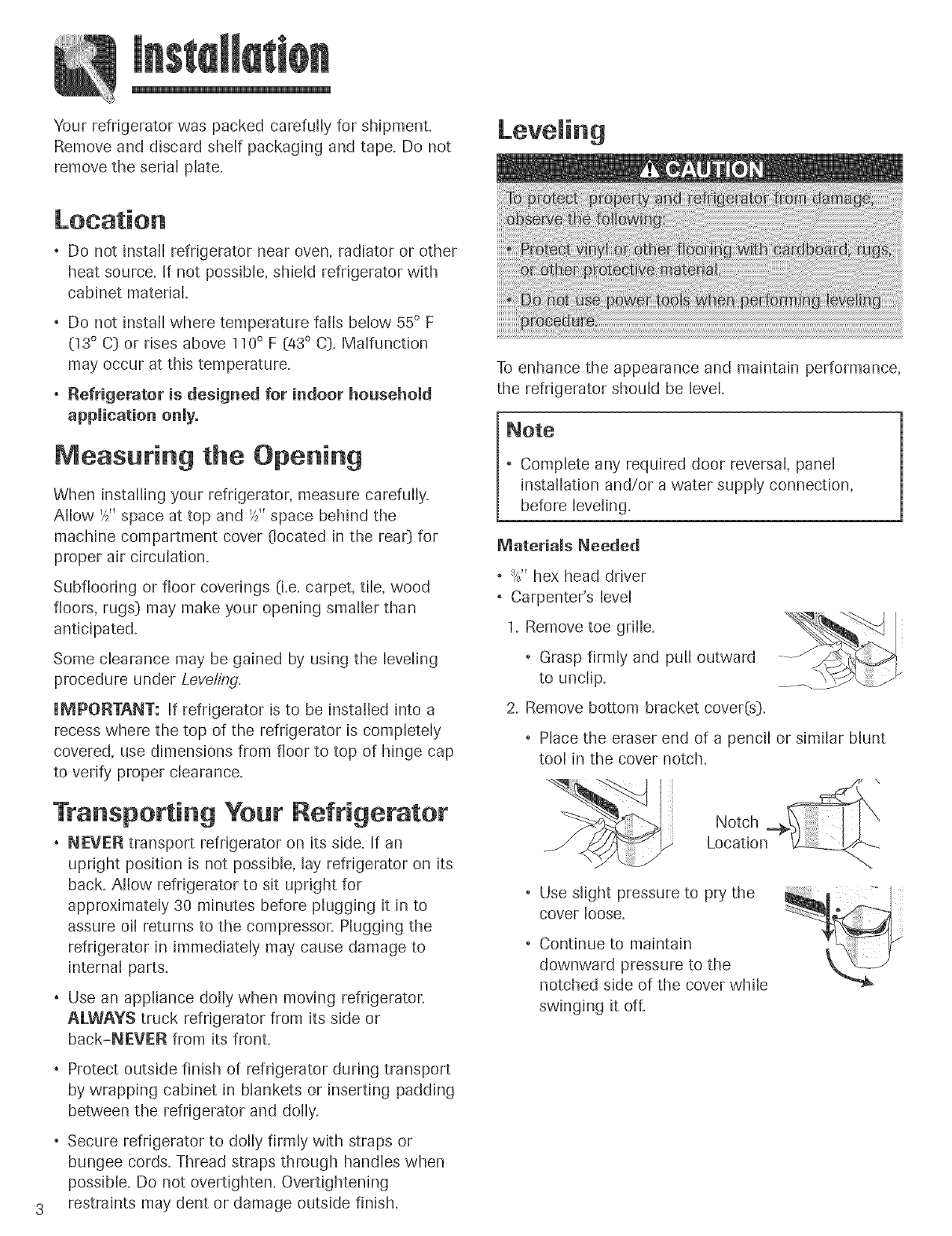

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow Y}' space at top and Y/' space behind the

machine compartment cover (located in the tea0 for

proper air circulation.

Subflooring or floor coverings (Le. carpet, tile, wood

floors, rugs} may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

UMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

Transporting Your Refrigerator

NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compresson Phgging the

refrigerator in immediately may cause damage to

internal parts.

,Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its fronL

,Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

,Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

To enhance the appearance and maintain performance

the refrigerator should be level

,Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed

,3/8"hex head driver

,Carpenter's level

1. Remove toe grille.

,Grasp firmly and pull outward

to unclip.

2. Remove bottom bracket cover(s].

Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

, Use slight pressure to pry the

cover loose.

" Continue to maintain

downward pressure to the

notched side of the cover while

swinging it oft

3. Usinghexheaddriver,turnthe frontadjustment

screws(A}oneachsideto raiseor lowerthe front

of therefrigerator.

Door and Drawer Removam

Some installations require door/drawer removal to

transport the refrigerator to its final location.

IS IS

Some models only have adjustment screws "A_"

4. Select models also have rear adjustment screws

(B}. Using the hex head driver, turn each of these

adjustment screws (B} to raise or lower the rear of

the refrigerator`

5. Using the carpenter's level, make sure front of

refrigerator is '/4" (6 ram} or '/, bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C} clockwise until firmly

against floor`

7. Freezer drawer models only: Turn adjustment

screws (A) counterclockwise to allow the full

weight of the refrigerator to rest on the stabilizing

legs.

8. Replace bracket cover(s}.

Position cover into the outer edge of the hinge.

Swing the cover toward the cabinet and snap it

into place.

9_ Replace the toe grille.

. For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

Align the toe grille mounting dips with the lower

cabinet slots.

Push the toe grille firmly until it snaps into place.

Unplug power cord from power source.

Remove toe grille and bottom bracket

cover(s} (see page 3}_

Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

Unscrew _,_" hex head screws from

top hinge to remove hinge and retain ,_.

all screws for later use.

Lift refrigerator door from center

hinge pin.

For swing freezer door modems

onmy: Hold freezer door while removing

hinge pin with a _" hex head driver.

Remove door from bottom hinge and

retain hinge pin for later use.

}:or pullout fteeTet drawer modems

onmy: Remove plastic sleeve, if

present. Remove center hinge pin with

a _,_"hex head driver, Retain hinge pin

and plastic sleeve for later use.

Remove Phillips screws to remove

center hinge and retain all screws for

later use.

8_ Remove bottom hinge or stabilizing

bracket with %" hex head driver and _.-

retain screws for later use. Lift out

bottom hinge pin (on freezer door

models}.

9_ If your model has a pullout freezer drawer, see

page 5 for drawer removal instructions.

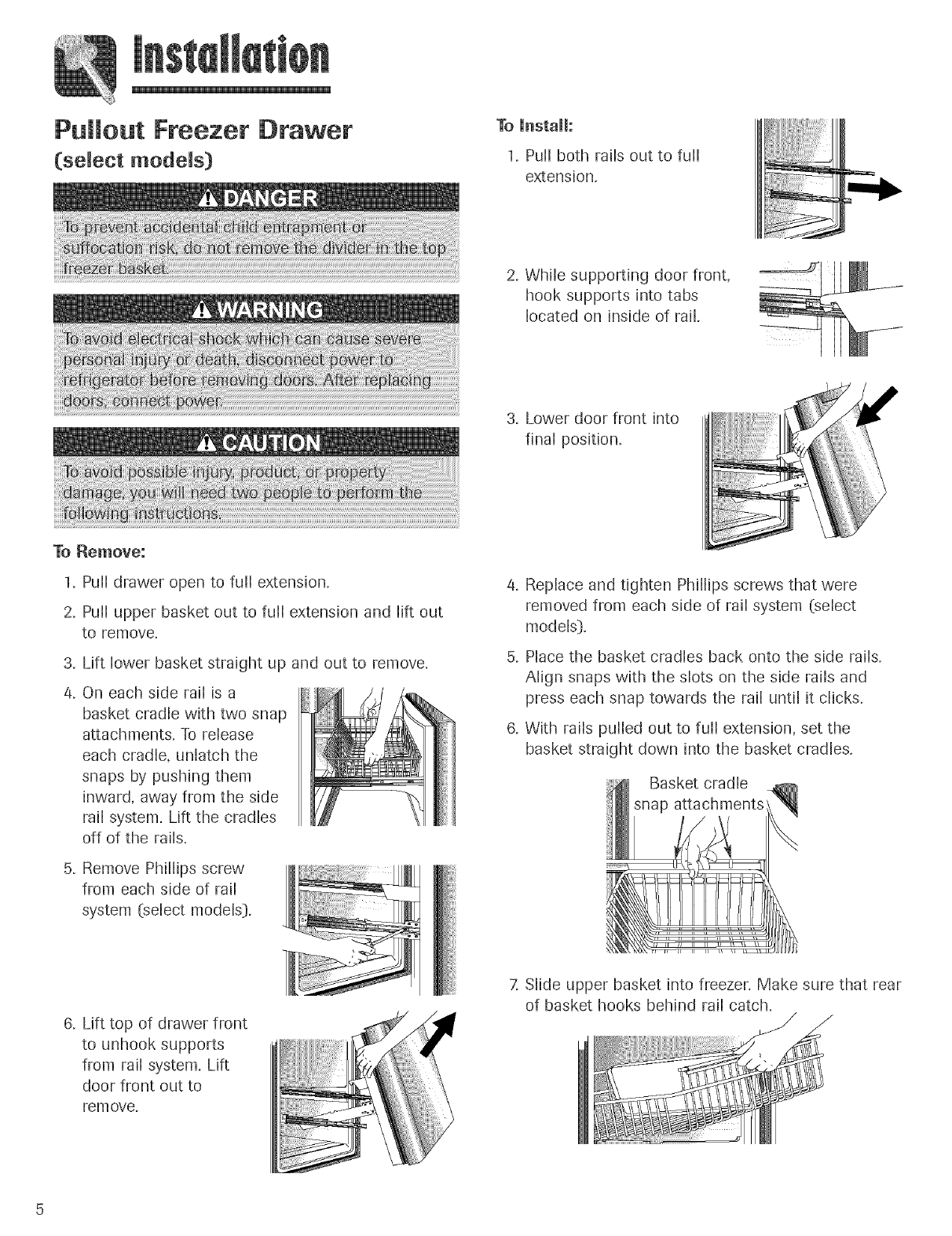

Pullout Freezer Drawer

(sdect modds)

To Unstall:

1. Pull both rails out to full

extension.

2. While supporting door front,

hook supports into tabs

located on inside of rail.

3, Lower door front into

final position.

To Remove:

1. Pu[[ drawer open to fuji extension.

2. Pu[[ upper basket out to fuji extension and lift out

to remove.

/4.

Lift lower basket straight up and out to remove.

On each side rail is a

basket cradle with two snap

attachments. To release

each cradle, unlatch the

snaps by pushing them

inward, away from the side

rail system. Lift the cradles

off of the rails.

5. Remove Phillips screw

from each side of rail

system (select models}.

6,Lift top of drawer front

to unhook supports

from rail system. Lift

door front out to

remove.

Replace and tighten Phillips screws that were

removed from each side of rail system (select

models}.

Place the basket cradles back onto the side rails.

Align snaps with the slots on the side rails and

press each snap towards the rail until it clicks.

With rails pulled out to full extension, set the

basket straight down into the basket cradles.

Basket cradle

Z Slide upper basket into freezer. Make sure that rear

of basket hooks behind rail catch,

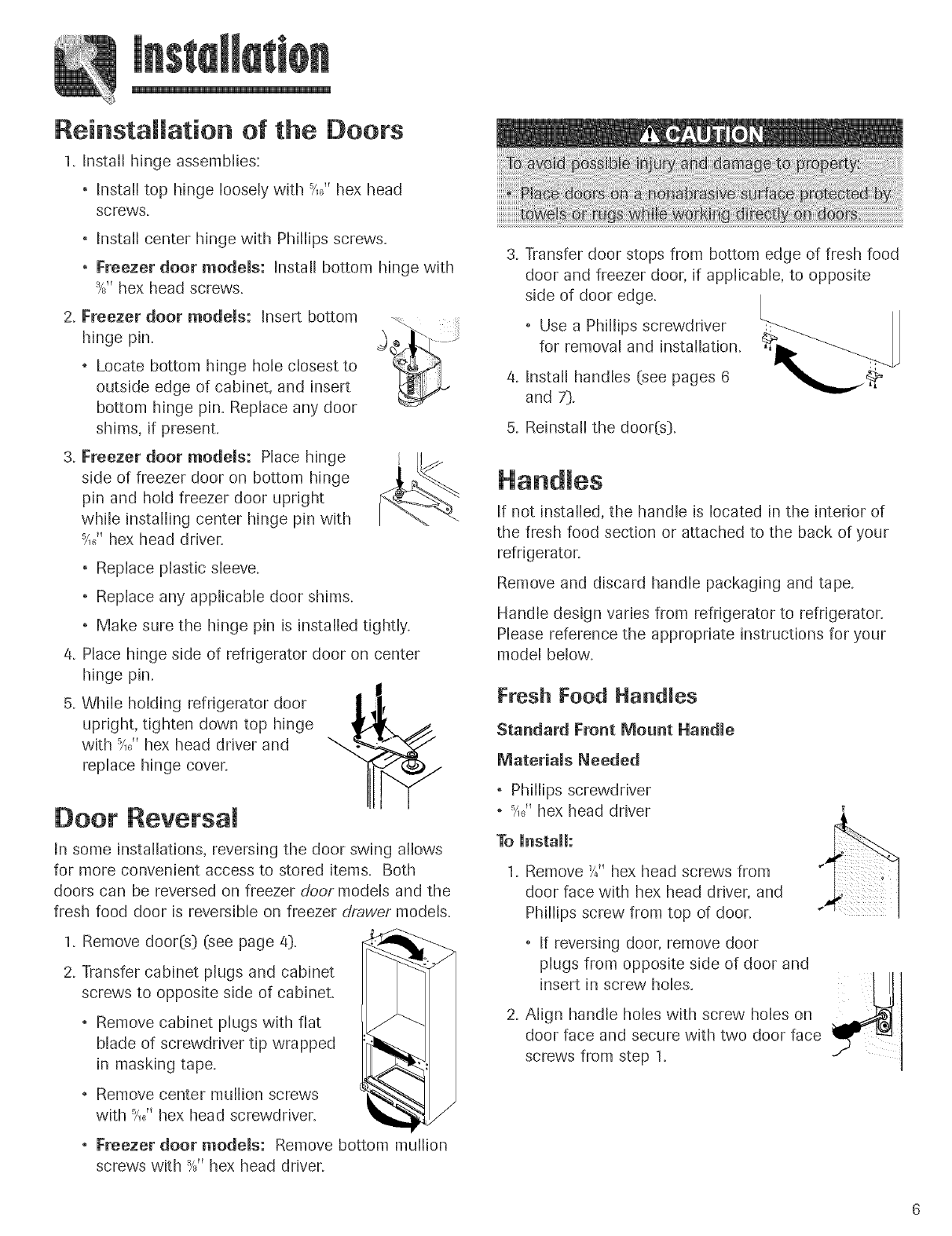

ReinstaHation of the Doors

1, Install hinge assemblies:

,Install top hinge loosely with %/' hex head

screws.

Install center hinge with Phillips screws.

Freezer door models: Install bottom hinge with

_/' hex head screws.

2. Freezer door models: Insert bottom

hinge pin.

,Locate bottom hinge hole closest to

outside edge of cabinet, and insert

bottom hinge pin. Replace any door

shims, if present.

3. Freezer door models: Place hinge

side of freezer door on bottom hinge

pin and hold freezer door upright

while installing center hinge pin with

-%/hex head driven

Replace plastic sleeve.

Replace any applicabb door shims.

Make sure the hinge pin is installed tightly.

4. Place hinge side of refrigerator door on center

hinge pin.

5. While holding refrigerator door

upright, tighten down top hinge

with %/hex head driver and

replace hinge coven

Door Reversam

In some installations, reversing the door swing allows

for more convenient access to stored items. Both

doors can be reversed on freezer door models and the

fresh food door is reversible on freezer drawer models.

1, Remove door(s} (see page 4},

2. Transfer cabinet plugs and cabinet

screws to opposite side of cabinet.

Remove cabinet plugs with flat

blade of screwdriver tip wrapped

in masking tape.

,Remove center mullion screws

with _/,/' hex head screwdriver.

,Freezer door models: Remove bottom mullion

screws with -Ys"hex head driver.

3, Transfer door stops from bottom edge of fresh food

door and freezer door, if applicabb, to opposite

side of door edge.

Use a Phillips screwdriver

for removal and installation.

4, Install handles (see pages 6

and 7},

5, Reinstall the door(s},

If not installed, the handle is located in the interior of

the fresh food section or attached to the back of your

refrigerator.

Remove and discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator.

Please reference the appropriate instructions for your

model below.

Fresh Food Handles

Standard Front Moent Nandle

Materiams Needed

,Phillips screwdriver

,-%/hex head driver

To UnstaH:

1. Remove K" hex head screws from

door face with hex head driver, and

Phillips screw from top of door.

If reversing door, remove door

plugs from opposite side of door and

insert in screw hobs.

2. Align handle holes with screw holes on

door face and secure with two door face

screws from step 1.

Locate handle trim in literature pack and

install over top and bottom of handle, as

illustrated.

, Secure top handle trim with remaining

screw removed in step 1.

Snap bottom trim over bottom portion

of handle.

_emove:

Remove top handle trim by removing top

handle screw.

Retain trim and screw for later

replacement.

2. Pry bottom handle trim from handle with

screwdriver flat blade wrapped in

masking tape.

Retain trim for later replacement.

3. Remove two hex head screws.

Retain screws for later replacement.

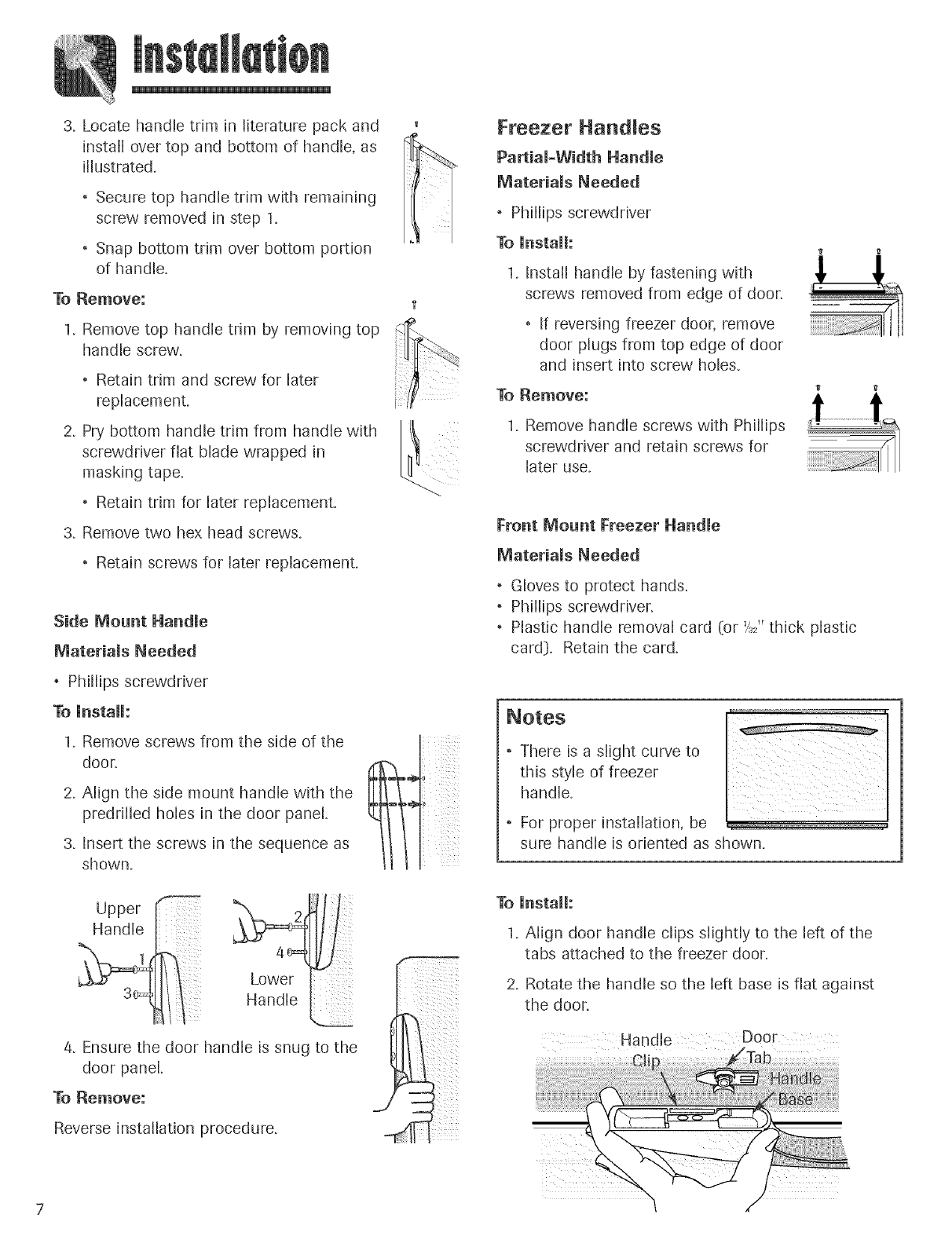

Side Mount Handle

Materiams Needed

Phillips screwdriver

To [nstaH:

1. Remove screws from the side of the

door.

2. Align the side mount handle with the

predrilbd holes in the door panel.

3. Insert the screws in the sequence as

shown.

Upper

Handle

Lower

Handb

4, Ensure the door handle is snug to the

door panel.

To Remove:

Reverse installation procedure.

_x_x

i U{ ill

Freezer Handles

Partial-Width Handle

Materiams Needed

,Phillips screwdriver

To [nstaH:

1. Install handle by fastening with

screws removed from edge of door.

If reversing freezer door, remove

door plugs from top edge of door

and insert into screw holes.

To Remove:

1. Remove handle screws wKh Phillips

screwdriver and retain screws for

later use.

}:rent Mount Freezer Handle

Materiams Needed

Gloves to protect hands.

Phillips screwdriver.

Plastic handle removal card (or X2" thick plastic

card}. Retain the card.

, There is a slight curve to

this style of freezer

handle.

" For proper installation, be

sure handle is oriented as shown.

To [nstaih

1. Align door handle clips sIighdy to the [eft of the

tabs attached to the freezer door.

2. Rotate the handle so the left base is fiat against

the door.

3. Pushthe left handle

baseagainstthe left

doortab andslightly

to theright,just

enoughto allowit to

hangunsupported.

4. Whilefirmlysupportingtheleft handlebaseagainst

thedoor,alignthe rightbaseofthe handlewiththe

righttabsthat areattachedto the door.

5. Now,whilefirmlyholdingthehandleatthe leftand

rightbases,gentlyslidethe handletowardsthe

rightuntilthe rightbasesettlesin.Thehandle

shouldnowbeflatagainstthefaceofthe freezer

doorat boththe leftandrightbases.

6. Withhandsstillfirmlykeepingthe handleflat

againstthefreezerdoor,you mayhaveto reverse

directionsmomentarilyto assureclip/tab

engagement.Thenfirmlyslidethe handleto the

rightuntilit clicks.Theaudible"click" indicates

thatthefasteningdips aresecurelyinterlocked.

ToRemove:

1.Atthe rightend,flexthe handlebaseawayfrom

thesurfaceof thefreezerdrawer.Simultaneously

slidethedoorhandleremovalcardthatcamewith

yourrefrigeratorunderthe rightsidebaseofthe

handle.Slidethecardto the lineindicationor until

it stops,whichwill beapproximately1'//'.

2.With both hands, firmly grasp the handle towards

the right base.

3. Slide towards the left, lift and remove from the

surface.

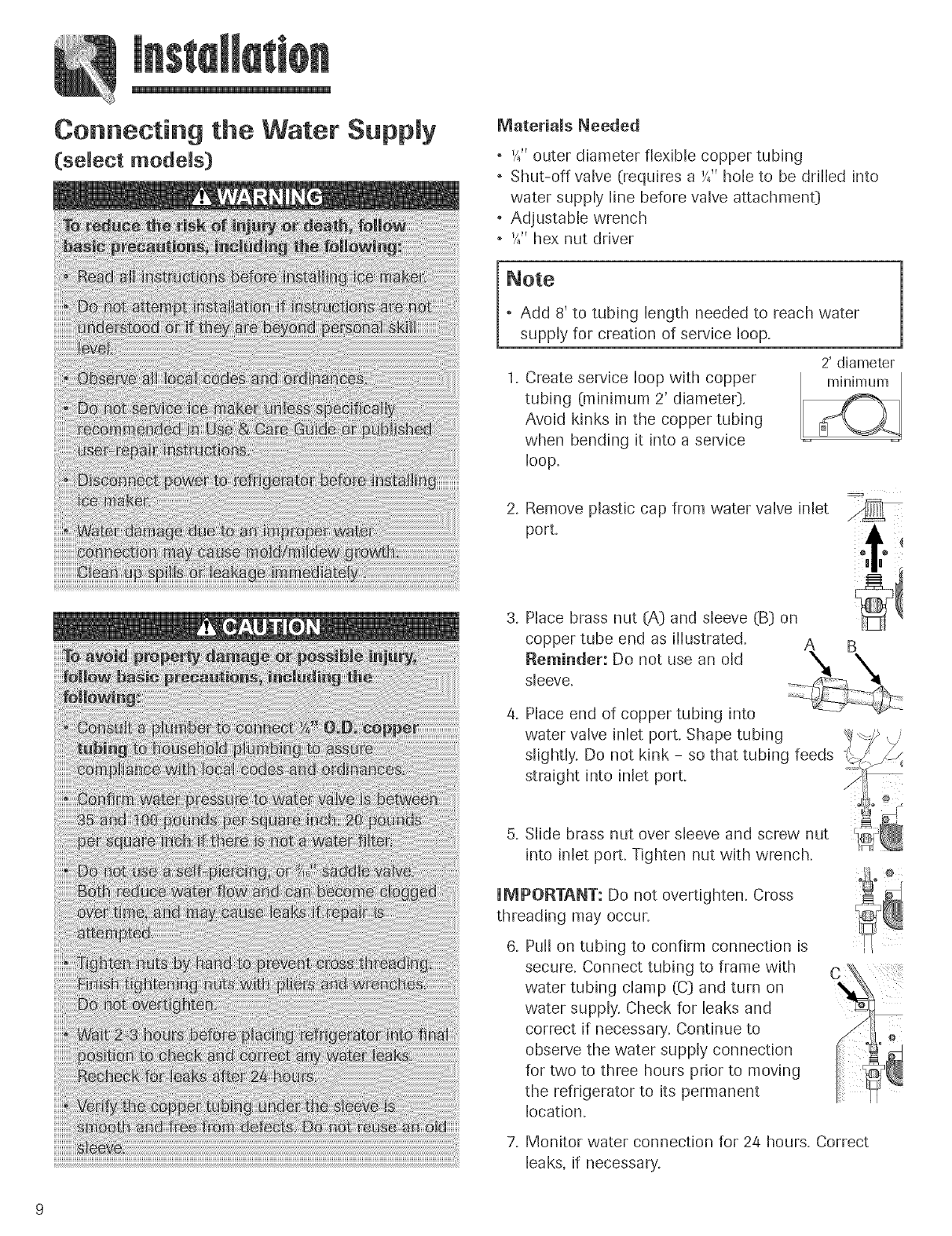

Connecting the Water Supply

(select models)

Materials Needed

'4" outer diameter flexible copper tubing

Shut-off valve (requires a X" hole to be drilbd into

water supply line before valve attachmenO

o Adjustabb wrench

°'4" hex nut driver

Add 8' to tubing bngth needed to reach water

supply for creation of service loop.

Create service loop with copper

tubing {minimum 2' diamete0.

Avoid kinks in the copper tubing

when bending it into a service

bop.

2' diameter

Remove plastic cap from water valve inlet

port.

Phce brass nut (A) and sbeve (B} on

copper tube end as illustrated.

Reminder: Do not use an old

sbeve.

Place end of copper tubing into

water valve inbt port. Shape tubing

siighdy. Do not kink - so that tubing feeds

straight into inlet port.

Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

IMPORTANT: Do not overdghten. Cross

threading may occur.

Pu[[on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C} and turn on

water supply. Check for leaks and

correct if necessary. Continue to

observe the water supply connection

for two to three hours prior to moving

the refrigerator to its permanent

location.

7. Monitor water connection for 2/4 hours. Correct

leaks, if necessary.

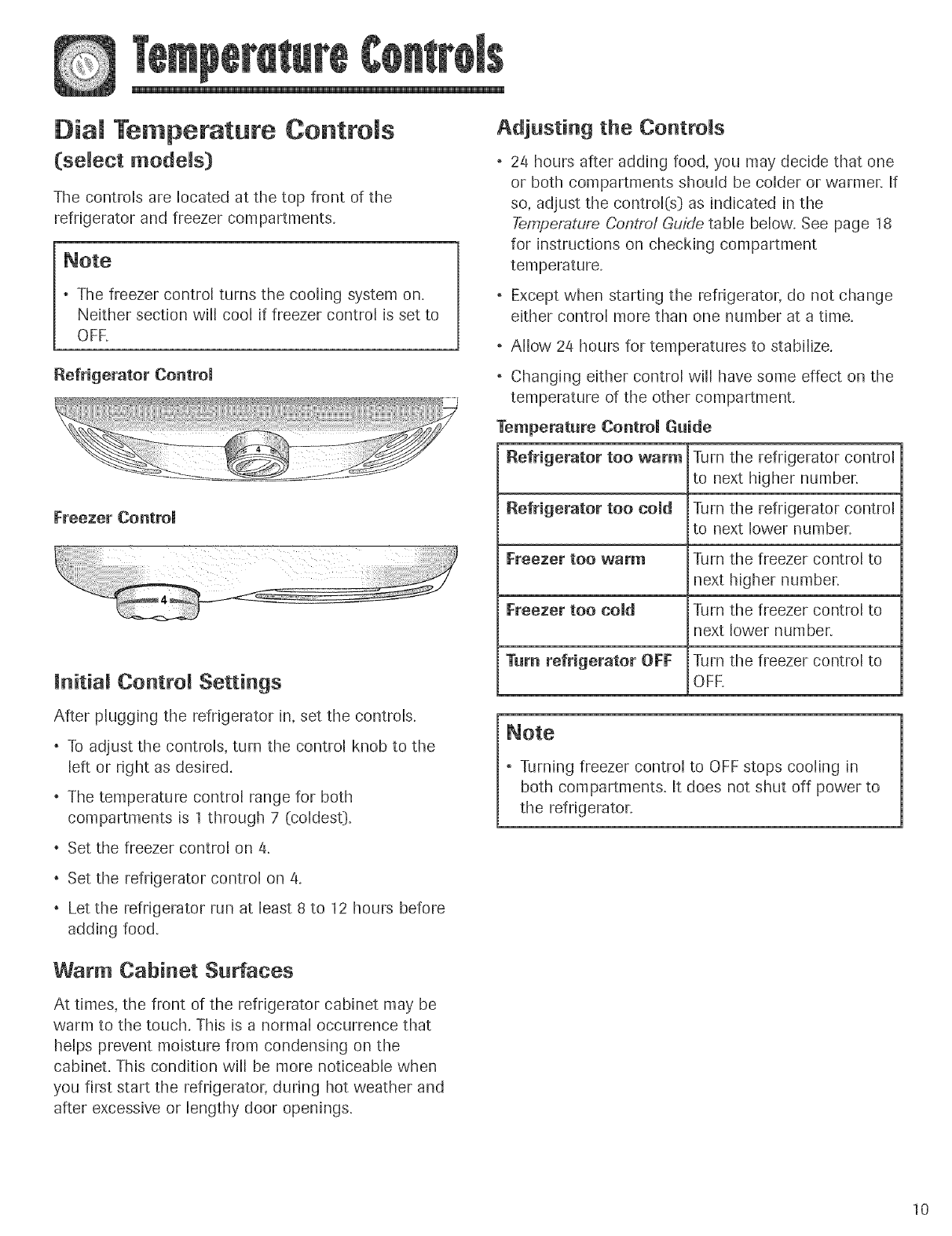

Dial Temperature Controls

(sdect models)

The controls are located at the top front of the

refrigerator and freezer compartments.

*The freezer control turns the cooling system on.

Neither section will cool if freezer control is set to

OFF.

Freezer Controm

llnitial Centrol Settings

After plugging the refrigerator in, set the controls.

*To adjust the controls, turn the control knob to the

left or right as desired.

*The temperature control range for both

compartments is 1 through 7 (coldest).

*Set the freezer control on 4.

*Set the refrigerator control on 4.

*Let the refrigerator run at least 8 to 12 hours before

adding food.

Adjusting the Controls

24 hours after adding food, you may decide that one

or both compartments should be colder or warmer, if

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 18

for instructions on checking compartment

temperature.

*Except when starting the refrigerator, do not change

either control more than one number at a time.

*Allow 24 hours for temperatures to stabilize.

*Changing either control will have some effect on the

temperature of the other compartment.

Temperature Controm Guide

Refrigerator too warm Turn the refrigerator control

to next higher number.

Refrigerator too cold Turn the refrigerator control

to next lower number.

Freezer too warm Turn the freezer control to

next higher number.

Freezer too cold Turn the freezer control to

next lower number.

Turn refrigerator OFF Turn the freezer control to

OFF.

*Turning freezer control to OFF stops cooling in

both compartments. It does not shut off power to

the refrigerator.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

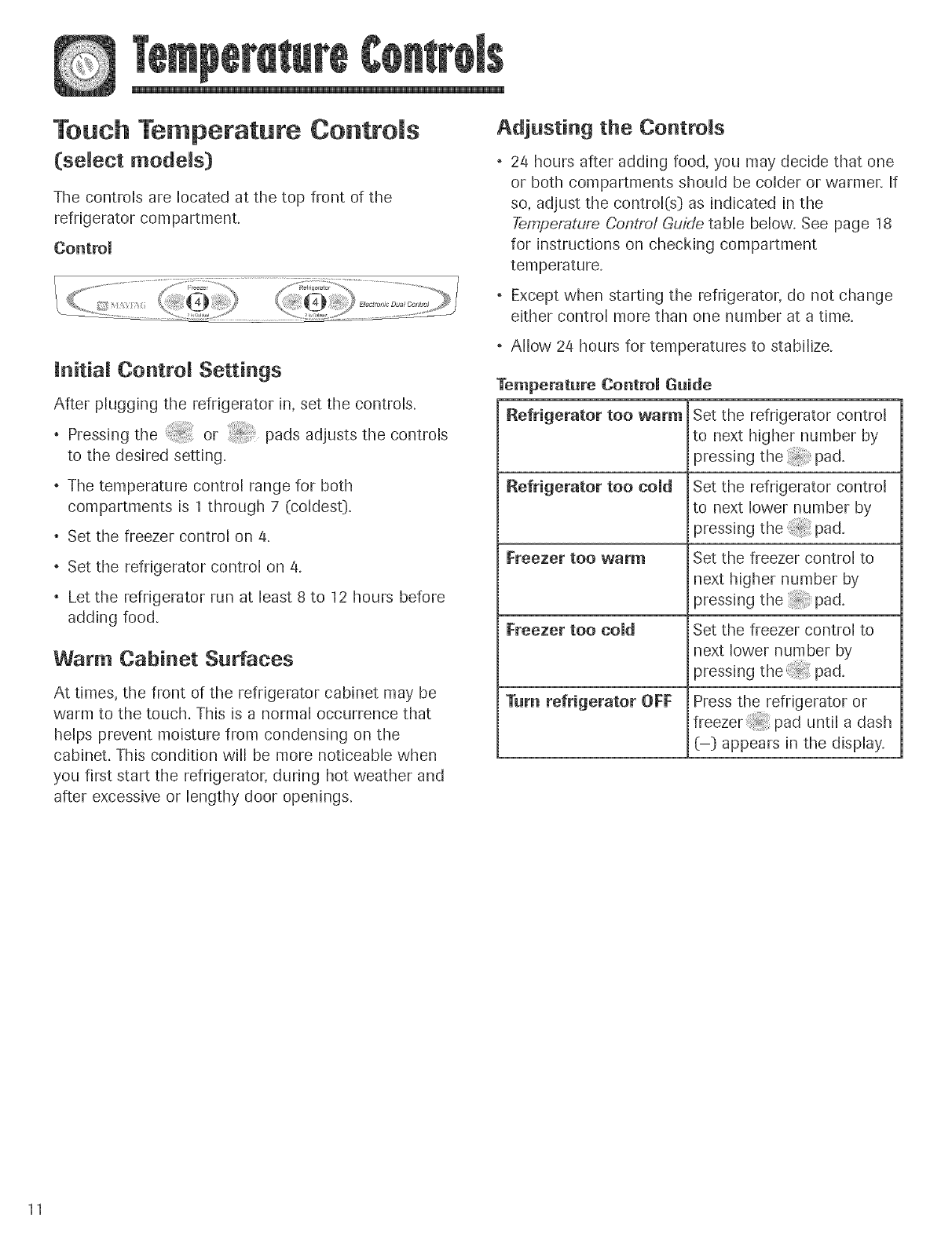

Touch Temperature Controls

(sdect mode s}

The controls are located at the top front of the

refrigerator compartment.

Control

initial Control Settings

After plugging the refrigerator in, set the controls.

Pressing the _ or _ pads adjusts the controls

to the desired setting.

The temperature control range for both

compartments is 1 through 7 (coldest].

Set the freezer control on a.

Set the refrigerator control on 4.

Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

Adjusting the Controls

24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s} as indicated in the

Temperature Control Guide table below. See page 18

for instructions on checking compartment

temperature.

Except when starting the refrigerator, do not change

either control more than one number at a time.

Allow 2/4 hours for temperatures to stabilize.

Temperature Controm Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the refrigerator control

to next higher number by

pressing the _ pad.

Set the refrigerator control

to next lower number by

pressing the _ pad.

Set the freezer control to

i next higher number by

Set the freezer control to

next lower number by

pressing the pad.

Press the refrigerator or

freezer '_,*pad until a dash

(-} appears in the display.

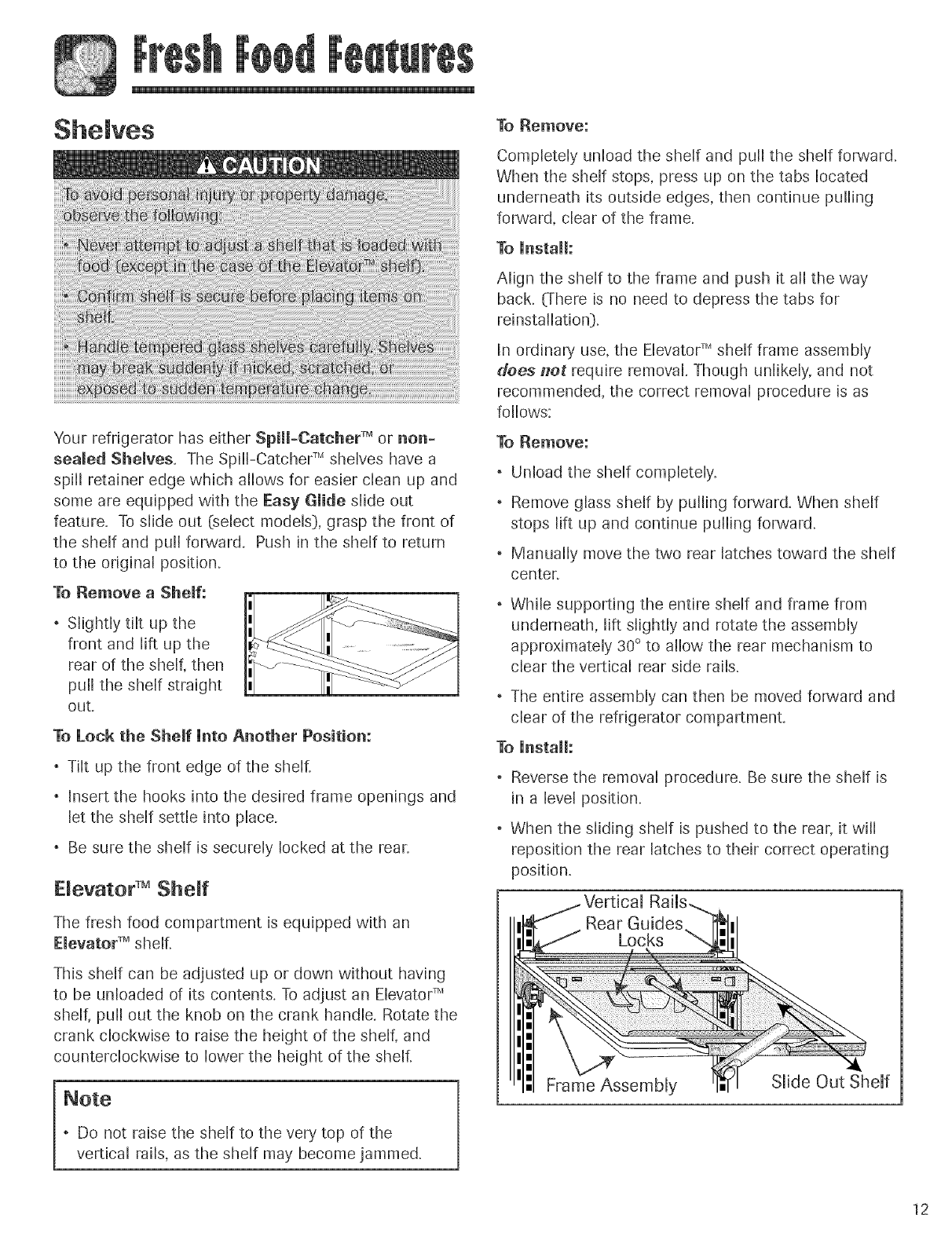

Your refrigerator has either Spill-Catcher TM or non_

seamed Shemves, The Spill-Catcher TM shelves have a

spill retainer edge which allows for easier clean up and

some are equipped with the Easy Gmide slide out

feature. To slide out (select models}, grasp the front of

the shelf and pull forward. Push in the shelf to return

to the original position.

To Remove a Shelf:

.Slightly tilt up the

front and lift up the

rear of the shelf, then

pull the shelf straight

out+

To Lock the Shemf Unto Another Position:

Tilt up the front edge of the shelf.

Insert the hooks into the desired frame openings and

let the shelf settle into place.

Be sure the shelf is securely locked at the rear.

Devator TM Shelf

The fresh food compartment is equipped with an

Elevator TM shelf.

This shelf can be adjusted up or down without having

to be unloaded of its contents. To adjust an Elevator TM

shelf, puI[ out the knob on the crank handle. Rotate the

crank clockwise to raise the height of the shelf, and

counterclockwise to lower the height of the shelf.

Do not raise the shelf to the very top of the

vertical rails, as the shelf may become jammed.

To Remove:

Completely unload the shelf and pull the shelf forward.

When the shelf stops, press up on the tabs located

underneath its outside edges, then continue pulling

forward, clear of the frame.

To [nstaH:

Align the shelf to the frame and push it all the way

back. (There is no need to depress the tabs for

reinstalIation}.

Inordinary use, the Elevator TM shelf frame assembly

does net require removal. Though unlikely, and not

recommended, the correct removal procedure is as

follows:

To Remove:

Unload the shelf completely.

Remove glass shelf by pulling forward. When shelf

stops lift up and continue pulling forward.

Manually move the two rear latches toward the shelf

center.

While supporting the entire shelf and frame from

underneath, lift slightly and rotate the assembly

approximately 30 ° to allow the rear mechanism to

clear the vertical rear side rails.

,The entire assembly can then be moved forward and

clear of the refrigerator compartment.

To Install:

,Reverse the removal procedure. Be sure the shelf is

in a level position.

,When the sliding shelf is pushed to the rear, it will

repos[t[on the rear latches to their correct operating

position.

Frame Assembly Slide Out Shelf

TheCrisperTopservesasthe lowerfreshfoodshelf.

To Remove the Crisper Top:

. Remove crisper drawers as indicated on page 14.

.Place hand under the frame to push up the glass. Lift

glass out.

. Lift frame from refrigerator liner rails.

To [nstaH:

, Repeat above instructions in reverse orden

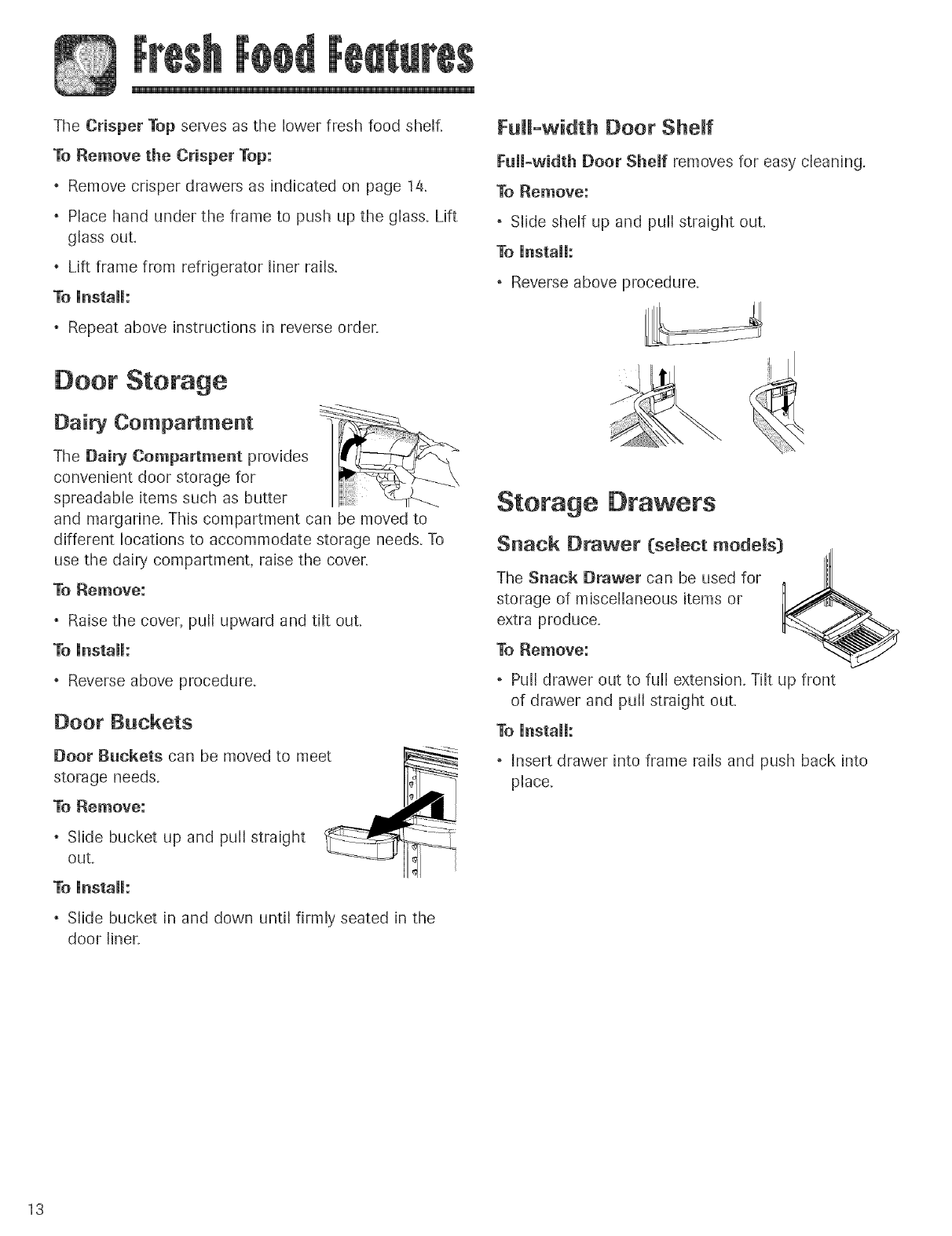

FuiFwidth Door Shelf

Full-width Door Shelf removes for easy cleaning.

To Remove:

, Slide shelf up and pull straight out.

To [nstaH:

, Reverse above procedure.

Door Storage

Dairy Compartment

The Dairy Compartment provides

convenient door storage for

spreadabb items such as butter

and margarine. This compartment can be moved to

different locations to accommodate storage needs. To

use the dairy compartment, raise the coven

To Remove:

, Raise the cover, pull upward and tilt out.

To [nstaH:

. Reverse above procedure.

Door Buckets

Door Buckets can be moved to meet

storage needs.

To Remove:

,Slide bucket up and pu[[ straight

out.

To install:

,Slide bucket in and down until firmly seated in the

door liner.

Storage Drawers

Snack Drawer (select models)

The Snack Drawer can be used for _ _

storage of miscellaneous items or

extra produce.

To Remove:

,Pu[[ drawer out to full extension. Tilt up front

of drawer and pu[[ straight out.

To Install:

,Insert drawer into frame rails and push back into

place.

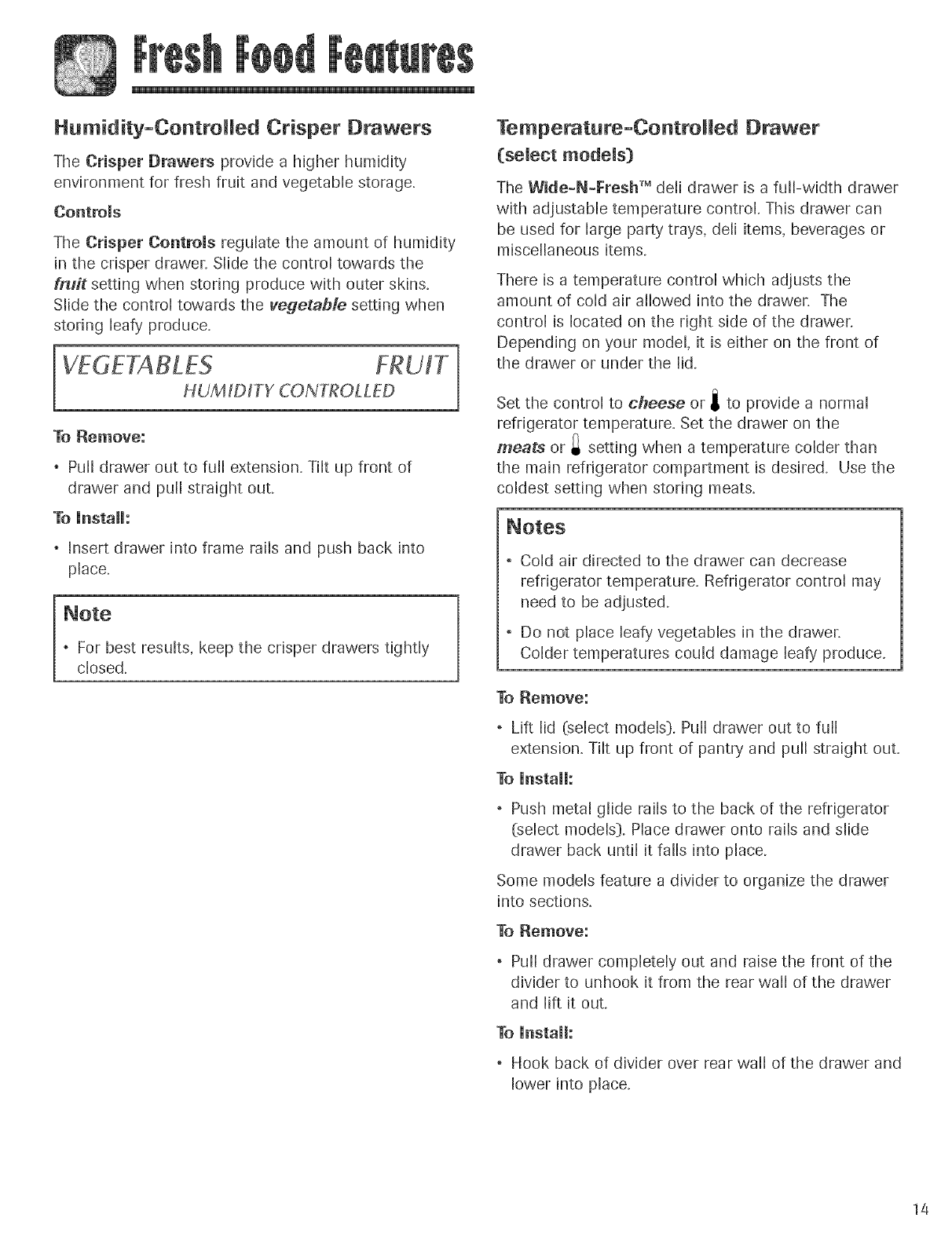

Humidity-Controlled Crisper D_wers

The Crisper Drawers provide a higher humidity

environment for fresh fruit and vegetable storage.

Controls

The Crisper Controms regulate the amount of humidity

in the crisper drawer. Slide the control towards the

fruit setting when storing produce with outer skin&

Slide the control towards the vegetable setting when

storing leafy produce.

HUMIDITY CONTgOLLED

To Remove:

,Pull drawer out to full extension. Tilt up front of

drawer and pull straight ouL

To Unstall:

Insert drawer into frame rails and push back into

place.

, For best results, keep the crisper drawers tightly

closed,

Temperature-Controlled Drawer

(select models}

The Wide-N4:resh TM deli drawer is a full-width drawer

with adjustable temperature control. This drawer can

be used for large party trays, deli items, beverages or

miscellaneous items.

There is a temperature control which adjusts the

amount of cold air allowed into the drawer. The

control is located on the right side of the drawer.

Depending on your model, it is either on the front of

the drawer or under the lid.

Set the control to cheese or _ to provide a normal

refrigerator temperature. Set the drawer on the

meats or _ setting when a temperature colder than

the main refrigerator compartment is desired. Use the

coldest setting when storing meats.

Cold air directed to the drawer can decrease

refrigerator temperature. Refrigerator control may

need to be adjusted.

Do not place leafy vegetables in the drawer.

Colder temperatures could damage leafy produce.

To Remove:

Lift lid (select models). Puff drawer out to full

extension. Tilt up front of pantry and puff straight out.

To UnstaH:

Push metal glide rails to the back of the refrigerator

(select models}. Place drawer onto rails and slide

drawer back until it falls into place.

Some models feature a divider to organize the drawer

into sections.

To Remove:

.Pu[[ drawer completely out and raise the front of the

divider to unhook it from the rear wail of the drawer

and lift it out.

To Unstalh

,Hook back of divider over rear wall of the drawer and

lower into place.

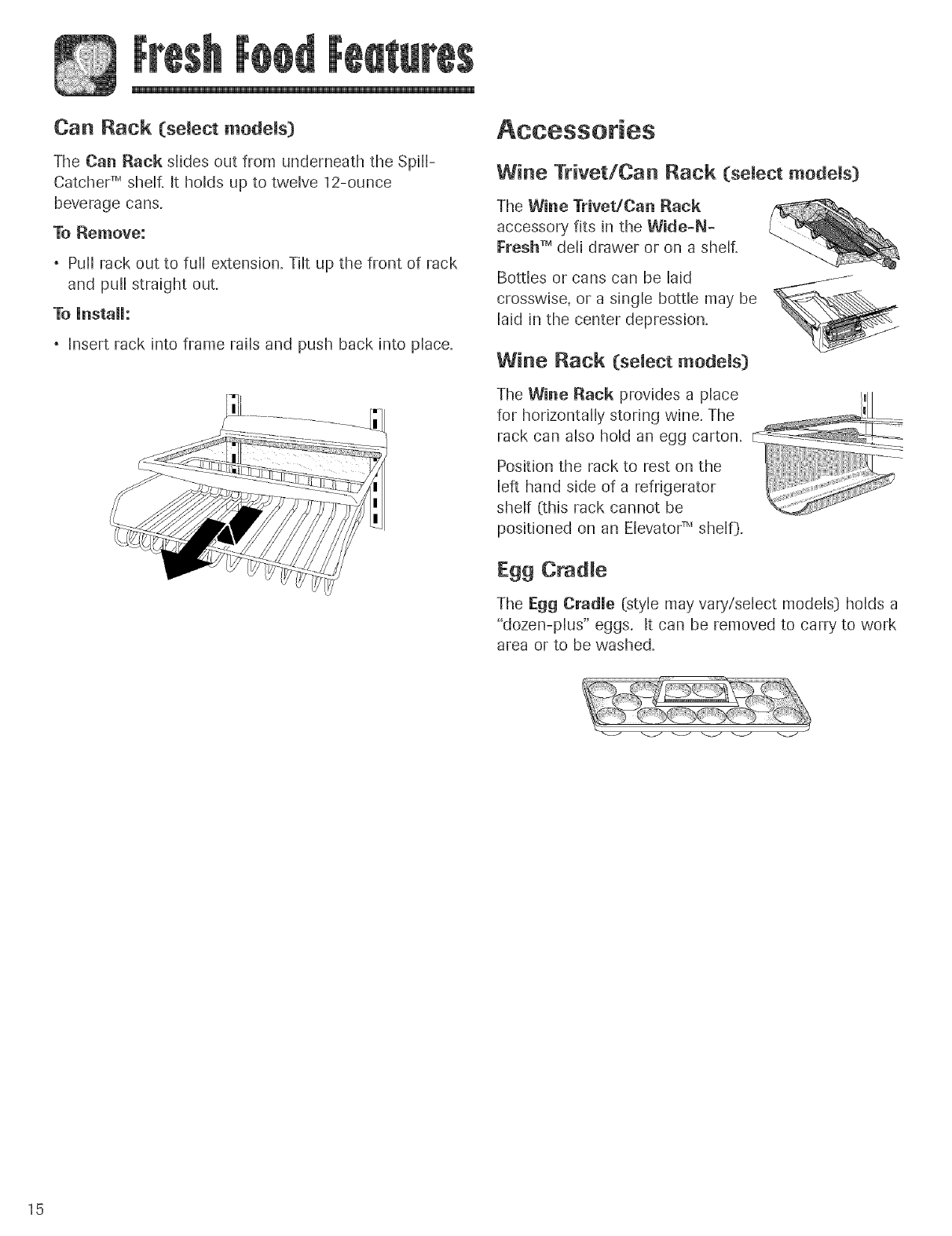

Can Rack (semect modems)

The Can Rack slides out from underneath the Spill-

Catcher TM shelf It holds up to twelve 12-ounce

beverage cans.

To Remove:

Pull rack out to full extension. Tilt up the front of rack

and pull straight out.

To UnstaJl:

Insert rack into frame rails and push back into place.

Wine Trivet/Can Rack (select models_)

The Wine Trivet/Can Rack

accessory fits in the Wide-N-

Fresh TM deli drawer or on a shelf.

Bottles or cans can be laid

crosswise, or a single bottle may be

laid in the center depression.

Wine Rack (select mode!s)

The Wine Rack provides a place

for horizontally storing wine. The

rack can also hold an egg carton.

Position the rack to rest on the

left hand side of a refrigerator

shelf (this rack cannot be

positioned on an Elevator TM shelO.

Egg Cradle

The Egg Cradle (style may vary/select models_) holds a

"dozen-plus" eggs. It can be removed to carry to work

area or to be washed.

Automatic ice Maker

(select models)

, Energy rating guides that are posted on the

refrigerator at the time of purchase do not include

optional ice maker energy usage.

Some models are automatic ice maker ready. The

number of the appropriate ice maker kit is IC11 B. The

kit contains installation instructions and water

connection instructions.

Other models have a factory installed ice maken

Connect the ice maker to the water supply as

instructed on page 9. Proper water flow and a level

refrigerator ate essential for optimal ice maker

performance.

Operating instructions

,Confirm ice bin is in place and ice maker arm is

down.

,After freezer section reaches

approximately 0° F (-18 ° C), ice

maker fills with water and begins

operating. You will have a complete

harvest of ice approximately every

three hours.

Allow approximately 24 hours after installation to

receive first harvest of ice.

Discard ice created within first 12 hours of operation

to verify system is fhshed of impurities.

,Stop ice production by raising ice maker arm until

click is hear&

,Ice maker will remain in the off position until arm is

pushed down,

,The first one or two batches will probably contain

undersized and irregular cubes because of air in the

supply line.

,When the ice cubes are ejected it is normal for

several cubes to be joined together at the ends. They

can easily be broken apart. The ice maker will

continue to make ice until the supply of ice cubes

raises the sensor arm, shutting the ice maker oft

,Certain sounds may accompany the various cycles of

the ice makeE The motor may have a slight hum, the

cubes will rattle as they fall into an empty storage

pan and the water valve may click or "buzz"

occasionally.

If the ice is not used frequently, the ice cubes will

become cloudy, shrink, stick together and taste stale.

Empty the ice storage bin periodically and wash it in

lukewarm waten Be sure to dry the bin thoroughly

before replacing it.

Beverages and foods should not be placed in the ice

storage bin for quick chilling. These items can block

the sensor arm, causing the ice maker to

malfunction.

,Turn off (arm up} the ice maker when the water

supply is to be shut off for several hours,

To Remove the Uce }}in:

,Pull it forward, away from the ice maker. To avoid the

ice maker dumping ice while the bin is removed, turn

the ice maker off by raising the sensor arm.

To Unstall the Uce Bin:

,Reverse the above procedure, Turn the ice maker on

by lowering the sensor arm,

She ves and gaskets

Modems with swing freezer door:

Freezer Shelf (select models)

Select models have a shelf divider.

To Remove:

Pull shelf out to full

extension. Tilt up front of

shelf and pull straight ouL

To Unstaih

,Insert shelf into freezer liner rails and push to back

of compartment.

Wire Basket (select models)

To Remove:

,Pull basket out to full

extension. Tilt up front of

basket and pull straight ouL

To UnstaH:

Insert basket into freezer liner rails and push back

into place.

Freezer Door Sheff (select models)

The Freezer Door Shemf provides

convenient storage for frozen food

items in freezer door.

To Remove:

Lift shelf from side liner tabs and pul

out+

To UnstaH:

,Fit ends of shelf on liner tabs and slide down.

Models with pullout freezer drawer:

Upper Wire Basket

To Remove:

,Pull upper basket out to full extension and lift out to

remove.

To UnstaH:

,Slide upper basket into freezer. Make sure that rear

of basket hooks behind rail catch.

Freezer Drawer Modems: See page 5 for lower

basket and complete pullout drawer instructions.

Ice Cube Tray (select models)

The Ice Cube Tray provides an area to freeze cubes

for manual dispensing of ice.

To release ice cubes from tray, hold tray upside down

over a storage container and twist both ends of tray

until cubes release.

The Ice Service Rack (select models) holds the ice

cube tray.

To UnstaH:

Slide L-shaped groove of shelf

down over back wall screw.

Push rack back until screw is

stopped in L-shaped groove

(1). Slide front portion of shelf

over front wall screw (2)_

To Remove:

Perform above steps in reverse order.

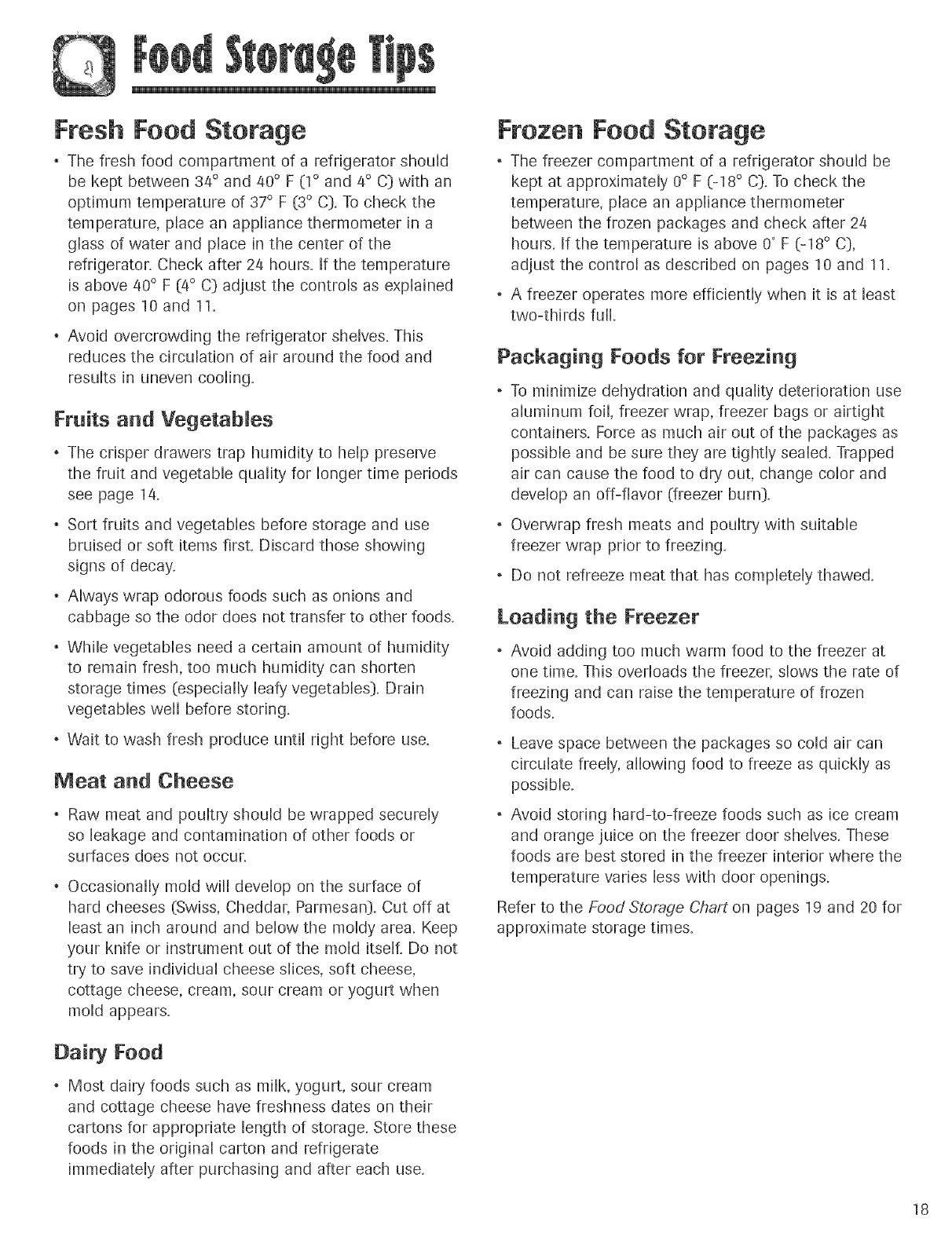

Fresh Food Storage

. The fresh food compartment of a refrigerator shouk]

be kept between 34° and 40° F (1° and 4° C) with an

optimum temperature of 37° F (3° C). To check the

temperature, place an appliance thermometer in a

glass of water and place in the center of the

refrigerator. Check after 24 hours, ff the temperature

is above 40° F (4° C) adjust the controls as explained

on pages 10 and 11.

.Avoid overcrowding the refrigerator shelves. This

reduces the circulation of air around the food and

results in uneven cooling.

Fruits and Vegetables

The crisper drawers trap humidity to help preserve

the fruit and vegetable quality for longer time periods

see page 14.

Sort fruits and vegetables before storage and use

bruised or soft items first. Discard those showing

signs of decay.

Always wrap odorous foods such as onions and

cabbage so the odor does not transfer to other foods.

While vegetables need a certain amount of humidity

to remain fresh, too much humidity can shorten

storage times (especially leafy vegetables}. Drain

vegetables well before storing.

.Wait to wash fresh produce until right before use.

Meat and Cheese

Raw meat and poultry should be wrapped securely

so leakage and contamination of other foods or

surfaces does not occur.

Occasionally mold will develop on the surface of

hard cheeses (Swiss, Cheddar, Parmesan}. Cut off at

least an inch around and below the moldy area. Keep

your knife or instrument out of the mold itselL Do not

try to save individual cheese slices, soft cheese,

cottage cheese, cream, sour cream or yogurt when

mold appears.

Dairy Food

Most dairy foods such as milk, yogurt, sour cream

and cottage cheese have freshness dates on their

cartons for appropriate length of storage. Store these

foods in the original carton and refrigerate

immediately after purchasing and after each use.

Frozen Food Storage

.The freezer compartment of a refrigerator should be

kept at approximately 0° F (-18 ° C}. To check the

temperature, place an appliance thermometer

between the frozen packages and check after 24

hours. If the temperature is above 0° F (-18 ° C},

adjust the control as described on pages 10 and 11.

A freezer operates more efficiently when it is at least

two-thirds full.

Packaging Foods for Freezing

To minimize dehydration and quality deterioration use

aluminum foil, freezer wrap, freezer bags or airtight

containers. Force as much air out of the packages as

possible and be sure they are tightly sealed. Trapped

air can cause the food to dry out, change color and

develop an off-flavor (freezer burn}.

,Overwrap fresh meats and poultry with suitable

freezer wrap prior to freezing.

,Do not refreeze meat that has completely thawed.

Loading the Freezer

Avoid adding too much warm food to the freezer at

one time. This overloads the freezer, slows the rate of

freezing and can raise the temperature of frozen

foods.

,Leave space between the packages so cold air can

circulate freely, allowing food to freeze as quickly as

possible.

Avoid storing hard-to-freeze foods such as ice cream

and orange juice on the freezer door shelves. These

foods are best stored in the freezer interior where the

temperature varies less with door openings.

Refer to the Food Storage Chart on pages 19 and 20 for

approximate storage times.

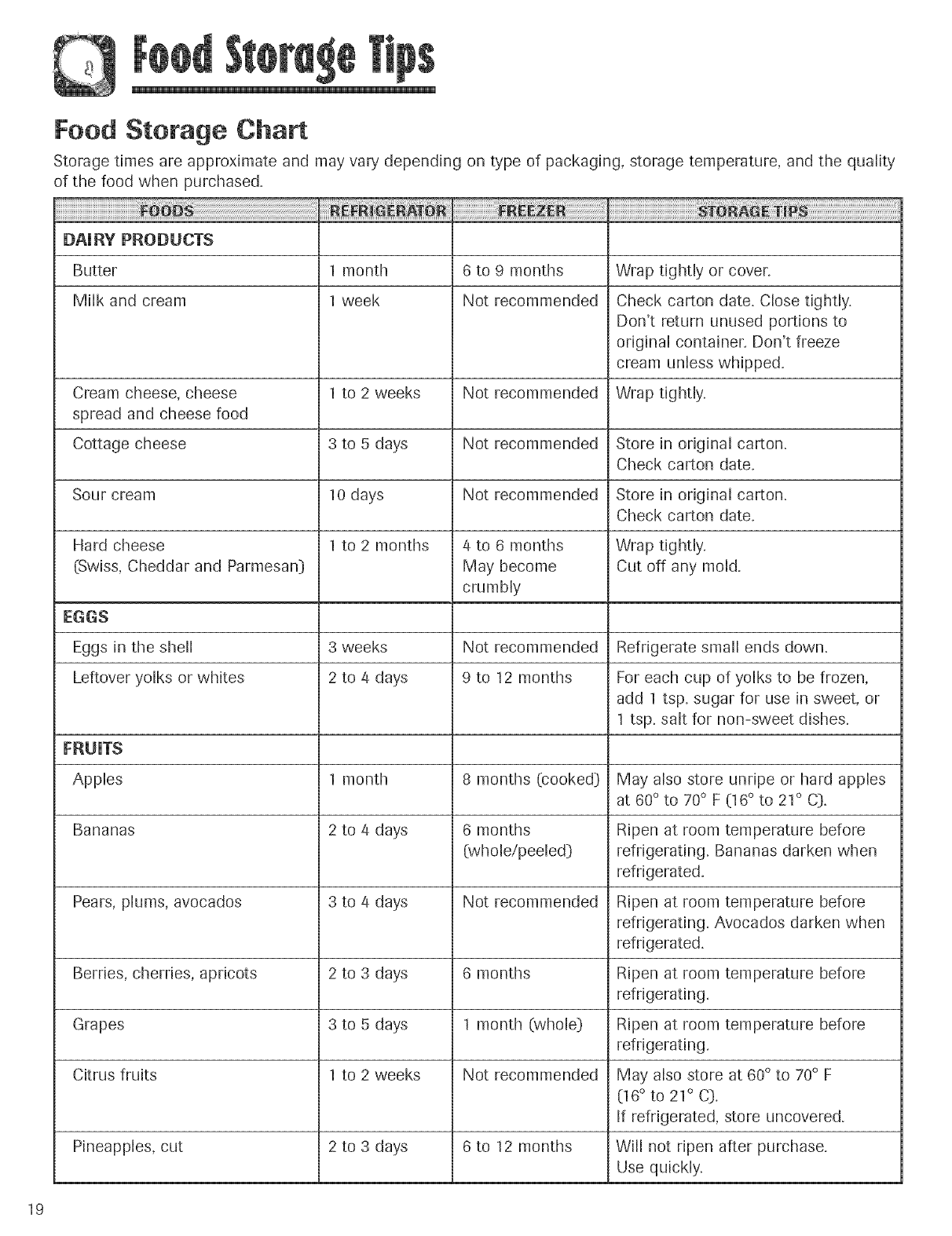

Feed Storage Chart

Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality

of the food when purchased.

[}AURY PRODUCTS

Butter 1 month 6 to 9 months Wrap tightly or cover.

Milk and cream 1 week Not recommended Check carton date. Close tightly.

Don't return unused portions to

original container. Don't freeze

cream unless whipped.

Cream cheese, cheese 1 to 2 weeks Not recommended Wrap tightly.

spread and cheese food

Cottage cheese 3 to 5 days Not recommended Store in original carton.

Check carton date.

Sour cream 10 days Not recommended Store in original carton.

Check carton date.

Hard cheese 1 to 2 months /4to 6 months Wrap tightly.

(Swiss, Cheddar and Parmesan} May become Cut off any mold.

crumbly

EGGS

Eggs in the shell 3 weeks Not recommended Refrigerate small ends down.

Leftover yolks or whites 2 to 4 days 9 to 12 months For each cup of yolks to be frozen,

add 1 tsp. sugar for use in sweet, or

1 tsp. salt for non-sweet dishes.

FRUUTS

Apples 1 month 8 months (cooked} May also store unripe or hard apples

at 60° to 70° F (16° to 21° C}.

Bananas 2 to/4 days 6 months Ripen at room temperature before

(whole/peeled} refrigerating. Bananas darken when

refrigerated.

Pears, plums, avocados 3 to 4 days Not recommended Ripen at room temperature before

refrigerating. Avocados darken when

refrigerated.

Berries, cherries, apricots 2 to 3 days 6 months Ripen at room temperature before

refrigerating.

Grapes 3 to 5 days 1 month (whole} Ripen at room temperature before

refrigerating.

Citrus fruits 1 to 2 weeks Not recommended May also store at 60° to 70° F

(16° to 21° C}.

If refrigerated, store uncovered.

Pineapples, cut 2 to 3 days 6 to 12 months Will not ripen after purchase.

Use quickly.

VEGETABLES

Asparagus 1 to 2 days 8 to 10 months Do not wash before refrigerating.

Store in crisper.

Brussels sprouts, broccoli, 3 to 5 days 8 to 10 months Wrap odorous foods.

cauliflower, green peas, Leave peas in pods.

lima beans, onions, peppers

Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate

in crisper.

7 to 10 days 8 to 10 months Remove tops. Wrap odorous foods

and refrigerate in the crisper.

7 to 10 days Not recommended

Carrots, parsnips, beets and

turnips

Lettuce

POULTRY and FUSH

Chicken and Turkey, whole

Chicken and Turkey, pieces

Fish

1 to 2 days

12 months

9 months

2 to 6 months

Keep in original packaging for

refrigeration. Place in the meat and

cheese drawer. When freezing longer

than two weeks, overwrap with

freezer wra p.

M EATS

Bacon 7 days 1 month

Beef or lamb, ground 1 to 2 days 3 to 4 months Fresh meats can be kept in original

packaging for refrigeration.

Beef or lamb, roast and steak 3 to 5 days 6 to 9 months Place in the meat and cheese drawer.

When freezing longer than two

weeks, overwrap with freezer wrap.

Ham, fully cooked, whole 7 days 1 to 2 months

half 5 days 1 to 2 months

slices 3 days 1 to 2 months

Luncheon meat 3 to 5 days 1 to 2 months Unopened, vacuum-packed luncheon

meat may be kept up to two weeks

in the meat and cheese drawer.

Pork, roast 3 to 5 days 4 to 6 months

Pork, chops 3 to 5 days 4 months

Sausage, ground 1 to 2 days 1 to 2 months

Sausage, smoked 7 days 1 to 2 months

Veal 3 to 5 days 4 to 6 months

Frankfurters 7 days 1 month Processed meats should be tightly

wrapped and stored in the meat and

cheese drawer.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa

State University

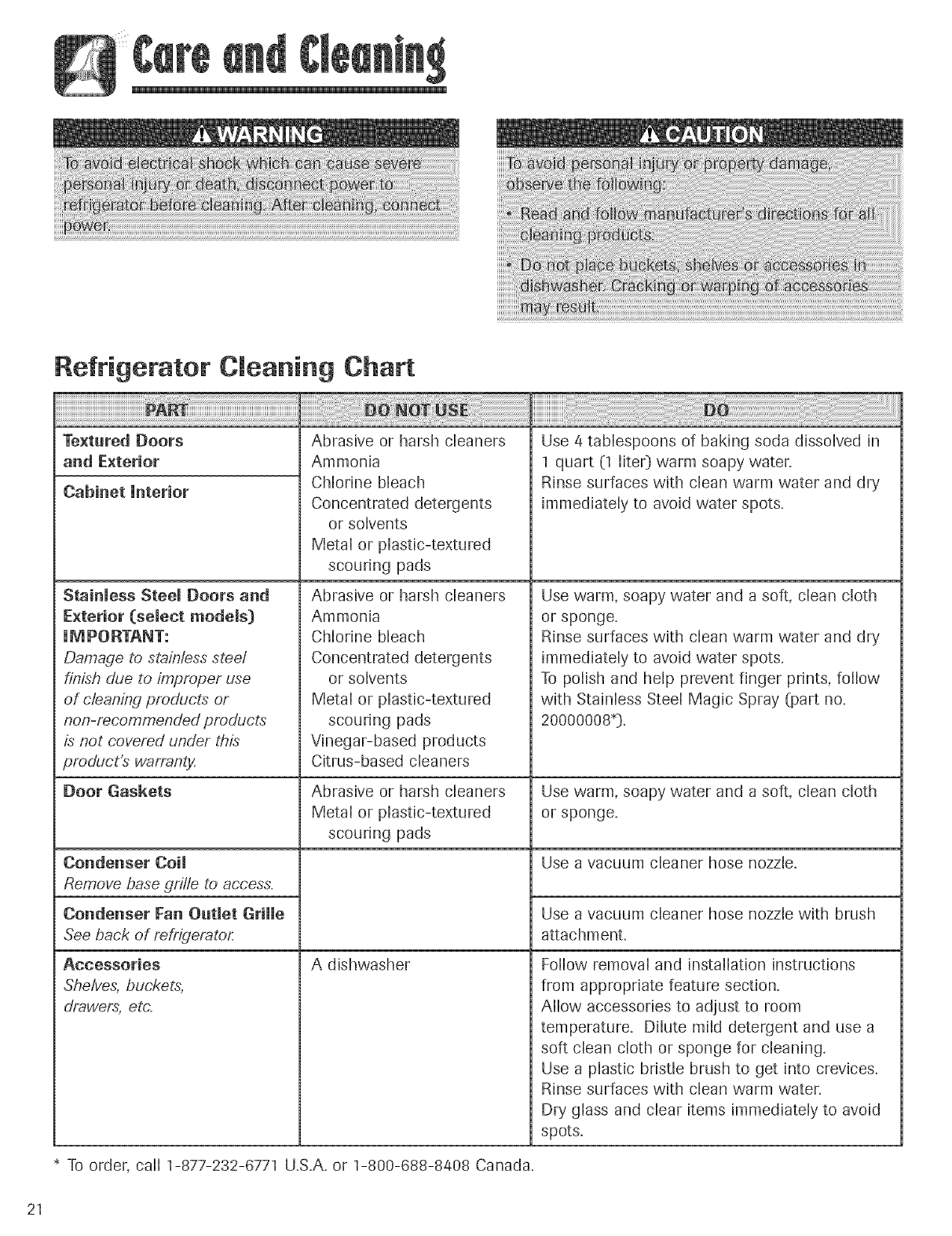

Refrigerator Cleaning Chart

Textured Doors

and Exterior

Cabinet Unterior

StainJess SteeJ Doors and

Exterior Cselect models}

UM PORTANT:

Damage to stainless steel

finish due to improper use

of cleaning products or

non-recommended products

is not covered under this

product2 warranty.

Door Gaskets

Condenser Coil

Remove base grille to access=

Condenser Fan Outmet Grille

See back of refrigerato!:

Accessories

Shelves, buckets,

drawers, etc.

Abrasive or harsh cleaners

Ammonia

Chlorine bleach

Concentrated detergents

or solvents

Metal or plastic-textured

scouring pads

Abrasive or harsh cleaners

Ammonia

Chlorine bleach

Concentrated detergents

or solvents

Metal or plastic-textured

scouring pads

Vinegar-based products

Citrus-based cleaners

Abrasive or harsh cleaners

Metal or plastic-textured

scouring pads

A dishwasher

Use/4 tablespoons of baking soda dissolved in

1 quart (1 liteO warm soapy water`

Rinse surfaces with clean warm water and dry

immediately to avoid water spots.

Use warm, soapy water and a soft, clean cloth

or sponge.

Rinse surfaces with clean warm water and dry

immediately to avoid water spots.

To polish and help prevent finger prints, follow

with Stainless Steel Magic Spray (part no.

20000008"}.

Use warm, soapy water and a soft, clean cloth

or sponge.

Use a vacuum cleaner hose nozzle.

Use a vacuum cleaner hose nozzle with brush

attachmenL

Follow removal and installation instructions

from appropriate feature section.

Allow accessories to adjust to room

temperature. Dilute mild detergent and use a

soft clean cloth or sponge for cleaning.

Use a plastic bristle brush to get into crevices.

Rinse surfaces with clean warm water,

Dry glass and clear items immediately to avoid

spots.

* To order, call 1-877-232-6771 U.S.A. or 1-800-688-8408 Canada.

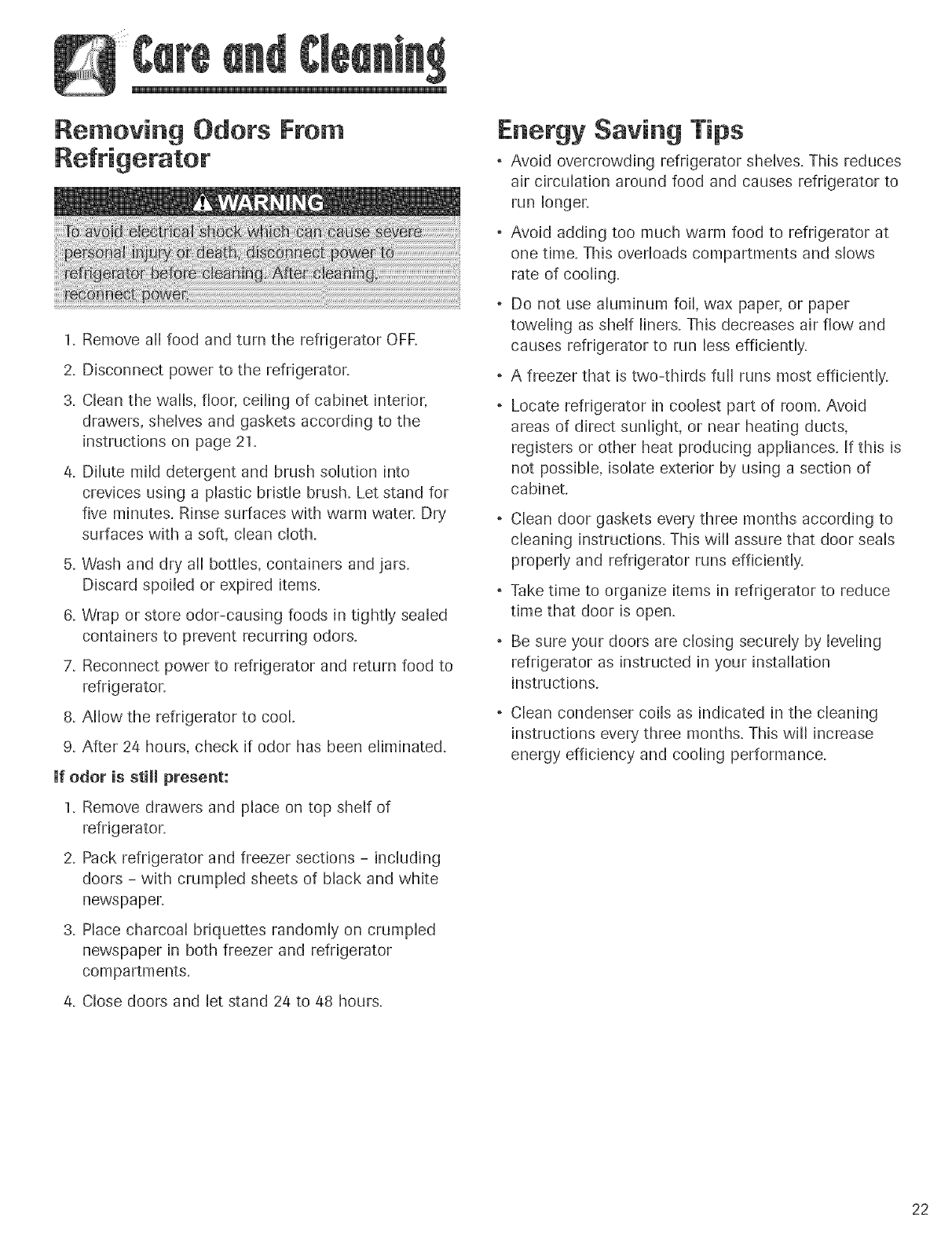

Removing Odors Fro

1. Remove all food and turn the refrigerator OFR

2. Disconnect power to the refrigerator.

3. Clean the walls, floor, ceiling of cabinet interior,

drawers, shelves and gaskets according to the

instructions on page 21.

4. Dilute mild detergent and brush solution into

crevices using a plastic bristle brush. Let stand for

five minutes. Rinse surfaces with warm waten Dry

surfaces with a soft, clean cloth.

5. Wash and dry all bottles, containers and jars.

Discard spoiled or expired items.

6. Wrap or store odor-causing foods in tightly sealed

containers to prevent recurring odors.

7. Reconnect power to refrigerator and return food to

refrigeraton

8. Allow the refrigerator to cool.

9. After 24 hours, check if odor has been eliminated.

[[ odor is stH[ present:

1. Remove drawers and place on top shelf of

refrigerator.

2. Pack refrigerator and freezer sections - including

doors - with crumpled sheets of black and white

newspapen

3. Place charcoal briquettes randomly on crumpled

newspaper in both freezer and refrigerator

compartments.

4. Close doors and let stand 24 to 48 hours.

Fnergy Saving Ti#s

.Avoid overcrowding refrigerator shelves. This reduces

air circulation around food and causes refrigerator to

run longer.

.Avoid adding too much warm food to refrigerator at

one time. This overloads compartments and slows

rate of cooling.

,Do not use aluminum foil, wax paper, or paper

toweling as shelf liners. This decreases air flow and

causes refrigerator to run less efficiently.

,A freezer that is two-thirds fuji runs most efficiently.

Locate refrigerator in coolest part of room. Avoid

areas of direct sunlight, or near heating ducts,

registers or other heat producing appliances. If this is

not possible, isolate exterior by using a section of

cabinet.

Clean door gaskets every three months according to

cleaning instructions. This will assure that door seals

properly and refrigerator runs efficiently.

Take time to organize items in refrigerator to reduce

time that door is open.

Be sure your doors are closing securely by leveling

refrigerator as instructed in your installation

instructions.

,Clean condenser coils as indicated in the cleaning

instructions every three months. This will increase

energy efficiency and cooling performance.

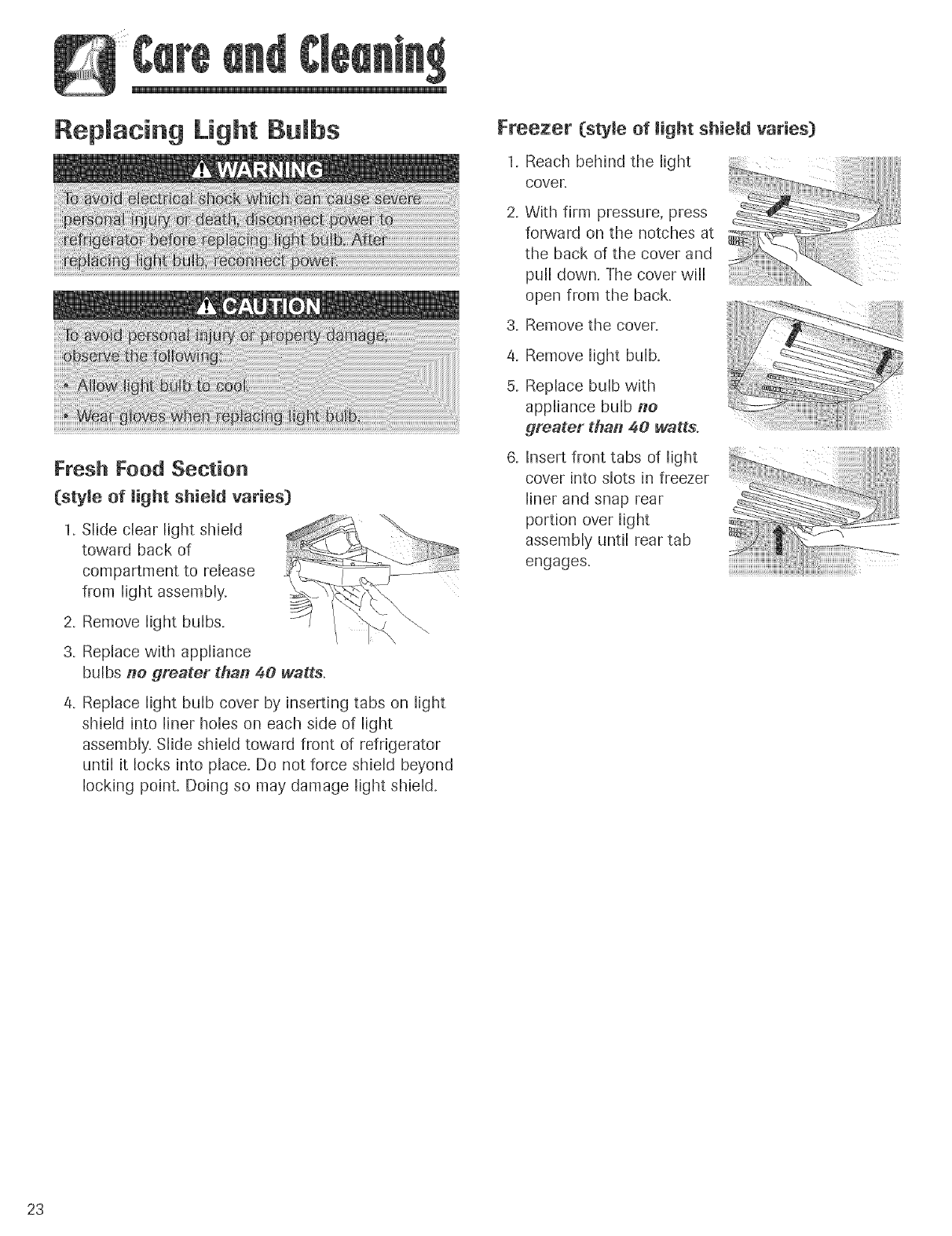

Rep acinfl Light Bulbs

Fresh Food Section

{style of light shield varies)

Slide clear light shield

toward back of

compartment to release

from light assembly.

2. Remove light bulbs.

3. Replace with appliance

bulbs no greater than 40 watts.

4_ Replace light bulb cover by inserting tabs on light

shield into liner holes on each side of light

assembly. Slide shield toward front of refrigerator

until it locks into phce. Do not force shield beyond

locking point. Doing so may damage light shield.

Freezer {style of light shield varies}

1. Reach behind the light

cover.

2. With firm pressure, press

forward on the notches at

the back of the cover and

pull down. The cover will

open from the back.

3. Remove the cover.

Remove light bulb.

Replace bulb with

appliance bulb no

greater than 4@ _vatts,

Insert front tabs of light

cover into slots in freezer

liner and snap rear

portion over light

assembly until rear tab

engages.

Preparing for Vacation

For short vacations or absences (three months or

mess):

1. Remove all perishables.

2. If no one will be checking in on the refrigerator

during your absence, remove all frozen items also.

3. If your refrigerator has an automatic ice maker:

Shut off the water supply to the ice maker at

least one day ahead of time.

After the last load of ice drops, raise the wire

shut off arm to the OFF position.

Empty the ice bin.

/4. If the room temperature will drop below 55° F

(13° C), follow the instructions for longer absences.

For long vacations, absences (more than three

months) OR if the room temperature will drop

below 55 ° }: (13 ° C):

1. Remove food.

2. If your refrigerator has an automatic ice maker:

,Shut off the water supply to the ice maker at

least one day ahead of time.

After the last load of ice drops, raise the wire

shut off arm to the OFF position.

Empty the ice bin.

3. Turn the freezer control to (OFF_ with dial controls

or (-) with touch controls (see page 10 or 11).

4. Unplug the refrigerator.

5. Thoroughly clean the interior of both compartments

with a baking soda solution and a clean soft cloth

(four tablespoons of baking soda in one quart of

warm ware0.

6. Dry thoroughly.

7. Leave the doors open to prevent the formation of

mold and mildew.

Upon your return:

After a short vacation or absence:

For models with automatic ice makers:

,Reconnect the water supply and turn on supply valve

(see page 9).

Monitor water connection for 2/4 hours and correct

leaks if necessary.

Restart the ice maker.

Discard at least the first three ice harvests.

After a long vacation or absence:

,If your refrigerator has an automatic ice maker,

reconnect the water supply and turn on supply valve

(see page 9).

Plug the refrigerator back in and reset controls (see

pages 10 and 11}.

Monitor water connection for 2/4 hours and correct

leaks, if necessary.

Restart the ice maker.

Discard ice produced within the first 12 hours (at

least the first three harvests}.

Preparing to move:

Follow the above instructions for long

vacations/absences, through step 6.

Secure all loose items such as shelves and drawers

by taping them securely in place to prevent damage.

Tape the doors shut.

Use an appliance dolly when moving the refrigerator.

Always truck the refrigerator from its side or back-

never from its front.

Be sure the refrigerator stays in an upright position

during moving.

2/4

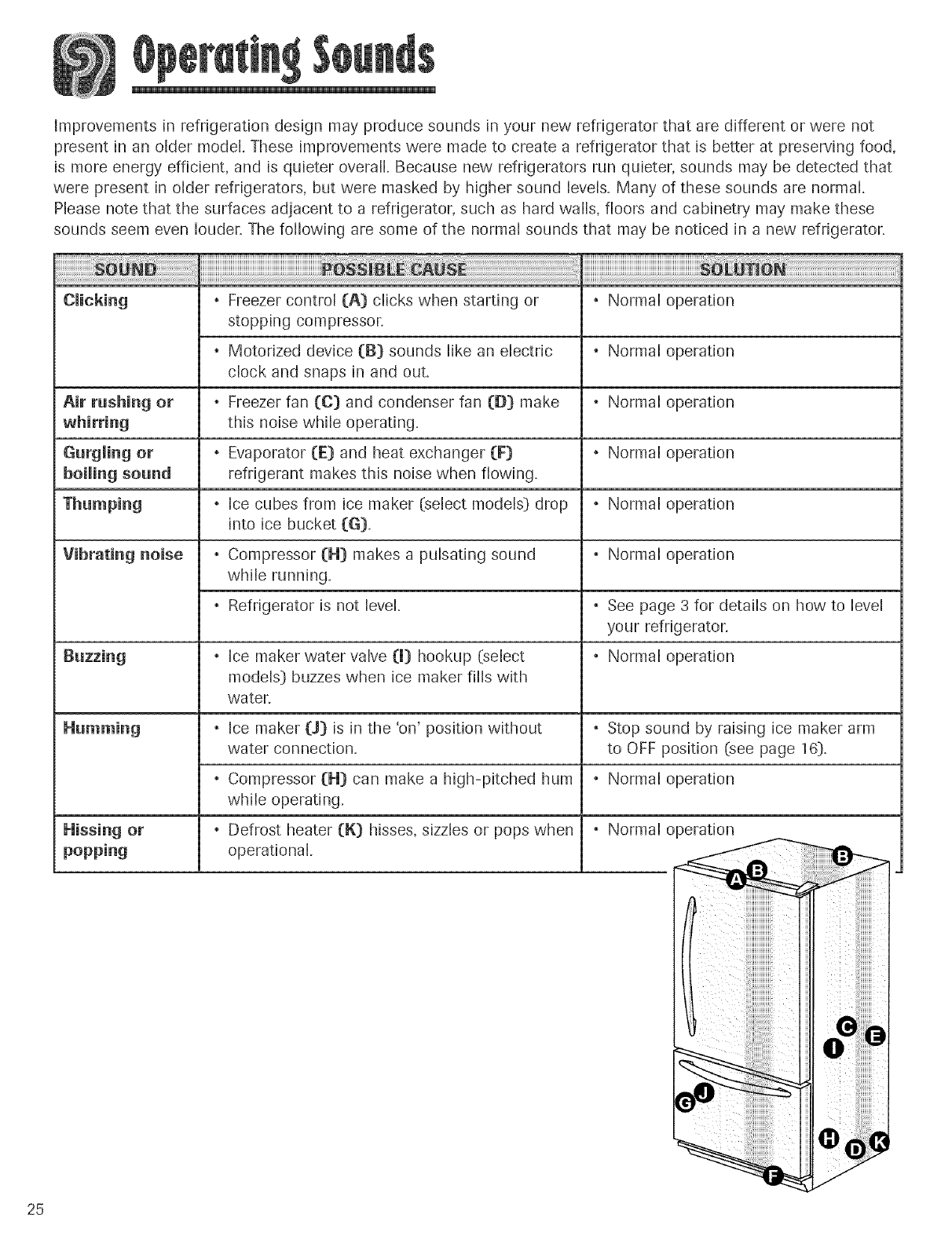

Improvementsin refrigerationdesignmayproducesoundsin yournewrefrigeratorthat aredifferentorwerenot

presentin an oldermodelTheseimprovementsweremadeto createa refrigeratorthatis betterat preservingfood,

is moreenergyefficient,andisquieteroverallBecausenewrefrigeratorsrunquieter,soundsmaybedetectedthat

werepresentin olderrefrigerators,butweremaskedbyhighersoundlevels.Manyofthesesoundsarenormal

Pleasenotethatthe surfacesadjacentto a refrigerator,suchashardwails,floorsandcabinetrymaymakethese

soundsseemevenlouder`Thefollowingaresomeof the normalsoundsthat maybenoticedin a newrefrigerator`

Air rushing or

Gurgling or

boiling sound

Vibrating noise

.NormaJ operation

NormaJ operation

Normal operation

See page 3 for details on how to level

your refrigerator,

Normal operation

.Stop sound by raising ice maker arm

to OFF position (see page 16}.

.Normal operation

,Freezer control (A} clicks when starting or

stopping compressor`

Motorized device (B} sounds like an electric

clock and snaps in and ouL

Freezer fan (C} and condenser fan (D} make

this noise while operating.

Evaporator (E} and heat exchanger (F}

refrigerant makes this noise when flowing.

Ice cubes from ice maker (select models} drop

into ice bucket (G}.

Compressor CH} makes a pulsating sound

while running.

Refrigerator is not level

Ice maker water valve a} hookup (select

models} buzzes when ice maker fills with

water,

.Ice maker t[J} is in the 'on' position without

water connection.

.Compressor (H} can make a high-pitched hum

while operating.

.Defrost heater CK} hisses, sizzles or pops when

operational.

Hissing or .Normal operation

popping

Crisperdrawer Contro]settingsaretooHow.

temperatureistoo

warm

Refrigerator does Refrigerator is not plugged in.

not operate Contro] is not on.

Fuse is bHown,or circuit breaker needs

to be reset.

Power outage has occurred.

Refrigerator is maHfunctioning.

won't operate

Food temperature Condenser coiHsare dirty'.

is tee cold Refrigerator or freezer controHsare set

too high.

Door is not dosing properHy.

Food temperature

is too warm

ControHsneed to be adjusted.

Condenser coiHsare dirty.

Rear air gfiHHeis Mocked.

Door has been opened frequentHy,or has

been opened for Hongperiods of time.

Food has recentHybeen added.

Refrigerator has Compartment is dirty' or has odor-

an odor causing food.

Water droplets Check gaskets for proper seal

form on outside Humidity' HeveHsare high.

ControHsrequire adjustment.

See pages 10 or 11 to adjust controHs.

PHugin refrigerator.

See pages 10 or 11 to adjust your controHs.

RepHaceany bHownfuses.

Check circuit breaker and reset, if necessary.

CaHHHocaHpower company Histingto report outage.

UnpHugrefrigerator and transfer food to another

refrigerator. If another refrigerator is not avaiHabHe,

pHacedry ice in freezer section to preserve food.

Warranty does not cover food Hoss.

Contact service for assistance.

CHeanaccording to the chart on page 21.

See pages 10 or 11 to adjust your controHs.

Refrigerator is not HeveLSee page 3 for detaiHson how

to HeveHyour refrigerator.

Check gaskets for proper seal CHean,if necessary',

according to the chart on page 21.

Check for internaHobstructions that are keeping door

from dosing properHyO.e.improperHydosed drawers,

ice buckets, oversized or improperHy stored

containers, etc.:)

See pages 10 or 11 to adjust your controHs.

CHeanaccording to the chart on page 21.

Check the positioning of food items in refrigerator to

make sure griHHeis not Mocked. Rear air griHHesare

Hocatedunder crisper drawers.

Reduce time door is open.

Organize food items efficientHyto assure door is open

for as short a time as possibHe.

AHHowtime for recentHyadded food to reach

refrigerator or freezer temperature.

CHeanaccording to instructions on page 22.

CHeanaccording to the chart on page 21.

NormaHduring times of high humidity'.

See pages 10 or 11 to adjust your controHs.

Water droplets form

on inside of Humidity ieveis are high or door has

been been opened frequentiy.

Check gaskets for proper seal

Refrigerator or ice NormaHoperation. See page 25.

maker makes

unfamiliar sounds

or seems too load

Crisper drawers Contents of drawer, or positioning of Reposidon food items and containers to avoid

do not creesefreemy items in the surrounding compartment interference with the drawers.

couid be obstructing drawer.

Drawer is not in proper position.

Refrigerator is not Hovel

Refrigerator runs

too frequently

Drawer channeis are dirty or need

treatment.

Doors have been opened frequentiy or

for ]ong periods of time.

Humidity' or heat in surrounding area is

high.

Food has recently been added.

Refrigerator is exposed to heat by

environment or by appiiances nearby.

Condenser coiis are dirt},.

Controis need to be adjusted.

Door is not dosing properiy.

Normal Operation

See pages 10 or 11 to adjust your controls.

Reduce time door is open.

Organize food items efficiently to assure door is open

for as short a time as possible.

Clean, if necessary, according to the chart on page 21.

See page 13 for proper drawer placement.

See page 3 for details on how to level your

refrigerator.

Clean drawer channels with warm, soapy water.

Rinse and dry thoroughly.

Apply a thin layer of petroleum jelly to drawer

channels.

Reduce time door is open.

Organize food items efficiently to assure door is open

for as short a time as possible.

Allow interior environment to adjust for period the

door has been opened.

Normal operation.

Aiiow time for recently added food to reach

refrigerator or freezer temperature.

Evaluate your refrigerator's environment. Refrigerator

may need to be moved to run more efficiently.

Clean, if necessary, according to the chart on page 21.

See pages 10 or 11 to adjust your controls.

Refrigerator is not level. See page 3 for details on how

to level your refrigerator.

Check gaskets for proper seal

Clean, if necessary, according to the chart on page 21.

Check for internal obstructions that are keeping door

from closing properly (i.e. improperly closed drawers,

ice buckets, oversized or improperly stored

containers, etc.}

See Operating Sounds on page 25.

Refrigeratoris

leakingwater Plastic tubing was used to complete

water connection,

The manufacturer recommends using copper tubing

for installation. Plastic is less durable and can cause

leakage. The manafactarer is not responsible for

property damage dae to improper installation or

water connection.

Improper water valve was installed. Check water connection (see page 9}. Self-piercing

and _,_"saddle valves cause low water pressure and

may clog the line over time. The manufactarer is not

responsible for property damage due to improper

installation or water connection.

ice forms in-inlet Water pressure is low= Water pressure must be between 35 to 100 pounds

tabe to ice maker per square inch to function properly=

Freezer temperature is too high= Adjust freezer control (see page 10 or 11_)=Freezer is

recommended to be approximately 0° F _-18° C_)=

What is Not Covered By These

1. Conditions and damages resuHtingfrom any of the

following:

a. Improper installation, ddivery, or maintenance.

b. Any repair, modification, alteration, or adjustment not

authorized by the manufa_:tureror an authorized servicer.

c. Misuse, abuse, accidents, or unreasonaMe use.

d. Incorrect dectric current, voHtage,or suppHy.

e. improper setting of any control

2. Warranties are void if the original serial numbers have

been removed, altered or cannot be readily determined.

3. Light bulbs.

4. Products purchased for commercial or industrial use.

5. The cost of service or service call to:

a. Correct installation errors.

b. Instruct the user on the proper use of the product.

c. Transport the appliance to the servicer.

8. Consequential or incidental damages sustained by any

person as a result of any breach of these warranties.

Some states do not allow the exclusion or limitation of

consequential or incidental damages, so the above

exclusion may not apply.

If You Need Service

° Ca]] the dealer from whom your appliance was purchased

or call Maytag ServicessM,Maytag Customer Assistance at

1-800-888-9900 U.S.A.or 1-800-888-2002 Canada, to

locate an authorized servicer.

° Be sure to retain proof of purchase to verify' warrant},

status. Refer to Warranty for further information on owner's

responsibilities for warranty' service.

° If the dealer or service company cannot resolve the

proMem, write to Maytag ServicessM,Attn: CAIR _Center,

P.O.Box 2370, Cleveland, TN 37320-2370 or ca]]

1-800-688-9900 UoSoAoor 1-800-688-2002 Canada°

U.S. customers using TTY for deaf, hearing impaired or

speech impaired, ca]] 1-800-888-2080.

° User's guides, service manuals and parts information are

avai]aMe from Maytag ServicessM,Maytag Customer

Assistance.

° When writing or calling about a service problem, please

include the following information:

a. Your name, address and telephone number;

b. Model number and serial number;

c. Name and address of your dealer or servicer;

d. A clear description of the problem you are having;

e. Proof of purchase (sales receipt_.

Amana AB1924PEKB User Manual REFRIGERATOR Manuals And Guides L0408037

MAYTAG Bottom Mount Refrigerator Manual L0408037 MAYTAG Bottom Mount Refrigerator Owner's Manual, MAYTAG Bottom Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
