BUILT BETTERTHAH IT HAS TO BE
Owner's Manual
Bottom Freezer
Refrigerator
Ordering parts and accessories?
Questions about your features?
Please contact us with your model and serial number:
Consumer Affairs Department
Amana Appliances
2800 -220th Trail
Amana, lowa 52204
Ph# 1(800)843-0304 in U.S.A.
1(866)587-2002 au Canada
Internet: htlp://www.amana.com
Keep instructions for future reference.
Keep this manual and your sales receipt together in a safe
)lace in case warranty service is required.
Contents
Introduction ............................................................ 2
Important Safety Information ................................. 3
Installing Your Refrigerator .................................... 4
How to Remove the Doors and Hinges ............ 4
How to Reverse the Doors ................................ 5
How to Install and Remove Handles ................ 5
How to Replace the Doors and Hinges ............ 6
How to Remove and Install the Pullout Drawer 7

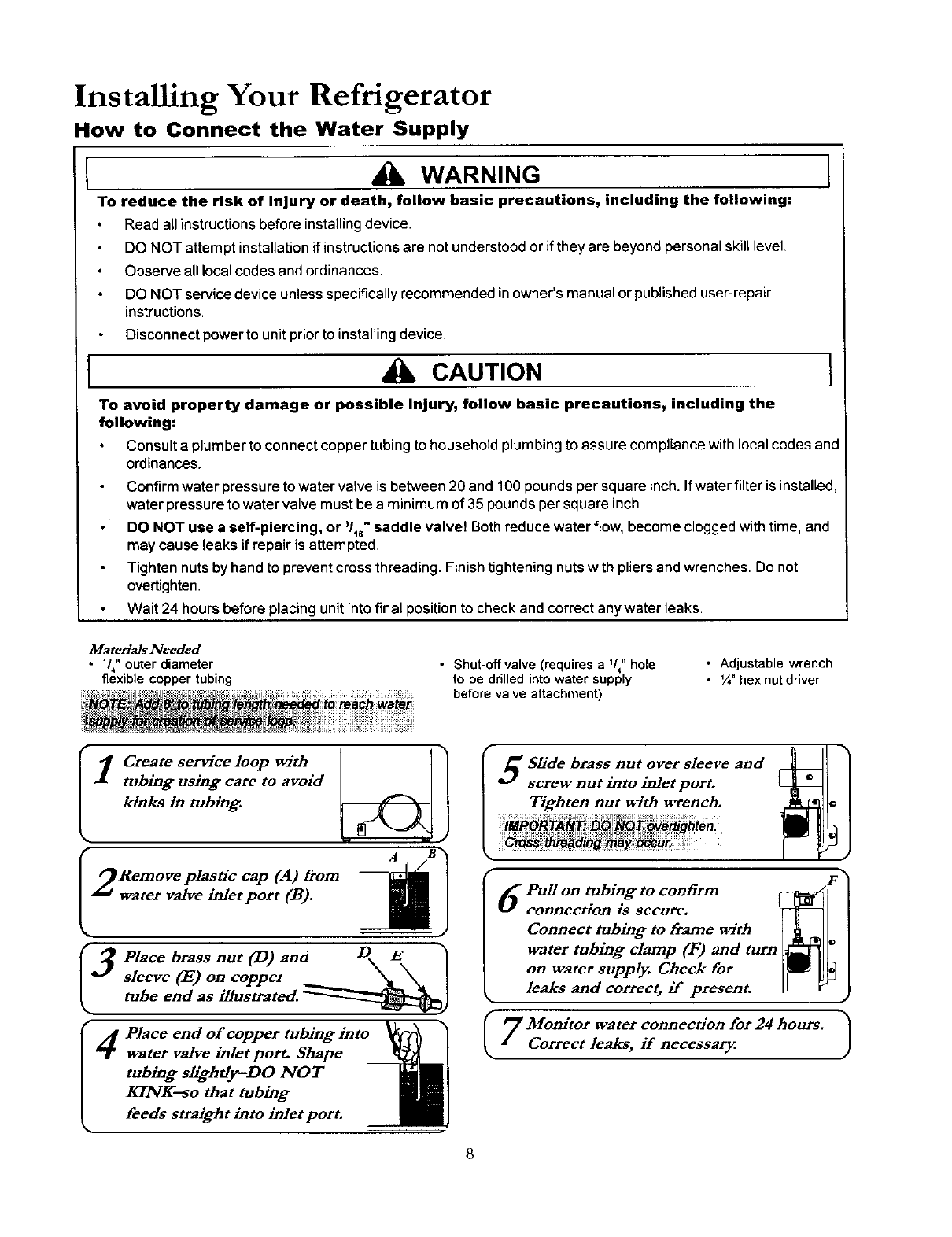

How to Connect the Water Supply ..................... 8

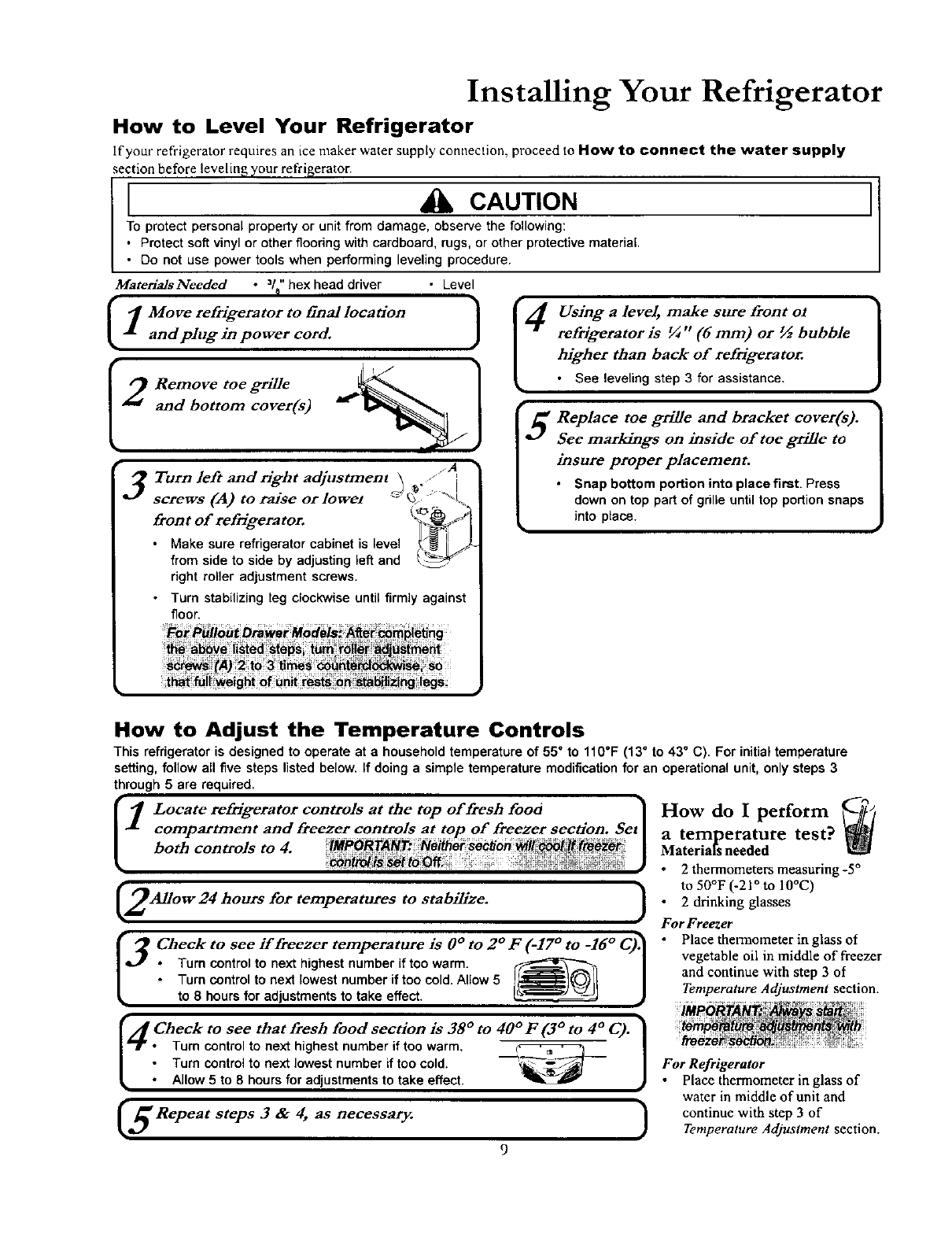

How to Level Your Refhgerator .......................... 9
How to Adjust the Temperature Controls .......... 9

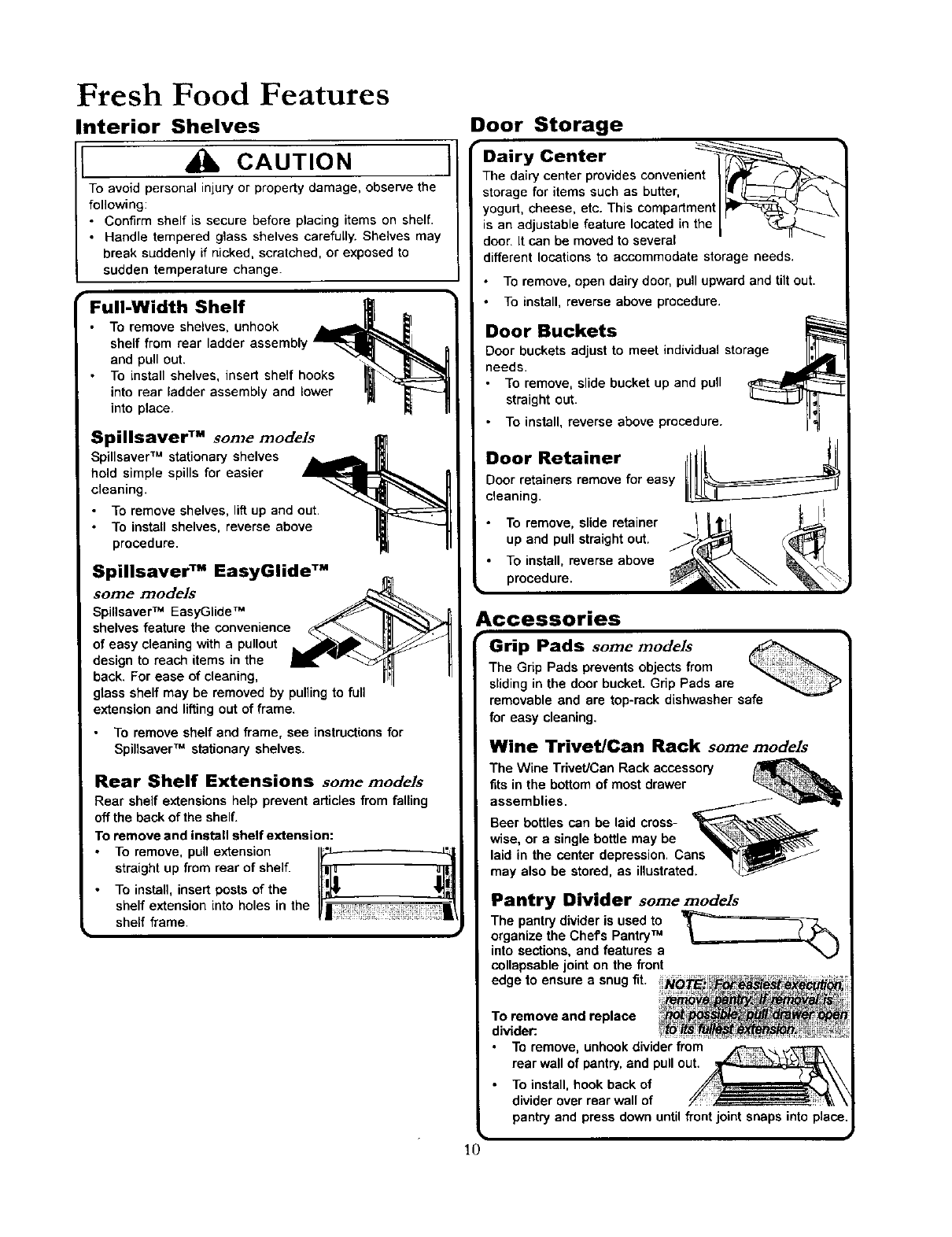

Fresh Food Features ........................................... 10
Intedor Shelves ................................................ 10
Door Storage .................................................... 10
Accessories ..................................................... 10

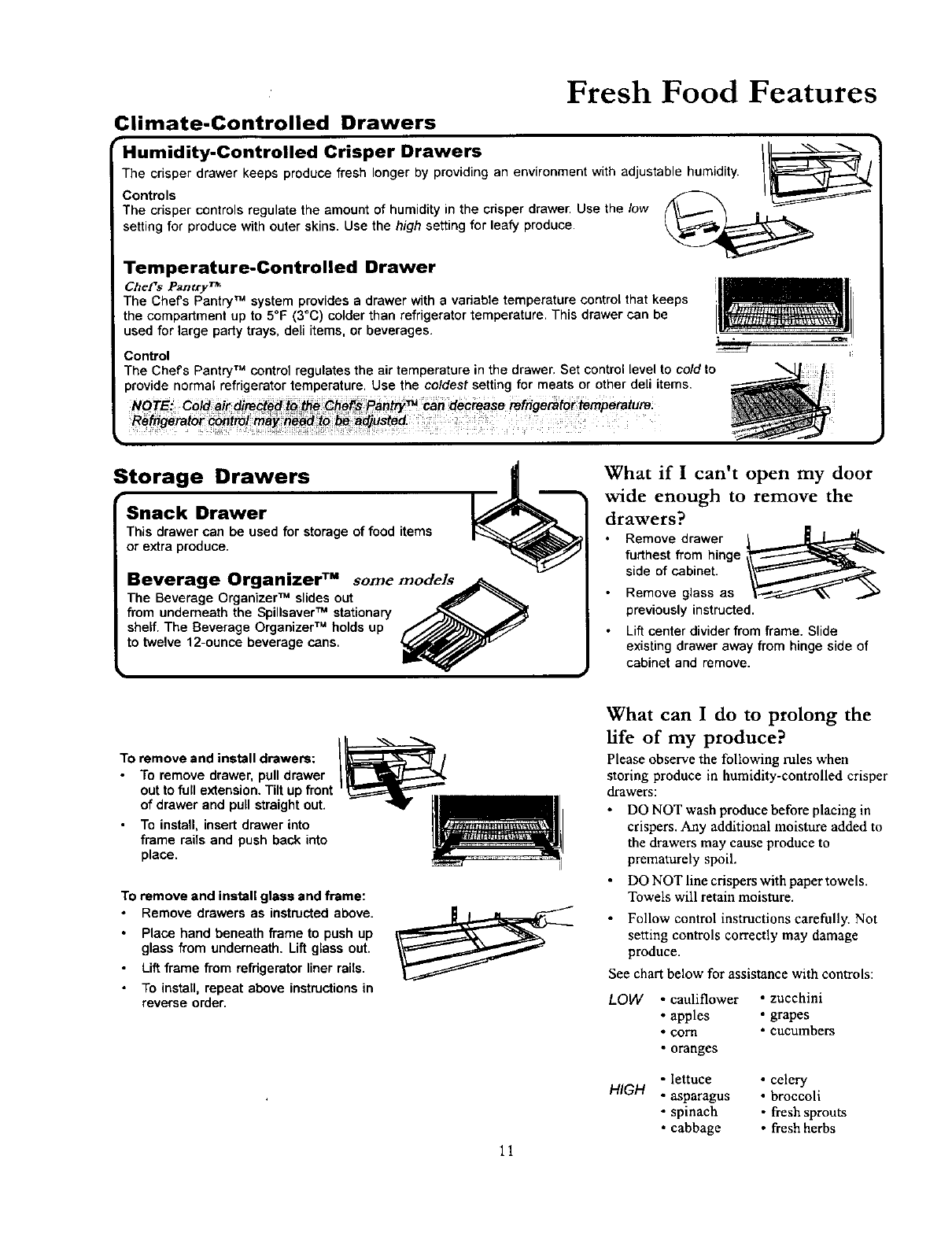

Climate-Controlled Drawers ........................... 11
Storage Drawers .............................................. 11

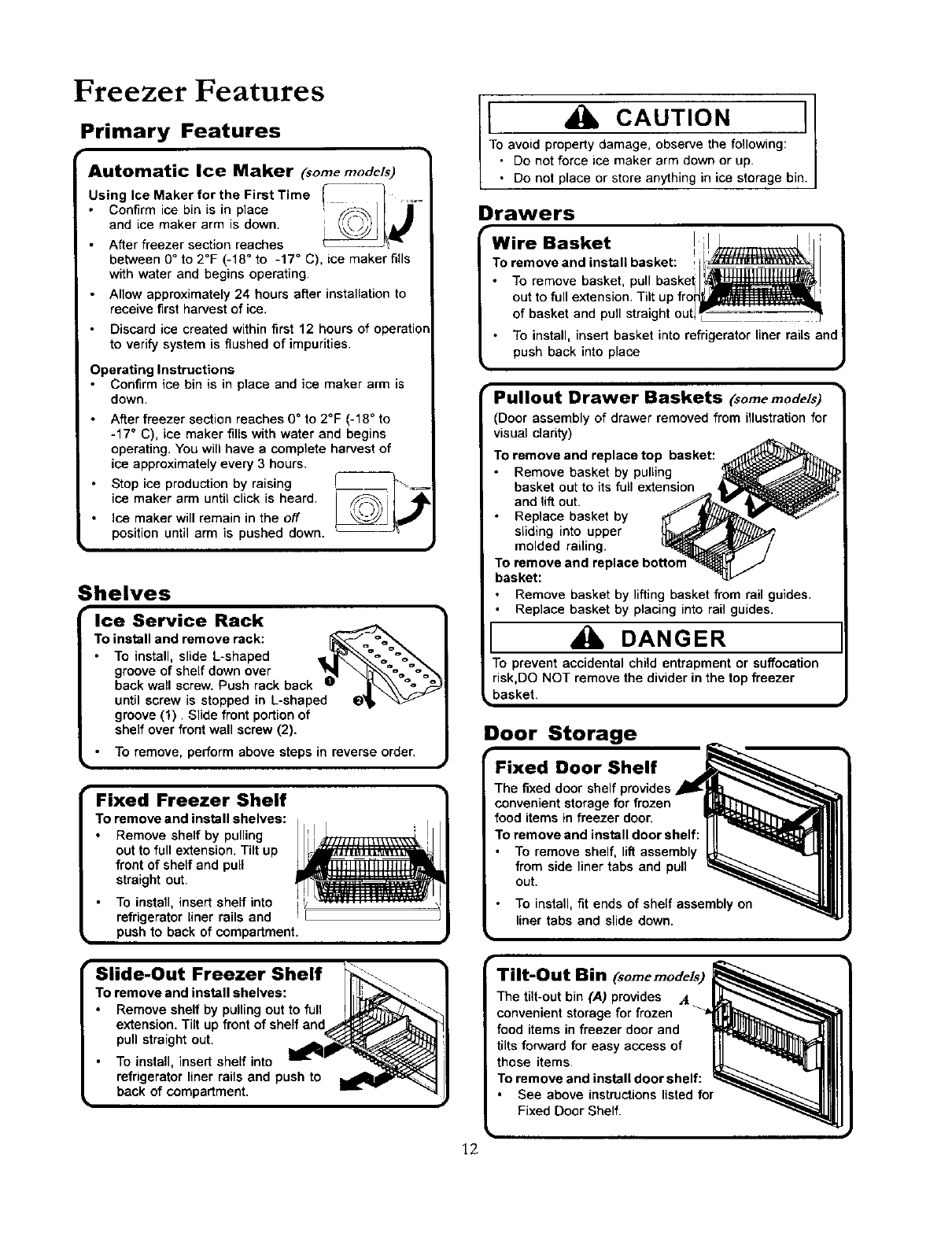

Freezer Features ................................................. 12
Pdrnary Features ............................................. 12
Shelves ............................................................ 12
Drawers ........................................................... 12
Door Storage .................................................... 12

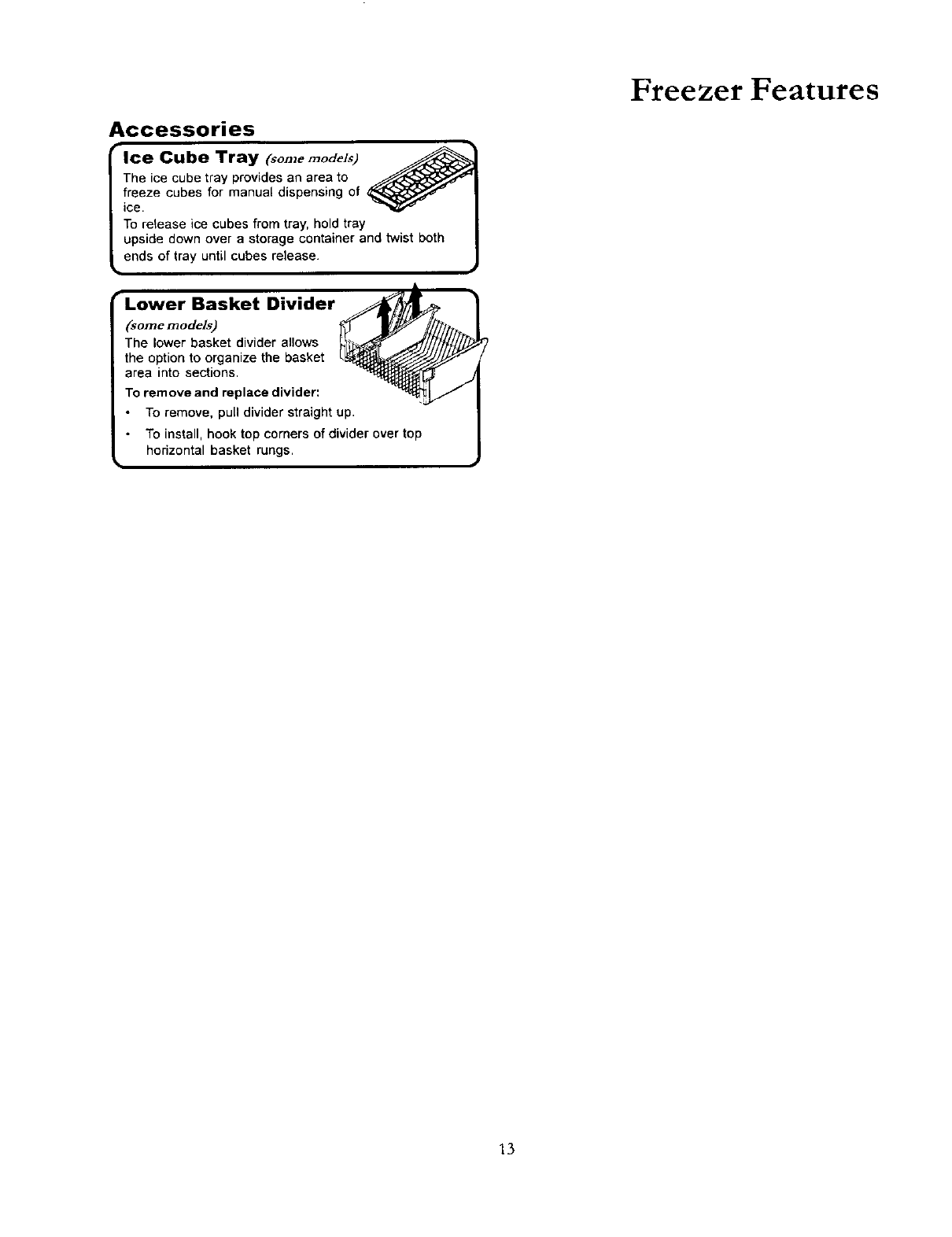

Accessories ..................................................... 13
Hints and Care .................................................... 14

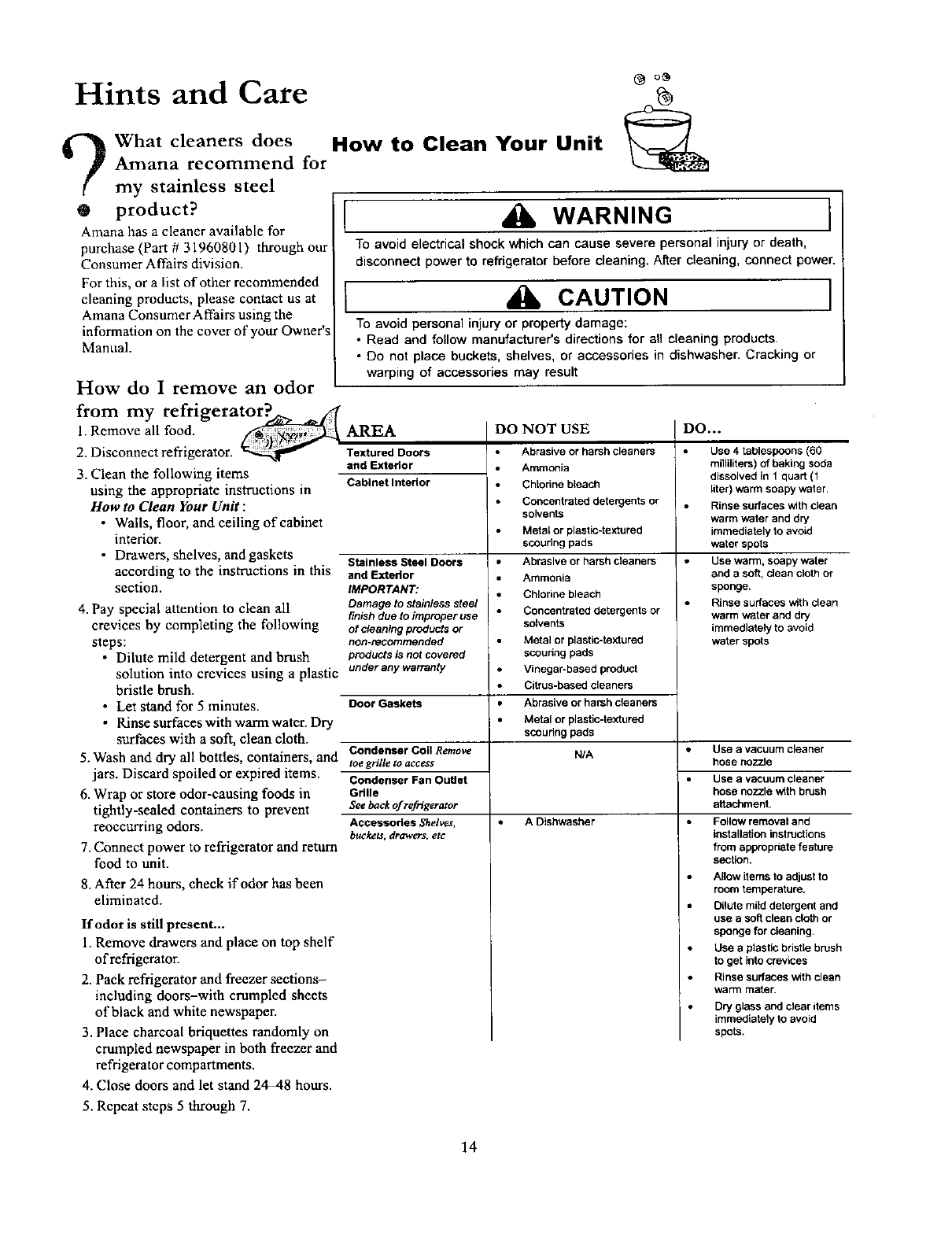

How to Clean Your Unit .................................... 14

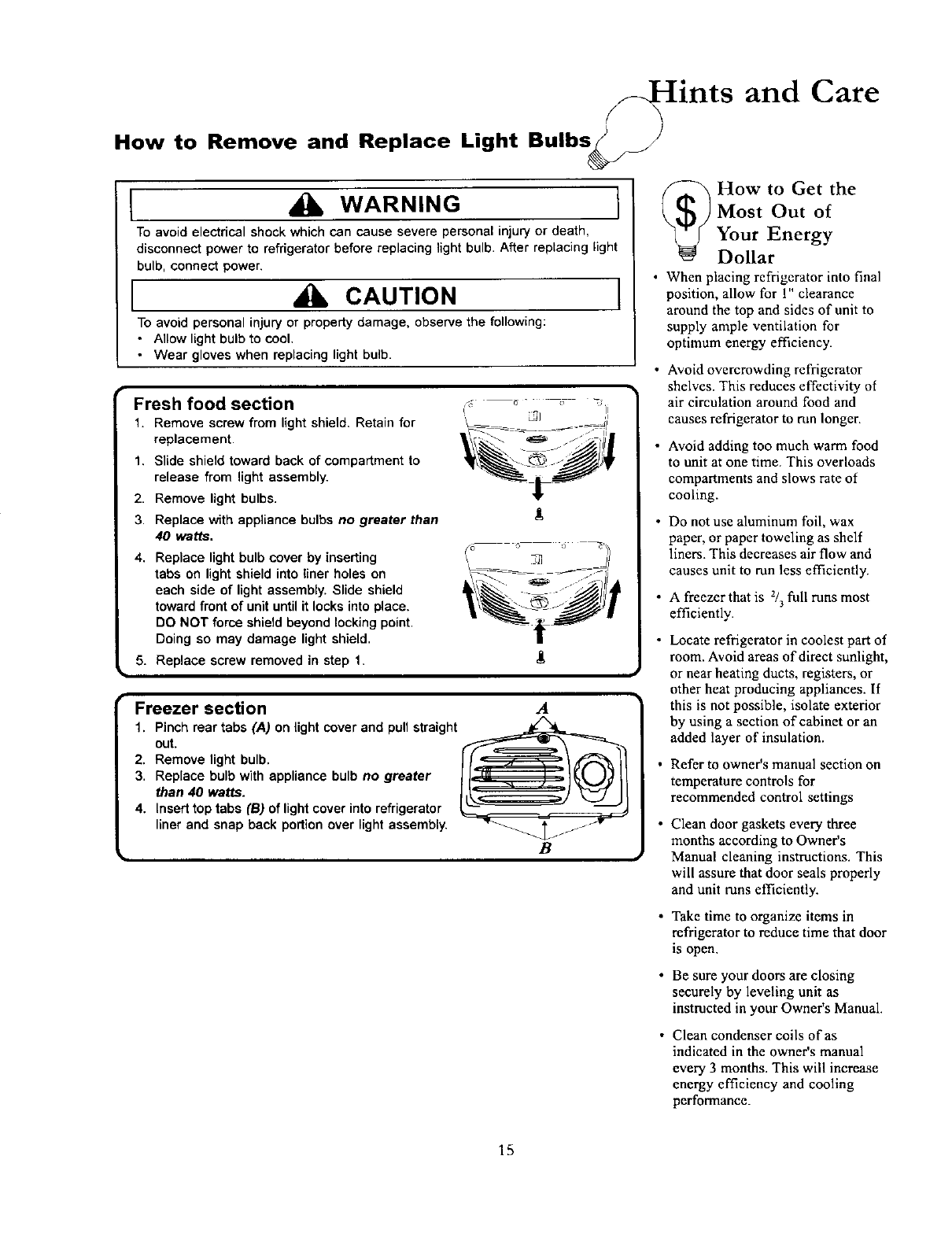

How to Remove and Replace Light Bulbs ...... 15

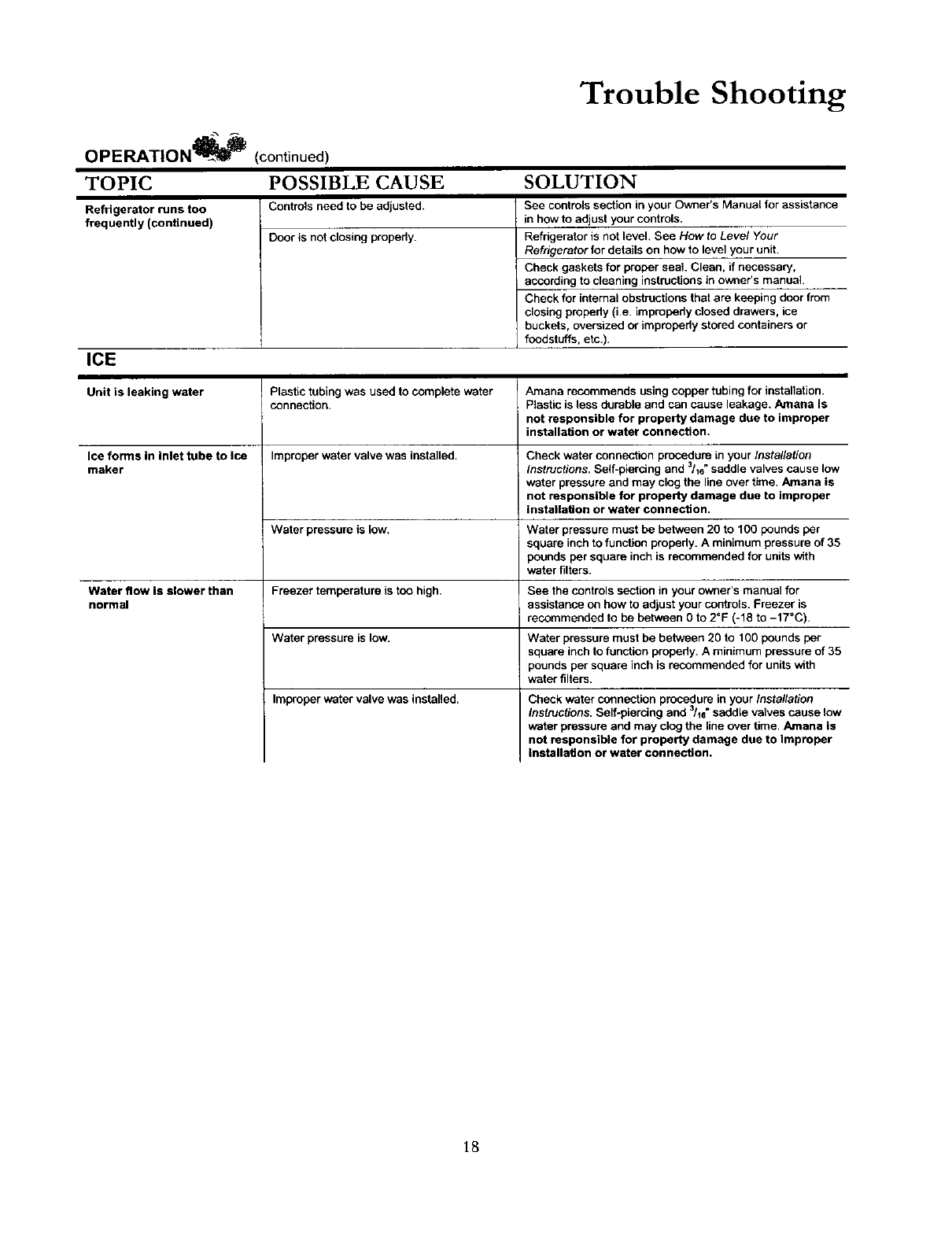

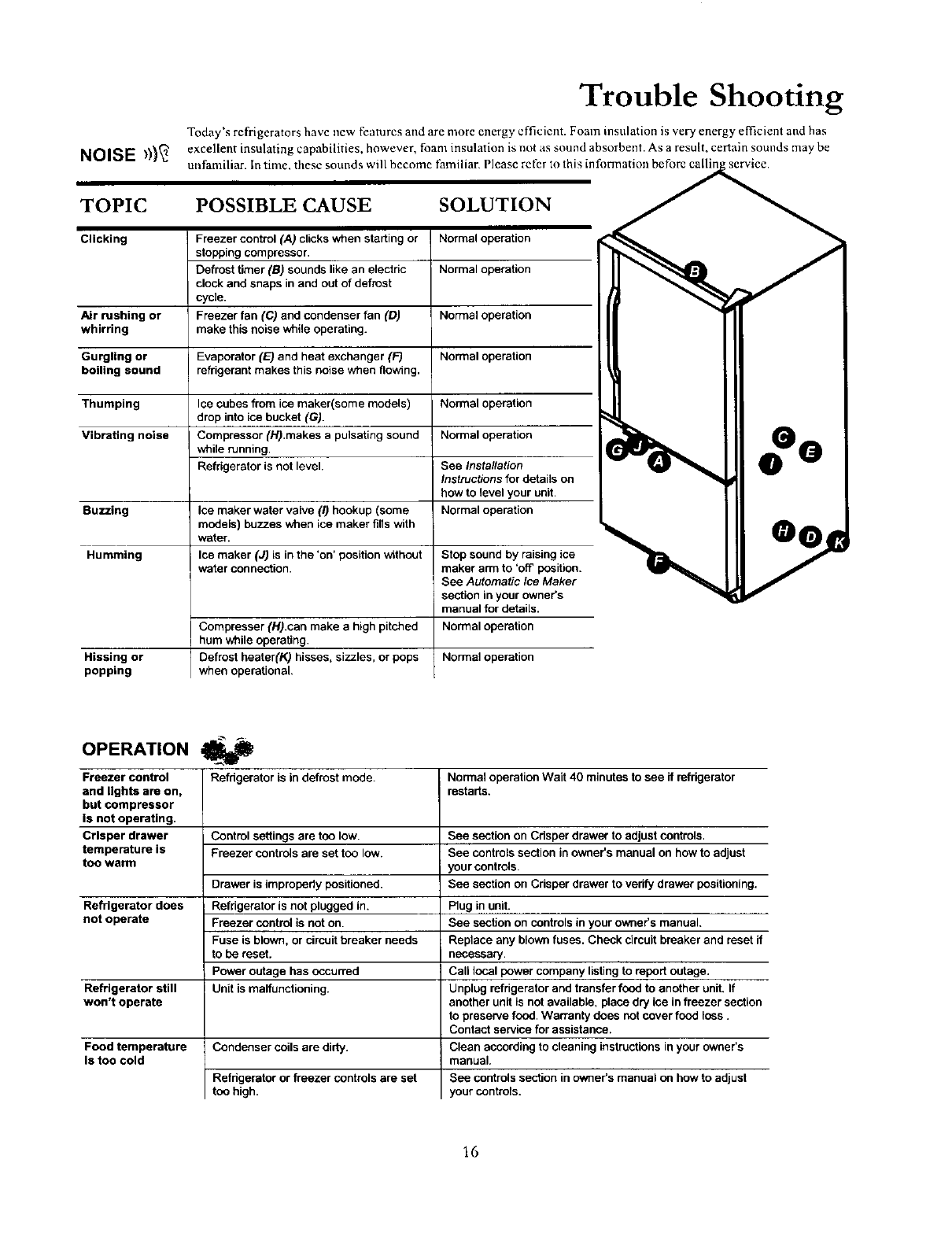

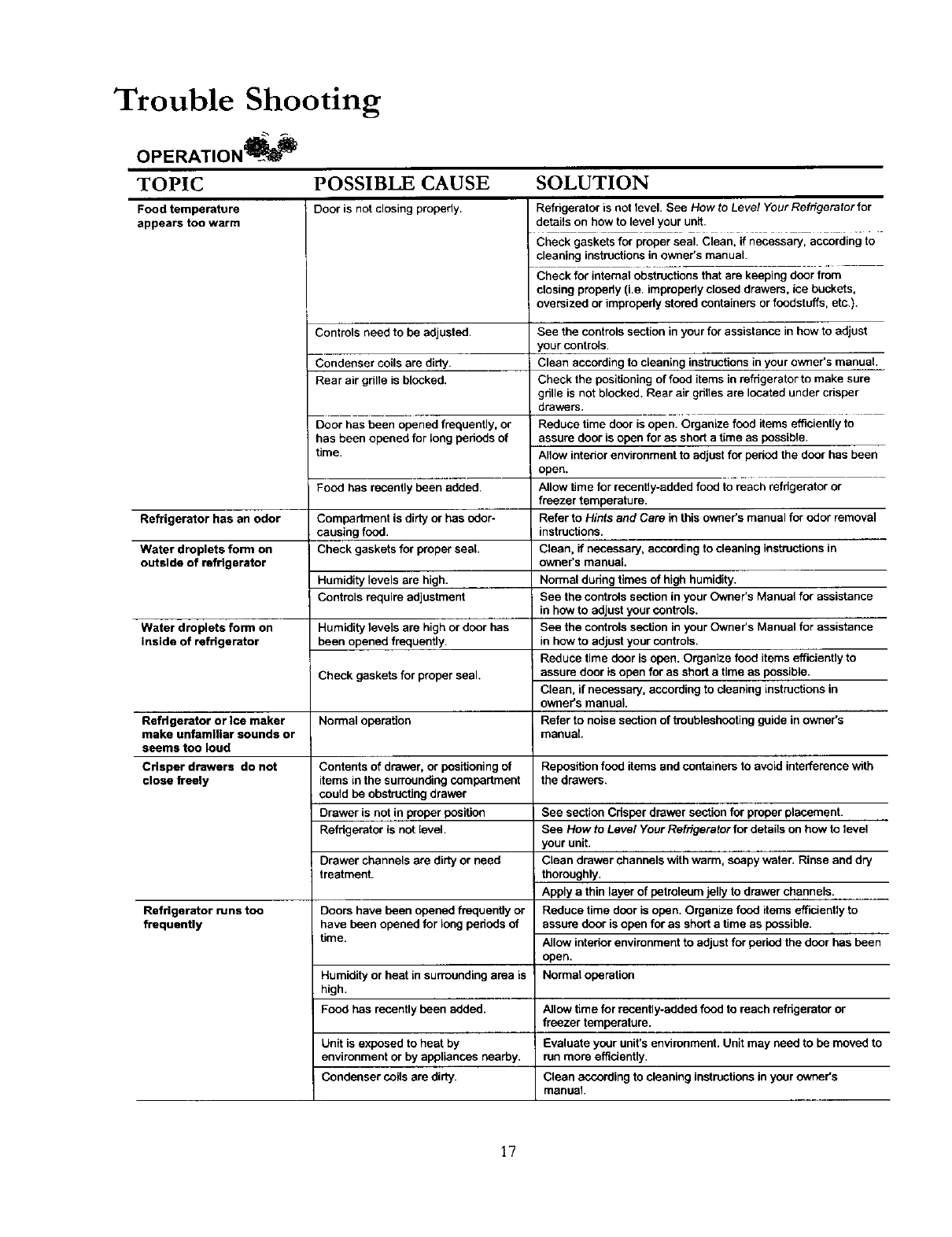

Trouble Shooting ................................................. 16
Wan'anty ............................................................... 19
Part No. 12642702
Printed in U.S.A. 01102

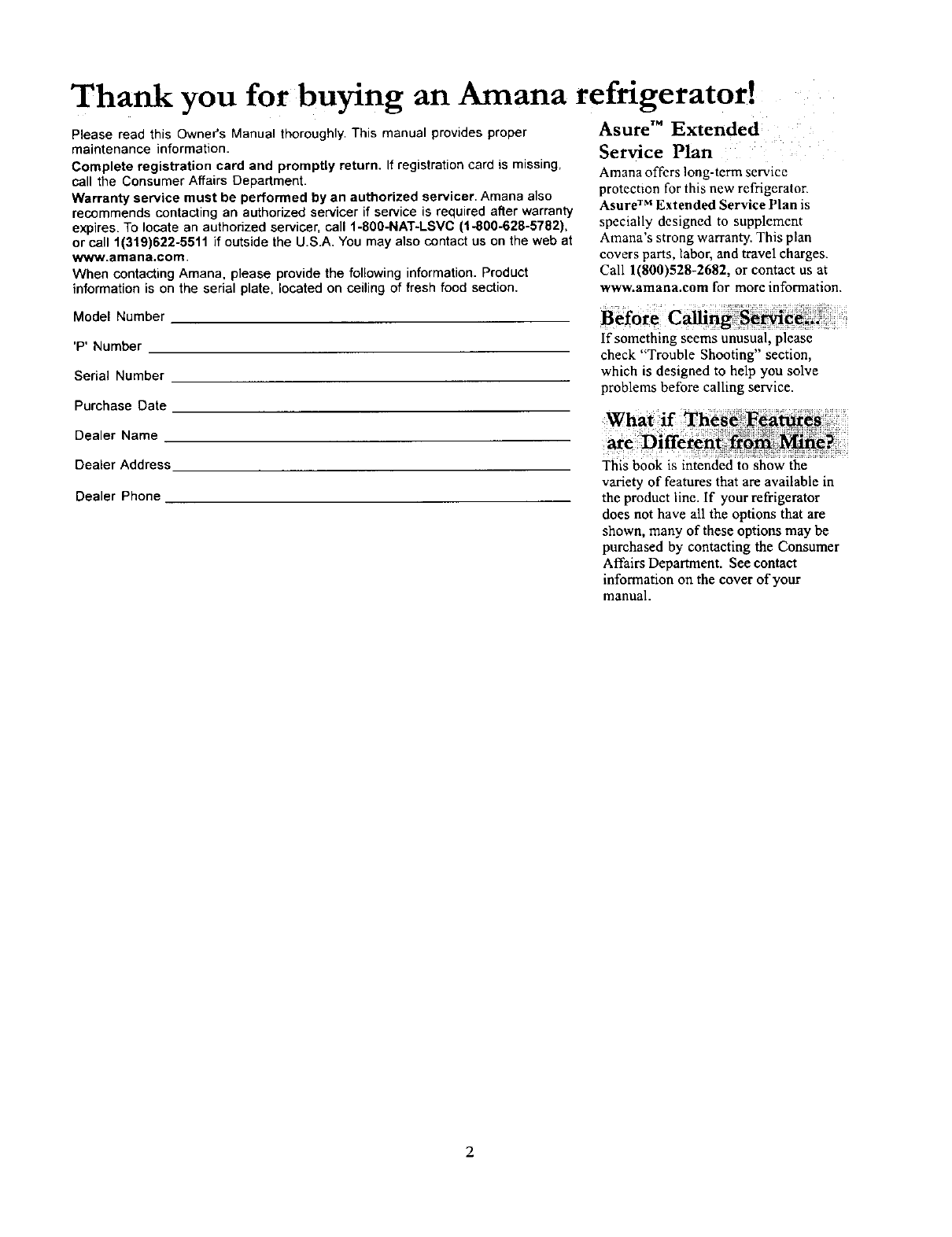

Thank you for buying an Amana refrigerator!
Please read this Owner's Manual thoroughly. This manual provides proper
maintenance information.
Complete registration card and promptly return, If registration card is missing,
call the Consumer Affairs Department.
Warranty service must be performed by an authorized servicer. Amena also
recommends contacting an authorized servicer if service is required after warranty
expires. To locate an authorized servicer, call 1-800-NAT-LSVC (t-800-628-5782),
or call 1(319)622-5511 if outside the U.S.A. You may also contact us on the web at
www.amana.com.
When contacting Amana, please pmvide the following information. Product
information is on the sedal plate, located on ceiling of fresh food section.
Asure TM Extended
Service Plan
Amana offers long-term service
protection for this new refrigerator.
Asure TM Extended Service Plan is
specially designed to supplement
Amana's strong warranty. This plan
covers parts, labor, and travel charges.
Call 1(800)528-2682, or contact us at
www.amana.com for more information.
Model Number
'P' Number
Serial Number
Purchase Date
Dealer Name
If something seems unusual, please
check "Trouble Shooting" section,
which is designed to help you solve
problems before calling service.
What if
Dealer Address
Dealer Phone
This book is intended to show the
variety of features that are available in
the product line. If your refrigerator
does not have all the options that are
shown, many of these options may be
purchased by contacting the Consumer
Affairs Department. See contact
information on the cover of your
manual.
2

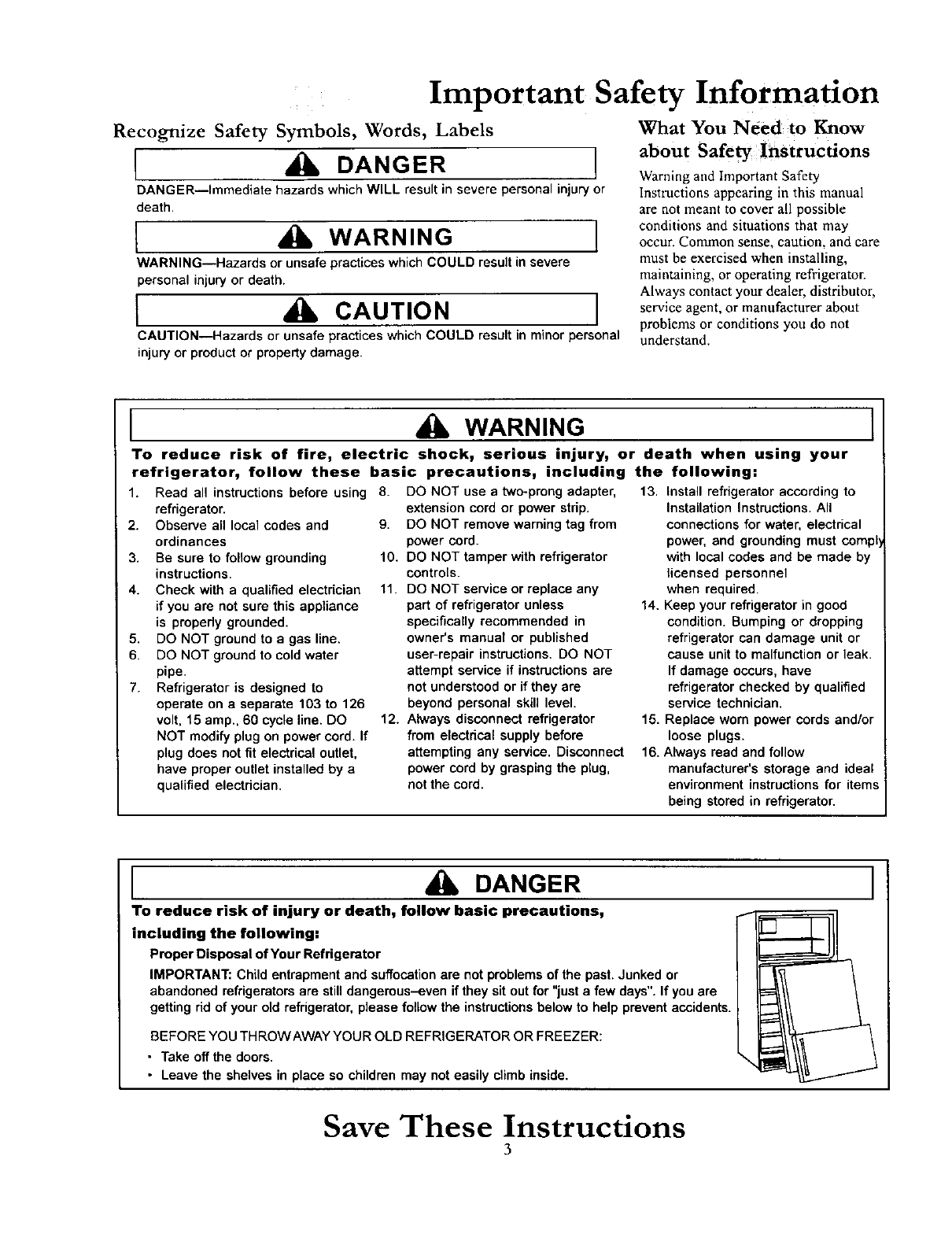

Important Safety Information
Recognize Safety Symbols, Words, Labels
IDANGER I
DANGER--immediate hazards which WILL result in severe personal injuryor
death,
IWARNING I
WARNING--Hazards or unsafe practices which COULD result in severe
personal injuryor death.
iCAUT,ON I
CAUTION--Hazards or unsafepracticeswhichCOULD resultinminorpersonal
injuryor productor propertydamage.
What You Need to Know
about Safe_ Instructions
Warning and Important Safety
Instructions appearing in this manual
are not meant to cover all possible
conditions and situations that may
occur. Common sense, caution, and care
must be exercised when installing,
maintaining, or operating refrigerator.
Always contact your dealer, distributor,
service agent, or manufacturer about
problems or conditions you do not
understand.
I WARNING
To reduce risk of fire, electric shock, serious injury, or death when using your
refrigerator, follow these basic precautions, including the following:
1. Read all instructions before using 8. DO NOT use atwo-prong adapter, 13. Install refrigerator according to
refrigerator.
2. Observe all local codes and
ordinances
3. Be sure to follow grounding
instructions.
4. Check with a qualified electrician
if you are not sure this appliance
is properly grounded.
5. DO NOT ground to agas line.
6. DO NOT ground to cold water
pipe.
7. Refrigerator is designed to
operate on a separate 103 to 126
volt, 15 amp., 60 cycle line. DO
NOT modify plug on power cord. If
plug does not fit electrical outlet,
have proper outlet installed by a
qualified electrician.
extension cord or power strip.
9. DO NOT remove warning tag from
power cord.
10. DO NOT tamper with refrigerator
controls.
11. DO NOT service or replace any
part of refrigerator unless
specifically recommended in
owner's manual or published
user-repair instructions. DO NOT
attempt service if instructions are
not understood or if they are
beyond personal skill level.
12. Always disconnect refrigerator
from electrical supply before
attempting any sen/ice. Disconnect
power cord by grasping the plug,
not the cord.
Installation Instructions. All
connections for water, electrical
power, and grounding must compl,
with local codes and be made by
licensed personnel
when required.
14. Keep your refrigerator in good
condition. Bumping or dropping
refrigerator can damage unit or
cause unit to malfunction or leak.
If damage occurs, have
refrigerator checked by qualified
service technician.
15. Replace worn power cords and/or
loose plugs.
16. Always read and follow
manufacturer's storage and ideal
environment instructions for items
being stored in refrigerator.
I DANGER
To reduce risk of injury or death, follow basic precautions,
including the following."
Proper Disposal of Your Refrigerator
IMPORTANT: Child entrapment and suffocationare not problems of the past. Junked or
abandoned refrigerators are still dangerous-even if they sit out for "just a few days". If you are
getting rid of your old refrigerator, please follow the instructionsbelow to help prevent accidents.
BEFORE YOU TH ROW AWAY YOUR OLD REFRIGERATOR OR FREEZER:
• Take off the doors.
• Leave the shelves in place so children may not easily climb inside.
I
Save These Instructions
3

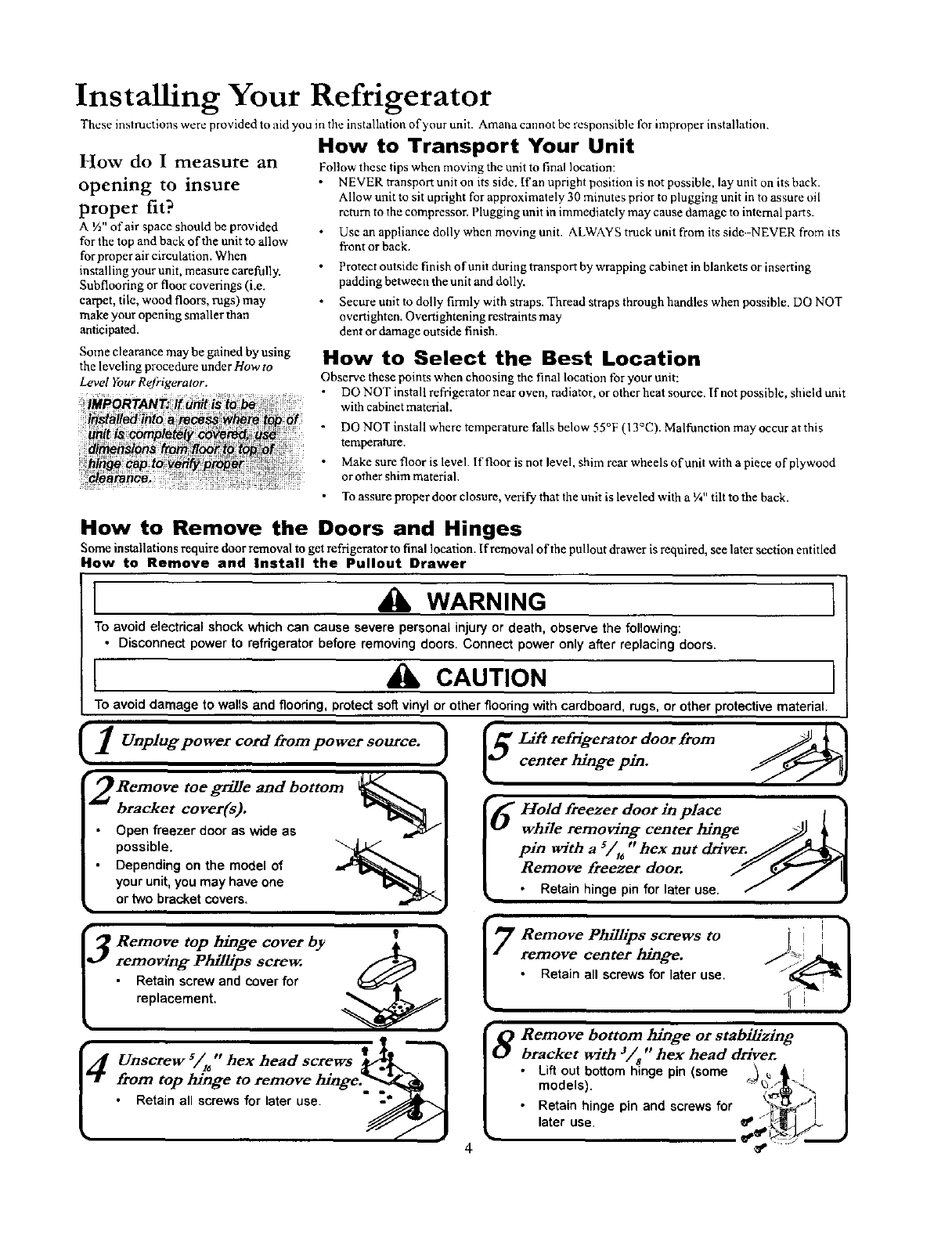

Installing Your Refrigerator
These instructions were provided to aid you in the installation of your unit. Amat_a cannot be responsible for improper installation.
How do I measure an
opening to insure
proper fit?
AW' of air space should be provided
for the top and back of the unit to allow
for proper air circulation. When
installing your unit, measure carefully.
Subflooring or floor coverings (i,e.
carpet, tile, wood floors, rugs) may
make your opening smaller than
anticipated.
Some clearance may be gained by using
the leveling procedure under How to
Level Your Refrigerator.
How to Transport Your Unit
Follow these tips when moving the unit to final location:
NEVER transport unit on its side, If an upright position is not possible, lay unit on its back.
Allow unit to sit upright for approximately 30 minutes prior to plugging unit in to assure oil
return to the compressor. Plugging unit in immediately may cause damage to internal parts.
Use an appliance doily when moving unit. ALWAYS truck unit from its side- NEVER from its
front or back.
Protect outside finish of unit during transport by wrapping cabinet in blankets or inserting
padding between the unit and dolly.
Secure unit to dolly firmly with straps. Thread straps through handles when possible. DO NOT
overtighten. Overtightening restraints may
dent or damage outside finish.
How to Select the Best Location
Observe these points when choosing the final location for your unit:
DO NOT install refrigerator near oven, radiator, or other heat source. If not possible, shield unit
with cabinet material.
DO NOT install where temperature falls below 55°F (13°C). Malfunction may occur at this
temperature.
Make sure floor is level. If floor is not level, shim rear wheels of unit with a piece of plywood
or other shim material.
•To assure proper door closure, verify that the unit is leveled with a W' tilt to the back.
How to Remove the Doors and Hinges
Some in stallations require door removal to get refrigerator to final location, if removal of the pullout drawer is required, see later section entitled

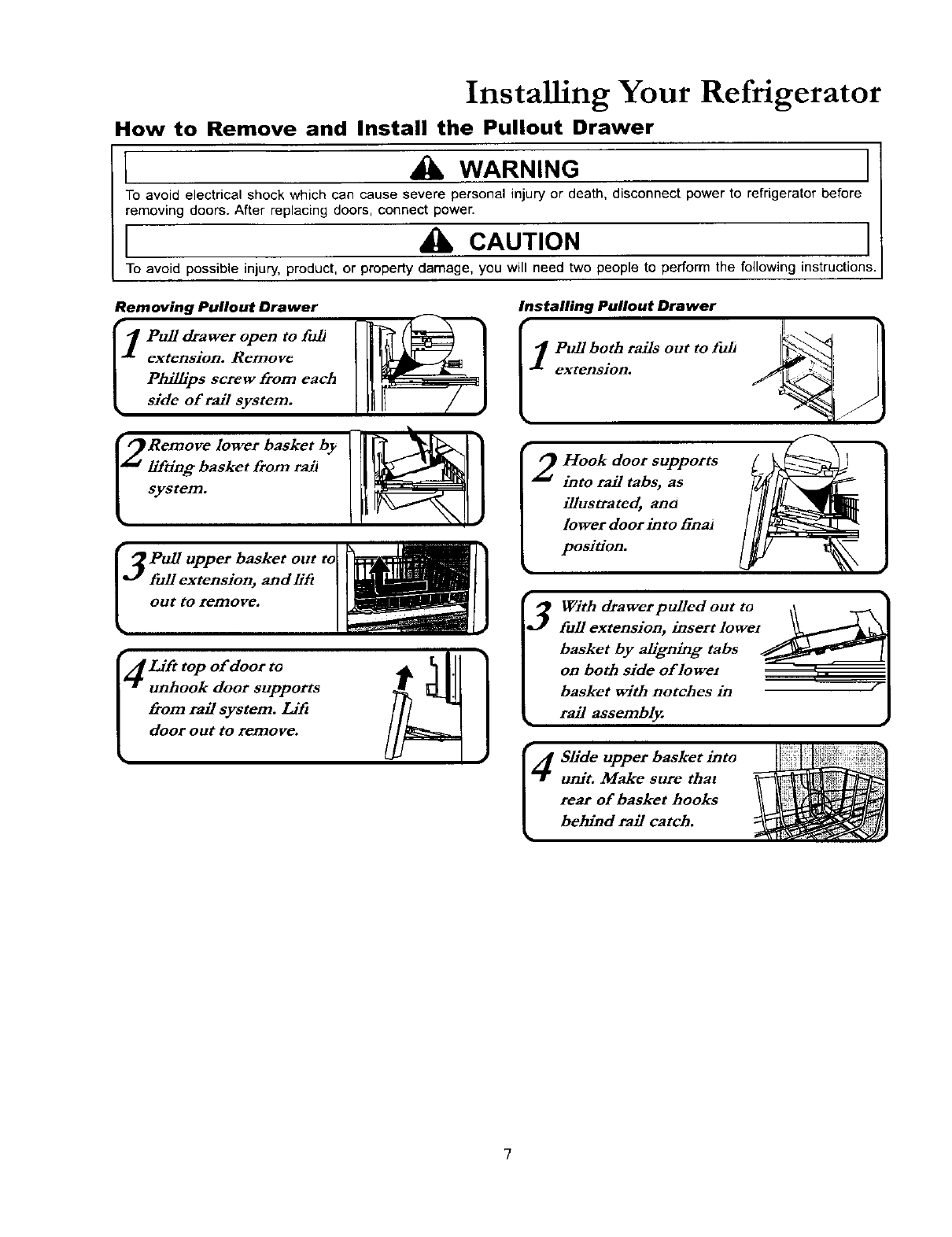

How to Remove and Install the Pullout Drawer
I_WARNING I
To avoid electrical shock which can cause severe pert_onal injury or death, observe the following:
•Disconnect power to refrigerator before removing doors. Connect power only after replacing doors.
Iak CAUTION I
To avoid damage to walls and flooring, protect sof_ vinyl or other floodng with cardboard, rugs, or other protective material.
il Unplugpower cord from power source. ) f_Lift refrigerator doo, from
.,o,.,,o
6Hold freezer door in place I ]
while removing center hinge JY _I
p,n he=n.,
Remove freezer door. II
•Retain hinge pin for later use. f / ,j
IV Remove Phillips screws to
remove center hinge,
Retain all screws for later use.
1
'/."he=headscrew";JL--'I
from top hinge to remove hinge._ ]
•Retain all screws for later use. o° ..,.'_11,_ I
4

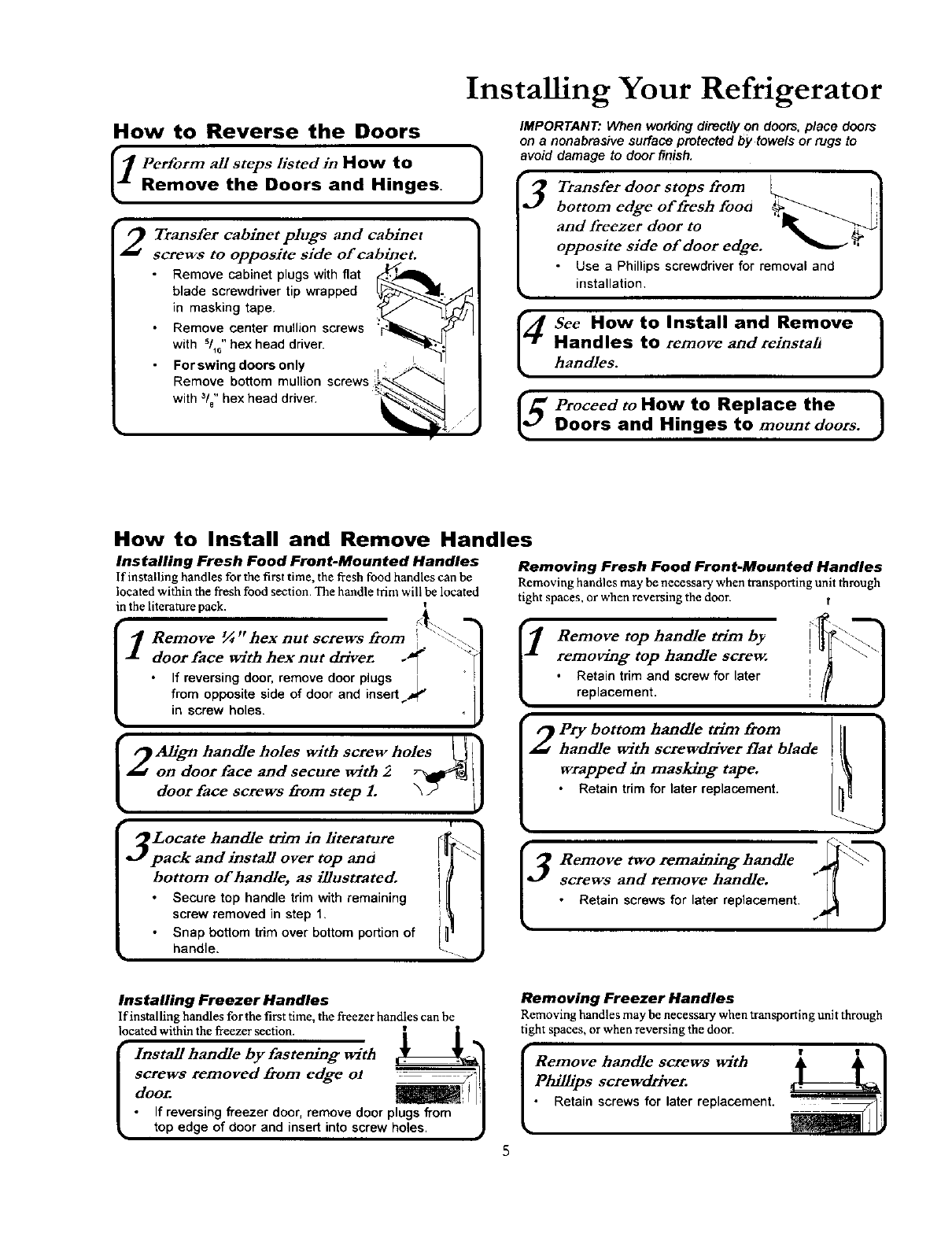

How to Reverse the Doors
Installing Your Refrigerator
Perform all steps listed in How to |Remove the Doors and Hinges. J
Transfer cabinet plugs and cabinet
screws to opposite side of cabinet.
Remove cabinet plugs with flat .1_.t,,_.
blade screwdriver tip wrapped I_'i'_,--../."'---._-../L
in masking tape. ,_
Remove center mullion screws :r-t_q_.._ [_
with s/_" hex head driver. _1_: I
For swing doors only , _.:,._ _ J
Remove bottom mullion screws _,_-_._ _._ I
with 3/e' hex head driver. _-_/'_ J
2
IMPORTANT: When working directly on doors, place doors
on a nonabrasive surface protected by towels or rugs to
avoid damage to door finish.
Transfer door stops from
bottom edge of fresh fooa
and freezer door to
opposite side of door edge. _ _'
Use a Phillips screwdriver for removal and
installation.
$ee How to Install and Remove 1
Handles to remove and reinstah
handles.
IjProceed to How to Replace theDoors and Hinges to mount doors. I

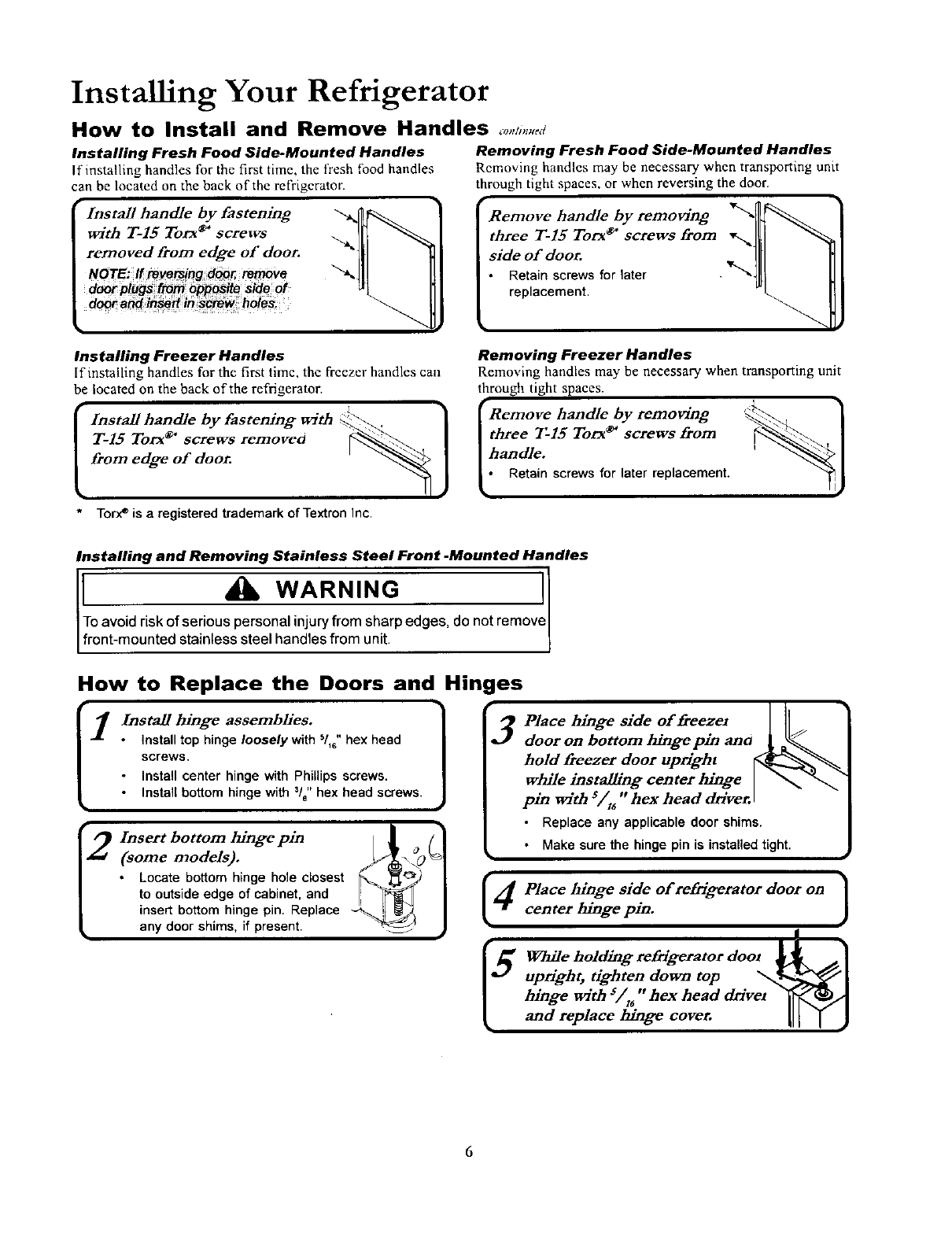

How to Install and Remove Handles
Installing Fresh Food Front-Mounted Handles
If installing handles for the firsttime, the fresh food handles can be
located within the flesh food section. The handle trimwill be located
in the literature pack. t
I1 Remove _ "hex nut screws from
door face with hex nut driver.
•If reversing door, remove door plugs |
from opposite side of door and insert,=t_
in screw holes.
,") handleholeswithscrewbo [JI1
_.t on door face and secure with _
door face screws from step 1. _
Locate handle trim in literature
pack and install over top ana
bottom of handle, as illustrated.
Secure top handle trim with remaining
screw removed in step 1.
Snap bottom trim over bottom portion of
handle.
i
Removing Fresh Food Front-Mounted Handles
Removing handles may be necessary when transportingunit through
tight spaces, or when reversing the door.
1Remove top handle trim b7
removing top handle screw.
Retaintrimand screwfor later
replacement.
PrY bottom handle ttfm from
handle with screwdriver tIat blade
wrapped in masMng tape.
Retain trimforlater replacement.
Remove two remaining handle
screws and remove handle.
• Retain screws for later replacement.
Installing Freezer Handles
If installing handles for the first time, the freezer handles can be
located within the freezer section, i J
fInst'!handleb,fasten'ogwithL= 'l
Iscrews removed from edge ol roll
Idoor. iII
/"If reversing freezer door, remove door plugs from 1
_, top edge of door and insert into screw holes. ,)
5
Removing Freezer Handles
Removing handles may be necessary when transporting unit through
tight spaces, or when reversing the door.
Remove handle screws with
Phillipsscrewdziver. _l
•Retain screws for later replacement. _J
Installing Your Refrigerator
How to Install and Remove Handles ,.o,,tJ,,,,._
Installing Fresh Food Side-Mounted Handles
If installing handles for the first time, the fresh food handles
can be located on the back of the relhigerator.
Install handle by fastening
with T-15 Torx _screws
removed from edge of door.
NOTE: If _ve_ing a_ re_Ve
doo_!Ogs _Opp_ite _ide of
Removing Fresh Food Side-Mounted Handles
Removing handles may be necessary when transporting unit
through tight spaces, or when reversing the door.
side of door. Ilrl tt I
,22 nW Iote ""
Installing Freezer Handles
If installing handles for the first time, the freezer handles can
be located on the back of the refrigerator.
Removing Freezer Handles
Removing handles may be necessary when transporting unit
through tight spaces.
•removing
Torx° is a registered trademark of Textron Inc.
Installing and Removing Stainless Steel Front -Mounted Handles
t&!1
To avoid risk of serious personal injury from sharp edges, do not remov
front-mounted stainless steel handles from unit.
How to Replace the Doors and Hinges
Install hinge assemblies. .I
1.Install top hinge Iooselywith VI6 hex head J
screws.
Install center hinge with Phillips screws.
Install bottom hinge with */e" hex head screws.
Place hinge side of freezex
door on bottom hinge pin ana
hold freezer door uptight
while installing center hinge
pin with s/u "hex head driver.
• Replaceany applicabledoorshims.
•Make sure the hinge pin is installed tight. #
4Place hinge side of refrigerator door on |center hinge pin. J
uptight, tighten down top _%_,_ [
hingewith% "he_heada_'ve,IN.®M
and replace hinge cover. Ill T J
6
Installing Your Refrigerator
How to Remove and Install the Pullout Drawer
[_WARNING I
To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before
removing doors. After replacing doors, connect power.
ICAUTION ]
To avoid possible injury, product, or propertydamage, you will need two people to perform the following instructions.
Removing Pullout Drawer
Pull drawer open to fu_
extension. Remove
Philb'ps screw from each
side of rMl system.
Installing Pullout Drawer
em°ve werb ke' ;! l
llTdng basket from ra_
system.
IY =e=et°ut° t1
full extension, and h'ft
out to remove.
ILiftt°p°fd°°rt° _]
unhook door supports
_om rail system. Lift ]
door out to remove.
Pull both rMls out to fu_
extension.
Hook door supports
into rail tabs, as
illustrated, anO
lower door into t]n_fl
position.
With drawer pulled out to \
3full extension, insert lowel_
basket by Migning tabs
on both side ofloweJ _,,
basket with notches in
• rail assembly.
Installing Your Refrigerator
How to Connect the Water Supply
I _ WARNING I
To reduce the risk of injury or death, follow basic precautions, including the following:
Read all instructions before installing device.
DO NOT attempt installation if instructions are not understood or if they are beyond personal skill level
Observe all local codes and ordinances.
DO NOT service device unless specifically recommended in owner's manual or published user-repair
instructions.
Disconnect power to unit prior to installing device.
I_CAUTION I
To avoid property damage or possible injury, follow basic precautions, including the
following:
Consult a plumber to connect copper tubing to household plumbing to assure compliance with local codes and
ordinances.
Confirm water pressure to water valve is between 20 and 100 pounds per square inch. If water filter is installed
water pressure to water valve must be a minimum of 35 pounds per square inch.
DO NOT use a self-piercing, or 3116"saddle valvel Both reduce water flow, become clogged with time, and
may cause leaks if repair is attempted.
Tighten nuts by hand to prevent cross threading. Finish tightening nuts with pliers and wrenches. Do not
overtighten.
Wait 24 hours before placing unit into final position to check and correct any water leaks.
MateriMs Needed
•1/,, outer diameter
flexible copper tubing •Shut-offvalve (requires a1/4" hole
to be drilled into water supply
before valve attachment)
• Adjustable wrench
• _A"hex nut driver
I1 reate service loop with
tubing using care to avoid
Mnks in tubing
g
l _ Remove plastic cap (A) from _B 1
water valve inlet port (B).
I3 Place brass nut _) and D E
sleeve Joncoppe, \\1
tube end as illustrated. _)
I/_ Place end of copper tubing into
_P water valve inlet port. Shape
tubing sh'_hdy-DO NOT
KINK-so that tubing
feeds straight into inlet port.
I _ Slide brass nut over sleeve and
_" screw nut into inletport.
Tighten nut with wrench.
F
Pull on tubing to cont_rm _/,
connection is secuJte.
Connect tubing to frame with ]_ _l
watertubingclamp andtunLt; ll°
on water supply. Check for IJ U_
leaks and correct, if present. II I(' .
I 7 Monitor water connection for 24 hours. 1
"Correct leaks, if necessary. )
8
Installing Your Refrigerator
How to Level Your Refrigerator
If your refrigerator requires an ice maker water supply connection, proceed to How to connect the water supply
section before levelin_ your refrigerator.
IACAUTION
To protect personal propertyor unit from damage, observe the following:
• Protect soff vinyl or other flooring with cardboard, rugs, or other protective material
• 13onot use power tools when performing leveling procedure,
Materials Needed •_1_"hex head driver •Level
IT Move refrigerator to from location.L andplug in power cord. )
I4 Using alevel, make sure front ol
refrigerator is _ " (6 ram) or ½bubble
higher than back of refrigerator.
•See leveling step 3 for assistance.
I
3Turn left and right adiustment \......I
_J 8"
screws (A) to raise or lower _ _ " "_
front of refrigerator. ___, _
. . ii
•Make sure refrigerator cabinet is level _
from side to side by adjusting left and _
right roller adjustment screws.
• Turn stabilizing leg clockwise until firmly against
floor.
Replace toe grille and bracket cover(s).
See martdngs on inside of toe grille to
insure proper placement.
•Snap bottom portion into place first. Press
down on top part of grille until top portion snaps
into place.
How to Adjust the Temperature Controls
This refrigerator is designed to operate at a household temperature of 55° to 110°F (13° to 43° C). For initialtemperature
setting, follow all five steps listed below. If doing a simple temperature modification for an operational unit, only steps 3
through 5 are required.
1 Locate refrigerator controls at the top of fresh fooa ) How do I perform _
compartment and freezer controls at top of freezer section. Set] atemperature test?
both controls to 4IMl_ORTA_ _eithe_ seetJon_/_:_ f__¢_2 [ Materialsneeded
!
............................... i •2thermometers measuring-5 °
(2 ) to 50°F ('21° t° 10°C)
Allow 24 hours for temperatures to stabilize. •2 drinking glasses
For Freezer
Ib yheck to see if freezer temperature is OO to 2o F (_17o to _16o c).) •Placethermometeringlassof
Turn control to next highest number if too warm. ._d=_-_._ /vegetable oil in middle of freezer
•Turn control to next lowest number if too cold. Allow 5 I,_)_[I |and continue with step3 of
to 8 hours for adjustments to take effect. _)Temperature Adjustment section.
4Check to see that fresh food section is 38 ° to 40 ° F (3 °to 4°C). )
•Turn control to next highest number if too warm. J
• Turn control to next lowest number if too cold. _'_--
•Allow 5to 8 hours for adjustmentsto take effect.
For Refrigerator
Place thermometer in glass of
water in middle of unit and
continue with step 3 of
Temperature Adjustment section.
(5 Repeatstepsb&d'asnecessary" )
9
Fresh Food Features
nterior Shelves
I _]g CAUTION I
To avoid personal injury or property damage, observe the
following:
• Confirm shelf is secure before placing items on shelf.
•Handle tempered glass shelves carefully. Shelves may
break suddenly if nicked, scratched, or exposed to
sudden temperature change.
•Full-Width Shelf I_
TO remove shelves, unhook _ _]
shelf from rear ladder assembly "_I_.._i_l_L
and pull out. ^,_ _-_1_
•To install shelves, insert shelf hooks I_
into rear ladder assembly and lower _
into place -
Spillsaver TM some models
Spillsaver TM stationary shelves
hold simple spills for easier
cleaning.
To remove shelves, lift up and out.
To install shelves, reverse above
procedure.
Spillsaver TM EasyGlide TM
some models
Spillsaver TM EasyGiide TM
shelves feature the convenience
of easy cleaning with apullout
design to reach items in the
back. For ease of cleaning,
glass shelf may be removed by pulling to full
extension and lifting out of frame.
To remove shelf and frame, see instructionsfor
Spillsaver TM stationary shelves.
Rear Shelf Extensions some models
Rear shelf extensions help prevent articles from falling
off the back of the shelf.
To remove and install shelf extension:
To remove, pull extension I_J--" _
straight up from rear of shelf. IIll," alll
To install, insertposts of the
shelfextensionintoholesinthe ,, ,,_I_, _, _ _' '=_
shelf frame.
#
Door Storage
Dairy Center
The dairycenter provides convenient IIA___F_
storage for items such as butter, ii__L_.__jr_ ,._
yogurt, cheese, etc. This compartment I _m'_'_-__ \
is an adjustable feature located in the I
door. It can be moved to several
different locations to accommodate storage needs.
To remove, open dairydoor, pull upward and tilt out.
To install, reverse above procedure.
Door Buckets
Door buckets adjust to meet individual storage
needs.
To remove, slide bucket up and pull
straight out.
To install, reverse above procedure.
Door Retainer
Door retainers remove for easy
cleaning.
up and pull straight out. _(
•To install, reverse above
_, procedure.
Accessories
•Grip Pads some models
The Grip Pads prevents objects from
sliding in the door bucket. Grip Pads are
removable and are top-rack dishwasher safe
for easy cleaning.
Wine Trivet/Can Rack some models
The Wine Trivet/Can Rack accessory
fits in the bottom of most drawer
assemblies.
Beer bottles can be laid cross- ____'_- _
wise, or a single bottle may be __
laid in the center depression, Cans "_,_
may also be stored, as illustratecL
Pantry Divider some models
The pantry divider is used to _"="_'_
organize the Chef's Pantry TM L ,©
into sections, and features a
collapsable joint on the front
edge to ensure a snug fit.
To remove and replace
divider.
To install, hook back of
divider over rear wall of
10
Fresh Food Features
Climate-Controlled Drawers
Humidity-Controlled Crisper Drawers
The crisper drawer keeps produce fresh longer by providing an environment with adjustable humidity.
Controls
The crisper controls regulate the amount of humidity in the crisper drawer. Use the low
setting for produce with outer skins. Use the high setting for leafy produce.
Temperature-Controlled Drawer
Chefs Pantry T_
The Chefs Pantry TM system provides adrawer with a variable temperature control that keeps
the compartment up to 5°F (3°C) colder than refrigerator temperature. This drawer can be
used for large party trays, deli items, or beverages.
Control
The Chefs Pantry TM control regulates the air temperature in the drawer. Set control level to co/d to
provide normal refrigerator temperature. Use the coldest setting for meats or other dell items.
Storage Drawers
Snack Drawer
This drawer can be used for storage of food items
or extra produce.
LBeverage Organizer TM some models _j
The Beverage Organizer TM slides out _
from undemeath the Spillsaver TM stationary .,,,_'j_,
shelf. The Beverage Organizer TM holds up _JJjJ'_
to twelve 12-ounce beverage cans. _____/
What if I can't open my door
wide enough to remove the
drawers?
•Remove drawer 1
furthest from hinge t]""__ _'_"
side of cabinet. _..,.=======.-_
•Remove glass as _-___--._-------------"_k
previously instructed.
Lift center divider from frame. Slide
existing drawer away from hinge side of
cabinet and remove.
To remove and install drawers: /_/
• To remove drawer, pull drawer /_._
out to full extension. Tilt up front "_
of drawer and pull straightout.
To install, insert drawer into
frame rails and push back into
place.
To remove and install glass and frame:
Remove drawers as instructed above.
Place hand beneath frame to push up
glass from underneath. Lift glass out.
Lift frame from refrigerator liner rails.
To install, repeat above instructionsin
reverse order.
11
What can Ido to prolong the
life of my produce?
Please observe the following rules when
storing produce in humidity-controlled crisper
drawers:
DO NOT wash produce before placing in
crispers. Any additional moisture added to
the drawers may cause produce to
prematurely spoil.
DO NOT line crispers with paper towels.
Towels will retain moisture.
Follow control instructions carefully. Not
setting controls correctly may damage
produce.
See chart below for assistance with controls:
LOW • cauliflower •zucchini
•apples ,grapes
• corn , cucumbe_
• oranges
• lettuce •celery
HIGH •asparagus •broccoli
• spinach •fresh sprouts
• cabbage •fresh herbs
Freezer Features
Primary Features
Automatic Ice Maker (some models)
Using Ice Maker for the First Time _-_ ....
Confirm ice bin is in placa _ J
• and ice maker arm is down.
After freezer section reaches _
between 0° to 2°F (-18° to -17 ° C), ice maker fills
with water and begins operating.
Allow approximately 24 hours after installation to
receive first harvest of ice.
Discard ice created within first 12 hours of operatior
to verify system is flushed of impurities.
Operating Instructions
Confirm ice bin is in place and ice maker arm is
down.
After freezer section reaches 0 ° to 2°F (-18 ° to
-17 ° C), ice maker fills with water and begins
operating, You will have a complete harvest of
ice approximately every 3 hours,
Stop ice production by raising _ _--_
ice maker arm until click is heard.
Ice maker will remain in the off
position until arm is pushed down.
#
Shelves
Ice Service Rack
To install and remove rack: _-'°_
•To install, slide L-shaped _1.'_"_% %__
groove of shelf down over _NI _.[_.\%.. %__
back wall screw. Push rack back O" _._-_
until screw is stopped in L-shaped e$
groove (1), Slide front portion of
shelf over front wall screw (2).
• To remove, perform above steps in reverse order,
Fixed Freezer Shelf
To remove and install shelves:
Remove shelf by pulling
out to full extension. Tilt up
front of shelf and pull
straight out.
To install, insert shelf into
refrigerator liner rails and
push to back of compartment.
Slide-Out Freezer Shelf _
To remove and install shelves: l _,_ _
•Remove shelf by pulling out to full I_
extension. Tilt up front of shelf and _"_P_j_.
pull straight out. _._h__
• To install, insert shelf into "
refrigerator liner rails and push to_
back of compartment. IE:'_F" _"
!! CAUTION I
avoidproperlydamage, observethefollowing:
Do not force ice maker arm down or up.
Do not place or store anything in ice storage bin.
Drawers
rwire Basket ]il__
TOremove and insta,t basket: ;I;_1I_..,,,,,,,.,,,..,,,,,.._,,
•TO remove basket, pull baske_l_!
/
out to full extension. Tilt up fro_
of basket and pull straight outl_---__:'_
To install, insert basket into refrigerator liner rails ant
push back into place
Pullout Drawer Baskets (some models)
Door assembly of drawer removed from illustration for
visual clarity)
To remove and replace top basket:
Remove basket by pulling
basket oat to its full extension
and lift out,
Replace basket by
sliding into upper
molded railing.
To remove and re
basket:
Remove basket by lifting basket from rail guides.
Replace basket by placing into rail guides.
DANGER
To prevent accidental child entrapment or suffocation
risk,DO NOT remove the divider in the top freezer
_basket,
Door Storage
Door Shelf
Tilt-Out Bin (somcmodels)
The tilt-out bin (A) provides A
convenient storage for frozen __
food items in freezer door and
tilts forward for easy access of
those items.
To remove and install door shelf:
See above instructionslisted for
Fixed Door Shelf.
12
Accessories
•ice Cube Tray (some models)
The ice cube tray provides an area to JJ_;_,,_
Ireeeze cubes for manual dispensing of _,_"
To re_ease ice cubes from tray, hold tray
upside down over a storage container and twist both
ends of tray until cubes release.
Basket Divider
(some models)
The lower basket divider allows
the option to organize the basket
area into sections.
To remove and replace divider:
To remove, pull divider straight up.
To install, hook top corners of divider over top
horizontal basket rungs.
Freezer Features
13
Hints and Care
What cleaners does
Amana recommend for
my stainless steel
• product?
Amana has a cleaner available for
purchase (Part #31960801) through our
Consumer Affairs division.
For this, or a list of other recommended
cleaning products, please contact us at
Amana Consumer Affairs using the
information on the cover of your Owner's
Manual.
How to Clean Your Unit
How do I remove an odor
from my refrigerator?_
I. Remove all food.
2. Disconnect refrigerator. "-_-_lJ _'_
3. Clean the following items
using the appropriate instructions in
How to Clean Your Unit :
• Walls, floor, and ceiling of cabinet
interior.
•Drawers, shelves, and gaskets
according to the instructions in this
section.
4. Pay special attention to clean all
crevices by completing the following
steps:
• Dilute mild detergent and brush
solution into crevices using a plastic
bristle brush.
• Let stand for 5 minutes.
• Rinse surfaces with warm water. Dry
surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers, and
jars. Discard spoiled or expired items.
6. Wrap or store odor-causing foods in
tightly-sealed containers to prevent
reoccurring odors.
7. Connect power to refrigerator and return
food to unit.
8. After 24 hours, check if odor has been
eliminated.
If odor is still present...
1. Remove drawers and place on top shelf
of refrigerator.
2. Pack refrigerator and freezer sections-
including doors-with crumpled sheets
of black and white newspaper.
3. Place charcoal briquettes randomly on
crumpled newspaper in both freezer and
refrigerator compartments.
4. Close doors and let stand 24M8 hours.
5. Repeat steps 5 through 7.
I WARNING I
To avoid electrical shock which can cause severe personal injury or death,
disconnect power to refrigerator before cleaning. After cleaning, connect power.
ICAUTION I
To avoid personal injury or property damage:
• Read and follow manufacturer's directions for all cleaning products.
•Do not place buckets, shelves, or accessories in dishwasher. Cracking or
warping of accessories may result
AREA
Textured Doors
and Extedor
Cabinet Intedor
Stainless Steel Doors
and Extedor
IMPORTANT:
Damage to sMinless steel
finish due to improper use
of cleaning products or
non-_ecommended
products is not covered
under any warranty
DoorGaskets
Condenser Coil Remove
toe grille to access
Condenser Fan OuUet
Gdlle
See back of refrigerator
Accessories Shelves,
buckets, drawers, etc
DO NOT USE
Abrasive or harsh cleaners
Ammonia
Chtodne bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scoudng pads
Vinegar-based product
Citrus-based cleaners
Abrasive or harsh cleaners
Metal or plastic-textured
scoudng pads
NIA
ADishwasher
DO.°.
Use 4tablespoons (60
milliliters) of baking soda
dissolved in 1 quart (1
liter) warm soapy water.
Rinse sudaces vdth clean
warm water and dry
immediately to avoid
water spots
Use warm, soapy water
and a soft, clean cloth or
sponge.
Rinse surfaces vdth clean
warm water and dry
immediately to avoid
water spots
Use avacuum cleaner
hose nozzle
Use a vacuum cleaner
hose nozzle With brush
attachment.
Follow removal and
installation instructions
from appropdate feature
section.
Allow items to adjust to
room temperature.
Dilute mild detergent and
use a soft clean cloth or
sponge for cleaning,
Use a plastic bristle brush
to get into crevices
Rinse surfaces _th clean
warm meter.
Dry glass and clear items
immediately to avoid
spots.
14
j-- Iints and Care
How to Remove and Replace Light Bulbs U
IWARNING I
To avoid electrical shock which can cause severe personal injuryor death,
disconnect power to refrigerator before replacing light bulb. After replacing light
bulb, connect power,
I CAUTION I
To avoid personal injury or property damage, observe the following:
•Allow lightbulb to cool.
•Wear gloves when replacing light bulb.
Fresh food section
1. Remove screw from light shield. Retain for
replacement.
1. Slide shield toward back of compartment to
release from light assembly.
2. Remove light bulbs.
3. Replace with appliance bulbs no greater than
40 watts,
4. Replace light bulb cover by inserting
tabs on light shield into liner holes on
each side of light assembly. Slide shield
toward front of unit until it locks into place,
DO NOT force shield beyond lockingpoint.
Doing so may damage light shield.
5. Replace screw removed in step 1.
,I_ o o %
Freezer section
1. Pinch rear tabs (,4) on light cover and pull straight
out.
2. Remove light bulb.
3. Replace bulb with appliance bulb no greater
than 40 watts.
4. Insert top tabs (£3)of lightcover into refrigerator
liner and snap back portion over lightassembly.
A
B
How to Get the
Most Out of
Your Energy
Dollar
•When placing refrigerator into final
position, allow for 1" clearance
around the top and sides of unit to
supply ample ventilation for
optimum energy efficiency.
•Avoid overcrowding refrigerator
shelves. This reduces effectivity of
air circulation around food and
causes refrigerator to mn longer.
•Avoid adding too much warm food
to unit at one time. This overloads
compartments and slows rate of
cooling.
•Do not use aluminum foil, wax
paper, or paper toweling as shelf
liners. This decreases air flow and
causes unit to run less efficiently.
•A freezer that is 2/3full runs most
efficiently.
•Locate refrigerator in coolest part of
room. Avoid areas of direct sunlight,
or near heating ducts, registers, or
other heat producing appliances. If
this is not possible, isolate exterior
by using a section of cabinet or an
added layer of insulation.
• Refer to owner's manual section on
temperature controls for
recommended control settings
•Clean door gaskets every three
months according to Owner's
Manual cleaning instructions. This
will assure that door seals properly
and unit runs efficiently.
•Take time to organize items in
refrigerator to reduce time that door
is open.
• Be sure your doors are closing
securely by leveling unit as
instructed in your Owner's Manual.
• Clean condenser coils of as
indicated in the owner's manual
every 3 months. This will increase
energy efficiency and cooling
performance.
15
NOISE )))_
Trouble Shooting
Today's refrigerators have ncw features and are more energy efficient. Foam insulation is very energy efficient and has
excellent insulating capabilities, however, foam insulation is not as sound absorbent. As a result, certain sounds may be
unfamiliar. In time, these sounds will become familiar. Please refer to this infomlation before ca[lir service.
TOPIC POSSIBLE CAUSE SOLUTION
Clicking Freezer control (A) clicks when starting or Normal operation
stopping compressor.
Defrost timer (B) sounds like an electric Normal operation
clock and snaps in and out of defrost
cycle.
Air rushing or Freezer fan (C) and condenser fan (D) Normal operation
whirring make this noise while operating.
Gurgling or Evaporator (E) and heat exchanger (F) Normal operation
boiling sound refrigerant makes this noise when flowing.
Thumping Ice cubes from ice maker(some models) Normal operation
drop into ice bucket (G).
Vibrating noise Compressor (H).makes a pulsating sound Normal operation
while running.
Refrigerator is not level. See Installation
Instructionsfor details on
how to level your unit.
Buzzing Ice maker water valve (I) hookup (some Normal operation
models) buzzes when ice maker fillswith
water.
Humming Ice maker (J) is in the 'on' positionwithout Stop sound by raising ice
water connection, maker arm to 'off petition.
See Automatic Ice Maker
section inyour owner's
manual for details.
Compresser (H).can make a high pitched Normal operation
hum while operating.
Hissing or Defrost beater(K) hisses, sizzles, or pops Normal operation
popping when operational,
()OO
OPERATION
Freezer control Refdgerator is in defrost mode. Normal operation Wait 40 minutes to see if refrigerator
and lights are on, restarts.
but compressor
Is not operating.
Crisper drawer Control settings are too low.
temperature is Freezer controls are set too low.
tOO warm
Refrigerator does
not operate
Refrigerator still
won't operate
Food temperature
Is too cold
Drawer is improperly positioned.
Refrigerator is not plugged in.
Freezer control is not on.
Fuse is blown, or circuit breaker needs
to be reset.
Power outage has occurred
Unit is malfunctioning.
Condenser coilsare dirty.
Refrigerator or freezer controls are set
toohigh.
See section on Cdsper drawer to adjust controls.
See controlssection inowner's manual on how to adjust
your controls.
See section on Crisper drawer to verify drawer positioning.
Plug in unit.
See section on controlsin your owner's manual.
Replace any blown fuses. Check circuitbreaker and reset if
necessary.
Call local power company listingto report outage.
Unplug refrigerator and transferfood to another unit. If
another unit is not available, place dry ice in freezer section
to preserve food, Warranty does not cover food loss.
Contact service for assistance.
Clean according to cleaning instructions in your owner's
manual.
See controls section inowner's manual on how to adjust
,our controls.
16
Trouble Shooting
OPERATION_
TOPIC
Food temperature
appears too warm
Refrigerator has an odor
Water droplets form on
outside of refrigerator
Water droplets form on
inside of refrigerator
POSSIBLE CAUSE
Door is not closing properly.
Controls need to be adjusted.
Condenser coils are dirty.
Rear air gdlle is blocked.
Door has been opened frequently, or
has been opened for long bededs of
time.
Food has recently been added.
Compartment is dirty or has edor-
causing food.
Check gaskets for proper seal.
Humidity levels are high.
Controls require adjustment
Humidity levels are high or door has
been opened frequently.
Check gaskets for proper seal.
SOLUTION
Refrigerator is not level. See How to Level Your Refrigerator for
details on how to level your unit,
Check gaskets for proper seal. Clean, if necessary, according to
cleaning instructions in owner's manual
Check for internal obstructions that are keeping door from
closing property (i.e, improperly closed drawers, ice buckets,
oversized or impropedy stored containers or foodstuffs, etc.).
Refrigerator or ice maker Normal operation
make unfamiliar sounds or
seems too loud
Crisper drawers do not Repesition food items and containers to avoid interference with
close freely the drawers.
Contents of drawer, or positioningof
items in the surroundingcompartment
could be obstructingdrawer
Drawer is not in proper position
Refrigerator is not level.
Drawer channels are dirty or need
treatment.
Doors have been opened frequently or
have been opened for long pededs of
time.
Refrigerator runs too
frequently
See the controls section in your for assistance in how to adjust
your controls.
Clean according to cleaning instructionsin your owner's manual.
Check the positioning of food items in refrigerator to make sure
grille is not blocked. Rear air grilles are located under crisper
drawers.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Allow intebor environment to adjust for peded the door has been
open.
Allow time for recently-added food to reach refrigerator or
freezer temperature.
Refer to Hints and Care in this owner's manual for odor removal
instructions.
Clean, if necessary, according to cleaning instructions in
owner's manual.
Normal dudng times of high humidity.
See the controls section in your Owner's Manual for assistance
in how to adjust your controls.
See the controls section in your Owner's Manual for assistance
in how to adjust your controls.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Clean, if necessary, according to cleaning instructions in
owner's manual.
Refer to noise section of troubleshooting guide in owner's
manual.
See section Crisper drawer section for proper placement.
See How to Level Your Refrigeratorfor details on how to level
your unit.
Clean drawer channels with warm, soapy water. Rinse and dry
thoroughly.
Apply a thin layer of petroleum jelly to drawer channels.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Allow intedor environmentto adjust for peded the door has been
open.
Normal operationHumidityor heat in surroundingarea is
high.
Food has recently been added. Allow time for recently-added food to reach refrigerator or
freezer temperature.
Unit is exposed to heat by Evaluate your unit's environment. Unit may need to be moved to
environment or by appliances nearby, run more efficiently.
Condenser coils are dirty. Clean according to cleaning instructions in your owner's
manual.
17
Trouble Shooting
OPERATION_ (continued)
TOPIC POSSIBLE CAUSE SOLUTION
Refrigerator runs too Controls need to be adjusted.
frequently (continued) Door is not closing properly.
ICE
See controls section in your Owner's Manual for assistance
in how to adjust your controls.
Refrigerator is not level, See How to Level Your
Re#igeratorfor details on how to level your unit.
Check gaskets for proper seal. Clean, if necessary,
according to cleaning instructionsin owner's manual.
Check for internal obstructions that are keeping door from
closing propedy (i.e. impropedy closed drawers, ice
buckets, oversized or improperly stored containers or
, foodstuffs, etc.).
Unit is leaking water
Ice forms in inlet tube to ice
maker
Water flow is slower than
normal
Plastic tubing was used to complete water
connection.
Improper water valve was installed.
Amana recommends using copper tubing for installation.
Plastic is less durable and can cause leakage. Amana Is
not responsible for property damage due to improper
installaUon or water connection.
Check water connection procedure in your Installation
Instructions. Self-piercing and 3/1s"saddle valves cause low
water pressure and may clog the line over time, Amana is
not responsible for property damage due to improper
installation or water connection.
Water pressure is low. Water pressure must be between 20 to 100 pounds per
square inch to function propedy. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Freezer temperature is too high. See the controls section in your owner's manual for
assistance on how to adjust your controls. Freezer is
recommended to be between 0 to 2=F (-18 to -17°C).
Water pressure is low. Water pressure must be between 20 to 100 pounds per
square inch to function propedy. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Improper water valve was installed. Check water connection procedure in your Installation
Instructions. Self-piercing and 3/16" saddle valves cause low
water pressure and may clog the line over time, Amana is
not responsible for property damage due to Improper
installation or water connection,
18

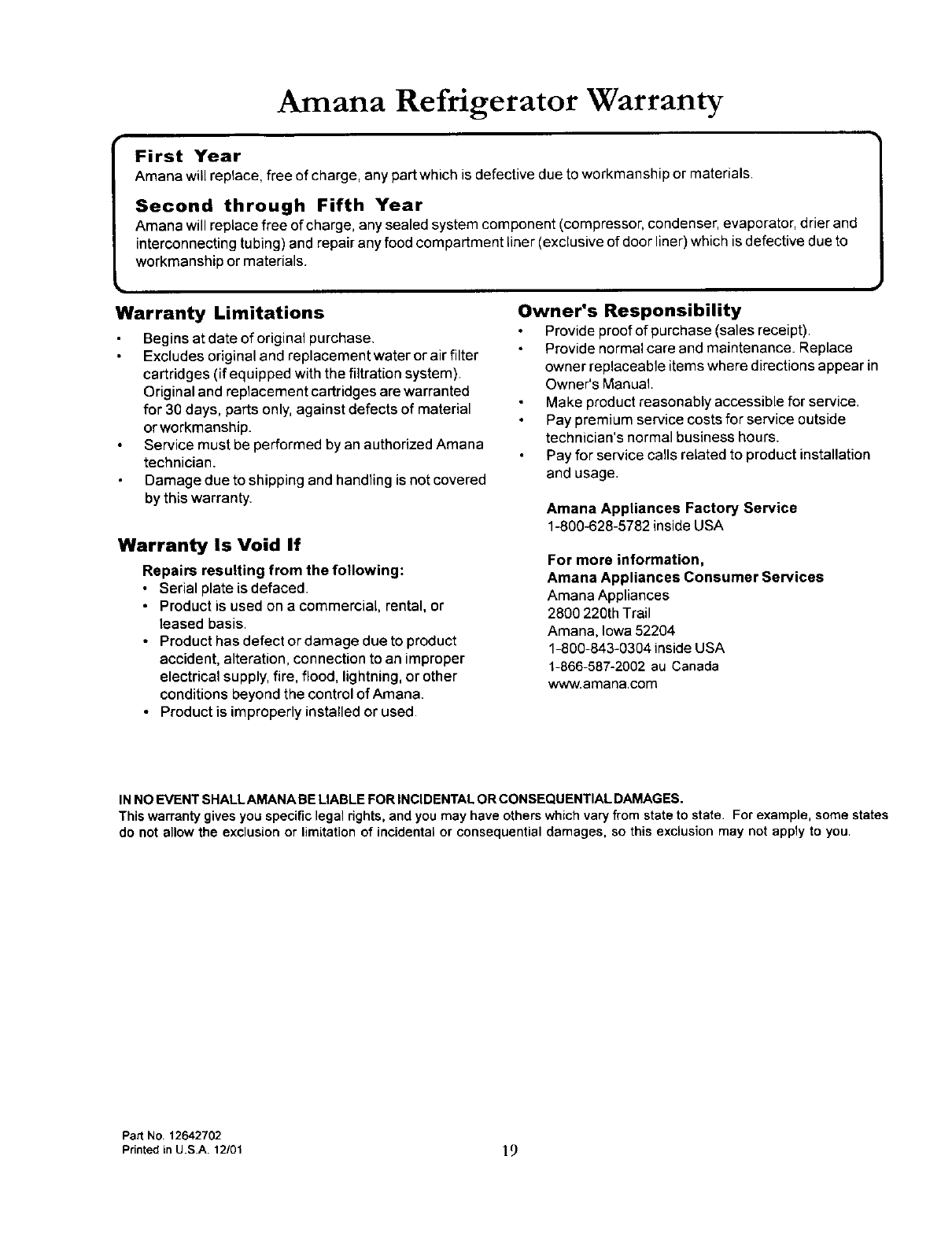

Amana Refrigerator Warranty
First Year
Amana will replace, free of charge, any part which is defective due to workmanship or materials.
Second through Fifth Year
Amana will replace free of charge, any sealed system component (compressor, condenser, evaporator, drier and
interconnecting tubing) and repair any food compartment liner (exclusive of door liner) which is defective due to
workmanship or materials.
Warranty Limitations
Begins at date of original purchase,
Excludes original and replacement water or air filter
cartridges (if equipped with the filtration system).
Original and replacement cartridges are warranted
for 30 days, parts only, against defects of material
or workmanship.
Service must be performed by an authorized Amana
technician.
Damage due to shipping and handling is not covered
by this warranty.
Warranty Is Void If
Repairs resulting from the following:
• Serial plate is defaced.
• Product is used on acommercial, rental, or
leased basis.
• Product has defect or damage due to product
accident, alteration, connection to an improper
electrical supply, fire, flood, lightning, or other
conditions beyond the control of Amana.
• Product is improperly installed or used.
Owner's Responsibility
Provide proof of purchase(sales receipt).
Provide normal care and maintenance. Replace
owner replaceable items where directions appear in
Owner's Manual.
Make product reasonably accessible for service.
Pay premium service costs for service outside
technician's normal business hours.
Pay for service calls related to product installation
and usage.
Amana Appliances Factory Service
1-800-628-5782 inside USA
For more information,
Amana Appliances Consumer Services
Amana Appliances
2800 220th Trail
Amana, Iowa 52204
1-800-843-0304 inside USA
1-866-587-2002 au Canada
www.amana.com
IN NO EVENT SHALLAMANA BE LIABLE FOR INCIDENTAL ORCONSEQUENTIAL DAMAGES.
This warranty gives you specific legal rights,and you may have others which vary fromstate to state, For example, some states
do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion may not apply to you.
part No. 12642702
Printed in U.S.A. 12/01 19

Navigation menu
