This manual is to be used by qualified appliance technicians only.
RP4210032
Revision 2
November 2004
`
PTC*A* Ultra EER Series Package
Terminal Air Conditioner
This manual replaces RP4210032 rev. 1.
Amana is a trademark of Maytag Corporation and used under
license to Goodman Company, L.P. All rights reserved.
Service Parts
Copyright © 2004 Goodman Company, L.P.
Models and manufacturing
numbers in this manual
P1259912RPTC073B00AJ
P1259916RPTC073B15AJ
P1259909RPTC073B25AJ
P1248853RPTC073B35AF
P1259901RPTC073B35AJ
P1248854RPTC074B35AF
P1259913RPTC093B00AJ
P1259910RPTC093B25AJ
P1259902RPTC093B35AJ
P1259917RPTC093B50AJ
P1259914RPTC123B00AJ
P1259920RPTC123B25AJ
P1259903RPTC123B35AJ
P1259921RPTC123B50AJ
P1259915RPTC153B00AJ
P1259924RPTC153B25AJ
P1259907RPTC153B35AJ
P1259925RPTC153B50AJ
Important Information
Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized
technician and using authorized factory parts.
For assistance within the U.S.A. contact:
Consumer Affairs Department
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
2Copyright © 2004 Goodman Company, L.P. RP4210032 2Rev.
Index
Functional Parts List
Revision 2: Adds models with new LCD power cord; MFG # P1259901R, P1259902R, P1259903R,
P1259907R, P1259909R, P1259910R, ,P1259912R, P1259913R, P1259914R, P1259915R, P1259916R,
P1259917R, P1259920R, P1259921R, P1259924R, P1259925R.
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
6 - 19
4 - 5
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1 P__________
M2 - Model#2 P__________
M3 - Model#3 P__________
Expanded Model Nomenclature:
3RP4210032 2Rev.
Functional Parts
Part
No: Description:
20403508
BASEPAN
D6789051
CAPACITOR (M5, M11, M15, M16)
D6789049
CAPACITOR-POLY (M6, M12, M17, M18)
D6789054
CAPACITOR-ROUND (M1)
D6789063
CAPACITOR-ROUND (M2)
D6789054
CAPACITOR-ROUND (M3, M4, M7, M8, M9, M10, M13, M14)
D6926123
D6985807
COMPRESSOR 2P17S3R236A (M5, M11, M15, M16)
D6887711
COMPRESSOR 2R13S3R236A (M4, M8, M10, M14)
D6887715
COMPRESSOR 2R9U236A6A (M1, M3, M7, M9, M13)
D6887716
COMPRESSOR 2R9U276A6A (M2)
20456602BND
CONDENSOR ASSY (M5, M6, M7, M8, M11, M12, M13, M14, M15, M16, M17, M18)
20456603BND
CONDENSOR ASSY (M1, M2, M4, M10)
20466202BND
CONDENSOR ASSY (M3, M9)
20284915
DRIER FILTER (M1, M2, M3, M7, M9, M13)
20284917
DRIER FILTER (M5, M11, M15, M16)
20284916
DRIER FILTER (M4, M8, M10, M14)
20284918
DRIER FILTER (M6, M12, M17, M18)
20456702
EVAPORATOR ASSY
20457202
EVAPORATOR ASSY (M1, M2, M4, M8, M10, M14)
20473902
EVAPORATOR ASSY (M3, M7, M9, M13)
20414601
FAN-PL. COND.
A3410403
FUSE 20A (M2)
11116201
HTR 3 1.5KW ASSY (M13)
20517901
HTR 3 2.5KW ASSY (M7, M8, M15, M17)
20460613
HTR 3 3.5 KW ASSY (M1)
20517902
HTR 3 3.5KW ASSY (M1, M3, M4, M5, M6)
20517903
HTR 3 5.0KW ASSY (M14, M16, M18)
20460608
HTR 4 3.7 KW ASSY (M2)
20295706
INDOOR AMBIENT THERMISTOR (M1, M2)
11114909
MOTOR-FAN (M5, M6, M11, M12, M14, M15, M16, M17, M18)
11114908
MOTOR-FAN (M2)
11114907
MOTOR-FAN (M1, M3, M4, M7, M8, M9, M10, M13)
20475301
PC BOARD (M1, M2)
20475302
PC BOARD
20356702
SCROLL-BLOWER
20295707
THERMISTOR
20295706
THERMISTOR
11172101
TRANSFORMER (M2)
B1378501
TRANSFORMER (M1, M3, M4, M5, M6, M7, M8, M9, M10, M11, M12, M13, M14, M15, M16, M17, M18)
11044101
WHEEL, BLOWER
4RP4210032 2Rev.
Functional Parts
Part
No: Description:
SPECIAL PARTS
RP4210032
MANUAL PARTS
RS4900003
MANUAL SERVICE
11113309
MANUAL-OWNERS
11046402
WARRANTY
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
5RP4210032 2Rev.

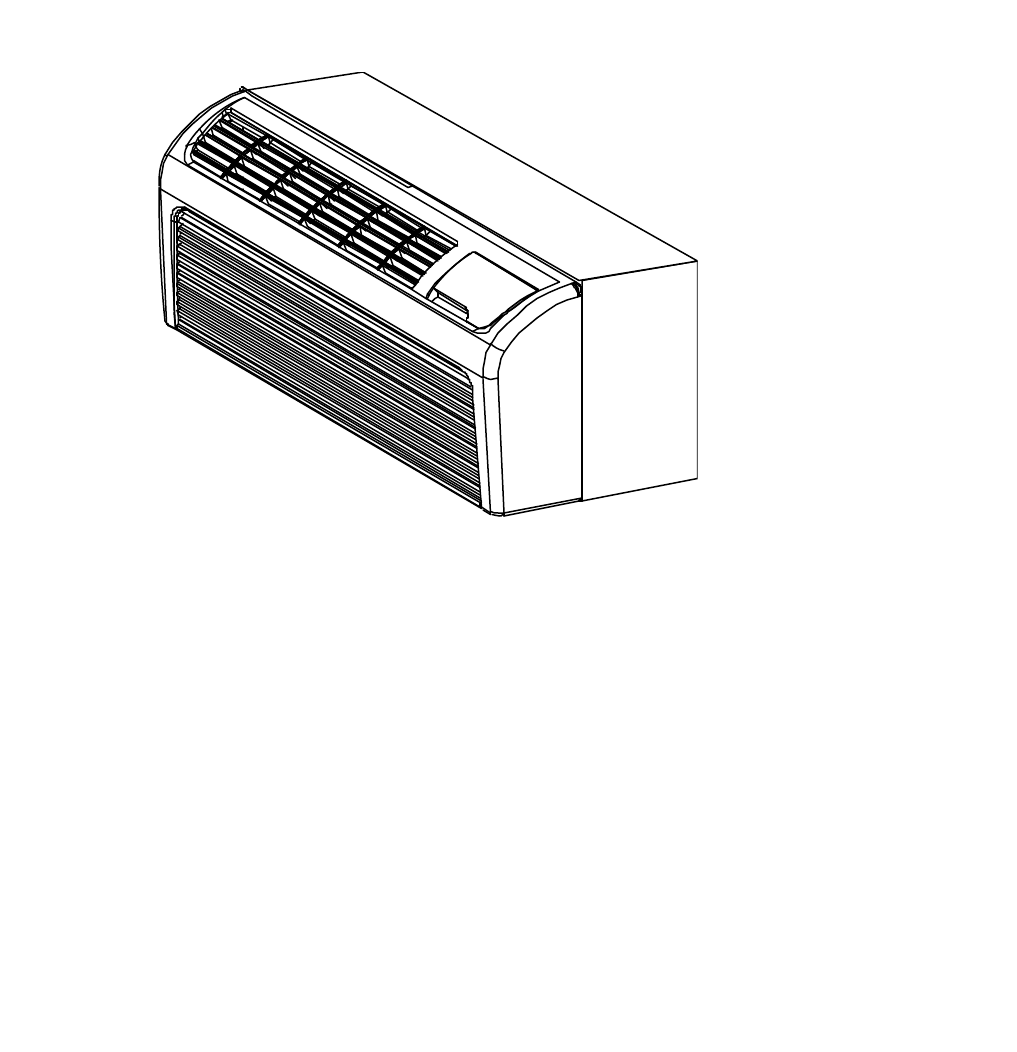

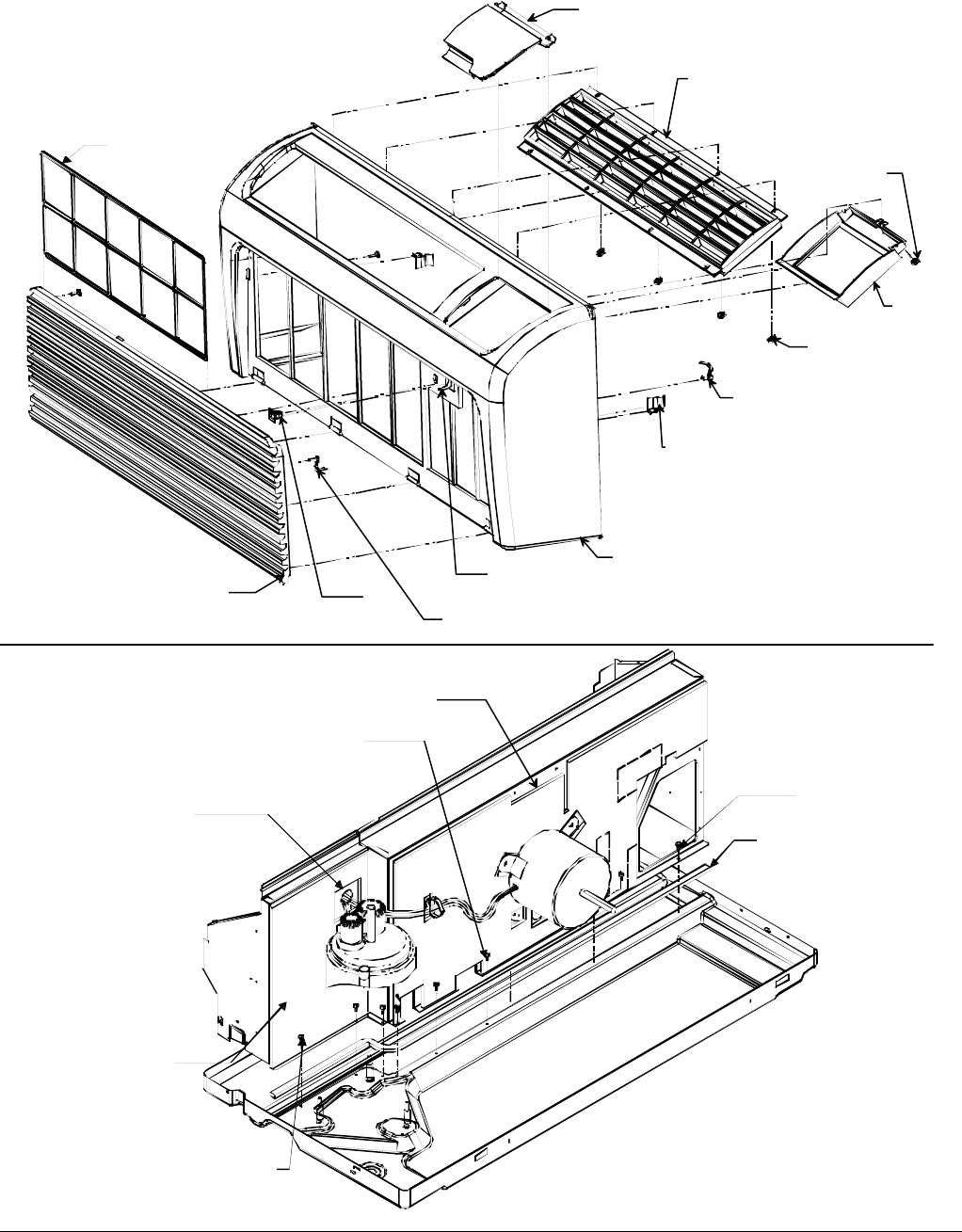

Front/Chassis
61
41
31
11
111
71
21
81
111
91
51
91
111
Image 1
Image 2
682
1302
92
662
92
82
1332
6RP4210032 2Rev.
Front/Chassis
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
FRONT
20415203
11
GRILLE-INTAKE
20415402
21
GRILLE-EXHAUST
20415301
31
DOOR ASSY-AMANA
20415901
41
HOUSING,CONTROL
20415601
51
FILTER
20415801
61
DOOR CATCH ASSY
10690002
71
CLIP-SIDE (QTY 2)
11045102
81
PALNUT (QTY 5)
M0293604
91
RESTRAINT-INLET GRIL (QTY 2)
20480501
111
Image 2:
SCREW (QTY AR)
M0211216
82
SCREW (QTY AR)
M0216716
92
GASKET-.12X.50X43
10839828
662
SEALER (QTY 2)
M0275521
682
INSULAT.
20417402
1302
INSUL-PART PAN (M1, M2)
11122901
1332
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
7RP4210032 2Rev.

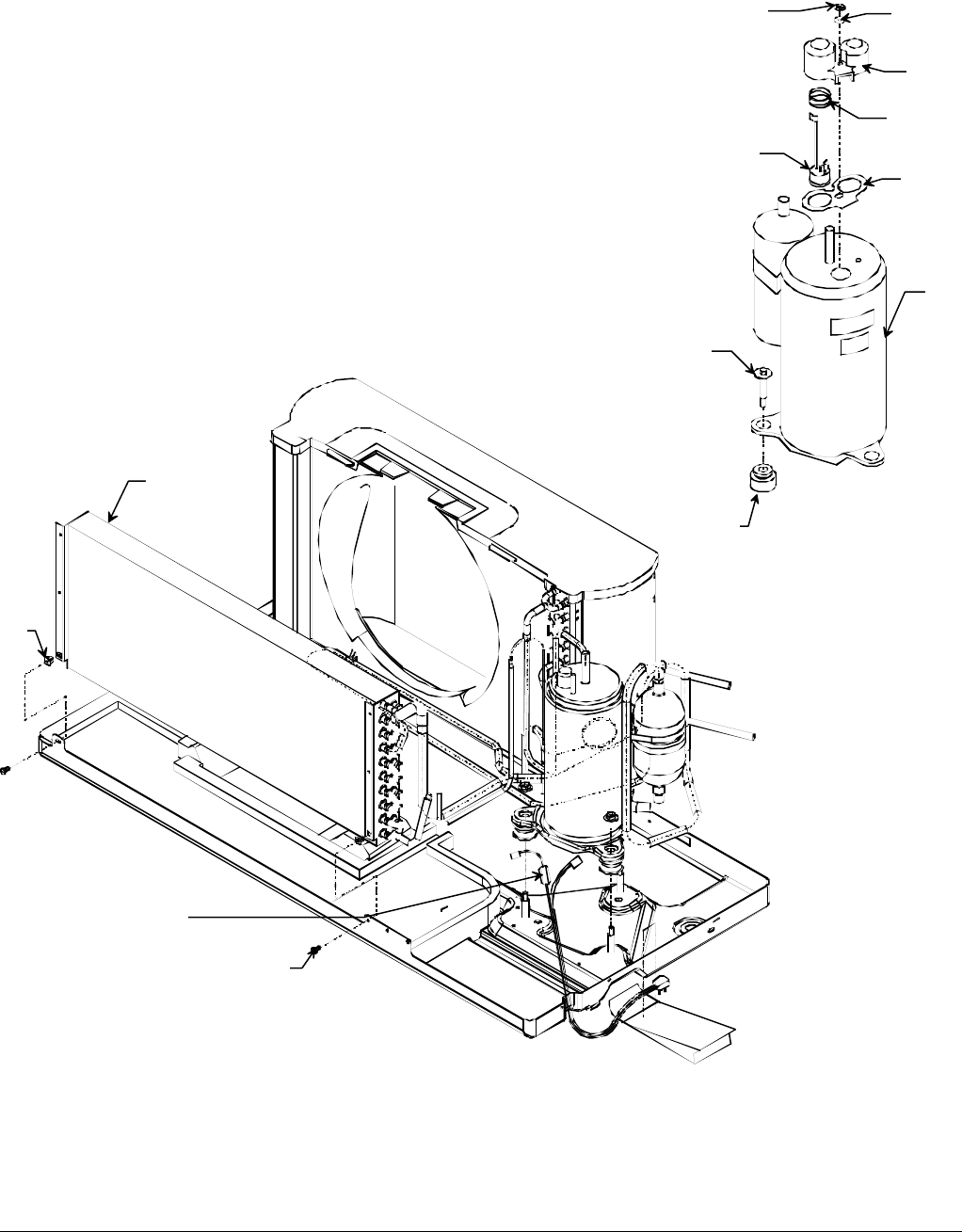

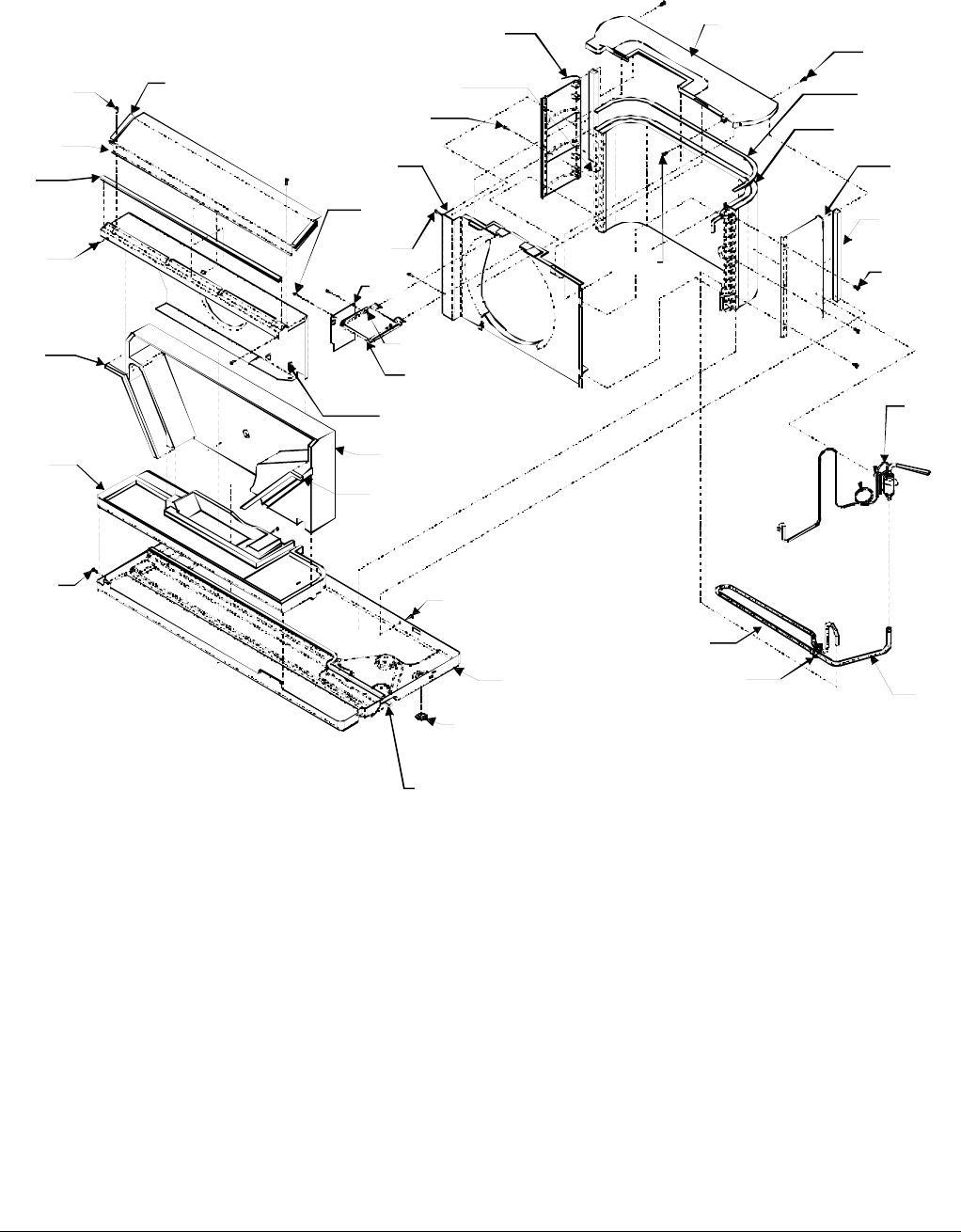

Chassis
1531
1541
1491
1551
1561
811
1501
101
1481
1561
1511
1561
1501
1561
1541
291
1561
331
81
301
81
1071
231
641
611
601
641
91
1061
1061
51
1561
41
221
651
91
8RP4210032 2Rev.
Chassis
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
BASEPAN
20403508
41
PAD-EVAP
20403802
51
SCREW (QTY AR)
M0211216
81
SCREW (QTY AR)
M0216716
91
CONDENSOR ASSY (M5, M6, M7, M8, M11, M12, M13,
M14, M15, M16, M17, M18)
20456602BND
101
CONDENSOR ASSY (M1, M2, M4, M10)
20456603BND
101
CONDENSOR ASSY (M3, M9)
20466202BND
101
PLUG-BUTTON (M1, M2)
A3080003
221
PLUG-BUTTON (M3, M4, M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17, M18)
M0570805
221
SCROLL-BLOWER
20356702
231
SHROUD-COND
20401301
291
BRACE-TIE
11044201
301
BAFFLE-TOP
20417702
331
SCREEN-PNT DISCH
11123910
601
SCREW-SM STL ZINC (QTY 2)
M0204517
611
GASKET .50X.25 (QTY 5)
20455902
641
GASKET-.37X.50 (QTY 5)
10839808
651
GASKET .62X.75 (QTY 2)
20455901
811
GASKET .50X.50 (QTY 2)
10839706
1061
CLIP-GUIDE
M0120801
1071
GASKET-.12X.50 (QTY 2)
10839812
1481
TUBE-SUBCOOLER (M1, M2, M4, M5, M6, M8, M10,
M11, M12, M14, M15, M16, M17, M18)
20453901
1491
SIDE COVER-COND (QTY 2)
20357001
1501
TOP COVER-COND
20396701
1511
SPLIT TUBING (M1, M2, M4, M5, M6, M8, M10, M11,
M12, M14, M15, M16, M17, M18)
20477802
1531
TIE (QTY AR)
M0321202
1541
WIRE TIE
M0322201
1551
SCREW 5/8" (QTY AR)
M0211018
1561
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
9RP4210032 2Rev.

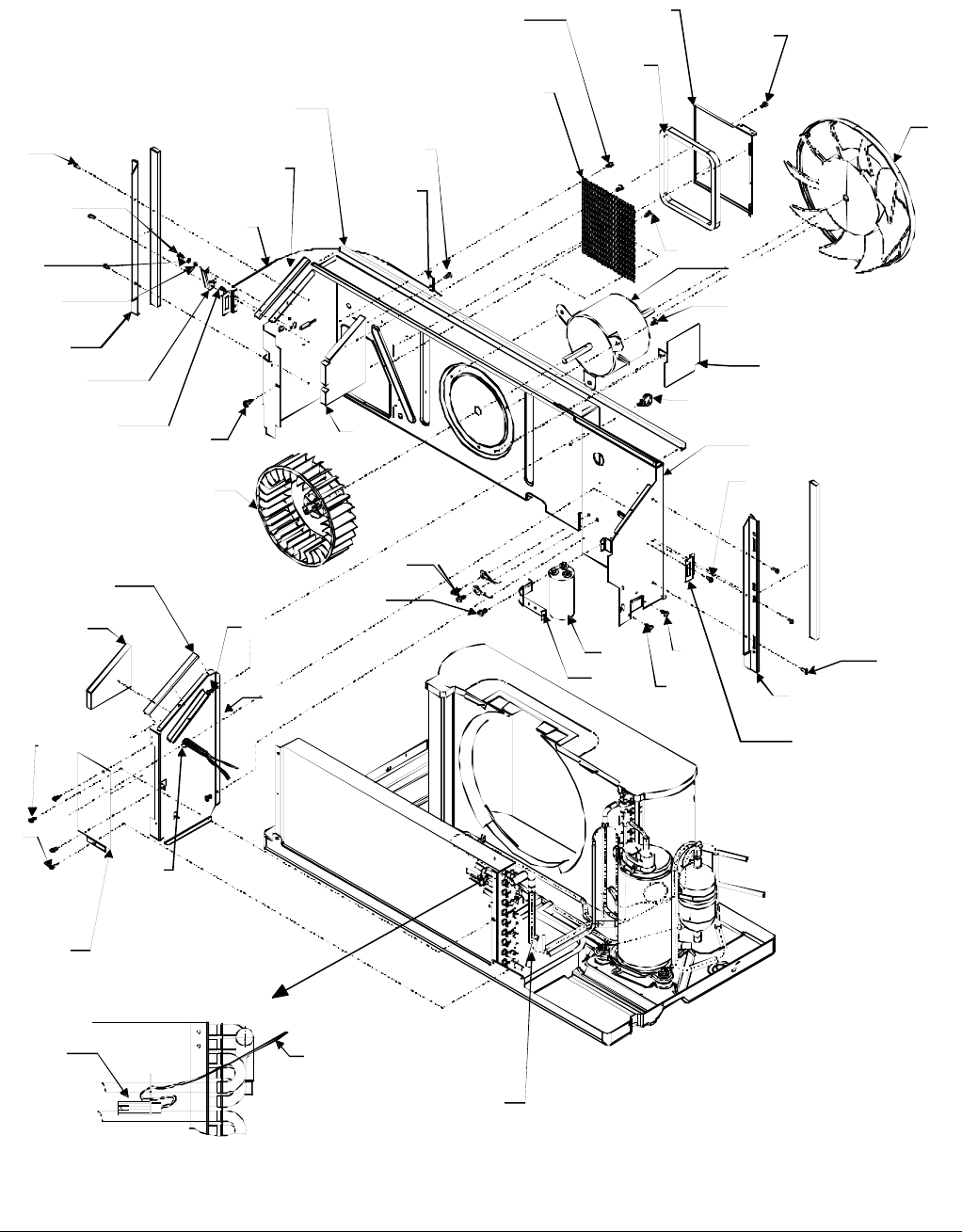

Chassis
91
561
571
91
241
341
321
271
261
91
91
491
501
91
441
731
251
91
91
91
741
641
311
81
1411
1051
1401
431
1411
81
511
551
781
801
771
91 641
521
1241
1011
81
531
541
81
81
1321
651
281
10RP4210032 2Rev.
Chassis
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
SCREW (QTY AR)
M0211216
81
SCREW (QTY AR)
M0216716
91
PANEL-PTN PNT (M1, M2)
20403104
241
PANEL-PTN PNT (M3, M4, M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17, M18)
20403105
241
PANEL-MID PTN
20403302
251
MOTOR-FAN (M1, M3, M4, M7, M8, M9, M10, M13)
11114907
261
MOTOR-FAN (M2)
11114908
261
MOTOR-FAN (M5, M6, M11, M12, M14, M15, M16, M17,
M18)
11114909
261
SCREW, TAP (QTY 3)
M0224956
271
FAN-PL. COND.
20414601
281
WHEEL, BLOWER
11044101
311
BAFFLE-COND INLT (M1, M2)
20480901
321
BAFFLE-COND INLT (M3, M4, M5, M6, M7, M8, M9,
M10, M11, M12, M13, M14, M15, M16, M17, M18)
20480902
321
CLIP-GUIDE
M0118702
341
CLIP-T'STAT (M1, M2)
20075601
431
SCREW (QTY 2)
M0227803
441
CAPACITOR (M5, M11, M15, M16)
D6789051
491
CAPACITOR-POLY (M6, M12, M17, M18)
D6789049
491
CAPACITOR-ROUND (M3, M4, M7, M8, M9, M10, M13,
M14)
D6789054
491
CAPACITOR-ROUND (M1)
D6789054
491
CAPACITOR-ROUND (M2)
D6789063
491
CAPACITOR STRAP
C6300502
501
LEVER ARM
11046302
511
CABLE
11115401
521
SHIELD-PROTECTION
20304003
531
DOOR-VENT
11046105
541
LFT SD SEAL
20416201
551
LFT SD SEAL
20416101
561
BRKT-PART PAN (QTY 2)
11191703
571
GASKET (QTY 5)
20455902
641
GASKET, FOAM (QTY 5)
10839808
651
INSUL-LEFT
11122901
731
INSUL-RIGHT
11123001
741
SCREW, SHOULDER
M0220757
771
WASHER-SPRING
M0273701
781
WASHER
M0270529
801
CLAMP-TUBE
M0108103
1011
COVER-ACCESS
20410801
1051
GASKET-.37X.75 (QTY 3)
10839807
1241
SCREW SHOULDER
M0238833
1321
THERMISTOR
20295706
1401
THERMISTOR
20295707
1411
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
11 RP4210032 2Rev.
Compressor/Tubing
151 181
131
141
171
161
111
121
191
81
1421
71
61
12RP4210032 2Rev.
Compressor/Tubing
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
EVAPORATOR ASSY
20456702
61
EVAPORATOR ASSY (M1, M2, M4, M8, M10, M14)
20457202
61
EVAPORATOR ASSY (M3, M7, M9, M13)
20473902
61
GROMMET (QTY 2)
A3315701
71
SCREW (QTY AR)
M0211216
81
COMPRESSOR 2K21T236 (M6, M12, M17, M18)
D6926123
111
COMPRESSOR 2P17S3R236A (M5, M11, M15, M16)
D6985807
111
COMPRESSOR 2R13S3R236A (M4, M8, M10, M14)
D6887711
111
COMPRESSOR 2R9U236A6A (M1, M3, M7, M9, M13)
D6887715
111
COMPRESSOR 2R9U276A6A (M2)
D6887716
111
GROMMET (M5, M6, M11, M12, M15, M16, M17, M18)
A3448602
121
GROMMET (M1, M2, M3, M4, M7, M8, M9, M10, M13,
M14)
A4622801
121
SPRING, OVERLOAD (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M13, M14, M15, M16)
A3436901
131
COVER-TERM
10329001
141
OVERLOAD (M5, M11, M15, M16)
D6961612
151
OVERLOAD (M1, M3, M7, M9, M13)
D6961636
151
OVERLOAD (M2)
D6961637
151
OVERLOAD (M4, M8, M10, M14)
D6961639
151
NUT-TERM COVER
A3436601
161
GASKET, NUT
A3436801
171
GASKET-TERM COVER
A3436701
181
SCREW-SHLDR (M5, M6, M11, M12, M15, M16, M17,
M18)
M0253610
191
SCREW-SHLDR (M1, M2, M3, M4, M7, M8, M9, M10,
M13, M14)
M0253661
191
CLAMP ON FERRITE (M1, M2)
20320702
1421
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
13 RP4210032 2Rev.

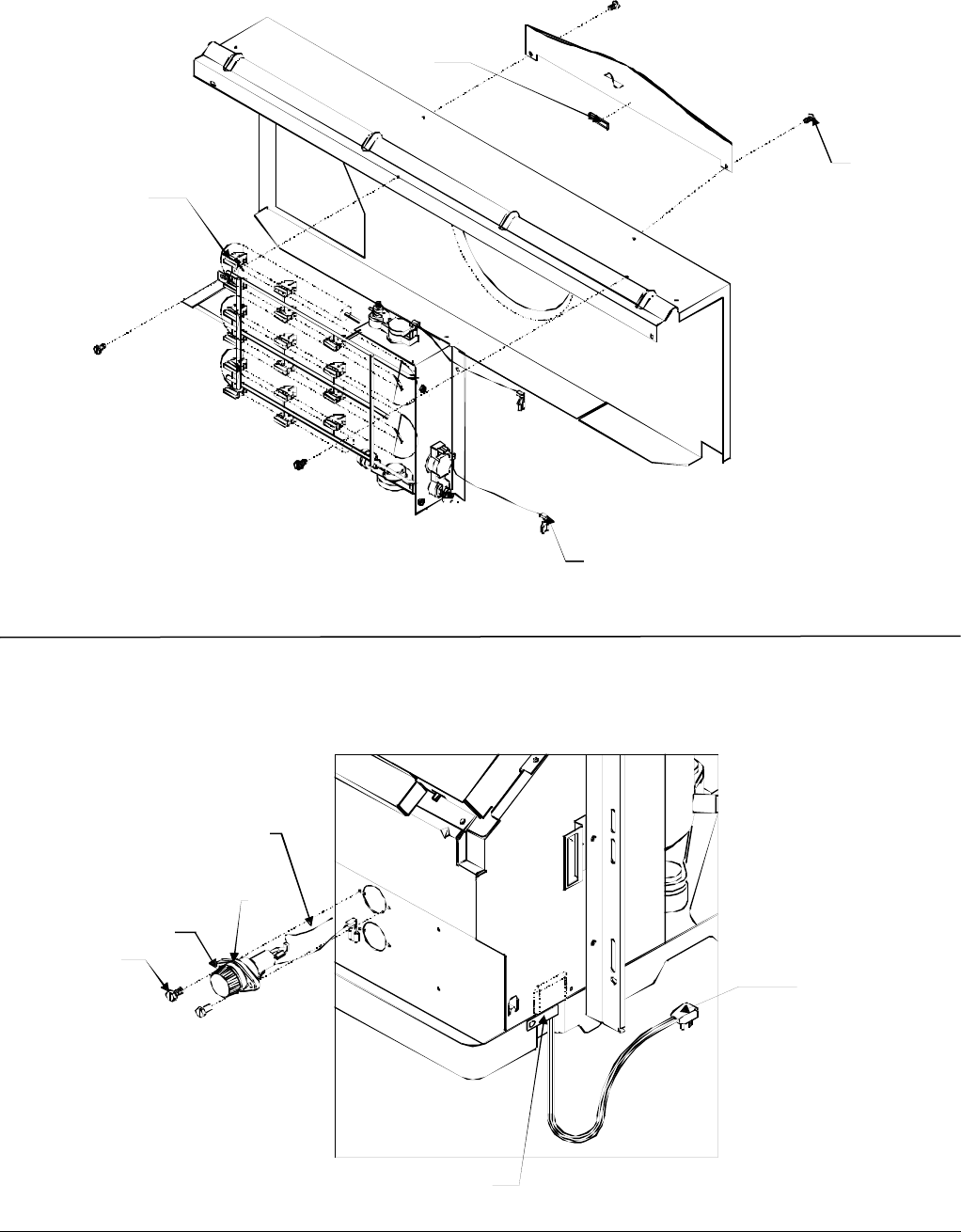

heater Assembly/Fuse/Power Cord
Image 1
Image 2
12
102
SINGLE STAGE HEAT
151
141
21
82
72
62
31
92
14RP4210032 2Rev.
heater Assembly/Fuse/Power Cord
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
HTR 3 1.5KW ASSY (M13)
11116201
21
HTR 3 2.5KW ASSY (M7, M8, M15, M17)
20517901
21
HTR 3 3.5KW ASSY (M1, M3, M4, M5, M6)
20517902
21
HTR 3 5.0KW ASSY (M14, M16, M18)
20517903
21
HTR 4 3.7 KW ASSY (M2)
20460608
21
BR34 WIRE (M1, M2, M3, M4, M5, M6, M7, M8, M13,
M14, M15, M16, M17, M18)
20260805
31
CLAMP-SPEED (M7, M8, M9, M10, M11, M12, M13,
M15, M17)
M0103905
101
GASKET .25X.06
10839722
141
SCREW (QTY 2)
M0216716
151
Image 2:
CORD-230V 15AMP (M7, M8, M9, M10, M11, M12, M13,
M15, M16)
22309901
12
CORD-230V 20AMP (M3, M4, M5, M6)
22309902
12
CORD-230V 30AMP (M14, M16, M18)
22309903
12
CORD-250V 20A (M1)
11114501
12
CORD-277V-20A (M2)
11114701
12
HOLDER-BAYONET FUSE (M2)
C6476002
62
FUSE 20A (M2)
A3410403
72
SCREW (M2)
M0213817
82
WIRE BK18 (M2)
10618850
92
CLAMP-SPEED (M1, M2, M3, M4, M5, M6, M14, M16,
M18)
M0103906
102
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
15 RP4210032 2Rev.

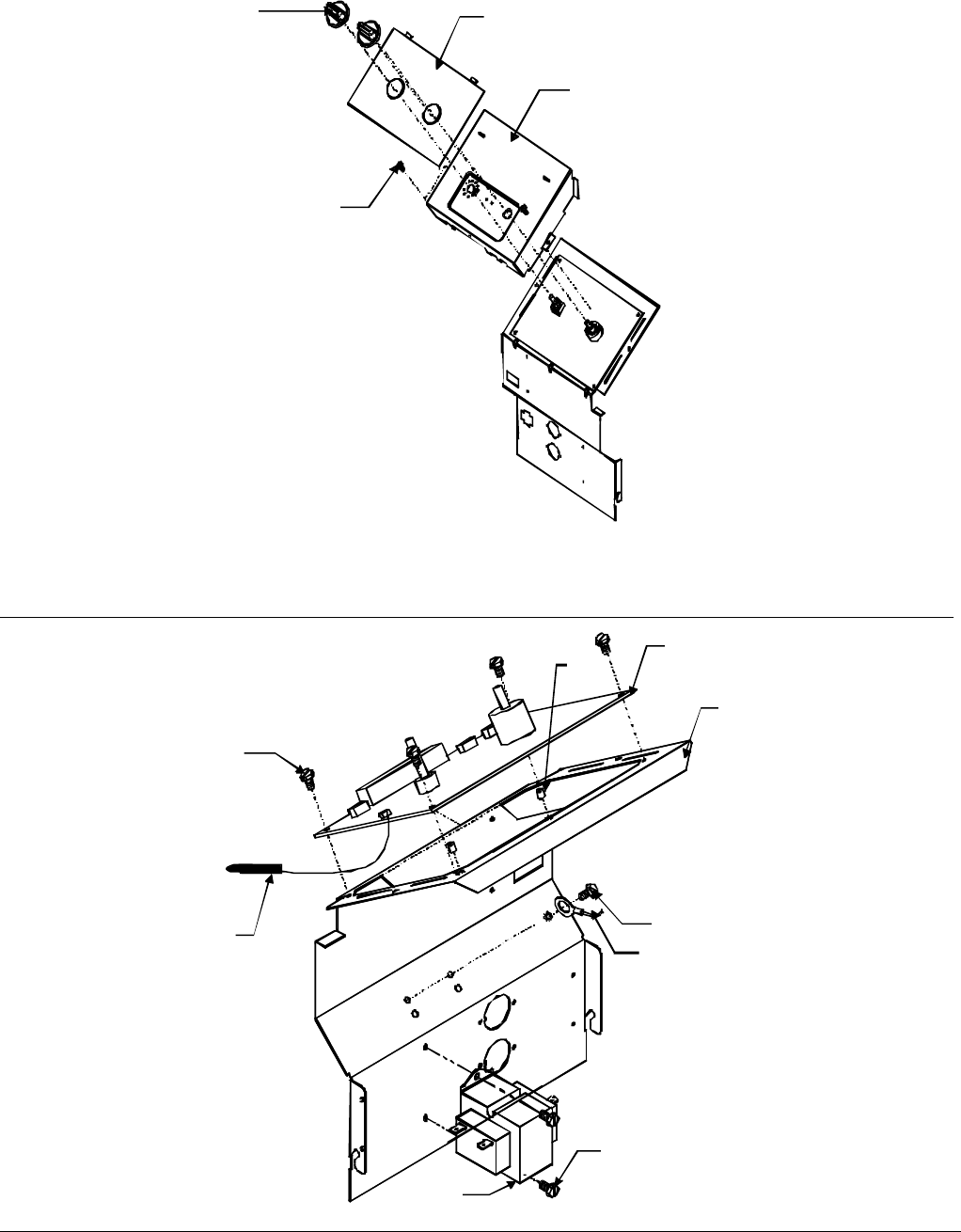

Control Panel
Image 1
Image 2
592
32
52
62
12
42 22
1091
481 471
451
122
112
16RP4210032 2Rev.
Control Panel
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
PANL. COVER
11044404
451
PLATE-ESC
20480702
471
KNOB-CONTROL (QTY 2)
11042903
481
SCREW-SM (QTY 2)
M0216529
1091
Image 2:
PANEL-CONTROL
11044505
12
PC BOARD
20475302
22
SCREW-SM (QTY 4)
M0216529
32
SUPPORT (QTY 2)
M0590702
42
WIRE, JUMPER (GN1)
10618849
52
SCREW
M0227803
62
TRANSFORMER (M2)
11172101
112
TRANSFORMER (M1, M3, M4, M5, M6, M7, M8, M9,
M10, M11, M12, M13, M14, M15, M16, M17, M18)
B1378501
112
SCREW-SM (QTY 2)
M0216716
122
INDOOR AMBIENT THERMISTOR (M1, M2)
20295706
592
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
17 RP4210032 2Rev.

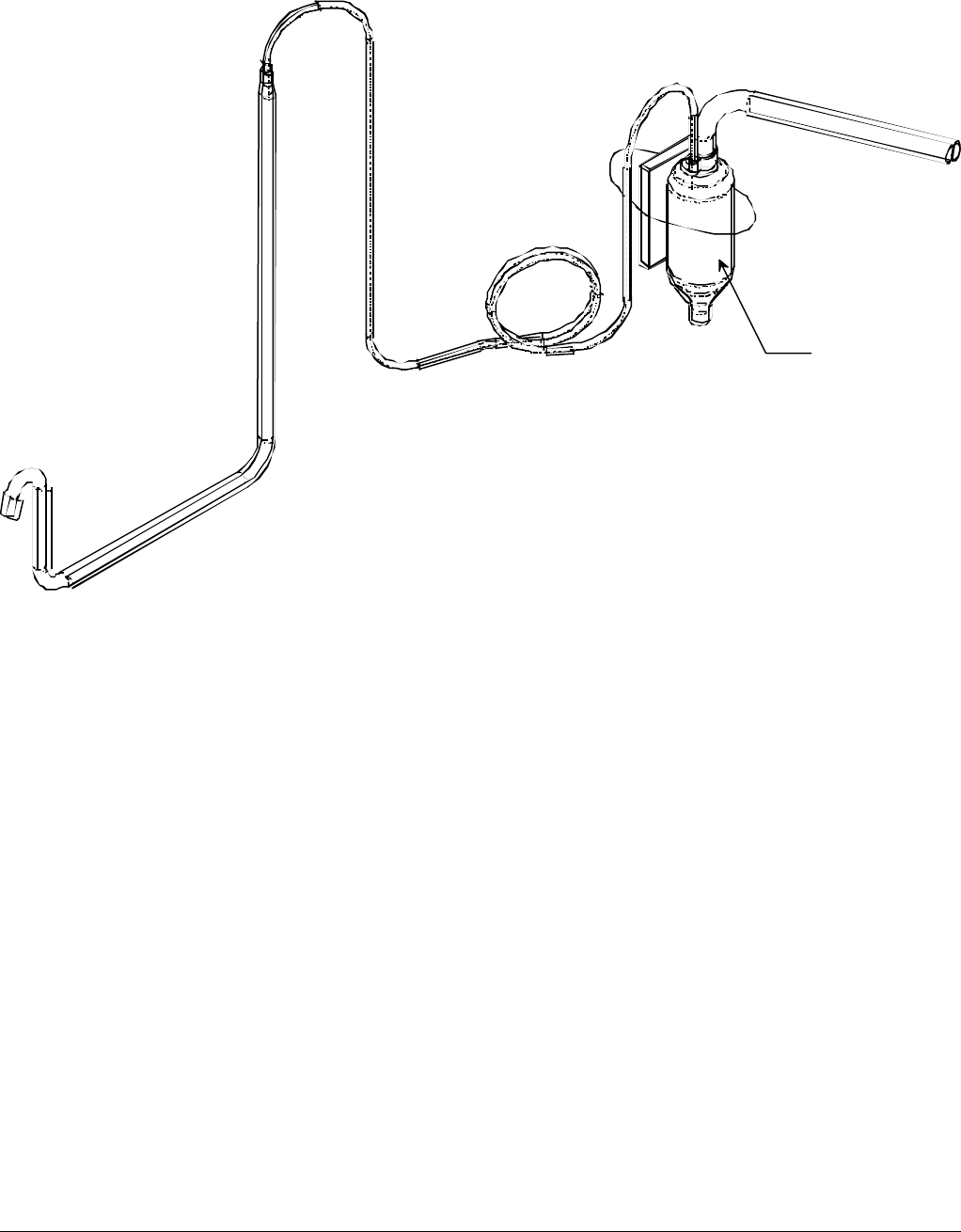

Filter Drier Assembly
211
18RP4210032 2Rev.
Filter Drier Assembly
Ref.
No: Part
No: Description: Ref.
No: Part
No: Description:
Image 1:
DRIER FILTER (M1, M2, M3, M7, M9, M13)
20284915
211
DRIER FILTER (M4, M8, M10, M14)
20284916
211
DRIER FILTER (M5, M11, M15, M16)
20284917
211
DRIER FILTER (M6, M12, M17, M18)
20284918
211
Expanded Model Nomenclature
M1 - PTC073B35AF P1248853R
M2 - PTC074B35AF P1248854R
M3 - PTC073B35AJ P1259901R
M4 - PTC093B35AJ P1259902R
M5 - PTC123B35AJ P1259903R
M6 - PTC153B35AJ P1259907R
M7 - PTC073B25AJ P1259909R
M8 - PTC093B25AJ P1259910R
M9 - PTC073B00AJ P1259912R
M10 - PTC093B00AJ P1259913R
M11 - PTC123B00AJ P1259914R
M12 - PTC153B00AJ P1259915R
M13 - PTC073B15AJ P1259916R
M14 - PTC093B50AJ P1259917R
M15 - PTC123B25AJ P1259920R
M16 - PTC123B50AJ P1259921R
M17 - PTC153B25AJ P1259924R
M18 - PTC153B50AJ P1259925R
19 RP4210032 2Rev.

Navigation menu
