Commercial Microwave Oven
Keep these instructions for future reference.
If the oven changes ownership, this manual
must accompany oven.
Owner's Manual
Contents
Model Identification ............................2
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY .................... 3
IMPORTANT SAFETY INSTRUCTIONS ..... 3
Grounding/Earthing Instructions .........5
Installation .........................................5
Display and Features .........................6

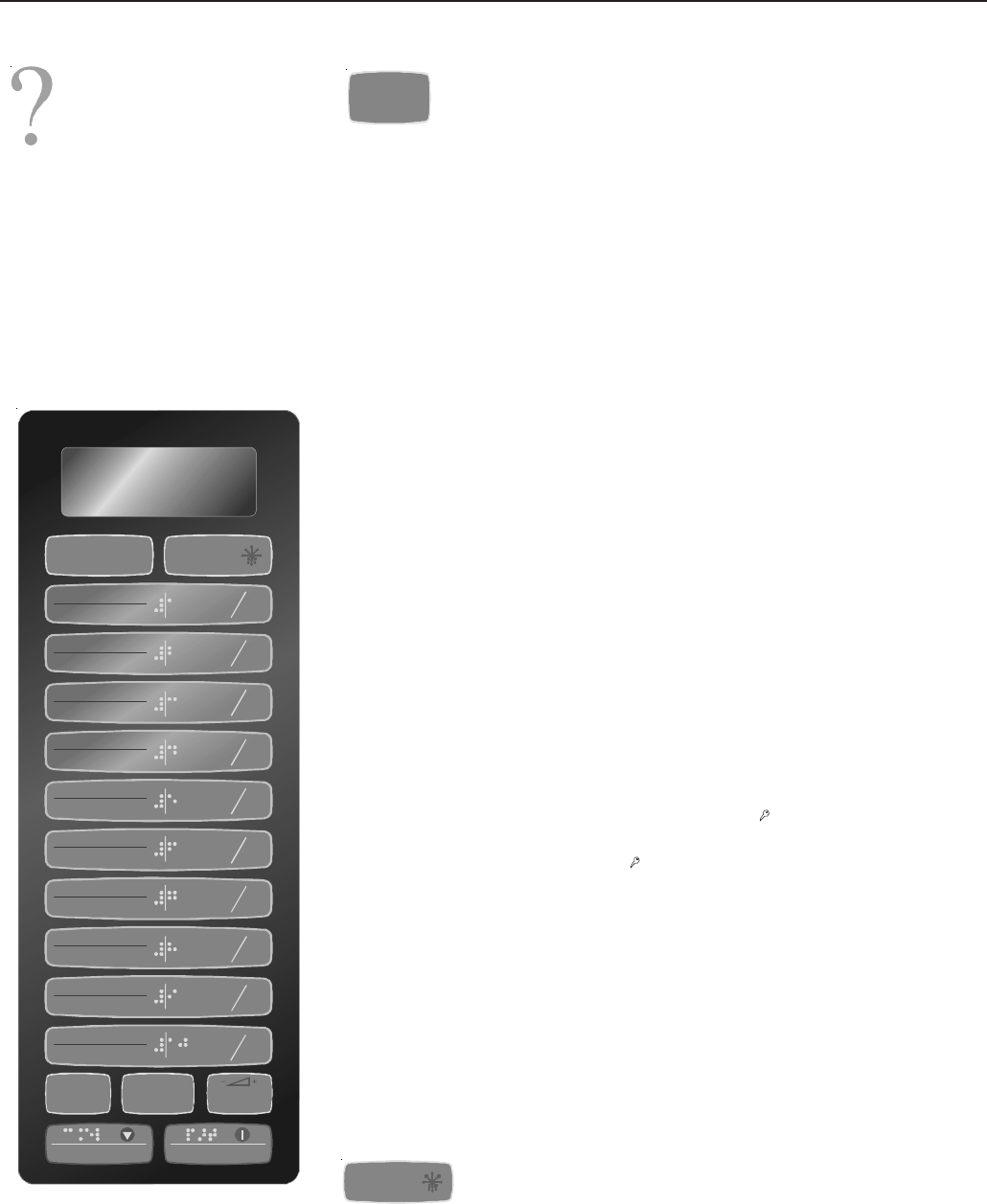

Using the Oven Control
(Electronic Models) .........................9
Programming the Oven Control
(Electronic Models) ....................... 10

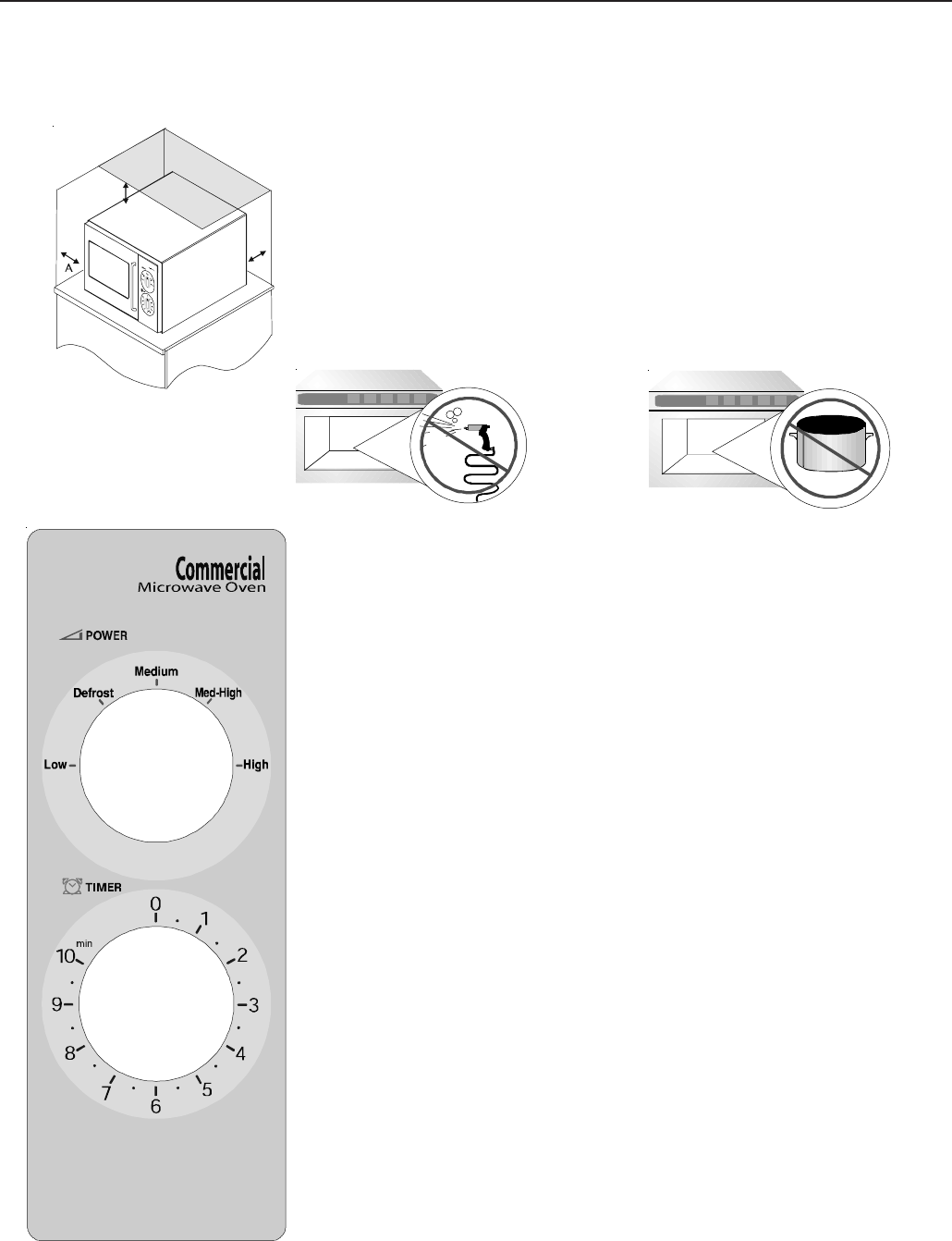

Dial Operation .................................. 11
Care and Cleaning............................ 12
Before Calling for Service ................. 12
2
Any questions or to locate an authorized Amana servicer,
call toll free 1-866-426-2621 inside the U.S.A or Canada,
or 1-319-622-5511 outside the U.S.A or Canada. Warranty
service must be performed by an authorized Amana
servicer. Amana also recommends contacting an
authorized Amana servicer if service is required after
warranty expires.
Model Identification
When contacting Amana, provide product information.
Product information is located on oven serial plate.
Record the following information:
Model Number: ____________________________
Manufacturing Number: ______________________
Serial or S/N Number: _______________________
Date of purchase: __________________________
Dealer’s name and address: __________________
________________________________________
________________________________________
________________________________________
3
SAVE THESE INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
A. DO NOT attempt to operate this oven with the door open since open door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
B. DO NOT place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
C. DO NOT operate the oven if it is damaged. It is particularly important that the oven door close properly and
that there is no damage to the:
1. door (bent)
2. hinges and latches (broken or loosened)
3. door seals and sealing surfaces.
D. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
1. READ all instructions before using equipment.
2. READ AND FOLLOW the specific
“PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” on this page.
3. This equipment MUST BE EARTHED. Connect
only to properly EARTHED outlet. See
“EARTHING INSTRUCTIONS” on page 5.
4. Install or locate this equipment ONLY in
accordance with the installation instructions in
this manual.
5. Some products such as whole eggs and sealed
containers—for example, closed glass jars—are
able to explode and SHOULD NOT be HEATED
in this oven.
6. Use this equipment ONLY for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this equipment. This type
of oven is specifically designed to heat, cook, or
dry food. It is not designed for industrial or
laboratory use.
7. As with any equipment, CLOSE SUPERVISION
is necessary when used by CHILDREN.
8. See door cleaning instructions on page 12 of this
product safety manual.
9. DO NOT heat baby bottles in oven.
10. Baby food jars shall be open when heated and
contents stirred or shaken before consumption, in
order to avoid burns.
11. DO NOT operate this equipment if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
12. This equipment, including power cord, must be
serviced ONLY by qualified service personnel.
Special tools are required to service equipment.
Contact nearest authorized service facility for
examination, repair, or adjustment.
13. DO NOT cover or block filter or other openings on
equipment.
14. DO NOT store this equipment outdoors. DO NOT
use this product near water – for example, near a
kitchen sink, in a wet basement, a swimming pool,
or a similar location.
15. DO NOT immerse cord or plug in water.
16. Keep cord AWAY from HEATED surfaces.
17. DO NOT let cord hang over edge of table or counter.
18. For commercial use only.
!WARNING
When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns,
electrical shock, fire, or injury to persons.
IMPORTANT SAFETY INSTRUCTIONS
Recognize this symbol as a SAFETY message
4
SAVE THESE INSTRUCTIONS
a. DO NOT overcook food. Carefully attend oven
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If materials inside the oven ignite, keep oven
door CLOSED, turn oven off and disconnect the
power cord, or shut off power at the fuse or
circuit breaker panel.
d. DO NOT use the cavity for storage. DO NOT
leave paper products, cooking utensils, or food
in the cavity when not in use.
WARNING
!
To avoid risk of fire in the oven cavity:
WARNING
!
Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid.
Visible bubbling or boiling when the container is
removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER WHEN A
SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury to persons:
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through
heating it.
iii) Do not use straight-sided containers with narrow
necks.
iv) After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
v) Use extreme care when inserting a spoon or
other utensil into the container.
1. Do not deep fat fry in oven. Fat could overheat
and be hazardous to handle.
2. Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy. Pressure
may build up and erupt. Pierce yolk with fork or
knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar
foods before cooking with microwave energy.
When skin is pierced, steam escapes evenly.
4. Do not operate equipment without load or food in
oven cavity.
5. Use only popcorn in packages designed and
labeled for microwave use. Popping time varies
depending on oven wattage. Do not continue
to heat after popping has stopped. Popcorn will
scorch or burn. Do not leave oven unattended.
6. Do not use regular cooking thermometers in
oven. Most cooking thermometers contain
mercury and may cause an electrical arc,
malfunction, or damage to oven.
7. Do not use metal utensils in oven.
8. Never use paper, plastic, or other combustible
materials that are not intended for cooking.
9. When cooking with paper, plastic, or other
combustible materials, follow manufacturer's
recommendations on product use.
10. Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could
melt and cause paper to ignite.
11. Do not heat sealed containers or plastic bags in
oven. Food or liquid could expand quickly and
cause container or bag to break. Pierce or open
container or bag before heating.
12. To avoid pacemaker malfunction, consult
physician or pacemaker manufacturer about
effects of microwave energy on pacemaker.
13. An authorized servicer MUST inspect equipment
annually. Record all inspections and repairs for
future use.
14. Clean oven regularly and remove any food
deposits.
15. To avoid surface deterioration, keep the oven in a
clean condition. Infrequent cleaning could
adversely affect the life of the appliance and
possibly result in a hazadous situation.
!CAUTION
To avoid personal injury or property damage, observe the following:
IMPORTANT SAFETY INSTRUCTIONS
5

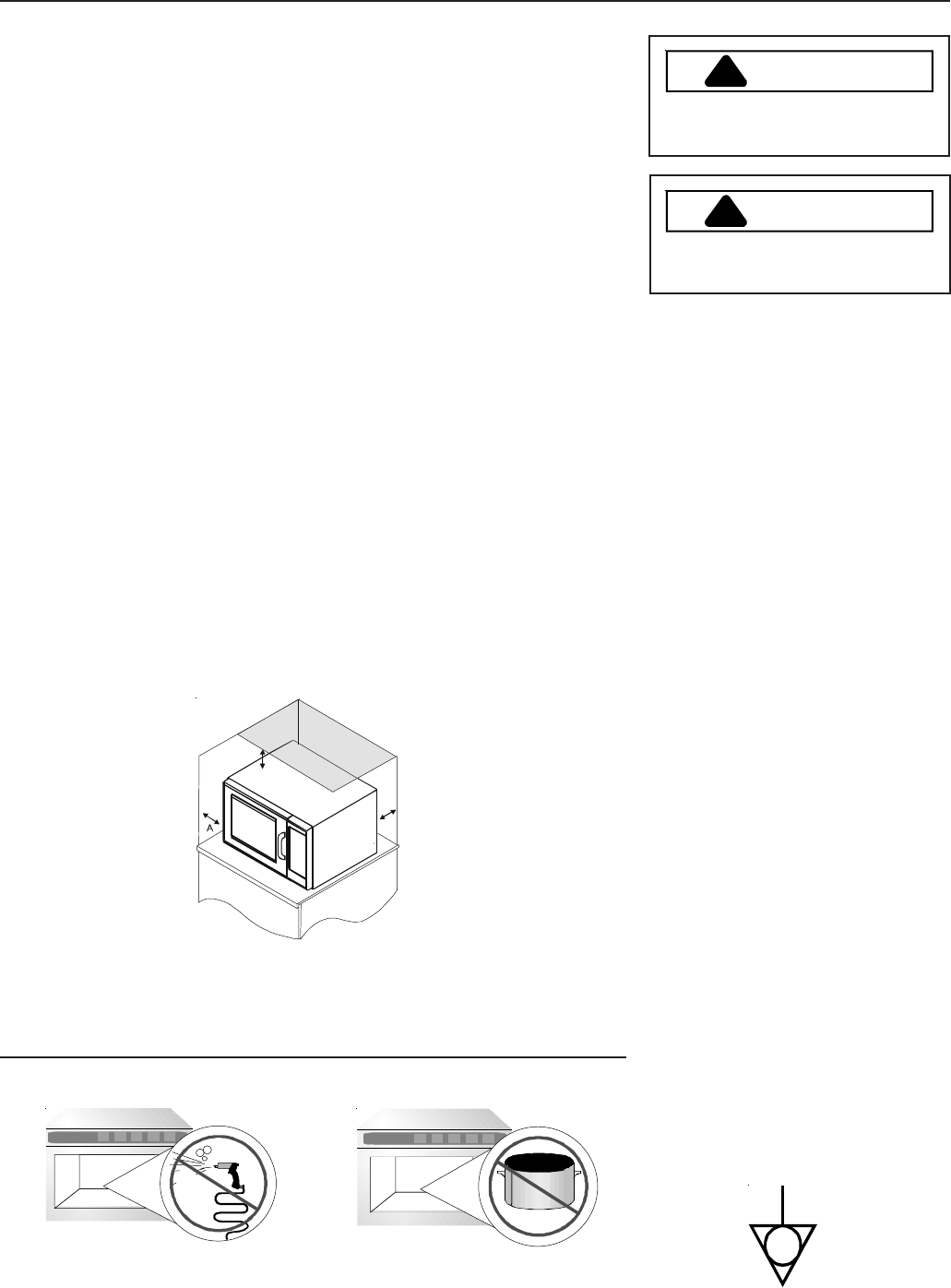

Installation
Unpacking Oven
• Inspect oven for damage such as dents in door or inside oven cavity.
• Report any dents or breakage to source of purchase immediately.
Do not attempt to use oven if damaged.
• Remove all materials from oven interior.
• If oven has been stored in extremely cold area, wait a few hours before
connecting power.
Radio Interference
Microwave operation may cause interference to radio, television, or a similar
oven. Reduce or eliminate interference by doing the following:
• Clean door and sealing surfaces of oven according to instructions in
Care
and Cleaning
section.
• Place radio, television, etc. as far as possible from oven.
• Use a properly installed antenna on radio, television, etc. to obtain
stronger signal reception.
Oven Placement
• Do not install oven next to or above source of heat, such as pizza oven or
deep fat fryer. This could cause microwave oven to operate improperly
and could shorten life of electrical parts.
• Do not block or obstruct oven filter. Allow access for cleaning.
• Install oven on level countertop surface.
• Place warning label in a conspicuous place close to microwave oven.
(50 Hz models only)
• Outlet should be located so that plug is accessible when oven is in place.
A—Allow at least 4" (10.2 cm) of clearance around top and sides of oven. Proper air
flow around oven cools electrical components. With restricted air flow, oven may
not operate properly and life of electrical parts is reduced.
B—Allow at least 4" (10.2 cm) between air discharge on back of oven and back wall.
Oven Clearances
WARNING
!
To avoid risk of electrical shock or
death, this oven must be earthed.
WARNING
!
To avoid risk of electrical shock
or death, do not alter the plug.
Grounding/Earthing
Instructions
Oven MUST be grounded.
Grounding reduces risk of electric
shock by providing an escape wire for
the electric current, if an electrical
short occurs. This oven is equipped
with a cord having a ground wire with
a grounding plug. The plug must be
plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
servicer if grounding instructions are
not completely understood, or if doubt
exists as to whether the oven is
properly grounded.
Do not use an extension cord.
If the product power cord is too short,
have a qualified electrician install a
three-slot receptacle. This oven should
be plugged into a separate circuit with
the electrical rating as provided in
product specifications (available on
Amana’s wavelink website). When a
microwave oven is on a circuit with
other equipment, an increase in
cooking times may be required and
fuses can be blown.
External Equipotential
Earthing Terminal
(export only)
Equipment has secondary earthing
terminal. Terminal provides external
earthing connection used in addition
to earthing prong on plug. Located
on outside of oven back, terminal is
marked with symbol shown below.
A
B
No metal pans
DO NOT power spray
6

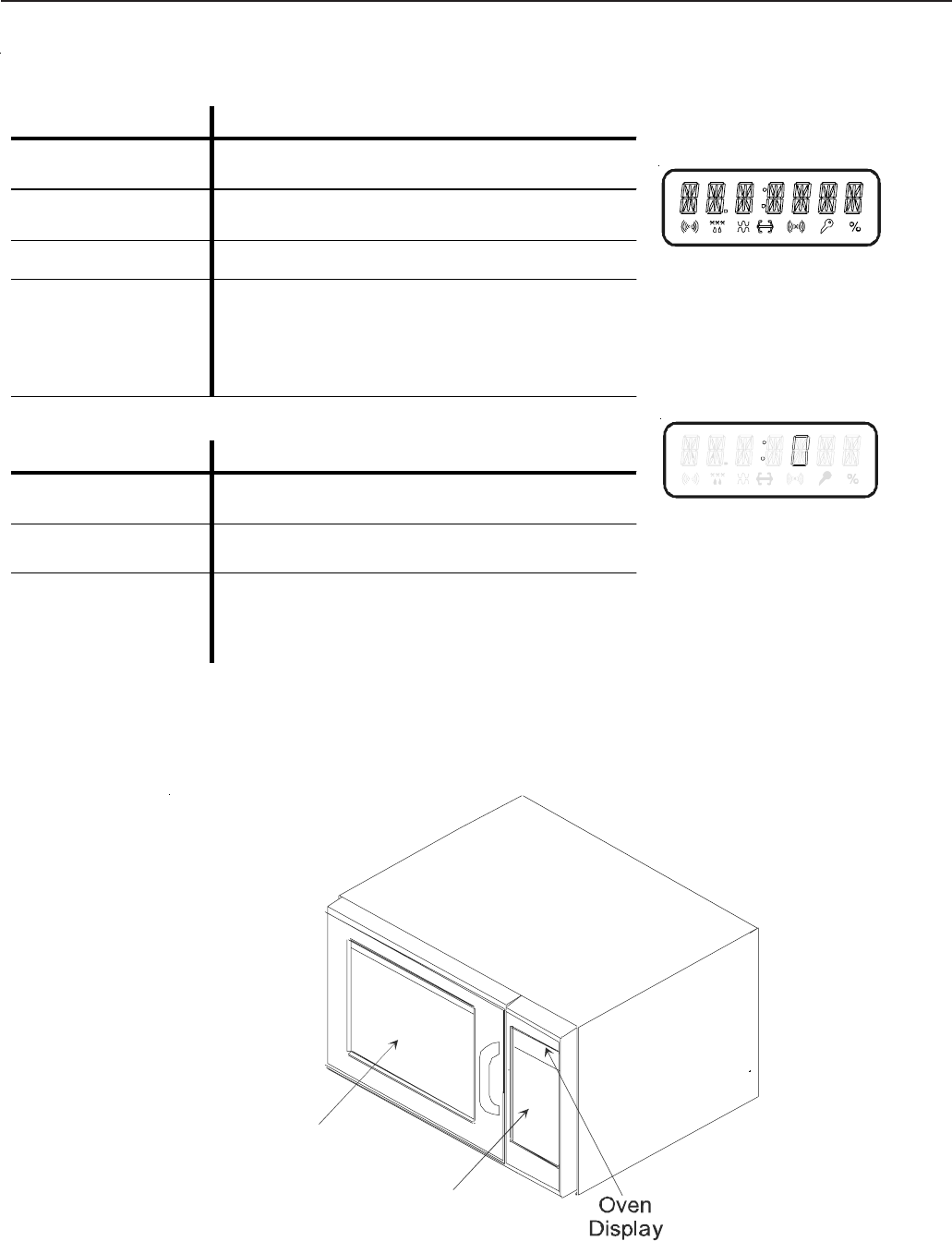

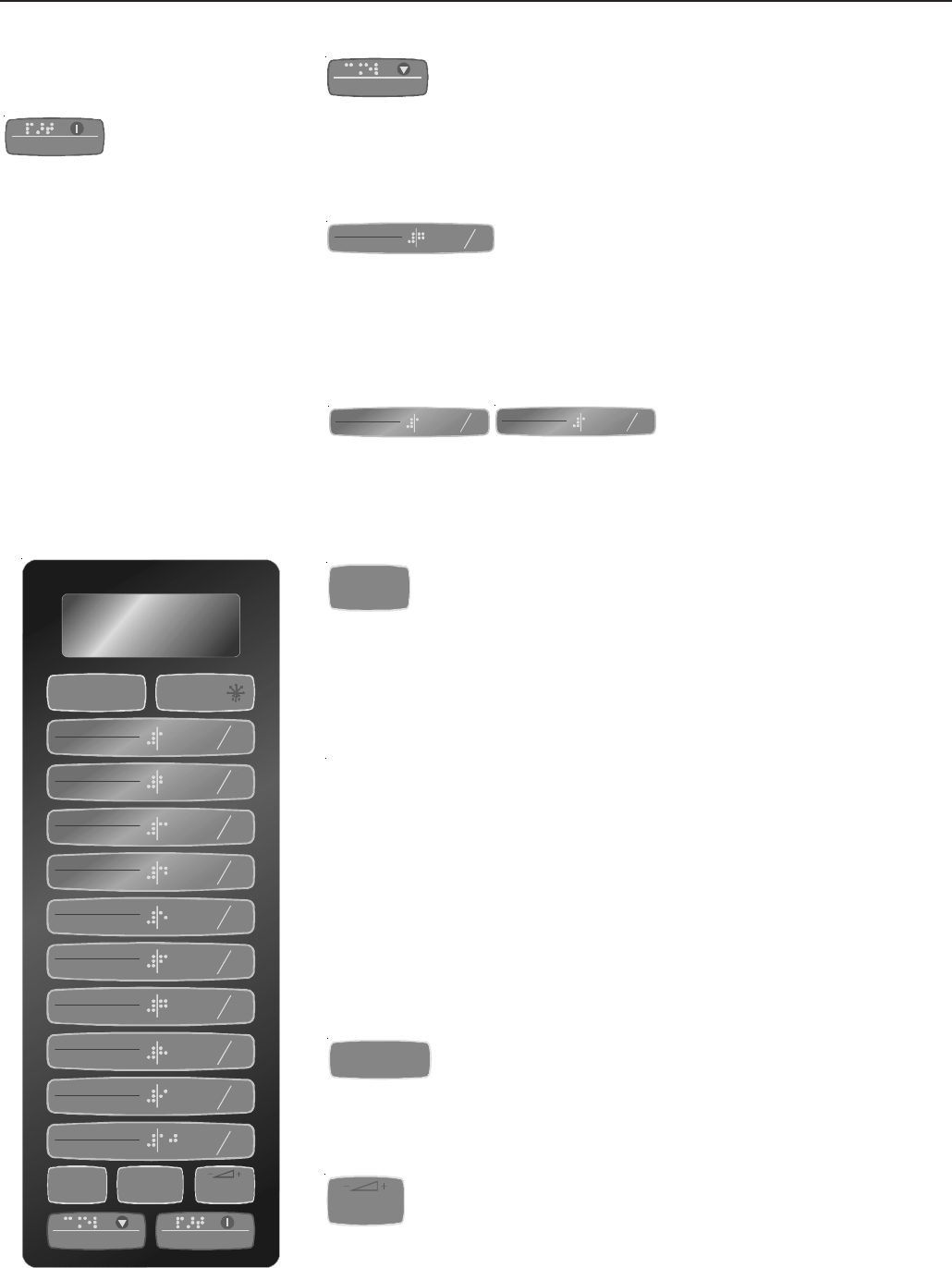

Display and Features (some models)
START/+30 SEC
Pad
The START/+30 SEC pad is used to
begin a cooking cycle and to
increase the reheat time in 30 second
increments.
• The START/+30 SEC pad is used
to reheat for 30 seconds at 100% (full
power). The oven will start
immediately and 30 seconds will be
added to the time counting down
each time the pad is pressed up to a
maximum reheating time of 5
minutes.
NOTE: Pressing the START/+30 SEC
pad is only available in Manual Time
Entry mode.
STOP/RESET Pad
The STOP/RESET pad stops a cooking sequence in progress
and must be pressed again to clear out any remaining cooking time.
When the STOP/RESET pad is used to end a programming change, the
changes are discarded.
Single Pad Programming
This feature enables each numbered pad to be programmed for a specific
cooking cycle. To use this feature, simply program the pad to the desired
length of time and power level. Press the pad once and the microwave will
begin cooking. Number pads 1-10 are preprogrammed at the factory, but can
be changed.
Double Pad
Programming
This feature enables 10 additional programmed entries to be made. Each entry
will be assigned a double digit number. When using the double pad
programming, a pad must be pressed twice within 2 seconds to start the
cooking cycle.
QTY 2X Pad
The QTY 2X pad doubles the preset cooking time. The QTY 2X pad can be
used with either single or double pad programming. Maximum cooking time is
60 minutes except when cooking with full power (100%). In case of full power
(100%), maximum cooking time is 20 minutes.
Stage Cooking
Stage cooking is a cooking sequence with specific power level and time
changes. The user can program up to three different power level changes and
the specific amount of cooking time at each stage. Each power level/cooking
time combination is known as a stage. Stage cooking is available only on
electronic control models. Maximum cooking time is 60 minutes except when
cooking with full power (100%). In case of full power (100%), maximum
cooking time is 20 minutes.
Program Pad
This feature allows you to program a number pad for a specific power level and
cooking time of your choice in any stage cooking.
Power Level Pad
The POWER LEVEL pad allows you to program a cooking cycle for a specific
power level (100%, 80%, 60%, 40%).
PROGRAM
DEFROST
QTY
2X
STOP/
RESET
START/
+30 SEC
CHECK
PROGRAM
POWER
LEVEL
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
START/
STOP/
RESET
QTY
2X
PROGRAM
17
7
POWER
LEVEL
STAGE--2
STAGE--3
or
11
1
11
1
7
Display and Features (some models)
Mute Function
This function mutes the keypad beep sound (except for end of cycle beep) by:
1. Press and hold QTY 2X pad for 3 seconds.
•DOUBLE displays, oven beeps and MUTE displays for 1 second, then
:0 appears in display.
2. To deactivate, press and hold QTY 2X pad for 3 seconds.
•DOUBLE displays, oven beeps and :0 appears in display.
Check Program Pad
This feature allows you to check the programmed cooking time
and power level of any programmed pad.
1. Press CHECK PROGRAM pad.
•CHECK displays.
2. Press desired numeric pad.
•PROG--XX displays (XX indicates program number).
•STAGE-1 displays then flashes to cooking time and power level.
example: 00:30 HI
• display repeats for next stage(s)
3. Press STOP/RESET pad to exit Check Program function.
Program Lock Function
This feature locks the control panel and prevents unwanted oven operations.
1. Press and hold STOP/RESET pad for 3 seconds to activate.
• Oven beeps and :0 along with a key graphic appear in display.
2. Press and hold STOP/RESET pad for 3 seconds to deactivate.
• Oven beeps and key graphic disappears from display.
Power Save Mode
This function is used for saving energy by:
1. Press and hold CHECK PROGRAM pad for 3 seconds.
•CHECK displays, oven beeps and display goes blank.
2. To operate oven in Power Save mode, press any pad.
•:0 displays and all keypad functions will be the same as in normal
mode.
• If keypad is not touched within 10 seconds, display will go blank.
3. To deactivate, press any pad and then hold CHECK PROGRAM pad for 3
seconds.
•CHECK displays and oven beeps.
4. Press STOP/RESET pad to have oven return to normal operating mode.
CHECK
PROGRAM
DEFROST
Defrost Pad
When DEFROST is selected, the automatic cycle divides the defrosting time
into periods of alternating defrost and stand times by cycling on and off.
Maximum defrost time is 60 minutes.
If These Features are
Different from Yours
These features are intended
to show the variety that is
available in the product line. If your
microwave does not have all the
options that are shown, it is not a
mistake. The information provided
applies to several of the models in
the product line.
PROGRAM
DEFROST
QTY
2X
STOP/
RESET
START/
+30 SEC
CHECK
PROGRAM
POWER
LEVEL
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
8
Display and Features (some models)
Display
Some items in the display can be
seen but are not available depending
on the model. During normal
operation of oven, not all items will be
displayed at same time.
Ready Condition
:0 displays when an oven control will
accept entries.
Cooking Display
DISPLAYS DESCRIPTION
: 0 Displays when oven control will accept entries.
60:00 Displays cooking time. If stage cooking is
programmed, total cooking time is displayed.
DOUBLE Displays when the QTY2X pad is pressed.
100%
80%
60%
40%
These settings display the current microwave power
level used.
Programming Display
DISPLAYS DESCRIPTION
Program Displays when oven is in programming mode.
CHECK Displays when CHECK PROGRAM pad is pressed.
STAGE -- _ Displays when programming a specific cooking
stage and when checking the cooking cycle of a
programmed pad. The oven beeps once at the
change of each number (1 through 3).
Oven Control
Oven Door Window
and Interior Light
9

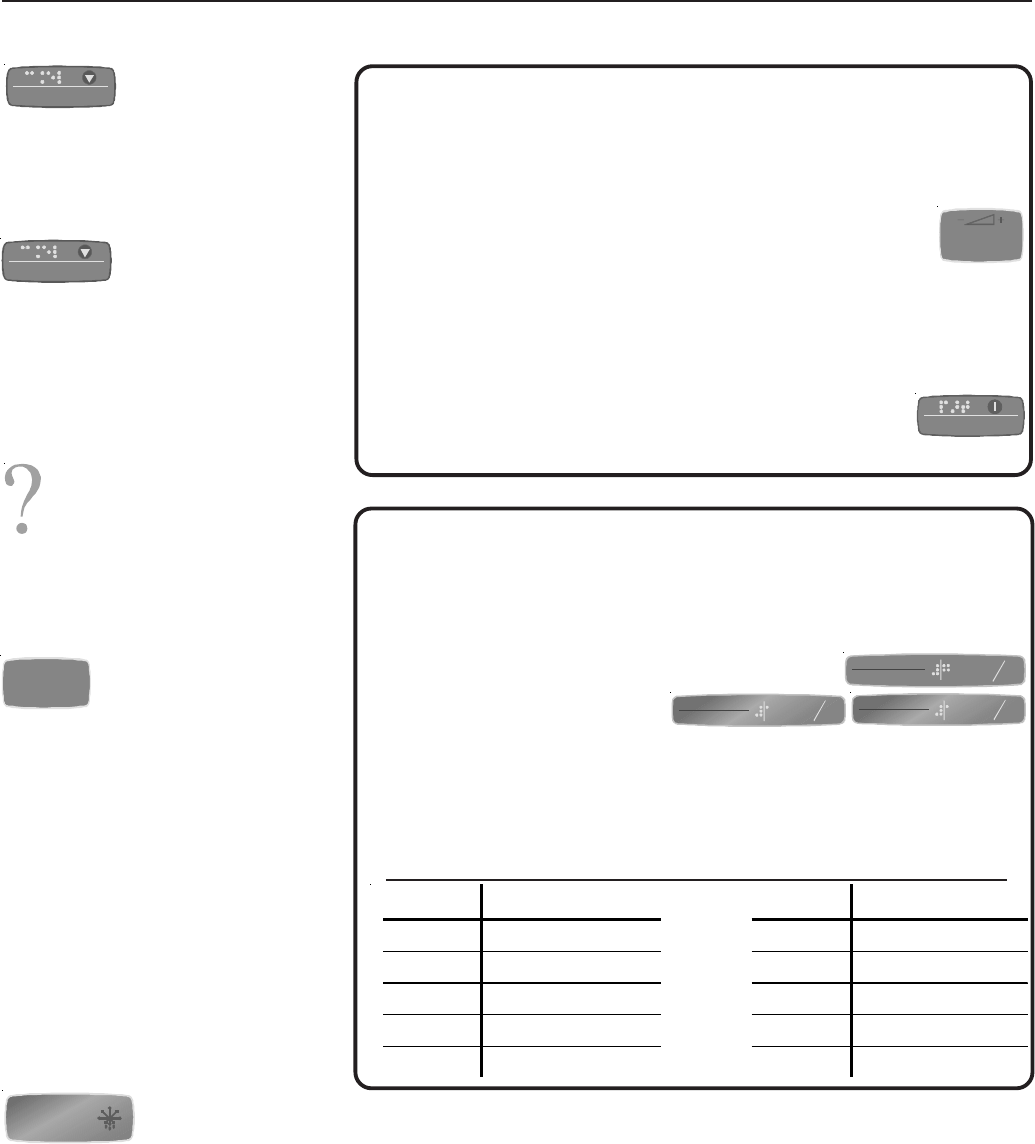

Using Electronic Oven Control (some models only)
Manual Time Entry
To cook food using a specific entered time and power level.
NOTE: To use Time Entry, you must press POWER LEVEL Pad first.
1. Open oven door and place food in oven. Close door.
•:0 displays. Light will turn on.
2. Press POWER LEVEL pad.
• Press POWER LEVEL pad to change power level if desired
(some models).
• Power level (example: 100%) displays.
-100% indicates 100% microwave power, 80% indicates 80%, 60%
indicates 60%, and 40% indicates 40% microwave power. By
continuing to press the Power level pad, the power level will cycle
through each level continuously.
3. Enter cooking time by using the numbered pads.
4. Press START/+30 SEC pad to begin cooking cycle.
• At end of cooking cycle, oven beeps and shuts off.
Programmed Pads
To cook food using pads preprogrammed with cooking sequences.
1. Open oven door and place food in oven. Close door.
•:0 displays. Light will turn on.
2. Press desired pad.
• For single pad entry, press only one pad.
• For double pad entry, press
same pad twice.
• If pad has not been
programmed, NO DATA displays.
3. Oven begins to cook.
• Total cooking time displays.
4. At end of cooking cycle oven beeps and shuts off.
Factory Settings
Pad Time Pad Time
1 10 sec. 6 1 min. 30 sec.
2 20 sec. 7 2 min.
3 30 sec. 8 3 min.
4 45 sec. 9 4 min.
5 1 min. 0 5 min.
QTY 2X Pad
(some models)
To double the cooking time temporarily
when cooking more than one serving. The
maximum cooking time is 60 minutes 00
seconds except for full power. Full power
(100%) maximum cooking time is 20 minutes
00 seconds.
1. Open oven door and place food in
oven. Close door.
•:0 displays. Light will turn on.
2. Press QTY 2X pad.
•DOUBLE displays
3. Press desired preprogrammed pad or
pad sequence. (example: pad 5)
•PROG-05 displays
4. After 1 second, oven begins cooking.
Displayed cooking time is the total of
original cooking time doubled.
Interrupting
Operation
Open oven door or press STOP/RESET pad
to interrupt operation. Display continues to
show countdown time. Close door and
press START/+30 SEC pad to resume oven
operation.
Do I
have
stage
programming?
Stage programming is a hidden
feature—it is not shown with a pad on the
oven. Stage cooking is a feature that is
present when programming. See the
Programmed Pads section on this page for
details.
STOP/
RESET
QTY
2X
Defrost Pad
Defrosts food by dividing total defrost time into periods of alternating defrost and stand times by cycling on and off:
1. Open oven door and place food in oven. Close door.
2. Press DEFROST pad.
• DEFROST indicator lights and :0 shows in the display.
3. Press the number pad(s) to enter the desired defrosting time.
4. Press START/+30 SEC pad.
5. Oven begins to cycle.
• The display counts down the time to show you how much defrosting time is left in the DEFROST mode.
NOTE: Oven beeps during the defrosting cycle to signal that the food needs to be turned or rearranged.
6. Open door and rearrange food. Close door.
7. Press START/+30 SEC pad to continue defrost cycle.
NOTE: If you don’t open door to rearrange food, defrost cycle continues.
DEFROST
POWER
LEVEL
START/
17
7
11
1
11
1
Canceling
Mistakes
If oven is not cooking, press STOP/
RESET pad to clear display. If oven is
cooking, press STOP/RESET pad once
to stop oven, then again to clear display.
If oven door is open and time shows in
display, close oven door and press
STOP/RESET pad to clear display.
STOP/
RESET
10
Programming Electronic Oven Control (some models only)
The display
shows PROGRAMPROGRAM
PROGRAMPROGRAM
PROGRAM.
When PROGRAM pad is
pressed, the display will show
PROGRAM .
POWER
LEVEL
START/
Programming Pads
Oven is shipped from factory with pads 1-10 preprogramed. To re-program
pads 1-10 or program pads 11-19, use the following procedures.
1. Door can be in either open or closed position with :0 showing in display.
2. Press PROGRAM pad.
•PROGRAM appears in display.
3. Press desired number pad to be programmed.
• If pad 4 is being programmed, PROG- -04 will appear in display.
4. Press POWER LEVEL pad to select desired power level.
• Press POWER LEVEL pad to change power level if desired
(some models).
•POWER LEVEL displays.
-100% indicates 100% (full) microwave power, 80%
indicates 80%, 60% indicates 60%, and 40% indicates 40% microwave
power. By continuing to press the Power level pad, the power level will
cycle through each level continuously.
5. Press desired number pad(s) to program desired cooking time.
6. Press START/+30 SEC pad to save programming for
Stage 1.
• If Stage 2 or Stage 3 is desired for programming,
repeat steps 4 through 5.
• If Stage 2 or Stage 3 is not desired press
STOP/RESET pad, to end programming sequence.
NOTE: If door is closed or STOP/RESET pad is pressed
before programming is complete, changes are
discarded and microwave exits programming mode.
STOP/
RESET
PROGRAM
11
Dial Operation (some models only)
Dial option is available on some models only.
Oven Clearances
A—Allow at least 4" (10.2 cm) of clearance around top and sides of oven.
Proper air flow around oven cools electrical components. With restricted
air flow, oven may not operate properly and life of electrical parts is
reduced.
B—Allow at least 4" (10.2 cm) between air discharge on back of oven and
back wall.
No metal pans
DO NOT power spray
Heating
1. Open oven door, place food in oven, and close oven door.
2. Turn the power level knob to desired power level.
• Power level can be set at Low (17%), Defrost (33%), Medium (55%),
Med. High (77%), or High power (100%).
3. Turn time entry knob clockwise until desired time displays.
• Cooking time can be set up to 10 minutes.
• If turning the timer knob for less than 2 minutes, turn it past 2 minutes
and then back to the desired time.
4. Oven begins operation and time counts down.
5. When cooking time elapsed, microwave energy stops and oven signal
sounds.
Interrupting Operation
Open oven door to interrupt operation or turn time entry knob counterclockwise
to “0”. To resume microwave oven operation, close oven door.
If time was changed to “0”, time will need to be reset.
Changing Time and Power/Canceling
Mistakes
Cooking time and power level can be changed at any time while the oven is
operating. Turn knob(s) to desired new setting. To set cooking time to zero,
turn time entry knob counterclockwise to “0”.
A
B
12
Care and Cleaning
PART CARE AND CLEANING RECOMMENDATION
Interior, Exterior, and Door
Clean microwave oven with mild detergent in warm water using soft sponge or cloth.
Wring sponge or cloth to remove excess water before wiping equipment. If desired, boil a
cup of water in microwave oven to loosen soil before cleaning.
Important:
• Do not use abrasive cleansers or cleaners containing ammonia or citrus.
These could damage finish.
• Never pour water into microwave oven bottom.
• Do not use water pressure type cleaning systems.
Discharge Air Vents
Check monthly for a buildup of particles along intake screen on back of oven. Clean
screen with damp cloth to ensure proper airflow. Dry thoroughly.
Control Panel Open oven door to deactivate oven timer. Clean with mild detergent in warm water using
so
f
t
spo
n
ge
o
r
c
l
ot
h.
Before Calling for Service
!WARNING
To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time.
Only an authorized Amana servicer should remove outer case.
Problem Possible Cause
Oven does not operate.
Confirm oven is plugged into dedicated circuit.
Confirm oven is on grounded and polarized circuit.
(Contact electrician to confirm)
Check fuse or circuit breaker.
Check that the door is firmly closed.
If oven does not accept entries
when pad is pressed.
Make sure oven is on.
Open and close oven door. Press pad again.
If oven malfunctions or shows:
E20
E30
Oven control is equipped with a self-diagnostic system. Self-diagnostic
system alerts you if there is an error or problem. When electronic control
signals a problem, follow steps listed below.
1. Record number shown.
2. Unplug oven, wait for 1 minute, and plug in oven.
• Disconnecting electrical supply may eliminate service code. If failure
continues, contact an authorized Amana servicer or call Amana toll
free at 1-866-426-2621 inside the U.S.A. or Canada, or 1-319-622-
5511 outside the U.S.A or Canada.
If oven shows E10 in display:
An attempt has been made to program the oven for more time than allowed.
1. Press STOP/RESET pad.
NOTE: Maximum cooking time is 60 minutes except when cooking with full
power (100%). In case of full power (100%), maximum cooking time is 20
minutes.
Oven operates but does not heat
food.
Place one cup of water in oven.
Run for one minute at full power (100%).
If temperature does not rise, oven is not operating correctly. Contact an
authorized Amana servicer or call Amana toll free at 1-866-426-2621 inside
the U.S.A. or Canada, or 1-319-622-5511 outside the U.S.A or Canada.
Low Power (Dial Models Only) Check Power Level control setting. Control must be set to HIGH.
© 2005 Amana Commercial Products
Amana, Iowa 52204
Part No. 12891401
Printed in U.S.A. 6/05
For full product documentation visit:
www.amanacommercial.com/wavelink
™

Navigation menu
