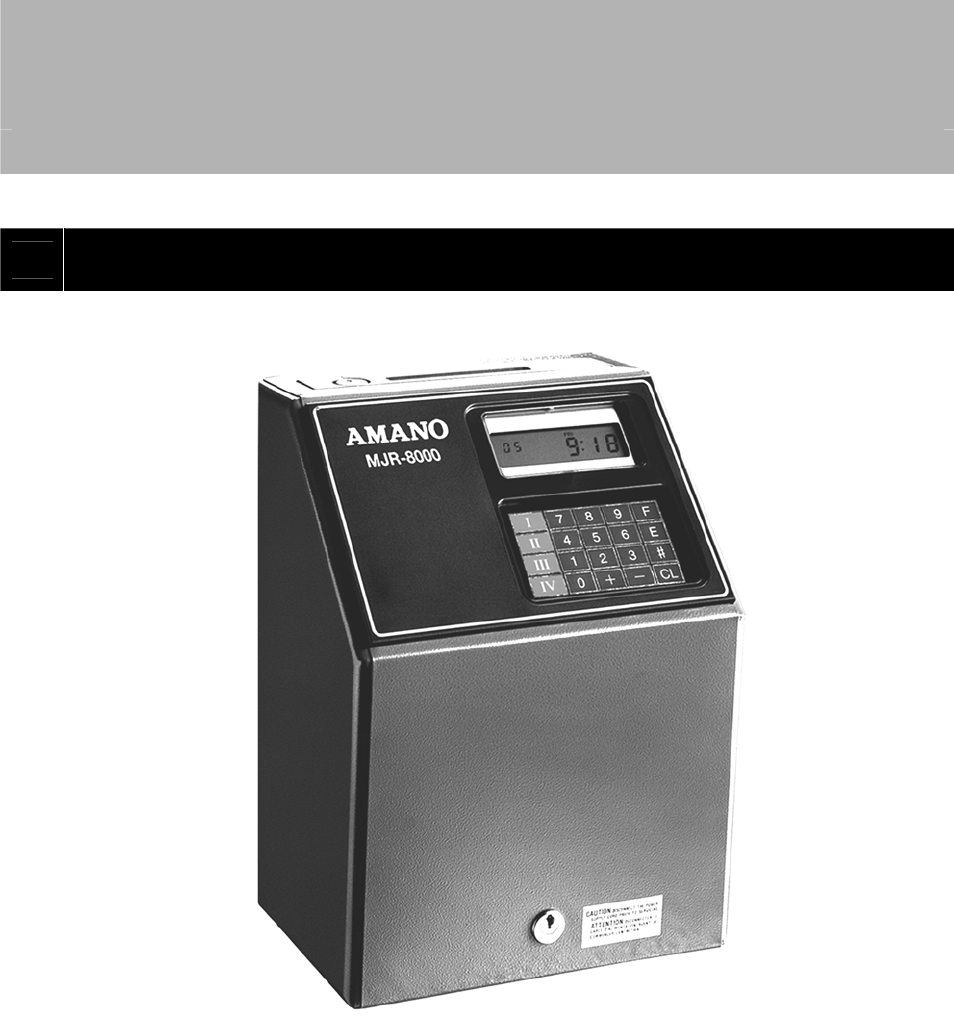

AMANO®

MJR-8000 Series

Computerized Time Recorder

Programming / User Guide

Amano Cincinnati Inc. reserves the right to make equipment changes and improvements

that may not be reflected in this document. Portions of this document may have been

updated to include the latest hardware or firmware version, if applicable.

We recommend that this document be read in its entirety before any attempt is made to

operate the equipment.

Proprietary Notice

This document contains proprietary information and such information may not be

reproduced in whole or in part without written permission from:

Amano Cincinnati, Inc.

140 Harrison Avenue

Roseland, NJ, 07068

For more information about Amano’s complete line of products, visit our web site at:

http://www.amano.com

General

[ 1 ]

General

[ 3 ]

INSTALLATION

** This page intentionally left blank **

[11]

INSTALLATION

** This page intentionally left blank **

[12]

PROGRAMMING GUIDE

* PROGRAM SETUP PROCEDURE

This part of the manual contains a chart to guide you through the

Program Setup Procedure.

For each step, refer to the page number for detailed instructions

on WHAT TO DO.

PROGRAM SETUP CHART

STEP WHAT TO DO USER ACCESS CODE PAGE

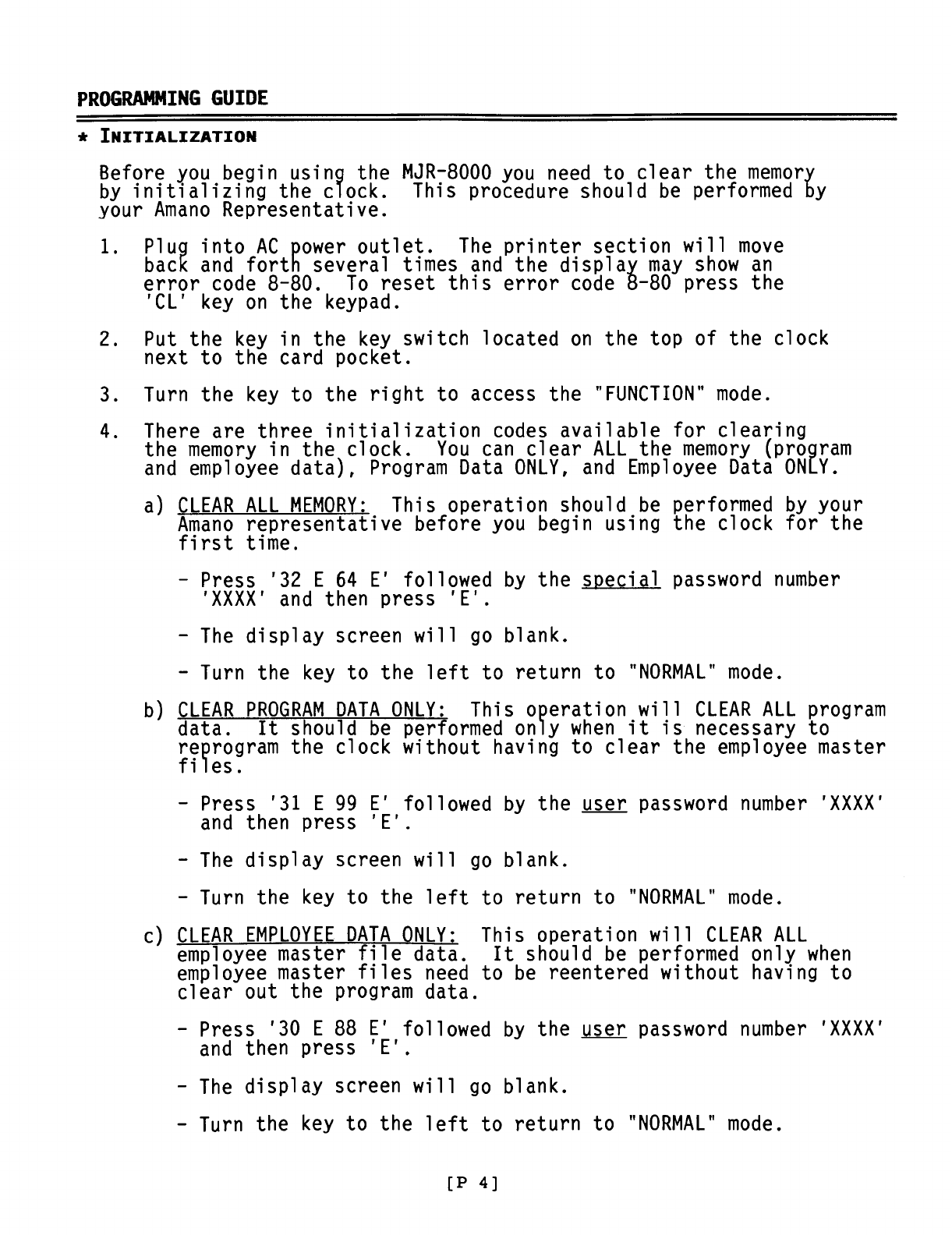

1 Initialize the ENTIRE clock 32 E 64 E P 4

2 Password Setup 11 E P 5, U

33

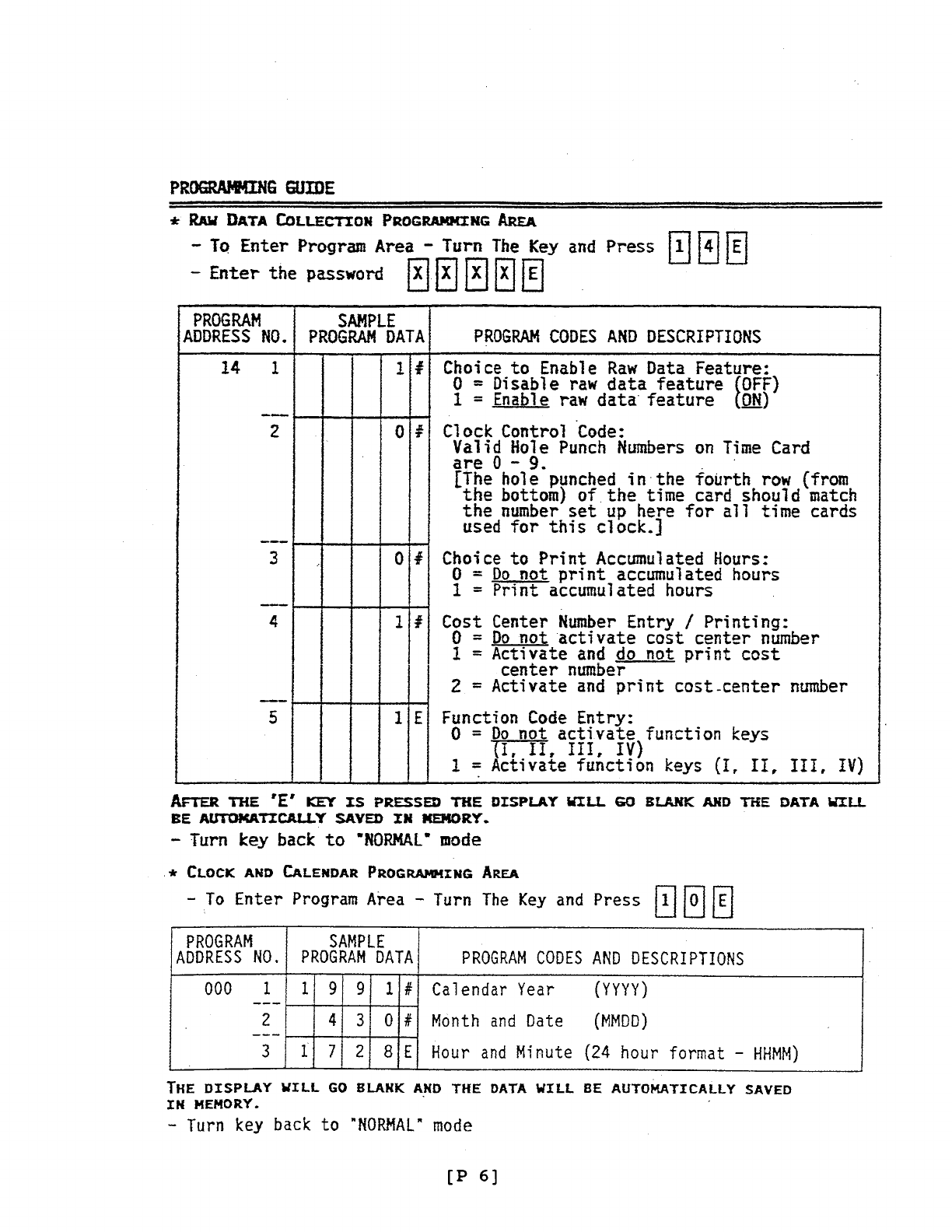

3 Raw Data Collection Programming 14 E P 6

4 Clock and Calendar Programming 10 E P 6

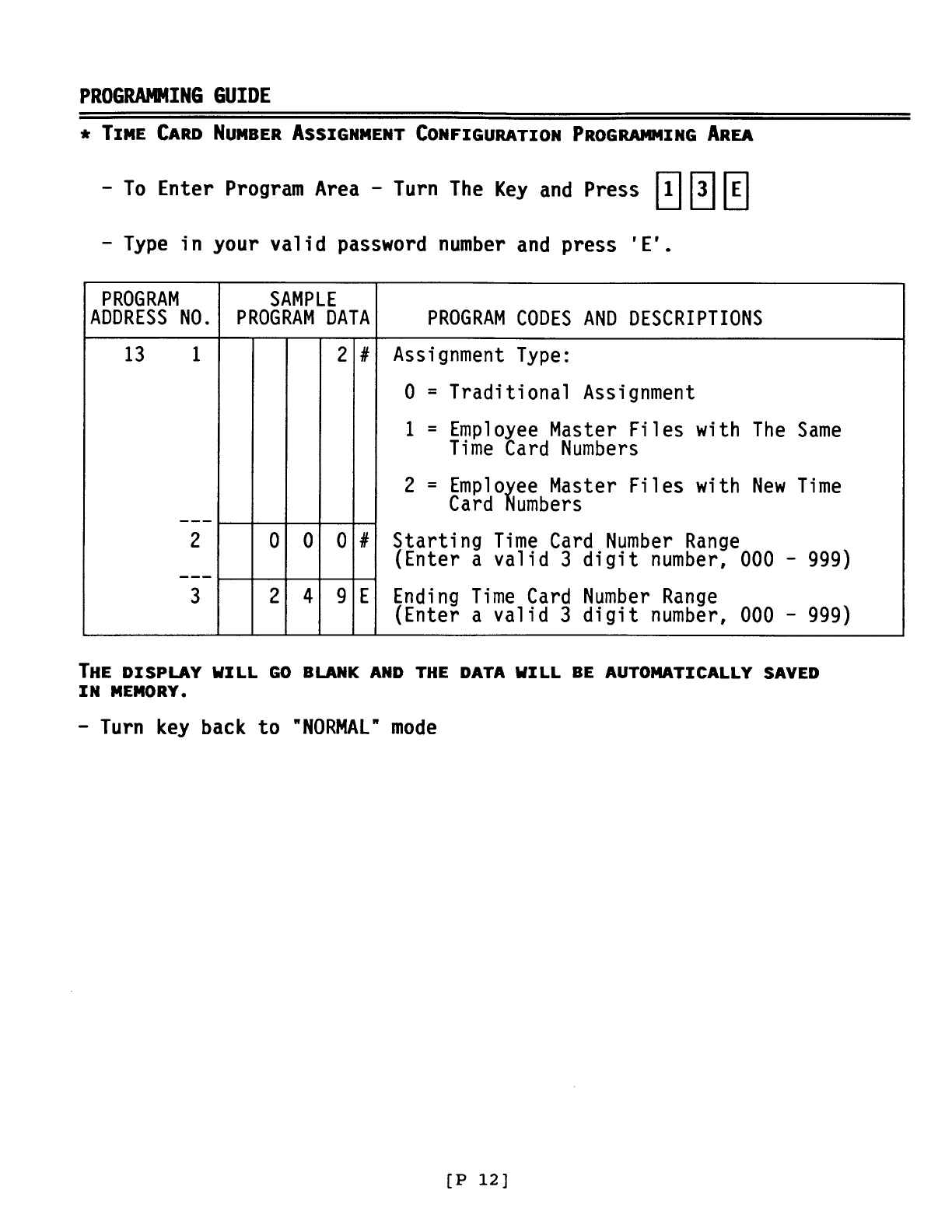

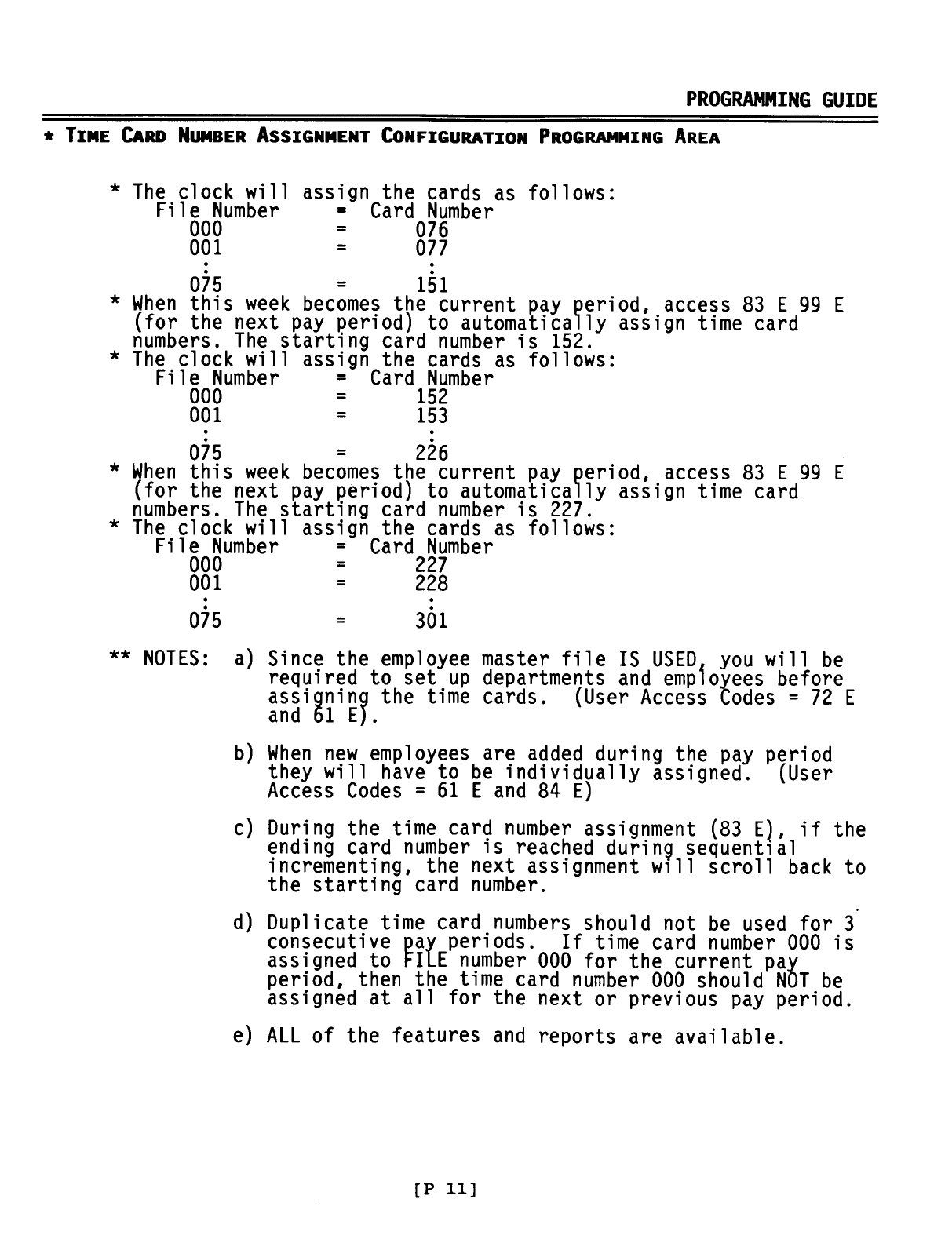

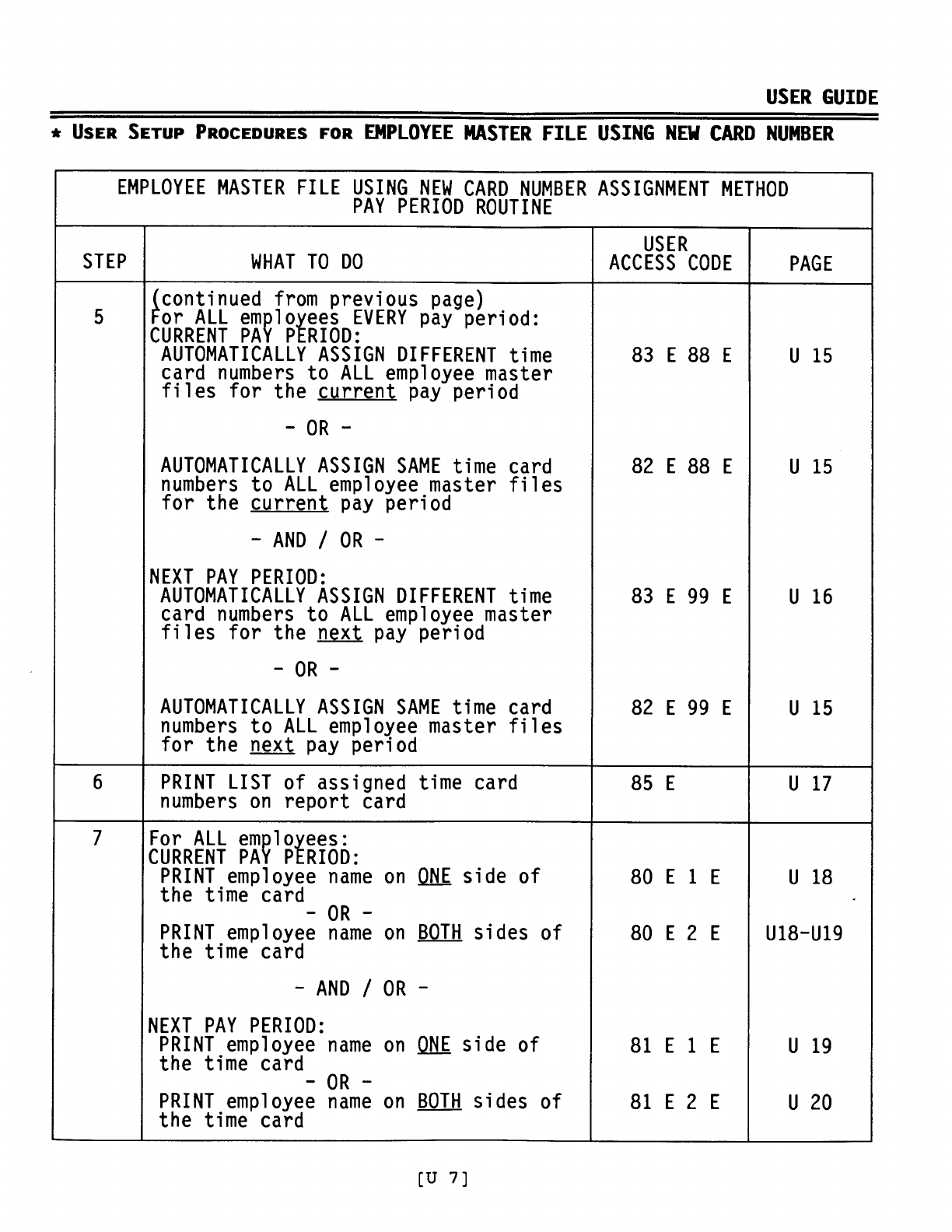

5 Time Card Number Assignment

Configuration Programming 13 E P 8

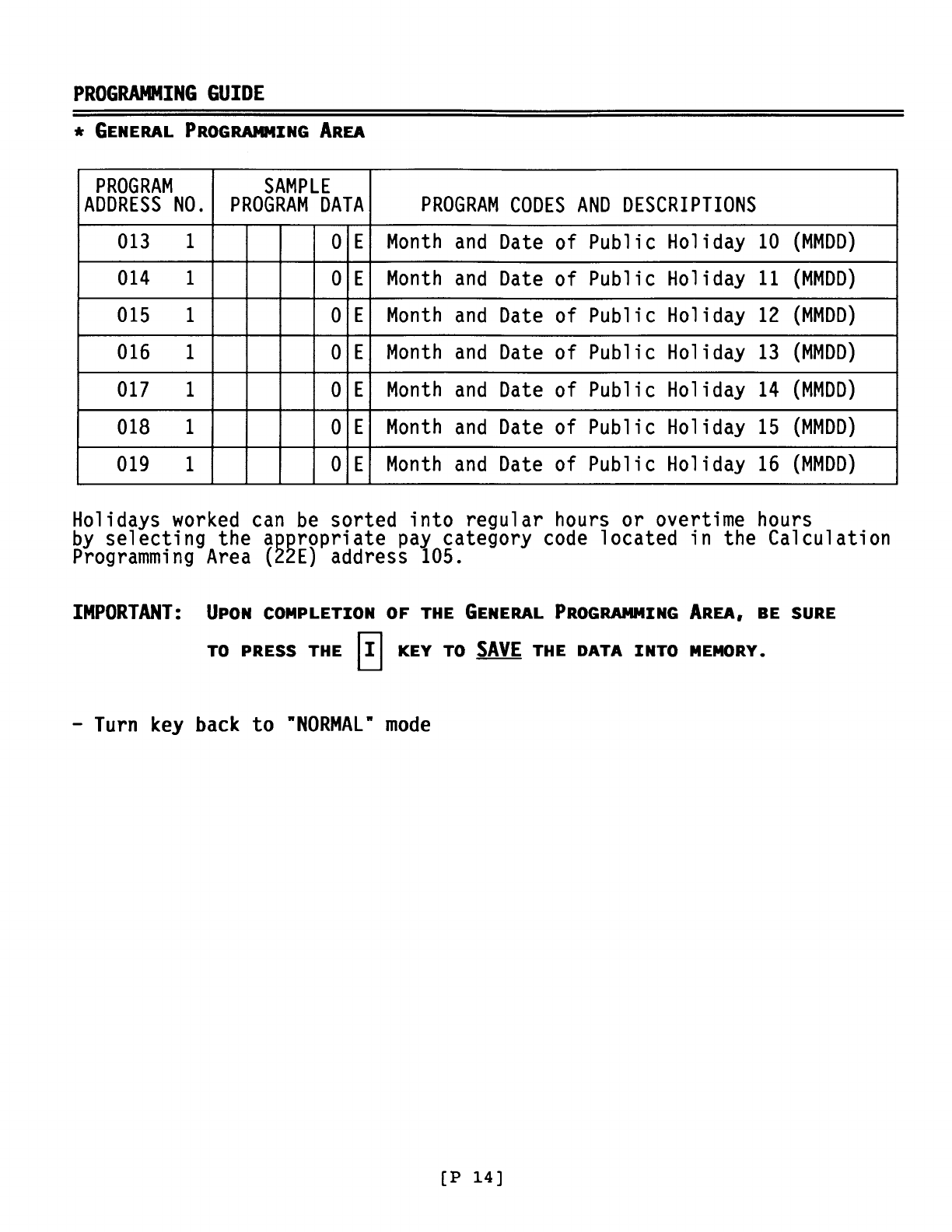

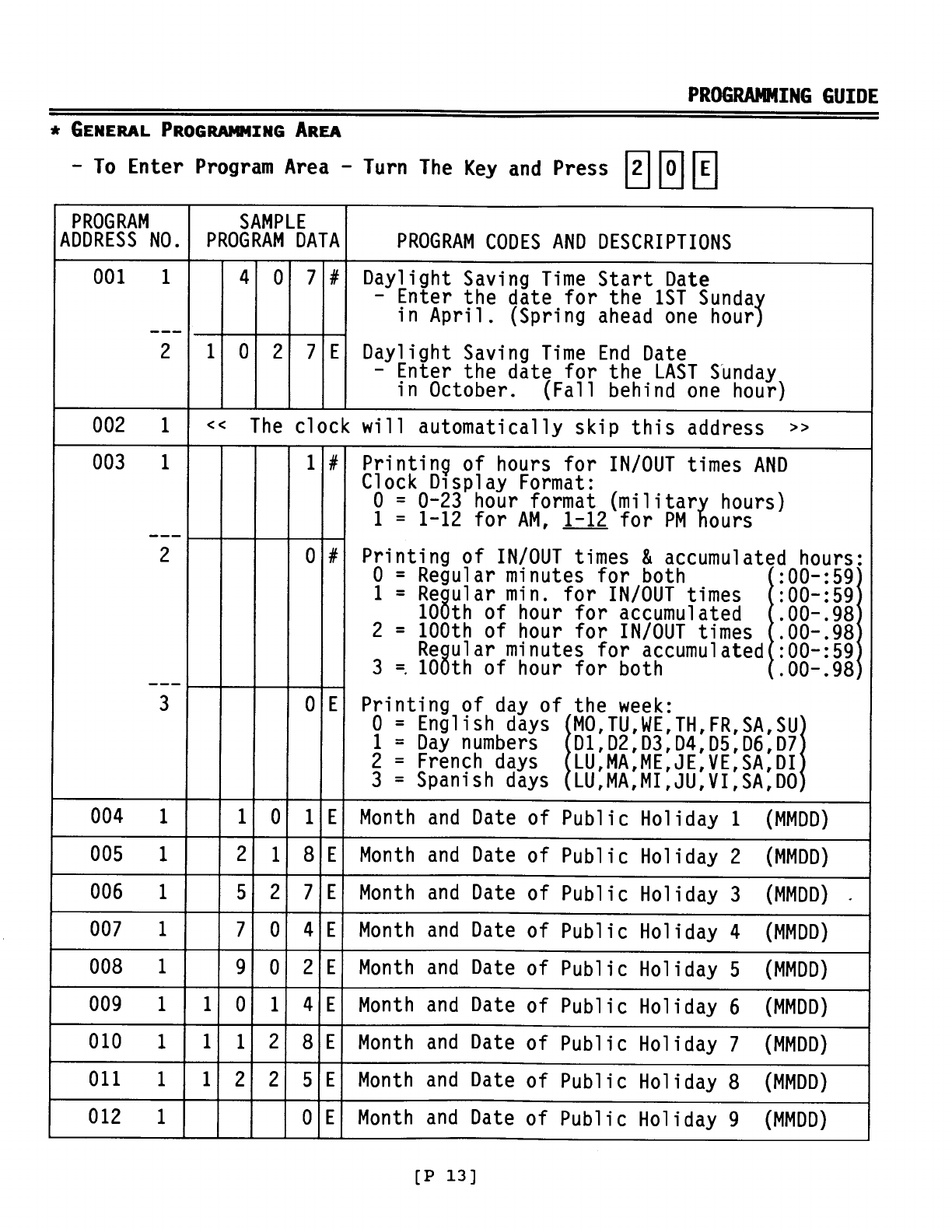

6 General Programming 20 E P 13

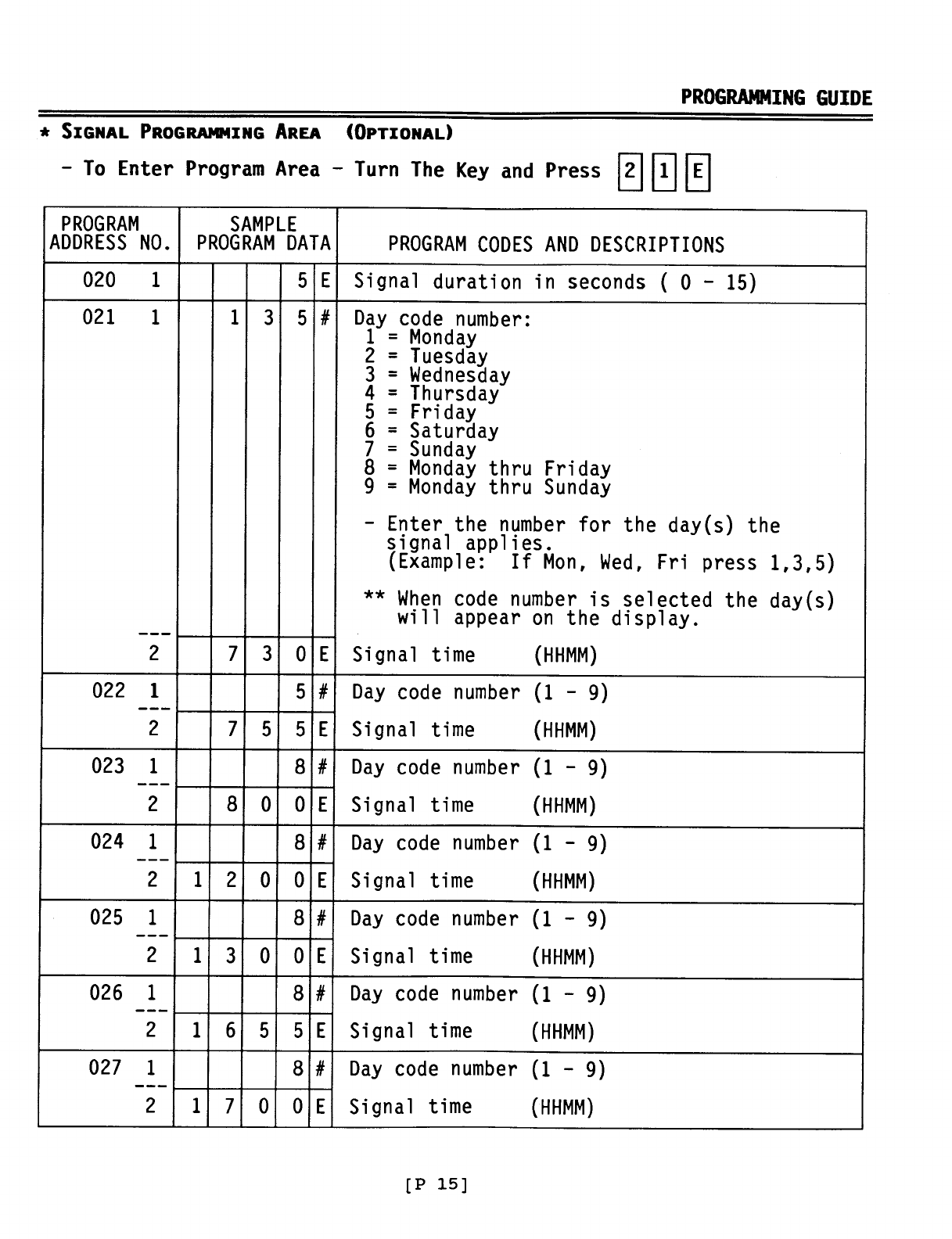

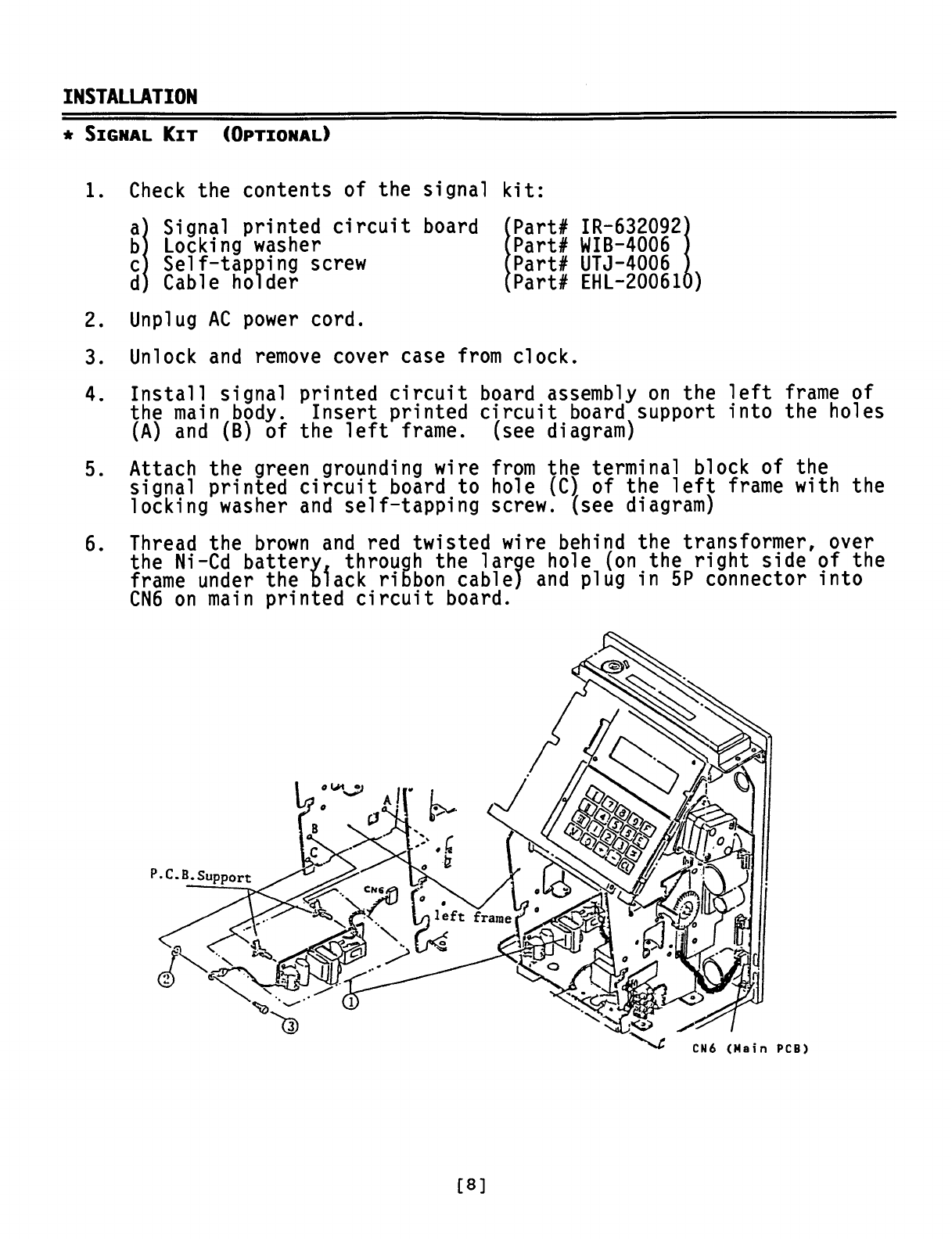

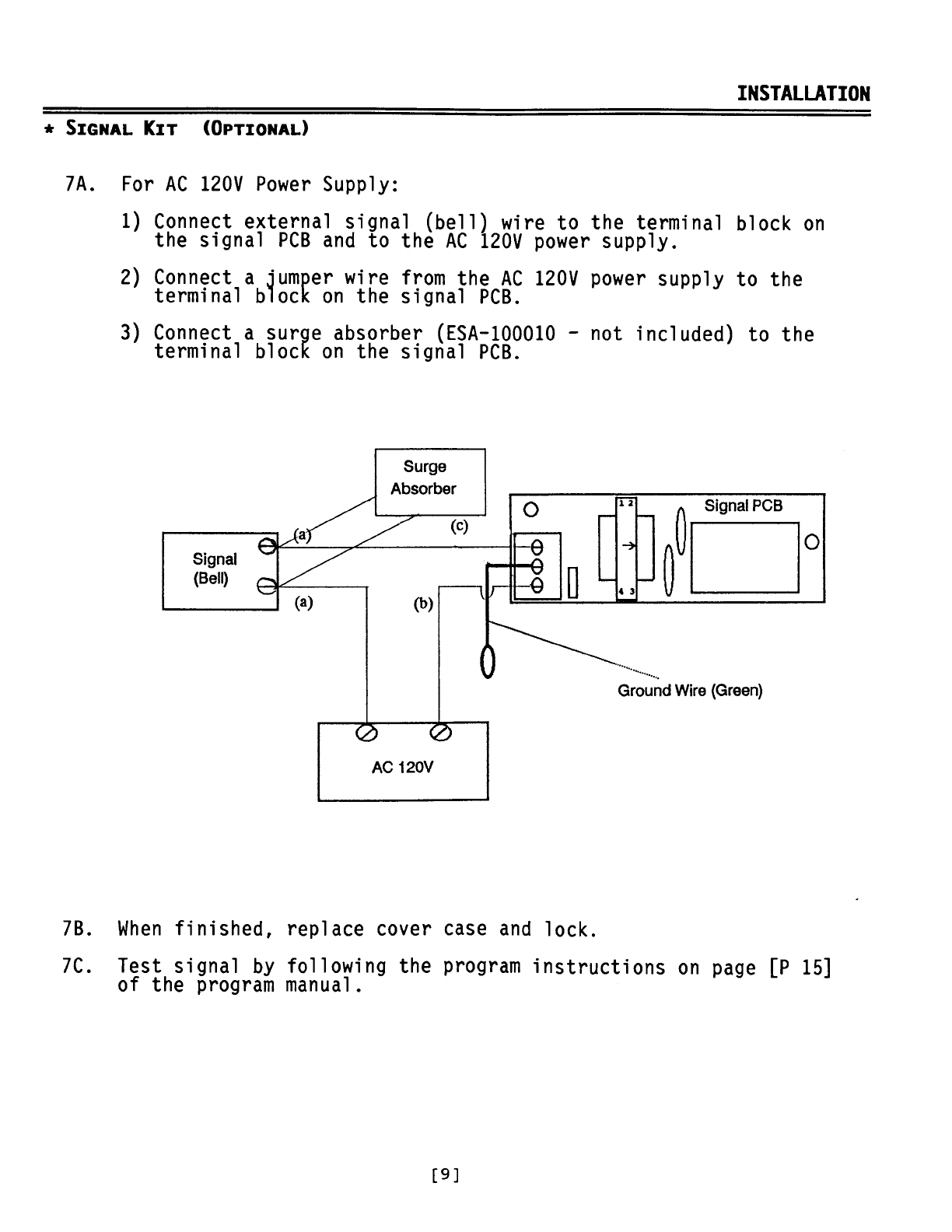

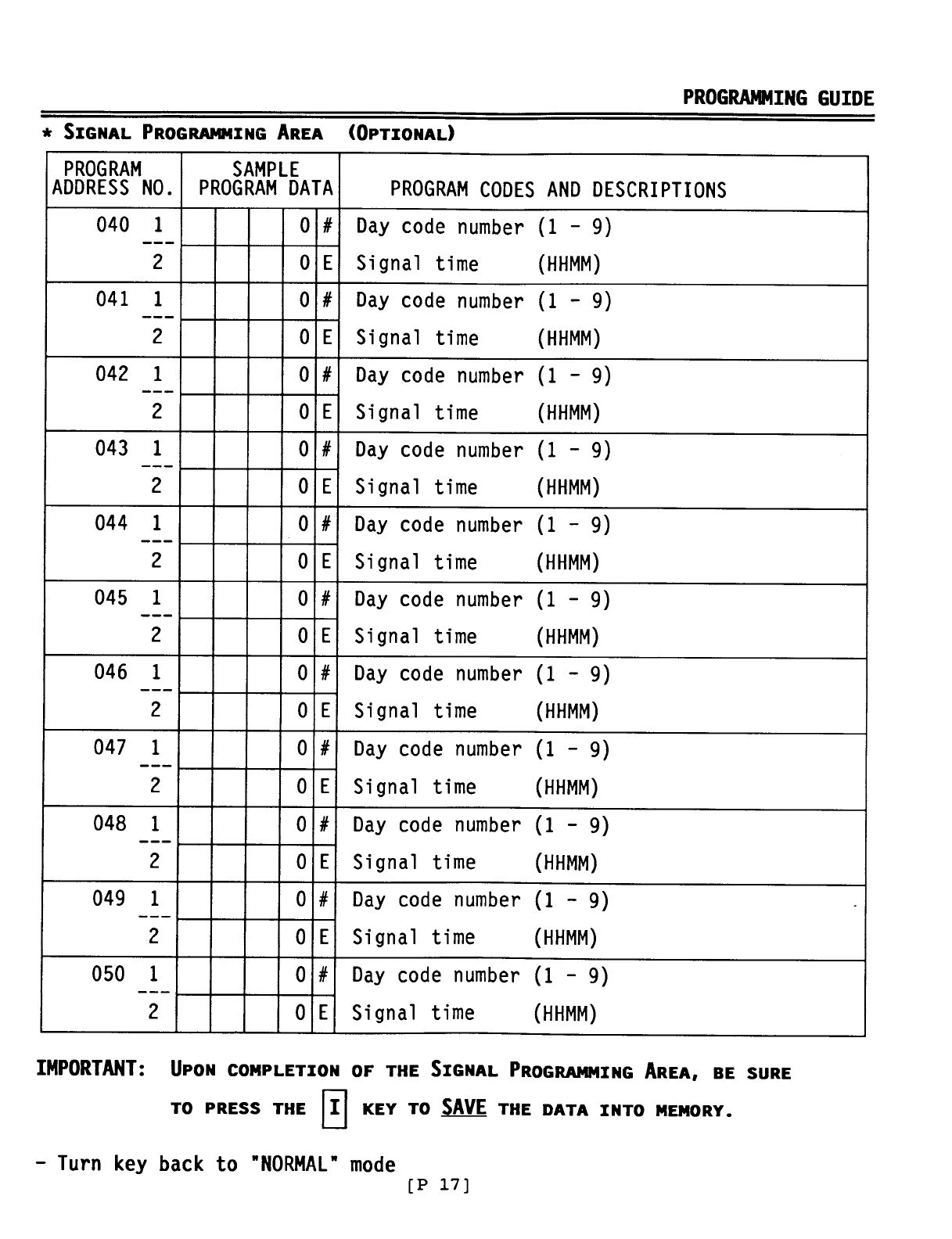

7 Signal Programming (OPTIONAL –

Signal Kit must be installed to

send signal)

21 E P 15

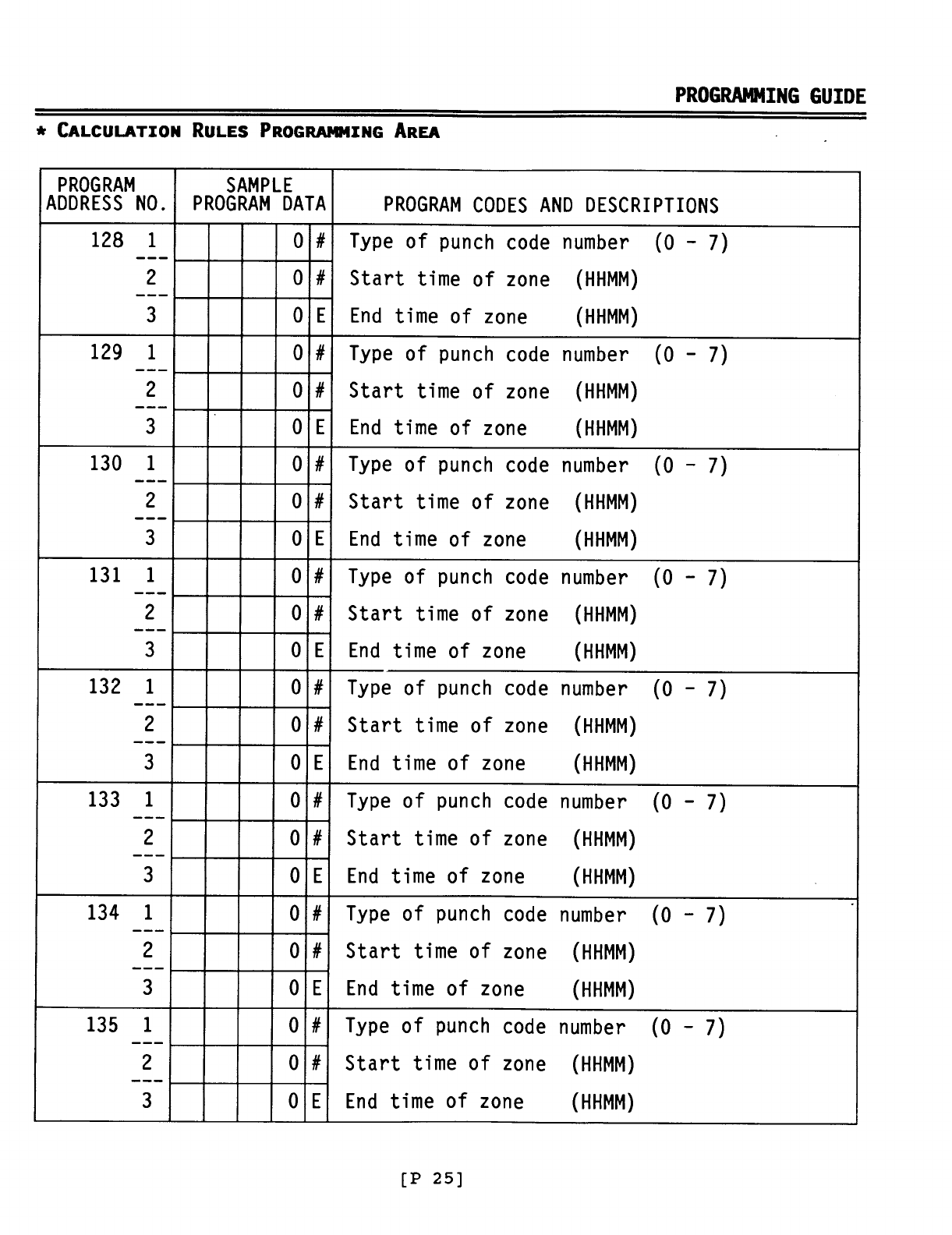

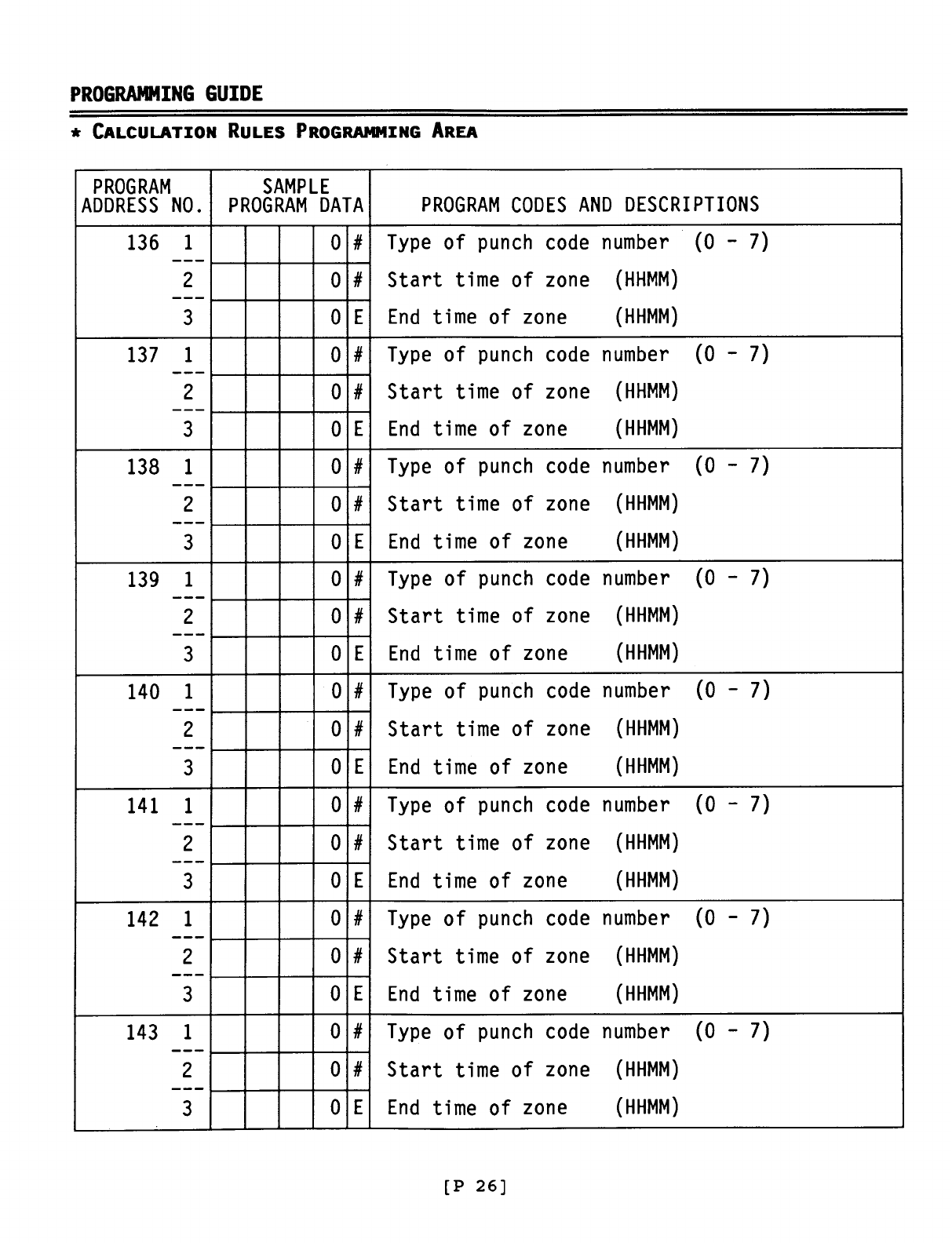

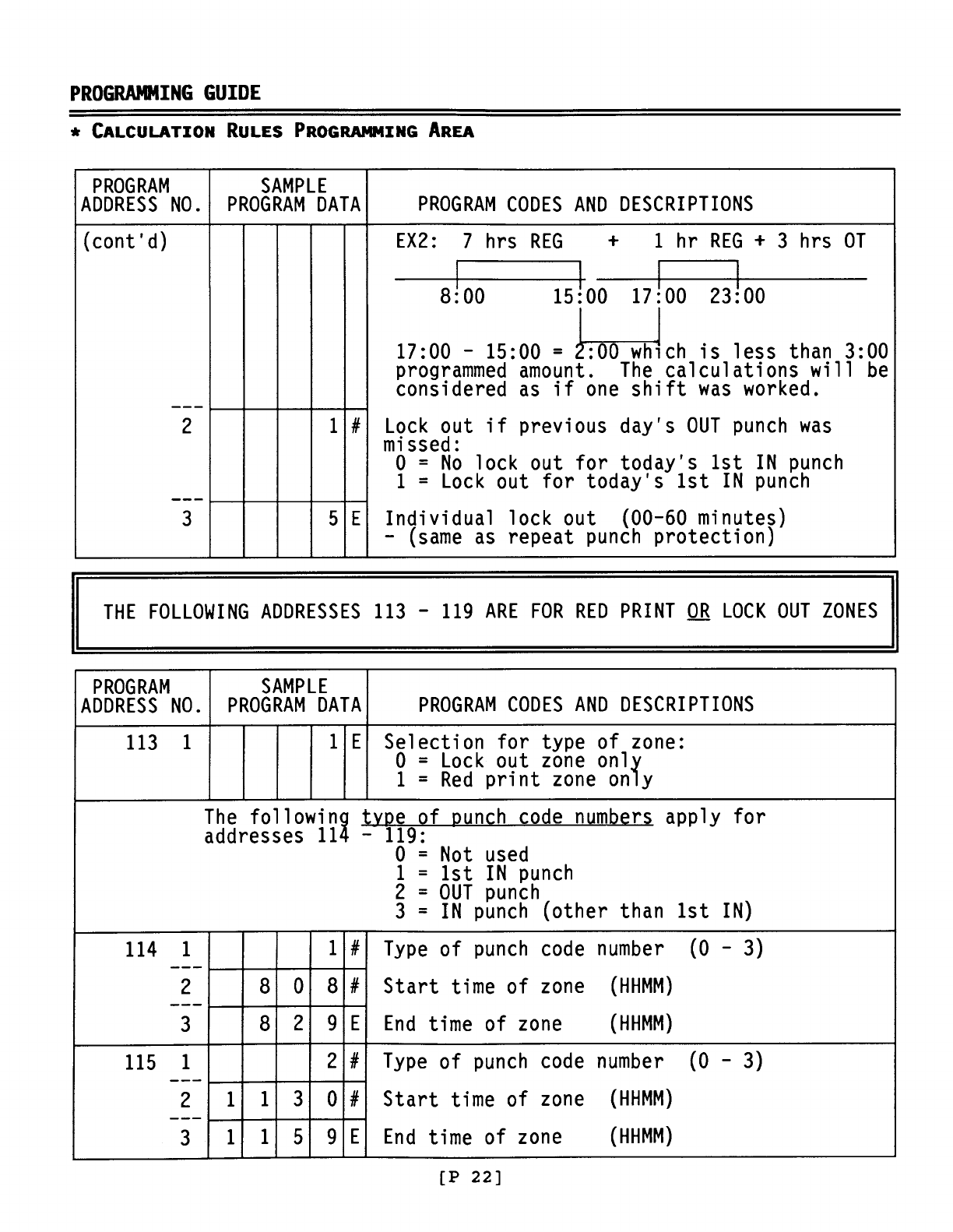

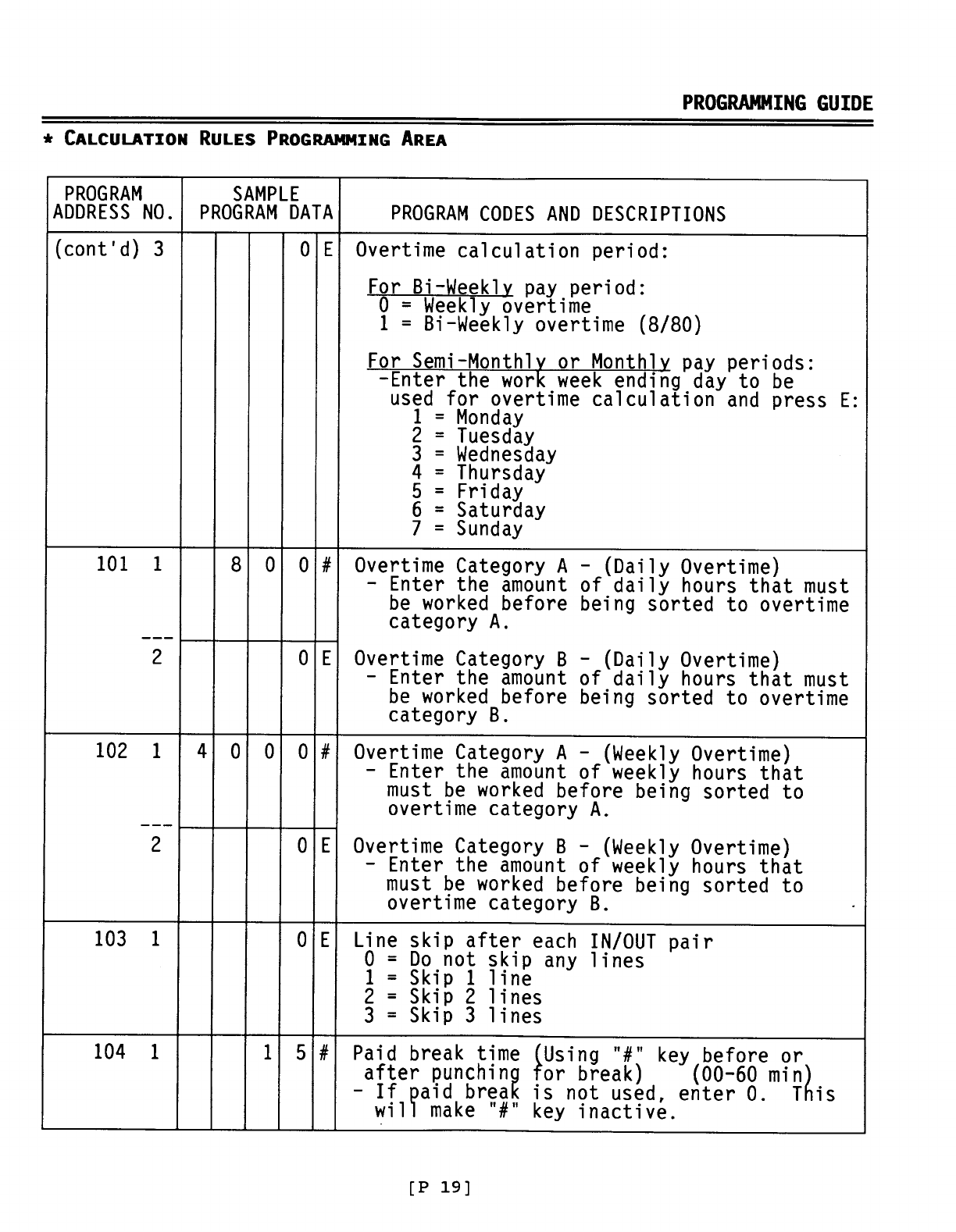

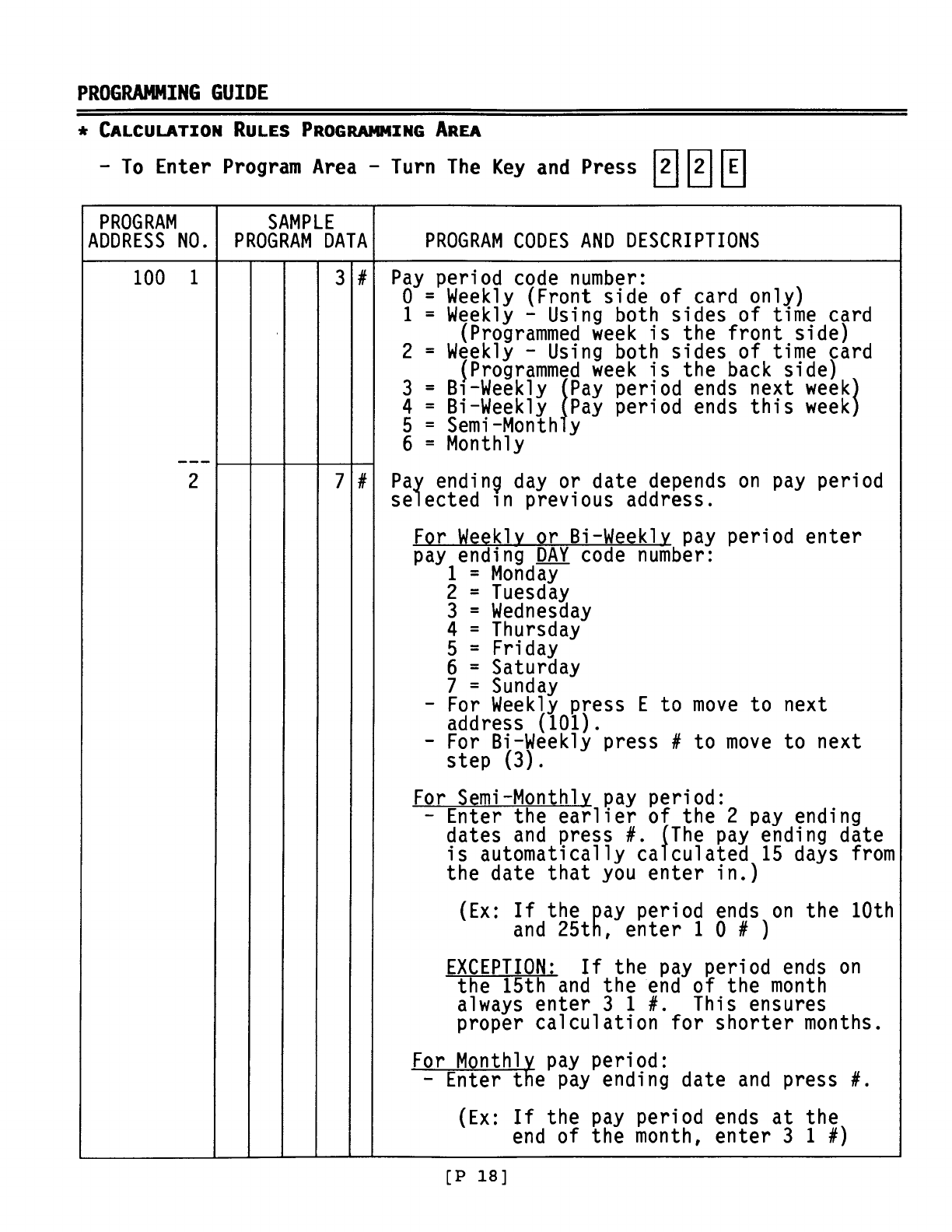

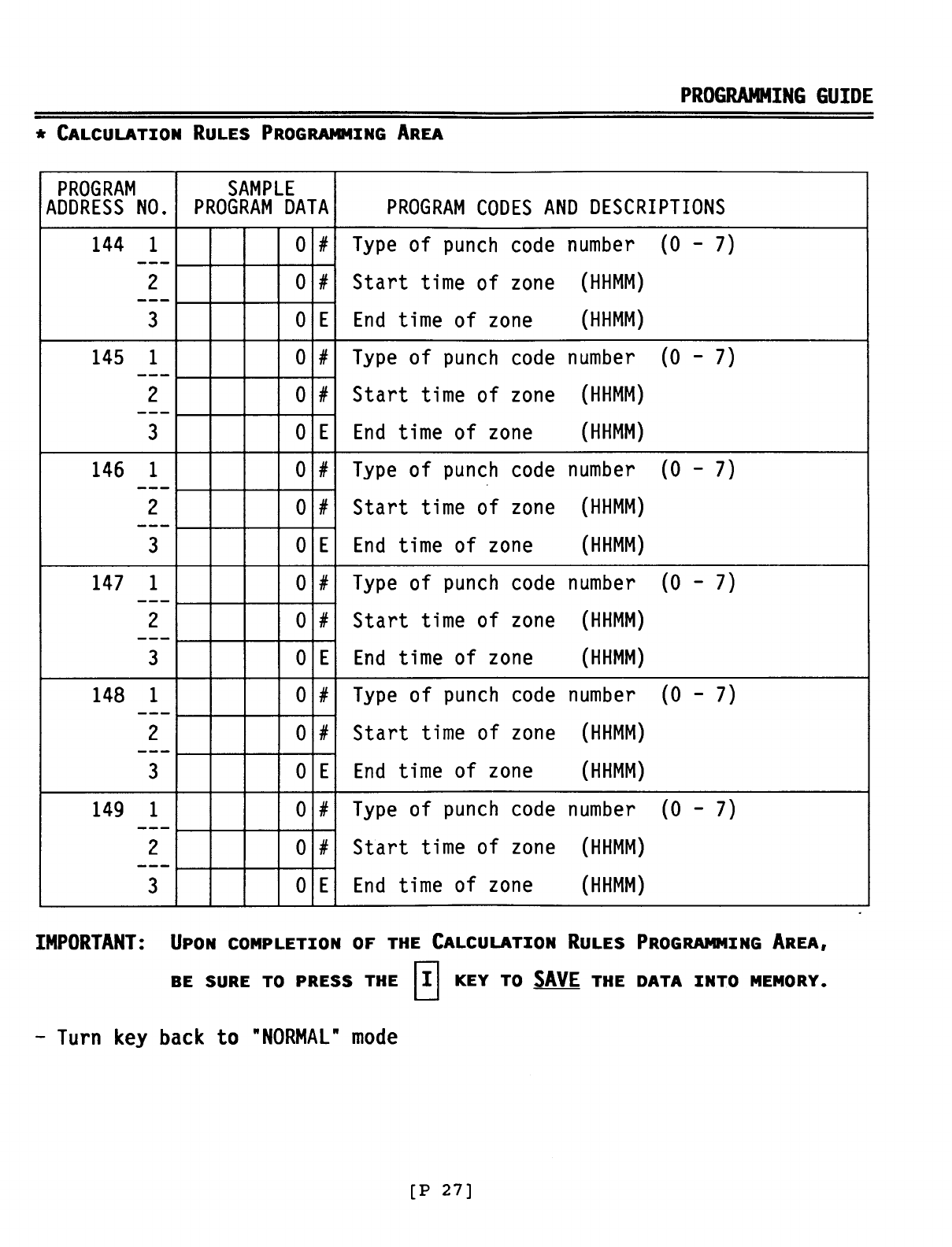

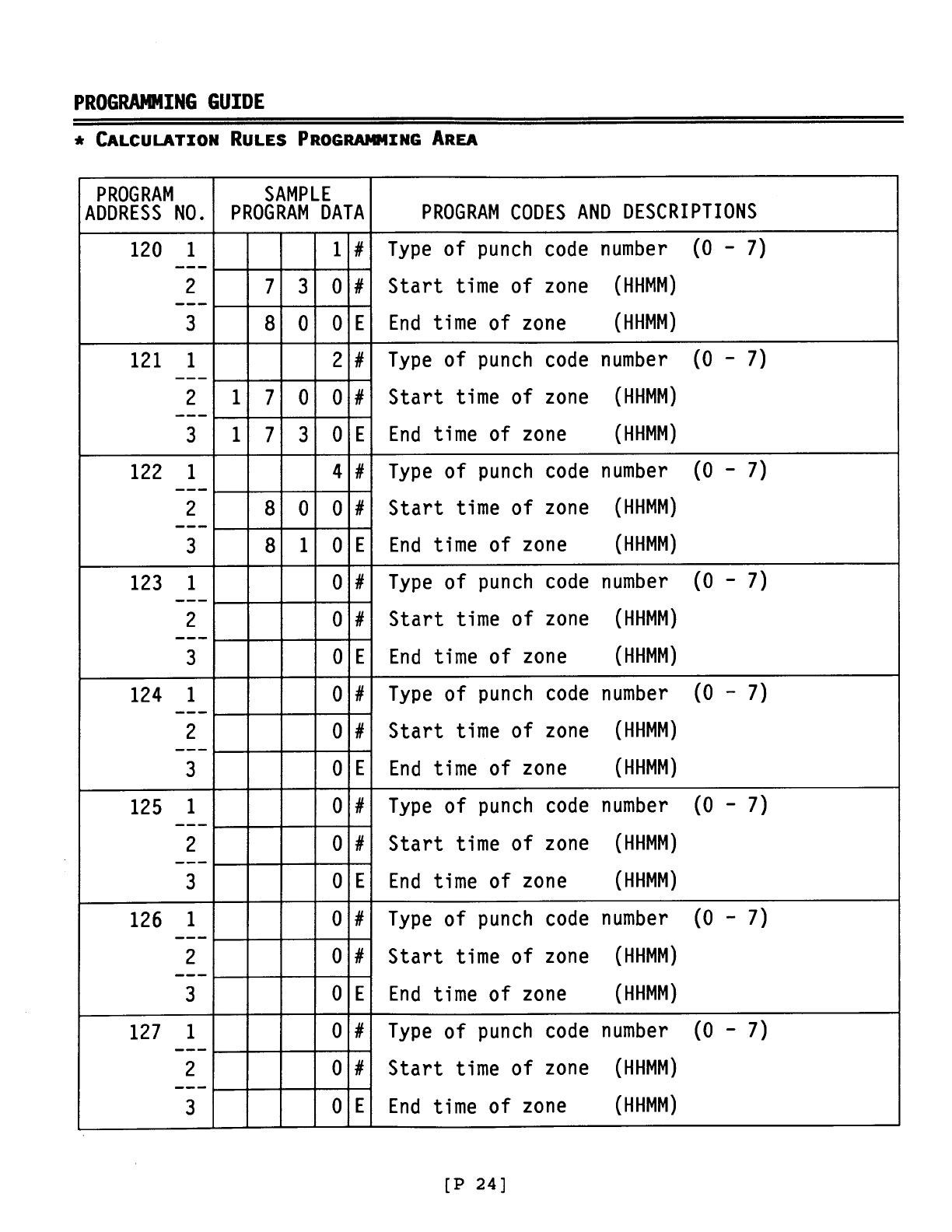

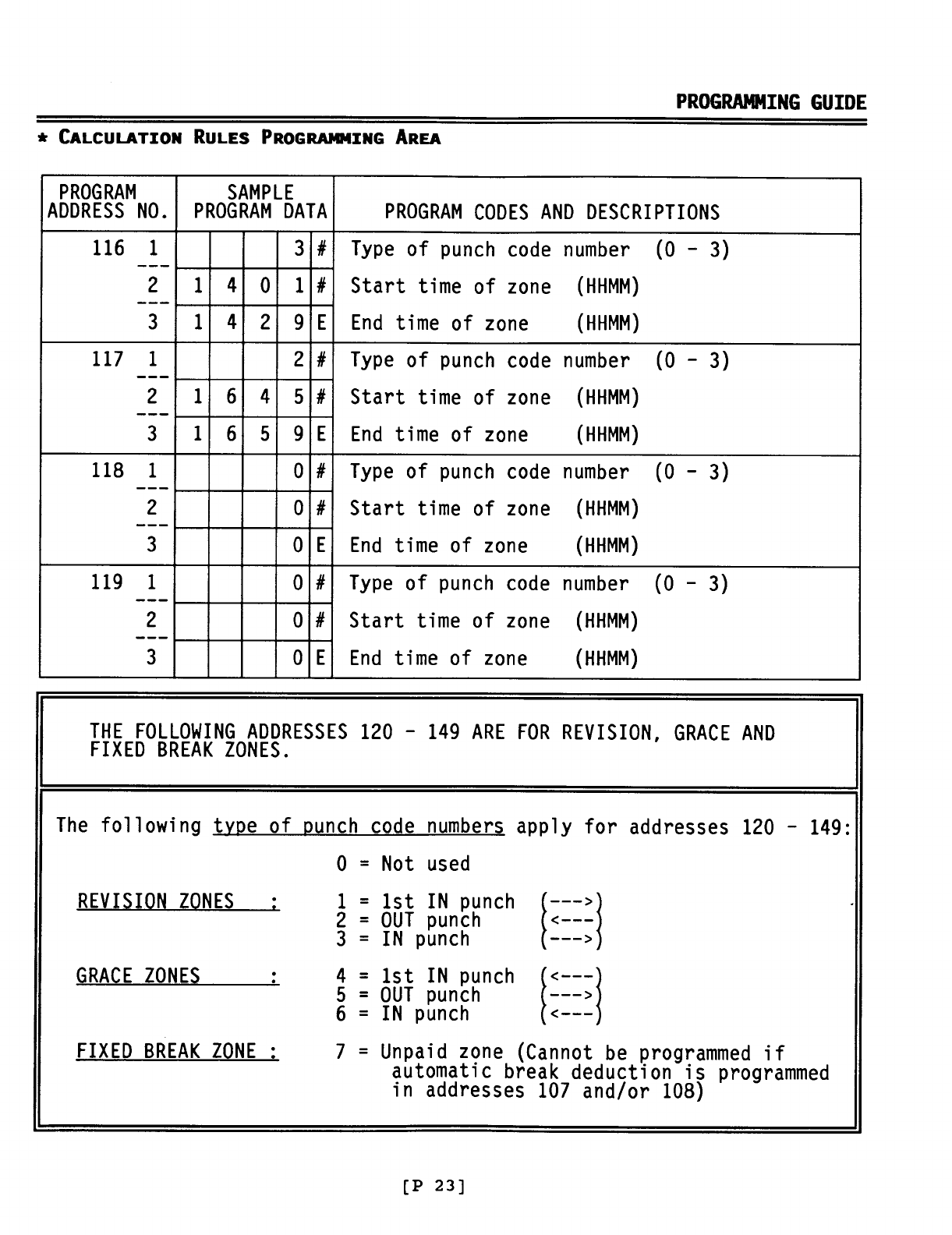

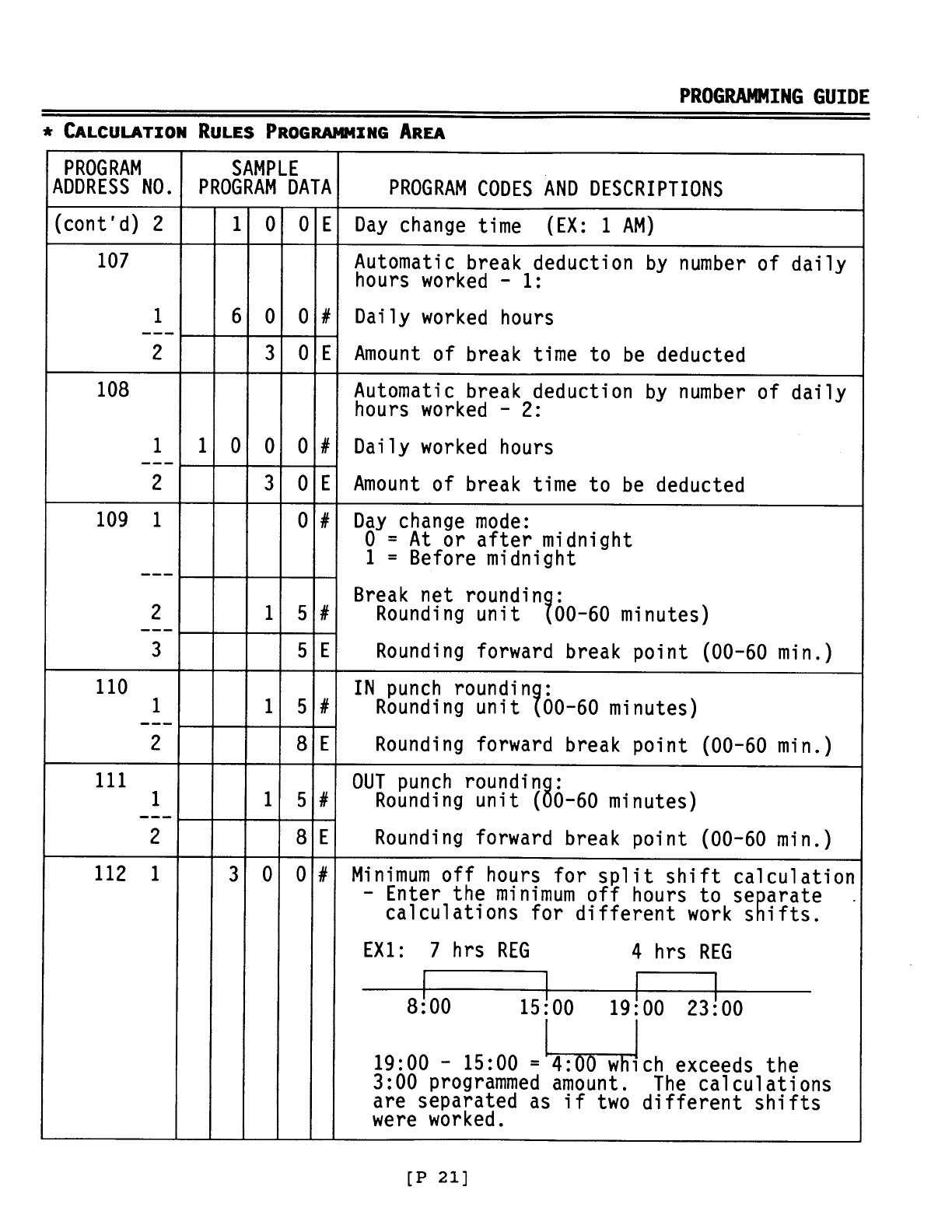

8 Calculation Rules Programming 22 E P 18

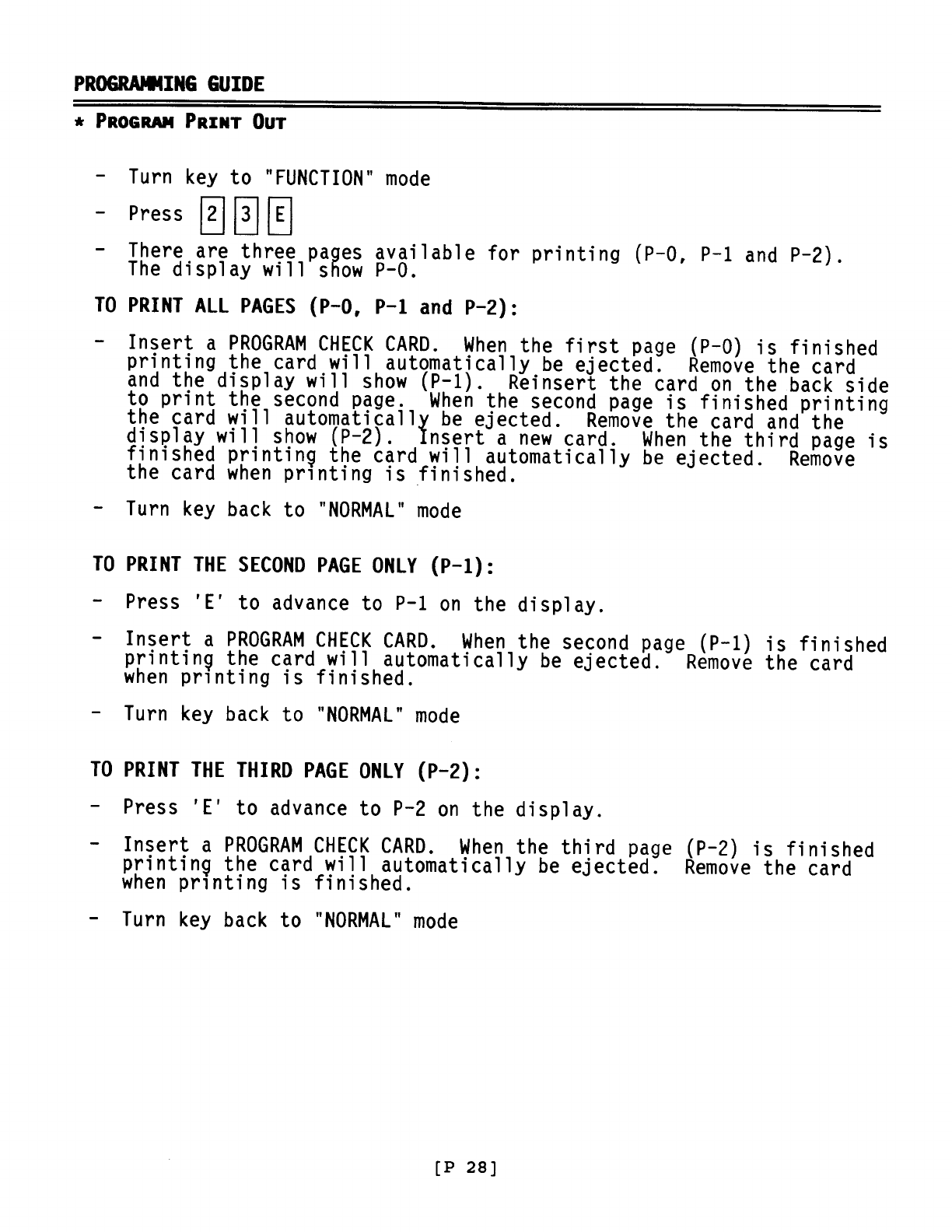

9 Program Print-Out 23 E P 28

[P 3]

PROGRAMMING GUIDE

* PASSWORD SETUP

The MJR-8000 provides you with password protection for certain

Program and User Access Codes to offer you added security.

After the initialization procedure ’32 E 64 E XXXX E’ the password

is automatically set to ‘0000’. It is not required for you to change

your password unless you require that extra security.

The areas that require a password are:

• Initialization:

ALL memory (program and employee data) (32 E 64 E)

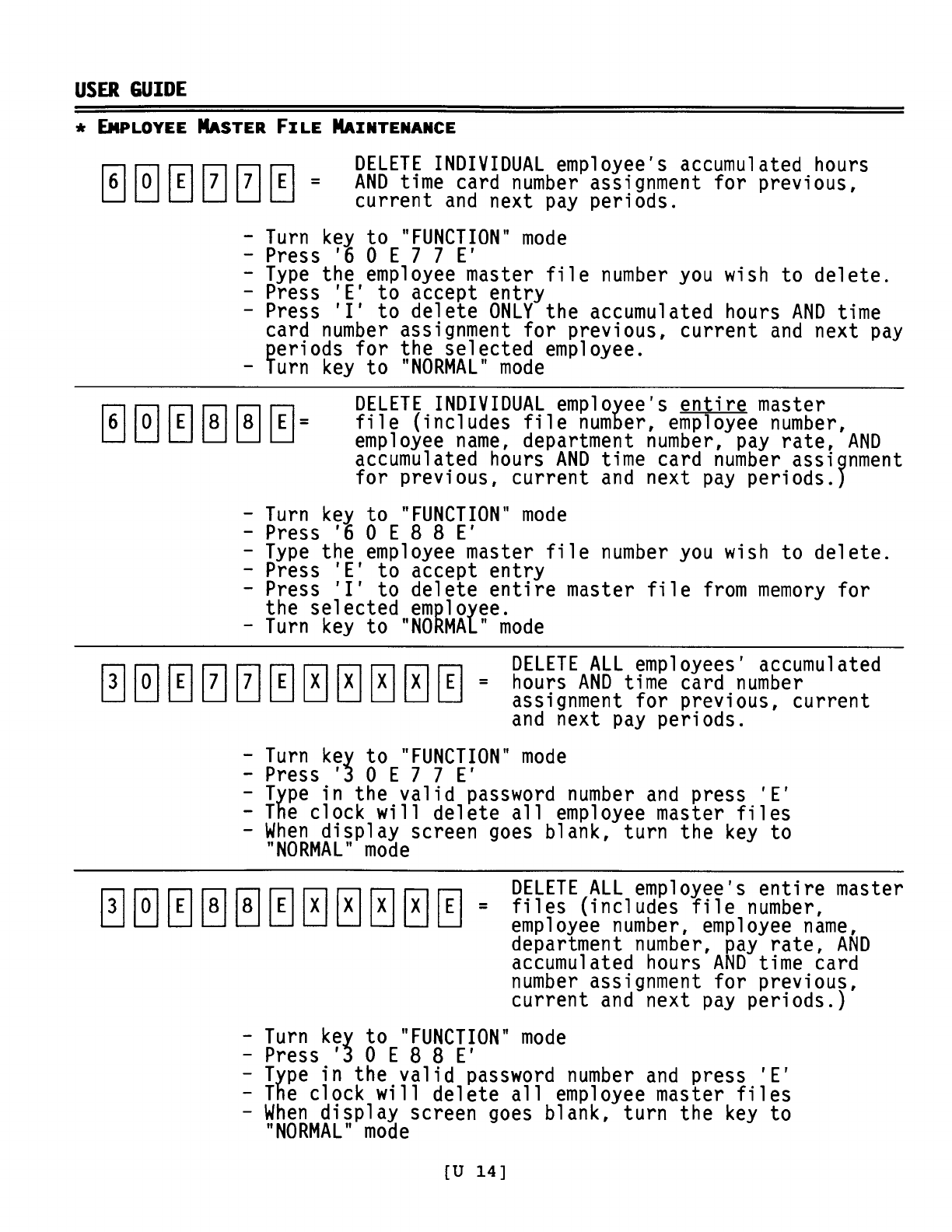

ALL employee data (30 E 88 E)

ALL program data (31E 99 E)

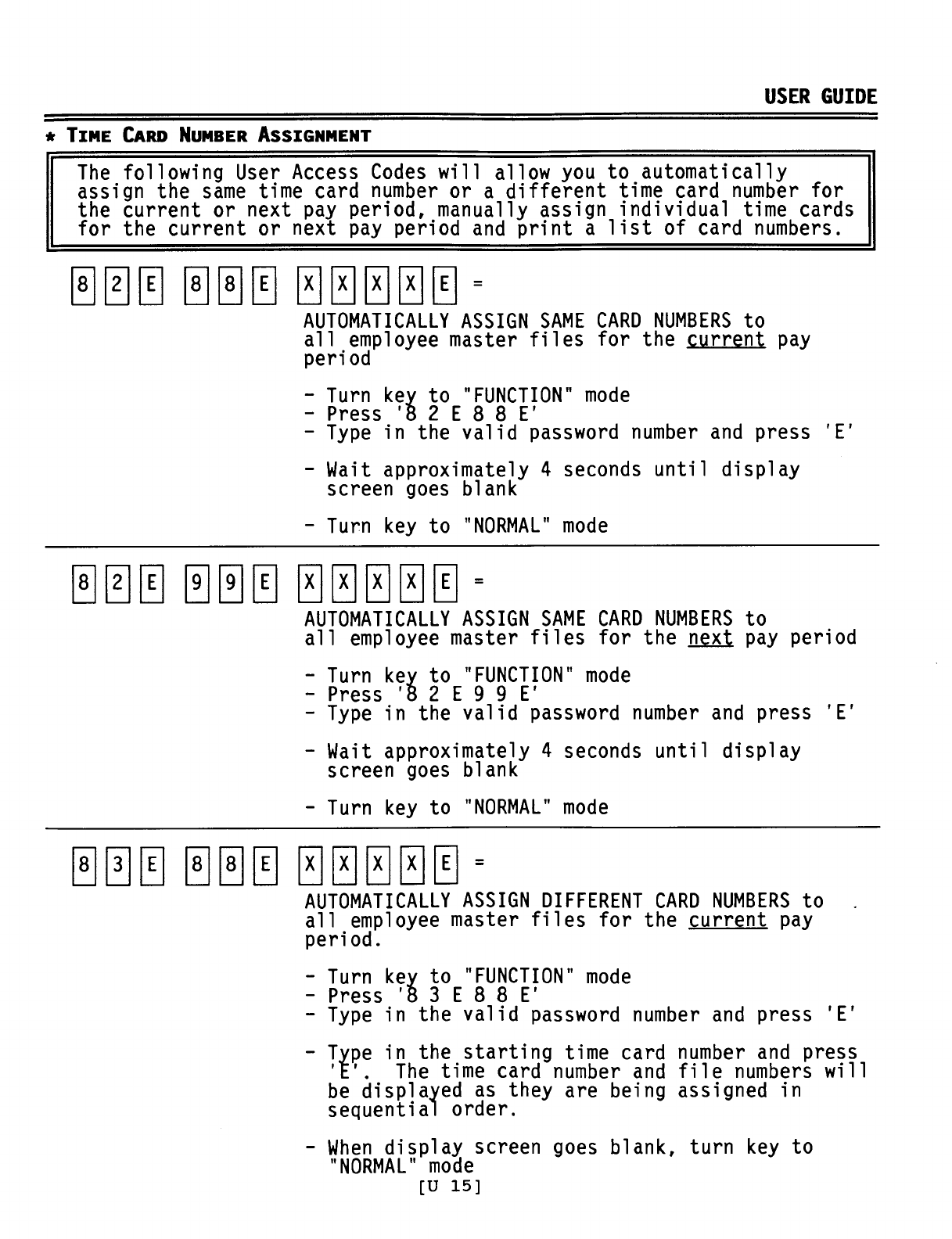

• Time Card Number Assignment Programming Area (13 E)

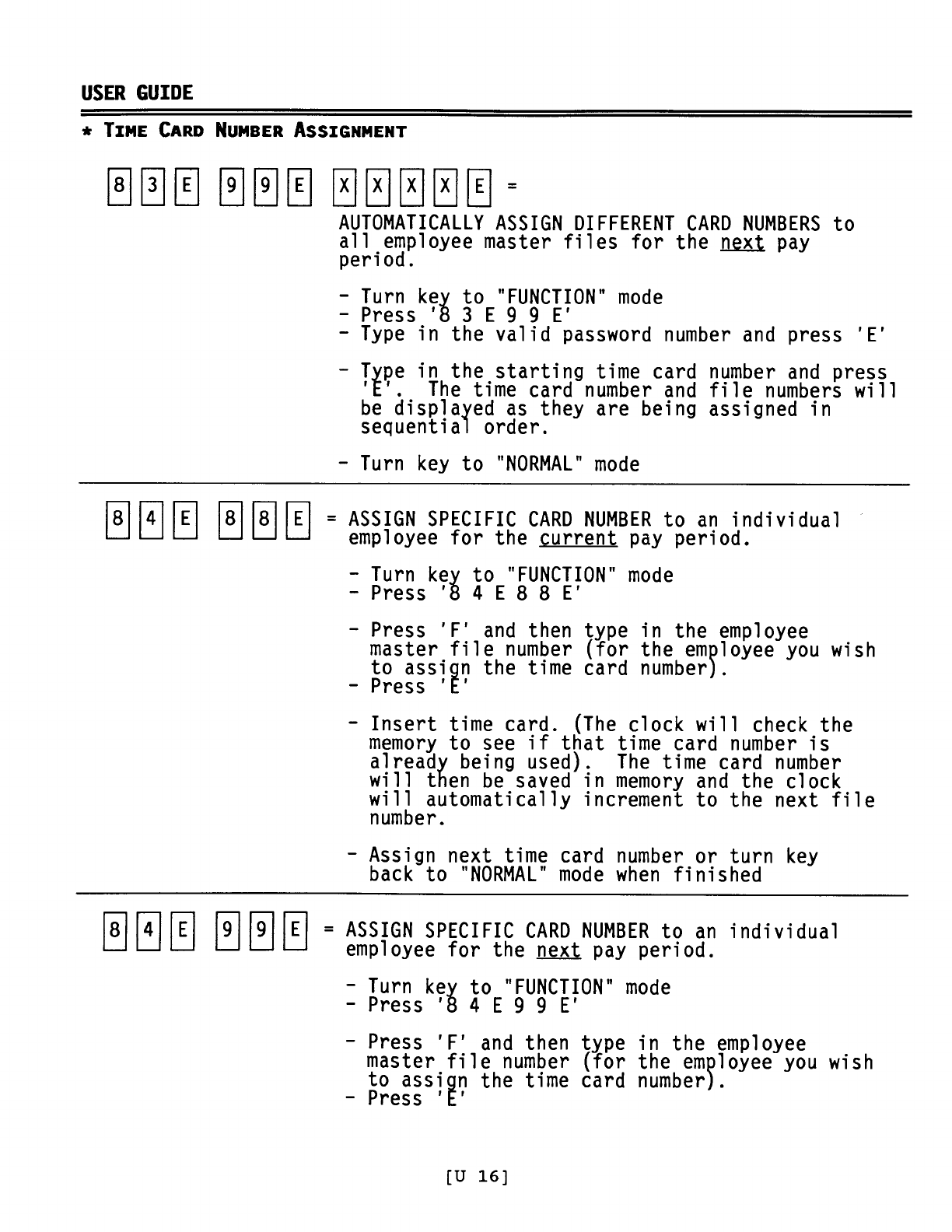

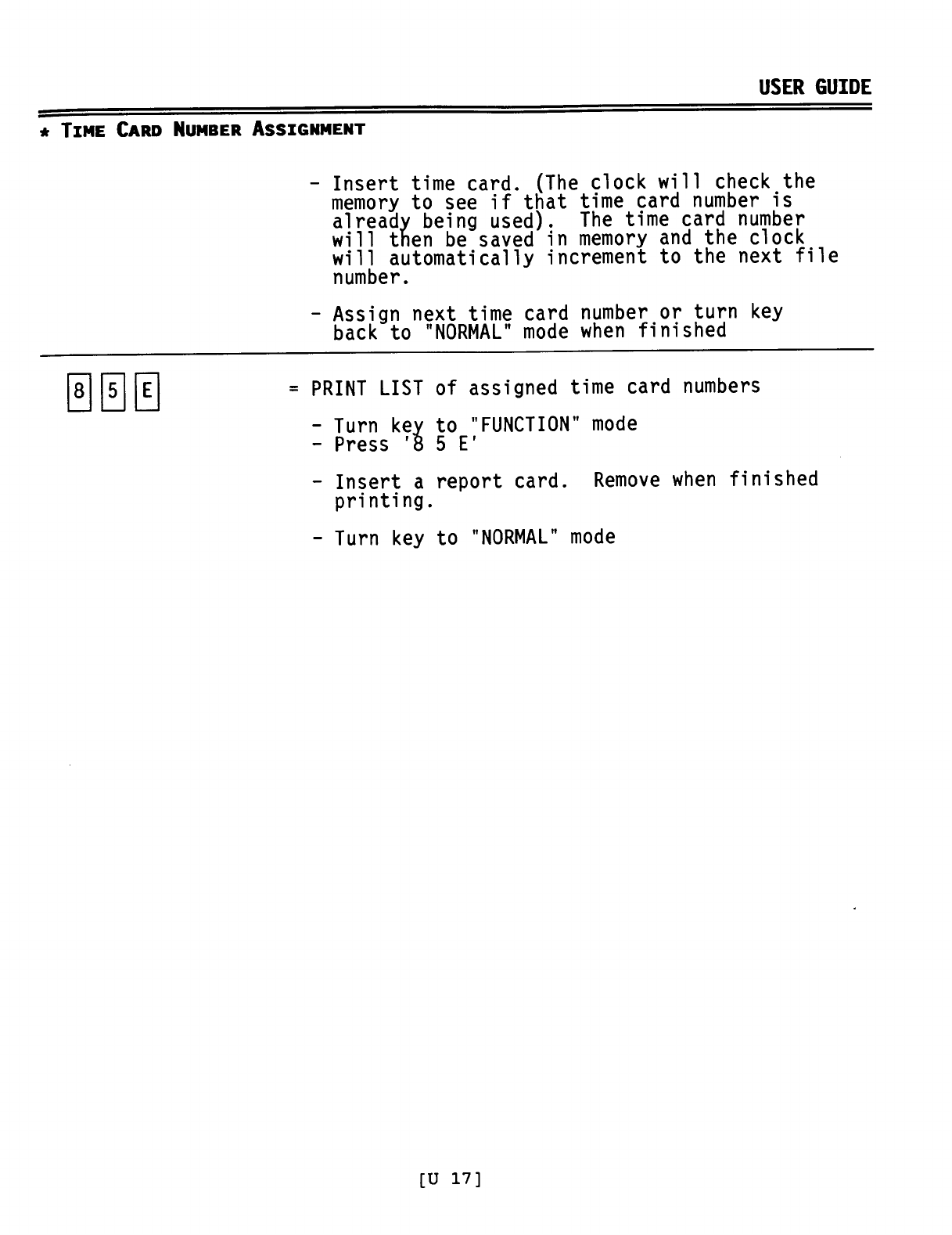

• Time Card Number Assignment

(82 E and 83 E)

• Lists with Pay Rates:

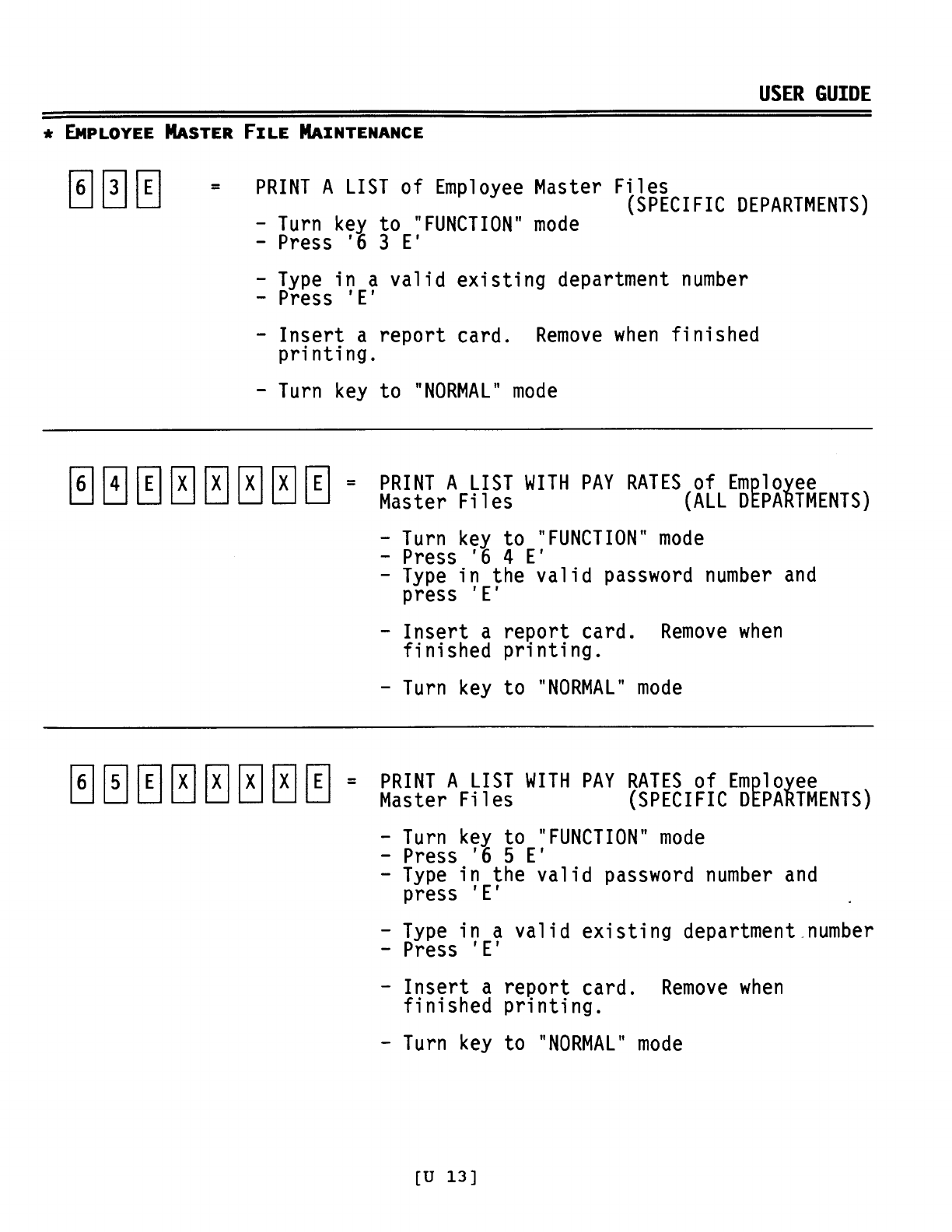

Employee Lists (64 E and 65 E)

• Reports with Pay Rates or Dollar Amounts:

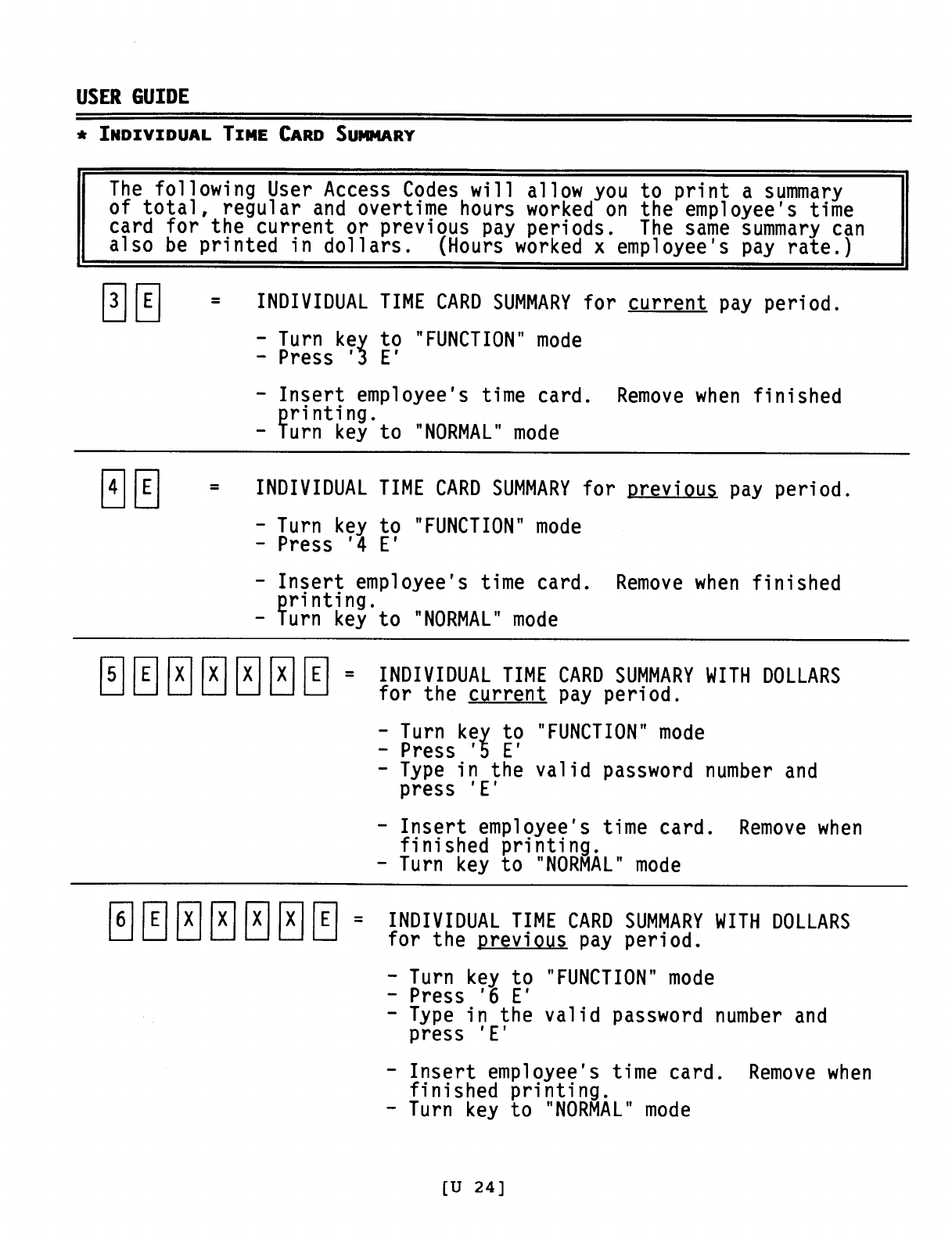

Individual Time Card Summary with Pay Rates (5 E and 6 E)

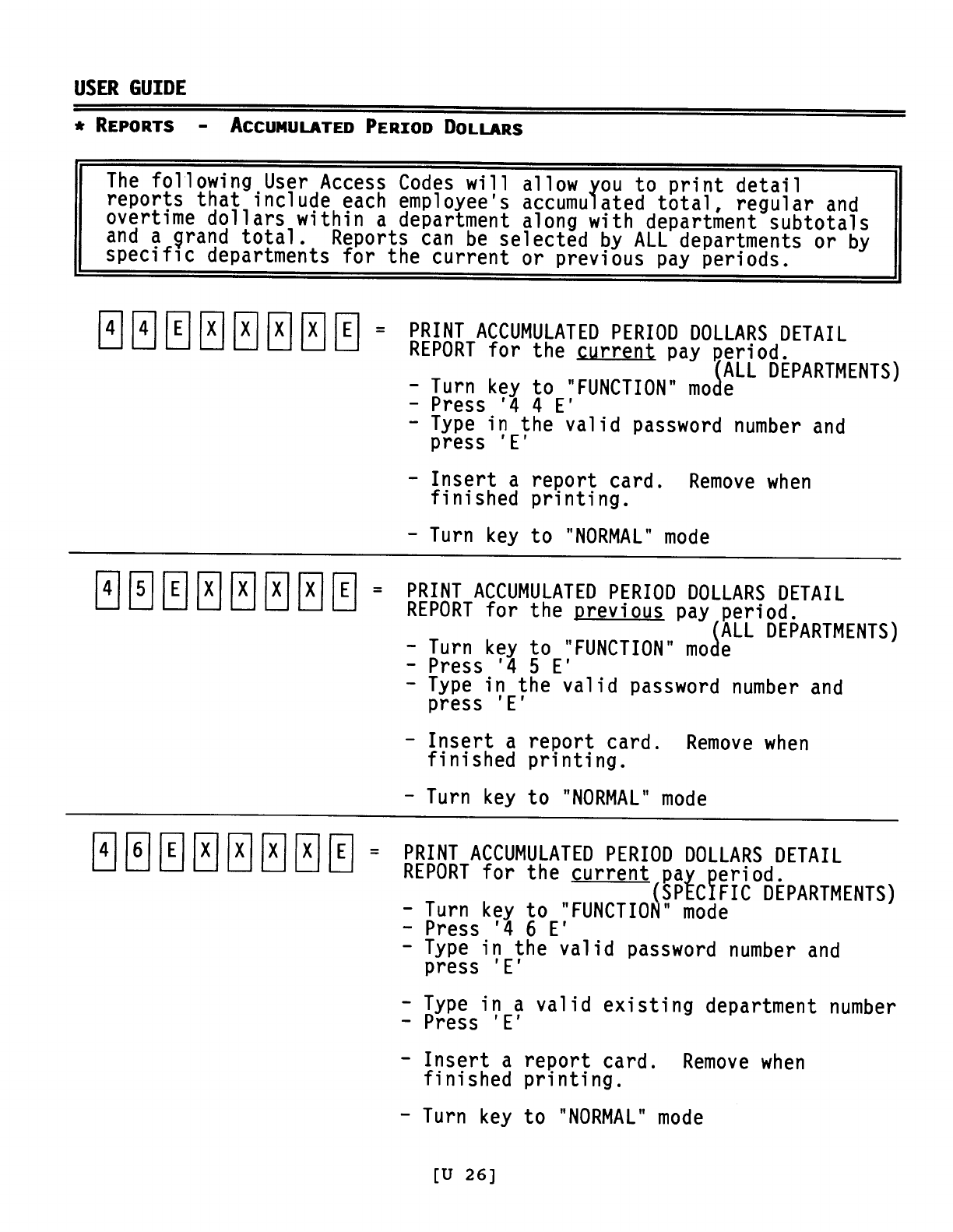

Accumulated Dollar$ Reports (44 E, 45 E, 46 E and 47 E)

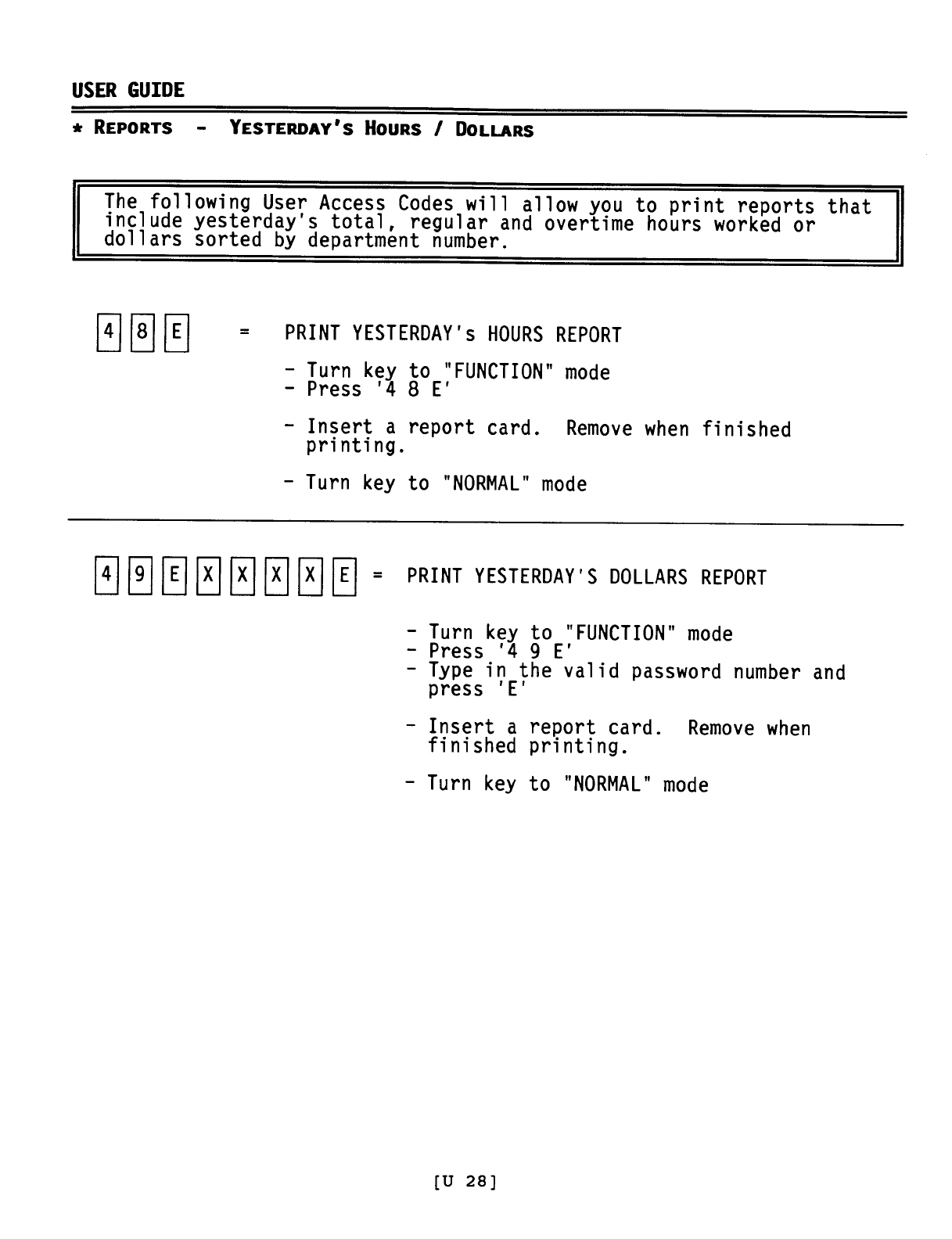

Yesterday’s Dollar$ Report (49 E)

Today’s Dollar$ Report (51 E)

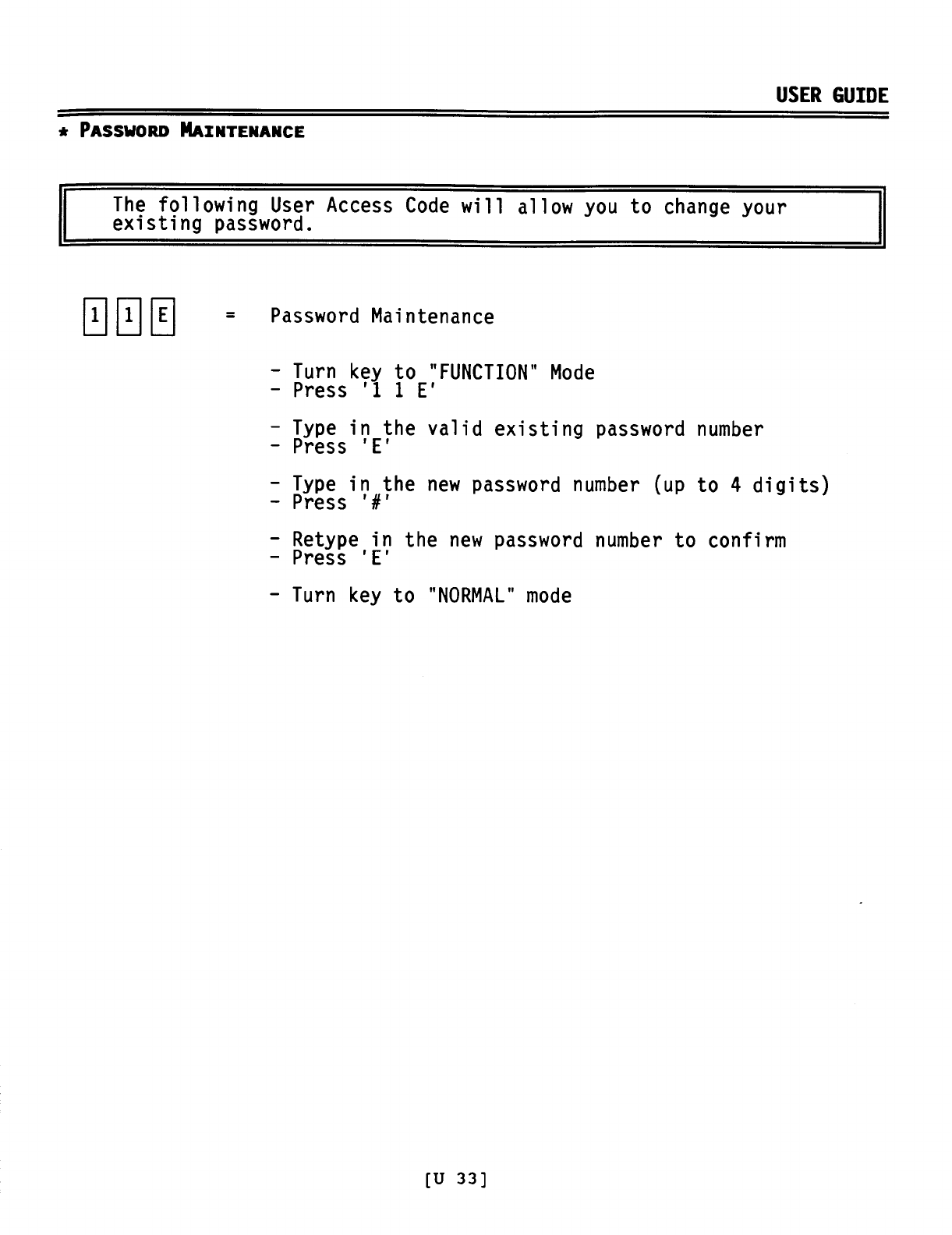

IF YOU WISH TO CHANGE THE EXISTING PASSWORD, REFER TO PAGE

[U 33] in the MJR-8000 User’s Manual for detailed instructions.

[ P 5 ]

PROGRAMMING GUIDE

** This page intentionally left blank **

[P 7]

ACC-248703 Copyright © 2006 Amano Cincinnati, Inc. Printed in USA 8/06/0
