AmbiCom BT-PA BLUETOOTH PRINTER ADAPTER User Manual Printer Adapter 9 3 generic
AmbiCom Holdings, Inc. BLUETOOTH PRINTER ADAPTER Printer Adapter 9 3 generic
AmbiCom >
USERS MANUAL
Wireless Communication
Thank you for purchasing this product. This printer adapter is
designed to add more convenience and freedom to printing. With
this printer adapter, you can enable wireless printing and print data
or photos from your desktop PCs, Laptops, PDAs and mobile
phones. It’s easy-to-use and is able to activate wireless printing
ranging from 80 to 100 meters. Surely, this printer will benefit your
works in the office and will add more enjoyment at home.
Welcome
Welcome
Features
Plug-n-Play, easy-to-use
Supports HCRP (Hardcopy Cable Replacement Profile),
SPP(Serial Port Profiles), OPP (Object Push Profile)
and BIP (Basic Image Profile)
Share the printer with your desktop Pcs, Laptops,
PDAs and mobile phones, ranging from 80 to 100
meters
Complies with USB 1.1 and the Bluetooth 1.1
specifications
Compatible with most of the popular printers on the
market.

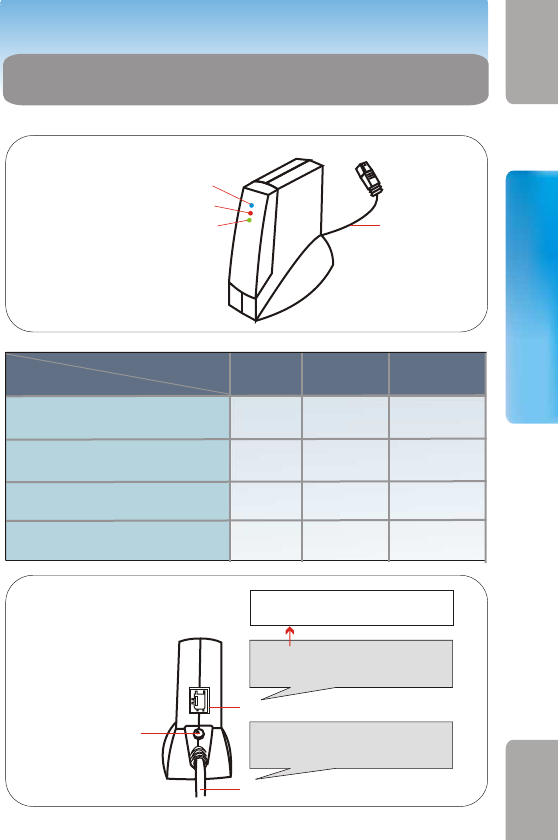

Parts of Your Printer Adapter
Front
Back
LED 1 (Green) USB Cable (1)
USB Cable (1)
Power Connector
LED 1
(Green)
LED 2
(Blue)
Power on but not in standby
mode
Power on and in standby
mode
Receiving/ Sending data
On Off
Blinks once
per second
On
On
Printer Adapter Status
LED Status
USB Port
* Use USB Cable (2) (not bundled)
to connect your PC/ Laptop to
this USB Port.
Welcome
* Connect USB Cable (1) to the
USB port of your printer.
Note: USB Cable (2) is the cable,
which connects your PC and printer.
1 2
LED 3 (Red)
LED 3
(Red)
Off
Off
Blinks quickly
OffOnOn
Printing
LED 2(Blue)
On
Thank you for purchasing this product. This printer adapter is
designed to add more convenience and freedom to printing. With
this printer adapter, you can enable wireless printing and print data
or photos from your desktop PCs, Laptops, PDAs and mobile
phones. It’s easy-to-use and is able to activate wireless printing
ranging from 80 to 100 meters. Surely, this printer will benefit your
works in the office and will add more enjoyment at home.
Welcome
Welcome
Features
Plug-n-Play, easy-to-use
Supports HCRP (Hardcopy Cable Replacement Profile),
SPP(Serial Port Profiles), OPP (Object Push Profile)
and BIP (Basic Image Profile)
Share the printer with your desktop Pcs, Laptops,
PDAs and mobile phones, ranging from 80 to 100
meters
Complies with USB 1.1 and the Bluetooth 1.1
specifications
Compatible with most of the popular printers on the
market.
Parts of Your Printer Adapter
Front
Back
LED 1 (Green) USB Cable (1)
USB Cable (1)
Power Connector
LED 1
(Green)
LED 2
(Blue)
Power on but not in standby
mode
Power on and in standby
mode
Receiving/ Sending data
On Off
Blinks once
per second
On
On
Printer Adapter Status
LED Status
USB Port
* Use USB Cable (2) (not bundled)
to connect your PC/ Laptop to
this USB Port.
Welcome
* Connect USB Cable (1) to the
USB port of your printer.
Note: USB Cable (2) is the cable,
which connects your PC and printer.
1 2
LED 3 (Red)
LED 3
(Red)
Off
Off
Blinks quickly
OffOnOn
Printing
LED 2(Blue)
On

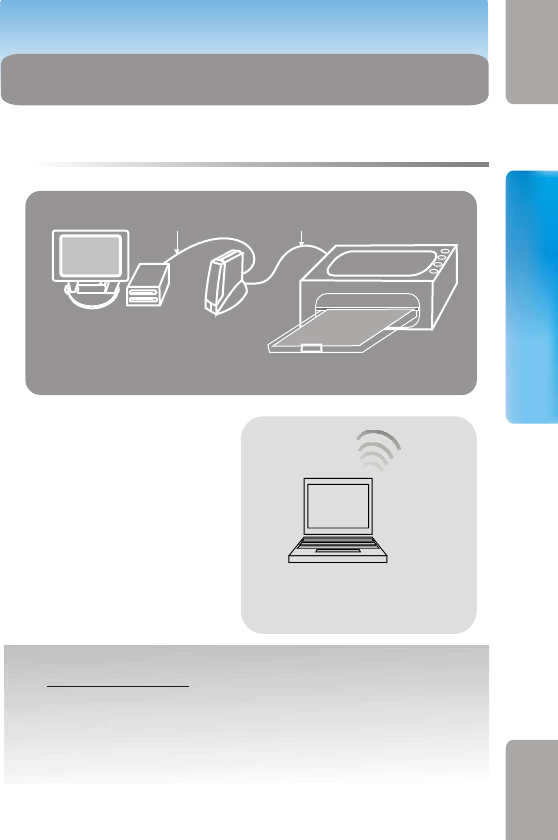

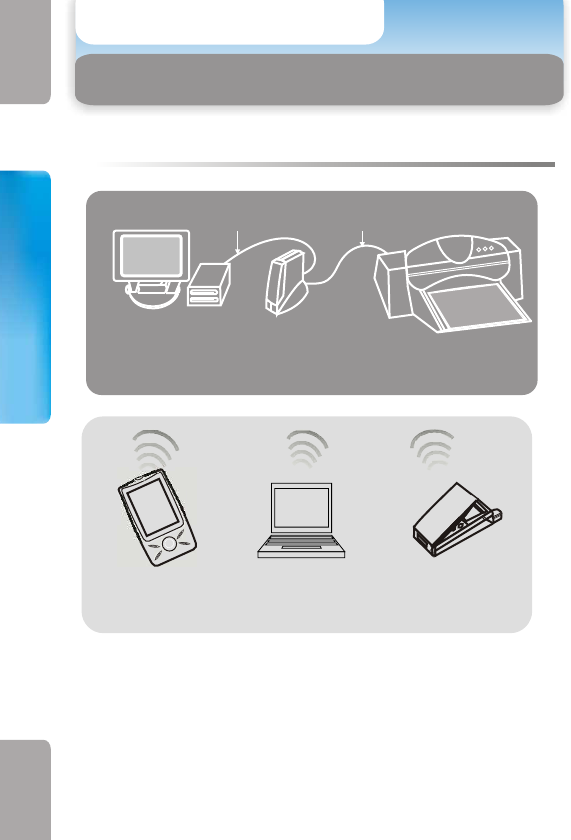

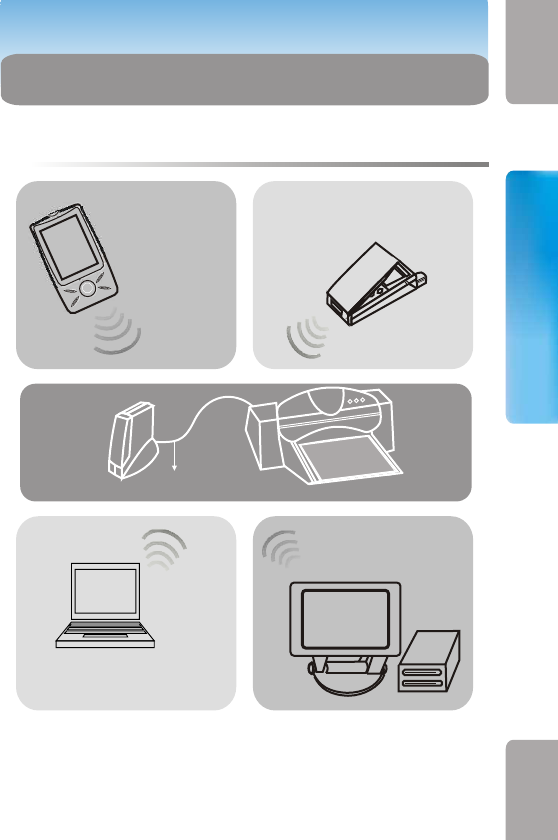

Use Scenario (1)
PDA Mobile phone
Bluetooth Enabled
Laptop
Bluetooth Enabled
Desktop PC
USB Cable (1)
6~9V 300mA User Guide

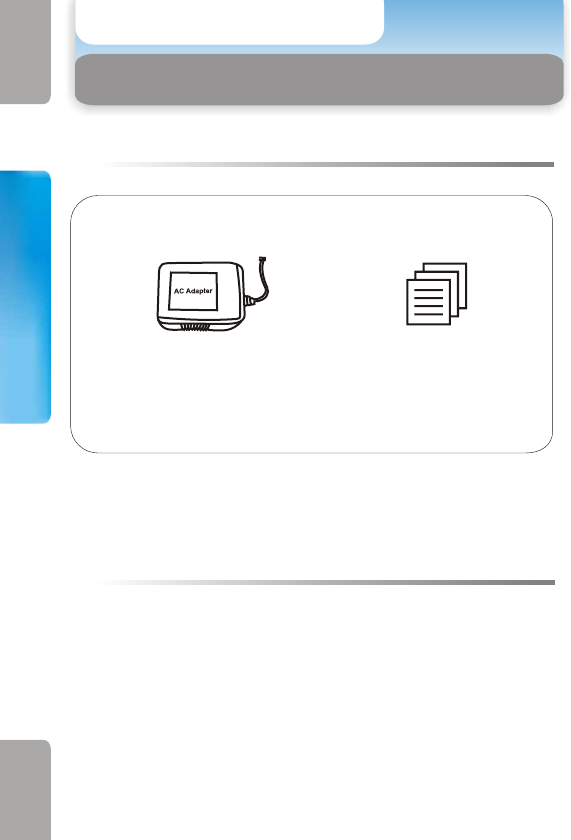

Accessories
A Bluetooth printer adapter x 1
A 6~9VDC 300mA AC adapter x 1
A user guide x1
Package Contents
Parts of Your Printer Adapter Use Scenario (1)
With USB Cable (1), you can print documents from your Desktop
PCs, Laptops, Mobile phones or PDAs wirelessly.
3 4
Welcome
Welcome
Welcome
Use Scenario (1)
PDA Mobile phone
Bluetooth Enabled
Laptop
Bluetooth Enabled
Desktop PC
USB Cable (1)
6~9V 300mA User Guide
Accessories
A Bluetooth printer adapter x 1
A 6~9VDC 300mA AC adapter x 1
A user guide x1
Package Contents
Parts of Your Printer Adapter Use Scenario (1)
With USB Cable (1), you can print documents from your Desktop
PCs, Laptops, Mobile phones or PDAs wirelessly.
3 4
Welcome
Welcome
Welcome
Use Scenario (3)Use Scenario (2)
PDA Bluetooth Enabled
Laptop
Mobile phone
USB Cable (2) USB Cable (1)
Desktop PCs
or Laptops
USB Cable (2) USB Cable (1)
Multifunction Printer
Use Scenario (3)Use Scenario (2)
With a multifunction printer,
you can scan/ print from
device 1 and print from
device 2 (but can not scan).
With USB Cable (1) and USB Cable (2), you can have wired
printing from device 1 and wireless printing from device 2, 3, 4. (Important Note: In Scenario (2) & (3), please refer to
the instructions of your printer manual to configure a wired
printer. To configure a Bluetooth printer, please see the
following chapters.
Desktop PCs
or Laptops
(Device 1)
(Device 2) (Device 3) (Device 4)
(Device 1)
Bluetooth Enabled
Laptop or Desktop PCs
(Device 2)
5 6
Welcome
Welcome
Welcome
Use Scenario (3)Use Scenario (2)
PDA Bluetooth Enabled
Laptop
Mobile phone
USB Cable (2) USB Cable (1)
Desktop PCs
or Laptops
USB Cable (2) USB Cable (1)
Multifunction Printer
Use Scenario (3)Use Scenario (2)
With a multifunction printer,
you can scan/ print from
device 1 and print from
device 2 (but can not scan).
With USB Cable (1) and USB Cable (2), you can have wired
printing from device 1 and wireless printing from device 2, 3, 4. (Important Note: In Scenario (2) & (3), please refer to
the instructions of your printer manual to configure a wired
printer. To configure a Bluetooth printer, please see the
following chapters.
Desktop PCs
or Laptops
(Device 1)
(Device 2) (Device 3) (Device 4)
(Device 1)
Bluetooth Enabled
Laptop or Desktop PCs
(Device 2)
5 6
Welcome
Welcome
Welcome
Specifications Printer Compatibility for Wireless
Printing from PC and Mobile Phone
Specifications
Printer Compatibility
Printers with USB interface. (Please refer to
in the next page. )
Bluetooth enabled computers or devices(mobile phones or
PDAs) which supports HCRP(Hardcopy Replacement Profile),
OPP (Object Push Profile) or BIP (Basic Image Profile).
Printer
Compatibility for Wireless Printing from PC and Mobile
Phone
System Requirements
Specifications
Windows
Your printer adapter support Windows 98SE, ME, 2000 and XP.
Bluetooth
Your printer adapter complies with Bluetooth SIG 1.1.
Bluetooth Profile
Your printer adapter supports GAP(Generic Access), SDAP(Service
Discovery Application, HCRP(Hardcopy Cable Replacement Profile)
and SPP(Serial Port Profile).
Bluetooth Profile
The RF range of your printer adapter is from 80 to 100 meters.
RF Range
Use 6~9V/300mA/AC-DC power adapter.
Power Supply
0 ° C ~ 60 ° C (32 ° F ~ 140 ° F)
Temperature
7 8
HP DeskJet:450/840C/843C/845C/920C/930C/932C/935C/940C//948C/
950C/952C/955C/957C/960C/970C/970CXI/980C/990C/990CXI/995C/995CK/1180C/1200
C/5150/5550/5558/5560/5652/5670/6120/6127/6540/6122/2600/6127/
HPLaserJet:6P/1010/1015/1150/1200/1300/2300/1500/3200/3330/4650
HP Business InkJet:2600/3000/CP1160C/CP1700
HPColorLaserJet:3500/3700
HPPhotoSmart:100/130/140/145/230/240/245/1000/1100/1115/1215/1218/1315/7150/726
0/7350/7550/7660/7760/7960
HP MFP:2175/5110/6110
Canon DeskJet:S100/S200/S300/S330/S400/S450/S520/S600/S630/
S750/S800/S820/S900/S9000/
Canon InkJet:BJC-55/BJC-85/BJC-2100/BJC-3000/BJC-8200/i70/i450//i550
/i850/i950/i4700/i6100/i9100/
Epson LaserJet:EPL-N2500/EPL5900/EPL6100L/EPL6200
Epson DeskJet:STYLUS C42UX/C43UX/C60/C61/C62/C82/480/810/850
STYLUS PHOTO 830U/860/900/915/925/935/950
Epson MFP:CX5400
Minolta/QMS:LaserJetPagePro1250
Lexmark InkJet:Z-13/Z-22/
Lexmark LaserJet:E210/E322
Printing from PC
Printing from Mobile Phone
HP DeskJet:350C/648C/810C /812C/815C/816C/825/840C/842C/843C /845C/920/930C
/932C/935C/940/948/950C/952C/955/957/960C/970C/975C/970CXI/980/990C/995C/995C
K/1220C/1125C/5150/5158/5160/5550/5551/5650/5652/5670/6120/6122/6127/CP1700/93
00/9600/450/640/642/644/660C/830C/832C/880/882C/895C
HP Business InkJet:2200/2250/3000
HPPhotoSmart:PS100/PS130/PS140/PS240/PS230/1000/1100/PS1115/PS1215/PS1218/
PS1315/PS7150/PS7350/PS7550/PS7960/PS7760/PS7660/PS7260/PS7268
Canon InkJet:i70/i475D
Specifications Printer Compatibility for Wireless
Printing from PC and Mobile Phone
Specifications
Printer Compatibility
Printers with USB interface. (Please refer to
in the next page. )
Bluetooth enabled computers or devices(mobile phones or
PDAs) which supports HCRP(Hardcopy Replacement Profile),
OPP (Object Push Profile) or BIP (Basic Image Profile).
Printer
Compatibility for Wireless Printing from PC and Mobile
Phone
System Requirements
Specifications
Windows
Your printer adapter support Windows 98SE, ME, 2000 and XP.
Bluetooth
Your printer adapter complies with Bluetooth SIG 1.1.
Bluetooth Profile
Your printer adapter supports GAP(Generic Access), SDAP(Service
Discovery Application, HCRP(Hardcopy Cable Replacement Profile)
and SPP(Serial Port Profile).
Bluetooth Profile
The RF range of your printer adapter is from 80 to 100 meters.
RF Range
Use 6~9V/300mA/AC-DC power adapter.
Power Supply
0 ° C ~ 60 ° C (32 ° F ~ 140 ° F)
Temperature
7 8
HP DeskJet:450/840C/843C/845C/920C/930C/932C/935C/940C//948C/
950C/952C/955C/957C/960C/970C/970CXI/980C/990C/990CXI/995C/995CK/1180C/1200
C/5150/5550/5558/5560/5652/5670/6120/6127/6540/6122/2600/6127/
HPLaserJet:6P/1010/1015/1150/1200/1300/2300/1500/3200/3330/4650
HP Business InkJet:2600/3000/CP1160C/CP1700
HPColorLaserJet:3500/3700
HPPhotoSmart:100/130/140/145/230/240/245/1000/1100/1115/1215/1218/1315/7150/726
0/7350/7550/7660/7760/7960
HP MFP:2175/5110/6110
Canon DeskJet:S100/S200/S300/S330/S400/S450/S520/S600/S630/
S750/S800/S820/S900/S9000/
Canon InkJet:BJC-55/BJC-85/BJC-2100/BJC-3000/BJC-8200/i70/i450//i550
/i850/i950/i4700/i6100/i9100/
Epson LaserJet:EPL-N2500/EPL5900/EPL6100L/EPL6200
Epson DeskJet:STYLUS C42UX/C43UX/C60/C61/C62/C82/480/810/850
STYLUS PHOTO 830U/860/900/915/925/935/950
Epson MFP:CX5400
Minolta/QMS:LaserJetPagePro1250
Lexmark InkJet:Z-13/Z-22/
Lexmark LaserJet:E210/E322
Printing from PC
Printing from Mobile Phone
HP DeskJet:350C/648C/810C /812C/815C/816C/825/840C/842C/843C /845C/920/930C
/932C/935C/940/948/950C/952C/955/957/960C/970C/975C/970CXI/980/990C/995C/995C
K/1220C/1125C/5150/5158/5160/5550/5551/5650/5652/5670/6120/6122/6127/CP1700/93
00/9600/450/640/642/644/660C/830C/832C/880/882C/895C
HP Business InkJet:2200/2250/3000
HPPhotoSmart:PS100/PS130/PS140/PS240/PS230/1000/1100/PS1115/PS1215/PS1218/
PS1315/PS7150/PS7350/PS7550/PS7960/PS7760/PS7660/PS7260/PS7268
Canon InkJet:i70/i475D
Welcome
Parts of Your Printer Adapter
Use Scenario (1)
Use Scenario (2)
Use Scenario (3)
Specifications
System Requirements
Specifications
Printer Compatibility
For Your Safety
1. Hardware Installation
Connecting Your Printer Adapter to a Printer
2. Printing from Desktop PCs or Laptops
Configuring Your Bluetooth Printer - Option 1
Printing
Configuring Your Bluetooth Printer - Option 2
Printing
3. Printing from Mobile Phones
4. Printing from PDAs
5. Troubleshooting
For Your Safety Table of Contents
For Your Safety
Table of Contents
Do not drop, puncture or disassemble the printer
adapter.
Avoid all contact with water and dry hands before using.
Use dry cloth to clean the surface of the printer adapter.
Do not expose the printer adapter to high temperature
or leave it in direct sunlight.
Avoid pressing hard on the printer adapter body.
Remove the AC adapter of the printer adapter during
long periods between use.
Notice
For your safety and the maintenance of the printer adapter, please
read the following precautions before you start to use this device.
9 10
1
2
4
5
6
7
8
9
11
13
13
20
21
28
29
31
33
Welcome
Parts of Your Printer Adapter
Use Scenario (1)
Use Scenario (2)
Use Scenario (3)
Specifications
System Requirements
Specifications
Printer Compatibility
For Your Safety
1. Hardware Installation
Connecting Your Printer Adapter to a Printer
2. Printing from Desktop PCs or Laptops
Configuring Your Bluetooth Printer - Option 1
Printing
Configuring Your Bluetooth Printer - Option 2
Printing
3. Printing from Mobile Phones
4. Printing from PDAs
5. Troubleshooting
For Your Safety Table of Contents
For Your Safety
Table of Contents
Do not drop, puncture or disassemble the printer
adapter.
Avoid all contact with water and dry hands before using.
Use dry cloth to clean the surface of the printer adapter.
Do not expose the printer adapter to high temperature
or leave it in direct sunlight.
Avoid pressing hard on the printer adapter body.
Remove the AC adapter of the printer adapter during
long periods between use.
Notice
For your safety and the maintenance of the printer adapter, please
read the following precautions before you start to use this device.
9 10
1
2
4
5
6
7
8
9
11
13
13
20
21
28
29
31
33
1. Hardware Installation
Hardware Installation
Hardware Installation
Connecting Your Printer Adapter to a Printer Connecting Your Printer Adapter to a Printer

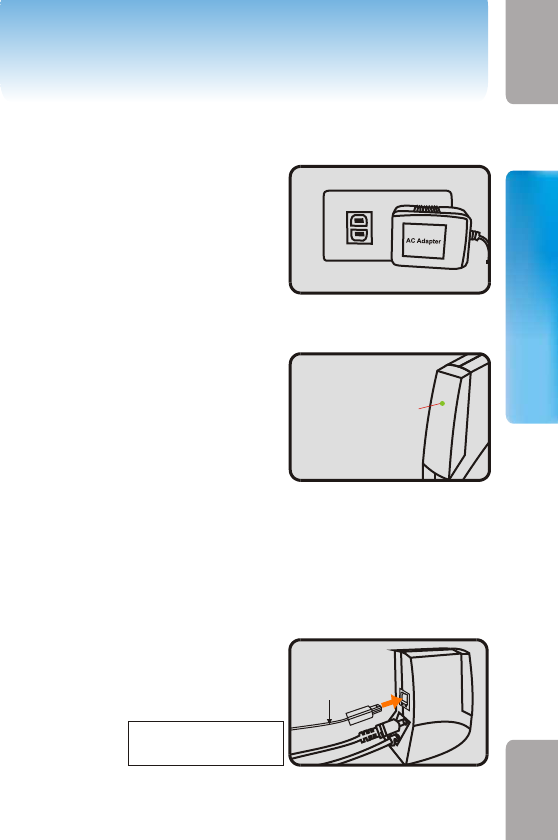

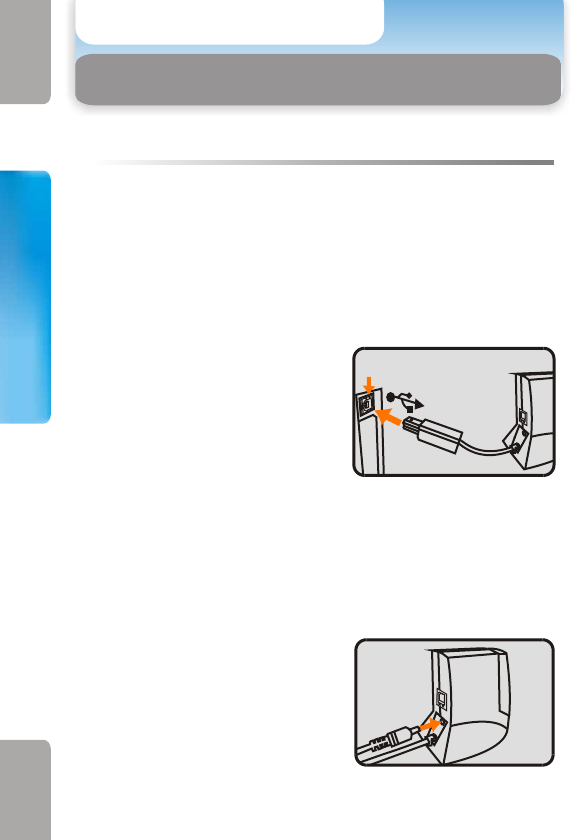

Step 1 Make sure the printer is powered off.
Step 2 Connect the USB cable (1) of your printer adapter
to the USB port of the printer.
Step 4 Plug the smaller end of the AC adapter cable into
the AC power connector of your printer adapter.
Step 5 Connect the larger end of the AC adapter cable to
an electrical outlet.
Step 3 Power on the printer.
Connecting Your Printer Adapter to a Printer
Step 6 If successfully powered on, a steady green LED
will be lit.
LED 1 (Green)
USB Port of your printer
USB Cable (1)
Option If you need to complete tasks as in Scenario (2) or
Scenario (3), you need to use USB Cable (2).
Plug the USB Cable (2) as picture shown below
and plug the other end of the cable to the USB
port of your PC.
USB Cable (2)
Note: USB Cable (2) is the
cable, which connects your
PC and printer.
11 12
1. Hardware Installation
Hardware Installation
Hardware Installation
Connecting Your Printer Adapter to a Printer Connecting Your Printer Adapter to a Printer
Step 1 Make sure the printer is powered off.
Step 2 Connect the USB cable (1) of your printer adapter
to the USB port of the printer.
Step 4 Plug the smaller end of the AC adapter cable into
the AC power connector of your printer adapter.
Step 5 Connect the larger end of the AC adapter cable to
an electrical outlet.
Step 3 Power on the printer.
Connecting Your Printer Adapter to a Printer
Step 6 If successfully powered on, a steady green LED
will be lit.
LED 1 (Green)
USB Port of your printer
USB Cable (1)
Option If you need to complete tasks as in Scenario (2) or
Scenario (3), you need to use USB Cable (2).
Plug the USB Cable (2) as picture shown below
and plug the other end of the cable to the USB
port of your PC.
USB Cable (2)
Note: USB Cable (2) is the
cable, which connects your
PC and printer.
11 12
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Configuring Your Bluetooth Printer- Option 1
Your PC or Laptop Supports HCRP
Most PCs and Laptops support either of the two bluetooth profiles:
HCRP (Hard Copy Replacement Profile) and SPP (Serial Port
proofile). Please try option 1 first. If your PC or Laptop
supports HCRP, Option 1 will successfully helps you configure the
bluetooth printer. If your printer still fails to print, the profile your PC
or Laptop supports may be SPP. If so, please try Option 2.
Option 1
((Important Note: If your PC or Laptop is not bluetooth
enabled, you may intall a USB Bluetooth adapter, so that
your PC or Laptop will be bluetooth enabled. Please refer
to the manual of your USB Bluetooth adapter for more
detailed instructions. And please make sure that you have
completed hardware installation of your printer adapter.
Before You Start
You’ll see a bluetooth icon on the system tray if your PC or Laptop is
already bluetooth enabled.
Configuring Your Bluetooth Printer - Option 1

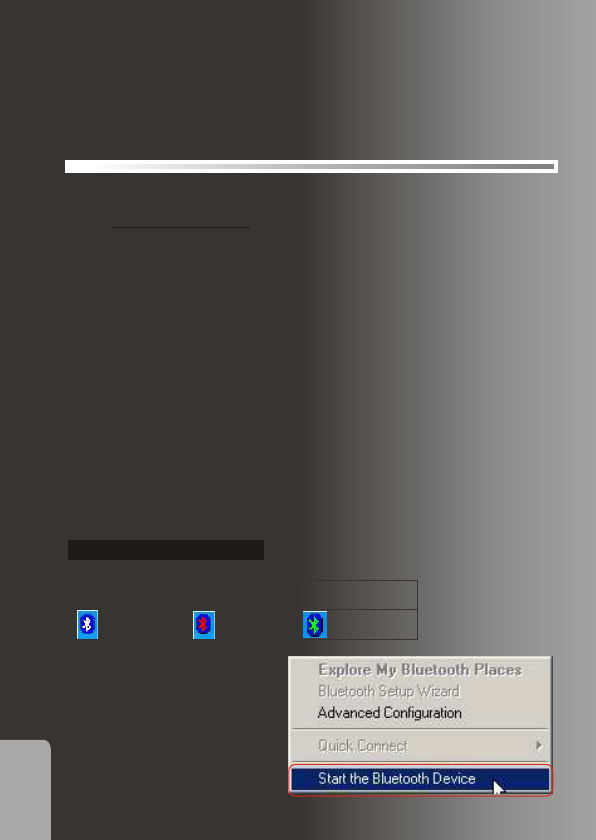

Bluetooth System Tray
Enabled Disabled Connected
Blue with White Blue with Red Blue with Green
If the USB Bluetooth Adaptor
is disabled, please right-click
the bluetooth icon and select
“Start the Bluetooth
Device” to enable the USB
Bluetooth Adaptor .

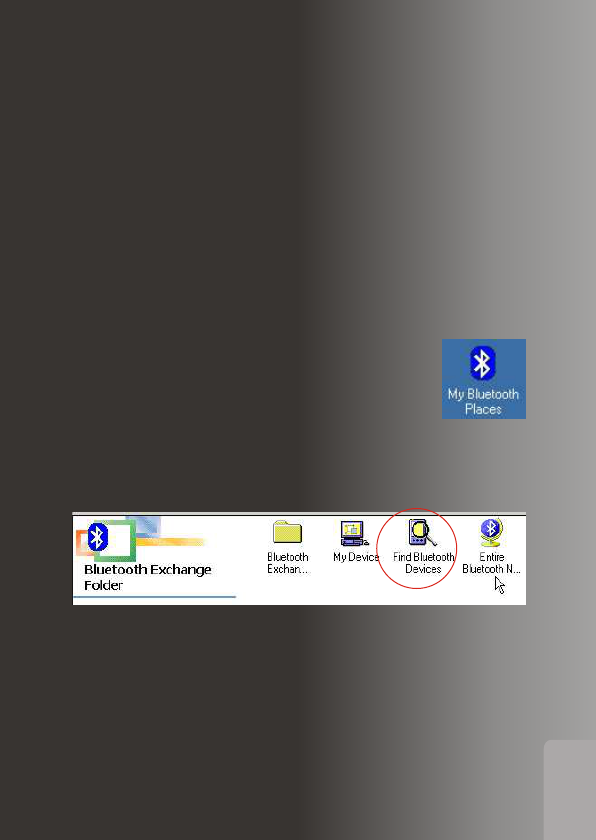

1. Double-click My Bluetooth Places icon on the
Desktop.
2. Double-click Find Bluetooth Devices icon.
13 14
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Configuring Your Bluetooth Printer- Option 1
Your PC or Laptop Supports HCRP
Most PCs and Laptops support either of the two bluetooth profiles:
HCRP (Hard Copy Replacement Profile) and SPP (Serial Port
proofile). Please try option 1 first. If your PC or Laptop
supports HCRP, Option 1 will successfully helps you configure the
bluetooth printer. If your printer still fails to print, the profile your PC
or Laptop supports may be SPP. If so, please try Option 2.
Option 1
((Important Note: If your PC or Laptop is not bluetooth
enabled, you may intall a USB Bluetooth adapter, so that
your PC or Laptop will be bluetooth enabled. Please refer
to the manual of your USB Bluetooth adapter for more
detailed instructions. And please make sure that you have
completed hardware installation of your printer adapter.
Before You Start
You’ll see a bluetooth icon on the system tray if your PC or Laptop is
already bluetooth enabled.
Configuring Your Bluetooth Printer - Option 1
Bluetooth System Tray
Enabled Disabled Connected
Blue with White Blue with Red Blue with Green
If the USB Bluetooth Adaptor
is disabled, please right-click
the bluetooth icon and select
“Start the Bluetooth
Device” to enable the USB
Bluetooth Adaptor .
1. Double-click My Bluetooth Places icon on the
Desktop.
2. Double-click Find Bluetooth Devices icon.
13 14
2. Printing from Desktop PCs or Laptops

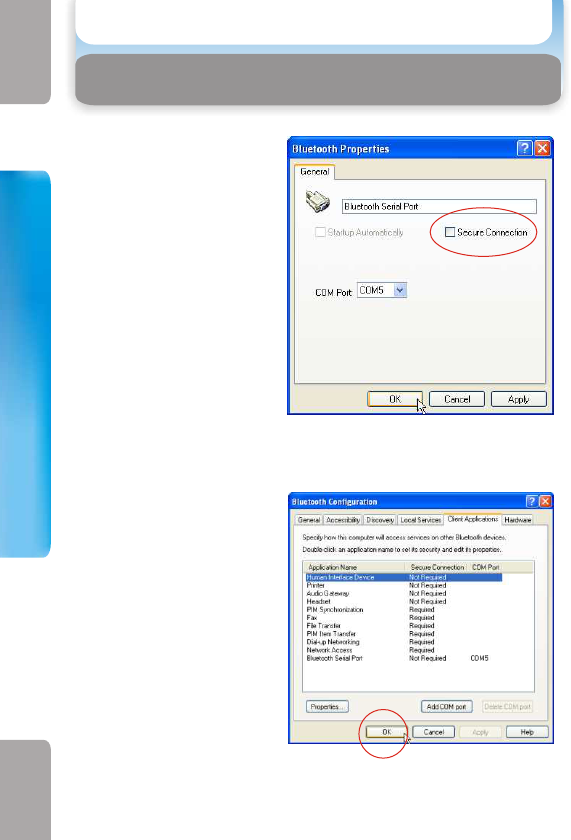

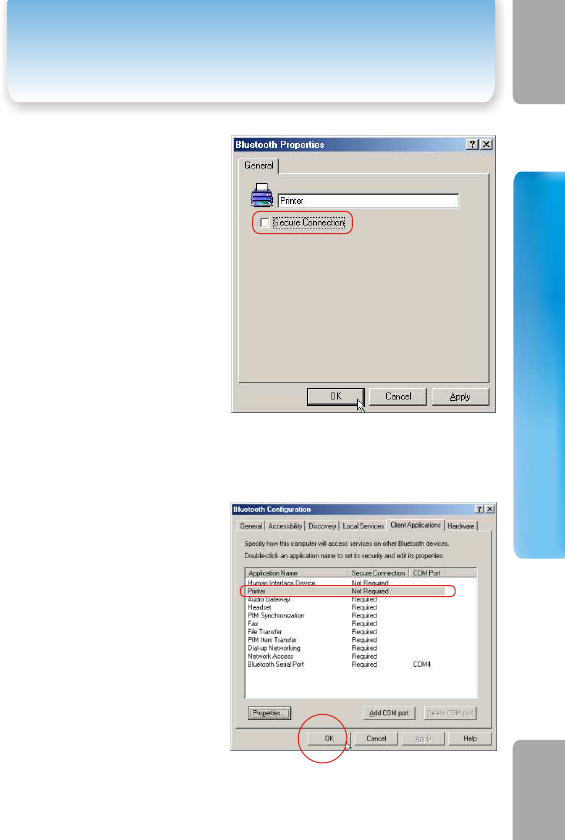

Configuring Your Bluetooth Printer- Option 1 Configuring Your Bluetooth Printer - Option 1
6. Disable the Secure
Connection service by
unticking the check box
next to Secure
Connection.
Then click OK.
7. Now, the Secure
Connection service of
printer is disabled. In this
case, you’ll not be asked
to enter a PIN code to
allow a successful
connection.
Click OK.

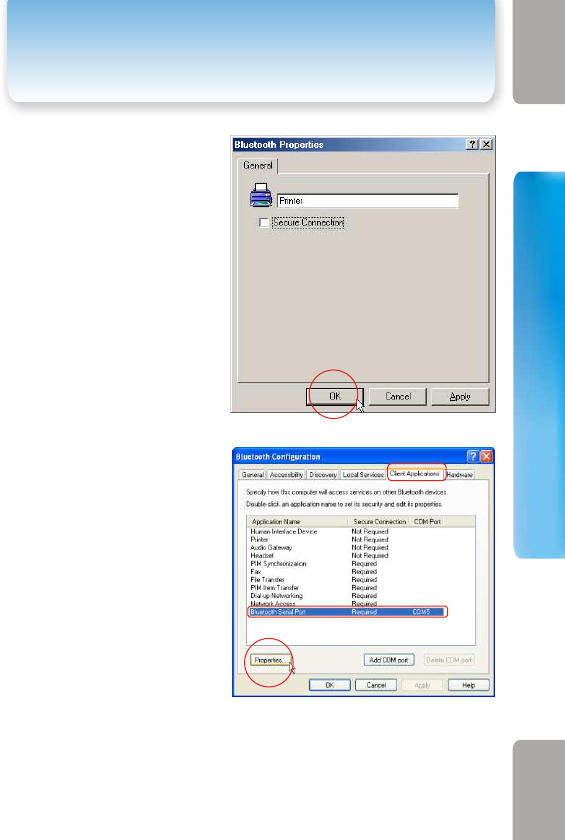

5. Click on the Client
Applications tab. This
category allows you to
set the security
properties of your printer.
Select Printer. Then click
Properties to disable the
Secure Connection.

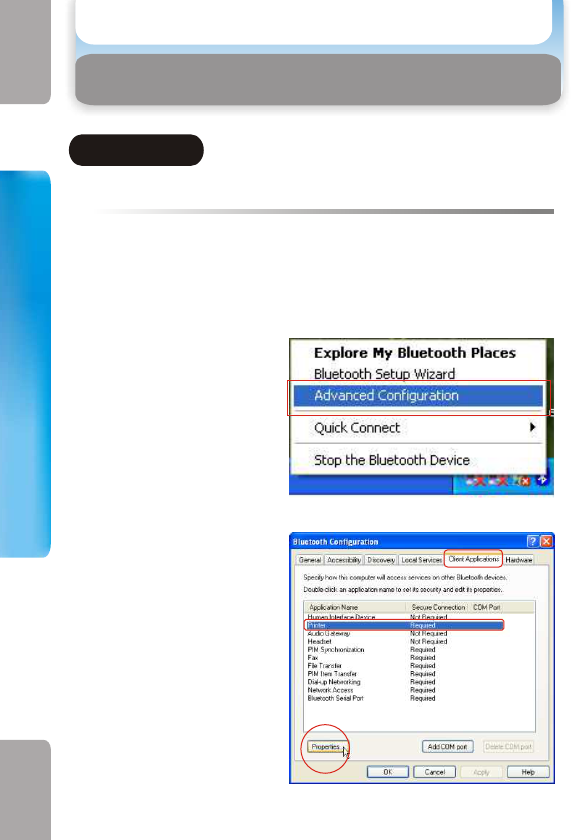

4. From the pulldown menu,
select “Advanced
Confuguration”.
3. Click Bluetooth tab.
15 16
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
2. Printing from Desktop PCs or Laptops
Configuring Your Bluetooth Printer- Option 1 Configuring Your Bluetooth Printer - Option 1
6. Disable the Secure
Connection service by
unticking the check box
next to Secure
Connection.
Then click OK.
7. Now, the Secure
Connection service of
printer is disabled. In this
case, you’ll not be asked
to enter a PIN code to
allow a successful
connection.
Click OK.
5. Click on the Client
Applications tab. This
category allows you to
set the security
properties of your printer.
Select Printer. Then click
Properties to disable the
Secure Connection.
4. From the pulldown menu,
select “Advanced
Confuguration”.
3. Click Bluetooth tab.
15 16
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops

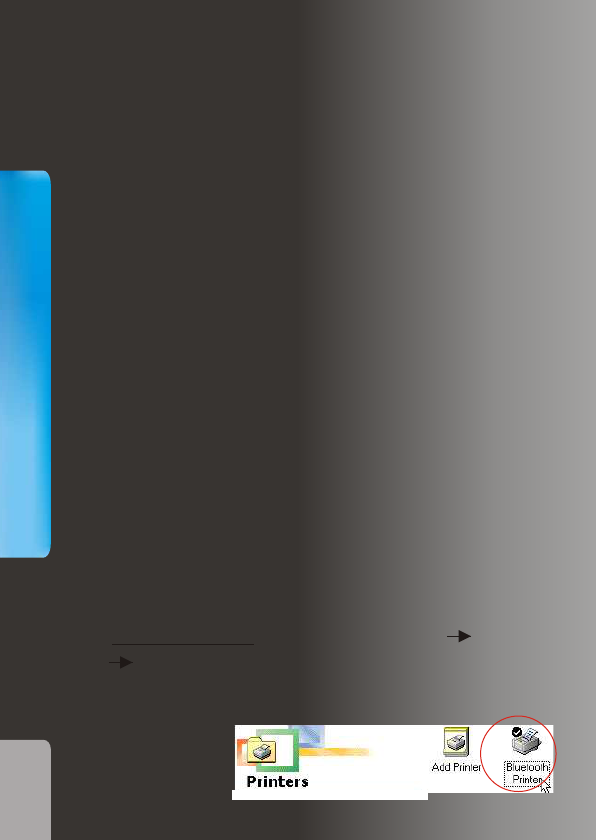

8. Double-click the printer
icon.
Configuring Your Bluetooth Printer- Option 1 Configuring Your Bluetooth Printer - Option 1
((Important Note: If the “Add Printer Wizard” in step 10
doesn’t appear, please go to Start Menu Settings
Printers Add Printer and then the “Add Printer
Wizard“ will appear as in step 10.
10. You’ll be prompted with
an “Add Pinter Wizard”
window.
Select “Local printer”
and click Next.

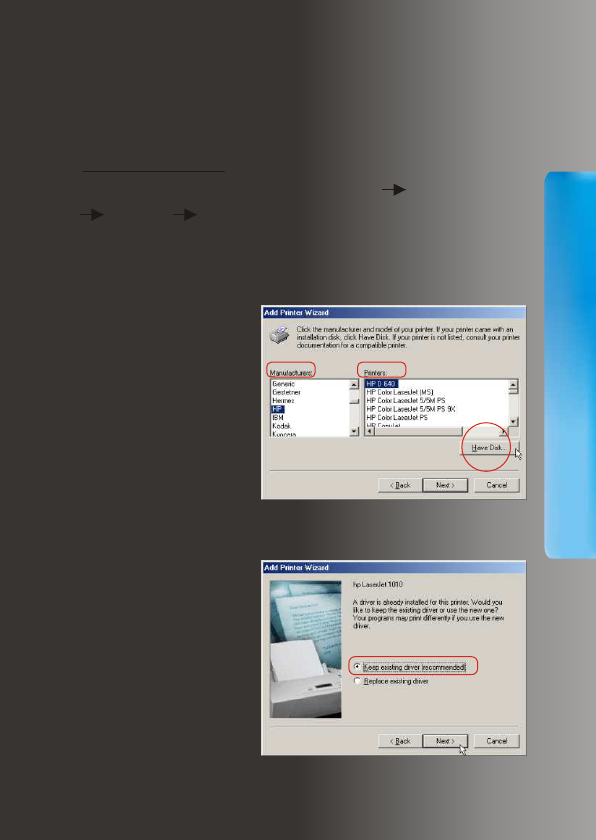

11. Please select the
Manufacturer and the
Model of your printer
Then click next.
If your printer is not in
the list, insert the printer
driver disk in your CD
drive. Then click Have
Disc.
12. This window will not
appear, unless you have
already installed the
same printer driver on
your PC/Laptop before.
Click the radio button
next to “Keep existing
Driver(recommended)”.
Then click Next.
17 18

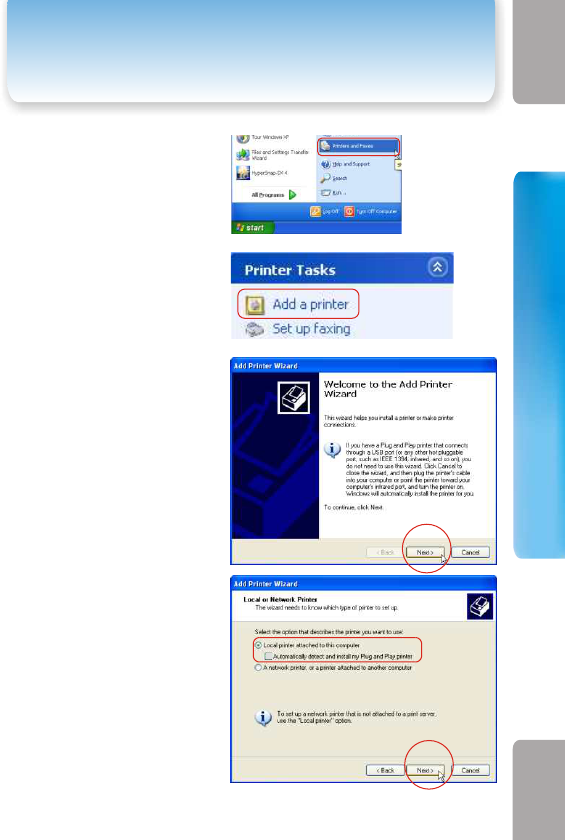

9. Go to Start and select
Printers and Faxes.
Click on “Add a printer”.
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
8. Double-click the printer
icon.
Configuring Your Bluetooth Printer- Option 1 Configuring Your Bluetooth Printer - Option 1
((Important Note: If the “Add Printer Wizard” in step 10
doesn’t appear, please go to Start Menu Settings
Printers Add Printer and then the “Add Printer
Wizard“ will appear as in step 10.
10. You’ll be prompted with
an “Add Pinter Wizard”
window.
Select “Local printer”
and click Next.

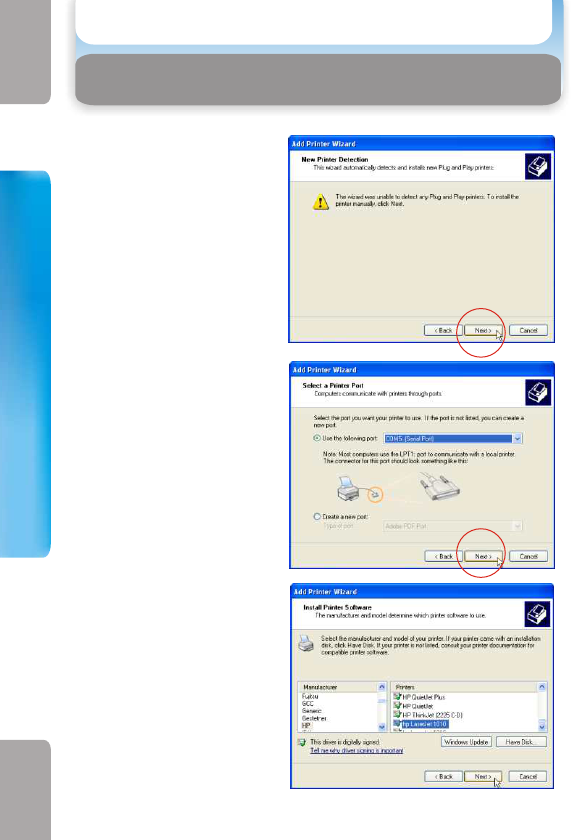

11. Please select the
Manufacturer and the
Model of your printer
Then click next.
If your printer is not in
the list, insert the printer
driver disk in your CD
drive. Then click Have
Disc.
12. This window will not
appear, unless you have
already installed the
same printer driver on
your PC/Laptop before.
Click the radio button
next to “Keep existing
Driver(recommended)”.
Then click Next.
17 18
9. Go to Start and select
Printers and Faxes.
Click on “Add a printer”.
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
13. Select SRW Mobile
Printer. Then click Next.
Note: The printer name
depends on your printer
brand and model.

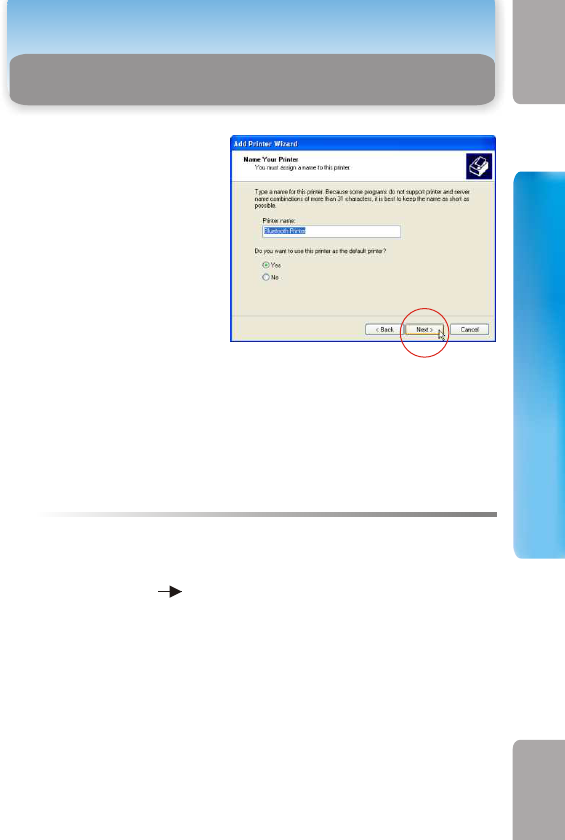

14. Give your printer a
name as you wish. Tick
Yes if you want to use
this printer as the default
printer. Click Finish.
Follow the Wizard to
complete the printer
driver setup. After the
printer driver is installed,
software installation process is completed.
Configuring Your Bluetooth Printer- Option 1 Printing
How to Print
Step 1 From any Windows application(e.g. Word), select
File Print.
Step 2 Select the bluetooth printer you have installed and
click OK.
Step 3 Click Print. Wait for the printer to print.
((Important Note: Please go to Start Menu Settings
Printers . A new installed bluetooth printer should
appear in the Printer window.
19 20
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
13. Select SRW Mobile
Printer. Then click Next.
Note: The printer name
depends on your printer
brand and model.
14. Give your printer a
name as you wish. Tick
Yes if you want to use
this printer as the default
printer. Click Finish.
Follow the Wizard to
complete the printer
driver setup. After the
printer driver is installed,
software installation process is completed.
Configuring Your Bluetooth Printer- Option 1 Printing
How to Print
Step 1 From any Windows application(e.g. Word), select
File Print.
Step 2 Select the bluetooth printer you have installed and
click OK.
Step 3 Click Print. Wait for the printer to print.
((Important Note: Please go to Start Menu Settings
Printers . A new installed bluetooth printer should
appear in the Printer window.
19 20
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Your PC or Laptop Supports SPP
Option 2
If Option 1 failed, you may try Option 2 because your PC or
Laptop may supports SPP, not HCRP. Follow the steps below to
configure your bluetooth printer.

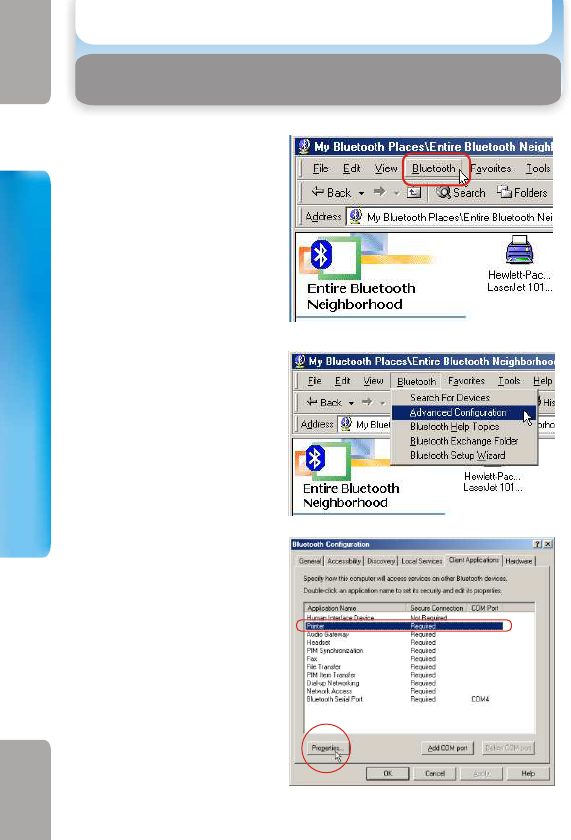

1. Right-click the bluetooth
Icon on the system tray.
Then select “Advanced
Confuguration”
2. Click on the Client
Applications tab. This
category allows you to
set the security
properties of your printer.
Select Printer. Then click
Properties to disable the
Secure Connection.
3. Disable the Secure
Connection service by
unticking the check box
next to Secure
Connection.
Then click OK.
Configuring Your Bluetooth Printer- Option 2 Configuring Your Bluetooth Printer - Option 2
4. Select Bluetooth Serial
Port. Then click
Properties to disable the
Secure Connection.
21 22
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Your PC or Laptop Supports SPP
Option 2
If Option 1 failed, you may try Option 2 because your PC or
Laptop may supports SPP, not HCRP. Follow the steps below to
configure your bluetooth printer.
1. Right-click the bluetooth
Icon on the system tray.
Then select “Advanced
Confuguration”
2. Click on the Client
Applications tab. This
category allows you to
set the security
properties of your printer.
Select Printer. Then click
Properties to disable the
Secure Connection.
3. Disable the Secure
Connection service by
unticking the check box
next to Secure
Connection.
Then click OK.
Configuring Your Bluetooth Printer- Option 2 Configuring Your Bluetooth Printer - Option 2
4. Select Bluetooth Serial
Port. Then click
Properties to disable the
Secure Connection.
21 22
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops

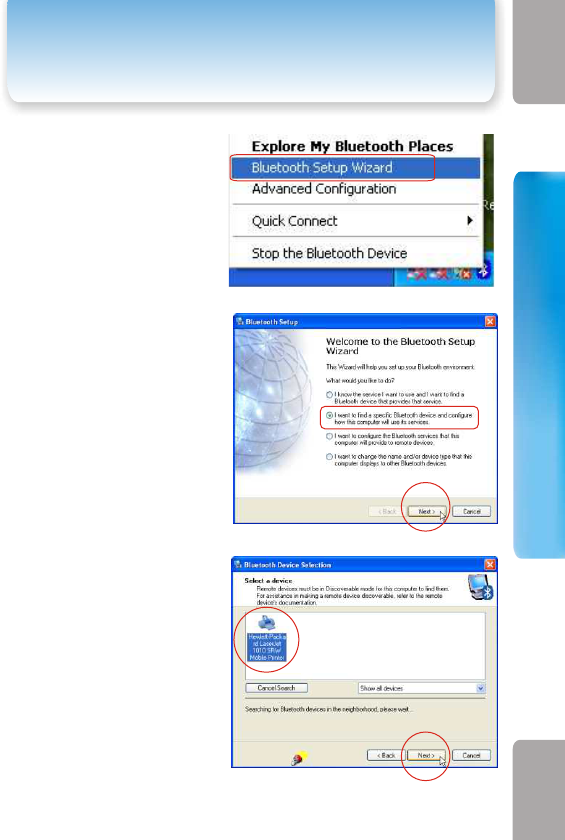

7. Right-click the bluetooth
icon on the system tray
again. Then select
“Bluetooth Setup
Wizard”.
Configuring Your Bluetooth Printer- Option 2 Configuring Your Bluetooth Printer - Option 2
6. Now, the Secure
Connection service of
printer is disabled. In this
case, you’ll not be asked
to enter a PIN code to
allow a successful
connection.
Click OK.
5. Disable the Secure
Connection service by
unticking the check box
next to Secure
Connection.
From the pull-down menu
of COM Port, you can
select the COM Port
number which will be
used while adding a
bluetooth printer.
Then click OK.
8. The Bluetooth Setup
window will appear. Click
on the radio button next
to “I want to find a
specific Bluetooth
device and configure
how this computer will
use its services”. Click
Next.
9. The Bluetooth Device
Selection window will
search for any Bluetooth
devices in this area. Take
HP 1010 for example.
This window has found a
HP 1010 Mobile Printer.
Select the printer and
click Next.
23 24
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
7. Right-click the bluetooth
icon on the system tray
again. Then select
“Bluetooth Setup
Wizard”.
Configuring Your Bluetooth Printer- Option 2 Configuring Your Bluetooth Printer - Option 2
6. Now, the Secure
Connection service of
printer is disabled. In this
case, you’ll not be asked
to enter a PIN code to
allow a successful
connection.
Click OK.
5. Disable the Secure
Connection service by
unticking the check box
next to Secure
Connection.
From the pull-down menu
of COM Port, you can
select the COM Port
number which will be
used while adding a
bluetooth printer.
Then click OK.
8. The Bluetooth Setup
window will appear. Click
on the radio button next
to “I want to find a
specific Bluetooth
device and configure
how this computer will
use its services”. Click
Next.
9. The Bluetooth Device
Selection window will
search for any Bluetooth
devices in this area. Take
HP 1010 for example.
This window has found a
HP 1010 Mobile Printer.
Select the printer and
click Next.
23 24
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops

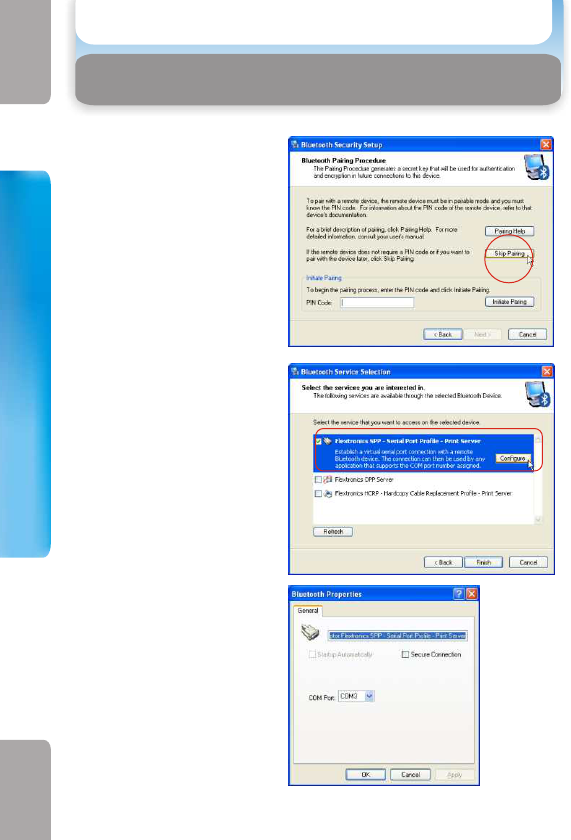

10. Because the Secure
Connection has been
disabled, just click Skip
Pairing.
11. Tick the check box next to
“Flextronicx SPP-Serial
Port Profile-Print
Server”.
13. Go to Start and select
Printers and Faxes.
14. Click on “Add a printer”.
Configuring Your Bluetooth Printer- Option 2 Configuring Your Bluetooth Printer - Option 2
15. An “Add Pinter Wizard”
window will appear.
Click Next.
16. Click the radio button
next to “Local printer
attached to the
computer” and untick
the check box next to
“Automatically detect
and install my Plug
and Play printer”.
Then click Next.
25 26
12. A Bluetooth Properties
Window will pop out.
Please untick Secure
Connection and
remember the number of
the COM Port.
Click OK and then click
Finish.
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
10. Because the Secure
Connection has been
disabled, just click Skip
Pairing.
11. Tick the check box next to
“Flextronicx SPP-Serial
Port Profile-Print
Server”.
13. Go to Start and select
Printers and Faxes.
14. Click on “Add a printer”.
Configuring Your Bluetooth Printer- Option 2 Configuring Your Bluetooth Printer - Option 2
15. An “Add Pinter Wizard”
window will appear.
Click Next.
16. Click the radio button
next to “Local printer
attached to the
computer” and untick
the check box next to
“Automatically detect
and install my Plug
and Play printer”.
Then click Next.
25 26
12. A Bluetooth Properties
Window will pop out.
Please untick Secure
Connection and
remember the number of
the COM Port.
Click OK and then click
Finish.
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
17. Click Next to install the
printer manually.
19. Please select the
Manufacturer and the
Model of your printer
Then click next.
If your printer is not on
the list, insert the printer
driver disk in your CD
drive. then click Have
Disc.
20. Give your printer a name
as you wish.
Tick “Yes” if you want to
use this printer as the
default printer. Click
Next.
Follow the Wizard to
complete the printer
driver setup. After the
printer driver is installed,
software installation
process is completed.
Configuring Your Bluetooth Printer- Option 2
18. Tick “Use the following
port”, and select from the
pull down menu the com
number specified in step
.
Click “Next” to continue. How to Print
Step 1 From any Windows application(e.g. Word), select
File Print.
Step 2 Select the bluetooth printer you have installed and
click OK.
Step 3 Click Print. Wait for the printer to print.
Printing
27 28
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing
17. Click Next to install the
printer manually.
19. Please select the
Manufacturer and the
Model of your printer
Then click next.
If your printer is not on
the list, insert the printer
driver disk in your CD
drive. then click Have
Disc.
20. Give your printer a name
as you wish.
Tick “Yes” if you want to
use this printer as the
default printer. Click
Next.
Follow the Wizard to
complete the printer
driver setup. After the
printer driver is installed,
software installation
process is completed.
Configuring Your Bluetooth Printer- Option 2
18. Tick “Use the following
port”, and select from the
pull down menu the com
number specified in step
.
Click “Next” to continue. How to Print
Step 1 From any Windows application(e.g. Word), select
File Print.
Step 2 Select the bluetooth printer you have installed and
click OK.
Step 3 Click Print. Wait for the printer to print.
Printing
27 28
2. Printing from Desktop PCs or Laptops
Printing From Desktop PCs or Laptops
Printing
Printing From Mobile Phones
Printing From Mobile Phones
3. Printing from Mobile Phones
Printing from Mobile Phones
Step 1
Step 2
Printing from Mobile Phones
((Important Note: Your mobile phones should be
equipped with Bluetooth wireless technology and
phone camera.
Before You Start
Make sure you have completed the hardware
installation of your printer adapter in page 11.
Follow the instructions of the manual of your
mobile phones to take a picture and store it in your
mobile phones.
Step 3 Select the picture you have stored in your mobile
phones and follow the instructions of the manual of
your mobile phones to send data via Bluetooth.
Step 4 The printer starts to print.
((Important Note: Printing quality of photos depends
on your phone camera pixel.
29 30
How to Print
Printing From Mobile Phones
Printing From Mobile Phones
3. Printing from Mobile Phones
Printing from Mobile Phones
Step 1
Step 2
Printing from Mobile Phones
((Important Note: Your mobile phones should be
equipped with Bluetooth wireless technology and
phone camera.
Before You Start
Make sure you have completed the hardware
installation of your printer adapter in page 11.
Follow the instructions of the manual of your
mobile phones to take a picture and store it in your
mobile phones.
Step 3 Select the picture you have stored in your mobile
phones and follow the instructions of the manual of
your mobile phones to send data via Bluetooth.
Step 4 The printer starts to print.
((Important Note: Printing quality of photos depends
on your phone camera pixel.
29 30
How to Print
Printing From PDAs
Printing From PDAss
4. Printing from PDAs
Printing from PDAs
PDA
((Important Note: Your PDAs should be
equipped with Bluetooth wireless technology.
Before You Start
Step 1
Printing from PDAs
Make sure you have completed the hardware
installation of your printer adapter in page 11.
Step 2 Follow the instructions of the manual of your PDAs
to open a document.
Step 3 Follow the instructions of the manual of your PDAs
to send the document via Bluetooth. The Bluetooth
service should be “On” before you send this
document.
Step 4 Choose OK to send this document.
Step 5 The printer starts to print.
31 32
Printing From PDAs
Printing From PDAss
4. Printing from PDAs
Printing from PDAs
PDA
((Important Note: Your PDAs should be
equipped with Bluetooth wireless technology.
Before You Start
Step 1
Printing from PDAs
Make sure you have completed the hardware
installation of your printer adapter in page 11.
Step 2 Follow the instructions of the manual of your PDAs
to open a document.
Step 3 Follow the instructions of the manual of your PDAs
to send the document via Bluetooth. The Bluetooth
service should be “On” before you send this
document.
Step 4 Choose OK to send this document.
Step 5 The printer starts to print.
31 32
Troubleshooting
Troubleshooting
5. Troubleshooting
Troubleshooting
33 34
Q1: I can not print.
A1:
1. Check the power and the connection status of Printer
Adapter. Is the LED status of Printer Adapter the same as
described in page 2 now?
2. Check the compatibility of your printer. See if it supports
wireless printing from both PC and mobile phone.
3. Check the bluetooth status of your PC/ mobile phone.
4. Check if the bluetooth printer installation is successfully
installed. Your PC may support either HCRP or SPP. Try the
installation of the other one if one of them failed.
5. Wireless printing takes more time than wired printing. Please
Wait.
6. Maybe your printer is too busy now. Try again later.
Q2: I can print from PC, but I can not print from
my mobile phone.
A2:
1. Check the compatibility of your printer (page 8). See if it
supports wireless printing from both PC and mobile phone.
2. Check if your mobile phone is bluetooth enabled.
3. Refer to the manual of your mobile phone.
Q3: I can print from my mobile phone, but I can
not print from PC.
A3: 1. Check the compatibility of your printer. See if it supports
wireless printing from both PC and mobile phone.
2. Check if your PC is bluetooth enabled.
3. Refer to the manual of your PC bluetooth device.
Troubleshooting
Troubleshooting
5. Troubleshooting
Troubleshooting
33 34
Q1: I can not print.
A1:
1. Check the power and the connection status of Printer
Adapter. Is the LED status of Printer Adapter the same as
described in page 2 now?
2. Check the compatibility of your printer. See if it supports
wireless printing from both PC and mobile phone.
3. Check the bluetooth status of your PC/ mobile phone.
4. Check if the bluetooth printer installation is successfully
installed. Your PC may support either HCRP or SPP. Try the
installation of the other one if one of them failed.
5. Wireless printing takes more time than wired printing. Please
Wait.
6. Maybe your printer is too busy now. Try again later.
Q2: I can print from PC, but I can not print from
my mobile phone.
A2:
1. Check the compatibility of your printer (page 8). See if it
supports wireless printing from both PC and mobile phone.
2. Check if your mobile phone is bluetooth enabled.
3. Refer to the manual of your mobile phone.
Q3: I can print from my mobile phone, but I can
not print from PC.
A3: 1. Check the compatibility of your printer. See if it supports
wireless printing from both PC and mobile phone.
2. Check if your PC is bluetooth enabled.
3. Refer to the manual of your PC bluetooth device.
