Ambient Weather F007PF 8-Channel Wireless

Water Thermometer User Manual

Table of Contents

1 Introduction.....................................................................................................................................2

2 Getting Started ................................................................................................................................2

Parts List .............................................................................................................................................2

2.1 Water Thermometer Sensor Set Up...............................................................................................2

3 Glossary of Terms ...........................................................................................................................7

4 Specifications..................................................................................................................................7

4.1 Wireless Specifications .................................................................................................................7

4.2 Measurement Specifications .........................................................................................................7

4.3 Power Consumption......................................................................................................................7

5 Troubleshooting Guide....................................................................................................................7

6 Accessories .....................................................................................................................................8

7 Liability Disclaimer ........................................................................................................................8

8 FCC Statement............................................................................................................................9

9 Warranty Information .................................................................................................................9

1 Introduction

Thank you for your purchase of the Ambient Weather F007PF 8-Channel Wireless Water Thermometer.

The following user guide provides step by step instructions for installation, operation and

troubleshooting. To download the latest manual and additional troubleshooting tips, please visit:

http://ambientweather.wikispaces.com/F007PF

The thermometer allows you to measure the temperature a water, this product is intended be used as a

comfort and convenience solution, it is not intended as a pool or SPA safety device. Follow your pool

or SPA manufacturers instructions for safe use of your pool or SPA.

2 GettingStarted

Note: The power up sequence must be performed in the order shown in this section (insert

batteries in the remote transmitter(s) first, Display Console second).

PartsList

QTY Item

1 Thermometer transmitter (F007PF) for pool/SPA

Dimensions (LxHxW): 8.5” x 4.2” x 3.7” 216*106*95mm

LCD Dimensions (LxW): 1.1 x 0.62” 27*16mm

Remote sensor into the water: 7.1’’ 180mm

Remote sensor waterproof: Up to 3.28 ft 1 m

2 User Manual

2.1WaterThermometerSensorSetUp

Note: Can use rechargeable batteries. We recommend fresh alkaline batteries for temperature

ranges between -4 °F and 140 °F and fresh lithium batteries for temperature ranges between -40 °F

and 140 °F.

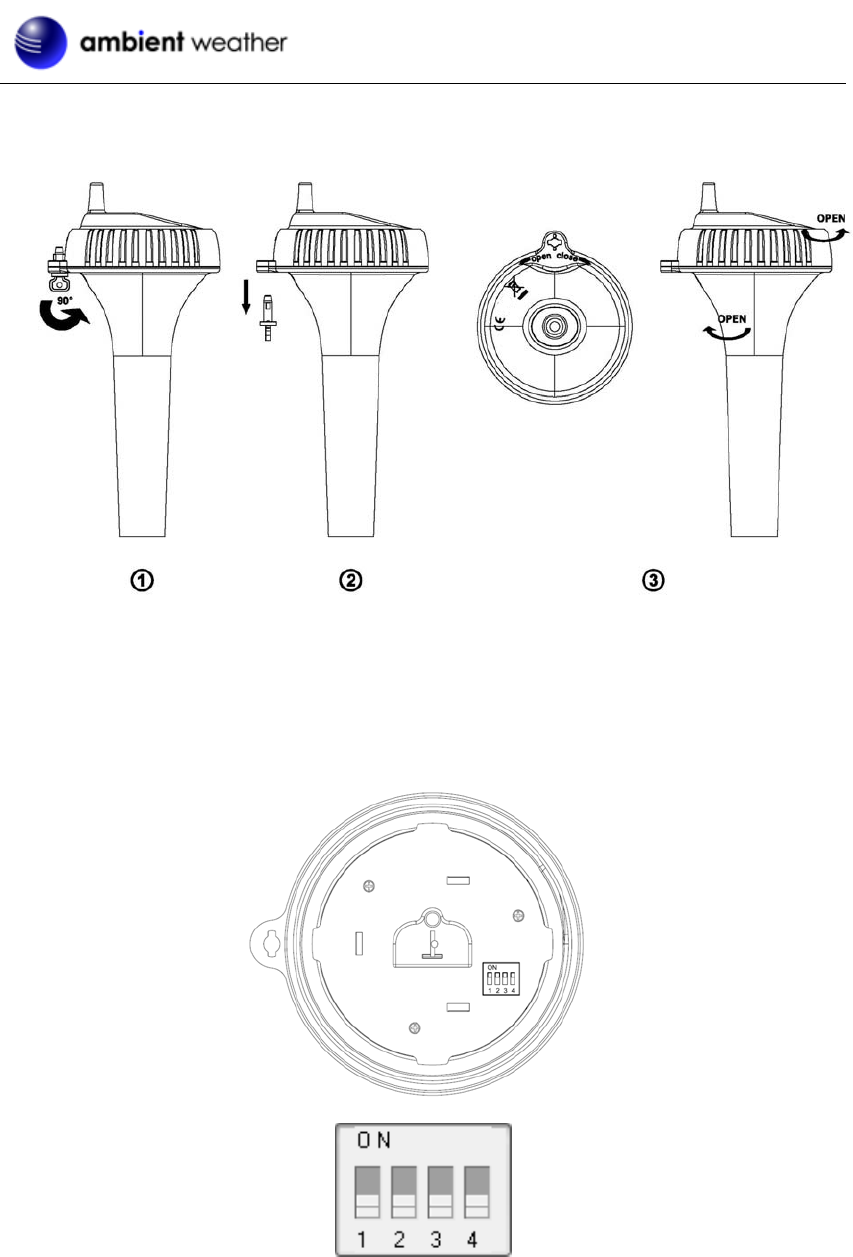

1. Twist the KEY lid to unlock, and twist the main of the sensor by removing the top cover, as

shown in Figure 1 .

Figure 1

2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the

transmitter.

Figure 2 displays all four switches in the OFF position (factory default setting).

Figure 2

Channel Number: The F007PF supports up to eight transmitters. To set each channel number (the

default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in

3. Table 1.

Temperature Units of Measure: To change the transmitter display units of measure (°F vs. °C), change

Dip Switch 4, as referenced in

4. Table 1.

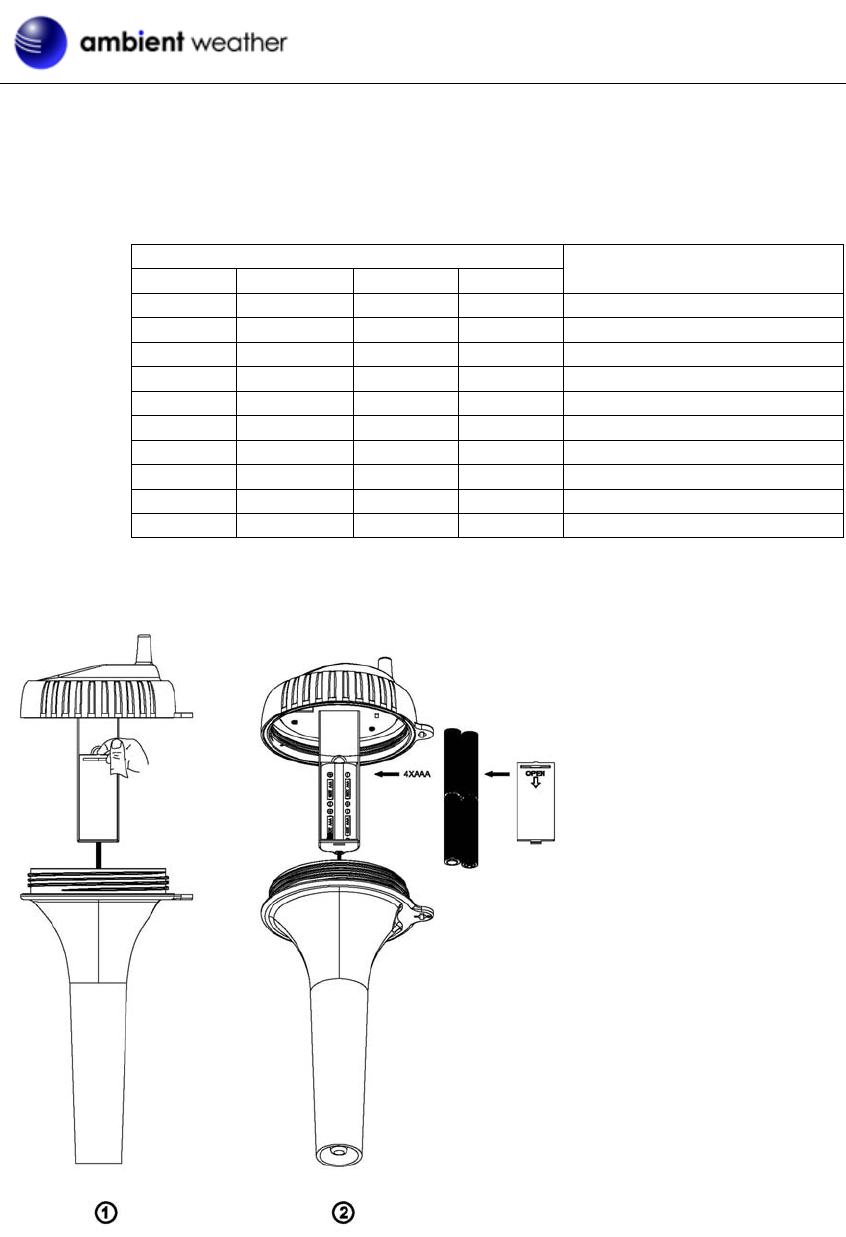

DIP SWITCH

1 2 3 4 FUNCTION

DOWN DOWN DOWN --- Channel 1 (pool)

DOWN DOWN UP --- Channel 2 (SPA)

DOWN UP DOWN --- Channel 3 (optional)

DOWN UP UP --- Channel 4 (optional)

UP DOWN DOWN --- Channel 5 (optional)

UP DOWN UP --- Channel 6 (optional)

UP UP DOWN --- Channel 7 (optional)

UP UP UP --- Channel 8 (optional)

--- --- --- DOWN °F

--- --- --- UP °C

Table 1

5. Insert four AAA batteries.

1) Open the battery compartment of the transmitters；

2) Insert 4XAA 1,5V Alkaline batteries into the battery compartment of the Remote, observing the

correct polarity.

Note: The upper cover and lower connection lead has a sensor cover ,when the operation must be

careful not to pull the connecting line, to prevent the breaking point.

6. After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and

then flash once per 60 seconds thereafter. Each time it flashes, the sensor is transmitting data.

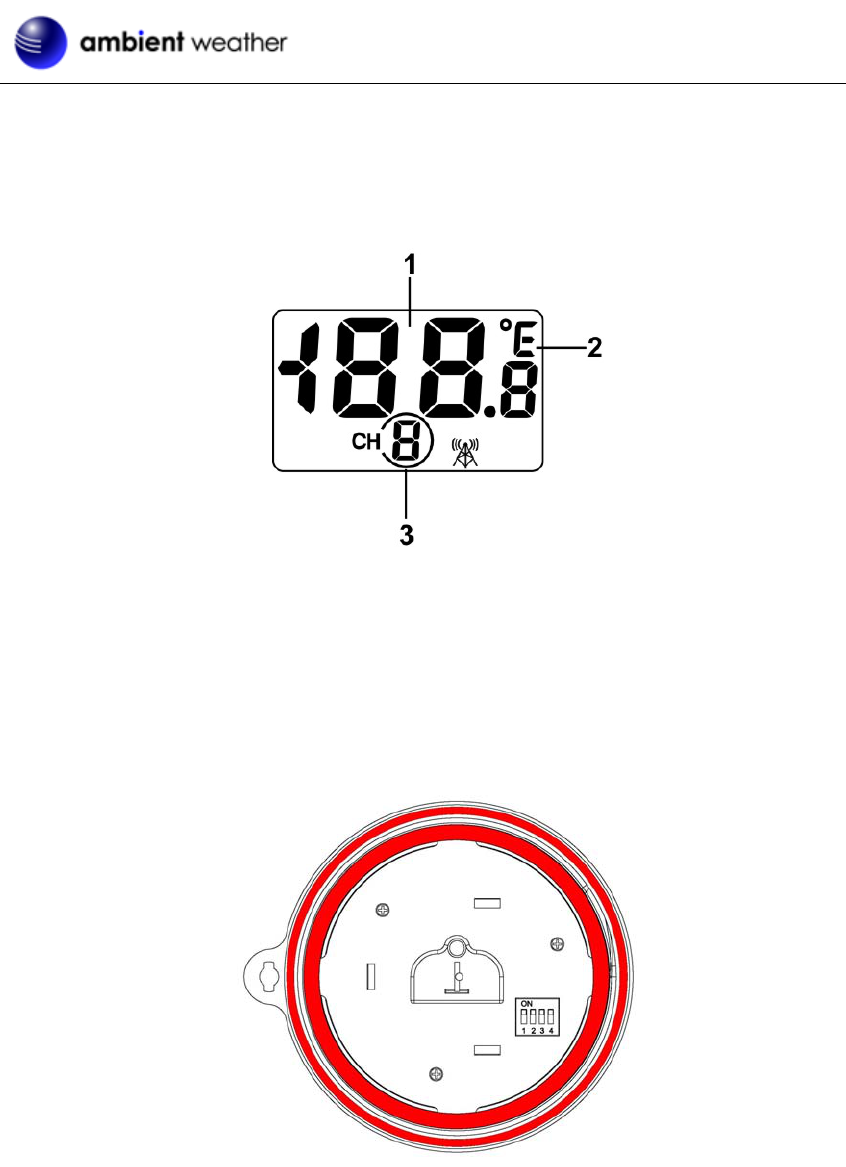

7. Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) are on

the display, as shown in Figure 3.

Figure 3

(1) temperature

(2) temperature units (°F vs. °C)

(3) channel number

8. Close the battery door. Make sure the gasket (around the battery compartment) is properly

seated in its trace prior to closing the door. Focus on maintenance of two RED waterproof

map are in place, otherwise it will cause not waterproof ,and damage the remoter sensor. as

shown in Figure 34.

Figure 4

Note: Should be more careful, outermost o-waterproof off easily

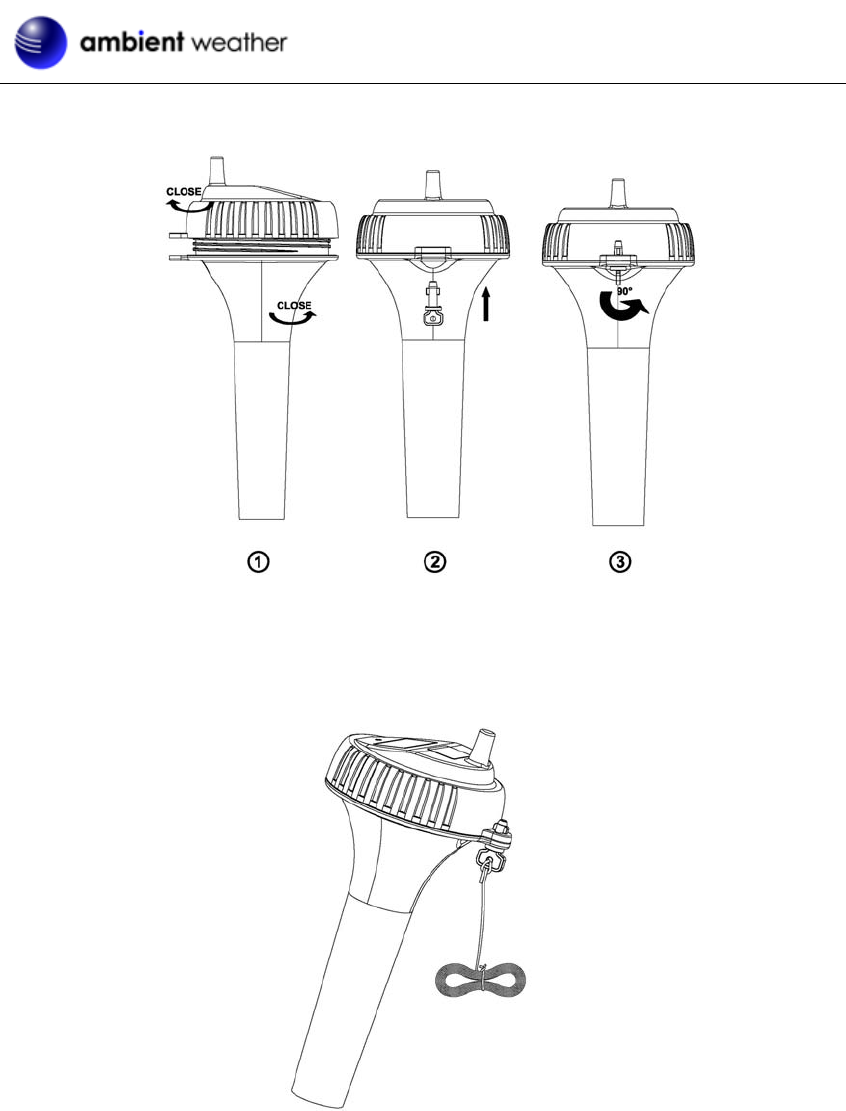

9. Twist the main of the sensor by lock the top cover, and twist the KEY lid to lock, as shown in

Figure 15.

Figure 15

10. The sensor has a string to loop through the hole on KEY at the base of the tubular casing.

This can allow you to hang the unit while you immerse it in water. as shown in Figure 16.

Figure 16

Note: Place the sensor in the water and make sure that it is within the effective transmission range

from the main unit

3 GlossaryofTerms

Term Definition

Accuracy Accuracy is defined as the ability of a measurement to match the actual

value of the quantity being measured.

Range Range is defined as the amount or extent a value can be measured.

4 Specifications

4.1WirelessSpecifications

•Line of sight wireless transmission (in open air): 150 feet, 100 feet under most conditions.

•Frequency: 433.92 MHz

•Update Rate: 60 seconds

4.2MeasurementSpecifications

The following table provides specifications for the measured parameters.

Measurement Range Accuracy Resolution

Channel 1-8

Temperature -40 to 140 °F ± 1 °F 0.1 °F

4.3PowerConsumption

•Remote sensor : 4 x AAA 1.5V Alkaline or Lithium batteries (not included)

•Battery life:

Minimum 24 months for water thermometer sensor (use lithium batteries for temperatures

less than -4 °F)

5 TroubleshootingGuide

If your question is not answered here, you can contact us as follows:

1. Email Support: support@ambientweather.com

2. Live Chat Support: www.ambientweather.com/chat.html (M-F 8am to 4pm Arizona Time)

3. Technical Support: 480-283-1644 (M-F 8am to 4pm Arizona Time)

Problem Solution

Wireless remote (water thermometer) not

reporting in to console.

There are dashes (--.-) on the display

console.

The maximum line of sight communication range is 150’

and 100’ under most conditions. Move the sensor

assembly closer to the display console.

If the sensor assembly is too close (less than 5’), move

the sensor assembly away from the display console.

Make sure the remote sensor LCD display is working

and the transmitter light is flashing once per 60 seconds.

Install a fresh set of batteries in the remote thermometer.

Problem Solution

For cold weather environments, install lithium batteries.

Make sure the remote sensors are not transmitting

through solid metal (acts as an RF shield), or earth

barrier (down a hill).

Move the display console around electrical noise

generating devices, such as computers, TVs and other

wireless transmitters or receivers.

Move the remote sensor to a higher location. Move the

remote sensor to a closer location.

Temperature sensor reads too high in the

day time. Make sure the water thermometer is mounted in water.

Consider the following radiation shield if this is not

possible:

http://www.ambientweather.com/amwesrpatean.html

Indoor and Water Temperature do not

agree Allow up to one hour for the sensors to stabilize due to

signal filtering. The indoor and water temperature

sensors should agree within 2 °F (the sensor accuracy is

± 1 °F).

Use the calibration feature to match the indoor and water

temperature to a known source.

Display console contrast is weak Replace console batteries with a fresh set of batteries.

6 Accessories

The following software and hardware accessories are available for this weather station at

www.AmbientWeather.com .

Accessory Description

Ambient Weather F007PF

Wireless Probe thermometer

for Reciever Weather

Stations

Add additional remote probe thermometers. Supports up to eight

remote sensors.

Ambient Weather F007PF

Wireless Thermometer for

Reciever Weather Stations

Add additional poor/SPA temperature sensors. Supports up to eight

remote sensors.

Energizer AAAS Lithium

Battery (2-pack) - Batteries

for Long Life and Cold

Climates

AAA lithium batteries for cold weather climates.

7 LiabilityDisclaimer

Please help in the preservation of the environment and return used batteries to an authorized depot.

The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in

wild country and/or in unauthorized grounds strongly damages the environment.

Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any

responsibility for any incorrect readings and any consequences that occur should an inaccurate reading

take place.

This product is designed for use in the home only as indication of weather conditions. This product is

not to be used for medical purposes or for public information.

The specifications of this product may change without prior notice.

This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written authorization of the manufacturer.

Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL,

PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR

MALFUNCTION OF THIS PRODUCT.

8 FCCStatement

Statement according to FCC part 15.19:

This device complies with part 15 of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

Statement according to FCC part 15.21:

Modifications not expressly approved by this company could void the user's authority to operate the

equipment.

Statement according to FCC part 15.105:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

9 WarrantyInformation

Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in

materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products purchased and

only to the original purchaser of this product. To receive warranty service, the purchaser must contact

Ambient, LLC for problem determination and service procedures.

Warranty service can only be performed by a Ambient, LLC. The original dated bill of sale must be

presented upon request as proof of purchase to Ambient, LLC.

Your Ambient, LLC warranty covers all defects in material and workmanship with the following

specified exceptions: (1) damage caused by accident, unreasonable use or neglect (lack of reasonable

and necessary maintenance); (2) damage resulting from failure to follow instructions contained in your

owner’s manual; (3) damage resulting from the performance of repairs or alterations by someone other

than an authorized Ambient, LLC authorized service center; (4) units used for other than home use (5)

applications and uses that this product was not intended (6) the products inability to receive a signal

due to any source of interference or metal obstructions and (7) extreme acts of nature, such as

lightning strikes or floods.

This warranty covers only actual defects within the product itself, and does not cover the cost of

installation or removal from a fixed installation, normal set-up or adjustments, claims based on

misrepresentation by the seller or performance variations resulting from installation-related

circumstances.

Ambient Ambient Weather F007PF Wireless Thermometer User Manual F007PF

Ambient, LLC dba Ambient Weather Wireless Thermometer F007PF

User manual

Navigation menu

Namespaces

Views

Navigation
