Ambient Weather WS-07 Wireless Indoor/Outdoor 8-

Channel Thermo-Hygrometer with Jumbo Display

User Manual

1. Introduction

Thank you for your purchase of the Ambient Weather WS-07 Wireless

Indoor/Outdoor 8-Channel Thermo-Hygrometer with Jumbo Display. The

following user guide provides step by step instructions for installation, operation

and troubleshooting. To download the latest manual and additional

troubleshooting tips, please visit:

2.Getting Started

Note: The power up sequence must be performed in the order shown in

this section (insert batteries in the remote transmitter(s) first, Display Console

second).

The WS-07 weather station consists of a display console (receiver), and a

thermo-hygrometer (remote transmitter).

2.1 Parts List

2.2 Recommend Tools

Hammer and nail for hanging remote thermo-hygrometer transmitter.

2.3 Thermo-Hygrometer Sensor Set Up

Note: Do not use rechargeable batteries. We recommend fresh alkaline

batteries for outdoor temperature ranges between -4 °F and 140 °F and fresh

lithium batteries for outdoor temperature ranges between -40 °F and 140 °F.

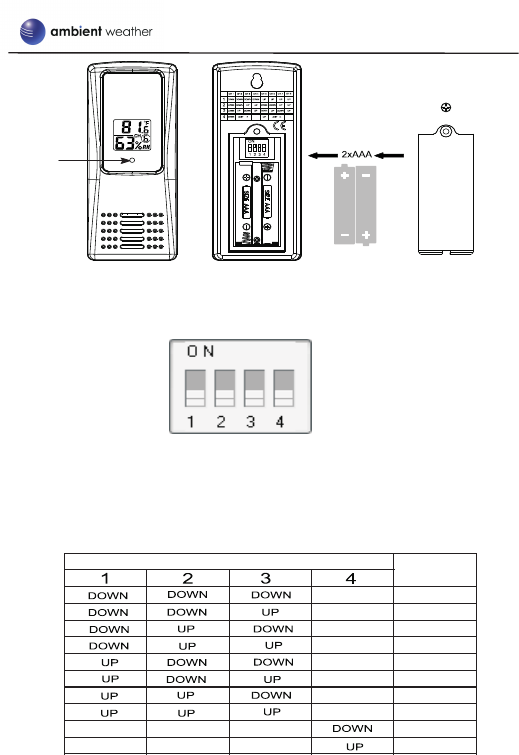

1. Remove the battery door on the back of the sensor by removing the set

screw, as shown in Figure 1 .

http://ambientweather.wikispaces.com/ws07

QTY Item

Display Console

Frame Dimensions (LxHxW): 4.50 x 5.0 x 1.00 in

LCD Dimensions (LxW): 3.75 x 3.50”

LCD Segment Height: 1.25 inches

Thermo-hygrometer transmitter (FT007TH)

Dimensions (LxHxW): 4.5” x 2.0” x 0.75”

1

LED

Figure 1

2. BEFORE inserting the batteries, locate the dip switches on the inside

cover of the lid of the transmitter.

Figure 2

3. Channel Number: The WS-07 supports up to eight transmitters. To set

each channel number (the default is Channel 1), change Dip Switches 1, 2 and 3,

as referenced in Table 1.

4. Temperature Units of Measure: To change the transmitter display units of

measure (°F vs. °C), change Dip Switch 4, as referenced in Table 1.

Table 1

displays all four switches in the OFF position (factory default setting).

DIP SWITCH FUNCTION

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

Channel 7

Channel 8

°F

°C

5. Insert two AAA batteries.

6. After inserting the batteries, the remote sensor LED indicator will light for

4 seconds, and then flash once per 60 seconds thereafter. Each time it flashes,

the sensor is transmitting data.

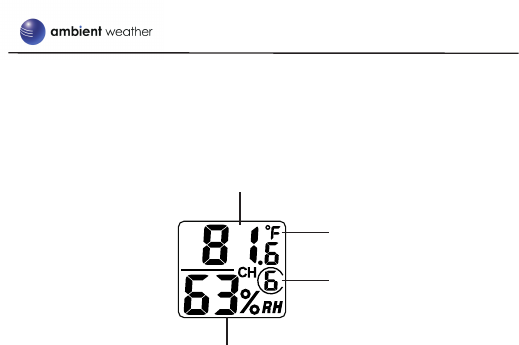

7. Verify the correct channel number (CH) and temperature units of measure

(°F vs. °C) are on the display, as shown in Figure 3.

Figure 3

(1) temperature

(2) temperature units (°F vs. °C)

(3) channel number

(4) relative humidity

8. Close the battery door. Make sure the gasket (around the battery

compartment) is properly seated in its trace prior to closing the door. Tighten

the set screw.

2.4 Display Console Set Up

1. Move the remote thermo-hygrometer(s) about 5 to 10' away from the

display console (if the sensor is too close, it may not be received by the display

console). If you have more than one thermo-hygrometer, make sure they are all

powered up and transmitting on different channels.

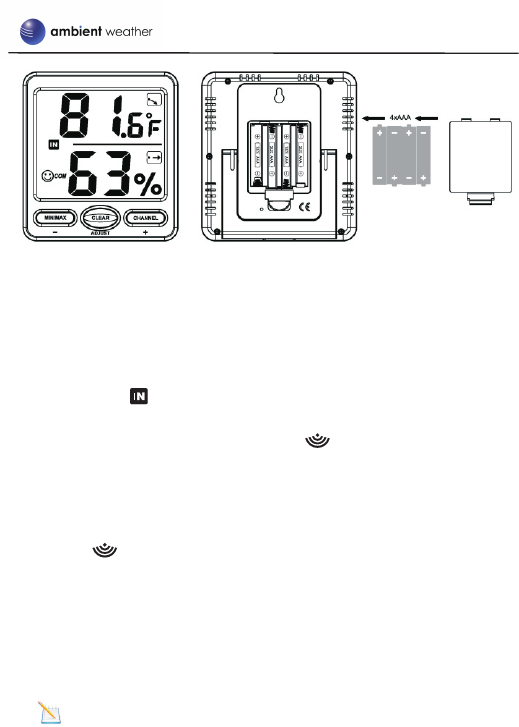

2. Remove the battery door on the back of the display, as shown in Figure

4. Insert four AAA (alkaline or lithium, avoid rechargeable) batteries in the back

of the display console

1

2

3

4

Figure 4

All of the LCD segments will light up for a few seconds to verify all segments

are operating properly.

3. Replace the battery door, and fold out the desk stand and place the

console in the upright position.

The console will instantly display indoor temperature and humidity as

designated by the icon. The remote temperature and humidity will update on

the display within a few minutes on the appropriate channel.

While in the search mode, the remote search icon will be constantly displayed.

If you have more than once remote sensor (up to eight remotes are supported),

the display will automatically toggle between sensors until all sensors have

reported in.

Do not touch any buttons until the remote sensor has reported in, or the radio

search icon is no longer on, otherwise the remote sensor search mode will

be terminated. When the remote sensor temperature and humidity has been

received, the console will automatically switch to the normal mode, and all

further settings can be performed.

If the remote does not update, please reference the troubleshooting guide in

Section 8 .

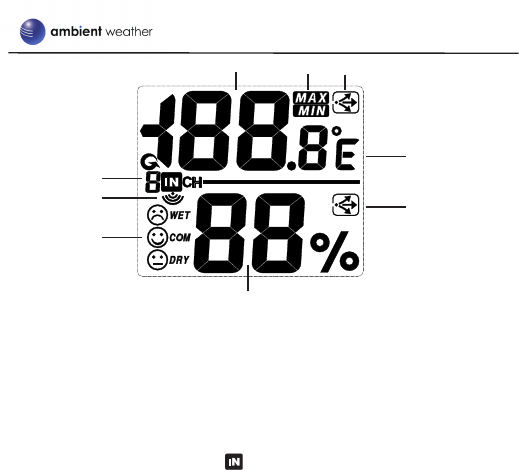

2.4.1 Display Console Layout

Note: The following illustration shows the full segments of the LCD for

description purposes only and will not appear like this during normal operation.

Figure 5

1. Temperature

2. Min/Max Record mode

3. Temperature, Rate of Change indicator

4. Temperature units (°F or °C)

5. Humidity, Rate of Change indicato

6. Relative Humidity (%)

7. Humidity Comfort Icon

8. Reception Icon (solid when searching, flashes when updating)

9. Channel 1,2,3,4,5,6,7,8, indictor

2.4.2 Sensor Operation Verification

Verify the indoor and outdoor humidity match closely with the console and

sensor array in the same location (about 5 to 10' apart). The sensors should be

within 10% (the accuracy is ± 5%). Allow about 30 minutes for both sensors to

stabilize. The humidity can be adjusted or calibrated later to match each other a

known source.

Verify the indoor and outdoor temperature match closely with the console and

sensor array in the same location (about 5 to 10' apart). The sensors should be

within 2°F (the accuracy is ± 1°F). Allow about 30 minutes for both sensors to

stabilize. The temperature can be adjusted or calibrated later to match each

other or a known source.

3. Remote Sensor Installation

It is recommended you mount the remote sensor on a north facing wall, in a

shaded area. Direct sunlight and radiant heat sources will result in inaccurate

1

2 3

4

5

6

7

8

9

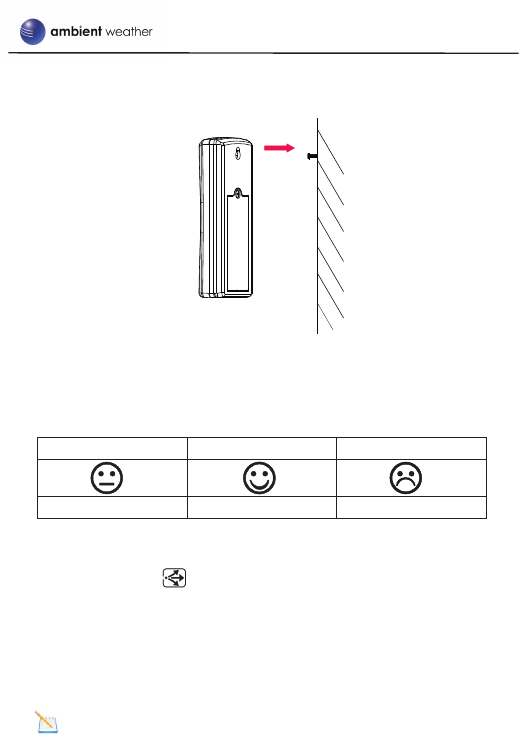

temperature readings. Although the sensor is water resistant, it is best to mount in

a well protected area, such as under an eve. Use a screw or nail (not included) to

affix the remote sensor to the wall, as shown in Figure 6.

Figure 6

4. Display Features

4.1 Comfort Icon

The comfort icon is based on humidity ranges specified in Figure 7 . The icon

is displayed for indoor humidity, remote channel 1 humidity and optional remote

channels 2 through 8 humidity.

Figure 7

4.2 Rate of Change Icon

The rate of change icon detects rapid changes in temperature and humidity.

If the arrow points upward, the temperature is increasing at a rate of +2°F per

30 minutes (or greater), or humidity is increasing at a rate of +5% per 30

minutes (or greater). If the arrow points downward, the temperature is

decreasing at a rate of -2°F per 30 minutes (or less), or humidity is decreasing

at a rate of -5% per 30 minutes (or less).

5. Console Operation

Note: The console has three buttons for easy operation: MIN/MAX/-

button, CLEAR/ADJUST button, and CHANNEL/+ button.

RH<45% RH45%~65% RH>65%

Dry Comfortable Wet

5.1 Min/Max Mode

The Min/Max mode displays the minimum and maximum temperature and

humidity (since reset of the unit) for the indoor, remote channel 1 through 8

sensors.

Prior to entering the MIN/MAX mode, press the CHANNEL/+ button to select

the temperature and humidity values you wish to view.

1. Display Maximum. Press the MIN/MAX button once to display the

maximum. The MAX icon will be displayed.

2. Clear Maximum. To reset the maximum values to the current values,

press and hold the CLEAR button for 3 seconds..

3. Display Minimum. Press the MIN/MAX button again to display

the minimum. The MIN icon will be displayed.

4. Clear Minimum. To reset the minimum values to the current values,

press and hold the CLEAR button for 3 seconds.

To return to normal mode, press the MIN/MAX button again.

5.2 Indoor/Outdoor Channel Selection

Press the CHANNEL/+ button to switch the display between the indoor

temperature and humidity remote sensors 1 through 8, and scroll mode In

scroll mode, all of the indoor and detected outdoor sensors will be displayed in

five second intervals.

5.4 Sensor Search Mode

If any of the sensor communication is lost, dashes (--.-) will be displayed on the

screen. To reacquire the signal:

1. If a specific channel is lost, press the CHANNEL/+ button to display this

channel, then Press and hold the CHANNEL/+ button for 3 seconds, and

the remote search icon will be constantly displayed for up to 10 minutes.

Once the signal is reacquired, the remote search icon will turn off, and

the current values will be displayed.

2. If new sensors are added, subtracted, or multiple sensor channels are lost,

press the CHANNEL/+ button until the indoor channel is displayed.

Press and hold the CHANNEL/+ button for 3 seconds, and the remote

search icon will be constantly displayed for up to 10 minutes. Once the

signal is reacquired, the remote search icon will turn off, and the current

values will be displayed.

5.3 Temperature Units of Measure

The default temperature units of measure are degrees Fahrenheit. To toggle

between degrees Celsius and degrees Fahrenheit, press and hold the MIN/MAX

button for 3 seconds.

5.5 Best Practices for Wireless Communication

Wireless communication is susceptible to interference, distance, walls and

metal barriers. We recommend the following best practices for trouble free

wireless communication.

1. Electro-Magnetic Interference (EMI). Keep the console several feet

away from computer monitors and TVs.

2. Radio Frequency Interference (RFI). If you have other 433 MHz

devices and communication is intermittent, try turning off these other

devices for troubleshooting purposes. You may need to relocate the

transmitters or receivers to avoid intermittent communication.

3. Line of Sight Rating. This device is rated at 300 feet line of sight (no

interference, barriers or walls) but typically you will get 100 feet

maximum under most real-world installations, which include passing

through barriers or walls.

4. Metal Barriers. Radio frequency will not pass through metal barriers

such as aluminum siding. If you have metal siding, align the remote and

console through a window to get a clear line of sight .

5.6 Adjustment or Calibration

Note: The calibrated value can only be adjusted on the console. The

remote sensor(s) always displays the un-calibrated or measured value.

Note: The measured humidity range is between 10 and 99%. Humidity

cannot be accurately measured outside of this range. Thus, the humidity cannot

be calibrated below 10% or above 99%.

The purpose of calibration is to fine tune or correct for any sensor error

associated with the devices margin of error. The measurement can be adjusted

from the console to calibrate to a known source.

Calibration is only useful if you have a known calibrated source you can

compare it against, and is optional. This section discusses practices,

procedures and sources for sensor calibration to reduce manufacturing

and degradation errors. Do not compare your readings obtained from

sources such as the internet, radio, television or newspapers. They are in

a different location and typically update once per hour.

The purpose of your weather station is to measure conditions of your

surroundings, which vary significantly from location to location.

5.6.1 Humidity Calibration

Prior to entering the calibration mode, press the CHANNEL/+ button to select

the humidity sensor you wish to adjust.

To enter the humidity calibration mode, press and hold the ADJUST and

MIN/MAX buttons at the same time for 5 seconds and the humidity value will

begin flashing. Press the CHANNEL/+ button to increase the humidity and the

MIN/MAX/- button to decrease the humidity reading in 1% increments. To

rapidly increase (or decrease) the humidity reading, press and hold the

CHANNEL/+ or MIN/MAX/- button.

To return the humidity to the actual or uncalibrated measurement, press the

ADJUST button.

Once the displayed humidity equals the calibrated source, press and hold the

ADJUST button for three seconds, or wait 15 seconds for timeout, and the

humidity value will stop flashing.

Discussion: Humidity is a difficult parameter to measure electronically and

drifts over time due to contamination. In addition, location has an adverse affect

on humidity readings (installation over dirt vs. lawn for example).

Official stations recalibrate or replace humidity sensors on a yearly basis. Due to

manufacturing tolerances, the humidity is accurate to ± 5%. To improve this

accuracy, the indoor and outdoor humidity can be calibrated using an accurate

source, such as a sling psychrometer:

or one step humidpak calibration kits (reference Section ). You can also

use common table salt, water and a plastic bag:

5.6.2 Temperature Calibration

Prior to entering the calibration mode, press the CHANNEL/+ button to select

the temperature you wish to adjust.

To enter the temperature calibration mode, press and hold the ADJUST button

for 5 seconds and the temperature value will begin flashing. Press the

CHANNEL/+ button to increase the temperature and the MIN/MAX/- button to

decrease the temperature reading in 0.1° increments. To rapidly increase (or

decrease) the temperature reading, press and hold the CHANNEL/+ or

MIN/MAX/- button.

http://www.ambientweather.com/mafaredspslp.html

http://ambientweather.wikispaces7.com/ws07

To return the temperature to the actual or uncalibrated measurement, press the

ADJUST button.

Once the displayed temperature equals the calibrated source, press and

hold the ADJUST button for three seconds, or wait 15 seconds for

timeout, and the temperature value will stop flashing.

Discussion: Temperature errors can occur when a sensor is placed too

close to a heat source (such as a building structure, the ground or trees).

To calibrate temperature, we recommend a mercury or red spirit (fluid)

thermometer. Bi-metal (dial) and other digital thermometers are not a good

source and have their own margin of error. Using a local weather station in your

area is also a poor source due to changes in location, timing (airport weather

stations are only updated once per hour) and possible calibration errors (many

official weather stations are not properly installed and calibrated).

Place the sensor in a shaded, controlled environment next to the fluid

thermometer, and allow the sensor to stabilize for 48 hours. Compare this

temperature to the fluid thermometer and adjust the console to match the fluid

thermometer.

7. Specifications

7.1 Wireless Specifications

Line of sight wireless transmission (in open air): 300 feet, 100 feet under

most conditions.

Frequency: 433 MHz

Update Rate: 60 seconds

6. Glossary of Terms

●

Term Definition

Accuracy is defined as the ability of a measurement to match

the actual value of the quantity being measured.

Range is defined as the amount or extent a value can be

measured.

Range

Accuracy

A hygrometer is a device that measures relative humidity.

Relative humidity is a term used to describe the amount or

percentage of water vapor that exists in air.

Hygrometer

7.2 Measurement Specifications

The following table provides specifications for the measured parameters.

7.3 Power Consumption

Base station (display console): 4 x AAA 1.5V Alkaline or Lithium batteries (not

included)

Remote sensor : 2 x AAA 1.5V Alkaline or Lithium batteries (not included)

Battery life: Minimum 12 months for base station with one sensor and

excellent reception. Intermittent reception and multiple sensors may reduce

the battery life.

Minimum 12 months for thermometer-hygrometer sensor (use lithium

batteries in cold weather climates less than -4°F)

8. Troubleshooting Guide

If your question is not answered here, you can contact us as follows:

1. Email Support:

2. Live Chat Support:

(M-F 8am to 4pm Arizona Time)

3.Technical Support: 480-283-1644

●

support@ambientweather.com

www.ambientweather.com/chat.html

Measurement Range Resolution

Indoor Temperature 32 to 140°F ± 1°F 0.1°F

Outdoor Temperature

-40 to 140°F ± 1°F 0.1°F

Accuracy

10 to 99 %

± 5% (only guaranteed

between 20 to 90%)

± 5% (only guaranteed

between 20 to 90%)

1%

Indoor Humidity

Outdoor Humidity

Problem Solution

Wireless remote

(thermo-hygrometer)

not reporting in to

console.

If any of the sensor communication is lost, dashes (--.-)

will be displayed on the screen. To reacquire the signal,

press and hold the CHANNEL/+ button for 3 seconds,

and the remote search icon will be constantly

displayed. Once the signal is reacquired, the remote

search icon will turn off, and the current values will be

displayed.

The maximum line of sight communication range is 300'

and 100' under most conditions. Move the sensor

assembly closer to the display console.

Problem Solution

There are dashes (--.-)

on the display console.

If the sensor assembly is too close (less than 5'), move the

sensor assembly away from the display console.

Make sure the remote sensor LCD display is working and the

transmitter light is flashing once per 60 seconds.

Install a fresh set of batteries in the remote thermo-

hygrometer. For cold weather environments, install lithium

batteries.

Make sure the remote sensors are not transmitting through

solid metal (acts as an RF shield), or earth barrier (down a

hill).

Move the display console around electrical noise generating

devices, such as computers, TVs and other wireless

transmitters or receivers.

Move the remote sensor to a higher location. Move the

remote sensor to a closer location.

Temperature sensor

reads too high in the

day time.

Make sure the thermo-hygrometer is mounted in a shaded

area on the north facing wall. Consider the following radiation

shield if this is not possible:

http://www.ambientweather.com/amwesrpatean.html

Indoor and Outdoor

Temperature do not

agree

Allow up to one hour for the sensors to stabilize due to signal

filtering. The indoor and outdoor temperature sensors should

agree within 2 °F (the sensor accuracy is ± 1 °F).

Use the calibration feature to match the indoor and outdoor

temperature to a known source.

Indoor and Outdoor

Humidity do not

agree.

Allow up to one hour for the sensors to stabilize due to signal

filtering. The indoor and outdoor humidity sensors should

agree within 10 % (the sensor accuracy is ± 5 %).

Use the calibration feature to match the indoor and outdoor

humidity to a known source.

Display console

contrast is weak Replace console batteries with a fresh set of batteries.

Accessory Description

AAA lithium batteries for cold weather climates.

Energizer AAAS Lithium

Battery (2-pack) - Batteries for

Long Life and Cold Climates

Solar Radiation Shield improves temperature

accuracy for hot weather climates. Remove the rain

guard and install over thermo-hygrometer.

Ambient Weather

SRS100LX Temperature and

Humidity Solar Radiation

Shield

One step calibration kits for digital hygrometers use

salt slurry formula to accurately calibrate the indoor

and outdoor hygrometers.

Ambient Weather Humidity

Calibration Kits

9. Accessories

The following software and hardware accessories are available for this

weather station at .www.AmbientWeather.com

10. Liability Disclaimer

Please help in the preservation of the environment and return used batteries to

an authorized depot.

The electrical and electronic wastes contain hazardous substances. Disposal of

electronic waste in wild country and/or in unauthorized grounds strongly

damages the environment.

Reading the “User manual” is highly recommended. The manufacturer and supplier

cannot accept any responsibility for any incorrect readings and any consequences

that occur should an inaccurate reading take place.

This product is designed for use in the home only as indication of weather

conditions. This product is not to be used for medical purposes or for public

information.

The specifications of this product may change without prior notice.

This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written authorization of the

manufacturer.

Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL,

CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED

WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.

11. FCC Statement

Statement according to FCC part 15.19:

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference receive including interference

that may cause undesired operation.

Statement according to FCC part 15.21:

Modifications not expressly approved by this company could void the

user's authority to operate the equipment.

Statement according to FCC part 15.105:

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

12. Warranty Information

Ambient, LLC provides a 1-year limited warranty on this product against

manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only

on products purchased and only to the original purchaser of this product.

To receive warranty service, the purchaser must contact Ambient, LLC for

problem determination and service procedures.

●

Warranty service can only be performed by a Ambient, LLC. The original dated bill

of sale must be presented upon request as proof of purchase to Ambient, LLC.

Your Ambient, LLC warranty covers all defects in material and workmanship with

the following specified exceptions: (1) damage caused by accident, unreasonable

use or neglect (lack of reasonable and necessary maintenance); (2) damage

resulting from failure to follow instructions contained in your owner's manual; (3)

damage resulting from the performance of repairs or alterations by someone other

than an authorized Ambient, LLC authorized service center; (4) units used for other

than home use (5) applications and uses that this product was not intended (6) the

products inability to receive a signal due to any source of interference or metal

obstructions and (7) extreme acts of nature, such as lightning strikes or floods.

This warranty covers only actual defects within the product itself, and does not

cover the cost of installation or removal from a fixed installation, normal set-up or

adjustments, claims based on misrepresentation by the seller or performance

variations resulting from installation-related circumstances.

Ambient Ambient Weather F007TH Wireless Thermo-Hygrometer User Manual

Ambient, LLC dba Ambient Weather Wireless Thermo-Hygrometer

User manual

Navigation menu

Namespaces

Views

Navigation
