Ambient Weather WS-24-C Big Digit 8-Channel

Wireless Indoor / Outdoor Thermometer (Console Only)

User Manual

Table of Contents

1 Introduction .......................................................................................................2

2 Getting Started ..................................................................................................3

2.1 Parts List ....................................................................................................3

2.2

2.2.2

3 Remote Sensor Installation ...............................................................................6

4 Console Operation ...........................................................................7

4 . 1

Displaying Seconds, Day of Week, and Year ...............................8

4.3 Alarms .....................................................................................8

4.3.1 Viewing the Alarms ............................................................8

4.3.2 Default Alarms ...................................................................8

4.3.3 Setting the Alarms ..............................................................8

4.3.4 Silencing an Alarm .............................................................9

4.4 Min/Max Mode .........................................................................9

4.5 Channel Selection and Scroll Mode ..........................................10

4.6 Sensor Search Mode and Resyncing the Sensors .....................10

4.6.1 Best Practices for Wireless Communication .......................10

4.7 Snooze/Light Button .................................................................11

4.7.1 Backlight Operation ...........................................................11

4.7.2 Snooze Operation ..............................................................12

4.8 Adjustment or Calibration .........................................................12

4.8.1 Temperature Calibration .....................................................12

4.8.2 Setting Calibrated Humidity ................................................13

4.9 Restoring the Console to Factory Default ..................................14

5 Glossary of Terms ..........................................................................14

6 Specifications ................................................................................14

6.1 Wireless Specifications ............................................................14

Display Console Set Up .............................................................................4

2.2.1 Display Console Layout .....................................................................5

Sensor Operation Verification ............................................................6

Set Mode ...................................................................................7

4.2

WS24C

6.2 Measurement Specifications ....................................................14

6.3 Power Consumption ................................................................................15

7 Troubleshooting Guide ....................................................................................15

8 Accessories .....................................................................................................16

9 Liability Disclaimer ..........................................................................................17

10 FCC Statement .............................................................................................18

11 Warranty Information .....................................................................................19

1.Introduction

Thank you for your purchase of the Ambient Weather WS24C Wireless

Indoor/Outdoor 8-Channel Thermometer with Backlit Display (Console

Only). The following user guide provides step by step instructions for

installation, operation and troubleshooting. To download the latest manual

and additional troubleshooting tips, please visit:

http://ambientweather.wikispaces.com/ws24

The WS24C includes an indoor temperature and humidity sensor (there

is a sensor inside the display) as well as supports up to 8 remote sensors

(sensors and receivers are sold separately):

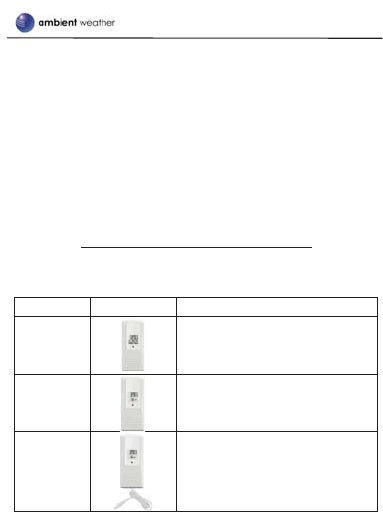

Item Number Image Description

F007TH

F007T

F007TP

8-channel sensor measures temperature

and humidity. Applications include indoor

and outdoor air temperature and humidity

measurement.

8-channel sensor measures

temperature. Applications include indoor

and outdoor air temperature

measurement.

8-channel sensor measures probe

temperature. Applications include

refrigerators and freezers (where the

probe is placed inside the appliance(s)

and the display is outside), water

temperature, soil temperature and

ground temperature.

2. Getting Started

The WS24C (console only) works perfectly fine as a standalone unit (no

sensors required) if you simply want to monitor indoor temperature and

humidity. The WS24C is also sold without any remote sensors so that

you can add additional consoles to your system.

Some of this manual is devoted to wireless communication to one or

remote sensors. You can ignore this information if you purchased the

console as a stand-alone system.

Note: If you own a remote sensor, The power up sequence must be

performed in the order shown in this section (insert batteries in the remote

transmitter(s) first, Display Console second).

2.1 Parts List

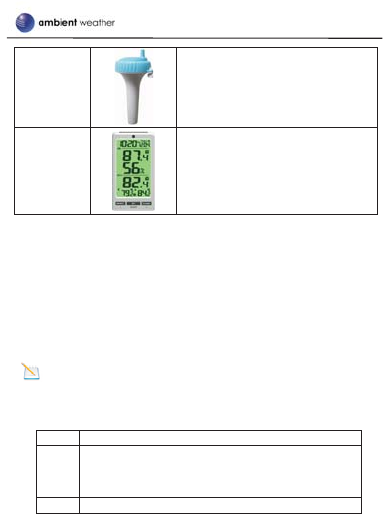

F007PF 8-channel pool float thermometer.

Applications include pools, spas, and

lakes.

WS24C Add as many display consoles as you

like to your existing system. For

example, you can have one remote

sensor display temperature and place

a display console in every room.

QTY Item

Display Console

Frame Dimensions (LxHxW): 6 x 3.25 x 1 in

LCD Dimensions (LxW): 4.5 x 2.5”

LCD Segment Height: 1 inch

1

User Manual

1

2.2 Display Console Set Up

1. Move the remote thermometer(s) about 5 to 10’ away from the

display console (if the sensor is too close, it may not be received by the

display console). If you have more than one thermometer, make sure they

are all powered up and transmitting on different channels.

2. Remove the battery door on the back of the display, as shown in

Figure 1. Insert four AAA (alkaline or lithium, avoid rechargeable)

batteries in the back of the display console.

Figure 1

All of the LCD segments will light up for a few seconds to verify all

segments are operating properly.

3. Replace the battery door, and fod out the desk stand and place the

console in the upright position.

The console will instantly display indoor temperature and humidity. The

remote temperature will update on the display within a few minutes on the

appropriate channel.

While in the search mode, the remote search icon will be constantly

displayed next to the channel number.

If you have more than one remote sensor (up to eight remotes are

supported), the display will automatically toggle between sensors until all

sensors have reported in.

Do not touch any buttons until the remote sensor has reported in, or the

radio search icon is no longer on, otherwise the remote sensor search

mode will be terminated. When the remote sensor temperature has been

received, the console will automatically switch to the normal mode, and all

further settings can be performed.

If the remote does not update, please reference the troubleshooting guide

in Section 7.

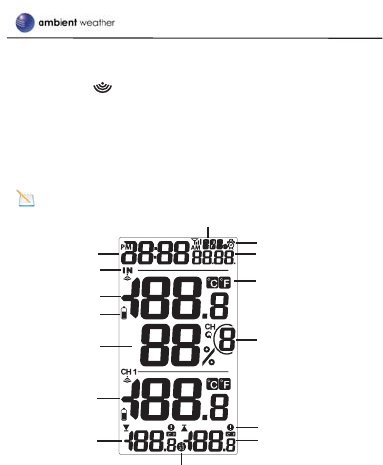

2.2.1 Display Console Layout

Note: The following illustration shows the full segments of the LCD

for description purposes only and will not appear like this during normal

operation.

Figure 2

1. Indoor temperature and humidity 8. Maximum

display icon 9. HI/LOW alarm icon

Temperature

1

2

4

5

7

8

9

10

11

12

13

14

3

6

15

2.Temperature display 10.Scroll mode (IN, CH 2-8)

3. Console Low Battery indicator 11.Temperature units (°F or °C)

4. Indoor Relative humidity display 12. Date/Year display

5. Outdoor Temperature (Channel 1) 13. Time alarm icon

6. Minimum Temperature 14. Min/Max icon, week or

7. Min/Max reset for 24h second display

15.Time display (AM/PM)

2.2.2 Sensor Operation Verification

Verify the indoor and outdoor temperature match closely with the console and

sensor array in the same location (about 5 to 10’ apart). The sensors should be

within 2°F (the accuracy is ± 1°F). Allow about 30 minutes for both sensors to

stabilize. The temperature can be adjusted or calibrated later to match each

other or a known source.

3. Remote Sensor Installation

If you purchased the outdoor sensor for this console (optional):

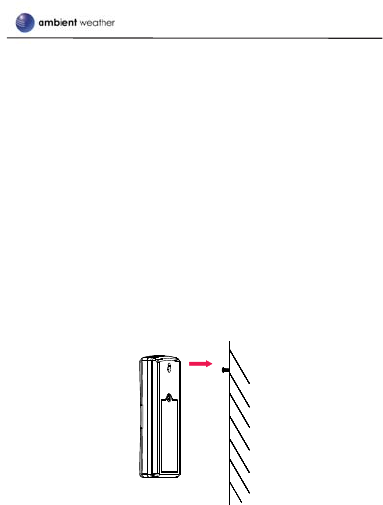

It is recommended you mount the remote sensor on a north facing wall, in

a shaded area. Direct sunlight and radiant heat sources will result in

inaccurate temperature readings. Although the sensor is water resistant, it

is best to mount in a well-protected area, such as under an eve. Use a

screw or nail (not included) to affix the remote sensor to the wall, as shown

in Figure 3.

Figure 3

4. Console Operation

Note: The console has four buttons for easy operation: MIN/MAX/-

button, SET/ADJUST button, CHANNEL/+ button, and SNOOZE/LIGHT

button (on the top of the display console).

4.1 Set Mode

Note: In the Set mode, press the [+] key or [-] key to change or scroll

the value. Hold the [+] key or [-] key for three seconds to increase/decrease

rapidly.

Note: To exit the Set mode at any time, press the SNOOZE/LIGHT

button on the top of the display console.

The Set Mode allows you to set the Time Format and time, date and Year.

To enter the set mode, press and hold the SET key for 3 seconds.

1.12hr/24hr time format (default: 12). Press the [+] or [-] key to switch

between 12 and 24 hour format. Press the SET key to advance to the

next setting.

2.Hour. Press the [+] or [-] key to increase or decrease the hour. Press

the SET key to advance to the next setting.

3.Minute. Press the [+] or [-] key to increase or decrease the minute.

Press the SET key to advance to the next setting.

4.Date Format (default: M-D): Press the [+] or [-] key to switch between

M-D (month/day) and D-M (day/month). Press the SET key to advance

to the next setting.

5.Day: Press the [+] key or [-] key to adjust the calendar day. Press the

SET key to advance to the next setting.

6.Month: Press the [+] key or [-] key to adjust the calendar month. Press

the SET key to advance to the next setting.

7.Year. Press the [+] key or [-] key to adjust the calendar year. Press the

SET key to advance to the next setting.

8. Min/Max Clears Daily (default: on): Press the [+] key or [-] key to switch

between Clears On (the min and max temperature clears every day at

midnight) or Clears Off (min/max temperature clears manually). Press

the SET key to advance to the next setting.

9.Temperature Units (default: °F). Press [+] key or [-] key to toggle the

temperature units of measure between Fahrenheit to Celsius. Press the

SET key to exit the set mode.

4.2 Displaying Seconds, Day of Week, and Year

In normal mode, press and hold MIN/MAX key for three seconds to switch

the display from Day of Week/Month-Day to Seconds/Year.

The year will be displayed for 30 seconds, and then switch back to Month-

Day.

4.3 Alarms

Note: High and low temperature alarms can be set for the Channel

1 sensor only.

4.3.1 Viewing the Alarms

Press the SET button to view the High (MAX) and LOW (MIN) alarm along

with the alarm time. Press the SET button again to return to the normal

mode.

4.3.2 Default Alarms

4.3.3 Setting the Alarms

1.In normal mode, press the SET button once, and the alarm time and icon

ALM will appear.

2.Alarm Hour: Press and hold the SET button for 3 seconds, and the

alarm hour will flash. Press the [+] button to increase the alarm hour and

the [-] button to decrease the alarm hour. Press and hold the + or -

button to change rapidly.

3.Alarm Minutes: Press the SET key again (do not hold) and the alarm

minutes and flash. Press the [+] button to increase the alarm minute

and and the [-] button to decrease the alarm minute. Press and hold the

Channel Default

Condition

HI ALARM

(temperature) ºF

LOW ALARM

(temperature) ºF

1OFF 100 60

+ or - button to change rapidly.

While the alarm hour or minutes is flashing, press and hold the SET

button for three seconds to toggle the alarm on and off. The alarm icon

will appear when active and disappear when inactive.

4.Low Temperature Alarm: Press the SET key again and the low

temperature alarm will flash. Press the [+] button to increase the low

temperature alarm and the [-] button to decrease the low temperature

alarm. Press and hold the + or - button to change rapidly.

While the low temperature alarm is flashing, press and hold the SET

button for three seconds to toggle the alarm on and off. The alarm icon

will appear when active and disappear when inactive.

5. High Temperature Alarm: Press the SET key again and the high

temperature alarm will flash. Press the [+] button to increase the high

temperature alarm and the [-] button to decrease the high temperature

alarm. Press and hold the + or - button to change rapidly.

While the high temperature alarm is flashing, press and hold the SET

button for three seconds to toggle the alarm on and off. The alarm icon

will appear when active and disappear when inactive.

6.Press the SET button to confirm the change. Press the SET button again

exit the alarm set mode.

4.3.4 Silencing an Alarm

If the high or low temperature alarms are exceeded, the alarm will sound

and the alarm icon will flash. To silence the alarm, press any button. The

alarm icon will continue to flash until the alarm is no longer active.

4.4 Min/Max Mode

In normal mode, Press the MIN/MAX button once to view the MAX values.

Press the MIN/MAX button again to view the MIN values.

Press the MIN/MAX button again to return to normal mode.

In MIN/MAX mode, to reset the Max/Min values, press and hold the

MIN/MAX/- button for 3 seconds.

4.5 Channel Selection and Scroll Mode

Press the CHANNEL/+ button to switch the display between IN, Sensors 2

through 8, and scroll mode . In scroll mode, the indoor temperature and

humidity and sensors 2-8 will be displayed in five second intervals.

4.6 Sensor Search Mode and Resyncing the Sensors

1. If a specific channel 2-8 is lost, press the CHANNEL/+ button to display

this channel, then Press and hold the CHANNEL/+ button for 3

seconds, and the remote search icon will be constantly displayed

for up to 10 minutes. Once the signal is reacquired, the remote search

icon will turn off, and the current values will be displayed.

2. If channel1 is lost, press the CHANNEL/+ button to display IN

temperature and humidity, then Press and hold the CHANNEL/+ button

for 3 seconds, and the remote search icon will be constantly

displayed for up to 10 minutes. Once the signal is reacquired, the

remote search icon will turn off, and the current values will be

displayed.

3. If new sensors are added, subtracted, or multiple sensor channels are

lost, Press and hold the CHANNEL/+ button for 5 seconds, and the

remote search icon will be constantly displayed for up to 10

minutes. Once the signal is reacquired, the remote search icon

will turn off, and the current values will be displayed.

4.6.1 Best Practices for Wireless Communication

Note: To insure proper communication, mount the remote sensor on

a vertical surface, such as a wall. Do not lay the sensor flat.

Wireless communication is susceptible to interference, distance, walls and

metal barriers. We recommend the following best practices for trouble free

wireless communication.

1. Electro-Magnetic Interference (EMI). Keep the console several feet

away from computer monitors and TVs.

If any of the sensor communication is lost, dashes (--.-) will be displayed

on the screen. To reacquire the signal:

2. Radio Frequency Interference (RFI). If you have other 433 MHz

devices and communication is intermittent, try turning off these other

devices for troubleshooting purposes. You may need to relocate the

transmitters or receivers to avoid intermittent communication.

3. Line of Sight Rating. This device is rated at 300 feet line of sight (no

interference, barriers or walls) but typically you will get 100 feet

maximum under most real-world installations, which include passing

through barriers or walls.

4. Metal Barriers. Radio frequency will not pass through metal barriers

such as aluminum siding. If you have metal siding, align the remote

and console through a window to get a clear line of sight.

The following is a table of reception loss vs. the transmission medium.

Each “wall” or obstruction decreases the transmission range by the factor

shown below.

4.7 Snooze/Light Button

4.7.1 Backlight Operation

The backlight operation is different when operating on batteries to save

power.

4.7.1.1 Backlight Operation, Battery Power

To temporarily turn on the back light for five seconds, press the

SNOOZE/LIGHT button on the top of the console.

To turn on the backlight for 30 minutes, press and hold the

SNOOZE/LIGHT button on the top of the console for two seconds.

To turn off the backlight at any time, press and hold the SNOOZE/LIGHT

button for two seconds.

Medium

RF Signal Strength Reduction

Glass (untreated)

Plastics

Wood

5-15%

10-15%

10-40%

Brick

Concrete

Metal

10-40%

40-80%

90-100%

4.7.1.2 Backlight Operation, AC Power (optional)

The AC power plug is optional.

To temporarily turn on the back light for five seconds, press the

SNOOZE/LIGHT button on the top of the console.

To turn on the backlight permanently, press and hold the SNOOZE/LIGHT

button on the top of the console for two seconds.

To turn off the backlight at any time, press and hold the SNOOZE/LIGHT

button for two seconds.

4.7.2 Snooze Operation

If the alarm is sounding, press the SNOOZE/LIGHT button to silence the

alarm. The alarm icon will flash while in snooze mode. The alarm will sound

again in 5 minutes. The snooze mode will continue indefinitely. Press any key

on the front of the display to cancel the snooze mode.

4.8 Adjustment or Calibration

Note: The calibrated value can only be adjusted on the console. The

remote sensor(s) always displays the un-calibrated or measured value.

Note: The measured humidity range is between 10 and 99%. Humidity

cannot be accurately measured outside of this range. Thus, the humidity

cannot be calibrated below 10% or above 99%.

4.8.1 Temperature Calibration

In normal mode, press and hold the SET and CHANNEL/+ keys at the

same time for 3 seconds to enter the temperature calibration mode. The

indoor temperature will begin flashing.

Press the [+] or [-] key to increase or decrease the temperature reading (in

increments of 0.1). Press and hold the [+] or [-] key for three seconds to

increase or decrease rapidly.

Press and hold the ADJUST key for three seconds to reset to the

uncalibrated or measured value.

Press the SET key to switch to the next channel (1 through 8).

To exit the calibration mode at any time, press the SNOOZE/LIGHT button.

The calibration mode will automatically if no button is pressed for 30

seconds.

4.8.2 Setting Calibrated Humidity

In normal mode, press and hold the SET and MIN/MAX keys at the same

time for 3 seconds to enter the humidity calibration mode. The indoor

humidity will begin flashing.

Press the [+] or [-] key to increase or decrease the humidity reading (in

increments of 1%). Press and hold the [+] or [-] key for three seconds to

increase or decrease rapidly.

Press and hold the ADJUST key for three seconds to reset to the

uncalibrated or measured value.

Press the SET key to switch to the next channel (2 through 8).

To exit the calibration mode at any time, press the SNOOZE/LIGHT button.

The calibration mode will automatically if no button is pressed for 30

seconds.

Note: Humidity is a difficult parameter to measure accurately and

drifts over time. The calibration feature allows you to zero out this error. To

calibrate humidity, you will need an accurate source, such as a sling

psychrometer or Humidipaks One Step Calibration kit.

Note: To calibrate temperature, we recommend a mercury or red

spirit (fluid) thermometer. Bi-metal (dial) and other digital thermometers

are not a good source and have their own margin of error. Using a local

weather station in your area is also a poor source due to changes in

location, timing (airport weather stations are only updated once per hour)

and possible calibration errors (many official weather stations are not

properly installed and calibrated).

Note: Place the sensor in a shaded, controlled environment next to

the fluid thermometer, and allow the sensor to stabilize for 48 hours.

Compare this temperature to the fluid thermometer and adjust the console

to match the fluid thermometer.

4.9 Restoring the Console to Factory Default

To restore the console to factory default:

1. Remove one battery from the display console and wait 10 seconds.

2. Press and hold the MIN/MAX button and insert the battery. Hold the

MIN/MAX button for 5 seconds after power up.

3.Resync the sensors again per Section 4.6.

5. Glossary of Terms

6. Specifications

6.1 Wireless Specifications

●

under most conditions.

● Frequency: 433.92 MH]UHFHLYHRQO\

● Update Rate: 60 seconds

6.2 Measurement Specifications

The following table provides specifications for the measured parameters.

Line of sight wireless transmission (in open air): 300 feet, 100 feet

Term Definition

Accuracy

Hygrometer

Range

Accuracy is defined as the ability of a measurement to

match the actual value of the quantity being measured.

A hygrometer is a device that measures relative

humidity. Relative humidity is a term used to describe

the amount or percentage of water vapor that exists in air.

Range is defined as the amount or extent a value can be

measured.

Measurement Range Accuracy Resolution

Indoor Temperature

Indoor Humidity

32 to 140 °F

10 to 99 %

± 1 °F

± 5% (only guaranteed

between 20 to 90%)

0.1 °F

1 %

6.3 Power Consumption

● Base station (display console): 4 x AAA 1.5V Alkaline or Lithium

batteries (not included).

● Battery life: Minimum 12 months for base station with one sensor

and excellent reception. Intermittent reception and multiple sensors may

reduce the battery life.

7. Troubleshooting Guide

If your question is not answered here, you can contact us as follows:

1. Email Support: support@ambientweather.com

2. Technical Support: 480-346-3380 (M-F 8am to 3pm Arizona Time)

Problem Solution

Wireless remote

(thermometer)

not reporting in to

console.

There are dashes

(--.-) on the display

console.

If any of the sensor communication is lost, dashes

(--.-) will be displayed on the screen. To reacquire

the signal, press and hold the CHANNEL/+ button

for 3 seconds, and the remote search icon will

be constantly displayed. Once the signal is

reacquired, the remote search icon will turn

off, and the current values will be displayed.

The maximum line of sight communication range is

300’ and 100’ under most conditions. Move the

sensor assembly closer to the display console.

If the sensor assembly is too close (less than 5’),

move the sensor assembly away from the display

console.

Make sure the remote sensor LCD display is

working and the transmitter light is flashing once

per 60 seconds.

Install a fresh set of batteries in the remote thermo-

hygrometer. For cold weather environments, install

lithium batteries.

Make sure the remote sensors are not transmitting

through solid metal (acts as an RF shield), or earth

barrier (down a hill).

8. Accessories

The following software and hardware accessories are available for this

weather station at www.AmbientWeather.com .

Move the display console around electrical noise

generating devices, such as computers, TVs and

other wireless transmitters or receiver.Move the

remote sensor to a higher location. Move the remote

sensor to a closer location.

Make sure the thermometer is mounted in a shaded

area on the north facing wall. Consider the following

radiation shield if this is not possible:

http://www.ambientweather.com/amwesrpatean.html

Indoor and Outdoor

Temperature do not

agree

Allow up to one hour for the sensors to stabilize due

to signal filtering. The indoor and outdoor

temperature sensors should agree within 2 °F (the

sensor accuracy is ± 1 °F).

Use the calibration feature to match the indoor and

outdoor temperature to a known source.

Display console

contrast is weak

Replace console batteries with a fresh set of

batteries.

Accessory Description

Add additional remote thermometers. Supports

up to eight remote sensors.

Ambient Weather

F007T Wireless

Thermometer for

Ambient Weather

Stations

Temperature sensor

reads too high in the

day time.

Move the display console around electrical noise

generating devices, such as computers, TVs and

other wireless transmitters or receivers.

Move the remote sensor to a higher location.

Move the remote sensor to a closer location.

9. Liability Disclaimer

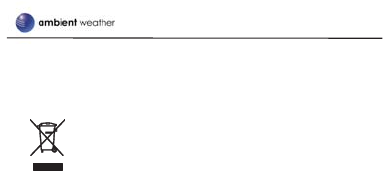

Please help in the preservation of the environment and return used

batteries to an authorized depot.

The electrical and electronic wastes contain hazardous substances.

Disposal of electronic waste in wild country and/or in unauthorized

grounds strongly damages the environment.

Reading the “User manual” is highly recommended. The manufacturer and

supplier cannot accept any responsibility for any incorrect readings and

any consequences that occur should an inaccurate reading take place.

Add additional remote floating pool and spa

thermometers. Supports up to eight remote

sensors.

Add as many display consoles as you like to

your existing system to display the remote

sensor in different locations.

Ambient Weather

F007PF 8-Channel

Wireless Pool and

Spa Remote Sensor

Ambient Weather

WS24C 8-

Channel Wireless

Thermometer,

Console Only

Energizer AAA

Lithium Battery (2-

pack) - Batteries for

Long Life and Cold

Climates

AAA lithium batteries for cold weather climates.

Ambient Weather

SRS100LX

Temperature and

Humidity Solar

Radiation Shield

Solar Radiation Shield improves temperature

accuracy for hot weather climates. Remove the

rain guard and install over thermometer.

Add additional remote temperature sensors

with probe. Supports up to eight remote

sensors.

Ambient Weather

F007TP 8-Channel

Wireless

Thermometer with

Temperature Probe

This product is designed for use in the home only as indication of weather

conditions. This product is not to be used for medical purposes or for

public information.

The specifications of this product may change without prior notice.

This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written authorization of

the manufacturer.

Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL,

CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES

ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS

PRODUCT.

10. FCC Statement

Statement according to FCC part 15.19:

1.This device may not cause harmful interference.

2.This device must accept any interference received, including

interference that may cause undesired operation.

Statement according to FCC part 15.21:

Modifications not expressly approved by this company could void the

user's authority to operate the equipment.

Statement according to FCC part 15.105:

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications.

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

11. Warranty Information

Ambient, LLC provides a 1-year limited warranty on this product against

manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only

on products purchased and only to the original purchaser of this product.

To receive warranty service, the purchaser must contact Ambient, LLC for

problem determination and service procedures.

Warranty service can only be performed by a Ambient, LLC. The original

dated bill of sale must be presented upon request as proof of purchase to

Ambient, LLC.

Your Ambient, LLC warranty covers all defects in material and

workmanship with the following specified exceptions: (1) damage caused

by accident, unreasonable use or neglect (lack of reasonable and

necessary maintenance); (2) damage resulting from failure to follow

instructions contained in your owner’s manual; (3) damage resulting from

the performance of repairs or alterations by someone other than an

authorized Ambient, LLC authorized service center; (4) units used for other

than home use (5) applications and uses that this product was not

intended (6) the products inability to receive a signal due to any source of

interference or metal obstructions and (7) extreme acts of nature, such as

lightning strikes or floods.

This warranty covers only actual defects within the product itself, and does

not cover the cost of installation or removal from a fixed installation,

normal set-up or adjustments, claims based on misrepresentation by the

seller or performance variations resulting from installation-related

circumstances.

Ambient Ambient Weather WS24 Wireless Thermo-Hygrometer User Manual

Ambient, LLC dba Ambient Weather Wireless Thermo-Hygrometer

User Manual

Navigation menu

Namespaces

Views

Navigation
