Welcome
Thank you for purchasing an Amcrest IP4M-1051 network camera!
This user manual is designed to be a reference tool for the installation and operation of your IP
camera.
Here you can find information about the camera’s features and functions, as
well as information to aid in troubleshooting.
Many of the setup and installation sections below have corresponding videos on YouTube
To access the setup videos, please go to http://amcrest.com/videos
For access to the quick start guide and other support information, go to
http://amcrest.com/support
To contact Amcrest support, please do one of the following:
● Visit http://amcrest.com/contacts and use the email form
● Call Amcrest Support using one of the following numbers Toll Free: (888) 212-7538
International
Callers (Outside of US): +1-713-893-8956
USA: +1-713-893-8956
Canada: 437-888-0177
UK: 203-769-2757
● Email Amcrest Customer Support support@amcrest.com
Important Security Warning
To keep your Amcrest camera secure and prevent unauthorized access, please
make sure to follow the steps below:
● Always make sure that your camera has the latest firmware
as listed on www.amcrest.com/firmware
● Never use the default password for your camera. Always
ensure that your password is at least 8-10 characters long and
contains a combination of lowercase characters, uppercase
characters as well as numbers.
5
Important Safeguards and Warnings
1．Electrical Safety
All installation and operation should conform to your local electrical safety codes.
The product must be grounded to reduce the risk of electric shock.
We assume no liability or responsibility for any fires or electrical shock caused by improper
handling or installation.
2．Transportation Security
Heavy stress, violent vibrations, and excess moisture should not occur during transportation,
storage, and installation of the device.
3．Installation
Handle the device with care.
Do not apply power to the camera
before completing installation. Do
not place objects on top of the
camera.
4．Repair Professionals
All the examination and repair work should be done by qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or user-attempted
repair.
5．Environment
The camera should be kept in a cool, dry place away from direct sunlight,
flammable materials, explosive substances, etc.
This product should be transported, stored, and used only in the specified
environments as stated above. Do not aim the camera at a strong light
source, as it may cause overexposure of the picture, and may affect the
longevity of the camera’s sensors.
Ensure that the camera is in a well ventilated area to prevent overheating.
6
6. Operation and Maintenance
Do not touch the camera sensor or lens directly.
To clean dust or dirt off of the lens, use an air blower or a microfiber cloth.
7. Accessories
Be sure to use only the accessories recommended by manufacturer.
Before installation, please open the package and check to ensure that all of the components are
present.
Contact the retailer that you purchased from, or Amcrest directly if anything is broken or missing
in the package.
Features and Specifications
1.1. Overview
The Amcrest IP4M-1051 network camera is an excellent tool for digital surveillance
that can be useful to a wide variety of users. The camera connects to any router
and uses an internet connection to allow the user to access all of its functionality
from many internet connected devices. It’s easy to use and can be set up in a
relatively small amount of time. It has various functions such as recording,
playback, and monitoring functionality and it synchronizes audio and video by
default.
This IP4M-1051 network camera adopts a high-quality design in order to
achieve high levels of reliability and security. It can be configured to work
locally, as well as remotely over the internet. The IP4M-1051 network camera
also has a built-in WiFi adapter that allows for the camera to be used on a
wireless network, without needing a physical connection to a router or PC.
1.2. Features
The Amcrest IP4M-1051 network camera has the following features:
● Network Access
The IP4M-1051 network camera connects to a wide variety of routers
in order to connect to the internet, both through a wired connection
and wirelessly. Once setup, the camera can be accessed remotely
from a wide variety of internet connected devices, including PCs,
iPhones, iPads, Android tablets, and Android phones.
7
● Cloud Storage Functionality
The IP4M-1051 network camera can record video and audio streams to the
Amcrest Cloud service in order to enable long-term storage for recordings.
Amcrest Cloud also allows the user to easily find and download recorded
video for playback from any internet connected PC or Mac computer.
● Advanced Playback Function
This device supports real-time recording and supports searching through
recorded footage, fast forward playback, and downloading of videos and
screenshots. The IP4M-1051 network camera can also playback in slow
motion, backwards, and frame by frame as needed. When recording, the
IP4M-1051 network camera shows a date/time overlay to ensure accurate
viewing of events when they occurred. Lastly, the IP4M-1051 network
camera can support video enlargement of certain zones within a stream.
● Advanced Network Protocol Support
The IP4M-1051 network camera is UPnP compatible, and also
includes functionality for use with PPPoE, DDNS, and other
protocols in order to allow remote and local connection with a large
variety of network hardware.
Note: There may be slight differences in functionality due to the existence of different product
series.
2 Device Overview
The diagram below shows the camera’s profile and rear panel.
8

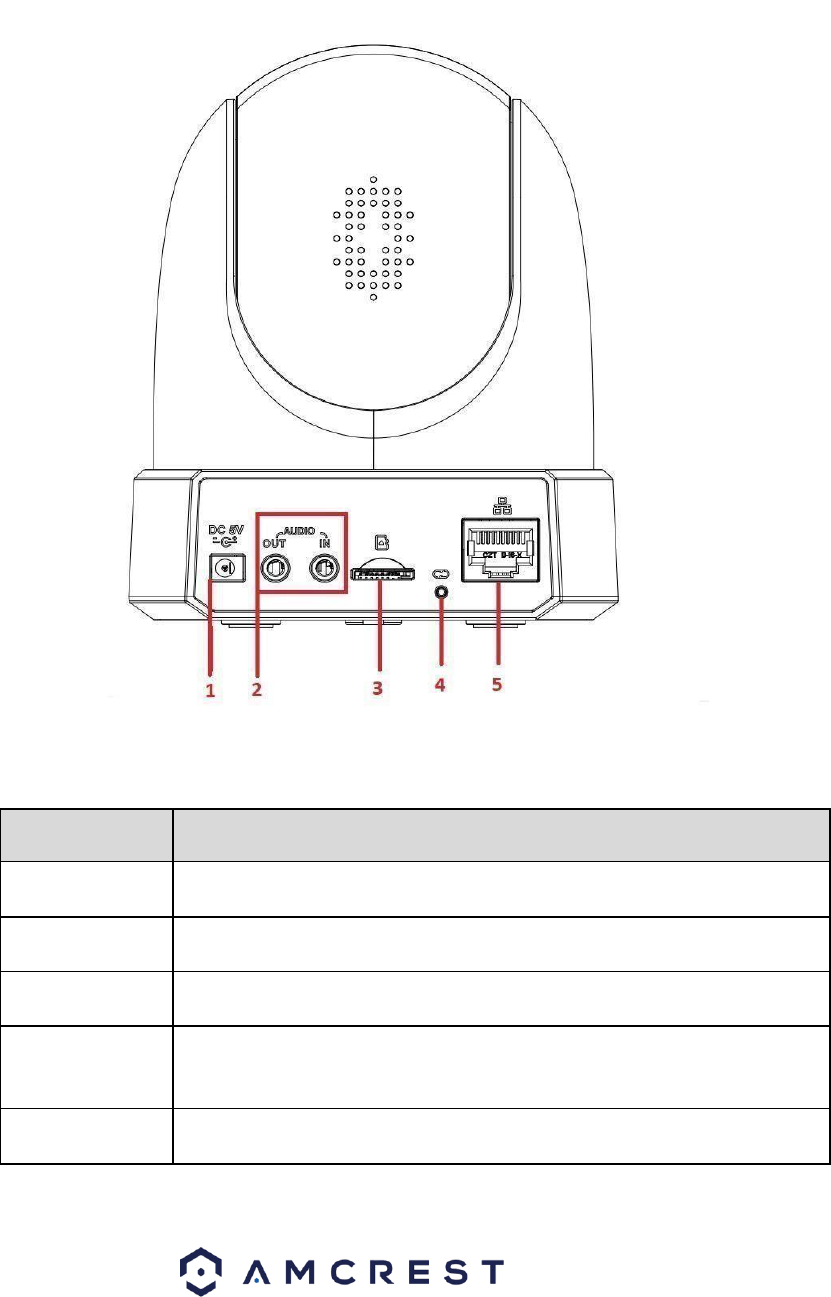

Please refer to the following chart for information about the camera and its ports.
Port Number
Function
1
Power port
2
Audio input/output ports
3
SD Card slot
4
Reset/WPS button/Indicator light (For reset, press and hold for 10 seconds; for
WPS, push once and release)
5
Network port
9
Please refer to the chart below for information about the camera’s indicator
light:
Indicator Light Status
Device Status
Red Light is blinking quickly.
The device is activating.
Green Light is blinking.
The device is ready to connect or is connecting to the network.
Red light is solid and steady.
The device failed to connect to the network.
Green Light is solid and steady.
The device is connected to the network and is functioning normally.
Red Light is blinking slowly.
The device is upgrading itself.
3 Connection & Installation
This section provides information about the connection and installation of the Amcrest IP4M-
1051 network camera.
The

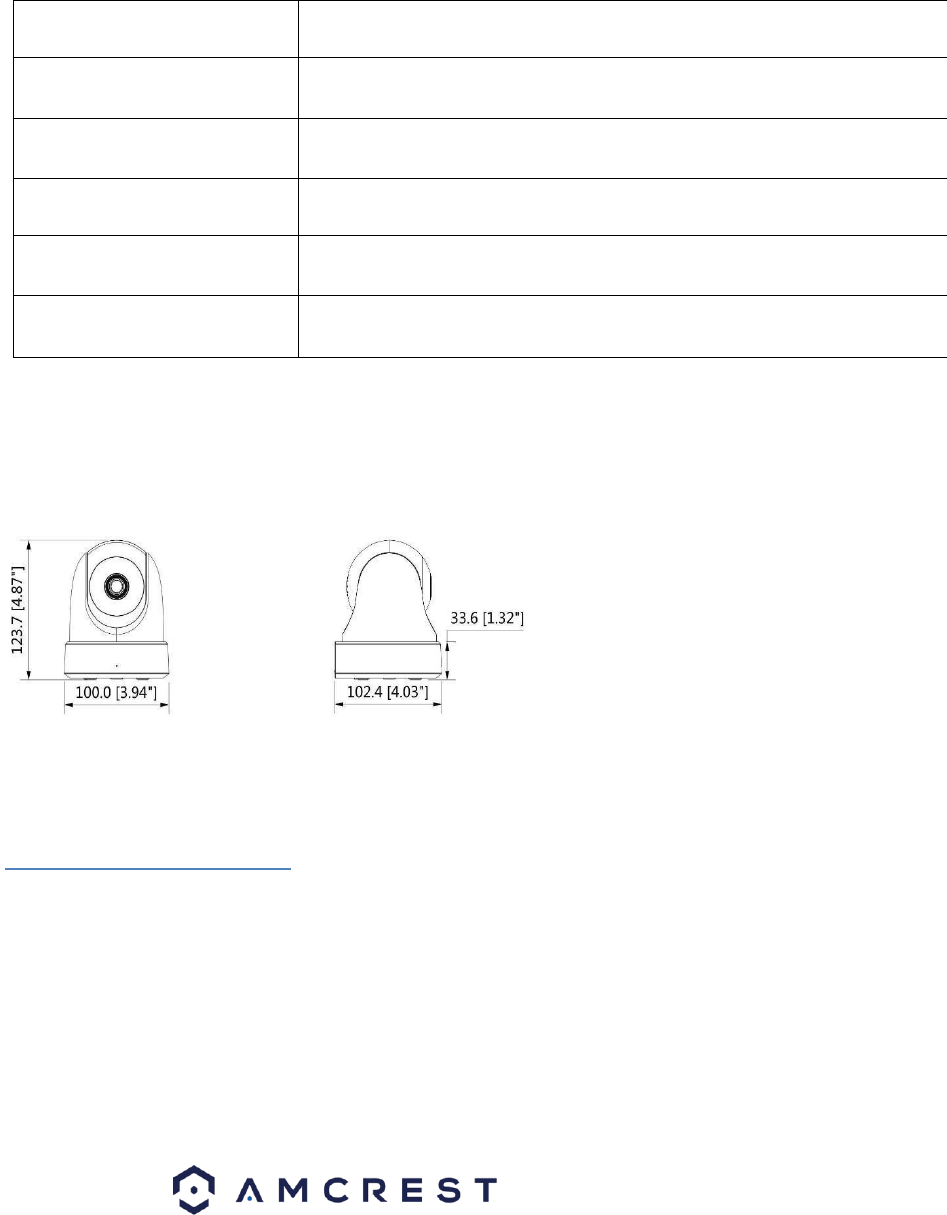

images to the left shows the dimensions for the camera. The
measurements are in millimeters (mm):
3.1 Connection Guide

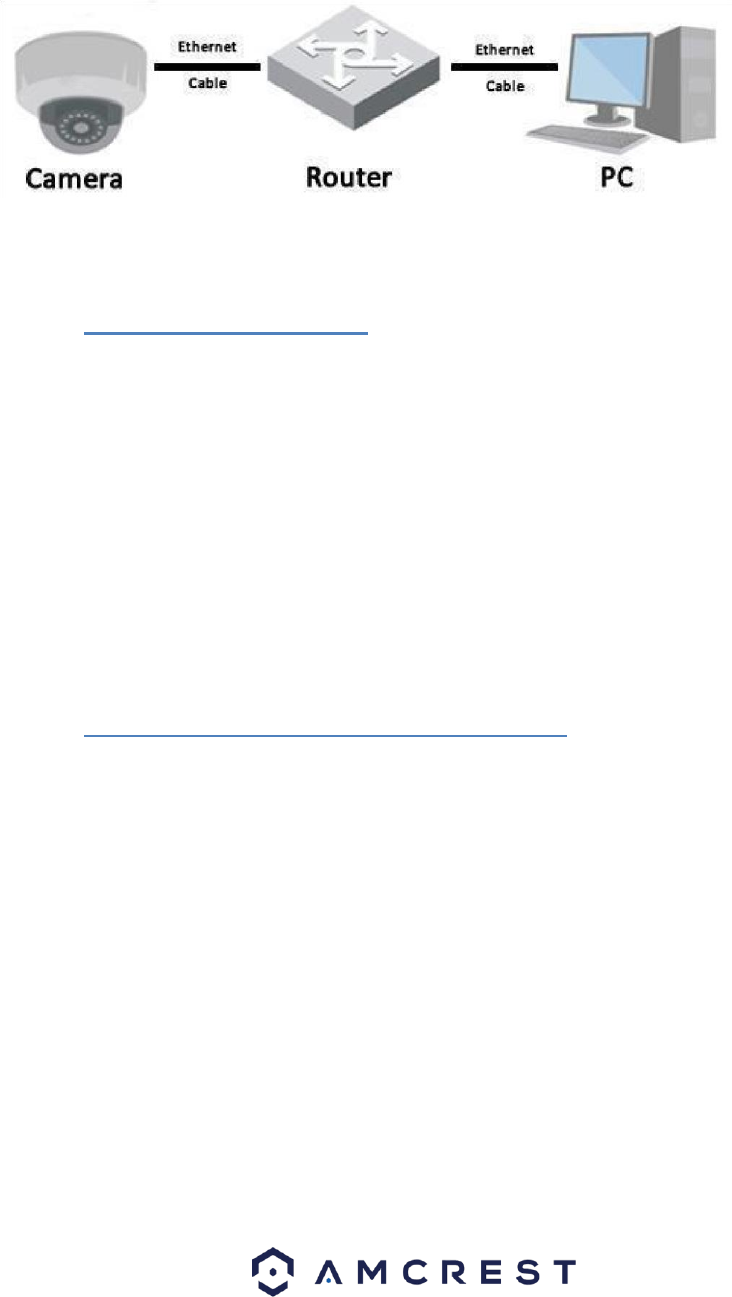

The camera initially should be connected via the following method:
10
In addition to connecting the camera to a computer, the camera should also be
connected to a power source, by connecting the included power cable to both a power
outlet, and the camera.
3.2 Installation Guide
The camera has a standard camera tripod screw hole (1/4-20 UNC thread) for
use in mounting the camera onto a stable surface.
Note: Prior to installation ensure that the installation environment can support at
least 3 times the weight of the camera.
4 Camera Access Setup
This section of the guide will provide the user with information on how to setup
access to the camera through any of the following methods.
4.1 Default Username and Password
To login to the system for the first time, use one of the following default username/password
combinations. Once you’ve successfully logged in, it is highly recommended to change the
password for security reasons.
Username: admin
Password: admin
Note: Logging in for the first time will prompt the user to change the password to the admin
account.
11
4.2 Camera setup methods
To make your experience with the camera easy and simple, we've provided
multiple ways to set up, view, and operate your camera depending on your
needs. Please follow the instructions on this page to set up your camera in the
way that works best for you.
4.2.1 Setting up your camera for the first time
If setting up your camera for the first time, please follow the instructions as
outlined in section 4.3.1. Using the Amcrest View app on your smartphone or
tablet, you can view your camera live from anywhere, and access features such
as pan/tilt/zoom, recording, taking snapshots, two-way audio, and more.
4.2.2 Accessing your camera using multiple mobile
devices
If you followed the app setup instructions in section 4.3.1 to initially set up your
camera and would like to add the camera to another smartphone or tablet, follow the
instructions as outlined on section 4.3.3 using your other devices.
4.2.3 Configuring advanced settings on your camera
If you would like to configure your camera to enable advanced features such
as motion detection, e-mail alerts, FTP, image adjustments, scheduling, and
more, please follow the instructions as outlined on section 4.4 (Desktop
access setup).
4.2.4 Using Amcrest Cloud for remote viewing, storage,
and playback
Amcrest Cloud is our optional cloud storage and playback service which allows
you to access recorded footage from any device. We offer 4 hours of free
storage for your first camera. Please follow the instructions as outlined on
section 4.5 (Amcrest Cloud setup) to sign up for our Amcrest Cloud service and
get 4 hours of free storage.
12
4.2.5 Using plug-and-play for remote web access
AmcrestView.com is a web portal that allows you to view your cameras and
recordings quickly and easily from anywhere in the world using a web browser.
Use AmcrestView.com if you need to simply check-in at a moment's notice. If you
would like to use AmcrestView.com, please follow the instructions outlined on
section 4.7 (Remote web access setup).
4.3 Amcrest View App Setup
Amcrest cameras enable access through the use of the Amcrest View app on either
iOS or Android mobile operating systems. There are two versions of the app,
Amcrest View Lite, and Amcrest View Pro. Amcrest View (Lite or Pro) on the App
Store or Play Store. The Pro version contains features such as push notifications,
sharing video and image files, exporting video in MP4 format, and exporting image
files to your phone. The Amcrest Pro version of the app is now free to download
from the Play Store and App Store.
For purposes of this guide, we will use iOS, though both apps have the same
interface. The App Interface may differ slightly from the screenshots below as
updates are released. Below, you'll find instructions on how to set up your camera, as
well as instructions on how to configure different settings on your camera such as
motion detection and email alerts. Every major app setup method will be covered in
the following sections.
4.3.1 WiFi Configuration setup
Plug in your camera and follow the steps below to get your camera up and running.
Please wait 30 seconds after plugging in the camera to allow it to initialize. The LED
on the back will blink green when ready.
1. Download and open the Amcrest View Pro app from the App Store or Play Store.
Note: After installing the app, and before starting the app setup process, please make sure your
phone is connected to the WiFi network you will be connecting your camera to.

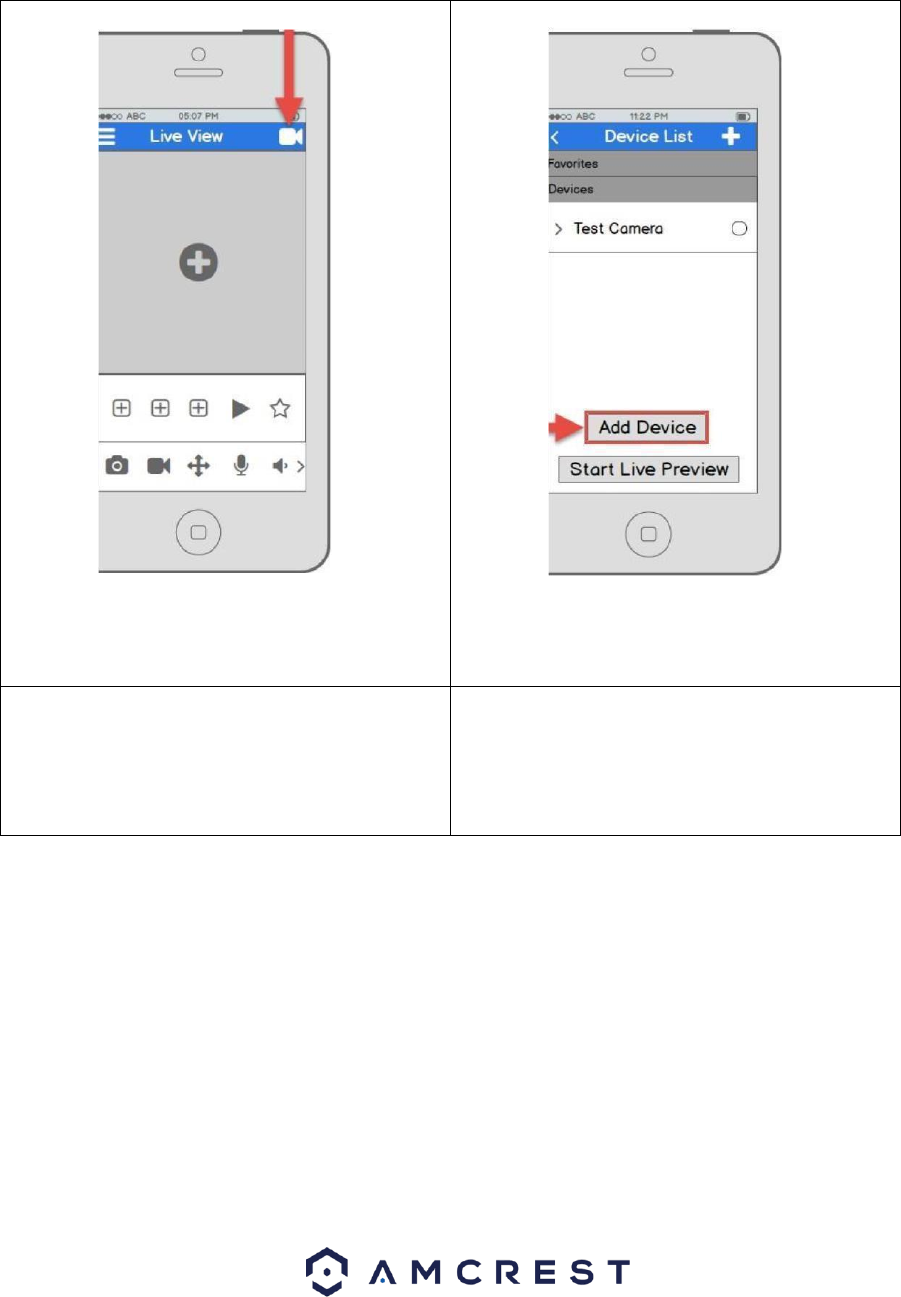

2. From the home screen, tap the icon in the top-right corner to open the
Device List.
13

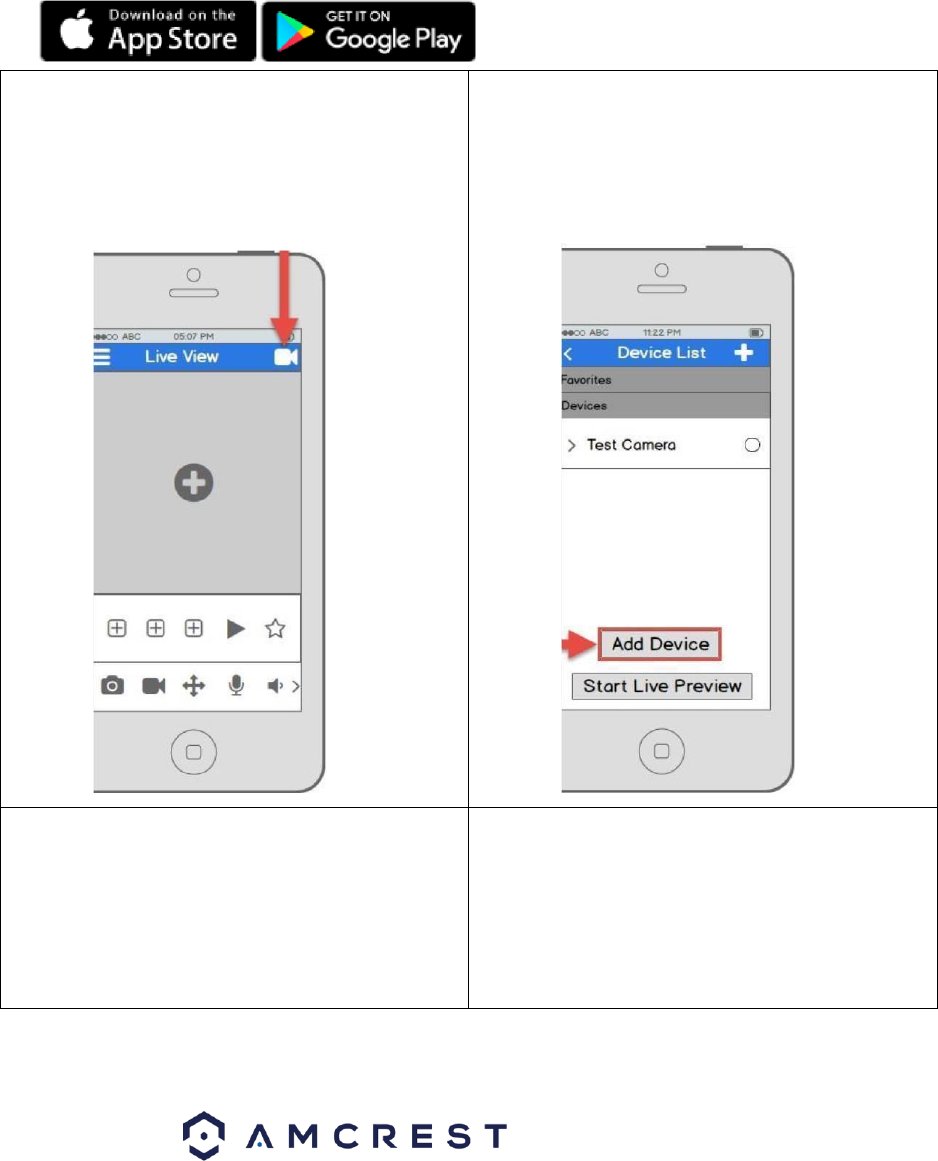

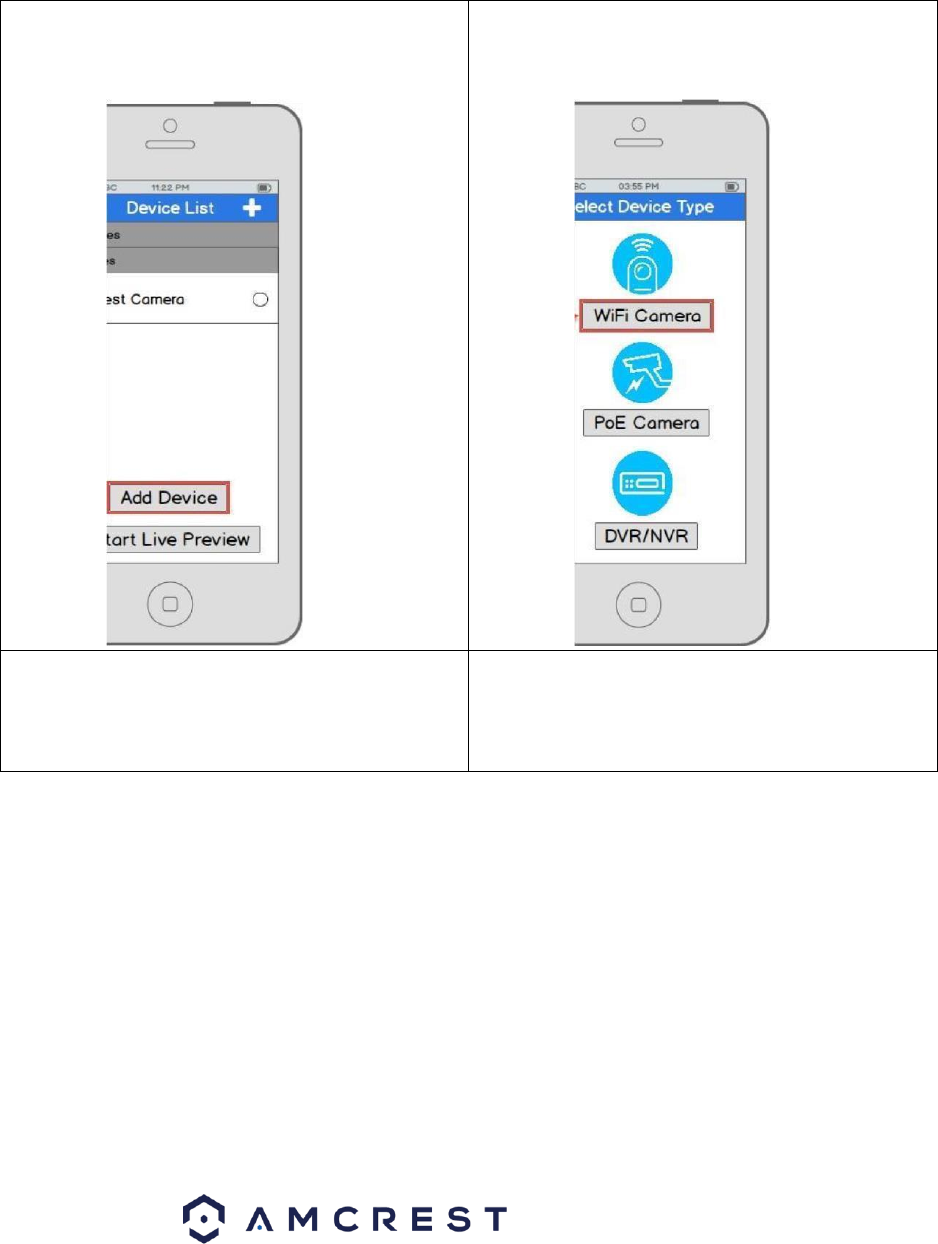

3. Tap the Add Device button.

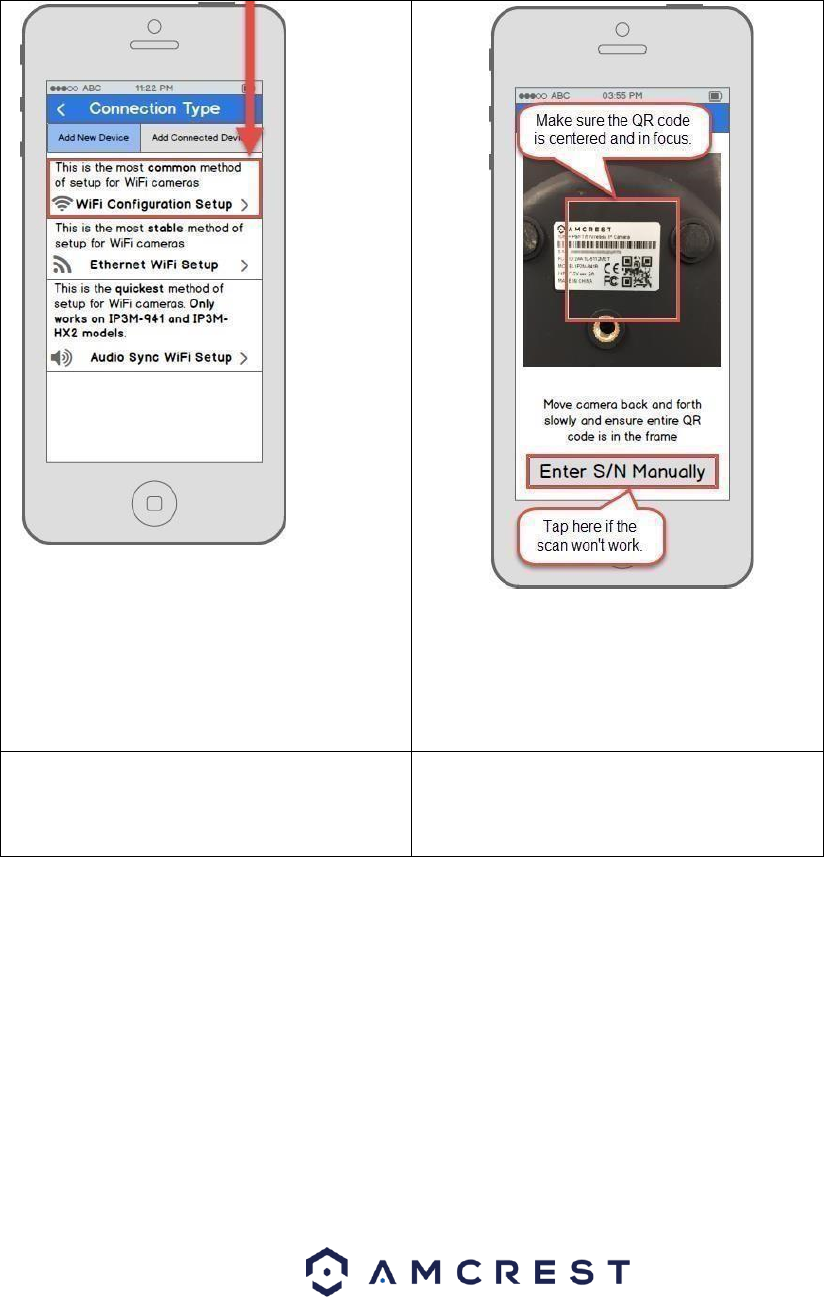

4. Tap WiFi Camera.
14

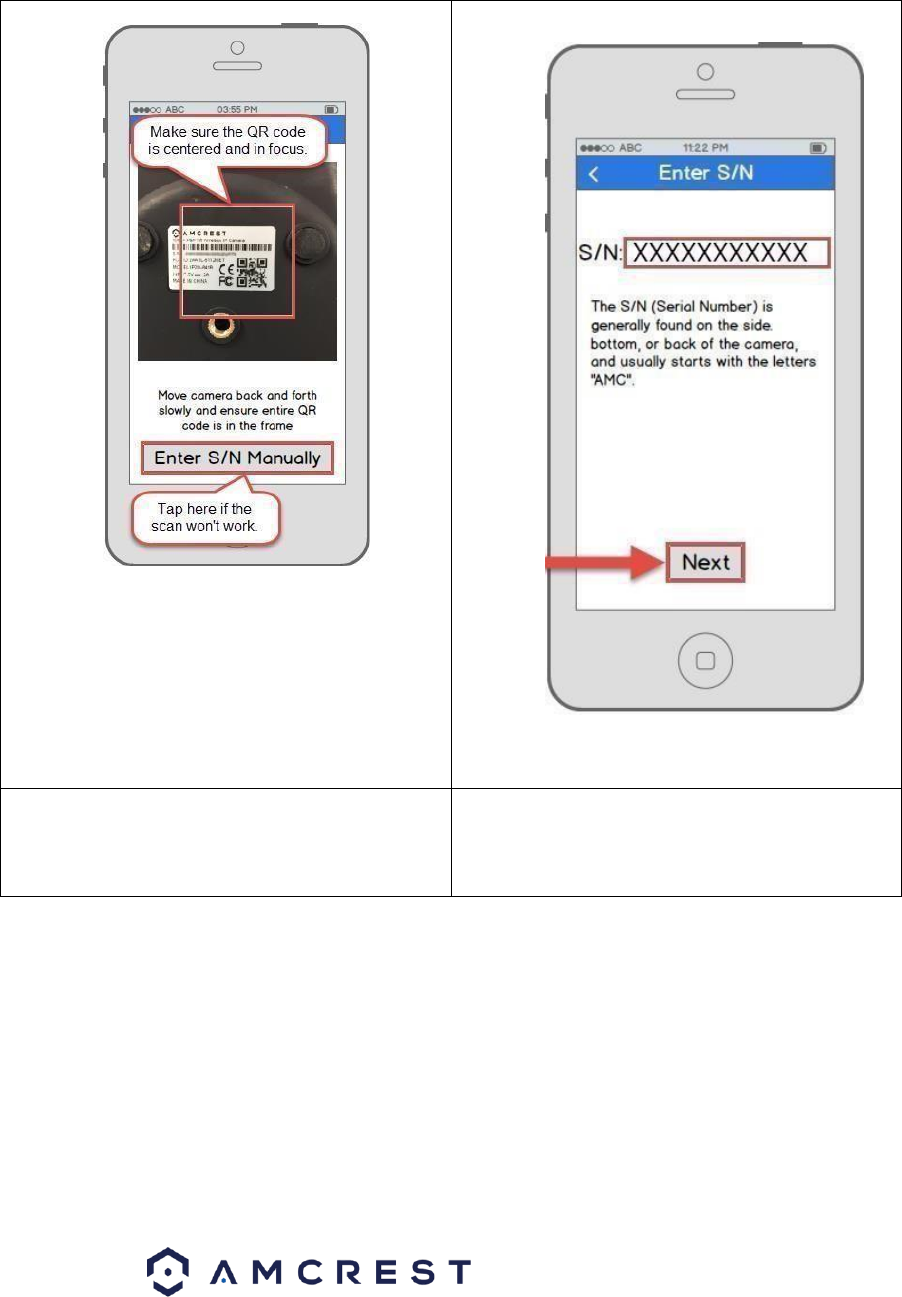

Note: Move the camera or the phone to ensure
that the entire QR code is visible and focused in
the frame.
In case the QR code cannot be scanned, please
tap Enter S/N Manually to enter in the
camera’s serial number.
5. Tap WiFi Configuration Setup
6. Scan the QR code from the sticker on your
camera.
15

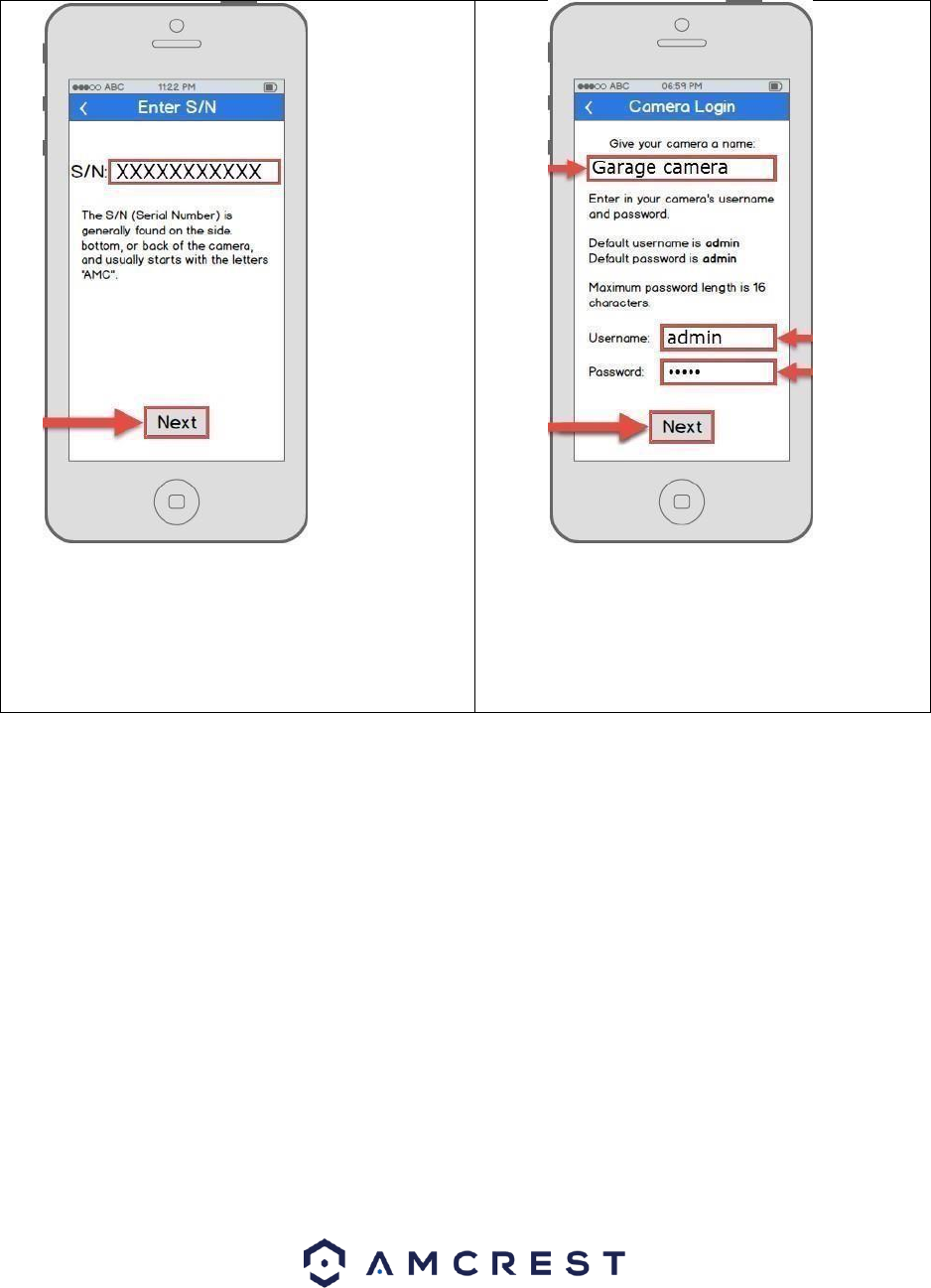

7. Double check to ensure that your S/N
(Serial Number) is entered in correctly,
then tap Next

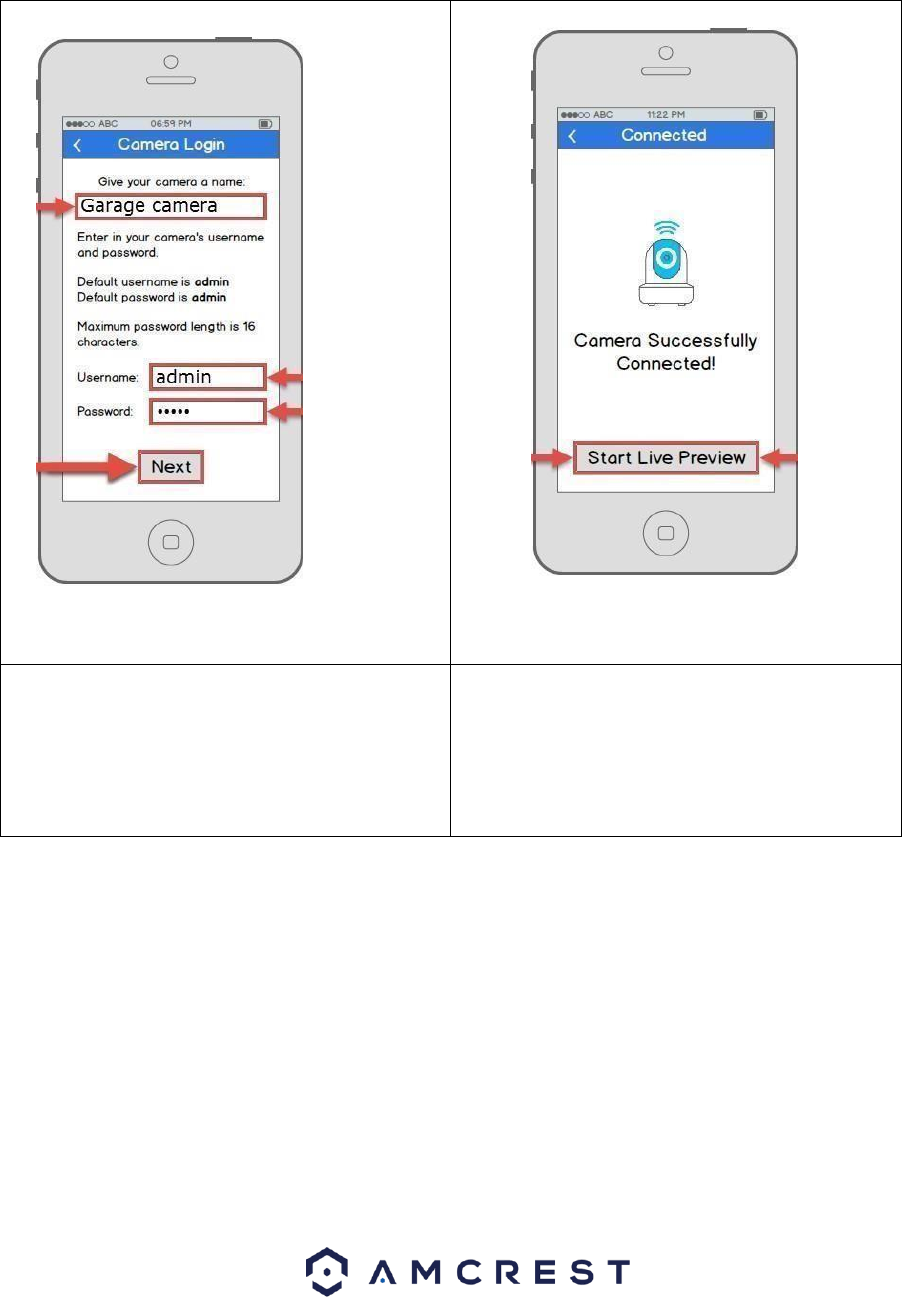

8. Give your camera a name, then enter the camera’s
username and password. Once you have filled in all
the information, tap Next.
Note: The default username is admin and the default
password is admin.
16
Note: Once the password is changed here, it will take
effect immediately. If you forget your password, you
can always hard reset the camera using the steps
detailed in the FAQs section of this guide.

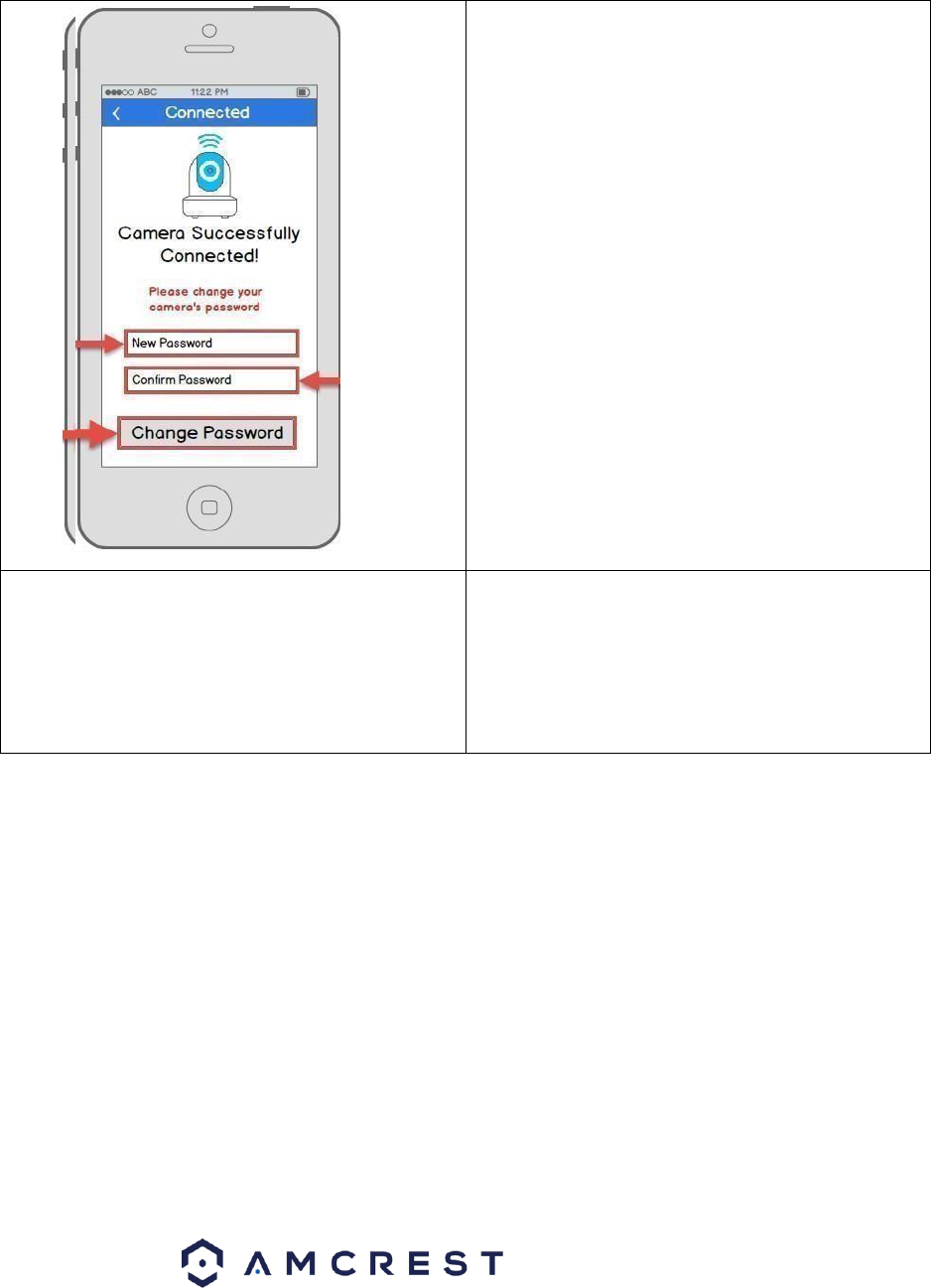

11. To ensure the security of your camera, you will be
asked to change the password for your camera’s
default username (admin). Please select a
password that is at least 8 characters long and
one that uses a combination of uppercase letters,
lowercase letters, and numbers. Then, tap
Change Password.

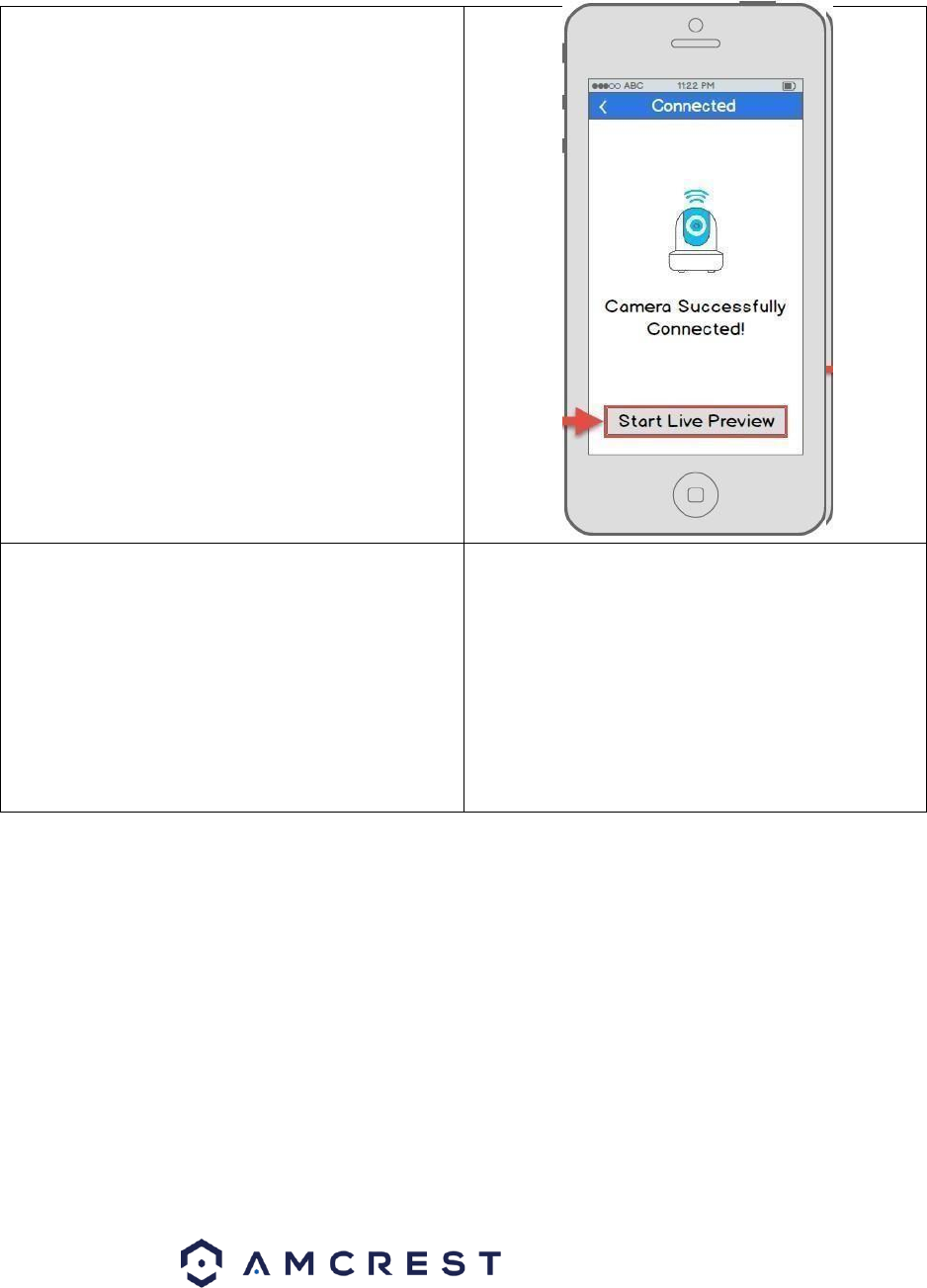

12. Your camera is now ready to go! Tap the
Start Live Preview button to get started!
Still not working?
If you have a dual band router, and your camera does not connect to your WiFi network
after following the WiFi Configuration method below, please use the Ethernet WiFi Setup
method as detailed in section 4.3.2.
Tip: To better understand the App's interface and features, please visit the Help
Center within the app. To access the Help Center, tap the menu icon on the top
left hand side, tap Help, then select which screen you'd like more information
17
about. For additional assistance, please contact us at www.amcrest.com or give
us a call at
18882127538. Step by step video tutorials available at www.amcrest.com/videos
4.3.2 Ethernet WiFi Setup
The Ethernet WiFi Setup process is a useful and stable setup method that uses
a temporary Ethernet (hardwired) connection to your camera. By the end of
the process, your camera will be working on WiFi and will not need a cable.
If the WiFi Configuration setup method (see section 4.3.1 WiFi Configuration setup)
does not work, this is a great “backup” method. Alternatively, this method can also be
used as an initial setup method, if preferred. It will take a few more steps but still ends
with your camera being added to WiFi for wireless use.
Plug in your camera and follow the steps below to get your camera up and running.
Please wait 30 seconds after plugging in the camera to allow it to initialize.
1. Download and open the Amcrest View Pro app from the App Store or Play Store.
18
2. From the home screen, tap the icon in the top
right corner to open the Device List.
3. Tap the Add Device button.
19

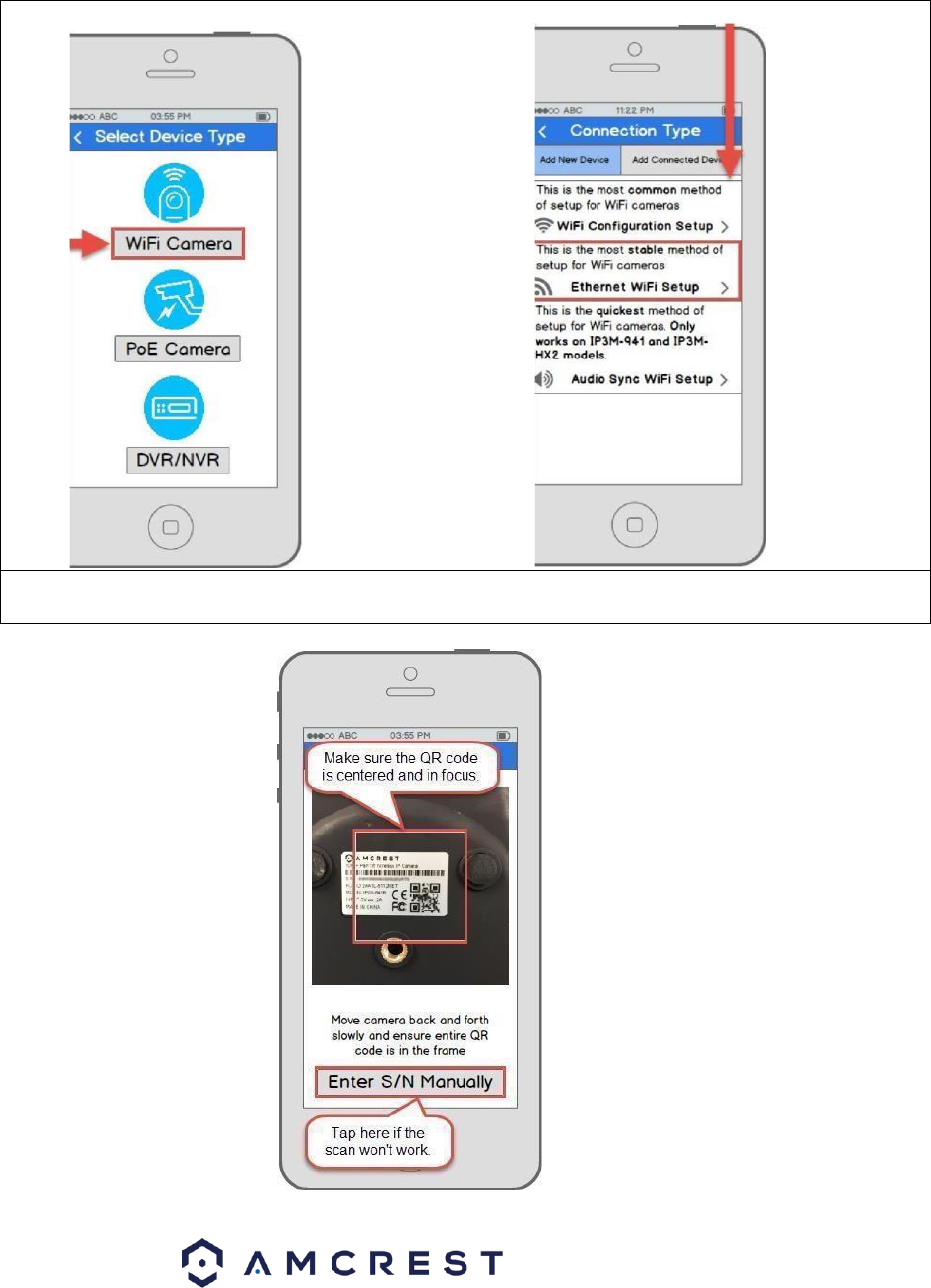

4. Tap WiFi Camera.
5. Tap Ethernet WiFi Setup.
20

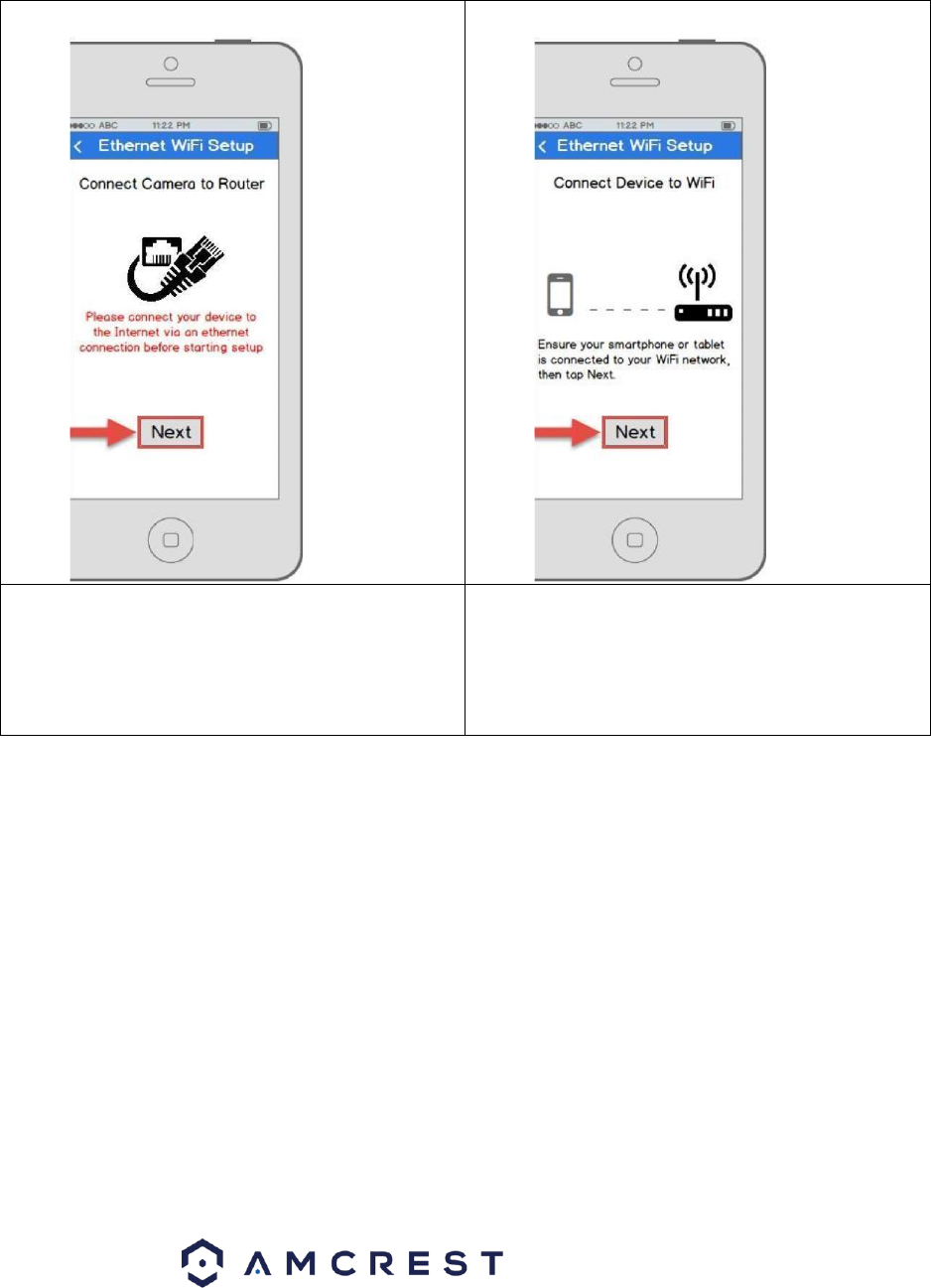

6. Plug your camera into your router via an Ethernet
cable. Don’t worry, once the camera is set up, the
camera can be unplugged and moved to a
different location. Tap Next when finished.
7. Ensure your mobile phone is connected to the WiFi
network that you will be connecting your camera
to, then tap Next.
21
Note: Move the camera or the phone to ensure that
the entire QR code is visible and focused in the frame.
In case the QR code cannot be scanned, please tap
Enter S/N Manually to enter in the camera’s serial
number.
8. Scan the QR code [QR code icon] from the sticker
on your camera.
9. Double check to ensure that your S/N (Serial
Number) is entered correctly. Then tap Next.
22
Note: The default username is admin and the default
password is admin.
10. Give your camera a name, then enter in the

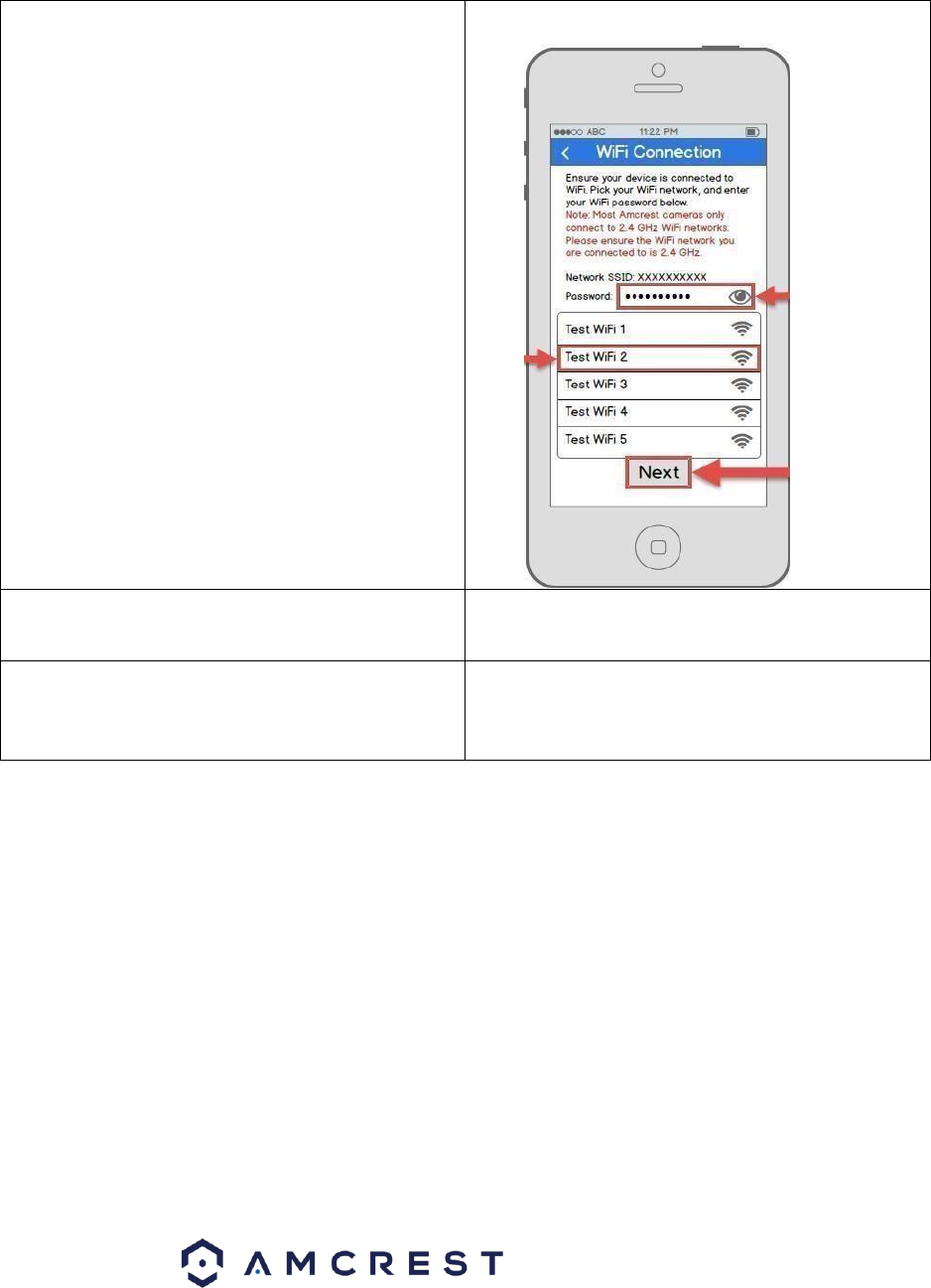

11. Pick a WiFi network, enter in the password, and
camera’s username and password. Once you’ve filled
out all of the fields, tap Next.
tap Next.
23
Note: Note that once the password is changed here it
will take effect immediately. If you forget your
password, you can always hard reset the camera using
the steps detailed in the FAQs section of this guide.
12. Your camera is almost ready. Tap the Start Live
Preview button to proceed with changing your
password.
13. To ensure the security of your camera, you will be
asked to change the password for your camera’s
default username (admin). Please select a
password that is at least 8 characters long and one
that uses a combination of uppercase letters,
lowercase letters, and numbers.
24

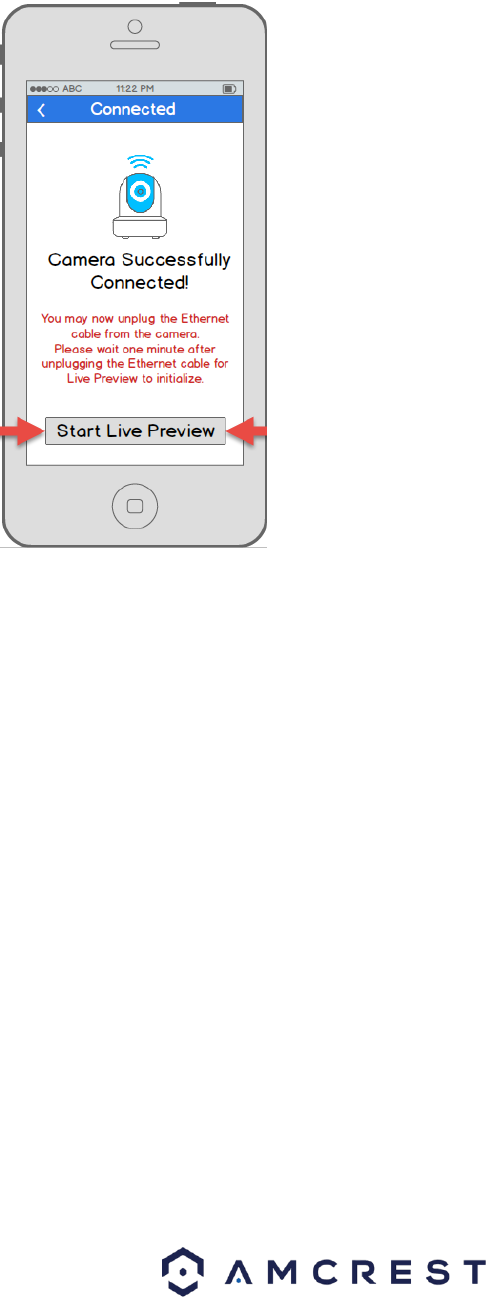

14. Your camera is now ready to go! Unplug
the camera from Ethernet and power, then
relocate the camera to anywhere within range
of the WiFi network that you connected the
camera to. Plug in the camera, then wait 1-2
minutes before tapping the Start Live Preview
button.
4.3.3 P2P Setup
The P2P Setup method is the method that should always be used to add a camera to more
devices
(smartphones, tablets, using the Amcrest View app) after the initial WiFi
Configuration setup method has been followed and completed on the first device
using the app.
Alternatively, this method can also be used as a first, initial, setup method if
preferred. However, please note that, if this is used as a first method, a
hardwired (Ethernet) connection must be used and your camera will not be
added to your WiFi network by the end of the app setup alone (like in the WiFi
Configuration setup method). Instead, in this case, the camera must be added
to WiFi separately, for instance, through desktop access (see section 4.4
Desktop access setup below).
25
1. This setup method should only be used if the camera is already connected to the
Internet via WiFi or Ethernet cable. Use this setup method when you need to
add the camera to additional mobile devices. Download the Amcrest View Pro
app from the App Store or Play Store, then open the app.
2. From the home screen, tap the icon in the top right
corner to open the Device List.
3. Tap the Add Device button.
26
4. Tap WiFi Camera.

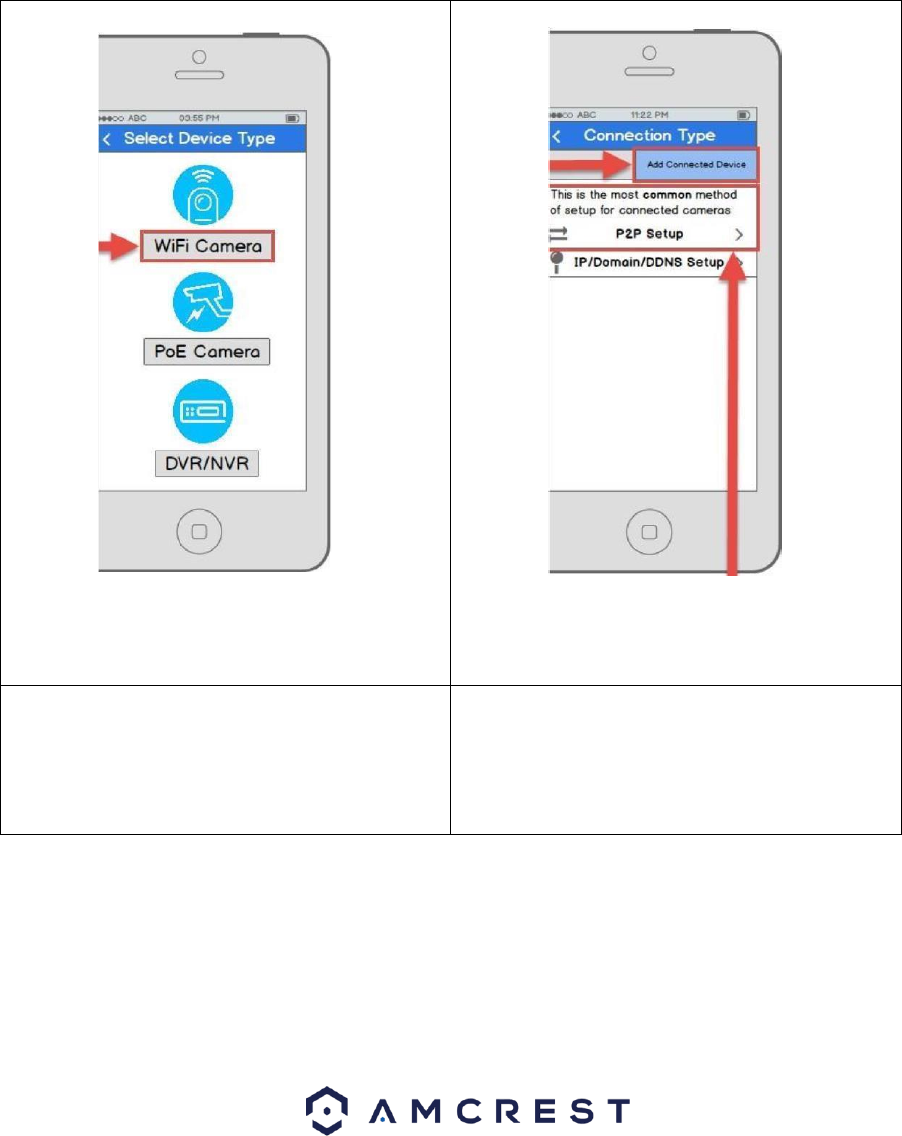

5. Tap the Add Connected Device button near the
top of the screen, then tap P2P Setup.
27
Note: Move the camera or the phone to ensure that
the entire QR code is visible and focused in the frame.
In case the QR code cannot be scanned, please tap
Enter S/N Manually to enter in the camera’s serial
number.
6. Scan the QR code from the sticker on your
camera.
7. Double check to ensure that your S/N (Serial
Number) is entered correctly, then tap Next.
28
Note: The
default
username is
admin and
the
default
password is
admin.

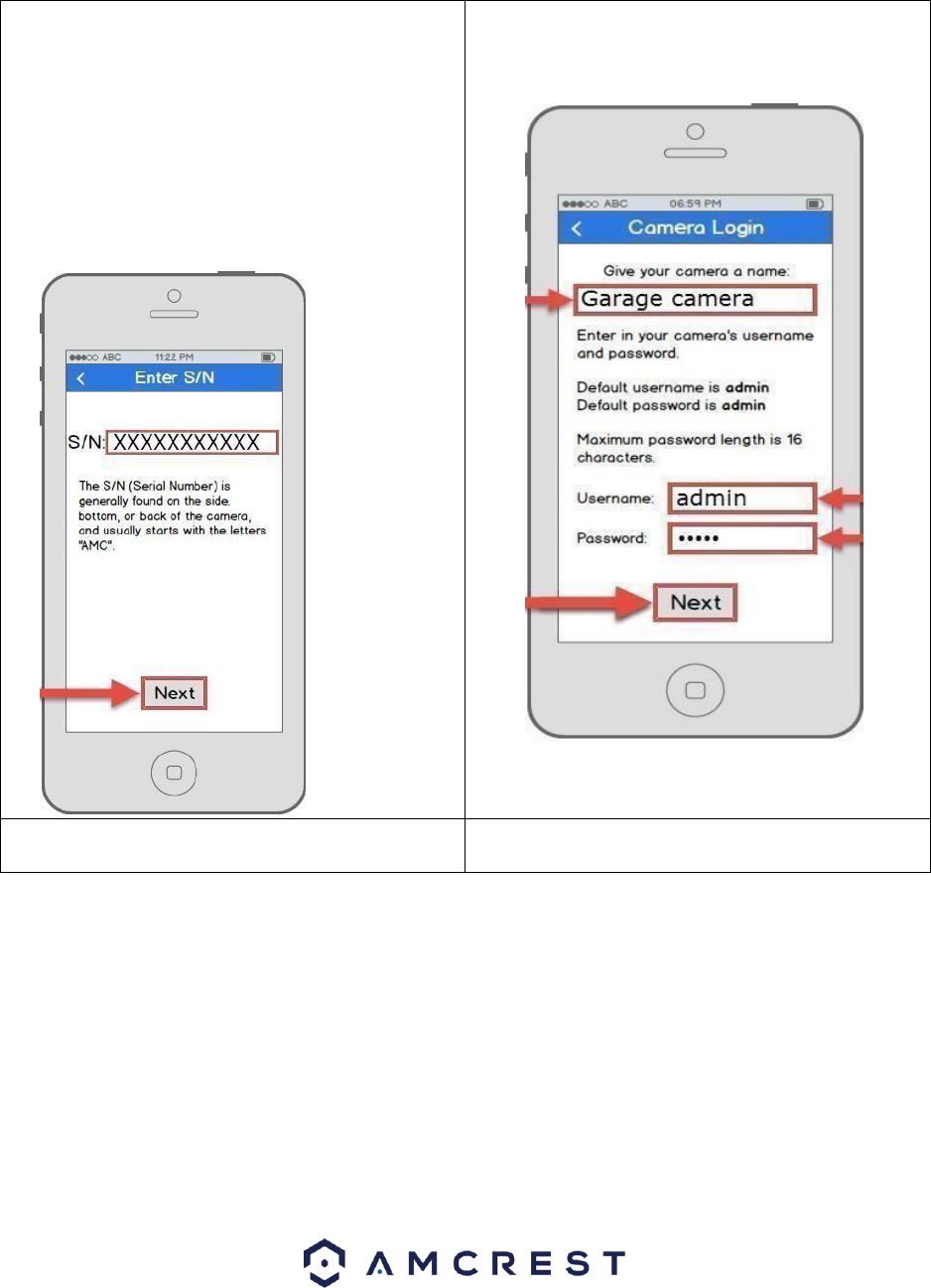

8. Give your camera a name, then enter in the
camera’s username and password. Once
you’ve filled out all of the fields, tap Next.
9. Your camera is now ready to go! Tap the Start
Live Preview button to get started!
29
4.3.4 App walkthrough

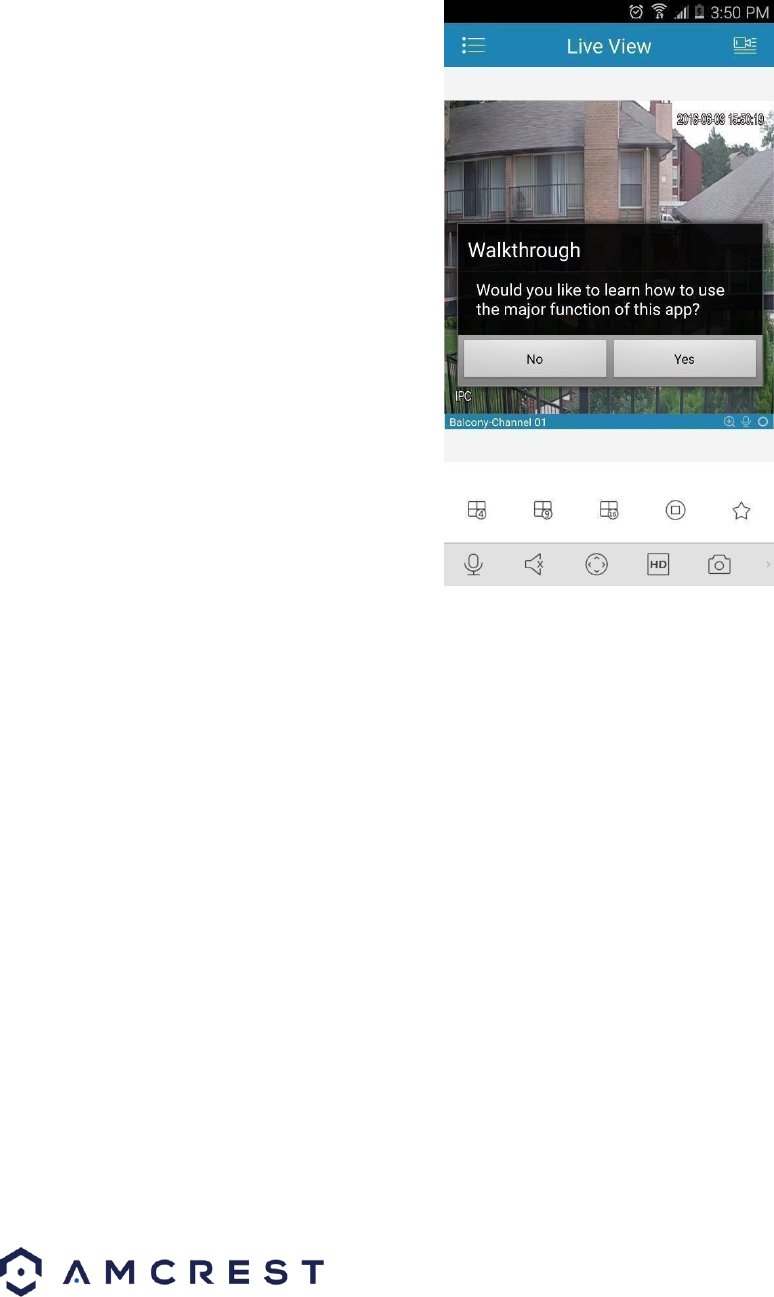

Once you've set up your camera, the app will present you with a popup
that offers a walkthrough of different features. Tap “Yes” on this popup
to begin a tour of all of the icons located on the Live View screen. In the
future, you can always access the walkthrough again by opening the
Menu, tapping Help, then tapping Wizard.
4.3.5 Motion detection setup
Setting up motion detection for the IP4M-1051 camera through the Amcrest View
app will allow you to choose how your camera will react to and record motion. This
is the best way to record events that are particularly of interest without needing to
waste storage space by constantly recording. However, you can have motion
detection set up along with 24/7 recording. The motion recordings will overlap the
regular recordings and classify each motiontriggered recording as a motion event
for your convenience when searching.
There are a lot of customization options for motion detection that can be configured
directly through the app. This gives you complete control over how to make motion
detection work the way you want it to.
Here is a list of all the advanced configuration options
for motion detection: ● Schedule: Modify
motion detection recording timings.
● Anti-Dither: Set how long motion
detection can still be triggered after motion stops.
30
● Sensitivity: Select motion detection
sensitivity.

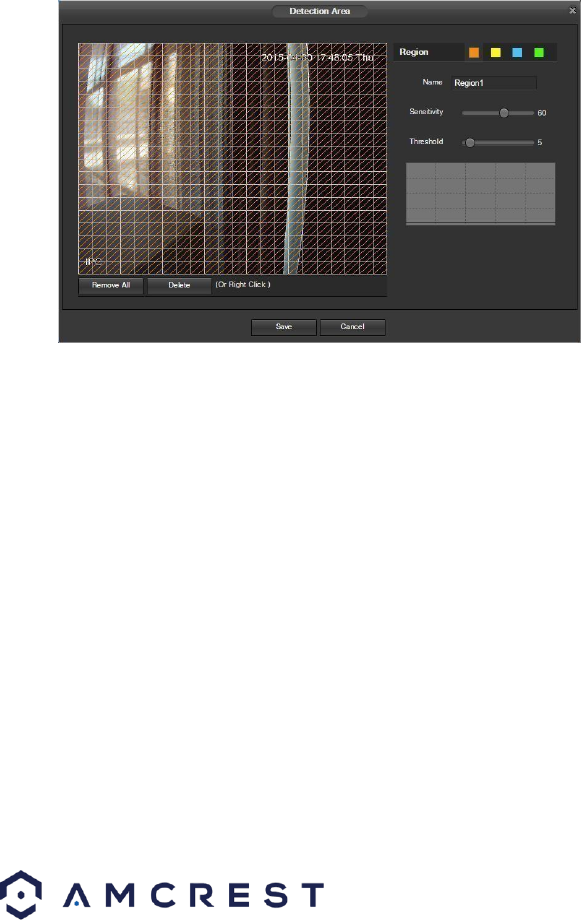

● Region Setting: Specify motion detecting
regions of the screen.
● Record: Toggle this switch to start
recording when motion is detected.
● Delay: Set how long motion detection
recording will continue after a motion event.
● Alarm Out: Configure alarm system
integration.
● Snapshot: Toggle this switch to take
snapshot when motion is detected. Follow the steps
below to setup motion detection on your camera.

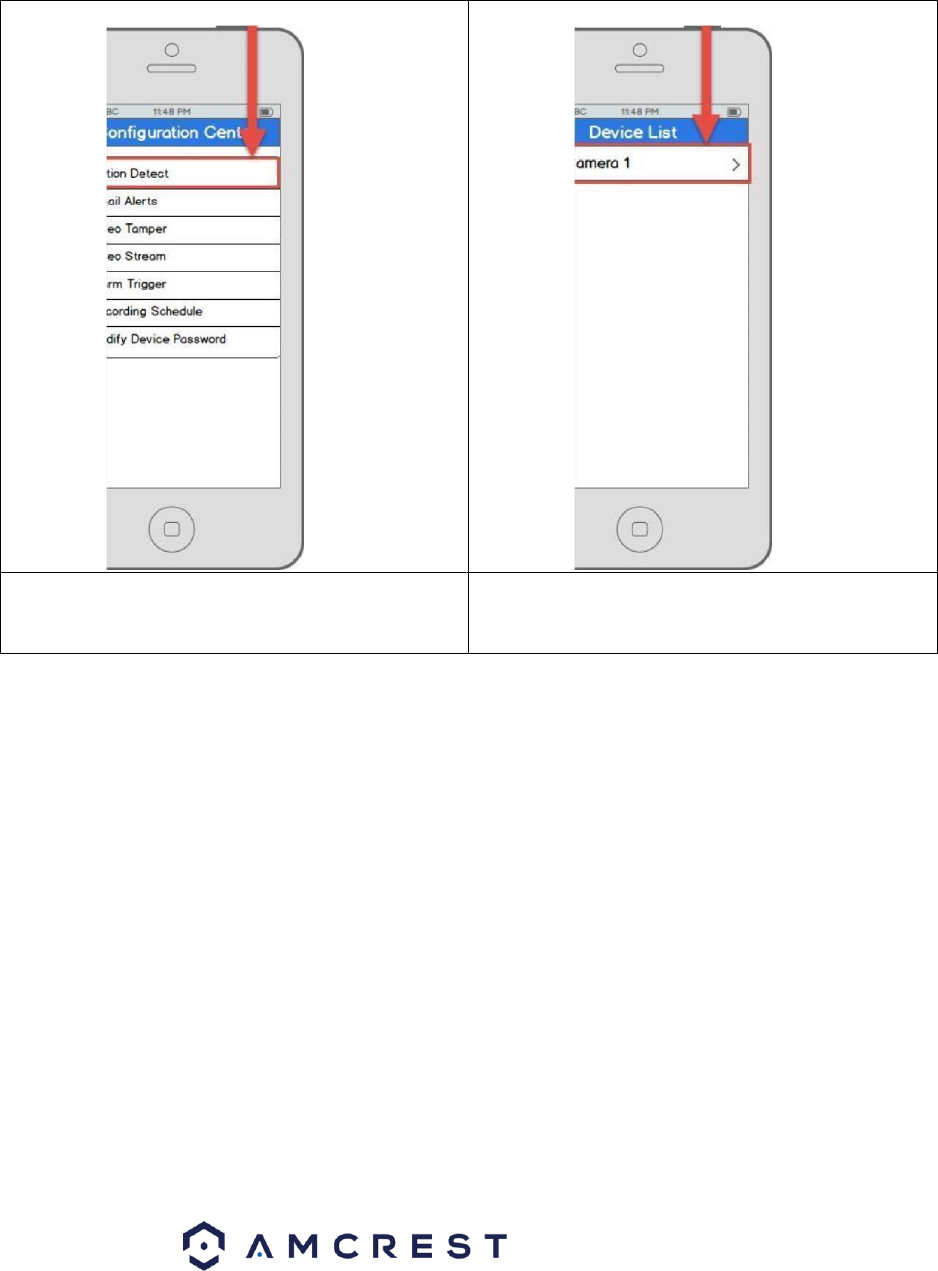

1. From the home screen, tap the icon in the top
left corner to open the main menu.
2. Tap Configuration Center to open the
Configuration Center.
31
3. Tap Motion Detect to open the motion
detection settings menu.
4. Select the camera that you want to modify
motion detection settings for.
32

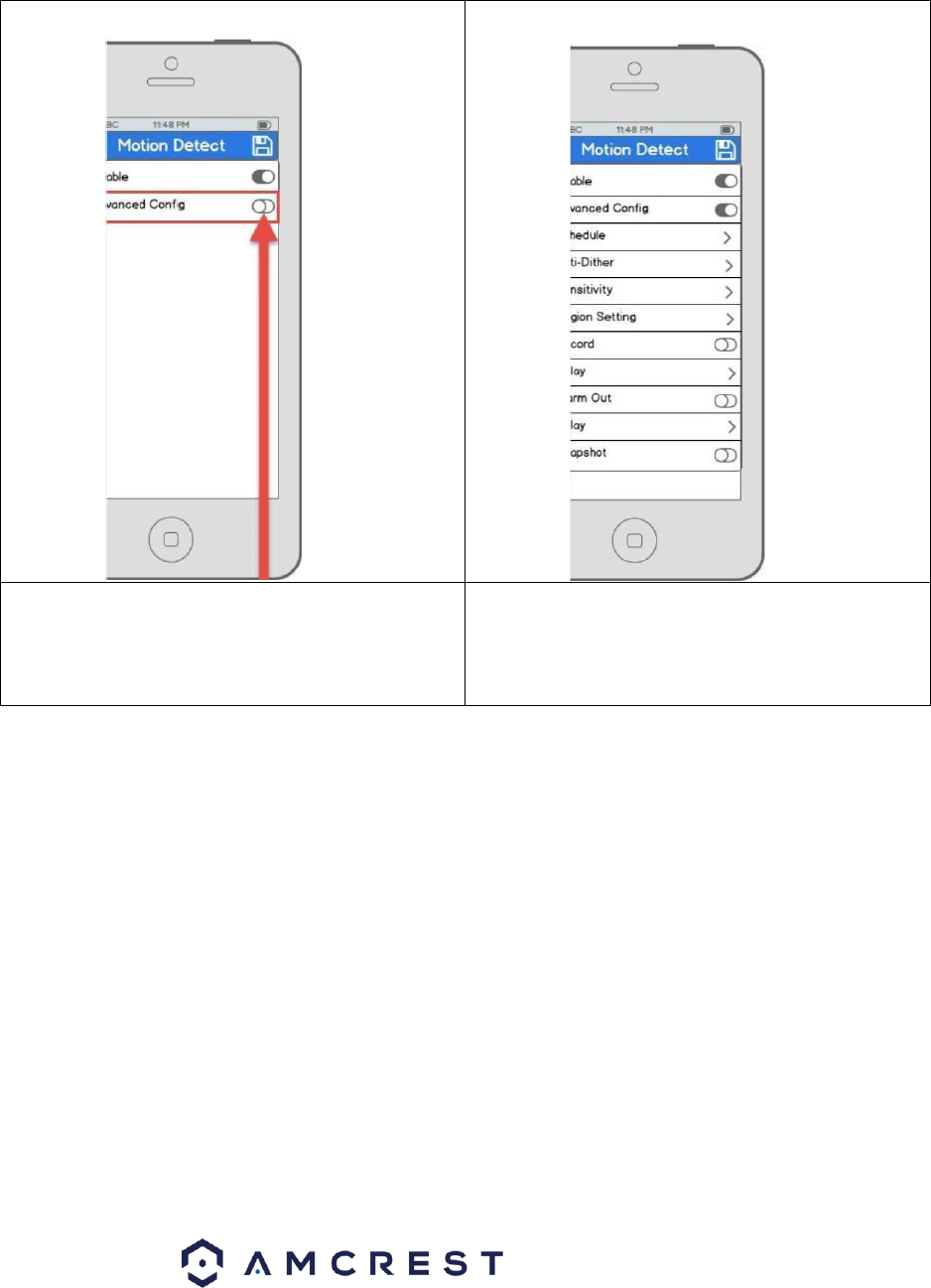

5. By default, motion detection is enabled. To
configure advanced settings, tap the toggle
switch in the Advanced Config row.
6. From this screen, you can modify the settings
to fine tune how you use motion detection.
4.3.6 Push notifications setup
Push notifications are an incredibly useful way to get instantly notified of
motion events when you’re on the go. This is a very convenient way to stay
connected without having to constantly monitor your live feeds. It allows you
to immediately tune into what’s happening, when it’s happening.
There are several options for configuring exactly how you receive these
notifications or “alerts” through your smartphone as well as options for what
type of events trigger a notification.
Note: This feature is only available on the Amcrest View Pro version of the app, which is free to
download.
Here is a list of the configuration options for push notifications:
33
● Push Type: Modify what type of push notifications are displayed.
● Motion Detect: Enable push notifications for motion detection alerts.
● Cam Masking: Enable push notifications for cam masking alerts.
● Local Alarm: Enable push notifications for local alarm alerts.
● HDD Alarm: Enable push notifications for low hard drive capacity alerts.
1. From the home screen, tap the icon in the top left
corner to open the main menu.
2. Tap Push Notifications to open the Push
Notifications settings menu.

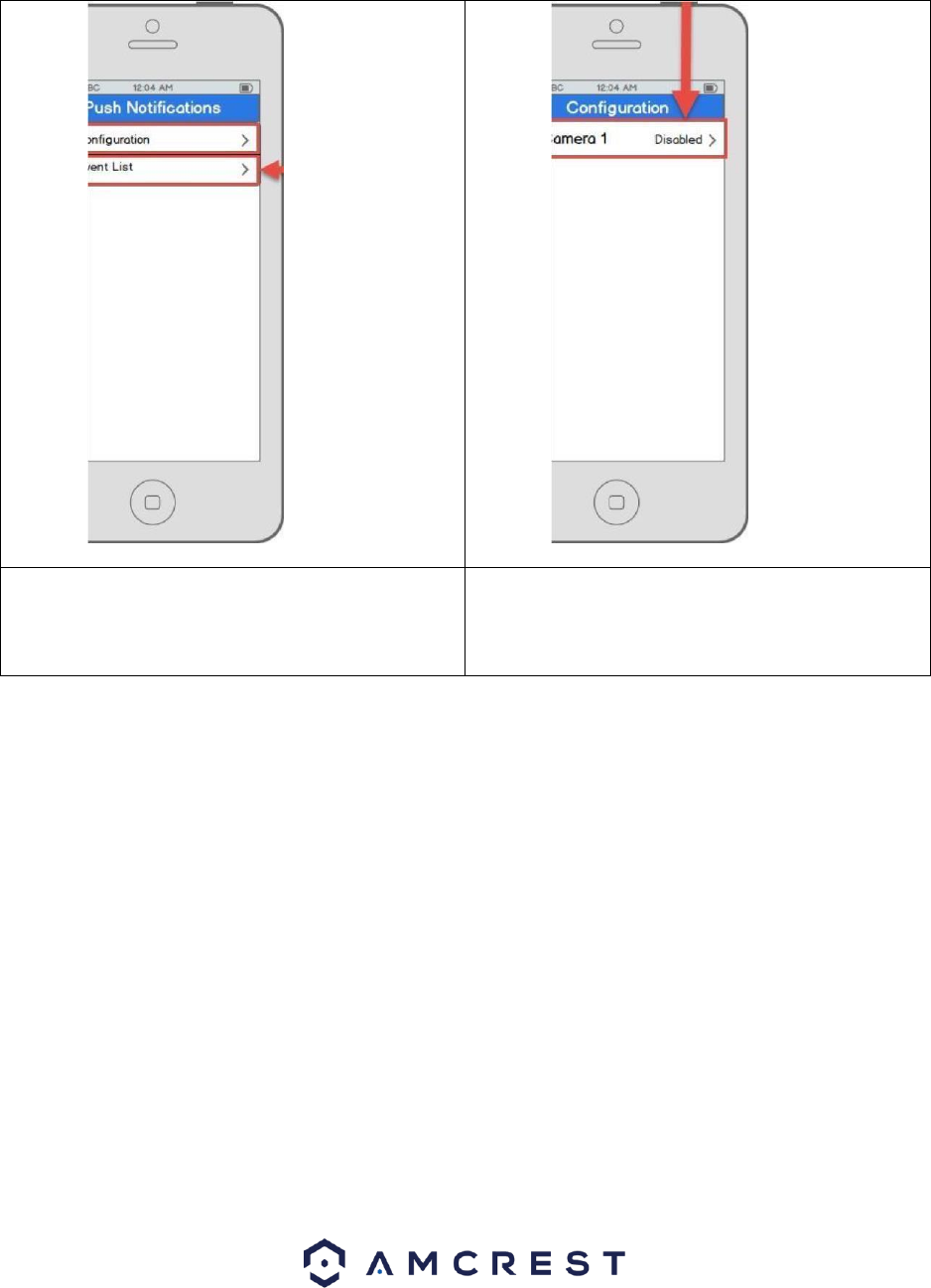

34
3. Tap Configuration to open the push notifications
settings menu. Tap Event List to see a history of
past push notifications.
4. Select the camera that you want to modify push
notification settings for.
35

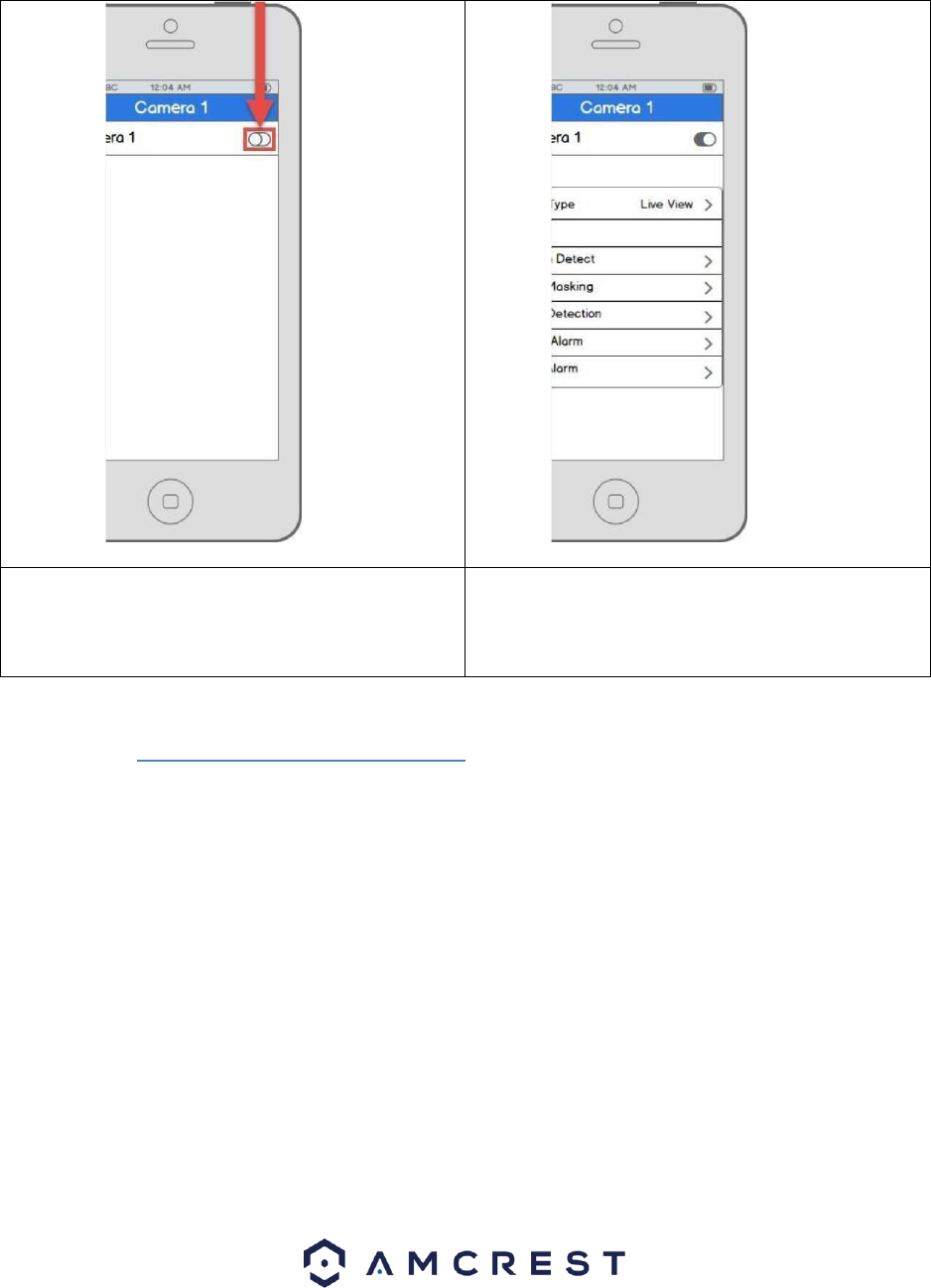

5. Tap your camera’s toggle switch to activate push
notifications and configure settings.
6. From this screen, you can modify the settings to
fine tune push notifications to your preference.
4.4 Desktop access setup
There are 2 ways to access your camera from a computer (laptop or desktop) which are: locally
or remotely.
Local Access: Logging into your camera’s web interface from a computer or
laptop device connected to the same network as your camera (home, office,
etc.).
Remote Access: Logging into your camera’s web interface from a computer or
laptop device connected to a network outside of your home or business network
(coffee shop, work computer, etc.)
Local access is preferred by those who, for security reasons or personal preference, do
not wish to make their camera accessible from outside their network. However, there
are several options available for remote access that use standardized and secure
network protocols including SSL, TLS, DDNS, etc. Most other users require remote
36
network access by way of their smartphones, tablets, laptops, or computers, for live
viewing on the go.
The following section will cover local access and remote access will be covered in
section 4.7. It is important to configure and familiarize yourself with local access
before attempting remote access. Keep in mind that any user can have both
local and remote access simultaneously if they so choose.
Before accessing your camera through a web browser, the following two steps must be
completed:
1. You must access the camera’s web interface with its IP address.
2. You must install the Amcrest web browser plugin.
An IP address is just an identifier given to any devices that connect to a network.
People use names, but internetconnected devices use a set of numbers called an IP
address to talk to each other. Once you have the IP address, your computer will be
able to find and communicate with your camera.
A browser plugin is just like a translator. By using the camera on your computer
through a web browser, you need to introduce a new piece of software that
allows your computer to understand the language that the camera speaks in a
way that a computer can understand. That’s what the browser plugin is for.
To access the camera’s web interface, we will use the Amcrest IP Config Software method.
4.4.1 Amcrest IP Config Software method
Amcrest IP Config Software can be installed for free onto your computer from
Amcrest’s official website. The IP Config Software is available for both Windows
and Mac operating systems. To get directly to the downloads page, use this link:
https://amcrest.zendesk.com/hc/en-us/categories/201939038-All-Downloads
Otherwise, the steps below will walk you through how to download, install, and use Amcrest IP
Config Software:

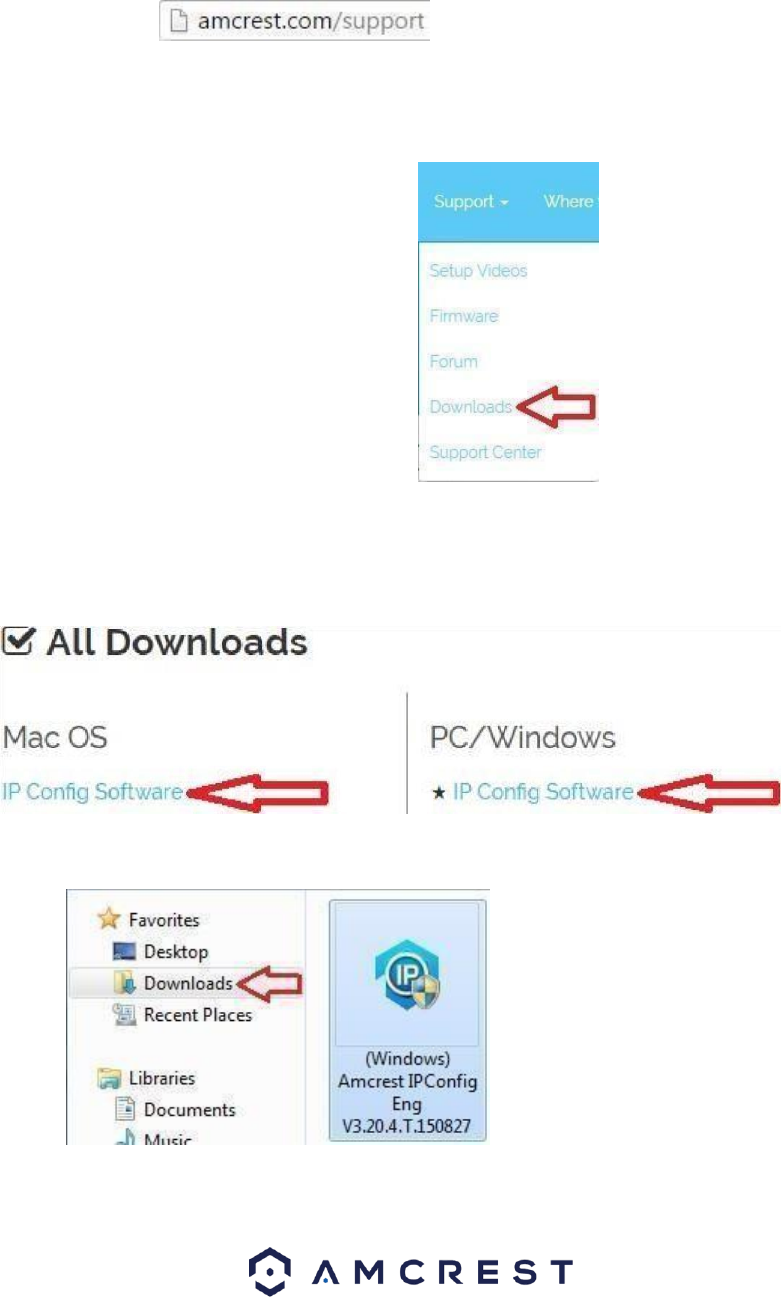

1. Log onto your computer, open your web browser of choice, and go to
www.amcrest.com/support:
37
2. Then, hover over the Support tab up top and choose Downloads from the dropdown.
3. This brings you to the downloads page. Click the IP Config Software download link on
this page for either Windows or Mac.
4. Find the download in your Downloads folder, and click it to open the installer.
38
5. You will be asked to allow this program to make changes to your computer with a pop-
up window,
click
Yes.

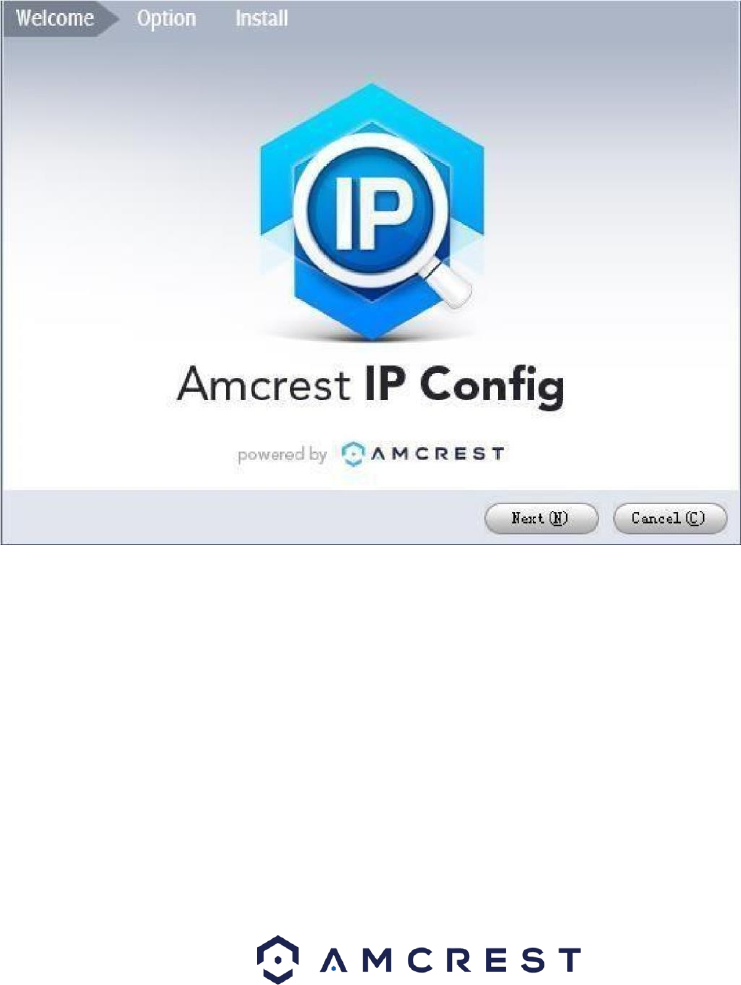

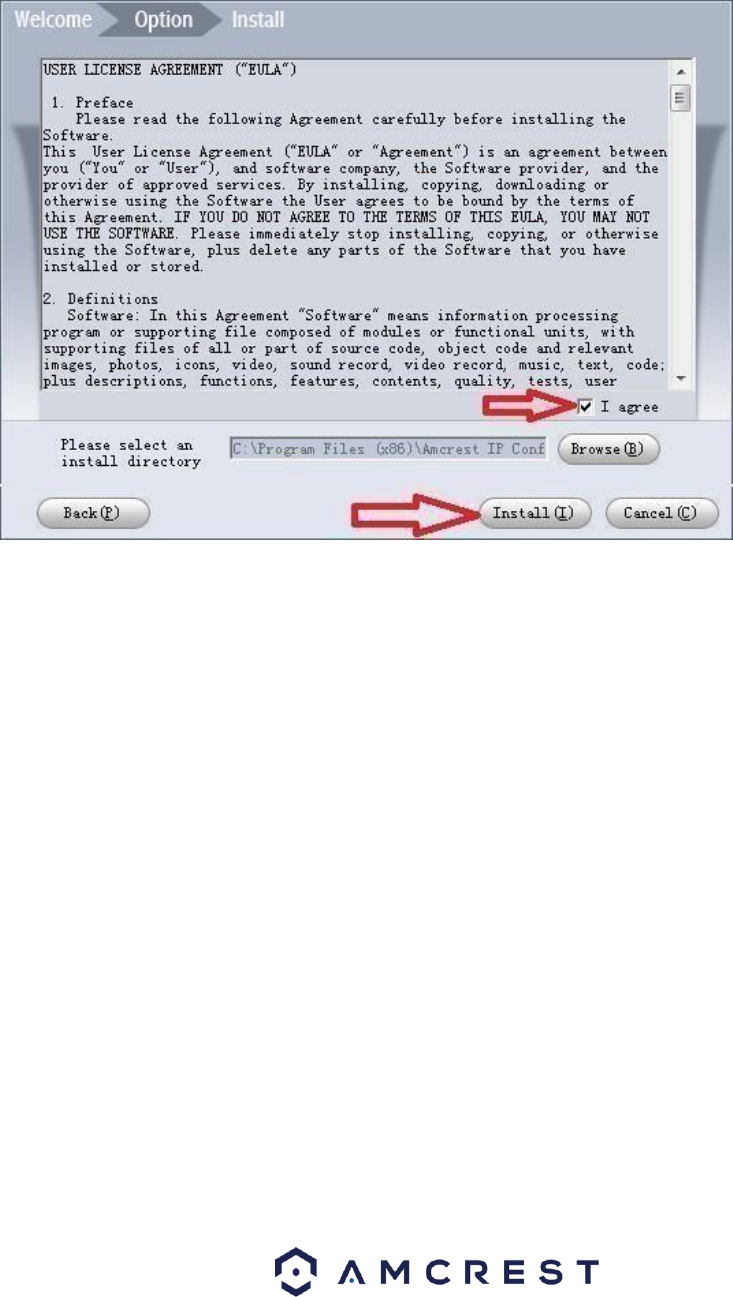

6. Once you see the first page of the installer wizard, click Next to continue.
7. On the next page, check the box next to “I agree”, then click Install.
39

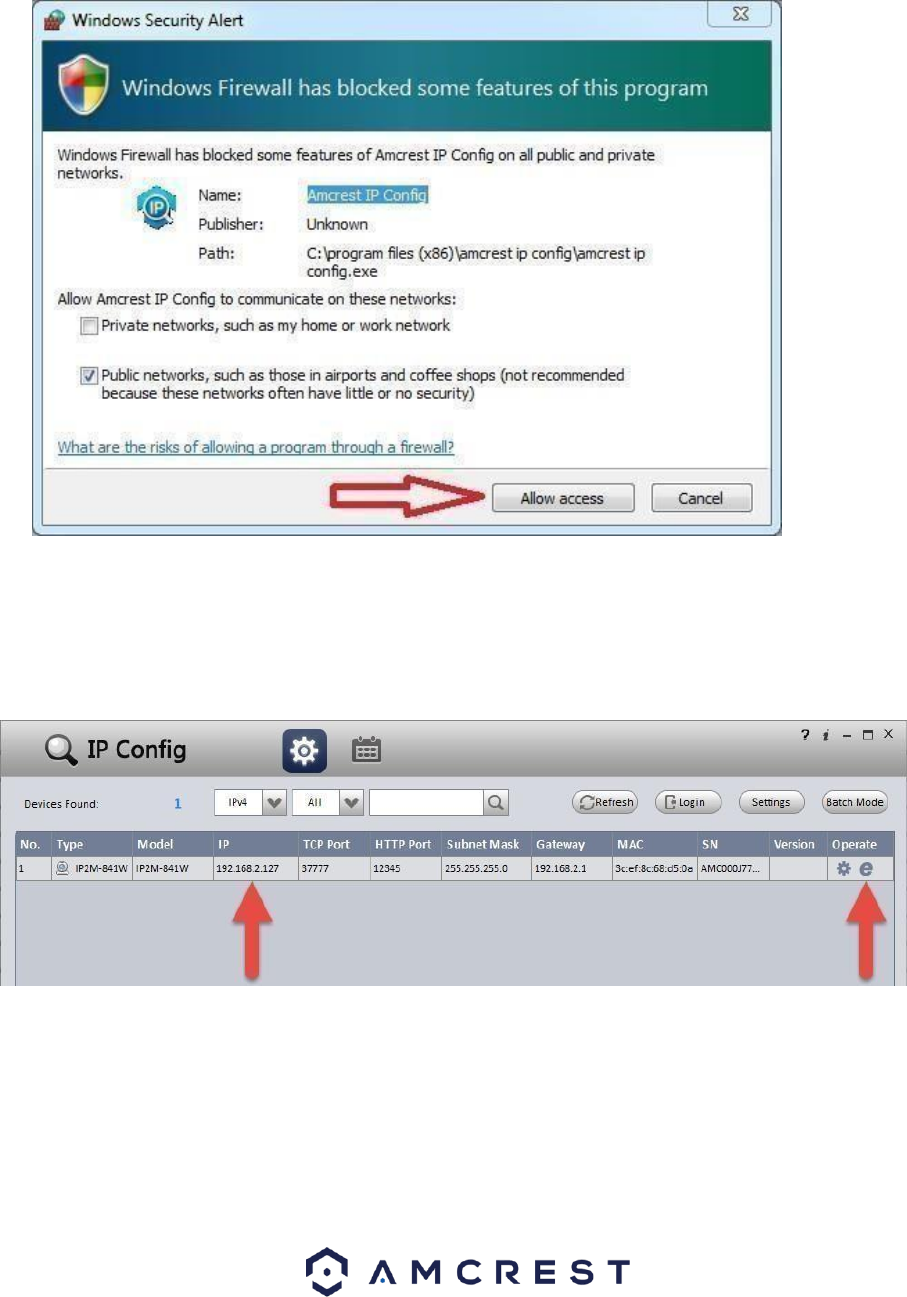

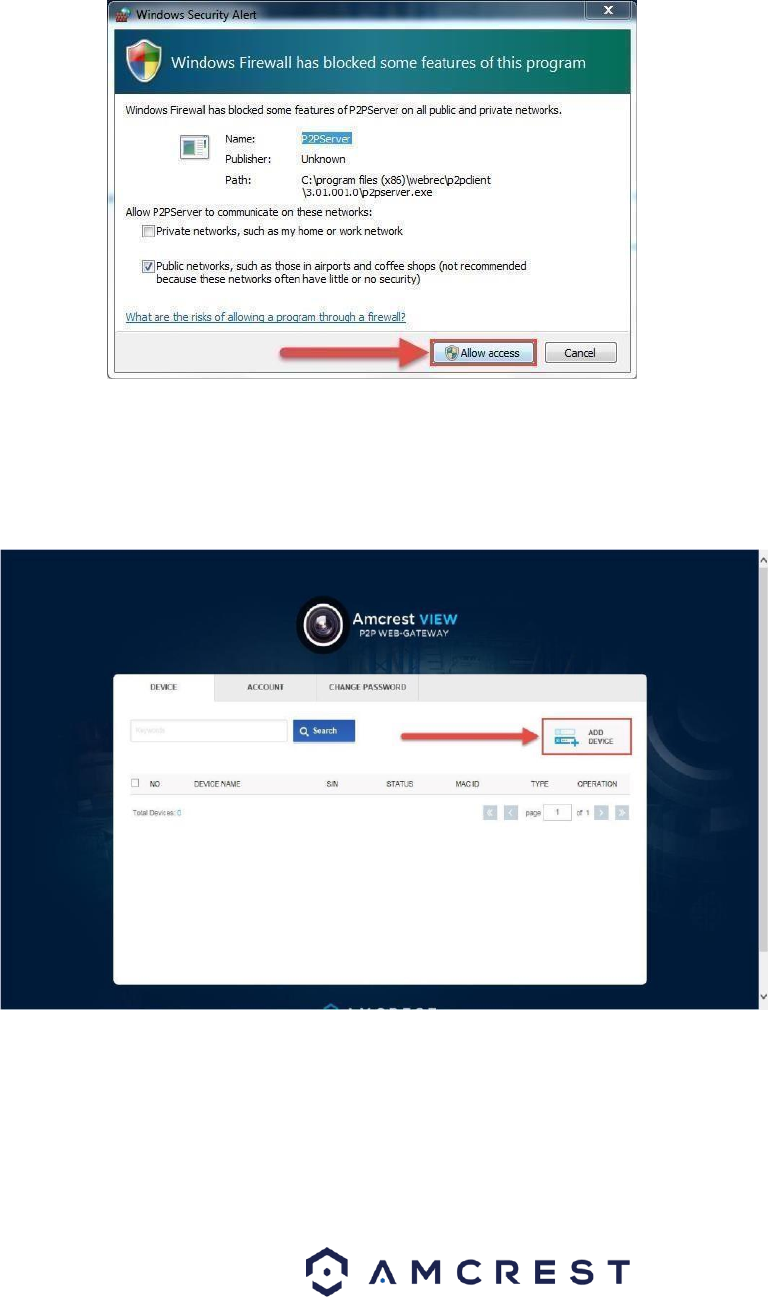

8. After the progress bar completes, if you see a Windows Security Alert popup, click
Allow access.
40
9. This brings you to the main screen of Amcrest IP Config Software. Your camera will
automatically be found on your network and appear in the list (if properly connected
with an Ethernet cable to your router). You will also see the IP address associated with
your camera.
The “e” icon to the right allows you to launch directly into your web browser
from this screen.
41
Note: This “e” icon will automatically take your camera’s IP address and use
your computer’s “default” web browser to access and log into your camera. If
your default browser is not Internet Explorer, you can write down the IP address
from the Amcrest IP Config Software (IP address located above), open up
Internet Explorer yourself, and type that into the search bar to get to the login

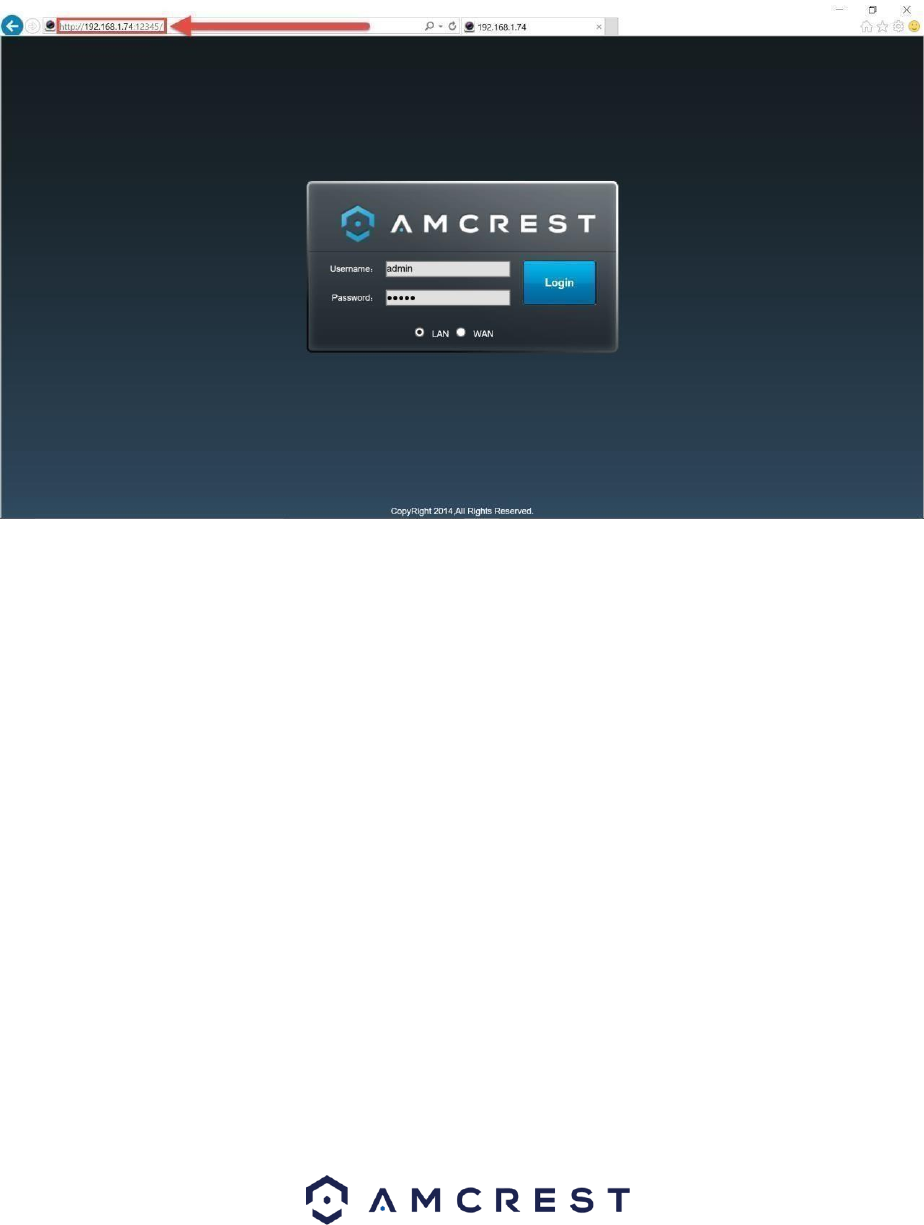

screen. Typing your IP address directly into the search bar will look something
like this:
4.4.2 Installing the Amcrest browser plugin
Once you’ve followed one of the above methods to get to the login screen for
the camera, follow the below steps to install the browser plugin on Internet
Explorer:

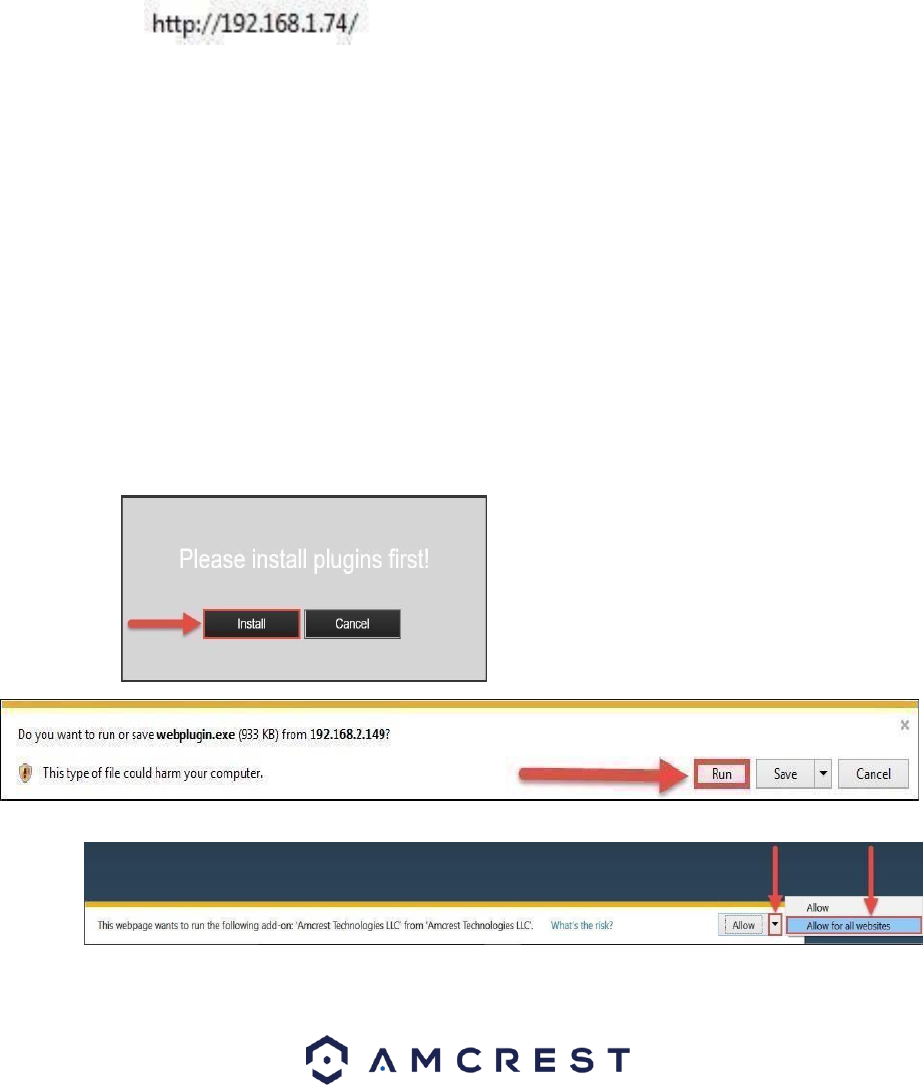

1. On the main login screen, you should see a popup in the center. Click Install.
2. An install button will appear on the bottom of the screen for the plugin:
webplugin.exe. Click Run, then
go
through the prompts of the install wizard.
42

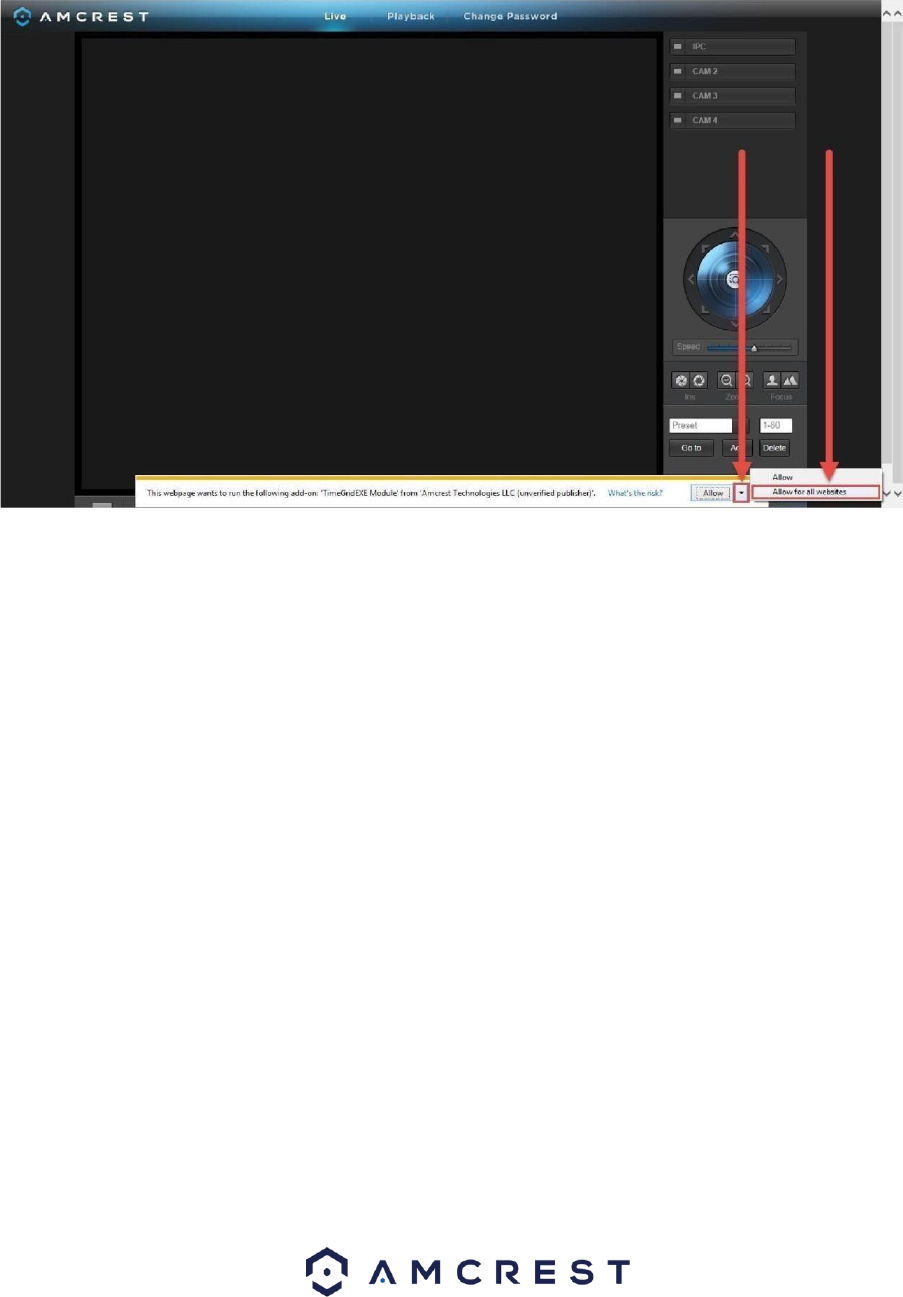

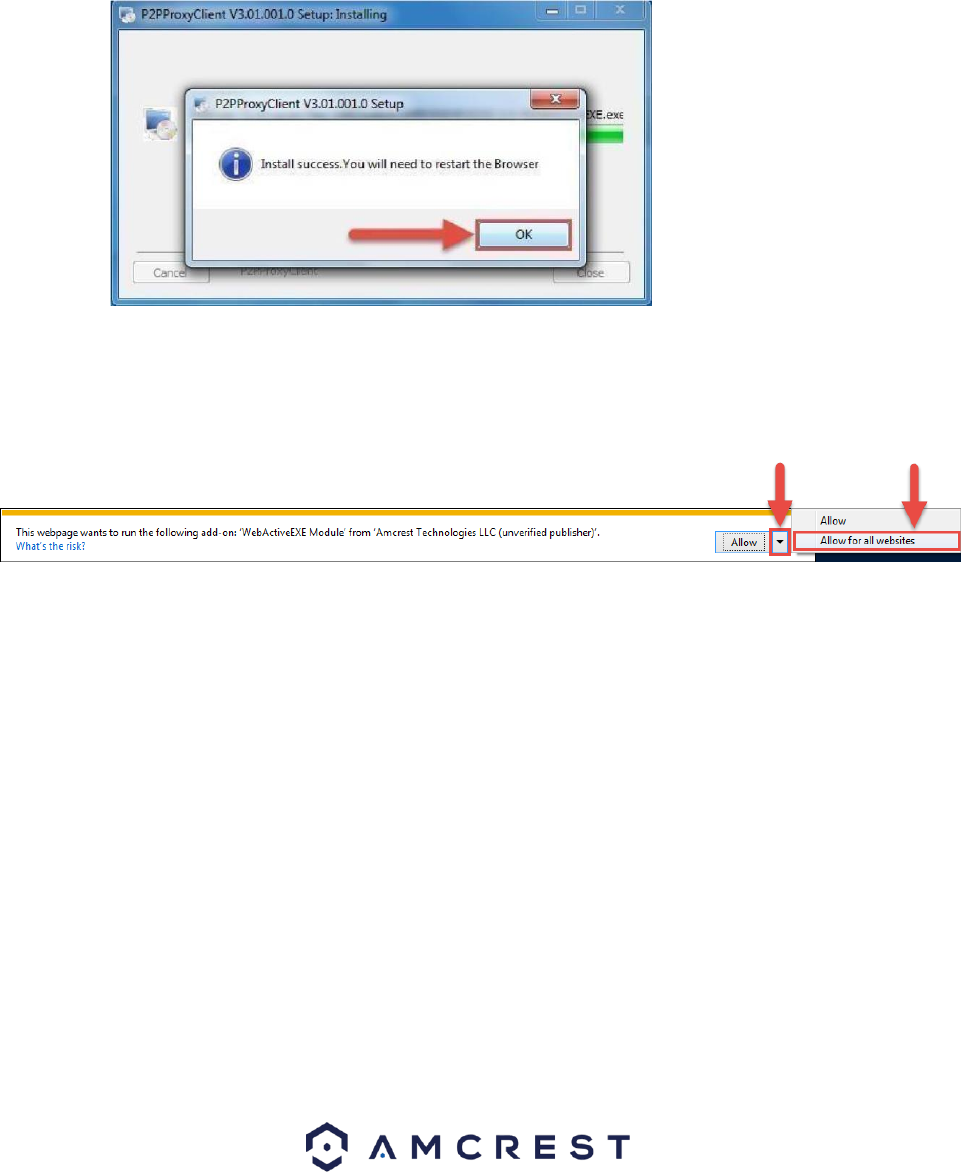

3. Once you see the notification along the bottom row. Click the small arrow to
the right of the Allow button and select Allow for all websites.

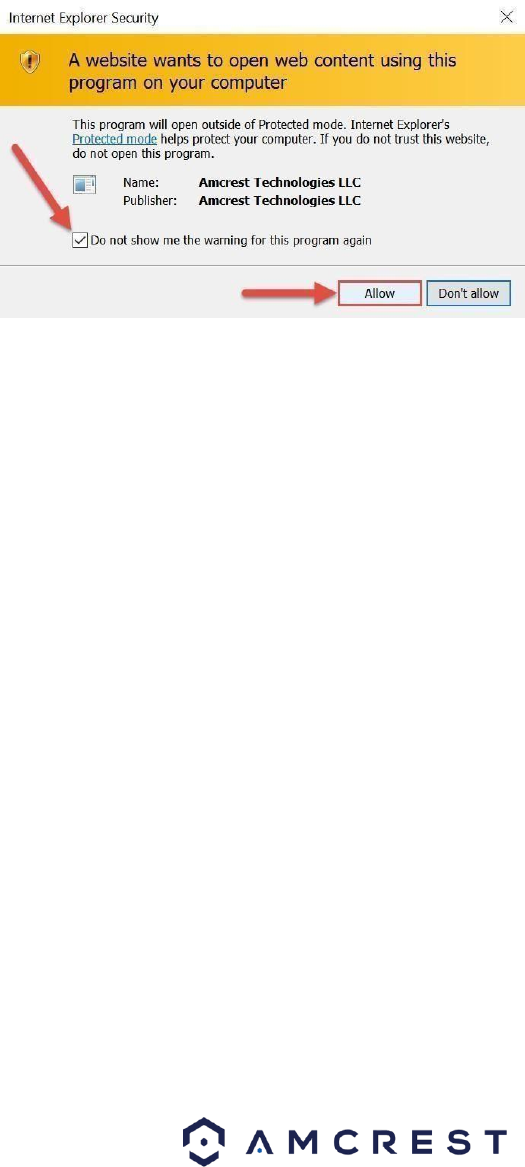

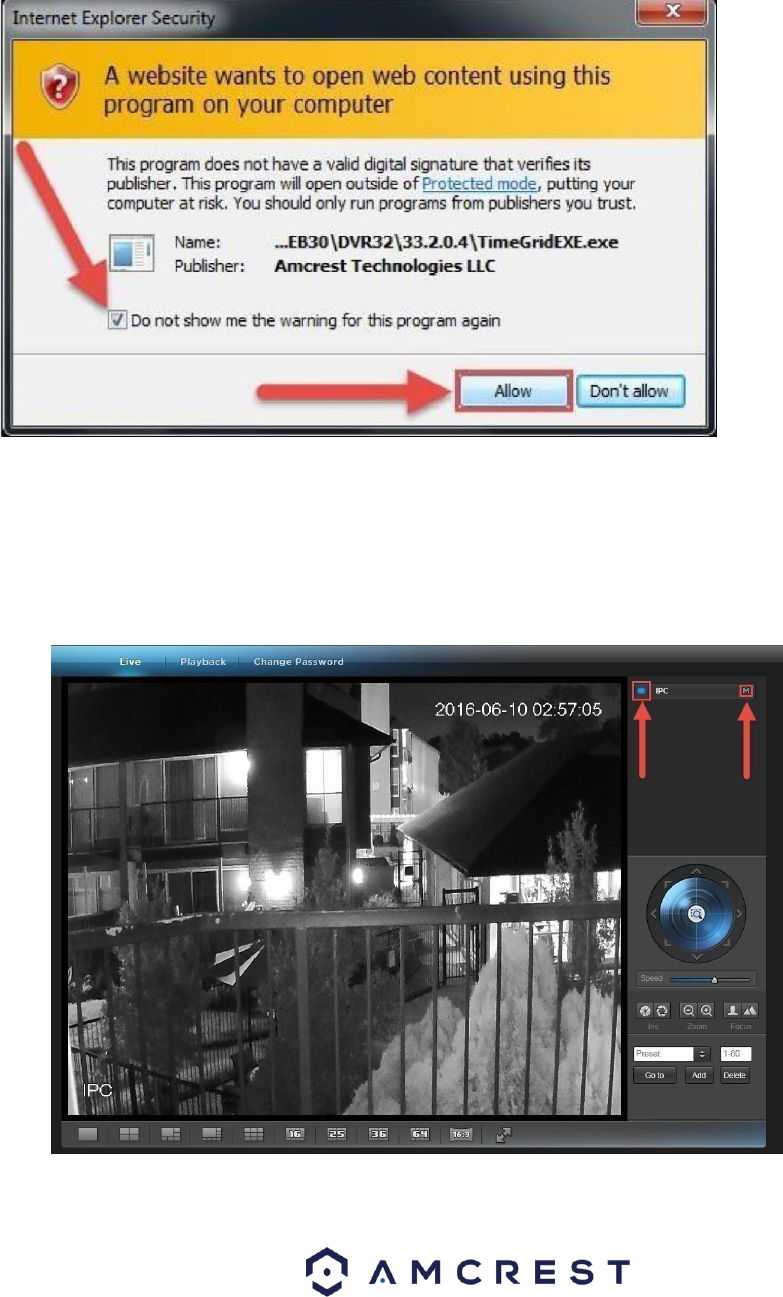

4. If you see a popup window asking you to allow the plugin, mark the checkbox
next to “Do not show me the warning for this program again”, then click Allow.
4.4.3 Logging in
Before attempting to gain local access, you will need to make sure the following items are true:
1. You have your login credentials (if using this local access method as
your first, initial choice to setup your camera, only items 2 and 3 of
this list need to be true)
2. You have located your camera’s IP address
3. You have installed the Amcrest browser plugin
If you did not follow any of the app setup methods covered in section 4.3, and
this is your first time logging into your camera, please use the following default
username and password:
Username: admin
Password: admin
Note: After logging in for the first time, you will be prompted to change your password.
To find the camera’s IP address, please refer to the Amcrest IP Config
Software method (section 4.4.1) above. To install the browser plugin for the
camera’s web interface, please refer to the section 4.4.2 above.
43
1. Take the IP address and type it into the Internet Explorer search bar, then hit ‘Enter’. It
should look something like “http://192.168.1.74:12345/”
2. Enter your login credentials. You may be prompted to change your password.
3. (Optional) Save this web page as a Favorite for easy access in the future.
The camera is now successfully set up for live viewing and playback!

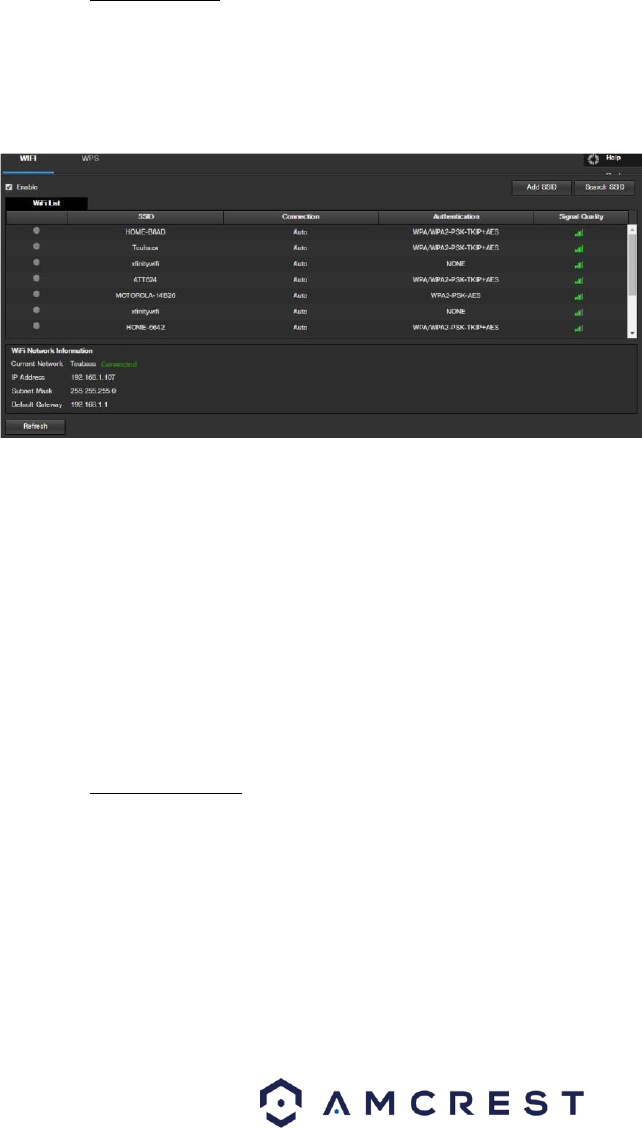

To setup WiFi (optional), navigate to Setup > Network > WiFi, then double-
click the line that shows your WiFi network. If necessary, enter your WiFi
network's password. The camera may take up to 2 minutes to connect to the
WiFi network. Click the Refresh button after the process is complete. Once
the camera has successfully connected to your WiFi, you should see the word
"Connected" in green display next to your WiFi network's name in the WiFi
Network information table under the WiFi List table.
Note that the IP address may have changed once connected to WiFi. Be sure to use the IP
Config tool to access the camera using its updated IP address.
After configuring the camera to connect to WiFI, use the P2P Setup method on
section 4.3.3 to connect the camera via your smartphone or your tablet.
44
For quick and easy remote access on your PC or Mac, please use
AmcrestCloud.com (section 4.5) or AmcrestView.com (section 4.6).
To setup advanced remote access via UPnP/DDNS or Port Forwarding see section 4.7.
If you are still having trouble and would like to watch a video on how to setup the IP4M-1051
camera for
local access on a computer/laptop, go to
http://www.amcrest.com/videos, click the Videos tab, then watch the video
titled “Desktop/Laptop Access Setup for ProHD & HDseries WiFi Cameras”.
For additional assistance, please contact us at www.amcrest.com or give us a call at 1-888-212-
7538.
4.5 Amcrest Cloud Setup
The Amcrest cameras are able to sync with Amcrest Cloud; a service that stores recorded
video streams in order to enable long-term storage. Amcrest Cloud also allows the user to
easily find and download recorded video for playback from any internet connected PC or Mac
computer.
1. Connect the camera to a power supply using the included power adapter.
2. Connect the camera to the internet, either through a wired connection (see section 3.1),
or through WiFi (see section
4.2)
3. Using a web browser on your PC or Mac, visit www.amcrest.com/cloud and register for a
free account. Once registered, click the “Add Camera” button. Select “Amcrest”, give the
camera a name, and enter the camera’s SN (located on the bottom of the camera), then
click “Next”.
4. On the settings page, you can adjust optional preferences for your camera. Once settings
have been adjusted, click “Finish”. Your camera is now successfully set up for cloud access
and storage.
5. View your camera live or watch recorded clips using the menu button on the top of the
page. You can also use the Amcrest Cloud app on iOS and Android to add more cameras,
play recordings, and view your camera live, from anywhere.
45
6. For additional assistance, please contact us at www.amcrest.com or give us a call at 1-888-
212-7538. Step by step video tutorials available at www.amcrest.com/videos
4.6 Web Access Setup (AmcrestView.com)
You can access your camera through a computer using the P2P web portal
AmcrestView.com for quick plugandplay access. It uses the same technology as the
Amcrest View mobile app and is an easy, non-technical setup method.

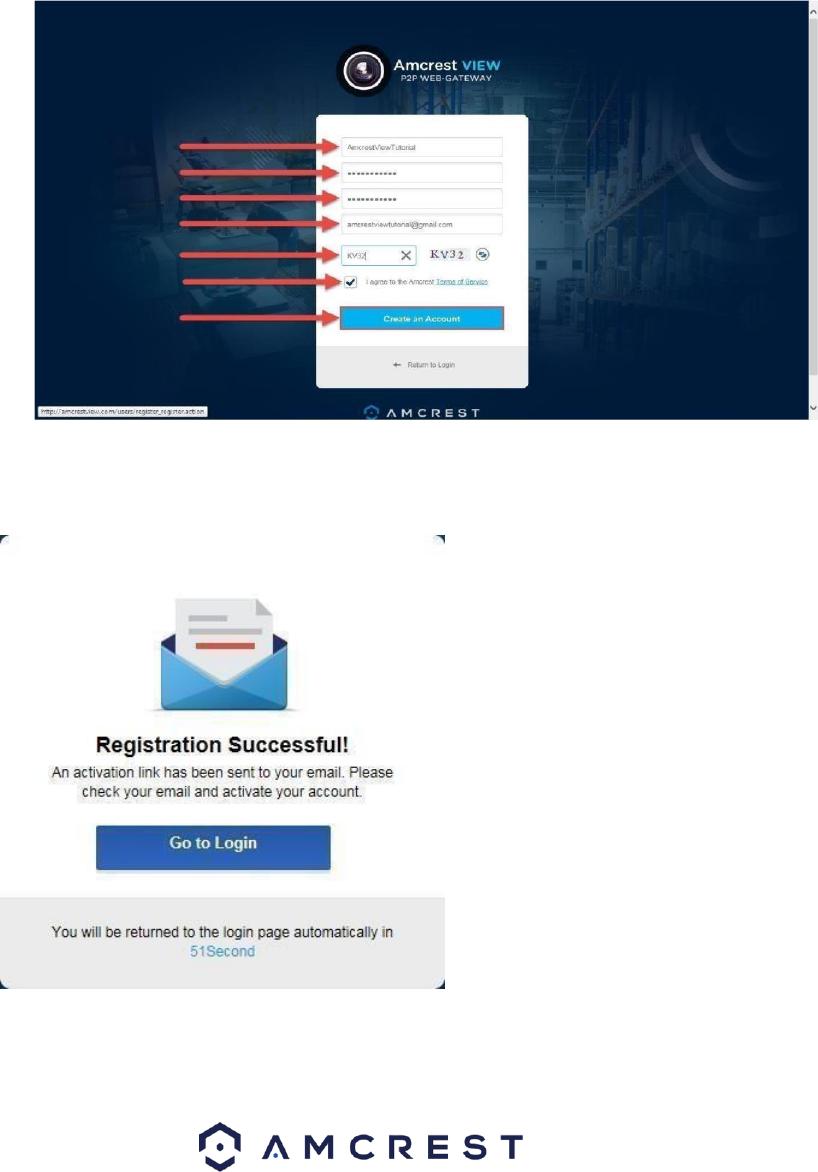

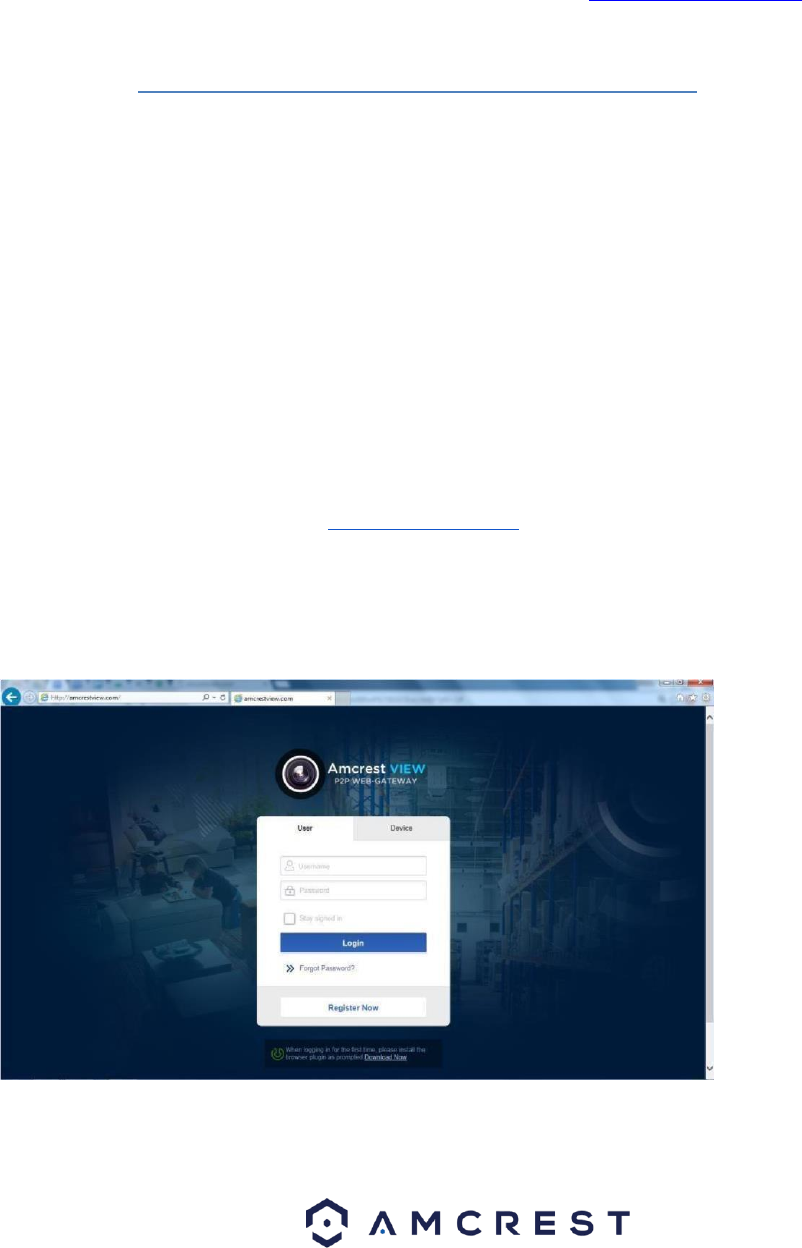

There are 2 methods of accessing your camera using AmcrestView.com: the user
method (registering an account for login), and the device method (instant direct
access using the serial number).
Both methods require that the Amcrest browser plugin be installed for AmcrestView.com.
4.6.1 Installing the AmcrestView.com browser
plugin
1. Open Internet Explorer, type
”www.amcrestview.com” into the search bar,
and hit Enter. This will take you to the login
screen:
46

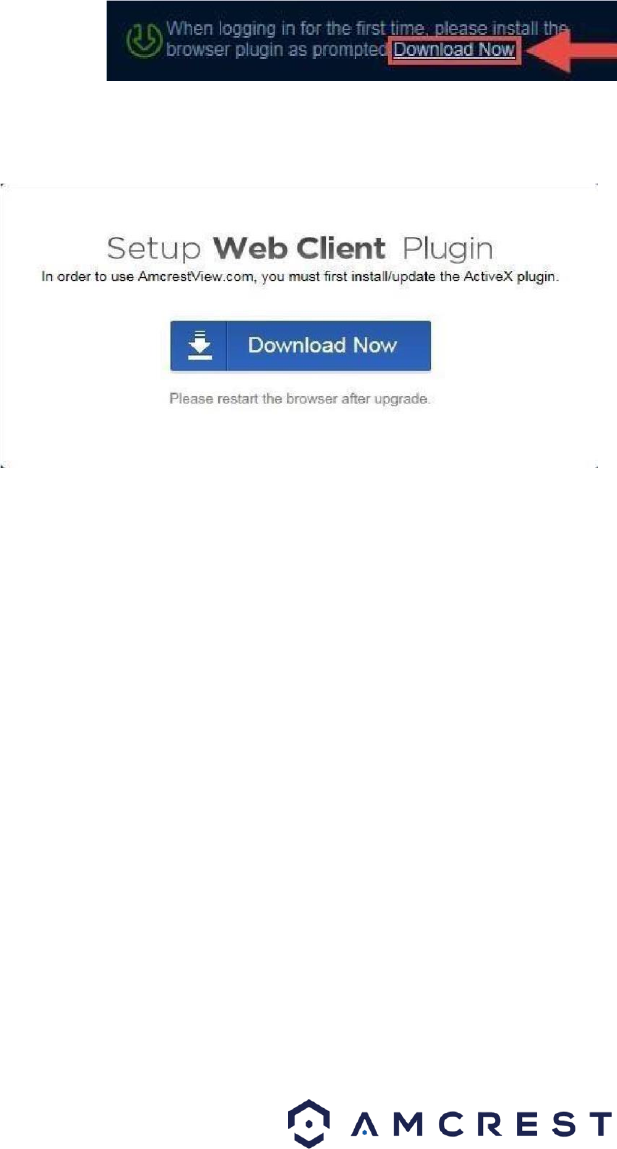

2. Once you’re on the login page, you will see a
message about installing the plugin below the
login box. Click Download Now:
3. This will take you to another page where you
will need to click the Download Now button:

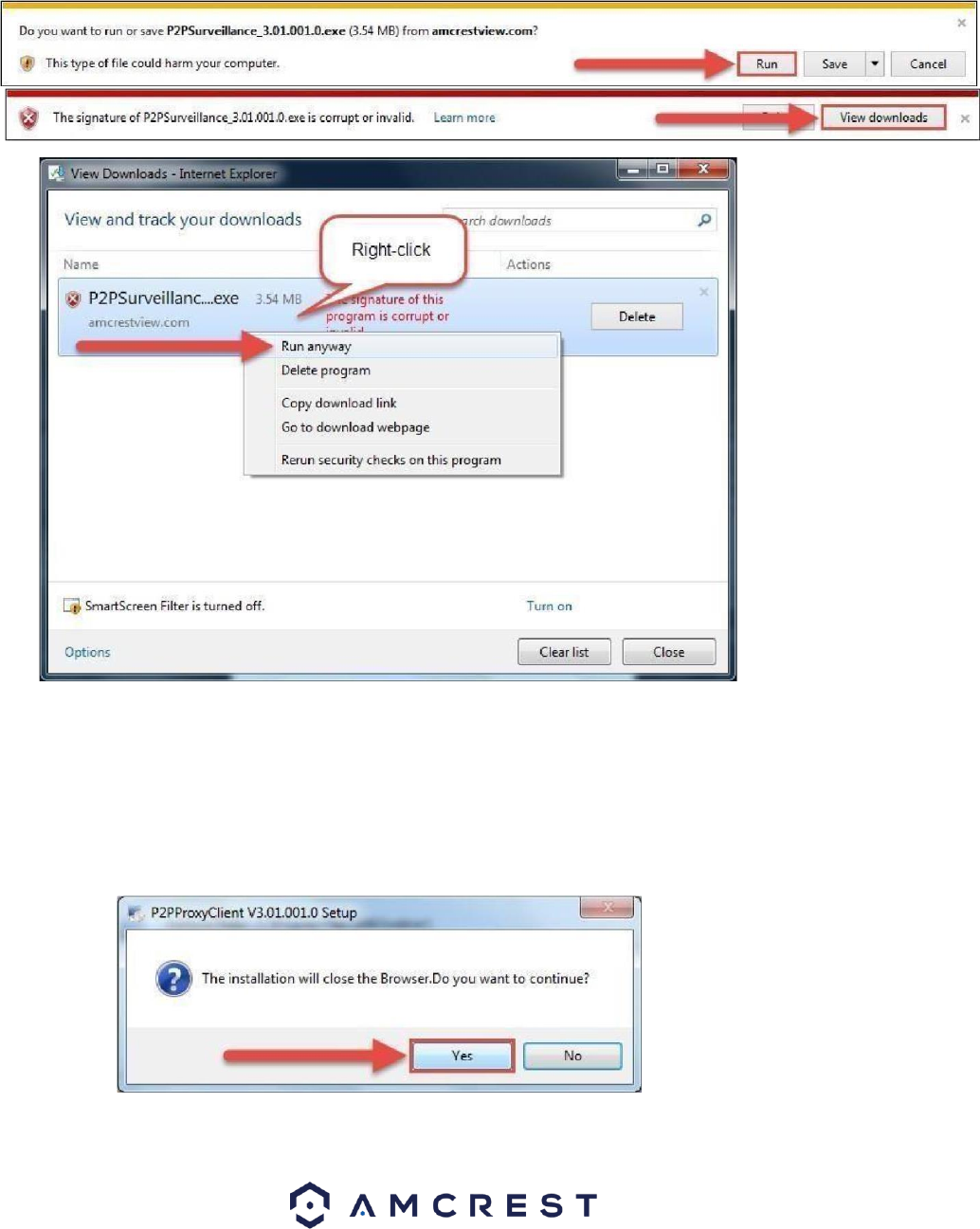

4. You will be prompted by the browser to install
the plugin. Click Run:
5. You may be prompted to verify this download.
This software is not harmful to your computer
and will not make any unwanted changes. To
verify, start by clicking View Downloads: 6. In
the
View Downloads page, right click the plugin, then click Run Anyway.
47
7. The plugin will close your browser sessions to
install. Save any pages, then click
Yes:
48
8. On the next prompt, it will say the install was
successful and ask you to restart your browser.
Click OK:
9. You will be taken back to the login page and
see another notification from your browser
asking you to allow this plugin on this web
page. Click the small arrow next to Allow, then
click Allow for all websites:

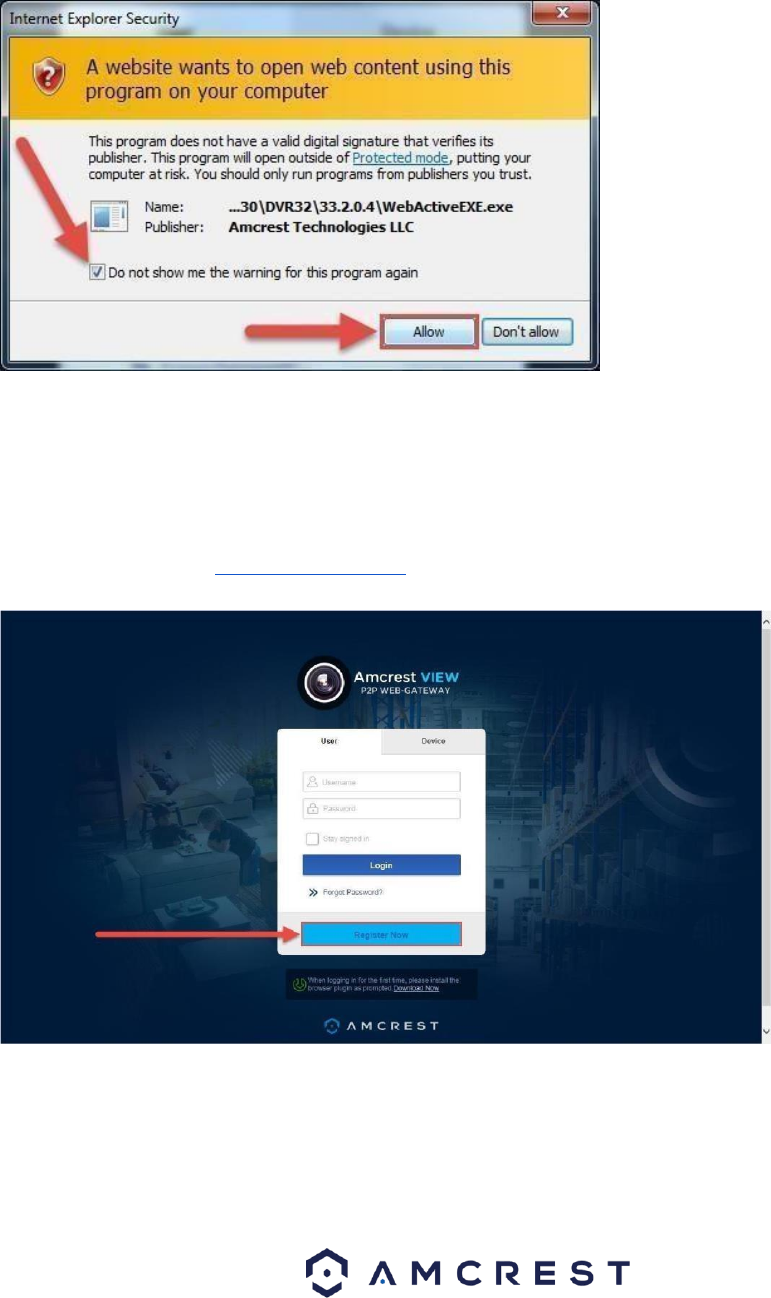

10. Another popup will appear asking you to allow
this plugin. Mark the checkbox next to Do not
show me the warning for this program again,
then click Allow:
49
Now the plugin has been
installed successfully and you
can continue on to register for
an account for camera access
through AmcrestView.com
4.6.2 User method
The user method requires that you first install the Amcrest browser plugin for
AmcrestView.com. Then, you can register for an account to
set up your camera. 1. On the main login screen,
www.amcrestview.com, click the Register Now button:
2. You will be taken to the registration form. Enter
your Username, Password, then Confirm
Password, type your Email, enter the Verification
50
Code, make sure the box is checked confirming
you’ve read the ‘Amcrest Terms of Service’, then
click Create an Account:
3. You will see the Registration Successful message
and a confirmation email will be sent to you:
51

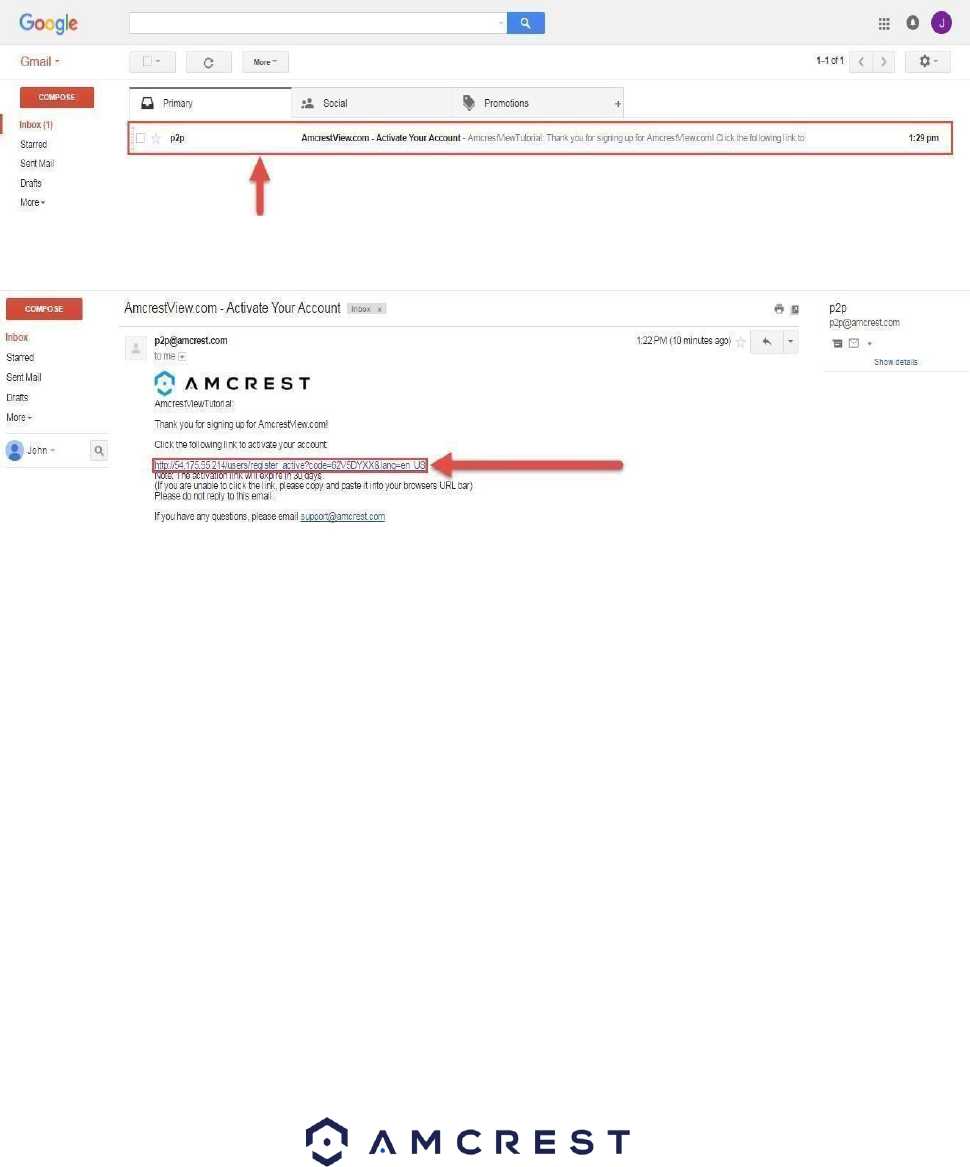

Check your email, and click the confirmation email from AmcrestView.com.
4. Once you’ve opened the email, click the
confirmation link inside to complete your
registration:

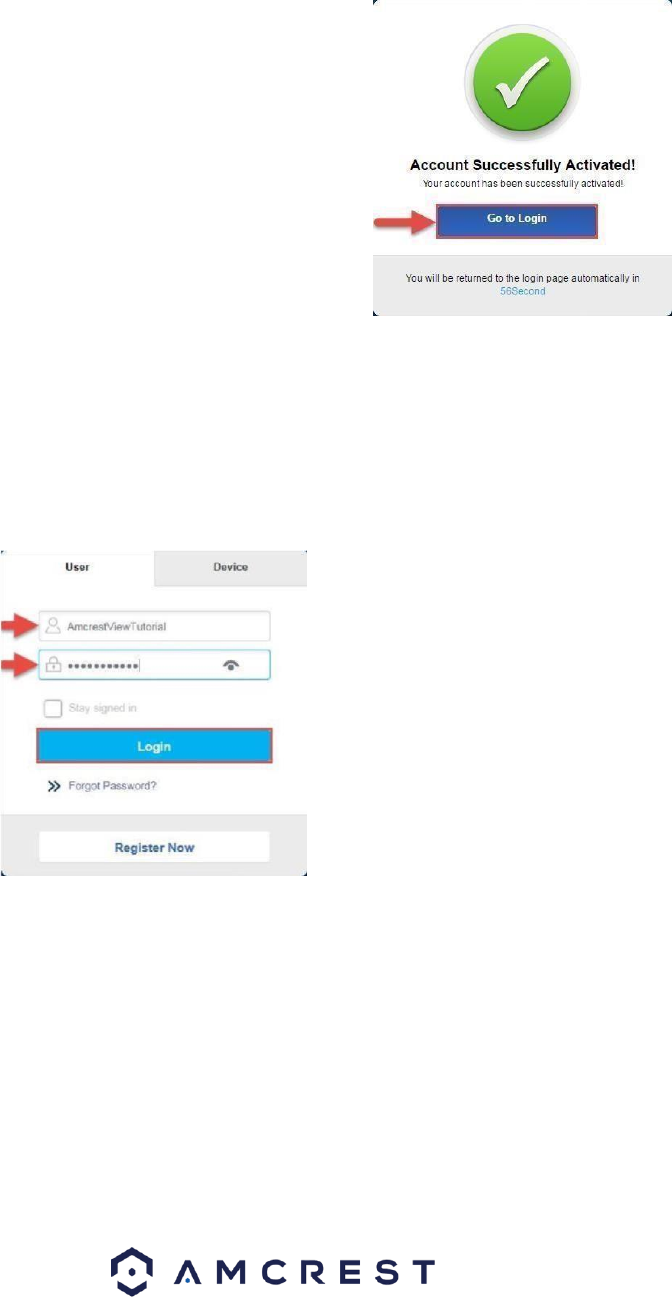

5. You will be taken back to AmcrestView.com and
shown confirmation that your account has been
activated. Click Go to Login:
52
6. You will be taken back to the login screen. Enter
your new AmcrestView.com username and
password, then
click Login:
7. A popup will appear from your Windows Firewall.
Click Allow access:
53
8. You will be taken to the main screen of your
account. From here, click the Add Device button:

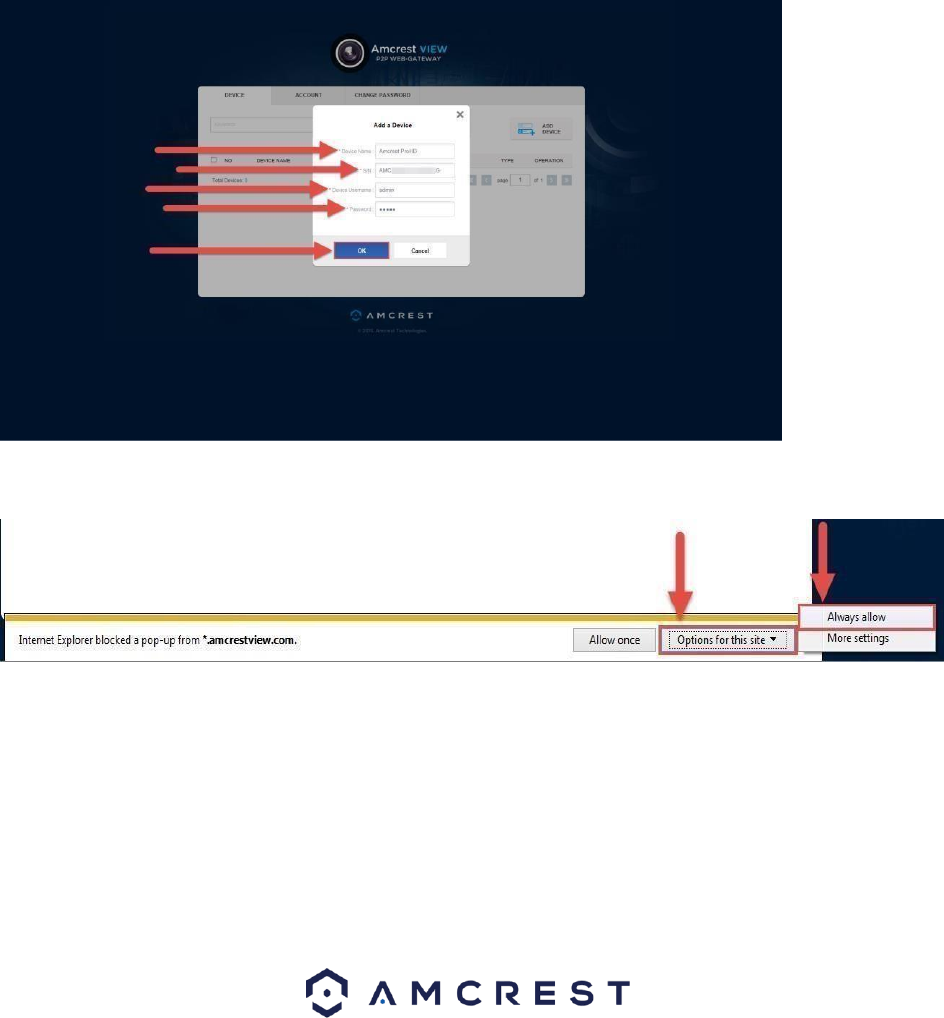

9. Now you can enter your camera’s information.
Enter a Device Name (this can be anything).
Then, fill in the S/N (serial number) this can be
found on the sticker attached to the bottom of
your camera or through the web interface
54
(click the “i” icon in the top bar, then click
Version).
Enter your username and password for the
camera, not the username and password you
just created for AmcrestView.com. To find your
camera login credentials, please refer to section
4.4.3. Finally, click OK:

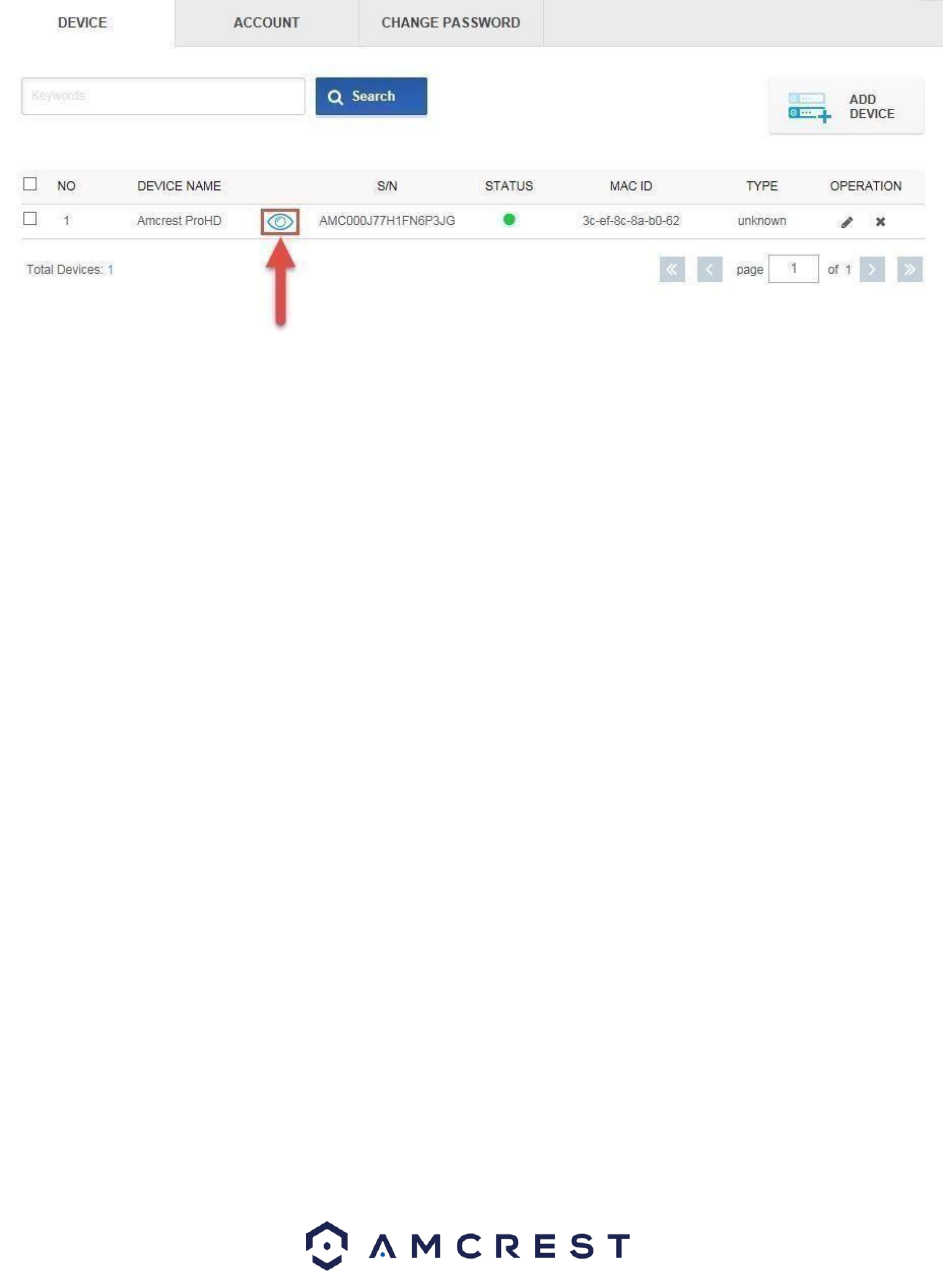

10. You will then see your camera added to the device
list on the main screen. Click the ‘eye’ icon to view
the live feed:
55
11. Your browser will give you a notification asking
you to allow popups from AmcrestView.com. Click
Options for this site, then click Always allow:
12. You will be taken to the live view page and given a
notification to allow the plugin to pull the video
feed through here. Click the small arrow to the
right of Allow, then click Allow for all websites:
56
13. A final popup will appear asking you to confirm
that you allow this plugin on your browser. Mark
the checkbox next to Do not show me the warning
for this program again, then click Allow:
57
Now you can enable any of your added cameras to
see their live feeds. In the topright panel, there is a
channel list. Click the small square icon to enable
your feed for an added camera to see the video feed:
58
Click the “S” to change it to an “M” which stands for
“Main Stream” and will give you a full HD quality
video stream. To go back to “Sub Stream”, for lower
quality video (that works better on slower internet
connections), click the “M” and change it to an “S”
again.
4.7 Remote Web Access Setup
There are two main methods for setting up remote
access: UPnP/DDNS, and Port Forwarding.
4.7.1 UPnP/DDNS Remote Web Access
Setup
Using Universal Plug and Play (UPnP) and Dynamic
Domain Name Server (DDNS) functionality is the
easiest way to setup stable remote access. For this
method, your router should support the UPnP
networking protocol and the protocol should be
enabled. Please refer to your router manufacturer’s
documentation to learn how to enable UPnP on your
router.
Below is a step-by-step walkthrough that details how to setup the Amcrest
IP2M841/IPM-721 Cameras for Remote Web Access using UPnP and DDNS:
1. Login to your camera’s web interface, open
the main menu then go to Setup ->
Network.

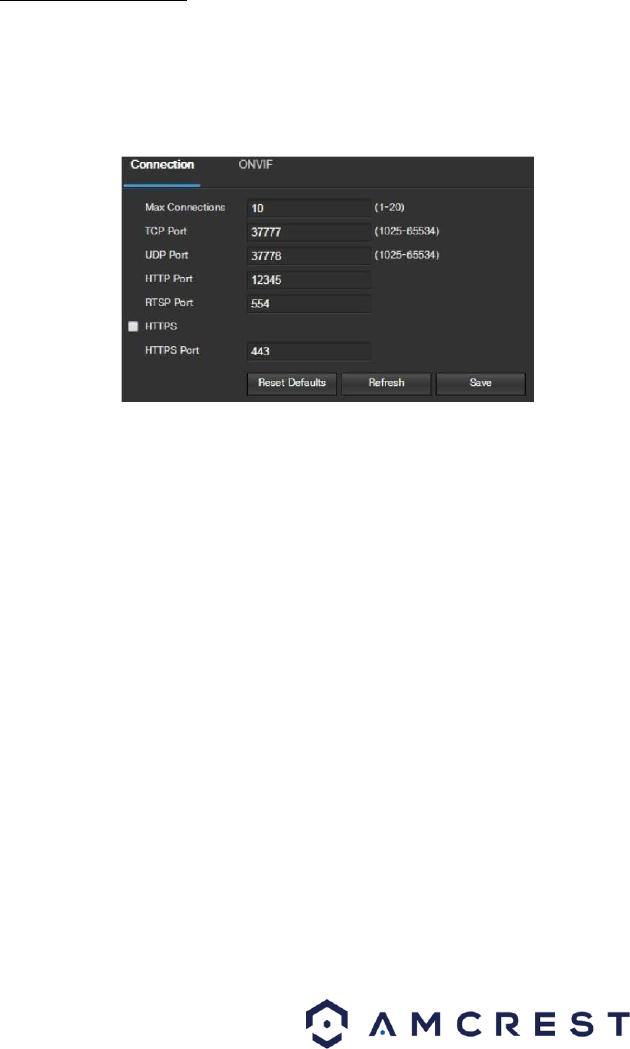

2. Using the left hand menu, go to the
Connection menu, and write down the
HTTP port. It is recommended to ensure
the port number is at least 5 digits long to
prevent any port conflicts. If need be,
change the port to a 5 digit number that is
less than 65535, note the number down,
and click save before proceeding to the
next step.
59
3. The system will prompt you to reset the
camera. Click OK and wait for the camera
to restart.
4. Restarting the camera may cause the
device to use another IP address. Use the
included IP Config tool to find the IP
address as detailed in section 4.4.1.
5. Login to your camera, open the main menu
then go to Setup -> Network.
6. Click the Connections menu item on the
left hand menu, and ensure that the HTTP
port has changed.

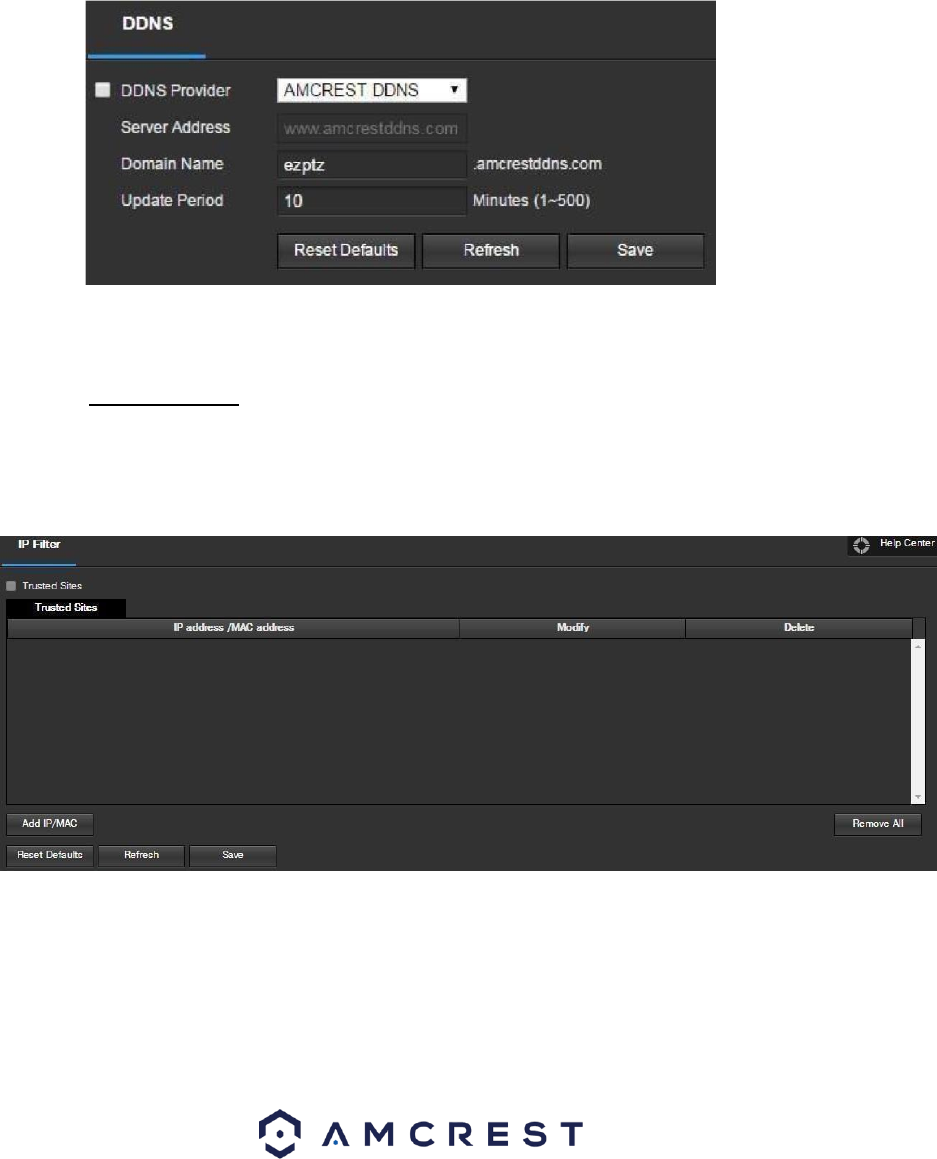

7. Click the DDNS menu item on the left hand
menu, pick Amcrest DDNS from the drop
down box, click the checkbox next to
Server Type, and then click the Save button
on the bottom right.
8. To set a custom DDNS name, fill out the
Domain Name field and click Save.
9. Write down the entire Domain Name field,
including the white text that says
.amcrestddns.com

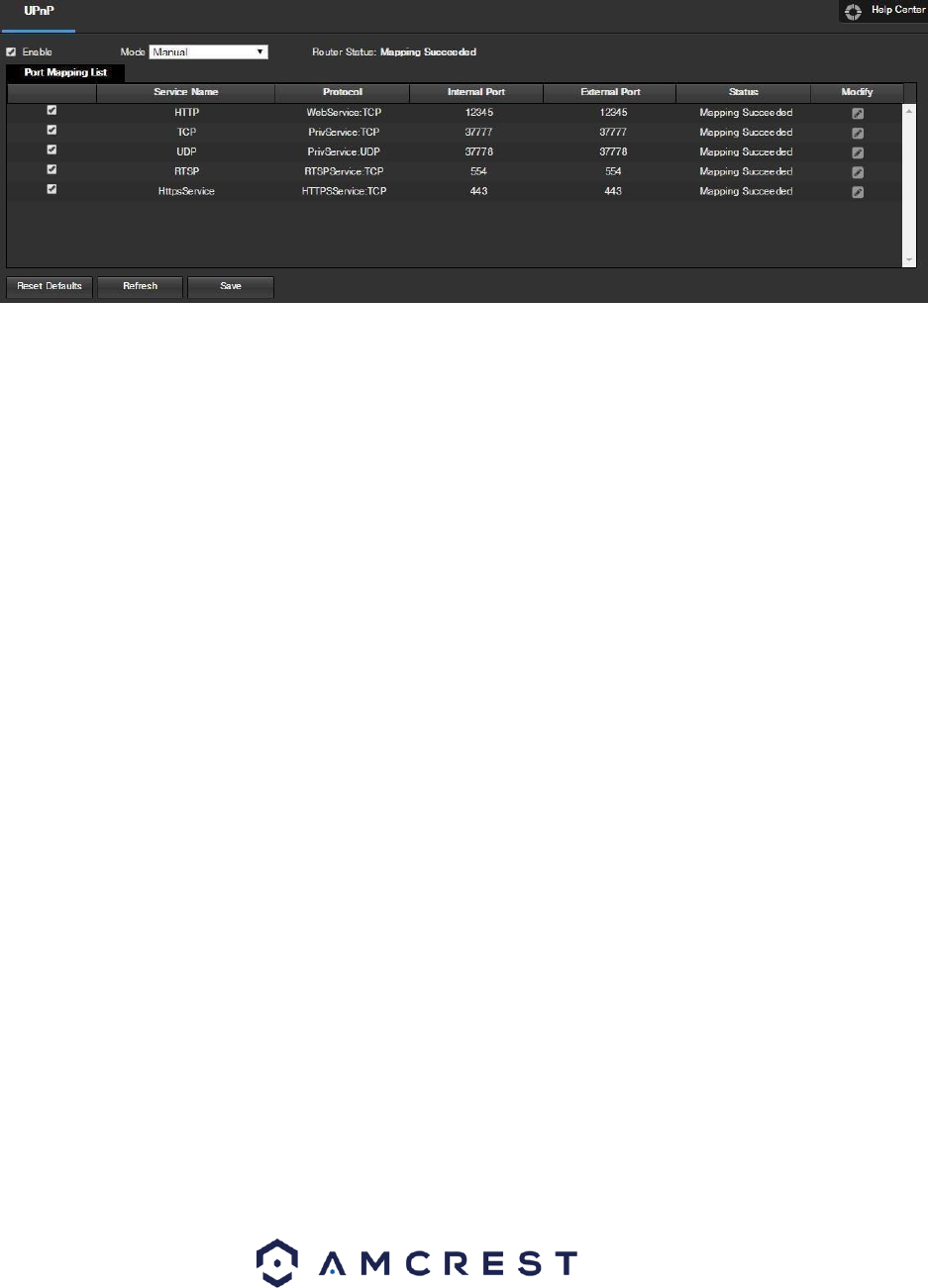

10. Click the UPnP menu item on the left hand
menu, and click the enable checkbox at the
top.
11. While in the UPnP menu, double click the
HTTP port, and change both the internal
and external HTTP ports to match the
number that was used in step
2.
12. Uncheck the last 4 checkboxes in the PAT
table on the UPnP menu.
13. Click apply, then exit this menu to go back
to the main menu, then re-enter the UPnP
menu, and ensure the UPnP status says
“Mapping Successful”.
60
14. Open a web browser and enter in the
DDNS domain name address from step 9,
enter in a colon, then type the port
number from step 4 on to the end.
a. For example, if the DDNS domain name is
http://abc123456789.amcrestddns.com and
your HTTP Port is
33333, the URL would be
http://abc123456789.amcrestddns.c
om:33333
15. The browser may prompt you to install a
plugin. Click install to download the plugin,
and then click on the plugin installation file
to install the plugin.
16. If the browser prompts you to allow the
plugin to work on the computer, hit Allow
to ensure the plugin can run successfully.
17. Enter in login details into the username
and password fields and click login.
If the process above is not working, please contact
Amcrest Support via one of the following options:
● Visit http://amcrest.com/contacts and use the email form
● Call Amcrest Support using one of the following numbers Toll Free: (888)
212-7538 International Callers
(Outside of US): +1-713-893-8956
USA: (888) 212-7538
Canada: 437-888-0177
UK: 203-769-2757
● Email Amcrest Customer Support support@amcrest.com
4.7.2 Port Forwarding Remote Web Access
Setup
Port Forwarding is an alternative method to setting
up remote access for the Amcrest Cameras. This
61
method should only be used if the UPnP/DDNS
Remote Access method did not work.
Below is a step-by-step walkthrough that details how
to setup the camera for Remote Web Access using Port
Forwarding:
1. Login to your camera, open the main menu then go to Setup ->
Network.
2. Open the TCP/IP settings screen.
3. By default, the camera has the mode set to DHCP. Ensure that DHCP
is selected. The IP Address, Subnet Mask, Default Gateway, Preferred
DNS, and Alternate DNS should all be 0s if DHCP is selected.
4. Click Save to save these settings. This should now open the main
menu.
5. From the main menu, go to Setup -> Network.
6. On the TCP/IP settings screen, the IP Address, Subnet Mask, Default
Gateway, Preferred DNS, an
Alternate DNS should all be
populated.
7. Click the radio button next to Static, to change the mode to Static.
8. Write down the IP Address that is currently in the IP address field.
9. Click the Save button.
10. Using the left hand menu, go to the Connection menu, and write
down the TCP, UDP, and HTTP port number. It is recommended to
ensure that these port numbers are at least 5 digits long to prevent
any port conflicts. If need be, change each of these port numbers to a
5 digit number that is less than 65535, note the numbers down, and
click save before proceeding to the next step.
11. Go to http://www.canyouseeme.org/ and check to ensure each of
the port numbers specified in step 10 is open.
12. Write down the manufacturer name, brand, and model name for the
router that the camera is connected to, and then proceed to
http://www.portforward.com on your web browser.
13. Open the port forwarding guide section on the left hand side menu.
14. Find the router brand name in the list, and click it.
62
15. Find the router model number, and click it.
16. Click the Default Guide link near the middle of the page.
17. This guide will help you take the step necessary to port forward on
the router. Follow these steps, and then return to the camera.
18. Login to your camera, open the main menu then go to Setup ->
Network.
19. Click the DDNS menu item on the left hand menu, pick Amcrest DDNS
from the drop down box, click the checkbox next to Server Type, and
then click the Save button on the bottom right.
20. To set a custom DDNS name, fill out the Domain Name field and click
Save.
21. Write down the entire Domain Name field, including the white text
that says .amcrestddns.com
22. Open a web browser and enter in the DDNS domain name address
from step 21, enter in a colon, then type the HTTP port number from
step 10 on to the end.
a. For example, if the DDNS domain name is
http://abc123456789.amcrestddns.com and
your HTTP Port is
33333, the URL would be
http://abc123456789.amcrestddns.c
om:33333
23. Enter in login details into the username and password fields and click login.
If the process above is not working, please contact
Amcrest Support via one of the following options:
● Visit http://amcrest.com/contacts and use the email form
● Call Amcrest Support using one of the following numbers Toll Free: (888)
212-7538 International Callers
(Outside of US): +1-713-893-8956
USA: (888) 212-7538
Canada: 437-888-0177
UK: 203-769-2757
● Email Amcrest Customer Support support@amcrest.com
63
4.8 NVR Access
The camera supports connecting to any NVR that
uses the ONVIF standard. This allows the camera
to view live playback and to save recorded data to
a network storage device. To connect to an NVR,
use an Ethernet cable to link the camera to the
NVR.
5 Operation and Interface
This section of the manual details the camera’s
interface, as well as all of the operations the camera
can perform.
The main interface of the camera contains 6 major tabs
on the top of the screen. By default, the interface opens
on the Live tab.
5.1 Live
The Live tab allows the user to see a live video feed
from the camera. The live tab has 4 main sections:
64

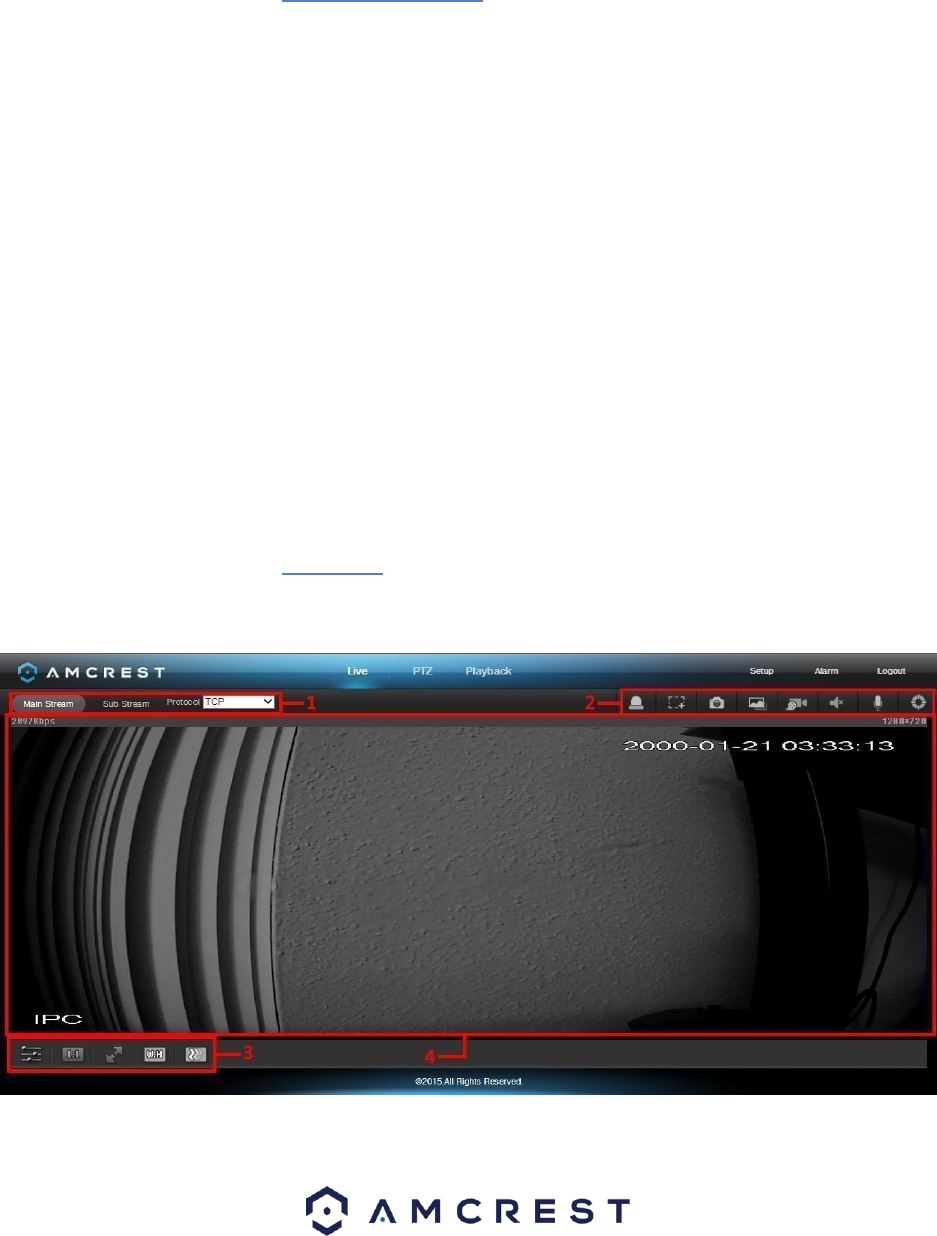

Section 1: This bar allows the user to select which
stream type and which protocol they want to
choose. For more information on stream types, see
section 5.4.1.2.1. For more information on
protocols, see section 5.4.2.2.1.
Section 2: The functions bar allows the user to
perform different camera functions while in live
mode. See the table below for an explanation of the
different functions available:

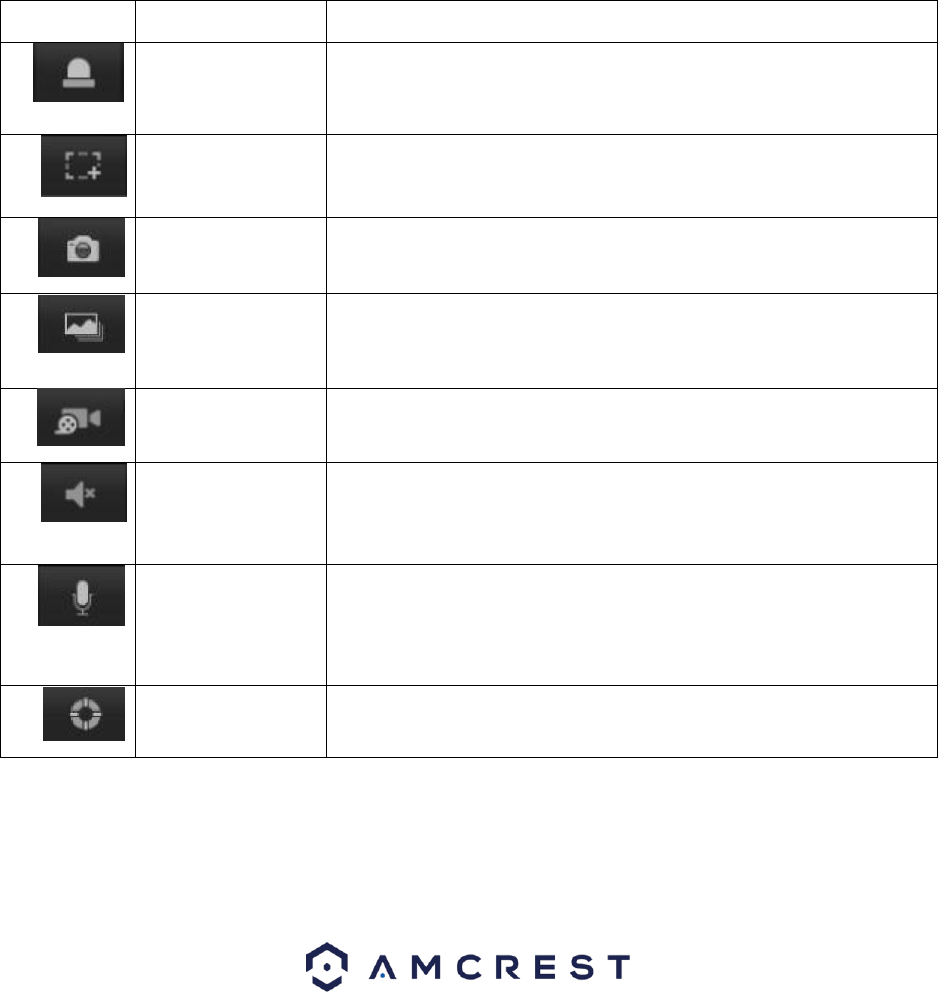

Button
Function Name
Function Description
Alarm Output
Click this button to generate an alarm output signal. This button
becomes red/grey depending on alarm output activation or
cancellation.
Digital Zoom
Click this button to activate the zone selection function. This allows
the user to use the mouse to select a zone to zoom in on.
Snapshot
Click this button to take a screenshot of the live feed. The picture is
saved at the path specified in Setup -> Camera -> Video -> Path.
Triple Snapshot
Click this button to take 1 screenshot per second for 3 seconds. The
pictures are saved at the path specified in Setup -> Camera -> Video ->
Path.
Manual Record
Click this button to manually record video. The video is saved at the
path specified in Setup -> Camera -> Video -> Path.
Audio
Click this button to enable or disable audio output from the camera.
This feature allows the user to listen in on the audio the camera’s
microphone is picking up.
Bidirectional Talk
Click and hold this button to enable bidirectional talk. This feature
allows the user to broadcast audio from their computer to the camera.
While this is active, the camera’s speaker is shut off in order to keep
audio quality high.
Help
Click this button to open a window that details the buttons and
functions shown on this screen.
Section 3: This bar allows the user to change video
settings for the live playback screen. See the below
table for an explanation of the video settings:
65

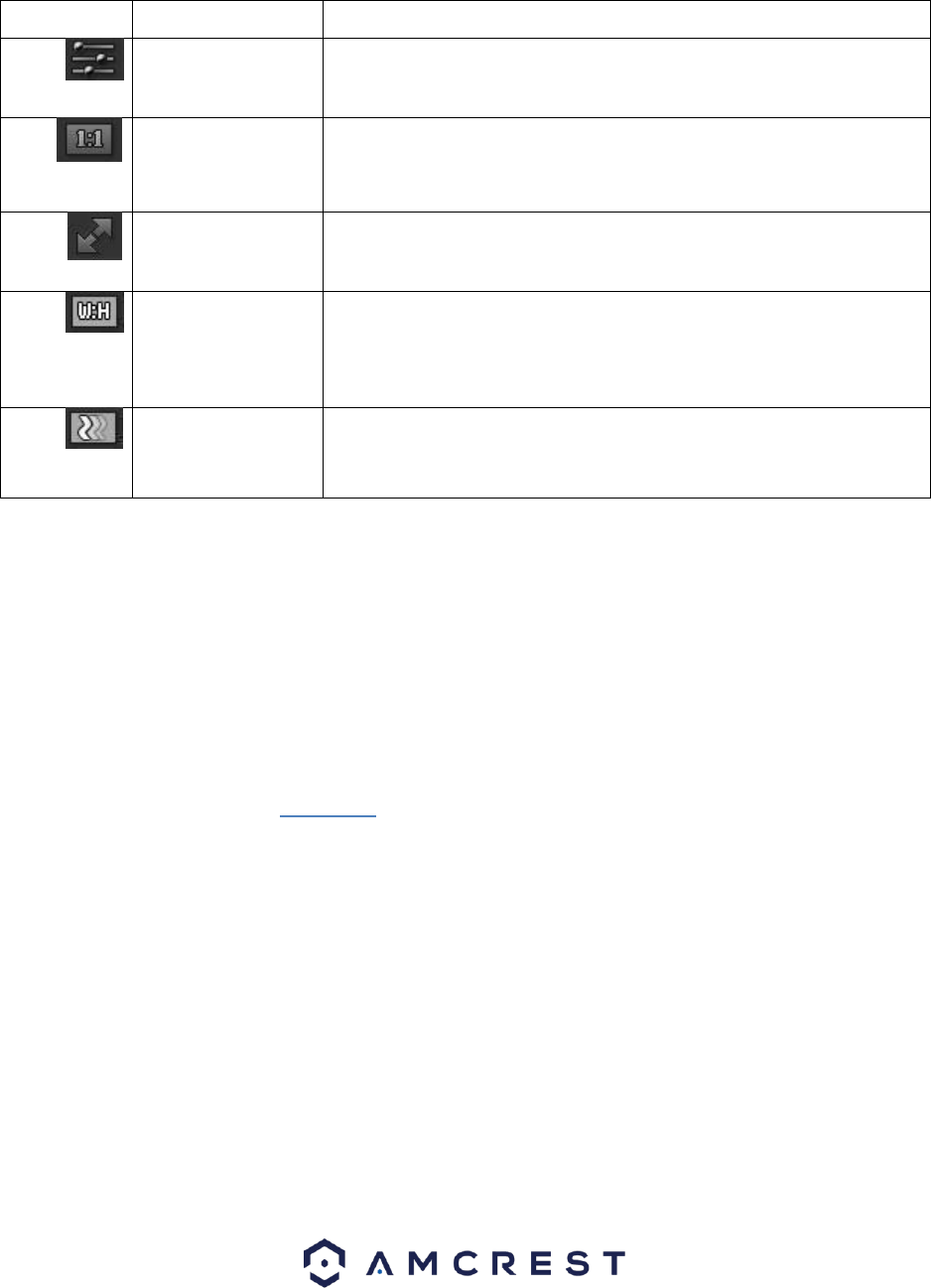

Button
Function Name
Function Description
Image Adjustment
This button opens the image adjustment toolbar, which allows the
user to adjust brightness, contrast, saturation, and hue for the live
feed’s picture.
Adapt/Original Size
This button allows the user to switch between displaying the original
size of the stream in its set resolution, or to adapt to the size of the
monitor display the feed is being viewed on.
Full Screen
This button allows the user to make the live feed go into full screen
mode. Double click the mouse or click the ESC button to exit full
screen mode.
Width/Height
Ratio
This button allows the user to change the width/height ratio for the
live feed. The options are Original and Adaptive. Original uses the
aspect ratio of the stream’s set resolution, and adaptive fits the feed
to the aspect ratio of the monitor display the feed is being viewed on.
Stream Fluency
This button allows the user to change the stream fluency. There are 3
options. Realtime reduces delay and decreases fluency, and Fluency
has a larger delay but the video stream becomes more fluid.
Section 4: This section of the Live tab shows the
picture that the camera is broadcasting. The
bitrate is shown in the top left corner, the native
resolution is shown in the top right corner, the
time stamp is shown below the native resolution,
and the camera type is shown in the bottom left
corner.
5.2 PTZ
The PTZ tab allows the user to change the position
of the camera. Below is a screenshot of the PTZ tab:
66

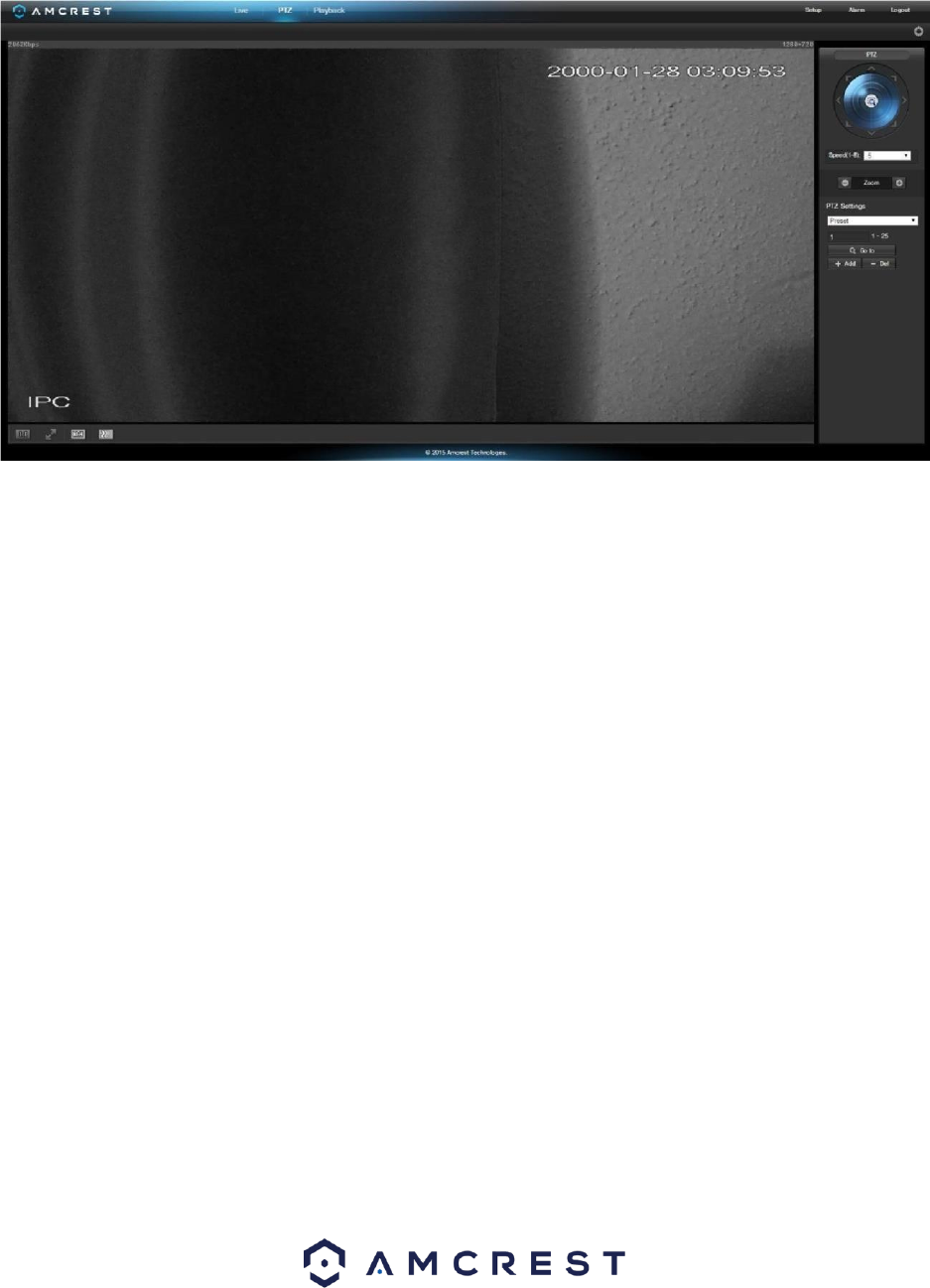

The PTZ control panel allows the user to position
the camera in different ways. Below is a screenshot
of the PTZ control panel:

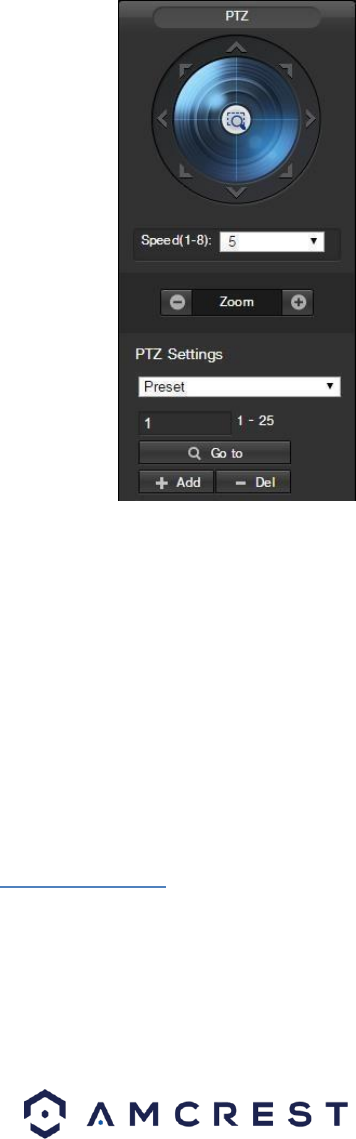

The arrows on the PTZ control panel allow the user to
move the camera’s position in a specific direction. The
button in the middle of the direction arrow allows the
user to select an area in the live view to zoom in on.
The speed dropdown box allows the user to control
the speed at which the camera moves. The values
range from 1 to 8, 8 being the fastest.
The zoom buttons allow the user to digitally zoom in
and out on the live preview picture.
The dropdown box under PTZ settings allows the
user to configure Presets and Tours. Preset allows
the user to designate specific PTZ positions for the
camera. To create and manage presets, follow the
steps below:
● Configure the camera positioning as needed.
● Input the preset number, and then click the + Add button
● Click - Del to delete the current preset.
67
● Click Go To to access a preset.
Tour allows the user to string multiple presets together.
To create and manage tours, follow the steps below:
● Ensure you have more than 1 preset configured already.
● Input the tour value and click Start.
● Input the preset value and then click the Add Preset button to add a
preset.
● Continue adding presets as needed.
● Click Del Preset to remove a preset from the tour.
● Click - Del to delete the entire tour.
5.3 Playback
The Playback tab allows the user to playback the camera’s
recorded video. Below is a screenshot of the Playback tab:
68

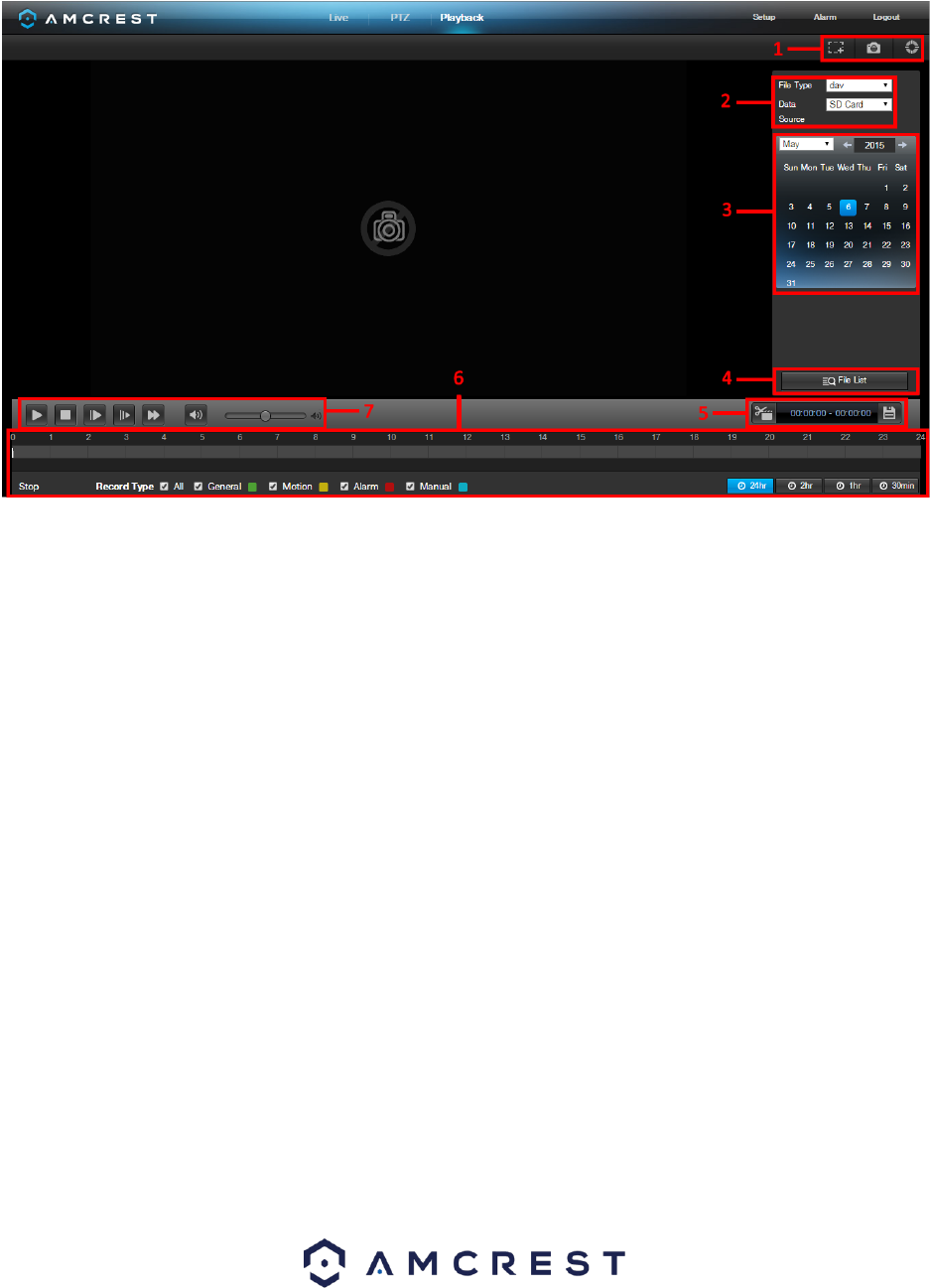

This is the interface for the playback menu. There are 7 main sections:
1. Quick Actions: This panel allows the user to
zoom in on playback footage, take a snapshot of
the playback footage, or open the help menu.
2. File Menu: This panel allows the user to select a
file type and data source.
3. Calendar: This panel allows the user to pick a
date that they would like to playback video
from. When a date has recorded footage
available, it’s green. The current date is blue,
unless it has recorded footage, then it’s a lighter
green.
4. File List: This button opens a file list of all
recorded video for a specific date range. From
here, the user can download these videos to
their PC.
5. Trim Panel: This panel allows the user to trim
playback video for download. By specifying time
stamps, the user can trim down.
69
6. Recorded Video Panel: This panel allows the
user to specify what type of video they would
like to playback and it also allows the user to
select where to start playback from. The
buttons on the bottom right allow the user to
select a zoom level.
7. Playback Bar: This panel allows the user to
control playback. It also allows the user to
control playback speed, and playback volume.

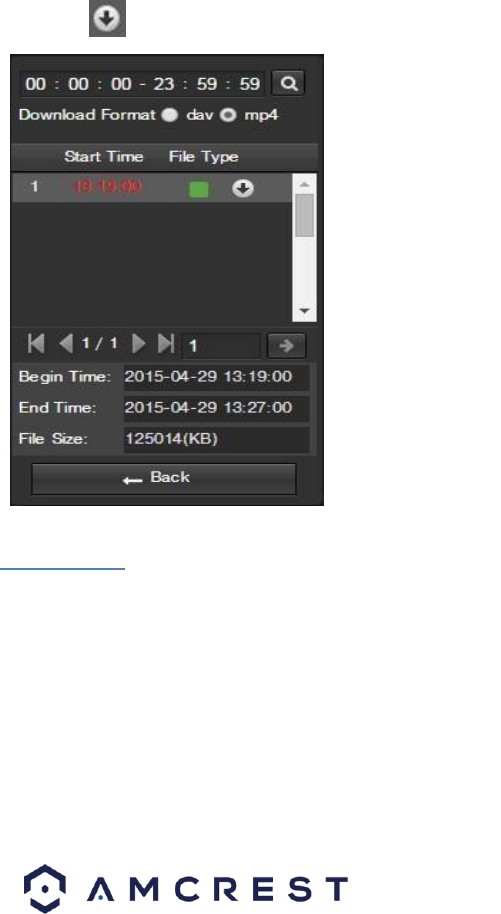

Clicking the File List opens the following screen on the sidebar:
This allows the user to select files for download. Select
the files by clicking the checkbox next to each file, and
then click
5.4 Setup
The Setup tab allows the user to change different
camera settings. Below is a screenshot of the setup
tab:
to download the files to the PC.
70

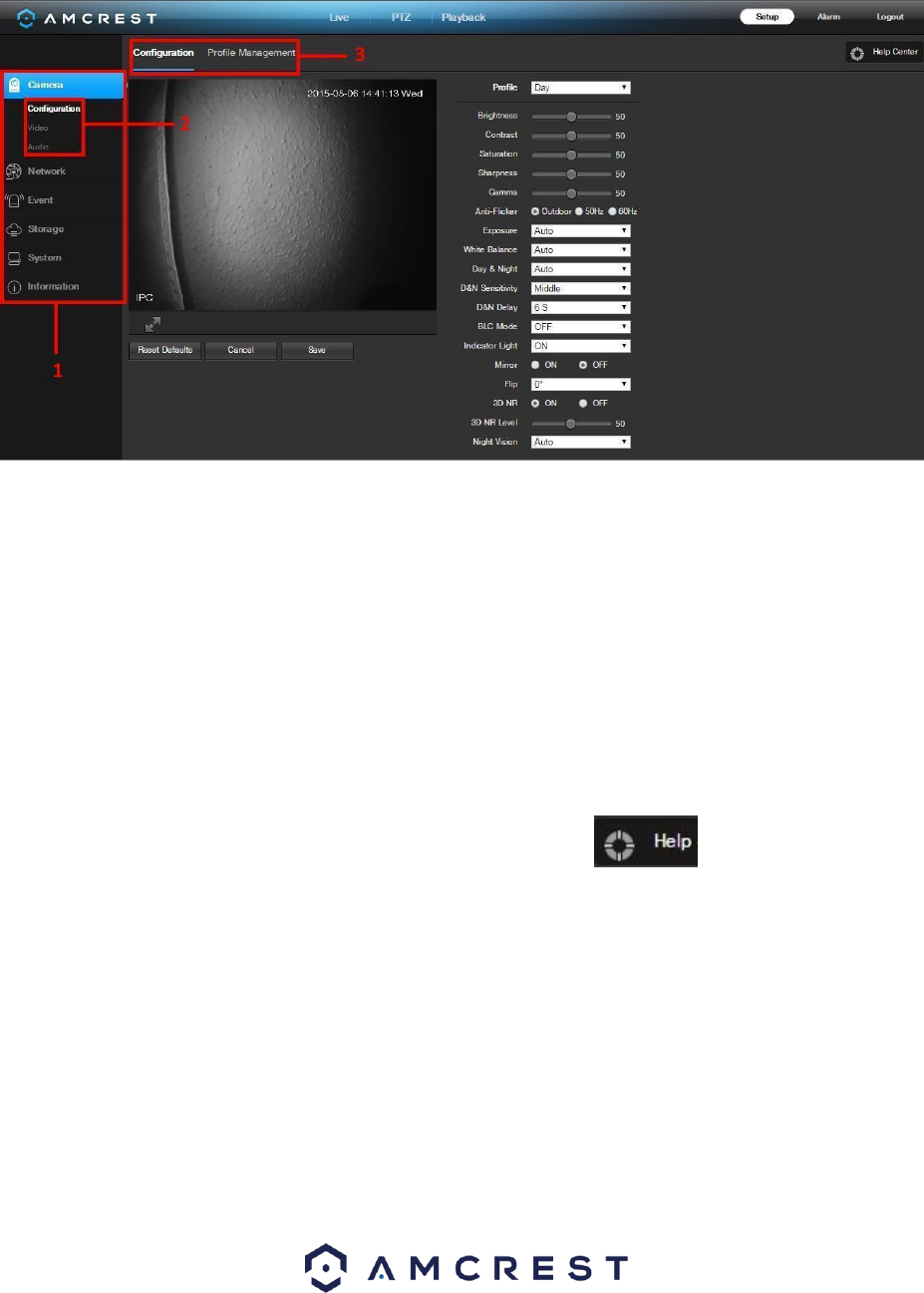

There are 3 main sections to note in the Setup tab:
1. Menu Bar: The menu bar is composed of menu
sections, which when clicked display any menu
items that fall under their category.
2. Menu Items: These menu items each open up a
different menu that allows the user to change
specific settings for the camera.
3. Menu Tab: These tabs open up menu options
for certain menu items.
Note: To view additional information about any of
the information in the menu, click the
button near the top right corner.
In the rest of section 5.4, we will be exploring all of
the different menus that are available through web
access.
5.4.1 Camera
This menu section allows the user to change
different camera settings for video, audio, and to
manage image profiles.
71
5.4.1.1 Configuration
This menu allows the user to configure image
profiles for normal, day, and night usage.
5.4.1.1.1 Configuration

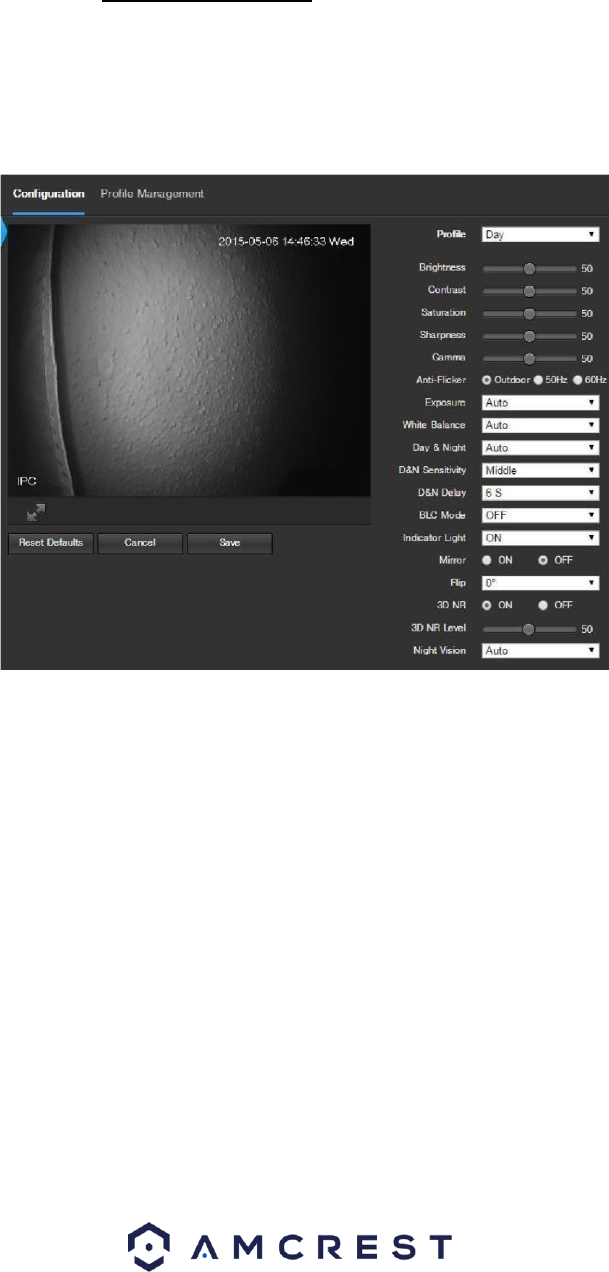

Below is a screenshot that shows the Configuration
tab in the Configuration menu item:
Below is an explanation for each of the fields on the
Configuration tab in the Configuration menu item:
● Profile: This dropdown box allows the user to
select which profile to modify. The 3 options
are Day, Night, and Normal.
● Brightness: This slider is used to adjust
playback and recorded video window
brightness. The value ranges from 0 to 100. The
default value is 50. The larger the number, the
brighter the video is. When you input the value
here, the bright section and the dark section of
the video will be adjusted accordingly. You can
use this function when the whole video is too
dark or too bright. Please note the video may
become hazy if the value is too high. The
recommended value ranges from 40 to 60.
72
● Contrast: This slider is used to adjust playback
and recorded video window contrast. The value
ranges from 0 to 100. The default value is 50.
The larger the number is, the higher the
contrast is. You can use this function when the
whole video brightness is OK but the contrast is
not correct. Please note the video may become
hazy if the value is too low. If this value is too
high, the dark section may lack brightness while
the bright section may over expose. The
recommended value ranges from 40 to 60.
● Saturation: This slider is used to adjust
playback and recorded video window
saturation. The value ranges from 0 to 100. The
default value is 50. The larger the number, the
stronger the color is. This value has no effect on
the general brightness of the whole video. The
video color may become too strong if the value
is too high. For the grey part of the video,
distortion may occur if the white balance is not
accurate. Please note the video may not be
clear if the value is too low. The recommended
value ranges from 40 to 60.
● Sharpness: This slider is used to adjust the
sharpness of the video. The value ranges from 0
to 100. The larger the value is, the clearer the
edges are and vice versa. Note: The higher the
value, the higher likelihood of picture noise
occurring. The default value is 50 and the
recommended value ranges from 40 to 60.
● Gamma: This slider is used to adjust the gamma
of the video. The larger the number, the
brighter the video is. The default value is 50
and the recommended value ranges from 40 to
60.
● Anti-Flicker: These radio buttons allow the user
to select what type of anti-flicker technology
should be used for the video feed. The three
options are 50 Hz, 60 Hz, and Outdoor. The
desired option should offset any flickering
73
effect caused by the electrical current used in
the specific area.
● Exposure: This dropdown box allows the user
to select the exposure type for the video feed.
The options are Auto, Low Noise, Low Motion
Blur, and Manual. When low noise is selected,
an additional option to specify a gain range
appears below this box. When low motion blur
is selected, an additional option to specify
shutter speed appears below this box. When
manual is selected, additional options to specify
a shutter speed and a gain range appear below
this box.
● White Balance: This dropdown box allows the
user to select the white balance for the video
feed. The different options are Auto, Sunny,
Night, Outdoor, and Customized. Selecting
customized opens a menu that allows the user
to set specific red or blue values.
● Day & Night: This dropdown box allows the
user to select which type of picture is displayed.
The options are Color, Auto, and Black & White.
● D&N Sensitivity: This option allows the user to
change the Day/Night Sensitivity of the camera.
The three options are Low, Middle, and High.
The higher the sensitivity, the quicker the
camera will change into another mode
depending on the light levels.
● D&N Delay: This dropdown box allows the user
to set a delay in seconds for how long it takes
to switch between Day and Night modes. The
values range from 2 seconds to 10 seconds.
● BLC Mode: This dropdown box allows the user
to select Back Light Compensation. The values
are Off, BLC (Auto), WDR, and HLC. This feature
should only be used in black lit environments.
● Indicator Light: This dropdown box allows the
user to select whether the indicator light on the
74
back of the camera is on or off for the selected
profile.
● Mirror: This radio button allows the user to
turn the mirroring feature on or off. Turning
mirroring on will mirror the picture.
● Flip: This dropdown box allows the user to flip
the video feed picture. Flipping the picture is
recommended only if the camera is mounted
upside down.
● 3D NR: This radio button allows the user to turn
the 3D Noise Reduction feature on or off.
● 3D NR Level: This slider allows the user to
specify the 3D Noise Reduction level. The value
ranges from 1-100.
● Night Vision: This dropdown box allows the
user to select whether the camera turns on
night vision automatically or if night vision
remains off.
To reset to default settings, click the Reset Defaults
button. To cancel any modifications, click the Cancel
button. To save the settings, click the Save button.
5.4.1.1.2 Profile Management

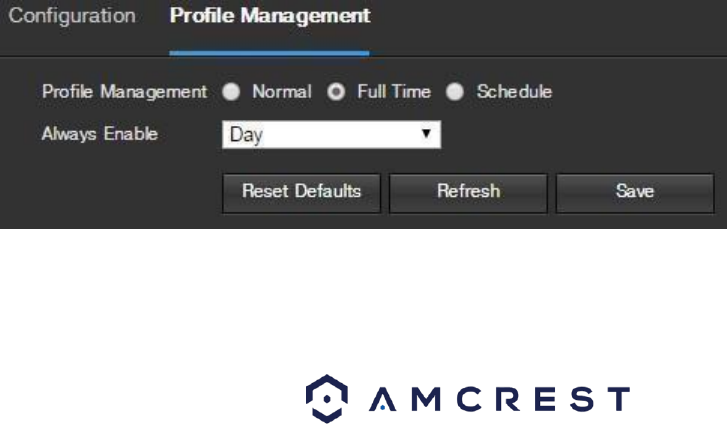

Below is a screenshot that shows the Profile
Management tab in the Configuration menu item:
75
Below is an explanation for each of the fields on the Profile
Management tab in the Configuration menu item:
● Profile Management: This set of radio buttons
allow the user to set what basis the profile
management settings run on. There are 3
options: Normal, Full Time, and Schedule.
Normal means that the system can
automatically alternate between night and
day based on the profiles for each.
Full Time means that the system sticks to one
profile the entire time it is running. Schedule
allows the user to dictate which times of the day
are designated for the day profile and the night
profile.
To reset to default settings, click the Reset Defaults
button. To refresh the page, click the Refresh button.
To save the settings, click the Save button.
5.4.1.2 Video
This section allows the user to change video settings
for the camera’s video feed. There are 4 tabs in this
menu item: Video, Snapshot, Overlay, and Path.
5.4.1.2.1 Video
Below is a screenshot that shows the Video tab in the Video menu item:
76

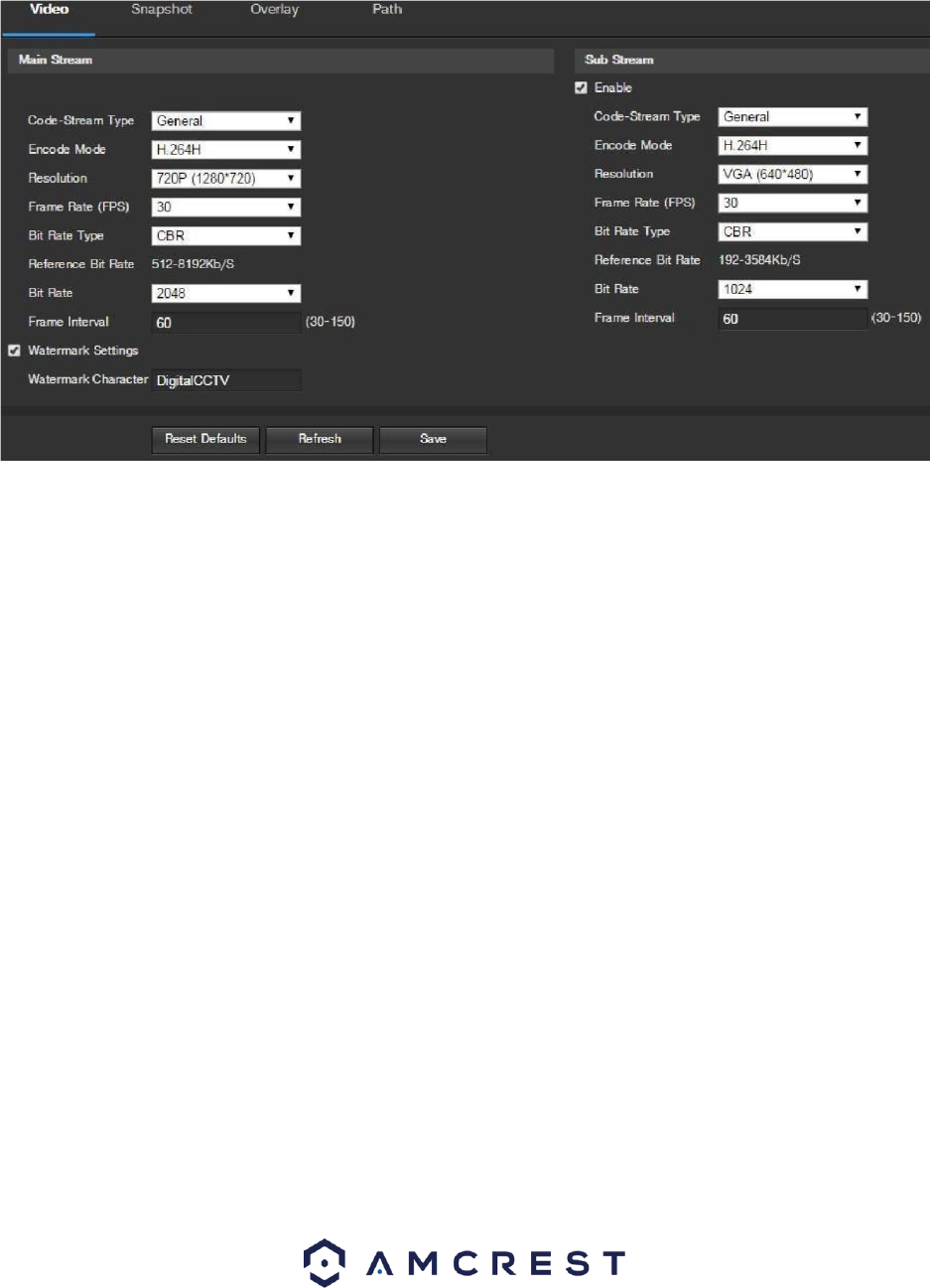

Below is an explanation for each of the fields on
the Video tab in the Video menu item:
● Code-Stream Type: This dropdown box allows
the user to select different encode frame rates
for different recorded events. This includes the
main stream, motion stream, and alarm stream.
The camera supports active control frame
function (ACF). It allows the user to record in
different frame rates. For example, a high
frame rate can be used to record important
events, and a low frame rate can be used to
record scheduled events. The camera also allows
for the option to set different frame rates for
motion detection recordings and alarm
recordings.
● Encode Mode: This dropdown box allows the
user to select a compression protocol. The
system supports H.264 and MJPEG video
compression protocols.
● Resolution: This dropdown box allows the user to
set the resolution. The system supports various
resolutions and they can be selected from this
dropdown list.
77
● Frame Rate (FPS): This dropdown box allows the
user to select a frame rate. Frame rate settings
are measured in frames per second (FPS), and
can range from 1f/s to 25f/s in PAL mode and
1f/s to 30f/s in NTSC mode.
● Bit Rate Type: This dropdown box allows the user
to select a bit rate type. The system supports two
bit rate types: CBR and VBR. In VBR mode, video
quality can be set.
● Reference Bit Rate: This is the recommended bit
rate value according to the resolution and frame
rate selected.
● Bit Rate: This dropdown box allows the user to
select a bit rate.
● Frame Interval: This field allows the user to set
the P frame amount between two I frames. The
value ranges from 1 to 150 seconds. Default
value is 50. Recommended value is frame rate *2.
● Watermark Settings: This function allows the
user to verify if the video has been tampered
with.
● Watermark Character: This field allows the user
to set the watermark’s text. The default string is
DigitalCCTV. The maximum length is 85
characters. This string can only include numbers,
characters, and underscores.
Sub Stream is a lower quality stream that allows the
feed to take up less resources and bandwidth when
streaming. The Main Stream and the Sub Stream
have the same fields. Sub Stream can be enabled by
checking the box next to Enable.
To reset to default settings, click the Reset Defaults
button. To refresh the page, click the Refresh
button. To save the settings, click the Save button.
78
5.4.1.2.2 Snapshot
Below is a screenshot that shows the Snapshot tab in the Video menu item:

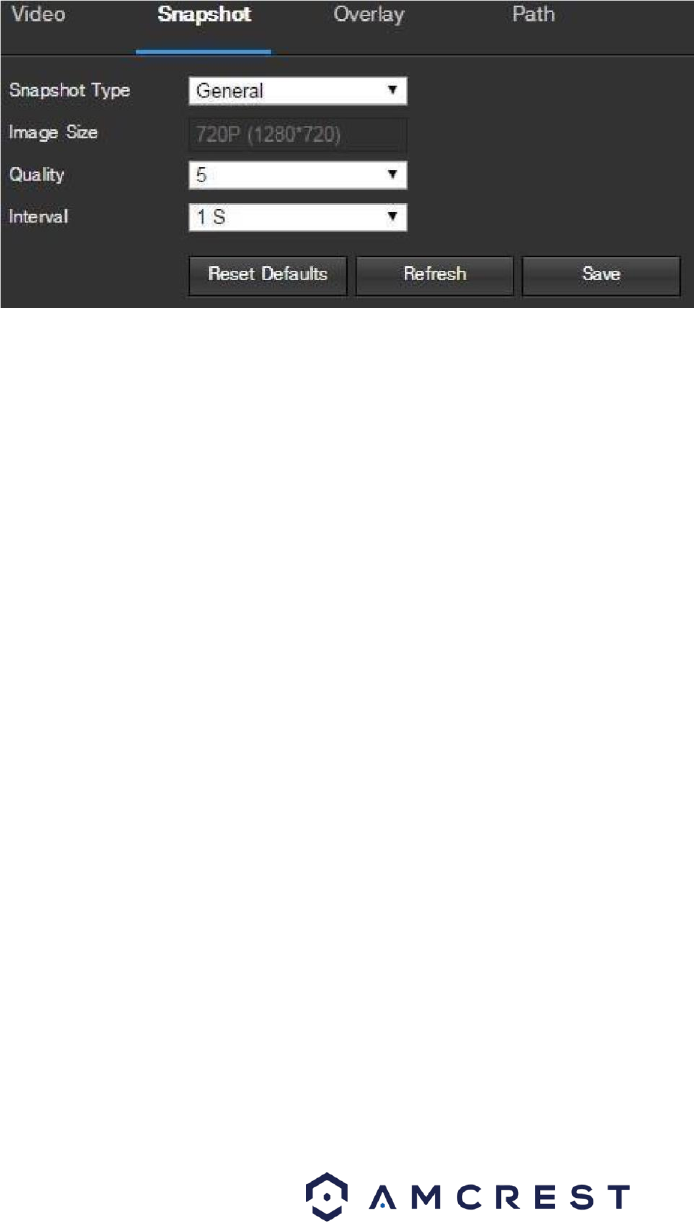

Below is an explanation for each of the fields on the
Snapshot tab in the Video menu item:
● Snapshot Type: This dropdown box allows the
user to select a snapshot mode. There are two
snapshot modes:
general and event. General snapshots are taken as scheduled. Event
snapshots occur when a motion detection alarm or a
tampering alarm is triggered.
● Image Size: This dropdown box shows the image
size. By default the screenshot size is the same
size as the video feed’s resolution.
● Quality: This dropdown box allows the user to
select image quality. Quality is adjusted on a scale
of 1-6.
● Interval: This is to set snapshot frequency. The
value ranges from 1 to 7 seconds.
The maximum setting for a customized interval is 3600s/picture.
To reset to default settings, click the Reset Defaults
button. To refresh the page, click the Refresh
button. To save the settings, click the Save button.
5.4.1.2.3 Overlay

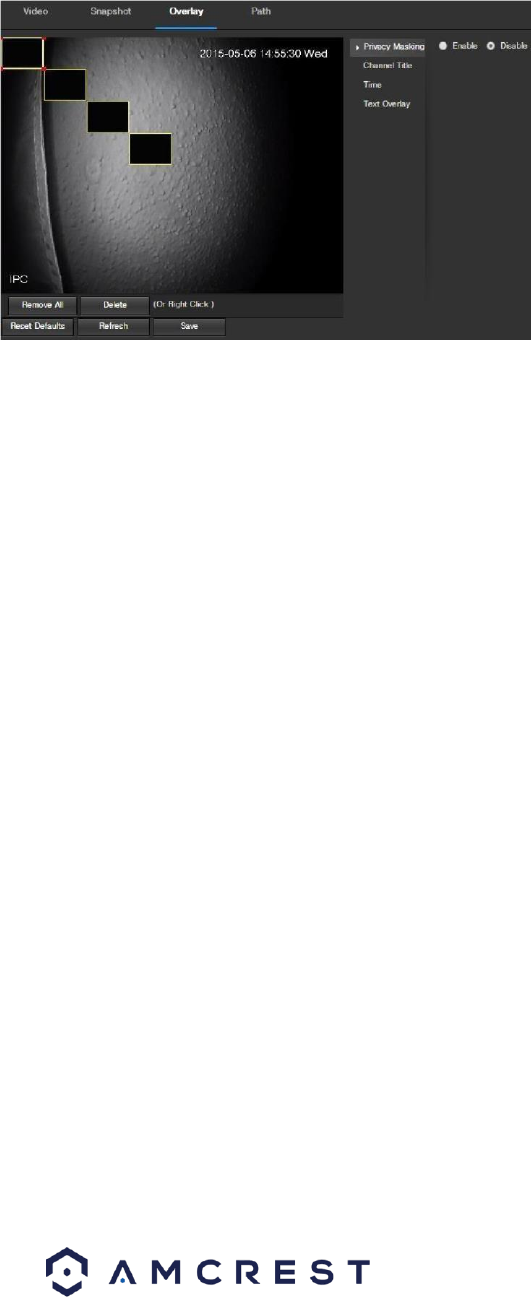

Below is a screenshot that shows the Overlay tab in the Video menu item:
79
The menu on the left allows the user to select which
overlay to modify. Privacy Masking, Channel Title,
Time, and Text Overlay can all be modified in this
menu.
For Privacy Masking, the radio button enables or
disables the feature. To set a privacy mask, click
one of the boxes in the live view window, and
position or resize it as needed. To remove a box,
click on it, then click the delete button. To remove
all privacy filter boxes, click the remove all button.
For Channel Title, the radio button enables or disables
the feature. The Input Channel Title field allows the
channel title to be modified.
For Time, the radio button enables or disables the
feature. Clicking the Display Weekdays checkbox will
show the weekday at the end of the timestamp.
For Text Overlay, the radio button enables or disables
the feature. The Input Text box allows the user to enter
multiple lines of text as needed, and the Text
Alignment dropdown box allows the user to align the
text either right or left.
To reset to default settings, click the Reset Defaults
button. To refresh the page, click the Refresh
button. To save the settings, click the Save button.
80
5.4.1.2.4 Path
Below is a screenshot that shows the Path tab in the Video menu item:

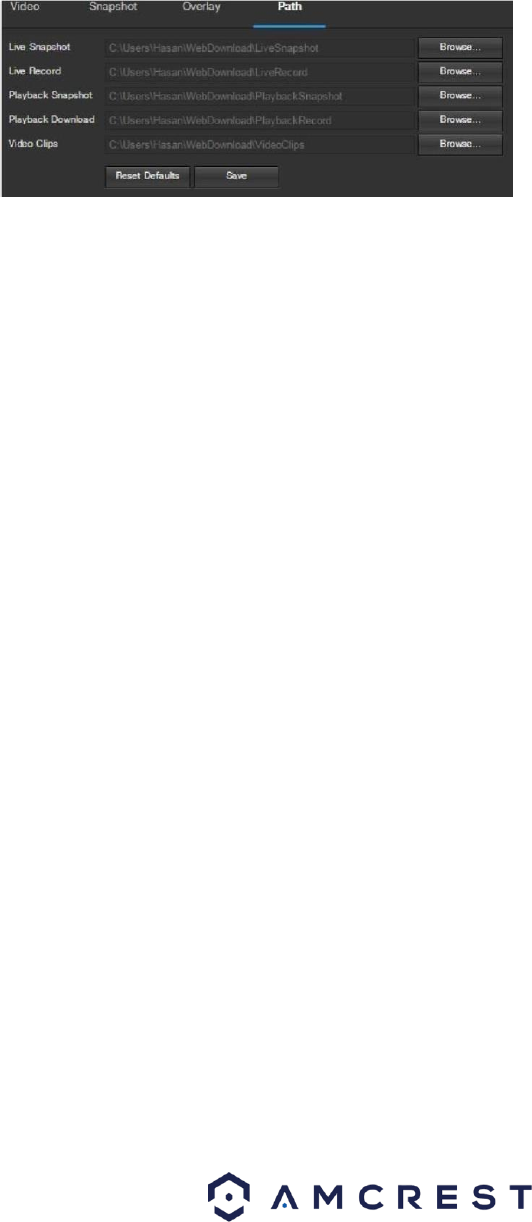

Below is an explanation for each of the fields on the Path tab in the Video
menu item:
● The Live Snapshot field allows the user to select
where to save live snapshots to. Click the
Browse button to select a different destination
folder.
● The Live Record field allows the user to select
where to save live recordings to. Click the
Browse button to select a different destination
folder.
● The Playback Snapshot field allows the user to
select where to save playback snapshots to.
Click the Browse button to select a different
destination folder.
● The Playback Download field allows the user to
select where to save playback video downloads
to. Click the Browse button to select a different
destination folder.
● The Video Clips field allows the user to select
where to save video clips to. Click the Browse
button to select a different destination folder.
To reset to default settings, click the Reset Defaults
button. To save the settings, click the Save button.
81
5.4.1.3 Audio
This menu allows the user to modify audio settings
for the camera. Below is a screenshot that shows the
Audio menu item under the Camera menu section:

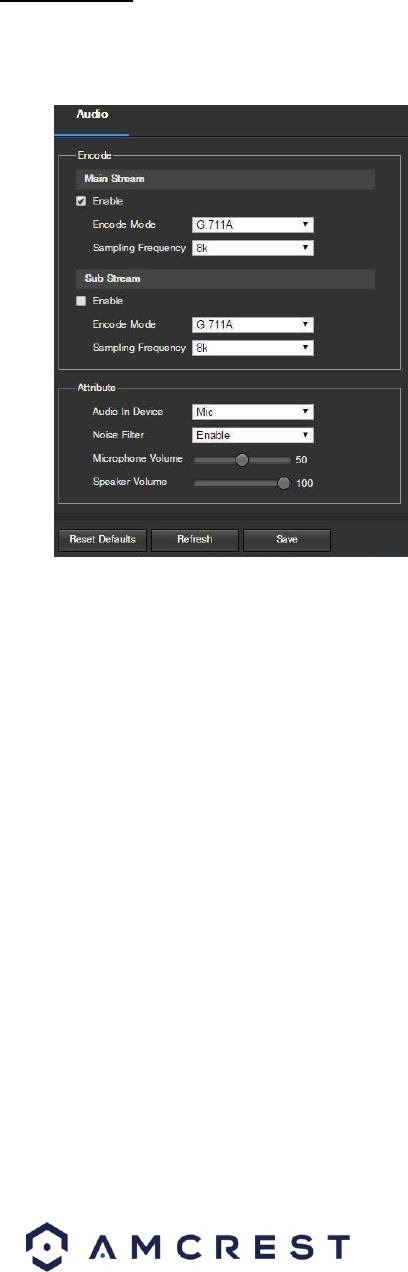

Below is an explanation for each of the fields on the Audio menu:
● Enable: This checkbox allows the user to
enable audio recording.
● Encode Mode: This dropdown box allows the
user to select what audio format the audio
should be recorded in.
● Sampling Frequency: This dropdown box
allows the user to select a sampling frequency
for the audio. The options are 8k and 16k. 16k
audio sampling allows for higher sound quality.
● Audio In Device: This field allows the user to
select what source to get audio from. The
default is the camera’s built-in mic.
Alternatively, the line in mic can be selected.
● Noise Filter: This dropdown box allows the
user to enable or disable the audio noise filter
function. This function provides cleaner audio
quality when enabled.
82
● Microphone Volume: This slider allows the
user to select the microphone volume. The
value ranges from 0 to 100. The default value
is 50.
● Speaker Volume: This slider allows the user to
select the speaker volume. The value ranges
from 0 to 100. The default value is 50.
To reset to default settings, click the Reset Defaults
button. To refresh the page, click the Refresh
button. To save the settings, click the Save button.
5.4.2 Network
This menu section allows the user to change network settings for the camera.
5.4.2.1 TCP/IP
The TCP/IP menu item has two tabs: TCP/IP and P2P.
5.4.2.1.1 TCP/IP
TCP/IP stands for Transmission Control
Protocol/Internet Protocol and it is the
language/protocol that allows communication
between internet connected devices, whether on
a local network, or a on the Internet at large. This
screen allows for TCP/IP settings to be modified in
order for the camera to establish a connection to
the network. Below is a screenshot of the TCP/IP
settings tab:

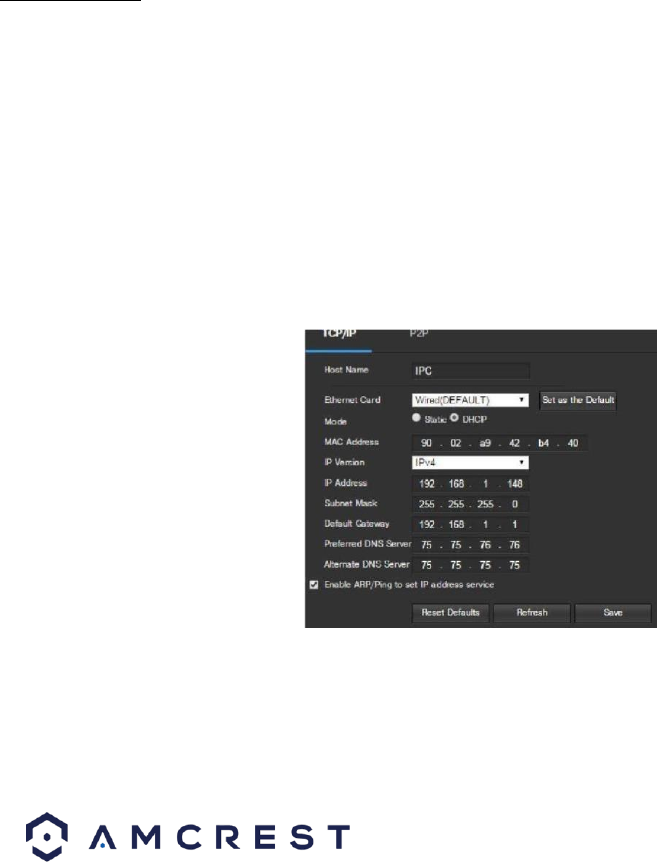

Below is an explanation of the fields on the TCP/IP settings tab:
83
● Host Name: This text field allows the user to change the host device name for the camera. This field supports
a maximum of 15 characters.
● Ethernet Card: This dropdown box allows the user to select which internet access device to use. If the device
is connected to a wired connection and a wireless one at the same time, then this box will have options to
pick either of the connections. The Set as Default button allows the user to select one of the connection
methods as the default one.
● Mode: Static vs DHCP: This radio button allows the user to choose between a static IP address, and a dynamic
IP address. DHCP stands for Dynamic Host Configuration Protocol, and this enables the camera to
automatically obtain an IP address from another network device such as a server or more commonly, a
router. When the DHCP function is enabled, the user cannot modify the IP address, Subnet Mask, or Default
Gateway, as these values are obtained from the DHCP function. To view the current IP address, DHCP needs
to be disabled. Note: When PPPoE is enabled, modification of the IP Address, Subnet Mask, and Gateway
becomes prohibited.
● MAC Address: This field shows the camera’s MAC address, which is unique to this device. This number is
readonly and is used to access a local area network (LAN).
84
IP Version: This dropdown allows the user to select the IP version. The two options are IPV4 and IPV6.
● IP Address: This field allows the user to enter a custom IP address.
● Subnet Mask: This field allows the user to enter a custom subnet mask.
● Default Gateway: This field allows the user to enter a custom default gateway.
● Preferred DNS Server: This field allows the user to enter the preferred DNS server IP address.
● Alternate DNS Server: This field allows the user to enter the alternate DNS server IP address.
● Enable ARP/Ping to set IP Address Service: This checkbox allows the user to enable the ARP/Ping service to change the
IP address service. For more information on this feature, click the help button while on the TCP/IP settings tab.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.2.1.1 P2P
The P2P settings screen is where users can use a QR code to connect their smartphone or tablet to the camera. This feature
needs to be enabled for use with the Amcrest View app, Amcrest Cloud, or AmcrestView.com. Below is a screenshot of the
P2P settings tab:

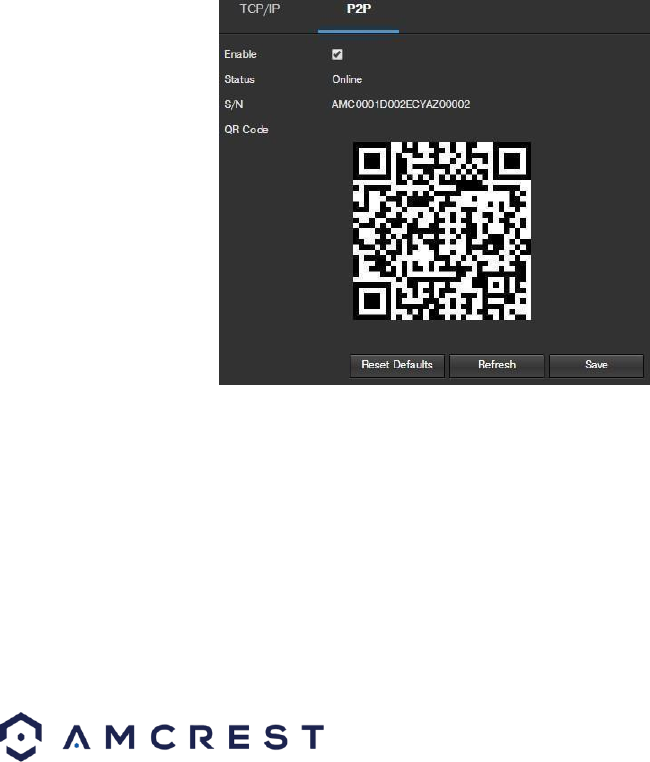

Below is an explanation of the fields on the P2P settings tab:
Enable: This checkbox allows the user to enable the P2P feature for the camera. This feature must be enabled for the
camera to connect to a smartphone or tablet via the Amcrest View app. It is enabled by default.
● Status: This field displays the status of the P2P connection. Once the camera is connected to a device, this field should
display the word Online.
85
● S/N: This field displays the Token ID for the camera. The Token ID can be used to manually enter the camera’s
information on a mobile or tablet device in case the QR code scanning feature cannot be used.
● QR Code: This image is a Quick Response (QR) code. By scanning this image using the Amcrest View app, this camera can
establish a connection with the app.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.2.2 Connection
The Connection menu item has two tabs: Connection and ONVIF.
5.4.2.2.1 Connection
The Connection tab is where users can configure port connections. Below is a screenshot of the Connection settings tab:
Below is an explanation of the fields on the Connection settings tab:
● Max Connections: This field allows the user to specify the maximum amount of users that can be connected to the
camera at the same time. The maximum number of users the camera can support at one time is 20.
● TCP Port: This field designates the Transmission Control Protocol (TCP) port number. The default value is 37777.
UDP Port: This field designates the User Datagram Protocol (UDP) port number. The default value is 37778.
● HTTP Port: This field designates the Hypertext Transfer Protocol (HTTP) port number. The default value is 80. ● RTSP
Port: This field designates the Real Time Streaming Protocol (RTSP) port number. The default value is 554.
● HTTPS: This checkbox enables the use of the HTTPS protocol for accessing the camera.
● HTTPS Port: This field designates the Hypertext Transfer Protocol Secure (HTTPS) port number. The default value is 443.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
86
5.4.2.2.2 ONVIF
The ONVIF tab is where users can configure authentication via the ONVIF standard. Below is a screenshot of the ONVIF
settings tab:

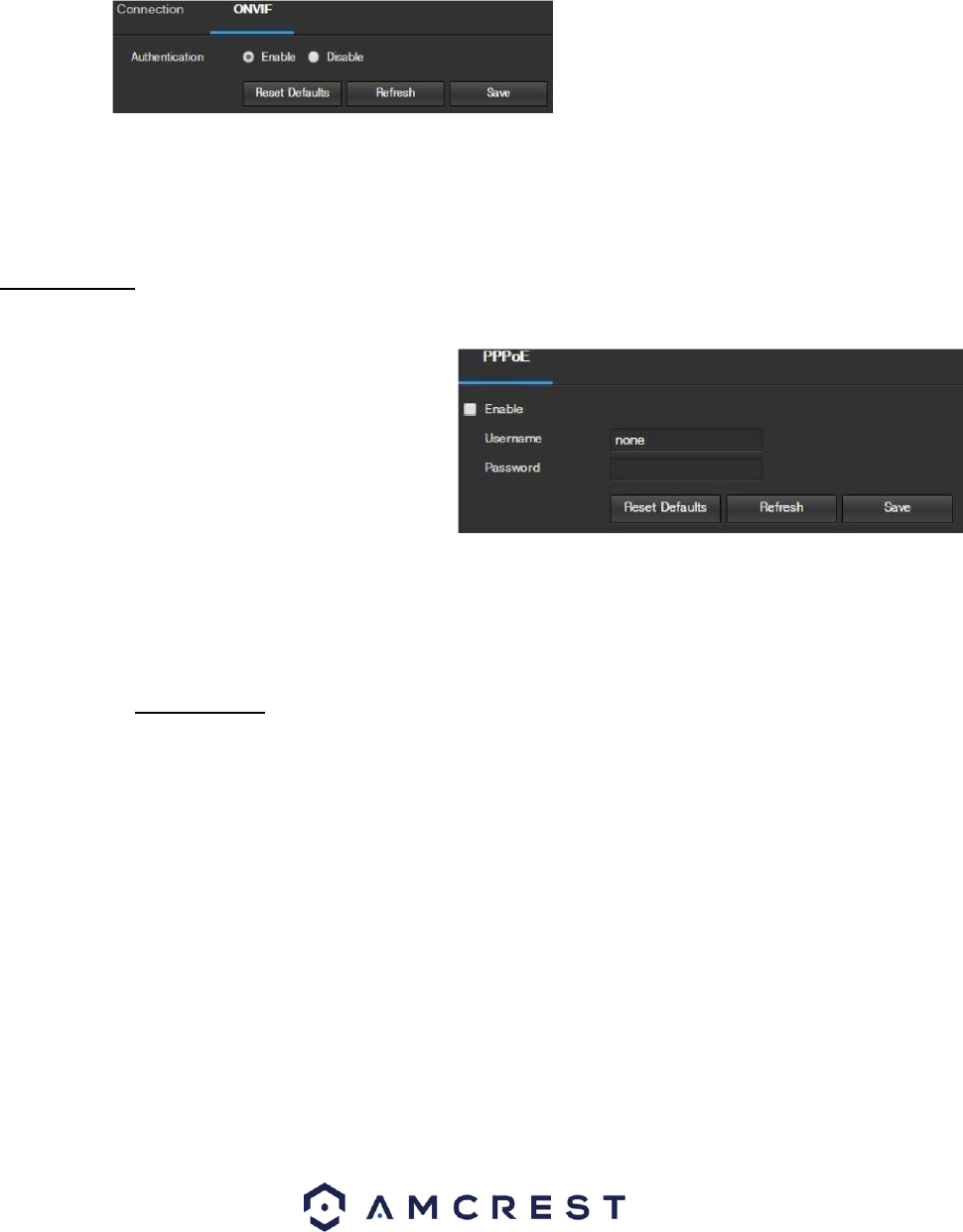

To enable ONVIF, click the radio button next to Enable, and then click the save button.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.2.3 PPPoE
PPPoE stands for Point-to-Point Protocol over Ethernet. This screen allows users to configure PPPoE connections. Below is a
screenshot of the PPPoE screen:
To enable PPPoE, click the enable checkbox, and fill in the username and password fields, then click Save.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.2.4 DDNS
DDNS stands for Dynamic Domain Name Server. This technology is used to
automatically update name servers in real time in order to help the camera maintain
a persistent address despite changes in location or configuration. What this means is
that even when the camera is restarted, moved, or reconfigured, it can keep the same
IP address, thus allowing remote users uninterrupted access to the camera, rather
than having to request a new IP address to use for remote access anytime a change is
made.
To use this feature, users will need to setup an account with a DDNS service. The
camera supports a variety of DDNS services such as AmcrestDDNS, Quick DDNS, NO-IP
DDNS, CN99 DDNS, and Dyndns DDNS. Based on which service is selected, different
options may show on this screen. For purposes of this guide, AmcrestDDNS will be
87
used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be
renewed every year. A renewal reminder email will be sent to the email entered in
the username field below.
To configure the camera for DDNS access using AmcrestDDNS, see section 4.7.1.
Below is a screenshot of the DDNS settings screen, configured to AmcrestDDNS:
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.5 IP Filter
This screen allows for the filtering of IP addresses, either blocking them, or granting
them access to the camera. This feature helps make the camera more secure by
limiting remote access only to approved users. Below is a screenshot of the IP Filter
screen:
Below is an explanation of fields on the IP Filter settings screen:
88
● Trusted Sites: This checkbox allows the user to enable the IP Filter feature for
trusted sites.
● Add IP/MAC: This button opens a popup that allows the user to add IP or MAC
addresses to the trusted site list. Note: When accessing the camera externally,
please add the MAC address of the router on the PC end.
● Remove All: This button allows the user to remove all sites from the trusted IP/MAC
list.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.6 SMTP (Email)
This screen allows for the configuring of email settings in order to permit the camera
to send emails when an alarm is triggered. Below is a screenshot of the email settings
screen:

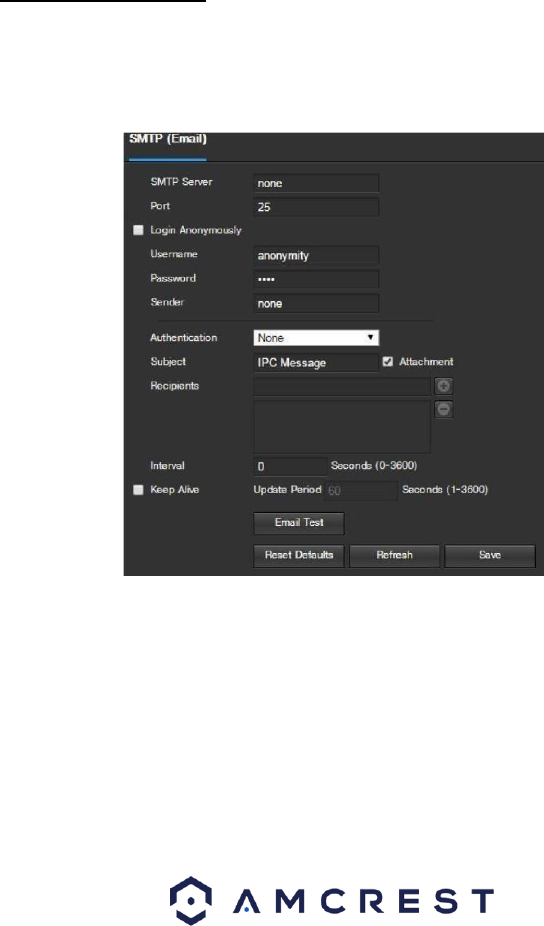

Below is an explanation of fields on the SMTP (Email) settings screen:
● SMTP Server: SMTP stands for Simple Mail Transfer Protocol. This field allows the
user to enter the SMTP server used by the email service.
● Port: This field allows the user to enter the port that corresponds to the selected
SMTP server.
89
● Login Anonymously: This checkbox allows the user to anonymously login to the
server.
● Username: This field allows the user to enter the SMTP username.
● Password: This field allows the user to enter the password associated with the SMTP
username.
● Sender: This field allows the user to enter the sender email address. This email
address will be the one that sends out all emails pertaining to the alerts and alarm
emails sent by the camera.
● Authentication: This dropdown box allows the user to select an encryption type.
There are two types of email encryption protocols that are available. o SSL:
Secure Socket Layer o TLS: Transport Layer Security
● Subject: This field allows the user to define the subject line of the email that is sent
to the receivers.
● Recipients: This field allows the user to enter the receiver email address. These
email addresses are the ones that will receive any emails pertaining to alert and
alarm emails sent by the camera. Up to 3 email addresses can be entered in this
field.
● Interval: This field allows the user to define, in seconds, how long the system should
wait between sending emails. This prevents multiple emails from being sent out.
● Keep Alive: This checkbox allows the user to enable a function to periodically check
in with the SMTP server to ensure it can connect correctly.
● Email Test: This button causes the system to automatically send out an email to test
the connection is OK or not. Prior to the email test, please save the email setup
information.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.7 UPnP
UPnP stands for Universal Plug and Play, and it is a protocol used to easily connect
devices to the internet. In the case of this camera, it allows the camera to connect to
the router in an easy manner to quickly allow for remote access. Below is a
screenshot of the UPnP settings screen:
90
Below is an explanation of fields on the UPnP settings screen:
● Enable: This checkbox allows the user to enable the UPnP function.
● Router State: This field shows the UPnP status and has two options: o
Unknown: This means that UPnP mapping has failed.
o Successful: This means that UPnP mapping has succeeded.
● Port Mapping List: This table is used to show how the ports for each protocol listed
below have been remapped by the UPnP protocol.
o The first column shows the checkboxes to enable the corresponding
service on the table. o The second column shows the name of the
services. To edit this, double click on the service line item. o The
third column shows the name of the protocol used by that service. To
edit this, click the pencil button in the modify column for that line item.
o The fourth column shows the Internal Port used by that service to
establish communication from the router to the camera. To edit this, click
the pencil button in the modify column for that line item.
o The fifth column shows the External Port used by that service to establish
communication from the router to the internet. To edit this, click the
pencil button in the modify column for that line item.
o The sixth column shows the status of the protocol. If the protocol was
mapped successfully, this field will say “Mapping Succeeded”.
91
o The seventh column allows the user to open a dialog box and edit the
service’s information. To see how to setup the camera for remote
access, see section 4.7.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.8 SNMP
SNMP stands for Simple Network Management Protocol. This protocol is used to
provide a basic framework in order to allow connection between various network
devices. Below is a screenshot of the SNMP settings screen:

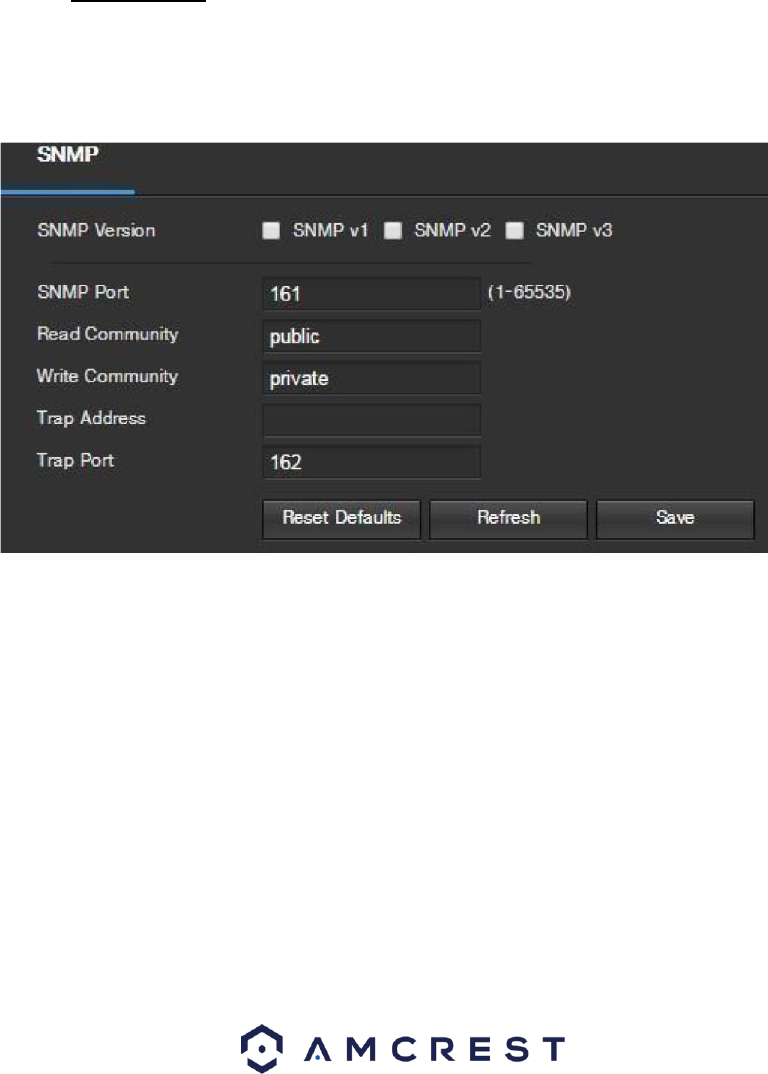

Below is an explanation of fields on the SNMP settings screen:
● SNMP Version: These checkboxes allow the user to select the SNMP version to use.
● SNMP Port: This field allows the user to write in a port for SNMP to use. The port
can range from anywhere from 1 to 65535.
● Read Community: This field shows which SNMP community has read access.
● Write Community: This field shows which SNMP community has write access. ●
Trap Address: This field allows the user to write in a trap address.
92
● Trap Port: This field allows the user to write in a trap port number. The trap port
number should not be the same as the SNMP port.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.9 Bonjour
Bonjour is Apple's implementation of Zero-configuration networking (Zeroconf), a
group of technologies that includes service discovery, address assignment, and
hostname resolution. Below is a screenshot of the Bonjour settings screen:

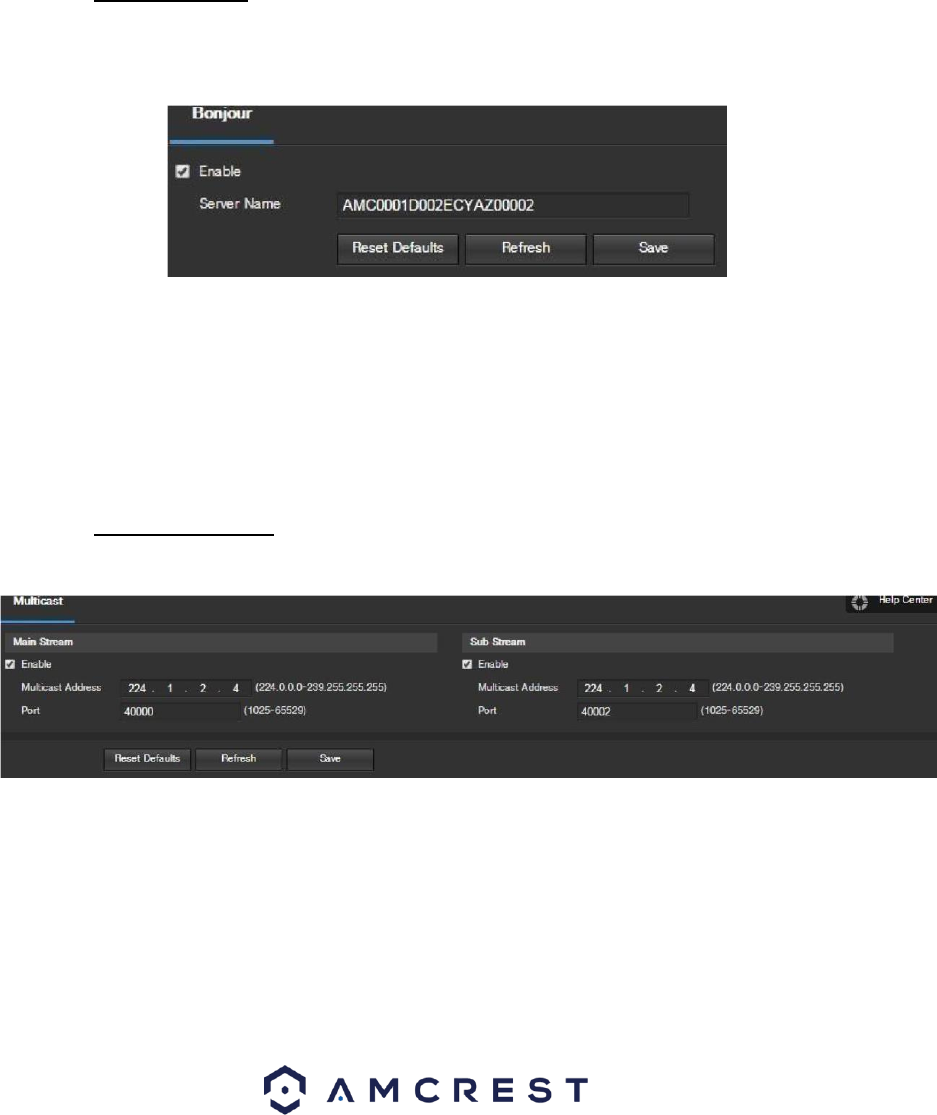

Click the checkbox next to Enable to the Bonjour functionality. The Server Name field
allows the user specify what name to use in order to connect devices via the Bonjour
protocol.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.10 Multicast
Multicast is a feature that enables the camera to broadcast its live view to multiple
computers on the same network. Below is a screenshot of the multicast screen:
Below is an explanation of the fields in the Multicast settings screen:
● Enable: This checkbox allows the user to enable Multicast functionality.
● Multicast Address: This field allows the user to enter a multicast address.
93
● Port: This field allows the user to enter a multicast port.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.11 WiFi
The WiFi menu item has two tabs: WiFi and WPS.
5.4.2.11.1 WiFi
The WiFi feature on this camera allows it to connect to a network wirelessly. Below is
a screenshot of the WiFi tab on the WiFi menu:
Below is an explanation of the fields on the WiFi tab of the WiFi menu:
● Enable: This checkbox allows the user to enable WiFi functionality.
● Add SSID: This button allows the user to manually enter in an SSID.
● Search SSID: This button allows the user to search for more SSIDs.
● Refresh: This button obtains the most recent WiFi network information.
To connect to a WiFi network, click the line item for a specific network, and enter in
the password if needed.
5.4.2.11 802.1x
802.1x is an authentication method for connecting to a network. Below is a
screenshot of the 802.1x screen:
94

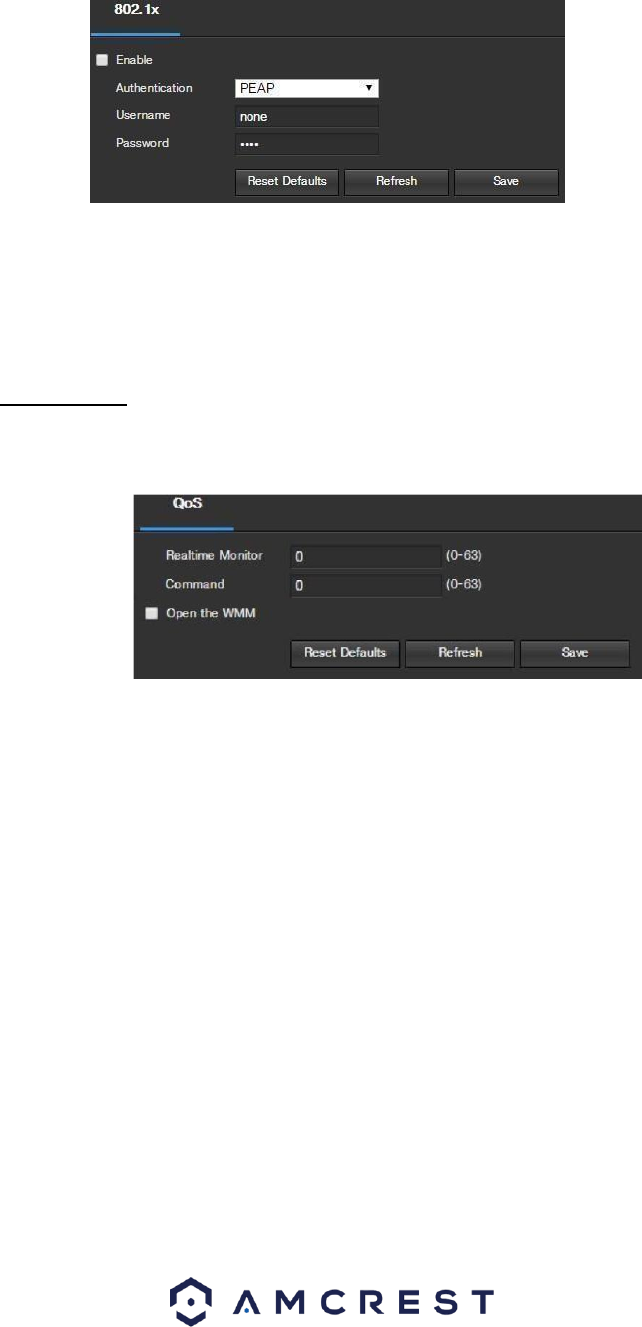

To enable 802.1x, click the checkbox next to Enable. An authentication method can be
chosen from the dropdown box, and a username and password can be entered in
their respective fields.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.2.12 QoS
QoS stands for Quality of Service and it refers to the overall performance of a
computer network, particularly the performance seen by the users of the network.
Below is a screenshot of the QoS screen:
Below is an explanation of the fields on the QoS screen:
● Realtime Monitor: This field allows the user to enter in a priority value for realtime
monitoring packets. The range is between 0-63.
Command: This field allows the user to enter in a priority value for command
packets. The range is between 063.
● Open the WMM: This checkbox allows the user to open the WiFi MultiMedia
(WMM) options.
To reset to default settings, click the Reset Defaults button. To refresh the page, click
the Refresh button. To save the settings, click the Save button.
5.4.3 Event
This menu section allows the user to change different settings for triggering events.
95
5.4.3.1 Video Detection
The video detection menu has two tabs: Motion Detect and Video Tamper.
5.4.3.1.1 Motion Detect
This tab allows the user to modify motion detection settings. Below is a screenshot of
the Motion Detect tab:

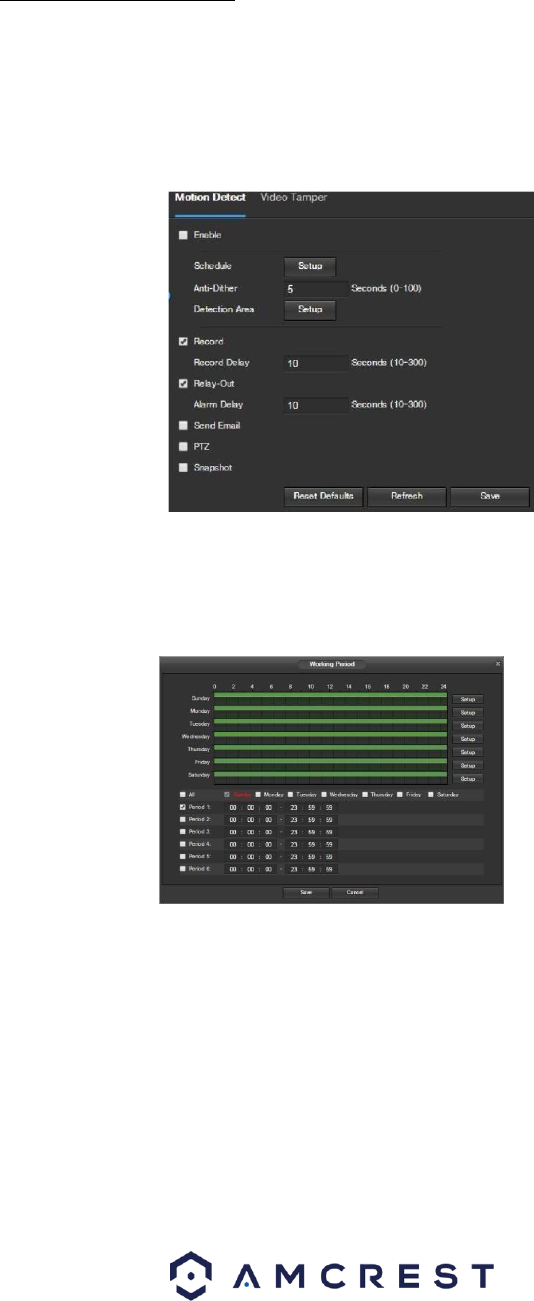

Below is an explanation of the fields on the Motion Detect tab:
● Enable: This checkbox enables motion detection for the camera.
● Working Period: Clicking this button opens a weekly schedule that can be used to set
times.

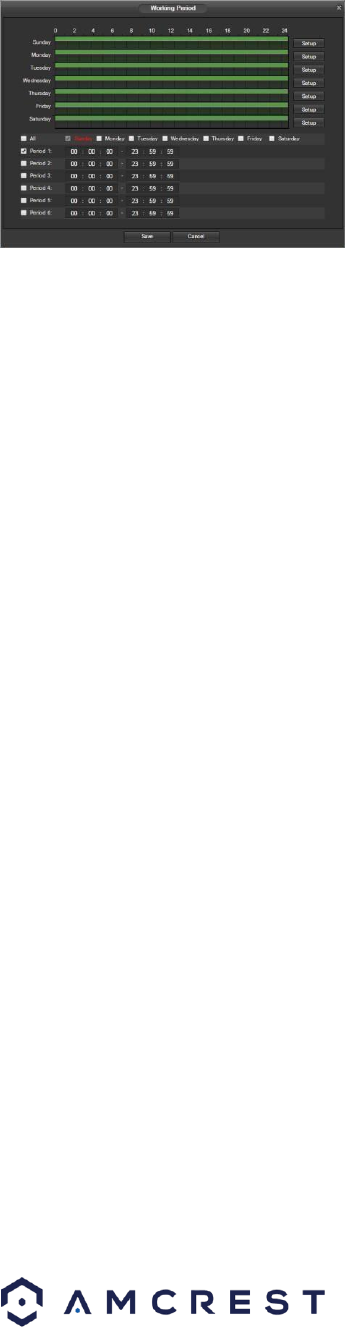

o Click and drag to set motion detection for certain days of the week. Also,
periods of motion detection can be set for each day and enabled using the
period settings on the bottom half of the screen. There are a total of 6
periods that can be set.
Anti-Dither: This field allows the user to set the anti-dither time. The values in
this field can range from 5 to 600 seconds. This time value controls how long the
96
alarm signal lasts. Based on motion detection, a buzzer can go off, a tour can
begin, PTZ can be activated, a snapshot can be taken, or the camera can begin
recording.
o For example, if the anti-dither time is set to 10 seconds, each alarm may
last 10 seconds if the local alarm is activated. During the process, if the
system detects another local alarm signal at the fifth second, the buzzer,
tour, PTZ activation, snapshot, record channel functions will begin
another 10 seconds while the screen prompt, alarm upload, email will
not be activated again. After 10 seconds, if system detects another
alarm signal, it can generate a new alarm since the anti-dither time has
expired.
● Detection Area: Clicking this button opens a pop up screen that can be used to set
detection areas.
o When the setup button is clicked, a live stream of the video is shown. The
user can then set up to 4 regions, each with their own region name,
sensitivity (1-100), and threshold (1-100). Each region has a specific color,
and the region selector tool is displayed when the mouse is moved to the
top of the screen.
▪ Sensitivity is the amount of change required to increase the
motion detected by a percentage. The lower the sensitivity, the
more movement is required to trigger an alarm.
▪ Threshold is the level that the motion detection needs to
reach in order to trigger an alarm. The lower the threshold,
the more likely that motion will trigger an alarm.
97
o To designate a zone, click and drag the mouse over the area desired.
When a colored box is displayed over the live feed, that area is now
enabled for motion detection.
o After the motion detection zone is set, click the enter button to exit the
motion detection screen. Remember to click the save button on the
motion detection settings screen, otherwise the motion detection zones
will not go into effect. Clicking the cancel button to leave the motion
detection zone and will not save the zone setup.
● Record: This checkbox allows the user to enable the camera to record video when a
motion detection alarm is triggered.
● Record Delay: This field specifies in seconds how long the delay between alarm
activation and recording should be.
● Relay Out: This checkbox allows the user to enable the camera to trigger a
connected alarm (connected to the alarm port on the back of the camera) when a
motion detection alarm is triggered.
● Alarm Delay: This field specifies in seconds how long the delay between alarm
activation and Relay alarm activation should be.
Send Email: This checkbox allows the user to enable the camera to send an email when a motion detection alarm
is triggered.
● PTZ: This checkbox allows the user to enable the camera to activate a PTZ tour when
a motion detection alarm is triggered.
● Snapshot: This checkbox allows the user to enable the camera to take a snapshot
when a motion detection alarm is triggered.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.3.1.2 Video Tamper

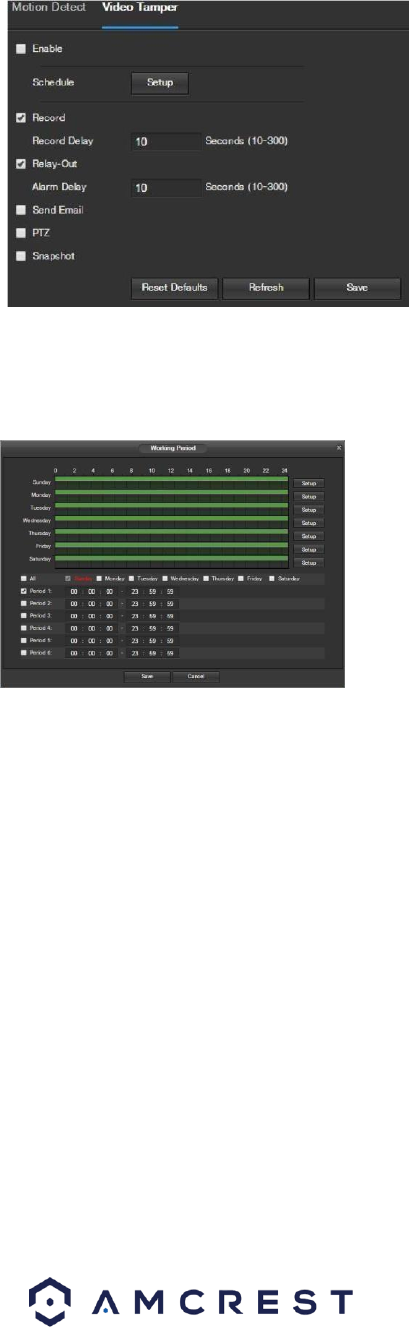

This tab allows the user to modify video tamper settings. Below is a screenshot of the Video Tamper tab:
98
Below is an explanation of the fields on the Video Tamper tab:
● Enable: This checkbox enables a video tamper alarm for the camera.
● Working Period: Clicking this button opens a weekly schedule that can be used to set times.
o Click and drag to set video tampering
for certain days of the week. Also, periods of video tampering can be set for each day and enabled using the period
settings on the bottom half of the screen. There are a total of 6 periods that can be set. Record: This checkbox
allows the user to enable the camera to record video when a video tampering alarm is triggered.
● Record Delay: This field specifies in seconds how long the delay between alarm activation and recording should be.
● Relay Out: This checkbox allows the user to enable the camera to trigger a connected alarm (connected to the alarm port
on the back of the camera) when a video tamper alarm is triggered.
● Alarm Delay: This field specifies in seconds how long the delay between alarm activation and Relay alarm activation
should be.
● Send Email: This checkbox allows the user to enable the camera to send an email when a video tampering alarm is
triggered.
● PTZ: This checkbox allows the user to enable the camera to activate a PTZ tour when a video tampering alarm is
triggered.
99
● Snapshot: This checkbox allows the user to enable the camera to take a snapshot when a video tampering alarm is
triggered.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.3.2 Audio Detection
This menu allows the user to modify audio detection settings. Below is a screenshot of the Audio Detect screen:

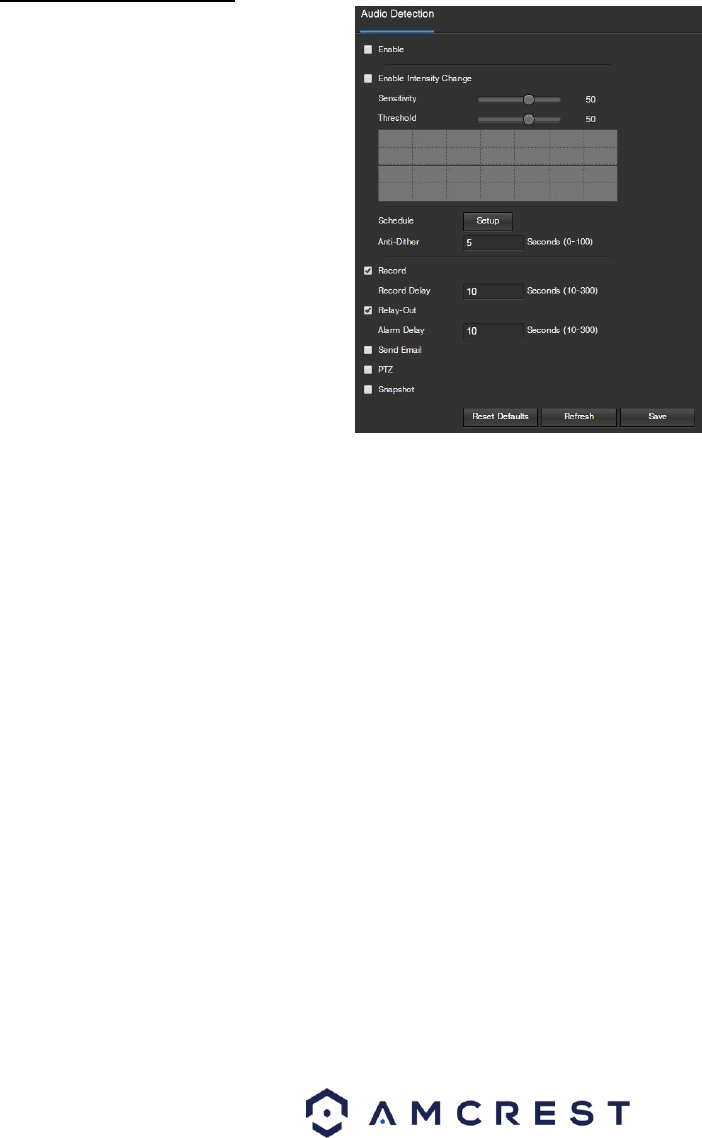

Below is an explanation of the fields on the Audio Detect tab:
● Enable: This checkbox enables an audio detection alarm for the camera.
Enable Intensity Change: This checkbox enables intensity change for the camera audio.
o Sensitivity is the amount of change required to increase the audio detected by a percentage. The lower the
sensitivity, the more audio variance is required to trigger an alarm.
o Threshold is the level that the detected audio needs to reach in order to trigger an alarm. The lower the
threshold, the more likely that audio will trigger an alarm.
● Working Period: Clicking this button opens a weekly schedule that can be used to set times.
100
o Click and drag to set audio tampering
for certain days of the week. Also, periods of audio detection can be set for each day and enabled using the period
settings on the bottom half of the screen. There are a total of 6 periods that can be set.
● Anti-Dither: This field allows the user to set the anti-dither time. The values in this field can range from 5 to 600 seconds.
This time value controls how long the alarm signal lasts. Based on audio detection, a buzzer can go off, a tour can begin,
PTZ can be activated, a snapshot can be taken, or the camera can begin recording.
o For example, if the anti-dither time is set to 10 seconds, each alarm may last 10 seconds if the local alarm is
activated. During the process, if the system detects another local alarm signal at the fifth second, the buzzer,
tour, PTZ activation, snapshot, record channel functions will begin another 10 seconds while the screen prompt,
alarm upload, email will not be activated again. After 10 seconds, if system detects another alarm signal, it can
generate a new alarm since the anti-dither time has expired.
● Record: This checkbox allows the user to enable the camera to record video when an audio detection alarm is triggered.
● Record Delay: his field specifies in seconds how long the delay between alarm activation and recording should be.
● Relay Out: This checkbox allows the user to enable the camera to trigger a connected alarm (connected to the alarm port
on the back of the camera) when an audio detection alarm is triggered.
● Alarm Delay: This field specifies in seconds how long the delay between alarm activation and Relay alarm activation
should be.
● Send Email: This checkbox allows the user to enable the camera to send an email when an audio detection alarm is
triggered.
● PTZ: This checkbox allows the user to enable the camera to activate a PTZ tour when an audio detection alarm is
triggered.
● Snapshot: This checkbox allows the user to enable the camera to take a snapshot when an audio detection alarm is
triggered.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
101
5.4.3.3 Alarm
This screen is used to set external alarm settings for the camera and any devices attached to the camera’s
relay. Below is a screenshot of the Alarm settings screen:

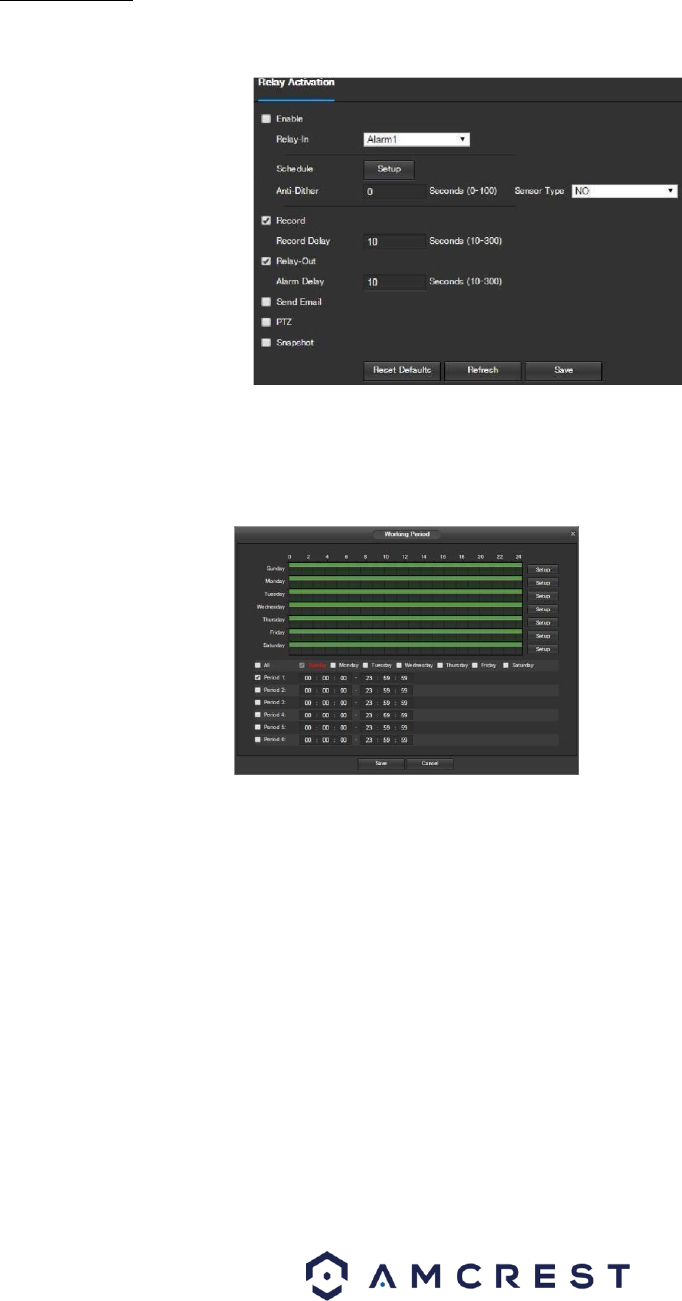

Below is an explanation of the fields on the Alarm settings screen:
o Enable: This checkbox enables external alarm activation for the camera.
o Relay In: This dropdown box allows the user to select which relay input’s settings are modified. ● Working
Period: Clicking this button opens a weekly schedule that can be used to set times.
o Click and drag to set alarm
activation for certain days of the week. Also, periods of relay activation can be set for each day and
enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that
can be set.
o Anti-Dither: This field allows the user to set the anti-dither time. The values in this field can range from 5 to 600
seconds. This time value controls how long the alarm signal lasts. Based on relay activation, a buzzer can go off,
a tour can begin, PTZ can be activated, a snapshot can be taken, or the camera can begin recording. o
For example, if the anti-dither time is set to 10 seconds, each alarm may last 10 seconds if the local alarm is
activated. During the process, if the system detects another local alarm signal at the fifth second, the buzzer,
tour, PTZ activation, snapshot, record channel functions will begin another 10 seconds while the screen prompt,
alarm upload, email will not be activated again.
102
After 10 seconds, if system detects another alarm signal, it can generate a new alarm since the antidither
time has expired.
Sensor Type: This dropdown box allows the user to select which sensor type to use. The options are Normally
Open (NO) and Normally Closed (NC).
● Record: This checkbox allows the user to enable the camera to record video when an alarm is activated.
● Record Delay: This field specifies in seconds how long the delay between alarm activation and recording should be.
● Relay Out: This checkbox allows the user to enable the camera to trigger a connected alarm (connected to the alarm
port on the back of the camera) when a relay activation alarm is triggered.
● Alarm Delay: This field specifies in seconds how long the delay between alarm activation and Relay alarm activation
should be.
● Send Email: This checkbox allows the user to enable the camera to send an email when an alarm is activated.
● PTZ: This checkbox allows the user to enable the camera to activate a PTZ tour when an alarm is activated.
● Snapshot: This checkbox allows the user to enable the camera to take a snapshot when an alarm is activated.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.3.4 Abnormality
This menu has 3 tabs: SD Card, Network, and Illegal Access
5.4.3.4.1 SD Card
This tab allows the user to set the camera’s response to an SD card related abnormality. Below is a
screenshot of the SD card tab screen:
103

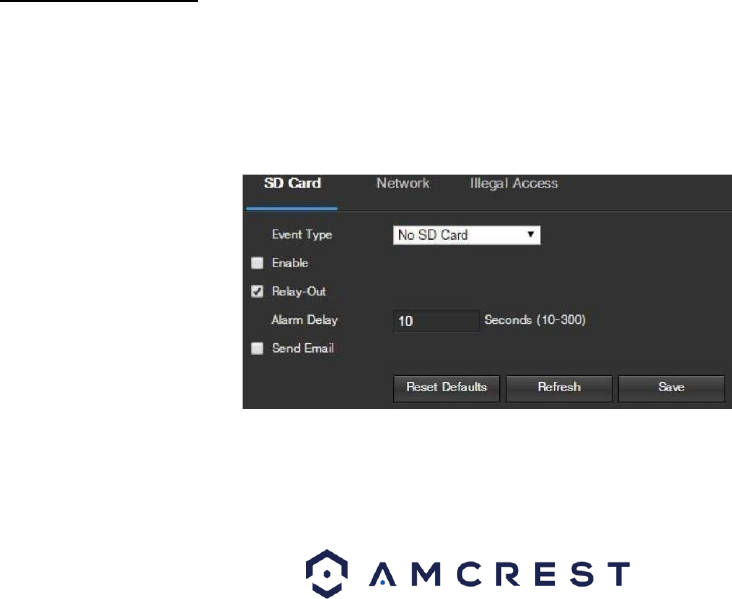

Below is an explanation of the fields on the SD Card settings tab:
Event Type: This dropdown box allows the user to select which SD card abnormality to set event triggers
for. The 3 options are No SD Card, SD Card Error, and Capacity Warning.
Enable: This checkbox enables the SD Card abnormality trigger for the camera.
● Relay Out: This checkbox allows the user to enable the camera to trigger an alarm when an SD Card abnormality
is detected.
● Alarm Delay: This field specifies in seconds how long the delay between alarm activation and relay alarm
activation should be.
● Send Email: This checkbox allows the user to enable the camera to send an email when an SD Card abnormality
is detected.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.3.4.2 Network
This tab allows the user to set the camera’s response to a Network related abnormality. Below is a screenshot
of the Network tab screen:

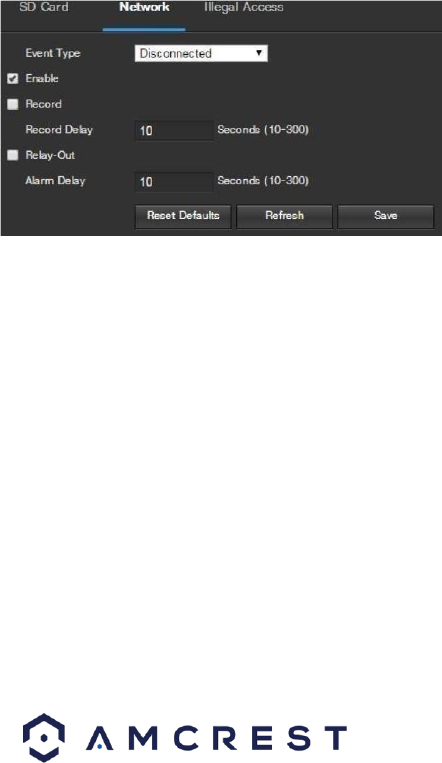

Below is an explanation of the fields on the Network settings tab:
● Event Type: This dropdown box allows the user to select which Network abnormality to set event triggers for. The 2
options are Disconnection and IP Conflict.
● Enable: This checkbox enables the Network abnormality trigger for the camera.
● Record: This checkbox allows the user to enable the camera to record video when a network abnormality is
detected.
● Record Delay: This field specifies in seconds how long the delay between alarm activation and recording should be.
Relay Out: This checkbox allows the user to enable the camera to trigger an alarm when a network abnormality is
detected.
104
Alarm Delay: This field specifies in seconds how long the delay between alarm activation and relay alarm
activation should be.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.3.4.3 Illegal Access
This tab allows the user to set the camera’s response to an Illegal Access related abnormality. Below is a screenshot of
the Illegal Access tab screen:

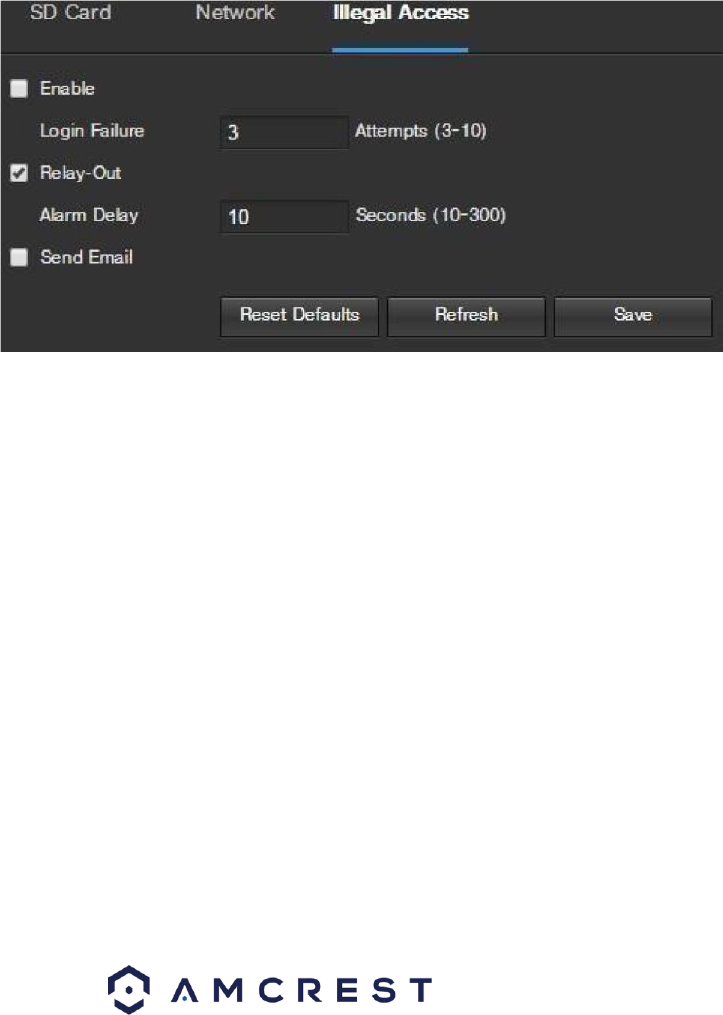

Below is an explanation of the fields on the Illegal Access settings tab:
● Enable: This checkbox enables the Illegal Access abnormality trigger for the camera.
● Login Failure: This field allows the user to specify how many failed login attempts must be attempted in order to
trigger an Illegal Access abnormality event.
Relay Out: This checkbox allows the user to enable the camera to trigger an alarm when illegal access is detected.
Alarm Delay: This field specifies in seconds how long the delay between alarm activation and relay alarm
activation should be.
● Send Email: This checkbox allows the user to enable the camera to send an email when illegal access is attempted.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.4 Storage
This menu section allows the user to change storage settings for the camera.
105
5.4.4.1 Schedule
The schedule menu manages the recording schedule for the camera. This menu has 3 tabs: Record Schedule, Snapshot
Schedule, and Holiday Schedule.
5.4.4.1.1 Record Schedule
This tab is where video recording settings are configured. Below is a screenshot of the Record Schedule settings screen:

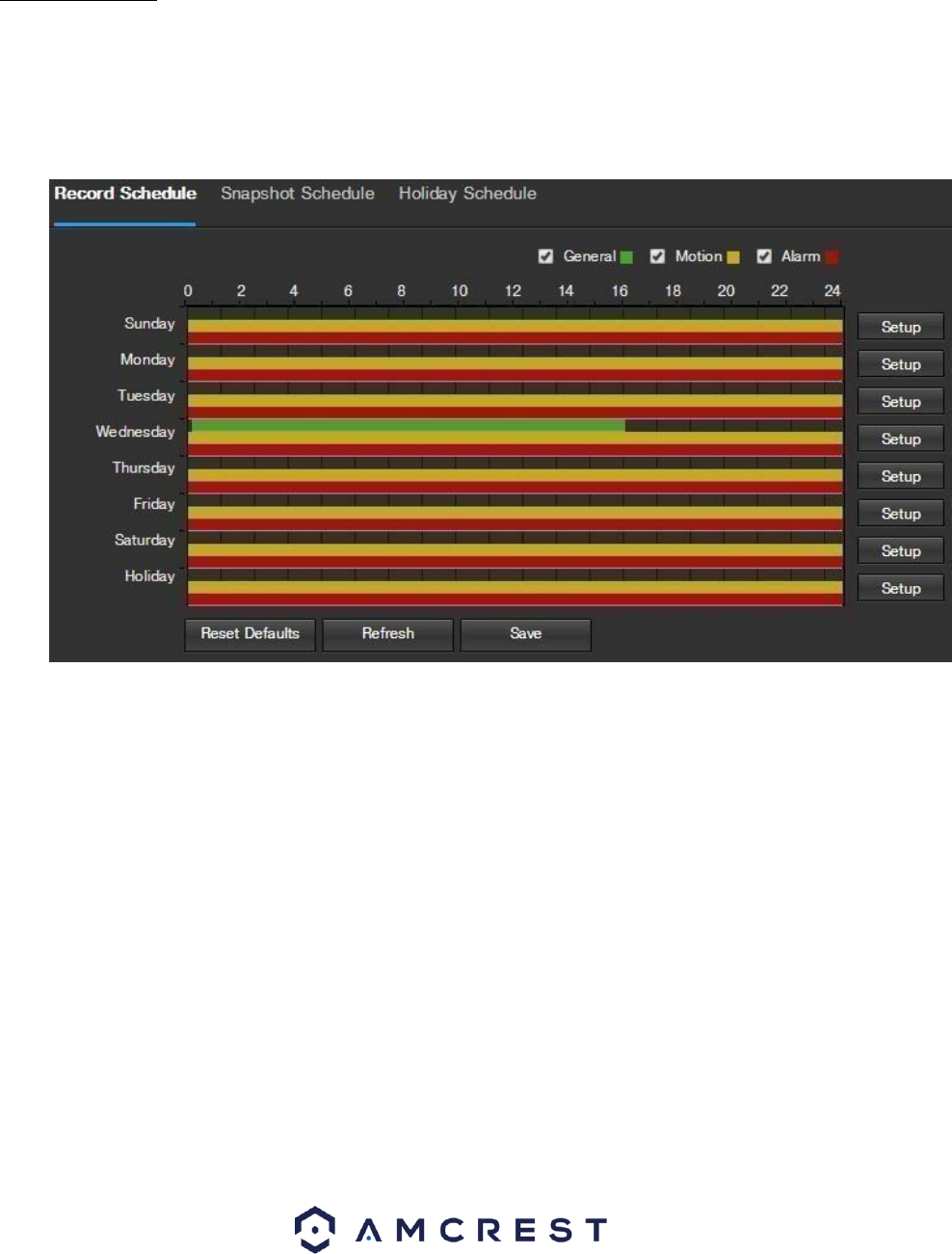

Below is an explanation of the fields on the Record Schedule settings tab:
● Record Type: These checkboxes allow the user to select which recording type they want to configure on the
schedule. There are 3 types of recordings:
o General: General recording means that the camera captures all footage for the specified time period.
General recording is represented by the color green.
o Motion: Motion Detection recording means that the camera captures only footage when the motion
detection alarm is activated. Motion recording is represented by the color yellow.
o Alarm: Alarm recording means that the camera captures only footage when an alarm is activated. Alarm
recording is represented by the color red.
106
● Video Recording Schedule: To specify a video recording range, first select the type of recording desired, then click
and drag on time bar for the desired date. To edit multiple days at once, drag the cursor further up or down to
cover the other days.
o Setup: Clicking this button opens a screen that allows for recording periods to be set for each day and for
each recording type. There are a total of 6 periods that can be set.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.4.1.2 Snapshot Schedule
This tab is where snapshot recording settings are configured. Below is a screenshot of the Snapshot Schedule settings
screen:

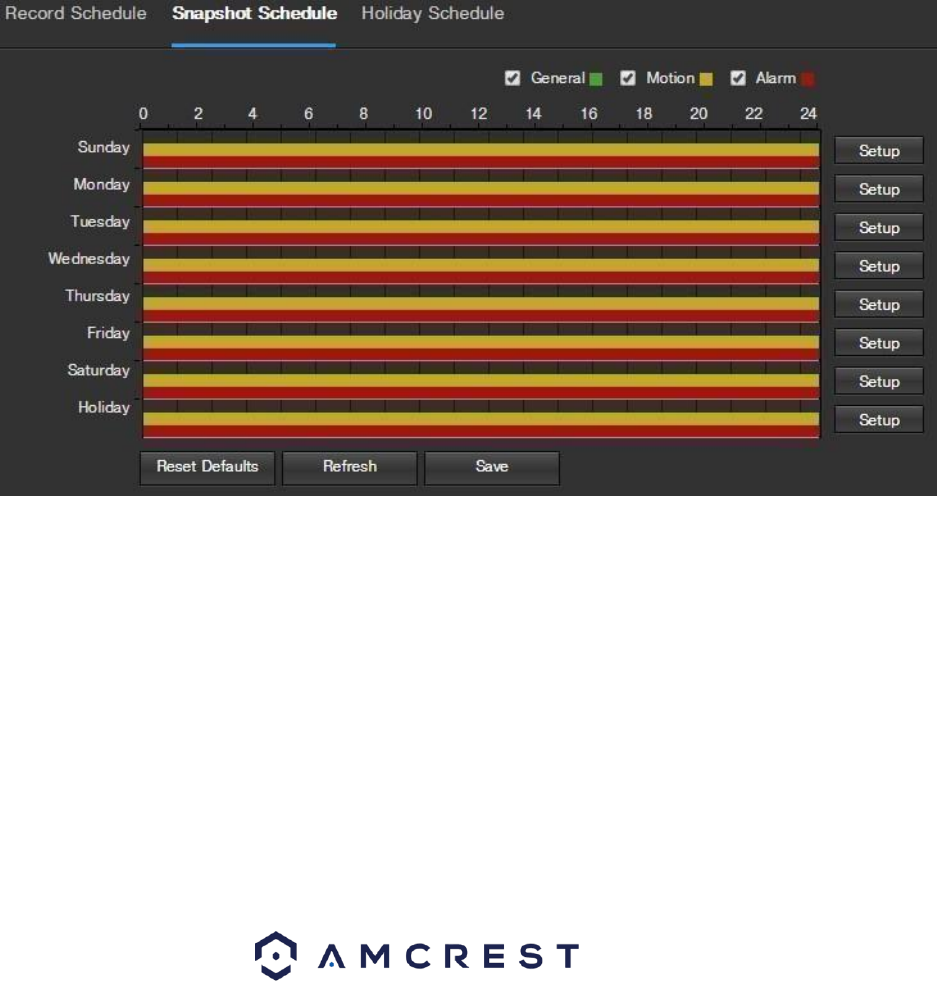

Below is an explanation of the fields on the Snapshot Schedule settings tab:
● Record Type: These checkboxes allow the user to select which snapshot type they want to configure on the
schedule. There are 3 types of snapshots:
o General: General means that the camera will take snapshots during the specified time period. General
recording is represented by the color green.
o Motion: Motion Detection means that the camera only takes snapshots when the motion detection
alarm is activated. Motion recording is represented by the color yellow.
107
o Alarm: Alarm means that the camera only takes snapshots when an alarm is activated. Alarm recording
is represented by the color red.
● Snapshot Recording Schedule: To specify a snapshot range, first select the type of snapshot desired, then click and
drag on time bar for the desired date. To edit multiple days at once, drag the cursor further up or down to cover the
other days.
o Setup: Clicking this button opens a screen that allows for snapshot periods to be set for each day and
for each snapshot type. There are a total of 6 periods that can be set.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.4.1.3 Holiday Schedule
This tab is where holiday settings are configured. Below is a screenshot of the Holiday Schedule settings screen:

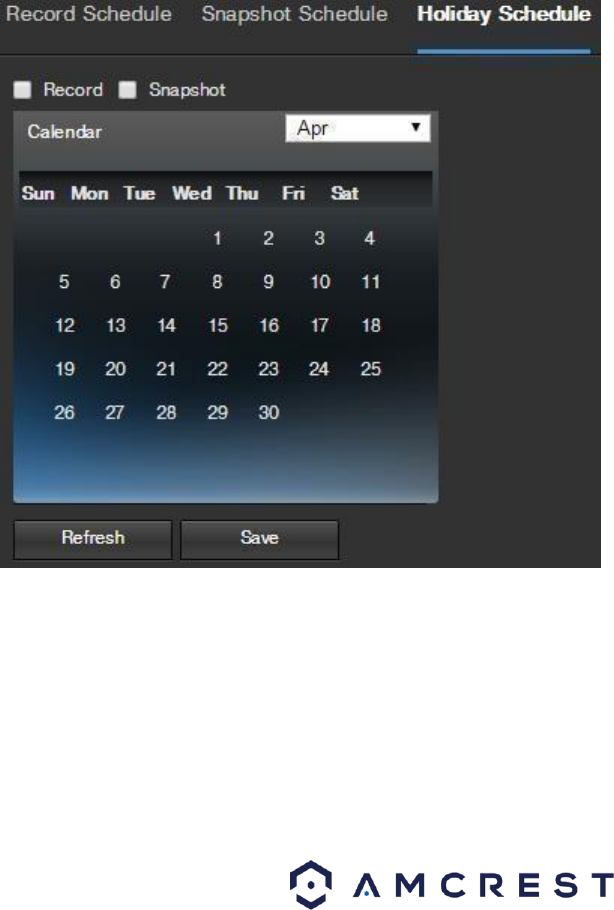

Below is an explanation of the fields on the Holiday Schedule settings tab:
● Record Type: These checkboxes allow the user to select which recording type they want to configure on the
schedule. There are 2 types of recordings:
108
o Record: This checkbox is referring to video recording.
o Snapshot: This checkbox is referring to snapshot recording.
● Calendar: This calendar allows the user to select days to designate as holidays. Once a day is designated, it can be
customized to stop recording or snapshots for that day by using the Record and Snapshot checkboxes.
To refresh the page, click the Refresh button. To save the settings, click the Save button.
5.4.4.2 Destination
This menu controls where recorded media is stored. There are 4 tabs in this menu: Path, SD Card, FTP, and NAS.
5.4.4.2.1 Path
This tab is where the user can designate a path for recorded video and snapshots to reside in. Below is
a screenshot of the Path tab:

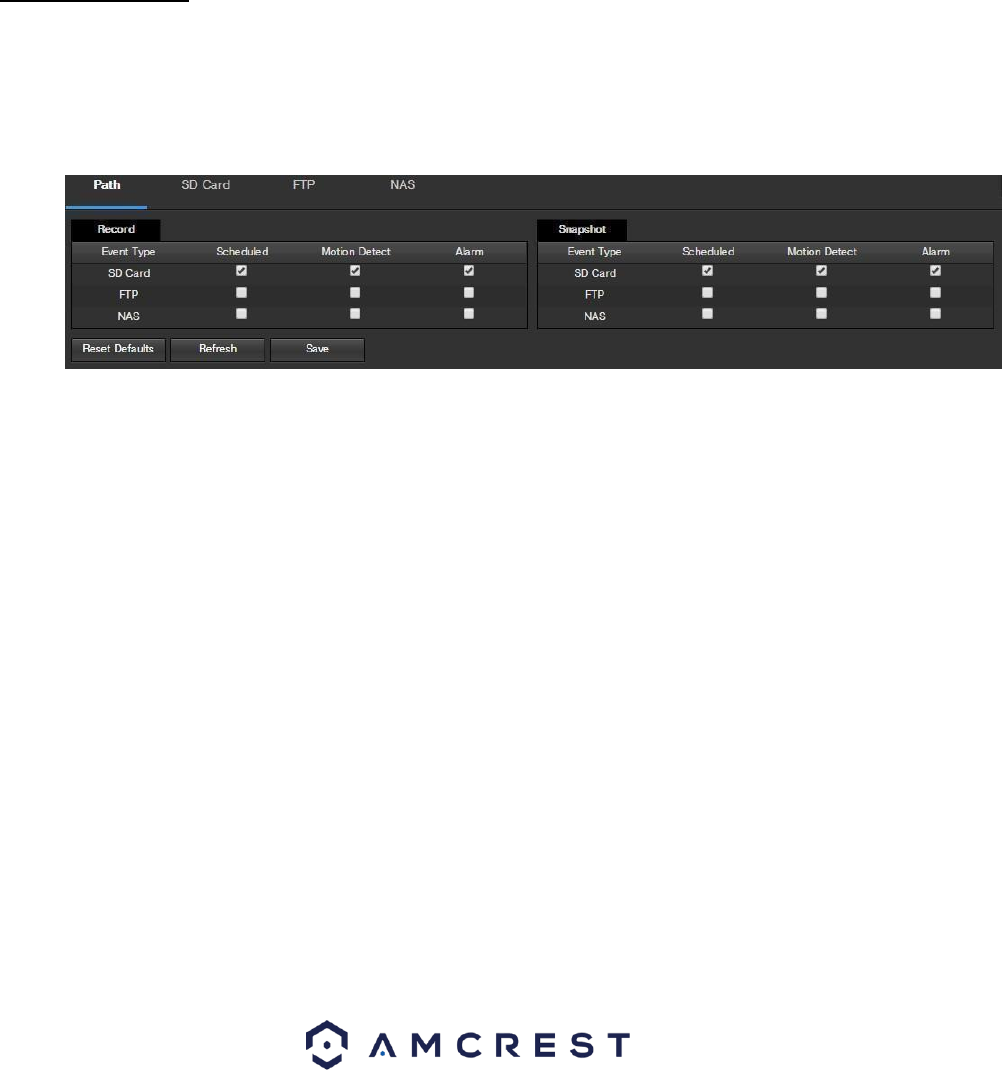

Below is an explanation of the fields on the Path settings tab:
● Event Type: This column designates storage options available to the camera. The options are SD Card, FTP,
and NAS.
● Record Type: These columns designate which recording type should be recorded to which event type. Check
the box at the intersection of the record type and event type to designate where that recording should be
sent to.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.4.2.2 SD Card

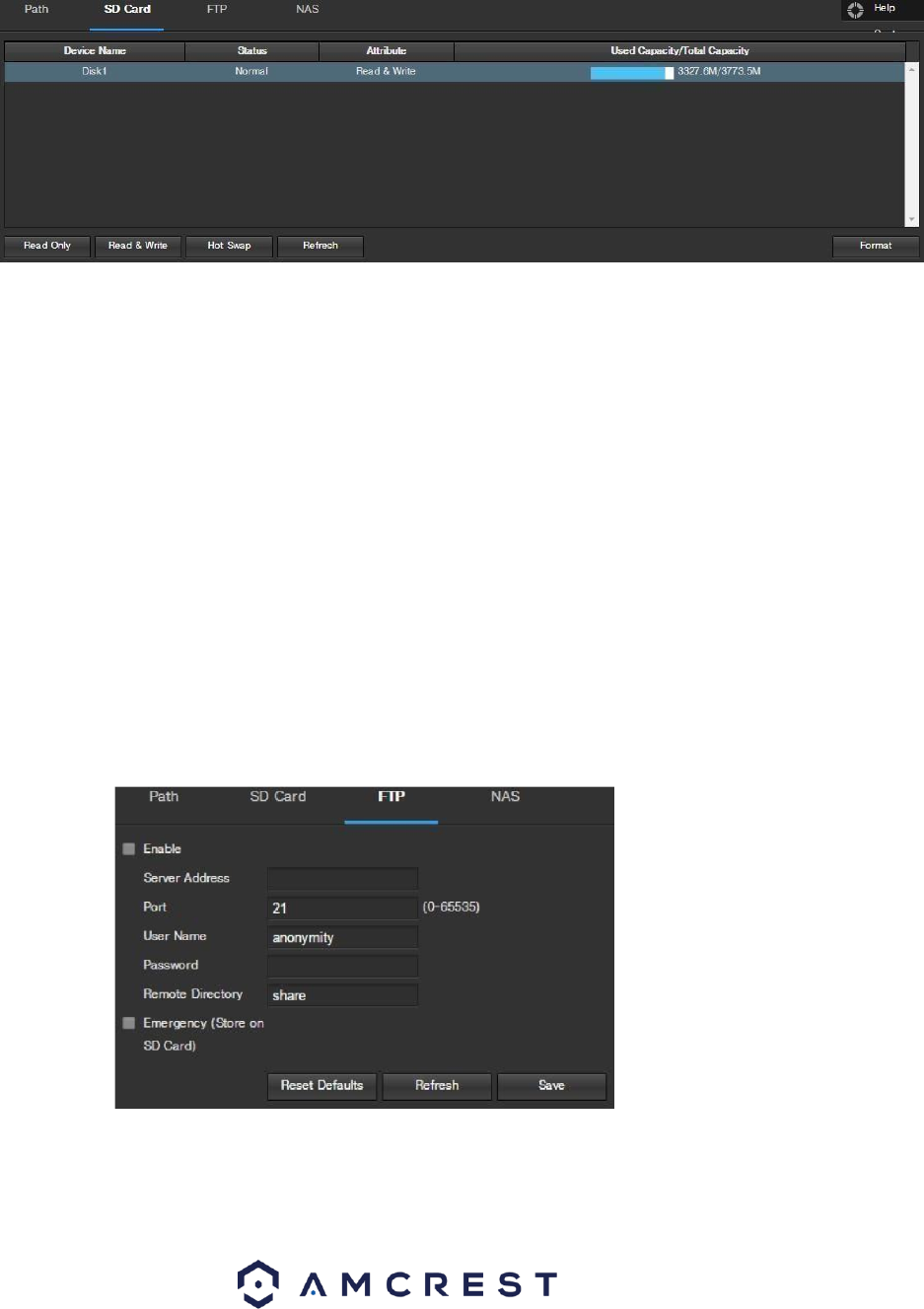

This tab is where the user can change SD card settings. Below is a screenshot of the SD Card tab:
109
Below is an explanation of the fields on the SD Card settings tab:
Device Name: This column designates the name of the SD card that is currently in the camera.
● Status: This column designates the status of the SD card.
● Attribute: This column designates the read/write attributes for the SD card. By default this is Read & Write.
● Used Capacity/Total Capacity: This column shows the available memory on the SC card.
● Read Only: This button allows the user to designate an SD card as read only.
● Hot Swap: This button allows the user to physically remove the SD card and replace it with another safely.
● Refresh: This button refreshes the SD card table.
● Format: This button formats the SD card.
5.4.4.2.3 FTP
This tab is where the user can change FTP settings. Below is a screenshot of the FTP tab:
110
Below is an explanation of the fields on the FTP settings tab:
● Enable: This checkbox allows the user to enable FTP uploading for the camera’s recorded media.
● Server Address: This field allows the user to designate a DDNS address for the FTP server.
● Port: This field allows the user to designate the port number for the FTP server.
● User Name: This field allows the user to input the username used to login to the FTP server.
● Password: This field allows the user to input the password used to login to the FTP server.
● Remote Directory: This field allows the user to specify a remote directory on the FTP to send the recorded media to.
● Emergency (Store on SD Card): This checkbox allows the camera to store recorded media on the SD card in case the
FTP server is unavailable.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.4.2.4 NAS
This tab is where the user can change NAS settings. Below is a screenshot of the NAS tab:

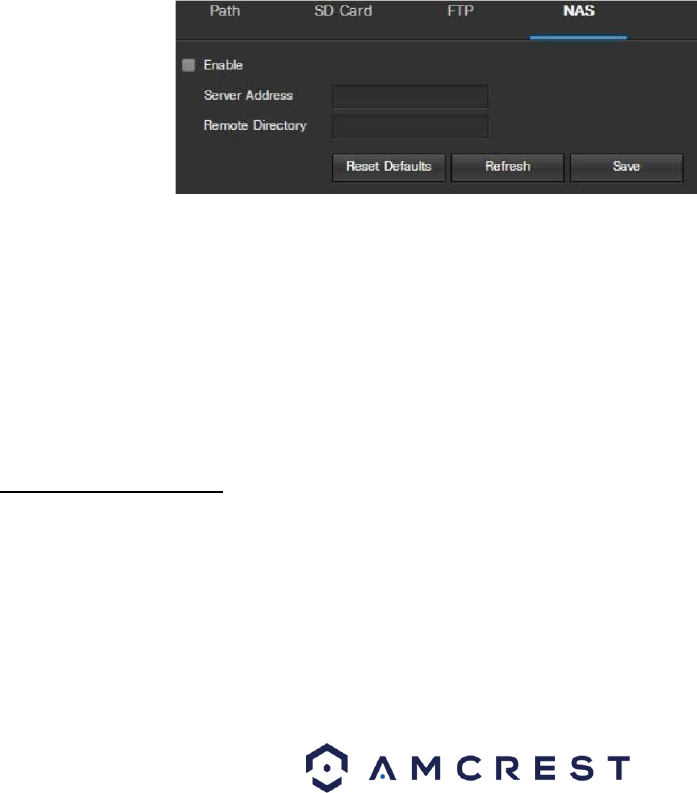

Below is an explanation of the fields on the NAS settings tab:
● Enable: This checkbox allows the user to enable NAS uploading for the camera’s recorded media.
● Server Address: This field allows the user to designate a DDNS address for the NAS server/device.
● Remote Directory: This field allows the user to specify a remote directory on the NAS to send the recorded media to.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.4.3 Record Control
This menu is where general recording settings are configured. Below is a screenshot of the record control menu:
111

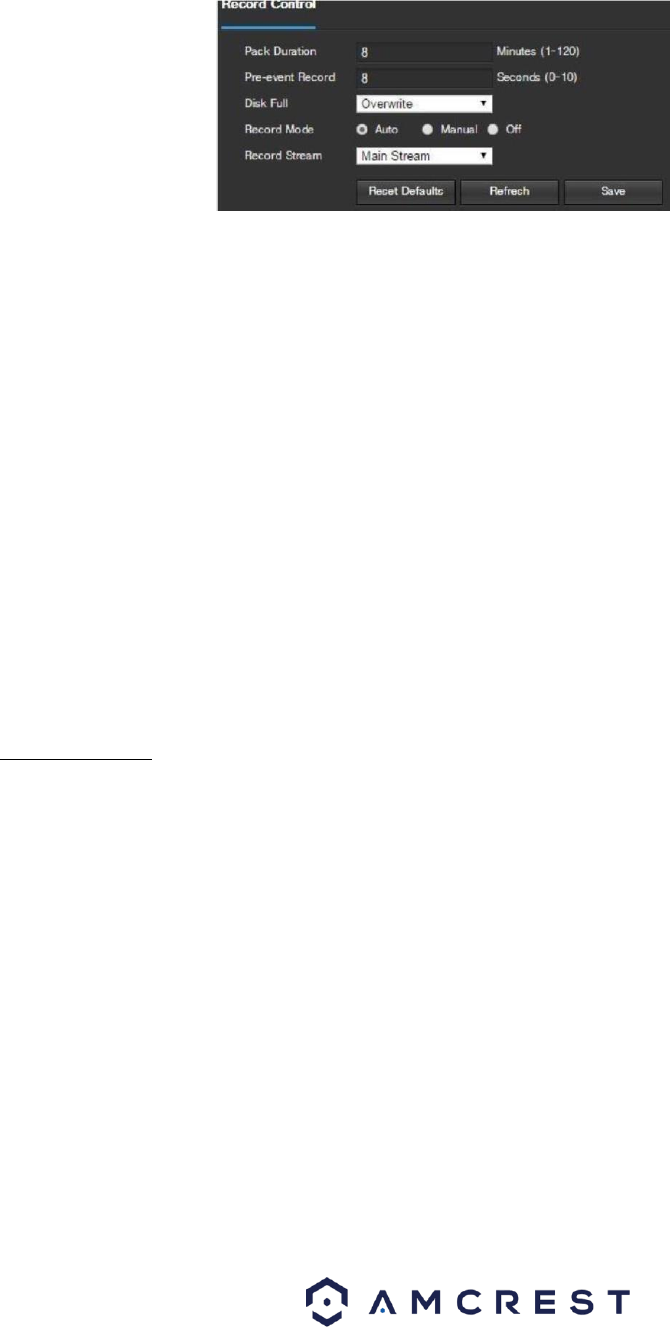

Below is an explanation of the fields on the Record Control settings tab:
● Pack Duration: This field allows the user to set how many minutes each file is comprised of.
● Pre-event Record: This field allows the user to specify how many seconds before an event should be recorded.
● Disk Full: This dropdown box allows the user to designate what the camera should do when the disk is full. There are
2 options: Overwrite or Stop.
Record Mode: This set of radio buttons allows the user to designate the recording mode. The options are Auto,
Manual, and Off.
● Record Stream: This dropdown box allows the user to specify which stream to record. The options are main stream
and sub stream.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.5 System
This menu section allows the user to change general settings for the camera.
5.4.5.1 General
This menu controls where general settings are configured. There are 2 tabs in this menu: General and Date & Time.
5.4.5.1.1 General
This tab is where the user can configure some basic camera settings. Below is a screenshot of the General tab:
112

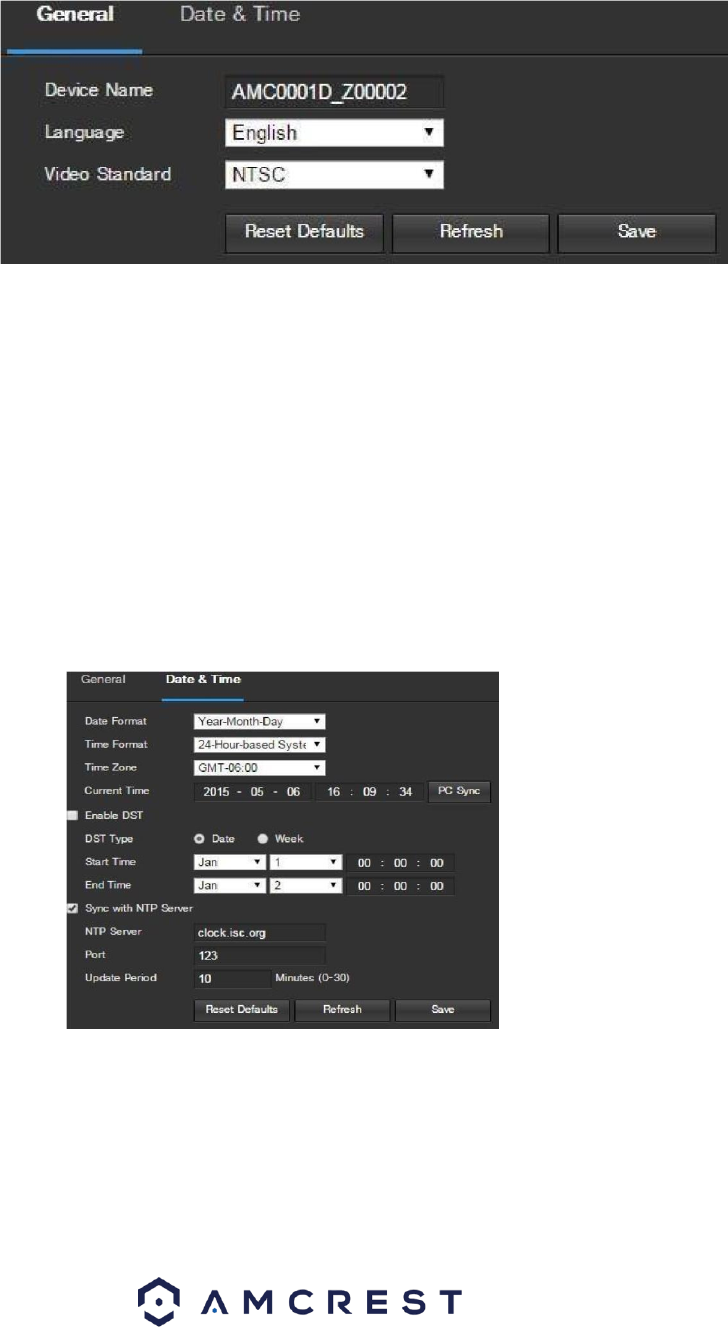

Below is an explanation of the fields on the General settings tab:
● Device Name: This field allows the user to change the device’s name.
● Language: This dropdown box allows the user to change the language used in the camera.
● Video Standard: This dropdown box allows the user to select either the NTSC or PAL video standard.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.5.1.1 Date & Time
This tab is where the user can configure the date and time settings for the camera. Below is a screenshot of the Date &
Time tab:
Below is an explanation of the fields on the Date & Time settings tab:
● Date Format: This dropdown box allows the user to change the date format used in the camera.
113
● Time Format: This dropdown box allows the user to change the time format used in the camera. ● Time
Zone: This dropdown box allows the user to change the time zone used in the camera.
● Current Time: This field allows the user to enter in the date and time manually. Clicking the PC Sync button allows the
camera to sync with a Network Time Protocol (NTP) server.
● Enable DST: This checkbox allows the user to enable daylight savings time for the camera.
● DST Type: This radio button allows the user to select whether DST is based on the week, or a specific day.
● Start Time: This dropdown box and field allow the user to enter in the start time for DST.
● End Time: This dropdown box and field allow the user to enter in the end time for DST.
● Synchronize with NTP: This checkbox allows the user to enable the camera’s synchronization with an NTP server.
● NTP Server: This field allows the user to enter in an NTP server.
● Port: This field allows the user to enter in the port number for the NTP server.
Update Period: This field allows the user to enter in the update period time. This number
designates how frequently the camera pings the NTP server to ensure it has the correct time.
The range is from 0-30 minutes.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.5.2 Manage Users
This menu allows the user to change the user accounts on the camera. By default, the camera only has the admin
account which has all rights/authorities. Additional accounts can be created on this screen. Below is a screenshot of
the manage users screen:
114

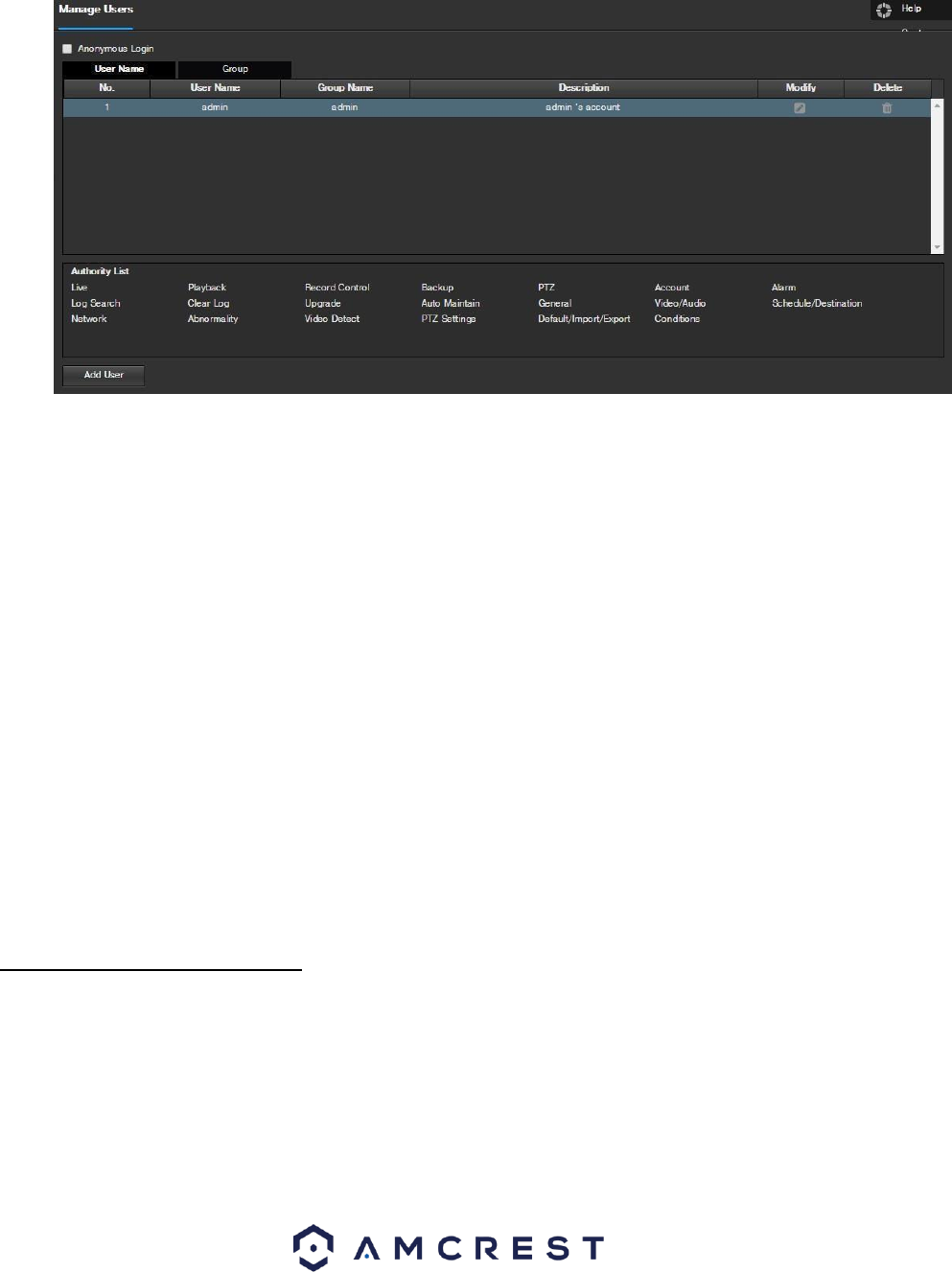

Below is an explanation of the fields on the Manage Users screen:
● Anonymous Login: This checkbox allows the user to enable the anonymous login feature. This allows all user account
names to remain hidden on this screen.
● User Name: This tab shows the usernames available on the camera.
● Group: This tab shows the user groups available on the camera.
● No.: This column shows the user’s number on the user list.
● User Name: This column shows the usernames of the different accounts on the camera.
● Group Name: This column shows the group of the different accounts on the camera.
● Description: This column shows a description of the account.
● Modify: This column allows the user to modify the user account.
● Delete: This column allows the user to delete a user account. Note: The admin account cannot be deleted.
● Authority List: This box shows which user rights/authorities are assigned to an account.
● Add User: This button allows the user to add a new user to the camera.
5.4.5.3 Restore Factory Settings
This screen allows the user to reset the camera and all of its settings to the factory settings.
Below is a screenshot of the Default screen:
115

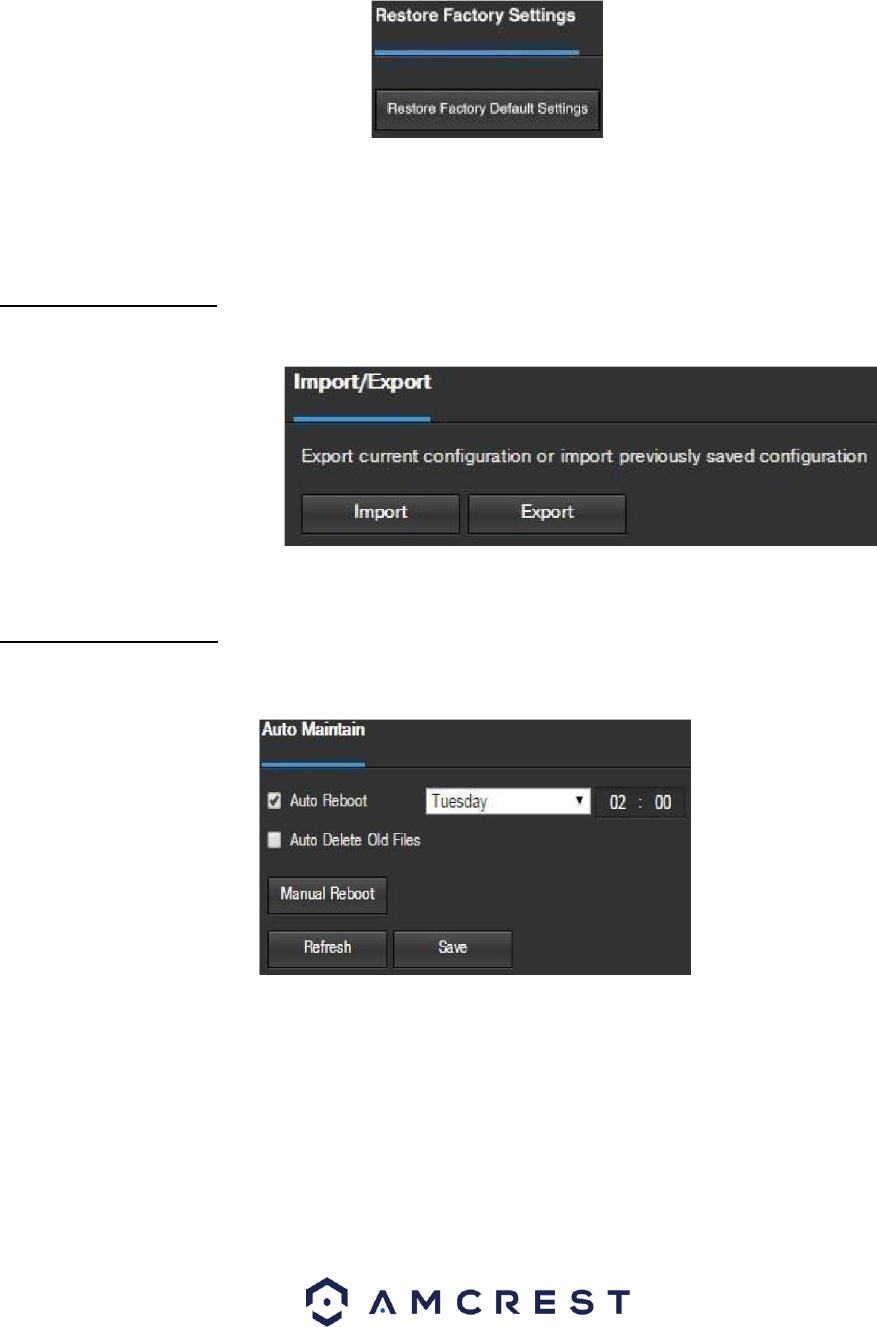

Note: An alternate method to conduct a Factory Reset for the device is to press and hold the indicator light/reset button
on the back of the device for 10 seconds (until the light changes).
5.4.5.4 Import/Export
This screen allows the user to import or export settings from the camera. Below is a screenshot
of the Import/Export screen:
To import settings, click the Import button. To export settings, click the Export button.
5.4.5.5 Auto Maintain
This screen allows the user to set auto maintenance settings for the camera. Below is a screenshot of the Auto Maintain
screen:
Below is an explanation of the fields on the Auto Maintain screen:
● Auto Reboot: This checkbox allows the user to enable the auto reboot function. The dropdown
box and field to the right of this checkbox allow the user to specify what date and time of the
week the camera will auto reboot.
116
● Auto Delete Old Files: This checkbox allows the user to enable the auto deletion of old files on the
camera.
● Manual Reboot: This button allows the user to manually reboot the camera.
To refresh the page, click the Refresh button. To save the settings, click the Save button.
5.4.5.6. Upgrade
This menu allows the user to upgrade the camera’s firmware. Below is a screenshot of the Upgrade
screen:

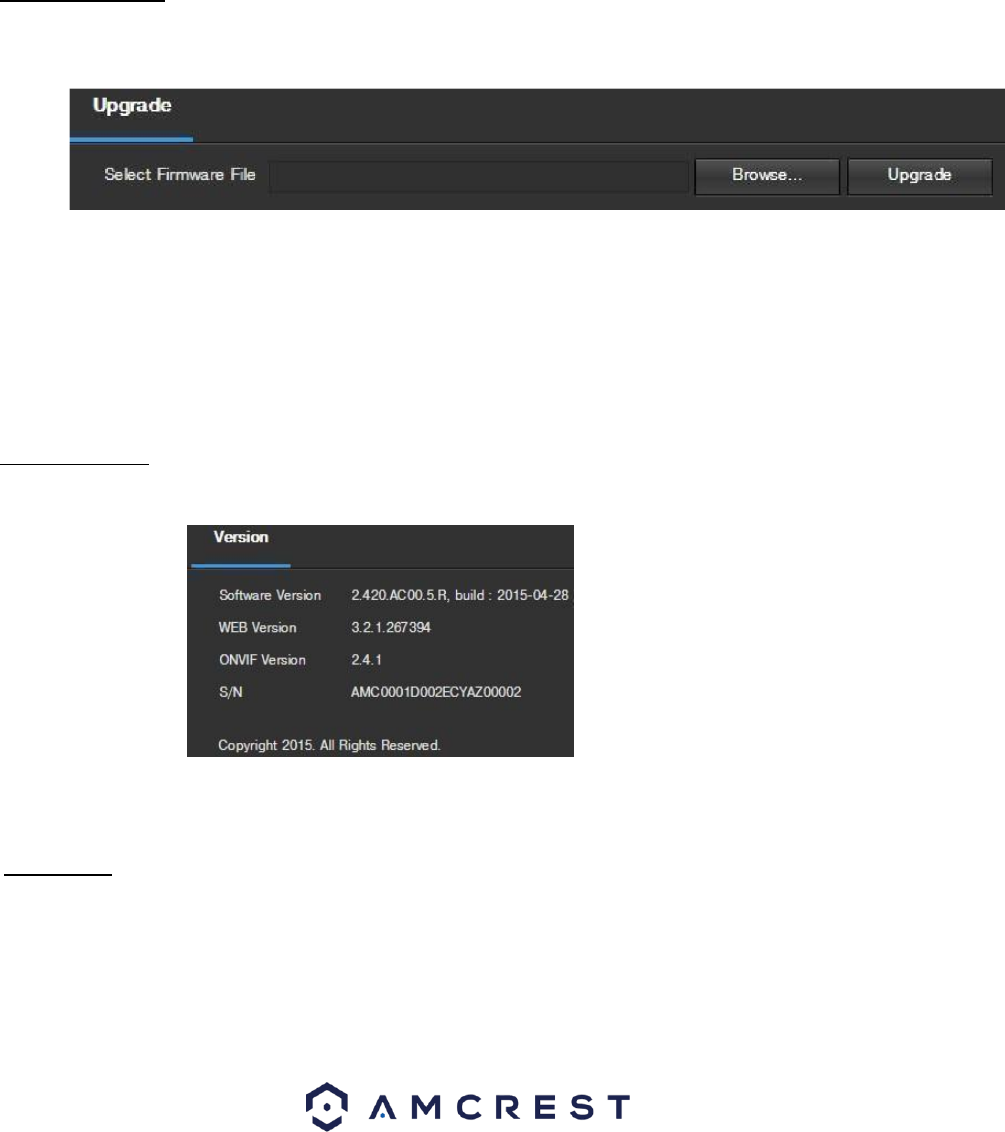

To search the PC for a firmware file, click the Browse button. To upgrade once the firmware file is selected, click
Upgrade.
Note: When upgrading the camera’s firmware, do not disconnect the Ethernet cable or power from the camera.
5.4.6 Information
This menu section allows the user to view information about the camera for reference
purposes.
5.4.6.1 Version
This screen allows the user to see various information about the camera’s software versions, as well
as other information. Below is a screenshot of the camera’s version screen:
On this screen, software version, web interface version, and ONVIF version are displayed. Also, the S/N
(Token ID) is displayed here.
5.4.6.2 Log
This screen is where the camera’s activity log is kept. Below is a screenshot of the Log screen:
117

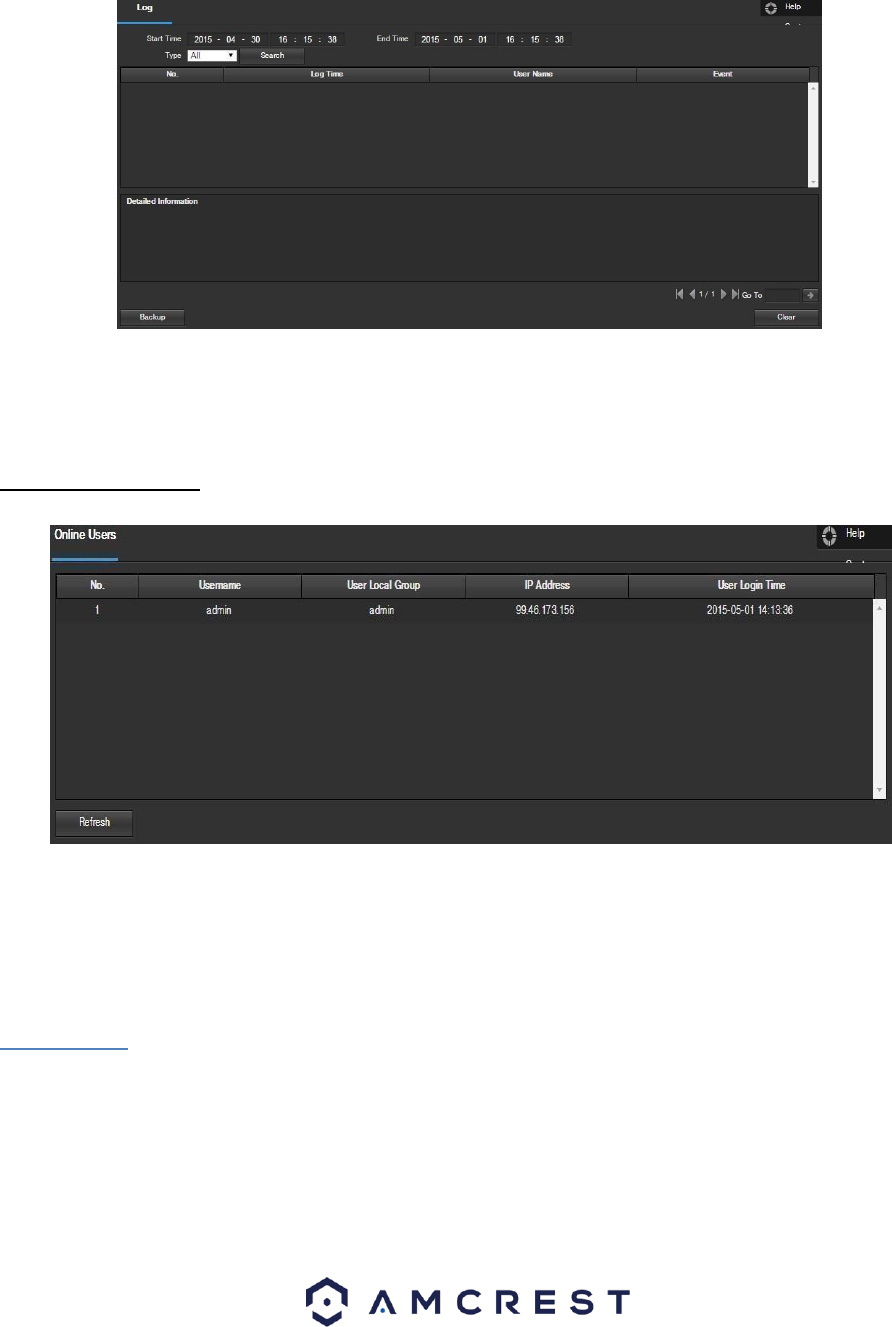

To view logs for a specific time period, modify the start time and end time fields, choose the type of event
(system, setting, data, event, record, manage users, clear log), and click search. To backup the log, click the
Backup button. To clear the log, click the Clear button.
5.4.6.3 Online Users
This screen allows the user to see which users are online. Below is a screenshot of the Online Users screen:
Click Refresh to refresh this table.
5.5 Alarm
This screen is where the alarm log is kept. Below is a screenshot of the alarm screen:
118

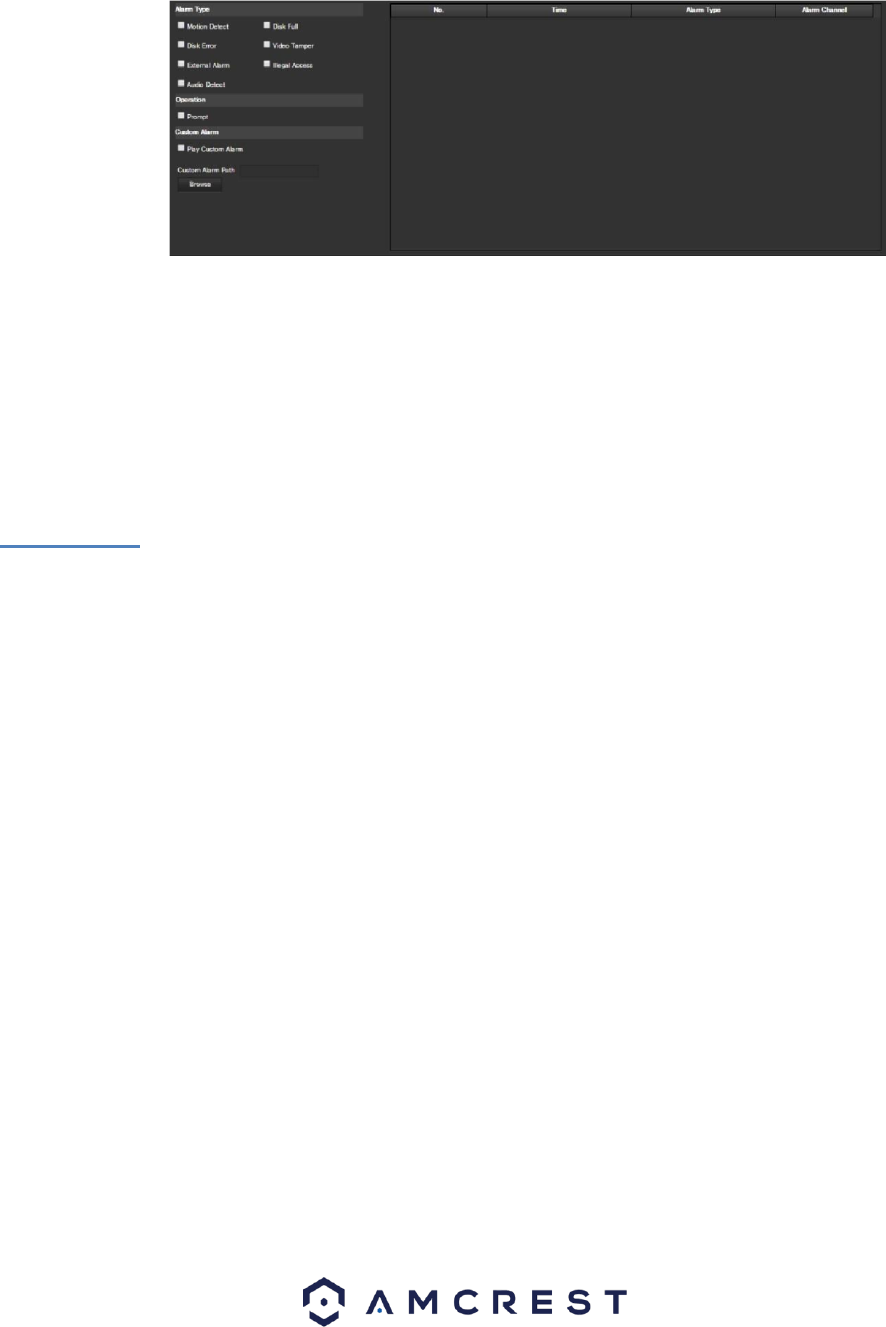

The table on the right shows the alarm log and all of the alarm instances that have occurred. The
checkboxes allow the user to narrow down which alarms they want to see in the alarm log. Clicking the
checkbox next to Prompt will cause the system to pop up a dialog box anytime an alarm is triggered.
Clicking the checkbox next to Play Custom Alarm will use a custom alarm sound for the alarm prompt. Click
the Browse button to search for a custom alarm sound to use.
5.6 Logout
Clicking the logout button will log out the user.
6. FAQs/Troubleshooting
1. The camera does not boot up properly.
Below are a few possible reasons why this may be occurring:
● The power input is not correct voltage.
● The power cable connection is not secured correctly.
● The firmware was upgraded incorrectly.
2. Camera often automatically shuts down or stops running.
119
Below are a few possible reasons why this may be occurring:
● The input voltage is too low or is not stable.
● The insides of the camera have accumulated too much dust.
● The temperature is either too hot or too cold.
● The hardware is malfunctioning.
3. The system does not detect an SD Card.
Below are a few possible reasons why this may be occurring:
● The SD card is broken.
● The SD card slot is malfunctioning.
● The SD card has not been formatted properly.
4. Real-time video color is distorted.
Below are a few possible reasons why this may be occurring:
● The camera is not compatible with the monitor. The camera color or brightness settings are not correctly configured.
5. Local Recordings are not searchable.
Below are a few possible reasons why this may be occurring:
The SD card is broken.
The SD card slot is malfunctioning.
● The camera’s firmware is incompatible with the recorded video.
● The recorded files have been overwritten.
● The recording function has been disabled.
6. Playback video is distorted.
Below are a few possible reasons why this may be occurring:
● The video quality setting is too low.
120
● The camera software has a read error. Restart the camera to solve this problem.
● The SD card is broken.
● The SD card slot is malfunctioning.
● The camera’s hardware is malfunctioning.
7. There is no audio during real-time monitoring.
Below are a few possible reasons why this may be occurring:
● The camera’s microphone is damaged.
● The speakers being used are not sufficiently powered.
● The camera hardware is malfunctioning.
8. There is no audio during recorded video playback.
Below are a few possible reasons why this may be occurring:
Audio recording may not be enabled.
● The camera’s microphone is damaged.
9. The timestamp is not displaying the correct time.
Below are a few possible reasons why this may be occurring:
● The time and date settings may not be configured correctly.
10. Motion detection does not work.
Below are a few possible reasons why this may be occurring:
● The motion detection time period may be incorrectly configured. Motion detection zone
setup is not correctly configured. Motion detection sensitivity is too low.
11. Web Access isn't working.
Below are a few possible reasons why this may be occurring:
121
● Windows version is pre -Windows 2000 service pack 4. Use a more recent version of Windows.
● ActiveX controls have been disabled.
● The PC is not using DirectX 8.1 or higher. Upgrade to a more recent version of DirectX.
● The camera is having network connection errors.
● Web access may be setup incorrectly.
● The username or password may be incorrect.
12. Web Access live view is only displaying a static picture. Both live playback and recorded playback aren't working.
Below are a few possible reasons why this may be occurring:
● The network speed is not sufficient to transfer video data via web access.
● The client PC may have limited resources.
● Multicast mode may be causing this issue.
A privacy mask or screensaver may be enabled.
● The logged in user may not have sufficient rights to monitor real-time playback.
● The camera’s local video output quality is not sufficient.
13. Network connection is not stable.
Below are a few possible reasons why this may be occurring:
● The network is not stable.
● There may be an IP address conflict.
● There may be a MAC address conflict.
The PC or camera network card may be defective.
The WiFi network the camera is picking up is too weak.
14. The alarm signal cannot be disarmed.
Below are a few possible reasons why this may be occurring:
122
● An alarm may be setup incorrectly.
● An alarm output may have been manually opened.
● There may be an error in the camera’s firmware.
15. Alarms are not working.
Below are a few possible reasons why this may be occurring:
● The alarm is not setup correctly.
● The alarm cable is not connected correctly.
● The alarm input signal is not correctly configured.
● There are two loops connected to one alarm device.
16. The camera is not recording enough video.
Below are a few possible reasons why this may be occurring:
● The storage capacity is not enough.
● The storage device is damaged.
17. Downloaded files cannot be played back.
Below are a few possible reasons why this may be occurring:
● The media player software on the PC may not be able to read the file format.
● The PC may not have DirectX 8.1 or higher.
● The PC may not have Windows XP or higher.
18. Forgot login information.
Below are a few solutions:
● Hold the reset button on the back of the camera to execute a factory reset. This will restore the device to its factory
settings and will reset ALL of the camera’s settings.
19. When I login via HTTPS, a dialogue says the certificate has expired or is not valid yet.
Ensure the PC has the same time as the camera’s system time.
123
Glossary of Terms
● Abnormality – Any malfunction in terms of storage of data to the SD card.
● Alarm Delay – The gap in time between alarm activation and Relay alarm activation.
● Alternate Gateway – The node on the computer network that the network software uses when an IP address does
not match any other routes in the routing table, and when the default gateway is not available.
● Anti-Dither – This time value controls how long the alarm signal lasts. The values in this field can range from 5 to
600 seconds. Based on motion detection, a buzzer can go off, a tour can begin, PTZ can be activated, a snapshot can
be taken, or the camera can begin recording.
● DDNS – This stands for Dynamic Domain Name System. DDNS is a method of automatically updating a name server
in the Domain Name System (DNS), often in real time, with the active DNS configuration of its configured
hostnames, addresses or other information.
● Default Gateway – The node on the computer network that the network software uses when an IP address does not
match any other routes in the routing table.
● DHCP – Dynamic Host Configuration Protocol is a network protocol that enables a server to automatically assign an
IP address to a computer from a defined range of numbers (i.e., a scope) configured for a given network.
● Fluency – Fluency described the lack of stuttering or excessive delay in a video stream. Fluency usually comes at the
expense of video quality when a network is constrained.
● IP Address – Internet Protocol Address is a unique numerical label assigned to each device connected to a computer
network. The IP address allows communication between different devices on a network.
● Main Stream – Main Stream is the main streaming protocol for the camera. Main stream uses more bandwidth and
attempts to keep quality and fluency high.
● NO/NC – Normally Open and Normally Closed are options for sensor type. These settings allow for different
exposure types when capturing video and still images.
● NTP – Network Time Protocol is a networking protocol for clock synchronization between computer systems over
packet-switched, variable-latency data networks.
● P2P – Peer-to-Peer is a decentralized communications model in which each party has the same capabilities and
either party can initiate a communication session.
● PPPoE – Point to Point Protocol over Ethernet is a network protocol for encapsulating Point to Point Protocol data
packets inside Ethernet frames.
● PTZ – Pan Tilt Zoom is a feature that allows a camera to remotely change its position.
124
● QR Code – Quick Response code is a type of digital barcode that enables devices to share complex data strings
quickly.
● Record Delay – Record Delay specifies in seconds how long the delay between alarm activation and recording
should be.
● Relay Out – Relay Out triggers a connected alarm (connected to the alarm port on the back of the camera) when an
alarm on the camera is triggered.
● S/N – S/N stands for serial number. The S/N is unique to each camera and can be used to connect to different
Amcrest apps and services to provide different methods of access to the camera.
● Sensitivity – Sensitivity is the amount of change required to increase the motion detected by a percentage. The
lower the sensitivity, the more movement is required to trigger an alarm.
● SMTP – Simple Main Transfer Protocol is an Internet standard for electronic mail (e-mail) transmission.
● Static IP – An IP address that does not change.
● Sub Stream – Sub Stream is an alternative streaming protocol for the camera. Sub stream uses less bandwidth and
attempts to keep fluency high at the expense of quality.
● Subnet Mask – a 32-bit number that masks an IP address, and divides the IP address into network address and host
address.
● TCP/IP – TCP/IP stands for Transmission Control Protocol/Internet Protocol and it is the language/protocol that
allows communication between internet connected devices, whether on a local network, or a on the Internet at
large.
● Threshold – Threshold is the level that the motion detection needs to reach in order to trigger an alarm.
● UPnP – UPnP stands for Universal Plug and Play, and it is a protocol used to easily connect devices to the internet.
Video Tamper – Video Tamper refers to any major changes happening to the video feed such as it being blocked
out, interfered with, or disconnected.
125
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user
that changes, or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper,
such as on a computer disk or over the Internet, the information required by this section may be included in the
manual in that alternative form, provided the user can reasonably be expected to have the capability to access
information in that form.
3. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following
or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult
the dealer or an experienced radio/TV technician for help.
4. RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers
must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
126
IC Warning Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator and
any part of your body.
Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit
être maintenue entre l'antenne de cet appareil ettoutes les personnes.
Appendix A: Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
127
Sheet
Metal(Case)
○
○
○
○
○
○
Plastic Parts
（Panel）
○
○
○
○
○
○
Circuit Board
○
○
○
○
○
○
Fastener
○
○
○
○
○
○
Wire and
Cable/Ac
Adapter
○
○
○
○
○
○
Packing
Material
○
○
○
○
○
○
128
Accessories
○
○
○
○
○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the
relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the
parts is above the relevant threshold of the SJ/T11363-2006 standard. During the environmental-friendly use
period (EFUP) period, the toxic or hazardous substance or elements contained in products will not leak or mutate
so that the use of these (substances or elements) will not result in any severe environmental pollution, any bodily
injury or damage to any assets. The consumer is not authorized to process such kind of substances or elements,
please return to the corresponding local authorities to process according to your local government statutes.
Note:
● To view setup videos for many of the steps outlined in this guide, go to http://amcrest.com/videos ●
● All the designs and software here are subject to change without prior written notice.
● All trademarks and registered trademarks mentioned are the properties of their respective owners.
To contact Amcrest support, please do one of the following:
● Visit http://amcrest.com/contacts and use the email form
● Call Amcrest Support using one of the following numbers Toll Free US: (888) 212-7538
● International callers (Outside of US): +1-713-893-8956
USA: 713-893-8956
Canada: 437-888-0177
UK: 203-769-2757
● Email Amcrest Customer Support support@amcrest.com
Copyright Amcrest© 2018
