24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

1

Cover page

AMD-8151TM HyperTransportTM AGP3.0 Graphics Tunnel

Data Sheet

1Overview

The AMD-8151TM HyperTransportTM AGP3.0 Graphics Tunnel (referred to as the IC in this document) is a

HyperTransport™ technology (referred to as link in this document) tunnel developed by AMD that provides an

AGP 3.0 compliant (8x transfer rate) bridge.

1.1 Device Features

• HyperTransport technology tunnel with side A

and side B.

• Side A is 16 bits (input and output); side B is

8 bits.

• Either side may connect to the host or to a

downstream HyperTransport technology

compliant device.

• Each side supports HyperTransport technol-

ogy-defined reduced bit widths: 8-bit, 4-bit,

and 2-bit.

• Side A supports transfer rates of 1600, 1200,

800, and 400 mega-transfers per second.

Side B supports transfer rates of 800 and

400 mega-transfers per second.

• Maximum bandwidth is 6.4 gigabytes per

second across side A (half upstream and half

downstream) and 1.6 gigabytes per second

across side B.

• Independent transfer rate and bit width

selection for each side.

• Link disconnect protocol supported.

• AGP 8x bridge.

• Compliance with AGP 3.0 specification sig-

naling, supporting 4x and 8x transfer rates.

• Compliance with AGP 2.0 specification 1.5-

volt signaling, supporting 1x, 2x, and 4x

data-transfer modes.

• Supports up to 32 outstanding requests.

• 31 x 31 millimeter, 564-ball BGA package.

• 1.5 volt AGP signaling; some 3.3 volt IO; 1.2

volt link signaling; 1.8 volt core.

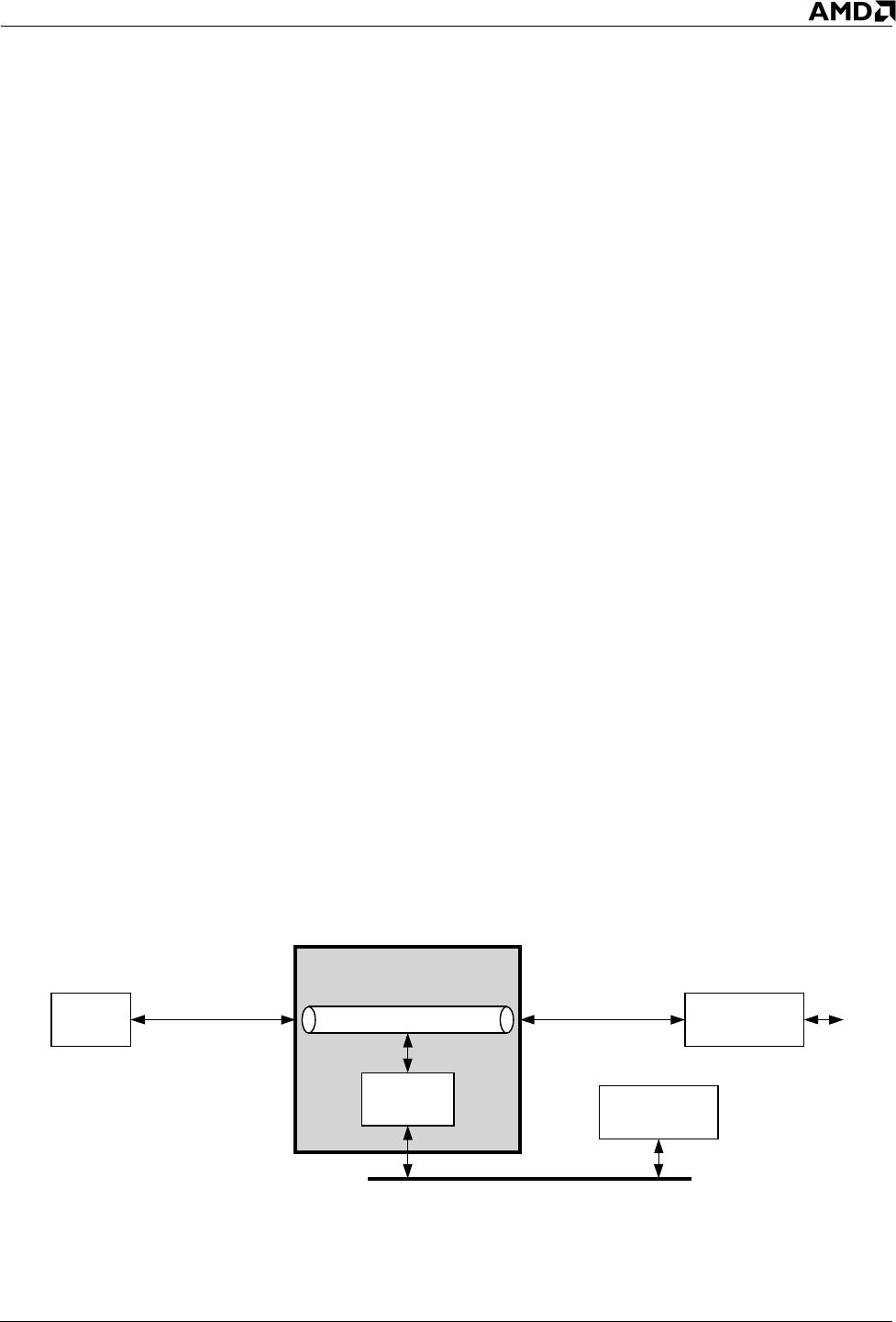

Figure 1: System block diagram.

AMD-8151TM Device

Host

HyperTransportTM

Link

16 bits upstream,

16 bits downstream

HyperTransport

Link

8 bits upstream,

8 bits downstream

Downstream

Device

tunnel

Side A Side B

AGP

Bridge AGP Graphics

Controller

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

2

Trademarks

AMD, the AMD Arrow logo, and combinations thereof, and AMD-8151 are trademarks of Advanced Micro

Devices, Inc.

HyperTransport is a licensed trademark of the HyperTransport Technology Consortium.

Other product names used in this publication are for identification purposes only and may be trademarks of

their respective companies.

© 2004 Advanced Micro Devices, Inc.

All rights reserved.The contents of this document are provided in connec-

tion with Advanced Micro Devices, Inc. ("AMD") products. AMD makes

no representations or warranties with respect to the accuracy or complete-

ness of the contents of this publication and reserves the right to make

changes to specifications and product descriptions at any time without

notice. No license, whether express, implied, arising by estoppel or other-

wise, to any intellectual property rights is granted by this publication.

Except as set forth in AMD's Standard Terms and Conditions of Sale,

AMD assumes no liability whatsoever, and disclaims any express or

implied warranty, relating to its products including, but not limited to, the

implied warranty of merchantability, fitness for a particular purpose, or

infringement of any intellectual property right. AMD's products are not

designed, intended, authorized or warranted for use as components in sys-

tems intended for surgical implant into the body, or in other applications

intended to support or sustain life, or in any other application in which the

failure of AMD's product could create a situation where personal injury,

death, or severe property or environmental damage may occur. AMD

reserves the right to discontinue or make changes to its products at any

time without notice.

3

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

Table of Contents

1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Device Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 Ordering Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.1 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.2 Tunnel Link Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.3 AGP Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.4 Test and Miscellaneous Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.5 Power and Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.5.1 Power Plane Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4 Functional Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2 Reset And Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.3 Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.3.1 Clock Gating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.4 Tunnel Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.4.1 Link PHY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.5 AGP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.5.1 Tags, UnitIDs, And Ordering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.5.2 Various Behaviors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.5.2.1 AGP Compensation And Calibration Cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5 Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1 Register Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1.1 Configuration Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1.2 Register Naming and Description Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.2 AGP Device Configuration Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.3 AGP Bridge Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6 Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.1 Absolute Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.2 Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.3 DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4 AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7 Ball Designations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

8 Package Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

9 Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1 High Impedance Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.2 NAND Tree Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

10.1 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

4

List of Figures

Figure 1: System block diagram................................................................................................................... 1

Figure 2: Configuration space. ................................................................................................................... 14

Figure 3: Ball designations......................................................................................................................... 39

Figure 4: Package mechanical drawing...................................................................................................... 42

Figure 5: NAND tree. ................................................................................................................................. 43

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

5

List of Tables

Table 1: IO signal types. ............................................................................................................................. 6

Table 2: Translation from AGP requests to link requests. ........................................................................ 13

Table 3: Configuration spaces................................................................................................................... 15

Table 4: Memory mapped address spaces................................................................................................. 15

Table 5: Register attributes. ...................................................................................................................... 15

Table 6: Absolute maximum ratings. ........................................................................................................ 34

Table 7: Operating ranges. ........................................................................................................................ 34

Table 8: Current and power consumption. ................................................................................................ 35

Table 9: DC characteristics for signals on the VDD33 power plane. ....................................................... 35

Table 10: DC characteristics for signals on the VDD15 power plane, AGP 2.0 signaling......................... 36

Table 11: DC characteristics for signals on the VDD15 power plane, AGP 3.0 signaling......................... 36

Table 12: AC data for clocks....................................................................................................................... 37

Table 13: AC data for common clock operation of AGP signals................................................................ 37

Table 14: AC data for clock-forwarded operation of AGP signals............................................................. 38

Table 15: Signal BGA positions.................................................................................................................. 40

Table 16: Power and ground BGA positions. ............................................................................................. 41

Table 17: Test modes................................................................................................................................... 43

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

6

2 Ordering Information

3 Signal Descriptions

3.1 Terminology

See section 5.1.2 for a description of the register naming convention used in this document. See the

AMD-8151TM HyperTransportTM AGP3.0 Graphics Tunnel Design Guide for additional information.

Signals with a # suffix are active low.

Signals described in this chapter utilize the following IO cell types:

The following provides definitions and reference data about each of the IC’s pins. “During Reset” provides the

state of the pin while RESET# is asserted. “After Reset” provides the state of the pin immediately after

RESET# is deasserted. “Func.” means that the pin is functional and operating per its defined function.

Name Notes

Input Input signal only.

Output Output signal only. This includes outputs that are capable of being in the high-impedance state.

OD Open drain output. These signals are driven low and expected to be pulled high by external cir-

cuitry.

IO Input or output signal.

IOD Input or open-drain output.

Analog Analog signal.

w/PU With pullup. The signal includes a pullup resistor to the signal’s power plane. The resistor value is

nominally 8K ohms.

Table 1: IO signal types.

AMD-8151

Family/Core

AMD-8151

Package Type

BL = Organic Ball Grid Array with lid

Case Temperature

C = Commercial temperature range

BL C

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

7

3.2 Tunnel Link Signals

The following are signals associated with the HyperTransportTM links. [B, A] in the signal names below refer

to the A and B sides of the tunnel. [P, N] are the positive and negative sides of differential pairs.

* The signals connected to the A side of the tunnel are powered by VDD12A and the signals connected to the

B side of the tunnel are powered by VDD12B.

** Diff High and Diff Low for these link pins specifies differential high and low; e.g., Diff High specifies that

the _P signal is high and the _N signal is low.

If one of the sides of the tunnel is not used on a platform then the unconnected link should be treated as fol-

lows, for every 10 differential pairs: connect all of the _P differential inputs together and through a resistor to

VSS; connect all the _N differential inputs together and through a resistor to VDD12; leave the differential out-

puts unconnected. If there are unused link signals on an active link (because the IC is connected to a device

with a reduced bit width), then the unused differential inputs and outputs should also be connected in this way.

Pin name and description IO cell

type

Power

plane*

During

reset

After

reset

LDTCOMP[3:0]. Link compensation pins for both sides of the tunnel. These are

designed to be connected through resistors as follows:

Bit Function External Connection

[0] Positive receive compensation Resistor to VDD12B

[1] Negative receive compensationResistor to VSS

[3, 2] Transmit compensation Resistor from bit [2] to bit [3]

These resistors are used by the compensation circuit. The output of this circuit is

combined with DevA:0x[E8, E4, E0] to determine compensation values that are

passed to the link PHYs.

Analog VDD-

12B

LRACAD_[P, N][15:0]; LRBCAD_[P, N][7:0]. Receive link command-address-

data bus.

Link

input

VDD12

LRACLK[1, 0]_[P, N]; LRBCLK0_[P, N]. Receive link clock. Link

input

VDD12

LR[B, A]CTL_[P, N]. Receive link control signal. Link

input

VDD12

LTACAD_[P, N][15:0]; LTBCAD_[P, N][7:0]. Transmit link command-address-

data bus.

Link

output

VDD12 Diff

High**

Func.

LTACLK[1, 0]_[P, N]; LTBCLK0_[P, N]. Transmit link clock. Link

output

VDD12 Func. Func.

LT[B, A]CTL_[P, N]. Transmit link control signal. Link

output

VDD12 Diff

Low**

Func.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

8

3.3 AGP Signals

In the table below, “Term” indicates the standard AGP 3.0 termination impedance to ground; “PU”

indicates a weak pullup resistor; “PD” indicates a weak pulldown resistor.

Pin name and description IO cell

type

Power

plane

AGP 3.0

Signaling

AGP 2.0

Signaling

During

reset

After

reset

During

reset

After

reset

A_ADSTB0_[P, N]. AGP differential strobe for A_AD[15:0] and

A_CBE_L[1:0]. When AGP 3.0 signaling is enabled,

A_ADSTB0_P is the first strobe and A_ADSTB0_N is the second

strobe.

IO VDD15 Term Term _P: PU

_N: PD

_P: PU

_N: PD

A_ADSTB1_[P, N]. AGP differential strobe for AD[31:16],

A_CBE_L[3:2], and A_DBI[H,L]. When AGP 3.0 signaling is

enabled, A_ADSTB1_P is the first strobe and A_ADSTB1_N is

the second strobe.

IO VDD15 Term Term _P: PU

_N: PD

_P: PU

_N: PD

A_AD[31:0]. AGP address-data bus. IO VDD15 Term Term PU Low

A_CBE_L[3:0]. AGP command-byte enable bus. IO VDD15 Term Term PU Low

A_CAL[D, S] and A_CAL[D, S]#. Compensation pins for

matching impedance of system board AGP traces. See

DevA:0x[54, 50] for more information. These are designed to be

connected through resistors as follows:

Signal Compensation Function External Connection

A_CALD Rising edge of data signals Resistor to VSS

A_CALD# Falling edge of data signals Resistor to VDD15

A_CALS Rising edge of strobe signals Resistor to VSS

A_CALS# Falling edge of strobe signals Resistor to VDD15

These resistors are used by the compensation circuit. The output of

this circuit is combined with DevA:0x[54, 50] to determine com-

pensation values that are passed to the link PHYs.

Analog VDD15

A_DBI[H, L]. Data bus inversion [high, low]. When

DevA:0xA4[AGP3MD]=1, A_DBIL applies to AD[15:0];

A_DBIH applies to AD[31:16]. 1=AD signals are inverted.

0=A_AD signals are not inverted. The IC uses these signals in

determining the polarity of the A_AD signals when they are

inputs. These may also be enabled to support the DBI function of

the IC output signals by DevA:0x40[DBIEN]. Both A_DBIH and

A_DBIL are strobed with A_ADSTB1_[P, N].

When DevA:0xA4[AGP3MD]=0: A_DBIL is pulled low with the

AGP termination value and not used by the IC; A_DBIH is pulled

up to VDD15 through a weak resistor and becomes the AGP 2.0

PIPE# input signal.

IO VDD15 Term Term PU PU

A_DEVSEL#. AGP device select. IO VDD15 Term Term PU PU

A_FRAME#. AGP frame signal. IO VDD15 Term Term PU PU

A_GC8XDET#. 0=Specifies that the graphics device supports

AGP 3.0 signaling. The state of this signal is latched on the rising

edge of A_RESET# before being passed to internal logic.

Input

w/PU

VDD15 PU PU PU PU

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

9

The SERR# and PERR# signals are not supported on the AGP bridge.

A_GNT#. AGP master grant signal. Output VDD15 Term Low PU High

A_IRDY#. AGP master ready signal. IO VDD15 Term Term PU PU

A_MB8XDET#. This pin is controlled by DevA:0x40[8XDIS]. It

is designed to be connected to the AGP connector to indicate

support for AGP 3.0 signaling.

Output VDD15 Low Low Low Low

A_PAR. AGP parity signal. IO VDD15 Term Term PU Low

A_PCLK. 66 MHz AGP clock. Output VDD33 Func. Func. Func. Func.

A_PLLCLKO. PLL clock output. See section 4.3 for details. Output VDD33 Func. Func. Func. Func.

A_PLLCLKI. PLL clock input. See section 4.3 for details. Input VDD33

A_REFCG. AGP signal reference output. Analog

output

VDD15

A_REFGC. AGP signal reference input. Analog

input

VDD15

A_REQ#. AGP master request signal. Input VDD15 Term Term PU PU

A_RESET#. AGP bus reset signal. This is asserted whenever

RESET# is asserted or when programmed by

DevB:0x3C[SBRST]. Assertion of this pin does not reset any logic

internal to the IC.

Output VDD33 Low High Low High

A_RBF#. AGP read buffer full signal. Input VDD15 Term Term PU PU

A_SBSTB_[P, N]. AGP differential side band address strobe. In

AGP 3.0 signaling mode, A_SBSTB_P is the first strobe and

A_SBSTB_N is the second strobe.

Input VDD15 Term Term _P: PU

_N: PD

_P: PU

_N: PD

A_SBA[7:0]. AGP side band address signals. Input VDD15 Term Term PU PU

A_ST[2:0]. AGP status signals. Output VDD15 Term Low PU Low

A_STOP#. AGP target abort signal. IO VDD15 Term Term PU PU

A_TRDY#. AGP target ready signal. IO VDD15 Term Term PU PU

A_TYPEDET#. AGP IO voltage level type detect. 0=1.5 volts;

1=3.3 volts (not supported by the IC). The state of this pin is

provided in DevA:0x40[TYPEDET]. This pin is also used for test-

mode selection; see section 9. This signal requires an external

pullup resistor to VDD33 on the systemboard.

Input VDD33

A_WBF#. AGP write buffer full signal. Input VDD15 Term Term PU PU

Pin name and description IO cell

type

Power

plane

AGP 3.0

Signaling

AGP 2.0

Signaling

During

reset

After

reset

During

reset

After

reset

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

10

3.4 Test and Miscellaneous Signals

3.5 Power and Ground

VDD12[B, A]. 1.2 volt power plane for the HyperTransportTM technology pins. VDD12A provides power to

the A side of the tunnel. VDD12B provides power to the B side of the tunnel.

VDD15. 1.5 volt power plane for AGP.

VDD18. 1.8-volt power plane for the core of the IC.

VDDA18. Analog 1.8-volt power plane for the PLLs in the core of the IC. This power plane is required to be

filtered from digital noise.

VDD33. 3.3-volt power plane for IO.

VSS. Ground.

3.5.1 Power Plane Sequencing

The following are power plane requirements that may imply power supply sequencing requirements.

• VDD33 is required to always be higher than VDD18, VDDA18, VDD15, and VDD12[B, A].

• VDD18 and VDDA18 are required to always be higher than VDD15 and VDD12[B, A].

• VDD15 is required to always be higher than VDD12[B, A].

Pin name and description IO cell

type

Power

plane

During

reset

After

reset

CMPOVR. Link automatic compensation override. 0=Link automatic compensation

is enabled. 1=The compensation values stored in DevA:0x[E0, E4, E8] control the

compensation circuit. The state of this signal determines the default value for

DevA:0x[E0, E4, E8][ACTL and BCTL] at the rising edge of PWROK.

Input VDD33

FREE[7:1]. These should be left unconnected.

LDTSTOP#. Link disconnect control signal. This pin is also used for test-mode

selection; see section 9.

Input VDD33

NC[1:0]. These should be left unconnected.

PWROK. Power OK. 1=All power planes are valid. The rising edge of this signal is

deglitched; it is not observed internally until it is high for more than 6 consecutive

REFCLK cycles. See section 4.2 for more details about this signal.

Input VDD33

REFCLK. 66 MHz reference clock. This is required to be operational and valid for a

minimum of 200 microseconds prior to the rising edge of PWROK and always while

PWROK is high.

Input VDD33

RESET#. Reset input. See section 4.2 for details. Input VDD33

STRAPL[19:13, 11:0]. Strapping option to be tied low. These pins should be tied to

ground. STRAPL0 is used for test-mode selection; see section 9.

IO VDD15 3-State 3-State

STRAPL[22:20]. Strapping option to be tied low. These pins should be tied to

ground.

IO VDD33 3-State 3-State

TEST. This is required to be tied low for functional operation. See section 9 for

details.

Input VDD33

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

11

4 Functional Operation

4.1 Overview

The IC connects to the host through either the side A or side B HyperTransportTM link interface. The other side

of the tunnel may or may not be connected to another device. Host-initiated transactions that do not target the

IC or the bridge flow through the tunnel to the downstream device. Transactions claimed by the device are

passed to internal registers or to the AGP bridge.

See section 5.1 for details about the software view of the IC. See section 5.1.2 for a description of the register

naming convention. See the AMD-8151TM HyperTransportTM AGP3.0 Graphics Tunnel Design Guide for addi-

tional information.

4.2 Reset And Initialization

RESET# and PWROK are both required to be low while the power planes to the IC are invalid and for at least

1 millisecond after the power planes are valid. Deassertion of PWROK is referred to as a cold reset. After

PWROK is brought high, RESET# is required to stay low for at least 1 additional millisecond. After RESET#

is brought high, the links go through the initialization sequence.

After a cold reset, the IC may be reset by asserting RESET# while PWROK remains high. This is referred to as

a warm reset. RESET# must be asserted for no less than 1 millisecond during a warm reset.

4.3 Clocking

It is required that REFCLK be valid in order for the IC to operate. Also, the LR[B, A]CLK inputs from the

operation links must also be valid at the frequency defined DevA:0xCC[FREQA] and DevA:0xD0[FREQB].

The IC provides A_PCLK as the clock to the AGP device.

The systemboard is required to include a connection from A_PLLCLKO to A_PLLCLKI. The length of this

connection is required to be approximately the same as length of the A_PCLK trace from the IC to the external

AGP devices (including approximately 2.5 inches of etch on the AGP card). The IC uses this loopback to help

match the external trace delay.

4.3.1 Clock Gating

Internal clocks may be disabled during power-managed system states such as power-on suspend. It is required

that all upstream requests initiated by the IC be suspended while in this state.

To enable clock gating, DevA:0xF0[ICGSMAF] is programmed to the values in which clock gating will be

enabled. Stop Grant cycles and STPCLK deassertion link broadcasts interact to define the window in which the

IC is enabled for clock gating during LDTSTOP# assertions. The system is placed into power managed states

by steps that include a broadcast over the links of the Stop Grant cycle that includes the System Management

Action Field (SMAF) followed by the assertion of LDTSTOP#. When the IC detects the Stop Grant broadcast

which is enabled for clock gating, it enables clock gating for the next assertion of LDTSTOP#. While exiting

the power-managed state, the system is required to broadcast a STPCLK deassertion message. The IC uses this

message to disable clock gating during LDTSTOP# assertions. This is important because an LDTSTOP# asser-

tion is not guaranteed to occur after the Stop Grant broadcast is received. The clock gating window must be

closed to insure that clock gating does not occur during Stop Grant for LDTSTOP# assertions that are not asso-

ciated with the power states specified by DevA:0xF0[ICGSMAF].

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

12

In summary, Stop Grant broadcasts with SMAF fields specified by DevA:0xF0[ICGSMAF] enable the clock

gating window and STPCLK deassertion broadcasts disable the window. If LDTSTOP# is asserted while the

clock gating window is enabled, then clock gating occurs.

Also, DevA:0xF0[ECGSMAF] may be used in a similar way to disable A_PCLK and the internal clock grids

associated with the AGP bridge. The same rules for the clock gating window that apply to DevA:0xF0[ICGS-

MAF] also apply to DevA:0xF0[ECGSMAF]. If clock gating is enabled, then A_PCLK is forced low within

two clock periods after LDTSTOP# is asserted. It becomes active again within two clock periods after LDT-

STOP# is deasserted. It is required that there be no AGP-card-initiated upstream or downstream traffic while

A_PCLK is gated. In addition, it is required that there be no host accesses to the bridge or internal registers in

progress from the time that LDTSTOP# is asserted for clock gating until the link reconnects after LDTSTOP#

is deasserted.

4.4 Tunnel Links

HyperTransport link A supports CLK receive and transmit frequencies of 200, 400, 600, and 800 MHz. Link B

supports frequencies of 200 and 400 MHz. The side A and side B frequencies are independent of each other.

4.4.1 Link PHY

The PHY includes automatic compensation circuitry and a software override mechanism, as specified by

DevA:0x[E8, E4, E0]. The IC only implements synchronous mode clock forwarding FIFOs. So only the link

receive and transmit frequencies specified in DevA:0x[D0, CC][FREQB, FREQA] are allowed.

4.5 AGP

The AGP bridge supports AGP 3.0 signaling at 8x and 4x data rates and 1.5-volt AGP 2.0 signaling at 4x, 2x,

and 1x data rates. 64-bit upstream and 32-bit downstream addressing is supported. AGP 3.0 dynamic bus inver-

sion is supported on output signals in 8X mode only, not in 4X mode; dynamic bus inversion on input signals is

supported in both 4X and 8X modes.

4.5.1 Tags, UnitIDs, And Ordering

The IC requires three HyperTransportTM technology-defined UnitIDs. They are allocated as follows:

• First UnitID is not used. This is to avoid a potential conflict with the host (because it may be zero; see

DevA:0xC0[BUID]).

• Second UnitID is used for PCI-mode upstream requests and responses to host requests.

• Third UnitID is used for AGP (high priority and low priority) upstream requests.

The SrcTag value that is assigned to upstream non-posted AGP requests increments with each request from 0

to 27 and then rolls over to 0 again; the first SrcTag assigned after reset is 0. Up to 28 non-posted link requests

may be outstanding at a time. The SrcTag value that is assigned to non-posted PCI requests is always 28.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

13

All AGP transactions are compliant to AGP ordering rules. APG transactions are translated into link transac-

tions as follows:

4.5.2 Various Behaviors

• The AGP bridge does not claim link special cycles. However, special cycles that are encoded in configura-

tion cycles to device 31 of the AGP secondary bus number (per the PCI-to-PCI bridge specification) are

translated to AGP bus special cycles.

• AGP and PCI read transactions that receive NXA responses from the host complete onto the AGP bus with

the data provided by the host (which is required to be all 1’s, per the link specification).

• In the translation from type 1 link configuration cycles to secondary bus type 0 configuration cycles, the IC

converts the device number to IDSEL AD signal as follows: device 0 maps to AD[16]; device 1 maps to

AD[17]; and so forth. Device numbers 16 through 31 are not valid.

• The compensation values for drive strength and input impedance that are assigned to non-clock forwarded

AGP signals are automatically determined and set by the IC during the first compensation cycle after

RESET#. Once set, they do not change until the next RESET# assertion.

• Per the link protocol, when the COMPAT bit is set in the transaction, the IC does not ever claim the transac-

tion. Such transactions are automatically passed to the other side of the tunnel (or master aborted if the IC is

at the end of the chain). This is true of all transactions within address space that is otherwise claimed by the

IC, including the space defined by DevB:0x3C[VGAEN].

4.5.2.1 AGP Compensation And Calibration Cycles

The AGP PHY includes one compensation circuit for the clock forwarded data signals, A_AD[31:0],

A_CBE_L[3:0], and A_DBI[H, L], and one compensation circuit for the strobes, A_ADSTB[1:0]. Each com-

pensation circuit calculates the required rising-edge (P) and falling-edge (N) signal drive strength through a

free-running state machine that generates a new value approximately every four microseconds. These values

are provided in DevA:0x[50, 54][NCOMP, PCOMP].

Programmable skew values between data signals and strobes are also provided in DevA:0x58.

The compensation values provided to the AGP PHY are software selectable between the calculated compensa-

tion values, fixed programmable bypass values, or fixed programmable offsets from the calculated values.

Regardless of which value is selected, the value presented to the PHY is never updated until there is a calibra-

tion cycle.

Calibration cycles consist of taking control of the AGP bus, updating the AGP PHY compensation values, and

then releasing (see DevA:0xA8[PCALCYC]). If enabled by DevA:0xB0[CALDIS], they occur periodically

with the period specified by DevA:0xA8[PCALCYC].

AGP transaction Link transaction

High priority write WrSized, posted channel, PassPW = 1

High priority read RdSized, PassPW = 1, response PassPW = 1

Low priority write WrSized, posted channel, PassPW = 0

Low priority read RdSized, PassPW = 0, response PassPW = 1

Low priority flush Flush, PassPW = 0

Low priority fence None (wait for all outstanding read responses)

Table 2: Translation from AGP requests to link requests.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

14

The first calibration cycle occurs approximately 4 milliseconds after the deassertion of RESET# (whether AGP

2.0 or 3.0 signaling is enabled).

5 Registers

5.1 Register Overview

The IC includes several sets of registers accessed through a variety of address spaces. IO address space refers

to register addresses that are accessed through x86 IO instructions such as IN and OUT. PCI configuration

space is typically accessed by the host through IO cycles to CF8h and CFCh. There is also memory space and

indexed address space in the IC.

5.1.1 Configuration Space

The address space for the IC configuration registers is broken up into busses, devices, functions, and, offsets, as

defined by the link specification. It is accessed by HyperTransport™ technology-defined type 0 configuration

cycles. The device number is mapped into bits[15:11] of the configuration address. The function number is

mapped into bits[10:8] of the configuration address. The offset is mapped to bits[7:2] of the configuration

address.

The following diagram shows the devices in configuration space as viewed by software.

Device A, above, is programmed to be the link base UnitID and device B is the link base UnitID plus 1.

5.1.2 Register Naming and Description Conventions

Configuration register locations are referenced with mnemonics that take the form of Dev[A|B]:[7:0]x[FF:0],

where the first set of brackets contain the device number, the second set of brackets contain the function num-

ber, and the last set of brackets contain the offset.

Other register locations (e.g. memory mapped registers) are referenced with an assigned mnemonic that speci-

fies the address space and offset. These mnemonics start with two or three characters that identify the space

followed by characters that identify the offset within the space.

Register fields within register locations are also identified with a name or bit group in brackets following the

register location mnemonic.

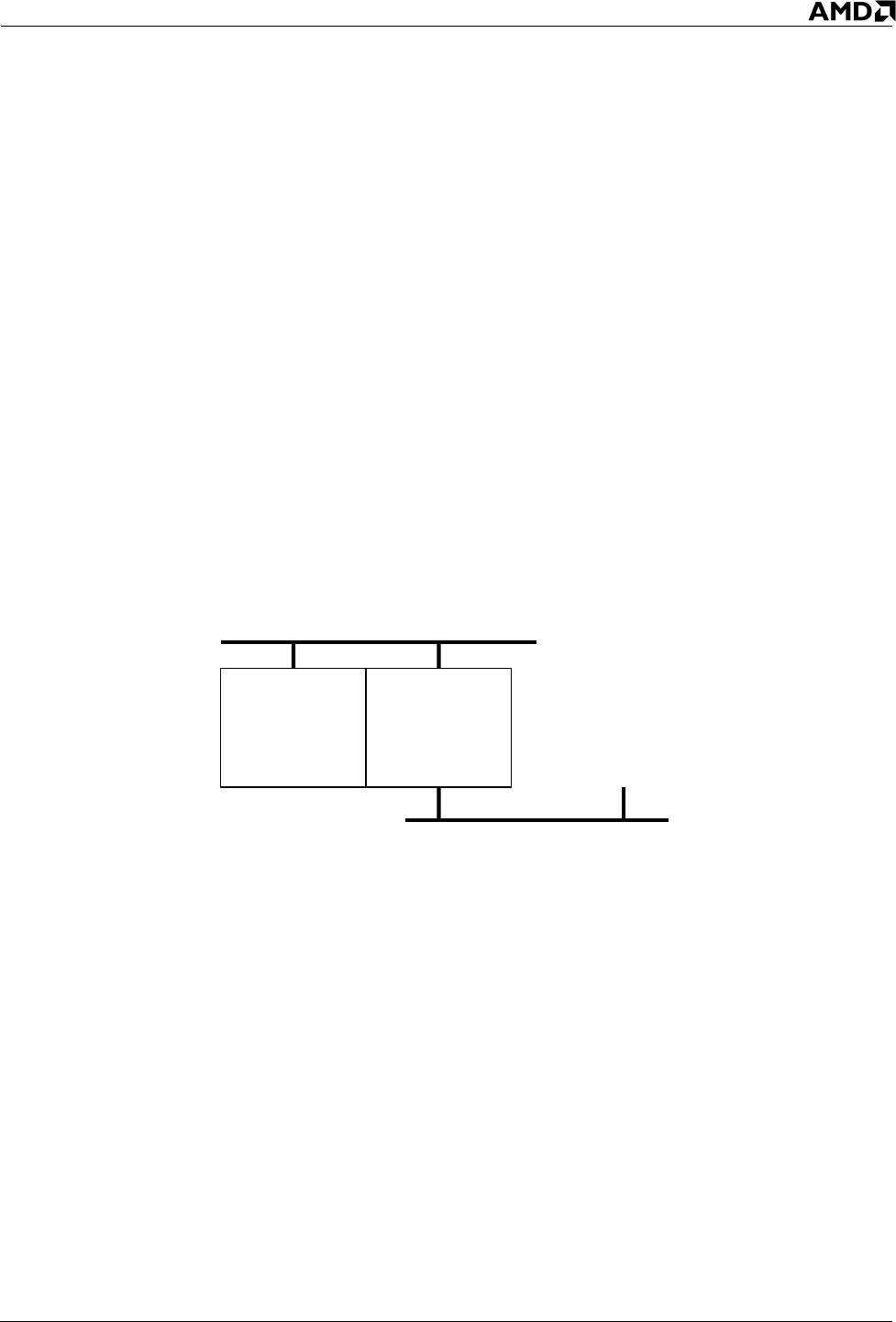

Figure 2: Configuration space.

Primary bus

AGP Device

DevA:0xXX

Device header

First device

Function 0

Secondary bus

AGP Slot

AGP Bridge

DevB:0xXX

Bridge header

Second device

Function 0

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

15

The following are configuration spaces:

The IC does not claim configuration-register accesses to unimplemented functions within its devices (they are

forwarded to the other side of the tunnel). Accesses to unimplemented register locations within implemented

functions are claimed; such writes are ignored and reads always respond with all zeros.

The following are memory mapped spaces:

The following are register attributes found in the register descriptions.

5.2 AGP Device Configuration Registers

These registers are located in PCI configuration space, in the first device (device A), function 0. See section

5.1.2 for a description of the register naming convention.

AGP Vendor And Device ID Register DevA:0x00

Default: 7454 1022h Attribute: Read only.

Device Function Mnemonic Registers

"A" 0 DevA:0xXX AGP device header; link and AGP capabilities blocks

"B" 0 DevB:0xXX PCI-PCI bridge registers for AGP

Table 3: Configuration spaces.

Base address

register

Size

(bytes)

Mnemonic Registers

DevA:0x10 Variable None Graphic virtual memory aperture; minimum of 32 megabytes.

DevA:0xB8 4K None GART block in physical memory.

Table 4: Memory mapped address spaces.

Type Description

Read or read-only Capable of being read by software. Read-only implies that the register cannot be written to by

software.

Write Capable of being written by software.

Set by hardware Register bit is set high by hardware.

Write once After RESET#, these registers may be written to once. After being written, they become read only

until the next RESET# assertion. The write-once control is byte based. So, for example, software

may write each byte of a write-once DWORD as four individual transactions. As each byte is

written, that byte becomes read only.

Write 1 to clear Software must write a 1 to the bit in order to clear it. Writing a 0 to these bits has no effect.

Write 1 only Software can set the bit high by writing a 1 to it. However subsequent writes of 0 will have no

effect. RESET# must be asserted in order to clear the bit.

Table 5: Register attributes.

Bits Description

31:16 AGP device ID.

15:0 Vendor ID.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

16

AGP Device Status And Command Register DevA:0x04

Default: 0210 0000h Attribute: See below.

AGP Device Revision and Class Code Register DevA:0x08

Default: 0600 00??h Attribute: See below.

AGP Device BIST-Header-Latency-Cache Register DevA:0x0C

Default: 0000 0000h Attribute: Read only.

Bits Description

31 DPE: detected parity error. Read only. This bit is fixed in the low state.

30 SSE: signaled system error. Read; set by hardware; write 1 to clear. 1=A system error was signaled

(both links were flooded with sync packets) as a result of a CRC error (see

DevA:0x[C8:C4][CRCFEN, CRCERR]). Note: this bit is cleared by PWROK reset but not by

RESET#.

29 RMA: received master abort. Read; set by hardware; write 1 to clear. 1=A request (AGP or PCI)

sent to the host bus received a master abort (an NXA error response). Note: this bit is cleared by

PWROK reset but not by RESET#.

28 RTA: received target abort. Read; set by hardware; write 1 to clear. 1=A request (AGP or PCI) sent

to the host bus received a target abort (a non-NXA error response). Note: this bit is cleared by

PWROK reset but not by RESET#.

27:21 Read only. These bits are fixed in their default state.

20 Capabilities pointer. Read only. This bit is fixed in the high state.

19:3 Read only. These bits are fixed in their default state.

2MASEN: PCI master enable. Read-write. This bit controls no hardware in the IC.

1MEMEN: memory enable. Read-write. 1=Enables access to the memory space specified by

DevA:0x10. This bit controls no hardware in the IC.

0IO enable. Read only. This bit is fixed in the low state.

Bits Description

31:8 CLASSCODE. Read; write once. Provides the AGP bridge class code.

7:0 REVISION. Read only.

Bits Description

31:24 BIST. These bits fixed at their default values.

23:16 HEADER. These bits fixed at their default values.

15:8 LATENCY. These bits fixed at their default values.

7:0 CACHE. These bits fixed at their default values.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

17

AGP Device Graphic Virtual Memory Aperture Register DevA:0x10

It is expected that the state of this register is copied into the host by software. This register controls no hard-

ware in the IC.

Default: 0000 0000 0000 0008h Attribute: See below.

AGP Device Subsystem ID and Subsystem Vendor ID Register DevA:0x2C

Default: 0000 0000h Attribute: Read; write once.

AGP Capabilities Pointer DevA:0x34

Default: 0000 00A0h Attribute: Read only.

Bits Description

63:32 APBARHI. Read-write. Aperture base address register high. Note: bits[63:40] are required to be

programmed low; setting any of these bits high results in undefined behavior. Note: if

DevA:0x10[64BIT]=0, then these bits are read only, all zero.

31:22 APBARLO. Aperture base address register low. These bits are a combination of read-write and read-

only zero, based on the state of DevA:0xB4[APSIZE]; see that register for details.

21:4 Reserved.

3 Read only. This bit is fixed at its default value to indicate that this register points prefetchable space.

264BIT: 64-bit pointer. Read; write once. 1=DevA:0x10 is a 64-bit pointer. 0=DevA:0x10 is a 32-bit

pointer; bits[63:32] are reserved.

1:0 Read only. These bits are fixed at their default value to indicate that this register points memory space.

Bits Description

31:16 Subsystem ID. This field controls no hardware.

15:0 Subsystem vendor ID. This field controls no hardware.

Bits Description

31:8 Reserved.

7:0 Capabilities pointer. Specifies the offset in DevA:0 address space for the AGP capabilities block.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

18

AGP Miscellaneous Control Register DevA:0x40

Default: 0000 0000h Attribute: See below.

Bits Description

31:8 Reserved.

7Must be low. This bit is required to be low at all times; setting it high results in undefined behavior.

6Must be low. This bit is required to be low at all times; setting it high results in undefined behavior.

5Must be low. This bit is required to be low at all times; setting it high results in undefined behavior.

4Must be low. This bit is required to be low at all times; setting it high results in undefined behavior.

3FWDIS: fast write disable. Read-write. 1=DevA:0xA4[FWSUP] is low. 0=DevA:0xA4[FWSUP] is

high.

28XDIS: AGP 3.0 signaling mode disable. Read-write. 0=The IC drives A_MB8XDET# low to

indicate support for AGP 3.0 signaling. 1=The IC does not drive A_MB8XDET low. This bit may be

used in conjunction with DevB:0x3C[SBRST] to revert back to AGP 2.0 signaling. To do this,

software should (1) set DevB:0x3C[SBRST] in order to reset the AGP card, (2) set 8XDIS to cause

A_MB8XDET# to float high, and (3) clear DevB:0x3C[SBRST].

1TYPEDET: AGP voltage type detection. Read only. This bit reflects the state of the A_TYPEDET#

pin. 0=The AGP master supports 1.5 volt signaling. 1=The AGP master requires 3.3 volt signaling

and is therefore not compatible with the IC. If this bit is detected high by BIOS, an error should be

signaled.

0DBIEN: dynamic bus inversion enable. Read-write. 1= A_DBI[H, L] enabled to dynamically invert

the state of the A_AD signals when the IC is driving these. This only applies to AGP 3.0 transfers in

the downstream direction (fast writes and read responses to AGP master requests). For PCI transfers

in the downstream direction, A_DBI[H, L] are held inactive and no inversion takes place. 0=When

the IC drives the A_AD lines, A_DBI[H, L] are driven low. Note: this bit is only valid when 8x

transfer rates are enabled; if (1) DevA:0xA4[AGP3MD]=0 or (2) DevA:0xA4[AGP3MD]=1 and

DevA:0xA8[DRATE] is not 010b, then this field is ignored and the DBI is not enabled.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

19

AGP PHY Control Register DevA:0x[54, 50]

These registers apply to the compensation values of AGP clock-forwarded data and strobe signals as follows:

• DevA:0x50: data signals A_AD[31:0], A_CBE_L[3:0], A_DBI[H, L], and A_SBA[7:0].

• DevA:0x54: strobe signals A_ADSTB[1:0]_[P, N] and A_SBSTB_[P, N].

NCTL, NDATA, and NCOMP are related to (1) the falling edge drive strength of the signals as outputs and (2)

the impedance of the signals as inputs. PCTL, PDATA, and PCOMP are related to the rising edge drive

strength of the signals as outputs only. For the [N, P]DATA and [N, P]COMP fields of these registers, 00h cor-

responds to the weakest drive strength and the highest receive impedance. For the [N, P]DATA and [N,

P]COMP fields of these registers, the highest values corresponds to the strongest drive strength and lowest

receive impedance.

External compensation resistors are used by the IC to determine the proper drive strength values. The resistors

correlate the calculated values as follows:

• A_CALD is used to calculate DevA:0x50[PCOMP] (data signal rising edge drive strength).

• A_CALD# is used to calculate DevA:0x50[NCOMP] (data signal falling edge drive strength and receive

impedance).

• A_CALS is used to calculate DevA:0x54[PCOMP] (strobe rising edge drive strength).

• A_CALS# is used to calculate DevA:0x54[NCOMP] (strobe falling edge drive strength and receive imped-

ance).

Note: when new values are written to these registers, new compensation values are not updated to the AGP

PHY automatically; the periodic calibration cycle specified by DevA:0xA8[PCALCYC] must pass in order for

the AGP PHY calibration values to take effect.

Default: 000? 000?h Attribute: See below.

Bits Description

31:30 NCTL: AGP PHY N (falling edge) compensation control. Read-write. These two bits combine to

specify the PHY falling edge compensation value that is applied to AGP signals as follows:

NCTL Description

00b Apply NCOMP directly as the compensation value.

01b Apply NDATA directly as the compensation value.

10b Apply the sum of NCOMP and NDATA as the compensation value. If the sum

exceeds 3Fh, then 3Fh is applied.

11b Apply the difference of NCOMP minus NDATA as the compensation value. If the dif-

ference is less than 00h, then 00h is applied.

29:28 Reserved.

27:22 NDATA: AGP falling edge drive strength control. Read-write. This value is applied to the falling-

edge (N transistor) PHY compensation as described in NCTL.

21:16 NCOMP: AGP falling edge drive strength. Read only. This provides the calculated value of the

falling-edge (N transistor) drive strength of the AGP signals. The default for this field varies. This

field is updated by the hardware approximately every 8 microseconds.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

20

AGP PHY Skew Control Register DevA:0x58

DSKEW and SSKEW are designed such that when they are both programmed to the same value, the AGP out-

put strobes transition near the center of the data eye. To move the strobe to a later point in the data eye, the

value of SSKEW is increased. To move the strobe to an earlier point in the data eye, DSKEW is increased.

These values translate into skew approximately as follows:

For values 0h to 8h, the skew is about: [D, S]SKEW x 80 picoseconds.

For values 9h to Fh, the skew is about: 800 + ([D, S]SKEW - 8) x 400 picoseconds.

However, these values vary with process, temperature, and voltage. Note that the lower values provide fine res-

olution and the upper values provide coarse resolution.

Default: 0000 0000h. Attribute: Read-write.

15:14 PCTL: AGP PHY P (rising edge) compensation control. Read-write. These two bits combine to

specify the PHY rising edge compensation value that is applied to AGP signals as follows:

PCTL Description

00b Apply PCOMP directly as the compensation value.

01b Apply PDATA directly as the compensation value.

10b Apply the sum of PCOMP and PDATA as the compensation value. If the sum exceeds

1Fh, then 1Fh is applied.

11b Apply the difference of PCOMP minus PDATA as the compensation value. If the dif-

ference is less than 00h, then 00h is applied.

13:12 Reserved.

11 RW: read-write bit. Read-write. This controls no logic.

10:6 PDATA: AGP rising edge drive strength control. Read-write. This value is applied to the rising-

edge (P transistor) PHY compensation as described in PCTL.

5 Reserved.

4:0 PCOMP: AGP rising edge drive strength. Read only. This provides the calculated value of the ris-

ing-edge (P transistor) drive strength of the AGP signals. The default for this field varies. This field is

updated by the hardware approximately every 8 microseconds.

Bits Description

31:8 Reserved.

7:4 DSKEW: AGP data skew. Read-write. This specifies the alignment of the AGP data signal outputs,

A_AD[31:0], A_CBE_L[3:0], and A_DBI[H, L], relative internal clocks. 0h=The strobe transitions

earliest. Fh=The strobe transitions latest.

3:0 SSKEW: AGP strobe skew. Read-write. This specifies the alignment of the AGP strobe signal out-

puts, A_ADSTB[1:0], relative internal clocks. 0h=The strobe transitions earliest. Fh=The strobe tran-

sitions latest.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

21

AGP Most Recent Request Register DevA:0x60

As each PIPE mode or SBA mode AGP request is transferred into the IC, the fields are placed into this register.

Thus, this register provides the fields of the most recent AGP requests. Any sticky bits from prior requests that

have not been updated in the current request are also valid. Note: fences are not captured by this register.

Default: 0000 0000 0000 0000h Attribute: Read only.

AGP Revision and Capability Register DevA:0xA0

Default: 0030 C002h Attribute: Read only.

AGP Status Register DevA:0xA4

Default: 1F00 0B2?h (see bit descriptions for bits[3:0])Attribute: Read only.

Bits Description

63:44 Reserved.

43:40 MRC: most recent command field. Specifies the command field of the most recent AGP request.

0h=LP (low priority) read. 1h=HP (high priority) read. 4h=LP write. 5h=HP write. 8h=LP long read.

9h=HP long read. Ah=Flush.

39:3 MRA: most recent address. Specifies address bits[39:3] of the most recent AGP request.

2:0 MRL: most recent length field. Specifies the length field of the most recent AGP request.

Bits Description

31:24 Reserved.

23:16 AGP specification. This field is hardwired to indicate that the IC conforms to AGP specification

revision 3.

15:8 Next capabilities block. Specifies the offset to the next capabilities block.

7:0 Capabilities type. Specifies the AGP capabilities block.

Bits Description

31:24 RQ: maximum number of outstanding requests. This field is set to indicate support for 32

outstanding requests.

23:18 Reserved.

17 Isochronous support. This bit fixed in the low state to indicate that the IC does not support

isochronous modes.

16:13 Reserved.

12:10 Calibration cycle. This field is set to indicate a requirement for calibration cycles every 64 millisec-

onds.

9SBA support. This field is set to indicate support for SBA.

8Coherency. This bit fixed high.

764-bit GART support. This bit fixed low.

6Host translation#. This bit fixed low.

5Greater-than 4 gigabyte support. This bit fixed high.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

22

AGP Command Register DevA:0xA8

Default: 0000 0000h Attribute: Read-write.

4FWSUP: fast write support flag. 0=Fast writes are not supported. 1=Fast writes are supported. The

state of this bit is controlled by DevA:0x40[FWDIS].

3AGP3MD: AGP 3.0 signaling mode detected. 1=The IC detected connection to an AGP 3.0-capable

master and is programmed for AGP 3.0 signaling. 0=The IC detected connection to an AGP 2.0 or

earlier capable master or is not programmed for 1.5-volt, AGP 2.0 signaling. If

DevA:0x40[8XDIS]=0 and the pin A_GC8XDET#=0, then this bit is high. Otherwise, it is low.

2:0 RATE: data rate. When AGP3MD=1, then this field defaults to 011b to indicate support for 4x and

8x data rates. When AGP3MD=0, this field defaults to 111b to indicate support for 4x, 2x, and 1x data

rates.

Bits Description

31:13 Reserved.

12:10 PCALCYC: periodic calibration cycle. Specifies the period between calibration cycles as follows:

000b=4 milliseconds; 001b=16 milliseconds; 010=64 milliseconds; 011b=256 milliseconds; all other

values are reserved. When DevA:0xA4[AGP3MD]=1, calibration cycles are as specified in the AGP

3.0 specification. When DevA:0xA4[AGP3MD]=0, calibration cycles consist of (1) the internal

calibration logic requests the bus; (2) once granted, the calibration values are update in less than 6

A_PCLK cycles while the AGP bus is in a quiescent state. Note: after changing this value, the IC may

not perform another calibration cycle until the internal counter rolls over as much as 256

microseconds later; in order to avoid this, DevA:0xB0[CALDIS] should be set high before changing

PCALCYC and then DevA:0xB0[CALDIS] should be cleared afterward.

9SBA_EN: side band address enable. 1=SBA addressing is enabled. Note: when

DevA:0xA4[AGP3MD]=1, SBA addressing is enabled and the state of this bit is ignored.

8AGPEN: AGP operation enable. 1=The IC accepts master-initiated AGP commands. 0=AGP

commands are ignored.

7:6 Reserved.

5R4GEN: receive greater-than 4-gigabyte access enable. 1=The IC accepts AGP accesses to

addresses greater than 4 gigabytes.

4FWEN: fast write enable. 1=Fast writes are enabled. When DevA:0xA4[FWSUP]=0, this bit is

required to be programmed low; if, in this case, this bit is programmed high, then undefined behavior

results.

3 Reserved.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

23

AGP Control Register DevA:0xB0

Default: 0000 0000h Attribute: Read-write.

AGP Aperture Size Register DevA:0xB4

Default: 0001 0F00h Attribute: See below.

2:0 DRATE: data transfer mode rate. This field is combined with DevA:0xA4[AGP3MD] to specify

the AGP data rate as follows:

AGP3MD DRATE

X 000 No AGP mode selected.

0 001 1x AGP rate; AGP 2.0 signaling.

0 010 2x AGP rate; AGP 2.0 signaling.

0 100 4x AGP rate; AGP 2.0 signaling.

1 001 4x AGP rate; AGP 3.0 signaling.

1 010 8x AGP rate; AGP 3.0 signaling.

1100Reserved.

Bits Description

31:10 Reserved.

9CALDIS: calibration cycle disable. 1=Calibration cycles (as defined in DevA:0xA8[PCALCYC])

are disabled.

8APEREN: graphics aperture enable. This bit controls no hardware in the IC. It is expected that the

state of this bit is copied into the host by software.

7GTLBEN: graphics translation look-aside buffer enable. This bit controls no hardware in the IC. It

is expected that the state of this bit is copied into the host by software.

6:0 Reserved.

Bits Description

31:28 PGSZSEL: page size select. Read-write. The only legal value for these bits is 0000b, which specifies

a 4-kilobyte page.

27 Reserved.

26:16 Page size support. Read only. These bits are fixed in their default state to indicate that the IC

supports 4-kilobyte pages.

15:12 Reserved.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

24

AGP Device GART Pointer DevA:0xB8

This register controls no hardware in the IC. It is expected that the state of this register is copied into the host

by software.

Default: 0000 0000 0000 0000h Attribute: Read-write.

Link Command Register DevA:0xC0

Default: 0060 0008h Attribute: See below.

11:0 APSIZE: graphic virtual memory aperture size. Read-write (except bits[11, 7:6, and 2:0] which

are read only, fixed at the default value). This field specifies the size of the aperture pointed to by

DevA:0x10. This field also controls read only versus read-write control over several bits in

DevA:0x10. It is encoded as follows:

DevA:0x10 DevA:0x10

Bits[10, 9, 8, 5, 4, 3] Aperture size read-write bits read-only bits

1 1 1 1 1 1 32 MB [63:25] [24:0]

1 1 1 1 1 0 64 MB [63:26] [25:0]

1 1 1 1 0 0 128 MB [63:27] [26:0]

1 1 1 0 0 0 256 MB [63:28] [27:0]

1 1 0 0 0 0 512 MB [63:29] [28:0]

1 0 0 0 0 0 1024 MB [63:30] [29:0]

0 0 0 0 0 0 2048 MB [63:31] [30:0]

It is expected that the state of this field is copied into the host by software. Note: DevA:0x10[2] is

“read; write once,” even though it is shown as read-only above. Also, based on the state of

DevA:0x10[2], DevA:0x10[63:32] may be read-only, all zeros.

Bits Description

63:32 GARTHI: GART base address register high.

31:12 GARTLO: GART base address register low.

11:0 Reserved.

Bits Description

31:29 Slave/primary interface type. Read only.

28 DOUI: drop on uninitialized link. Read-write. This specifies the behavior of transactions that are

sent to uninitialized links. 0=Transactions that are received by the IC and forwarded to a side of the

tunnel, when DevA:0x[C4/C8][INITCPLT and ENDOCH] for that side of the tunnel are both low,

remain in buffers awaiting transmission indefinitely (waiting for INITCPLT to be set high). 1=Trans-

actions that are received by the IC and forwarded to a side of the tunnel, when

DevA:0x[C4/C8][INITCPLT and ENDOCH] for that side of the tunnel are both low, behave as if

ENDOCH were high. Note: this bit is cleared by PWROK reset but not by RESET#.

27 DEFDIR: default direction. Read-write. 0=Send AGP master requests to the master link host as

specified by DevA:0xC0[MASHST]. 1=Send AGP master requests to the opposite side of the tunnel.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

25

Link Configuration And Control Register DevA:0xC4 and DevA:0xC8

DevA:0xC4 applies side A of the tunnel and DevA:0xC8 applies to side B of the tunnel. The default value for

bit[5] may vary (see the definition).

Default: ??11 0020h for DevA:0xC4 and ??00 0020h for DevA:0xC8.Attribute: See below.

26 MASHST: master host. Read; set and cleared by hardware. This bit indicates which link is the path

to the master (or only) host bridge on the HyperTransport™ technology chain. 1=The hardware set

this bit as a result of a write command from the B side of the tunnel to any of the bytes of

DevA:0xC0[31:16]. 0=The hardware cleared this bit as a result of a write command from the A side

of the tunnel to any of the bytes of DevA:0xC0[31:16]. This bit, along with DEFDIR, is used to

determine the side of the tunnel to which AGP master requests are sent.

25:21 UnitID count. Read only. Specifies the number of UnitIDs used by the IC (three).

20:16 BUID: base UnitID. Read-write. This specifies the link-protocol base UnitID. The IC's logic uses

this value to determine the UnitIDs for link request and response packets. When a new value is

written to this field, the response includes a UnitID that is based on the new value in this register.

Note: some legacy operating systems may require that this value be set to zero for normal operation

so that the AGP capability block is part of device 0. Since the IC does not use the base unit ID in any

link transactions, there is no conflict with the host unit ID. However, at boot, BIOS is required to

temporarily change the BUID value of the IC so that the BUID values in downstream devices may be

initialized. After downstream BUID values are initialized, this field may be set to zero to be

compatible with legacy operating systems.

15:8 Reserved.

7:0 Capabilities ID. Read only. Specifies the capabilities ID for link configuration space.

Bits Description

31 Reserved.

30:28 LWO: link width out. Read-write. Specifies the operating width of the outgoing link. Legal values

are 001b (16 bits; DevA:0xC4 only), 000b (8 bits), 101b (4 bits), 100b (2 bits), and 111b (not

connected). Note: this field is cleared by PWROK reset but not by RESET#; the default value of this

field depends on the widths of the links of the connecting device, per the link specification. Note:

after this field is updated, the link width does not change until either RESET# is asserted or a link

disconnect sequence occurs through or LDTSTOP#.

27 Reserved.

26:24 LWI: link width in. Read-write. Specifies the operating width of the incoming link. Legal values are

001b (16 bits; DevA:0xC4 only), 000b (8 bits), 101b (4 bits), 100b (2 bits), and 111b (not connected).

Note: this field is cleared by PWROK reset but not by RESET#; the default value of this field depends

on the widths of the links of the connecting device, per the link specification. Note: after this field is

updated, the link width does not change until either RESET# is asserted or a link disconnect sequence

occurs through an LDTSTOP# assertion.

23 Reserved.

22:20 Max link width out. Read only. This specifies the width of the outgoing link to be 16 bits wide for

side A and 8 bits wide for side B.

19 Reserved.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

26

18:16 Max link width in. Read only. This specifies the width of the incoming link to be 16 bits wide for

side A and 8 bits wide for side B.

15 Reserved.

14 EXTCTL: extended control time during initialization. Read-write. This specifies the time in

which LT[B, A]CTL is held asserted during the initialization sequence that follows an LDTSTOP#

deassertion, after LR[B, A]CTL is detected asserted. 0=At least 16 bit times. 1=About 50

microseconds. Note: this bit is cleared by PWROK reset but not by RESET#.

13 LDT3SEN: link three-state enable. Read-write. 1=During the LDTSTOP# disconnect sequence, the

link transmitter signals are placed into the high impedance state and the receivers are prepared for the

high impedance mode. For the receivers, this includes cutting power to the receiver differential

amplifiers and ensuring that there are no resultant high-current paths in the circuits. 0=During the

LDTSTOP# disconnect sequence, the link transmitter signals are driven, but in an undefined state,

and the link receiver signals are assumed to be driven. Note: this bit is cleared by PWROK reset but

not by RESET#. AMD recommends that this bit be set high in single-processor systems and be low in

multi-processor systems.

12:10 Reserved.

9:8 CRCERR: CRC Error. Read; set by hardware; write 1 to clear. Bit[9] applies to the upper byte of

the link (DevA:0xC4 only) and bit[8] applies to the lower byte. 1=The hardware detected a CRC error

on the incoming link. Note: this bit is cleared by PWROK reset but not by RESET#.

7TXOFF: transmitter off. Read; write 1 only. 1=No output signals on the link toggle; the input link

receivers are disabled and the pins may float.

6ENDOCH: end of chain. Read; write 1 only or set by hardware. 1=The link is not part of the logical

HyperTransport technology chain; packets which are issued or forwarded to this link are either

dropped or result in an NXA error response, as appropriate; packets received from this link are

ignored and CRC is not checked; if the transmitter is still enabled (TXOFF), then it drives only NOP

packets with good CRC. ENDOCH may be set by writing a 1 to it or it may be set by hardware if the

link is determined to be disconnected at the rising edge of RESET#.

5INITCPLT: initialization complete. Read only. This bit is set by hardware when low-level link

initialization has successfully completed. If there is no device on the other end of the link, or if the

device on the other side of the link is unable to properly perform link initialization, then the bit is not

set. This bit is cleared when RESET# is asserted or after the link disconnect sequence completes after

the assertion of LDTSTOP#.

4LKFAIL: link failure. Read; set by hardware; write 1 to clear. This bit is set high by the hardware

when a CRC error is detected on the link (if enabled by CRCFEN) or if the link is not used in the

system. Note: this bit is cleared by PWROK reset, not by RESET#.

3CRCERRCMD: CRC error command. Read-write. 1=The link transmission logic generates

erroneous CRC values. 0=Transmitted CRC values match the values calculated per the link

specification. This bit is intended to be used to check the CRC failure detection logic of the device on

the other side of the link.

2 Reserved.

1CRCFEN: CRC flood enable. Read-write. 1=CRC errors (in link A for DevA:0xC4[CRCFEN]; in

link B for DevA:0xC8[CRCFEN]) result in sync packets to both outgoing links, DevA:0x04[SSE] is

set, and the LKFAIL bit is set. 0=CRC errors do not result in sync packets, setting of

DevA:0x04[SSE] or the LKFAIL bit.

0 Reserved.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

27

Link Frequency Capability 0 Register DevA:0xCC

Default: 0035 0022h. Attribute: See below.

Link Frequency Capability 1 Register DevA:0xD0

Default: 0035 0002h. Attribute: See below.

Link Enumeration Scratchpad Register DevA:0xD4

Default: 0000 0000h. Attribute: See below.

Bits Description

31:16 FREQCAPA: link A frequency capability. Read only. These bits indicate that A side of the tunnel

supports 200, 400, 600, and 800 MHz link frequencies.

15:12 Reserved.

11:8 FREQA: link A frequency. Read-write. Specifies the link side A frequency. Legal values are 0h (200

MHz), 2h (400 MHz), 4h (600 MHz), and 5h (800 MHz). Note: this bit is cleared by PWROK reset,

not by RESET#. Note: after this field is updated, the link frequency does not change until either

RESET# is asserted or a link disconnect sequence occurs through LDTSTOP#.

7:0 REVISION. Read only. Revision A of the IC is designed to version 1.02 of the link specification.

Bits Description

31:16 FREQCAPB: link B frequency capability. Read only. These bits indicate that that B side of the

tunnel supports 200, 400, 600, and 800 MHz link frequencies.

15:12 Reserved.

11:8 FREQB: link B frequency. Read-write. Specifies the link side B frequency. Legal values are 0h (200

MHz), and 2h (400 MHz), 4h (600 MHz), and 5h (800 MHz). Note: although it is possible to program

this field for higher frequencies, the B link of the IC is only designed to support 200 and 400 MHz

operation. Note: this bit is cleared by PWROK reset, not by RESET#. Note: after this field is updated,

the link frequency does not change until either RESET# is asserted or a link disconnect sequence

occurs through LDTSTOP#.

7:0 Link device feature capability indicator. Read only. These bits are set to indicate that the IC

supports LDTSTOP#.

Bits Description

31:16 Reserved.

15:0 ESP: enumeration scratchpad. Read-write. This field controls no hardware within the IC. Note: this

bit is cleared by PWROK reset, not by RESET#.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

28

Link PHY Compensation Control Registers DevA:0x[E8, E4, E0]

The link PHY circuitry includes automatic compensation that is used to adjust the electrical characteristics for

the link transmitters and receivers on both sides of the tunnel. There is one compensation circuit for the receiv-

ers and one for each polarity of the transmitters. These registers provide visibility into the calculated output of

the compensation circuits, the ability to override the calculated value with software-controlled values, and the

ability to offset the calculated values with a fixed difference. The overrides and difference values may be dif-

ferent between sides A and B of the tunnel. These registers specify the compensation parameters as follows:

• DevA:0xE0: transmitter rising edge (P) drive strength compensation.

• DevA:0xE4: transmitter falling edge (N) drive strength compensation.

• DevA:0xE8: receiver impedance compensation.

For DevA:0x[E4, E0], higher values represent higher drive strength; the values range from 01h to 13h (19

steps). For DevA:0xE8, higher values represent lower impedance; the values range from 00h to 1Fh (32 steps).

Note: the default state of these registers is set by PWROK reset; assertion of RESET# does not alter any of the

fields.

Default: See below. Attribute: See below.

Bits Description

31 Must be low. Read-write. This bit is required to be low at all times; setting it high results in undefined

behavior.

30:21 Reserved.

20:16 CALCCOMP: calculated compensation value. Read only. This provides the calculated value from

the auto compensation circuitry. The default value of this field is not predictable.

15 Reserved.

14:13 BCTL: link side B PHY control value. Read-write. These two bits combine to specify the PHY

compensation value that is applied to side B of the tunnel as follows:

BCTL Description

00b Apply CALCCOMP directly as the compensation value.

01b Apply BDATA directly as the compensation value.

10b Apply the sum of CALCCOMP and BDATA as the compensation value. In

DevA:0x[E4, E0], if the sum exceeds 13h, then 13h is applied. In DevA:0x[E8], if the

sum exceeds 1Fh, then 1Fh is applied.

11b Apply the difference of CALCCOMP minus BDATA as the compensation value. If the

difference is less than 01h, then 01h is applied.

The default value of this field (from PWROK reset) is controlled by the CMPOVR signal. If

CMPOVR = 0, the default is 00b. If CMPOVR = 1, the default is 01b.

12:8 BDATA: link side B data value. Read-write. This value is applied to the side B of the tunnel PHY

compensation as described in BCTL. The default for DevA:0x[E4, E0] is 08h. The default for

DevA:0xE8 is 0Fh.

7 Reserved.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

29

Clock Control Register DevA:0xF0

See section 4.3.1 for details on clock gating. AMD system recommendations for System Management Action

Field (SMAF) codes are: 0=ACPI C2; 1=ACPI C3; 2=FID/VID change; 3=ACPI S1; 4=ACPI S3; 5=Throt-

tling; 6=ACPI S4/S5. For server and desktop platforms, AMD recommends setting this register to 0004_0008h

(to gate clocks during S1). For mobile platforms, AMD recommends setting this register to 0004_0A0Ah (to

gate clocks during C3 and S1).

Default: 0000 0000h. Attribute: Read-write.

6:5 ACTL: link side A PHY control value. Read-write. These two bits combine to specify the PHY

compensation value that is applied to side A of the tunnel as follows:

ACTL Description

00b Apply CALCCOMP directly as the compensation value.

01b Apply ADATA directly as the compensation value.

10b Apply the sum of CALCCOMP and ADATA as the compensation value. In

DevA:0x[E4, E0], if the sum exceeds 13h, then 13h is applied. In DevA:0x[E8], if the

sum exceeds 1Fh, then 1Fh is applied.

11b Apply the difference of CALCCOMP minus ADATA as the compensation value. If the

difference is less than 01h, then 01h is applied.

The default value of this field (from PWROK reset) is controlled by the CMPOVR signal. If

CMPOVR = 0, the default is 00b. If CMPOVR = 1, the default is 01b.

4:0 ADATA: link side A data value. Read-write. This value is applied to the side A of the tunnel PHY

compensation as described in ACTL. The default for DevA:0x[E4, E0] is 08h. The default for

DevA:0xE8 is 0Fh.

Bits Description

31:19 Reserved.

18 CGEN: clock gate enable. 1=Internal clock gating, as specified by bits[7:0] of this register, is

enabled.

17 Must be low. This bit is required to be low at all times; setting it high results in undefined behavior.

16 Must be low. This bit is required to be low at all times; setting it high results in undefined behavior.

15:8 ECGSMAF: external clock gating system management action fields. Each of the bits of this field

correspond to SMAF values that are captured in Stop Grant cycles from the host. For each bit,

1=When LDTSTOP# is asserted prior to a Stop Grant cycle in which the SMAF field matches the

ECGSMAF bit that is asserted, then A_PCLK and internal clock grids associated with the AGP

bridges are forced low. 0=A_PCLK and the internal clock grids are active while LDTSTOP# is

asserted. For example, if A_PCLK gating is required for SMAF values of 3 and 5, then ECGSMAF[3,

5] must be high. See section 4.3.1 for details.

7:0 ICGSMAF: internal clock gating system management action fields. Each of the bits of this field

correspond to SMAF values that are captured in Stop Grant cycles from the host. For each bit,

1=When LDTSTOP# is asserted prior to a Stop Grant cycle in which the SMAF field matches the

ICGSMAF bit that is asserted, then the IC power is reduced through gating of internal clocks. 0=No

power reduction while LDTSTOP# is asserted. For example, if clock gating is required for SMAF

values of 3 and 5, then ICGSMAF[3, 5] must be high. See section 4.3.1 for details.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

30

5.3 AGP Bridge Configuration Registers

These registers are located in PCI configuration space, in the second device (device B), function 0. See section

5.1.2 for a description of the register naming convention.

AGP Bridge Vendor And Device ID Register DevB:0x00

Default: 7455 1022h Attribute: See below.

AGP Bridge Status And Command Register DevB:0x04

Default: 0220 0000h Attribute: See below.

AGP Bridge Revision and Class Code Register DevB:0x08

Default: 0604 00??h Attribute: Read only.

AGP Bridge BIST-Header-Latency-Cache Register DevB:0x0C

Default: 0001 0000h Attribute: See below.

Bits Description

31:16 AGP bridge device ID. Bits[31:20] are read only; bits[19:16] are write-once. When the LSBs are left

at the default value, some operating systems may load a generic graphics driver. System BIOS should

program the LSBs to 6h in order to circumvent the loading of such a driver.

15:0 Vendor ID. Read only.

Bits Description

31:9 Read only. These bits are fixed in their default state.

8SERREN: SERR# enable. Read-write. This bit controls no hardware.

7:3 Special cycle enable. Read only. This bit is hardwired low.

2MASEN: PCI master enable. Read-write. 1=Enables the AGP bus master to initiate PCI cycles to

the host.

1MEMEN: memory enable. Read-write. 1=Enables access to the AGP bus memory space.

0IOEN: IO enable. Read-write. 1=Enables access to the AGP bus IO space.

Bits Description

31:8 CLASSCODE.

7:0 REVISION.

Bits Description

31:24 BIST. Read only. These bits fixed at their default values.

23:16 HEADER. Read only. These bits fixed at their default values.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

31

AGP Bridge Bus Numbers And Secondary Latency Register DevB:0x18

Default: 0000 0000h Attribute: Read-write.

AGP Bridge Memory Base-Limit Registers DevB:0x[30:1C]

These registers specify the IO-space (DevB:0x1C and DevB:0x30), non-prefetchable memory-space

(DevB:0x20), and prefetchable memory-space (DevB:0x24) address windows for transactions that are mapped

from the 40-bit link address space to the AGP bus.

The links support 25 bits of IO space. AGP supports 32 bits of IO space. Host accesses to the link-defined IO

region are mapped to the AGP IO window with the 7 MSB always zero. AGP IO accesses in which any of the

7 MSBs are other than zero are ignored. The AGP IO space window is defined as follow:

AGP IO window =

{7'h00, DevB:30[24:16], DevB:0x1C[15:12], 12'hFFF} >= address >=

{7'h00, DevB:30[8:0], DevB:0x1C[7:4], 12'h000};

The links support 40 bits of memory space. AGP supports 32 bits of non-prefetchable memory space. The AGP

non-prefetchable window is defined to be within the lowest 4 gigabytes of link address space. AGP accesses

above 4 gigabytes cannot access non-prefetchable memory space. The AGP non-prefetchable memory space

window is defined as follows:

AGP non-prefetchable memory window =

{32'h00, DevB:0x20[31:20], 20'hF_FFFF} >= address >=

{32'h00, DevB:0x20[15:4], 20'h0_0000};

The links support 40 bits of memory space. AGP supports 32 bits of prefetchable memory space. The AGP

prefetchable window is defined to be within the lowest 4 gigabytes of link address space. The AGP prefetch-

able memory space window is defined as follows:

AGP prefetchable memory window =

{32'h00, DevB:0x24[31:20], 20'hF_FFFF} >= address >=

{32'h00, DevB:0x24[15:4], 20'h0_0000};

These windows may also be altered by DevB:0x3C[VGAEN, ISAEN]. When the address (from either the host

or from an AGP bus master) is inside one of the windows, then the transaction targets the AGP bus. Therefore,

the following transactions are possible:

15:8 LATENCY. Read-write. These bits control no hardware.

7:0 CACHE. Read only. These bits fixed at their default values.

Bits Description

31:24 SECLAT. Secondary latency timer. These bits control no hardware.

23:16 SUBBUS. Subordinate bus number.

15:8 SECBUS. Secondary bus number.

7:0 PRIBUS. Primary bus number.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

32

• Host-initiated transactions inside the windows are routed to the AGP bus.

• PCI transactions initiated on the AGP bus inside the windows are not claimed by the IC.

• Host initiated transactions outside the windows are passed through the tunnel or master aborted if the IC is at

the end of a HyperTransport technology chain.

• PCI transactions initiated on the AGP bus outside the windows are claimed by the IC using medium decod-

ing and passed to the host.

So, for example, if IOBASE > IOLIM, then no host-initiated IO-space transactions are forwarded to the AGP

bus and all AGP-bus-initiated IO-space (not configuration) transactions are forwarded to the host. If MEM-

BASE > MEMLIM and PMEMBASE > PMEMLIM, then no host-initiated memory-space transactions are for-

warded to the AGP bus and all AGP-bus-initiated memory-space (not configuration) transactions are

forwarded to the host.

DevB:0x1C. Default: 0220 01F1h Attribute: See below.

DevB:0x20. Default: 0000 FFF0h Attribute: Read-write.

Bits Description

31:30 Reserved.

29 RMA: received master abort. Read; set by hardware; write 1 to clear. 1=The IC received a master

abort as a PCI master on the AGP bus. Note: this bit is cleared by PWROK reset but not by RESET#.

28 RTA: received target abort. Read; set by hardware; write 1 to clear. 1=The IC received a target abort

as a PCI master on the AGP bus. Note: this bit is cleared by PWROK reset but not by RESET#.

27 STA: signaled target abort. Read; set by hardware; write 1 to clear. 1=The IC generated a target

abort as a PCI target on the AGP bus. The IC generates target aborts if it receives a target abort (a non-

NXA error) response from the host to an AGP bus PCI master transaction request. Note: this bit is

cleared by PWROK reset but not by RESET#.

26:16 Read only. These bits are fixed in their default state.

15:12 IOLIM. IO limit address bits[15:12]. See DevB:0x[30:1C] above.

11:8 Reserved.

7:4 IOBASE. IO base address bits[15:12]. See DevB:0x[30:1C] above.

3:0 Reserved.

Bits Description

31:20 MEMLIM. Non-prefetchable memory limit address bits[31:20]. See DevB:0x[30:1C] above.

19:16 Reserved.

15:4 MEMBASE. Non-prefetchable memory base address bits[31:20]. See DevB:0x[30:1C] above.

3:0 Reserved.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

33

DevB:0x24. Default: 0000 FFF0h Attribute: Read-write.

DevB:0x30. Default: 0000 FFFFh Attribute: Read-write.

AGP Bridge Interrupt and Bridge Control Register DevB:0x3C

Default: 0000 00FFh Attribute: See below.

Bits Description

31:20 PMEMLIM. Prefetchable memory limit address bits[31:20]. See DevB:0x[30:1C] above.

19:16 Reserved.

15:4 PMEMBASE. Prefetchable memory base address bits[31:20]. See DevB:0x[30:1C] above.

3:0 Reserved.

Bits Description

31:16 IOLIM. IO limit address bits[31:16]. See DevB:0x[30:1C] above.

15:0 IOBASE. IO base address bits[31:16]. See DevB:0x[30:1C] above.

Bits Description

31:23 Reserved.

22 SBRST: AGP bus reset. Read-write. 1=A_RESET# asserted; AGP bus placed into reset state.

0=A_RESET# not asserted.

21:20 Reserved.

19 VGAEN: VGA decoding enable. Read-write. 1=Host-initiated commands targeting VGA-

compatible address ranges are routed to the AGP bus. These include memory accesses from A0000h

to BFFFFh (within the bottom megabyte of memory space only), IO accesses in which address

bits[9:0] range from 3B0h to 3BBh or 3C0h to 3DFh (address bits[15:10] are not decoded, regardless

of DevB:0x3C[ISAEN]; also this only applies to the first 64K of IO space; i.e., address bits[31:16]

must be low). 0=The IC does not decode VGA-compatible address ranges.

18 ISAEN: ISA decoding enable. Read-write. 1=The IO address window specified by

DevB:0x1C[15:0] and DevB:0x30 is limited to the first 256 bytes of each 1K byte block specified;

this only applies to the first 64K bytes of IO space. 0=The PCI IO window is the whole range

specified by DevB:0x1C[15:0] and DevB:0x30.

17:16 Reserved.

15:8 INTERRUPT_PIN. Read; write once. These bits control no internal logic.

7:0 INTERRUPT_LINE. Read-write. These bits control no internal logic.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

34

6 Electrical Data

6.1 Absolute Ratings

The IC is not designed to operate beyond the parameters shown in the following table.

6.2 Operating Ranges

The IC is designed to provide functional operation if the voltage and temperature parameters are within the

limits defined in the following table.

Parameter Minimum Maximum Comments

VDD12[B, A] –0.5 V 1.7 V

VDD15 –0.5 V 2.0 V

VDD18, VDDA18 –0.5 V 2.3 V

VDD33 –0.5 V 3.6 V

TCASE (Under Bias) 85 °C

TSTORAGE -65 °C150 °C

Table 6: Absolute maximum ratings.

Parameter Minimum Typical Maximum Units Comments

VDD12[B, A] 1.14 1.2 1.26 V

VDD15 1.425 1.5 1.575 V

VDD18, VDDA18 1.71 1.8 1.89 V

VDD33 3.135 3.3 3.465 V V

TCASE (Under Bias) 85 deg C

Table 7: Operating ranges.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

35

6.3 DC Characteristics

See the HyperTransportTM Technology Electrical Specification for the DC characteristics of link signals.

The following table shows current consumption in amps and power in watts for each power plane.

The following table shows DC characteristics for signals on the VDD33 power plane.

Typical Max

Supply Parameter Description Current Power Current Power Comments

VDD12 VDD12[B, A] current, power 0.21 A 0.25 W 0.27 A 0.34 W

VDD15 VDD15 current, power 0.05 A 0.08 W 0.08 A 0.13 W

VDD18 VDD18 current, power; operational 1.30 A 2.34 W 1.75 A 3.30 W

VDD18 VDD18 current, power; internal clock gating

enabled (DevA:0xF0[ICGSMAF])

0.40 A 0.72 W 0.50 A 0.95 W

VDD18 VDD18 current, power; internal and external clock

gating enabled (DevA:0xF0[I/ECGSMAF])

0.21 A 0.38 W 0.30 A 0.57 W

VDDA18 VDDA18 current, power 0.02 A 0.04 W 0.03 A 0.06 W

VDD33 VDD33 current, power 0.05 A 0.17 W 0.07 A 0.24 W

Total power (no clock gating enabled) 2.88 W 4.07 W

Table 8: Current and power consumption.

Symbol Parameter Description Min Max Units Comments

VIL Input low voltage -0.5 0.3 VDD33 V

VIH Input high voltage 0.6 VDD33 0.5 + VDD33 V

VOL Output low voltage; IOUT = 1.5 mA 0.1 VDD33 V

VOH Output high voltage; IOUT = -0.5 mA 0.9 VDD33 V

ILI Input leakage current +/- 10 uA

CIN Input capacitance 8 pF

Table 9: DC characteristics for signals on the VDD33 power plane.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

36

The following table shows DC characteristics for signals on the VDD15 power plane when AGP 2.0 signaling

is enabled.

The following table shows DC characteristics for signals on the VDD15 power plane when AGP 3.0 signaling

is enabled.

Symbol Parameter Description Min Max Units Comments

VIL Input low voltage -0.5 0.4 VDD15 V

VIH Input high voltage 0.6 VDD15 0.5 + VDD15 V

VOL Output low voltage; IOUT = 1.0 mA 0.15 VDD15 V

VOH Output high voltage; IOUT = 0.2 mA 0.85 VDD15 V

VREFI Input reference voltage on A_REFGC 0.48 VDD15 0.52 VDD15 V

VREFO Output reference voltage on A_REFCG 0.48 VDD15 0.52 VDD15 V

IIL Input leakage current +/- 10 uA

CIN Input capacitance 8 pF

Table 10: DC characteristics for signals on the VDD15 power plane, AGP 2.0 signaling.

Symbol Parameter Description Min Max Units Comments

VIL Input low voltage -0.3 VREFI - 0.1 V

VIH Input high voltage VREFI + 0.1 VDD15 + 0.3 V

VOL Output low voltage; IOUT = 1.5 mA 0.05 V

VOH Output high voltage; 50 ohm load to

ground

0.750 0.850 V

VREFI Input reference voltage on A_REFGC 0.34 0.36 V

VREFO Output reference voltage on A_REFCG 0.226 VDD15 0.240 VDD15 V

CDIE Input die capacitance 8 pF

ZTERM Terminator equivalent impedance; VOH =

0.8V; ZTARG = 50 Ohm

45 55 Ohms

ZPU Pull-up equivalent impedance; VOH =

0.8V; ZTARG = 50 Ohm

39.3 46.2 Ohms

Table 11: DC characteristics for signals on the VDD15 power plane, AGP 3.0 signaling.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

37

6.4 AC Characteristics

See the HyperTransport Technology Electrical Specification for the AC characteristics of link signals.

The following table shows AC specification data for clocks.

The following table shows AC specification data for common clock (A_PCLK) operation of AGP signals.

Symbol Parameter Description Min Max Units Comments

tREF REFCLK cycle time 15 18 ns

tCYC A_PCLK cycle time 15 ns Matches REFCLK

tHIGH A_PCLK high time 6 ns

tLOW A_PCLK low time 6 ns

tSLEW A_PCLK slew rate 1 4 V/ns

Table 12: AC data for clocks.

Symbol Parameter Description Min Max Units Notes

tVAL A_PCLK to signal valid delay 1 5.5 ns

tON A_PCLK to signal float-to-active delay 1 6 ns

tOFF A_PCLK to signal active-to-float delay 1 14 ns

tSU Signal input setup time to A_PCLK 6 ns

tHAGP signal input hold time after A_PCLK 0 ns

tRF Signal output rise and fall slew rate 2 3.5 V/ns

Table 13: AC data for common clock operation of AGP signals.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

38

The following table shows AC specification data for clock-forwarded operation of AGP signals.

AGP 2X AGP 4X AGP 8X

Symbol Parameter Description Min Max Min Max Min Max Units Notes

tTSF A_PCLK to transmit strobe first strobe edge 2 12 1.9 8 1.5 ns

tTSR A_PCLK to transmit strobe final strobe

edge

20 20 19.5 ns

tDVB Data valid before strobe 1.7 -0.95 0.527 ns

tDVA Data valid after strobe 1.9 1.15 0.477 ns

tOND A_PCLK to float-to-active delay -1 9 -1 7 -1 7 ns

tOFFD A_PCLK to active-to-float delay 1 12 1 14 1 14 ns

tONS Strobe active to first edge delay 6104949ns

tOFFS Strobe final edge to float delay 6104949ns

tRSSU Receive requirement for last strobe setup

time to next A_PCLK

666ns

tRSH Receive requirement for first strobe hold

time after A_PCLK

10.50.5ns

tDSU Receive data setup time to strobe 1 0.4 0.085 ns

tDH Receive data hold time after strobe 1 0.7 0.210 ns

tRF Transmit rise and fall slew rate 2 3.5 2 3.5 2 3.5 V/ns

Table 14: AC data for clock-forwarded operation of AGP signals.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

39

7 Ball Designations

Top side view.

123456789101112131415161718192021222324

ALTACAD

_P0 LTACAD

_N0 LTACAD

_P2 LTACAD

_N2 LTACLK0

_P LTACLK0

_N LTACAD

_P5 LTACAD

_N5 LTACAD

_P7 LTACAD

_N7 LRACTL

_N LRACTL

_P LRACAD

_N6 LRACAD

_P6 LRACAD

_N4 LRACAD

_P4 LRACAD

_N3 LRACAD

_P3 LRACAD

_N1 LRACAD

_P1 A

BVDD12A VSS LTACAD

_P1 VDD18 LTACAD

_P3 VSS LTACAD

_P4 VDD18 LTACAD

_P6 VSS LTACTL_

PVDD18 LRACAD

_N7 VSS LRACAD

_N5 VDD18 LRACLK

0_N VSS LRACAD

_N2 VDD18 LRACAD

_N0 VDD12A B

CVDD12A VSS LTACAD

_N8 LTACAD

_N1 LTACAD

_N10 LTACAD

_N3 LTACLK1

_N LTACAD

_N4 LTACAD

_N13 LTACAD

_N6 LTACAD

_N15 LTACTL_

NFREE4 LRACAD

_P7 LRACAD

_P14 LRACAD

_P5 LRACAD

_P12 LRACLK

0_P LRACAD

_P11 LRACAD

_P2 LRACAD

_P9 LRACAD

_P0 VSS VDD12A C

DVSS VDD12A LTACAD

_P8 VDD18 LTACAD

_P10 VSS LTACLK1

_P VDD18 LTACAD

_P13 VSS LTACAD

_P15 VDD18 FREE5 VSS LRACAD

_N14 VDD18 LRACAD

_N12 VSS LRACAD

_N11 VDD18 LRACAD

_N9 VSS VSS VDD12A D

EVDD12A VSS LTACAD

_P9 LTACAD

_N9 LTACAD

_P11 LTACAD

_N11 LTACAD

_P12 LTACAD

_N12 LTACAD

_P14 LTACAD

_N14 FREE7 FREE6 LRACAD

_N15 LRACAD

_P15 LRACAD

_N13 LRACAD

_P13 LRACLK

1_N LRACLK

1_P LRACAD

_N10 LRACAD

_P10 LRACAD

_N8 LRACAD

_P8 VDD12A VSS E

FA_DBIH VDD12A VSS VDD12A VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD12A VSS VDD12B F

GA_SBA0 A_DBIL VDD12A VDD12A VDD12A VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD12A VSS VDD12B VDD12B G

HA_SBA2 A_SBA1 STRAPL

0VDD15 VSS VDD12A VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD12A VDD12A VDD12A VSS VDD12B VSS VSS H

JA_SBA3 VSS STRAPL

10 STRAPL

1STRAPL

8VSS VDD12A VDD12A VDD12A VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD12A VSS VDD12B VDD12B VDD12B VSS VDD18 LTBCAD

_P0 J

KA_SB

STB_P A_SB

STB_N FREE1 A_GC8X

DET# VSS VDD15 VSS VDD15 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD12B VSS VSS VDD18 LTBCAD

_N1 LTBCAD

_P1 LTBCAD

_N0 K

LA_SBA5 A_SBA4 VSS A_GNT# STRAPL

9VSSVDD15VSSVDD15VSSVDD18VSSVDD18VSSVDD18VSSVDD18VSSVDD18LTBCAD

_P5 LTBCAD

_P4 LTBCAD

_N4 VSS LTBCAD

_P2 L

MA_SBA6 VSS STRAPL

11 VDD15 VSS VDD15 VSS VDD15 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS LTBCAD

_N5 VSS LTBCAD

_N3 LTBCAD

_P3 LTBCAD

_N2 M

NA_AD31 A_SBA7 NC1 A_REQ# VSS VSS VDD15 VSS VDD15 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 LTBCAD

_P7 LTBCAD

_P6 LTBCAD

_N6 VDD18 LTBCLK0

_P N

PA_AD29 A_AD30 VSS STRAPL

13 STRAPL

7VDD15 VSS VDD15 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS LTBCAD

_N7 VDD18 LTBCTL_

NLTBCTL_

PLTBCLK0

_N P

RA_AD28 VSS FREE2 VDD15 VSS VSS VDD15 VSS VDD15 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 VSS VDD18 LRBCAD

_N6 LRBCAD

_N7 LRBCAD

_P7 VSS LRBCTL

_N R

TA_AD26 A_AD27 FREE3 A_ST0 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD12B VSS VDD18 VSS LRBCAD

_P6 VSS LRBCLK

0_P LRBCLK

0_N LRBCTL

_P T

UA_AD25 A_AD24 VSS A_ST1 VSS VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VSS VDD12B VDD18 VSS VDD18 LRBCAD

_N4 LRBCAD

_N5 LRBCAD

_P5 VDD18 LRBCAD

_N3 U

VA_AD

STB1_P VSS A_ST2 VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD12B VSS VDD18 VSS LRBCAD

_P4 VDD18 LRBCAD

_P2 LRBCAD

_N2 LRBCAD

_P3 V

WA_AD23 A_AD

STB1_N A_CBE_

L3 A_MB8X

DET# VSS VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD15 VSS VDD12B VSS VDD18 LDTCOM

P0 LDTCOM

P1 LDTCOM

P2 VSS LRBCAD

_N1 W

YA_AD21 A_AD22 VSS NC0 A_RBF# VSS A_CALS STRAPL

5STRAPL

6VSS STRAPL

4STRAPL

18 STRAPL

19 VDD15 STRAPL

20 STRAPL

21 VSS VDD12B VSS LDTCOM

P3 VSS LRBCAD

_P0 LRBCAD

_N0 LRBCAD

_P1 Y

AA A_AD20 VSS STRAPL

14 VDD15 A_WBF# A_CALD VDD15 A_CALS

#A_

FRAME# VDD15 A_STOP

#A_PAR VDD15 STRAPL

3A_PLL

CLKO STRAPL

22 TEST VSS VDD12B VSS VDD12B VSS VDD12B VSS AA

AB A_AD19 A_AD17 A_AD18 STRAPL

15 VSS A_CALD

#STRAPL

16 A_IRDY# A_DEVS

EL# A_TRDY

#VSS A_AD5 STRAPL

2VSS A_PLL

CLKI REFCLK VSS RESET# VSS VDD12B VDD12B VDD12B VSS VDD12B AB

AC VSS A_AD16 VSS A_CBE_

L1 A_AD14 VSS A_AD12 A_AD9 VSS A_AD

STB0_P A_AD6 VSS A_AD2 A_AD1 VSS CMP

OVR LDT-

STOP# A_PCLK VSS VDD33 VSS VDD12B AC

AD A_CBE_

L2 STRAPL

17 A_AD15 A_AD13 A_AD11 A_AD10 A_AD8 A_CBE_

L0 A_AD

STB0_N A_AD7 A_AD4 A_AD3 A_AD0 A_REF

GC A_REF

CG PWROK A_

RESET# A_TYPE

DET# VDD33 VDDA18 AD

123456789101112131415161718192021222324

Figure 3: Ball designations.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

40

Alphabetical listing of signals and corresponding BGA designators.

Signal name Ball Signal name Ball Signal name Ball Signal name Ball Signal name Ball

A_AD0 15AD A_PAR 12AA LRACAD_N13 15E LTACAD_N7 12A NC1 3N

A_AD1 15AC A_PCLK 19AC LRACAD_N14 15D LTACAD_N8 3C PWROK 18AD

A_AD2 14AC A_PLLCLKI 15AB LRACAD_N15 13E LTACAD_N9 4E REFCLK 16AB

A_AD3 14AD A_PLLCLKO 15AA LRACAD_P0 22C LTACAD_N10 5C RESET# 18AB

A_AD4 13AD A_RBF# 5Y LRACAD_P1 22A LTACAD_N11 6E STRAPL0 3H

A_AD5 12AB A_REFCG 17AD LRACAD_P2 20C LTACAD_N12 8E STRAPL1 4J

A_AD6 12AC A_REFGC 16AD LRACAD_P3 20A LTACAD_N13 9C STRAPL2 13AB

A_AD7 12AD A_REQ# 4N LRACAD_P4 18A LTACAD_N14 10E STRAPL3 14AA

A_AD8 9AD A_RESET# 19AD LRACAD_P5 16C LTACAD_N15 11C STRAPL4 11Y

A_AD9 9AC A_SBA0 1G LRACAD_P6 16A LTACAD_P0 3A STRAPL5 8Y

A_AD10 8AD A_SBA1 2H LRACAD_P7 14C LTACAD_P1 4B STRAPL6 9Y

A_AD11 7AD A_SBA2 1H LRACAD_P8 22E LTACAD_P2 5A STRAPL7 5P

A_AD12 8AC A_SBA3 1J LRACAD_P9 21C LTACAD_P3 6B STRAPL8 5J

A_AD13 6AD A_SBA4 2L LRACAD_P10 20E LTACAD_P4 8B STRAPL9 5L

A_AD14 6AC A_SBA5 1L LRACAD_P11 19C LTACAD_P5 9A STRAPL10 3J

A_AD15 5AD A_SBA6 1M LRACAD_P12 17C LTACAD_P6 10B STRAPL11 3M

A_AD16 3AC A_SBA7 2N LRACAD_P13 16E LTACAD_P7 11A STRAPL13 4P

A_AD17 2AB A_SBSTB_N 2K LRACAD_P14 15C LTACAD_P8 3D STRAPL14 3AA

A_AD18 3AB A_SBSTB_P 1K LRACAD_P15 14E LTACAD_P9 3E STRAPL15 4AB

A_AD19 1AB A_ST0 4T LRACLK0_N 18B LTACAD_P10 5D STRAPL16 7AB

A_AD20 1AA A_ST1 4U LRACLK0_P 18C LTACAD_P11 5E STRAPL17 4AD

A_AD21 1Y A_ST2 3V LRACLK1_N 17E LTACAD_P12 7E STRAPL18 12Y

A_AD22 2Y A_STOP# 11AA LRACLK1_P 18E LTACAD_P13 9D STRAPL19 13Y

A_AD23 1W A_TRDY# 10AB LRACTL_N 13A LTACAD_P14 9E STRAPL20 15Y

A_AD24 2U A_TYPEDET# 20AD LRACTL_P 14A LTACAD_P15 11D STRAPL21 16Y

A_AD25 1U A_WBF# 5AA LRBCAD_N0 23Y LTACLK0_N 8A STRAPL22 16AA

A_AD26 1T CMPOVR 17AC LRBCAD_N1 24W LTACLK0_P 7A TEST 17AA

A_AD27 2T FREE1 3K LRBCAD_N2 23V LTACLK1_N 7C

A_AD28 1R FREE2 3R LRBCAD_N3 24U LTACLK1_P 7D

A_AD29 1P FREE3 3T LRBCAD_N4 20U LTACTL_N 12C

A_AD30 2P FREE4 13C LRBCAD_N5 21U LTACTL_P 12B

A_AD31 1N FREE5 13D LRBCAD_N6 20R LTBCAD_N0 24K

A_ADSTB0_N 11AD FREE6 12E LRBCAD_N7 21R LTBCAD_N1 22K

A_ADSTB0_P 11AC FREE7 11E LRBCAD_P0 22Y LTBCAD_N2 24M

A_ADSTB1_N 2W LDTCOMP0 20W LRBCAD_P1 24Y LTBCAD_N3 22M

A_ADSTB1_P 1V LDTCOMP1 21W LRBCAD_P2 22V LTBCAD_N4 22L

A_CALD 6AA LDTCOMP2 22W LRBCAD_P3 24V LTBCAD_N5 20M

A_CALD# 6AB LDTCOMP3 20Y LRBCAD_P4 20V LTBCAD_N6 22N

A_CALS 7Y LDTSTOP# 18AC LRBCAD_P5 22U LTBCAD_N7 20P

A_CALS# 8AA LRACAD_N0 22B LRBCAD_P6 20T LTBCAD_P0 24J

A_CBE_L0 10AD LRACAD_N1 21A LRBCAD_P7 22R LTBCAD_P1 23K

A_CBE_L1 5AC LRACAD_N2 20B LRBCLK0_N 23T LTBCAD_P2 24L

A_CBE_L2 3AD LRACAD_N3 19A LRBCLK0_P 22T LTBCAD_P3 23M

A_CBE_L3 3W LRACAD_N4 17A LRBCTL_N 24R LTBCAD_P4 21L

A_DBIH 1F LRACAD_N5 16B LRBCTL_P 24T LTBCAD_P5 20L

A_DBIL 2G LRACAD_N6 15A LTACAD_N0 4A LTBCAD_P6 21N

A_DEVSEL# 9AB LRACAD_N7 14B LTACAD_N1 4C LTBCAD_P7 20N

A_FRAME# 9AA LRACAD_N8 21E LTACAD_N2 6A LTBCLK0_N 24P

A_GC8XDET# 4K LRACAD_N9 21D LTACAD_N3 6C LTBCLK0_P 24N

A_GNT# 4L LRACAD_N10 19E LTACAD_N4 8C LTBCTL_N 22P

A_IRDY# 8AB LRACAD_N11 19D LTACAD_N5 10A LTBCTL_P 23P

A_MB8XDET# 4W LRACAD_N12 17D LTACAD_N6 10C NC0 4Y

Table 15: Signal BGA positions.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

41

Signal

name

Ball Signal

name

Ball Signal

name

Ball Signal

name

Ball Signal

name

Ball Signal

name

Ball Signal

name

Ball

VDD12A 1C VDD15 6T VDD18 12F VDD18 23U VSS 8R VSS 14AB VSS 21Y

VDD12A 1E VDD15 6V VDD18 12H VDD33 21AC VSS 8U VSS 15B VSS 22D

VDD12A 2B VDD15 7L VDD18 12K VDD33 21AD VSS 8W VSS 15F VSS 22G

VDD12A 2D VDD15 7N VDD18 12M VDDA18 22AD VSS 9F VSS 15H VSS 22J

VDD12A 2F VDD15 7R VDD18 12P VSS 1D VSS 9H VSS 15K VSS 22AA

VDD12A 3G VDD15 7U VDD18 13B VSS 2C VSS 9K VSS 15M VSS 22AC

VDD12A 4F VDD15 7W VDD18 13G VSS 2E VSS 9M VSS 15P VSS 23C

VDD12A 4G VDD15 7AA VDD18 13J VSS 2J VSS 9P VSS 15T VSS 23D

VDD12A 5G VDD15 8K VDD18 13L VSS 2M VSS 9T VSS 15U VSS 23F

VDD12A 6H VDD15 8M VDD18 13N VSS 2R VSS 9V VSS 15V VSS 23H

VDD12A 7J VDD15 8P VDD18 13R VSS 2V VSS 10D VSS 16G VSS 23L

VDD12A 8J VDD15 8T VDD18 14F VSS 2AA VSS 10G VSS 16J VSS 23R

VDD12A 9J VDD15 8V VDD18 14H VSS 2AC VSS 10J VSS 16L VSS 23W

VDD12A 17J VDD15 9L VDD18 14K VSS 3B VSS 10L VSS 16N VSS 23AB

VDD12A 18H VDD15 9N VDD18 14M VSS 3F VSS 10N VSS 16R VSS 24E

VDD12A 19H VDD15 9R VDD18 14P VSS 3L VSS 10R VSS 16W VSS 24H

VDD12A 20H VDD15 9U VDD18 15G VSS 3P VSS 10U VSS 16AC VSS 24AA

VDD12A 21G VDD15 9W VDD18 15J VSS 3U VSS 10W VSS 17F

VDD12A 22F VDD15 10T VDD18 15L VSS 3Y VSS 10Y VSS 17H

VDD12A 23B VDD15 10V VDD18 15N VSS 4AC VSS 10AC VSS 17K

VDD12A 23E VDD15 10AA VDD18 15R VSS 5F VSS 11B VSS 17M

VDD12A 24C VDD15 11U VDD18 16D VSS 5H VSS 11F VSS 17P

VDD12A 24D VDD15 11W VDD18 16F VSS 5K VSS 11H VSS 17T

VDD12B 16T VDD15 12T VDD18 16H VSS 5M VSS 11K VSS 17V

VDD12B 16U VDD15 12V VDD18 16K VSS 5N VSS 11M VSS 17Y

VDD12B 16V VDD15 13U VDD18 16M VSS 5R VSS 11P VSS 17AB

VDD12B 17W VDD15 13W VDD18 16P VSS 5T VSS 11T VSS 18D

VDD12B 18K VDD15 13AA VDD18 17B VSS 5U VSS 11V VSS 18G

VDD12B 18Y VDD15 14T VDD18 17G VSS 5V VSS 11AB VSS 18J

VDD12B 19J VDD15 14V VDD18 17L VSS 5W VSS 12G VSS 18L

VDD12B 19AA VDD15 14Y VDD18 17N VSS 5AB VSS 12J VSS 18N

VDD12B 20J VDD15 15W VDD18 17R VSS 6D VSS 12L VSS 18R

VDD12B 20AB VDD18 4D VDD18 17U VSS 6G VSS 12N VSS 18U

VDD12B 21J VDD18 5B VDD18 18F VSS 6J VSS 12R VSS 18W

VDD12B 21AA VDD18 6F VDD18 18M VSS 6L VSS 12U VSS 18AA

VDD12B 21AB VDD18 7G VDD18 18P VSS 6N VSS 12W VSS 19B

VDD12B 22H VDD18 8D VDD18 18T VSS 6R VSS 13F VSS 19F

VDD12B 22AB VDD18 8F VDD18 18V VSS 6U VSS 13H VSS 19K

VDD12B 23G VDD18 8H VDD18 19G VSS 6W VSS 13K VSS 19M

VDD12B 23AA VDD18 9B VDD18 19L VSS 6Y VSS 13M VSS 19P

VDD12B 23AC VDD18 9G VDD18 19N VSS 7B VSS 13P VSS 19T

VDD12B 24F VDD18 10F VDD18 19R VSS 7F VSS 13T VSS 19V

VDD12B 24G VDD18 10H VDD18 19U VSS 7H VSS 13V VSS 19Y

VDD12B 24AB VDD18 10K VDD18 19W VSS 7K VSS 13AC VSS 19AB

VDD15 4H VDD18 10M VDD18 20D VSS 7M VSS 14D VSS 20G

VDD15 4M VDD18 10P VDD18 20F VSS 7P VSS 14G VSS 20K

VDD15 4R VDD18 11G VDD18 21B VSS 7T VSS 14J VSS 20AA

VDD15 4V VDD18 11J VDD18 21K VSS 7V VSS 14L VSS 20AC

VDD15 4AA VDD18 11L VDD18 21P VSS 7AC VSS 14N VSS 21F

VDD15 6K VDD18 11N VDD18 21V VSS 8G VSS 14R VSS 21H

VDD15 6M VDD18 11R VDD18 23J VSS 8L VSS 14U VSS 21M

VDD15 6P VDD18 12D VDD18 23N VSS 8N VSS 14W VSS 21T

Table 16: Power and ground BGA positions.

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

42

8 Package Specification

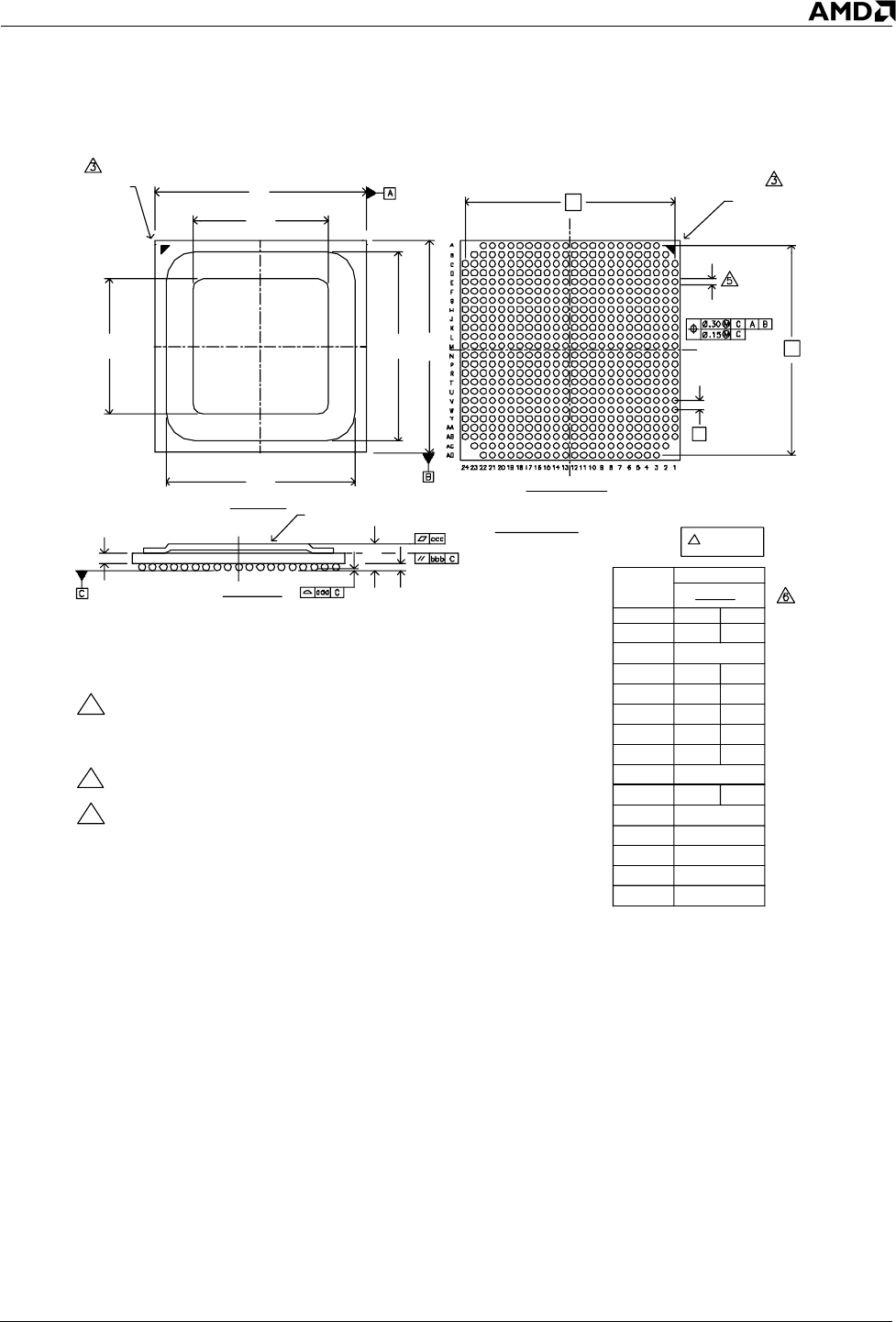

Figure 4: Package mechanical drawing.

AMD

Øb

PACKAGE

D1/E1

D2/E2

SYMBOL

D/E

D3/E3

aaa

bbb

ccc

6. "x" in front of package variation denotes non-qualified package

c) Die and passive fudicials

a) Marking on die, label on package

7. The following features are not shown on drawings:

on a plane parallel to datum C.

5. Dimension "b" is measured at maximum solder ball diameter

4. Symbol "M" determines ball matrix size and "N" is number of balls.

of the package identifies ball A1 corner and can be used for

handling and orientation purposes.

1. All dimensions are specified in millimeters (mm).

2. Dimensioning and tolerancing per ASME-Y14.5M-1994.

3. This corner which consists of a triangle on both sides

TOP VIEW

SIDE VIEW

b) Laser elements

per AMD 01-002.3.

A2

GENERAL NOTES

M

N

A1

A

LID

E

A2

e

A1

A

BOTTOM VIEW

NOT TO SCALE

A1 CORNER DD1

0.9

0.125

0.6

0.2

0.25

24

564

max.

VARIATIONS

31.2

29.21 BSC.

28.2

SEE NOTES

23.2

3.56

0.7

1.1

27.8

1.27 BSC

22.8

3.25

0.5

0.9

min.

30.8

xOLF564

Øb (Nx Plcs)

e

E1

A1 CORNER

E3

D2

E2

D3

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

43

9Test

The IC includes the following test modes.

9.1 High Impedance Mode

In high-impedance mode, all the signals of the IC are placed into the high-impedance state.

9.2 NAND Tree Mode

There are several NAND trees in the IC. Some of the inputs are differential (e.g., LR[B, A] pins); for these, the

_P and _N pairs of signals are converted into a single signal that is part of the NAND tree, as shown in

Signal_3 in the following diagram.

Mode TEST A_TYPEDET LDTSTOP# STRAPL0 Notes

Operational 0 X X X

High impedance 1 0 0 0

NAND tree 1 0 0 1

Table 17: Test modes.

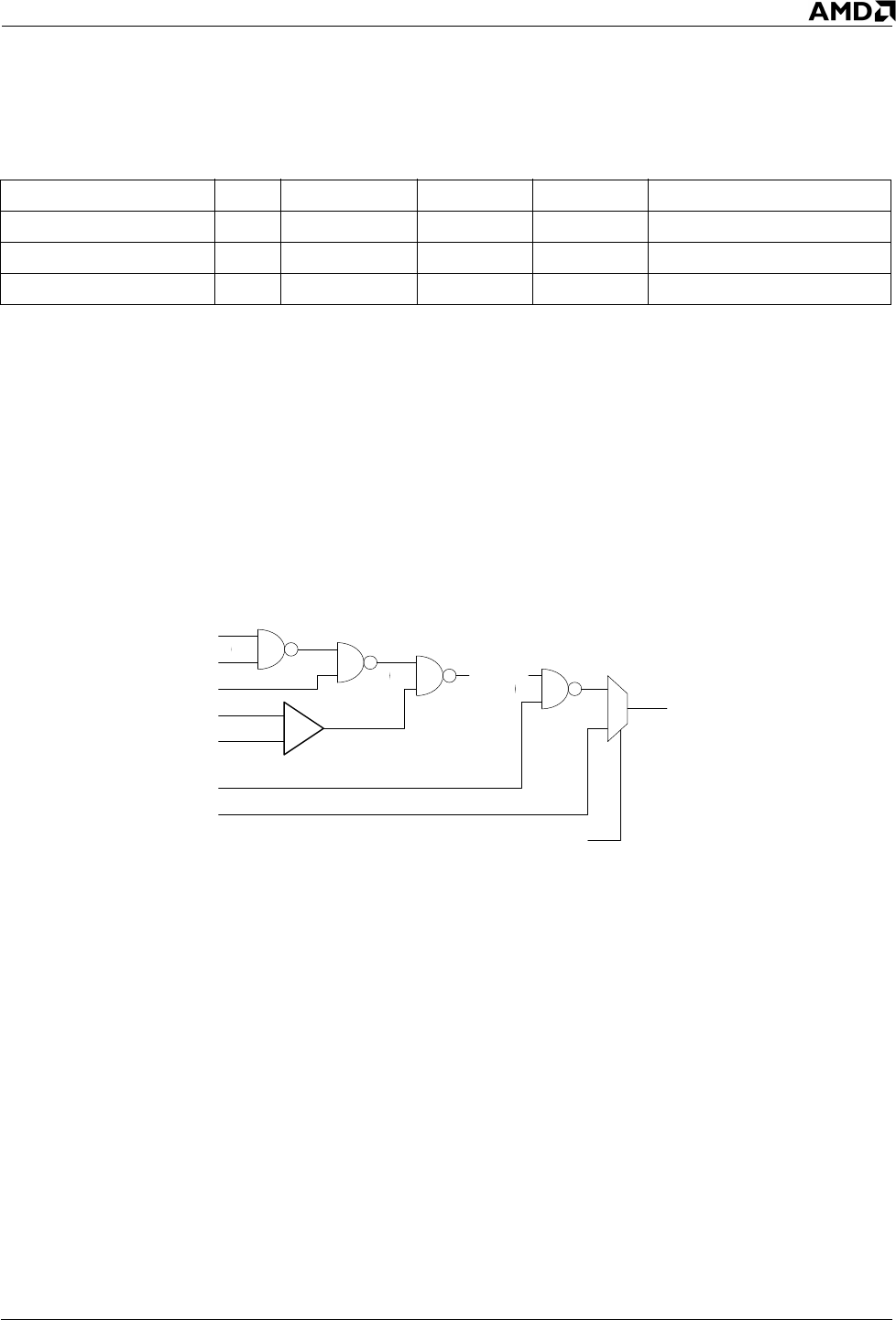

Figure 5: NAND tree.

NAND Tree Mode

to output signal

Output signal

…

…

Signal_41

Signal_3_P

Signal_2

Signal_1

VDD

1

0

Signal_3_N

+

-

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

44

NAND tree 1: output signal is STRAPL[5]. However, the gate connected to the last signal in this NAND tree

(LDTCOMP[3]) is an AND gate rather than a NAND gate; so the expected output of this NAND tree is

inverted compared to the other NAND trees.

NAND tree 2: output signal is STRAPL[4].

1 LRBCLK0_[P,N] 11 LTBCLK0_P 21 LTBCAD_P[4] 31 LDTCOMP[2]

2 LRBCAD_[P,N][0] 12 LTBCLK0_N 22 LTBCAD_N[4] 32 LDTCOMP[3]

3 LRBCAD_[P,N][1] 13 LTBCAD_P[0] 23 LTBCAD_P[5]

4 LRBCAD_[P,N][2] 14 LTBCAD_N[0] 24 LTBCAD_N[5]

5 LRBCAD_[P,N][3] 15 LTBCAD_P[1] 25 LTBCAD_P[6]

6 LRBCAD_[P,N][4] 16 LTBCAD_N[1] 26 LTBCAD_N[6]

7 LRBCAD_[P,N][5] 17 LTBCAD_P[2] 27 LTBCAD_P[7]

8 LRBCAD_[P,N][6] 18 LTBCAD_N[2] 28 LTBCAD_N[7]

9 LRBCAD_[P,N][7] 19 LTBCAD_P[3] 29 LTBCTL_P

10 LRBCTL_[P,N] 20 LTBCAD_N[3] 30 LTBCTL_N

1 LRACLK0_[P,N] 21 LTACLK0_N 41 LTACAD_N[4]

2 LRACLK1_[P,N] 22 LTACLK1_P 42 LTACAD_P[12]

3 LRACAD_[P,N][0] 23 LTACLK1_N 43 LTACAD_N[12]

4 LRACAD_[P,N][8] 24 LTACAD_P[0] 44 LTACAD_P[5]

5 LRACAD_[P,N][1] 25 LTACAD_N[0] 45 LTACAD_N[5]

6 LRACAD_[P,N][9] 26 LTACAD_P[8] 46 LTACAD_P[13]

7 LRACAD_[P,N][2] 27 LTACAD_N[8] 47 LTACAD_N[13]

8 LRACAD_[P,N][10] 28 LTACAD_P[1] 48 LTACAD_P[6]

9 LRACAD_[P,N][3] 29 LTACAD_N[1] 49 LTACAD_N[6]

10 LRACAD_[P,N][11] 30 LTACAD_P[9] 50 LTACAD_P[14]

11 LRACAD_[P,N][4] 31 LTACAD_N[9] 51 LTACAD_N[14]

12 LRACAD_[P,N][12] 32 LTACAD_P[2] 52 LTACAD_P[7]

13 LRACAD_[P,N][5] 33 LTACAD_N[2] 53 LTACAD_N[7]

14 LRACAD_[P,N][13] 34 LTACAD_P[10] 54 LTACAD_P[15]

15 LRACAD_[P,N][6] 35 LTACAD_N[10] 55 LTACAD_N[15]

16 LRACAD_[P,N][14] 36 LTACAD_P[3] 56 LTACTL_P

17 LRACAD_[P,N][7] 37 LTACAD_N[3] 57 LTACTL_N

18 LRACAD_[P,N][15] 38 LTACAD_P[11]

19 LRACTL_[P,N] 39 LTACAD_N[11]

20 LTACLK0_P 40 LTACAD_P[4]

24888 Rev 3.03 - July 12, 2004 AMD-8151TM AGP Tunnel Data Sheet

45

NAND tree 3: output signal is STRAPL[3].

Nand tree 4: output signal is STRAPL[2].

Notes:

• LDTSTOP#, A_TYPEDET#, TEST, STRAPL[0], A_REFCG, A_REFGC, A_CALD, A_CALD#, A_CALS,

and A_CALS# are not in the NAND trees.

• While in NAND-tree mode, the link and AGP input compensation is placed at a “mid-band” value.

• While in NAND-tree mode, the AGP signals operate under AGP 2.0 signaling rules.

10 Appendix

10.1 Revision History

Revision 3.02

• Initial release.

Revision 3.03

• Removed Preliminary.

1 STRAPL[1] 21 A_DBIL 41 A_CBE_L[2] 61 A_AD[12] STRAPL[19]

2 STRAPL[8] 22 A_DBIH 42 A_CBE_L[3] 62 A_AD[13]

3 STRAPL[10] 23 A_AD[31] 43 A_ST[0] 63 A_AD[11]

4 STRAPL[9] 24 A_AD[30] 44 A_ST[1] 64 A_AD[10]

5 A_GC8XDET# 25 A_AD[29] 45 A_ST[2] 65 A_AD[9]

6 A_SBA[0] 26 A_AD[28] 46 A_MB8XDET# 66 A_AD[8]

7 A_SBA[1] 27 A_AD[27] 47 A_RBF# 67 A_ADSTB0_N

8 A_SBA[2] 28 A_AD[26] 48 A_WBF# 68 A_ADSTB0_P

9 A_SBA[3] 29 A_AD[25] 49 STRAPL[14] 69 A_CBE_L[0]

10 A_SBSTB_N 30 A_AD[24] 50 STRAPL[15] 70 A_AD[7]

11 A_SBSTB_P 31 A_ADSTB1_N 51 STRAPL[17] 71 A_AD[6]

12 A_SBA[4] 32 A_ADSTB1_P 52 STRAPL[16] 72 A_AD[5]

13 A_SBA[5] 33 A_AD[23] 53 A_IRDY# 73 A_AD[4]

14 A_SBA[6] 34 A_AD[22] 54 A_DEVSEL# 74 A_AD[3]

15 A_SBA[7] 35 A_AD[21] 55 A_FRAME# 75 A_AD[1]

16 A_GNT# 36 A_AD[20] 56 STRAPL[6] 76 A_AD[2]

17 STRAPL[11] 37 A_AD[19] 57 A_TRDY# 77 A_AD[0]

18 A_REQ# 38 A_AD[17] 58 A_CBE_L[1] 78 A_STOP#

19 STRAPL[13] 39 A_AD[18] 59 A_AD[15] 79 A_PAR

20 STRAPL[7] 40 A_AD[16] 60 A_AD[14] 80 STRAPL[18]

1 CMPOVR 6 A_PLLCLKI 11 A_PCLK

2 RESET# 7 STRAPL[20]

3PWROK 8STRAPL[21]

4 REFCLK 9 STRAPL[22]

5 A_PLLCLKO 10 A_RESET#
