D170 Parts Manual

Phase 7

JLA Part No. 450597

JLA Limited

Meadowcroft Lane, Halifax Road

Ripponden

West Yorkshire, England

HX6 4AJ

Telephone: 01422 822282 / Fax: 01422 824390

FOR YOUR SAFETY

Do not store or use gasoline

or other flammable vapors

and liquids in the vicinity of

this or any other appliance.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence

ni d’autres vapeurs ou liquides

inflammables à proximité de cet

appareil ou de tout autre appareil.

Retain This Manual in a Safe Place for Future Reference

This product embodies advanced concepts in engineering, design, and safety. If this product is properly

maintained, it will provide many years of safe, efficient, and trouble free operation.

Only qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation

manual included with the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the

instructions to be followed if the user smells gas. These instructions

must be posted in a prominent location near the dryer.

We have tried to make this manual as complete as possible and hope you will find it useful. The

manufacturer reserves the right to make changes from time to time, without notice or obligation, in prices,

specifications, colors, and material, and to change or discontinue models. The illustrations included in

this manual may not depict your particular dryer exactly.

IMPORTANT

For your convenience, log the following information:

DATE OF PURCHASE _____________________________________________________________ MODEL NO. ________________________

RESELLER’S NAME _________________________________________________________________________________________________

Serial Number(s) __________________________________________________________________________________________________

___________________________________________________________________________________________________________________

___________________________________________________________________________________________________________________

Replacement parts can be obtained from your reseller or JLA. When ordering replacement parts from the

factory, you can FAX your order to JLA at 1 422-824390 or telephone your order directly to the JLA Parts

Department at 1 422-822282. Please specify the dryer model number and serial number in addition to the

description and part number, so that your order is processed accurately and promptly.

D170

Control Door Assembly .................................................................................................................................... 4

Phase 7 Non-Coin Microprocessor Control Panel Assembly ....................................................................... 5

Front Panel/Main Door Assemblies ............................................................................................................ 6, 7

Main Door Switch Assembly ............................................................................................................................ 8

Tumbler Assembly ............................................................................................................................................ 9

Phase 7 Rotational Sensor Assembly .......................................................................................................... 10

Lint Door Assembly ........................................................................................................................................ 11

Lint Drawer/Lint Drawer Switch Box Assemblies for Models Mfd. as of February 1, 2003 ...................... 12

Lint Drawer/Lint Drawer Switch Box Assemblies for Models Mfd. prior to February 1, 2003 .................. 13

Fan (Squirrel Cage) Shaft Mount Assembly ................................................................................................. 14

Blower Motor Mount Assembly ...................................................................................................................... 15

Microprocessor Temperature Sensor Bracket Assembly ........................................................................... 16

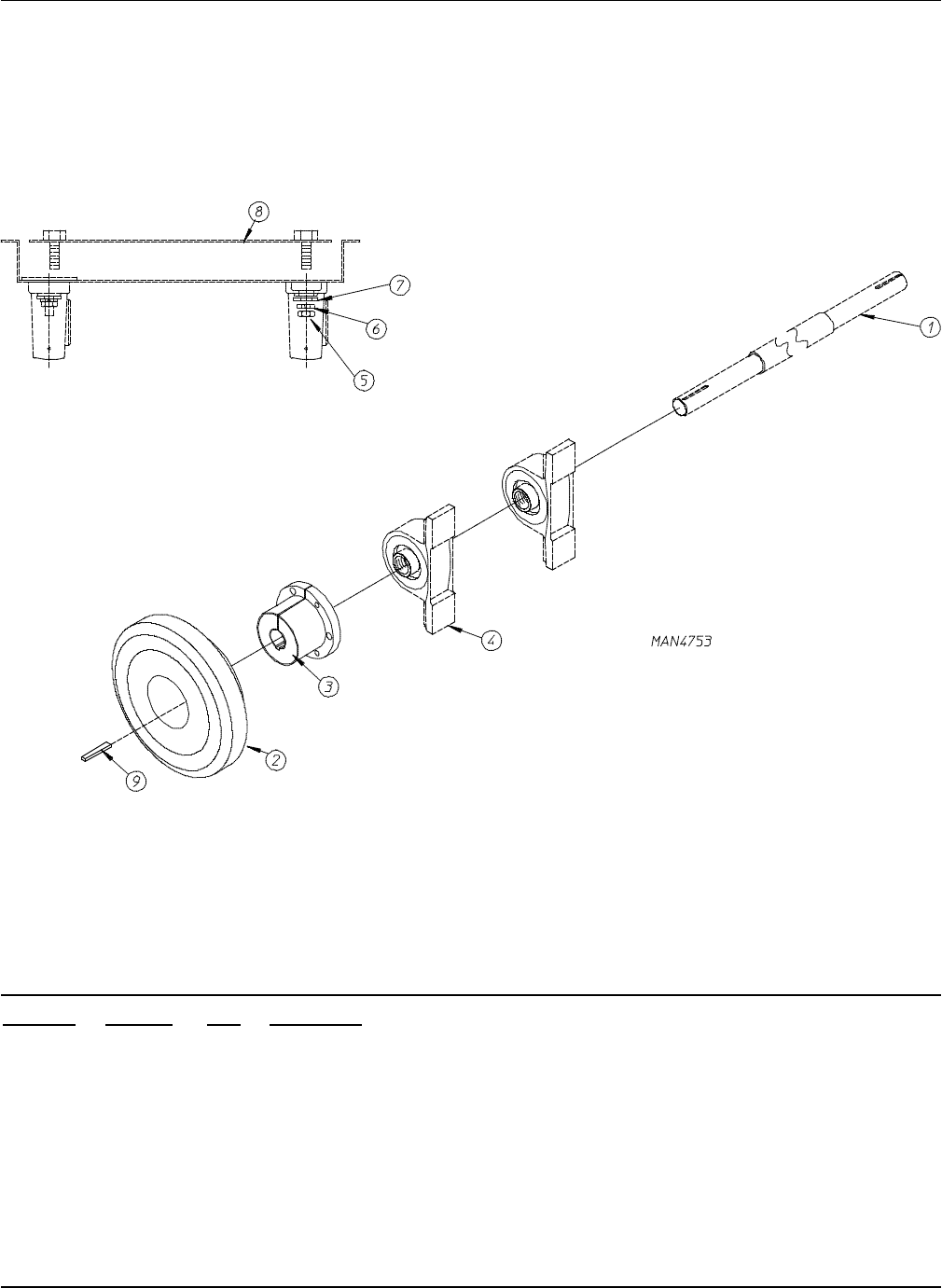

Drive Shaft Assembly ..................................................................................................................................... 17

Idler Shaft Assembly ...................................................................................................................................... 18

Speed Reducer Shaft Assembly ................................................................................................................... 19

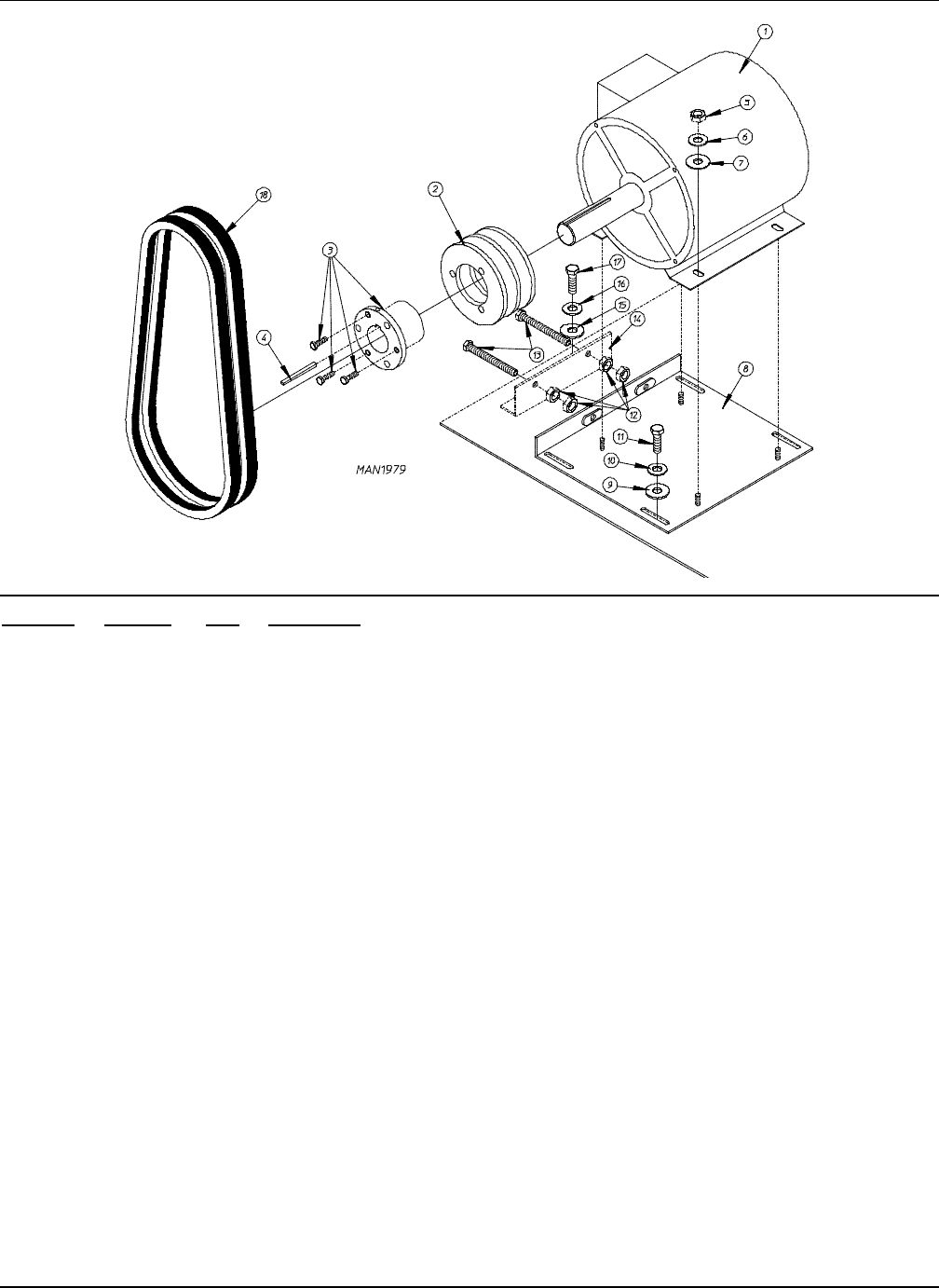

Totally Enclosed, Non-Venting Drive Motor Assembly ................................................................................. 20

CE Hot Surface Ignition Burner Assembly ................................................................................................... 21

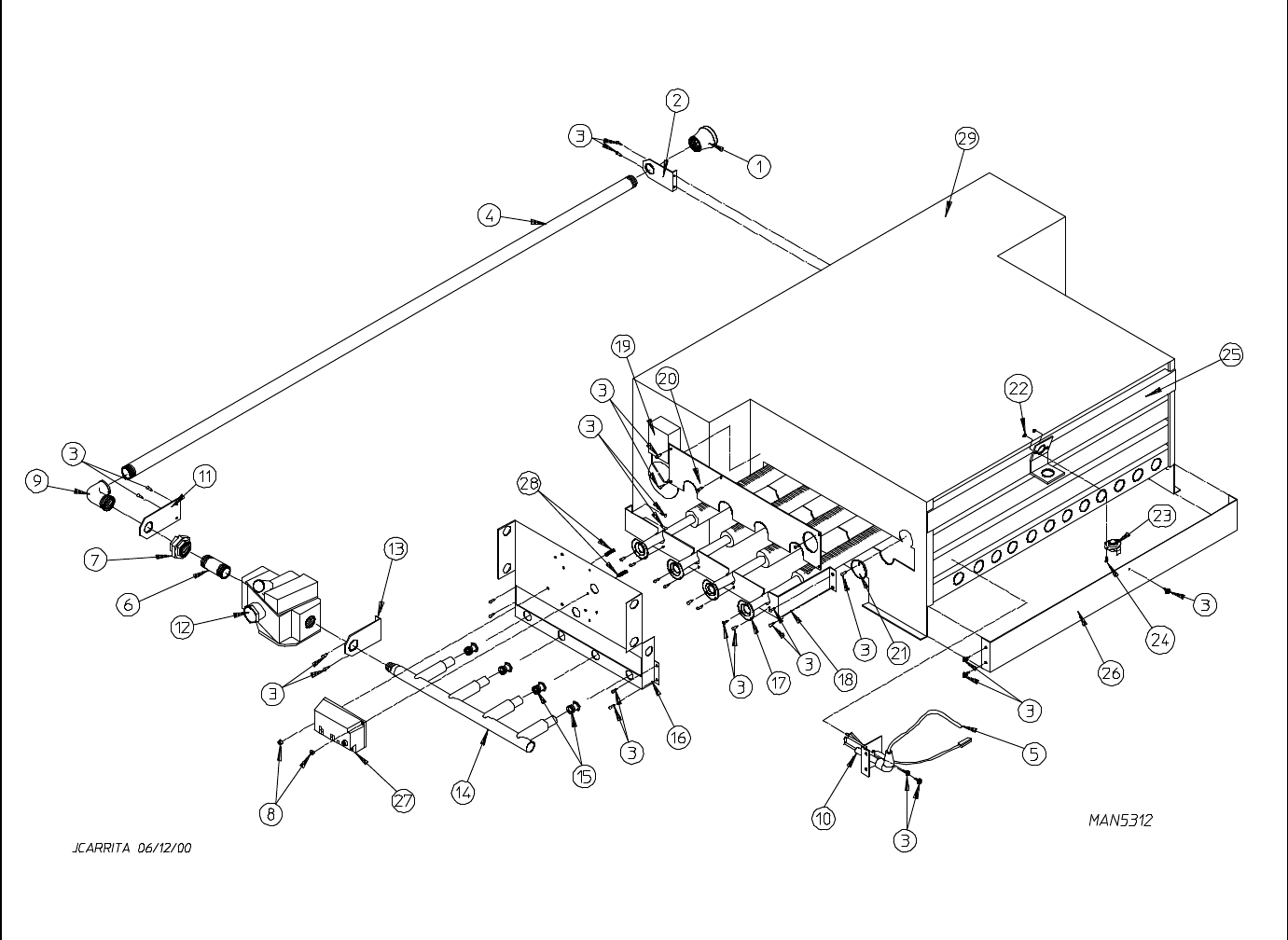

Direct Spark Ignition Burner Assembly ................................................................................................... 22, 23

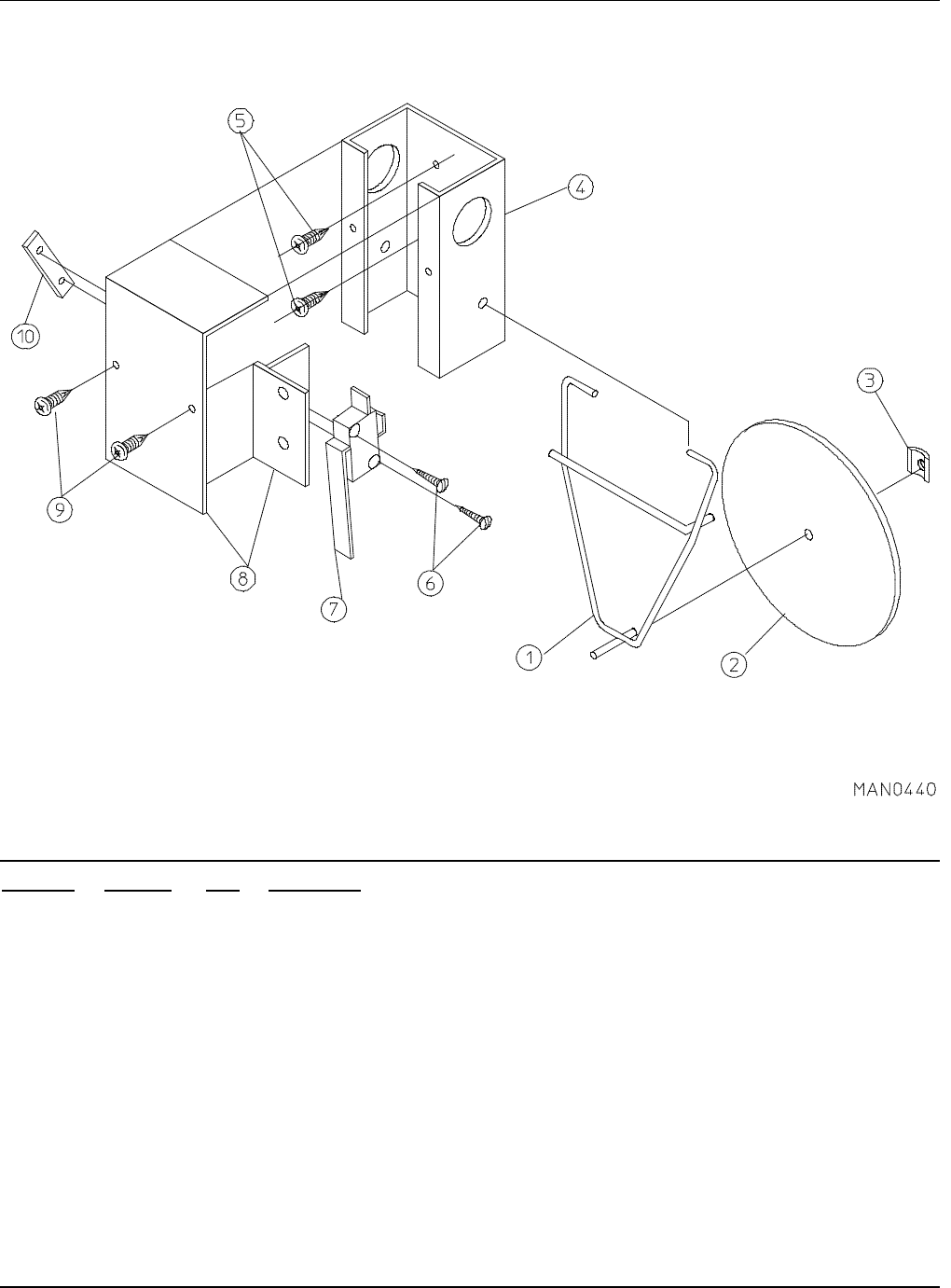

Sail Switch Assembly ..................................................................................................................................... 24

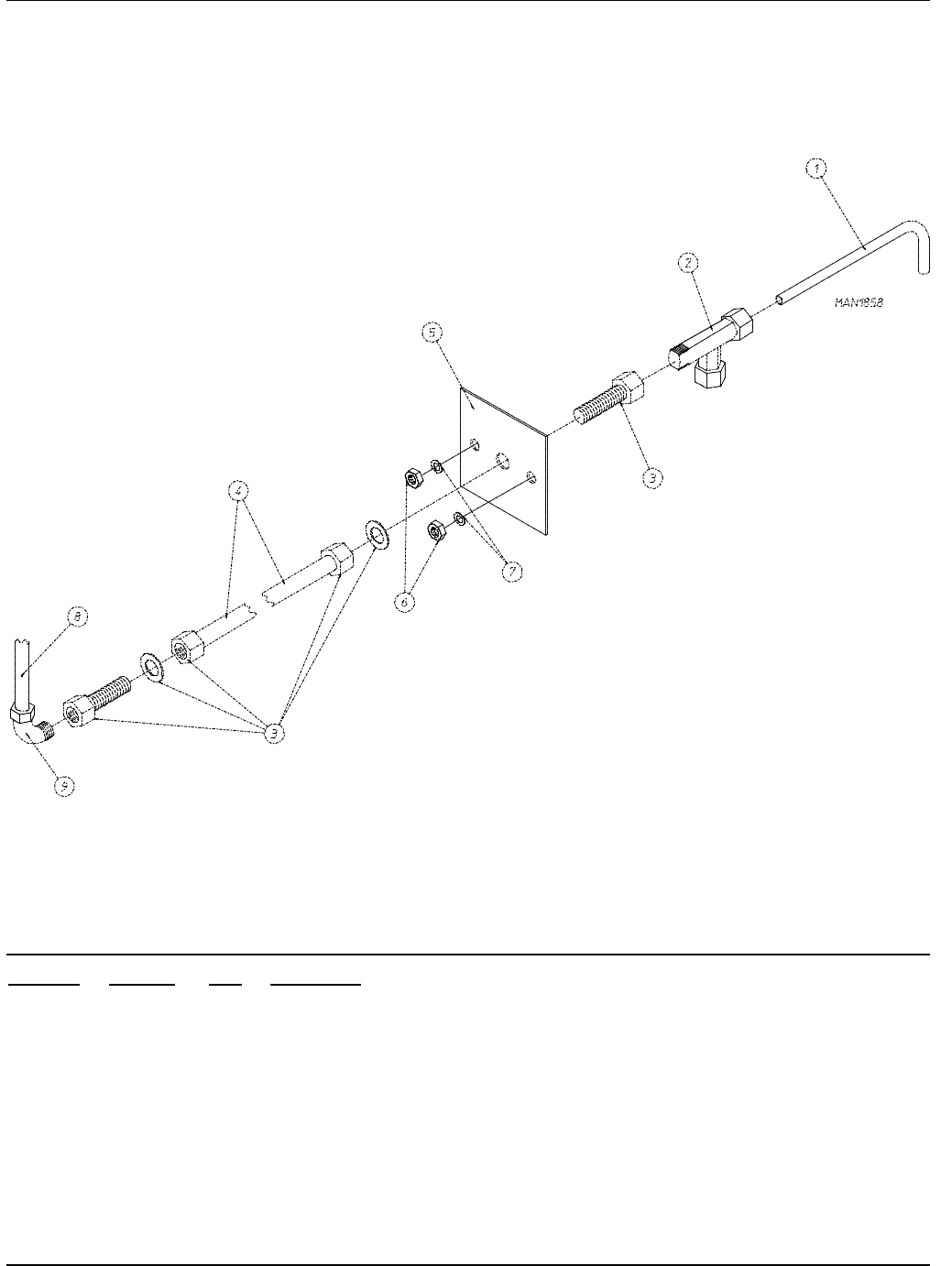

Air Jet Assembly ............................................................................................................................................. 25

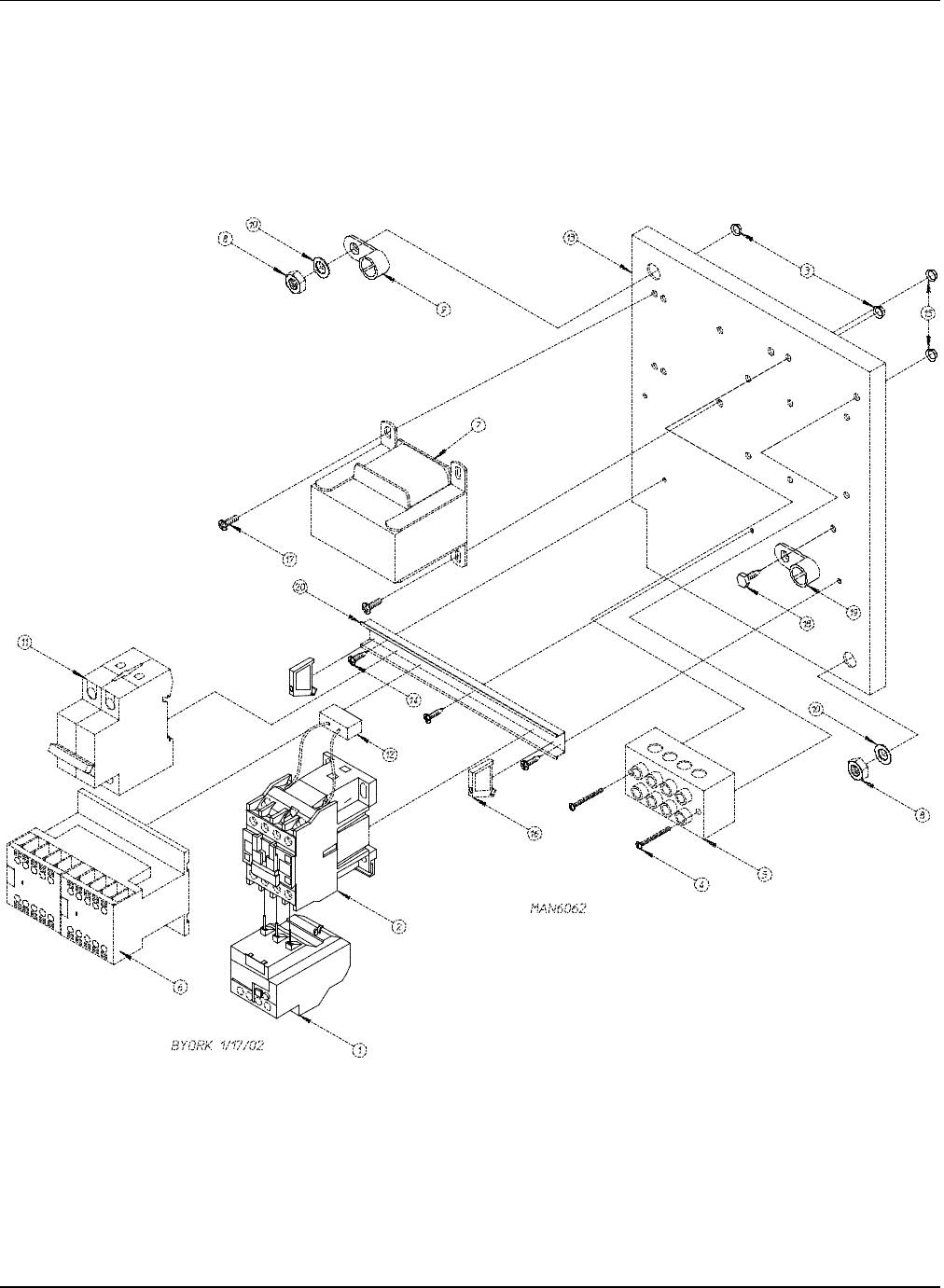

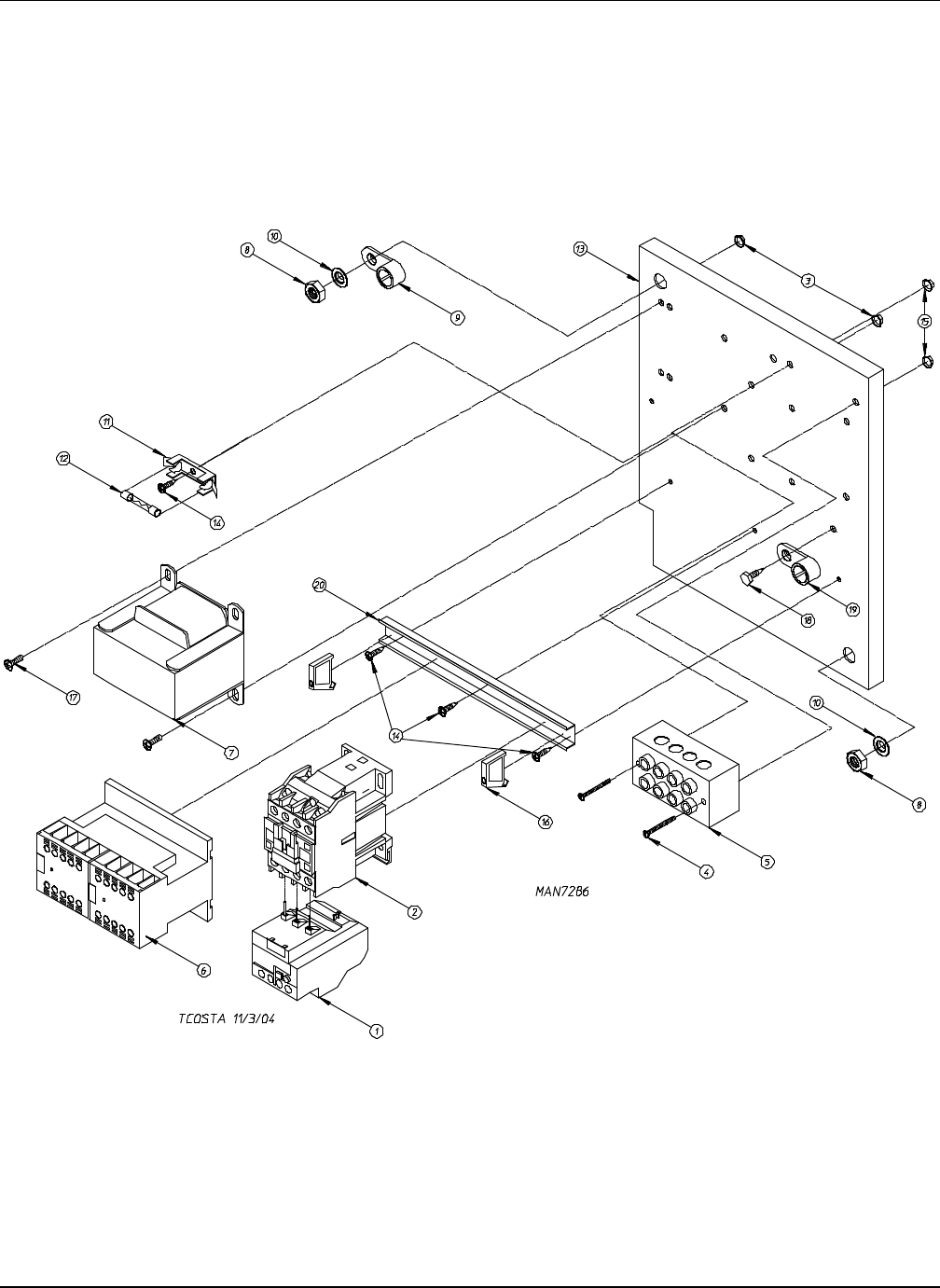

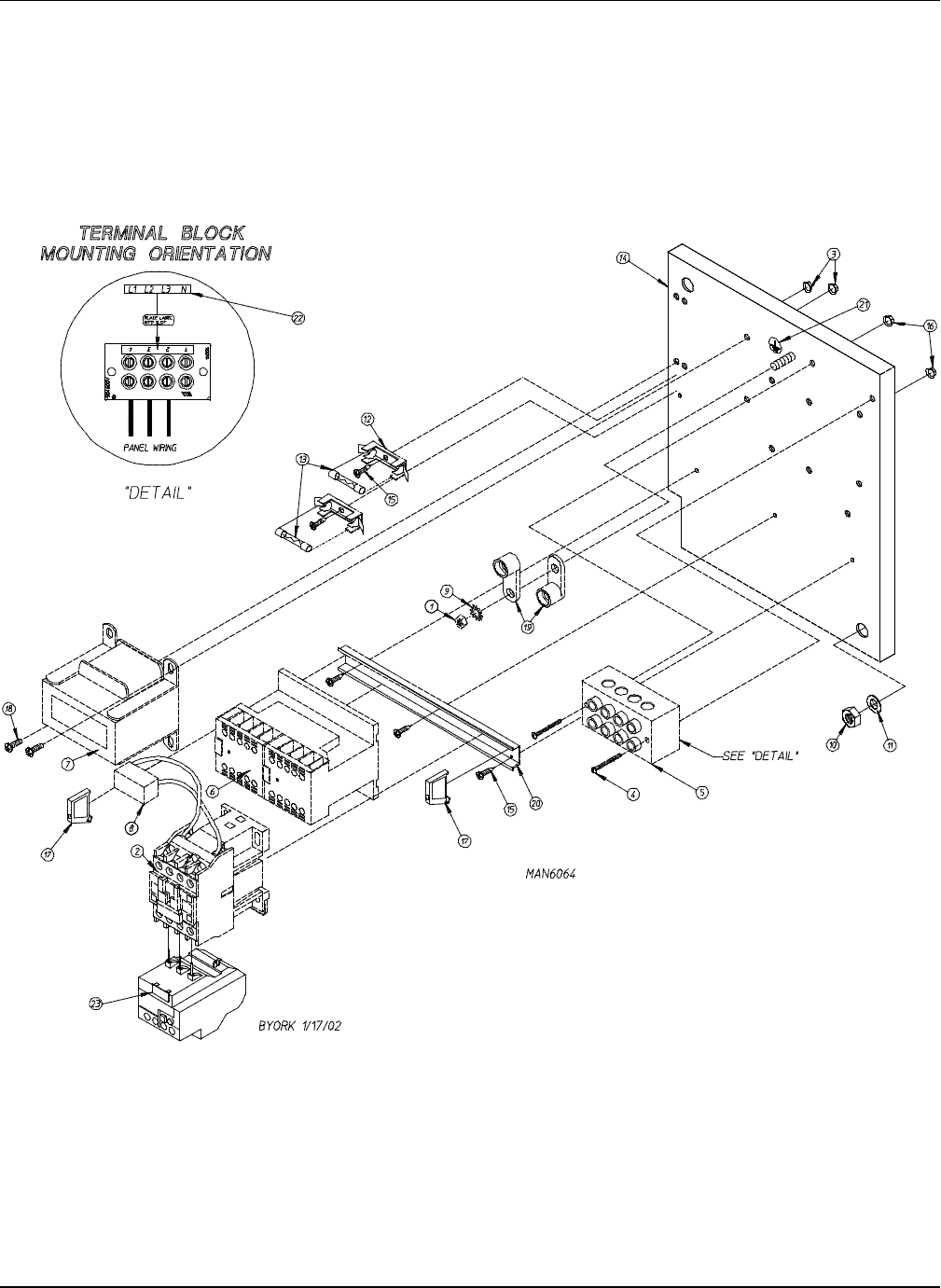

Microprocessor Reversing Contactor Mounting Panel Assembly for 208-240V Transformers ......... 26, 27

Microprocessor Reversing Contactor Mounting Panel Assembly for 380-416V Transformers ......... 28, 29

Microprocessor Reversing Contactor Mounting Panel Assembly for 460-480V Transformers ......... 30, 31

Steam Damper Assembly for Steam Models Only ...................................................................................... 32

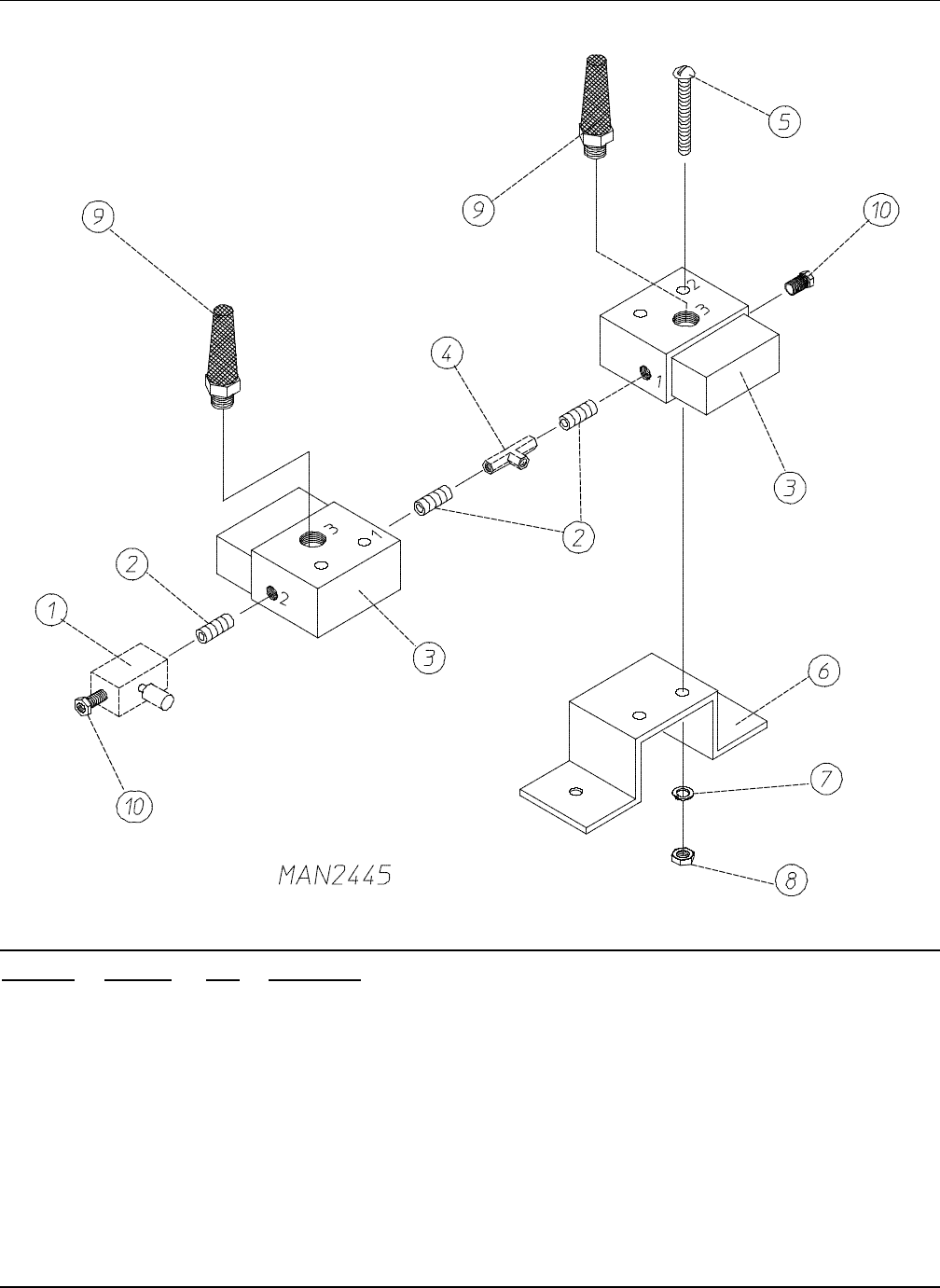

Pneumatic Valve Assembly for Gas Models Only ........................................................................................ 33

Pneumatic Valve Assembly for Steam Models Only .................................................................................... 34

Top Console Assembly .................................................................................................................................. 35

S.A.F.E. Temperature Probe Assembly ........................................................................................................ 36

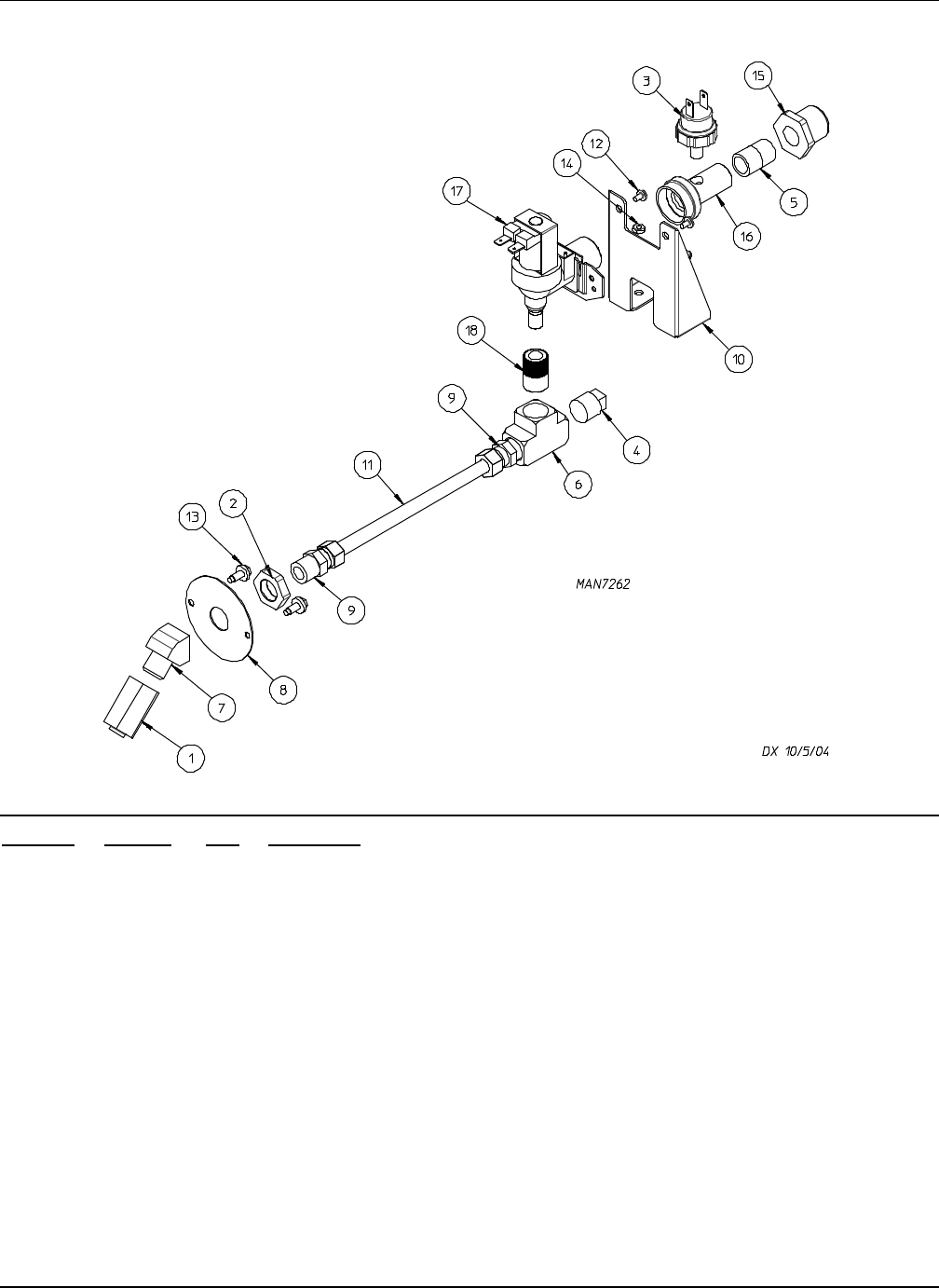

S.A.F.E. Solenoid Assembly for Models Mfd. as of September 23, 2004 .................................................. 37

S.A.F.E. Solenoid Assembly .......................................................................................................................... 38

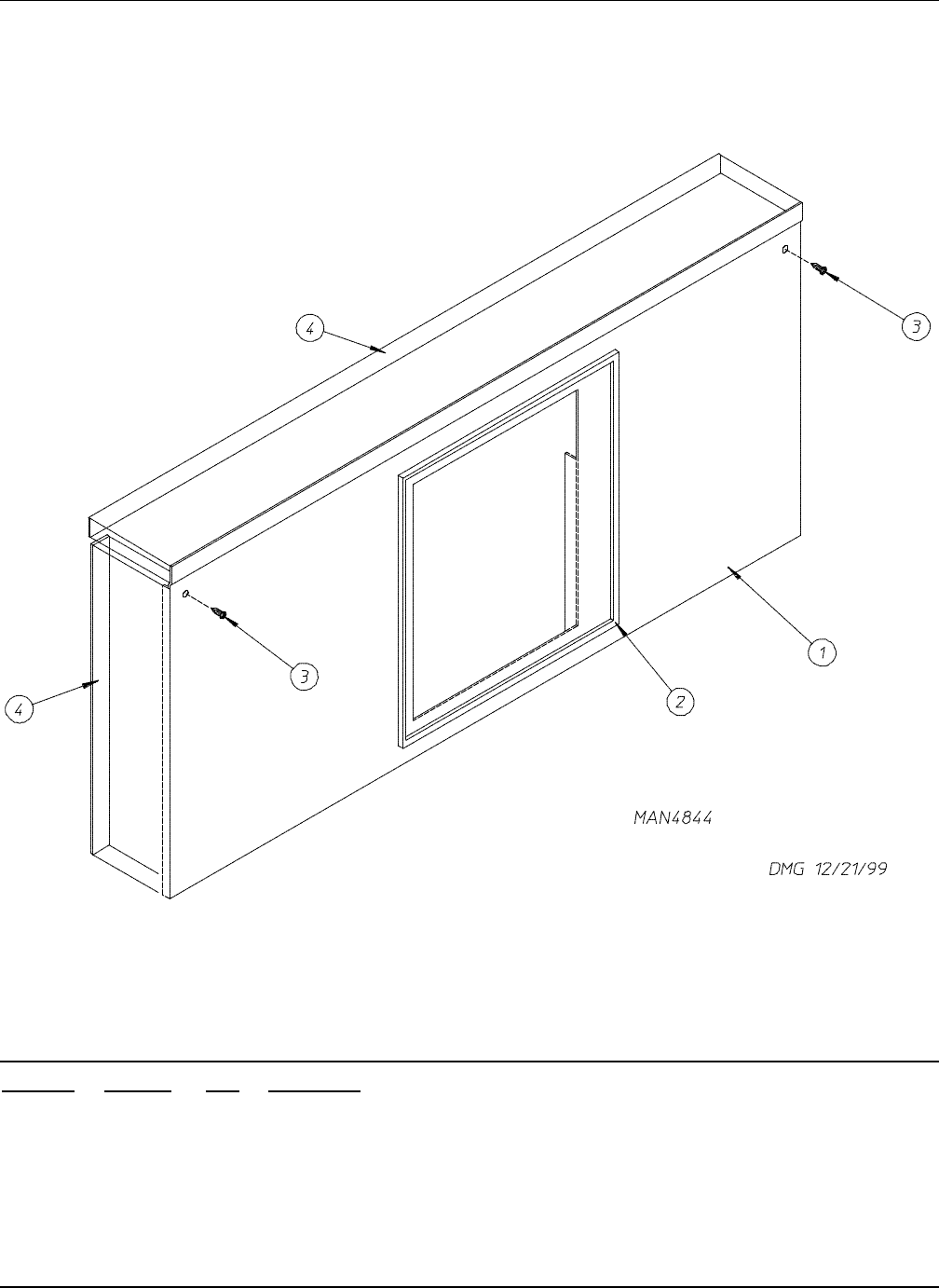

Back Guard Assemblies ................................................................................................................................ 39

Table of Contents

4JLA Limited 450597-2

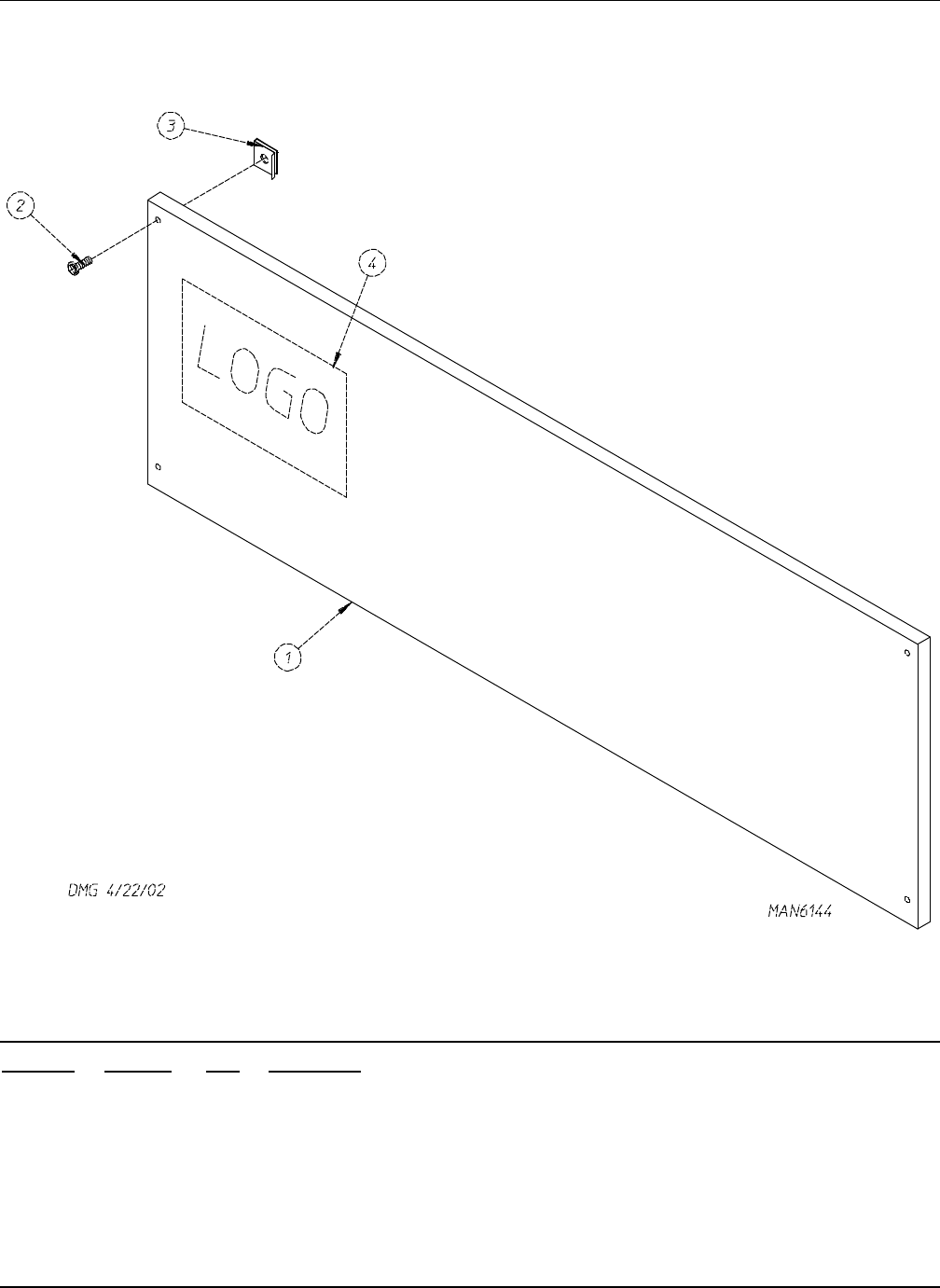

Control Door Assembly

Illus. No. Part No. Qty. Description

1* 883256 1Phase 7 Control Door (gas)

883322 1Phase 7 Control Door (steam)

2150314 4#10-32 x 1/2” TORX Screw

3154011 4#10-32 Multi-Thread U-Nut

4** ——— 1Logo

*Specify color when ordering.

** Contact reseller for logo.

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 5

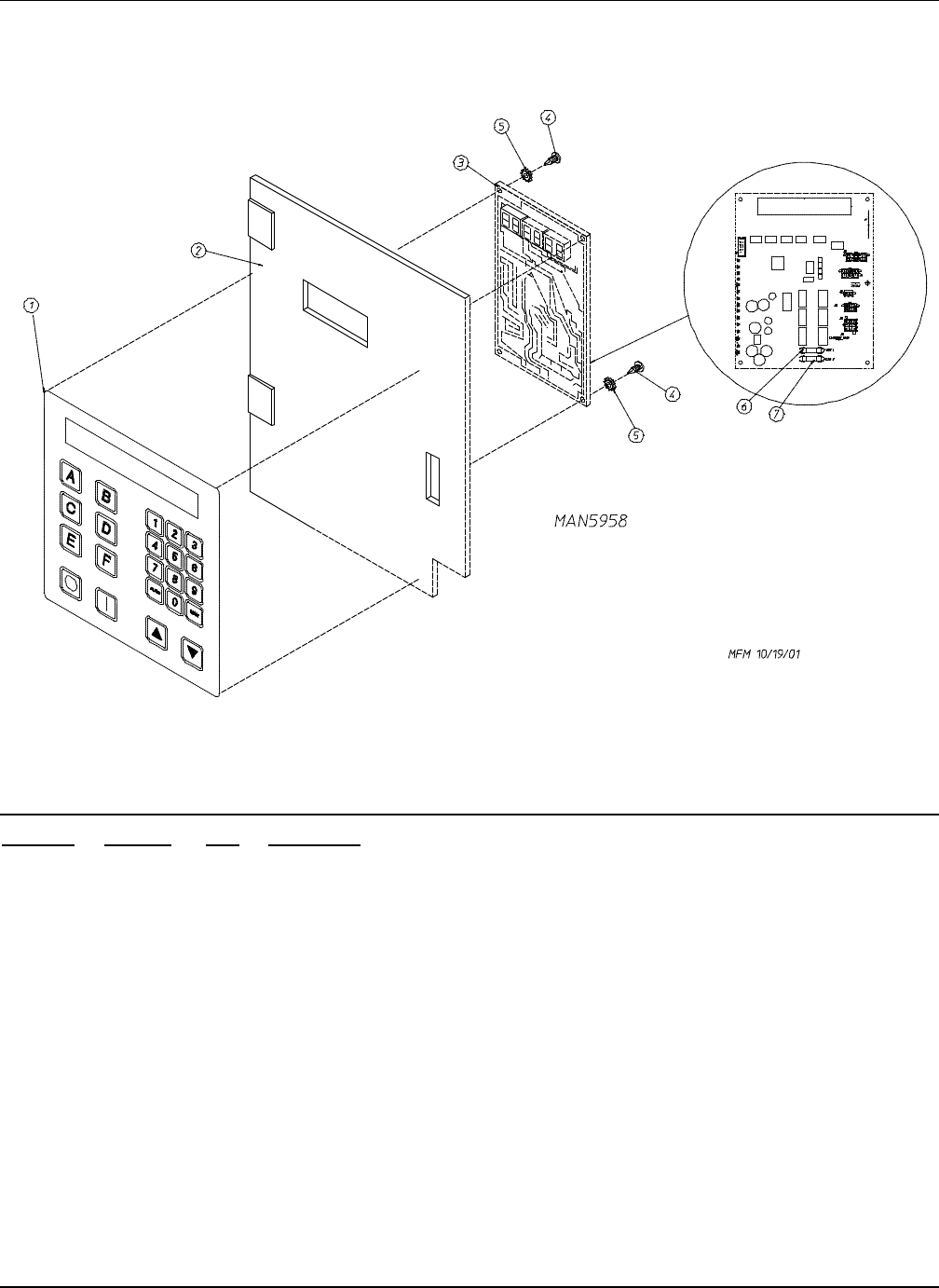

Phase 7 Non-Coin Microprocessor Control Panel Assembly

Illus. No. Part No. Qty. Description

1112577 1Phase 7 Non-Coin Keypad

(for models mfd. as of September 11, 2004)

112571 1Phase 7 Non-Coin Keypad

(for models mfd. prior to September 11, 2004)

2850980 1Phase 7 Microprocessor Controller (computer) Panel Only

822754 1Phase 7 Non-Coin Reversing Microprocessor Controller (computer)

Control Panel Assembly Complete

(includes illus. nos. 1 through 7)

3887005 1Phase 7.2.2 Non-Coin Microprocessor Controller (computer)

with Sensor Activated Fire Extinguishing System Only

(for models mfd. as of December 3, 2003)

887002 1Phase 7.2.1 Non-Coin Microprocessor Controller (computer)

with Sensor Activated Fire Extinguishing System Only

(for models mfd. prior to December 3, 2003)

4150005 2#6-32 x 3/4” Phillips Round Head Machine Screw

5153010 2#6 Star Washer

6136016 15 amp Fuse

7136097 1500 mA Fuse

6JLA Limited 450597-2

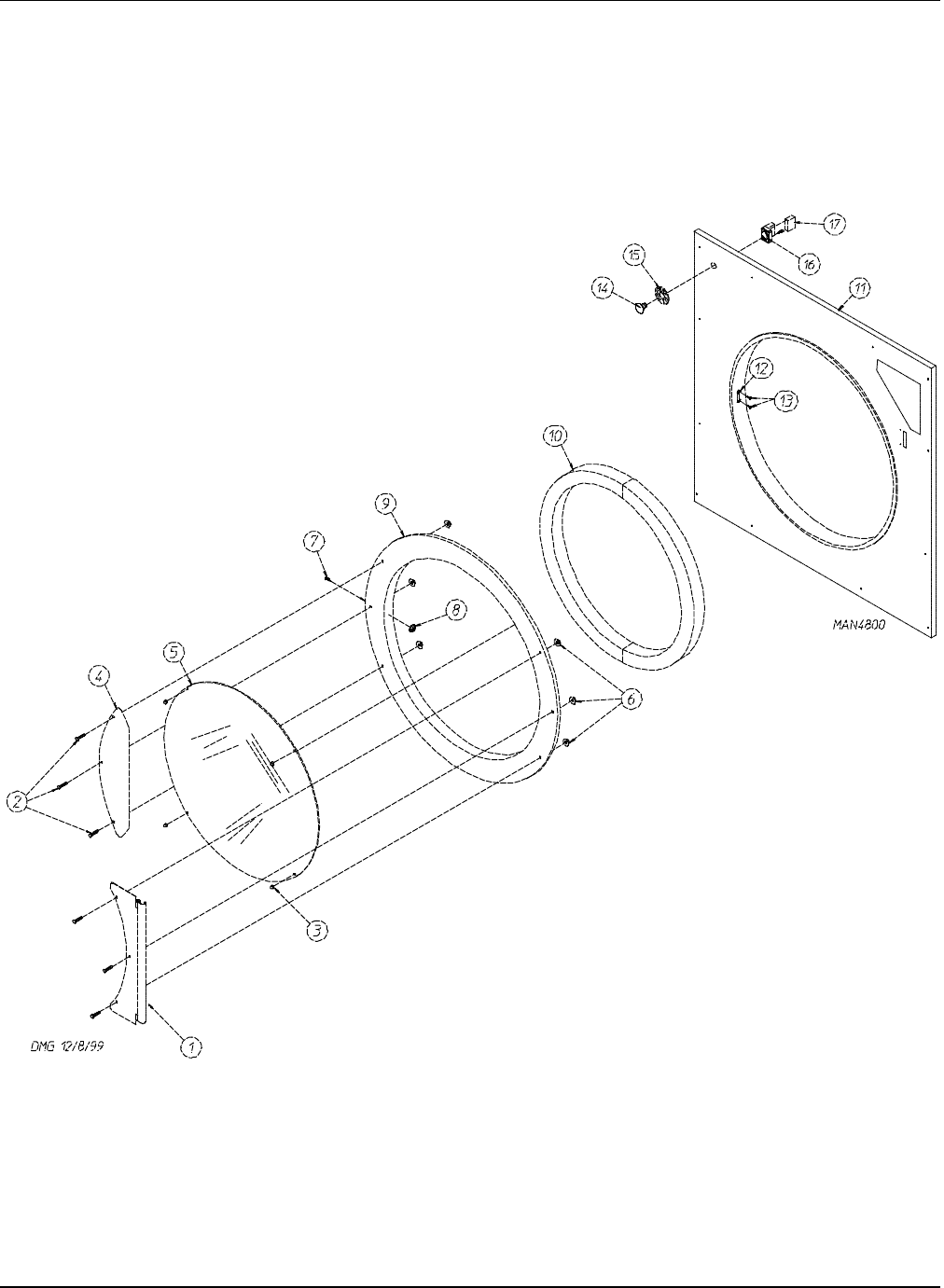

Front Panel/Main Door Assemblies

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 7

Illus. No. Part No. Qty. Description

1881685 1White Main Door Hinge

882296 1Coral Wrinkle Blue Main Door Hinge

2881740 61/4-20 x 5/8” White Carriage Bolt

881739 61/4-20 x 5/8” Coral Wrinkle Blue Carriage Bolt

3151012 1#10-32 White Acorn Nut

4881688 1White Main Door Handle

881737 1Blue Main Door Handle

5102214 130” Door Glass

170730 1Door Glass Adhesive (10.3 oz. cartridge)

6881806 61/4-20 White Free Spin Wash Nut

882293 61/4-20 Coral Wrinkle Blue Free Spin Wash Nut

7150120 1Main Door Latch Screw

(#10-32 dome hex head screw)

8151010 1#10-32 Acorn Nut

9881689 1White Main Door Assembly Complete

(includes illus. nos. 2 through 10)

881761 1Coral Wrinkle Blue Main Door Assembly Complete

(includes illus. nos. 2 through 10)

881966 1White Main Door Ring

882305 1Coral Wrinkle Blue Cold Rolled Steel Large Main Door Ring

10 882411 1Extruded Steel Door Gasket

11 882503 1White Front Panel Assembly

(includes illus. nos. 1, 15, and 16)

882504 1Coral Wrinkle Blue Front Panel Assembly

(includes illus. nos. 1, 15, and 16)

12 170330 1Friction Door Latch

13 154215 25/32” Pop Rivet

14 122351 1“EMERGENCY STOP” Push-Pull Button

15 122419 1“EMERGENCY STOP” Nameplate

16 132387 1Normally Closed Contact Block

17 132395 1Normally Closed Contact Block with Base

Front Panel/Main Door Assemblies

8JLA Limited 450597-2

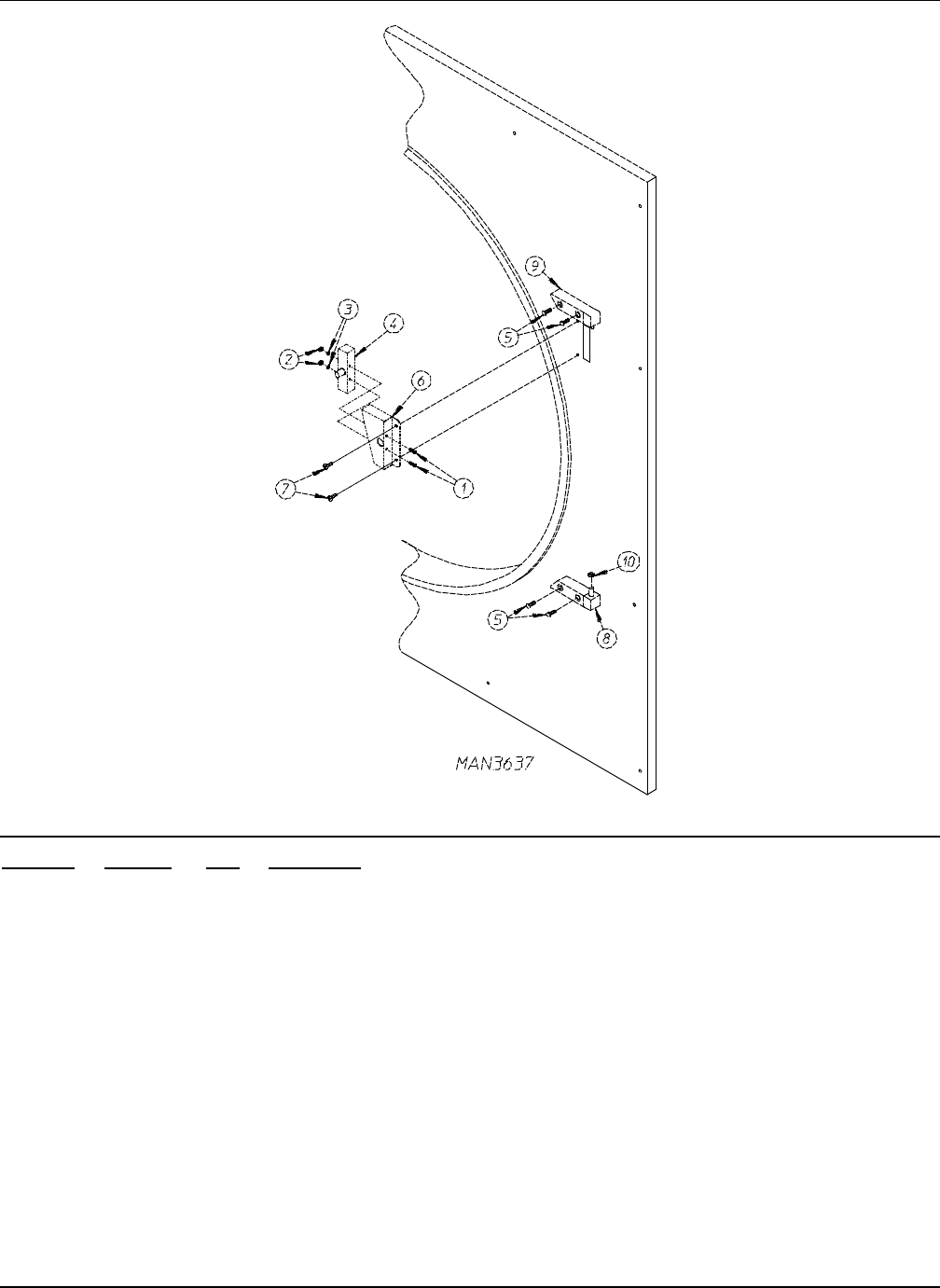

Main Door Switch Assembly

Illus. No. Part No. Qty. Description

1150006 2#6-32 x 7/8” Phillips Pan Head Machine Screw

2152013 2#6-32 Hex Nut

3153010 2#6 Star Washer

4137005 1Single-Pole Door Switch

5150443 41/4-20 x 3/4” Stainless Steel Cap Screw

6881687 1White Main Door Switch Housing Only

881695 1Blue Main Door Switch Housing Only

881702 1White Main Door Switch with Housing Assembly

(includes illus. nos. 1 through 4 and 6)

881700 1Blue Main Door Switch with Housing Assembly

(includes illus. nos. 1 through 4 and 6)

7150443 21/4-20 x 3/4” Stainless Steel Cap Screw

8881441 1White Bottom Hinge Block

881735 1Blue Bottom Hinge Block

9881440 1White Top Hinge Block

881736 1Blue Top Hinge Block

10 153031 1Nylon Washer

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 9

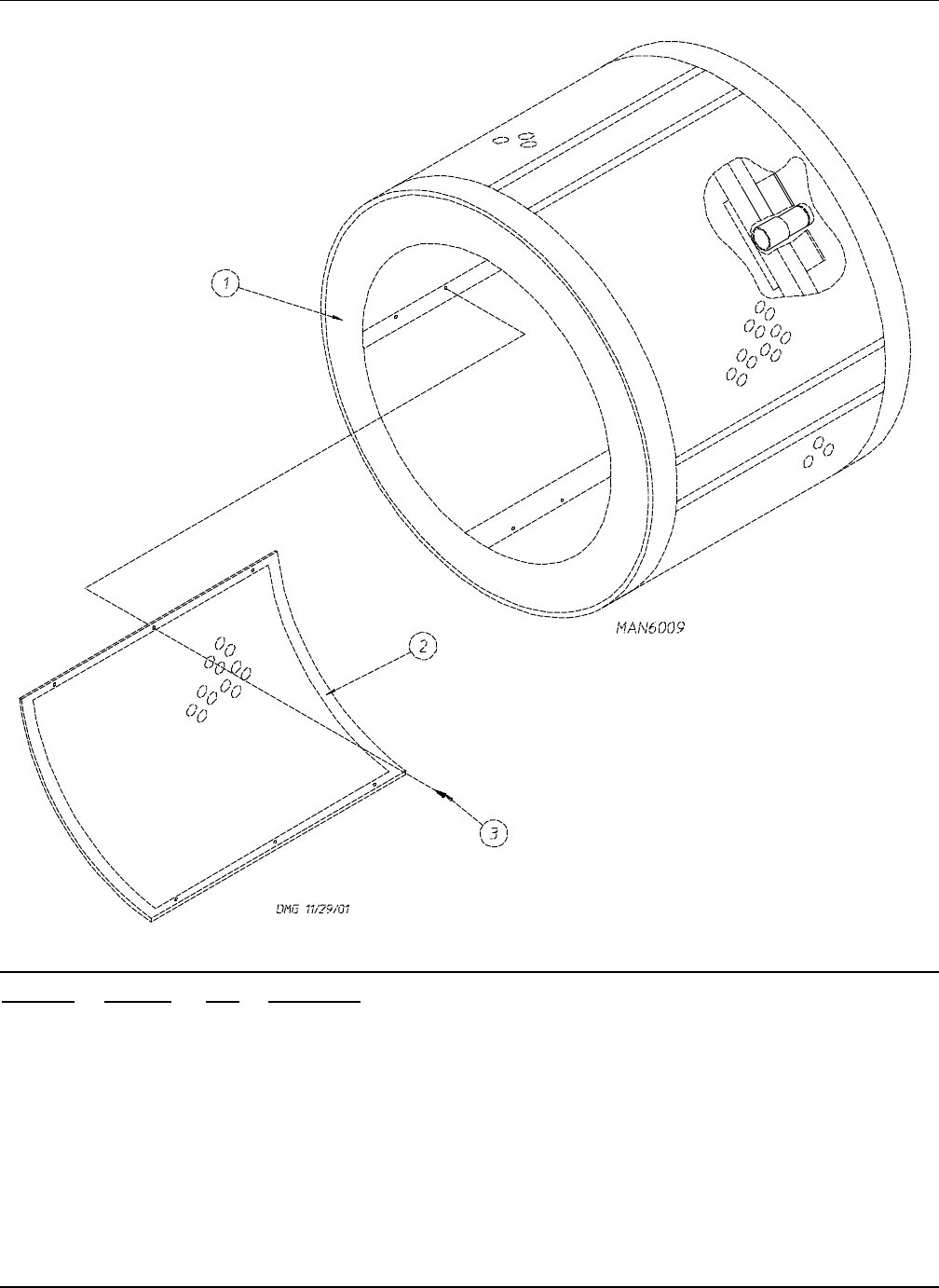

Illus. No. Part No. Qty. Description

1835402 1Stainless Steel Tumbler Assembly Complete

(for models mfd. as of November 10, 2003)

(includes illus. nos. 1 through 3)

835375 1Tumbler Assembly Complete

(for models mfd. prior to November 10, 2003)

(includes illus. nos. 1 through 3)

2390329 4Stainless Steel Perforated Tumbler Panel

(for models mfd. as of November 10, 2003)

883578 4Perforated Tumbler Panel

(for models mfd. prior to November 10, 2003)

3150118 24 1/4-20 x 1/4” Phillips Pan Head Screw

Tumbler Assembly

10 JLA Limited 450597-2

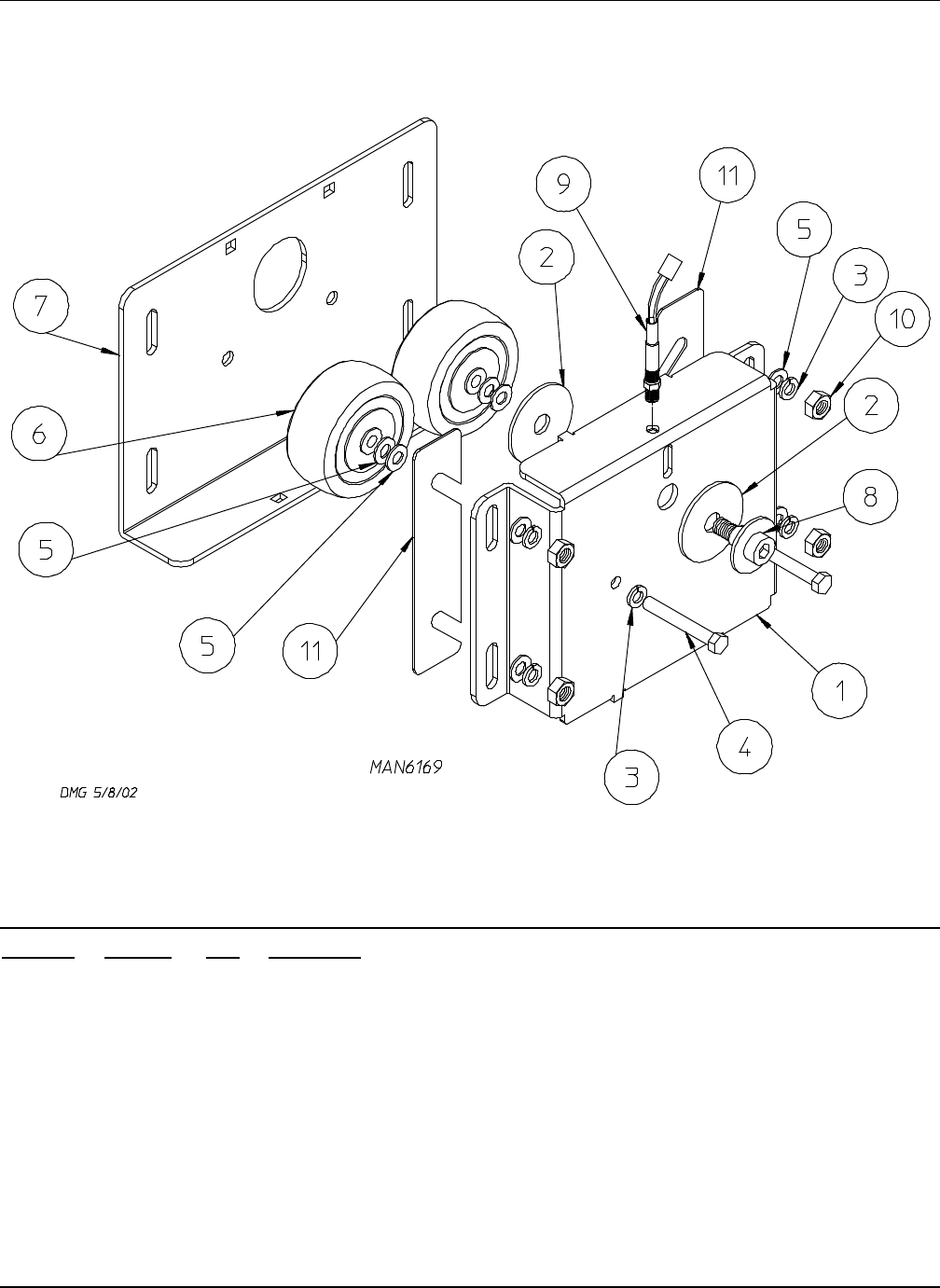

Phase 7 Rotational Sensor Assembly

Illus. No. Part No. Qty. Description

1819064 1Tumbler Shaft Support Assembly Complete

(includes illus. nos. 1 through 8)

835339 1Tumbler Shaft Support Bracket

2102394 2Tumbler Friction Pad

3153005 63/8” Lock Washer

4150619 23/8-16 x 1” Tap Bolt

5153004 83/8” Flat Washer

6180018 24” x 1-1/2” Hi-Impact Wheel

7819046 1Tumbler Adjustment Plate

8819065 1Tumbler Shoulder Screw

9822735 1Phase 7 Rotational Sensor Assembly

10 152005 43/8-16 Hex Nut

11 323433 2Rear Wheel Shim

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 11

Lint Door Assembly

Illus. No. Part No. Qty. Description

1882497 1White Lint Door Assembly

(includes illus. nos. 1, 2, and 4)

882498 1Coral Wrinkle Blue Lint Door Assembly

(includes illus. nos. 1, 2, and 4)

2117607 61/4” x 3/8” Poron Foam (sold by the foot)

3150309 5#10-16 x 1/2” Hex Head TEK Crimptite Screw

4117604 9Neoprene Sponge Tape (sold by the foot)

12 JLA Limited 450597-2

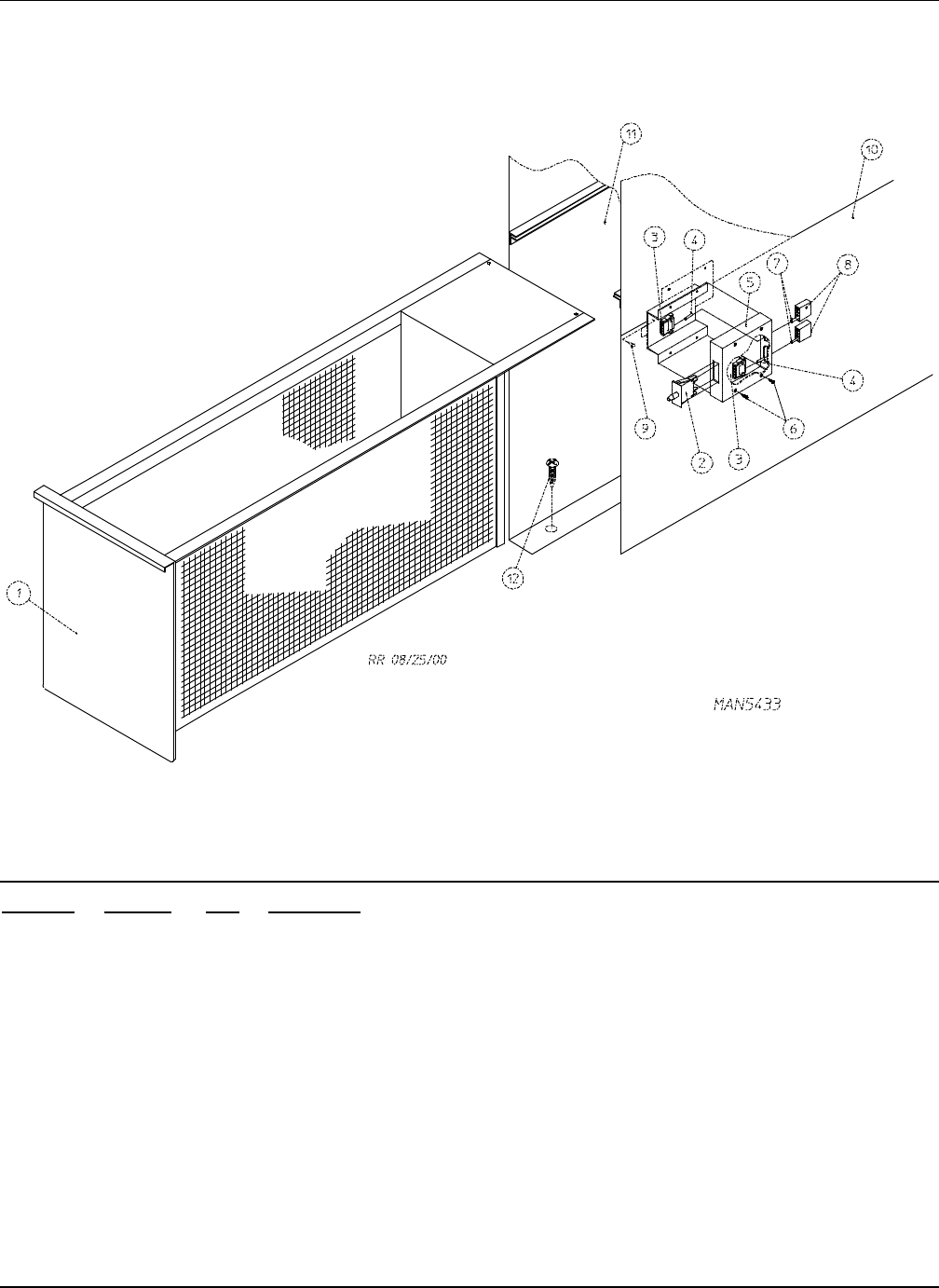

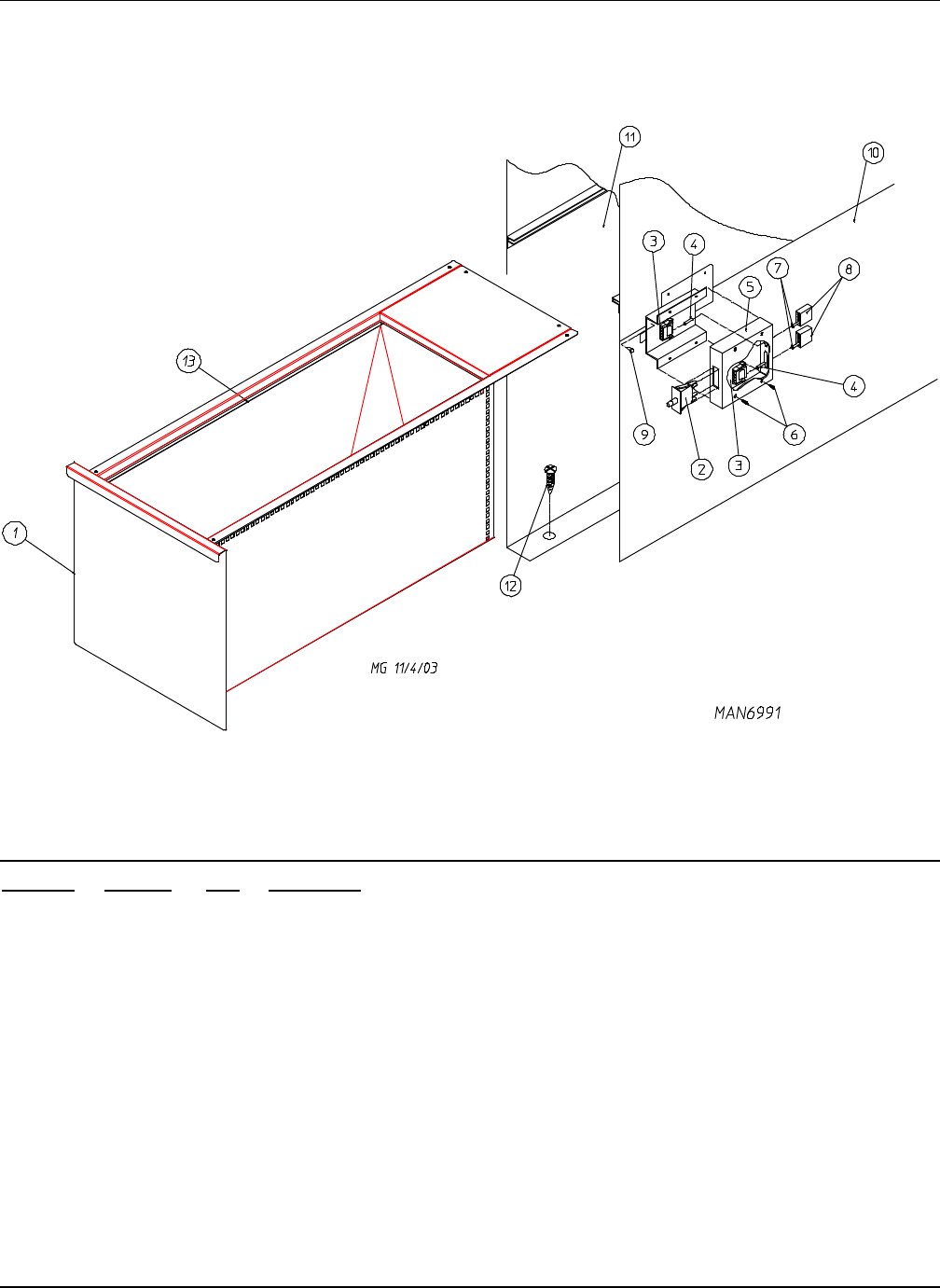

Lint Drawer/Lint Drawer Switch Box Assemblies

Illus. No. Part No. Qty. Description

1884069 1White Lint Drawer/Screen Assembly

884068 1Coral Wrinkle Blue Lint Drawer/Screen Assembly

2122116 1Lint Drawer Switch Only

3122605 14-Pin Socket Connector

4122701 2Socket Terminal Only

122801 1Pin/Socket Extraction Tool...Not Illustrated

5882507 1Lint Drawer Switch Box Assembly Complete

(includes illus. nos. 3 through 6)

6150301 4#8-18 x 7/16” Phillips Pan Head TEK Screw

7122700 2Pin Terminal Only

8122604 14-Pin Connector

9150301 2#8-18 x 7/16” Phillips Pan Head TEK Screw

10 319076 1Right Hand Divider Panel

11 319077 1Left Hand Divider Panel

12 150301 14 #8-18 x 7/16” Phillips Pan Head TEK Screw

13 108220 1Lint Bag

For Models Mfd. as of February 1, 2003

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 13

Lint Drawer/Lint Drawer Switch Box Assemblies

Illus. No. Part No. Qty. Description

1882792 1White Lint Drawer/Screen Assembly

882793 1Coral Wrinkle Blue Lint Drawer/Screen Assembly

2122116 1Lint Drawer Switch Only

3122605 14-Pin Socket Connector

4122701 2Socket Terminal Only

122801 1Pin/Socket Extraction Tool...Not Illustrated

5882507 1Lint Drawer Switch Box Assembly Complete

(includes illus. nos. 3 through 6)

6150301 4#8-18 x 7/16” Phillips Pan Head TEK Screw

7122700 2Pin Terminal Only

8122604 14-Pin Connector

9150301 2#8-18 x 7/16” Phillips Pan Head TEK Screw

10 319076 1Right Hand Divider Panel

11 319077 1Left Hand Divider Panel

12 150301 14 #8-18 x 7/16” Phillips Pan Head TEK Screw

For Models Mfd. prior to February 1, 2003

14 JLA Limited 450597-2

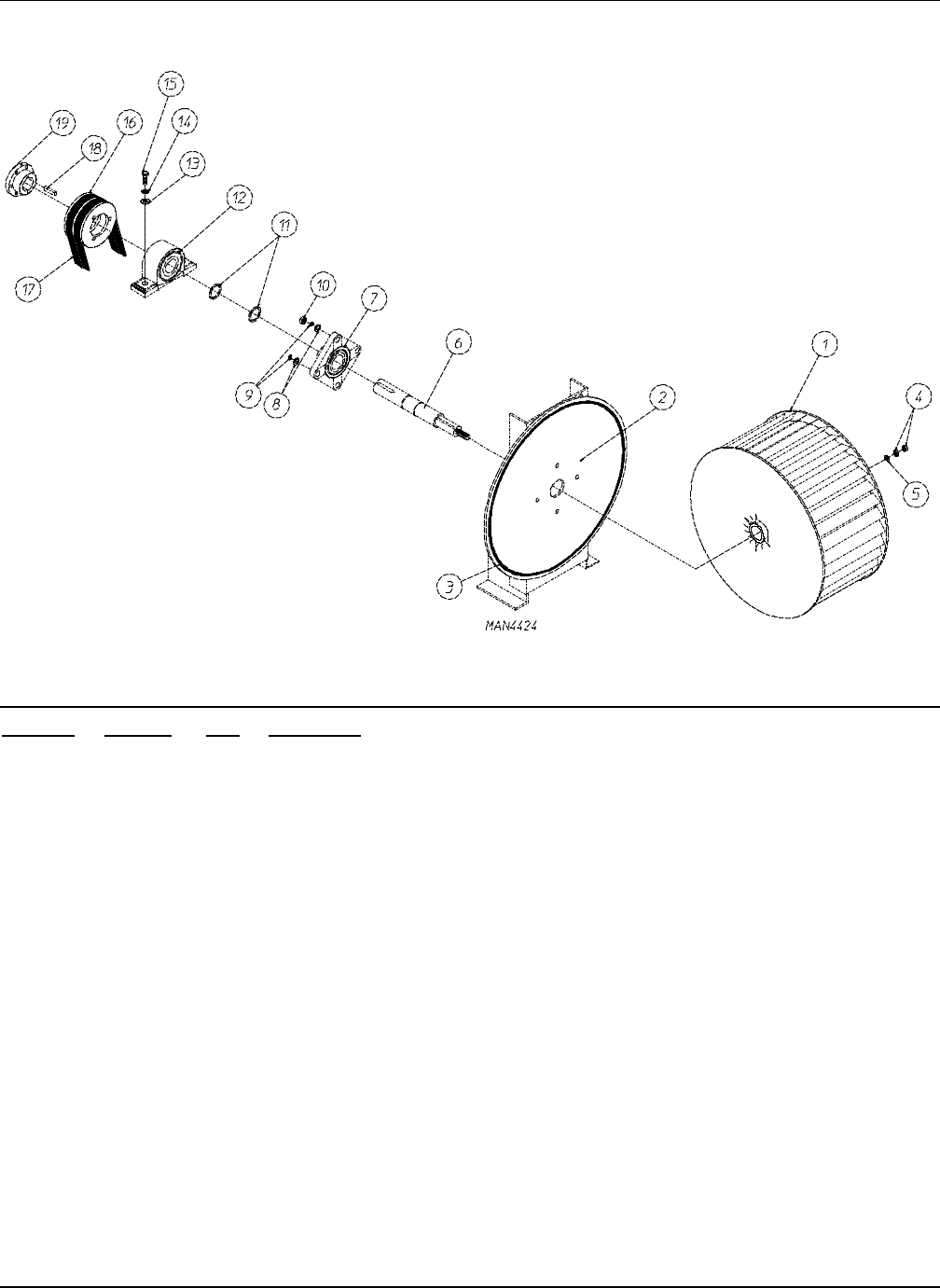

Illus. No. Part No. Qty. Description

1100612 11-1/4” Bore x 15” Diameter x 6” Blower/Fan (squirrel cage)

2821078 1Fan Shaft Mount Assembly Complete

(includes illus. nos. 1 through 16, 18, and 19)

821073 1Fan Shaft Mount Only

3117604 4’ Neoprene Sponge Tape (sold by the foot)

4152006 21/2-20 Left Hand Jam Nut

5153065 11/2” Flat Washer

6332280 1Fan Shaft Only

7881061 11-3/8” Flange Bearing with Setscrews and Grease Fitting

8153004 43/8” Flat Washer

9153005 43/8” Lock Washer

10 152005 43/8-16 Hex Nut

11 100812 21-3/8” Retaining Ring

12 880879 11-3/8” Pillow Block Bearing Only

13 153004 23/8” Flat Washer

14 153005 23/8” Lock Washer

15 150617 23/8-16 x 1” Hex Head Bolt

16 101177 12B x 5.8 Pulley (for gas models Only)

17* 100184 2BX-63 Cogged Belt (fan shaft to blower motor) for 60 Hz Models Only

18 100706 15/16” x 5/16” x 1-3/8” Key

19 101194 1SDS x 1-3/8” Bushing with Setscrew

*Replace in matched sets (both belts).

Fan (Squirrel Cage) Shaft Mount Assembly

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 15

Illus. No. Part No. Qty. Description

1181030* 17.5 hp 208-230/460v 3-Phase (3ø) 60 Hz Motor Only

181031* 17.5 hp 200-230/380-410v 3-Phase (3ø) 50 Hz Motor Only

181039 17.5 hp 575v 3-Phase (3ø) 60 Hz Motor Only

2101148 1SB x 4.0 Motor Pulley (60 Hz gas)

101147 1SB x 4.8 Motor Pulley (50 Hz steam)

101195 12B x 4.4 Sheave (60 Hz steam / 50 Hz gas)

3101152 1SH x 1-3/8” Bushing (50/60 Hz gas / 60 Hz steam)

101194 1SDS x 1-3/8” Bushing (50 Hz steam)

4100706 15/16” x 5/16” x 1-3/8” Key

5152004 45/16-18 Hex Nut

6153002 45/16” Lock Washer

7153001 45/16” Flat Washer

8821091 1Motor Mount Adjustment Plate Only

9153001 45/16” Flat Washer

10 153002 45/16” Lock Washer

11 150501 45/16-18 x 3/4” Hex Head Machine Bolt

12 152004 45/16-18 Hex Nut

13 150503 25/16-18 x 2” Hex Head Machine Bolt

14 332322 1Motor Mount Adjustment Angle Only

15 153001 25/16” Flat Washer

16 153002 25/16” Lock Washer

17 150501 25/16-18 x 3/4” Hex Head Machine Bolt

18** 100184 2BX-63 Cogged Belt (matched sets) 60 Hz

** 100195 2BX-73 Cogged Belt (matched sets) 50 Hz

** 100159 2BX-61 Cogged Belt (matched sets) 575v 60 Hz Only

*Specify voltage when ordering.

** Replace in matched sets (both belts).

Blower Motor Mount Assembly

16 JLA Limited 450597-2

Illus. No. Part No. Qty. Description

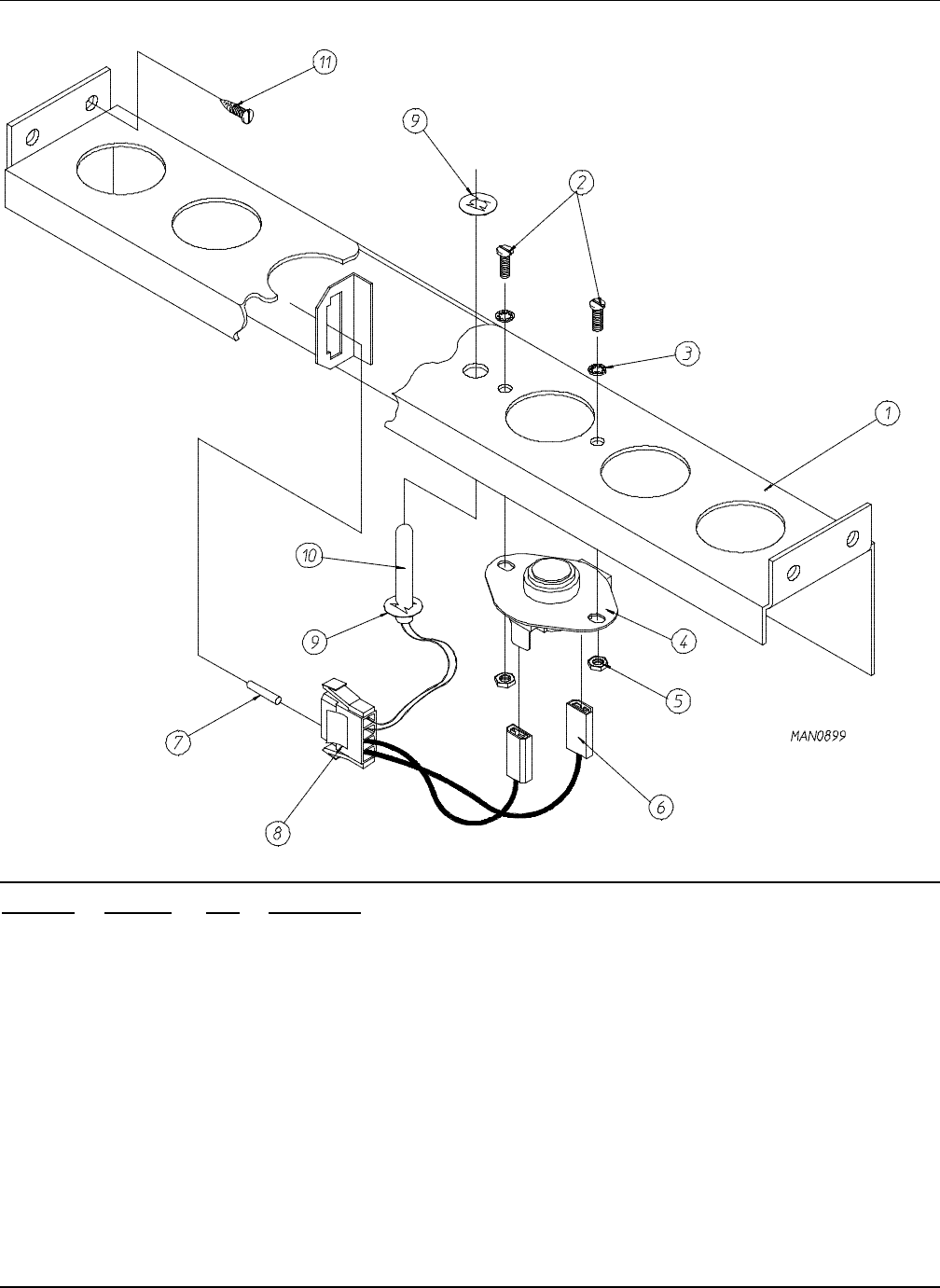

1815931 1Microprocessor Temperature Sensor Bracket Complete

(includes illus. nos. 1 through 10)

820967 1Microprocessor Temperature Sensor Bracket Only

2150005 2#6-32 x 1/4” Phillips Round Head Machine Screw

3153010 2#6 Star Washer

4130103 1225° Manual Reset Thermostat Only

5152000 2#6-32 Hex Nut

6121028 21/4” x .032 Insulated Terminal

7122701 4Socket Terminal Only

122801 1Pin/Socket Extraction Tool...Not Illustrated

8122605 14-Pin Socket Connector

9154007 21/4” Push On Fastener

10 815961 11/4” Temperature Sensor Probe Assembly

(includes illus. nos. 6 through 10)

11 150301 4#8-18 x 7/16” Phillips Pan Head TEK Screw

Microprocessor Temperature Sensor Bracket Assembly

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 17

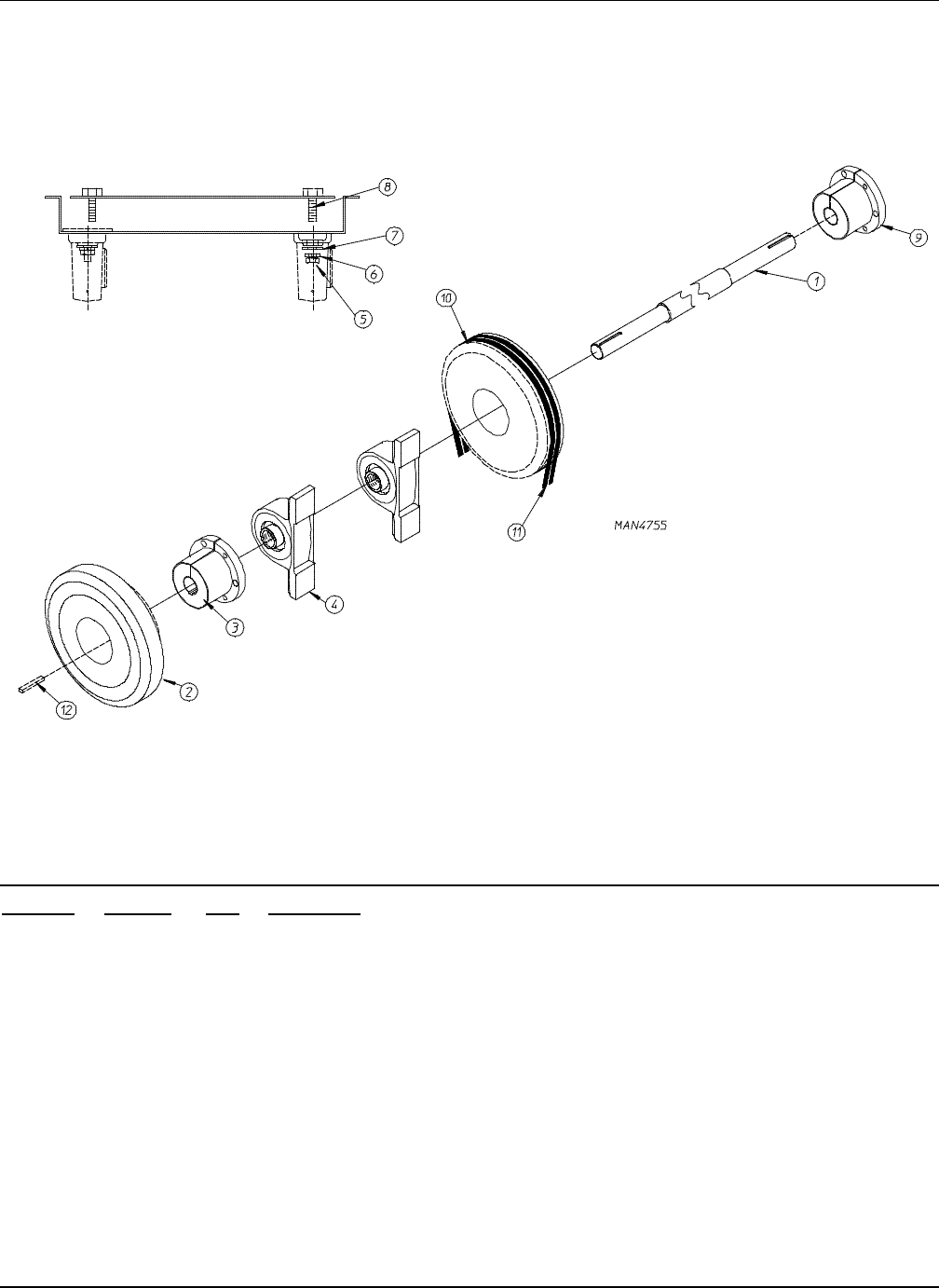

Drive Shaft Assembly

Illus. No. Part No. Qty. Description

1882460 1Tumbler Shaft Assembly

(includes illus. nos. 1 and 4)

2821465 111” Drive Wheel

3101234 1Drive with Hub Taper Bushing

4880779 21-3/8” Pillow Block Bearing

5152011 43/8-18 Hex Nut

6153005 43/8” Lock Washer

7153004 43/8” Flat Washer

8835360 2Bearing Backing Plate Assembly

9101184 11-3/8” Bushing with Setscrew

10 101189 12B x 8.0 Pulley

11* 100140 2BX-38 Cogged Belt

12 100717 15/16” x 5/16” x 2-3/4” Key

*Replace in matched sets (both belts).

18 JLA Limited 450597-2

Idler Shaft Assembly

Illus. No. Part No. Qty. Description

1882460 1Idler Shaft Assembly

(includes illus. nos. 1 and 4)

2821465 111” Drive Wheel

3101234 11-3/8” Taper Lock Bushing

4880779 21-3/8” Pillow Block Bearing

5152011 43/8-18 Hex Nut

6153005 43/8” Lock Washer

7153004 43/8” Flat Washer

8835360 2Bearing Backing Plate Assembly

9100717 15/16” x 5/16” x 2-3/4” Long Key

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 19

Illus. No. Part No. Qty. Description

1882505 1Speed Reducing Shaft Assembly

(includes illus. nos. 1, 3, 4, and 10)

2101160 12B x 3.4 SH Sheave

(for models mfd. as of March 6, 2000)

101187 12B x 4.0” Pulley

(for models mfd. prior to March 6, 2000)

3101150 11-3/8” Bushing with Setscrew

4880779 21-3/8” Pillow Block Bearing

5152005 43/8-16 Hex Nut

6153005 43/8” Lock Washer

7153004 43/8” Flat Washer

8835361 2Bearing Back Up Plate

9100717 15/16” x 5/16” x 2-3/4” Long Key

10 101193 12B x 13.6” SK Sheave

11* 100124 2BX-53 Belt

12* 100140 2BX-38 Cogged Belt

13 101152 1SH x 1-3/8” Bushing (60 Hz)

(includes illus. no. 9)

14 100717 15/16” x 5/16” x 2-3/4” Key

*Replace in matched sets (both belts).

Speed Reducer Shaft Assembly

20 JLA Limited 450597-2

Illus. No. Part No. Qty. Description

1835297 1Motor Adjustment Plate

2150501 45/16-18 x 3/4” Hex Head Machine Bolt

3153002 85/16” Lock Washer

4153001 85/16” Flat Washer

5882078 13 hp 208-230/380/416/460v 3-Phase (3ø) 50/60 Hz

Totally Enclosed, Non-Venting Motor

181019 13 hp 575v 3-Phase (3ø) 60 Hz Totally Enclosed, Non-Venting Motor

6152004 45/16” Hex Nut

7101235 11-1/8” Pulley

8* 100124 2BX-53 Cogged Belt

9** ——— 15/16” Key

10 150619 23/8-16 x 3” Tap Bolt

11 152005 43/8-16 Hex Nut

*Replace in matched sets (both belts).

** Consult factory.

Totally Enclosed, Non-Venting Drive Motor Assembly

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 21

Illus. No. Part No. Qty. Description

1142938 11-1/2” B.S.P.T. x 1” N.P.T. Reducing Coupling

2332117 1Pipe Bracket

3150309 25 #10-16 x 1/2” Hex Head TEK Crimptite Screw

4142817 11” x 28-1/2” Black Nipple

5141302 11” Union Shutoff

6142724 11” x 2” Nipple

7142602 11” Union

8142581 11” x 5” Nipple

9142548 11” x 90º Elbow

10 142581 11” x 5” Nipple

11 332487 1Gas Valve Pipe Bracket

12 140028 11” x 1” 24 VAC CE Gas Valve

13 332486 1Gas Valve Pipe Bracket

14 141240 14-Port Manifold

15 140839 4#2 Burner Orifice (natural gas)

140820 4#29 Burner Orifice (liquid propane gas)

883331 1D170 Liquid Propane Conversion Kit

16 390169 14 Tube Burner Hot Surface Ignition Mount Manifold Rest

17 141136 4Uginox Burner Tube

18 332121 1Burner Tube Support

19 390170 1Hot Surface Ignition Burner Box Cover Plate

20 128975 1CE Hot Surface Ignition Module

21 151000 2#6-32 Pal Nut

22 130201 1330º Hi-Limit Manual Reset

23 151001 2#6-32 x 1/2” Round Head Machine Screw

24 820987 1Burner Box

25 ——— 1Sail Switch Assembly

(refer to Sail Switch Assembly on page 24)

26 128921 1Hot Surface Ignition Flame Sensor

27 881597 1Hot Surface Ignition Ignitor

CE Hot Surface Ignition Burner Assembly

22 JLA Limited 450597-2

Direct Spark Ignition Burner Assembly

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 23

Illus. No. Part No. Qty. Description

1142929 11-1/2” x 1” Reducing Coupling

2332117 1Pipe Bracket

3150309 33 #10-16 x 1/2” Hex Head TEK Crimptite Screw

4142583 11” x 40” Nipple

5128919 1* High Voltage Ignition Cable with Cap 36”

6142808 11” x 3” Nipple

7142602 11” Union

8152013 2#6-32 Hex Nut

9142507 11” x 90º Street Elbow

10 128915 1Direct Spark Ignition Ignitor

11 332487 1Gas Pipe Bracket Straight Extended

12 140028 11” 24 VAC Redundant Gas Valve (natural gas)

882945 11” 24 VAC Gas Valve (liquid propane gas)

13 332486 1Gas Pipe Bracket Bent Extended

14 141240 14-Port Manifold

15* 140839 4#2 Burner Orifice (natural gas)

140820 4#29 Burner Orifice (liquid propane gas)

16 390169 1Direct Spark Ignition Mount Manifold Rest

17 141136 4Uginox Burner Tube

18 332121 1Burner Tube Support

19 ——— 1Sail Switch

(refer to Sail Switch Assembly on page 24)

20 332113 1Burner Box Cover Plate

21 331290 1Ignitor/Flame-Probe Sight Hole Disc

22 151000 2#6-32 Pal Nut

23 130201 1330º Manual Reset Hi-Limit

24 150005 2#6-32 x 1/4” Phillips Round Head Machine Screw

25 821457 1Burner Hi-Limit Bracket

26 332256 1Large Dryer Liquid Propane Burner Baffle (Liquid Propane Models Only)

27 801048 1Johnson Direct Spark Ignition Module (three tries)

28 153562 2#6-32 x 3/4” Clinch Stud

29 835037** 1Burner Assembly (natural gas) Complete Less Orifice

821960** 1Burner Assembly (liquid propane gas) Complete Less Orifice

820987 1Burner Box

880743 1Direct Spark Ignition Liquid Propane Conversion Kit

*Consult factory for elevations over 2,000 feet.

** Orifices are not included and must be ordered separately.

Direct Spark Ignition Burner Assembly

24 JLA Limited 450597-2

Illus. No. Part No. Qty. Description

1105500 1Sail Switch Actuator Rod

2319202 1Sail Switch Damper (flat)

3154002 11/8” Push On Fastener

4802800 1Sail Switch Box with Cover and Bracket Only

802801 1Sail Switch Box Assembly Complete

for Microprocessor Controller (computer) Models Only

(includes illus. nos. 1 through 4 and 6 through 10)

882010 1Sail Switch Box Assembly Complete for Dual Timer Models Only

(includes illus. nos. 1 through 4 and 6 through 10)

5150300 2#10-16 x 1/2” Hex Washer TEK Screw

6150303 2#4 x 3/4” Pan Head “A” Machine Screw

7122200 1Sail Switch Only (for microprocessor controller [computer] models Only)

122404 1Sail Switch Only (for dual timer models Only)

8802799 1Sail Switch Box Cover and Bracket Only

9150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw

10 154004 1Twin Speed Nut

Sail Switch Assembly

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 25

Illus. No. Part No. Qty. Description

1332700 1Air Jet Tube Only

2143287 11/4” x 1/8” M.P.T. Male Run Tee

3143259 21/4” x 1/8” F.P.T. Bulkhead Fitting

4143100 36” 1/4” Aluminum Tube (sold by the inch)

821081 1Air Jet Assembly

(includes illus. nos. 1 through 9)

5332531 1Air Jet Mounting Plate Only

6152002 21/4-20 Hex Nut

7153007 21/4” Lock Washer

8143115 6’ 1/4” Poly-Flo Tubing (sold by the foot)

9143149 11/4” x 1/8” M.P.T. 90° Elbow

Air Jet Assembly

26 JLA Limited 450597-2

Microprocessor Reversing Contactor Mounting Panel Assembly

For 208-240V Transformers

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 27

Illus. No. Part No. Qty. Description

1152002 11/4-20 Hex Nut

2132465 13 hp Contactor – 24 VAC

3151001 2#8-32 Pal Nut

4150009 2#6-32 x 1-1/4” Phillips Round Head Machine Screw

5120701 14-Position Power Distribution Block

6132497 1Reversing Contactor – 24 VAC

7822745 1208-240V Transformer Assembly

8137015 1Arc Suppressor Board

9153021 11/4” Exterior/Interior Shake Proof Washer

10 152004 15/16-18 Hex Nut

11 153002 15/16” Lock Washer

12 136008 2Fuse Block/Holder

13 136057 21/2 amp (Slo-Blo) Fuse

14 332346 1Contactor/Relay Mounting Panel Only

15 150301 5#8-18 x 7/16” Phillips Pan Head TEK Screw

16 151000 2#6-32 Pal Nut

17 120765 2End Stop/Bracket

18 150108 2#8-32 x 1/2” Pan Head Machine Screw

19 121010 2L-70 Ground Lug

20 120768 7-3/4” Din Mounting Rail (sold by the inch)

21 112075 1Ground Label

22 112068 13-Phase (3ø) Power Input Label

23 132439 1Overload

—825267 1Contactor Wiring...Not Illustrated

—829053 1Relay Panel Wiring...Not Illustrated

Microprocessor Reversing Contactor Mounting Panel Assembly

For 208-240V Transformers

28 JLA Limited 450597-2

Microprocessor Reversing Contactor Mounting Panel Assembly

For 380-416V Transformers

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 29

Microprocessor Reversing Contactor Mounting Panel Assembly

Illus. No. Part No. Qty. Description

1132467 19-13 amp Overload

2132465 110 hp Contactor – 24 VAC

3151001 2#8-32 Pal Nut

4150009 2#6-32 x 1-1/2” Phillips Round Head Machine Screw

5120701 14-Position Power Distribution Block

6132497 1“Kline” Reversing Contactor

7801580 1Transformer (380-416 Volt / 3-Phase [3ø])

8152004 25/16-18 Hex Nut

9121012 1Ground Lug

10 153002 25/16” Lock Washer

11 136008 1Fuse Block/Holder

12 136057 11/2 amp (Slo-Blo) Fuse

13 332346 1Contactor/Relay Mounting Panel Only

14 150301 4#8-18 x 7/16” Phillips Pan Head TEK Screw

15 151000 2#6-32 Pal Nut

16 120765 2End Stop/Bracket

17 150108 2#8-32 x 1/2” Pan Head Machine Screw

18 150297 1#10 x 1/2” Hex Washer TEK Screw

19 121010 1L-70 Ground Lug

20 120768 7-3/4” Din Mounting Rail (sold by the inch)

—830180 1Relay Panel Wiring...Not Illustrated

—825267 1Drive/Blower Motor Contactor Wiring...Not Illustrated

For 380-416V Transformers

30 JLA Limited 450597-2

Microprocessor Reversing Contactor Mounting Panel Assembly

For 460-480V Transformers

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 31

Microprocessor Reversing Contactor Mounting Panel Assembly

Illus. No. Part No. Qty. Description

1132467 19-13 amp Overload

2132465 110 hp Contactor – 24 VAC

3151001 2#8-32 Pal Nut

4150009 2#6-32 x 1-1/2” Phillips Round Head Machine Screw

5120701 14-Position Terminal Block

6132497 1“Kline” Reversing Contactor

7830193 1460-480V Transformer Assembly

8152004 25/16-18 Hex Nut

9121012 1Ground Lug

10 153002 25/16” Lock Washer

11 135501 12-Pole 1 amp Circuit Breaker

12 137015 1Arc Suppressor

13 332346 1Relay Panel

14 150301 4#8-18 x 7/16” Phillips Pan Head TEK Screw

15 151000 2#6-32 Pal Nut

16 120765 2End Stop/Bracket

17 150108 2#8-32 x 1/2” Pan Head Machine Screw

18 150297 1#10 x 1/2” Hex Washer TEK Screw

19 121010 1L-70 Ground Lug

20 120768 7-3/4” Din Mounting Rail (sold by the inch)

—830192 1Relay Panel Wiring...Not Illustrated

—825267 1Drive/Blower Motor Contactor Wiring...Not Illustrated

For 460-480V Transformers

32 JLA Limited 450597-2

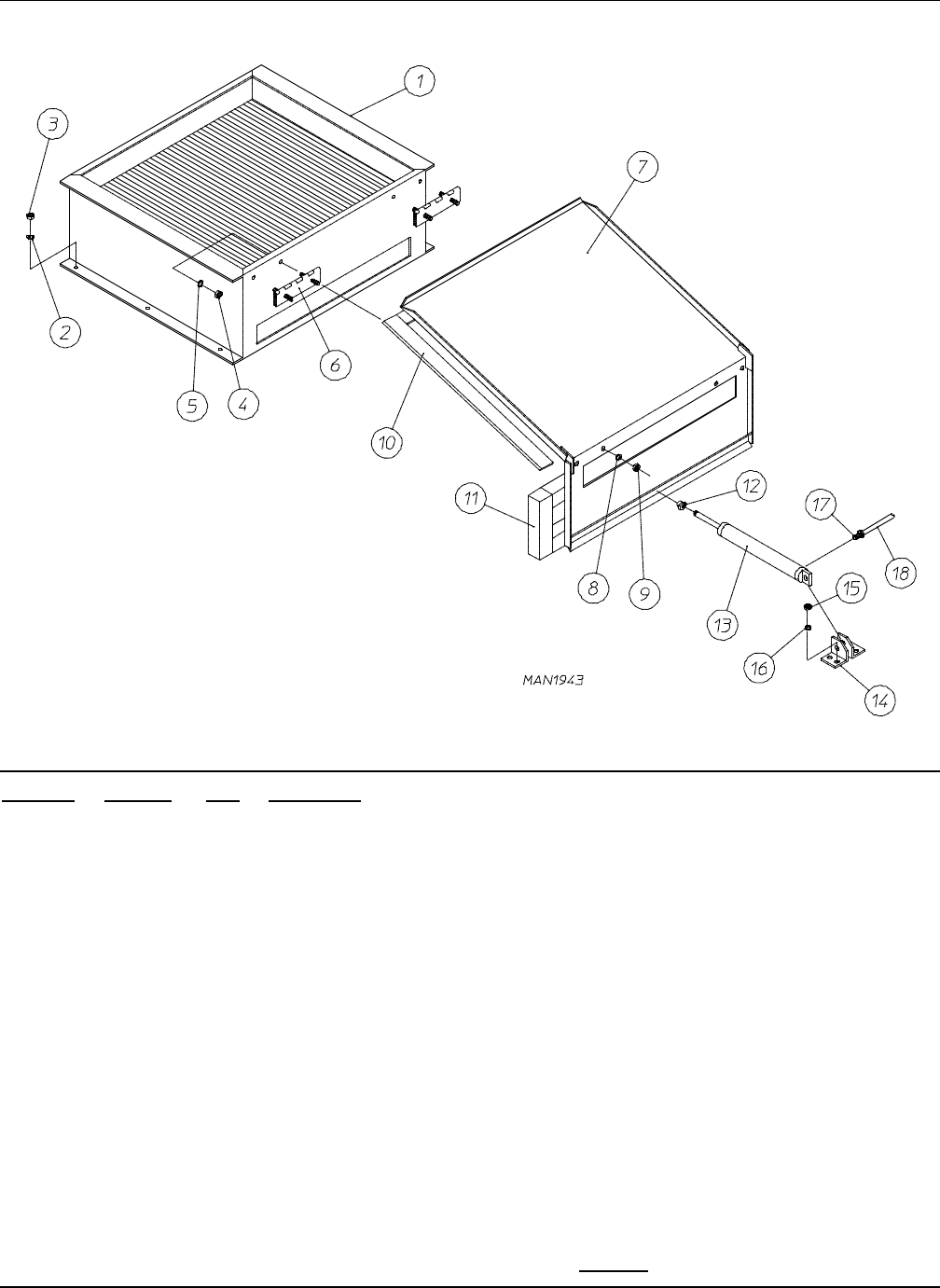

Steam Damper Assembly

For Steam Models Only

Illus. No. Part No. Qty. Description

1165017 1Steam Coil Only

2153002 65/16” Lock Washer

3152004 65/16-18 Hex Nut

4152002 41/4-20 Hex Nut

5153007 41/4” Lock Washer

6820321 2Steam Damper Hinge Assembly

7820994 1Steam Damper Assembly

(includes illus. nos. 7, 10, and 11)

8153007 41/4” Lock Washer

9152002 41/4-20 Hex Nut

10 115995 96” Steam Damper Gasket (sold by the inch)

11 102350 2Steam Damper Foam (68-1/2” length)

12 151007 17/16-20 Stainless Steel Acorn Nut

13 100499 11-1/2” Bore x 3” Stroke Piston

14 100500 1Piston Support Bracket

15 152002 41/4-20 Hex Nut

16 153007 41/4” Lock Washer

17 100472 11/4” x 1/8” Connector

18 143115 11/4” Tubing (sold by the foot)

(refer to Top Console Assembly on page 35)

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 33

Illus. No. Part No. Qty. Description

1100520 11/8” N.P.T. Silencer (muffler) Only

2150002 1#6-32 x 1” Slotted Machine Screw

3100498 13-Way Micro Valve Only – 24 VAC

821105 1Pneumatic Valve Assembly Complete

(includes illus. nos. 1 through 8)

4143268 11/8” Street Elbow

5100472 11/4” x 1/8” Connector

6330987 1Micro Valve Support Bracket Only

7153010 1#6 Star Washer

8152000 1#6-32 Hex Nut

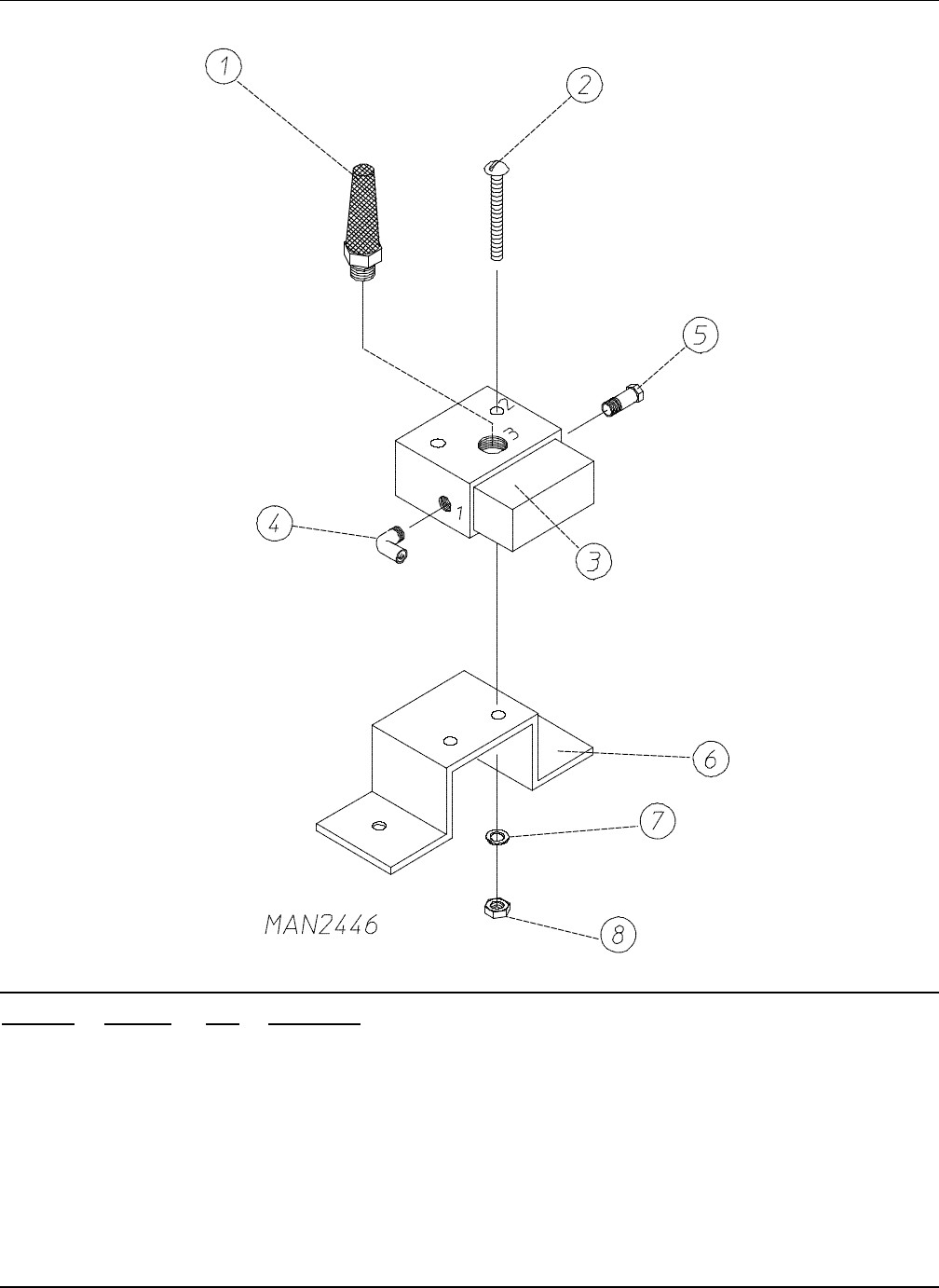

Pneumatic Valve Assembly

For Gas Models Only

34 JLA Limited 450597-2

Illus. No. Part No. Qty. Description

1100496 11/8” Needle Valve

2143238 31/8” Close Nipple

3100498 23-Way Micro Valve Only – 24 VAC

821104 1Pneumatic Valve Assembly Complete

(includes illus. nos. 1 through 8)

4143223 11/8” F.P.T. Brass Tee

5150002 2#6-32 x 1” Slotted Machine Screw

6330987 1Micro Valve Support Bracket Only

7153010 2#6 Star Washer

8152000 2#6-32 Hex Nut

9100520 21/8” N.P.T. Silencer (muffler) Only

10 100472 21/4” x 1/8” Connector

Pneumatic Valve Assembly

For Steam Models Only

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 35

Top Console Assembly

Illus. No. Part No. Qty. Description

1821085* 1Top Console Assembly Only (for gas models Only)

821086* 1Top Console Assembly Only (for steam models Only)

2114508 1“Phase 7 Non-Coin Program Location Summary” Label

(for microprocessor models Only)

3——— 1Dryer Data Label

4153007 12 1/4” Lock Washer

5152002 12 1/4-20 Hex Nut

6332323 132” Wire Channel

7821105 1Pneumatic Valve Assembly Only (for gas models Only)

(refer to Pneumatic Valve Assembly on page 33)

821104 1Pneumatic Valve Assembly Only (for steam models Only)

(refer to Pneumatic Valve Assembly on page 34)

8121104 12” x 4” Junction Box Only

9121105 1Junction Box Cover Only

10 150615 11/4-20 x 3/4” Bolt

11 153018 41/4” Flat Washer

12 332186 1Control Door Hinge Channel

13 332132 1Corner Gusset Brace

*Specify color when ordering.

36 JLA Limited 450597-2

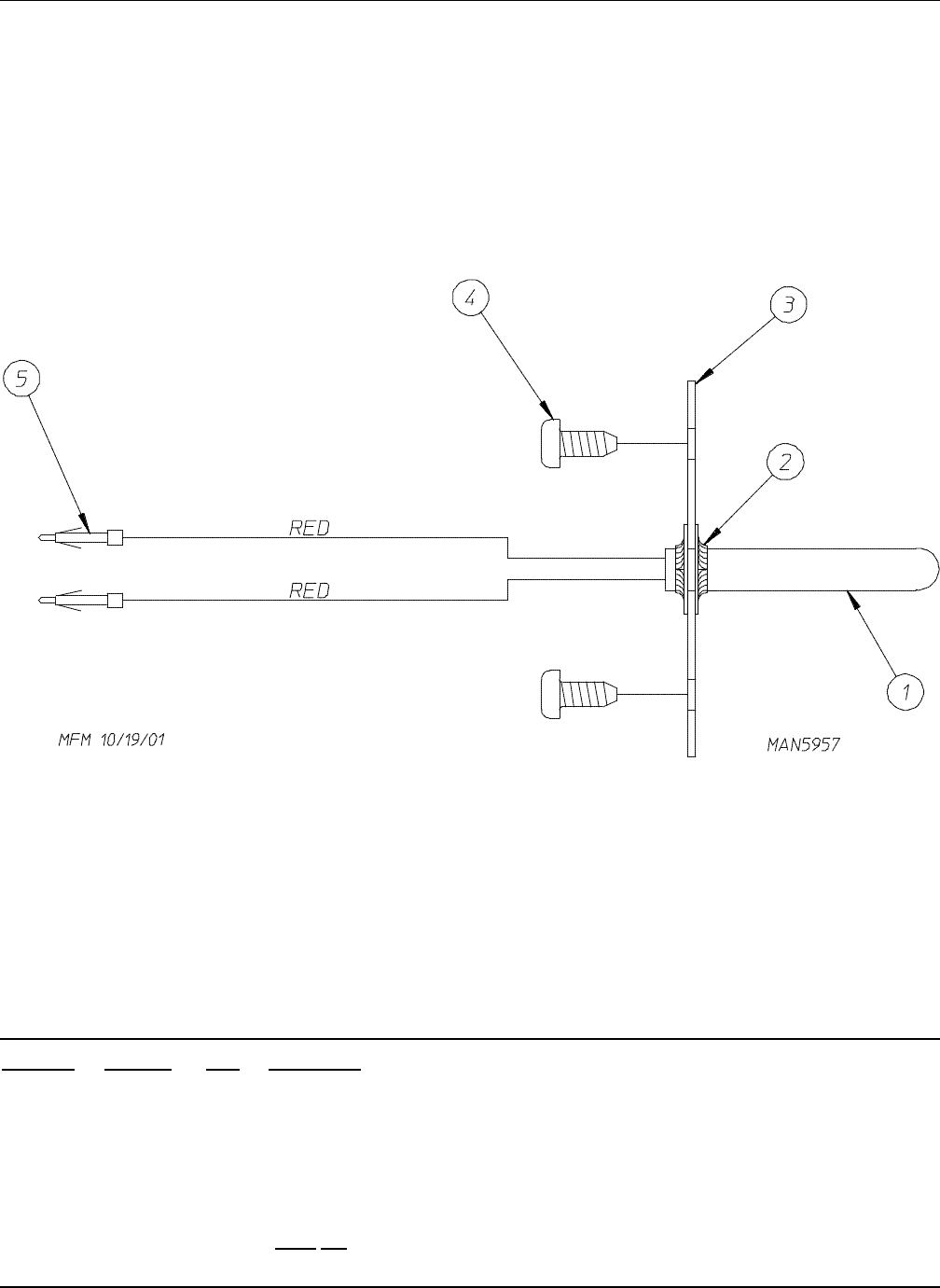

S.A.F.E. Temperature Probe Assembly

Illus. No. Part No. Qty. Description

1822752 1Sensor Activated Fire Extinguishing System Temperature Probe Assembly

(includes illus. nos. 1 through 5)

2154007 2Push On Fastener

3390390 1Sensor Bracket Only

4150301 2#8-18 Phillips Pan Head TEK Screw

122647 1Connector Only...Not Illustrated

(does not include pins)

5122700 2Pins

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 37

S.A.F.E. Solenoid Assembly

For Models Mfd. as of September 23, 2004

Illus. No. Part No. Qty. Description

1143581 13 GPM 3/8” F.P.T. Spray Nozzle

2143303 13/8” N.P.T. Brass Locknut

3136987 1Pressure Switch

4143251 13/8” M.P.T. Brass Plug

5182579 13/8” Hex Nipple

6143220 13/8” F.P.T. Brass Tee

7143301 13/8” Brass 45° Elbow

8311588 1Sprinkler Head Mounting Plate

9143208 23/8” Comp x 3/8” M.P.T. Brass Connector

10 311587 1Valve Bracket

11 143108 120” Long Stainless Steel Flexible Tubing

12 154338 2Machine Screw

13 150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw

14 152001 2#8-32 x 3/8” OD Hex Nut

15 142887 1Bushing

16 143182 13/4” x 1/8” x 3/8” N.P.T. Brass Tee

17 165119 1Water Inlet Valve

18 143183 17/16-20 x 3/8” N.P.T. Brass Adaptor

38 JLA Limited 450597-2

S.A.F.E. Solenoid Assembly

Illus. No. Part No. Qty. Description

1165114 1Sensor Activated Fire Extinguishing System Solenoid Valve 24 VAC 50/60 Hz

2143220 23/8” F.P.T. Brass Tee

3143251 13/8” M.P.T. Brass Plug

4143208 23/8” Comp x 3/8” M.P.T. Brass Connector

5143108 120” Long Stainless Steel Flexible Tubing

6311588 1Sprinkler Head Mounting Plate

7143303 13/8” N.P.T. Brass Locknut

8143301 13/8” Brass 45° Elbow

9152001 2#8-32 x 3/8” OD Hex Nut

10 150430 2#10 x 1/2” Self Drilling Screw

11 143581 13 GPM 3/8” F.P.T. Spray Nozzle

12 143025 13/8” N.P.T. Nylon Hose Adaptor

13 824081 1RC Network Assembly

14 143315 13/8” x 1/8” Bushing

15 136987 1Pressure Switch

(for models mfd. between December 3, 2003 and September 22, 2004)

16 182579 13/8” Hex Nipple

(for models mfd. between December 3, 2003 and September 22, 2004)

450597-2 Telephone: 01422 822282 / Fax: 01422 824390 39

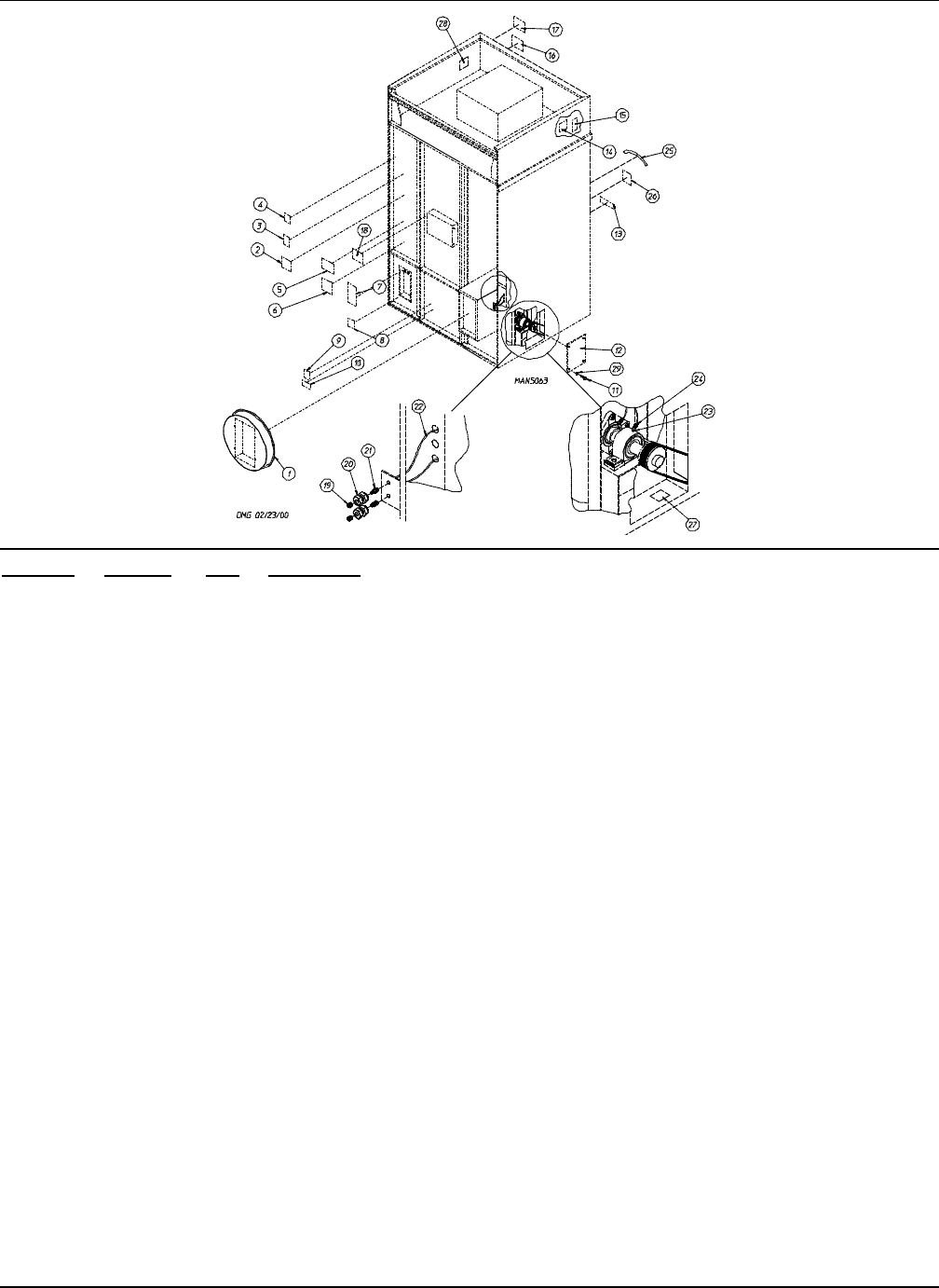

Back Guard Assemblies

Illus. No. Part No. Qty. Description

1821793 1Square Duct to 20” Round Duct Transition Piece Assembly with Damper

821956 1Square Duct to 20” Round Duct Transition Piece Assembly

2——— 1Wiring Diagram for Machine (contact factory with model and serial numbers)

3112046 1“Computer Ground” Label

4114005 1“DANGER – Hot” Label

5112519 1“Routine Maintenance” Label

6114044 1“High Voltage” Label

7114007 1“DANGER – High Voltage” Label

8112014 1“High Voltage” Label

9114008 1“WARNING – Fumes” Label

10 114001 1“CAUTION – Exhaust/Lint Screen” Label

11 150512 41/4-20 x 1/2” Hex Head Machine Bolt

12 332309 1Side Access Panel

13 112280 1“Clean Lint Screen” Label

14 112017 1“Address” Label (not for resale)

15 ——— 1“Serial Number” Label (not for resale)

16 ——— 1Wiring Diagram for Machine (contact factory with specific dryer serial number)

17 114508 1“Phase 7 Program Location” Label

18 114093 1“Important Manual Reset Hi-Limit” Label

19 170511 21/8” M.P.T. Zirc (grease) Fitting

20 143164 21/8” F.P.T. Bulkhead Fitting

21 100472 21/4” x 1/8” M.P.T. Male Connector

22 143115 41/4” Nylo-Seal Tube

23 100472 21/4” x 1/8” M.P.T. Male Connector

24 143246 21/4-28 x 18” F.P.T. Fitting

25 114095 1“Do Not Dry Mop Heads” Label

26 114006 1“WARNING – Fire Hazard” Label

27 114077 1“Grease Instruction” Label

28 114093 1“Important Manual Reset Hi-Limit” Label

29 153007 41/4” Lock Washer

JLA Part No. 450597 2 - 04/25/05 - 0
