1

KT-MOD-CAB

EXPANSION MODULES CABINET INSTALL SHEET

DN1806-0809

Overview

The KT-MOD-CAB cabinet is an enclosure for the KT-MOD-REL8, the KT-MOD-INP16

and KT-MOD-OUT16 expansion modules. Up to 6 modules can be installed in the

cabinet.

Content

• 698-009K: Black cabinet

• KT-MOD-SPI36: 1 m (3.0 ft) SPI cable assembly with 1 SPI connector

• KT-LOCK: Lock with 2 keys

• DN1805: Cabinet Install Sheet, French version

• DN1806: Cabinet Install Sheet, English version

Related Documentation (each document is enclosed in their corresponding box)

• KT-MOD-REL8: KT-400 Expansion Module 8-Relay with SPI Cable, Install Sheet, DN1786

• KT-MOD-INP16: KT-400 Expansion Module 16-Zone Input with SPI Cable, Install Sheet, DN1776

• KT-MOD-OUT16: KT-400 Expansion Module 16-Output with SPI Cable, Install Sheet, DN1781

Cabinet Description

• Dimensions: 54 cm (21.2 in) High x 29.2 cm (11.5 in) Wide x 7.6 cm (3 in) Deep

• Eight (8) standard knockouts 1.9 cm (0.75 in): 4 on top, 2 at the bottom and 1 on each bottom side

• Two (2) additional openings, 6.3 cm (2.5 in), on the back panel

Installation

1. Insert the nylon standoffs into the back panel of the

cabinet.

Note: Make sure the cabinet is in the upward

position and the tamper switch location is on the

right.

IMPORTANT: Don’t install the expansion modules

before checking their locations within the cabinet.

Trying to pull out the module from its standoffs

would damage it.

2. Secure the cabinet to the wall in the desired

location. Use appropriate wall anchors when

securing the cabinet to drywall, plaster, concrete,

brick or other surfaces.

3. Mount the expansion modules on their standoffs.

IMPORTANT: Make sure the modules terminal

blocks are positioned towards the center of the

cabinet.

4. Run the 91 cm (36 in) SPI cable, provided with the

cabinet, from the KT-400 controller or expansion

modules cabinet, through one of the knockouts, to

the 1st module in the new cabinet.

Telephone: 1 (450) 444-2030 • Toll free: 1-888-222-1560 • Fax: 1 (450) 444-2029 • Internet: www.kantech.com

Copyright © 2008 Tyco International Ltd. and its Respective Companies. All Rights Reserved • Specifications may change without notice.

Kantech and the Kantech logo are trademarks of Tyco International Ltd. and its Respective Companies.

2

KT-MOD-CAB

EXPANSION MODULES CABINET INSTALL SHEET

DN1806-0809

5. Run a 41 cm (16 in) SPI cable, provided with

every module, between the other modules.

6. If external power is required for the expansion

modules, run the ground and power cables

together through a separate knockout than

in Step 4. Connect the external power supply

to the expansion module as per their

corresponding install sheet.

7. Check the external power jumper position on

the expansion modules.

8. Run and connect the inputs or outputs

together through a separate knockout than

in Step 6 to each expansion module as per

the corresponding install sheet.

Note: Make sure that you don’t exceed the

conduits capacity according to the

specifications and the local building code.

9. Install and connect the tamper switch to the

tamper switch terminals on the KT-400

controller.

10. Power up all the expansion modules and verify

communication with the KT-400 controller.

11. Install the cabinet door.

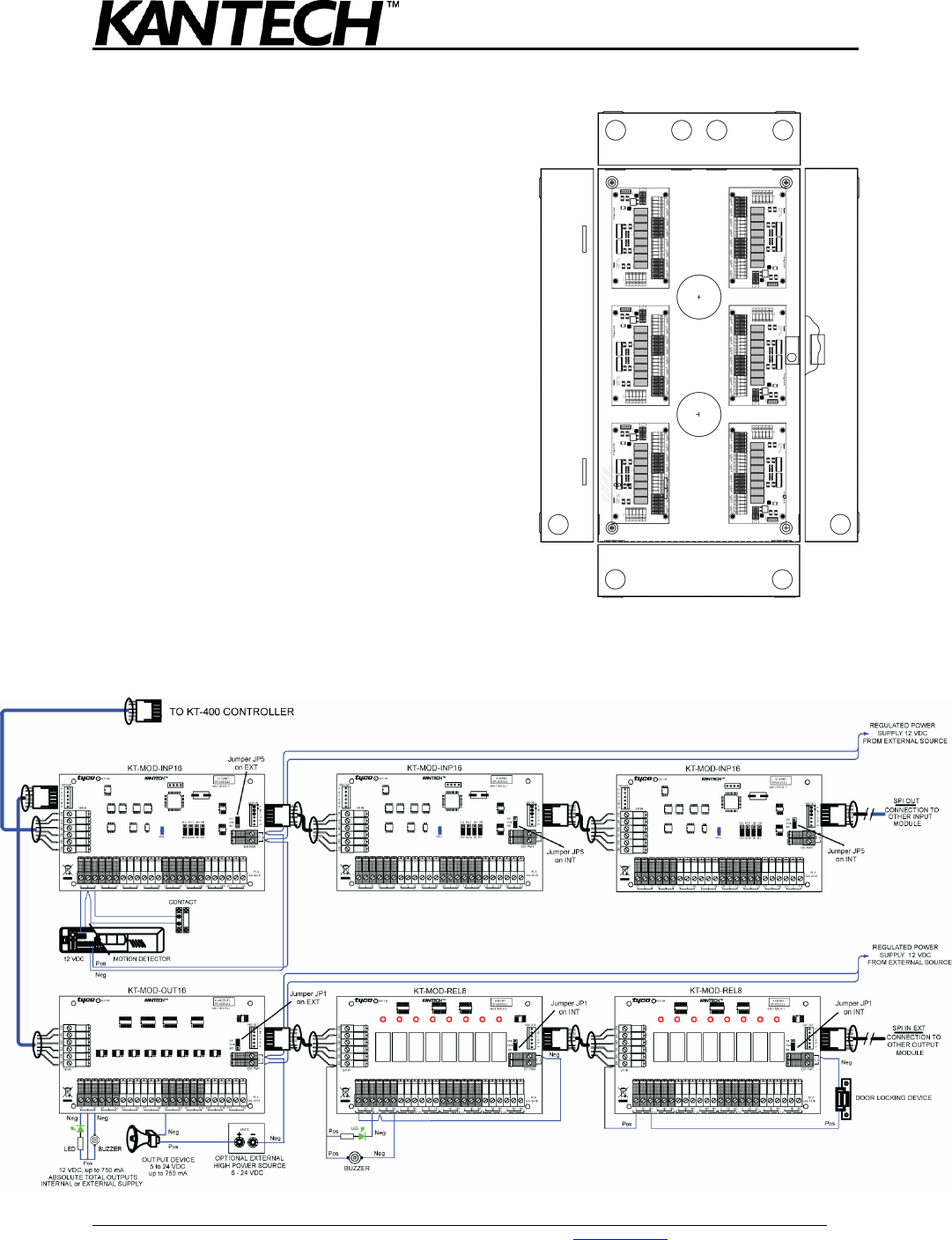

Example of KT-400 Controller Interconnection with Expansion Modules
