For more information please call
your Account Manager or 1-800-BAKERS-1.
Headquarters
AMF Bakery Systems
2115 West Laburnum Avenue
Richmond, Virginia 23227
1-800-225-3771 or 804-355-7961
FAX: 1-804-342-9724
www.amfbakery.com sales@amfbakery.com
European operation
West Park Ring Road
Leeds LS16 6QQ England
Tel.: 1132-787110
Fax: 1132-741415
02/2004
AMF’s continuing engineering is constantly improving product performance. Consequently machinery specifications are subject to change without notice.

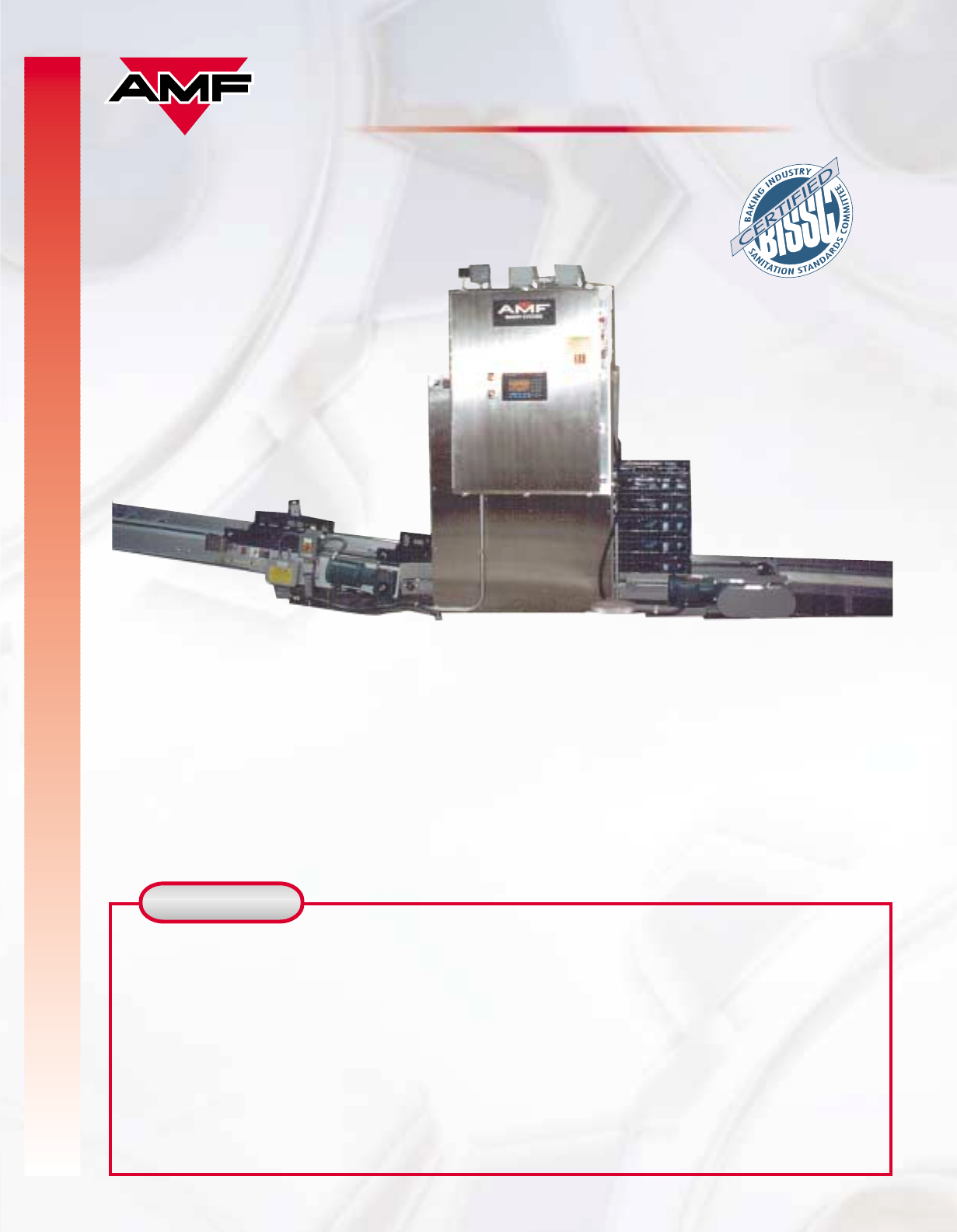

BASKET STACKER

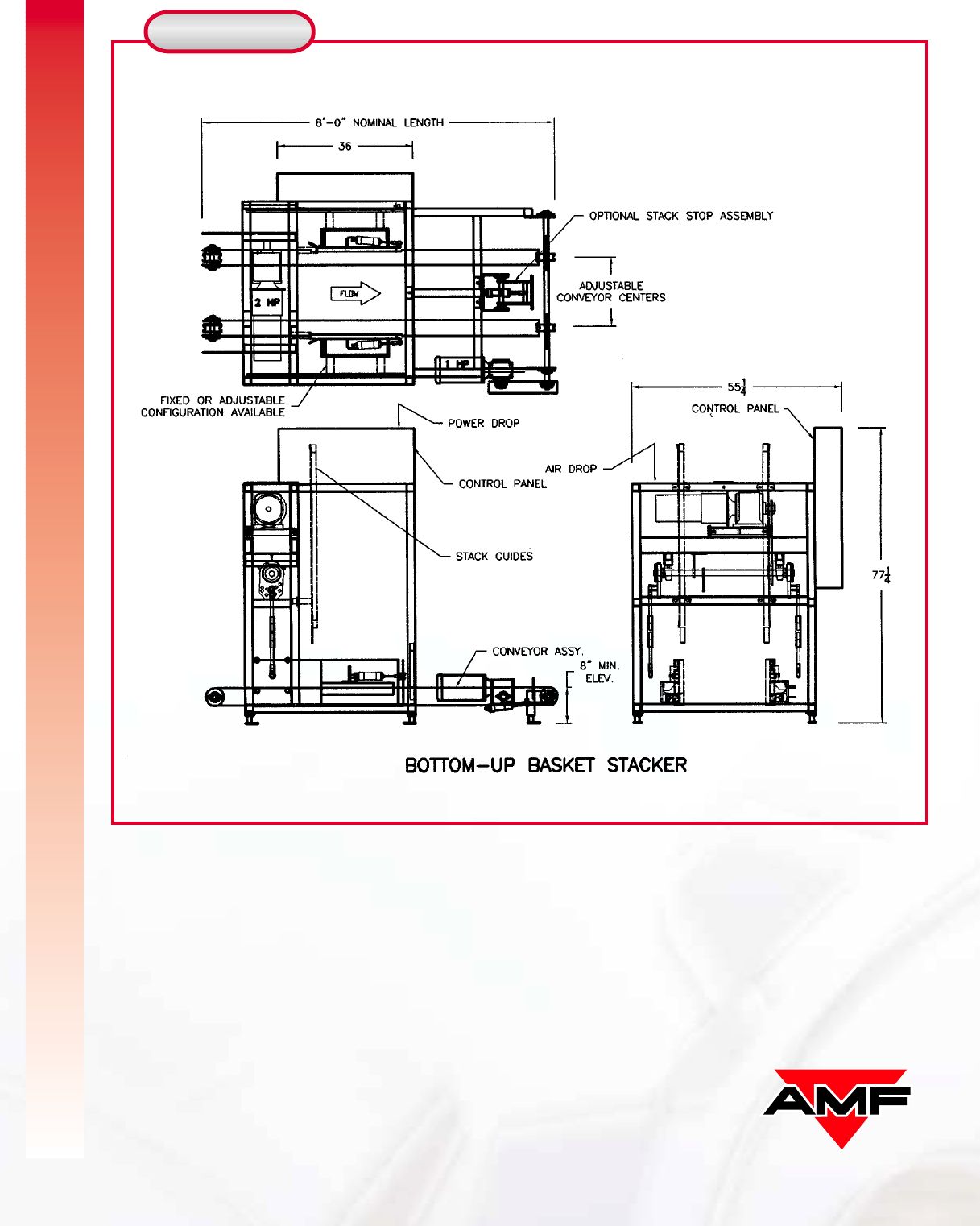

Dimensional
Drawing
BOTTOM-UP
BASKET STACKER
Features &
Benefits
Heavy Duty Construction
•Quality materials and components assure high
performance, minimum maintenance, and longevity
•Factory-tested, programmed and ready to install
Performance Enhancing Controls
•Electrical controls mounted for easy access and
accurate operation
•Programmable controller allows the Bottom-Up
Stacker to respond to system demand
Continuous Operation
•Electrically and pneumatically driven, no hydraulics
required
•Accumulates baskets during stack discharge,
stacking level can be preset to a specific count and
automatically discharged.
•Rated at up to 28 baskets per minute, stackable up to
8 feet (2.4 m)**
•Optional discharge systems available to facilitate
production
• Stack Automatically at up to 28 Baskets per minute**
• Accurate, Consistent Stacking of all Types of Baskets
• Superior Response to System Demand with Programmable
Controller
• Automatic Positioning Discharging for Optional Stack
Handling
* Optional Operator Interface Shown
** Speed can be increased with pre-stacker
Printed in
Canada
•Stacked Basket Stop mechanism for 90°transfers
•Adjustable width machine to handle different width baskets
•Variable conveyor length to suit system requirements*
•Additional conveyors can be controlled from Bottom-up
Stacker panel
•Variable speed lift*
•Pre-Stacker available to provide higher per minute stacking rate
•Dolly Loader / Double Dolly Loader
•Operator control upgrade to Allen Bradley PanelView 550 and
Allen Bradley SLC 5/04 PLC for system control integration
•Gravity or powered discharge conveyors available to suit
your needs
•Stainless Steel Frame
•Double Long Stacker Avalaible for ultra Hi Speed (50 BPM)
*Subject to engineering approval

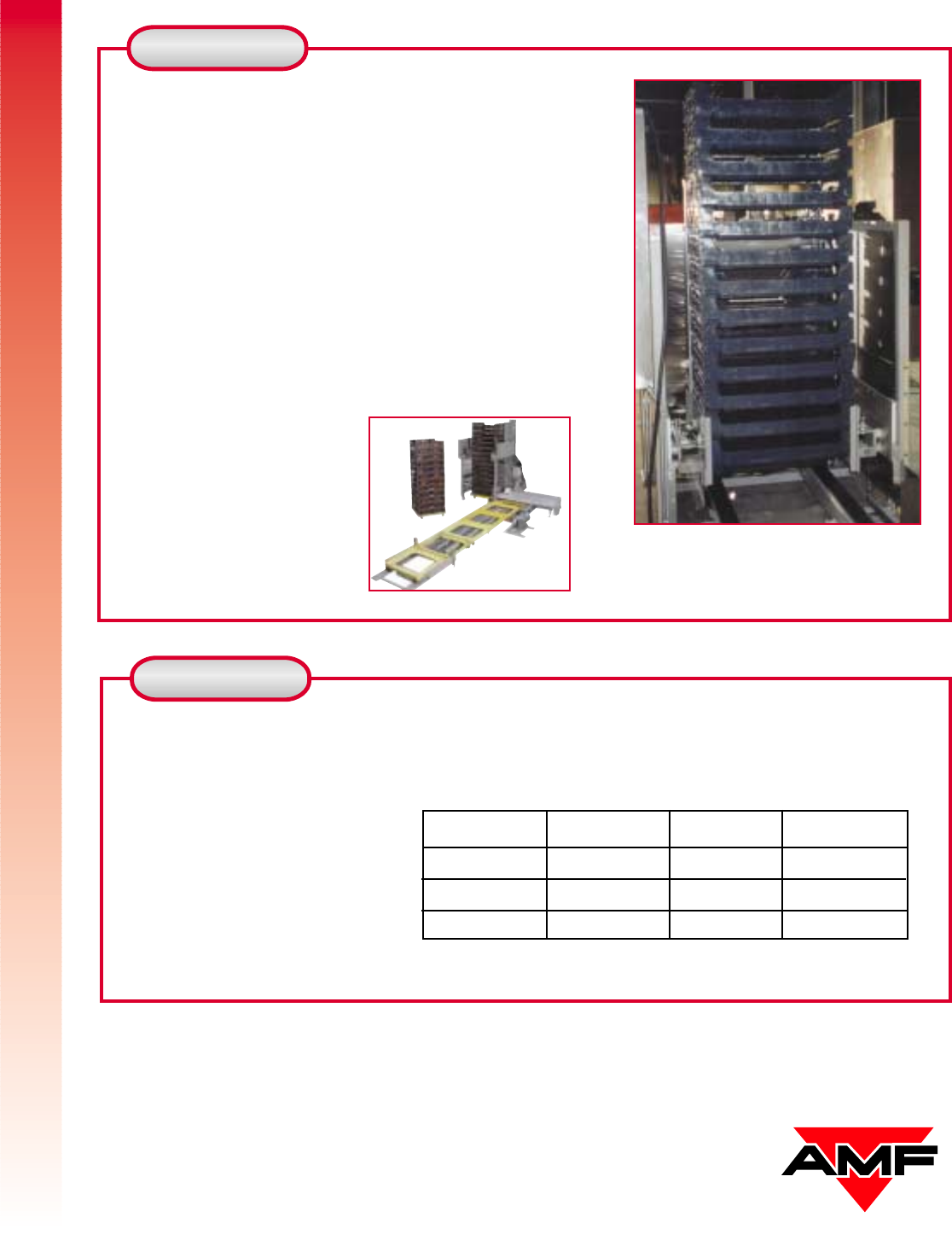

BASKET STACKER
Specifications
Options
Max Basket
Height Max Rate
(Baskets/min.)
Low
Speed
Medium
High
7”
7”
5”
12
20
28
Exit, Basket Stacker
(Capacity - 8 ft. / 2 m)
Electrical Requirements
1 SCFM (472 cm3/sec.
230/460volts, 3 phase, 60 hertz
Air Requirements: Clean dry air at 80 PSI (5.6 kg/cm2)
Total Connected Load: 5 KVA
Approx. Shipping Weight:
Stacker 1600 lbs. (726 kg)
Dolly Loader 425 lbs. (193 kg)
Approximate Dimensions
169’’ X 68’’ X 51’’ (4290 mm X 1720 mm X 1290 mm)
BASKET STACKER
•Designed and manufactured in accordance with BISSC
sanitation standards
•Heavy duty tabletop chain on conveyors
•Mild steel painted frame
•Low, Medium, and High speed units available*
* Subject to engineering approval
Mechanical
Features
Electrical
Features

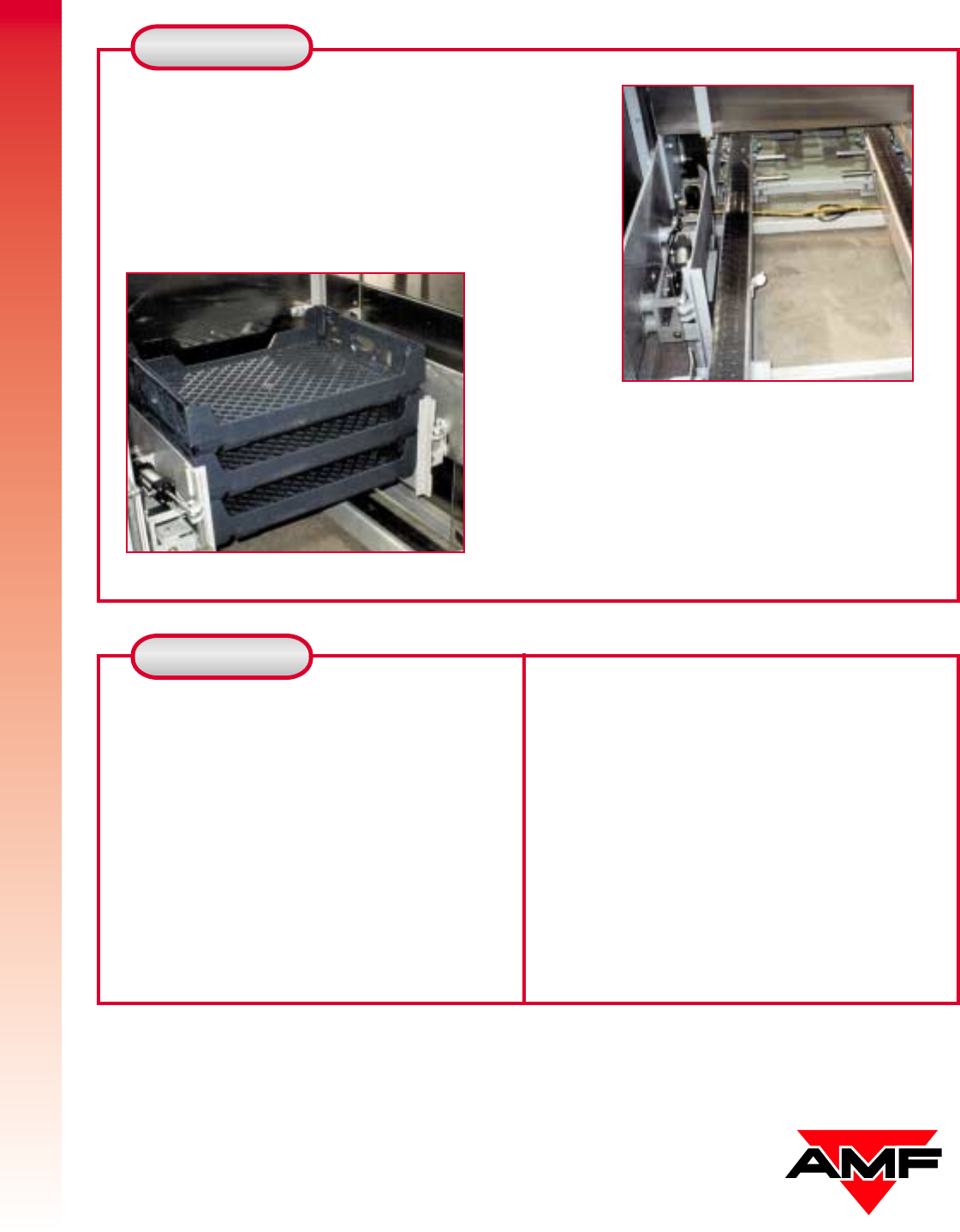

Basket Stacker Detail
Basket Lifting Detail
* Specify RH or LH Configuration for Location
of Panel, Operator Interface & Motors
The Bottom-Up Basket Stacker is equipment with the
following control elements:
•Allen Bradley PV-300 Operator Interface
•Allen Bradley Pushbuttons for:
-Two-button start
-Stop
-Emergency stop
SS NEMA 4 Machine Mounted Enclosure with:
- Operation Status Light
- AC Inverters
- Allen Bradley Micrologix PLC
- 24 volts Pneumatic valves
Contact your AMF representative for more
informtion about our complete line of:
• Basket and Tray Loaders
•Basket Un-Stackers
•Pan Stackers & Un-Stackers
•Pre-Stackers, Separators
•Cross Nested Un-stackers
•Orientors and Turners
•Basket and Pan Conveyors
•Slicers and Baggers
•Trash Dumps
•Basket Washers
Basket/min
with/Pre-Stacker
N/A
N/A
34
Dolly Loader
•Stacked Basket Stop mechanism for 90°transfers
•Adjustable width machine to handle different width baskets
•Variable conveyor length to suit system requirements*
•Additional conveyors can be controlled from Bottom-up
Stacker panel
•Variable speed lift*
•Pre-Stacker available to provide higher per minute stacking rate
•Dolly Loader / Double Dolly Loader
•Operator control upgrade to Allen Bradley PanelView 550 and
Allen Bradley SLC 5/04 PLC for system control integration
•Gravity or powered discharge conveyors available to suit
your needs
•Stainless Steel Frame
•Double Long Stacker Avalaible for ultra Hi Speed (50 BPM)
*Subject to engineering approval
BASKET STACKER
Specifications
Options
Max Basket
Height Max Rate
(Baskets/min.)
Low
Speed
Medium
High
7”
7”
5”
12
20
28
Exit, Basket Stacker
(Capacity - 8 ft. / 2 m)
Electrical Requirements
1 SCFM (472 cm3/sec.
230/460volts, 3 phase, 60 hertz
Air Requirements: Clean dry air at 80 PSI (5.6 kg/cm2)
Total Connected Load: 5 KVA
Approx. Shipping Weight:
Stacker 1600 lbs. (726 kg)
Dolly Loader 425 lbs. (193 kg)
Approximate Dimensions
169’’ X 68’’ X 51’’ (4290 mm X 1720 mm X 1290 mm)
BASKET STACKER
•Designed and manufactured in accordance with BISSC
sanitation standards
•Heavy duty tabletop chain on conveyors
•Mild steel painted frame
•Low, Medium, and High speed units available*
* Subject to engineering approval
Mechanical
Features
Electrical
Features
Basket Stacker Detail
Basket Lifting Detail
* Specify RH or LH Configuration for Location
of Panel, Operator Interface & Motors
The Bottom-Up Basket Stacker is equipment with the
following control elements:
•Allen Bradley PV-300 Operator Interface
•Allen Bradley Pushbuttons for:
-Two-button start
-Stop
-Emergency stop
SS NEMA 4 Machine Mounted Enclosure with:
- Operation Status Light
- AC Inverters
- Allen Bradley Micrologix PLC
- 24 volts Pneumatic valves
Contact your AMF representative for more
informtion about our complete line of:
• Basket and Tray Loaders
•Basket Un-Stackers
•Pan Stackers & Un-Stackers
•Pre-Stackers, Separators
•Cross Nested Un-stackers
•Orientors and Turners
•Basket and Pan Conveyors
•Slicers and Baggers
•Trash Dumps
•Basket Washers
Basket/min
with/Pre-Stacker
N/A
N/A
34
Dolly Loader
