Amigo Technology M2-TBT Bluetooth Module User Manual COVIA UM 110 Main Features En

Amigo Technology Inc. Bluetooth Module COVIA UM 110 Main Features En

Users Manual

Amigo Technology Inc.
5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan
TEL: +886-2-27938818 | FAX: +886-2-27939677
http://www.amigo.com.tw/tw/
M2-TBT
User Manual
2017/12/12
Revision History
1st released
Jill
Amigo Technology Inc.
5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan
TEL: +886-2-27938818 | FAX: +886-2-27939677
http://www.amigo.com.tw/tw/
1. Usage
It will be built in any wired/wireless devices for Bluetooth connection and application.
Eg. AP/Router/Repeater…etc

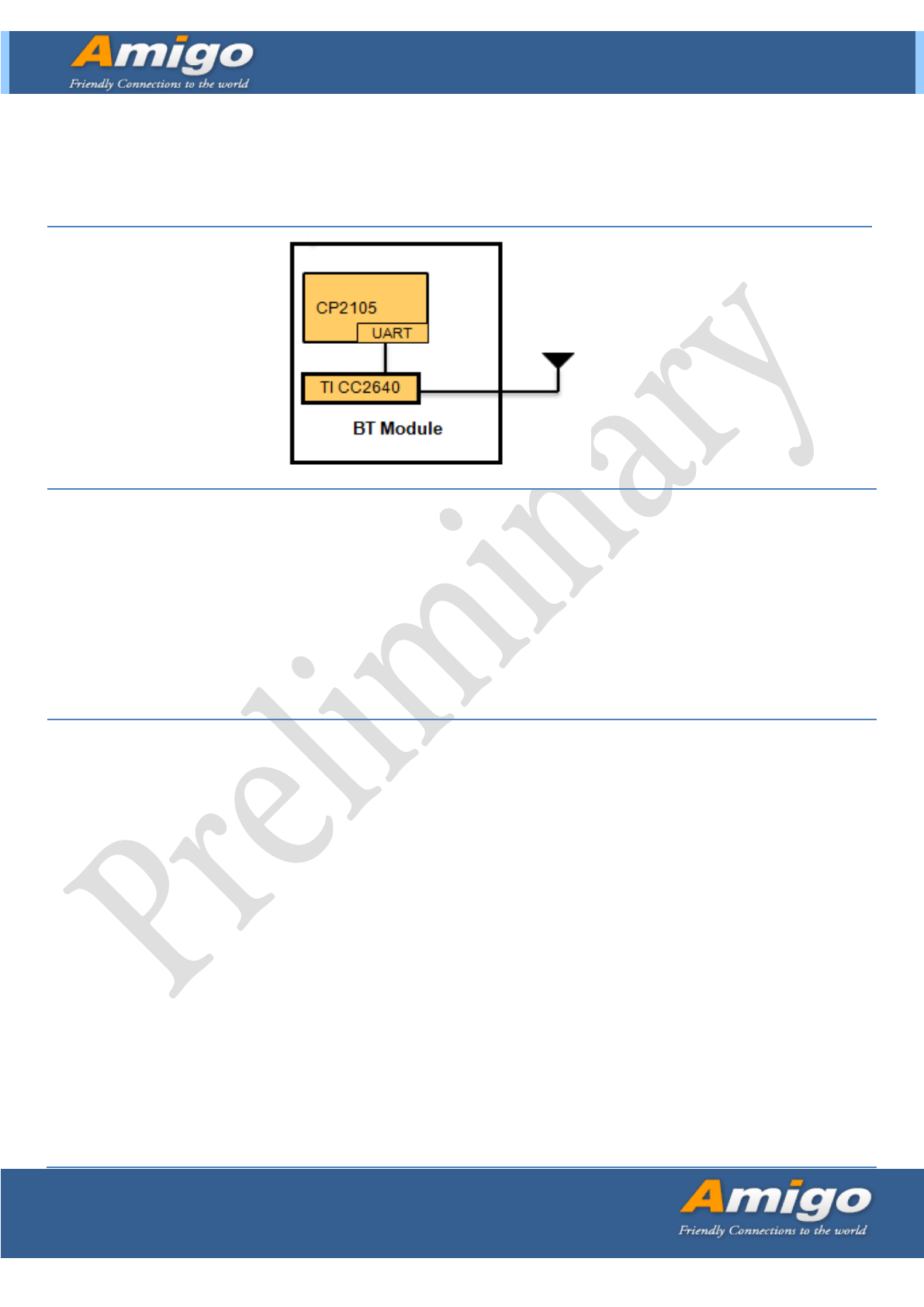

2. HW Block Diagram
Detail description for HW block diagram :
Microcontroller：TI CC2640
Powerful ARM Cortex-M3
20KB SRAM
8KB Cache
128KB Flash
USB to Dual UART Bridge：CP2105
USB 2.0 full speed function controller
Antenna：PIFA Antenna *1
Amigo Technology Inc.
5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan
TEL: +886-2-27938818 | FAX: +886-2-27939677
http://www.amigo.com.tw/tw/

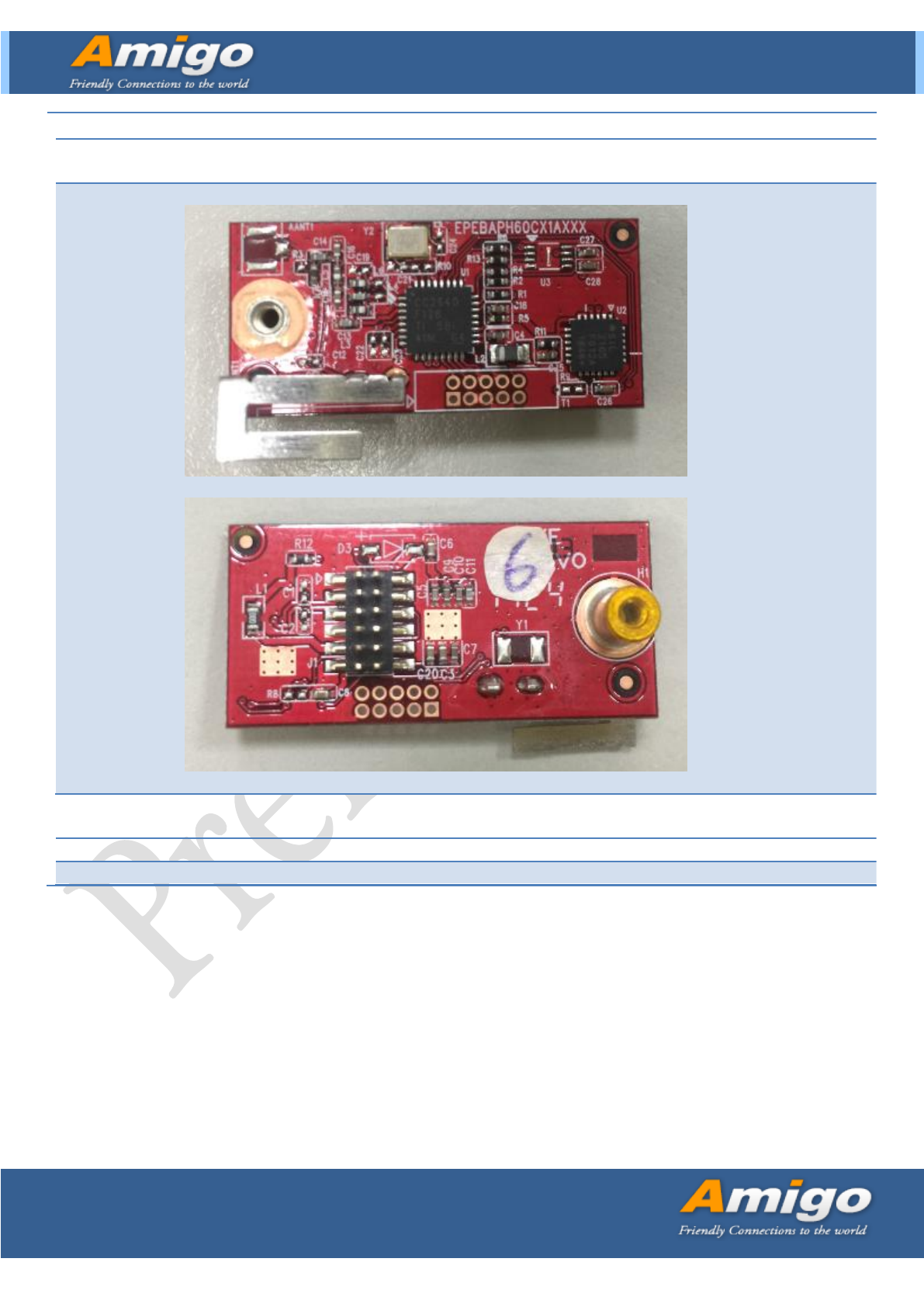

3. Picture & Dimension
3.1 Picture: PCB color might be changed. (Red/Green)
M2-TBT
3.2 Physical Interface
Dimension
32mm(L) *18mm(W) *11mm(H)
Pin header
Pin *12
Amigo Technology Inc.
5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan
TEL: +886-2-27938818 | FAX: +886-2-27939677
http://www.amigo.com.tw/tw/
4. How to ensure the BT module is workable
4.1 Install “LightBlue” APP on cell phone from “App Store” or install “BLE Scanner” on cell phone from
“Google Play”.
4.2 Turn on Bluetooth function on cell phone.
4.3 Turn on “LightBlue” or “BLE Scanner” on cell phone. (Depends on cell phone OS)
4.4 Turn on the Bluetooth module by power on the wired/wireless device.
4.5 Check cell phone can scan “SerialSPP” or not.
4.6 Select “SerialSPP” to connect with the Bluetooth module.

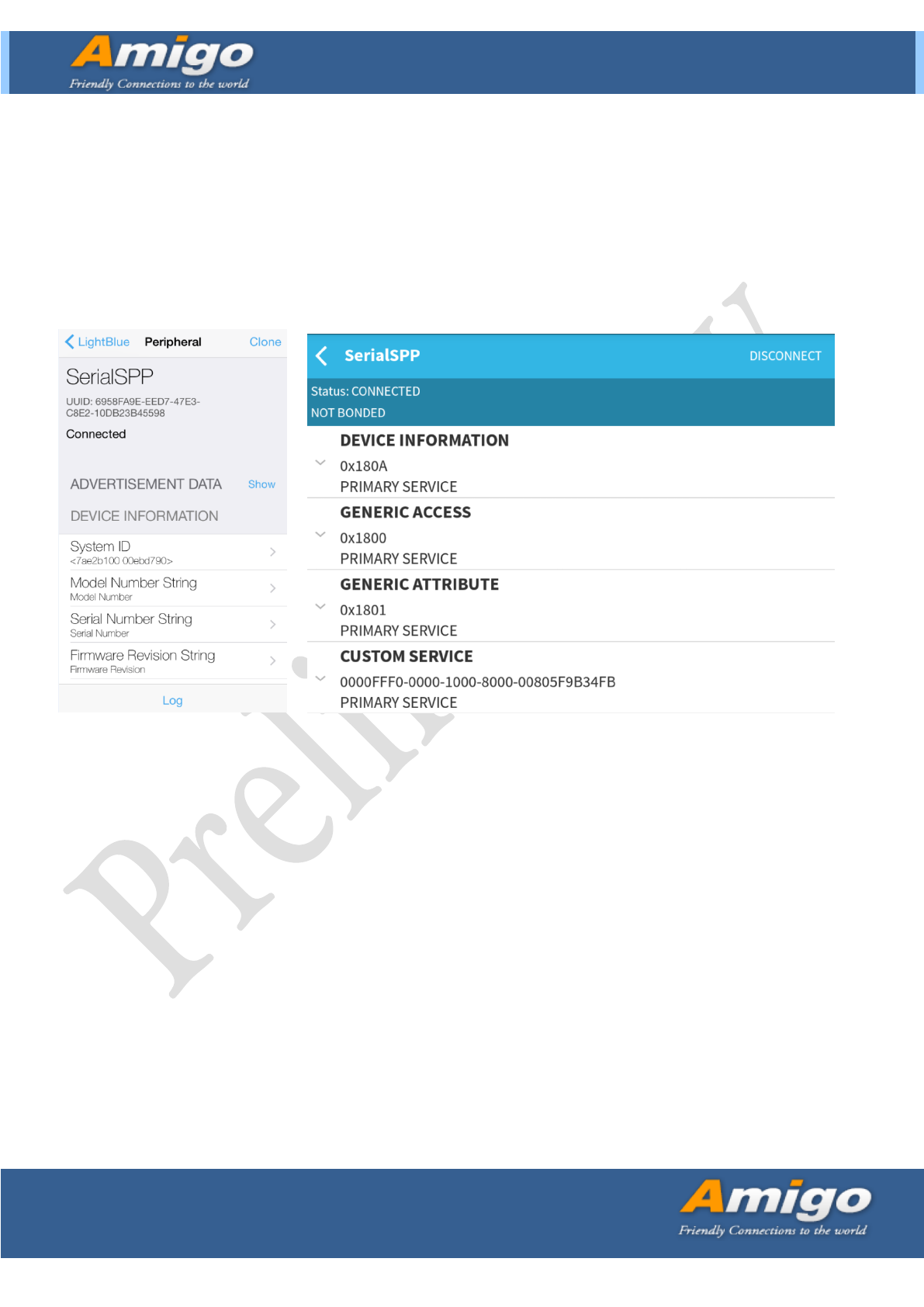

4.7 Check the status is connected. Capture screen as below for reference.
Amigo Technology Inc.
5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan
TEL: +886-2-27938818 | FAX: +886-2-27939677
http://www.amigo.com.tw/tw/
5. Applications
Describe what kind of application that can be implemented.
5.1 BLE4.2
iBeacon advertising
data
Device UUID
Major Value
Minor Value
Measured Power
Access for
configuration
APP Interface
Application(Optional)
Home and Building Automation
– Connected Appliances
– Lighting
– Locks
– Gateways
– Security Systems
Industrial
– Logistics
– Production and Manufacturing
– Automation
– Asset Tracking and Management
– Remote Display
– Cable Replacement
– HMI
– Access Control
Retail
– Beacons
– Advertising
– ESL and Price Tags
– Point of Sales and Payment Systems
Health and Medical
– Thermometers
– SpO2
– Blood Glucose and Pressure Meters
– Weight Scales
– Vitals Monitoring
– Hearing Aids
Sports and Fitness
– Activity Monitors and Fitness Trackers
Amigo Technology Inc.
5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan
TEL: +886-2-27938818 | FAX: +886-2-27939677
http://www.amigo.com.tw/tw/
– Heart Rate Monitors
– Running Sensors
– Biking Sensors
– Sports Watches
– Gym Equipment
– Team Sports Equipment
HID
– Remote Controls
– Keyboards and Mice
– Gaming
Accessories
– Toys
– Trackers
– Luggage Tags
– Wearables

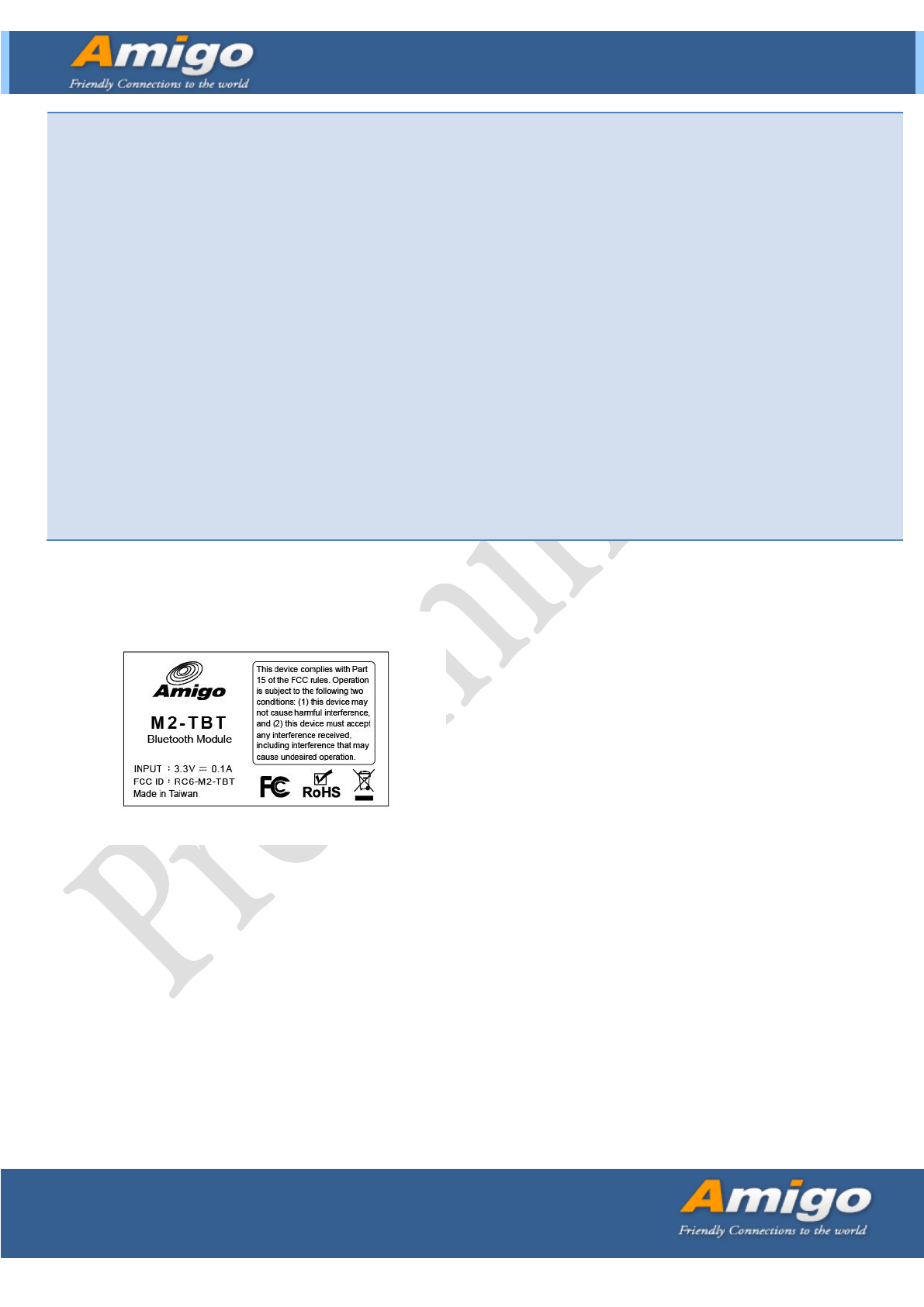

6. Label
Size :60x35mm
–
