Amino Communications 50-0102-R4-00 RF4CE Module User Manual

Amino Communications Ltd RF4CE Module

Users Manual

RF4CEUserManualForAria6/7
ModuleIntegration
1. Purpose
ThepurposeofthisdocumentistoprovideinformationonhowtoinstalltheRF4CEmodulein
Aria6/7products.
TheRF4CEmoduleisonlyintendedforintegrationintoAria6/7only.Incorrectintegrationoruse
mayinfringecompliancerulesmeaningrecertificationmayberequired.
2. ModuleDescription
RF4CE module is an IEEE 802.15.4 Communications Controller based on GreenPeak GP501 chip.

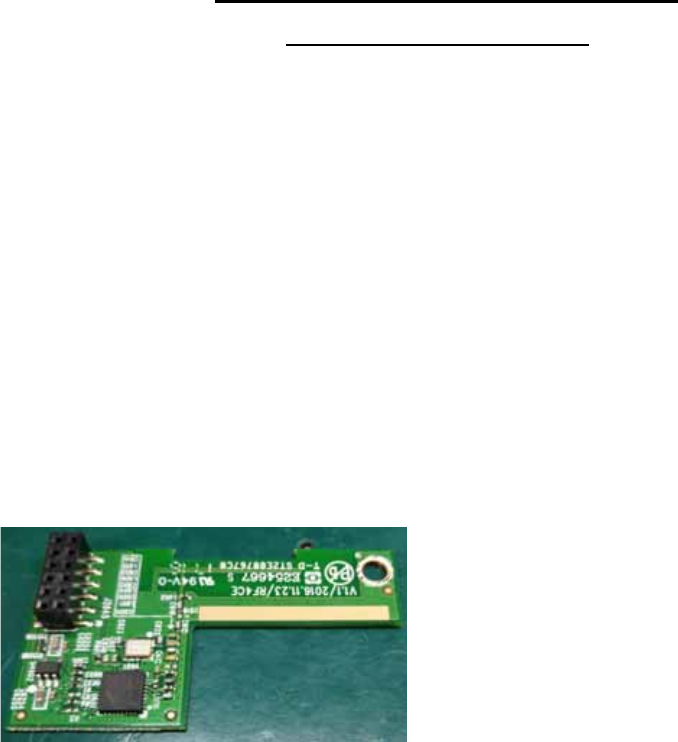

RF4CE Module
This module will install to Aria6/7 when the RF4CE remote controller option is required.
.
Module install location on Aria6/7.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause
undesired operation of the device.
FCC RF Radiation Exposure Statement:
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
End users must follow the specific operating instructions for satisfying RF exposure
compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The end product shall be labeled with
“Contains Transmitter Module FCC ID:XVG50-0102-R4-00”
This device is intended for OEM integrators only.Please See the full Grant of Equipment
document for other restrictions.
This device is limited to specific type of Aria6/7 (Set top box).
