Warning! Before connecting or disconnecting any cable switch
off all system devices (TV, AV amplifier, etc.) and disconnect the
devices from the mains electrical supply.
your local system. The package may also contain optional
accessories shown below, depending on your service provider.
The product is protected with a clear plastic film. This should be
removed before use.
Power/Activity LED:
Blue = on.
Blue flashing = IR command received / Kamai 7E starting
up.
Red = standby.
1.
Read these instructions carefully and keep for future reference. Note all
warnings.
The product contains no user-serviceable parts. Refer all servicing to qualified
service personnel.
Handle the product with care and do not attempt to dismantle the product.
Do not expose the product or its accessories to any liquids, rain or moisture.
Do not locate the product near a heat source and do not block ventilation
holes: the product will become warm during operation. Allow at least 10cm
(4”) around the product for air circulation.
Do not locate the product where it may be subject to physical shock, vibration
or where the product may fall over.
Do not place the product on soft furnishings or carpets.
Only use the power supply provided by the manufacturer. The use of any
other type of power supply may invalidate any approval or warranty applying
to the product and may be dangerous. If the power supply does not match
your local system, contact your product supplier.
Protect the power supply cord from damage.
The disconnect device is the power supply cord. Removing the power supply
cord from the mains supply isolates the product from the mains.
Disconnect the product from the mains supply if left unused for long periods
of time or during electrical storms.
Disconnect the product before cleaning, and use a dry cloth only.
Only use attachments and accessories specified by the manufacturer.
The product is for indoor use only.
Warning!
For mains power: connect the power adapter to the DC
power input, then connect the power adapter to the mains
supply. The power adapter provided will be specific to your
region. Ensure you have the correct power adapter for your
region. If you are unsure, contact your service provider.
For PoE: Connect an Ethernet cable to the Ethernet port. This

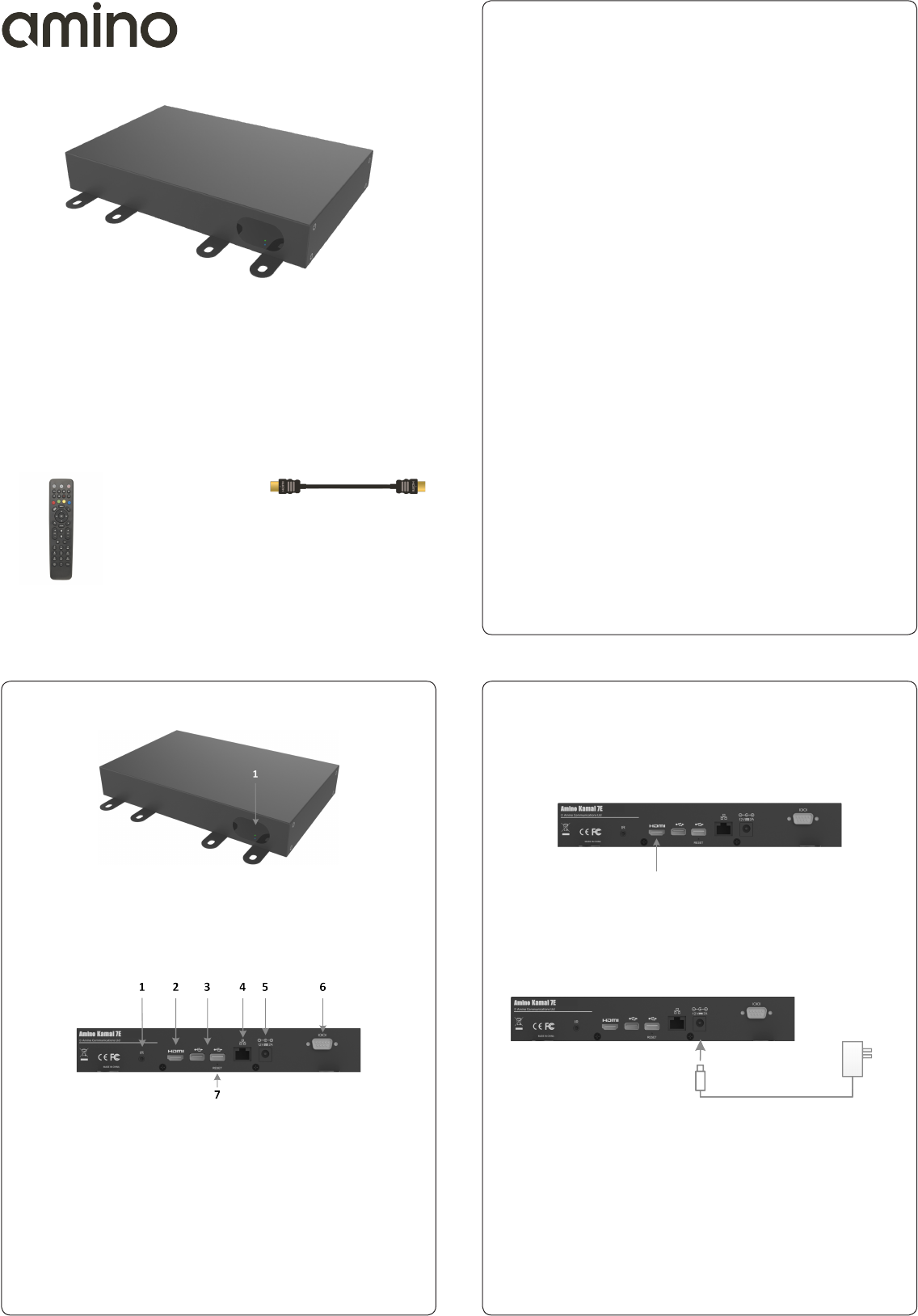

1.
2.
3.
4.
5.
6.
7.
IR extender input.
HDMI output.
2 x USB 3.0 ports.
Ethernet port (PoE+ to IEEE 802.3at - 2012).
DC power input 12 V 2 A.
Serial port.
Reset button. This has no function in normal use: only use
under guidance from your service provider.
User Guide
Contents
Optional accessories
1. Overview of the Kamai 7 E2. Connecting the Kamai 7 E to a TV
Important - Safety instructions
3. Connecting the power source
Remote control
and batteries
HDMI cable
serial cable
Kamai 750E
The Kamai 750E is supplied with the correct power adapter for
will provide both data and power to the Kamai 750E.
The Kamai 750E must only be used with the
supplied power adapter.
Connect an HDMI cable to the HDMI output of the Kamai 750E
and to the HDMI input of the TV.
50
50
The following paragraphs describe requirements and conformity:
AM-010943-DS v1a
Support and regulatory information
Product disposal information - EU only
Operating information
FCC statement
Declaration of Conformity
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
IMPORTANT NOTE:
RF exposure warning statement:
1) This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
2) This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20 centimetres between the radiator and your body.
Country Code selection feature to be disabled for products marketed to the
US/CANADA.
Operation of this device is restricted to indoor use only.
For support and further regulatory information about this product go to:
https://www.aminocom.com/support
Manufacturer/importer: Amino Communications Ltd, Buckingway Business
Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ, United Kingdom.
Amino products are labelled in accordance with the WEEE Directive
and therefore should not be disposed of with other household or
commercial waste.
For residential users: please remove any batteries and dispose of them
and the product in accordance with your local authority’s recycling processes.
For further information please contact your local authority or the retailer
where the product was purchased.
For business users: please contact your supplier and check the terms and
conditions of the purchase contract and ensure that the product is not mixed.
European Approvals
2014/53/EU (RE Directive)
2011/65/EU (RoHS Directive)
2012/19/EU (WEEE Directive)
Conformity
62368-1
Hereby, Amino Communications Ltd. declares that the radio equipment type
IP Digital set-top box
is in compliance with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the
following internet address: https://www.aminocom.com/support
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and
other countries.
Manufactured under licence from Dolby Laboratories. Dolby and the double D
symbol are trademarks of Dolby Laboratories.
Operating temperature: 5 °C to 35 °C (40 °F to 95 °F)
Frequency bands and maximum powers:
WLAN
2.4 GHz: EIRP < 20 dBm
5.18~5.24 GHz: EIRP < 23 dBm
5.26~5.32 GHz: EIRP < 23 dBm
5.50~5.70 GHz: EIRP < 23 dBm
Bluetooth
BT-EDR: EIRP < 4 dBm
BT-LE: EIRP < 2 dBm
RF4CE
EIRP < 1.5 dBm
