Amped Wireless AC1900 Wi-Fi Range Extender Amped Wireless
Users Manual
Internet Wi-Fi Router
B1900EX
Home/Office Network
Dead Zone
>70%
RECOMMENDED
SIGNAL STRENGTH
THE RANGE EXTENDER MUST RECEIVE A STRONG SIGNAL FROM YOUR WI-FI ROUTER.
We recommend the signal from your router is >70%. We'll find out the exact strength in Step 6.
If you are connecting to a dual band router, both 2.4GHz and 5GHz connections should be greater than 70%.

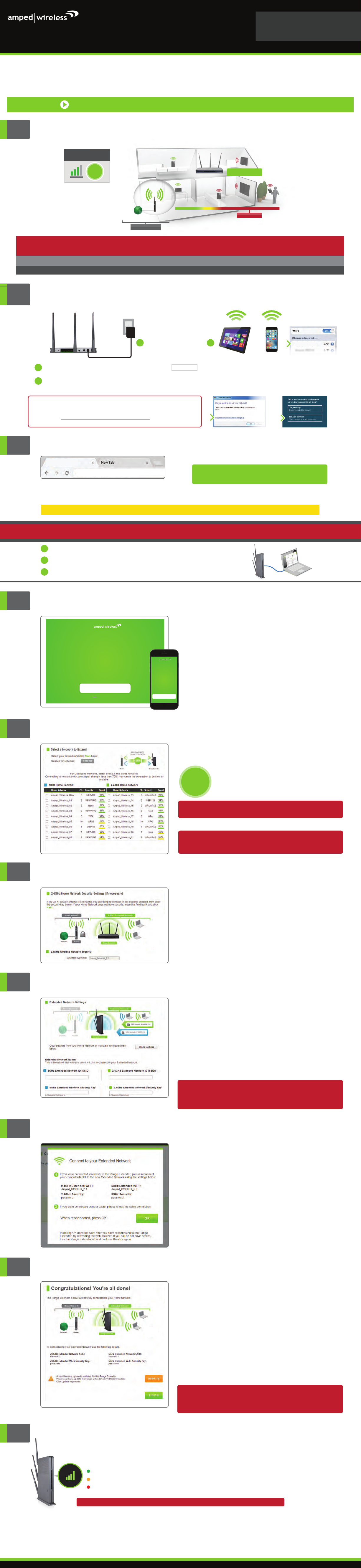

1Find a Setup Location About Half-Way Between your Wi-Fi Router
& your Wi-Fi Dead Zone
Watch the Installation Video here: http://support.ampedwireless.com/b1900ex
3Connect your Mobile Device or PC to the Range Extender
aAmped_B1900EX...
- or -
The Range Extender is equipped with a Signal Strength LED on
front of the device to help you find the most optimal location. It
may take 1-3 minutes for the LED to register after powering on
the Extender. After setup, the LED can be your guide for position-
ing the Extender to a better location (if needed). We recommend
a signal strength of at least 70%, or when the LED is green.
Finding an Optimal Placement Location (Signal Strength LED)
OPTIMAL INSTALLATION
Signal Strength LED helps you find
the perfect location
Green: Excellent Signal 70-100%
Yellow: Moderate Signal 60-69%
Red: Poor Signal 59% and below
Note: The LED will not turn on if the Extender setup has not been completed first.
6Home Network Security Settings (if necessary)
If your wireless home networks has security enabled, you will need
to enter the security key here. If you selected both a 2.4GHz and a
5GHz network to repeat, you will need to enter both security keys
here.
If your wireless home network does not have security enabled,
leave the security field blank.
Click Next to continue.
7Configure Settings for your Extended Networks
The IDs of your Extended Networks are:
Amped_B1900EX_2.4 & Amped_B1900EX_5.0
If you choose to "Clone" the settings from your Home Network,
the wizard will copy the SSID and security key of your Home
Network.
The SSID of the Extended Network will have a "_RE" at the end
of its name. For example: Home_Network_RE
You can also manually enter a new network ID and security key. The
new security key must be at least 8 characters long.
Click Next to apply the settings.
DO NOT LEAVE OR REFRESH THIS PAGE
Allow the countdown to complete and the wizard will auto-
matically redirect you to the next step.
Amped_HeliosEX_2.4Amped_HeliosEX_5.0
8Connect to the New Extended Network
During the countdown process, the Range Extender will reboot
and disconnect the Wi-Fi connection. At this point, you will need
to reconnect your PC or tablet to the new Extended Network.
You may connect to either the 2.4GHz or 5GHz Extended
Network. Follow the instructions on the screen to connect.
Once you have connected, click OK to complete the setup
process.
If there are problems with your configuration, the setup wizard will
inform you to rescan for a network to extend.
If there are no problems, you will see the Setup Summary page
below.
9Setup Summary
Congratulations, the Range Extender is now successfully
configured. Your settings are now saved. You may also attach
any wired network devices to the wired ports on the back of the
Range Extender.
The wizard will notify you if there is a newer firmware for the
Extender. We recommend that you upgrade your Extender at this
time if an update is available.
If you experience any problems during this process, please contact
Amped Wireless Elite Support:
888-573-8820
techsupport@ampedwireless.com
www.ampedwireless.com/support
If you haven’t already positioned your Range Extender in an
optimal location, you may do so now. All Range Extender settings
are saved and can be safely powered off for relocation.
2
Connect to the Range Extender's Wi-Fi network: Amped_B1900EX_2.4 or Amped_B1900EX_5.0
(See back for operating system specific instructions.)
Amped_B1900EX_2.4 Amped_B1900EX_5.0
Attach the Power Adapter to the Range Extender’s port and an available power outlet.
PWR
a
b
b
Attention Windows Users:
A prompt may appear asking: "Do you want to set up your network?"
If so, select "Connect to the network without setting it up" or "No, just connect".
- or -
Amped Wireless
http://setup.ampedwireless.com
IF YOU HAVE PROBLEMS ACCESSING THE WEB MENU...
Recommended browsers: Google Chrome, Safari or Internet Explorer (8.0 and up). Do not use Firefox.
ACCESSING THE WEB MENU DOES NOT REQUIRE INTERNET ACCESS. THE MENU IS SERVED FROM THE RANGE EXTENDER.
a) Disconnect your PC from all Wi-Fi networks.
b) Attach an Ethernet cable between the PC and the Range Extender.
c) Open your web browser and go to http://setup.ampedwireless.com again.
a
b
c
Open your Web Browser
If the URL fails to open, then try: http://192.168.1.240
Enter the setup web address into your browser:
3
http://setup.ampedwireless.com
The Setup Wizard will guide you through the setup process.
Click Scan to find available networks to extend.
Setup screens for mobile devices will
vary from desktop and tablet versions.
4Welcome to the Setup Wizard
5Scan for a Home Network to Extend
Highlight and select the wireless network that you wish to
repeat. If you have a dual band network, select only the 5GHz
network.
Poor signal connections may cause slow speeds or dropped
connections.
Click Next to continue.
If you do not see your desired wireless networks, or the signal
strength is less than 70%, move the Range Extender closer to
the router and scan again as it may be out of range.
Recommended Signal
Select the wireless network with a signal strength
greater than 70% for the most reliable connection.
>70%
AC1900 WI-FI® RANGE EXTENDER
B1900EX
Welcome
to the B1900EX Setup
Scan
Click here to Skip the Wizard and go to the Dashboard
to configure the extender manually
Tap Scan to find available networks to extend.
Scan
Skip
Welcome
to the B1900EX Setup
Tap Scan to find available
networks to extend. Tap
Skip to to go the Dashboard.
v061417
READ FIRST
SETUP GUIDE
GOT QUESTIONS?
Phone: 888-573-8820 or 909-217-3168
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
Troubleshooting Tips
PROBLEM:
SOLUTIONS:
PROBLEM:
SOLUTIONS:
PROBLEM:
SOLUTIONS:
I entered setup.ampedwireless.com and it failed to open the web menu.
a. Make sure your computer is connected to the Range Extender’s Wi-Fi network: Amped_B1900EX_2.4 or Amped_B1900EX_5.0
b. Try to use a different web browser. We recommend the Google Chrome web browser.
c. Try to open your web browser to the default IP address by putting this number into your web browser instead: 192.168.1.240
d. Power off (unplug) the Range Extender and power it back on. Try again.
e. Reset your Range Extender to default settings by holding the Reset button (located on the back panel) for ten (10) seconds and
try again.
f. If steps (a) through (e) fail, disconnect your PC from all Wi-Fi networks. Attach an Ethernet cable between the Range Extender
and your PC. Try to access http://setup.ampedwireless.com again.
My Range Extender was working fine previously, but now I can no longer access the Internet through the Range Extender.
a. The connection to your Home Network may have been dropped or the router settings may have changed. Changes to the router
could be a result of several events, such as a power outage. When this occurs, connect to the Range Extender and access the
setup menu using the web address: http://setup.ampedwireless.com. Run the Wizard to reconnect the Range Extender to your
network.
b. Using the setup menu (setup.ampedwireless.com) check to see that the signal strength between the Range Extender and your
Home Network is above 70%. The Range Extender may be too far from your router and not maintaining a signal strength of above
70%. Check the signal strength between the router and the Range Extender through the web menu (left side): More Settings >
Management > Device Status. The Signal Strength readout will be under the Home Wireless Network Settings section. This Signal
Strength must be above 70%. If it is below, move the Range Extender closer to your router, or reposition the Range Extender.
I cannot find my Home Network when scanning for wireless networks in the web menu Scan page.
a. The Range Extender may be out of range. Move the Range Extender closer towards the wireless router and try the Setup Wizard again
from the web menu.
b. Make sure that your Home Network’s wireless SSID is broadcasting and not hidden. Hidden SSIDs will require that you manually enter
the SSID into the Wireless Settings > Home Network menu.
Amped Wireless
A Division of Newo Corporation
Copyright © 2017 Amped Wireless / Newo Corporation. All rights reserved.
Amped Wireless, Newo Corporation, the Amped Wireless Logo are registered trademarks or trademarks of Newo Corporation.
If you continue to have issues setting up the Range Extender, give us a call — we’re here to help: 888-573-8820 or 909-217-3168
Visit our website for more support information and answers to frequently asked questions: www.ampedwireless.com/support
v061417
Using the Features on the Range Extender
The Range Extender is equipped with many powerful features like advanced security features,
all of which can be accessed through the web menu:
If you are unfamiliar or want more information on the security features of the Range Extender,
please visit the website: http://support.ampedwireless.com/b1900ex
Web Menu (left side)
Wireless Access Scheduling
Control when your Wi-Fi is on/off.
Location: More Settings > 2.4 or 5GHz Wi-Fi Settings > Access Schedule
User Access Control
Restrict network access to specific users.
Location: More Settings > 2.4 or 5GHz Wi-Fi Settings > User Access
Wireless Coverage Control
Adjust the distance of your wireless network
Location: More Settings > 2.4 or 5GHz Wi-Fi Settings > Wireless Coverage
Auto Reboot
Automatically reboot the Range Extender at set intervals for
maintenance.
Location: More Settings > Management > Reboot
12:26
LED Lights On/Off
•LED Lights On/Off: Push button to turn the LED indicators on
the front of the Range Extender on or off.
Additional Features
Reset the Range Extender to Default Settings
There are two options to reset the Range Extender back to factory default settings:
1
2
Access the Reset button through the web menu on the left side under More
Settings > Management > Save/Reload Settings. Select the Reset Settings to
Default.
Access the physical Reset button on the back panel of the Range Extender:
Hold down the Reset button for five to ten (5-10) seconds. You may need to
use a pen tip or pin to access the button. Pressing the Reset button for less
than five (5) seconds will simply reboot the Range Extender while saving your
existing settings.
a
bWired Port LEDs
•Indicates when a device is connected to a wired port (modem or local
network) on the back of the Range Extender. The LED will light up
when wired data traffic is transmitted or received. The green LEDs
display when there is an active gigabit connection.
c
Wi-Fi Protected Setup (One-Touch Setup or Push Button Configuration)
If your wireless adapter has WPS one-touch setup, you can use it when connecting to the Range Extender. Hold down
the WPS button on the Range Extender (back panel) for 3 seconds. The Power/WPS LED will begin to blink. As it blinks,
push the WPS button on your wireless adapter or enable WPS with the provided software for your wireless adapter.

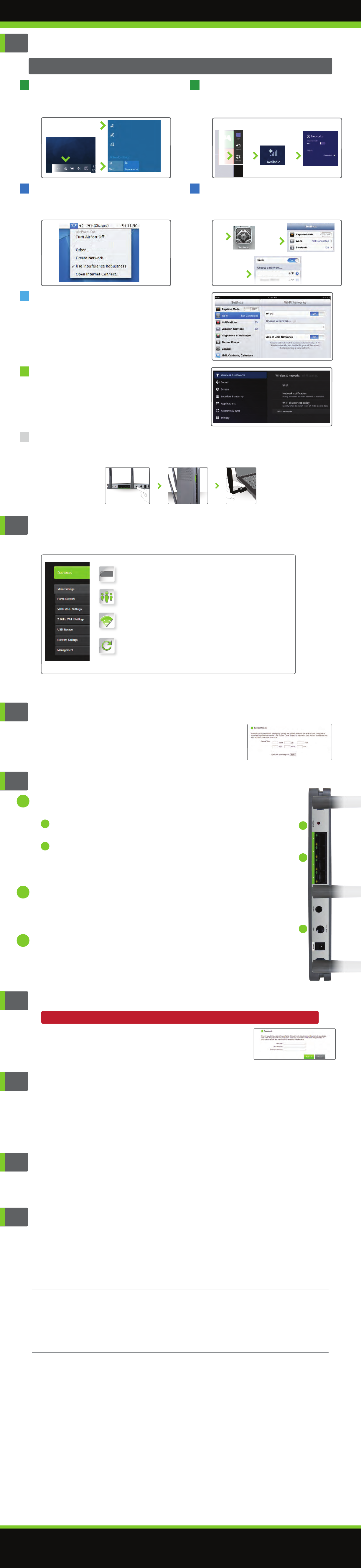

iPad Tablet
Tap the "Home" button to get to the home page.
Tap the "Settings" app icon.
Tap on Wi-Fi to enter the iPad’s Wi-Fi settings.
Toggle the Wi-Fi "On/Off" selector switch to "On".
Under "Choose a Network," select:
Amped_B1900EX_2.4 or Amped_B1900EX_5.0
Tap the "Apps" menu on the tablet screen.
Locate and tap the "Settings" app icon.
Under "Wireless & networks," tap "Wi-Fi settings".
Tap the Wi-Fi box to turn on Wi-Fi and scan.
Under "Wi-Fi networks," select:
Amped_B1900EX_2.4 or Amped_B1900EX_5.0
A.
B.
C.
D.
E .
A.
B.
C.
D.
E.
Android Tablet
Mac OS X
Click on the Wireless icon to see available wireless
networks. Select Amped_B1900EX_2.4 or
Amped_B1900EX_5.0 network.
Access the taskbar on the bottom right of your
screen, tap on the Wi-Fi icon, enable Wi-Fi, and select
Amped_B1900EX_2.4 or Amped_B1900EX_5.0.
Windows 10
How to Connect Wirelessly to the Range Extender
Tap on your Settings icon, select Wi-Fi, and
choose the network, Amped_B1900EX_2.4 or
Amped_B1900EX_5.0.
iPhone
Swipe in from the right edge to access the charms
bar, tap on Settings, select the Wi-Fi icon, and select
Amped_B1900EX_2.4 or Amped_B1900EX_5.0.
Windows 8
Connecting to the 5GHz network requires that you have a 5GHz capable network adapter.
Amped_B1900EX_5.0
Amped_B1900EX_5.0
Amped_B1900EX_5.0
Amped_B1900EX...
Amped_B1900...
Amped_B1900EX
Network01
Network02
Setting the Range Extender’s System Clock
In order for your Access Schedules and logs to perform using the correct
time stamps and schedules you will need to set your System Clock. To do
so, go under Management and access the System Clock tab to sync the
System Clock with your computer’s time or to sync with the Internet.
Setting a Login & Password for the Web Menu
This login/password is NOT the wireless network key used to connect to your wireless network.
For added security you may want to set a login and password to access the web menu. To
do this, go to More Settings > Management > Password on the left side of the web menu.
If you forget your login and password, you will need to reset the Range Extender back to
default settings to access the web menu. To reset the Range Extender to default settings,
hold the reset button on the top of the Range Extender for 5-10 seconds.
Tips: Power Outages, Rebooting Routers & Channel Changes
Wireless routers operate on specific wireless channels to avoid interference with neighboring networks. Some wireless routers are
set to automatically scan for the best wireless channel. A power outage, or a simple reboot, may cause your home wireless router
to change its wireless channel and cause the Range Extender to disconnect from your home network. After a minute or two the
Range Extender will automatically reconnect to your Home Network with the new settings. However, if for whatever
reason it does not, simply log onto the Range Extender’s web menu by opening your web browser and going to
http://setup.ampedwireless.com. If the page does not load, try resetting the Range Extender by holding down the Reset button on
the back panel for five to ten seconds. After the Range Extender has rebooted, open your web browser and run through the Setup
Wizard again.
Autoloading Web Menu
When the Range Extender loses its connection with your Home Network, the web menu will automatically load on your web
browser. All web address entries will be redirected to the Dashboard of the Range Extender. This redirect feature is meant to notify
and help you to easily reconfigure your Range Extender in the event of a disconnection. You may disable this feature through the
web menu (left side): More Settings > Network Settings > IP Settings. The feature is titled: Auto-DNS.
Reset
Button
a
Wired Ports b
c
LED Lights On/Off
This is the second page of the Setup Guide. Start on the opposite side first.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not
possible.
This device is restricted to indoor use.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Industry Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
This device is restricted to indoor use.
High Power Radars: High power radars are allocated as primary users (meaning they have priority) in the 5250MHz to
5350MHz and 5650MHz to 5850MHz bands. These radars could cause interference and/or damage to Wireless LAN
devices used in Canada.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les
bandes 5250 - 5350 MHz et 5650 - 5850 MHz. Ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre
corps
CAN ICES-3 (B)/NMB-3(B)
