Amped Wireless High Power Wireless-300N 600mW USB Adapter Users guide
User manual
UA600
High Power Wireless-300N 600mW USB Adapter
User’s Guide
UA600
USERS GUIDE
1
CONTENTS
INTRODUCTION ................................................. 2
GETTING STARTED ............................................. 3
Package Contents .......................................... 3
Connectors and LED Indicators ....................... 4
SETUP GUIDE ..................................................... 5
Windows 7 and Vista Installation .................... 5
Windows XP and 2000 Installation ................ 10
Using the Amped Wireless Utility (XP/2000) .. 18
Mac OS X Installation ................................... 22
Using the Amped Wireless Utility (Mac) ......... 33
TECHNICAL SPECIFICATIONS ............................. 36
TROUBLESHOOTING AND SUPPORT................... 37
WARRANTY AND REGULATORY INFORMATION .. 46
UA600
USERS GUIDE
2
INTRODUCTION
Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the
highest quality products through innovation and advanced technology. We pride ourselves on delivering
products that outperform the competition and go beyond your expectations. If you have any questions please
feel free to contact us. We’d love to hear from you and thank you for your support!
Email: sales@ampedwireless.com
Call: 888-573-8830
Web: www.ampedwireless.com
UA600
USERS GUIDE
3
GETTING STARTED
Package Contents
Check to make sure you have all the contents within your package:
High Power 600mW Wireless Adapter
Dual USB 2.0 Cable
High Power 5dBi Antenna
Setup CD (Driver, Software and Users Guide)
Setup Guide
UA600
USERS GUIDE
4
Connectors and LED Indicators
Mini USB: The included Dual USB 2.0
cable attaches to the Mini USB
connector on the Adapter. The other
end connects to USB ports on your
PC. Do not attach the cable until after
you have installed the software.
Antenna Connector: RJ-SMA antenna
connector. Compatible with all
antennas with RP-SMA connectors.
Upgradable to high gain antennas for more range
Activity LED: Blinks rapidly when wireless data traffic is passing through the High Power Adapter.
UA600
USERS GUIDE
5
SETUP GUIDE
Windows 7 and Vista Installation
a) Power on your PC and Insert the CD
Locate the Setup CD and insert it into your CD drive
UA600
USERS GUIDE
6
b) When the Menu page appears click on Setup for
Windows to begin the installation process.
If the Menu page does not appear, select Run
Autoload.exe if prompted or browse your CD drive and
double-click the Autoload.exe file.
c) Click Yes to allow the program to make changes and
continue with the installation.
UA600
USERS GUIDE
7

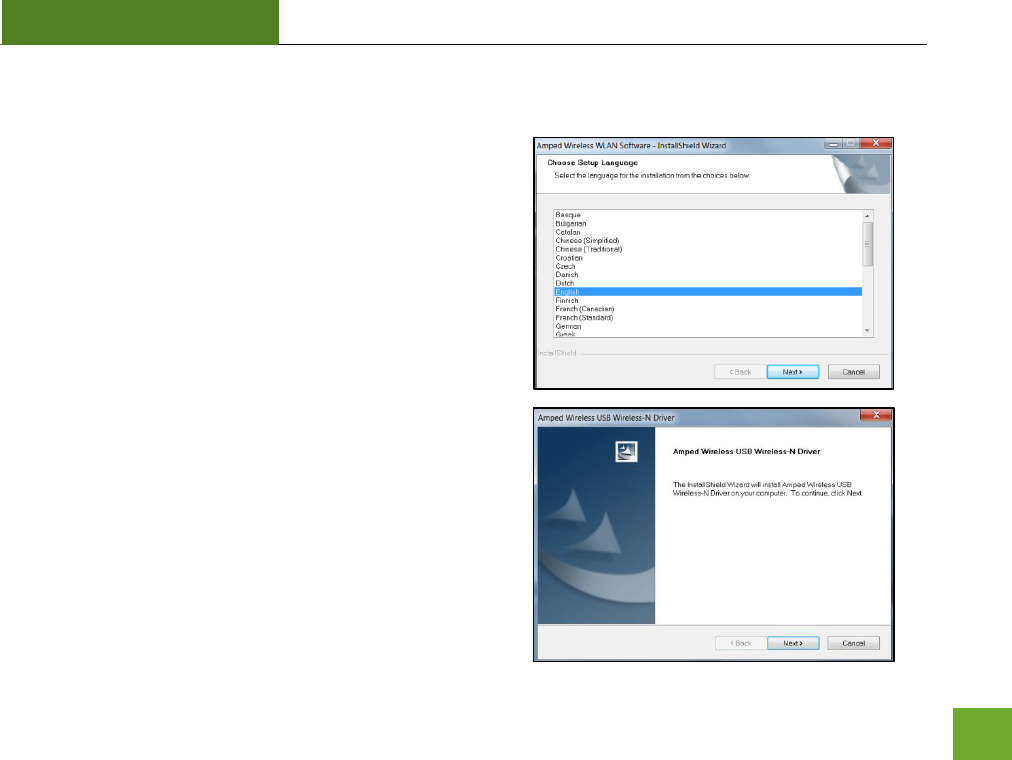

d) Select your Language
Select the language for the installation process and click
Next
e) Continue with the Installation
Click Next to proceed with the installation
UA600
USERS GUIDE
8

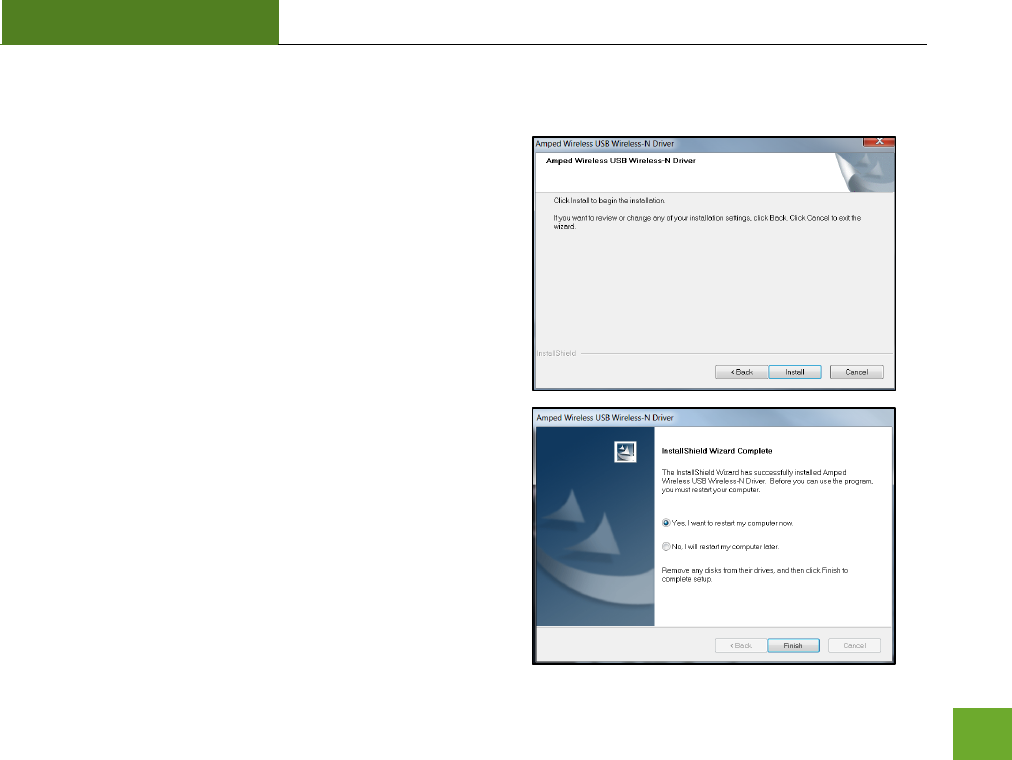

f) Continue with the Installation
Click Install to proceed to the next step
g) Restart your Computer
A prompt will appear asking you to restart your
computer. Select Yes and click Finish to restart your
computer. Be sure to save any unsaved work before
clicking Finish to avoid losing any unsaved data.
UA600
USERS GUIDE
9

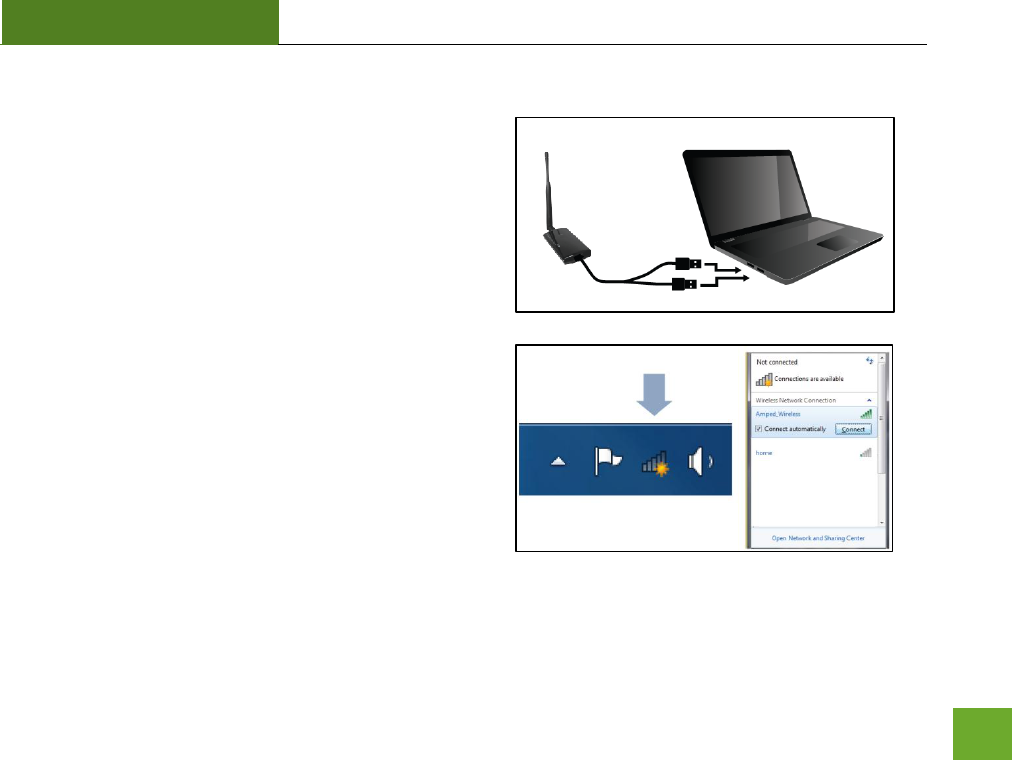

h) Plug in the High Power USB Adapter
After the computer has fully rebooted, locate two
available USB ports and insert the USB Adapter.
Windows should automatically begin installing the
driver for use with the USB Adapter. If only one USB
port is available, insert the USB connector labeled
Primary.
i) Connect to a Wireless Network
Locate the Wireless Icon on your Windows desktop
(located on the bottom right corner) and click it to
view available wireless networks. Highlight your
desired network and click Connect.
If the network you are trying to connect to is secure,
you will be prompted to enter the security key. If you
have any problems connecting to the network have
windows diagnose the connection.
UA600
USERS GUIDE
10
Windows XP and 2000 Installation

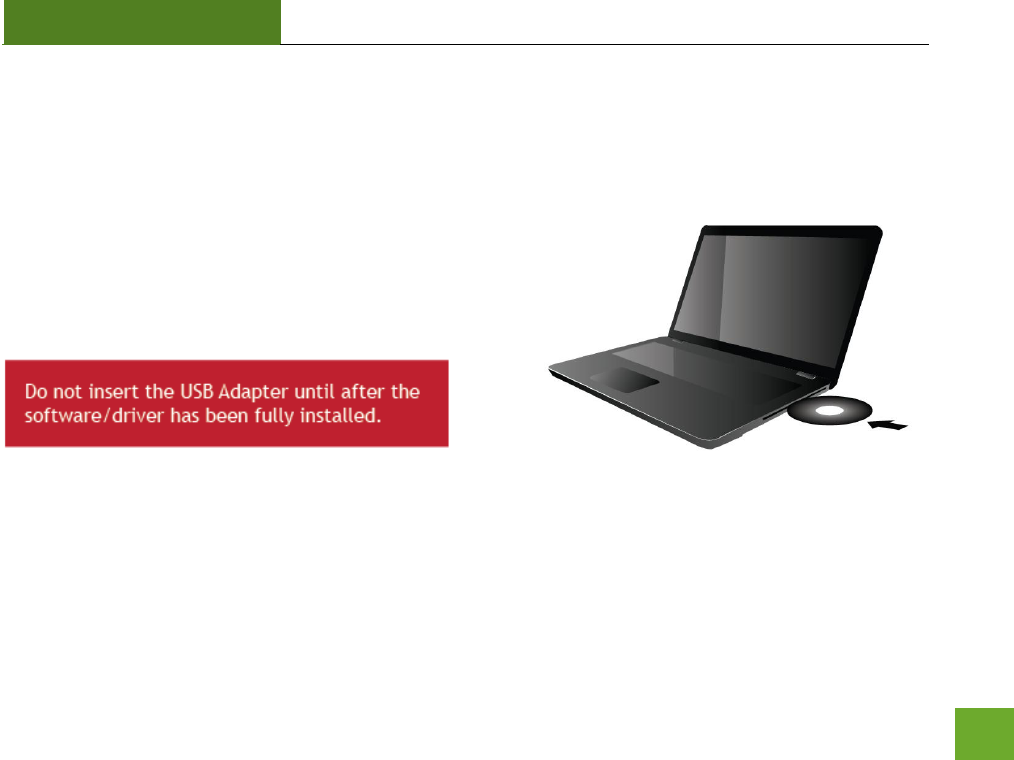

a) Power on your PC and Insert the CD
Locate the Setup CD and insert it into your CD drive
UA600
USERS GUIDE
11
b) When the Menu page appears click on Install Software to
begin the installation process.
If the Menu page does not appear, select Run
Autoload.exe if prompted or browse your Cd drive and
double-click the Autoload.exe file.
c) Select your Language
Select the language for the installation process and click
Next
UA600
USERS GUIDE
12

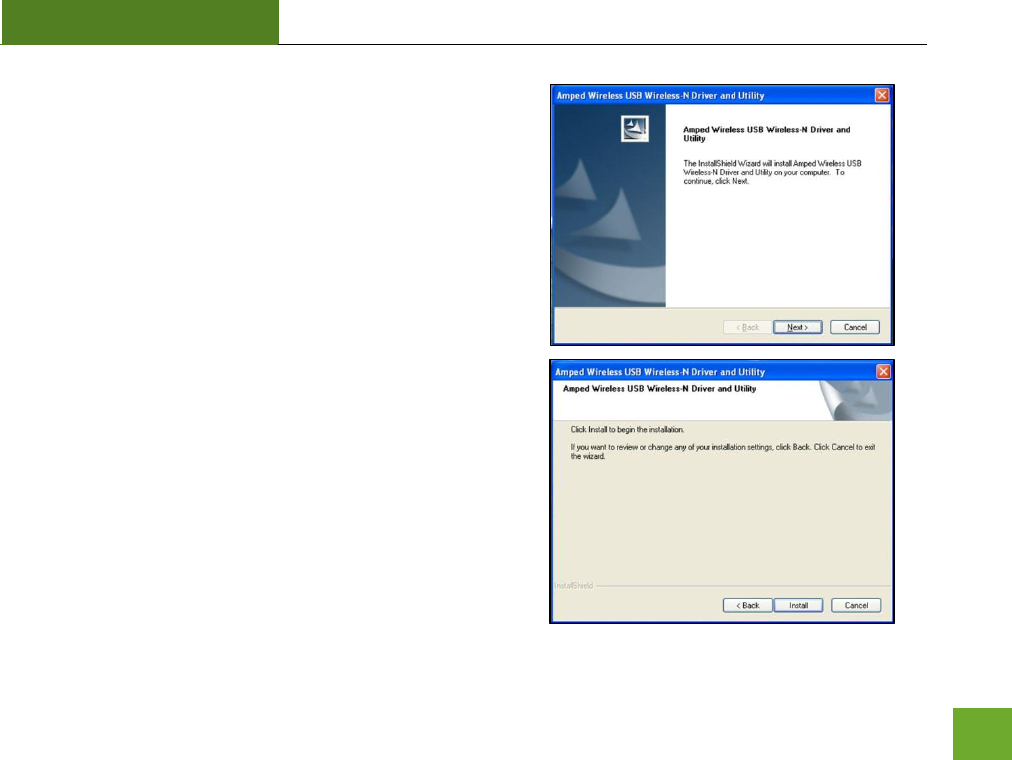

d) Begin the Installation
Click Next to continue with the installation.
e) Continue the Installation
Click Install to continue with the installation.
UA600
USERS GUIDE
13
f) Restart your Computer
After the installation has completed, a prompt will appear
asking you to restart your computer. Select Yes and click
Finish to restart.
g) Insert the High Power USB Adapter
After the computer has fully rebooted, locate two
available USB ports and insert the USB Adapter. The
Found New Hardware Wizard should appear.
If only one USB port is available, insert the USB
connector labeled Primary.
UA600
USERS GUIDE
14

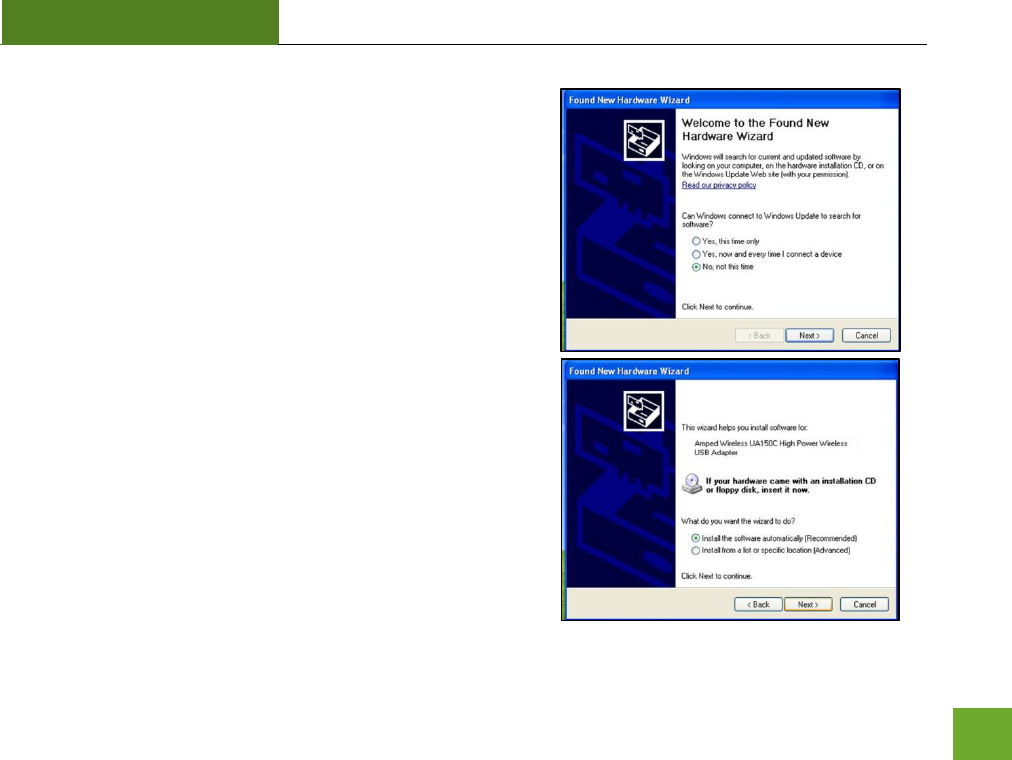

h) Found New Hardware Wizard
When the Found New Hardware Wizard Appears and asks to
search for software, select No, Not at this time. Click Next
to continue.
i) Found New Hardware Wizard
When prompted by the Found New Hardware Wizard to
install the software, select Install the Software
Automatically (Recommended) and click Next. The Wizard
should begin to install the software and driver for the High
Power USB Adapter.
UA600
USERS GUIDE
15

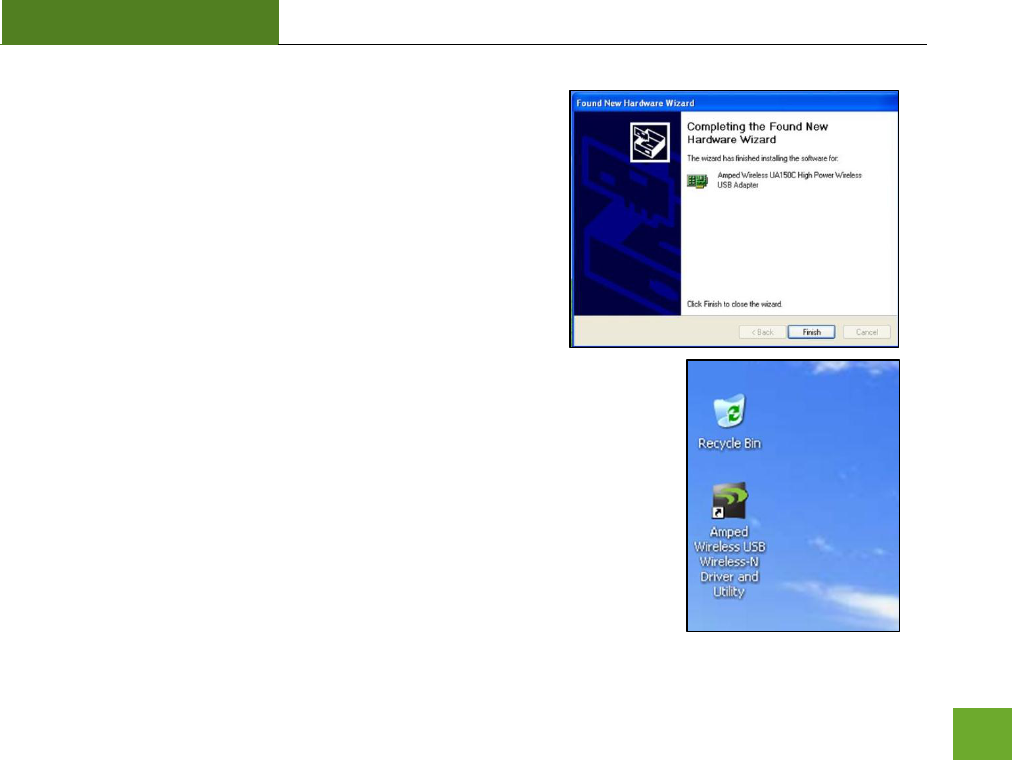

j) Completing the Found New Hardware Wizard
After the Wizard has finished installing the software for the
High Power Adapter click Finish to close the Wizard and
begin using your High Power Adapter.
k) Open the Amped Wireless Utility
Locate the Amped Wireless Utility Icon on the windows desktop and
double-click it to open.
UA600
USERS GUIDE
16
l) Connect to a Wireless Network
Click on the Available Network tab to begin scanning for
available wireless networks.
Note: Before continuing, make sure the following
checkboxes on the bottom of the Utility are NOT checked:
Disable Adapter, Radio Off and Windows Zero Config.
m) Connect to a Wireless Network
Once the Utility has finished scanning for wireless
networks, highlight your network and double-click it to
join the network.
UA600
USERS GUIDE
17

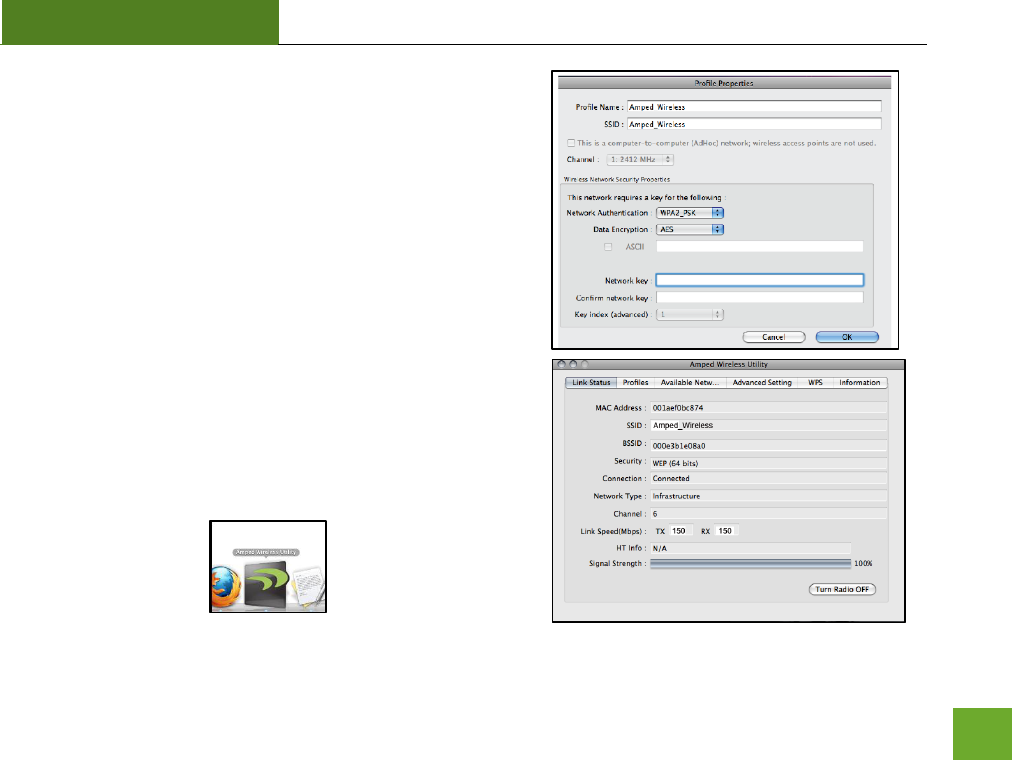

n) Connect to a Wireless Network
If the network you are attempting to connect to has
security enabled, you will need to enter the security
key here. Under Network Key, enter the key and then
confirm the key again and click OK.

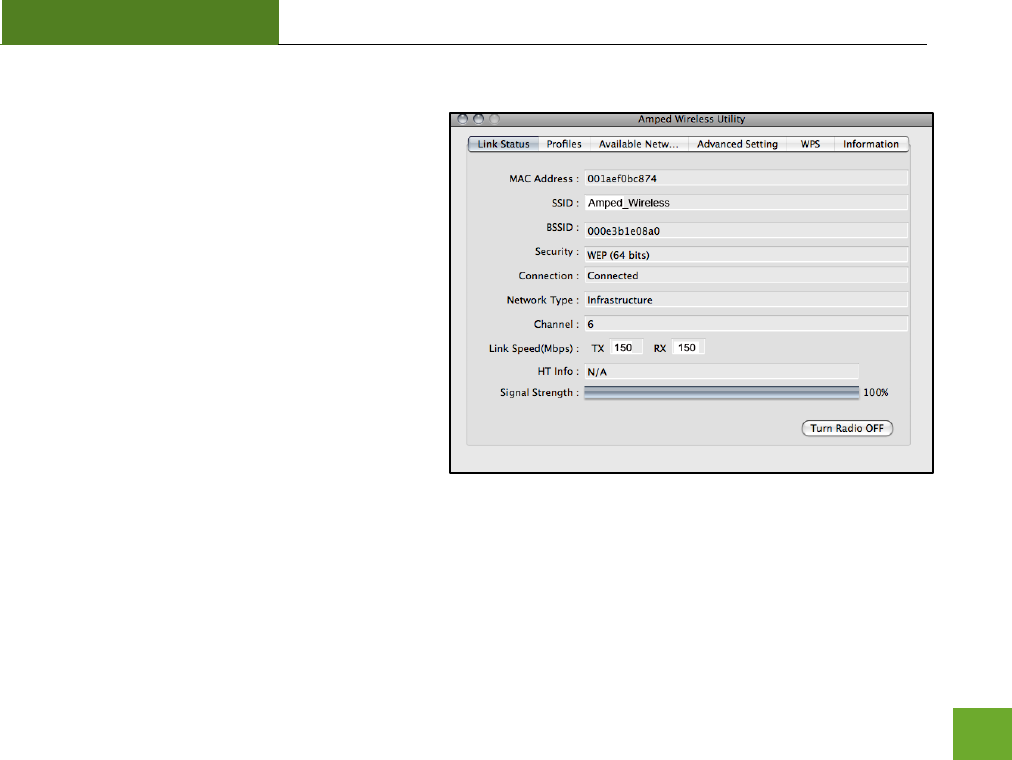

o) Connect to a Wireless Network
Congratulations, you are now successfully connected to
your wireless network. The General tab will show your
connection status and connection quality. On the
bottom right corner of your desktop the Utility will also
display your link quality so you can easily view it at
anytime.
UA600
USERS GUIDE
18
Using the Amped Wireless Utility (XP/2000)

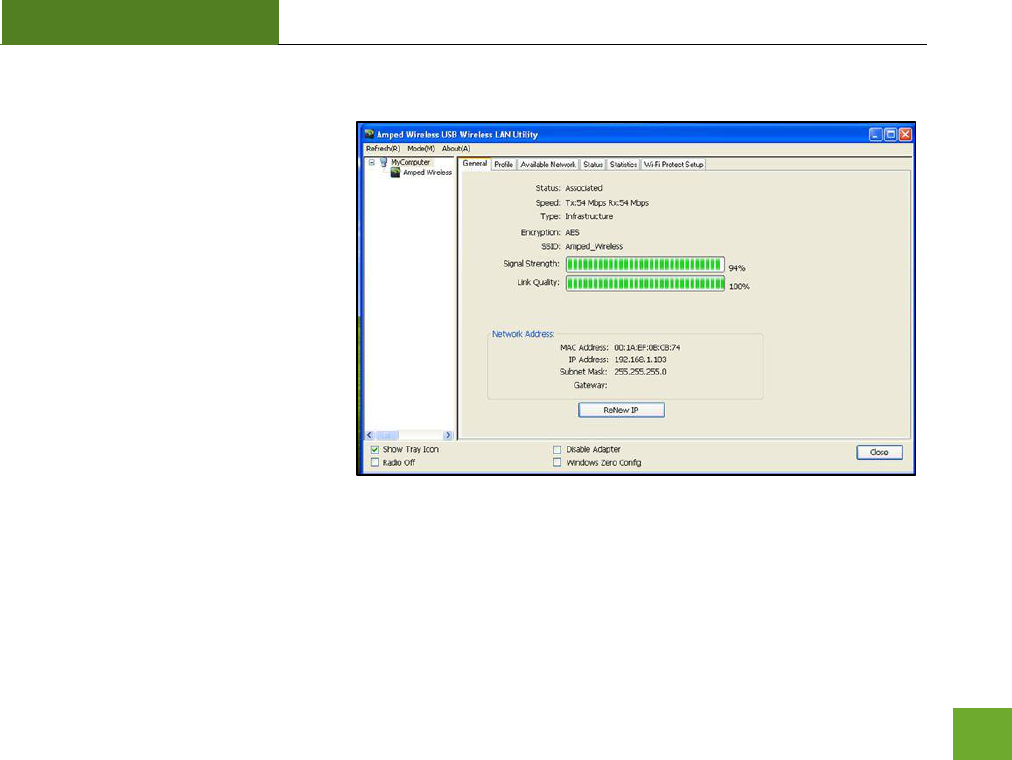

General: The General tab provides
information regarding the current
status of your High Power Adapter. If
you are connected to a wireless
network, it will display the connection
details as well as the IP address
settings.
Renew IP: Request a new IP address
from your wireless router. Use this
feature in the case where your internet
connection stops working (but you are
still connected to the wireless
network).
Windows Zero Config: If your version of Windows has a wireless utility installed, the feature will allow you to
use the Windows wireless utility instead of the Amped Wireless Utility.
UA600
USERS GUIDE
19

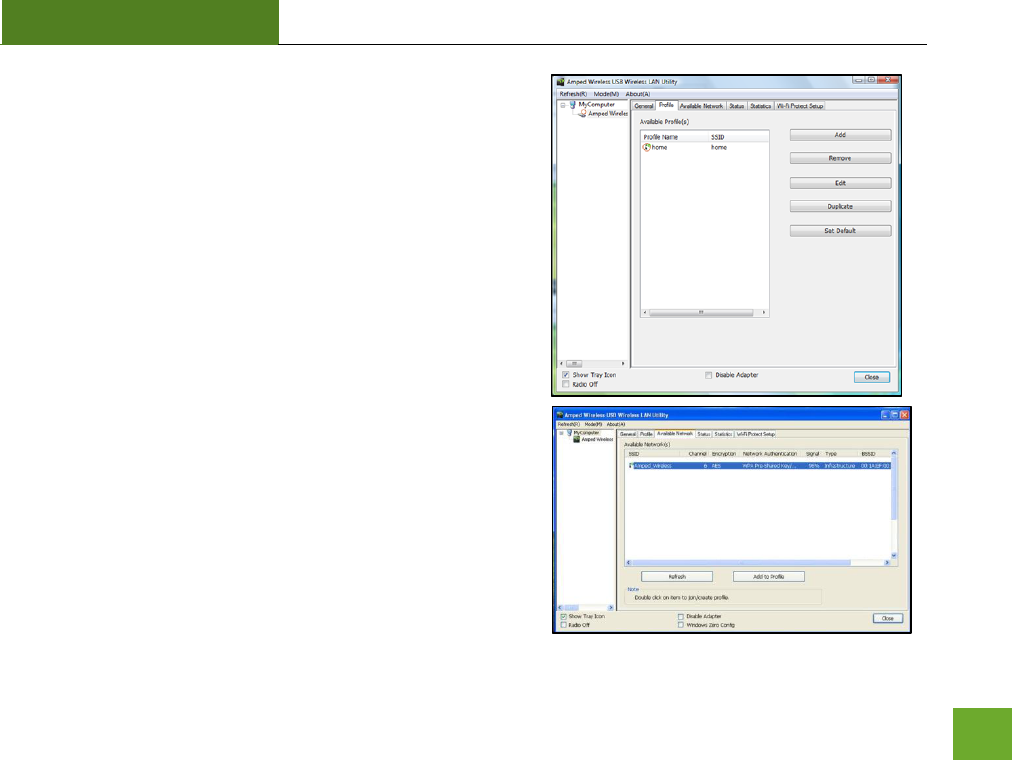

Profile: Save the settings and password to any wireless
connection by using profiles. Profiles allow you to
automatically connect to a saved wireless network whenever
you are in range of the network. Profiles can be ranked in
order of priority in the case where multiple networks are in the
same vicinity.
Available Networks: Displays the available networks within
your range. Click Refresh to rescan for networks or Add to
Profile to save the network and connect automatically the next
time the network comes in range. To simply connect to a
wireless network, highlight the network and double-click it.
UA600
USERS GUIDE
20

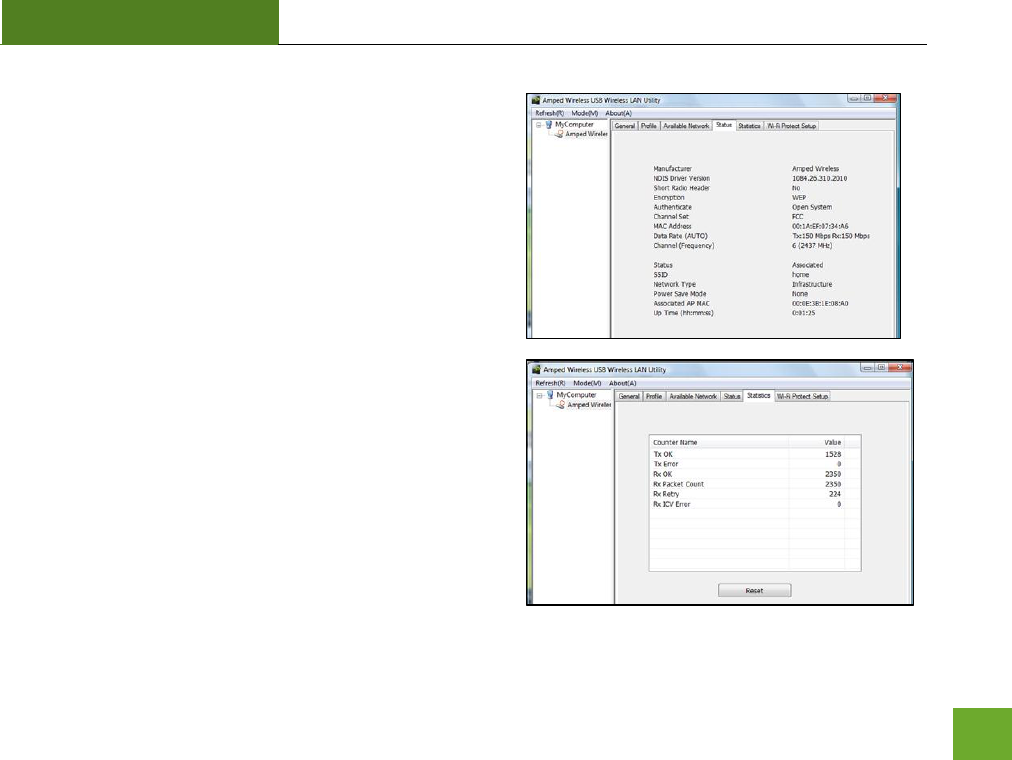

Status: The Status tab displays information regarding the
driver, current settings, connection details and other device
information.
Statistics: Displays the current data traffic information
where TX stands for transfer and RX stands for receive.
UA600
USERS GUIDE
21

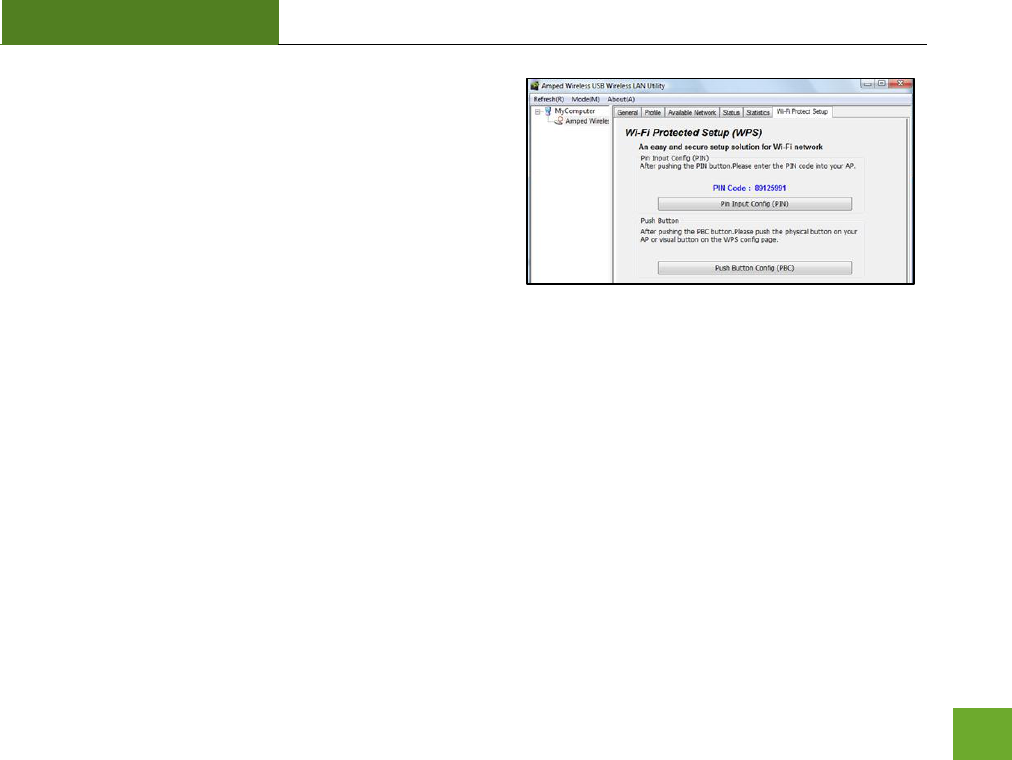

Wi-Fi Protect Setup: WPS (also known as one touch setup or
push button configuration) allows for an alternative method
to connect to a wireless network. The Amped Wireless
Utility provides two WPS methods to use: PIN code
connection or PBC (Push Button Configuration). PBC works
if your WPS enabled router designates that you push a
button on your wireless adapter to connect to the network.
This button serves as a virtual button to push when needed.
UA600
USERS GUIDE
22
Mac OS X Installation
(For OS X 10.4, 10.5 and 10.6)
a) Power on your Mac computer and Insert the Setup
CD
UA600
USERS GUIDE
23

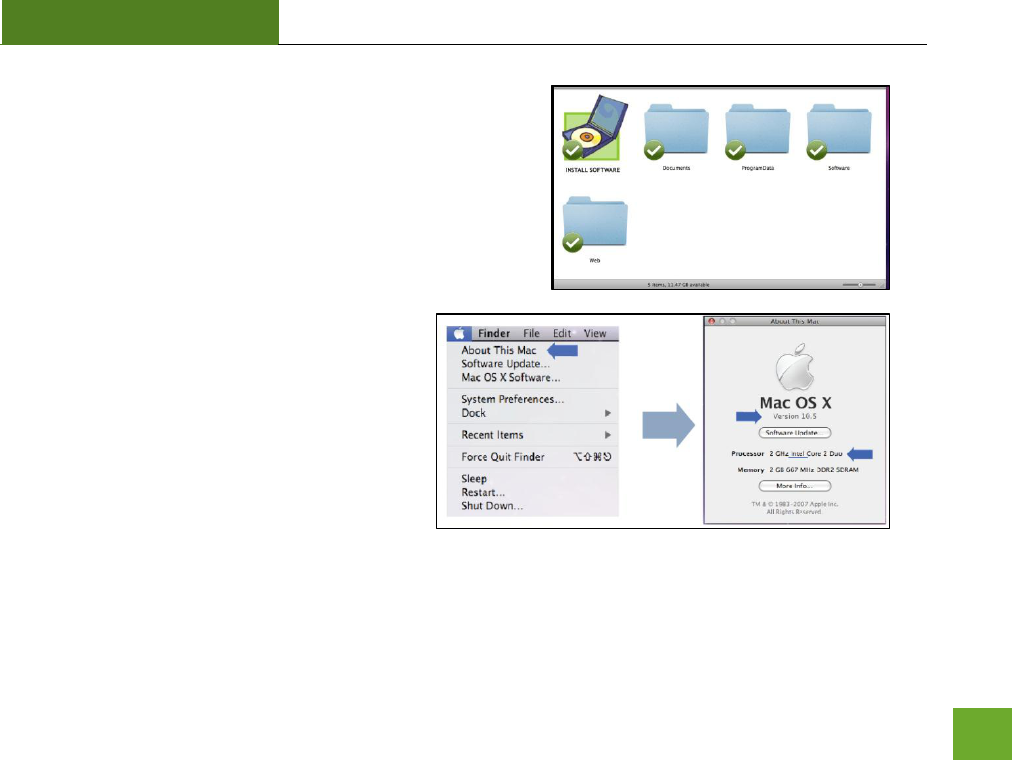

b) Access the Menu Page
From the autoload folder, click on Install Software to open
the CD Menu. If the CD menu does not load browse the CD
to find the Install Software file.
c) Find your Operating System Version
Click on the Apple Icon (upper-left corner).
Select About this Mac and note the Mac OSX
version and the processor of your Mac (Intel
or Power PC)
UA600
USERS GUIDE
24

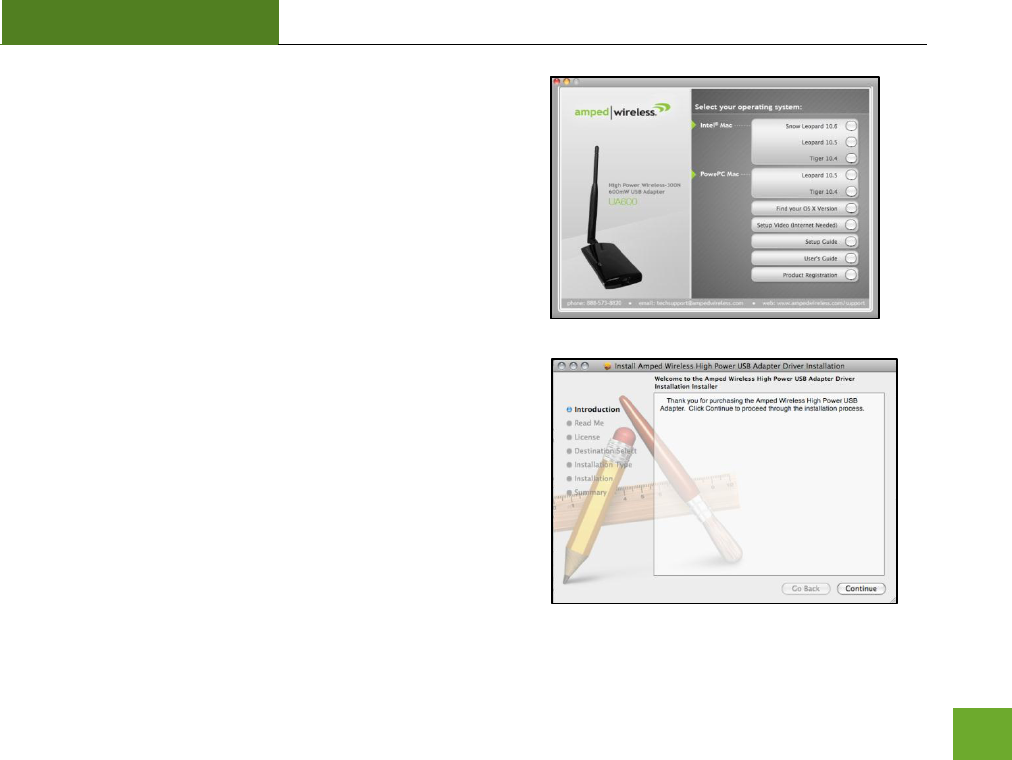

d) CD Menu: Select your Operating System
From the CD Menu, find the OS X version and processor
that matches your Mac and select it to begin installing the
software.
e) Begin the Installation
Click Continue to begin the installation.
UA600
USERS GUIDE
25

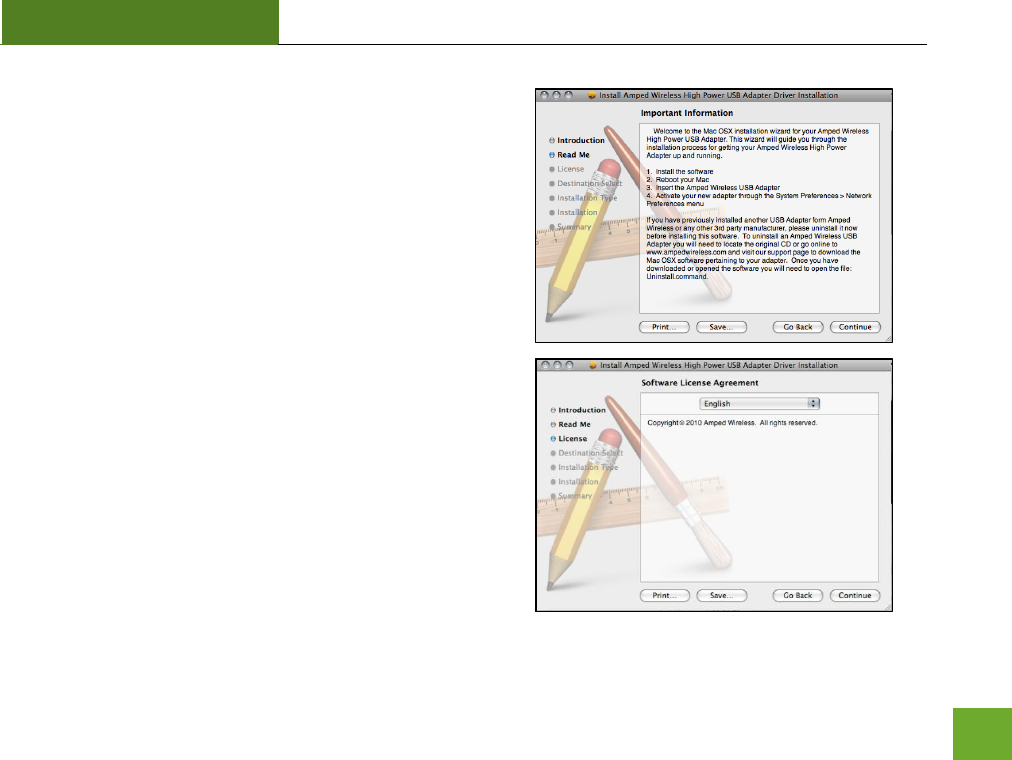

f) Continue the Installation
Click Continue to proceed with the installation.
g) Select your Installation Language
Select the language that you wish to continue the
installation in and click Continue.
UA600
USERS GUIDE
26

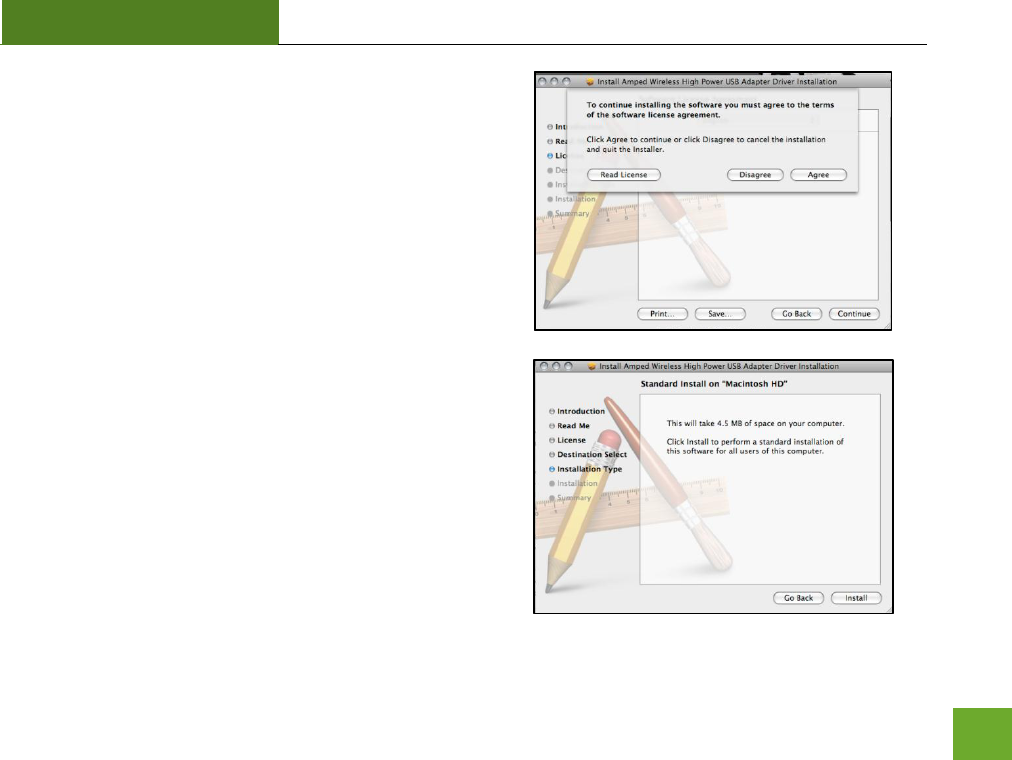

h) Continue the Installation
Click Agree to accept the software license agreement
and proceed with the installation.
Note: If prompted, select the hard drive that you wish to
install the software on and click Continue to proceed.
i) Continue the Installation
Click Install to proceed with the installation.
UA600
USERS GUIDE
27

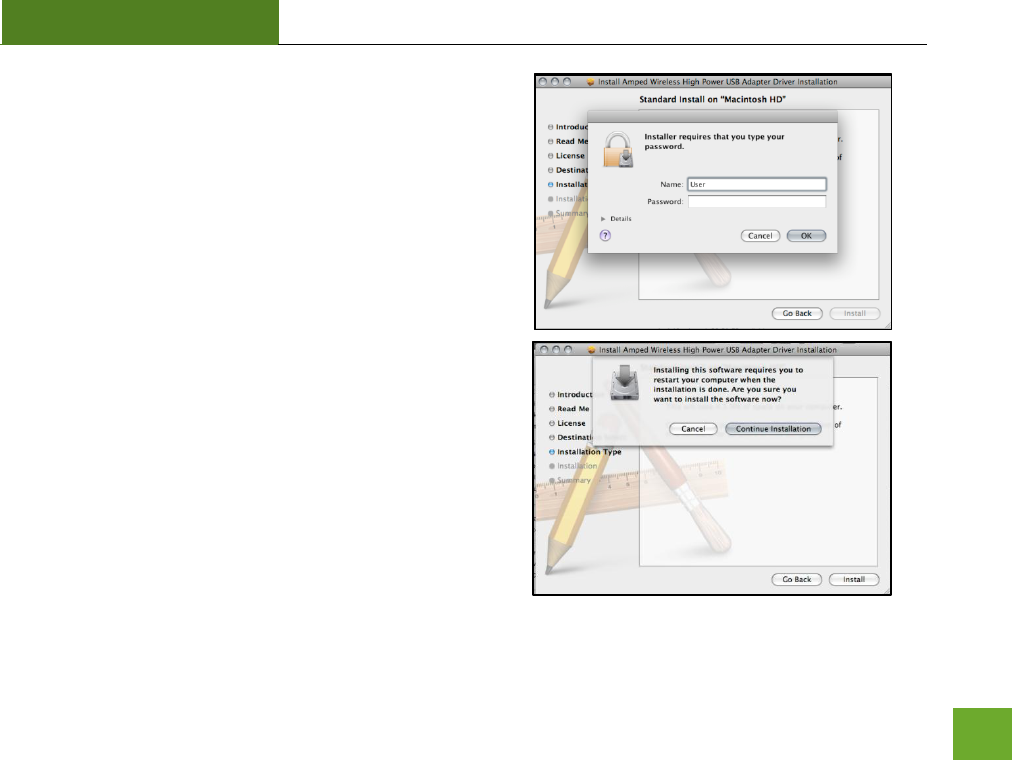

j) Enter your Password
If prompted, enter your password to allow the setup
process to install the necessary files on your Mac.
k) Continue the Installation
The installation wizard will notify you that a restart of
your Mac is necessary after the installation completes.
Click Continue Installation to proceed with the
installation.
UA600
USERS GUIDE
28

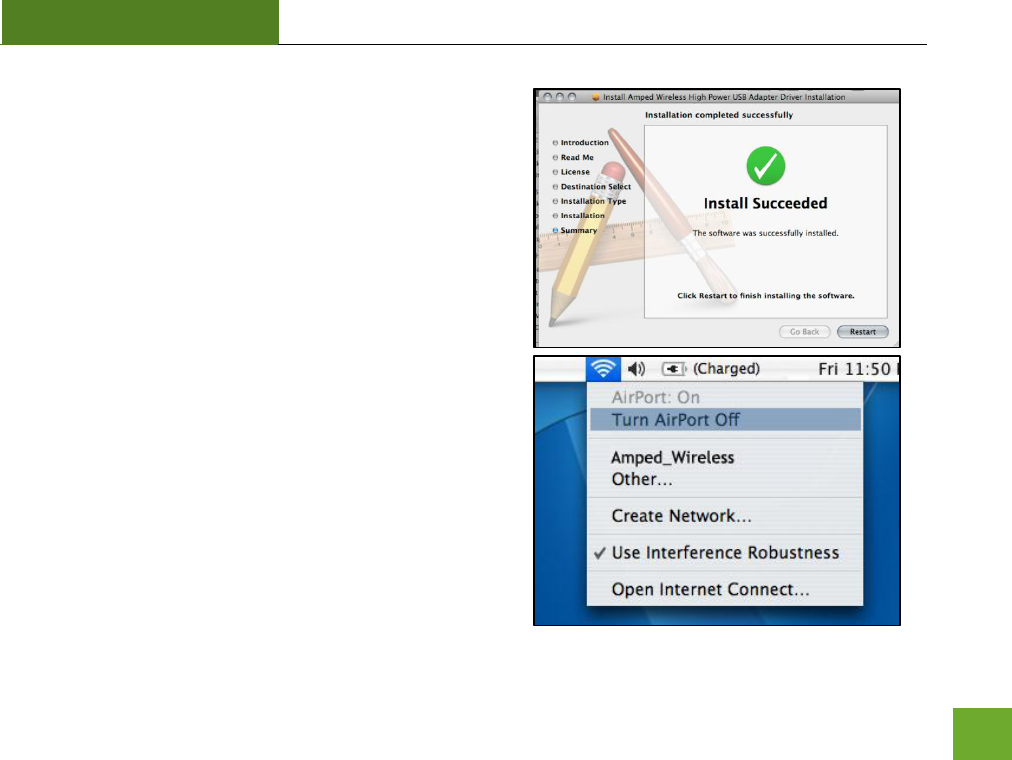

l) Restart your Computer
When the software has finished installing, you will be
prompted to restart your Mac. Click Restart to reboot
your computer.
m) Turn off your Airport Card
After the computer reboots, disable any AirPort cards
that may be installed on your Mac by selecting the
wireless icon (upper-right corner) and select Turn AirPort
Off. If you do not have an Airport Card, continue to the
next step.
UA600
USERS GUIDE
29

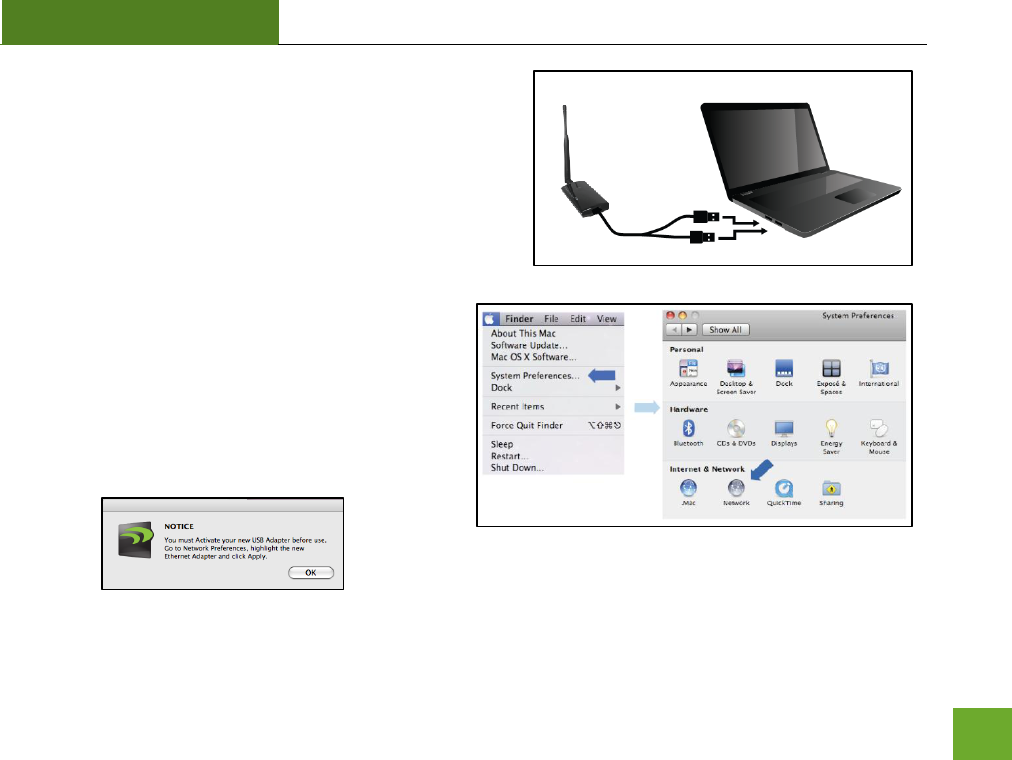

n) Insert the High Power USB Adapter
Once all Airport Cards have been disabled you may insert
the High Power USB Adapter into your USB port. Locate
two available USB ports and connect the adapter to your
computer. If only one USB port is available, only insert
the USB connector labeled Primary.
o) Activate the USB Adapter
You may be prompted to activate your USB
Adapter in Network Preferences (below).
If not, select the Apple Button (upper left corner)
and select System Preferences from the drop-
down list. From there, select Network.
UA600
USERS GUIDE
30

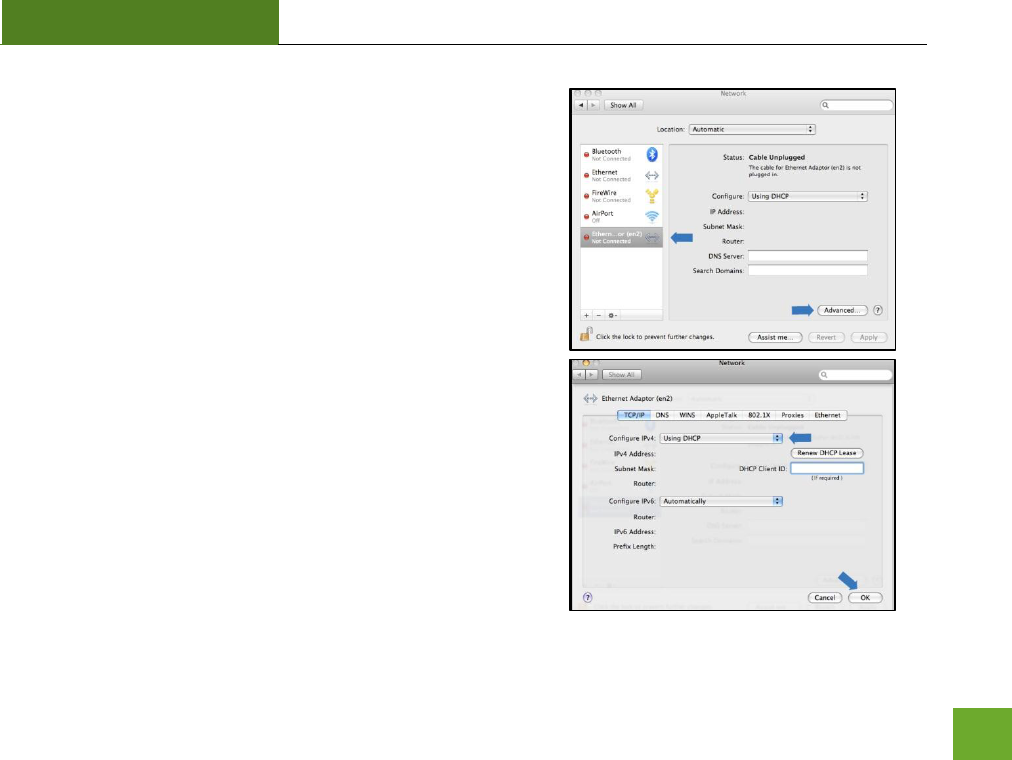

p) Activate the USB Adapter
For OSX 10.5 Leopard and OSX 10.4 Tiger ONLY:
(For OSX 10.6 Snow Leopard see next page)
Select Ethernet Adapter (en#) and click Advanced.
In the Advanced Menu, check that the adapter is Using DHCP
and then click OK.
UA600
USERS GUIDE
31

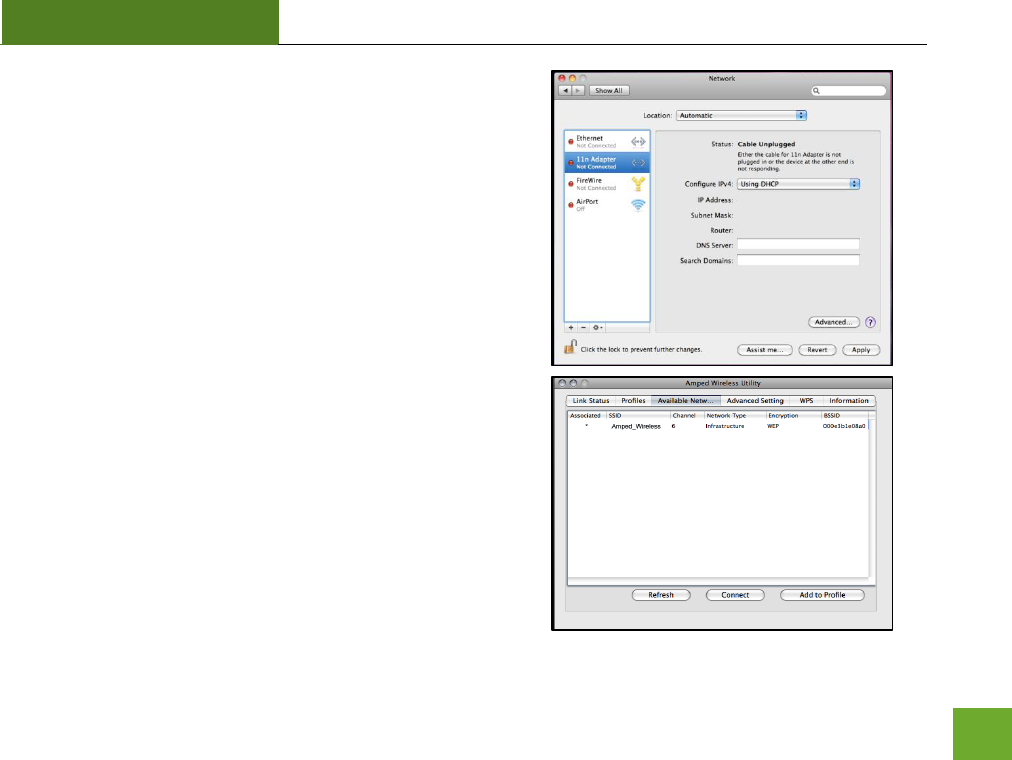

For OSX 10.6 Snow Leopard ONLY:
Select 11n Adapter and Click Apply.
q) Connect to a Wireless Network
Once your USB Adapter has been activated, the Amped
Wireless Utility should automatically load. Select the
Available Networks tab to view nearby networks.
Highlight the wireless network that you wish to connect to
and click Connect to join the network.
UA600
USERS GUIDE
32
r) Connect to a Wireless Network
If the network you are attempting to connect to has
security enabled, you will need to enter the security key
here. Under Network Key, enter the key and then confirm
the key again and click OK.
s) Connect to a Wireless Network
Congratulations, you are now successfully connected to
your wireless network. The Link Status tab will show your
connection status and connection quality. You can access
the Amped Wireless Utility at any time by selecting the
icon on your desktop. (The USB Adapter must be attached)
UA600
USERS GUIDE
33
Using the Amped Wireless Utility (Mac)
Link Status: The Link Status tab provides
information regarding the current status of your
High Power Adapter. If you are connected to a
wireless network, it will display the connection
details, security type and signal strength of your
current connection.
Turn Radio Off: If you wish to disable your wireless
connection for any reason, you may select this
button to disable the wireless radio on the High
Power Adapter.
UA600
USERS GUIDE
34

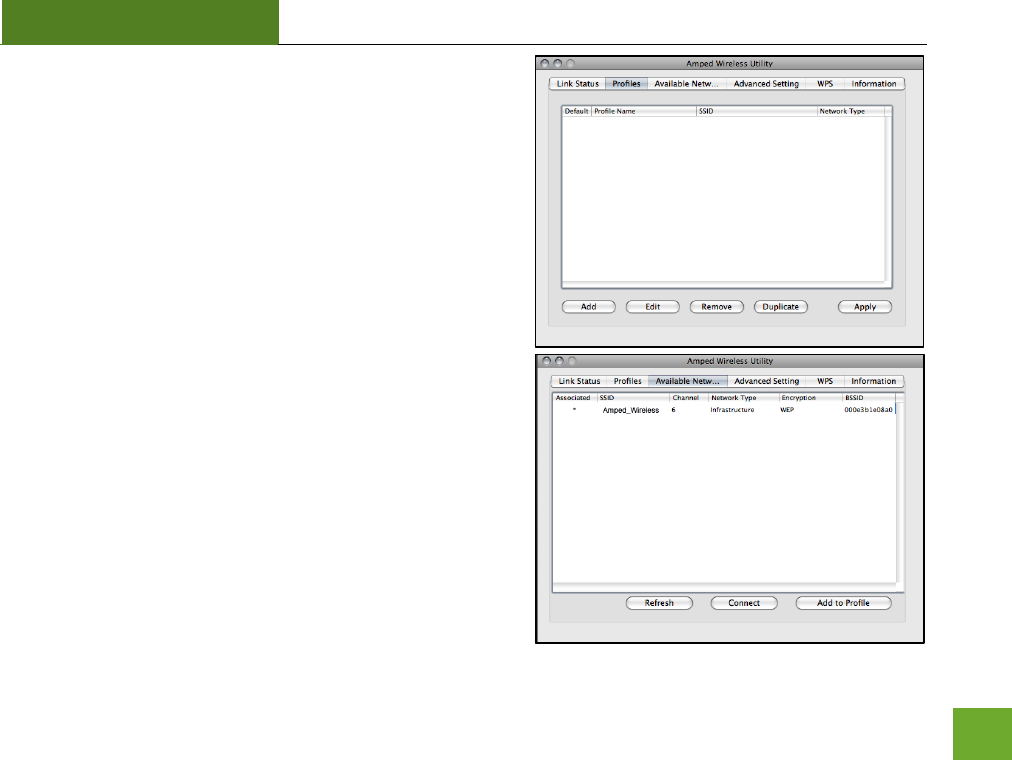

Profile: Save the settings and password to any wireless
connection by using profiles. Profiles allow you to
automatically connect to a saved wireless network whenever
you are in range of the network. Profiles can be ranked in
order of priority in the case where multiple networks are in
the same vicinity.
Available Network: Displays all the available wireless
networks within range of the High Power Adapter. To
connect, select the wireless network and click Connect. Or
save the network to a profile so that the connection is
automatically established when the High Power Adapter is in
range of the wireless network. The available network display
also provides detailed information regarding each network,
including the security or encryption type, network name
(SSID) and other additional information.
UA600
USERS GUIDE
35

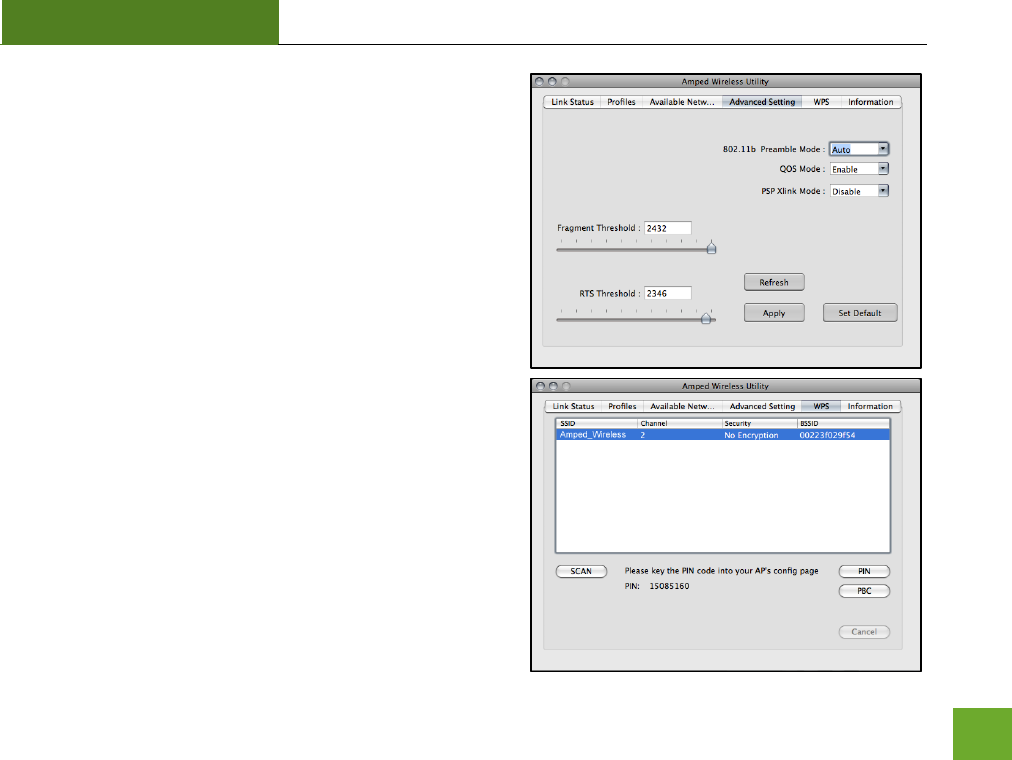

Advanced Settings: Configure advanced wireless settings for
your High Power Adapter. It is recommended that only
experienced wireless network technicians adjust these
settings.
WPS: Wi-Fi Protected Setup (also known as one touch setup
or push button configuration) allows for an alternative
method to connect to a wireless network. The Amped
Wireless Utility supports PIN code connection and PBC (Push
Button Configuration). Scan for WPS compatible wireless
networks and follow the directions to use WPS to connect.
UA600
USERS GUIDE
36
TECHNICAL SPECIFICATIONS
Wireless Standard: 802.11n, (Compatible with
802.11b/g)
Frequency Band: 2.4 GHz
Wireless Speed: 300Mbps Rx/Tx
Amplifier: Low Noise Amplifier
Wireless Sensitivity: -95dBm
Wireless Output Power: Up to 29 dBm
Antennas:
1 x Detachable High Gain 5dBi Antennas
1 x Reverse SMA Connector
Warranty: 1 Year
Setup Requirements:
PC or Mac with CD/DVD drive
Mac OSX 10.4, 10.5 or 10.6
Windows 2000, XP 32/64 bit, Vista 32/64
bit or 7 32/64 bit
100 MB of free disk space
1 Available USB 2.0 Port (2 for boosted
performance)
Available Wireless 2.4GHz 802.11b/g/n
Network
UA600
USERS GUIDE
37
TROUBLESHOOTING AND SUPPORT INFORMATION
We are here to help. If you have any issues with your High Power Wireless USB Adapter please contact us.
To contact Amped Wireless Technical Support use one of the following methods:
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
UA600
USERS GUIDE
38
Troubleshooting
The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b) etc…
I cannot get the CD menu page to appear in Windows.
a. Insert the CD into your CD drive (or DVD) and click on Start, then My Computer. Find your CD or DVD
drive and right click it, select explore or open. Find the autoload.exe file and double click it to access
the CD menu.
b. Check to see that your CD-drive is working correctly by inserting another disk first then retry the
Amped Wireless installation disk.
I cannot get the CD menu page to appear in Mac OS X.
a. Insert the CD into your CD drive (or DVD) and click on the CD icon that appears on your desktop
(normally on the upper right corner). Find the file titled Install Software and click it. The menu should
appear.
b. Check to see that your CD-drive is working correctly by inserting another disk first then retry the
Amped Wireless installation disk.
UA600
USERS GUIDE
39
No networks appear in the scan results.
a. The wireless adapter may be out of range. Double check that the antenna is secured tightly to the
adapter and scan for wireless networks again.
b. Verify that the adapter is firmly inserted into your USB drive and try to scan for networks again.
c. Check to see that the wireless network you are connecting to is functioning correctly. If possible,
locate your wireless router and see that the wireless LED is blinking correctly. If not, check the
connection and configuration of your wireless router.
d. (Mac Solution)You may need to activate your wireless adapter. Click the Apple icon, select System
Preferences, then click on Network. Highlight the adapter titled Ethernet Adaptor (en#) for OS X 10.5
and below and click Advanced, then click Apply. For OS X 10.6, select the adapter titled 11n Adapter
and click Apply. Try to scan for networks again.
e. (Windows Solution) The wireless adapter may be disabled. Go to the Start menu, select Control
Panel. Then select Device Manager and locate the Amped Wireless adapter under the Network
Adapters category. Right click the Amped Wireless adapter and check to see if it is disabled. If
disabled, enable the adapter and try to scan for networks again. If there is a problem with the driver,
it will also be displayed here. Check solution (f) to solve this issue.
UA600
USERS GUIDE
40
f. Uninstall the software by clicking Start, then select Control Panel, then select Programs. Find the
Amped Wireless program and uninstall it. Once fully uninstalled, remove the adapter from your USB
port, reinstall the Amped Wireless software using the supplied instructions and try again.
The Activity LED does not come on and nothing happens when the adapter is plugged in.
a. If the LED is not on, this means the adapter does not have power or is installed incorrectly. Verify that
the adapter is firmly inserted into your USB drive and try to scan for networks again.
b. Unplug the USB adapter from the USB port and plug it back in firmly. Re-scan for wireless networks.
c. (Mac Solution)You may need to activate your wireless adapter. Click the Apple icon, select System
Preferences, then click on Network. Highlight the adapter titled Ethernet Adaptor (en#) for OS X 10.5
and below and click Advanced, then click Apply. For OS X 10.6, select the adapter titled 11n Adapter
and click Apply. Try to scan for networks again.
d. (Windows Solution) The wireless adapter may be disabled. Go to the Start menu, select Control
Panel. Then select Device Manager and locate the Amped Wireless adapter under the Network
Adapters category. Right click the Amped Wireless adapter and check to see if it is disabled. If
disabled, enable the adapter and try to scan for networks again. If there is a problem with the driver,
it will also be displayed here. Check solution (e) to solve this issue.
UA600
USERS GUIDE
41
e. Uninstall the software by clicking Start, then select Control Panel, then select Programs. Find the
Amped Wireless program and uninstall it. Once fully uninstalled, remove the adapter from your USB
port, reinstall the Amped Wireless software using the supplied instructions and try again.
The Activity LED is blinking but I cannot access the Internet.
a. You may have a mismatch in your SSID or your wireless security key. Double check the security key
that you are using for your current wireless connection. Double check that the name of the SSID is
the correct name of the network you are trying to connect to.
b. You may have an incorrect IP address assignment.
For Windows XP and 2000: Open the Amped Wireless Utility and go to the General tab. Click
Renew IP.
For Windows 7 and Vista: Open the Windows wireless utility by clicking the wireless icon on the
bottom right corner. Right click the wireless network that you are connected to and click Status.
Click diagnose to allow Windows to reset your connection
For Mac OS X: Open the Amped Wireless Utility and disconnect from your current network. Wait
a few moments and connect again. If this does not work, unplug the USB adapter from your Mac
and plug it back in. Connect to your network again and check your Internet connection.
UA600
USERS GUIDE
42
c. The wireless router that you are connecting to may have lost its internet connection. If possible,
check the connection between your router and the ISP.
I have a dual-band wireless router and I cannot connect to it.
Log into the Web Menu for your dual-band wireless router and adjust the wireless settings. Change
the wireless band to mixed mode 2.4GHz and 5GHz or 2.4GHz only.
The connection seems slow or the utility states a slow connection (54Mbps or lower)
a. You may be far from your wireless router. Try moving closer and checking your speeds again.
Wireless speed degrades as you move further away from the wireless router.
b. The wireless router you are connected to may not support 802.11n speeds. Check the speed of your
wireless router. Make sure it is an 802.11n router.
c. The wireless router may not be configured for full 802.11n speeds. Check the current wireless
settings on your router to ensure that it is in 802.11n mode.
d. There may be many wireless users on your network. Check that your wireless network is not
congested with wireless users.
e. Users on your wireless network may be utilizing the available bandwidth. Other users may be using
data intensive applications such as media streaming, downloading large files and gaming.
UA600
USERS GUIDE
43
f. If you have an original wireless adapter or Ethernet adapter that may be causing problems with your
wireless connection or making your wireless connection slow. To disable it:
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters
locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click
the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn Airport
Off.
The wireless signal strength is poor
a. You may be far from your wireless router. Try moving closer and checking your signal strength again.
Wireless signal strength degrades as you move further away from the wireless router.
b. Your wireless environment, home or office may have objects that cause wireless interference.
Obstructions such as walls, metal appliances, microwaves among other things may cause wireless
signal strength to degrade. Try to use the wireless adapter and your wireless router away from these
objects.
c. The channel of your wireless network may be congested. Change the channel of your wireless
network by configuring the settings on your wireless router.
UA600
USERS GUIDE
44
d. If you have an original wireless adapter or Ethernet adapter that may be causing problems with your
wireless connection or making your wireless connection slow. To disable it:
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters
locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click
the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn Airport
Off.
The Windows wireless utility states that my wireless connection has “limited connectivity”
a. You may have an incorrect IP address assignment.
For Windows XP and 2000: Open the Amped Wireless Utility and go to the General tab. Click
Renew IP.
For Windows 7 and Vista: Open the Windows wireless utility by clicking the wireless icon on the
bottom right corner. Right click the wireless network that you are connected to and click Status.
Click diagnose to allow Windows to reset your connection
UA600
USERS GUIDE
45
I have connection problems or unstable wireless performance and I have a built in wireless adapter or an
Ethernet adapter on my computer.
a. If you feel that your original wireless adapter or Ethernet adapter is causing problems with your
wireless connection or making your wireless connection slow you may need to disable your original
adapter.
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters
locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click
the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn Airport
Off.
Wi-Fi Protected Setup (WPS) is not working. Push button configuration does not detect the connection.
a. The wireless adapter supports WPS connections however some companies may use proprietary code
for their own push button configurations. Try connecting using the Windows wireless utility or Mac
wireless utility instead.
UA600
USERS GUIDE
46
WARRANTY AND REGULATORY INFORMATION
The Amped Wireless (A division of Newo Corporation, Inc.) Limited Warranty
Warranty Period: The Amped Wireless Limited Warranty is for one (1) year from the date of purchase for new
products. Refurbished products carry the Limited Warranty for thirty (30) days after the date of purchase.
Guarantee: Amped Wireless warrants to the original purchaser that the hardware of this Amped Wireless
product shall be free of defects in design, assembly, material, or workmanship.
Conditions: The Amped Wireless Limited Warranty is for repair or replacement only at the sole discretion of
Amped Wireless. Amped Wireless does not issue any refunds for purchased product. In the event that Amped
Wireless is unable to repair or replace a product (i.e. discontinued product), Amped Wireless will offer a credit
toward the purchase of a similar product of equal or lesser value direct from Amped Wireless. Any repaired or
replacement products will be warranted for the remainder of the original Warranty Period or thirty (30) days,
whichever is longer. Amped Wireless reserves the right to discontinue any of its products without notice, and
disclaims any limited warranty to repair or replace any such discontinued product. Amped Wireless reserves
the right to revise or make changes to this product, its documentation, packaging, specifications, hardware,
and software without notice. If any portion of the Amped Wireless Limited Warranty is found to be
unenforceable, its remaining provisions shall remain in effect. All costs of shipping the product to Amped
Wireless shall be borne solely by the purchaser.
UA600
USERS GUIDE
47
Limitations: IN NO EVENT SHALL AMPED WIRELESS’ (NEWO CORPORATION’S) LIABILITY EXCEED THE AMOUNT
PAID BY YOU FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, ACCESSORIES OR
ITS DOCUMENTATION. The Amped Wireless Limited Warranty does not apply if: (a) the product assembly has
been opened or damaged, (b) the product or its software or firmware has been altered or modified, (c) the
product has not been used and installed in accordance to Amped Wireless’ instructions, (d) the product has
been subjected to misuse, or negligence. Amped Wireless does not guarantee the continued availability of a
third party’s service for which this product’s use or operation may require. The Amped Wireless Limited
Warranty does not protect against acts of God, vandalism, theft, normal wear and tear, obsolescence and
environmental damages such as, but not limited to, weather and electrical disturbances. The Amped Wireless
Limited Warranty is the sole warranty for this product. There are no other warranties, expressed or, except
required by law, implied, including the implied warranty or condition of quality, performance merchantability,
or fitness for any particular purpose.
How to Claim Warranty: In the event that you have a problem with this product, please go to
www.ampedwireless.com/support to find help on solving your problem. In the event that you cannot and
need to file a warranty claim, please call Amped Wireless’ Customer Service or visit
www.ampedwirleess.com/support to fill out a Return Authorization (RMA) form and obtain a Return
Authorization (RMA) number. A dated proof of original purchase and the RMA number is required to process
UA600
USERS GUIDE
48
warranty claims. You are responsible for properly packaging and shipping the product at your cost and risk to
Amped Wireless. The bearer of cost related to shipping repaired or replaced product back to the purchaser
will be at the sole discretion of Amped Wireless and determined based on the details of each RMA case.
Customers outside of the United States of America are responsible for all shipping and handling costs including
custom duties, taxes and all other related charges.
Technical Support: The Amped Wireless Limited Warranty is not related to the terms, conditions and policies
of Amped Wireless’ Technical Support offerings. For questions regarding support, please contact
techsupport@ampedwireless.com.
UA600
USERS GUIDE
49
Regulatory Information
FCC Statement and Declaration: Amped Wireless declares that this device complies with Part 15 of the FCC
Rules and Regulations. Operation of this device is subject to the following two (2) conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Notice: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and the receiver.
UA600
USERS GUIDE
50
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution and Safety Notices: Any changes or modifications (including the antennas) made to this device
that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter. Avoid use of this product near water or during an electrical storm as there may be a remote risk
of electrical shock from lighting. This product may contain lead, known to the State of California to cause
cancer, and birth defects or other reproductive harm. Wash hands after handling. This device must always be
used with a Listed Computer or device.
FCC Radiation Exposure Statement (SAR):
(1) This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
(2) This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
UA600
USERS GUIDE
51
End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain
compliance with FCC RF exposure compliance requirements, please follow operation instructions as
documented in this manual.
SAR compliance has been established in typical laptop computer(s) with USB slot, and this product could be
used in typical laptop computer(s) with USB slot. Other applications like handheld PC or similar device have
not been verified and may not be in compliance with related RF exposure rule and such use shall be
prohibited.
UA600
USERS GUIDE
52
Industry Canada Statement: This Class B digital apparatus complies with RSS-210 and ICES-003 of the Industry
Canada Rules. Operation of this device is subject to the following two (2) conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
The transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
UA600
USERS GUIDE
53
Déclaration d’Industrie Canada : Cet appareil numérique de classe B est conforme aux réglementations RSS-
210 et ICES-003 d’Industrie Canada. Le fonctionnement de cet appareil est sujet aux deux conditions suivantes:
(1) Cet appareil ne peut pas causer de brouillage préjudiciable
(2) Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un
dysfonctionnement.
Déclaration d’exposition à la radiation : Cet équipement respecte les limites d’exposition aux rayonnements
IC définies pour un environnement non contrôlé. Cet équipement doit être installé et mis en marche à une
distance minimale de 20 cm qui sépare l’élément rayonnant de votre corps.
L’émetteur ne doit ni être utilisé avec une autre antenne ou un autre émetteur ni se trouver à leur proximité.
Amped Wireless
A Division of Newo Corporation
Copyright © 2011 Amped Wireless / Newo Corporation. All rights reserved.
Amped Wireless, Newo Corporation, the Amped Wireless Logo are registered trademarks or trademarks of Newo Corporation.
888-573-8820
techsupport@ampedwireless.com
www.ampedwireless.com
tech support
e-mail
web
