TheSPTOperatorManualSmartPanelTechnology

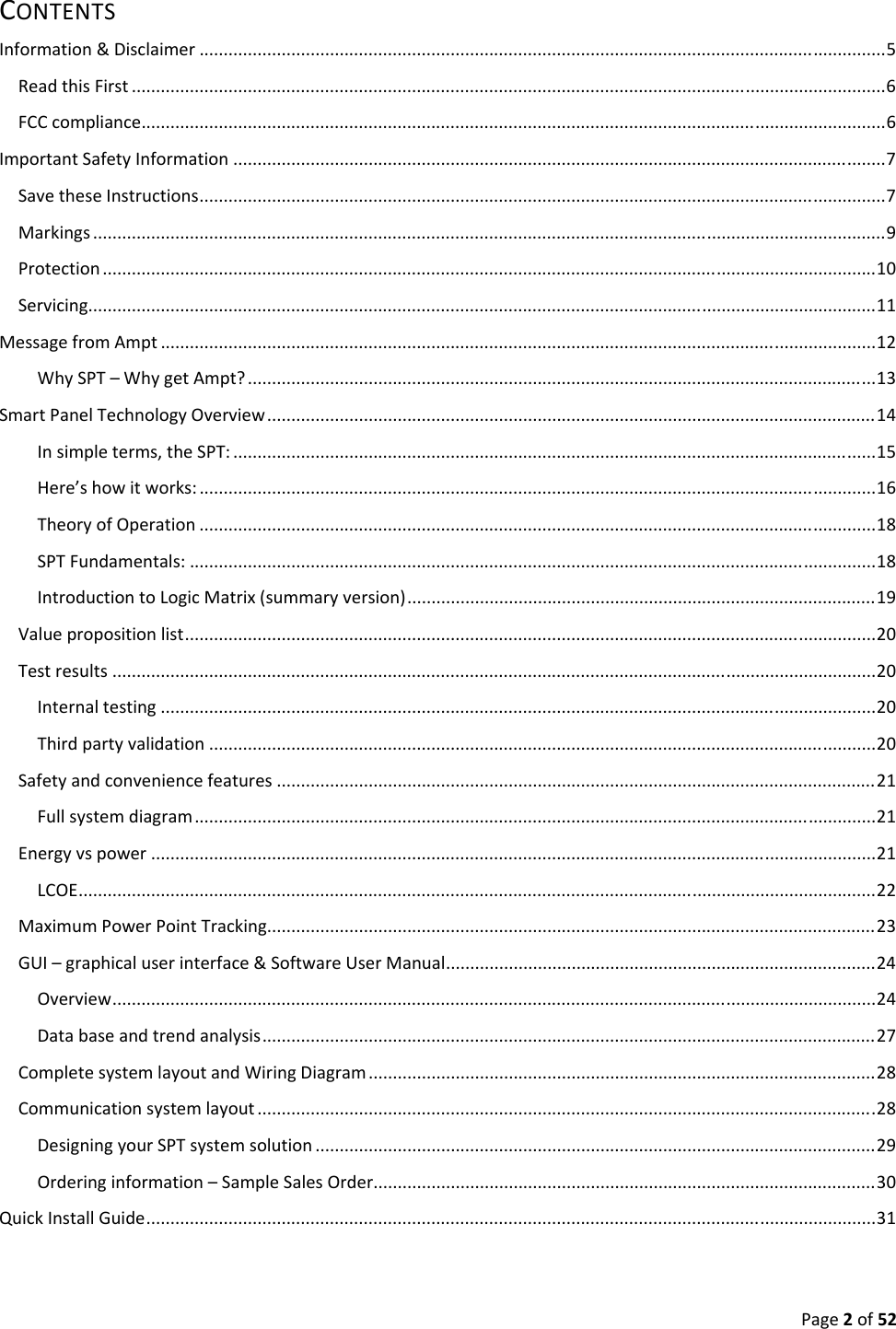

Page2of52CONTENTSInformation&Disclaimer..............................................................................................................................................5ReadthisFirst............................................................................................................................................................6FCCcompliance..........................................................................................................................................................6ImportantSafetyInformation.......................................................................................................................................7SavetheseInstructions..............................................................................................................................................7Markings....................................................................................................................................................................9Protection................................................................................................................................................................10Servicing...................................................................................................................................................................11MessagefromAmpt....................................................................................................................................................12WhySPT–WhygetAmpt?..................................................................................................................................13SmartPanelTechnologyOverview..............................................................................................................................14Insimpleterms,theSPT:.....................................................................................................................................15Here’showitworks:............................................................................................................................................16TheoryofOperation............................................................................................................................................18SPTFundamentals:..............................................................................................................................................18IntroductiontoLogicMatrix(summaryversion).................................................................................................19Valuepropositionlist...............................................................................................................................................20Testresults..............................................................................................................................................................20Internaltesting....................................................................................................................................................20Thirdpartyvalidation..........................................................................................................................................20Safetyandconveniencefeatures............................................................................................................................21Fullsystemdiagram.............................................................................................................................................21Energyvspower......................................................................................................................................................21LCOE.....................................................................................................................................................................22MaximumPowerPointTracking..............................................................................................................................23GUI–graphicaluserinterface&SoftwareUserManual.........................................................................................24Overview..............................................................................................................................................................24Databaseandtrendanalysis...............................................................................................................................27CompletesystemlayoutandWiringDiagram.........................................................................................................28Communicationsystemlayout................................................................................................................................28DesigningyourSPTsystemsolution....................................................................................................................29Orderinginformation–SampleSalesOrder........................................................................................................30QuickInstallGuide.......................................................................................................................................................31

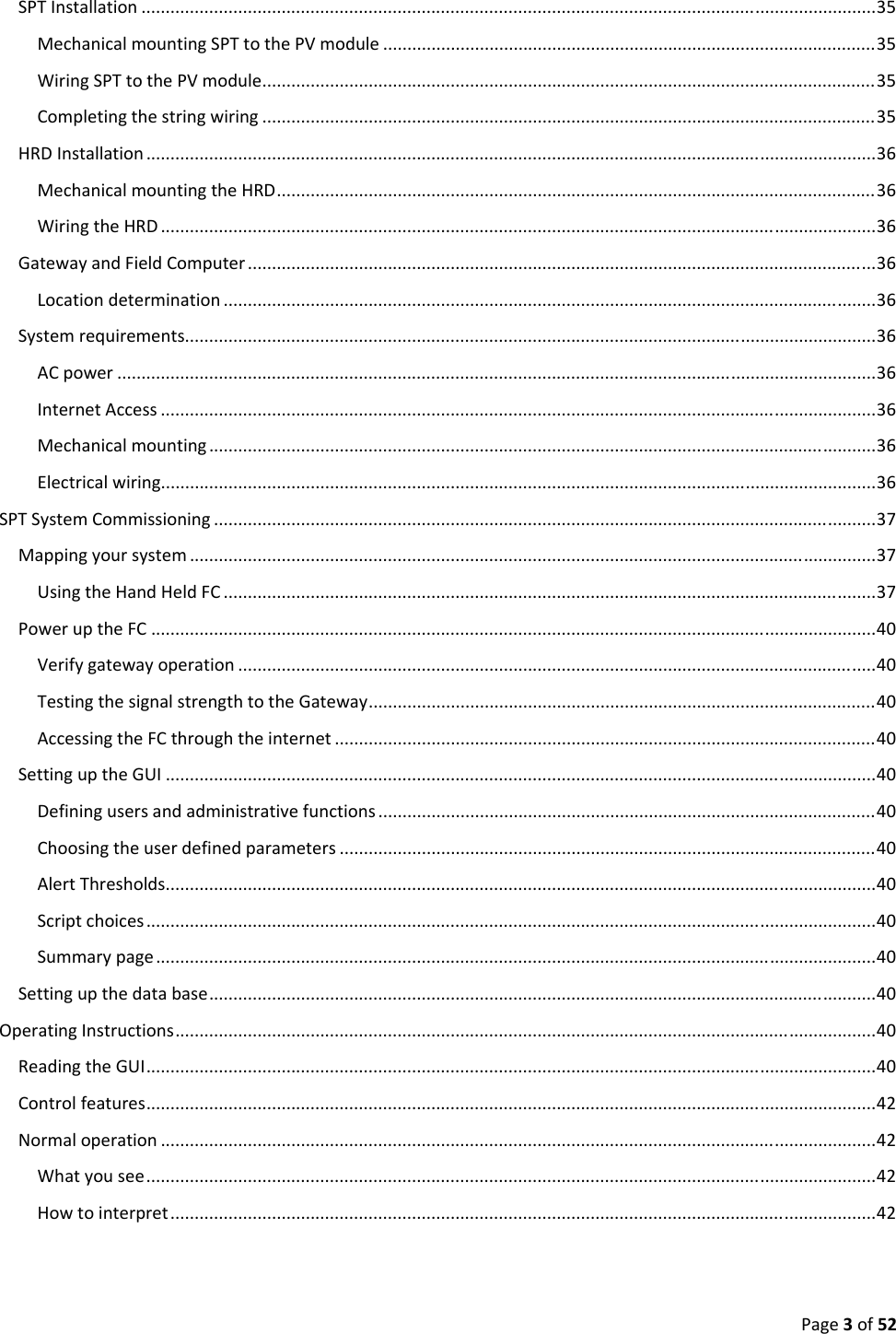

Page3of52SPTInstallation........................................................................................................................................................35MechanicalmountingSPTtothePVmodule......................................................................................................35WiringSPTtothePVmodule...............................................................................................................................35Completingthestringwiring...............................................................................................................................35HRDInstallation.......................................................................................................................................................36MechanicalmountingtheHRD............................................................................................................................36WiringtheHRD....................................................................................................................................................36GatewayandFieldComputer..................................................................................................................................36Locationdetermination.......................................................................................................................................36Systemrequirements...............................................................................................................................................36ACpower.............................................................................................................................................................36InternetAccess....................................................................................................................................................36Mechanicalmounting..........................................................................................................................................36Electricalwiring....................................................................................................................................................36SPTSystemCommissioning.........................................................................................................................................37Mappingyoursystem..............................................................................................................................................37UsingtheHandHeldFC.......................................................................................................................................37PoweruptheFC......................................................................................................................................................40Verifygatewayoperation....................................................................................................................................40TestingthesignalstrengthtotheGateway.........................................................................................................40AccessingtheFCthroughtheinternet................................................................................................................40SettinguptheGUI...................................................................................................................................................40Definingusersandadministrativefunctions.......................................................................................................40Choosingtheuserdefinedparameters...............................................................................................................40AlertThresholds...................................................................................................................................................40Scriptchoices.......................................................................................................................................................40Summarypage.....................................................................................................................................................40Settingupthedatabase..........................................................................................................................................40OperatingInstructions.................................................................................................................................................40ReadingtheGUI.......................................................................................................................................................40Controlfeatures.......................................................................................................................................................42Normaloperation....................................................................................................................................................42Whatyousee.......................................................................................................................................................42Howtointerpret..................................................................................................................................................42

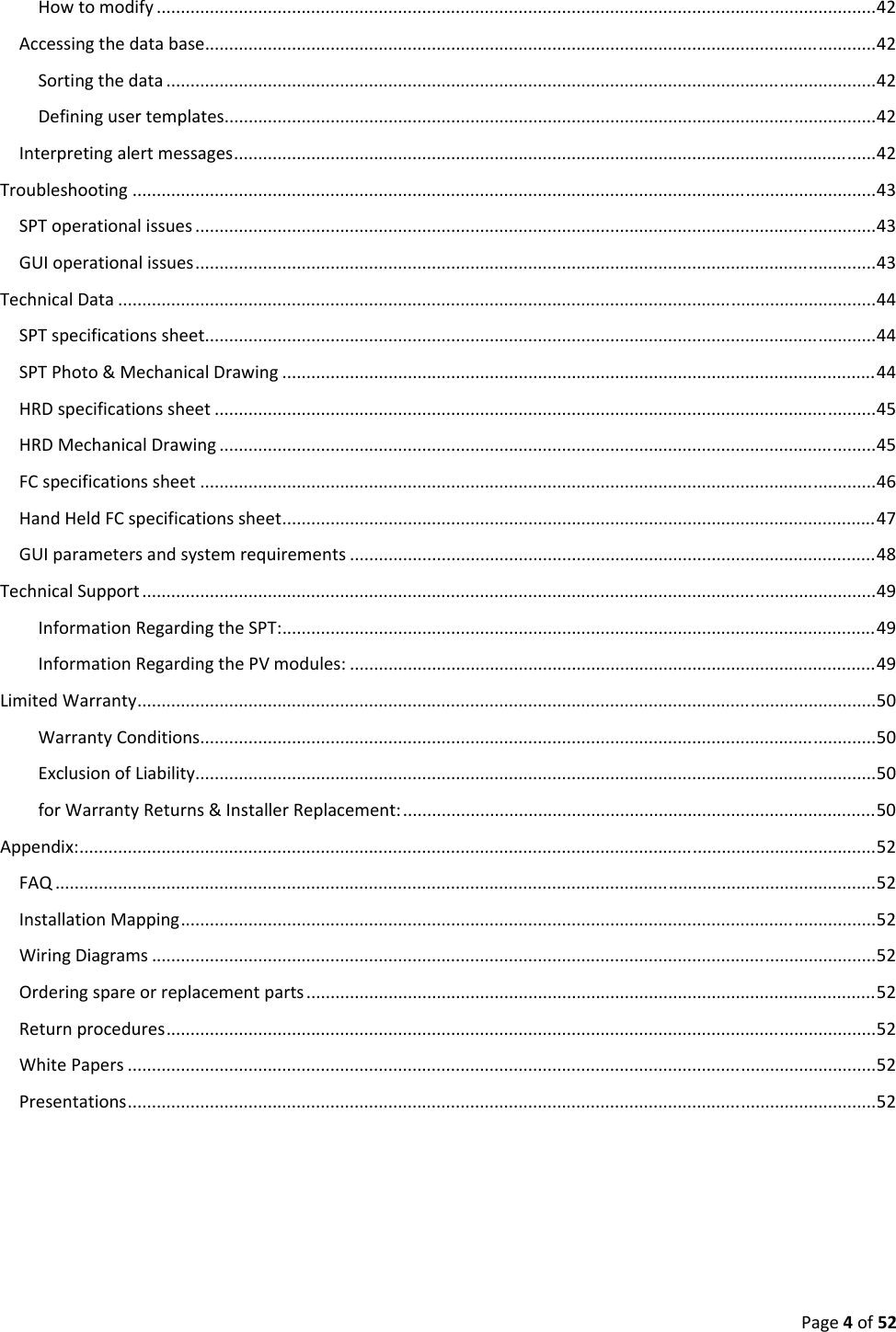

Page4of52Howtomodify.....................................................................................................................................................42Accessingthedatabase...........................................................................................................................................42Sortingthedata...................................................................................................................................................42Definingusertemplates.......................................................................................................................................42Interpretingalertmessages.....................................................................................................................................42Troubleshooting..........................................................................................................................................................43SPToperationalissues.............................................................................................................................................43GUIoperationalissues.............................................................................................................................................43TechnicalData.............................................................................................................................................................44SPTspecificationssheet...........................................................................................................................................44SPTPhoto&MechanicalDrawing...........................................................................................................................44HRDspecificationssheet.........................................................................................................................................45HRDMechanicalDrawing........................................................................................................................................45FCspecificationssheet............................................................................................................................................46HandHeldFCspecificationssheet...........................................................................................................................47GUIparametersandsystemrequirements.............................................................................................................48TechnicalSupport........................................................................................................................................................49InformationRegardingtheSPT:...........................................................................................................................49InformationRegardingthePVmodules:.............................................................................................................49LimitedWarranty.........................................................................................................................................................50WarrantyConditions............................................................................................................................................50ExclusionofLiability.............................................................................................................................................50forWarrantyReturns&InstallerReplacement:..................................................................................................50Appendix:.....................................................................................................................................................................52FAQ..........................................................................................................................................................................52InstallationMapping................................................................................................................................................52WiringDiagrams......................................................................................................................................................52Orderingspareorreplacementparts......................................................................................................................52Returnprocedures...................................................................................................................................................52WhitePapers...........................................................................................................................................................52Presentations...........................................................................................................................................................52

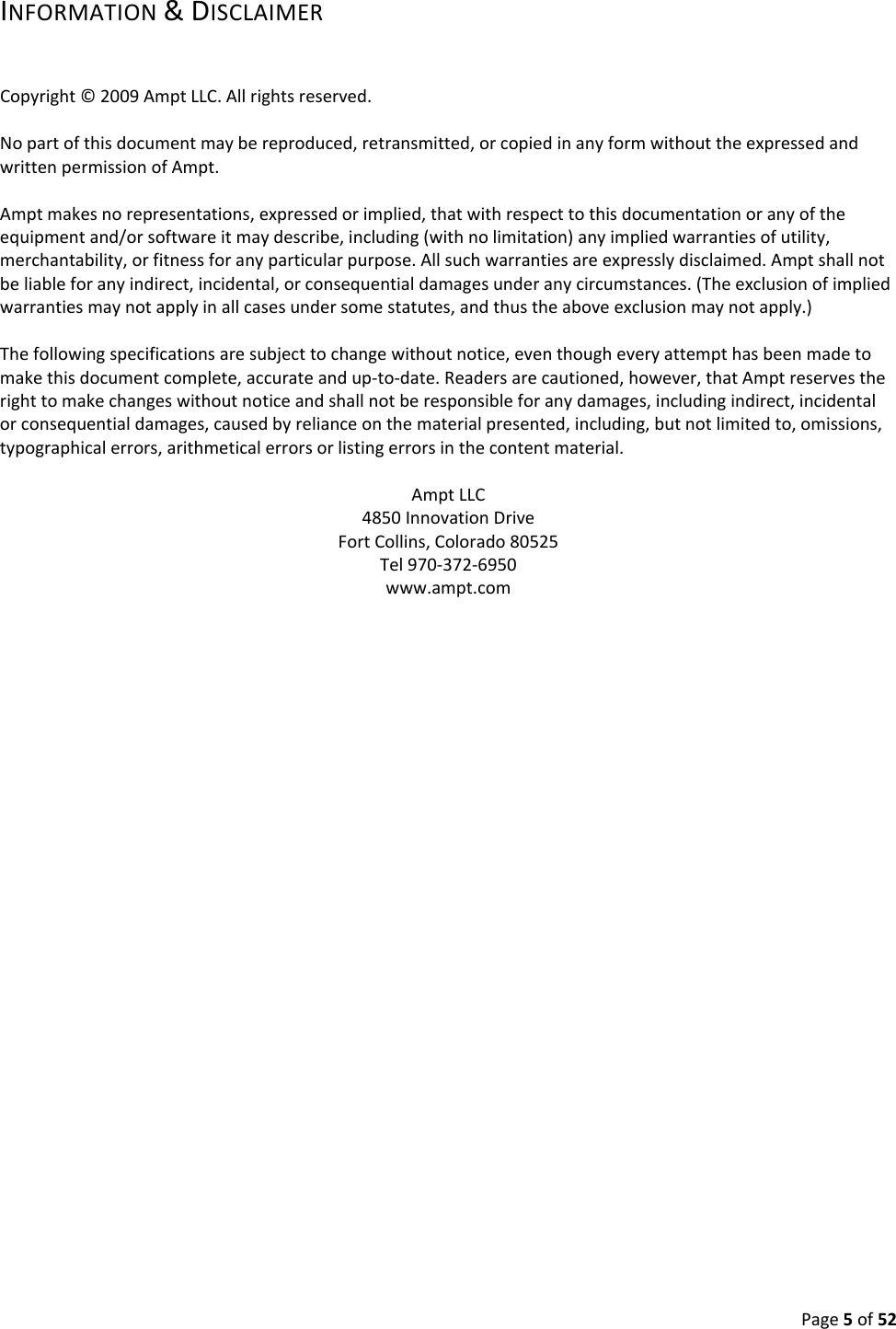

Page5of52INFORMATION&DISCLAIMERCopyright©2009AmptLLC.Allrightsreserved.Nopartofthisdocumentmaybereproduced,retransmitted,orcopiedinanyformwithouttheexpressedandwrittenpermissionofAmpt.Amptmakesnorepresentations,expressedorimplied,thatwithrespecttothisdocumentationoranyoftheequipmentand/orsoftwareitmaydescribe,including(withnolimitation)anyimpliedwarrantiesofutility,merchantability,orfitnessforanyparticularpurpose.Allsuchwarrantiesareexpresslydisclaimed.Amptshallnotbeliableforanyindirect,incidental,orconsequentialdamagesunderanycircumstances.(Theexclusionofimpliedwarrantiesmaynotapplyinallcasesundersomestatutes,andthustheaboveexclusionmaynotapply.)Thefollowingspecificationsaresubjecttochangewithoutnotice,eventhougheveryattempthasbeenmadetomakethisdocumentcomplete,accurateandup‐to‐date.Readersarecautioned,however,thatAmptreservestherighttomakechangeswithoutnoticeandshallnotberesponsibleforanydamages,includingindirect,incidentalorconsequentialdamages,causedbyrelianceonthematerialpresented,including,butnotlimitedto,omissions,typographicalerrors,arithmeticalerrorsorlistingerrorsinthecontentmaterial.AmptLLC4850InnovationDriveFortCollins,Colorado80525Tel970‐372‐6950www.ampt.com

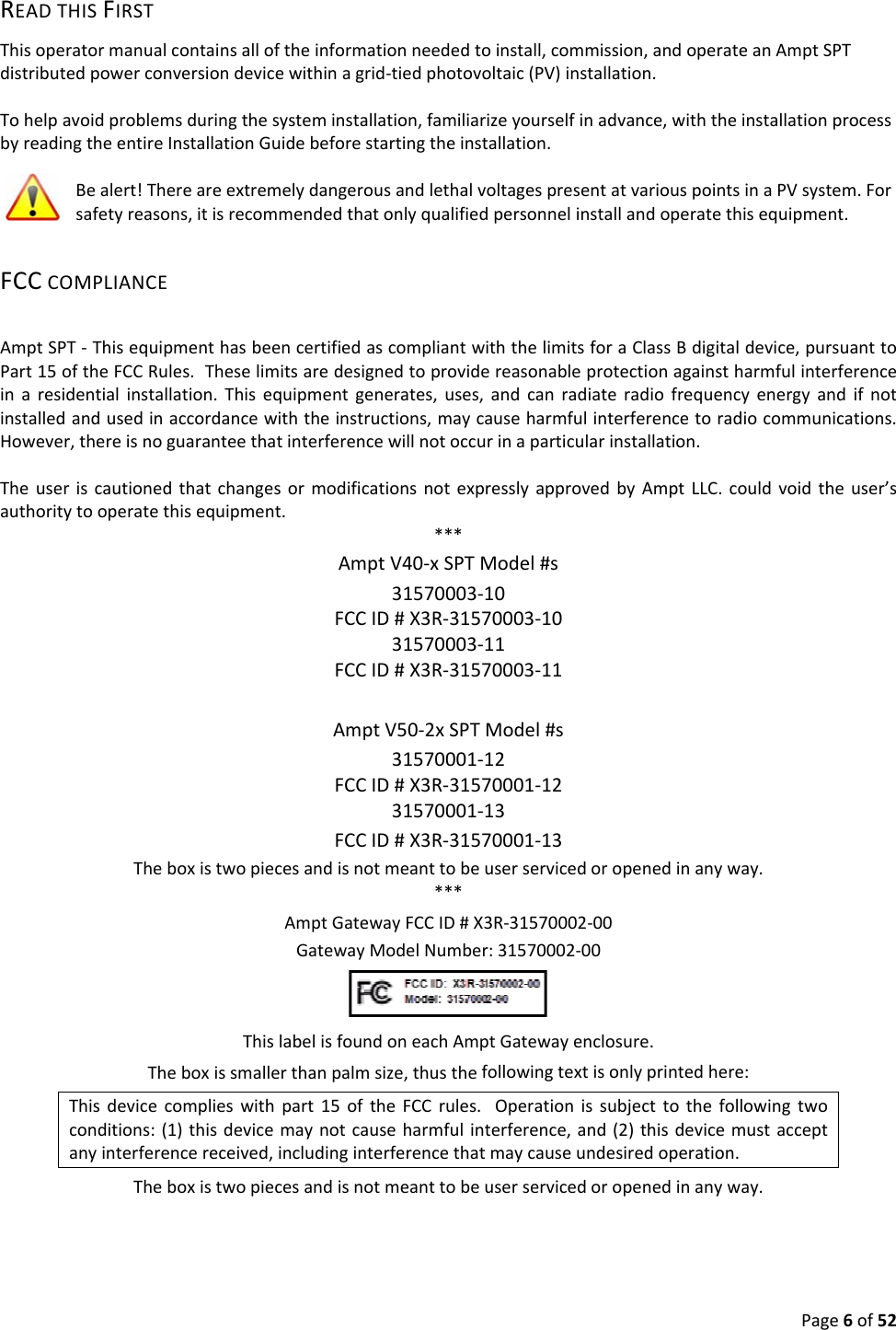

Page6of52READTHISFIRSTThisoperatormanualcontainsalloftheinformationneededtoinstall,commission,andoperateanAmptSPTdistributedpowerconversiondevicewithinagrid‐tiedphotovoltaic(PV)installation.Tohelpavoidproblemsduringthesysteminstallation,familiarizeyourselfinadvance,withtheinstallationprocessbyreadingtheentireInstallationGuidebeforestartingtheinstallation.Bealert!ThereareextremelydangerousandlethalvoltagespresentatvariouspointsinaPVsystem.Forsafetyreasons,itisrecommendedthatonlyqualifiedpersonnelinstallandoperatethisequipment.FCCCOMPLIANCEAmptSPT‐ThisequipmenthasbeencertifiedascompliantwiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyandifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.TheuseriscautionedthatchangesormodificationsnotexpresslyapprovedbyAmptLLC.couldvoidtheuser’sauthoritytooperatethisequipment.***AmptV40‐xSPTModel#s31570003‐10FCCID#X3R‐31570003‐1031570003‐11FCCID#X3R‐31570003‐11AmptV50‐2xSPTModel#s31570001‐12FCCID#X3R‐31570001‐1231570001‐13FCCID#X3R‐31570001‐13Theboxistwopiecesandisnotmeanttobeuserservicedoropenedinanyway.***AmptGatewayFCCID#X3R‐31570002‐00GatewayModelNumber:31570002‐00ThislabelisfoundoneachAmptGatewayenclosure.Theboxissmallerthanpalmsize,thusthefollowingtextisonlyprintedhere:Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Theboxistwopiecesandisnotmeanttobeuserservicedoropenedinanyway.

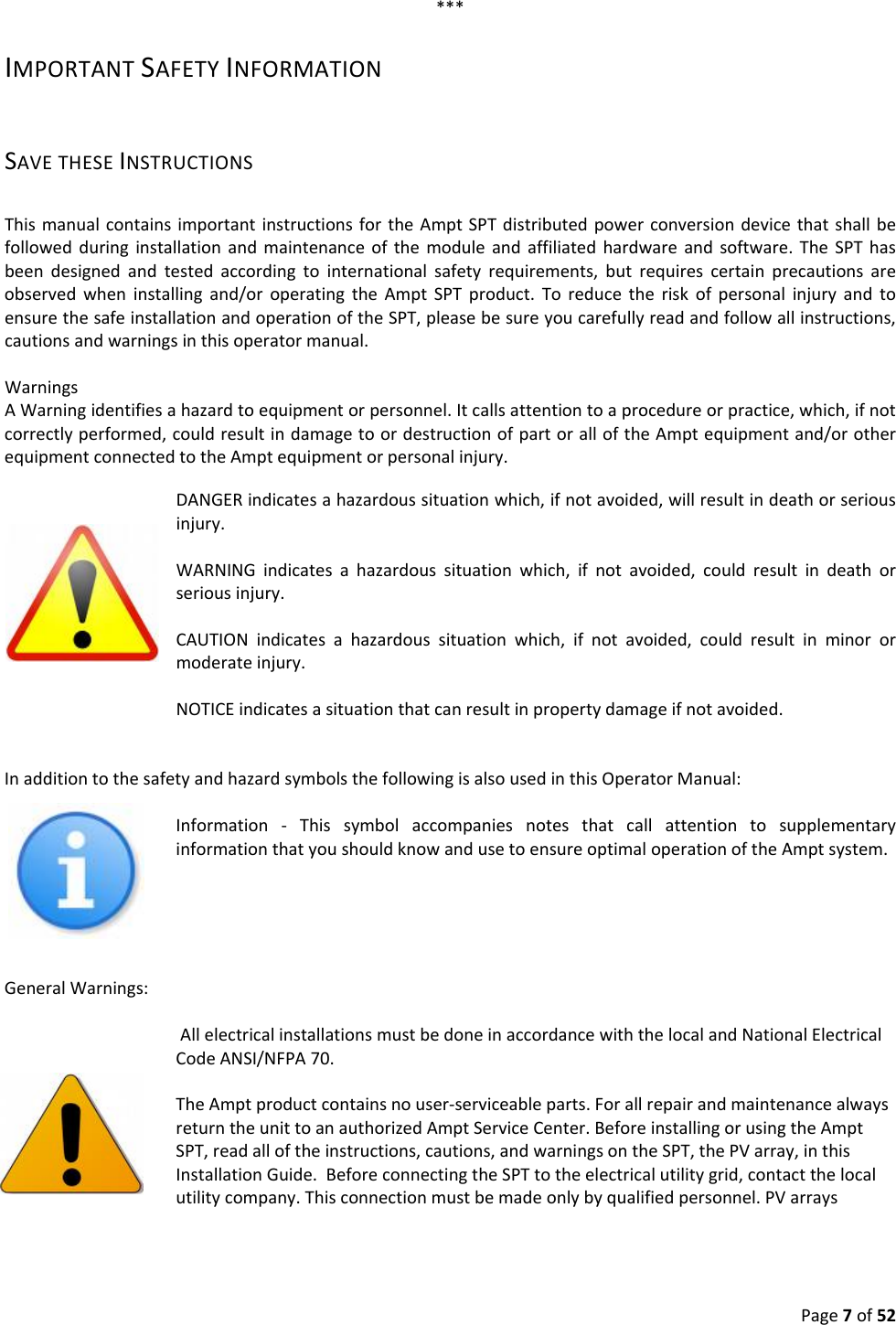

Page7of52***IMPORTANTSAFETYINFORMATIONSAVETHESEINSTRUCTIONSThismanualcontainsimportantinstructionsfortheAmptSPTdistributedpowerconversiondevicethatshallbefollowedduringinstallationandmaintenanceofthemoduleandaffiliatedhardwareandsoftware.TheSPThasbeendesignedandtestedaccordingtointernationalsafetyrequirements,butrequirescertainprecautionsareobservedwheninstallingand/oroperatingtheAmptSPTproduct.ToreducetheriskofpersonalinjuryandtoensurethesafeinstallationandoperationoftheSPT,pleasebesureyoucarefullyreadandfollowallinstructions,cautionsandwarningsinthisoperatormanual.WarningsAWarningidentifiesahazardtoequipmentorpersonnel.Itcallsattentiontoaprocedureorpractice,which,ifnotcorrectlyperformed,couldresultindamagetoordestructionofpartoralloftheAmptequipmentand/orotherequipmentconnectedtotheAmptequipmentorpersonalinjury. DANGERindicatesahazardoussituationwhich,ifnotavoided,willresultindeathorseriousinjury.WARNINGindicatesahazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.CAUTIONindicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.NOTICEindicatesasituationthatcanresultinpropertydamageifnotavoided.InadditiontothesafetyandhazardsymbolsthefollowingisalsousedinthisOperatorManual:Information‐ThissymbolaccompaniesnotesthatcallattentiontosupplementaryinformationthatyoushouldknowandusetoensureoptimaloperationoftheAmptsystem.GeneralWarnings:AllelectricalinstallationsmustbedoneinaccordancewiththelocalandNationalElectricalCodeANSI/NFPA70.TheAmptproductcontainsnouser‐serviceableparts.ForallrepairandmaintenancealwaysreturntheunittoanauthorizedAmptServiceCenter.BeforeinstallingorusingtheAmptSPT,readalloftheinstructions,cautions,andwarningsontheSPT,thePVarray,inthisInstallationGuide.BeforeconnectingtheSPTtotheelectricalutilitygrid,contactthelocalutilitycompany.Thisconnectionmustbemadeonlybyqualifiedpersonnel.PVarrays

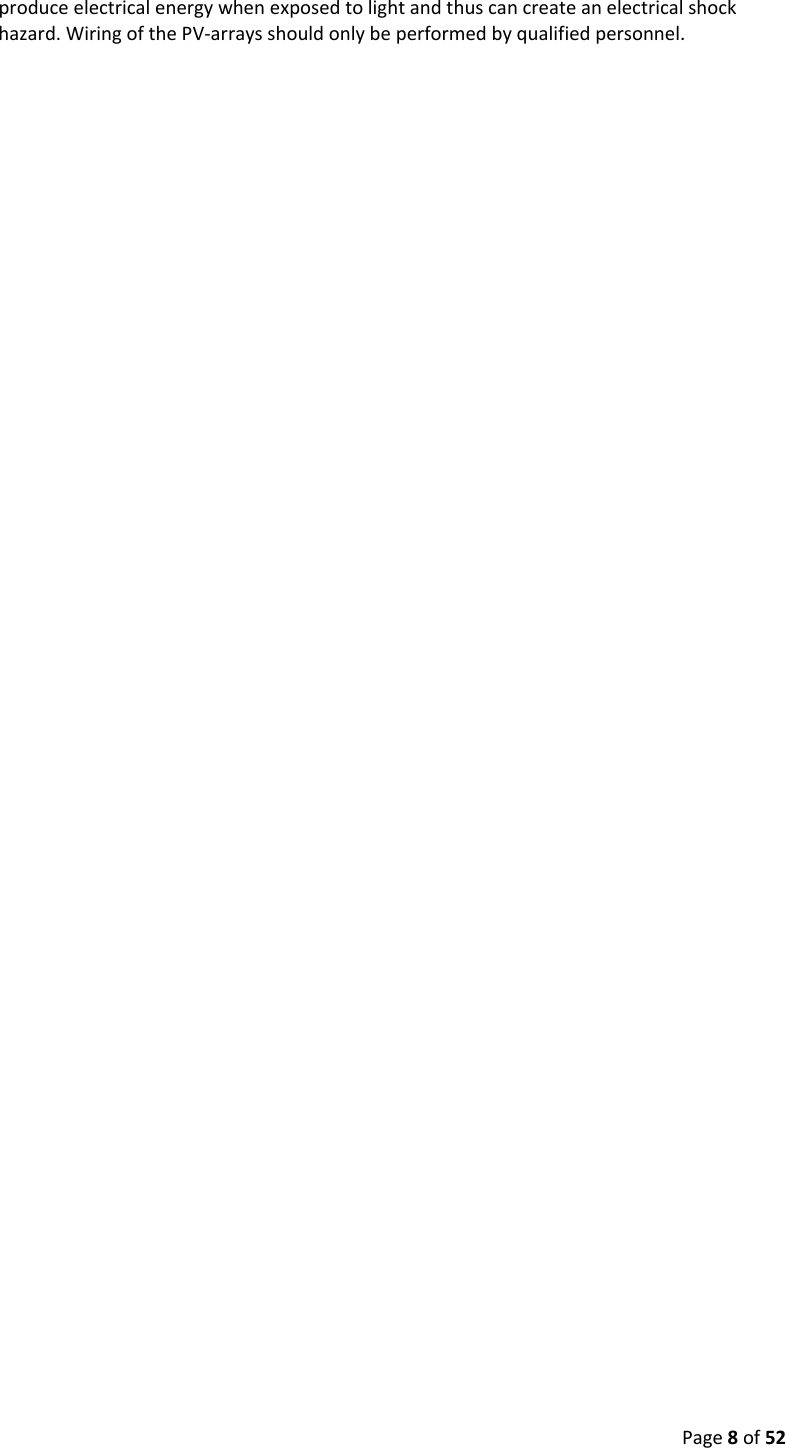

Page8of52produceelectricalenergywhenexposedtolightandthuscancreateanelectricalshockhazard.WiringofthePV‐arraysshouldonlybeperformedbyqualifiedpersonnel.

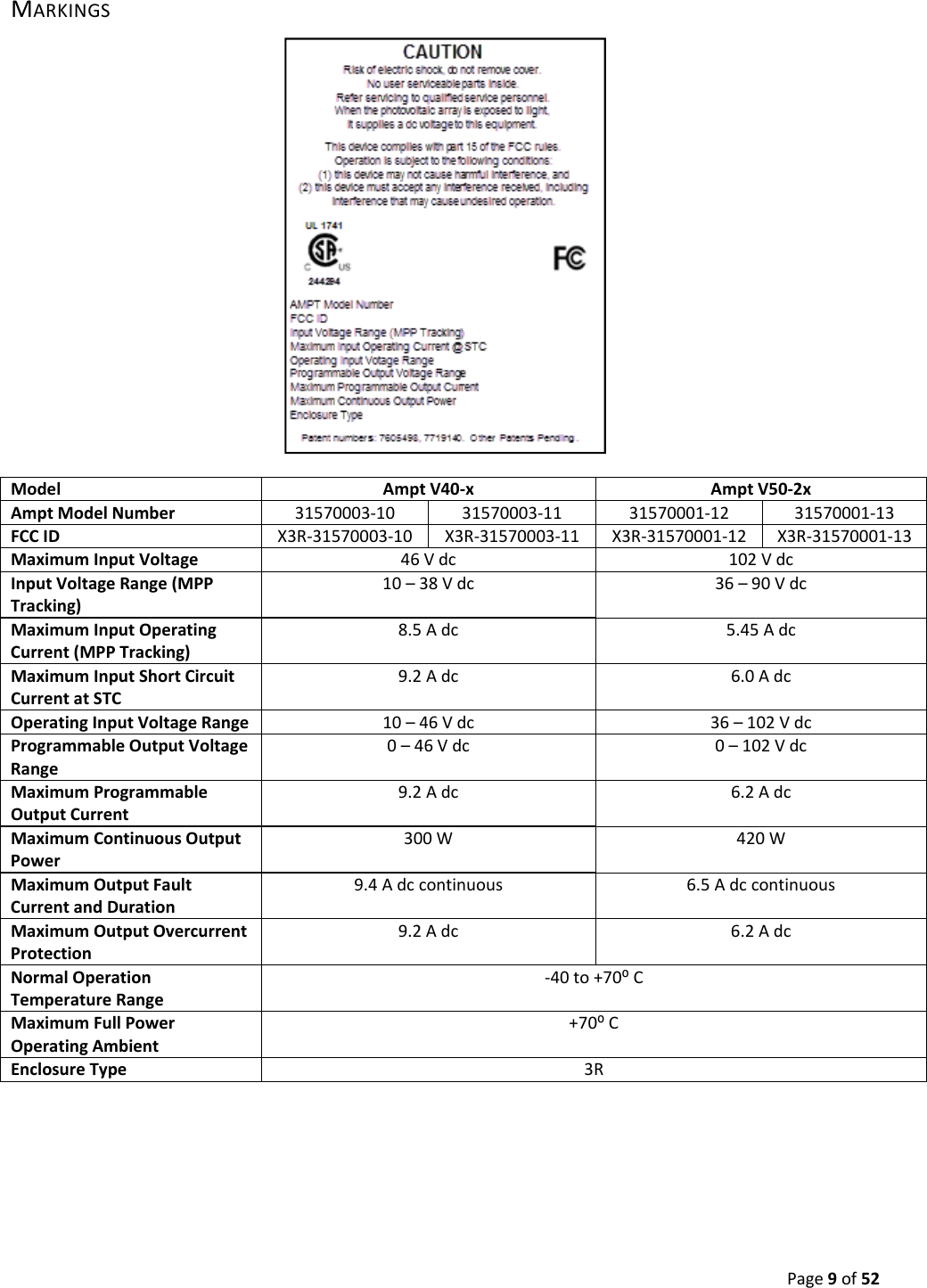

Page9of52MARKINGSModelAmptV40‐xAmptV50‐2xAmptModelNumber31570003‐10 31570003‐11 31570001‐1231570001‐13FCCIDX3R‐31570003‐10 X3R‐31570003‐11 X3R‐31570001‐12X3R‐31570001‐13MaximumInputVoltage46Vdc 102VdcInputVoltageRange(MPPTracking)10–38Vdc 36–90VdcMaximumInputOperatingCurrent(MPPTracking)8.5Adc 5.45AdcMaximumInputShortCircuitCurrentatSTC9.2Adc 6.0AdcOperatingInputVoltageRange10–46Vdc 36–102VdcProgrammableOutputVoltageRange0–46Vdc 0–102VdcMaximumProgrammableOutputCurrent9.2Adc 6.2AdcMaximumContinuousOutputPower300W420WMaximumOutputFaultCurrentandDuration9.4Adccontinuous 6.5AdccontinuousMaximumOutputOvercurrentProtection9.2Adc 6.2AdcNormalOperationTemperatureRange‐40to+70⁰CMaximumFullPowerOperatingAmbient+70⁰CEnclosureType3R

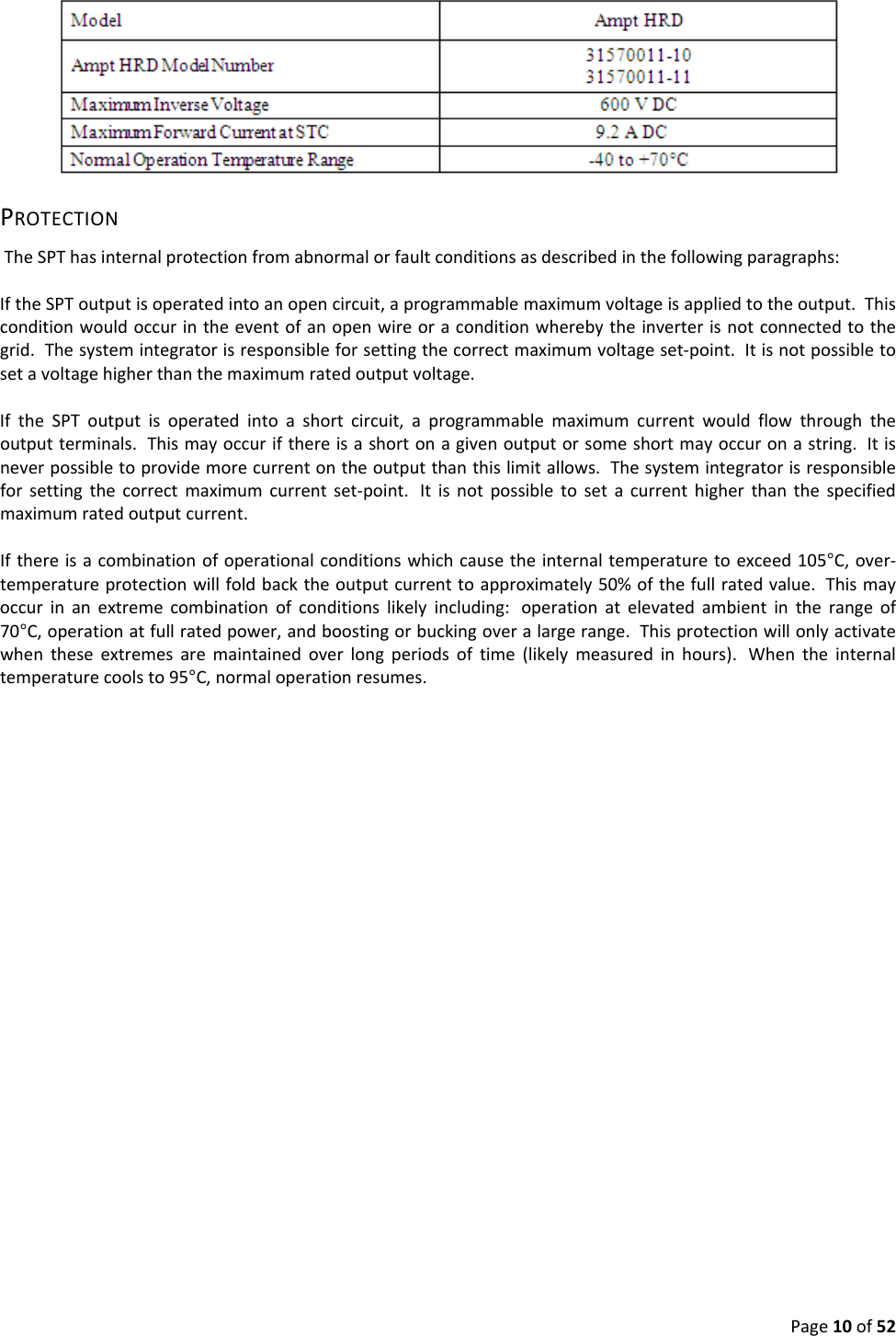

Page10of52PROTECTIONTheSPThasinternalprotectionfromabnormalorfaultconditionsasdescribedinthefollowingparagraphs:IftheSPToutputisoperatedintoanopencircuit,aprogrammablemaximumvoltageisappliedtotheoutput.Thisconditionwouldoccurintheeventofanopenwireoraconditionwherebytheinverterisnotconnectedtothegrid.Thesystemintegratorisresponsibleforsettingthecorrectmaximumvoltageset‐point.Itisnotpossibletosetavoltagehigherthanthemaximumratedoutputvoltage.IftheSPToutputisoperatedintoashortcircuit,aprogrammablemaximumcurrentwouldflowthroughtheoutputterminals.Thismayoccurifthereisashortonagivenoutputorsomeshortmayoccuronastring.Itisneverpossibletoprovidemorecurrentontheoutputthanthislimitallows.Thesystemintegratorisresponsibleforsettingthecorrectmaximumcurrentset‐point. Itisnotpossibletosetacurrenthigherthanthespecifiedmaximumratedoutputcurrent.Ifthereisacombinationofoperationalconditionswhichcausetheinternaltemperaturetoexceed105°C,over‐temperatureprotectionwillfoldbacktheoutputcurrenttoapproximately50%ofthefullratedvalue.Thismayoccurinanextremecombinationofconditionslikelyincluding: operationatelevatedambientintherangeof70°C,operationatfullratedpower,andboostingorbuckingoveralargerange.Thisprotectionwillonlyactivatewhentheseextremesaremaintainedoverlongperiodsoftime(likelymeasuredinhours). Whentheinternaltemperaturecoolsto95°C,normaloperationresumes.

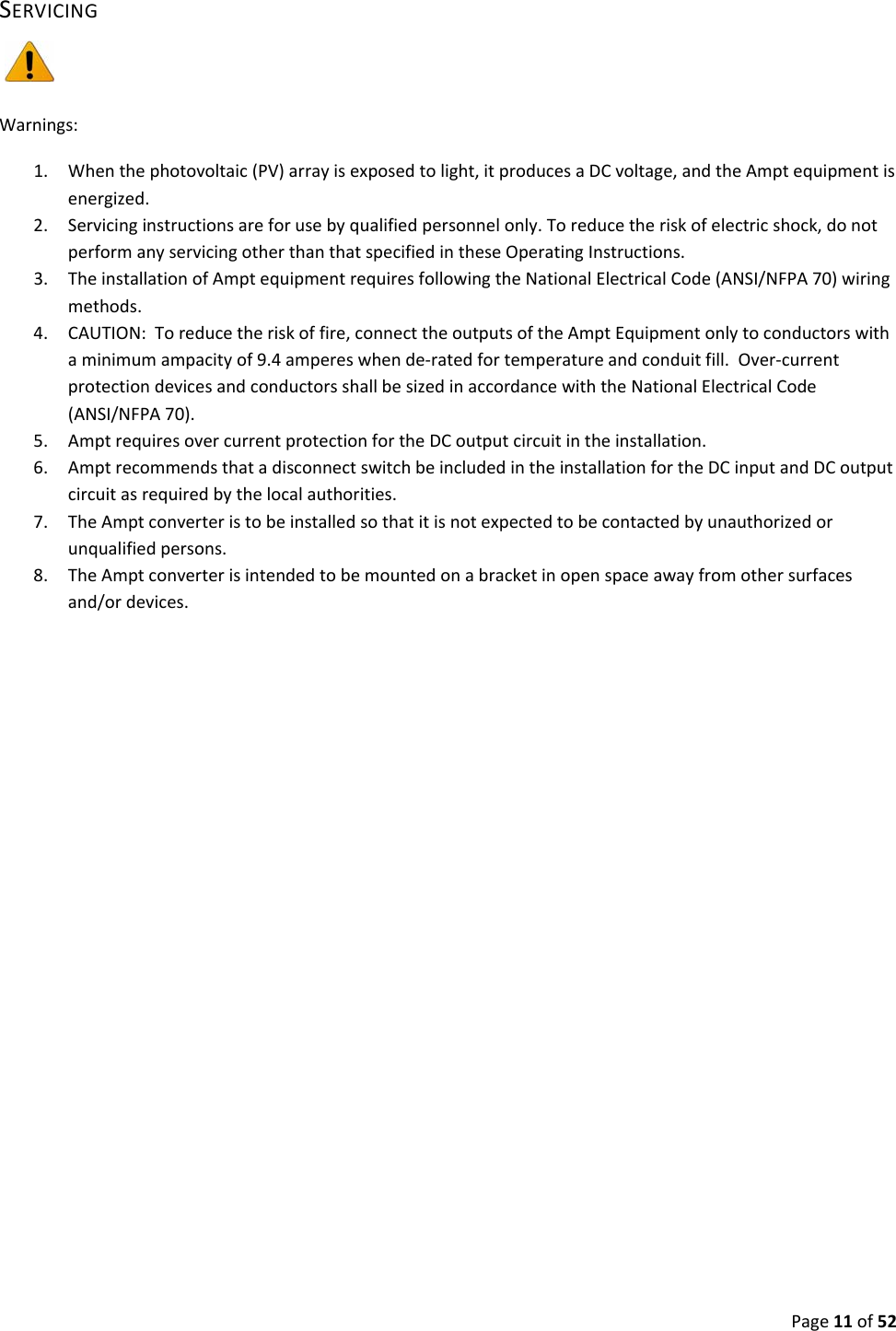

Page11of52SERVICINGWarnings:1. Whenthephotovoltaic(PV)arrayisexposedtolight,itproducesaDCvoltage,andtheAmptequipmentisenergized.2. Servicinginstructionsareforusebyqualifiedpersonnelonly.Toreducetheriskofelectricshock,donotperformanyservicingotherthanthatspecifiedintheseOperatingInstructions.3. TheinstallationofAmptequipmentrequiresfollowingtheNationalElectricalCode(ANSI/NFPA70)wiringmethods.4. CAUTION:Toreducetheriskoffire,connecttheoutputsoftheAmptEquipmentonlytoconductorswithaminimumampacityof9.4ampereswhende‐ratedfortemperatureandconduitfill.Over‐currentprotectiondevicesandconductorsshallbesizedinaccordancewiththeNationalElectricalCode(ANSI/NFPA70).5. AmptrequiresovercurrentprotectionfortheDCoutputcircuitintheinstallation.6. AmptrecommendsthatadisconnectswitchbeincludedintheinstallationfortheDCinputandDCoutputcircuitasrequiredbythelocalauthorities.7. TheAmptconverteristobeinstalledsothatitisnotexpectedtobecontactedbyunauthorizedorunqualifiedpersons.8. TheAmptconverterisintendedtobemountedonabracketinopenspaceawayfromothersurfacesand/ordevices.

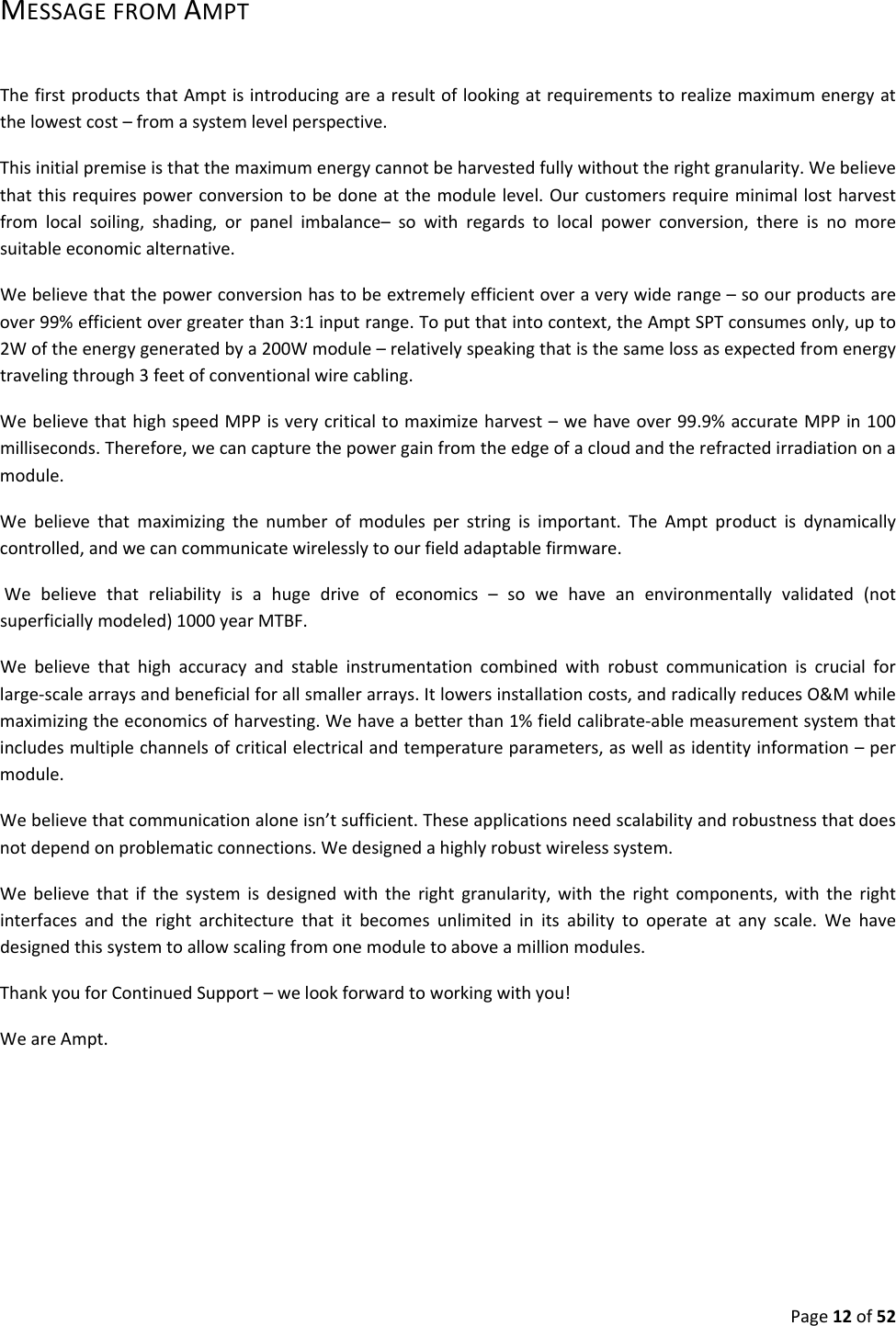

$Page12of52MESSAGEFROMAMPTThefirstproductsthatAmptisintroducingarearesultoflookingatrequirementstorealizemaximumenergyatthelowestcost–fromasystemlevelperspective.Thisinitialpremiseisthatthemaximumenergycannotbeharvestedfullywithouttherightgranularity.Webelievethatthisrequirespowerconversiontobedoneatthemodulelevel.Ourcustomersrequireminimallostharvestfromlocalsoiling,shading,orpanelimbalance–sowithregardstolocalpowerconversion,thereisnomoresuitableeconomicalternative.Webelievethatthepowerconversionhastobeextremelyefficientoveraverywiderange–soourproductsareover99%efficientovergreaterthan3:1inputrange.Toputthatintocontext,theAmptSPTconsumesonly,upto2Woftheenergygeneratedbya200Wmodule–relativelyspeakingthatisthesamelossasexpectedfromenergytravelingthrough3feetofconventionalwirecabling.WebelievethathighspeedMPPisverycriticaltomaximizeharvest–wehaveover99.9%accurateMPPin100milliseconds.Therefore,wecancapturethepowergainfromtheedgeofacloudandtherefractedirradiationonamodule.Webelievethatmaximizingthenumberofmodulesperstringisimportant.TheAmptproductisdynamicallycontrolled,andwecancommunicatewirelesslytoourfieldadaptablefirmware.Webelievethatreliabilityisahugedriveofeconomics–sowehaveanenvironmentallyvalidated(notsuperficiallymodeled)1000yearMTBF.Webelievethathighaccuracyandstableinstrumentationcombinedwithrobustcommunicationiscrucialforlarge‐scalearraysandbeneficialforallsmallerarrays.Itlowersinstallationcosts,andradicallyreducesO&Mwhilemaximizingtheeconomicsofharvesting.Wehaveabetterthan1%fieldcalibrate‐ablemeasurementsystemthatincludesmultiplechannelsofcriticalelectricalandtemperatureparameters,aswellasidentityinformation–permodule.Webelievethatcommunicationaloneisn’tsufficient.Theseapplicationsneedscalabilityandrobustnessthatdoesnotdependonproblematicconnections.Wedesignedahighlyrobustwirelesssystem.Webelievethatifthesystemisdesignedwiththerightgranularity,withtherightcomponents,withtherightinterfacesandtherightarchitecturethatitbecomesunlimitedinitsabilitytooperateatanyscale.Wehavedesignedthissystemtoallowscalingfromonemoduletoaboveamillionmodules.ThankyouforContinuedSupport–welookforwardtoworkingwithyou!WeareAmpt.$

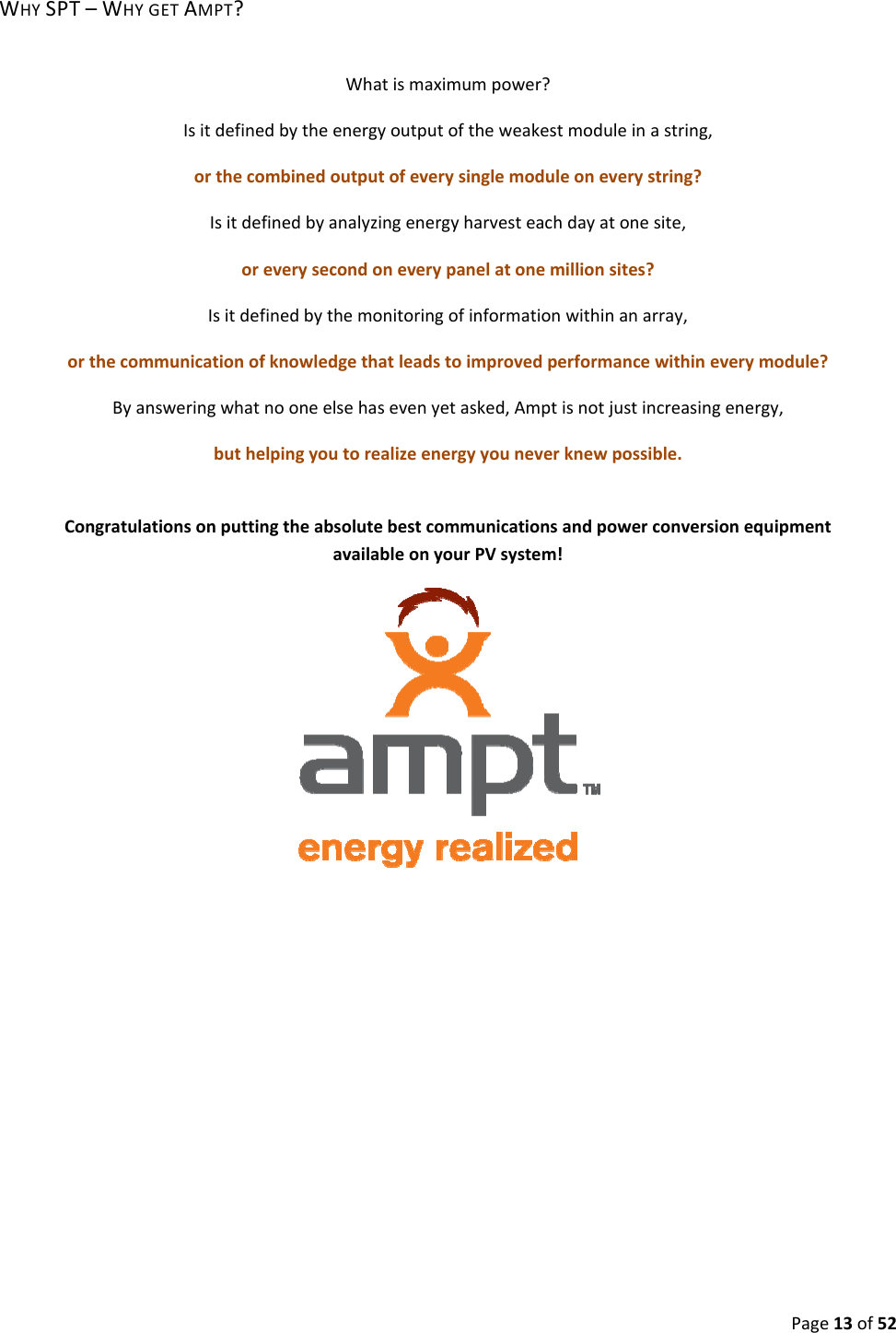

Page13of52WHYSPT–WHYGETAMPT?Whatismaximumpower?Isitdefinedbytheenergyoutputoftheweakestmoduleinastring,orthecombinedoutputofeverysinglemoduleoneverystring?Isitdefinedbyanalyzingenergyharvesteachdayatonesite,oreverysecondoneverypanelatonemillionsites?Isitdefinedbythemonitoringofinformationwithinanarray,orthecommunicationofknowledgethatleadstoimprovedperformancewithineverymodule?Byansweringwhatnooneelsehasevenyetasked,Amptisnotjustincreasingenergy,buthelpingyoutorealizeenergyyouneverknewpossible.CongratulationsonputtingtheabsolutebestcommunicationsandpowerconversionequipmentavailableonyourPVsystem!

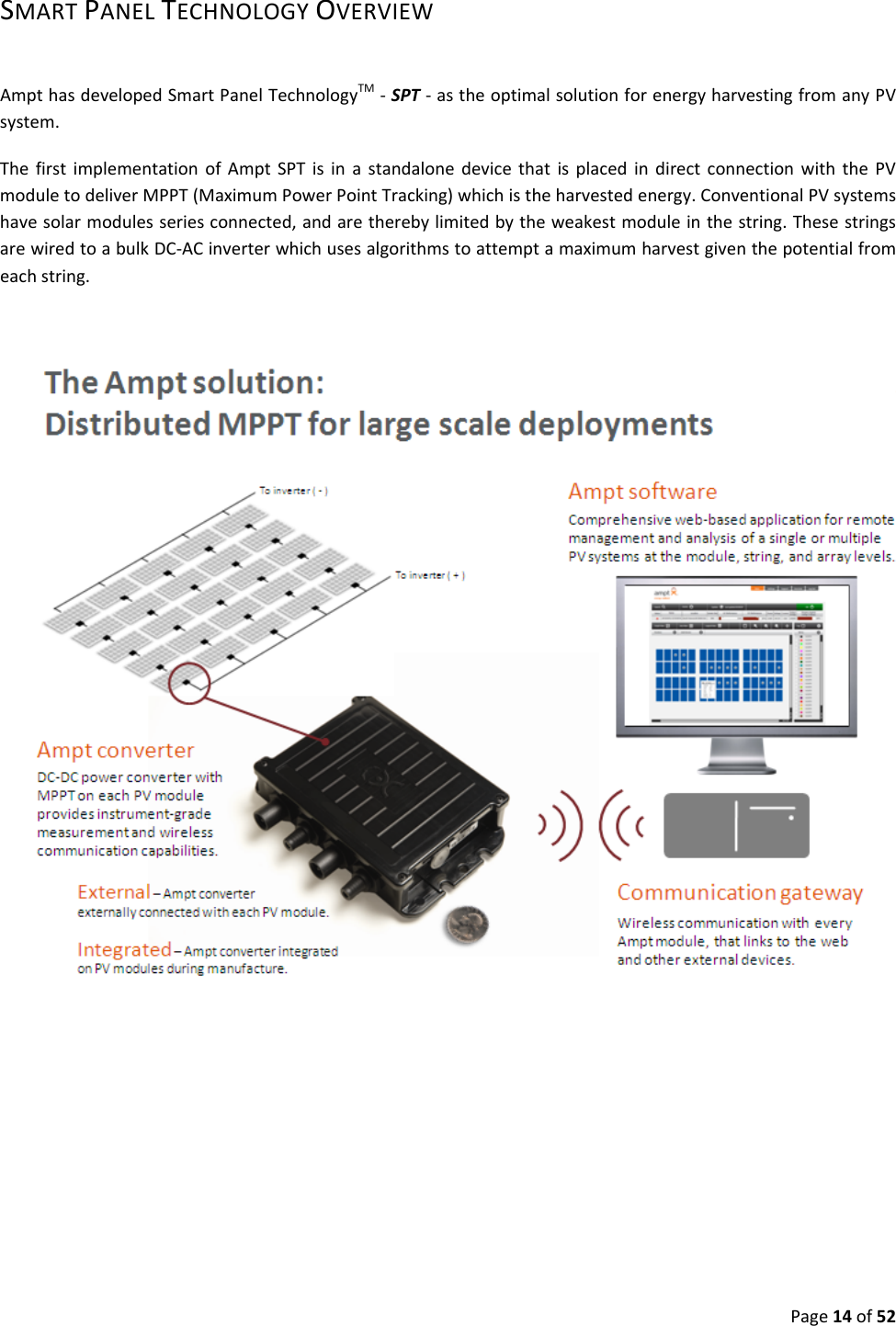

Page14of52SMARTPANELTECHNOLOGYOVERVIEWAmpthasdevelopedSmartPanelTechnologyTM‐SPT‐astheoptimalsolutionforenergyharvestingfromanyPVsystem.ThefirstimplementationofAmptSPTisinastandalonedevicethatisplacedindirectconnectionwiththePVmoduletodeliverMPPT(MaximumPowerPointTracking)whichistheharvestedenergy.ConventionalPVsystemshavesolarmodulesseriesconnected,andaretherebylimitedbytheweakestmoduleinthestring.ThesestringsarewiredtoabulkDC‐ACinverterwhichusesalgorithmstoattemptamaximumharvestgiventhepotentialfromeachstring.

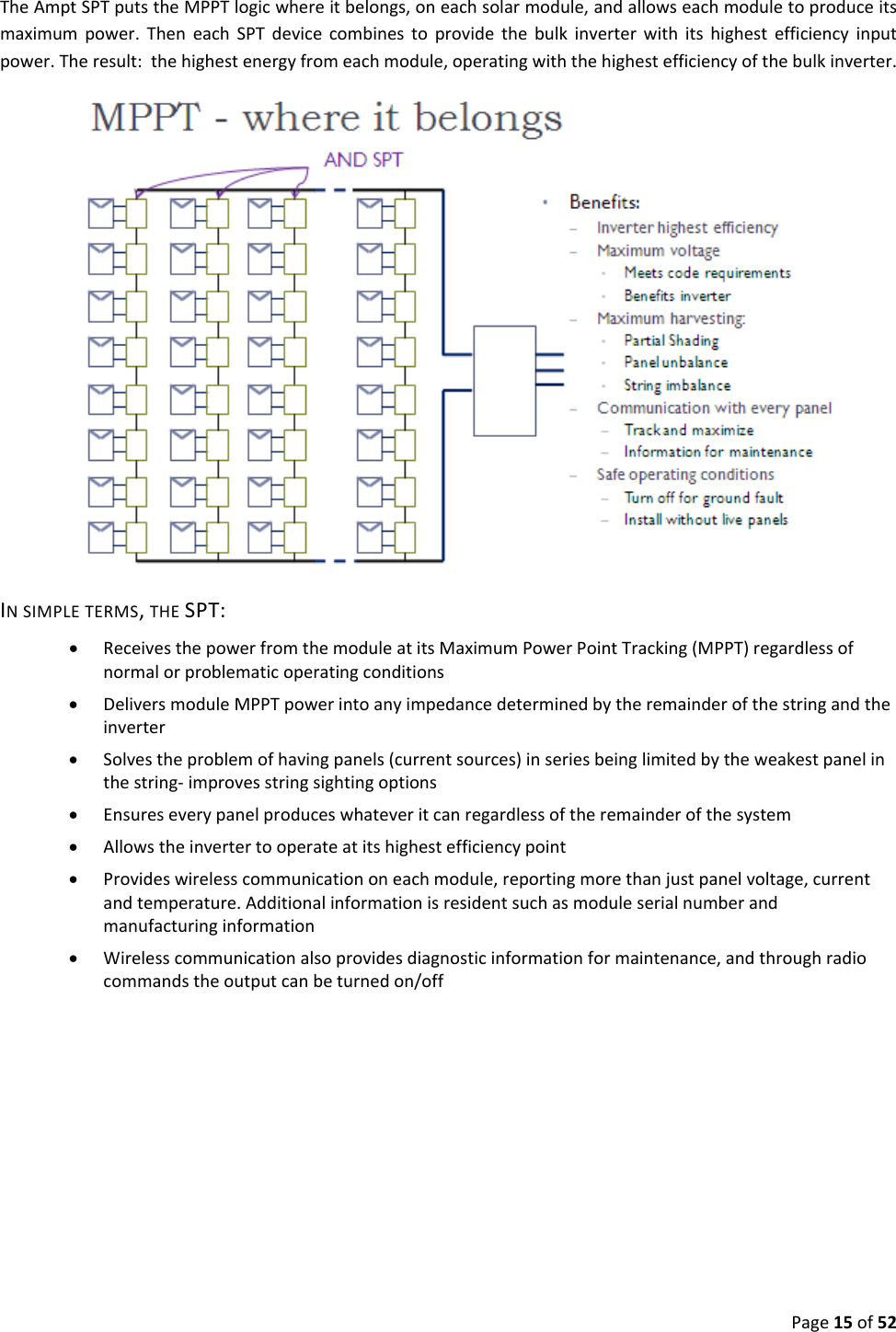

Page15of52TheAmptSPTputstheMPPTlogicwhereitbelongs,oneachsolarmodule,andallowseachmoduletoproduceitsmaximumpower.TheneachSPTdevicecombinestoprovidethebulkinverterwithitshighestefficiencyinputpower.Theresult:thehighestenergyfromeachmodule,operatingwiththehighestefficiencyofthebulkinverter. INSIMPLETERMS,THESPT: ReceivesthepowerfromthemoduleatitsMaximumPowerPointTracking(MPPT)regardlessofnormalorproblematicoperatingconditions DeliversmoduleMPPTpowerintoanyimpedancedeterminedbytheremainderofthestringandtheinverter Solvestheproblemofhavingpanels(currentsources)inseriesbeinglimitedbytheweakestpanelinthestring‐improvesstringsightingoptions Ensureseverypanelproduceswhateveritcanregardlessoftheremainderofthesystem Allowstheinvertertooperateatitshighestefficiencypoint Provideswirelesscommunicationoneachmodule,reportingmorethanjustpanelvoltage,currentandtemperature.Additionalinformationisresidentsuchasmoduleserialnumberandmanufacturinginformation Wirelesscommunicationalsoprovidesdiagnosticinformationformaintenance,andthroughradiocommandstheoutputcanbeturnedon/off

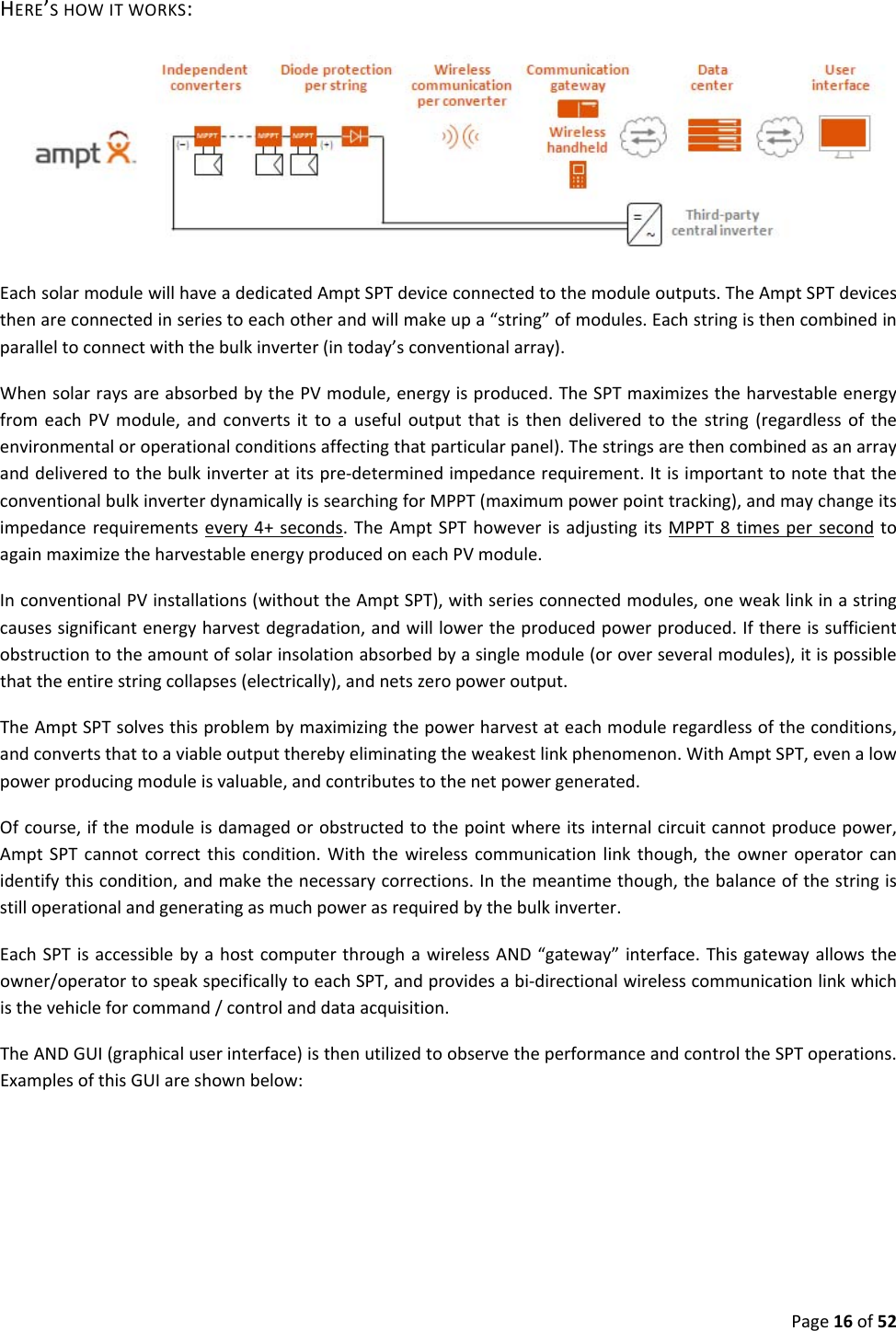

Page16of52HERE’SHOWITWORKS: EachsolarmodulewillhaveadedicatedAmptSPTdeviceconnectedtothemoduleoutputs.TheAmptSPTdevicesthenareconnectedinseriestoeachotherandwillmakeupa“string”ofmodules.Eachstringisthencombinedinparalleltoconnectwiththebulkinverter(intoday’sconventionalarray).WhensolarraysareabsorbedbythePVmodule,energyisproduced.TheSPTmaximizestheharvestableenergyfromeachPVmodule,andconvertsittoausefuloutputthatisthendeliveredtothestring(regardlessoftheenvironmentaloroperationalconditionsaffectingthatparticularpanel).Thestringsarethencombinedasanarrayanddeliveredtothebulkinverteratitspre‐determinedimpedancerequirement.ItisimportanttonotethattheconventionalbulkinverterdynamicallyissearchingforMPPT(maximumpowerpointtracking),andmaychangeitsimpedancerequirementsevery4+seconds.TheAmptSPThoweverisadjustingitsMPPT8timespersecondtoagainmaximizetheharvestableenergyproducedoneachPVmodule.InconventionalPVinstallations(withouttheAmptSPT),withseriesconnectedmodules,oneweaklinkinastringcausessignificantenergyharvestdegradation,andwilllowertheproducedpowerproduced.Ifthereissufficientobstructiontotheamountofsolarinsolationabsorbedbyasinglemodule(oroverseveralmodules),itispossiblethattheentirestringcollapses(electrically),andnetszeropoweroutput.TheAmptSPTsolvesthisproblembymaximizingthepowerharvestateachmoduleregardlessoftheconditions,andconvertsthattoaviableoutputtherebyeliminatingtheweakestlinkphenomenon.WithAmptSPT,evenalowpowerproducingmoduleisvaluable,andcontributestothenetpowergenerated.Ofcourse,ifthemoduleisdamagedorobstructedtothepointwhereitsinternalcircuitcannotproducepower,AmptSPTcannotcorrectthiscondition.Withthewirelesscommunicationlinkthough,theowneroperatorcanidentifythiscondition,andmakethenecessarycorrections.Inthemeantimethough,thebalanceofthestringisstilloperationalandgeneratingasmuchpowerasrequiredbythebulkinverter.EachSPTisaccessiblebyahostcomputerthroughawirelessAND“gateway”interface.Thisgatewayallowstheowner/operatortospeakspecificallytoeachSPT,andprovidesabi‐directionalwirelesscommunicationlinkwhichisthevehicleforcommand/controlanddataacquisition.TheANDGUI(graphicaluserinterface)isthenutilizedtoobservetheperformanceandcontroltheSPToperations.ExamplesofthisGUIareshownbelow:

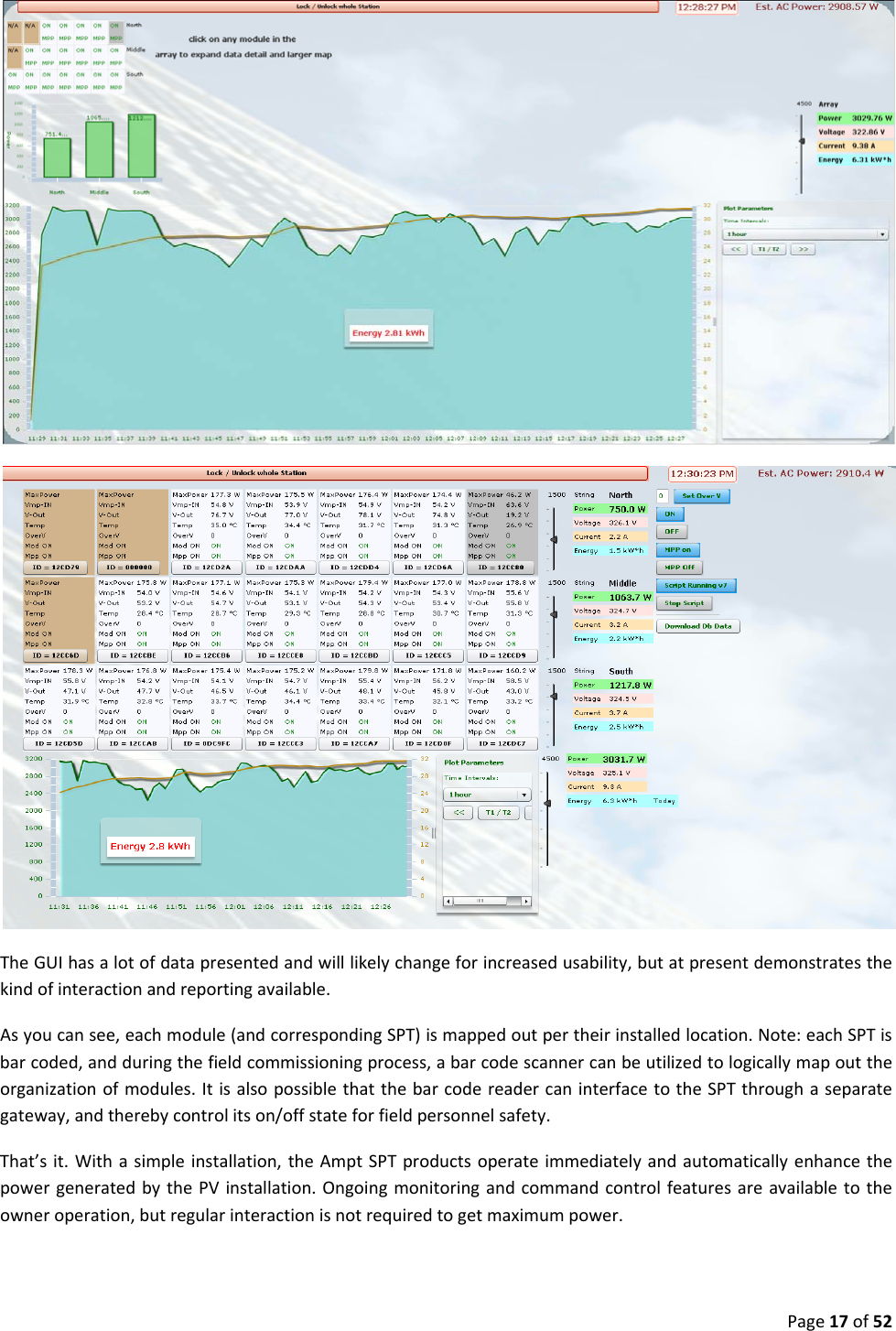

Page17of52TheGUIhasalotofdatapresentedandwilllikelychangeforincreasedusability,butatpresentdemonstratesthekindofinteractionandreportingavailable.Asyoucansee,eachmodule(andcorrespondingSPT)ismappedoutpertheirinstalledlocation.Note:eachSPTisbarcoded,andduringthefieldcommissioningprocess,abarcodescannercanbeutilizedtologicallymapouttheorganizationofmodules.ItisalsopossiblethatthebarcodereadercaninterfacetotheSPTthroughaseparategateway,andtherebycontrolitson/offstateforfieldpersonnelsafety.That’sit.Withasimpleinstallation,theAmptSPTproductsoperateimmediatelyandautomaticallyenhancethepowergeneratedbythePVinstallation.Ongoingmonitoringandcommandcontrolfeaturesareavailabletotheowneroperation,butregularinteractionisnotrequiredtogetmaximumpower.

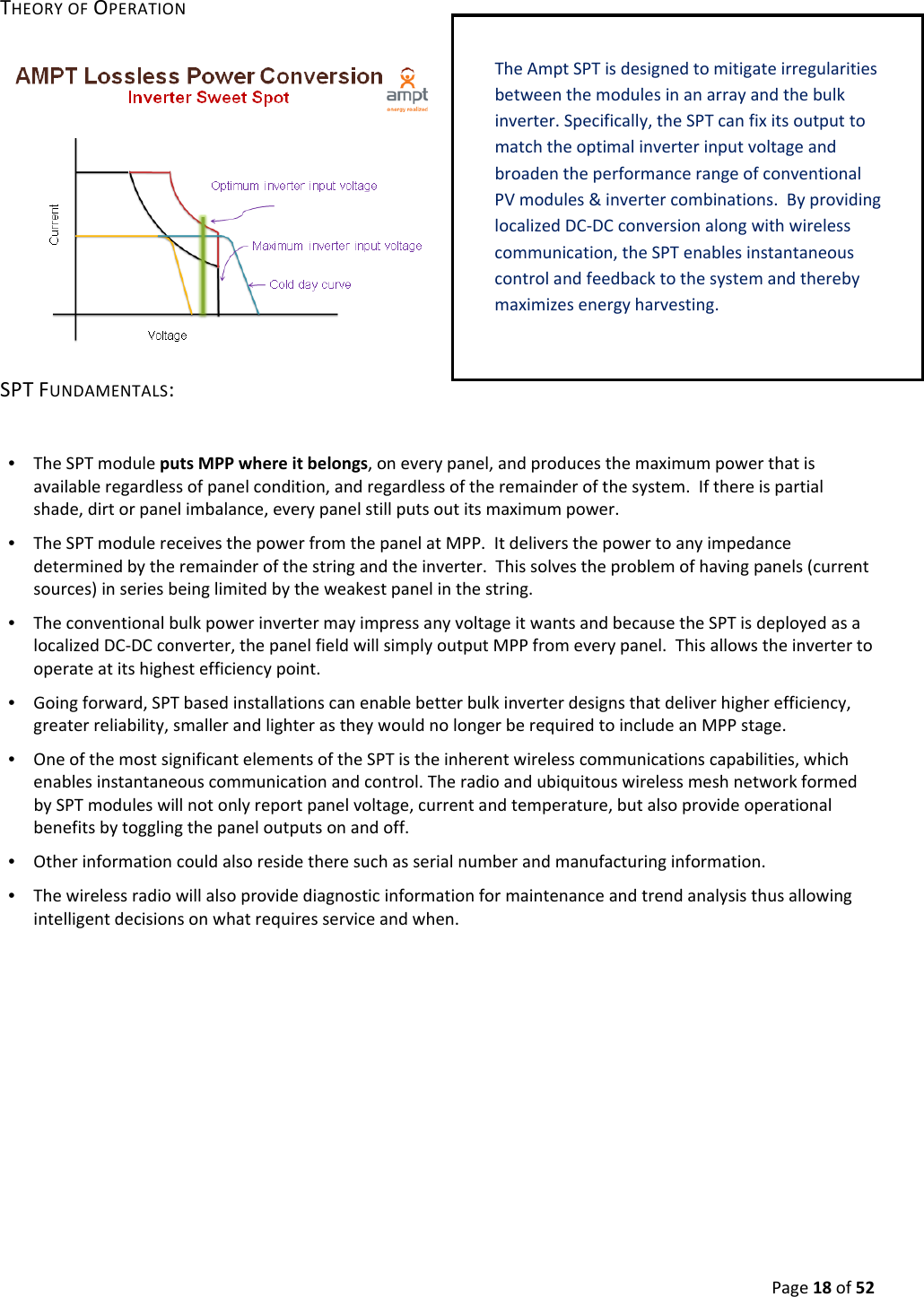

Page18of52THEORYOFOPERATIONSPTFUNDAMENTALS:• TheSPTmoduleputsMPPwhereitbelongs,oneverypanel,andproducesthemaximumpowerthatisavailableregardlessofpanelcondition,andregardlessoftheremainderofthesystem.Ifthereispartialshade,dirtorpanelimbalance,everypanelstillputsoutitsmaximumpower.• TheSPTmodulereceivesthepowerfromthepanelatMPP.Itdeliversthepowertoanyimpedancedeterminedbytheremainderofthestringandtheinverter.Thissolvestheproblemofhavingpanels(currentsources)inseriesbeinglimitedbytheweakestpanelinthestring.• TheconventionalbulkpowerinvertermayimpressanyvoltageitwantsandbecausetheSPTisdeployedasalocalizedDC‐DCconverter,thepanelfieldwillsimplyoutputMPPfromeverypanel.Thisallowstheinvertertooperateatitshighestefficiencypoint.• Goingforward,SPTbasedinstallationscanenablebetterbulkinverterdesignsthatdeliverhigherefficiency,greaterreliability,smallerandlighterastheywouldnolongerberequiredtoincludeanMPPstage.• OneofthemostsignificantelementsoftheSPTistheinherentwirelesscommunicationscapabilities,whichenablesinstantaneouscommunicationandcontrol.TheradioandubiquitouswirelessmeshnetworkformedbySPTmoduleswillnotonlyreportpanelvoltage,currentandtemperature,butalsoprovideoperationalbenefitsbytogglingthepaneloutputsonandoff.• Otherinformationcouldalsoresidetheresuchasserialnumberandmanufacturinginformation.• Thewirelessradiowillalsoprovidediagnosticinformationformaintenanceandtrendanalysisthusallowingintelligentdecisionsonwhatrequiresserviceandwhen.TheAmpt SPTisdesignedtomitigateirregularitiesbetweenthemodulesinanarrayandthebulkinverter.Specifically,theSPTcanfixitsoutputtomatchtheoptimalinverterinputvoltageandbroadentheperformancerangeofconventionalPVmodules&invertercombinations.ByprovidinglocalizedDC‐DCconversionalongwithwirelesscommunication,theSPTenablesinstantaneouscontrolandfeedbacktothesystemandtherebymaximizesenergyharvesting.

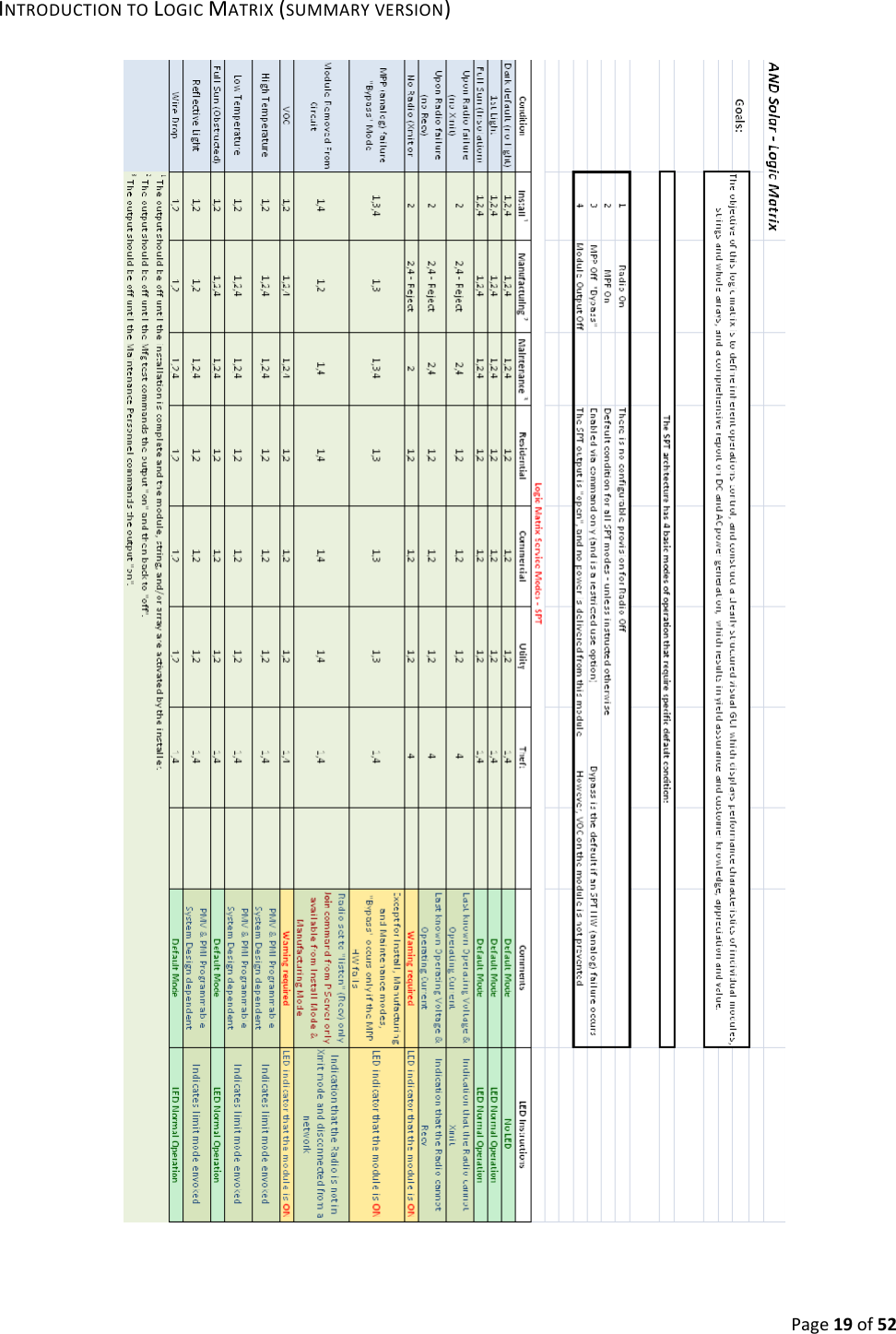

Page19of52INTRODUCTIONTOLOGICMATRIX(SUMMARYVERSION)

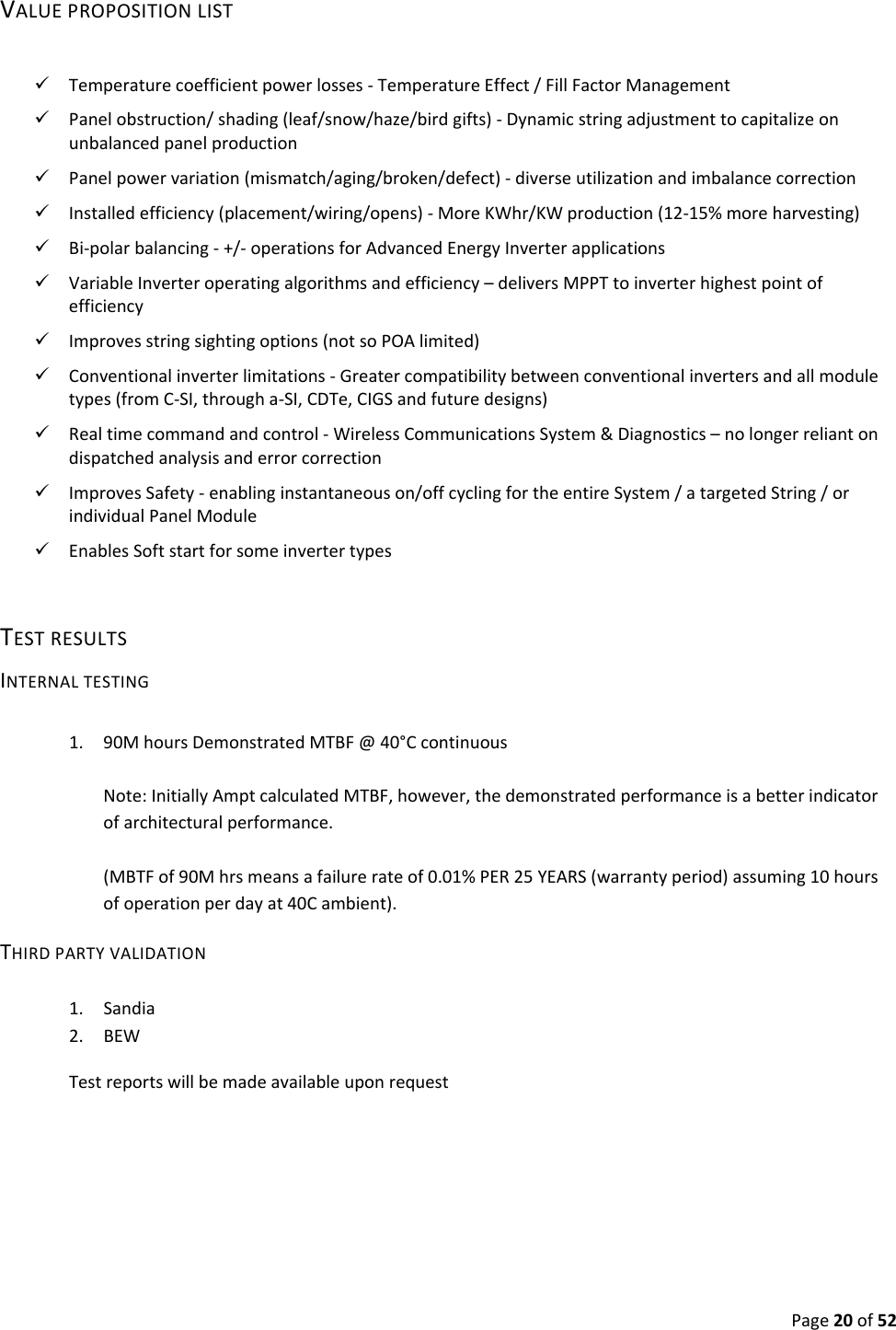

Page20of52VALUEPROPOSITIONLIST Temperaturecoefficientpowerlosses‐TemperatureEffect/FillFactorManagement Panelobstruction/shading(leaf/snow/haze/birdgifts)‐Dynamicstringadjustmenttocapitalizeonunbalancedpanelproduction Panelpowervariation(mismatch/aging/broken/defect)‐diverseutilizationandimbalancecorrection Installedefficiency(placement/wiring/opens)‐MoreKWhr/KWproduction(12‐15%moreharvesting) Bi‐polarbalancing‐+/‐operationsforAdvancedEnergyInverterapplications VariableInverteroperatingalgorithmsandefficiency–deliversMPPTtoinverterhighestpointofefficiency Improvesstringsightingoptions(notsoPOAlimited) Conventionalinverterlimitations‐Greatercompatibilitybetweenconventionalinvertersandallmoduletypes(fromC‐SI,througha‐SI,CDTe,CIGSandfuturedesigns) Realtimecommandandcontrol‐WirelessCommunicationsSystem&Diagnostics–nolongerreliantondispatchedanalysisanderrorcorrection ImprovesSafety‐enablinginstantaneouson/offcyclingfortheentireSystem/atargetedString/orindividualPanelModule EnablesSoftstartforsomeinvertertypesTESTRESULTSINTERNALTESTING1. 90MhoursDemonstratedMTBF@40°CcontinuousNote:InitiallyAmptcalculatedMTBF,however,thedemonstratedperformanceisabetterindicatorofarchitecturalperformance.(MBTFof90Mhrsmeansafailurerateof0.01%PER25YEARS(warrantyperiod)assuming10hoursofoperationperdayat40Cambient).THIRDPARTYVALIDATION1. Sandia2. BEW Testreportswillbemadeavailableuponrequest

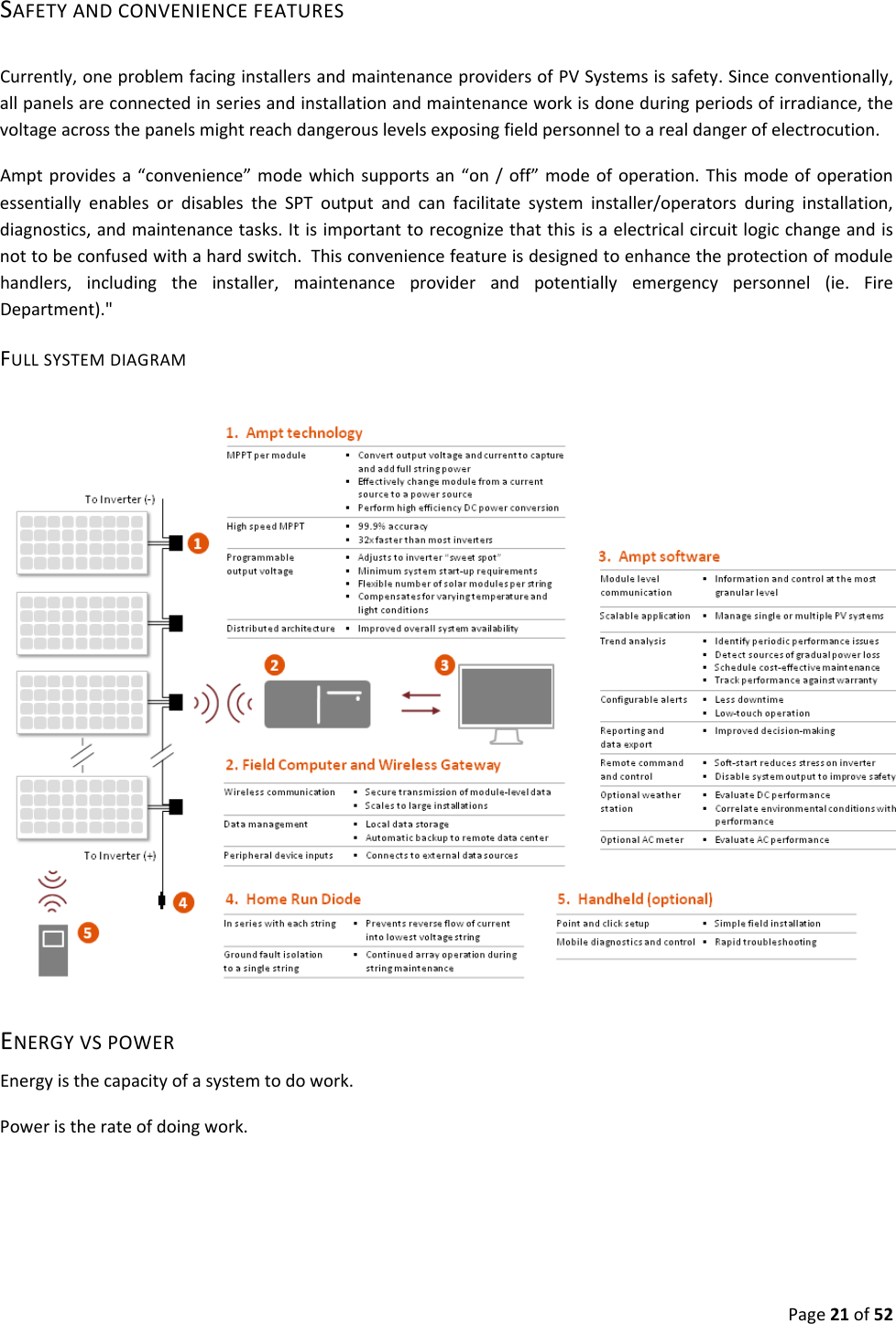

Page21of52SAFETYANDCONVENIENCEFEATURESCurrently,oneproblemfacinginstallersandmaintenanceprovidersofPVSystemsissafety.Sinceconventionally,allpanelsareconnectedinseriesandinstallationandmaintenanceworkisdoneduringperiodsofirradiance,thevoltageacrossthepanelsmightreachdangerouslevelsexposingfieldpersonneltoarealdangerofelectrocution.Amptprovidesa“convenience”modewhichsupportsan“on/off”modeofoperation.ThismodeofoperationessentiallyenablesordisablestheSPToutputandcanfacilitatesysteminstaller/operatorsduringinstallation,diagnostics,andmaintenancetasks.Itisimportanttorecognizethatthisisaelectricalcircuitlogicchangeandisnottobeconfusedwithahardswitch.Thisconveniencefeatureisdesignedtoenhancetheprotectionofmodulehandlers,includingtheinstaller,maintenanceproviderandpotentiallyemergencypersonnel(ie.FireDepartment)."FULLSYSTEMDIAGRAMENERGYVSPOWEREnergyisthecapacityofasystemtodowork.Poweristherateofdoingwork.

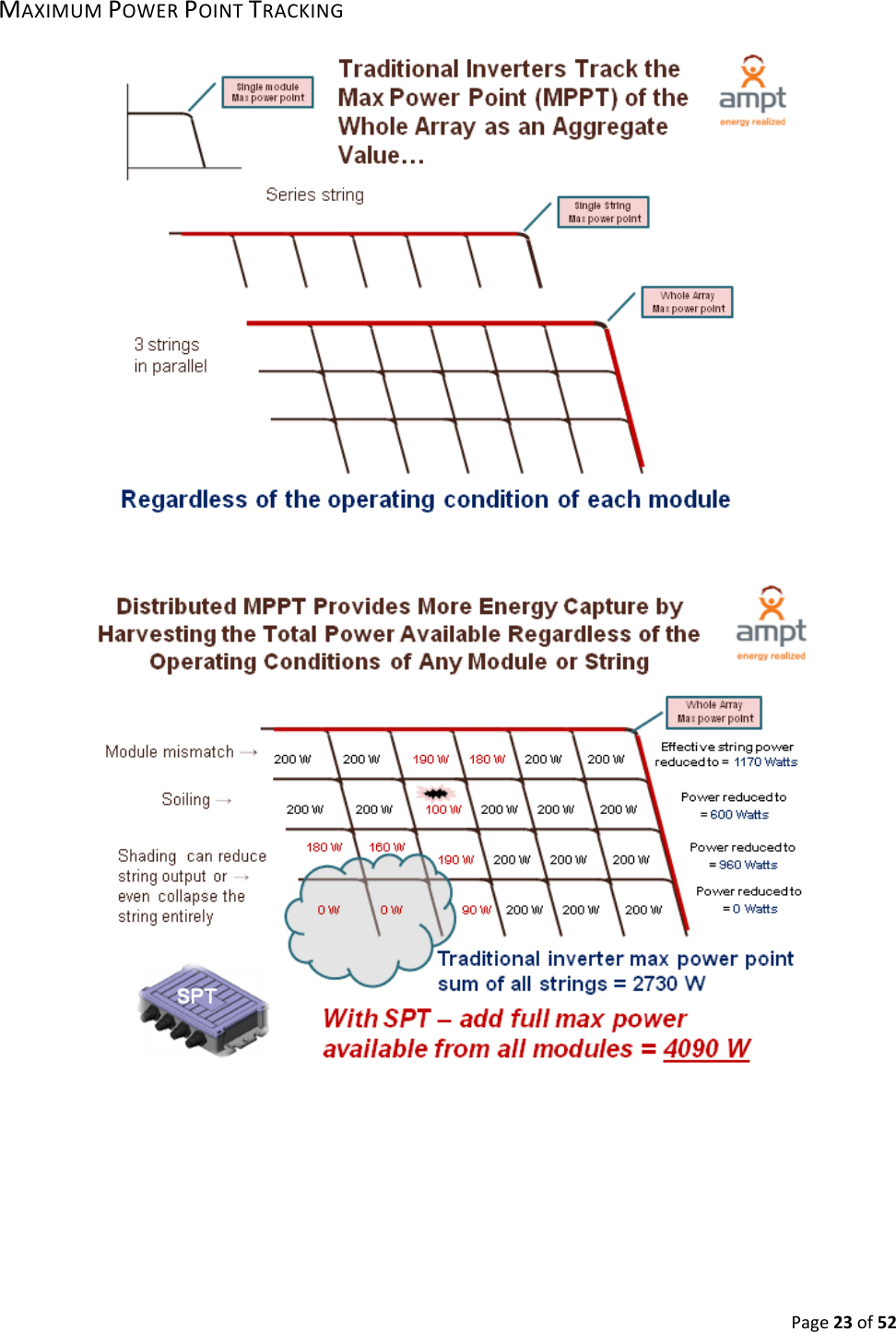

Page23of52MAXIMUMPOWERPOINTTRACKING

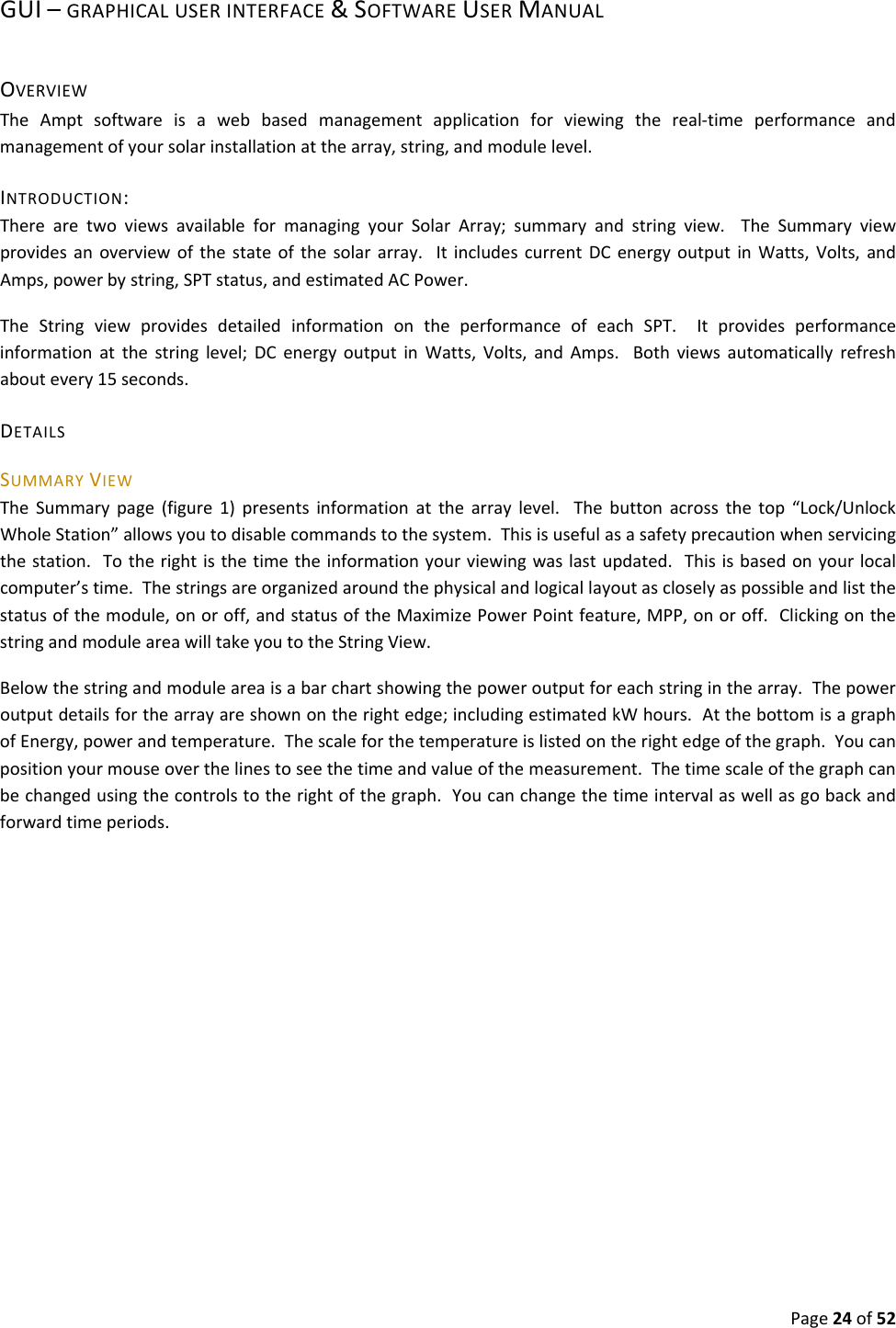

Page24of52GUI–GRAPHICALUSERINTERFACE&SOFTWAREUSERMANUALOVERVIEWTheAmptsoftwareisawebbasedmanagementapplicationforviewingthereal‐timeperformanceandmanagementofyoursolarinstallationatthearray,string,andmodulelevel.INTRODUCTION:TherearetwoviewsavailableformanagingyourSolarArray;summaryandstringview.TheSummaryviewprovidesanoverviewofthestateofthesolararray.ItincludescurrentDCenergyoutputinWatts,Volts,andAmps,powerbystring,SPTstatus,andestimatedACPower.TheStringviewprovidesdetailedinformationontheperformanceofeachSPT.Itprovidesperformanceinformationatthestringlevel;DCenergyoutputinWatts,Volts,andAmps.Bothviewsautomaticallyrefreshaboutevery15seconds.DETAILSSUMMARYVIEWTheSummarypage(figure1)presentsinformationatthearraylevel.Thebuttonacrossthetop“Lock/UnlockWholeStation”allowsyoutodisablecommandstothesystem.Thisisusefulasasafetyprecautionwhenservicingthestation.Totherightisthetimetheinformationyourviewingwaslastupdated.Thisisbasedonyourlocalcomputer’stime.Thestringsareorganizedaroundthephysicalandlogicallayoutascloselyaspossibleandlistthestatusofthemodule,onoroff,andstatusoftheMaximizePowerPointfeature,MPP,onoroff.ClickingonthestringandmoduleareawilltakeyoutotheStringView.Belowthestringandmoduleareaisabarchartshowingthepoweroutputforeachstringinthearray.Thepoweroutputdetailsforthearrayareshownontherightedge;includingestimatedkWhours.AtthebottomisagraphofEnergy,powerandtemperature.Thescaleforthetemperatureislistedontherightedgeofthegraph.Youcanpositionyourmouseoverthelinestoseethetimeandvalueofthemeasurement.Thetimescaleofthegraphcanbechangedusingthecontrolstotherightofthegraph.Youcanchangethetimeintervalaswellasgobackandforwardtimeperiods.

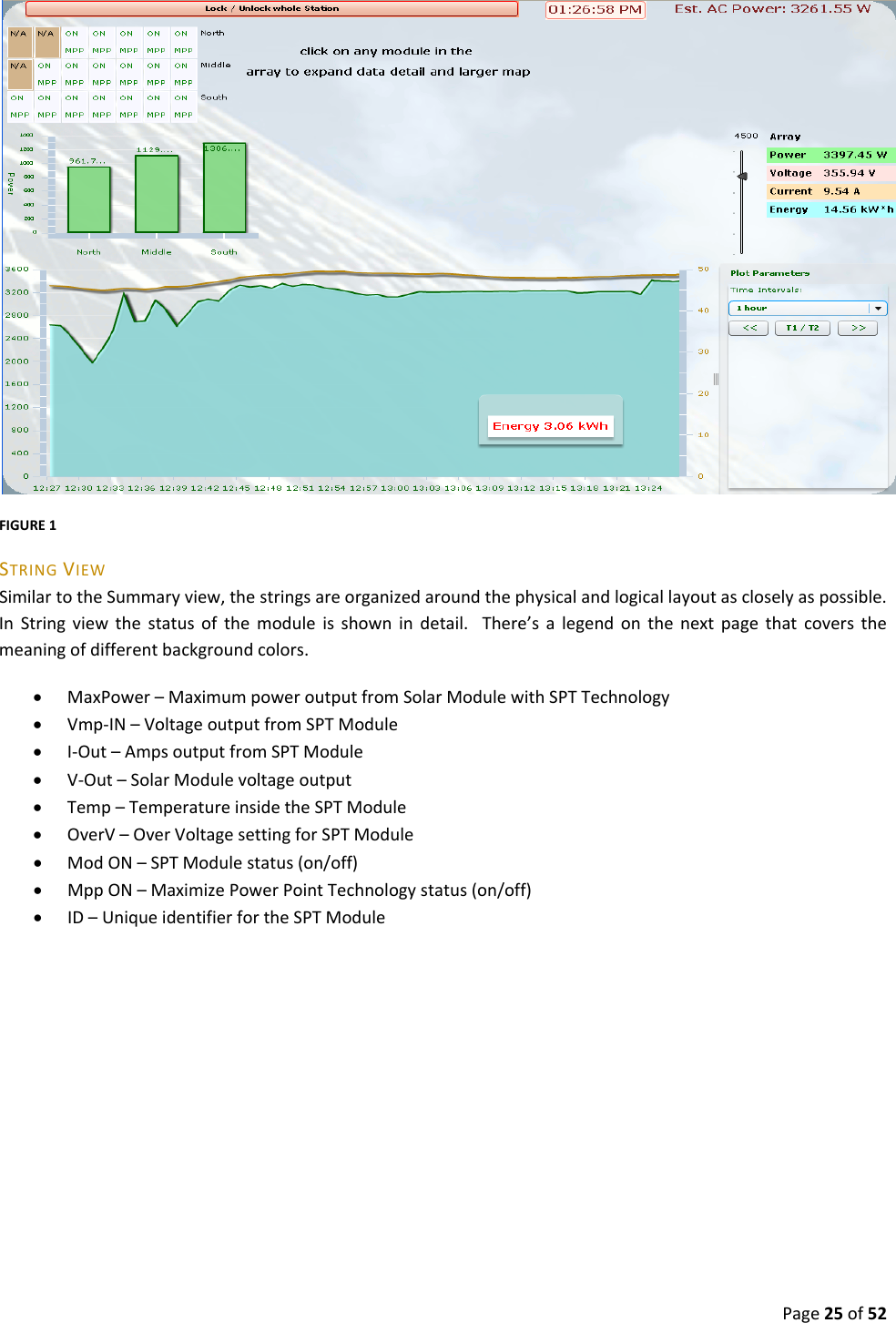

Page25of52FIGURE1STRINGVIEWSimilartotheSummaryview,thestringsareorganizedaroundthephysicalandlogicallayoutascloselyaspossible.InStringviewthestatusofthemoduleisshownindetail.There’salegendonthenextpagethatcoversthemeaningofdifferentbackgroundcolors. MaxPower–MaximumpoweroutputfromSolarModulewithSPTTechnology Vmp‐IN–VoltageoutputfromSPTModule I‐Out–AmpsoutputfromSPTModule V‐Out–SolarModulevoltageoutput Temp–TemperatureinsidetheSPTModule OverV–OverVoltagesettingforSPTModule ModON–SPTModulestatus(on/off) MppON–MaximizePowerPointTechnologystatus(on/off) ID–UniqueidentifierfortheSPTModule

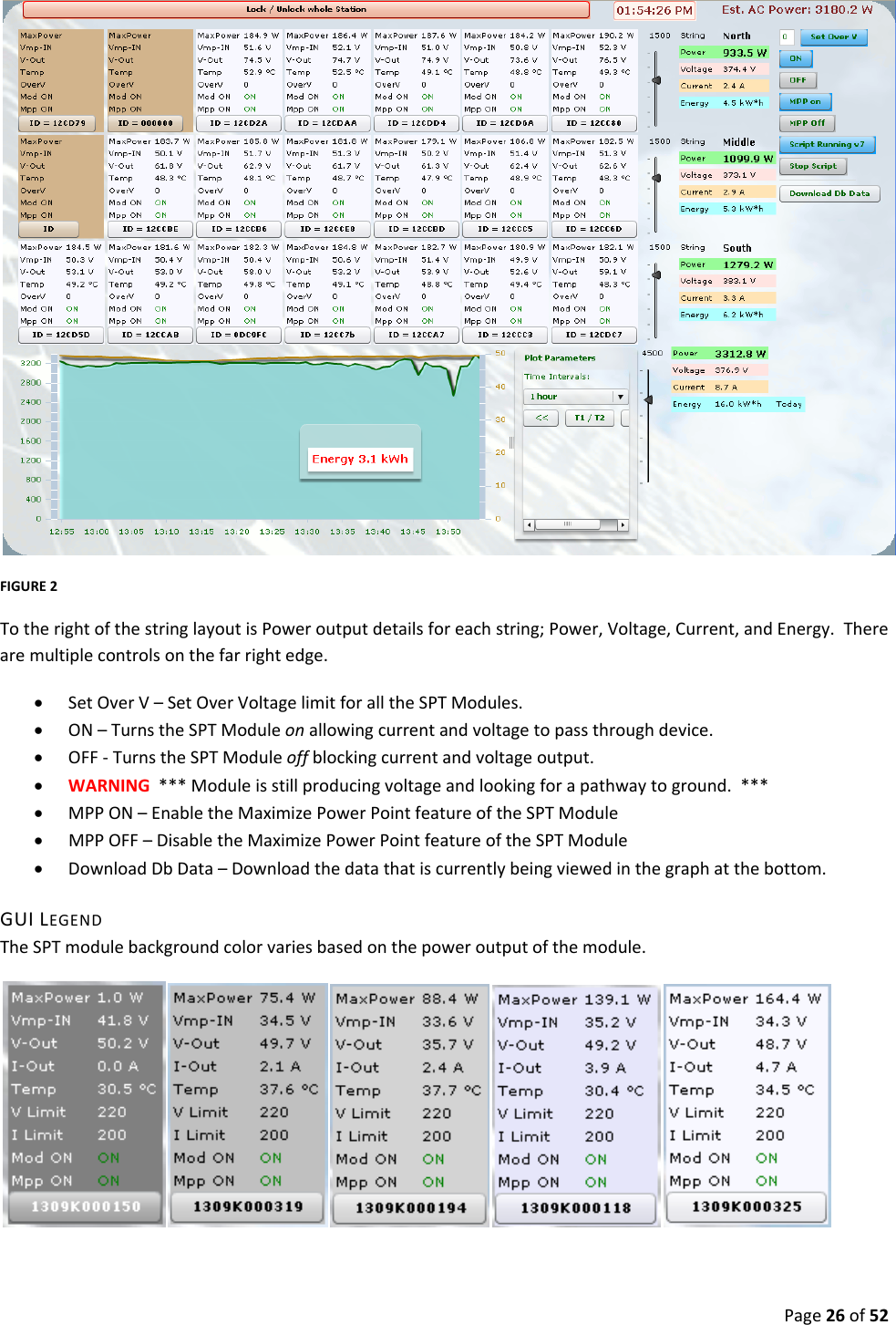

Page26of52FIGURE2TotherightofthestringlayoutisPoweroutputdetailsforeachstring;Power,Voltage,Current,andEnergy.Therearemultiplecontrolsonthefarrightedge. SetOverV–SetOverVoltagelimitforalltheSPTModules. ON–TurnstheSPTModuleonallowingcurrentandvoltagetopassthroughdevice. OFF‐TurnstheSPTModuleoffblockingcurrentandvoltageoutput. WARNING***Moduleisstillproducingvoltageandlookingforapathwaytoground.*** MPPON–EnabletheMaximizePowerPointfeatureoftheSPTModule MPPOFF–DisabletheMaximizePowerPointfeatureoftheSPTModule DownloadDbData–Downloadthedatathatiscurrentlybeingviewedinthegraphatthebottom.GUILEGENDTheSPTmodulebackgroundcolorvariesbasedonthepoweroutputofthemodule.

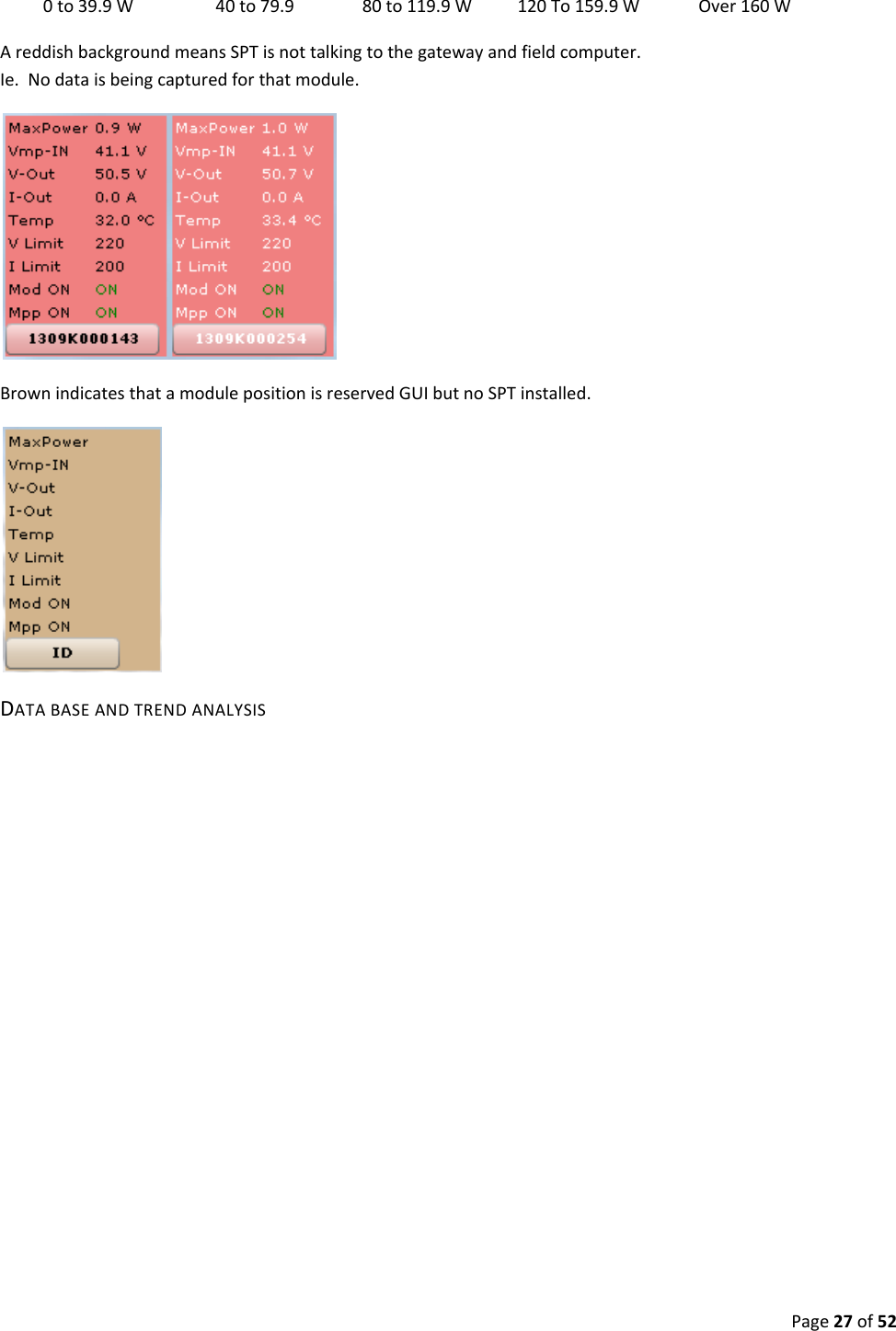

Page27of520to39.9W40to79.980to119.9W120To159.9WOver160WAreddishbackgroundmeansSPTisnottalkingtothegatewayandfieldcomputer.Ie.Nodataisbeingcapturedforthatmodule.BrownindicatesthatamodulepositionisreservedGUIbutnoSPTinstalled.DATABASEANDTRENDANALYSIS

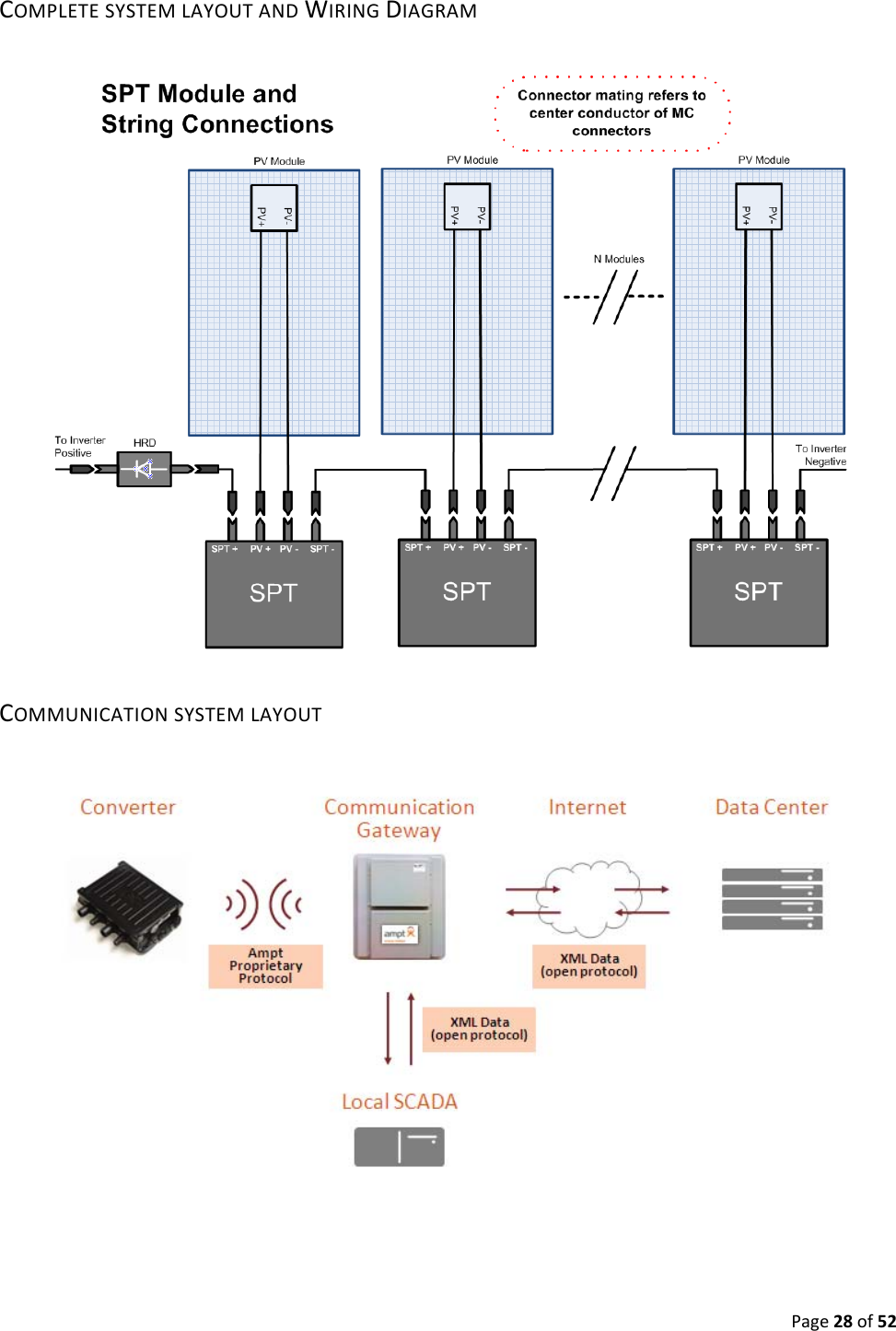

Page28of52COMPLETESYSTEMLAYOUTANDWIRINGDIAGRAMCOMMUNICATIONSYSTEMLAYOUT

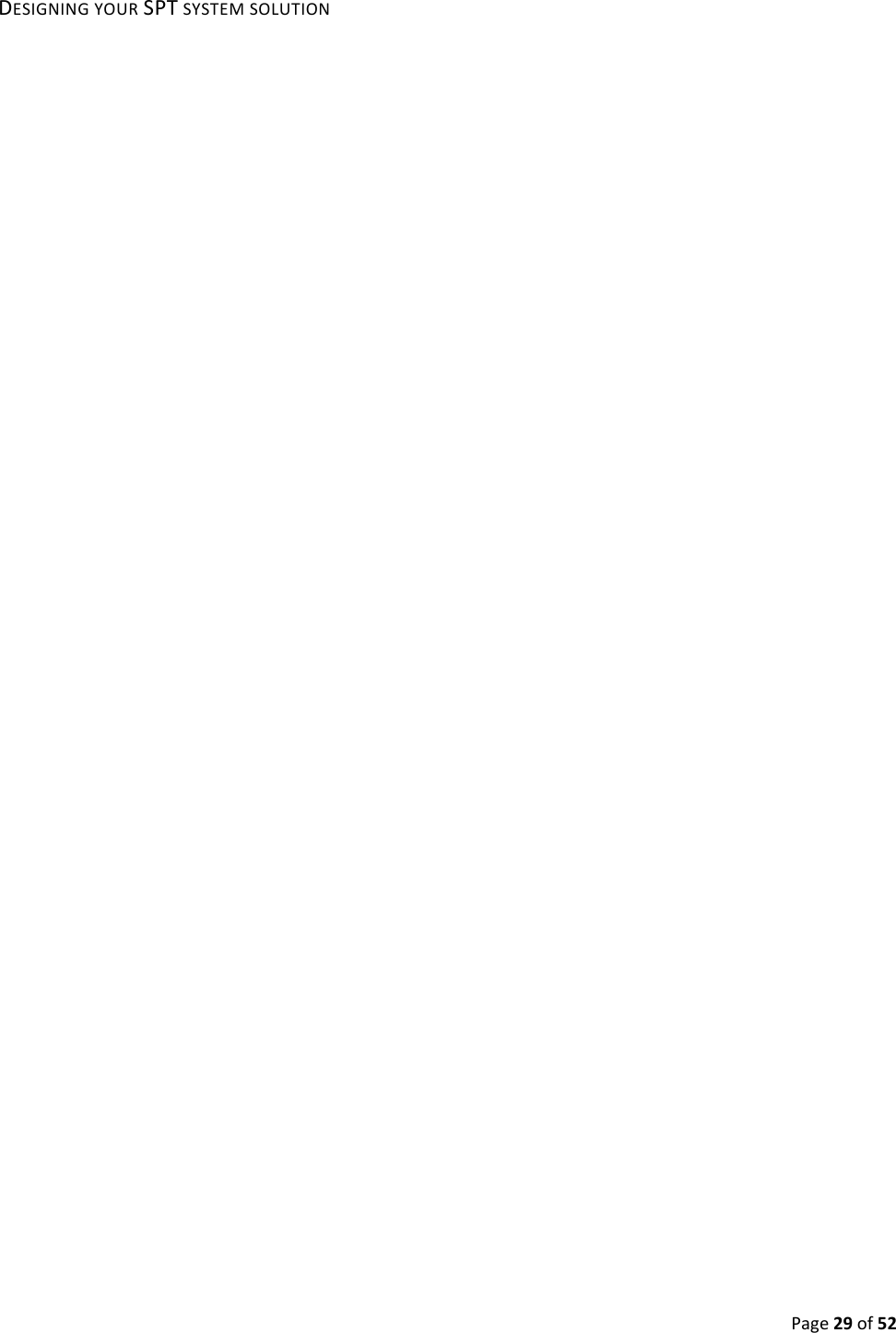

Page29of52DESIGNINGYOURSPTSYSTEMSOLUTION

Page30of52ORDERINGINFORMATION–SAMPLESALESORDER

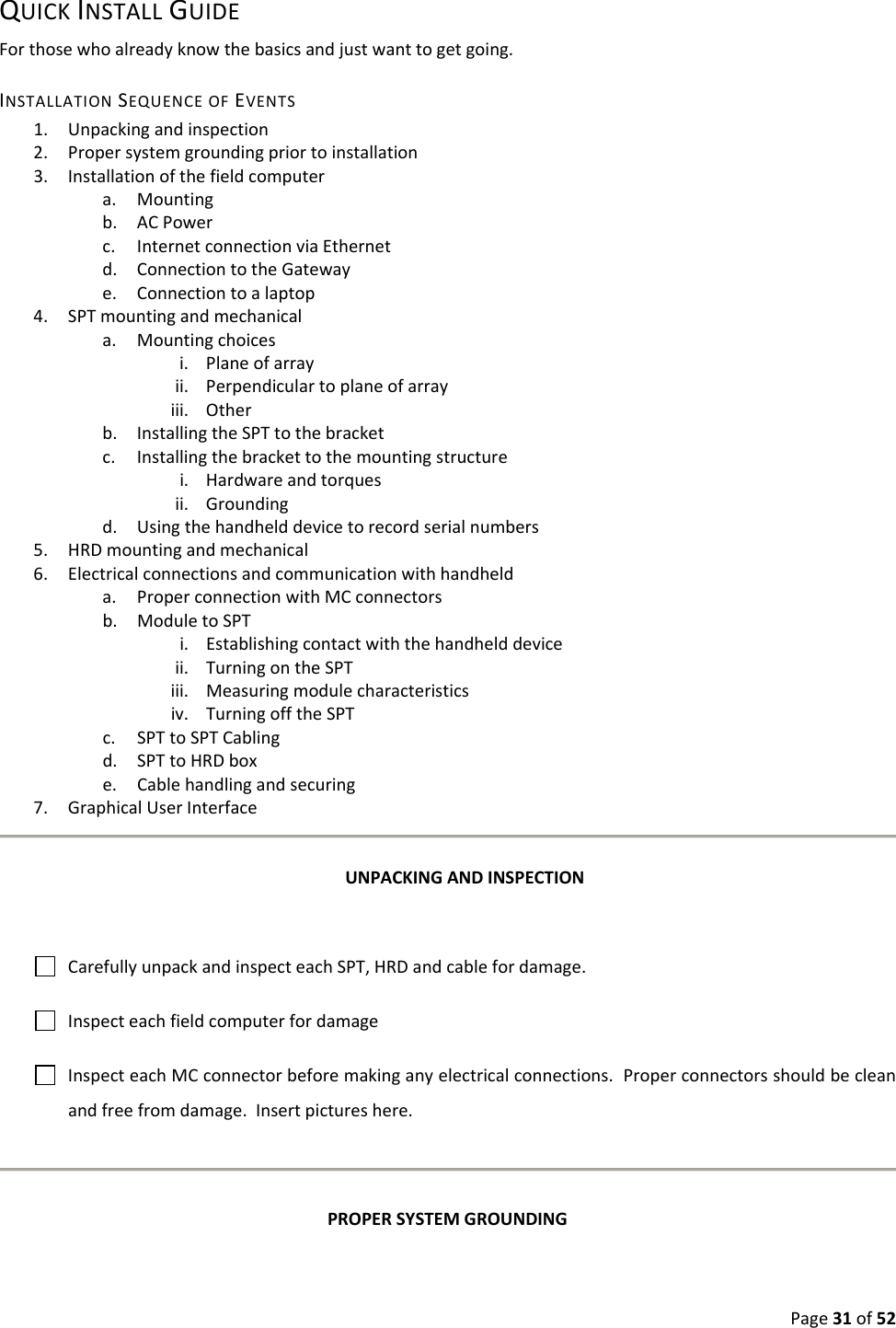

Page31of52QUICKINSTALLGUIDEForthosewhoalreadyknowthebasicsandjustwanttogetgoing.INSTALLATIONSEQUENCEOFEVENTS1. Unpackingandinspection2. Propersystemgroundingpriortoinstallation3. Installationofthefieldcomputera. Mountingb. ACPowerc. InternetconnectionviaEthernetd. ConnectiontotheGatewaye. Connectiontoalaptop4. SPTmountingandmechanicala. Mountingchoicesi. Planeofarrayii. Perpendiculartoplaneofarrayiii. Otherb. InstallingtheSPTtothebracketc. Installingthebrackettothemountingstructurei. Hardwareandtorquesii. Groundingd. Usingthehandhelddevicetorecordserialnumbers5. HRDmountingandmechanical6. Electricalconnectionsandcommunicationwithhandhelda. ProperconnectionwithMCconnectorsb. ModuletoSPTi. Establishingcontactwiththehandhelddeviceii. TurningontheSPTiii. Measuringmodulecharacteristicsiv. TurningofftheSPTc. SPTtoSPTCablingd. SPTtoHRDboxe. Cablehandlingandsecuring7. GraphicalUserInterfaceUNPACKINGANDINSPECTIONCarefullyunpackandinspecteachSPT,HRDandcablefordamage.InspecteachfieldcomputerfordamageInspecteachMCconnectorbeforemakinganyelectricalconnections.Properconnectorsshouldbecleanandfreefromdamage.Insertpictureshere.PROPERSYSTEMGROUNDING

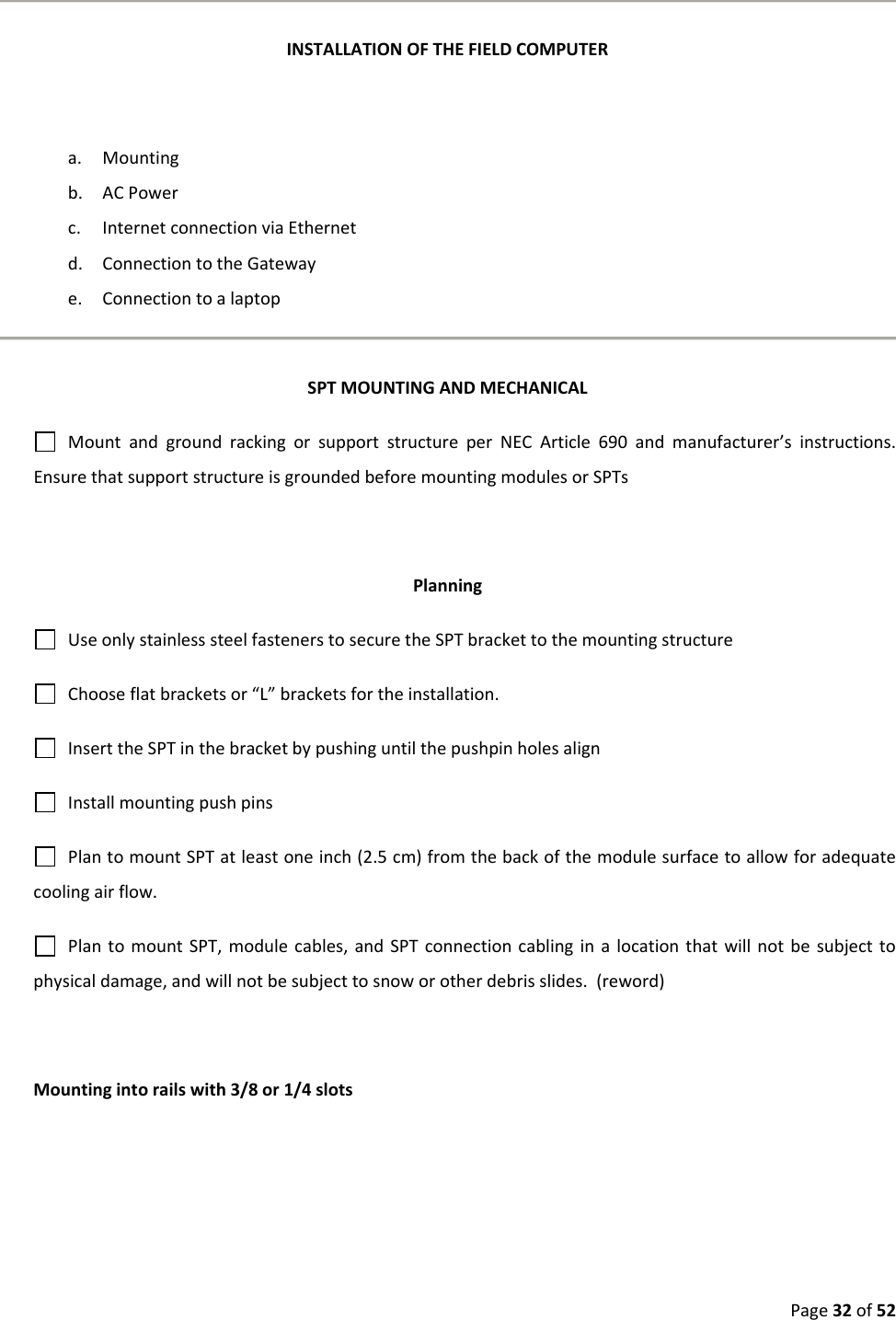

Page32of52INSTALLATIONOFTHEFIELDCOMPUTERa. Mountingb. ACPowerc. InternetconnectionviaEthernetd. ConnectiontotheGatewaye. ConnectiontoalaptopSPTMOUNTINGANDMECHANICALMountandgroundrackingorsupportstructureperNECArticle690andmanufacturer’sinstructions.EnsurethatsupportstructureisgroundedbeforemountingmodulesorSPTsPlanningUseonlystainlesssteelfastenerstosecuretheSPTbrackettothemountingstructureChooseflatbracketsor“L”bracketsfortheinstallation.InserttheSPTinthebracketbypushinguntilthepushpinholesalignInstallmountingpushpinsPlantomountSPTatleastoneinch(2.5cm)fromthebackofthemodulesurfacetoallowforadequatecoolingairflow.PlantomountSPT,modulecables,andSPTconnectioncablinginalocationthatwillnotbesubjecttophysicaldamage,andwillnotbesubjecttosnoworotherdebrisslides.(reword)Mountingintorailswith3/8or1/4slots

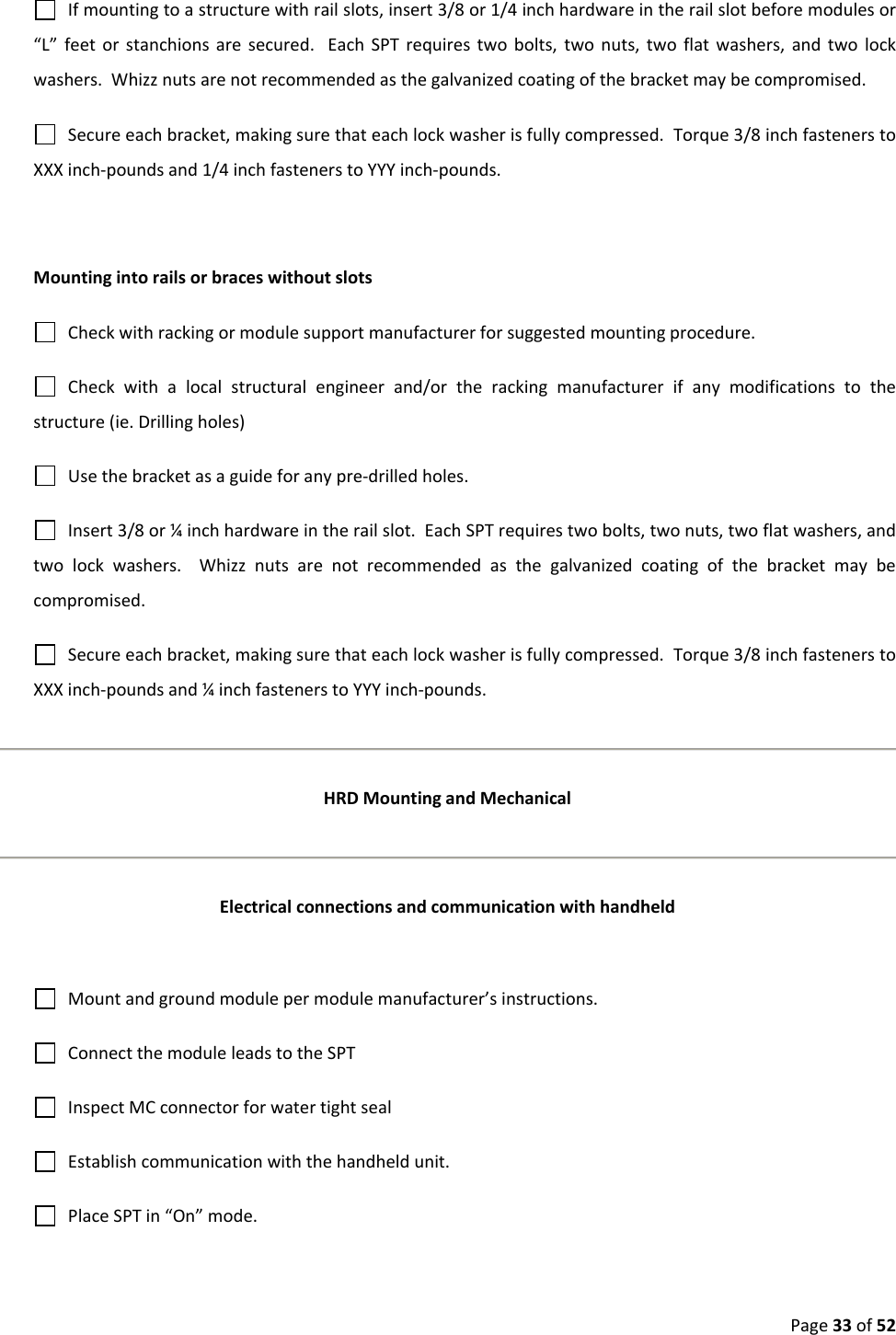

Page33of52Ifmountingtoastructurewithrailslots,insert3/8or1/4inchhardwareintherailslotbeforemodulesor“L”feetorstanchionsaresecured.EachSPTrequirestwobolts,twonuts,twoflatwashers,andtwolockwashers.Whizznutsarenotrecommendedasthegalvanizedcoatingofthebracketmaybecompromised.Secureeachbracket,makingsurethateachlockwasherisfullycompressed.Torque3/8inchfastenerstoXXXinch‐poundsand1/4inchfastenerstoYYYinch‐pounds.MountingintorailsorbraceswithoutslotsCheckwithrackingormodulesupportmanufacturerforsuggestedmountingprocedure.Checkwithalocalstructuralengineerand/ortherackingmanufacturerifanymodificationstothestructure(ie.Drillingholes)Usethebracketasaguideforanypre‐drilledholes.Insert3/8or¼inchhardwareintherailslot.EachSPTrequirestwobolts,twonuts,twoflatwashers,andtwolockwashers.Whizznutsarenotrecommendedasthegalvanizedcoatingofthebracketmaybecompromised.Secureeachbracket,makingsurethateachlockwasherisfullycompressed.Torque3/8inchfastenerstoXXXinch‐poundsand¼inchfastenerstoYYYinch‐pounds.HRDMountingandMechanicalElectricalconnectionsandcommunicationwithhandheldMountandgroundmodulepermodulemanufacturer’sinstructions.ConnectthemoduleleadstotheSPTInspectMCconnectorforwatertightsealEstablishcommunicationwiththehandheldunit.PlaceSPTin“On”mode.

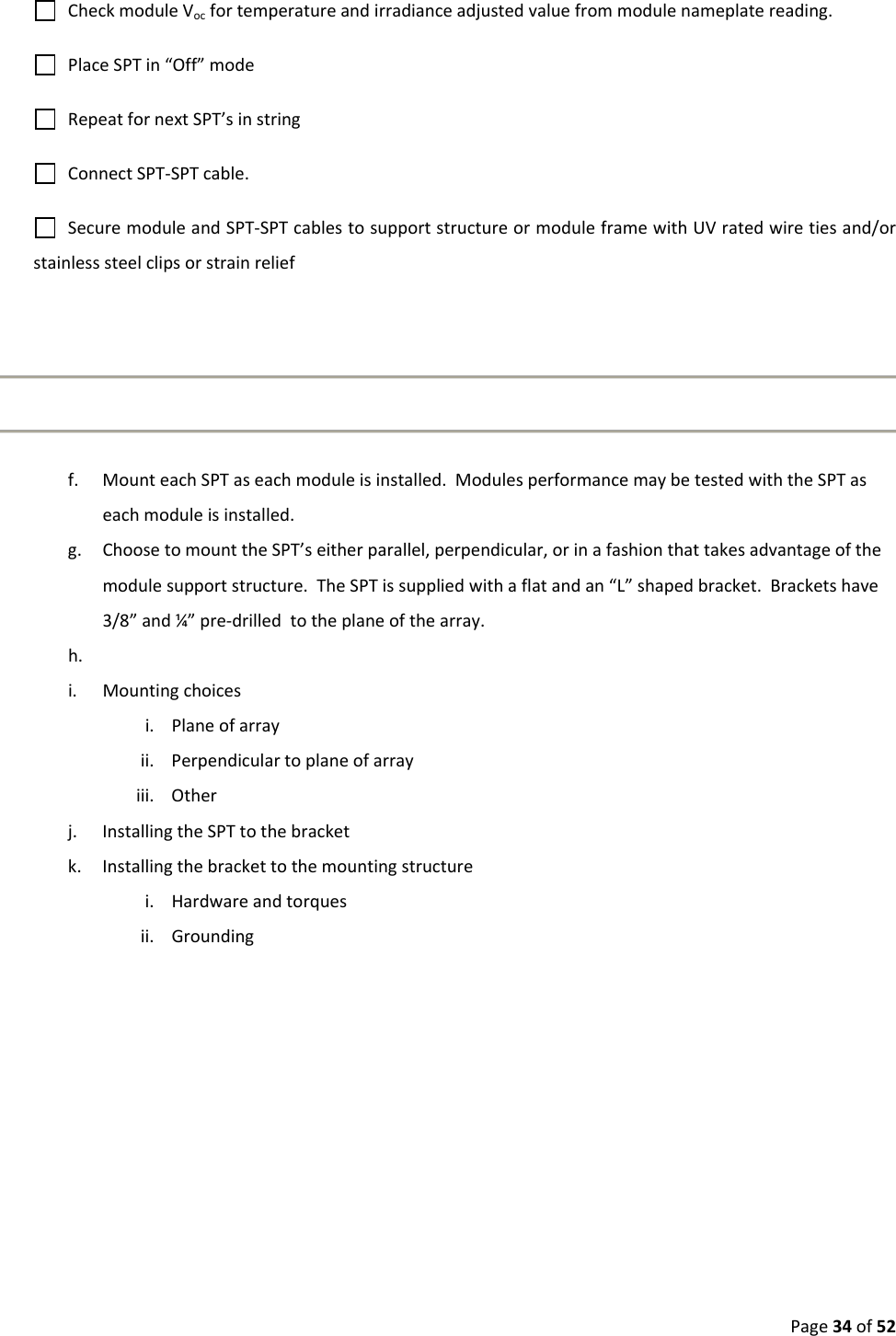

Page34of52CheckmoduleVocfortemperatureandirradianceadjustedvaluefrommodulenameplatereading.PlaceSPTin“Off”modeRepeatfornextSPT’sinstringConnectSPT‐SPTcable.SecuremoduleandSPT‐SPTcablestosupportstructureormoduleframewithUVratedwiretiesand/orstainlesssteelclipsorstrainrelieff. MounteachSPTaseachmoduleisinstalled.ModulesperformancemaybetestedwiththeSPTaseachmoduleisinstalled.g. ChoosetomounttheSPT’seitherparallel,perpendicular,orinafashionthattakesadvantageofthemodulesupportstructure.TheSPTissuppliedwithaflatandan“L”shapedbracket.Bracketshave3/8”and¼”pre‐drilledtotheplaneofthearray.h. i. Mountingchoicesi. Planeofarrayii. Perpendiculartoplaneofarrayiii. Otherj. InstallingtheSPTtothebracketk. Installingthebrackettothemountingstructurei. Hardwareandtorquesii. Grounding

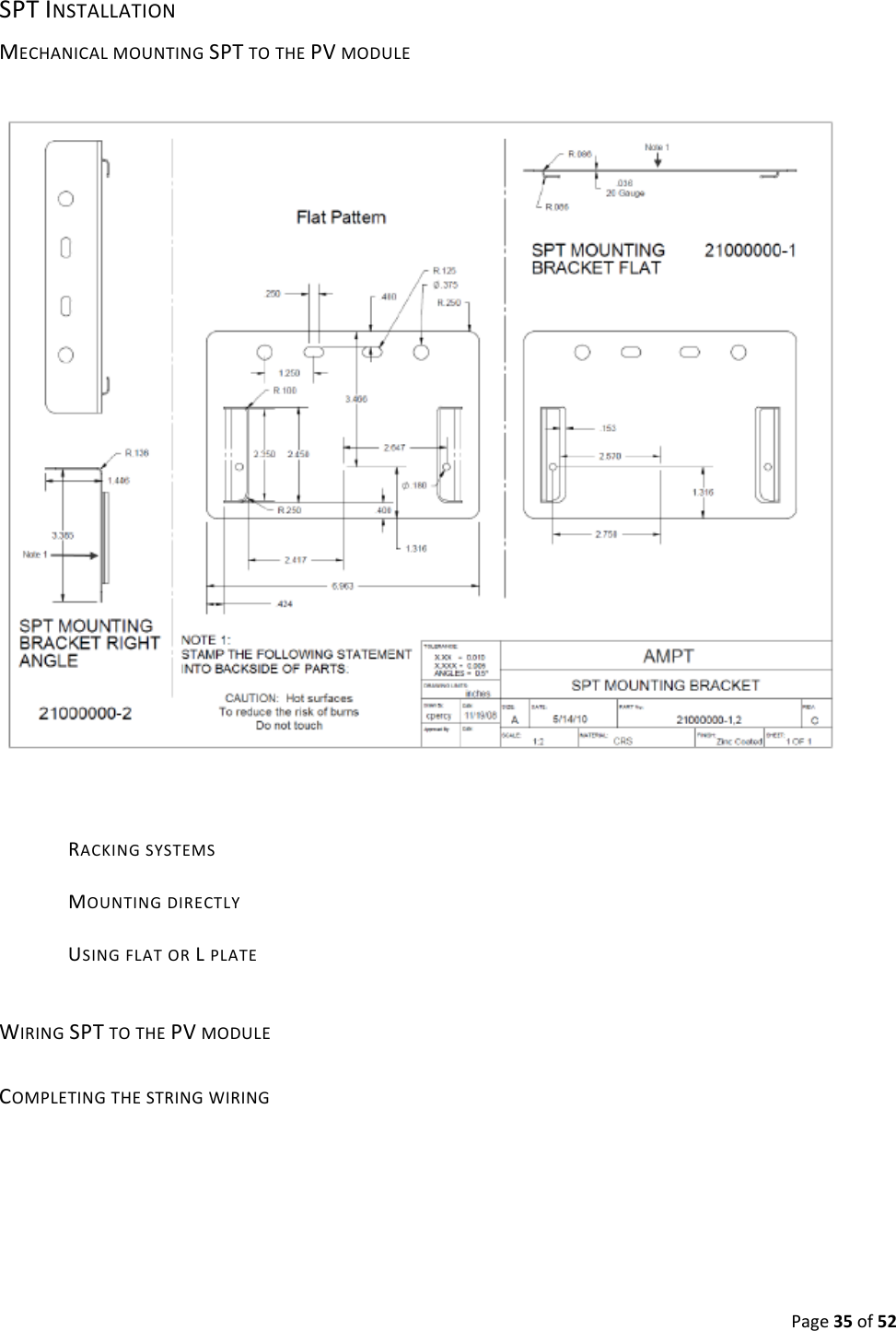

Page35of52SPTINSTALLATIONMECHANICALMOUNTINGSPTTOTHEPVMODULERACKINGSYSTEMSMOUNTINGDIRECTLYUSINGFLATORLPLATEWIRINGSPTTOTHEPVMODULECOMPLETINGTHESTRINGWIRING

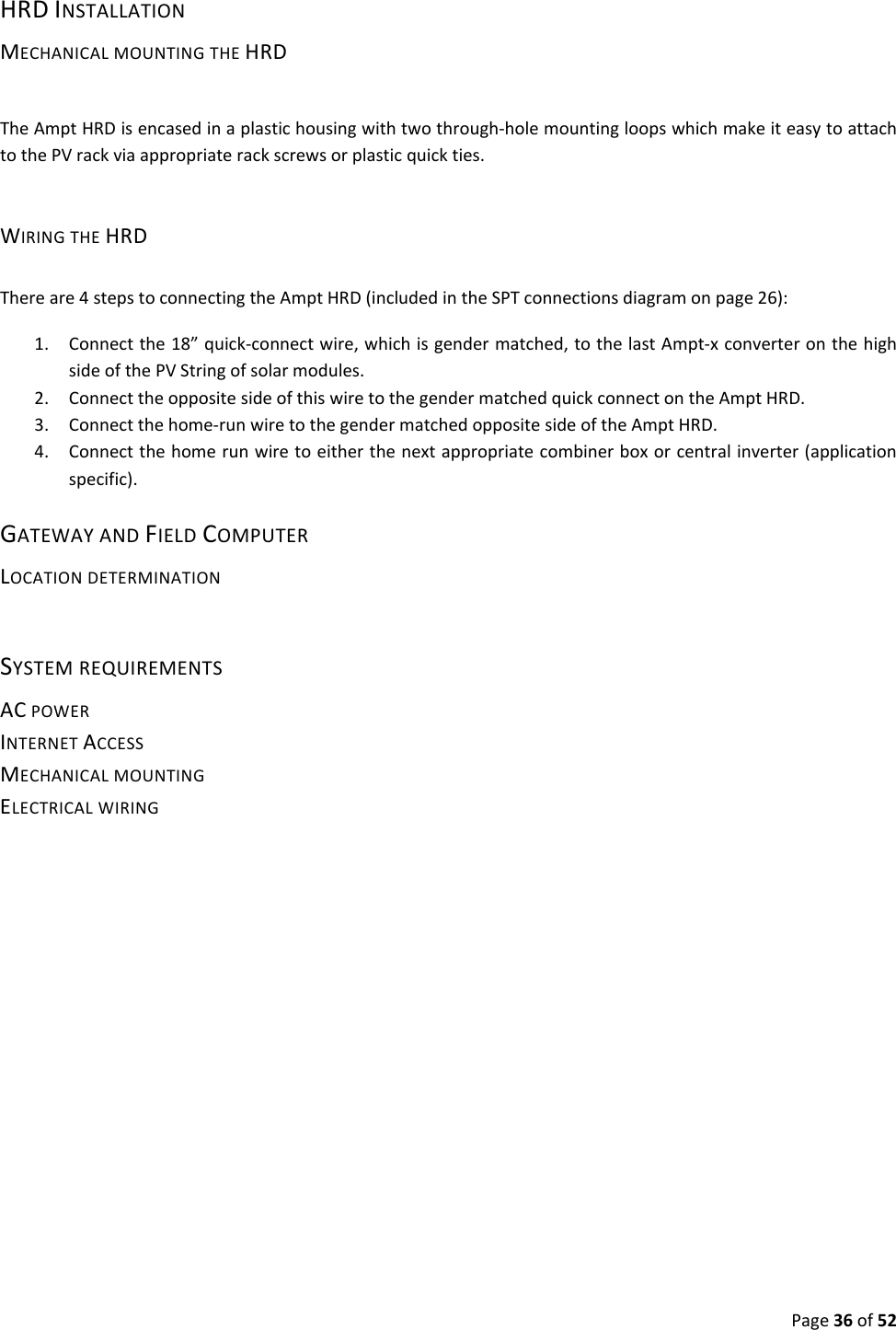

Page36of52HRDINSTALLATIONMECHANICALMOUNTINGTHEHRDTheAmptHRDisencasedinaplastichousingwithtwothrough‐holemountingloopswhichmakeiteasytoattachtothePVrackviaappropriaterackscrewsorplasticquickties.WIRINGTHEHRDThereare4stepstoconnectingtheAmptHRD(includedintheSPTconnectionsdiagramonpage26):1. Connectthe18”quick‐connectwire,whichisgendermatched,tothelastAmpt‐xconverteronthehighsideofthePVStringofsolarmodules.2. ConnecttheoppositesideofthiswiretothegendermatchedquickconnectontheAmptHRD.3. Connectthehome‐runwiretothegendermatchedoppositesideoftheAmptHRD.4. Connectthehomerunwiretoeitherthenextappropriatecombinerboxorcentralinverter(applicationspecific).GATEWAYANDFIELDCOMPUTERLOCATIONDETERMINATIONSYSTEMREQUIREMENTSACPOWERINTERNETACCESSMECHANICALMOUNTINGELECTRICALWIRING

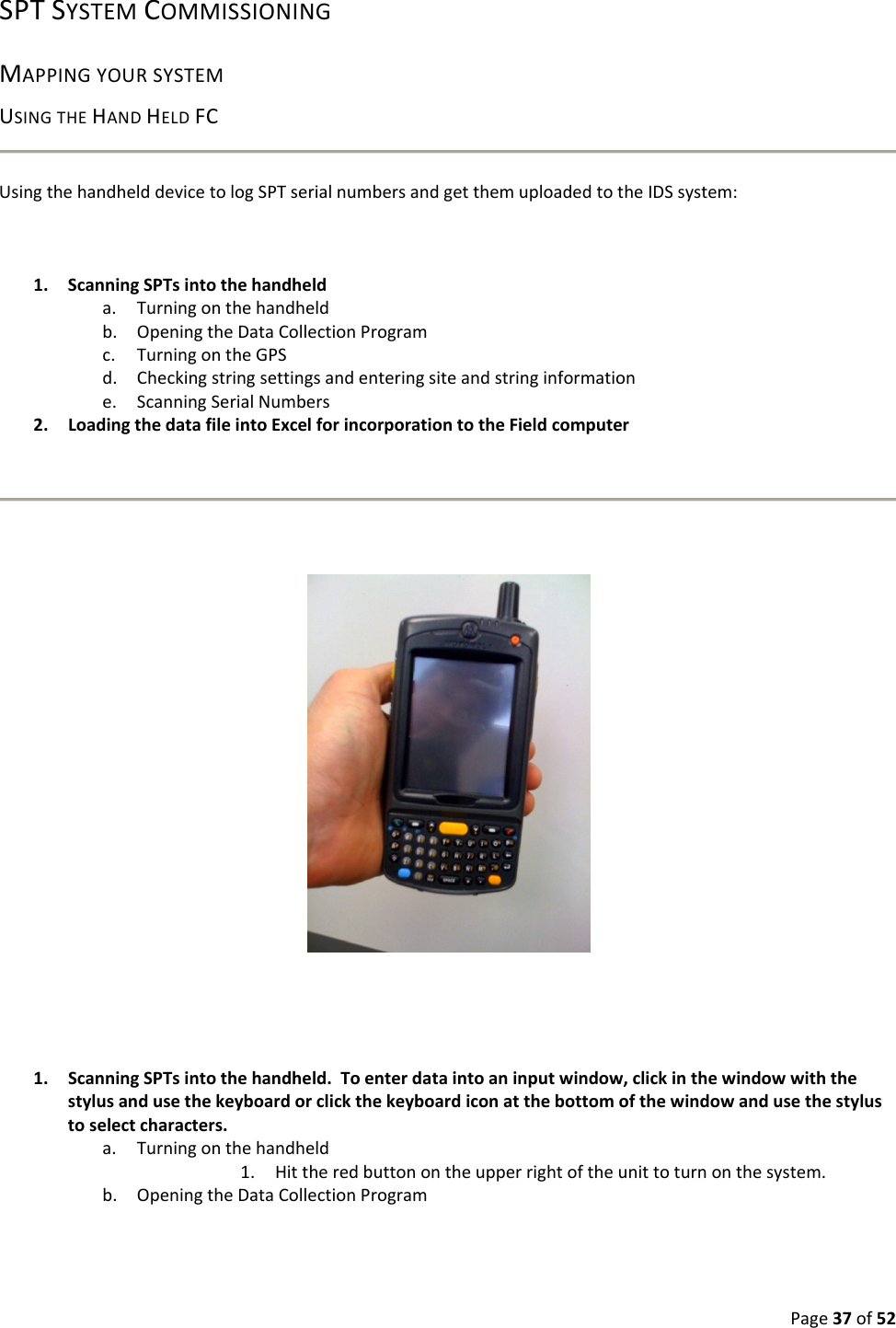

Page37of52SPTSYSTEMCOMMISSIONINGMAPPINGYOURSYSTEMUSINGTHEHANDHELDFCUsingthehandhelddevicetologSPTserialnumbersandgetthemuploadedtotheIDSsystem:1. ScanningSPTsintothehandhelda. Turningonthehandheldb. OpeningtheDataCollectionProgramc. TurningontheGPSd. Checkingstringsettingsandenteringsiteandstringinformatione. ScanningSerialNumbers2. LoadingthedatafileintoExcelforincorporationtotheFieldcomputer1. ScanningSPTsintothehandheld.Toenterdataintoaninputwindow,clickinthewindowwiththestylusandusethekeyboardorclickthekeyboardiconatthebottomofthewindowandusethestylustoselectcharacters.a. Turningonthehandheld1. Hittheredbuttonontheupperrightoftheunittoturnonthesystem.b. OpeningtheDataCollectionProgram

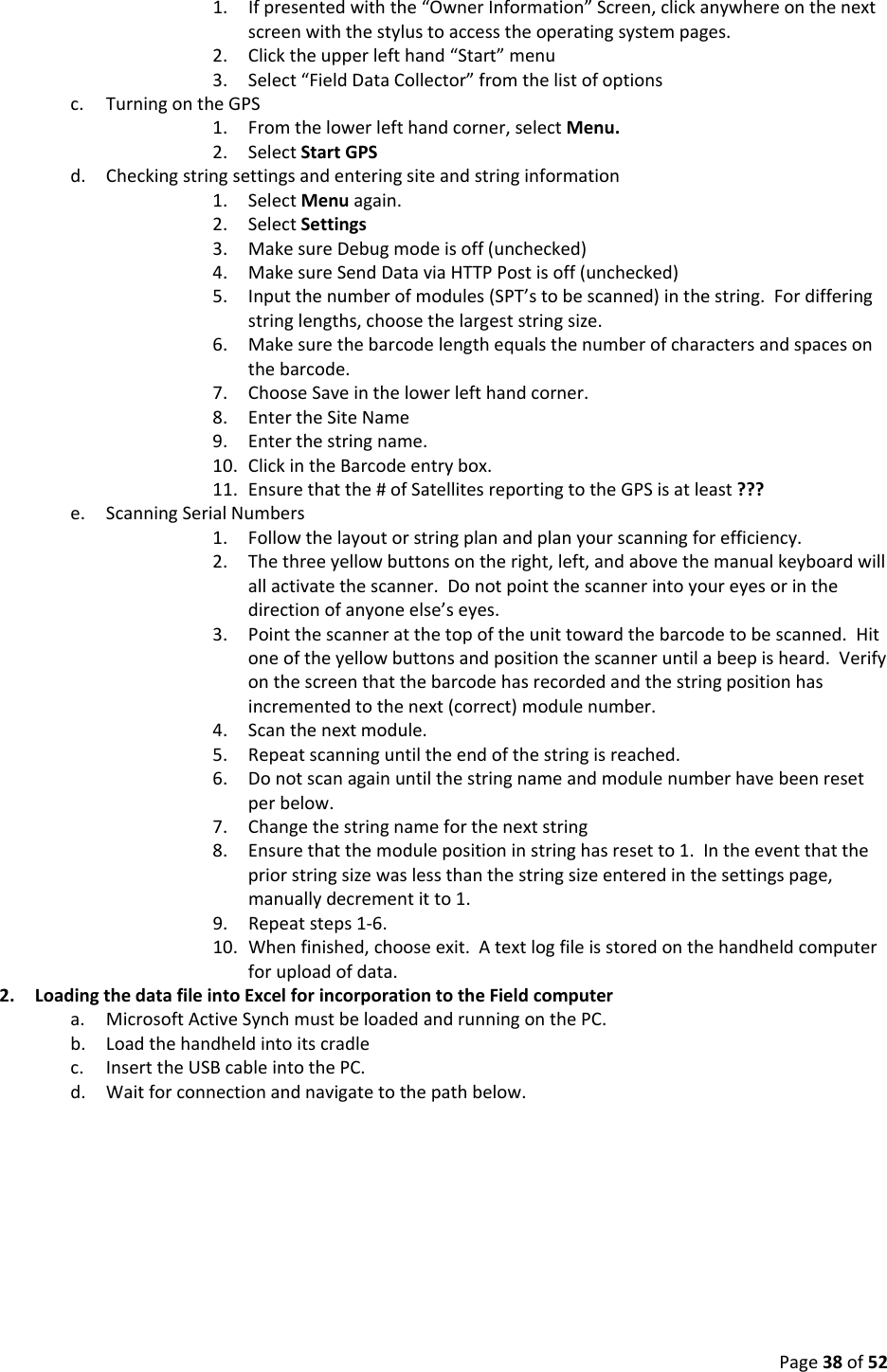

Page38of521. Ifpresentedwiththe“OwnerInformation”Screen,clickanywhereonthenextscreenwiththestylustoaccesstheoperatingsystempages.2. Clicktheupperlefthand“Start”menu3. Select“FieldDataCollector”fromthelistofoptionsc. TurningontheGPS1. Fromthelowerlefthandcorner,selectMenu.2. SelectStartGPSd. Checkingstringsettingsandenteringsiteandstringinformation1. SelectMenuagain.2. SelectSettings3. MakesureDebugmodeisoff(unchecked)4. MakesureSendDataviaHTTPPostisoff(unchecked)5. Inputthenumberofmodules(SPT’stobescanned)inthestring.Fordifferingstringlengths,choosethelargeststringsize.6. Makesurethebarcodelengthequalsthenumberofcharactersandspacesonthebarcode.7. ChooseSaveinthelowerlefthandcorner.8. EntertheSiteName9. Enterthestringname.10. ClickintheBarcodeentrybox.11. Ensurethatthe#ofSatellitesreportingtotheGPSisatleast???e. ScanningSerialNumbers1. Followthelayoutorstringplanandplanyourscanningforefficiency.2. Thethreeyellowbuttonsontheright,left,andabovethemanualkeyboardwillallactivatethescanner.Donotpointthescannerintoyoureyesorinthedirectionofanyoneelse’seyes.3. Pointthescanneratthetopoftheunittowardthebarcodetobescanned.Hitoneoftheyellowbuttonsandpositionthescanneruntilabeepisheard.Verifyonthescreenthatthebarcodehasrecordedandthestringpositionhasincrementedtothenext(correct)modulenumber.4. Scanthenextmodule.5. Repeatscanninguntiltheendofthestringisreached.6. Donotscanagainuntilthestringnameandmodulenumberhavebeenresetperbelow.7. Changethestringnameforthenextstring8. Ensurethatthemodulepositioninstringhasresetto1.Intheeventthatthepriorstringsizewaslessthanthestringsizeenteredinthesettingspage,manuallydecrementitto1.9. Repeatsteps1‐6.10. Whenfinished,chooseexit.Atextlogfileisstoredonthehandheldcomputerforuploadofdata.2. LoadingthedatafileintoExcelforincorporationtotheFieldcomputera. MicrosoftActiveSynchmustbeloadedandrunningonthePC.b. Loadthehandheldintoitscradlec. InserttheUSBcableintothePC.d. Waitforconnectionandnavigatetothepathbelow.

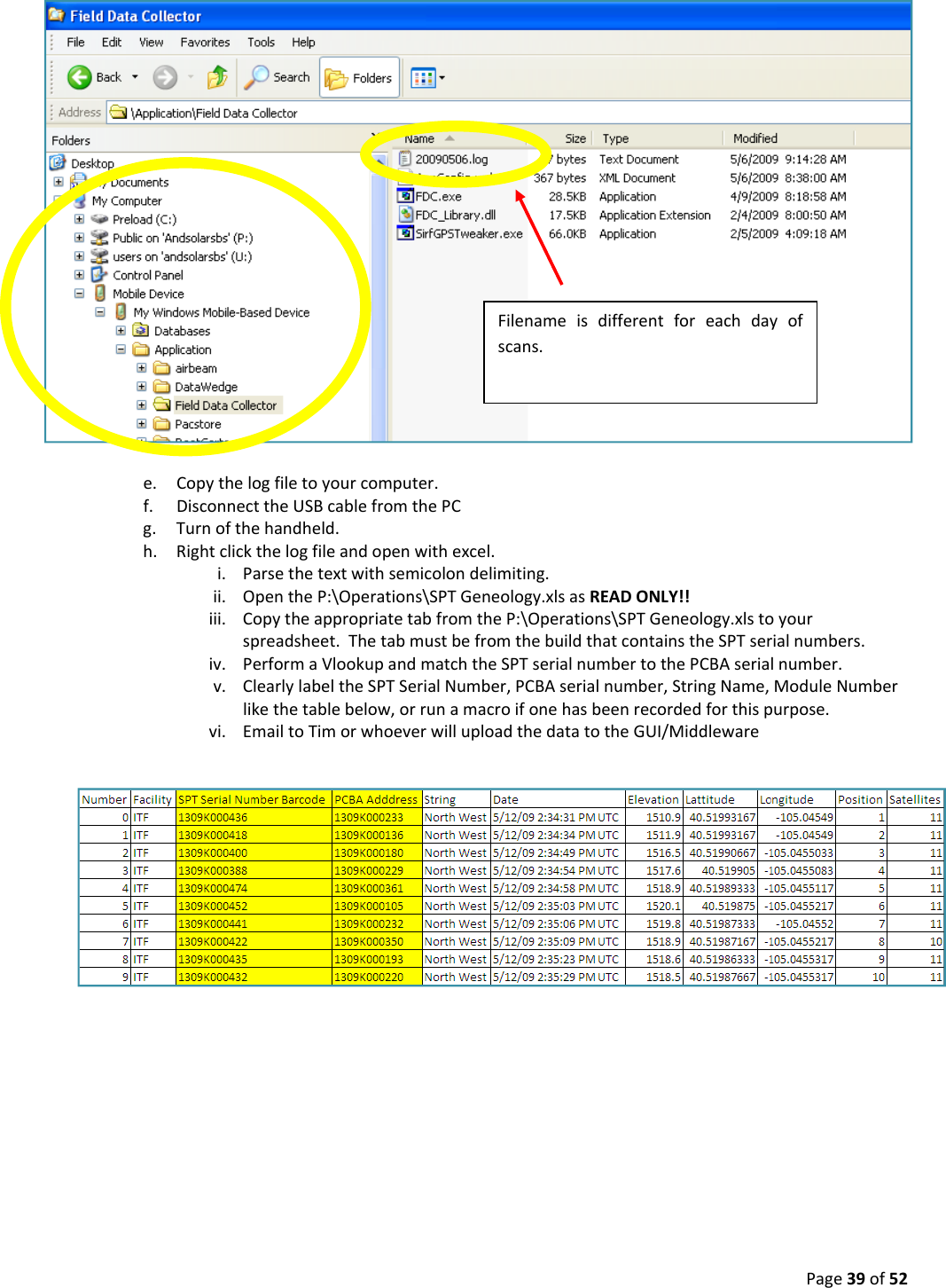

$Page39of52e. Copythelogfiletoyourcomputer.f. DisconnecttheUSBcablefromthePCg. Turnofthehandheld.h. Rightclickthelogfileandopenwithexcel.i. Parsethetextwithsemicolondelimiting.ii. OpentheP:\Operations\SPTGeneology.xlsasREADONLY!!iii. CopytheappropriatetabfromtheP:\Operations\SPTGeneology.xlstoyourspreadsheet.ThetabmustbefromthebuildthatcontainstheSPTserialnumbers.iv. PerformaVlookupandmatchtheSPTserialnumbertothePCBAserialnumber.v. ClearlylabeltheSPTSerialNumber,PCBAserialnumber,StringName,ModuleNumberlikethetablebelow,orrunamacroifonehasbeenrecordedforthispurpose.vi. EmailtoTimorwhoeverwilluploadthedatatotheGUI/MiddlewareFilenameisdifferentforeachdayofscans.$
