Amtek System ITABLETRFK01 RF Keyboard User Manual
Amtek System Co., Ltd. RF Keyboard
User Manual
1

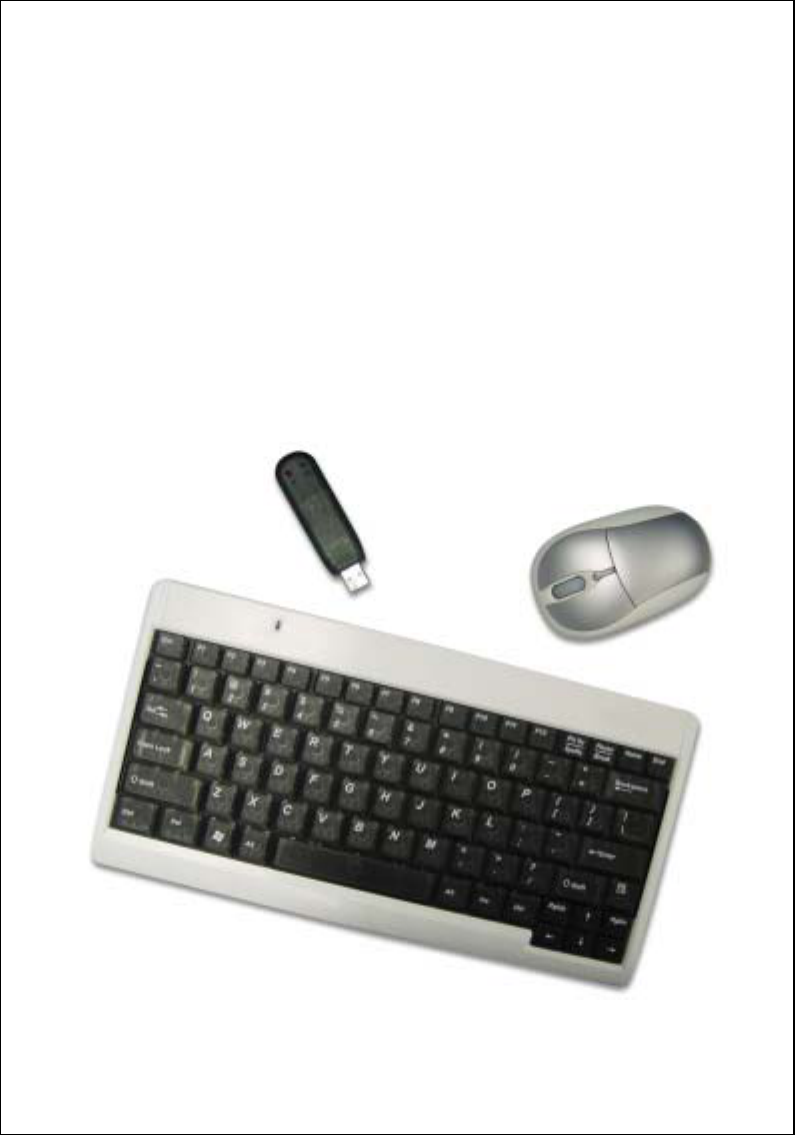

Wireless
Keyboard & Mouse
Using Instruction
2
Getting Started Guide
1. Install the battery:
(1) Remove the battery cover on the top.
(2) Insert the Alkaline Batteries enclosed in the package into
the battery compartment, and follow the directive marks to
insert batteries.
(3) Replace the cover carefully.
Note: Once the batteries are placed correctly, the mouse
optical LED located at the bottom will be lit up. If the
LED isn’t lit up, please remove the batteries.Recheck the
battery direction and install anew.
2. Connect the receiver:
Please connect the receiver to the USB port on the computer.
Windows 98 or higher o
3. Establish communication connection
After plug the receiver to your computer, the LED on the
receiver will be lit up. To press the ID button on the receiver
in first then press the button on the bottom of both mouse and
keyboard .If the receiver connects with the mouse
successfully, LED indicator on the receiver will blink
quickly and stop blinking. Same as Keyboard ID setting.
4. Important Note
° To optimize the performance of your RF reception, please
make your receiver away from electrical devices. Avoid
using your RF optical mouse on a metal surface. That may
3
slow down the response of the mouse or cause the
response failure of the mouse .
° Do not mix different brand batteries or mix old and new
batteries in the mouse.
° In order to extend the life of the batteries ,using your
mouse on white or bright surfaces are recommended.
° If you will not use the mouse & keyboard for a long time,
please take the batteries apart off from Mouse and turn the
power switch off on the bottom of keyboard to extend its
using life.
° There are 2 LEDs on the receiver,
One is Color in red and will be turn on when you
connected to system and will blinking when you set ID ,
moving mouse or press any key on keyboard.
The other is color in Green. This LED will be turned on
when you press Caps Lock key.
There is one LED on Keyboard ,It’s color in red and only
be turned on when the battery Low. Please remove the
battery cover and change new Batteries.
5. Trouble shooting
The mouse does not work or is not detected.
° Check the USB make sure receiver is connected correctly.
° When the battery power is low, please change
new batteries by same brand or same
specification. Alkaline Batteries are recommended
° Reset the ID button of mouse/Keyboard and
receiver.（follow the “Establish communication
4
connection ” step）or Unplugged the receiver and
re-connect to your PC again
° With power saving design, if you don’t use mouse about 8
minutes, it will enter a suspend mode to sleep
automatically. Please press right or left button of mouse
to wake up the mouse.
° For desktop PC, using the USB extension cable to let the
receiver closer your mouse can have better transmitting
performance.
Packing contents
◎ RF Wireless Optical Mouse
◎ RF Wireless Slim Keyboard
◎ Receiver
◎ AA size Alkaline Batteries x 4
◎ Using instruction
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a
Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction, may cause
harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
5
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved
by the party responsible for complies could void your authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE
Any changes or modifications (including the antennas) made to this
device that are not expressly approved by the manufacturer may void the
user’s authority to operate the equipment.
European Union CE Marking Declaration
This product has been tested and found to comply with the EMC
requirement subject to the EU directive for CE marking.
