User Manual
DRAFT

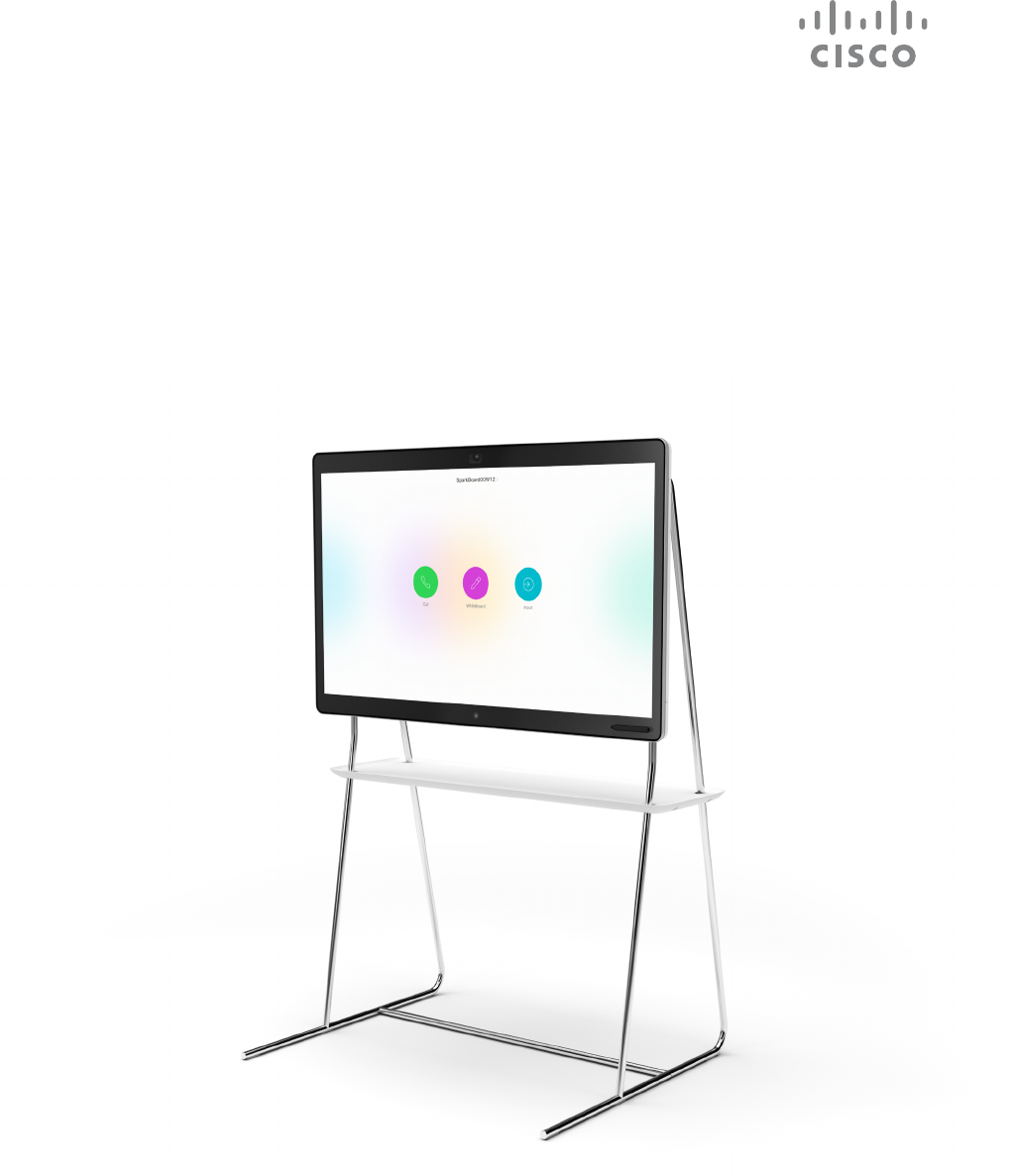

Cisco Spark Board 55
Compliance model number: AA55WW
Installation guide: Floor stand
2
DRAFT

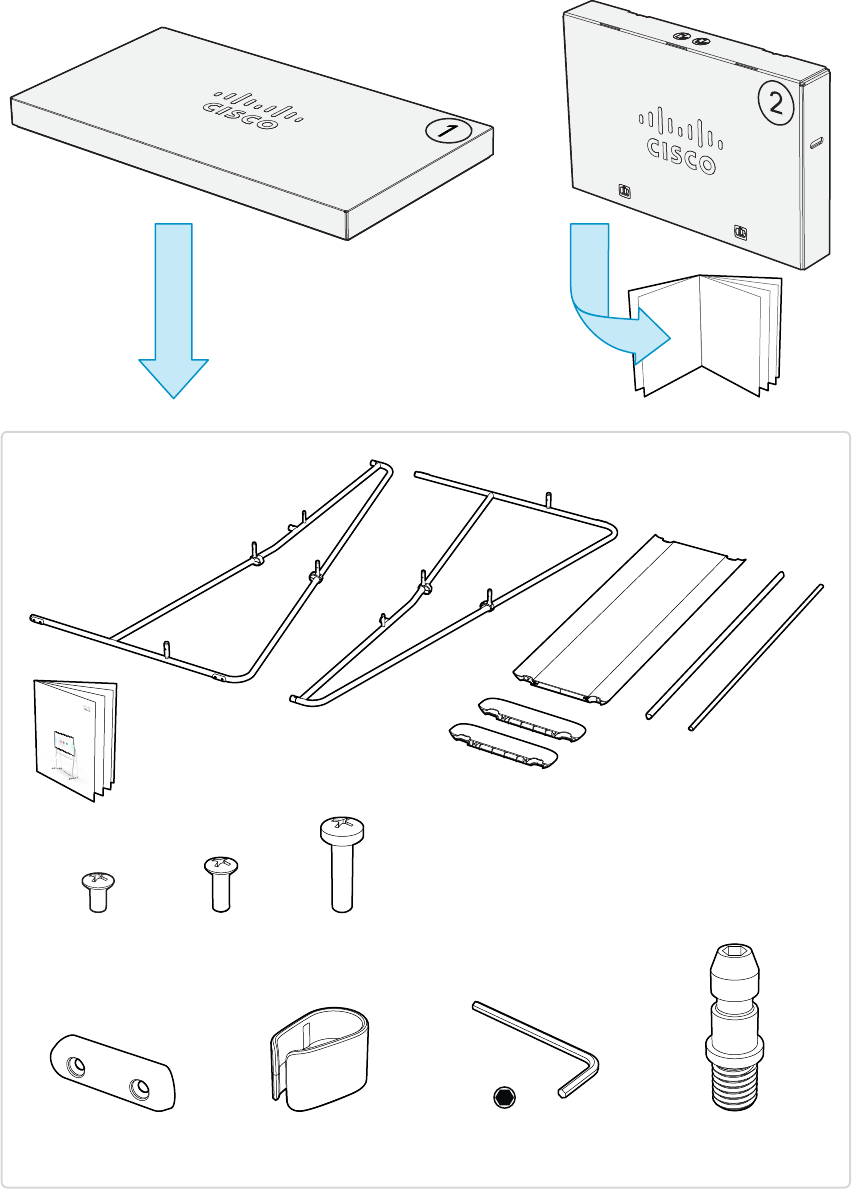

3
× 4× 2× 4
Hex, 5 mm
× 10
M4x12
× 4
M4x8
× 4
M6x20
Hex, 5 mm
× 1
4
Cisco Spark Board 55
Installation guide: Floor stand
Instructions de montage: Socle sur pied
DRAFT
4

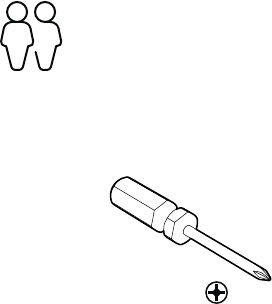

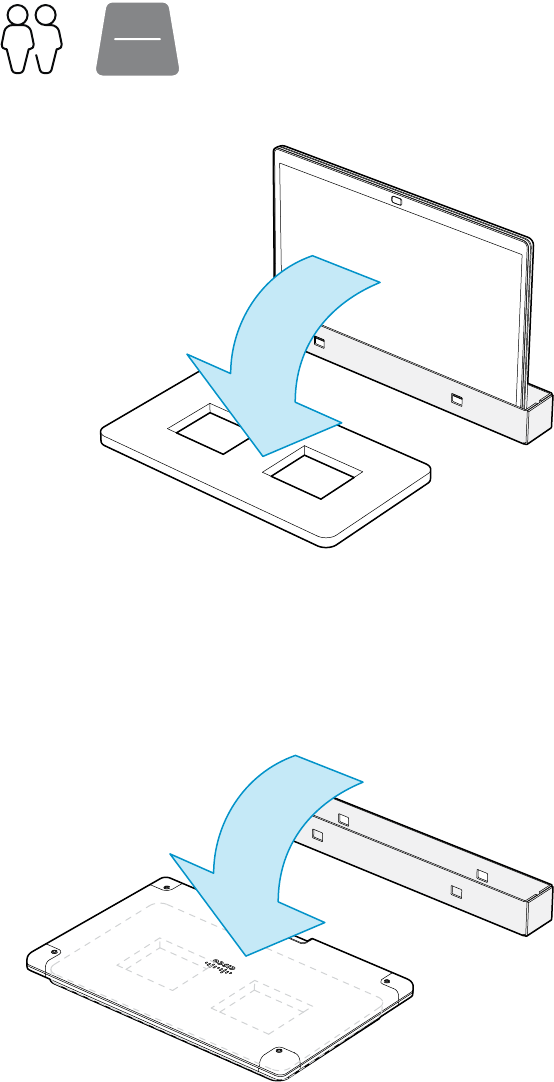

We recommend two people working together to mount this system.
Follow local regulations.
PH2
DRAFT
5

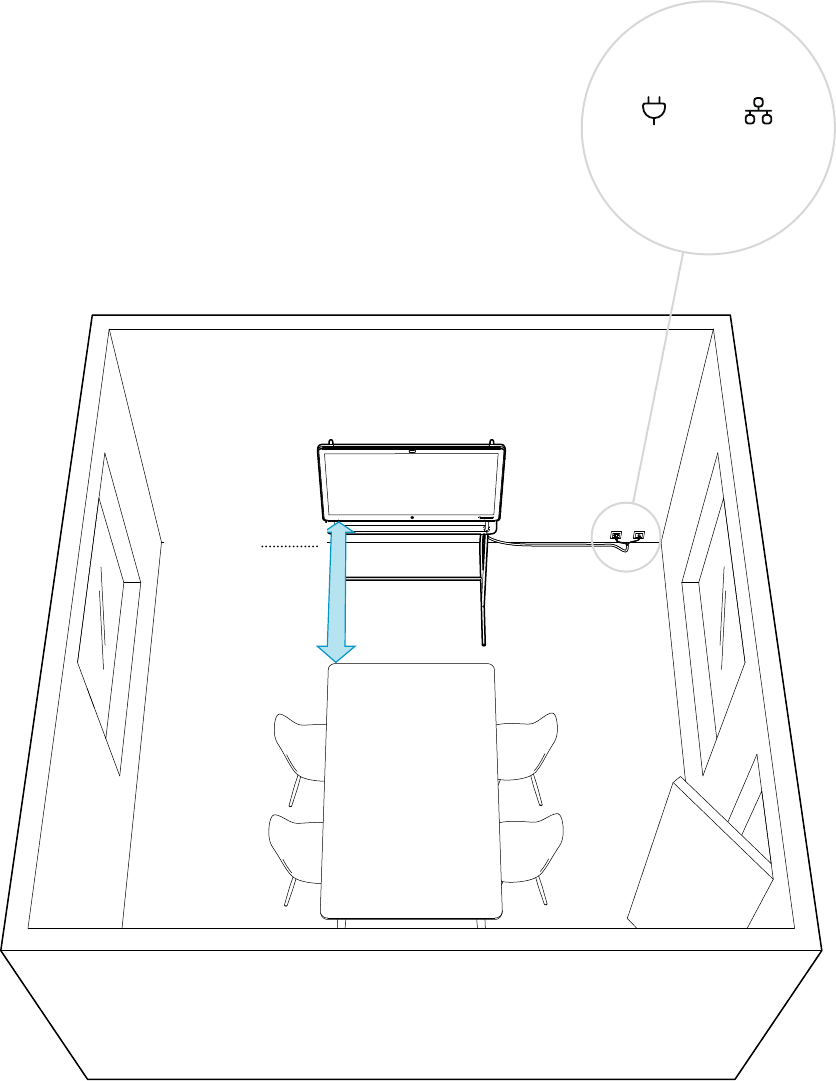

1.0 m
3.3 ft
Minimum
POWER NETWORK
DRAFT

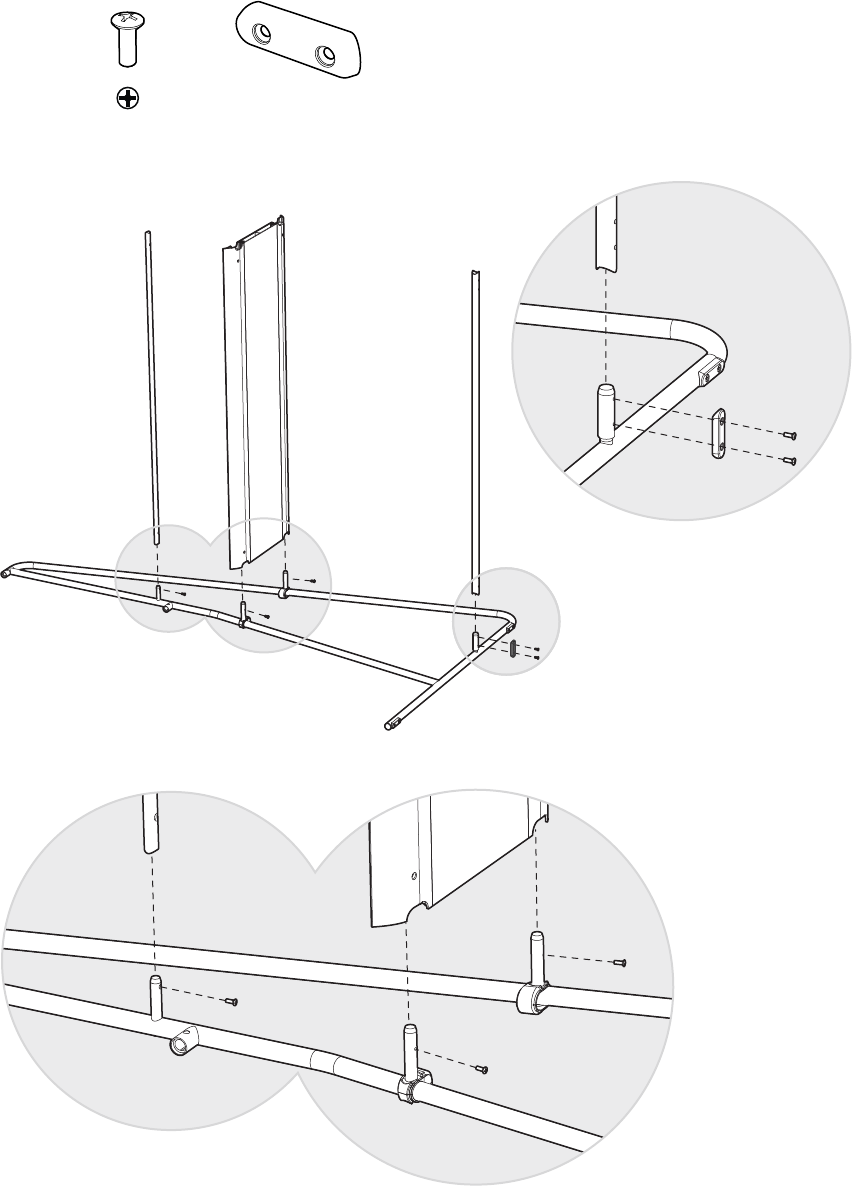

1
6
× 1× 5
M4x12
PH2
DRAFT
2
7
× 1
× 5
M4x12
PH2
DRAFT
3
8
DRAFT
9

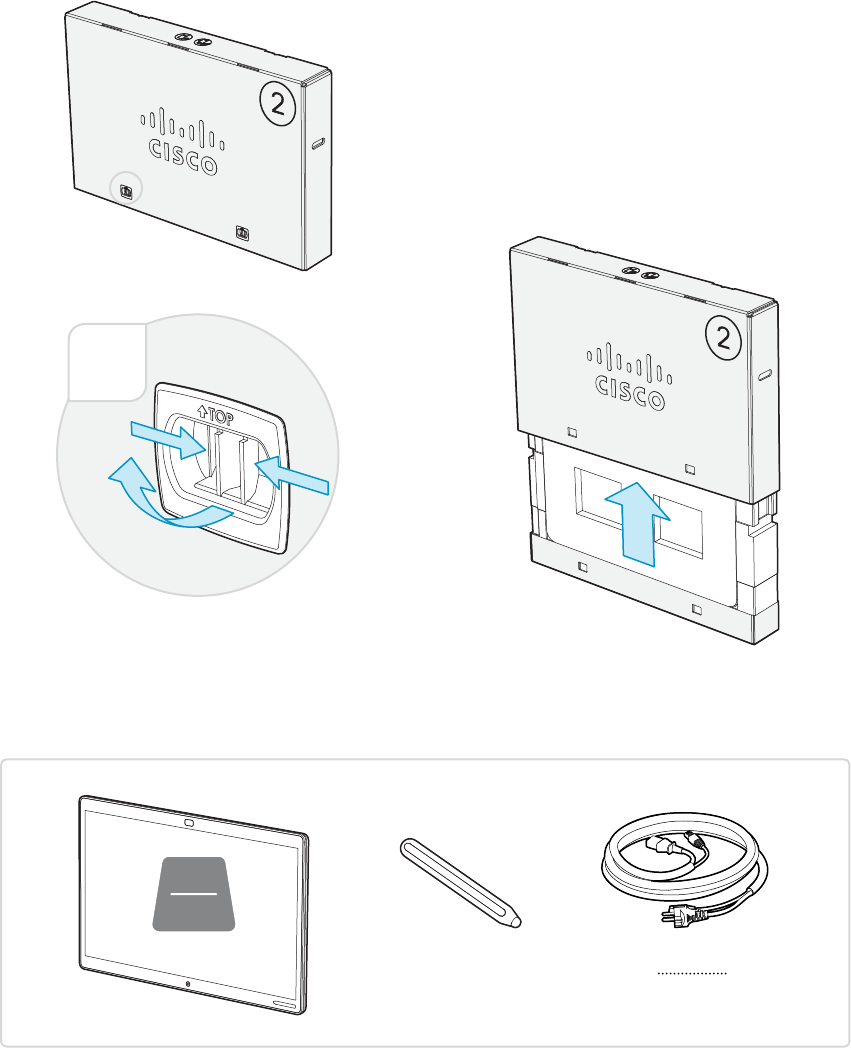

4
5 m
16.4 ft
× 3
40 kg
88 lb
× 4
DRAFT
5
10
40 kg
88 lb
DRAFT
6
11

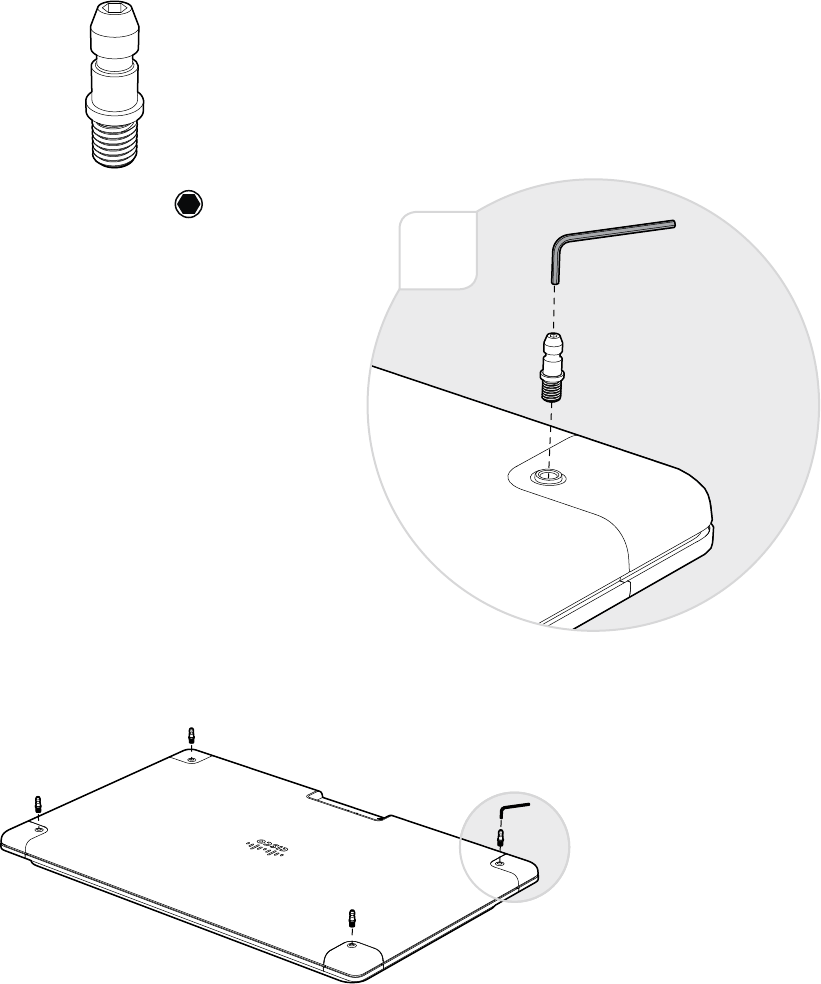

× 4
× 4
Hex, 5 mm
DRAFT
7
12
40 kg
88 lb

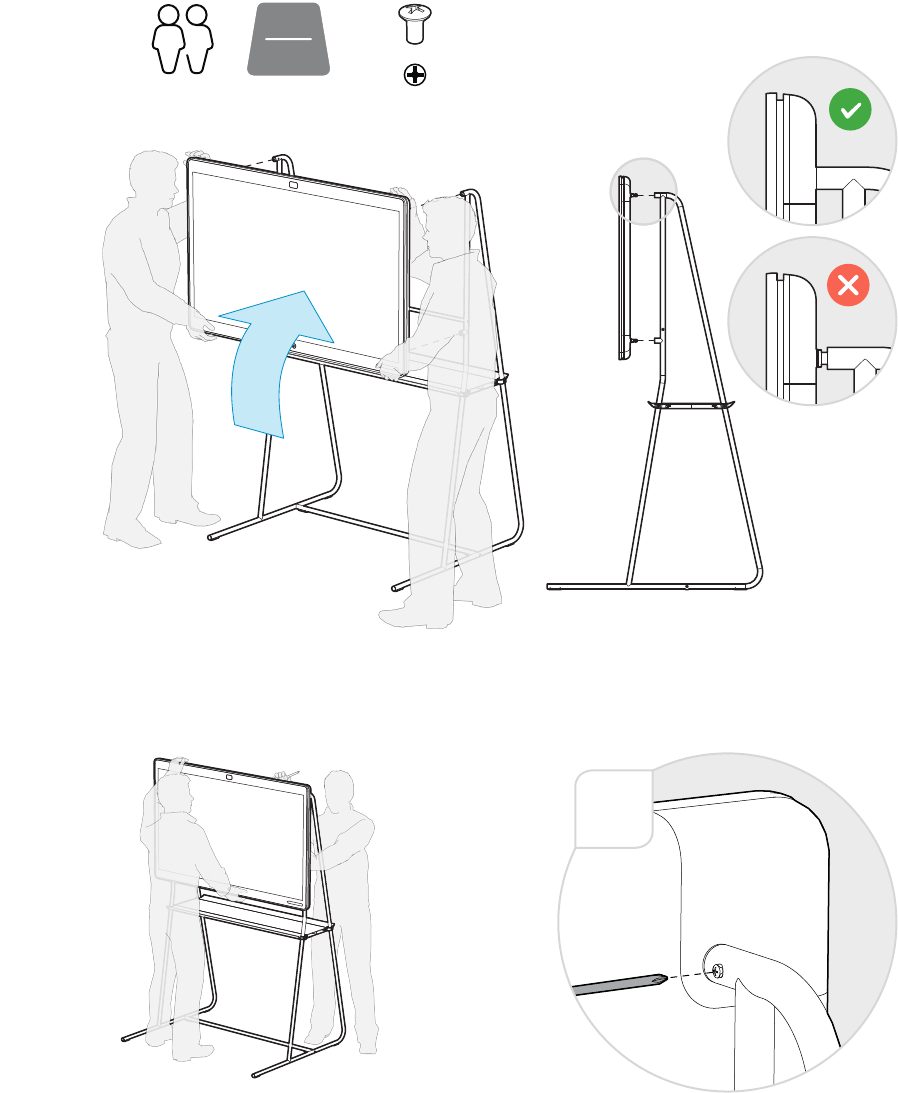

Hold in place Fasten four screws firmly
× 4
× 4
M4x8
Hold the screen firmly until it is securely fastened with four screws.
PH2
DRAFT
8
13
DRAFT
9
14
× 4
4
3
2
1
× 4
DRAFT
10
15
DRAFT
11
16
× 2
× 4
M6x20
PH2
DRAFT
12
17
http://help.ciscospark.com
Look for Getting Started articles for the product.

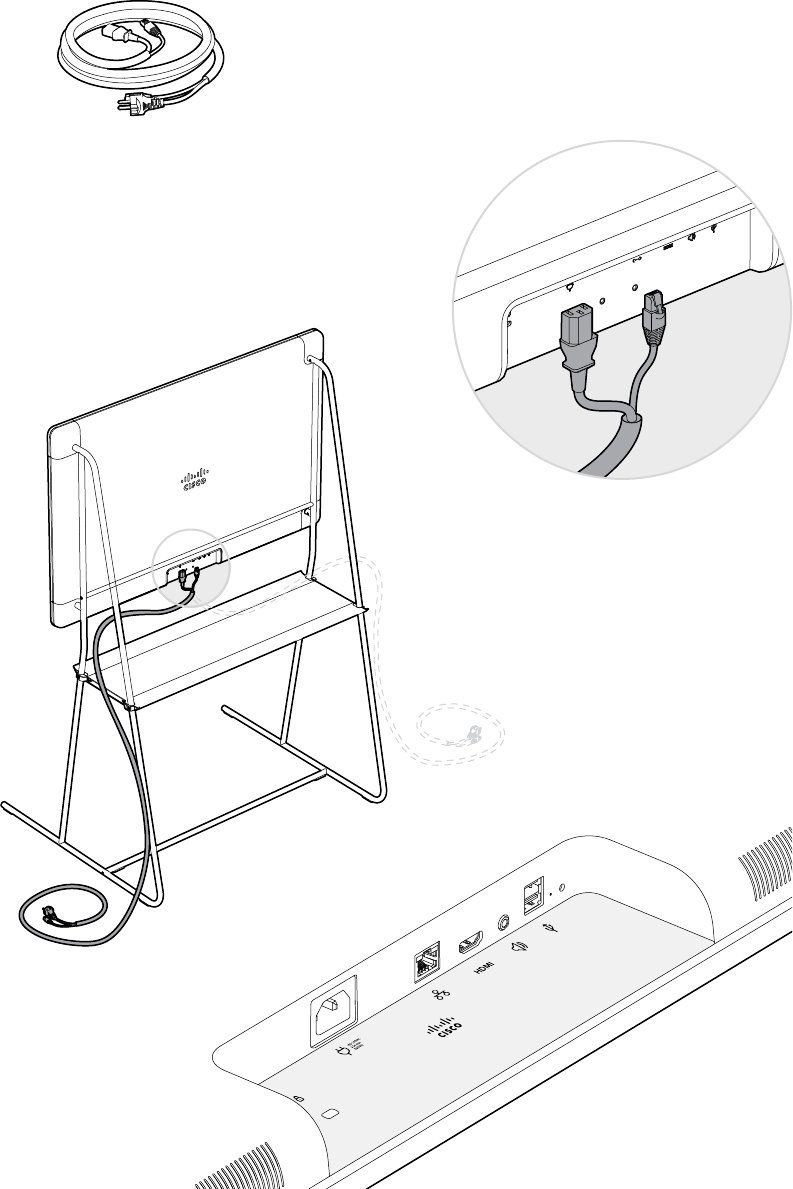

Keep the power plug and outlet easily accessible in case
you need to disconnect the device from power.
Always use the provided
power cable.
DRAFT
18
Status LED
Kensington lock
Factory reset
Power (100-240 VAC, 3.5 A max, 50/60 Hz)
Connector panel (at rear)
Product overview
Screen
Camera
Magnetic stylus holder
Microphone
array
Loudspeakers
Home button
Audio line output
Video input
Network 2 × USB 3.0
DRAFT
19
http://help.ciscospark.com
Additional support can be found in our on-line documentation.
http://www.cisco.com/go/projectworkplace
Explore the Cisco Project Workplace to find inspiration and guidelines when preparing your
office or meeting room for video conferencing.
http://www.cisco.com/go/telepresence/docs
Regulatory compliance and safety information are available on-line.
DRAFT
78-100570-01B0
NOVEMBER 2016
Cisco Systems Inc.
Corporate Headquarters
170 West Tasman Dr.
San Jose, CA 95134
USA
Cisco has more than 200 offices worldwide. Find an overview of the offices on the
Cisco web site.
http://www.cisco.com/go/offices
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and
other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party
trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (1110R)
© 2016 Cisco Systems, Inc.
All rights reserved.
DRAFT
DRAFT .
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 5
Data Sheet
Cisco Spark Board 55
Cisco Spark Board provides an extension of the Cisco Spark experience into meeting rooms. It is an ultra high-
resolution presentation screen, digital whiteboard and conferencing device, in an all-in-one product. Seamlessly
bring all your Spark cloud content onto the Spark Board, continue where you were in the previous meeting and
automatically save everything you do back to the cloud, in a tightly integrated workflow.
Product Specifications
Components
Fully integrated unit including:
● Touch display
● Camera
● Microphone array
● Loudspeakers
Display
● Edge LED LCD – 55” 4K, 350 nits, 16:9
● Viewing angle: +- 89 (all directions)
● Number of colors: 1.07 billion (10 bit)
● Contrast: 1:4000
● Response time: 5.5 ms
Touch
● Capacitive touch
● Protective glass with optical bonding
● Multi touch
DRAFT
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 5
Inputs and output
● HDMI input
● Home button
● Whiteboarding pen
● 3.5 mm mini jack audio out (line-out)
● 2 USB3.0
Camera overview
● Fixed lens, infinite focus
● F-value: 2.8
● 4K p60
● HFOV: 86°
● VFOV: 55°
● Camera mounted tilted: -25°
Audio system
● 12-element microphone array (with intelligent beam forming for voice tracking)
● Integrated voice optimized speakers
Network
● Ethernet (RJ-45) 100/1000 Mbit
● WiFi 802.11 abgn + ac (2.4/5GHz)
● Bluetooth Ready
● IPv4 DHCP/Static
● NTP
Product compatibility
Cisco Spark Board requires activation and connection to the Cisco Spark Cloud. The Cisco Spark Cloud provides
Meeting, Calling and Messaging capabilities.
Communication with the Cisco Spark Cloud
Cisco Spark Board is connected to the Cisco Spark Cloud service using RESTful APIs. Communication with other
Cisco Spark Boards, Cisco Spark Apps or third party solutions is provided through the Cisco Spark Cloud.
Software
Cisco Spark Board runs Spark Board OS provisioned by the Cisco Spark Cloud. Cisco Spark Board is
automatically upgraded and will always run the latest available software.
Communication with the Cisco Spark Cloud is utilizing the H.264 codec for video and OPUS codec for audio.
DRAFT
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 5
Security
For real-time media (voice, video, and screen sharing), we encrypt what is shared using the Secure Real-Time
Transport Protocol (SRTP). End-to-end encryption uses AES128, AES256, SHA1, SHA256, and RSA.
User Interface
● Control Cisco Spark Board directly from the touch screen or using your own device running the Cisco Spark
App.
Language support
● English
Physical dimensions (H x W x D)
● Cisco Spark Board 55: 50 x 32 x 1.9 in. (814 x 1283 x 49mm)
Weight
● Cisco Spark Board 55: 87.7 lb. (39,8Kg)
Physical dimensions and weight of packaging (H x W x D)
Cisco Spark Board 55 – main unit
● Consolidated package size: 36.2 x 55.7 x 7.5 in. (919 x 1416 x 191 mm)
● Shipping weight: 101 lb. (45.8Kg)
Cisco Spark Board 55 - Floor Stand Kit
● Consolidated package size: 41.9 x 77,7 x 5.2 in. (1064 x 1974 x 132 mm)
● Shipping weight: 55 lb. (25 Kg)
Cisco Spark Board 55 – Wall Stand Kit
● Consolidated package size: 30.2 x 48.5 x 4.2 in. (768 x 1231 x 106 mm)
● Shipping weight: 28.6 lb. (13 Kg)
Cisco Spark Board 55 – Wall Mount Kit
● Consolidated package size: 10 x 54.5 x 2 in. (253 x 1386 x 51 mm)
● Shipping weight: 13.2 lb. (6 Kg)
Power
● Autosensing power supply
● Power Rating: 100-240 VAC, Max 3.5 A, 50/60 Hz
● Power Consumption: TBC
Temperature range
● Operating temperature: 0 to 35°C
DRAFT
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 5
Approvals and compliance
● TBC
Video input:
1 x HDMI for local or presentations
Supports formats up to maximum 1920 x 1080 including:
● 640 x 480
● 720 x 480
● 720 x 576
● 800 x 600
● 848 x 480
● 1024 x 768
● 1152 x 864
● 1280 x 720
● 1280 x 1024
● 1280 x 768
● 1280 x 800
● 1280 x 960
● 1360 x 768
● 1366 x 768
● 1400 x 1050
● 1440 x 900
● 1680 x 1050
● 1920 x 1080
Extended Display Identification Data (EDID)
Live video resolutions (encode/decode) – main video and presentation sharing:
● 176 x 144@30 (QCIF) (Decode only)
● 352 x 288@30 (CIF)
● 512 x 288@30 (w288p)
● 576 x 448@30 (448p)
● 768 x 448@30 (w448p)
● 704 x 576@30 (4CIF)
● 1024 x 576@30 (w576p)
● 640 x 480@30 (VGA)
● 800 x 600@30 (SVGA)
● 1024 x 768@30 (XGA)
DRAFT
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 5
● 1280 x 768@30 (WXGA)
● 1280 x 720@30 (HD720p)
● 1920 x 1080@30 (HD1080p)
Audio features:
● High-quality 20 kHz stereo audio
● Acoustic echo cancellation
● Automatic Gain Control (AGC)
● Automatic noise reduction
● Active lip synchronization
● Microphone array with intelligent beam forming for voice tracking.
Ordering Information
Table 1. Ordering Information
Product Name Compliance Model Number Part Number
Cisco Spark Board 55 AA55WW SPARK-BOARD55-K9
Cisco Spark Board 55 – Floor Stand Kit SPARK-BOARD55-FSK
Cisco Spark Board 55 – Wall Stand Kit SPARK-BOARD55-WSK
Cisco Spark Board 55 – Wall Mount Kit SPARK-BOARD55-WMK
Table 2. Spares
Product Name Part Number
Cisco Spark Board 55 – Spare SPARK-BOARD55=
Cisco Spark Board 55 – Floor Stand Kit - Spare SPARK-BOARD55-FSK=
Cisco Spark Board 55 – Wall Stand Kit – Spare SPARK-BOARD55-WSK=
Cisco Spark Board 55 – Wall Mount Kit – Spare SPARK-BOARD55-WMK=
Cisco Spark Board Pen for whiteboarding – 3 pack – spare SPARK-BOARD-PEN3x=
Table 3. Subscription
Product Name Part Number
Cisco Spark Board - Subscription A-SPK-ND-BRD
On our web site you will find an overview of
the worldwide Cisco contacts.
Go to:
http://www.cisco.com/web/siteassets/
contacts
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Dr.
San Jose, CA 95134 USA
vCisco and the Cisco logo are trademarks or
registered trademarks of Cisco and/or its affiliates in
the U.S. and other countries. To view a list of Cisco
trademarks, go to this URL: www.cisco.com/go/
trademarks. Third-party trademarks mentioned are
the property of their respective owners. The use
of the word partner does not imply a partnership
relationship between Cisco and any other company.
(1110R)
Cisco et le logo Cisco sont des marques
commerciales enregistrées ou non de Cisco
Systems, Inc., et/ou de ses filiales aux États-
Unis et dans d’autres pays. Pour afficher la liste
des marques de commece de Cisco, visitez le
site : www.cisco.com/go/trademarks. Les autres
marques mentionnées sont la propriété de leur
détenteur respectif. L’utilisation du mot « partenaire
» ne signifie aucunement qu’il existe une elation de
partenariat entre Cisco et une autre société. (1110R)
Cisco и логотип Cisco являются товарными
знаками или зарегистрированными товарными
знаками корпорации Cisco и/или ее дочерних
компаний в США и других странах. Чтобы
просмотреть перечень товарных знаков
корпорации Cisco, перейдите по следующему
URL-адресу: www.cisco.com/go/trademarks .
Товарные знаки сторонних организаций,
упомянутые в настоящем документе,
являются собственностью соответствующих
владельцев. Использование слова «партнер»
не подразумевает наличия партнерских
взаимоотношений между Cisco и любой другой
компанией. (1110R)
Americas Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Notice: Please Read for Important Information
About Your Device
The Cisco End User License Agreement (EULA) governs use of this device and
accompanying software.
http://www.cisco.com/go/eula
Regulatory Compliance and Safety Information (RCSI)
http://www.cisco.com/go/rcsi-cdce
Cisco One-Year Limited Hardware Warranty Terms
http://www.cisco.com/go/hwwarranty
Cisco Desktop Collaboration Experience Documentation
http://www.cisco.com/en/US/products/ps12956/tsd_products_support_series_home.html
CE MARK with Name and Address of EU Authorized Representative
330262
EU Authorized Representative:
Edgard Vangeel
Cisco Systems Belgium
De Kleetlaan 6A
B 1831 Diegem
Belgium
Americas Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Notice: Please Read for Important Information
About Your Device
The Cisco End User License Agreement (EULA) governs use of this device and
accompanying software.
http://www.cisco.com/go/eula
Regulatory Compliance and Safety Information (RCSI)
http://www.cisco.com/go/rcsi-cdce
Cisco One-Year Limited Hardware Warranty Terms
http://www.cisco.com/go/hwwarranty
Cisco Desktop Collaboration Experience Documentation
http://www.cisco.com/en/US/products/ps12956/tsd_products_support_series_home.html
CE MARK with Name and Address of EU Authorized Representative
330262
EU Authorized Representative:
Edgard Vangeel
Cisco Systems Belgium
De Kleetlaan 6A
B 1831 Diegem
Belgium
Cisco Spark Board
Safety Information
© 2016 Cisco Systems, Inc.
All rights reserved. Tous droits réservés. Все права защищены
DRAFT - INTERNAL USE ONLY
Compliance Model Number: AA55WW
Информация о гарантии
http://www.cisco-warrantynder.com
Информация о безопасности и
соблюдении нормативных требований
http://www.cisco.com/go/telepresence/
docs
Лицензионное соглашение конечного
пользователя и информация о лицензии
http://www.cisco.com/go/eula
http://www.cisco.com/go/license
Дополнительную информацию на
русском языке можно получить на сайте
http://www.cisco.ru
Антенны
Устройство оснащено встроенными
антеннами, которые не подлежат замене.
Радиоканалы
Для определения рабочих каналов и
мощности передачи телефоны используют
режим World Mode (802.11d).
日本語マニュアルのご案内および製品使用
における安全上のご注意
シスコ製品の日本語マニュアルは、次の
Webページに掲載しております。
ご使用前にご参照いただきますようにお願
いいたします。
http://www.cisco.com/web/JP/techdoc/
index.html
また、シスコ製品をご使用になる前に安全
上の注意をご確認ください。
http://www.cisco.com/web/JP/techdoc/
pldoc/pldoc.html
FCC
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly
approved by the grantee of this device could
void the user’s authority to operate the
equipment.
Exposure to Radio Frequency Radiation:
This equipment complies with FCC radiation
exposure limits set forth for an uncon-
trolled environment. This equipment should
be installed and operated with minimum
distance 20cm between the radiator & your
body.
IC
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause
undesired operation of the device.
This equipment complies with IC radiation
exposure limits set forth for an uncon-
trolled environment. This equipment should
be installed and operated with minimum
distance 20cm between the radiator and
your body.
5150-5250MHz is limited to use indoor only
French:
Cet appareil radio est conforme au CNR
d’Industrie Canada. L’utilisation de ce
dispositif est autorisée seulement aux deux
conditions suivantes : (1) il ne doit pas
produire de brouillage, et (2) l’utilisateur
du dispositif doit être prêt à accepter tout
brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre
le fonctionnement du dispositif.
Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.
5150-5250MHz est limitée à une utilisation
en intérieur uniquement.
Where to Find Product
Documentation
The Cisco Spark Board weighs approximately
40 kg / 88 lb. Do not attempt to lift it out of the
box on your own.
Installation of your Cisco Spark Board varies
depending on the mounting option you have
chosen. You can find the installation instruc-
tions in the box for your mounting option.
The information in this document is applicable
to the Cisco Spark Board.
Product Information
http://help.ciscospark.com
Warranty Information
http://www.cisco-warrantynder.com
Regulatory, Compliance, and Safety
Information
http://www.cisco.com/go/telepresence/
docs
End User License Agreement and License
Information
http://www.cisco.com/go/eula
http://www.cisco.com/go/license
Antennas
The device has integrated antennas which
cannot be replaced.
Radio Channels
The phones use World Mode (802.11d) to
determine operating channels and transmit
powers.
Où trouver la documentation du
produit
Cisco Spark Board pèse environ 40 kg.
N’essayez pas de soulever seul le serveur
pour le sortir de la boîte.
Suivez les instructions du guide
d’assemblage contenu dans l’emballage avec
le support de Cisco Spark Board.
Les informations présentées dans ce
document s’appliquent Cisco Spark Board.
Informations sur le produit
http://help.ciscospark.com
Informations sur la garantie
http://www.cisco.com/ca/allergarantie
Informations relatives à la conformité et à
la sécurité
http://www.cisco.com/go/telepresence/
docs
Contrat de licence de l’utilisateur final et
informations sur la licence
http://www.cisco.com/go/eula
http://www.cisco.com/go/license
Pour consulter les documents en français (y
compris les nouveautés), identifiez-vous :
http://www.cisco.com/cisco/web/CA/fr/
support/index.html
Antennes
L’appareil comprend des antennes intégrées
qui ne peuvent être remplacées.
Canaux radio
Les téléphones utilisent la norme mondiale
(802.11d) pour déterminer les canaux en
fonctionnement et les puissances d’émission.
Где найти документацию по
продукту
Вес Cisco Spark Board составляет
примерно 40кг. Не пытайтесь
самостоятельно вынуть его из коробки.
Следуйте инструкциям в «Руководстве
по сборке», которое поставляется с
оборудованием и упаковано с подставкой
для Cisco Spark Board.
Информация в данном документе
относится к Cisco Spark Board.
Информация о продукте
http://help.ciscospark.com
Statement 287—Declaration of
Conformity to R&TTE Directive
1999/5/EC for the European
Community, Switzerland,
Norway, Iceland and
Liechtenstein
English: This equipment is in compliance
with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Български [Bulgarian]: Това оборудване
отговаря на съществените изисквания и
приложими на Директива 1999/5/EC.
Česky [Czech]: Toto zařízení je v souladu
základními požadavky a ostatními odpovída-
jícími ustanoveními Směrnice 1999/5/EC.
Dansk [Danish]: Dette udstyr er i overens-
stemmelse med de væsentlige krav og andre
relevante bestemmelser i Direktiv 1999/5/EF.
Deutsch [German]: Dieses Gerät
entspricht den grundlegenden
Anforderungen und den weiteren entsprech-
enden Vorgaben der Richtlinie 1999/5/EU.
Eesti [Estonian]: See seade vastab direk-
tiivi 1999/5/EÜ olulistele nõuetele ja teistele
asjakohastele sätetele.
Español [Spanish]: Este equipo cumple
con los requisitos esenciales así como con
otras disposiciones de la Directiva 1999/5/CE.
Ελληνική [Greek]: Αυτός ο εξοπλισμός
είναι σε συμμόρφωση με τις ουσιώδεις
και άλλες σχετικές διατάξεις της Οδηγίας
1999/5/EC.
Français [French]: Cet appareil est
conforme aux exigences essentielles et aux
autres dispositions pertinentes de la Directive
1999/5/EC.
Hrvatski [Croatian]: Ova oprema je u
sukladnosti s bitnim zahtjevima i drugim
relevantnim odredbama Direktive 1999/5/EC.
Íslenska [Icelandic]: Þetta tæki er
samkvæmt grunnkröfum og öðrum viðeigandi
ákvæðum Tilskipunar 1999/5/EC.
Italiano [Italian]: Questo apparato è
conforme ai requisiti essenziali ed agli altri
principi sanciti dalla Direttiva 1999/5/CE.
Latviski [Latvian]: Šī iekārta atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]: Šis įrenginys tenkina
1999/5/EB Direktyvos esminius reikalavimus ir
kitas šios direktyvos nuostatas.
Nederlands [Dutch]: Dit apparaat voldoet
aan de essentiele eisen en andere van
toepassing zijnde bepalingen van de Richtlijn
1999/5/EC.
Malti [Maltese]: Dan l-apparat huwa
konformi mal-htigiet essenzjali u l-provedi-
menti l-ohra rilevanti tad-Direttiva 1999/5/EC.
Magyar [Hungarian]: Ez a készülék teljesíti
az alapvető követelményeket és más 1999/5/
EK irányelvben meghatározott vonatkozó
rendelkezéseket.
Norsk [Norwegian]: Dette utstyret er i
samsvar med de grunnleggende krav og
andre relevante bestemmelser i EU-direktiv
1999/5/EF.
Polski [Polish]: Urządzenie jest zgodne z
ogólnymi wymaganiami oraz szczególnymi
warunkami określonymi Dyrektywą UE:
1999/5/EC.
Português [Portuguese]: Este equipa-
mento está em conformidade com os
requisitos essenciais e outras provisões
relevantes da Directiva 1999/5/EC.
Română [Romanian]: Acest echipament
este in conformitate cu cerintele esentiale
si cu alte prevederi relevante ale Directivei
1999/5/EC.
Slovensko [Slovenian]: Ta naprava je
skladna z bistvenimi zahtevami in ostalimi
relevantnimi pogoji Direktive 1999/5/EC.
Slovensky [Slovak]: Toto zariadenie je v
zhode so základnými požiadavkami a inými
príslušnými nariadeniami direktív: 1999/5/EC.
Suomi [Finnish]: Tämä laite täyttää direk-
tiivin 1999/5/EC olennaiset vaatimukset ja on
siinä asetettujen muiden laitetta koskevien
määräysten mukainen.
Svenska [Swedish]: Denne utrustning är i
överensstämmelse med de väsentliga kraven
och andra relevanta bestämmelser i Direktiv
1999/5/EC.
Türk [Turkish]: Bu cihaz 1999/5/EC
Direktifi’nin temel gereklerine ve ilgili diğer
hükümlerine uygundur.
The full declaration of conformity for this
product can be found at:
La déclaration de conformité est disponible
dans son intégralité à l’adresse:
Полный текст заявления о соответствии
для данного изделия см. в
http://www.ciscofax.com
Cisco.com login is required to access this
document. You can register for a Cisco.com
account if you don’t have one.
Une connexion à Cisco.com est nécessaire
pour accéder à ce document. Si vous ne
disposez pas d’un compte Cisco.com, enreg-
istrez vous pour en obtenir un.
Для доступа к этому документу требуются
учетные данные Cisco.com. Если у вас
нет учетной записи, вам необходимо
зарегистрироваться на Cisco.com
National Restrictions
Restrictions nationales
Государственные ограничения
This section identifies countries that have
additional requirements or restrictions.
Cette section présente les pays qui
imposent des exigences ou des restrictions
supplémentaires.
В данном разделе указаны страны, в
которых установлены дополнительные
требования или ограничения.
Italy
Italie
Италия
This product meets the National Radio
Interface and the requirements specified
in the National Frequency Allocation
Table for Italy. Unless this wireless LAN
product is operating within the boundaries
of the owner’s property, its use requires
a “general authorization.” Please check
http://www.comunicazioni.it/it/ for more
details.
Ce produit respecte l’interface radio
nationale et les exigences spécifiées dans le
tableau d’attribution des fréquences natio-
nales pour l’Italie. À moins que ce produit
pour réseau local sans fil fonctionne dans
les limites de la propriété de son utilisateur,
son utilisation nécessite une « autorisation
générale ». Veuillez consulter le site http://
www.comunicazioni.it/it/ pour de plus amples
informations.
Данное изделие соответствует
национальному радиоинтерфейсу и
требованиям государственной таблицы
распределения частот Италии. Если
данное изделие для беспроводных
локальных сетей работает за
пределами частной территории, для
его использования требуется «общее
разрешение». Более подробная
информация приведена на странице http://
www.comunicazioni.it/it/.
Questo prodotto è conforme alla speci-
fiche di Interfaccia Radio Nazionali e
rispetta il Piano Nazionale di ripartizione
delle frequenze in Italia. Se non viene
installato all’interno del proprio fondo,
l’utilizzo di prodotti Wireless LAN richiede
una “Autorizzazione Generale”. Consultare
http://www.comunicazioni.it/it/ per maggiori
dettagli.
DRAFT - INTERNAL USE ONLY
