PRODUCT SPECIFICATION
802.11n, 2.4G 1T1R Wireless LAN USB Module
WN4617R(M)
Version 1.0
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC
Page 2/16
CONTENT
PRODUCT FEATURES .................................................................................................................... 3
PRODUCT SPECIFICATIONS ........................................................................................................ 4
FUNCTIONAL SPECIFICATIONS ............................................................................................................... 4
PIN ASSIGMENT ............................................................................................................................... 5
USB CONNECTOR SPEC ................................................................................................................. 6
MECHANICAL .................................................................................................................................. 9
METAL ANTENNA SPEC .............................................................................................................. 10
LABEL DRAWING .......................................................................................................................... 11
MODULE PHOTO ........................................................................................................................... 11
EEPROM INFORMATION ............................................................................................................ 13
ENVIRONMENTAL ........................................................................................................................ 13
OPERATING .......................................................................................................................................... 13
STORAGE .............................................................................................................................................. 13
FCC WARNING STATEMENT ..................................................................................................... 14
Page 3/16
PRODUCT FEATURES
Operate at ISM frequency Band (2.4GHz)
Support 1 transmission and 1 receiving, transmission rate can up to 150Mbps (Physical
Rate) in downstream and upstream
20MHz/40MHz Bandwidth Support
USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed
IEEE standards support: 802.11b, 802.11g and 802.11n
Enterprise level security supporting: WPA, WPA2, TKIP, AES,
Low power with advanced Power Management
RoHS compliance
Low Halogen compliance
Page 4/16
PRODUCT SPECIFICATIONS
MAIN CHIPSET
MAC/ Baseband/ RF: Ralink RT5370
FUNCTIONAL SPECIFICATIONS
Wi-Fi Function
Standard
IEEE802.11b; IEEE 802.11g; IEEE 802.11n
Bus Interface
USB2.0
Data Rate
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 7 for HT20MHz
MCS 0 to 7 for HT40MHz
Media Access Control
CSMA/CA with ACK
Modulation Techniques
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16QAM, QPSK, BPSK
802.11n:
BPSK, QPSK, 16QAM, 64QAM
Network Architecture
Ad-hoc mode (Peer-to-Peer)
Infrastructure mode
Operation Channel
2.4GHz
11: (Ch. 1-11) – United States
Frequency Range
802.11bg
2.412 ~ 2.4835 GHz
Transmit Output Power –
1x1
(Tolerance: ±1.5dBm)
802.11b:
17 dBm@1Mbps
17 dBm@11Mbps
802.11g:
15 dBm@6Mbps
15 dBm@54Mbps
802.11n:
20MHz:
14 dBm@MCS0
14 dBm@MCS7
40MHz:
12 dBm@MCS7
12 dBm@MCS7
Receiver Sensitivity
802.11b:
-88 dBm@11Mbps
802.11g:
-74 dBm@54Mbps
Page 5/16
802.11n:
20MHz
-73 dBm@MCS7
40MHz
-69 dBm@MCS7
Security
WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X,
IEEE 802.11i
Operating Voltage
3.3V ± 5% I/O supply voltage
OS Supported
Microsoft Windows XP/Vista/Win7/Win8; Linux based
Power Consumption
Test Condition:
- Operate at HT40
- File Transmission
- Record MAX value
TX Mode:
235 mA
RX Mode:
210 mA
Standby Mode:
50 mA
Antenna Type
Metal Antenna

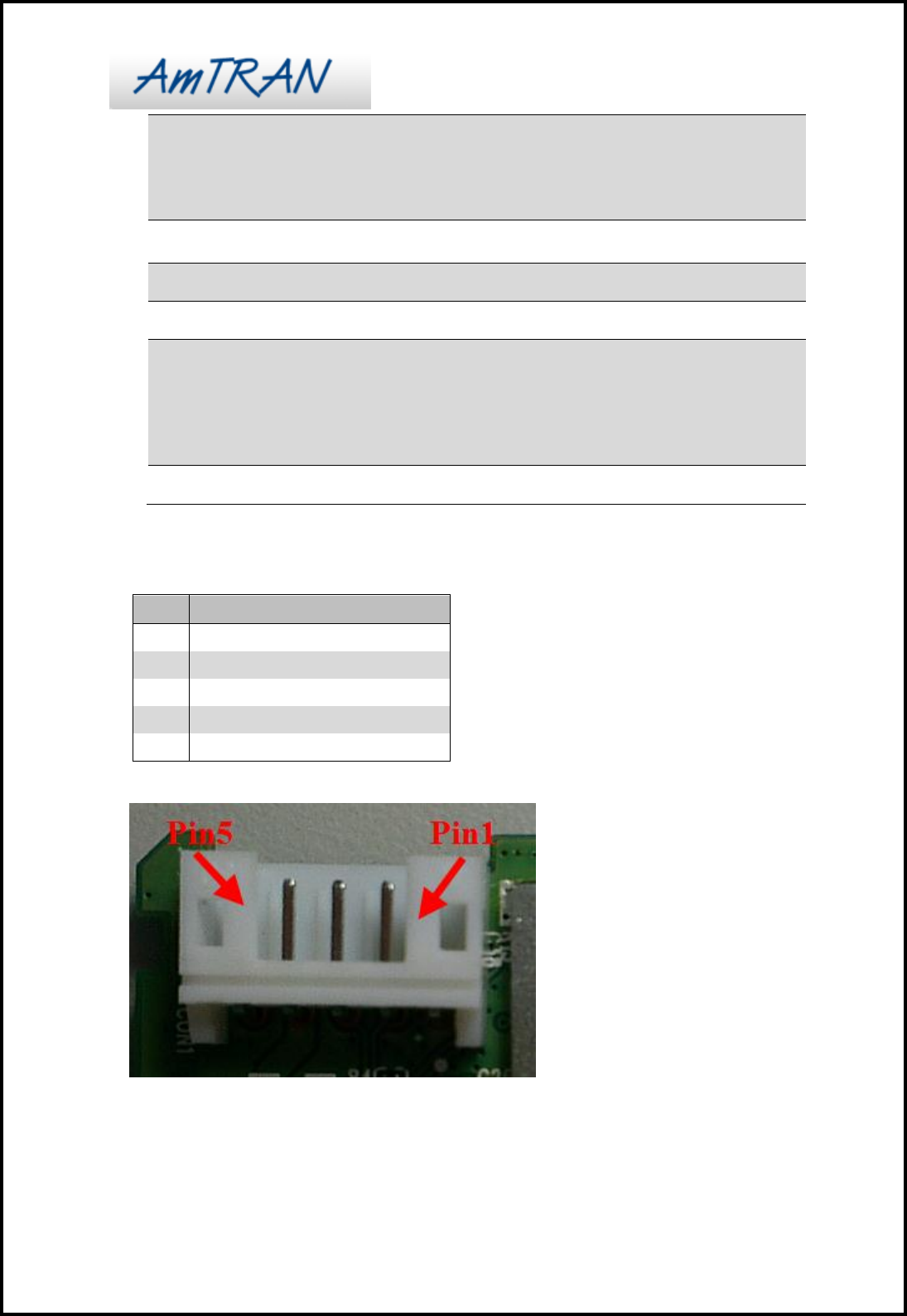

PIN ASSIGMENT
Pin.
Pin Define
Status
1
GND
YES
2
USB_D+
YES
3
USB_D-
YES
4
+3.3V
YES
5
RESET
YES
Page 6/16

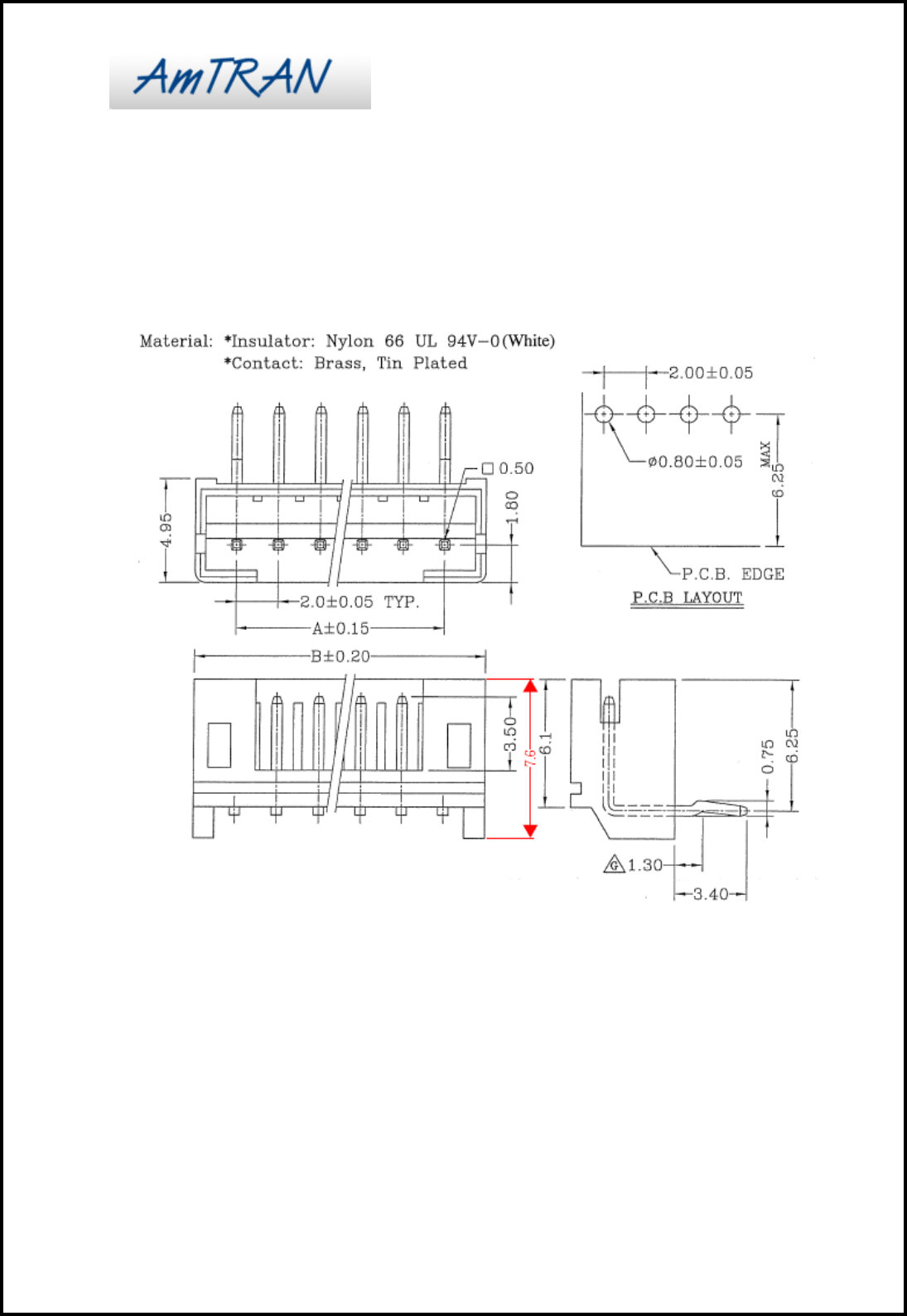

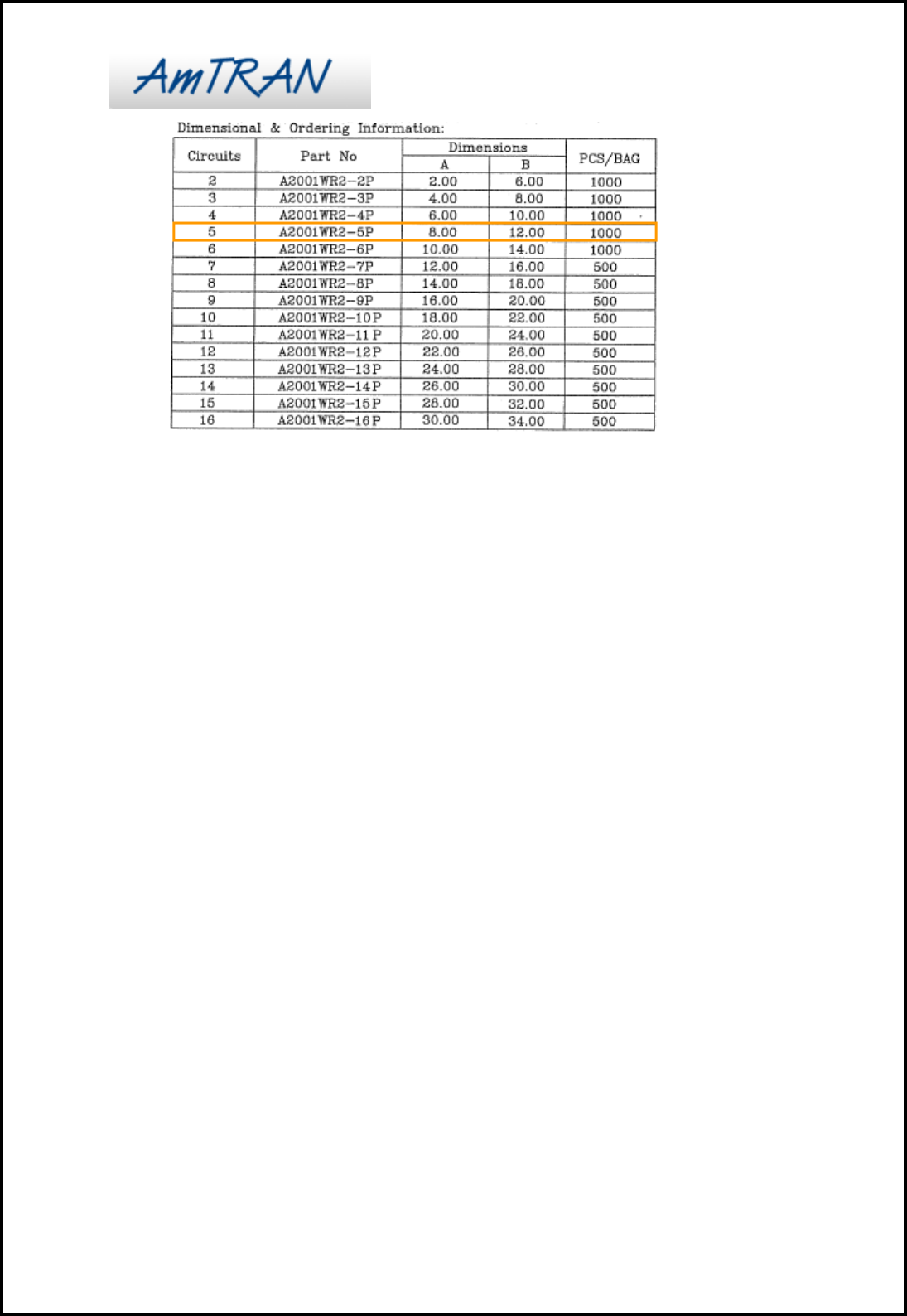

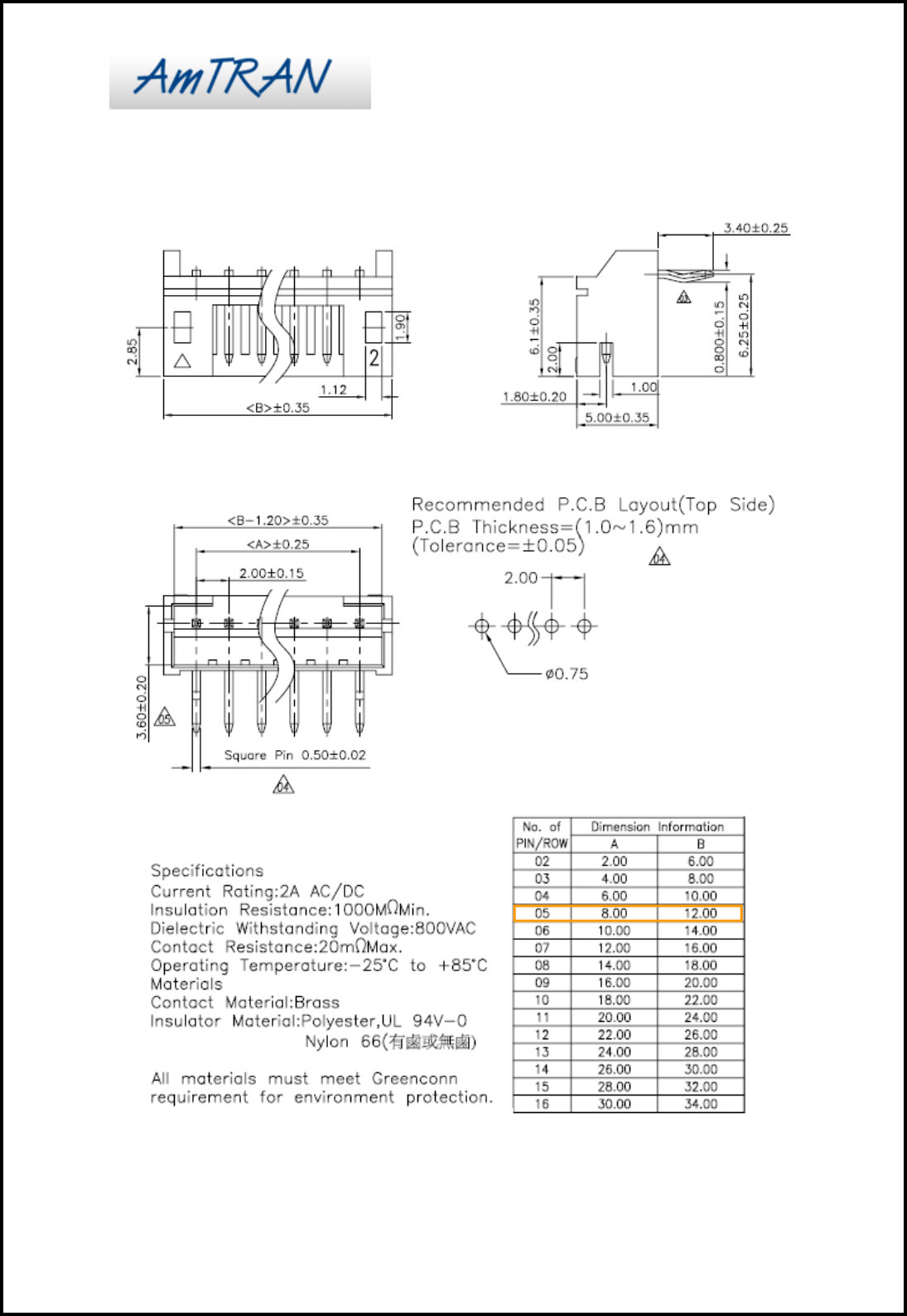

USB CONNECTOR SPEC
Manufacturer:
加煒
Approval Sheet: See Appendix A-1 ( Page 31 ~46 )
Page 7/16
Page 8/16
Manufacturer: Greenconn
Approval Sheet: See Appendix A-2 ( Page 47 ~56 )
Page 9/16

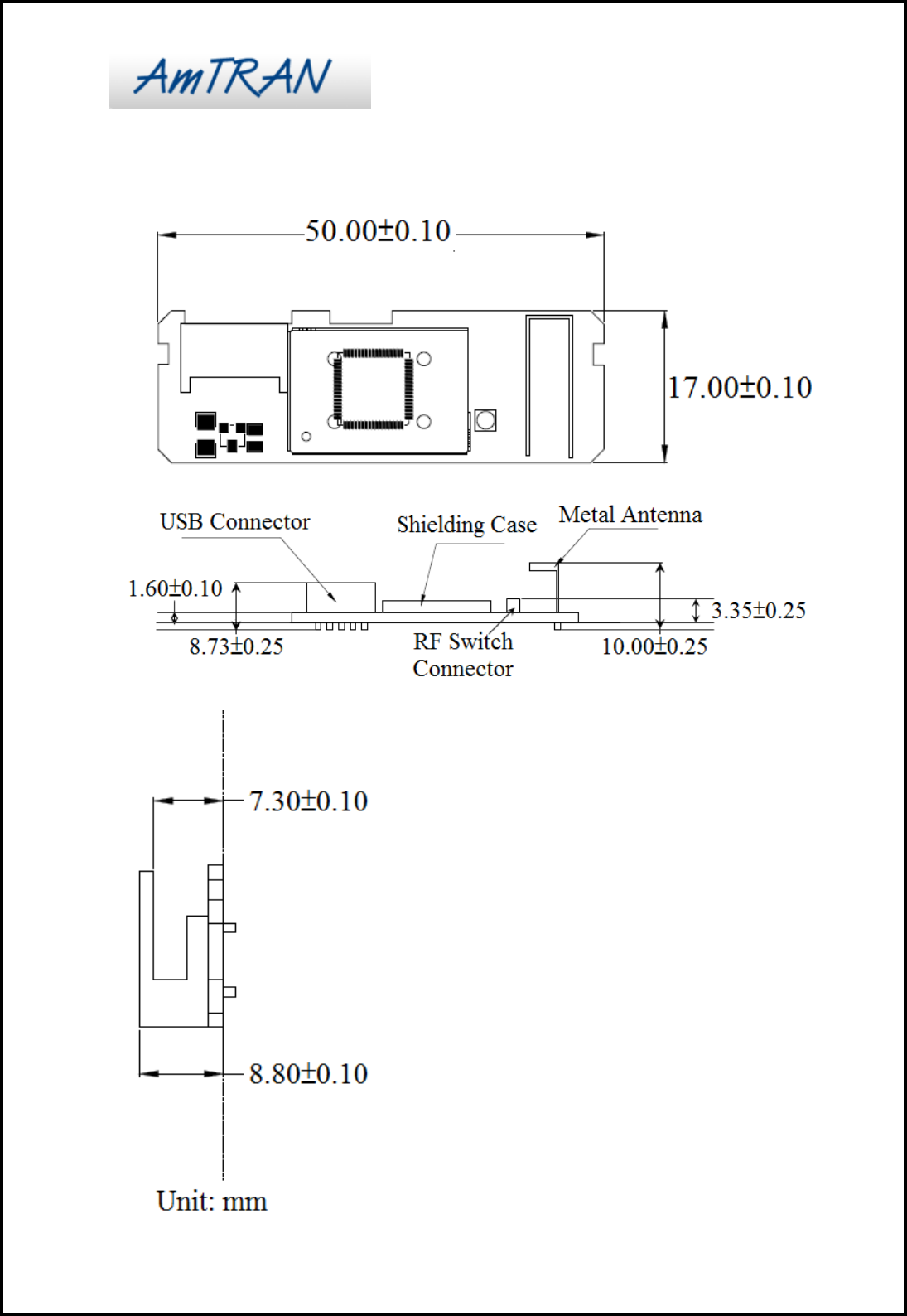

MECHANICAL
Page 10/16

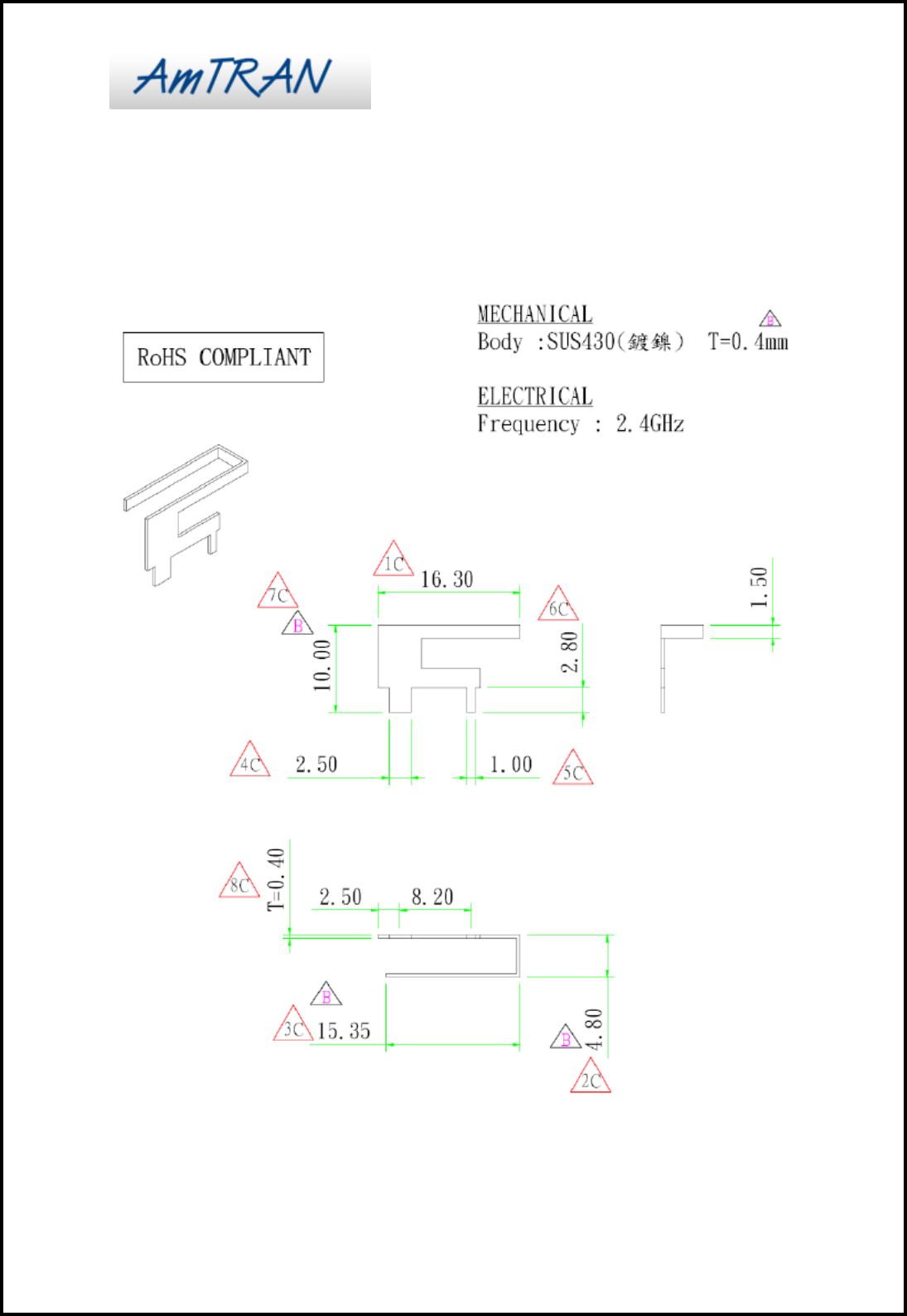

METAL ANTENNA SPEC
Manufacturer: Maglayers(
美磊
)
Approval Sheet: See Appendix D ( Page72~82 )
Page 11/16

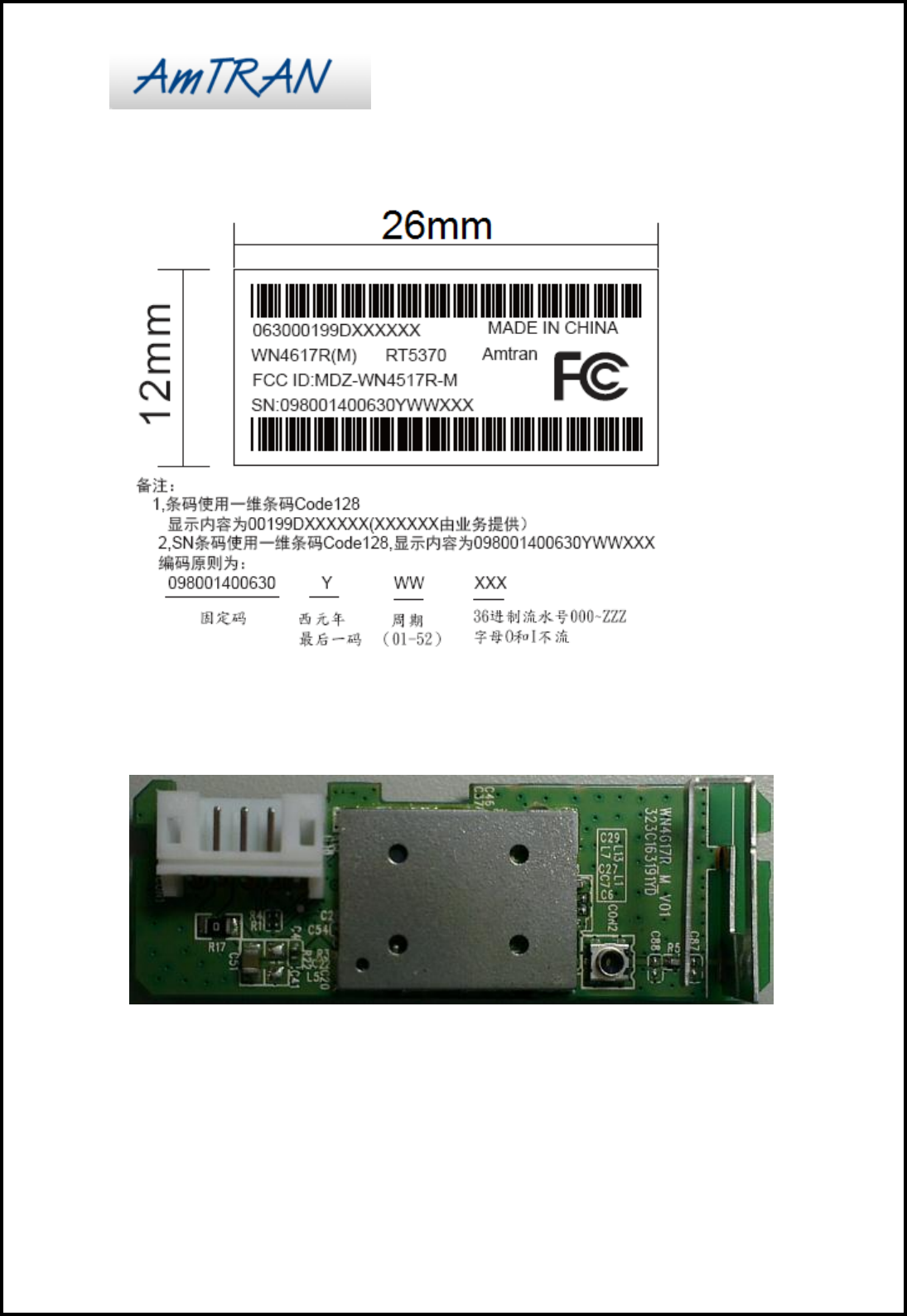

LABEL DRAWING

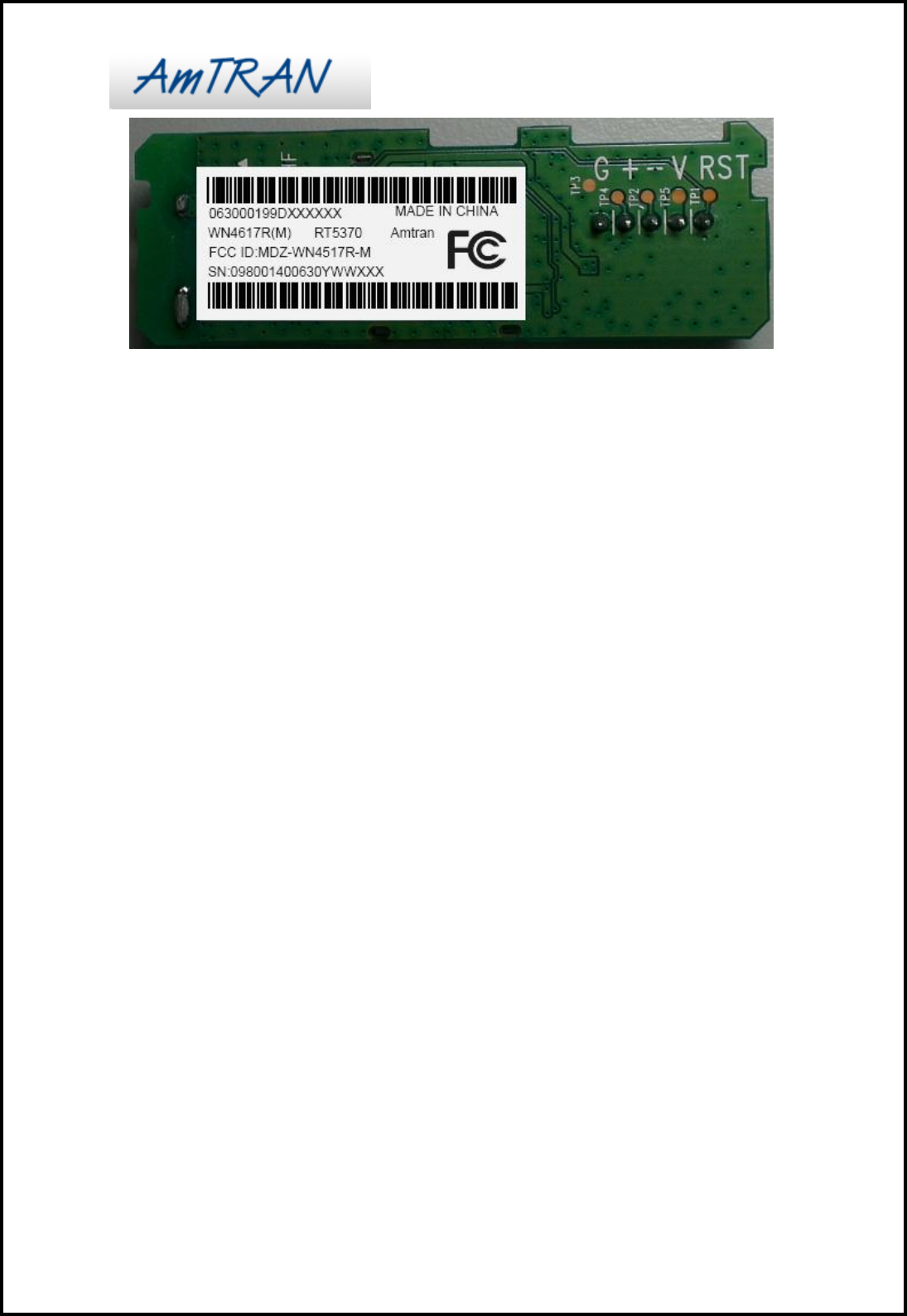

MODULE PHOTO
Top Side
Bottom Side
Page 12/16
Page 13/16
EEPROM INFORMATION
Reg Domain
US
Channel 1~11 Active Scan
Offset 0x38 for 5G: 0x00
Offset 0x39 for 2.4G: 0x00
Antenna Diversity
Control
Offset 0x37: 0x30
Vendor ID
0x148F
Product ID
0x5370
ENVIRONMENTAL
Operating
Operating Temperature: 0 to 60 C (32 to 140 F)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 C (-4 to 158 F)
Relative Humidity: 5-95% (non-condensing)
Page 14/16
FCC WARNING STATEMENT
FCC Certification
The United States Federal Communication Commission (FCC) and the Canadian
Department of Communications have established certain rules governing the use of
electronic equipment.
Part15, Class B
This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that
may cause undesired operation. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20cm may be maintained between the antenna and users. The
final end product must be labeled in a visible area with the following: "Contains FCC
ID: MDZ-WN4517R-M”
Page 15/16
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user authority to operate
the equipment.
1.This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
2.For product available in the USA market, only channel 1~11 can be
operated. Selection of other channels is not possible.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible
for the FCC compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the
users for the host this module is integrated into. Under such configuration, the FCC
radiation exposure limits set forth for an population/uncontrolled environment can be
satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at
least 20cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user has to also
be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is
required to be available in the user manual: This device complies with Part 15 of FCC
Page 16/16
rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du
Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction
with any other antenna or transmitter.
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p)
is not more than that permitted for successful communication.
