AnJieLun Electronic Techology ADSA11B 2.4GHz digital wireless camera User Manual
AnJieLun Electronic Techology Limited 2.4GHz digital wireless camera
user manual
2.4GHzdigitalwirelesscamera
User’sManual
Model:ADSA11B,ADW280
FCCID:T54ADSA11B
Brochure
1. Product description

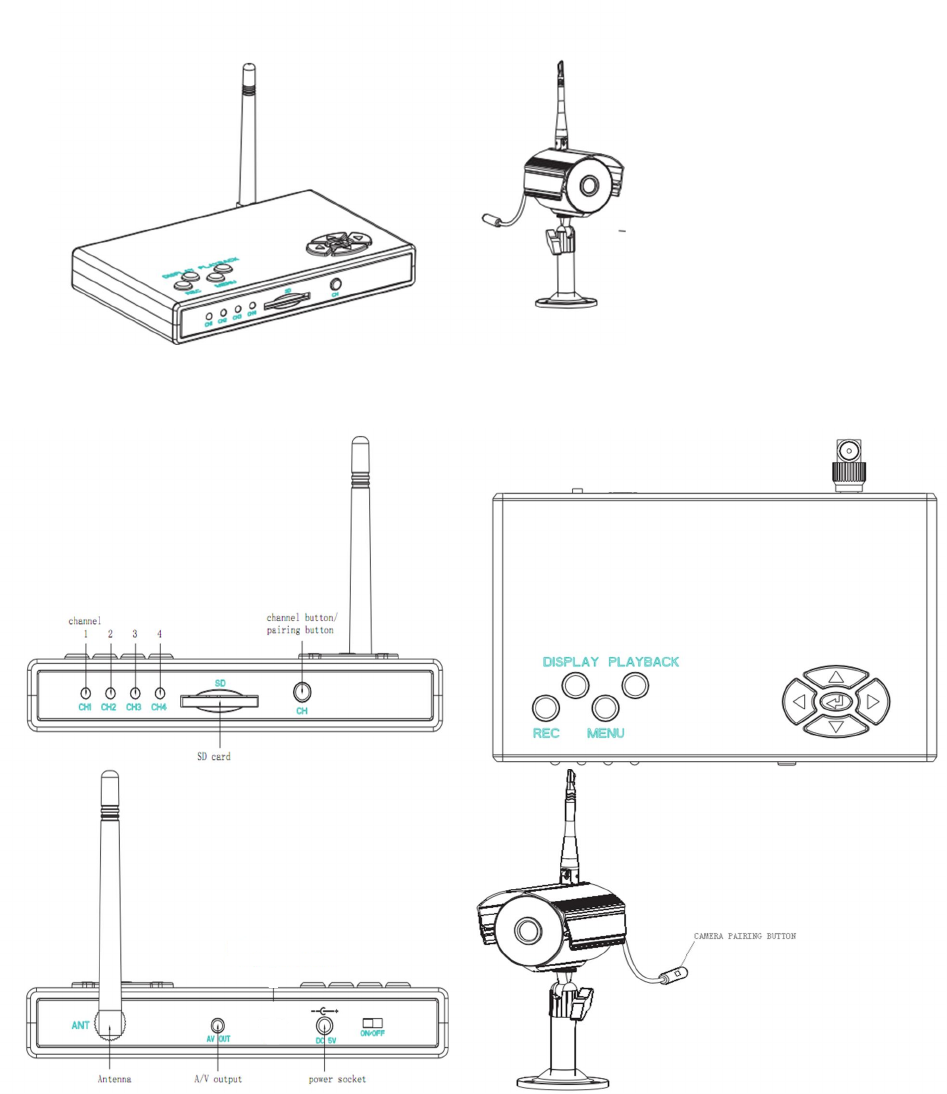

1.1 Appearance
1.2 Key Description
There are 10 keys and 1 switch on the receiver,one key on the camera.
Generated by Foxit PDF Creator © Foxit Software
http://www.foxitsoftware.com For evaluation only.

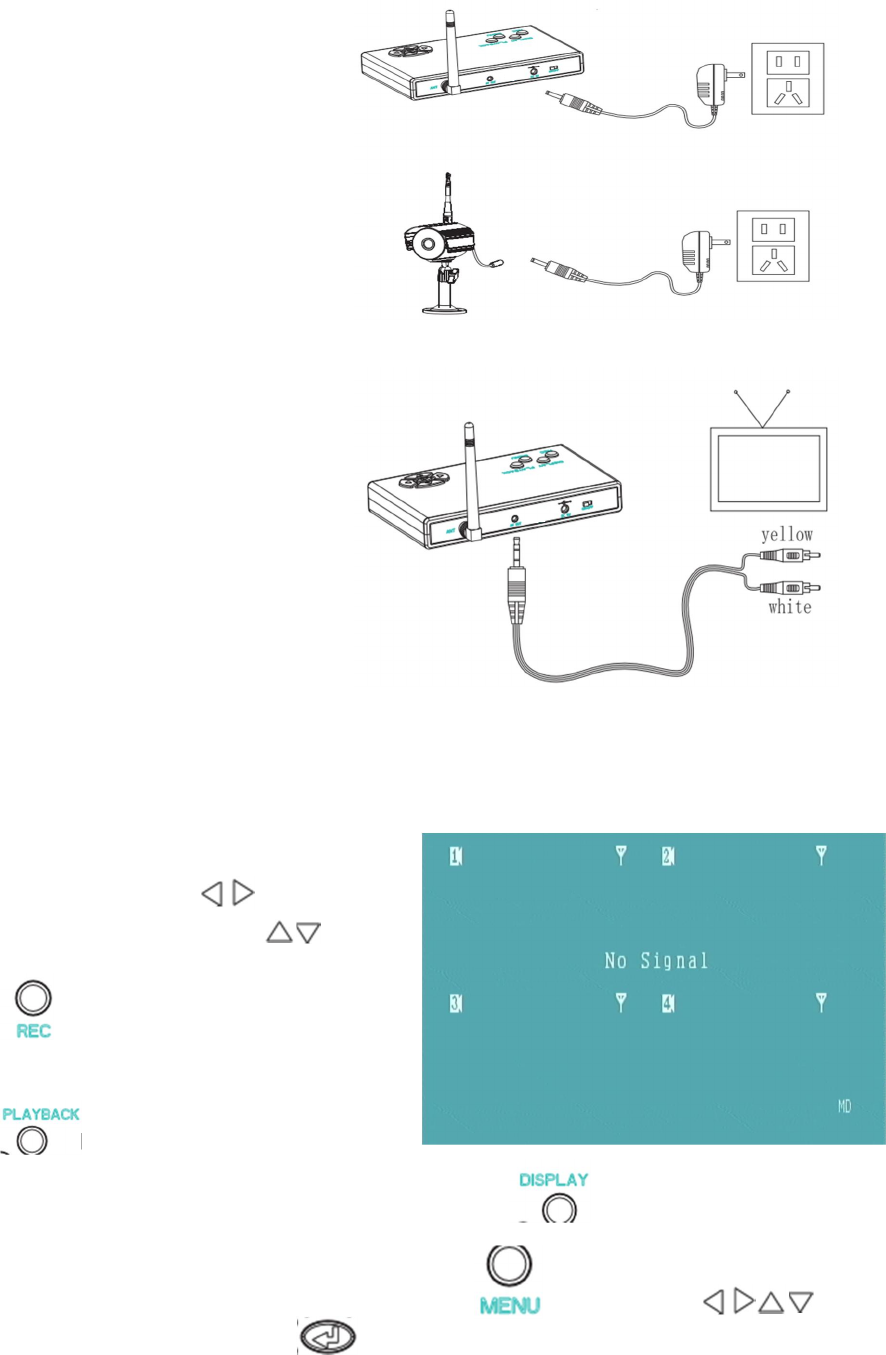

1.3 Electrical Continuity
1.3.1
Just connect power
adapter and the antenna
to receiver/connect the
power adapter to camera.
1.3.2
Connect the AV cable
To receiver and TV.
2．Operation desciption
2.1 Scan Mode（调节音量、亮度）
In this mode,user can control
Sound by pressing ,and control
Brightness by pressing ;If put
A SD card in the receiver,press
Will start recording,and press
It twice will stop;user can view
The data in SD card by pressing
Key.
User can get to one channel by pressing .

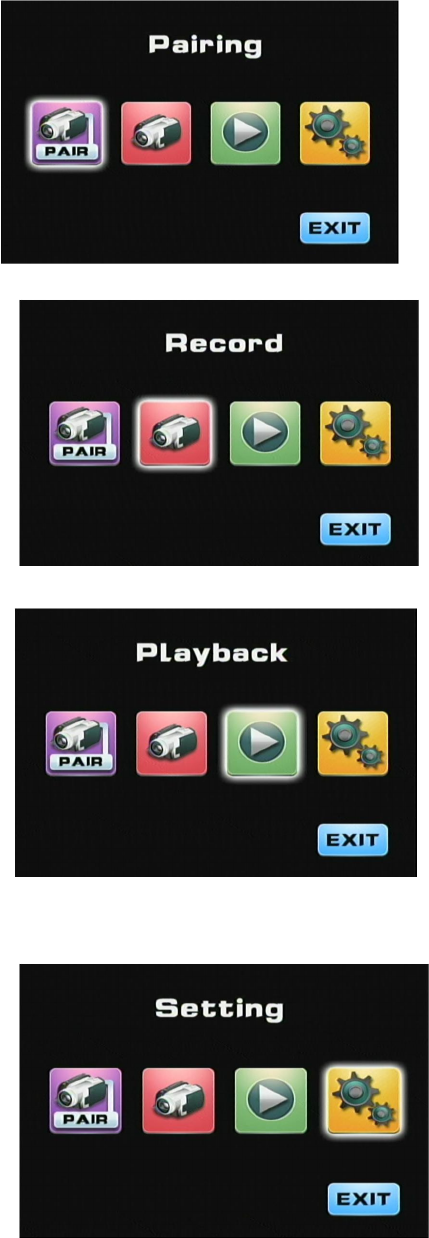

2.2 Graphical User Interface
User can enter this mode by pressing ,and pressing
To choose the icon,pressing for sure,and choose Exit icon to quit.
Generated by Foxit PDF Creator © Foxit Software
http://www.foxitsoftware.com For evaluation only.
2.2.1 Pairing Menu
Camera need to be paired
with Receiver to start working.
2.2.2 Record Menu
User can set the time stamp
on/off Or enable SD card overwrite
Function in this mode.
2.2.3 Playback Menu
User can view the data in
SD card in this mode.
2.2.4 Setting Menu
User can set time,recording
Time, contrast, saturation etc.
In this mode.
Generated by Foxit PDF Creator © Foxit Software
http://www.foxitsoftware.com For evaluation only.
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules: Operation is subject to the
following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any
interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Care should be taken that, in order to comply with FCC OET 65 Health
Requirements, please always make sure that keep the device 25 cm away
from the body while it is working.
