AnJieLun Electronic Techology DV70E 2.4GHz digital wireless receiver with SD card recorder User Manual
AnJieLun Electronic Techology Limited 2.4GHz digital wireless receiver with SD card recorder
user manual
2.4GHzdigitalwirelessreceiverwith SD card recorder
User’sManual
Model:DV70E,ADW280
FCCID:T54DV70E
Brochure
1. Product description

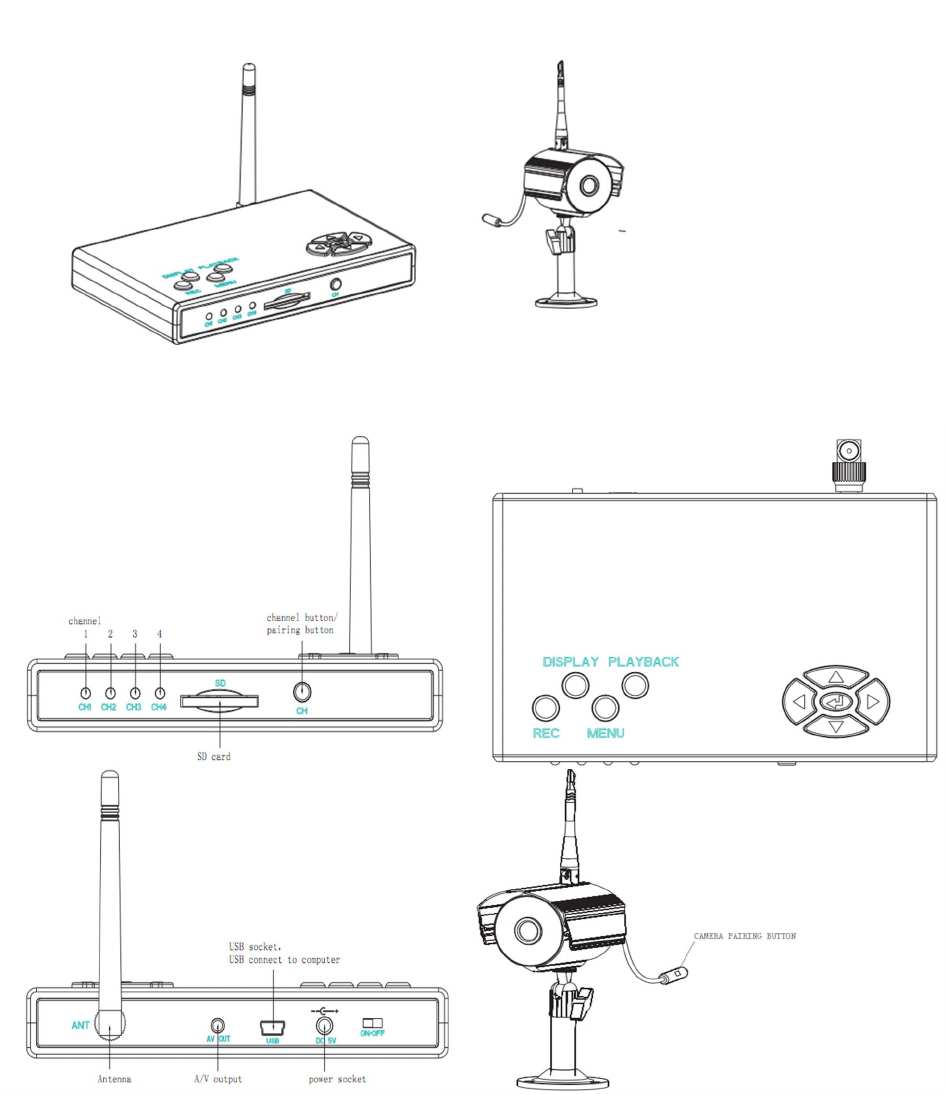

1.1 Appearance
1.2 Key Description
There are 10 keys and 1 switch on the receiver,one key on the camera.
Generated by Foxit PDF Creator © Foxit Software
http://www.foxitsoftware.com For evaluation only.

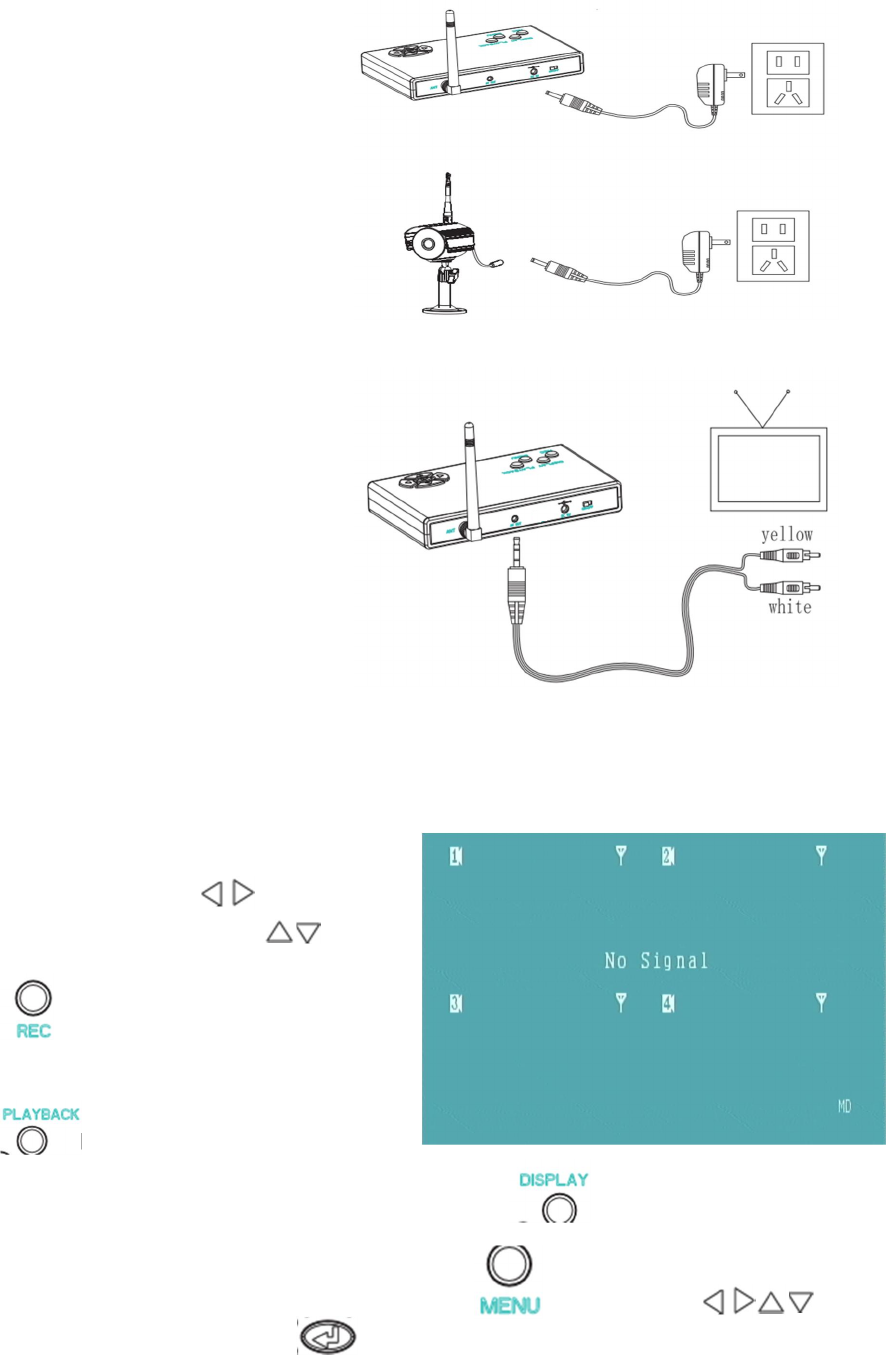

1.3 Electrical Continuity
1.3.1
Just connect power
adapter and the antenna
to receiver/connect the
power adapter to camera.
1.3.2
Connect the AV cable
To receiver and TV.
2．Operation desciption
2.1 Scan Mode（调节音量、亮度）
In this mode,user can control
Sound by pressing ,and control
Brightness by pressing ;If put
A SD card in the receiver,press
Will start recording,and press
It twice will stop;user can view
The data in SD card by pressing
Key.
User can get to one channel by pressing .

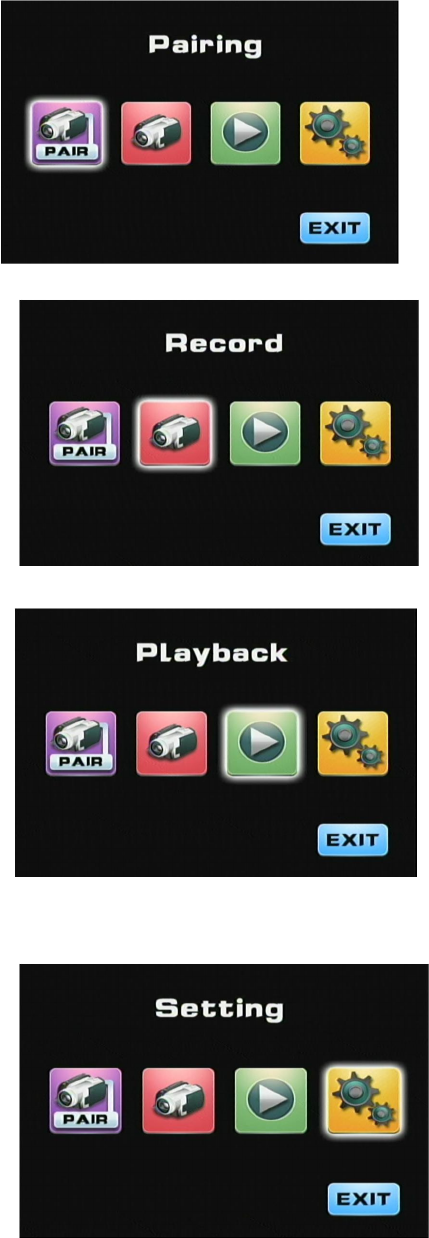

2.2 Graphical User Interface
User can enter this mode by pressing ,and pressing
To choose the icon,pressing for sure,and choose Exit icon to quit.
Generated by Foxit PDF Creator © Foxit Software
http://www.foxitsoftware.com For evaluation only.
2.2.1 Pairing Menu
Camera need to be paired
with Receiver to start working.
2.2.2 Record Menu
User can set the time stamp
on/off Or enable SD card overwrite
Function in this mode.
2.2.3 Playback Menu
User can view the data in
SD card in this mode.
2.2.4 Setting Menu
User can set time,recording
Time, contrast, saturation etc.
In this mode.
Generated by Foxit PDF Creator © Foxit Software
http://www.foxitsoftware.com For evaluation only.
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules: Operation is subject to the
following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any
interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Care should be taken that, in order to comply with FCC OET 65 Health
Requirements, please always make sure that keep the device 25 cm away
from the body while it is working.
