DMABTM8811
Bluetooth Adapter Card
OEM/Integrators Installation Manual
Version 1.0
February 7, 2014
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
STATEMENT and Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of
the
device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
French:
Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif
est
autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage,
et (2)
l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si
ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20cm de distance entre la source de rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna
and users, and The transmitter module may not be co-located with any other transmitter or
antenna. As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following:
“Contains FCC ID:MBBDMABTM8811”,
“contains IC: 11657A-DMABTM8811”. The grantee's FCC ID can be used only when all
FCC/ IC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The Grantee must instruct the OEM/Integrator to include statements as required per Parts
15.19 and 15.21.
An attestation that the Grantee will provide guidance to the host manufacturer for compliance
to Part 15, subpart B requirements.
The modular transmitter must comply with any specific rules or operating requirements that
ordinarily apply to a complete transmitter and the manufacturer must provide adequate
instructions along with the module to explain any such requirement.
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
CONTENTS
Package Contents ........................................................................................... 5
Chapter 1 Introduction ................................................................................... 6
1.1 Overview of the Product ............................................................................................. 6
1.2 Features ..................................................................................................................... 6
Chapter 2 Installation Guide (For Consumer Electronics) .......................... 7
2.1 Hardware Installation ................................................................................................. 7
2.2 Software Installation .................................................................................................. 7
2.3 Pin Definitions............................................................................................................ 8
2.4 Mechanical Dimension............................................................................................... 9
Appendix A: Specifications .......................................................................... 10
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
Package Contents
The following items should be found in your package:
DMABTM8811 Bluetooth Adapter Card
Conventions:
The ‘Module’ mentioned in this user guide stands for DMABTM8811 Bluetooth
Adapter Card without any explanation.
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
Chapter 1 Introduction
Thank you for choosing the MB8811C0 Bluetooth Adapter Card!
1.1 Overview of the Product
DMABTM8811 is a fully integrated Bluetooth module. It is based on CSR’s Bluecore
8811 chip with specific interface design to meet ANAM Electronics’s needs.
DMABTM8811 is compatible with Bluetooth specification version 3.0. It integrates RF,
Baseband controller, etc., a completed Bluetooth subsystem.
1.2 Features
Operation Range (Class II) : 10 meters
Fully Compatible with Bluetooth Specification 3.0
Dual-mode Bluetooth / Bluetooth low energy
Operating Temperature Range : -10℃ ~ 70℃
Operating VDD Range : 3.0 V- 3.6 V Normal: 3.3 V
Interface : UART
Internal Antenna
RoHS Compliant
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
Chapter 2 Linux Installation Guide (For Consumer Electronics)
2.1 Hardware Installation
For the Consumer Electronics products which use DMABTM8811, it must provide a
corresponding connector for the module. After connecting the module to the device,
the hardware installation is finished.
2.2 Software Installation
For the Consumer Electronics products, the Linux Driver of DMABTM8811 is
embedded in default. So the module is a plug and play device. After connecting the
module to the device, DMABTM8811 will work well.
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA

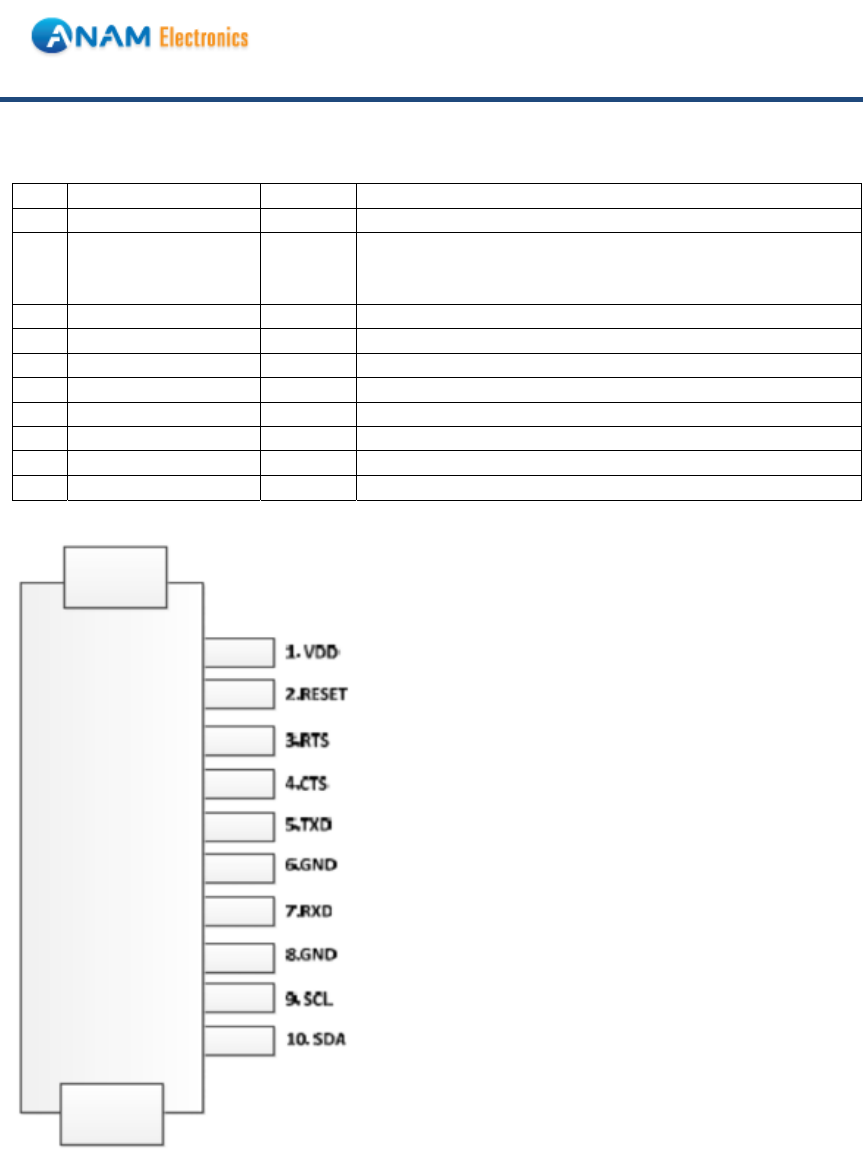

2.3 Pin Definitions
No Pin Name I/O Description
1 VDD I Positive Input for the internal regulator (3.0 ~ 3.6V)
2 RESET I Reset if low. Input debounced so must be low for
>5ms to
cause a reset
3 RTS O
UART Request to Send. Active-low request.
4 CTS I
Bluetooth UART Clear to Send.Active-low clear.
5 TXD O
Bluetooth UART Serial Output.
6 GND -
Ground.
7 RXD I
Bluetooth UART Serial Input.
8 GND -
Ground.
9 SXL O
I2C interface Clock
10 SDA I/O
I2C interface DATA
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA

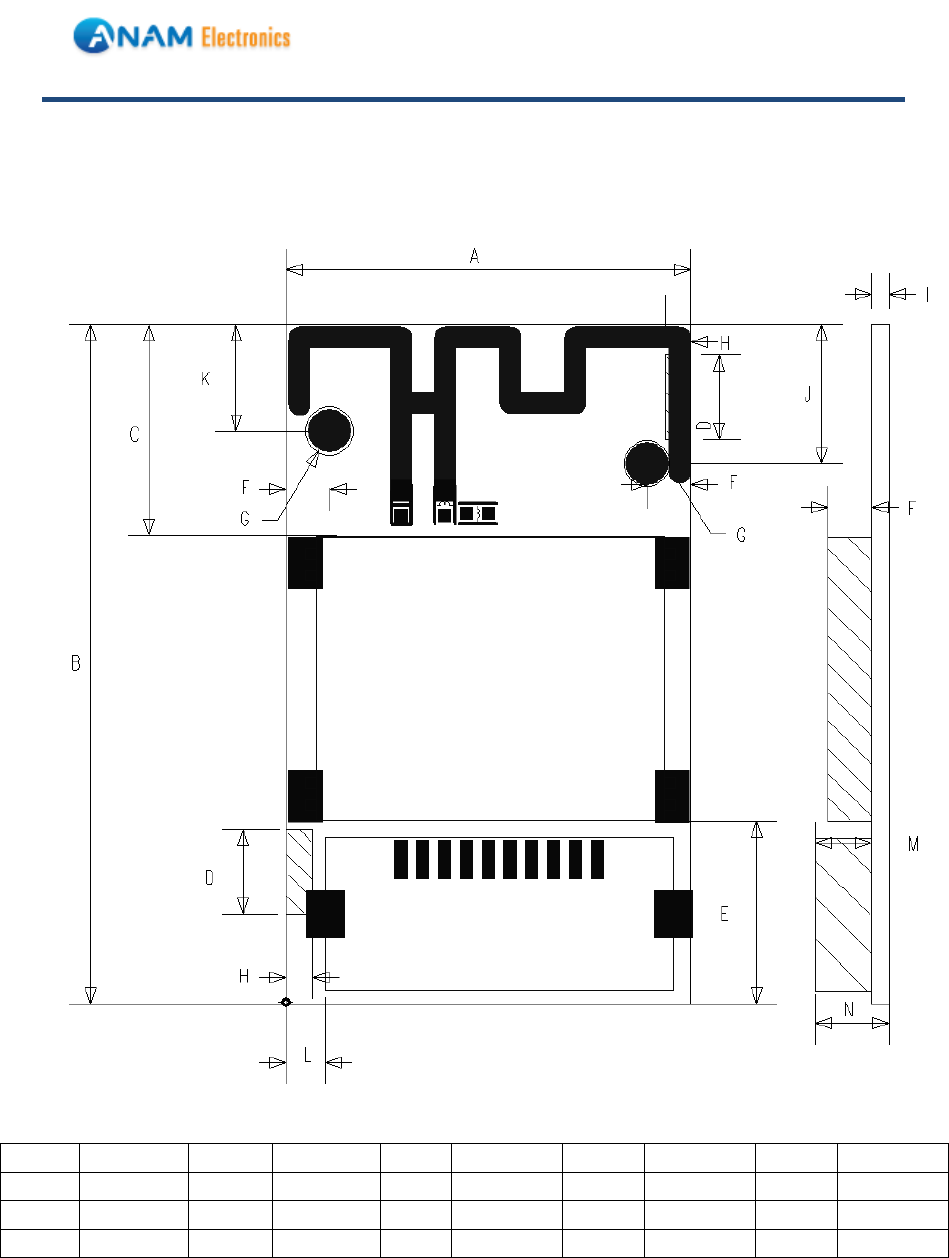

2.4 Mechanical Dimension
Mark Dimension Mark Dimension Mark
Dimension
Mark Dimension Mark Dimension
A 18.60±0.5 D 3.90±0.2 G 2.0±0.2 J 6.4±0.2 M 2.6±0.2
B 31.20±0.5 E 8.40±0.3 H 1.2±0.2 K 4.9±0.2 N 3.4±0.2
C 9.70±0.3 F 2.0±0.3 I 0.8±0.1 L 1.80±0.3
(Unit : mm)
(SUNGKO
K
-DONG) 213, MANHAE-RO, DANWON-GU, ANSAN-CITY, KYUNGKI-DO, KOREA
Appendix A: Specifications
Normal
Interface UART
Operating System Windows XP, Vista, 7, Linux
Radio Data Rate Up to 3Mpbs
Modulation GFSK, π/4 DQPSK, 8DPSK
Frequency 2.402 ~ 2.480GHz
Channel Number 79Ch
Antenna Integrated, PIFA
Safety &
Emissions
FCC/ IC
Environmental and Physical
Operating Temp -40℃~ 85℃
Storage Temp -10℃~ 70℃
Humidity 10% ~ 90% RH, Non-condensing
