Anam Electronics DMRS4 Wireless Adapter Card User Manual

Anam Electronics Co., Ltd. Wireless Adapter Card

Users manual

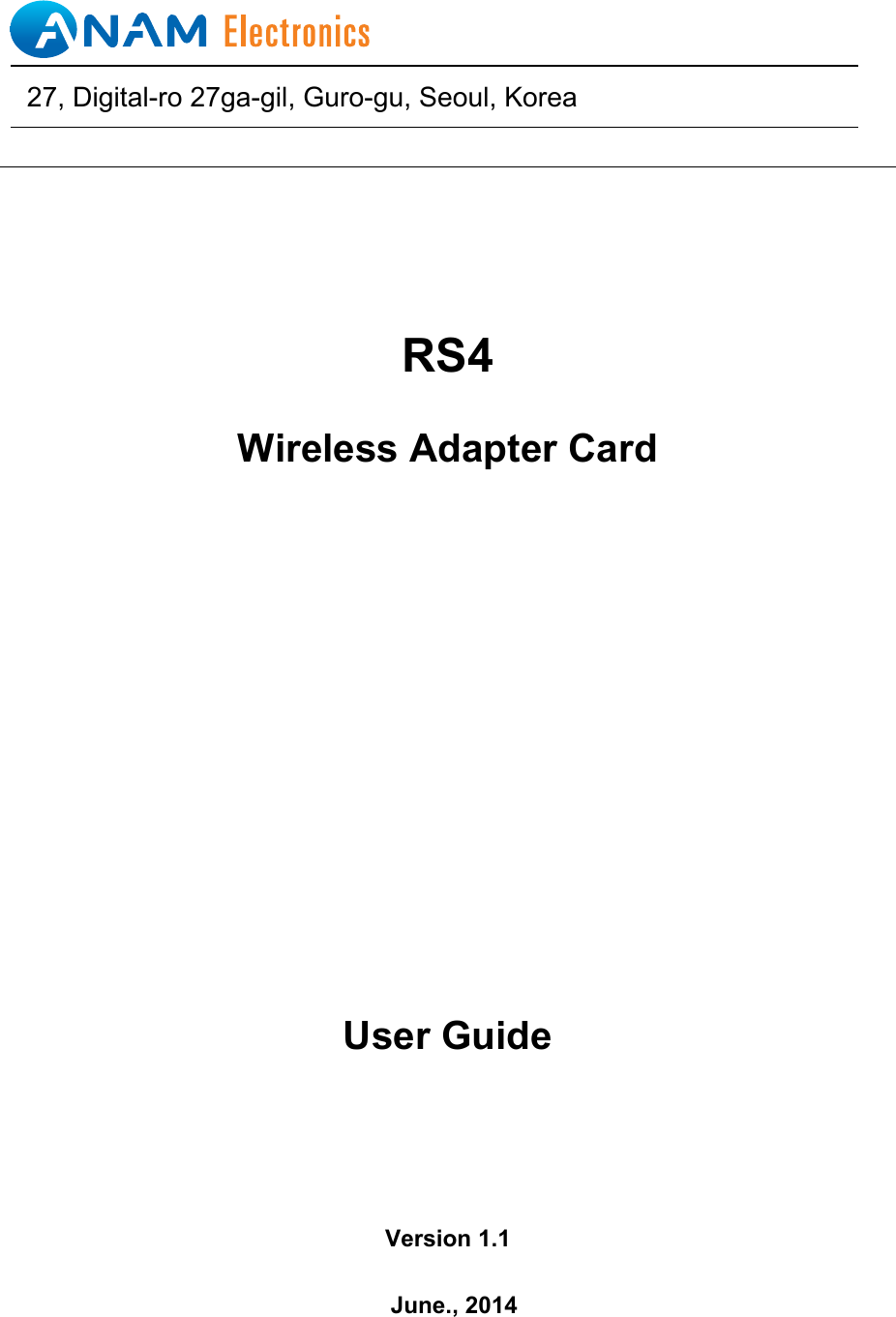

27, Digital-ro 27ga-gil, Guro-gu, Seoul, Korea RS4 Wireless Adapter Card User Guide Version 1.1 June., 2014

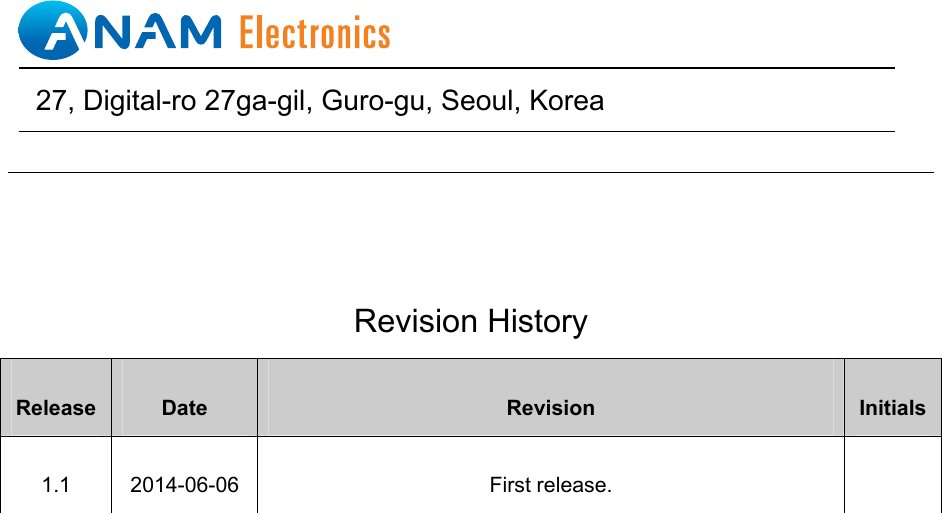

Revision History Release Date Revision Initials .esaeler tsriF 60-60-4102 1.1 27, Digital-ro 27ga-gil, Guro-gu, Seoul, Korea

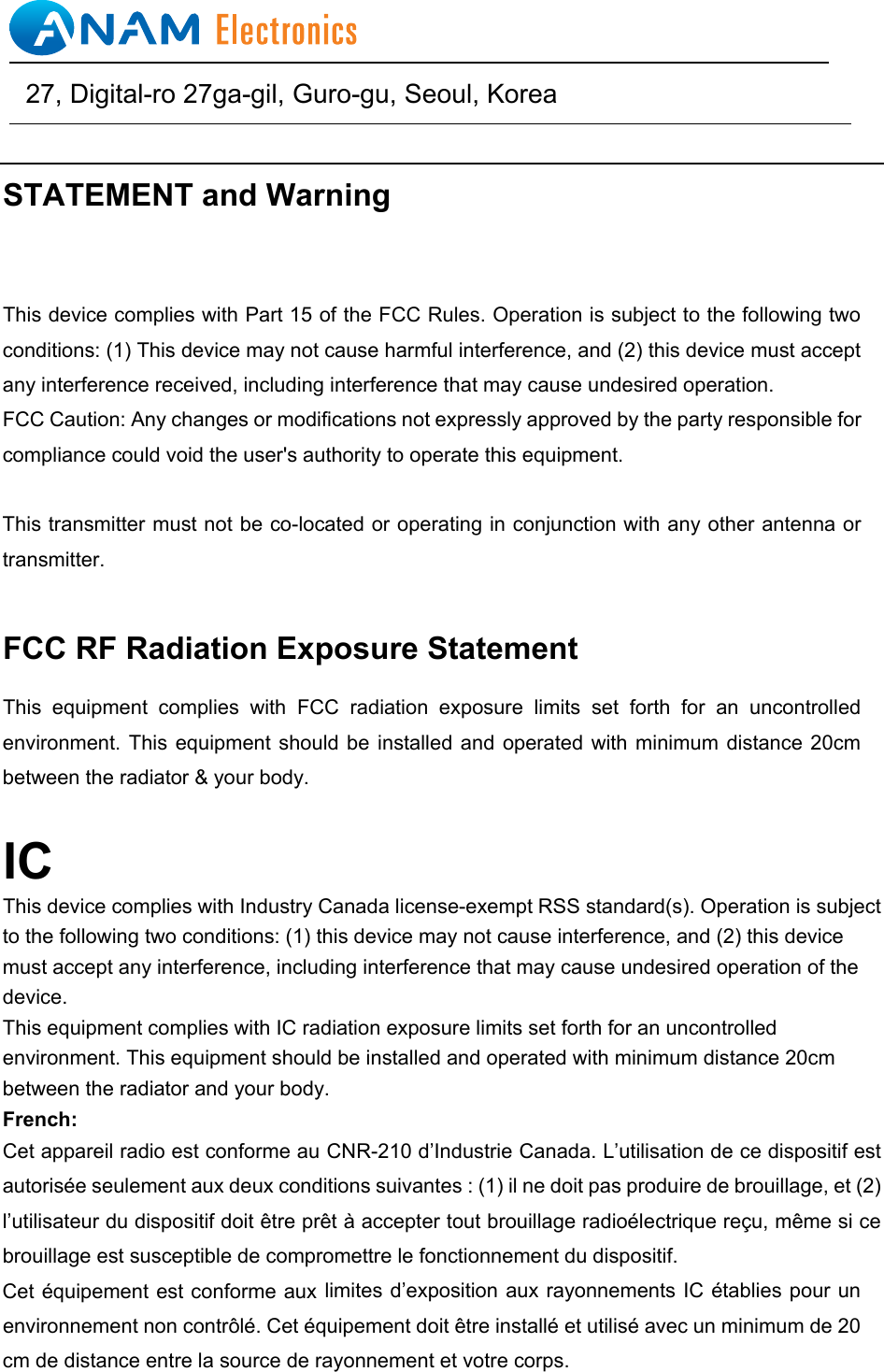

STATEMENT and Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ICThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. French:Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. 27, Digital-ro 27ga-gil, Guro-gu, Seoul, Korea

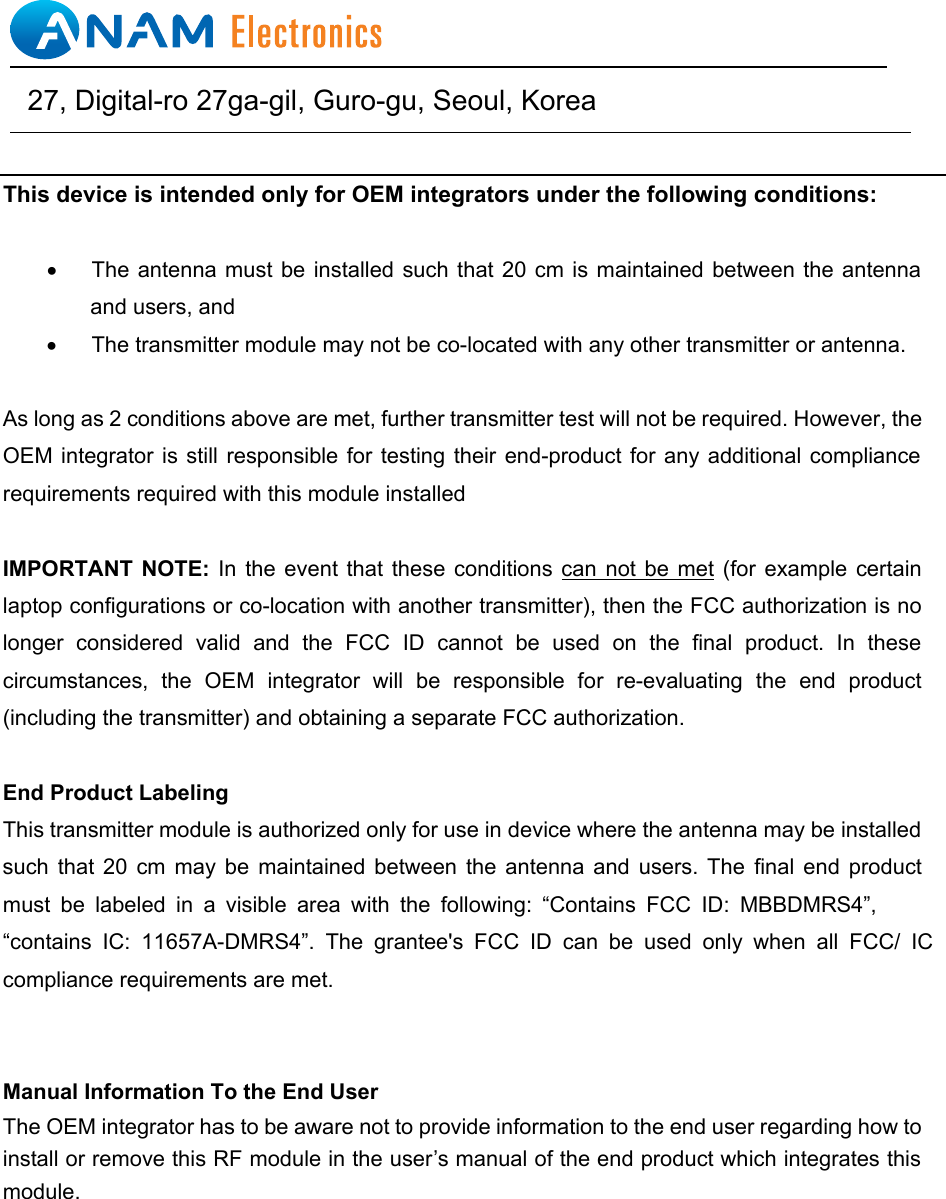

This device is intended only for OEM integrators under the following conditions: • The antenna must be installed such that 20 cm is maintained between the antenna and users, and • The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product(including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: MBBDMRS4”, “contains IC: 11657A-DMRS4”. The grantee's FCC ID can be used only when all FCC/ IC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. 27, Digital-ro 27ga-gil, Guro-gu, Seoul, Korea

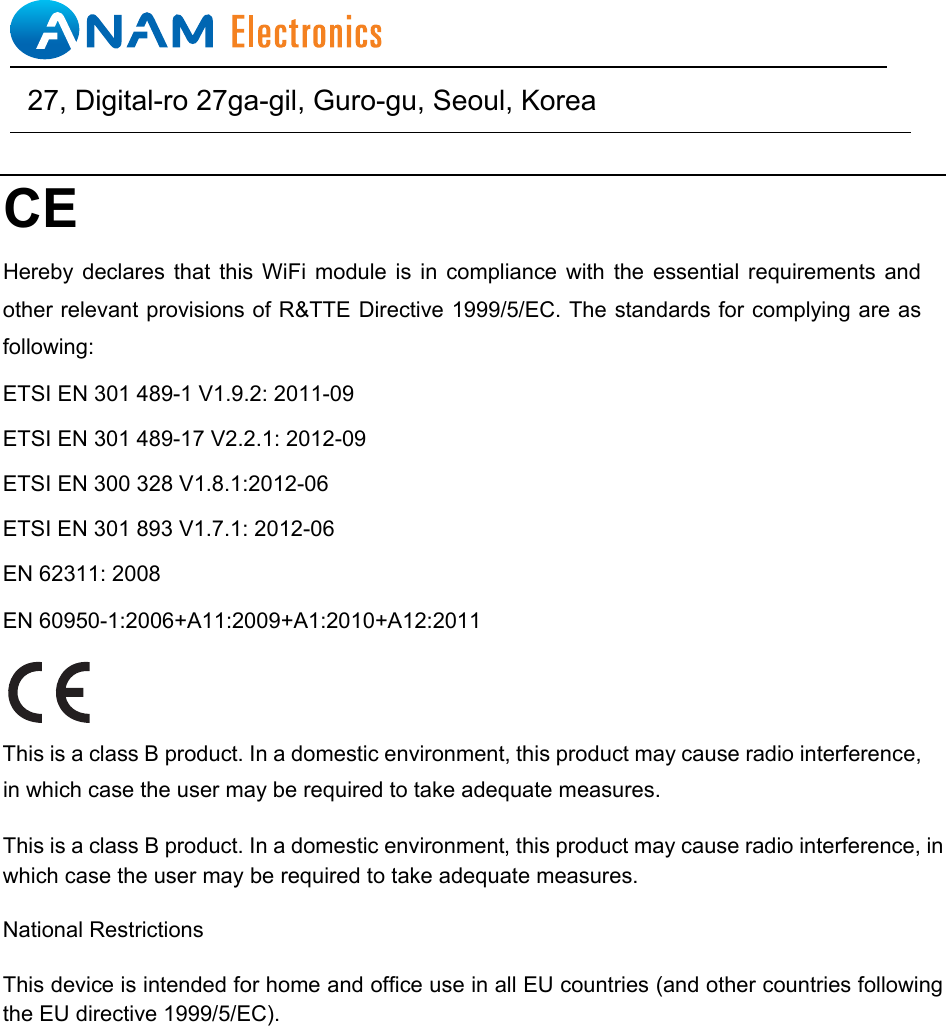

CE Hereby declares that this WiFi module is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC. The standards for complying are as following: ETSI EN 301 489-1 V1.9.2: 2011-09 ETSI EN 301 489-17 V2.2.1: 2012-09 ETSI EN 300 328 V1.8.1:2012-06 ETSI EN 301 893 V1.7.1: 2012-06 EN 62311: 2008 EN 60950-1:2006+A11:2009+A1:2010+A12:2011 This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC). 27, Digital-ro 27ga-gil, Guro-gu, Seoul, Korea

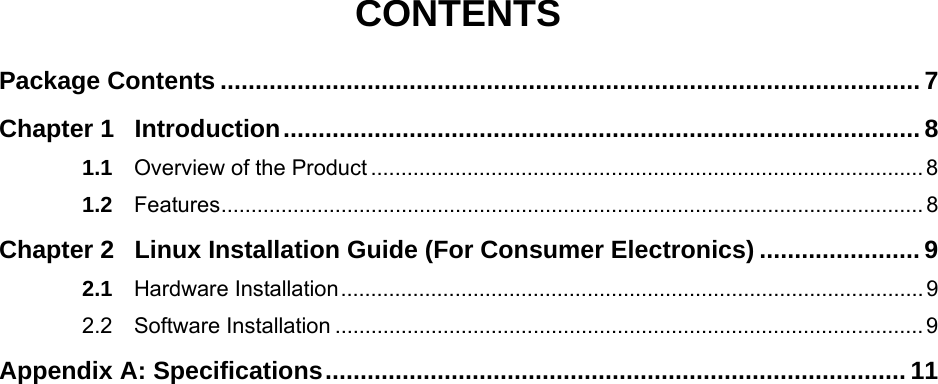

CONTENTS Package Contents .................................................................................................... 7Chapter 1Introduction........................................................................................... 81.1Overview of the Product ............................................................................................81.2Features..................................................................................................................... 8Chapter 2Linux Installation Guide (For Consumer Electronics) ....................... 92.1Hardware Installation................................................................................................. 92.2Software Installation .................................................................................................. 9Appendix A: Specifications................................................................................... 11

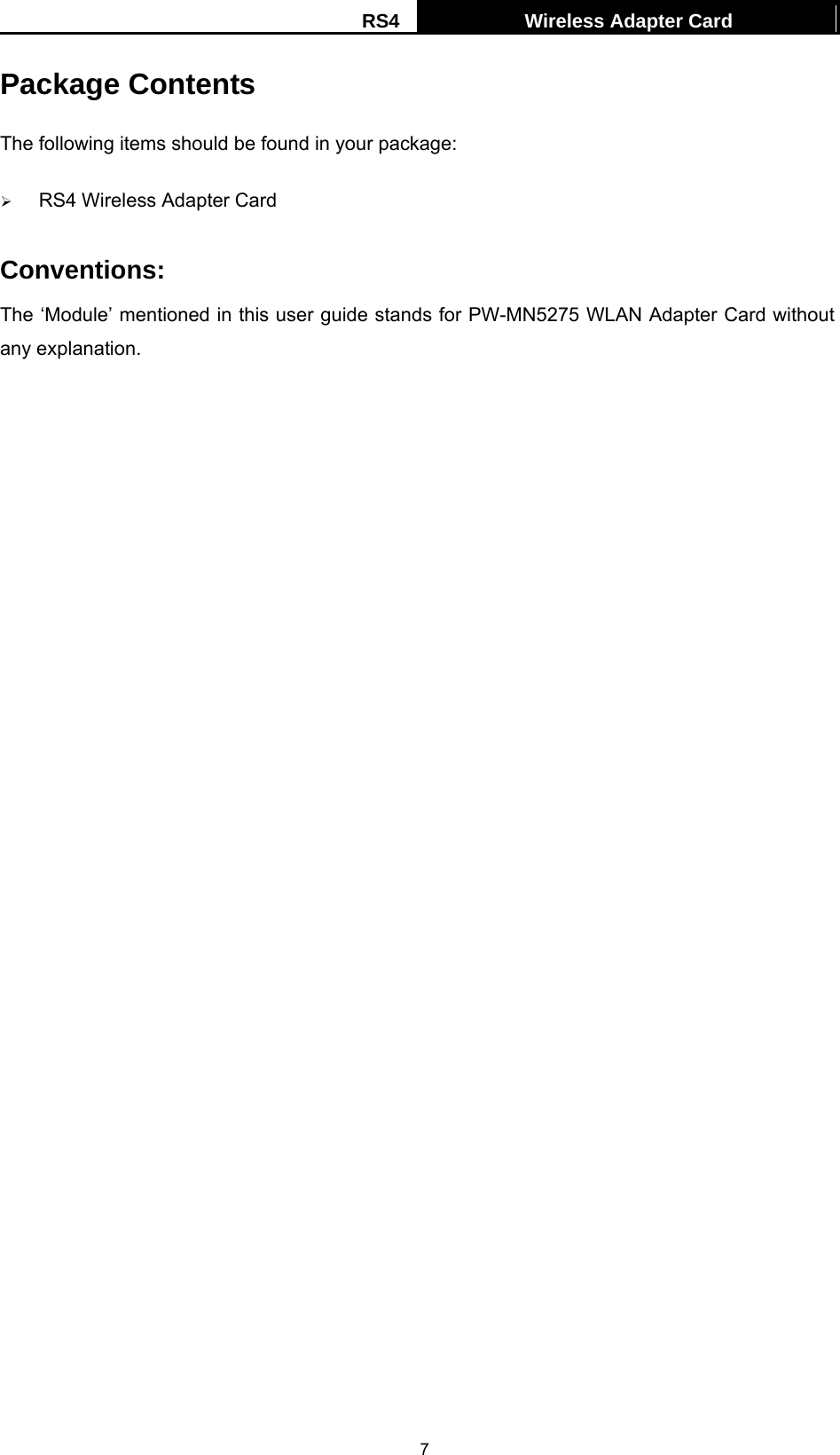

RS4 Wireless Adapter Card 7Package Contents The following items should be found in your package: ¾ RS4 Wireless Adapter Card Conventions: The ‘Module’ mentioned in this user guide stands for PW-MN5275 WLAN Adapter Card without any explanation.

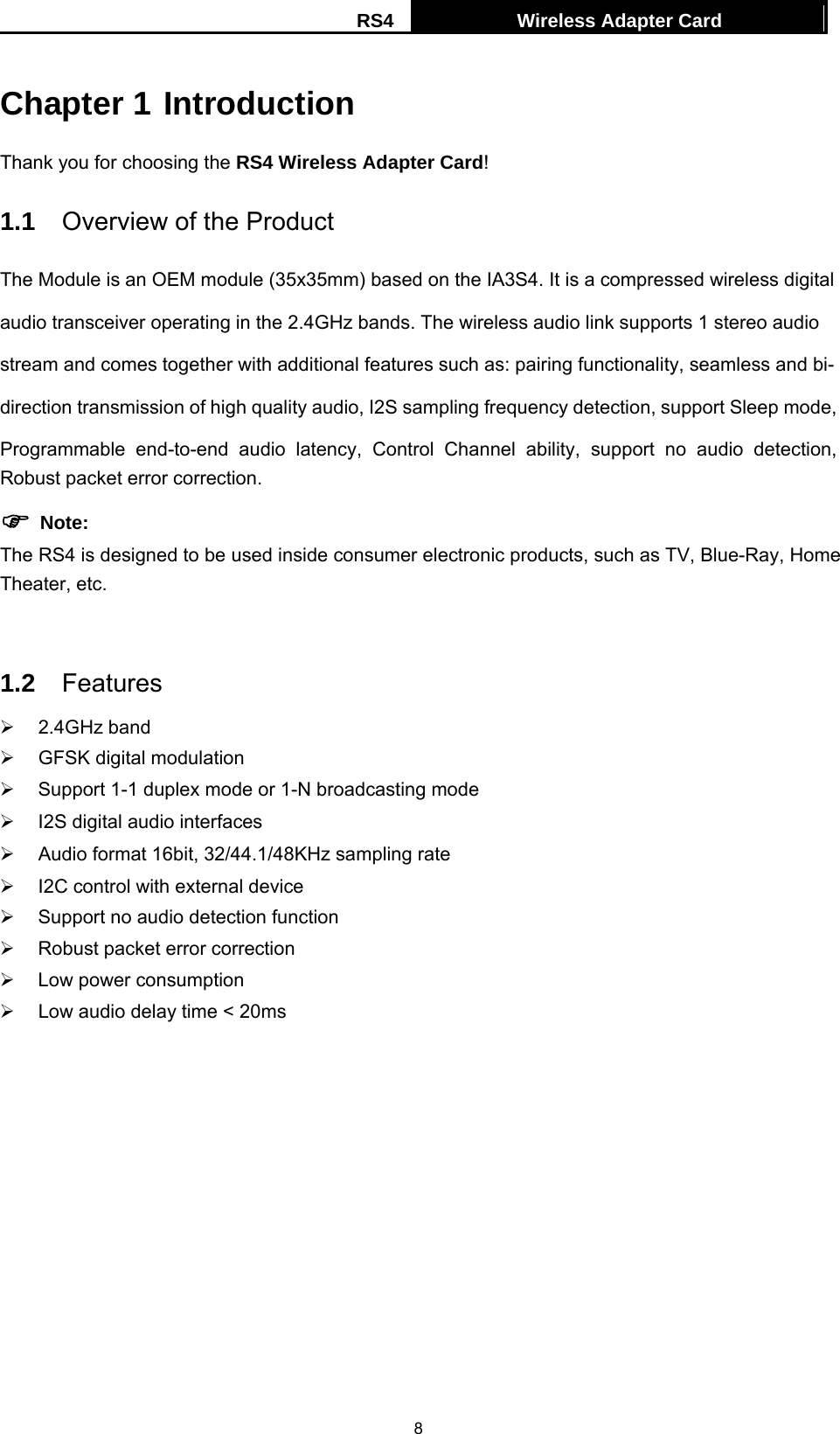

RS4 Wireless Adapter Card 8Chapter 1 Introduction Thank you for choosing the RS4 Wireless Adapter Card! 1.1 Overview of the Product The Module is an OEM module (35x35mm) based on the IA3S4. It is a compressed wireless digital audio transceiver operating in the 2.4GHz bands. The wireless audio link supports 1 stereo audio stream and comes together with additional features such as: pairing functionality, seamless and bi- direction transmission of high quality audio, I2S sampling frequency detection, support Sleep mode, Programmable end-to-end audio latency, Control Channel ability, support no audio detection, Robust packet error correction. ) Note: The RS4 is designed to be used inside consumer electronic products, such as TV, Blue-Ray, Home Theater, etc. 1.2 Features ¾ 2.4GHz band ¾ GFSK digital modulation ¾ Support 1-1 duplex mode or 1-N broadcasting mode ¾ I2S digital audio interfaces ¾ Audio format 16bit, 32/44.1/48KHz sampling rate ¾ I2C control with external device ¾ Support no audio detection function ¾ Robust packet error correction ¾ Low power consumption ¾ Low audio delay time < 20ms

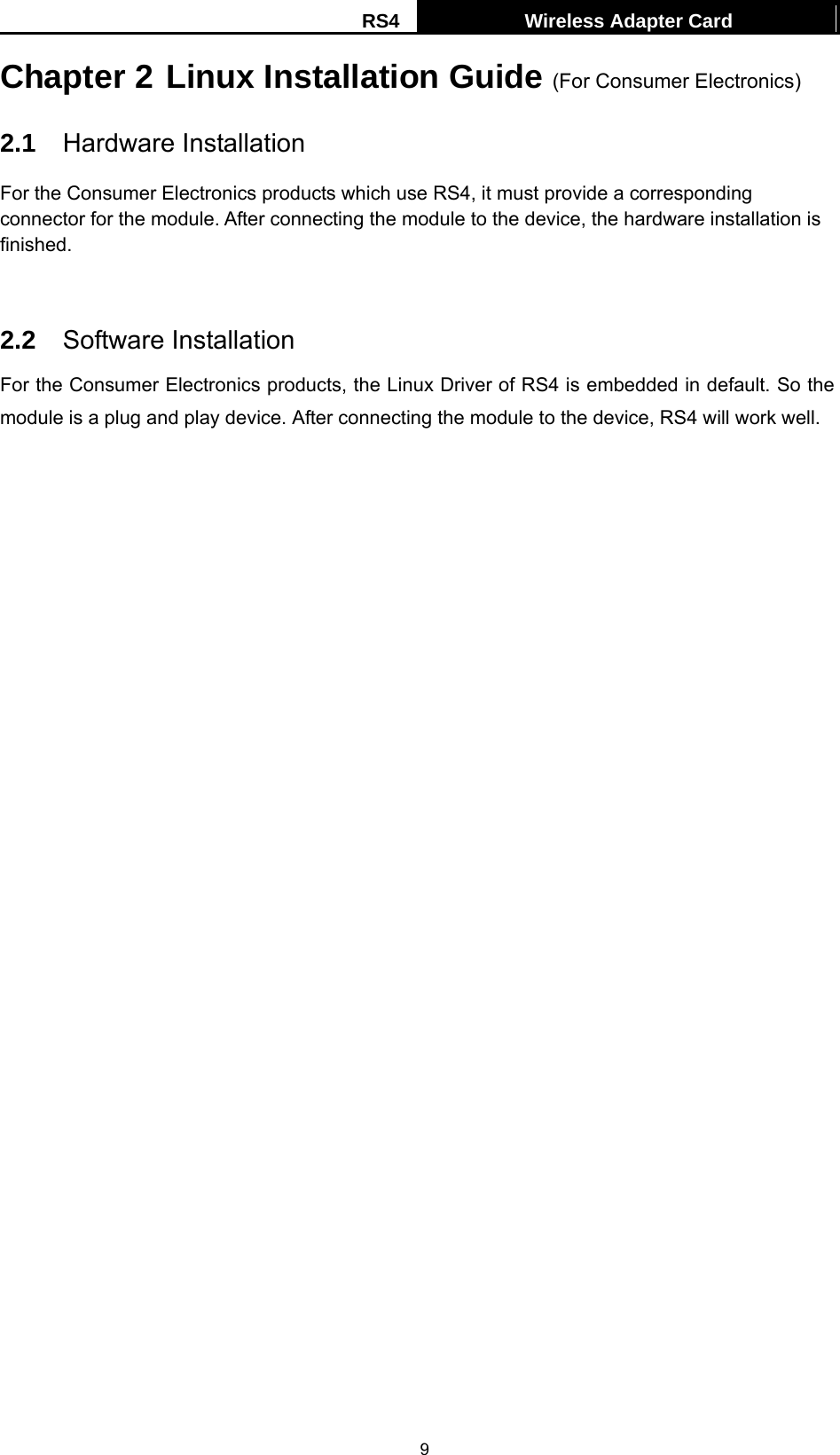

RS4 Wireless Adapter Card 9Chapter 2 Linux Installation Guide (For Consumer Electronics) 2.1 Hardware Installation For the Consumer Electronics products which use RS4, it must provide a corresponding connector for the module. After connecting the module to the device, the hardware installation is finished. 2.2 Software Installation For the Consumer Electronics products, the Linux Driver of RS4 is embedded in default. So the module is a plug and play device. After connecting the module to the device, RS4 will work well.

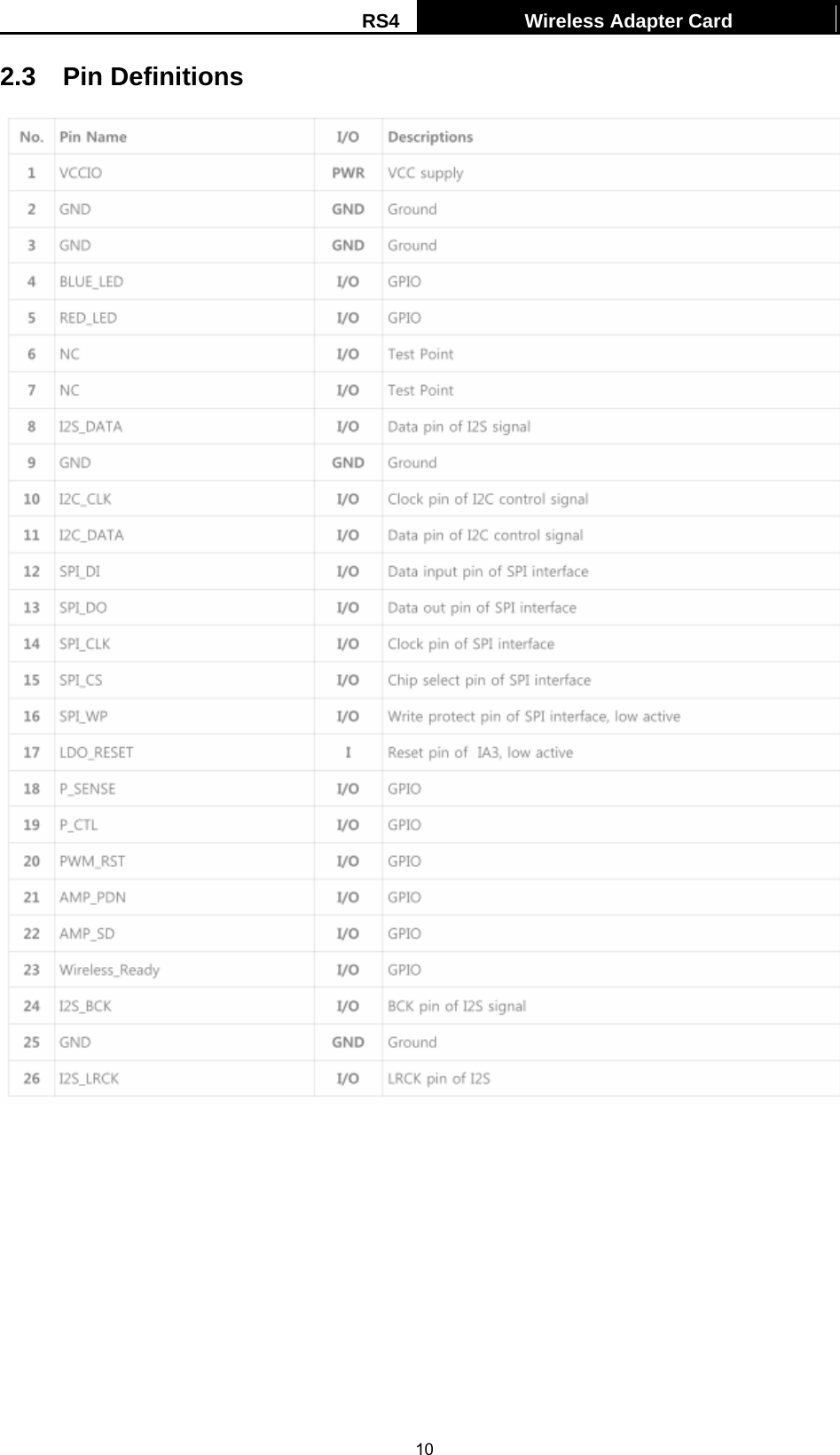

RS4 Wireless Adapter Card 102.3 Pin Definitions

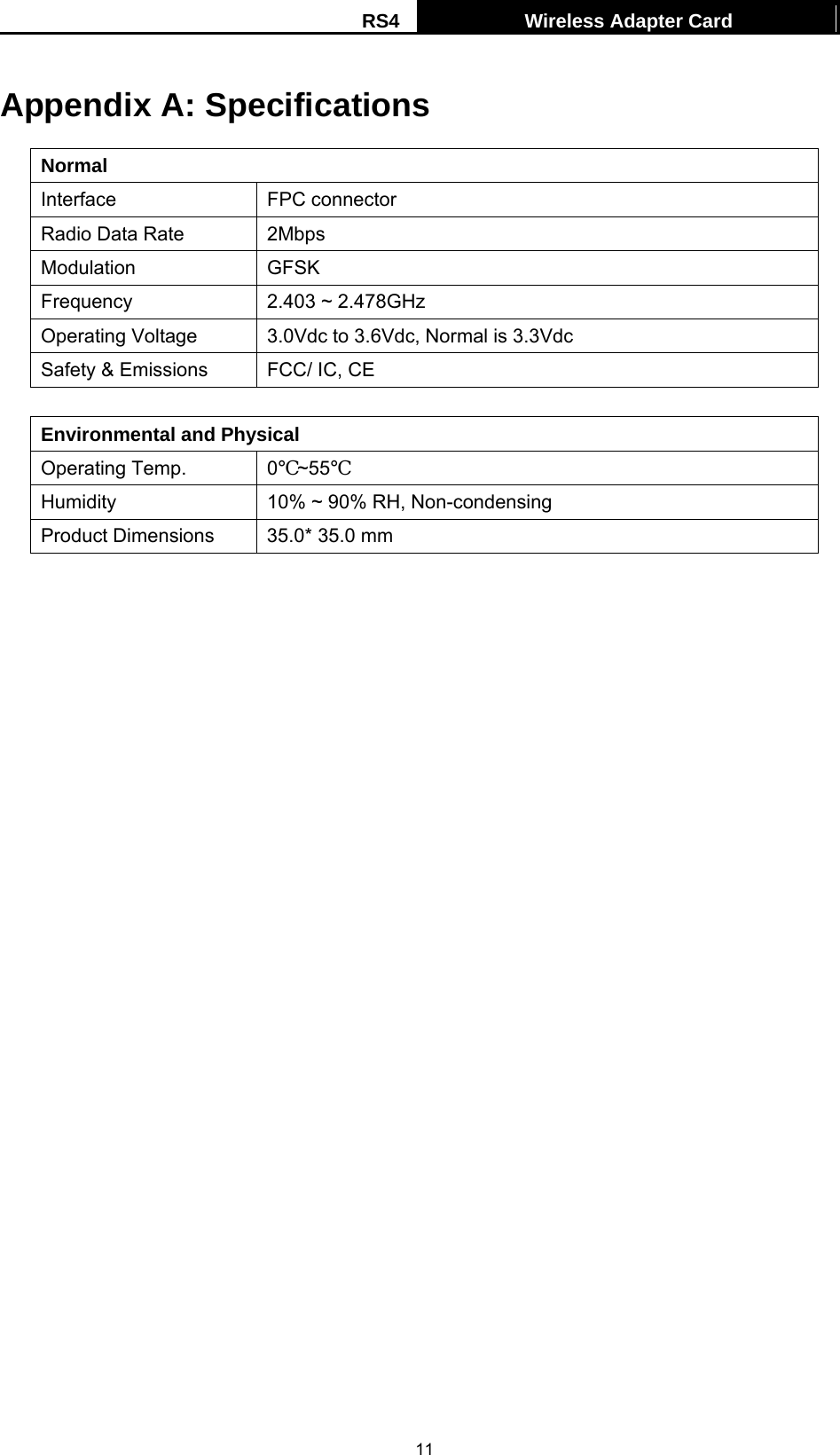

RS4 Wireless Adapter Card 11Appendix A: Specifications Normal Interface FPC connector Radio Data Rate 2Mbps Modulation GFSK Frequency 2.403 ~ 2.478GHz Operating Voltage 3.0Vdc to 3.6Vdc, Normal is 3.3Vdc Safety & Emissions FCC/ IC, CE Environmental and Physical Operating Temp. 0℃~55℃ Humidity 10% ~ 90% RH, Non-condensing Product Dimensions 35.0* 35.0 mm
