Anaren A10030501 2.4 GHz Transceiver User Manual
Anaren, Inc. 2.4 GHz Transceiver Users Manual
Anaren >
Users Manual
Anaren AIR Module, Users Manual
1/20, 7/15/2010:9:39 AM
Users Manual
Models A2500R24CG and A2500R24AG
Contents
1. Overview .......................................................................................................................................................... 2
1.1. A2500R24A ................................................................................................................................................. 2
1.2. A2500R24C ................................................................................................................................................. 2
1.3. Features ....................................................................................................................................................... 2
1.4. Theory of Operation .................................................................................................................................. 3
1.4.1. Typical Flow ..................................................................................................................................... 6
1.5. Applications ............................................................................................................................................... 7
2. Product Approvals .......................................................................................................................................... 8
2.1. USA (Federal Communications Commission, FCC, ) ..................................................................... 8
2.1.1. FCC Labeling Requirements ............................................................................................................. 9
2.1.2. End User Manual ............................................................................................................................. 9
2.1.3. RF Exposure ...................................................................................................................................... 9
2.1.4. Note on Specific Absorption Rate (SAR) ........................................ Error! Bookmark not defined.
2.2. Canada (Industry Canada, IC) ............................................................................................................... 10
2.3. Europe (Conformité Européenne, ) .................................................................................................. 11
2.4. Potential Interference Sources ................................................................................................................ 12

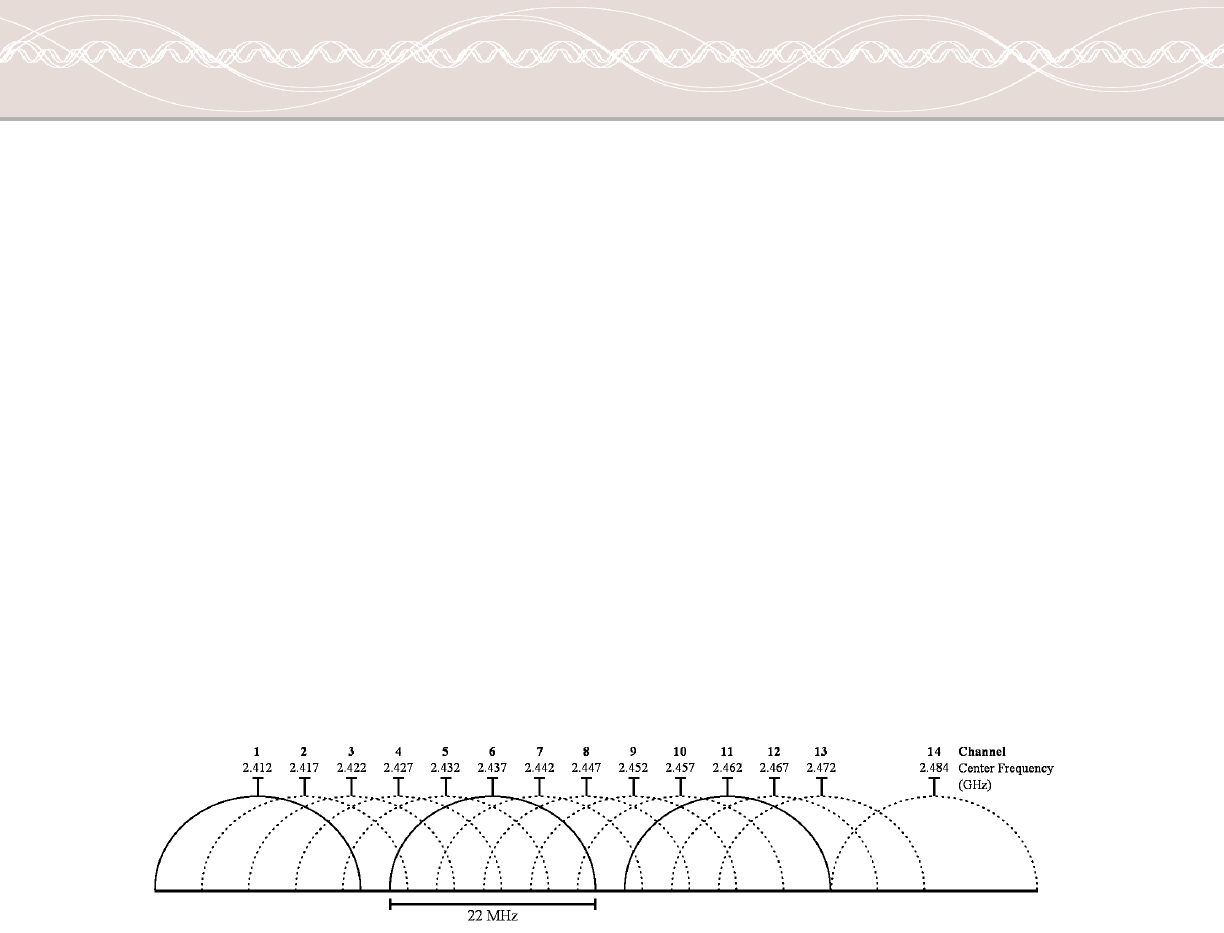

2.4.1. WLAN ............................................................................................................................................ 12
2.4.2. Bluetooth ......................................................................................................................................... 12
2.4.3. Microwave ovens ............................................................................................................................ 12
2.4.4. Other Interference ........................................................................................................................... 13
2.4.5. Time critical data ............................................................................................................................ 13
2.5. Approved Usage ...................................................................................................................................... 13
2.5.1. USA & Canada ............................................................................................................................... 13
2.5.2. Europe ............................................................................................................................................. 14
3. Electrical Characteristics .............................................................................................................................. 15
3.1. Absolute Maximum Ratings .................................................................................................................. 15
3.2. Operating Conditions ............................................................................................................................. 15

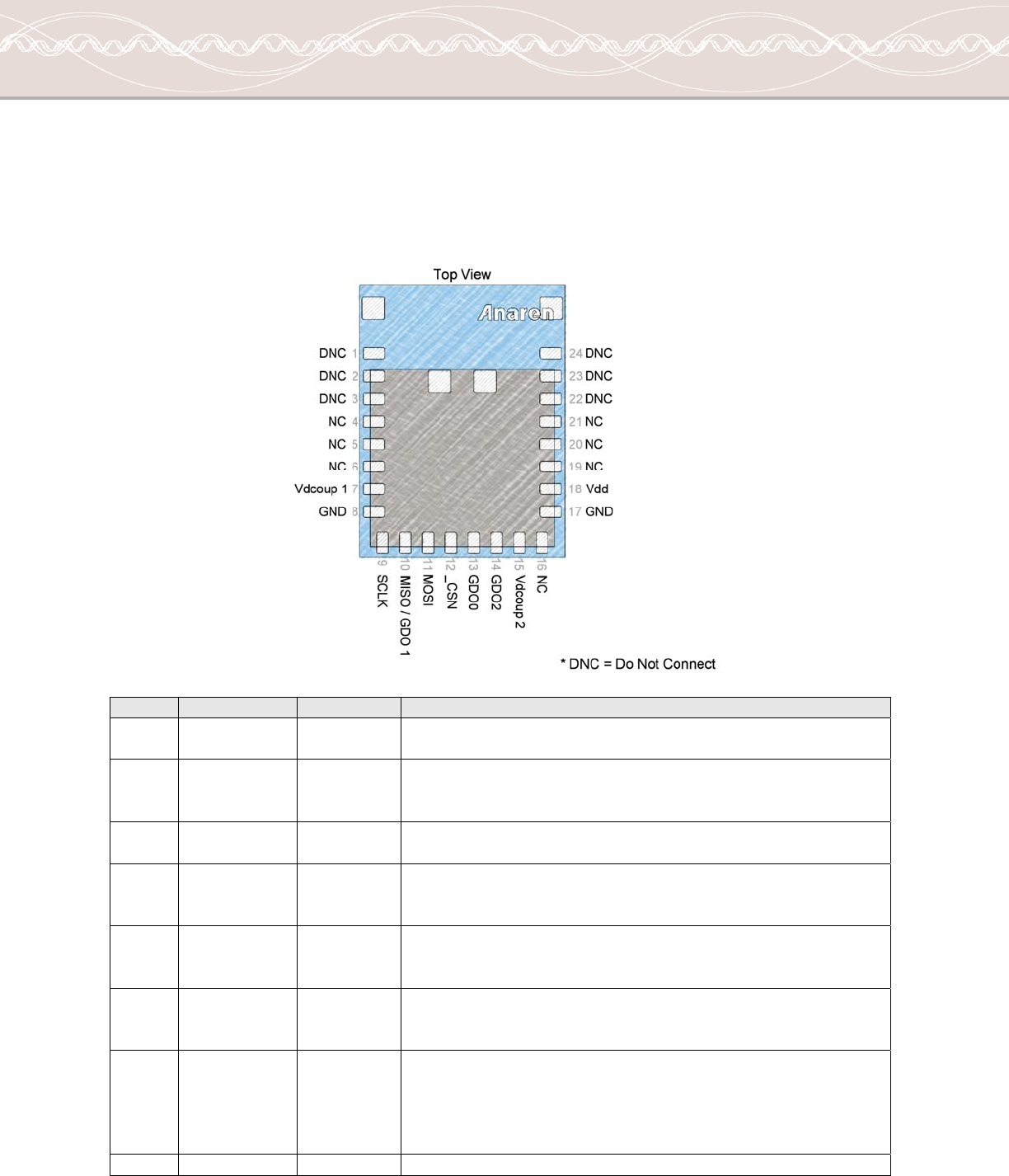

3.3. Pin Out ...................................................................................................................................................... 16

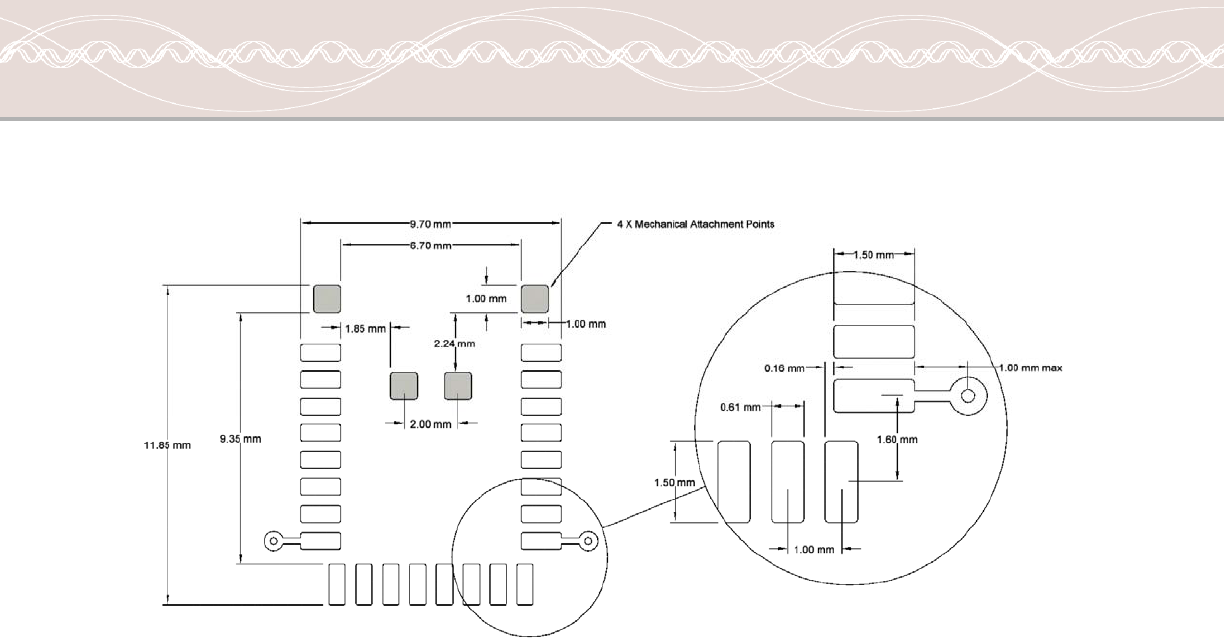

3.4. Recommended Layout ............................................................................................................................ 18
3.5. Power Supply Considerations ............................................................................................................... 19
Anaren AIR Module, Users Manual
2/20, 7/15/2010:9:39 AM
1. Overview
The A2500R24C and A2500R24A are surface mount modules with integrated crystal, internal voltage
regulator, matching circuitry and filtering. The A2500R24A has an integral antenna, whereas the
A2500R24C takes an external antenna through a U.FL connector (see Table 1). The modules operate in the
global non-licensed 2.4GHz ISM/SRD frequency band. These radio modules are ideal for achieving low
power wireless connectivity without having to deal with extensive RF, antenna design and regulatory
compliance, allowing quick time to market. The modules are 100% tested to provide consistent
performance.
The A2500R24C and A2500R24A have received regulatory approvals for modular devices in the United
States (FCC), Canada (IC) and Europe (ETSI). The modular approval allows the end user to place either
an A2500R24A or an A2500R24C with an approved antenna inside a finished product without having to
perform costly regulatory testing for an intentional radiator. Section 2 has information on the
requirements for the end user/integrator must fulfill to use the modules without intentional radiator
regulatory testing.
The A2500R24C and A2500R24A are based on the CC2500 transceiver IC from Texas Instruments. All
control lines of the transceiver are provided at module level for full control of its operation. Please see the
CC2500 data sheet (www.ti.com) for how to control the modules. Please see section Error! Reference
source not found. for the recommended register settings for optimal performance and regulatory
compliance.
The A2500R24C and A2500R24A modules both measure 9x12x2mm and are footprint compatible with
each other.
1.1. A2500R24A
The A2500R24A has an integral antenna, providing high efficiency and near omni-directional radiation
pattern. This is offers the lowest system cost when the application allows collocation of radio and
antenna.
1.2. A2500R24C
The A2500R24C has a compact antenna connector to allow locating the antenna away from the module
due to form/function or to exit a metal enclosure, see Error! Reference source not found. for more
information on antenna location and enclosure considerations.
1.3. Features
Features:
• Frequency range: 2400 – 2483.5 MHz
• Ultra small package size 9mm x 12mm x
2mm
• Impedance controlled multi-layer PCB
• Shielded Package
• 1.8 to 3.3 V operation
• SPI Interface
Benefits Summary:
• Operating temperature -40 to +85C
• 100% RF Tested in production
• Common footprint for all family members
• No RF engineering experience necessary
• Only requires a 2 layer PCB
implementation
• Excellent receiver selectivity and blocking
Anaren AIR Module, Users Manual
3/20, 7/15/2010:9:39 AM
• ROHS Compliant
• LGA Footprint
• Low Power Consumption
• Regulatory approvals for FCC, IC, ETSI
• Digital RSSI output
• Programmable channel filter bandwidth
• Programmable output power up to +1 dBm
• High sensitivity (–104 dBm at 2.4 kBaud,
1% packet error rate)
• Low current consumption (13.3 mA in RX,
250 kBaud, input well above sensitivity
limit)
• Separate 64-byte RX and TX data FIFOs
• Fast startup time: 250us from SLEEP to Rx
or Tx mode
• Data Rate: 1.2 – 500 Kbit/Sec
• Programmable data rate from 1.2 to 500
kBaud
• Sleep state: 0.4mA
• Idle State: 1.5mA
Performance
• Suitable for frequency hopping and
multichannel systems due to a fast settling
frequency synthesizer with 90 us settling
time
• Suited for systems compliant with EN 300
328 and EN 300 440 class 2 (Europe), FCC
CFR47 Part 15.247b and 15.249 (US)
• No regulatory “Intentional radiator”
testing required to integrate module into
end product. Simple certification labeling
replaces testing.
1.4. Theory of Operation
The A2500R24C and A2500R24A are for low power wireless applications in the 2400MHz to 2483.5MHz
global ISM/SRD band. The devices can be used to implement a variety of networks, including; point to
point, point to multipoint, peer to peer and mesh networks
The A2500R24C and A2500R24A both interface to an application microcontroller via SPI bus. Physical
and MAC layer functionality are accessed via the SPI bus, through addressable registers as well as
execution commands. Data received or to be transmitted are also accessed through the SPI bus and are
implemented as a FIFO register (64 bytes each for Tx and Rx).
To transmit, a frame of data is placed in the FIFO, this may include a destination address. A transmit
command is given, which will transmit the data according to the initial setup of the registers. To receive
data a receive command is given, which will listen for a transmission and when one occurs put the
received frame in the FIFO. When neither transmit or receive is required the device can enter either an
Idle mode, from which it can quickly re-enter receive or transmit mode or it can enter a low power sleep
mode, from which a crystal startup is also required prior to transmit or receive operation.
Below a block diagram is given for each of the A2500R24C and A2500R24A modules.
• Antenna
o The antenna couples energy between the air and the module. For applications where
installations are done by an end user (non-professional), an omni-directional antenna
pattern is desired, such that the application will work equally well in any direction.
Similarly for peer to peer or point to multipoint application an omni-directional pattern is
desired such that all nodes have a fair chance of communicating. The A2500R24A module
has an integral antenna that is near omni-directional, whereas the A2500R24C has
approved antenna options ranging from near omni-directional to shaped front/back
patterns (useful for inline, professional installations). Note that the end radiation pattern
Anaren AIR Module, Users Manual
4/20, 7/15/2010:9:39 AM
depend not only on the antenna, but also the ground plane, enclosure and installation
environment.
• Filtering
o Filtering removes spurious signals to comply with regulatory intentional radiator
requirements.
• Matching
o The matching provides the correct loading of the transmit amplifier to achieve the
highest output power as well as the correct loading for the receive LNA to achieve the
best sensitivity.
• Physical
o The physical layer provides conversions between data, symbol and RF signal.
• MAC
o The MAC layer is part of the Logical Link Layer and provides frame handling,
addressing and medium access services.
• Microcontroller Interface
o The microcontroller interface exposes registers and commands for the physical and MAC
layers to a microcontroller.
• Power Management
o Power management ensures a stable supply for the internal functions as well as
providing means for a low power sleep mode, in which most of the transceiver is power
off.
Anaren AIR Module, Users Manual
5/20, 7/15/2010:9:39 AM

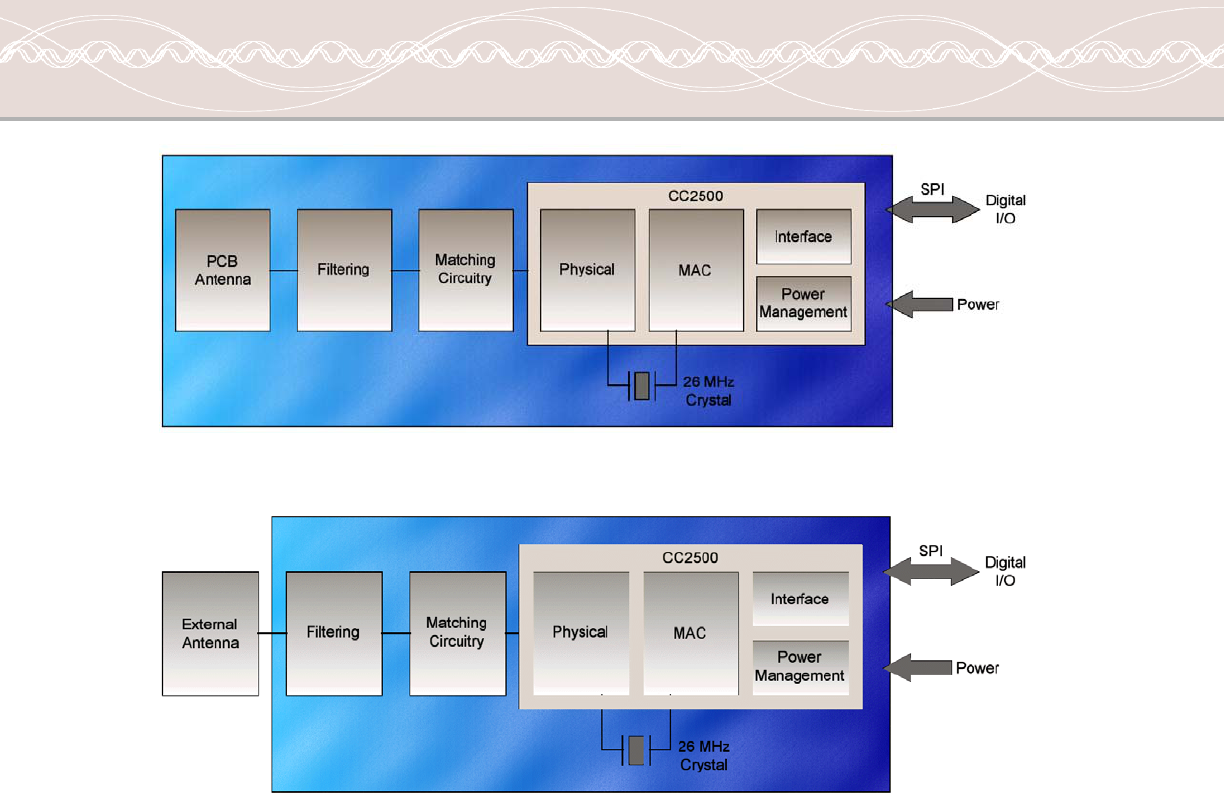

Figure 1 The functionality of the A2500R24A, using an integral antenna
Figure 2 The functionality of the A2500R24C, using an external antenna.
Anaren AIR Module, Users Manual
6/20, 7/15/2010:9:39 AM

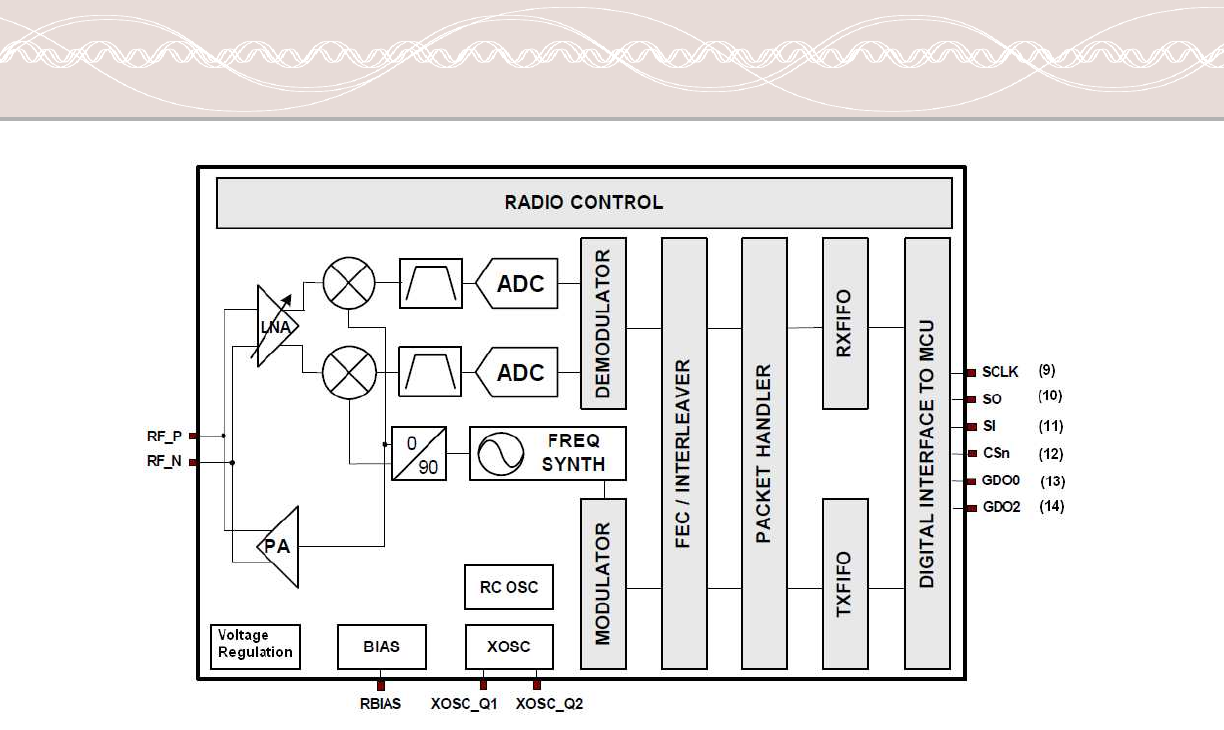

Figure 3 Transceiver IC block diagram.
1.4.1. Typical Flow
After initial setup of registers for desired behavior, the normal operation flow diagram is shown in Figure
4. In applications of infrequent data transmissions the transceiver would be in “sleep” mode to save
power (400nA). From there it would be woken up and enter “idle” mode. As part of the wake up process
the crystal oscillator is started (~250µs) and the digital microcontroller interface is powered up. Before
transmit or receive the frequency synthesizer needs to be started (“FS_Wakeup”) and having been
powered off (or idle for a while) the control loop of the VCO/PLL needs to be calibrated (“calibrate”).
A data frame is loaded into the transmit FIFO and the “TX” mode is entered. The transceiver will
transmit the data and enter “idle” mode after completion. When transmit is complete “RX” mode is
entered to wait for the acknowledge frame. Once a frame is received the transceiver will again enter
“idle”mode. If no acknowledge frame is received within a given timeout the data frame would be re-
transmitted. If the acknowledge frame indicated that the data was received the next data frame would be
transmitted. After the last data frame have successfully been transmitted the transceiver would again be
put in “sleep” mode.
Medium access
Anaren AIR Module, Users Manual
7/20, 7/15/2010:9:39 AM

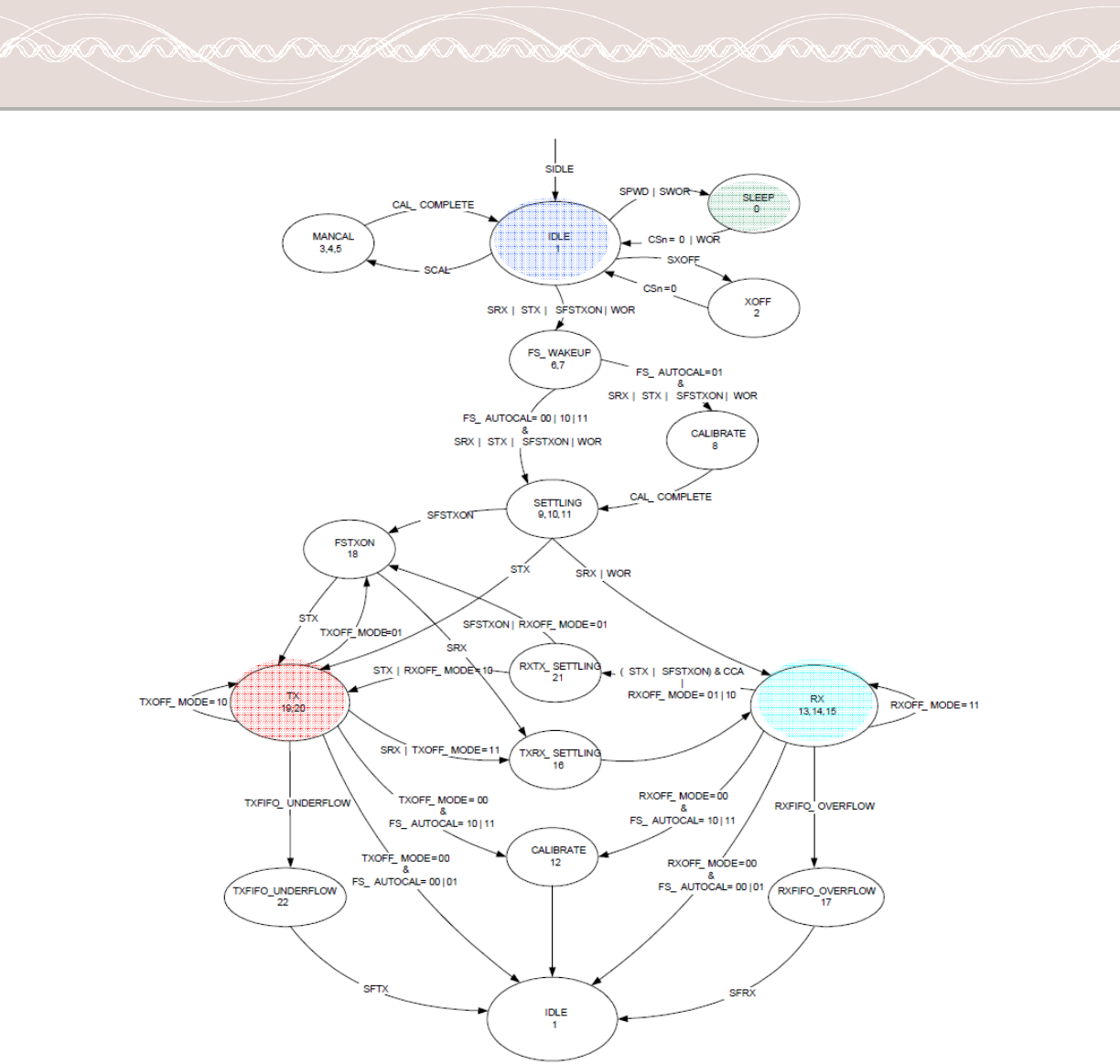

Figure 4 Transceiver state diagram
1.5. Applications
Ultra low-power wireless applications, operating in the 2400-2483.5 MHz ISM/SRD bands.
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor networks
Anaren AIR Module, Users Manual
8/20, 7/15/2010:9:39 AM
AMR – Automatic Meter Reading
Home and building automation
Wireless game controllers
Wireless Audio
Wireless keyboard and mouse
RF enabled remote controls
Existing applications where simple upgrade to wireless is desired
2. Product Approvals
The A2500R24C and A2500R24A have been designed to meet most national regulations for world-wide
ISM-band use. In particular the radio modules have been certified to the following.
2.1. USA (Federal Communications Commission, FCC, )
The A2500R24A, with integrated antenna, as well as the A2500R24C, used with the antennae listed in
Table 1 below, has been tested to comply with FCC CFR47 Part 15 sub-part C “Intentional Radiators. The
devices meet the requirements for modular transmitter approval as detailed in FCC public notice DA 00-
1407 Released: June 26, 2000. The A2500R24A and A2500R24C module can be integrated into a finished
product with obtaining subsequent FCC approvals.
(15.19a3) The modules complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Table 1 Approved Antennae
Item Part Number Manufacturer Type Gain
1 Integral part of A2500R24A Anaren Integral Antenna 2
2 66089-2406 Anaren Monopole whip, 6mm lead 3
3 66089-2430 Anaren Monopole whip, 30mm lead 3
4 66129-2480 Anaren Patch. 80mm lead 5
Anaren
FCC ID: X7J-A10030501
Anaren AIR Module, Users Manual
9/20, 7/15/2010:9:39 AM
2.1.1. FCC Labeling Requirements
The A2500R24A and A2500R24C modules have been labeled with their own FCC ID number and if the
FCC ID is not visible when the module is installed inside another device, then the outside of the finished
product into which the module is installed must also display a label referring to the enclosed module.
This exterior label can use wording such as the following:
Contains Transmitter Module FCC ID: X7J-A10030501
-or-
Contains FCC ID: X7J-A10030501
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
2.1.2. End User Manual
The end user manual should include the following statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
2.1.3. RF Exposure
All transmitters regulated by FCC must comply with RF exposure requirements. OET Bulletin 65
“Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic
Fields” provides assistance in determining whether proposed or existing transmitting facilities,
operations or devices comply with limits for human exposure to Radio Frequency (RF) fields adopted by
the Federal Communications Commission (FCC). The bulletin offers guidelines and suggestions for
evaluating compliance.
Anaren AIR Module, Users Manual
10/20, 7/15/2010:9:39 AM
If appropriate, compliance with exposure guidelines for mobile and unlicensed devices can be
accomplished by the use of warning labels and by providing users with information concerning
minimum separation distances from transmitting structures and proper installation of antennas.
The following statement must be included as a CAUTION statement in manuals and OEM products to
alert users of FCC RF Exposure compliance:
To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation
distance of 20 cm or more should be maintained between the antenna of this device and persons during
operation. To ensure compliance, operation at closer than this distance is not recommended. The
antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
If the A2500R24A and A2500R24C module is used in a portable application (antenna is less than 20 cm
from persons during operation), the end user is responsible for performing Specific Absorption Rate
(SAR) testing in accordance with FCC rules 2.1091.
2.2. Canada (Industry Canada, IC)
The A2500R24A and A2500R24C modules has been certified for use in Canada under Industry Canada
(IC) Radio Standards Specification (RSS) RSS-210 and RSS-Gen.
From section 7.1.1 RSS-Gen, Issue 2, June 2007, Modular Transmitter Approval:
Host devices which contain separately certified modules do not need to be recertified, provided that they
meet the following conditions:
a) The host device, as a stand-alone unit without any separately certified modules, complies with all
applicable Radio Standards Specifications.
b) The host device and all the separately certified modules it contains jointly meet the RF exposure
compliance requirements of RSS-102, if applicable.
c) The host device complies with the certification labeling requirements of each of the modules it
contains.
Note: Compliance of a module in its final configuration is the responsibility of the applicant. A host
device will not be considered certified if the instructions regarding antenna configuration provided in the
original description, of one or more separately certified modules it contains, were not followed.
From section 5.2, RSS-Gen, Issue 2, June 2007, Equipment Labels: All Category I radio equipment
intended for use in Canada shall permanently display on each transmitter, receiver, or inseparable
combination thereof, the applicant's name (i.e., manufacturer's name, trade name or brand name), model
number and certification number. This information shall be affixed in such a manner as not to be
removable except by destruction or defacement. The size of the lettering shall be legible without the aid
of magnification, but is not required to be larger than 8-point font size. If the device is too small to meet
Anaren AIR Module, Users Manual
11/20, 7/15/2010:9:39 AM
this condition, the information can be included in the user manual upon agreement with Industry
Canada.
Label:
Contains IC: 8975A-A10030501
From section 7.1.6, RSS-Gen, Issue 2, June 2007, Digital Circuits: If the device contains digital circuitry
that is not directly associated with the radio transmitter, the device shall also have to comply with ICES-
003, Class A or B as appropriate, except for ICES-003 labeling requirements. The test data obtained (for
the ICES-003 tests) shall be kept by the manufacturer or importer whose name appears on the equipment
label, and made available to Industry Canada on request, for as long as the model is being marketed in
Canada.
For more information see: Industry Canada http://www.ic.gc.ca/
2.3. Europe (Conformité Européenne, )
The MRF24J40MA module has been certified for use in European countries. The following testing has
been completed:
Test standard ETSI EN 300 328 V1.7.1 (2006-10)
• Maximum Transmit Power
• Maximum EIRP Spectral Density
• Frequency Range
• Radiated Emissions
Test standards ETSI EN 301 489-1:2008 and ETSI EN 301 489-17:2008
• Radiated Emissions
• Electro-Static Discharge
• Radiated RF Susceptibility
A helpful document that can be used as a starting point in understanding the use of short range devices
(SRD) in Europe is the European Radio Communications Committee (ERC) Recommendation 70-03 E,
downloadable from the European Radio Communications Office (ERO) http://www.ero.dk.
The end user is responsible for ensuring compliance with harmonized frequencies and labeling
requirements for each country the end device is marketed and sold.
For more information see:
• Radio And Telecommunications Terminal Equipment (R&TTE)
http://ec.europa.eu/enterprise/rtte/index_en.htm
• European Conference of Postal and Telecommunications Administrations (CEPT)
http://www.cept.org/
• European Telecommunications Standards Institute (ETSI) http://www.etsi.org/
• European Radio Communications Office (ERO) http://www.ero.dk/
Anaren AIR Module, Users Manual
12/20, 7/15/2010:9:39 AM
2.4. Potential Interference Sources
The radio modules operate in the unlicensed ISM band, in which there are many other applications e.g.
WLAN, Bluetooth and Microwave Ovens. This can cause interference that may in certain conditions
prohibit radio communication. The user is encouraged to implement a number of channels and to
alternate between those channels based on one of the below methods.
• Sense if a particular channel is clear prior to transmitting (clear channel assessment)
• Pseudo Random channel change
• Select channels with the least interference (site survey)
Some of the most common interferences are listed below.
2.4.1. WLAN
Wireless Local Area Networks are divided into a number of overlapping channels. Figure 5 below show
the channels used by WLAN, for US and Canada only channels 1-13 may be used. Predominantly
channels 1, 6 and 11 are used to achieve non-overlapping channels. The user is therefore encouraged to
select a channel scheme that also has channels falling inbetween, or entirely outside WLAN channels.
Using a detection scheme (clear channel assessment) will enable the user to find channels with minimal
interference from WLAN.
Figure 5 WLAN channels
2.4.2. Bluetooth
Bluetooth divides the band2.402-2.480 GHz into 79 channels, each 1MHz wide. However since Bluetooth
changes channels rapidly (up to 1600 times a second) it is unlikely to cause continuous interference in a
specific channel and can be overcome by implementing a simple acknowledge/retransmit functionality.
2.4.3. Microwave ovens
A typical microwave oven uses a self-oscillating magnetron with a duty cycle below 50% as the tube is
completely off for half of every AC mains cycle: 8.33 ms in 60 Hz countries and 10 ms in 50 Hz countries.
The frequency of the microwave oven changes cyclically within each AC mains synchronized on period
and is generally not predictable.
The user is encouraged to have packet transmission durations less than half the AC mains period and
implement an acknowledge/retransmit method.
Anaren AIR Module, Users Manual
13/20, 7/15/2010:9:39 AM
2.4.4. Other Interference
Other systems similar to what the user is implementing may also exist, some typical applications to
consider are:
• Alarm systems
o These are typically using low duty cycles and are therefore easy to avoid using
acknowledge/retransmit methods
• Car alarms (internal motion sensors)
• Video surveillance
o These are typically operated on a fixed channel, determined at installation time and can
be avoided by using clear channel assessment. It may be useful to change the channel
used by the video surveillance equipment also, if possible.
2.4.5. Time critical data
If the user requires specific time critical data throughput that cannot tolerate the delays of potentially
many re-transmissions, it is encouraged to implement an environment aware algorithm that periodically
monitors/scans the frequency band and maintain a list of “best available” channels.
2.5. Approved Usage
The radio modules can be used in a variety of physical layer configurations, the following restricts the use
to maintain compliance with the above referenced certification bodies.
The user is encouraged to use minimum power required to establish a link, thus minimizing interference.
Changes or modifications to the module and/or operation outside the limits set forth below is prohibited
and could void the user’s authority to operate the modules.
Usage of these radio modules are limited to the following frequency ranges and modulation settings.
Using the radio modules outside of these limitations are prohibited and could void the user’s authority to
operate the modules. The user should use one of the register configurations listed below.
Anaren provides register setting files for optimal performance and compliance for each of the data rates
given in the following at www.anaren.com.
2.5.1. USA & Canada
For use in USA and Canada the modules have been approved for use as digitally modulated transmitters,
for which they must have a minimum occupied bandwidth (6dB) of 500kHz. In addition the spectral
density may not exceed 8dBm/3kHz and the total output power including antenna gain may not exceed
1W. The following table shows configurations that are compliant with this and the expected performance.
Anaren AIR Module, Users Manual
14/20, 7/15/2010:9:39 AM
Expected
Data Rate Deviation F0min F0max Max Power Channel Rx Filter Link Budget
kb/s kHz MHz MHz dBm kHz KHz dB
1.2 140 2401.3 2480.4 1.0 310.242 650.000
2.4 140 2401.3 2480.4 1.0 310.242 650.000
4.8 140 2401.3 2480.4 1.0 310.242 650.000
10 140 2401.3 2480.4 1.0 310.242 650.000
20 140 2401.3 2480.4 1.0 310.242 650.000
40 140 2401.3 2480.4 1.0 310.242 650.000
75 140 2401.3 2480.4 1.0 310.242 650.000
125 140 2401.3 2480.4 1.0 310.242 650.000
250 140 2401.3 2480.4 1.0 310.242 650.000
SuggestedRequirement
In a frequency agile implementation or an implementation with multiple systems sharing the same
location, using 2FSK or GFSK, it is recommended to only use even channel numbers to avoid overlapping
channels, 127 channels would thus be available.
Expected
Data Rate Phase F0min F0max Max Power Channel Rx Filter Link Budget
kb/s MHz MHz dBm kHz KHz dB
420 0 2401.8 2480.3 1.0 307.861 812.500
500 0 2401.8 2480.3 1.0 307.861 812.500
MSK Modulation
Requirement Suggested
In a frequency agile implementation or an implementation with multiple systems sharing the same
location, using MSK, it is recommended to only use every 3rd or 4th channel to avoid overlapping
channels, 85 or 64 channels would thus be available.
It is encouraged to use a medium access technique with should include addressing of individual
transceiver node and should include either a clear channel assessment, transmit and detect, a frequency
hopping method or any combination. This ensures that the un-licensed band can be shared with other
systems/applications.
2.5.2. Europe
For Europe the maximum power is 100mW, with a maximum spectral density of 10mW per MHz but
there is no minimum occupied bandwidth requirement. However to make a product that will ship into
both US/Canada and Europe the settings for US/Canada must be used.
For Europe a medium access protocol is required. The transceiver module provides the following
medium access services:
• Clear channel assessment
• 8 bit address
• Receive packet qualification (Address, CRC)
• Packetized/Frame handling
Anaren AIR Module, Users Manual
15/20, 7/15/2010:9:39 AM
3. Electrical Characteristics
3.1. Absolute Maximum Ratings
Under no circumstances must the absolute maximum ratings given in Table 2 be violated. Stress
exceeding one or more of the limiting values may cause permanent damage to the device.
Caution!
ESD sensitive device. Precaution should be used
when handling the device in order to prevent
permanent damage.
Parameter Min Max Unit Condition/Note
Supply Voltage (Vdd) -0.3 3.9 V
Voltage on any digital pin -0.3 Vdd+0.3,
max 3.9
V
RF input power +10 dBm
Storage Temperature -50 150 ˚C
Solder reflow temperature 260 ˚C According to IPC/JEDEC J-STD-
020D
ESD <500 V According to JEDEC STD 22,
method A114, Human body
model
ESD 400 V According to JEDEC STD 22,
C101C, Charged Device Model
(CDM)
Table 2 Absolute Maximum Ratings
3.2. Operating Conditions
Parameter Min Max Unit Condition/Note
Supply Voltage (Vdd) 1.8 3.6 V
Temperature Range -40 +85 ˚C
Anaren AIR Module, Users Manual
16/20, 7/15/2010:9:39 AM
3.3. Pin Out
The A2500R24CG00 and A2500R24AG00 radio’s share a common pin-out and foot print, that is also
shared by Anaren modules using other frequencies. Thus enabling easy changeover from one to another,
e.g. if it is desired to change the frequency or antenna scheme or if the adaptive antenna tuning is needed.
Below the common footprint are shown.
Pin # Pin Name Pin Type Description
1 DNC NC Do Not Connect. Internal GND connection used during testing,
not recommended to connect to main GND.
2 DNC NC Do Not Connect. Internal RF output connection used during
test. Connecting this pin to anything will require recertification
for intentional radiators.
3 DNC NC Do Not Connect. Internal GND connection used during testing,
not recommended to connect to main GND.
4 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
5 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
6 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
7 Vdcoup1 Analog Optional decoupling of the modules internal Vdd supply. It is
recommended to not connect anything to this pin. In particular
noisy environment this pin can be used to further reduce the
noise on the modules internal Vdd, please see section 3.4 for
further information.
8 GND Ground One of two primary ground pins
Anaren AIR Module, Users Manual
17/20, 7/15/2010:9:39 AM
9 SCLK Digital
Input
SPI bus clock signal
10 MISO/GDO1 Digital
Output
SPI bus data out from radio when CSN is low, and general
purpose I/O pin when CSN is high
11 MOSI Digital
Input
SPI bus data into radio
12 _CSN Digital
Input
SPI bus select (active low)
13 GDO0 Digital I/O
(Analog
output)
General purpose port
14 GDO2 Digital I/O General purpose port
15 Vdcoup2 Analog Optional decoupling of the modules internal Vdd supply. It is
recommended to not connect anything to this pin. In particular
noisy environment this pin can be used to further reduce the
noise on the modules internal Vdd, please see section 3.4 for
further information.
16 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
17 GND Ground One of two primary ground pins
18 Vdd Power
Supply
Power supply pin
19 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
20 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
21 NC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
22 DNC NC Do Not Connect. Internal GND connection used during testing,
not recommended to connect to main GND.
23 DNC NC No Connect, the pin is not connected internally, but is reserved
for future expansion. It is recommended not to connect this pin
to anything.
24 DNC NC Do Not Connect. Internal GND connection used during testing,
not recommended to connect to main GND.
Table 3 Pin Descriptions
Anaren AIR Module, Users Manual
18/20, 7/15/2010:9:39 AM
3.4. Recommended Layout
Figure 6 Recommended PCB layout.
Anaren AIR Module, Users Manual
19/20, 7/15/2010:9:39 AM

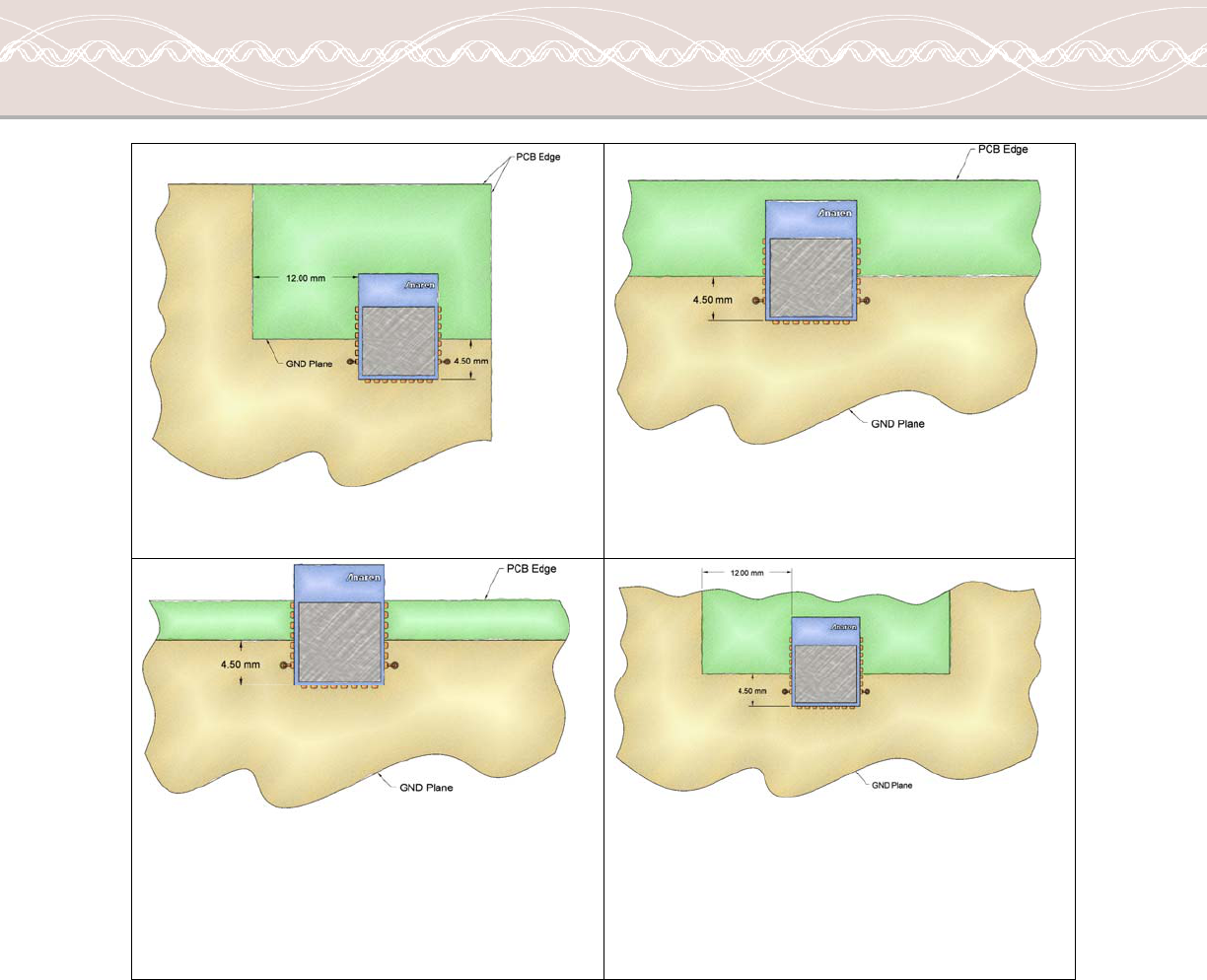

Figure 7 Mounting the module in a corner
Figure 8 Mounting the module along an
edge
Figure 9 Mounting the module along an
edge with overhang. This option is not
generally recommended, but is a method to
save PCB in an environmentally beneign
environment
Figure 10 Mounting the module along an
edge, with a ground plane cut-out. This
option degrades range slightly.
3.5. Power Supply Considerations
Noise on the power supply line reduces the sensitivity of a receiver and modulates onto a transmitters
signal, both of which causes a degradation of link quality and hence a reduction in range.
Anaren AIR Module, Users Manual
20/20, 7/15/2010:9:39 AM
The A2500R24C and A2500R24A radio modules have integral ferrite bead in the supply line from pin 18
(Vdd) and decoupling capacitance to reduce any noise on the incoming power supply line. This
arrangement will take care of most supply voltage noise. In particular noisy environments (switching
regulators, motor controls, etc.) it may be necessary to add additional noise reduction means.
Pin 7 (Vdcoup1) is connected to the modules internal supply line after the ferrite bead and decoupling
capacitors and can be used to probe the noise at module level. The noise level measured on pin 7 should
not exceed 120mVpp when in transmit or receive mode, it may however exceed this value when setting
up or accessing data to/from the FIFO’s while not actively transmitting or receiving.
If the level measured is exceeding the above limit means should be taken to ensure maximum range:
• Add decoupling capacitance to pin 7 (Vdcoup1).
• Add additional filtering in the supply line.
• Add an LDO in the supply line (the TPS731xx low Dropout Regulator from TI is recommended)
