Anbash Technology NC633SW Network Camera User Manual
Shenzhen Anbash Technology Co., Ltd. Network Camera
User manual
![](/img.php?id=3167443&img=bg1.png)
User Guide
Your rst steps to smart monitoring
![](/img.php?id=3167443&img=bg2.png)
3
Important safety and legal Information
We have taken all measures to ensure the Babelens
Video Monitor meets the highest safety standards but
it must be setup and used correctly. Please take a few
moments to read through the following information:
The Babelens Video Monitor is only for use as a parenting aid for
monitoring your baby/child in safe conditions while you are in the same
house. The Babelens Video Monitor should not be used to replace adult
supervision and you should still regularly check on your baby/child.
You should only use the Babelens Video Monitor if your baby/child is
healthy, it should not be used to replace equipment for monitoring a
baby/child with special medical needs.
Before and during use, ensure all cables attached to the Babelens
Video Monitor are secure and are out of reach of baby. Please use the
cable clips provided to ensure that cables are firmly secured before
placing the Babelens Video Monitor near your child.
Do not place in high humidity environments such as showers, bathrooms
or outdoors. Keep away from liquids. Do not try to disassemble the
Babelens Video Monitor. It contains small parts which may pose a
choking hazard to young children. Only use approved accessories and
power supply. Infrared LED lights produce heat and can be a fire hazard.
Do not cover the Babelens Video Monitor when in operation. Ensure the
Babelens Video Monitor is properly mounted before use. Direct sunlight
and reflections may damage the lens.
If at any point you are concerned or have questions about the Babelens
product, please email us at hello@babelens.com for assistance.
2 3
![](/img.php?id=3167443&img=bg3.png)
Thank you for choosing the
Babelens Video Monitor
The video monitor is designed for modern parents
who want to view, hear and monitor their baby through
Android & iOS Devices.
How Babelens works:
Easy setup
Setup the Monitor with your network directly from the
Babelens app on your Device. No computer needed.
Lullabies
Babelens can play many lullabies in micro SD card to help lulling
your baby fall asleep.
Nightlight
Only Babelens can emits soft white light which will not affect the
baby’s sleep.
Double-layer security
Leading encryption methods plus password protection ensures you
have total control over who can access your monitor.
Night vision
The night vision uses invisible infrared light so you can see clearly in
complete darkness without disturbing baby’s sleep.
Zero interference
Babelens uses your Wi-Fi network so your wireless signal
won’t be affected or suffer from interference like some
traditional baby monitors.
View your baby anywhere
View from anywhere over 3G, 4G, Wi-Fi - free to use, no on-going
charges.
— Perfectly simple, reassuringly secure
4 5
Your Wi-Fi network
●The Babelens Video Monitor connects
to your network with either Wi-Fi or
network cable.
●The Babelens Video Monitor can be used
with HomePlugs or Wi-Fi range extenders
should you need to cover excessive
distances.
●For better security you can change the
default password for your Babelens,
and create other login account to
restrict its privilege.
●Babelens supports both Android & iOS
devices with Babelens App.
![](/img.php?id=3167443&img=bg4.png)
7
The Babelens Video Monitor
6
You will also need:
Power supply
With UK/US/EU
plug attachments
Ethernet cable
Use to setup the Babelens
Video Monitor
A smart device
Smart phone or Pad running
iOS or Android system.
A spare Ethernet port on
your router
Just for setup. Your router
was most likely given to you
by your Internet provider.
Your Wi-Fi Password to
your home network
For the same router your
Babelens is plugged into.
Not needed for network
cable connection.
Mounting screws
For wall or ceiling mounting
Babelens Video Monitor
To monitor your baby
Monitor stand
To place on a flat surface
or attach to the ceiling or
the wall
What’s in the box
2x
Power cable socket
Ethernet cable port
For setting up the Monitor
or to stay connected via cable
WPS button
WPS (Wi-Fi Protected
Setup) button to easily
connect with your WPS
compatible Wi-Fi Router.
Rear
Status LED
Lens
Light sensor
Detects when to
automatically switch
to night vision
Infrared LED
Lights up room
with invisible light
Front
Speaker
Reset button
Will reset the Monitor to
factory default settings
![](/img.php?id=3167443&img=bg5.png)
98
1. Power up and connect the Monitor to your router
Plug the power cable into the
power socket on the back of the
Babelens Video Monitor
Plug the other end of Ethernet
cable into the Ethernet port on
the back of the Babelens Video
Monitor
Plug the provided Ethernet cable into
a spare Ethernet port on your router
Plugging in the Monitor
1
Need help at any stage? Get help or read more at http://support.babelens.com
1. Connect your Smartphone to your Wi-Fi network
Install the Babelens app
2
Note: This should be the same
Wi-Fi network being broadcast
from the router in Step 1
2. Find the Babelens app in the App Store or Play Store
3. Install the Babelens app
Search for “Babelens” or scan the QR code to get to the
download page (QR scanner app required):
Or visit www.babelens.com/app/install
![](/img.php?id=3167443&img=bg6.png)
1110

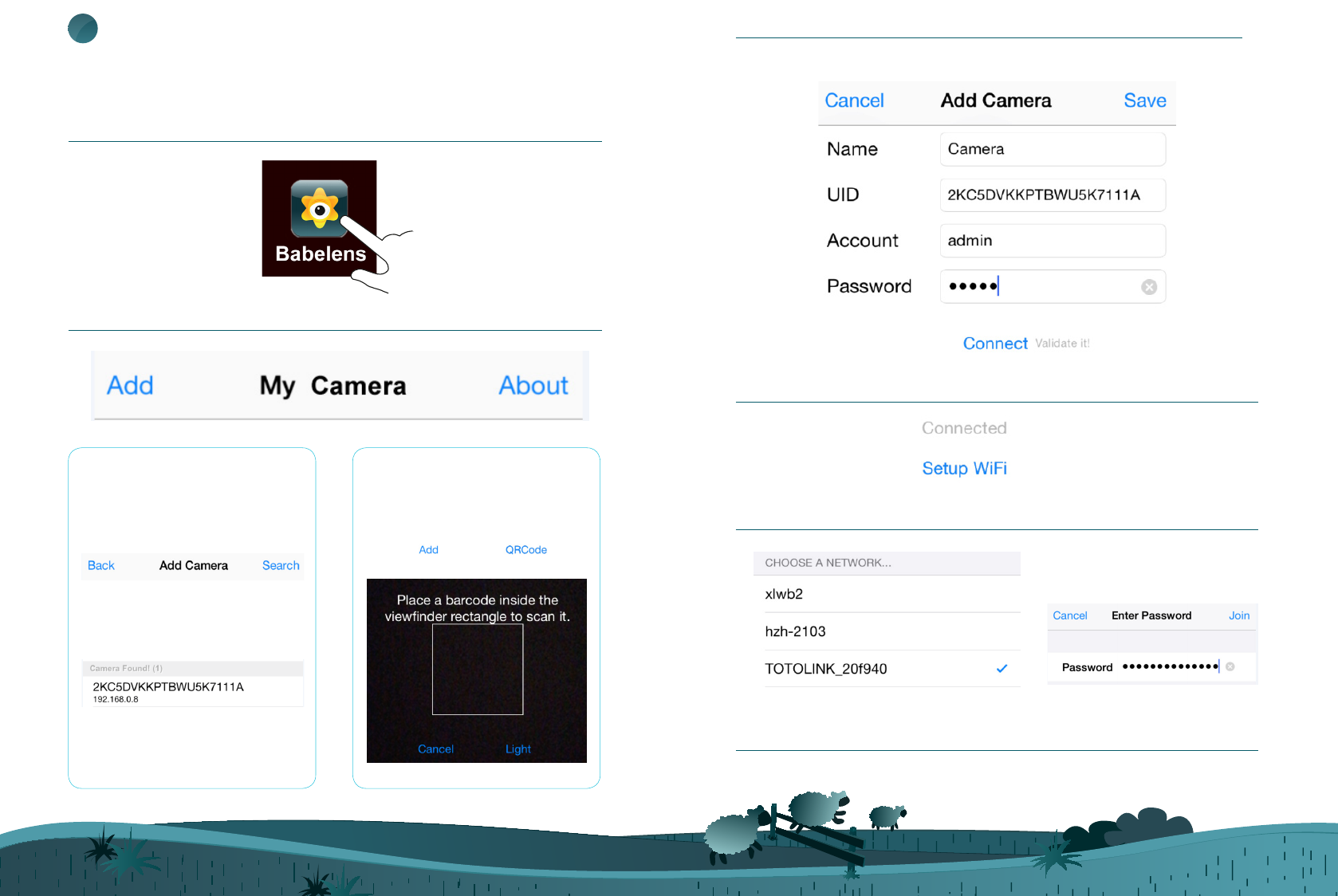

1. Run the Babelens app
2. Add your camera Press “Add” button
Connecting your Monitor device
with Babelens
3
Press “Search” to scan the
camera on the same network
Press the camera you found to
connecting
OR
Press “QRCode” to scan your
Babelens’ QRCode
3. Enter the password & Press “Connect”
4. Setup the Wi-Fi connection Press “Setup WiFi”
5. Choose your Wi-Fi SSID
Default password is “admin”
Enter your Wi-Fi password &
Press “join”
6. Save your settings, Press “Save”
![](/img.php?id=3167443&img=bg7.png)
12 13

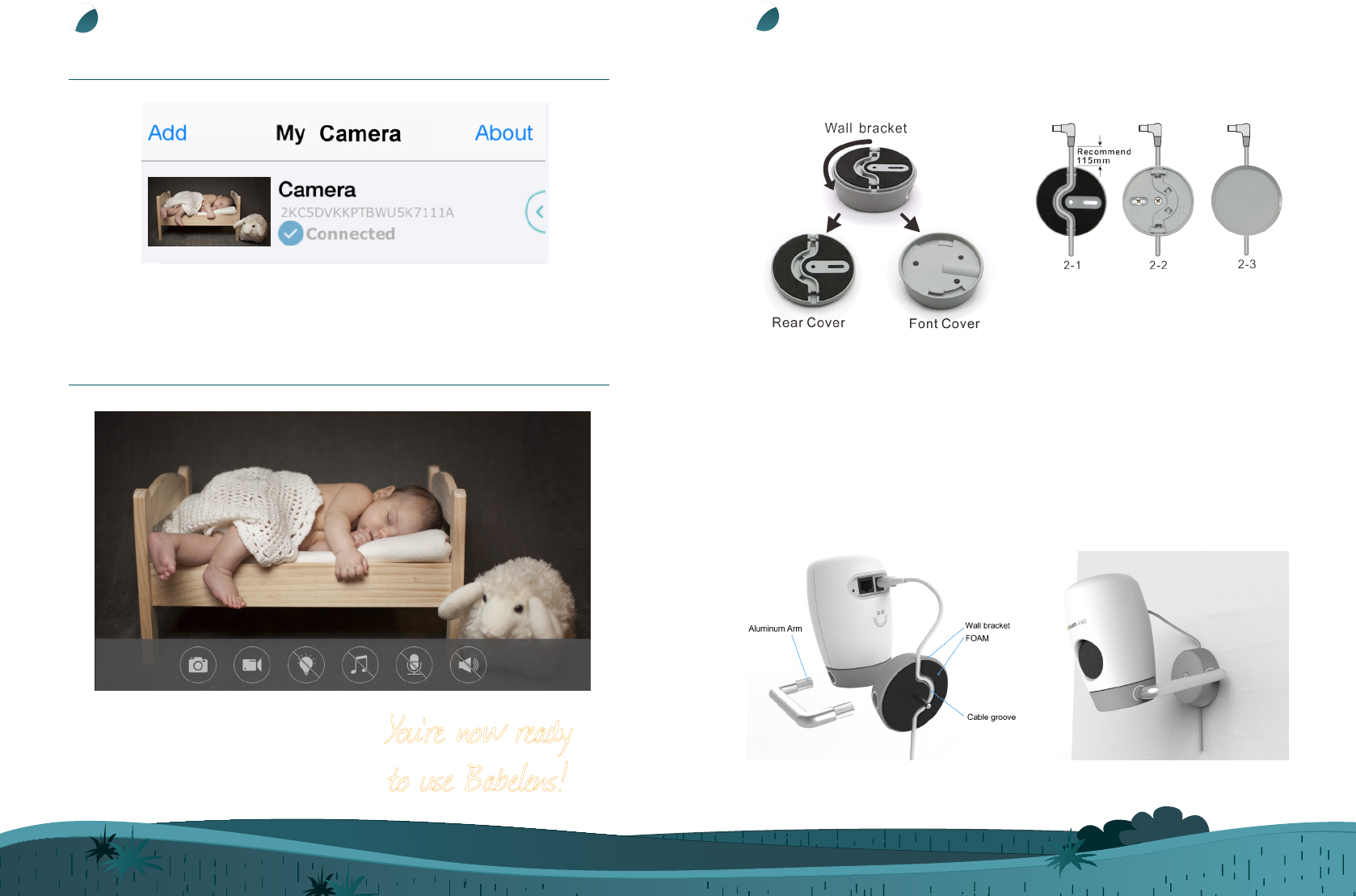

View your baby on your monitor
4
1. Press the camera
2. You can view your baby know
Mounting the Monitor
Yo u ’re now ready
to use Babelens!
5
Unscrewed the Rear Cover of
the Wall bracket
1Mount the bracket to the Wall,
at surface or the ceiling.
2
2-1, Put the power supply cable in the rear cover
groove, The recommended cable length from the
plug to the cover is 115mm.
2-2, Screwed the rear cover to the wall, at
surface or the ceiling.
2-3, Put the font conver back on the rear conver.
Use the aluminim arm to link up the Babelens and the Wall bracket
3Simple wall mount, With an aluminum multi adjustable verical arm. The Babelens housing can
turn 360 degrees in horizontal direction around a metal rod in the parting line between the bottom
part and the main camera housing.
![](/img.php?id=3167443&img=bg8.png)
14 Usage tips
Using Babelens at a friend’s house
When going to a friend’s house or travelling you need your:
●Babelens Video Monitor
●Babelens Video Monitor power supply
●1m network cable
●Smartphone
●Friend’s Wi-Fi password
Connecting Babelens Video Monitor to someone else’s network:
1
Connect Your Babelens Video Monitor to your friend’s router with
a network cable
2
Connect your Smartphone to your friend’s Wi-Fi network
3
Open the Babelens app and open settings when your Babelens
Video Monitor is connected
4
Open Wi-Fi setup and input your friend’s Wi-Fi password
5
Wait for Babelens Video Monitor to verify connection
6
Remove network cable and the Babelens Video Monitor is ready to use.
Use Babelens on multiple Smartphone
You can use Babelens with more than one Smartphone at the same time.
Due to home network bandwidth limitations, we do not recommend
using more than 3 devices to access the Babelens Video Monitor at
any one time for better video performance.
15
Need further help?
If you need more help or wish to communicate with other Babelens users
about the product, visit our support centre: http://support.babelens.com
Babelens Video Monitor Warranty
●Should this product prove faulty within 12 months of purchase due to a
materials or manufacturing fault please return it to the original place of
purchase.
●For guarantee purposes proof of purchase will be required.
●We recommend that you retain your receipt and attach it to this guide,
which should be kept in a safe place.
●The manufacturer does not accept liability for damage arising from
abuse, misuse or negligence.
●This guarantee is not transferable and therefore does not apply
to second-hand products.
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment
into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
![](/img.php?id=3167443&img=bg9.png)
16
Baby monitors just grew up…
hello@babelens.comwww.babelens.com
